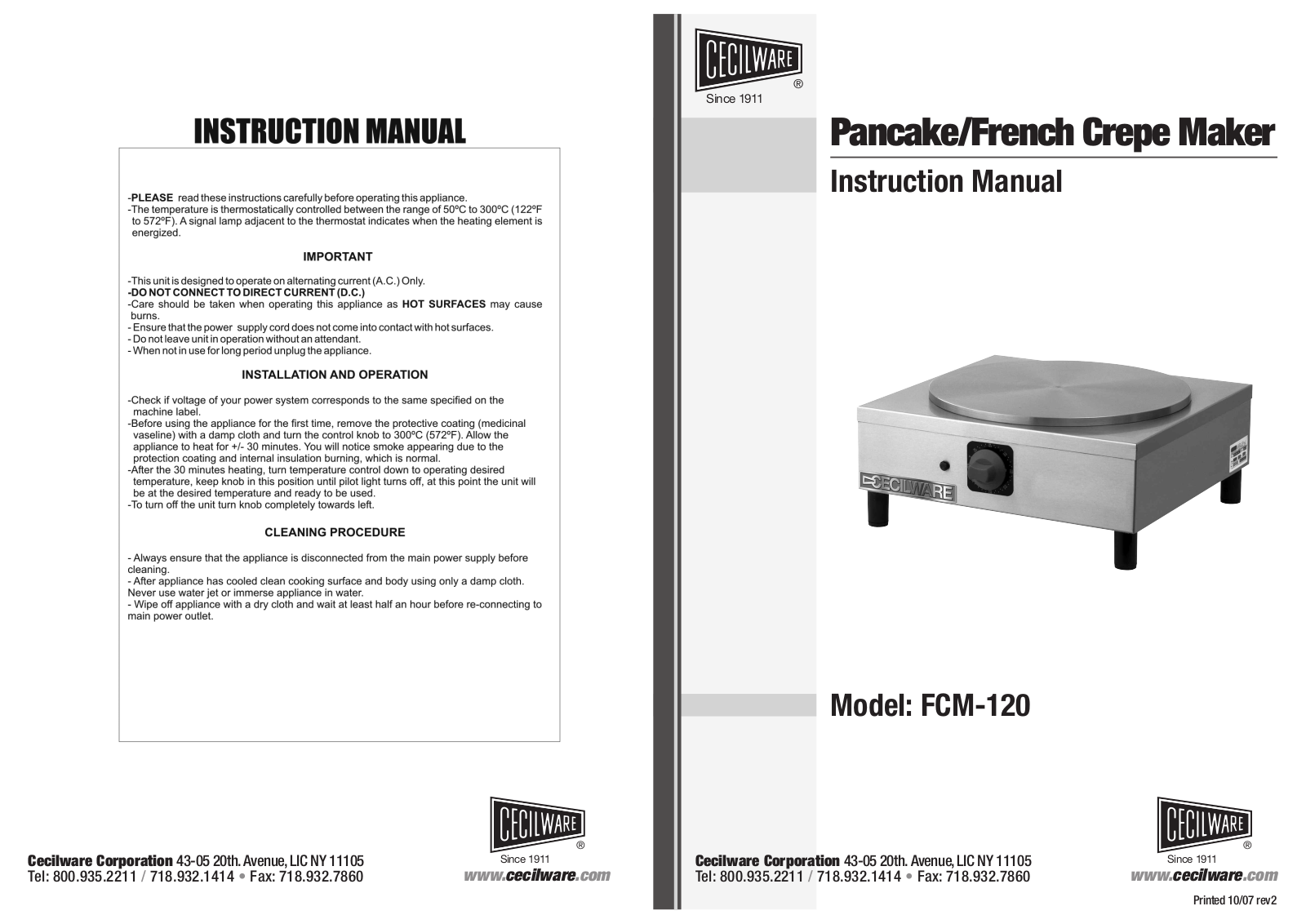

Cecilware FCM-120 Installation Manual
Since 1911
®
Pancake/French Crepe Maker
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: FCM-120
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2
Pancake/French Crepe Maker
Instruction Manual
Model: FCM-120

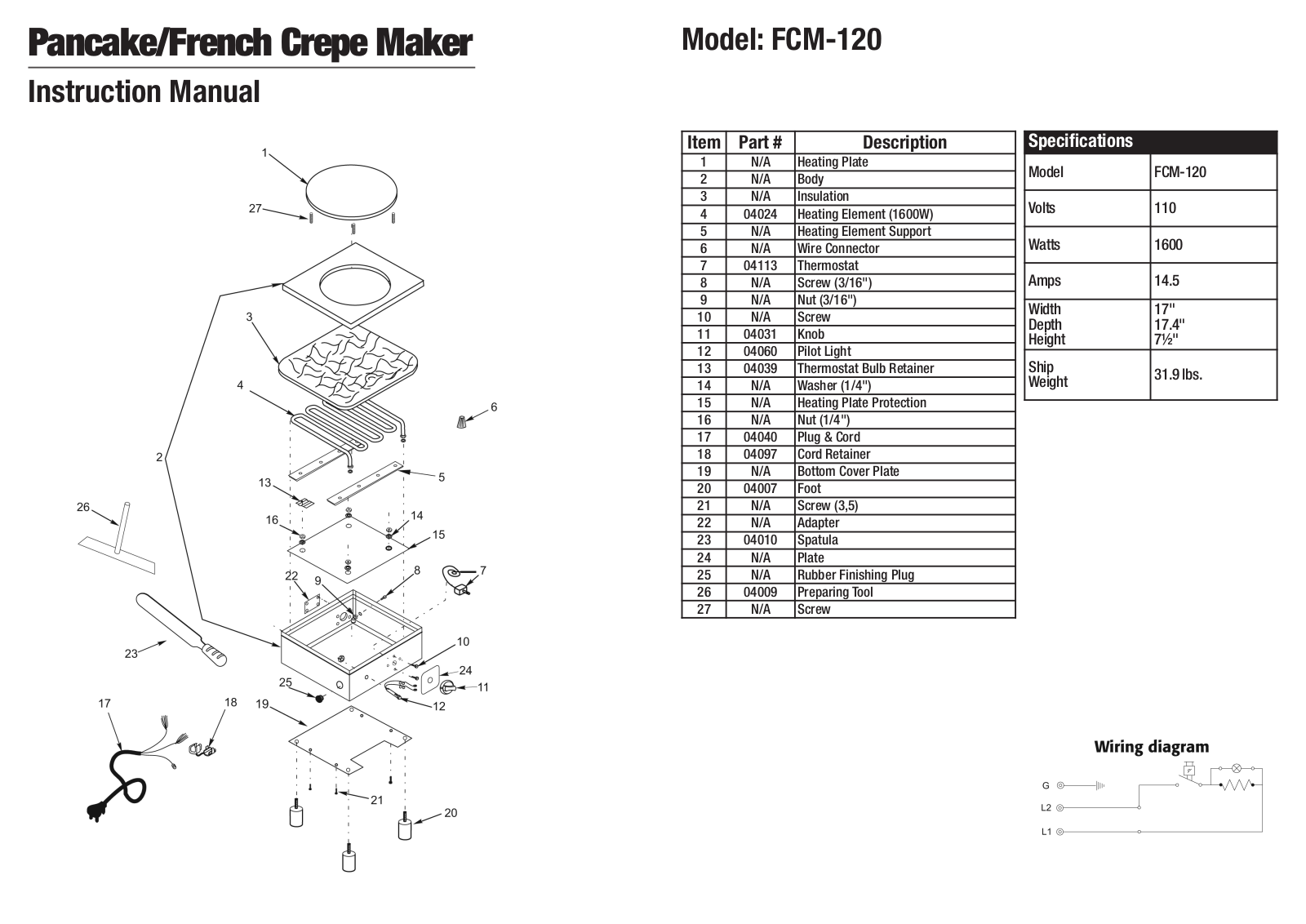

Item Part # Description
1 N/A Heating Plate
2 N/A Body
3 N/A Insulation
4 04024 Heating Element (1600W)
5 N/A Heating Element Support
6 N/A Wire Connector
7 04113 Thermostat
8 N/A Screw (3/16")
9 N/A Nut (3/16")
10 N/A Screw
11 04031 Knob
12 04060 Pilot Light
13 04039 Thermostat Bulb Retainer
14 N/A Washer (1/4")
15 N/A Heating Plate Protection
16 N/A Nut (1/4")
17 04040 Plug & Cord
18 04097 Cord Retainer
19 N/A Bottom Cover Plate
20 04007 Foot
21 N/A Screw (3,5)
22 N/A Adapter
23 04010 Spatula
24 N/A Plate
25 N/A Rubber Finishing Plug
26 04009 Preparing Tool
27 N/A Screw
Specifications
Model FCM-120
Volts 110
Watts 1600
Amps 14.5
Width
Depth
Height
Ship
Weight
17"
17.4"
7½"
31.9 lbs.
