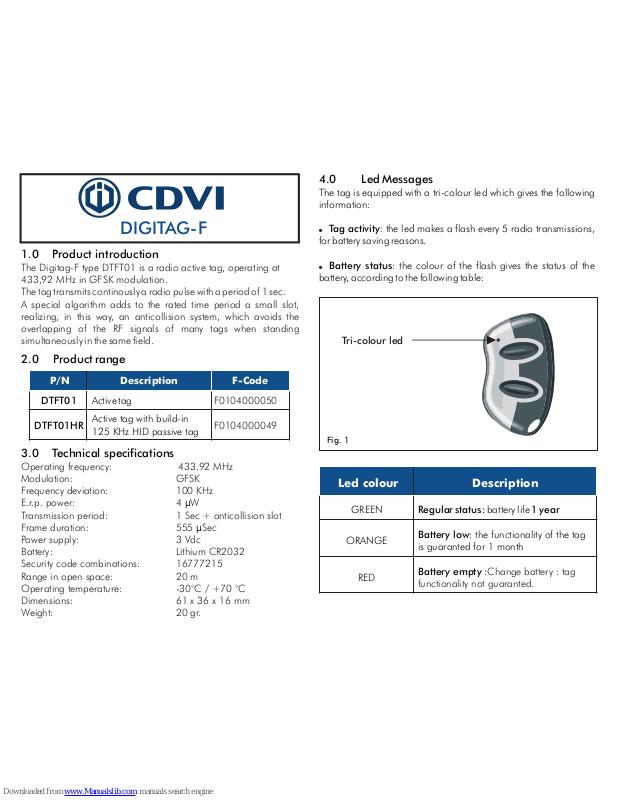

CDVI DIGITAG-F DTFT01, DIGITAG-F DTFT01HR User Manual

1.0 Product introduction

2.0 Product range

3.0 Technical specifications

The Digitag-F type DTFT01 is a radio active tag, operating at
433,92 MHz in GFSK modulation.
The tag transmits continously a radio pulse with a period of 1 sec.
A special algorithm adds to the rated time period a small slot,
realizing, in this way, an anticollision system, which avoids the
overlapping of the RF signals of many tags when standing
simultaneously in the same field.

Operating frequency: 433.92 MHz
Modulation: GFSK
Frequency deviation: 100 KHz
E.r.p. power: 4 ìW
Transmission period: 1 Sec + anticollision slot
Frame duration: 555 ìSec
Power supply: 3 Vdc
Battery: Lithium CR2032
Security code combinations: 16777215
Range in open space: 20 m
Operating temperature: -30°C / +70 °C
Dimensions: 61 x 36 x 16 mm
Weight: 20 gr.

Led colour

Description

GREEN

Regular status: battery life 1 year

ORANGE

Battery low: the functionality of the tag
is guaranted for 1 month

RED

Battery empty :Change battery : tag

functionality not guaranted.

DIGITAG-F

Tri-colour led

4.0 Led Messages

The tag is equipped with a tri-colour led which gives the following
information:

Tag activity: the led makes a flash every 5 radio transmissions,

for battery saving reasons.

Battery status: the colour of the flash gives the status of the

battery, according to the following table:

!

!

Fig. 1

P/N

Description

F-Code

DTFT01

Active tag

F0104000050

DTFT01HR

Active tag with build-in
125 KHz HID passive tag

F0104000049

LED

Key-holder ring

Battery door

Fig. 2

Fig. 3

CR2032

Battery access

Fig. 4

Contact (+)

Contact (-)

Manufactured by

ELPRO INNOTEK S.p.A. - CDVI GROUP

Via Piave, 23

31020 S.Pietro di Feletto (TV) - ITALY

The guarantee period of this product is 24 months, beginning from
the manufacturing date. During this period, if the product does not
work correctly, due to a defective component, it will be repaired or
substituted at the discretion of the producer. The guarantee does not
cover the plastic container integrity.
After-sale service is supplied at the manufacturer factory.

Guarantee

IS-DTF01UK Rev. 1 on 13/05/2013

This device complies with FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.

Part. 15 of the

FCC ID : PWJDTFT01

ATTENTION: the tag is provided with a transparent strip
which prevents the automatic transmission.
Remove it before use.

This EUT is in compliance with MPE for general
population / uncontrolled exposure limits and it
had been tested in accordance with the
measurement methods and procedures specified in

!

RF EXPOSURE WARNING

FCC 47 CFR § 1.1310 and 2.1091
To satisfy FCC RF exposure requirements for mobile transmitting
devices, a separation distance of 20 cm or more should be
maintained between the antenna of this device and persons
during device operation. To ensure compliance, operations at
closer than this distance are not recommended. The antenna
used for this transmitter must not be co-located in conjunction
with any other antenna or transmitter.
