CDVI ARD2/12 Installation Manual

ARD2/12

Group Products

MANUEL D’INSTALLATION

Alimentation redressée et ltrée

GamGamme : Alimentations

INSTALLATION MANUAL

Rectied and ltered PSU

Range: Power supplies /

2

cdvi.com
cdvigroup.com

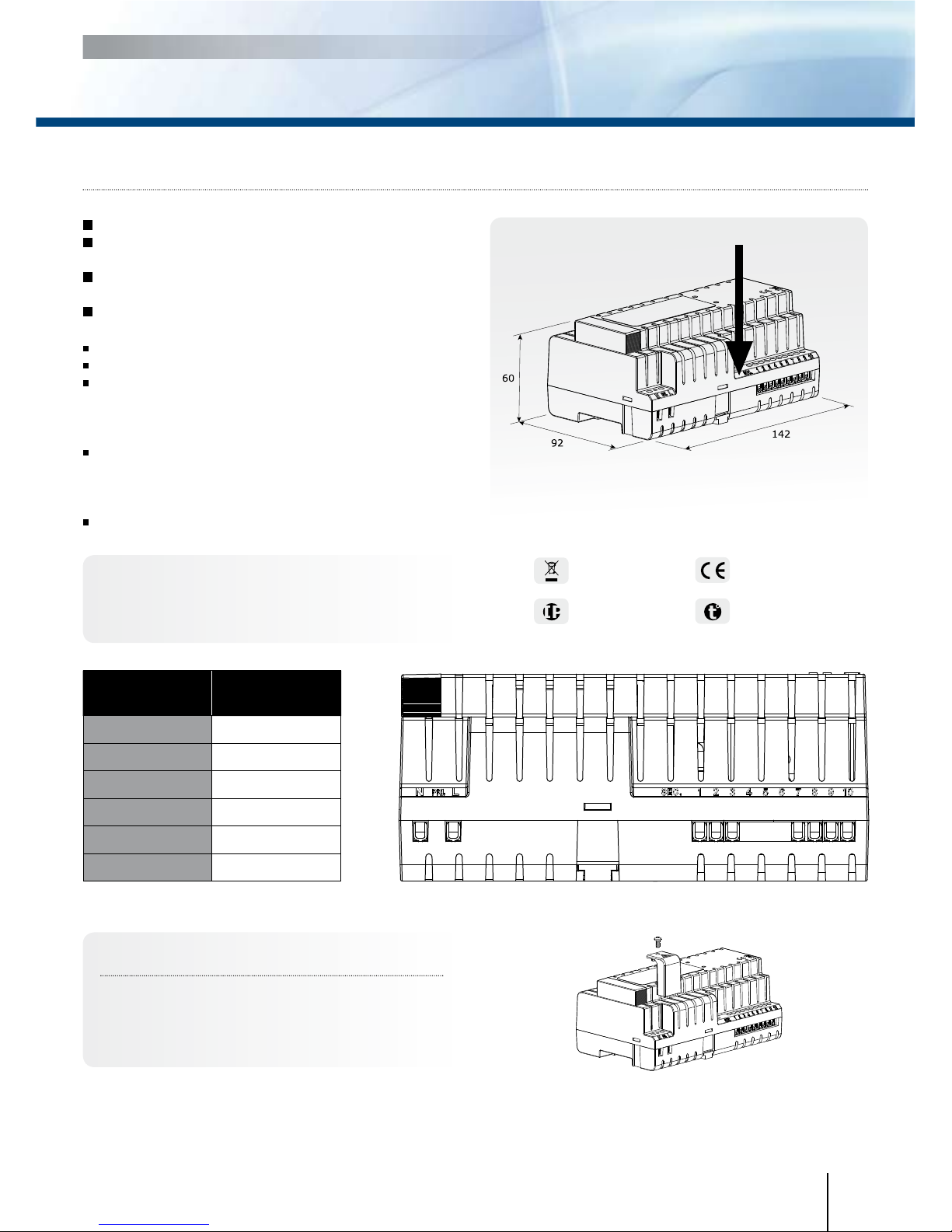

ARD2/12

Recti ed and  ltered PSU

INSTALLATION MANUAL

TERMINAL

BLOCK OUTPUTS

VOLTAGE

1 12V ac
2 12V ac

7 - 8 0V dc

9 - 10 +12V dc

N 230V ac
L 230V ac

Designed for locking devices

with electromagnetic locks.

Recti ed,  ltered and not regulated PSU.
Primary and secondary inputs

protected by automatic fuses.

Additional AC output.

Input voltage: 230V ± 10%, 50/60 Hz.
Max power consumption : 0.16A.
2 outputs:

- Main 12V dc recti ed and  ltered

and non-regulated.

- Additional 12Vac.
Maximum load current:

- 12V dc output / 1.5A (nominal), 2A (peak),

- 12V ac output / 0.3A.

Wall  xing (screw and plastic anchor included)*

N

1 7 9

L

2 8 10

Mains terminal block cover in the event of mounting

outside a standard electrical equipment box.

*Wall  xing
on each side

PRODUCT PRESENTATION

IP20

-25°C to +55°C

CE compliance

WEEE & RoHS

COMPLIANT WITH EUROPEAN STANDARDS

EN 55022
EN 61000-3-2
EN 61000-3-3

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4

EN 61000-4-5
EN 61000-4-6
EN 61000-4-11

This product must be installed in accordance
with the local safety standards.

Inputs and outputs protected by resettable fuses.
(After an overload or short-circuit, disconnect
the network for 1 minute to reset the fuse.)
