SVW140 Warming Drawer
Manual for Installation, Use and Maintenance
Mains Electricity Connection
CONTACT A QUALIFIED TECHNICIAN TO CARRY OUT THE APPLIANCE ELECTRICAL CONNECTION.
Important : Before connecting the drawer to the domestic power supply to check its operation, always make sure the
drawer power cable is correctly fitted and NOT squashed or caught under or behind the drawer or a combined appliance.
Important : Power cable replacement must be made with a cable having the same characteristics as that supplied by the
Manufacturer (type H05RR-F, 3x1 mm2 or higher) and carried out by the After-Sales Service or a qualified technician.
Before connecting the appliance to the power supply, make sure that the technical specifications (voltage: V and
frequency: Hz) given on the rating plate match those of the power mains. In case of doubt, contact a qualified
technician. If the plug is removed from the power cable, contact a qualified technician for fitting and connecting the
appliance. Contact an electrician aware of the local regulations and the electricity company’s regulations, ensuring that
the work is carried out in compliance with the same.
Important : Make sure the appliance is connected to an approved earth wire, to guarantee electrical safety.
If necessary, have the system checked by a specialised technician.
The Manufacturer declines any liability for injury and damage due to the lack or interruption of the earth wire.
Important : The earth connection is compulsory by law.
• If the appliance is connected to the power supply by means of an extension cord, make sure the cord and
connection are insulated against moisture.
• The appliance is designed to be used only when correctly fitted.
• Never open the appliance casing. In case of contact with live wires or if the electrical and mechanical structure of
the appliance is modified, an appliance fault may occur when it is used.
• If the installation, maintenance or repair works are not carried out correctly, there may be risks for the user.
The Manufacturer declines any liability for damage or injury in such cases.
• During the warranty period, repairs must only be carried out by the authorised technical service, otherwise the
warranty will be invalidated.
• Installation, repair and cleaning operations must only be carried out after ensuring that the appliance is
disconnected from the power supply. The appliance is disconnected from the power supply in the following cases:
- The main power switch is off.
- The safety switch is turned off.
- The appliance is unplugged.
• Grip the plug and not power cable to unplug the appliance.
• It is advisable to connect the appliance to the power supply by means of a socket; this will facilitate technical
assistance operations, if necessary.
• Ensure that the socket is accessible even once the appliance has been fitted.
• If connection is not made by means of an electrical socket, contact an electrician aware of the local regulations and
the electricity company’s regulations, ensuring that the work is carried out in compliance with the same.
• If the socket is no longer accessible after fitting the appliance or if a fixed connection is provided for, a separation
device for each pole must be arranged by the installer.
• Switches with contact opening of at least 3mm are valid separation devices.
• The specifications necessary for connection are given on the dataplate. These specifications must match those of
the power supply.
• The Manufacturer declines any liability for injury or damage due to incorrect installation, improper,
wrong and unreasonable use of the appliance.
• The Manufacturer also declines any liability for damage (e.g. electric shock) caused by the lack or
interruption of the earth wire.
• After installation, all the parts of the appliance must be insulated, to prevent accidents during operation.
Before Using the Warming Drawer
When using the appliance for the first time, clean it as follows:
• Clean the surface with a damp cloth, then dry.
• Preheat the empty drawer for at least 2 hours: turn the temperature knob to the max. position in order to eliminate
any manufacturing residuals (grease, oil or resins) which could cause unpleasant odours during cooking. Air the room.
• After carrying out this simple operation, the appliance will be ready for first use.
Before using the appliance, remove:
• Stickers on the front and warming drawer door, except the rating plate;
• Cardboard protection and protective plastic film from all the aesthetic parts, if present. and from the front panel
controls and other parts of the warming drawer;
• Any stickers from the accessories if present.

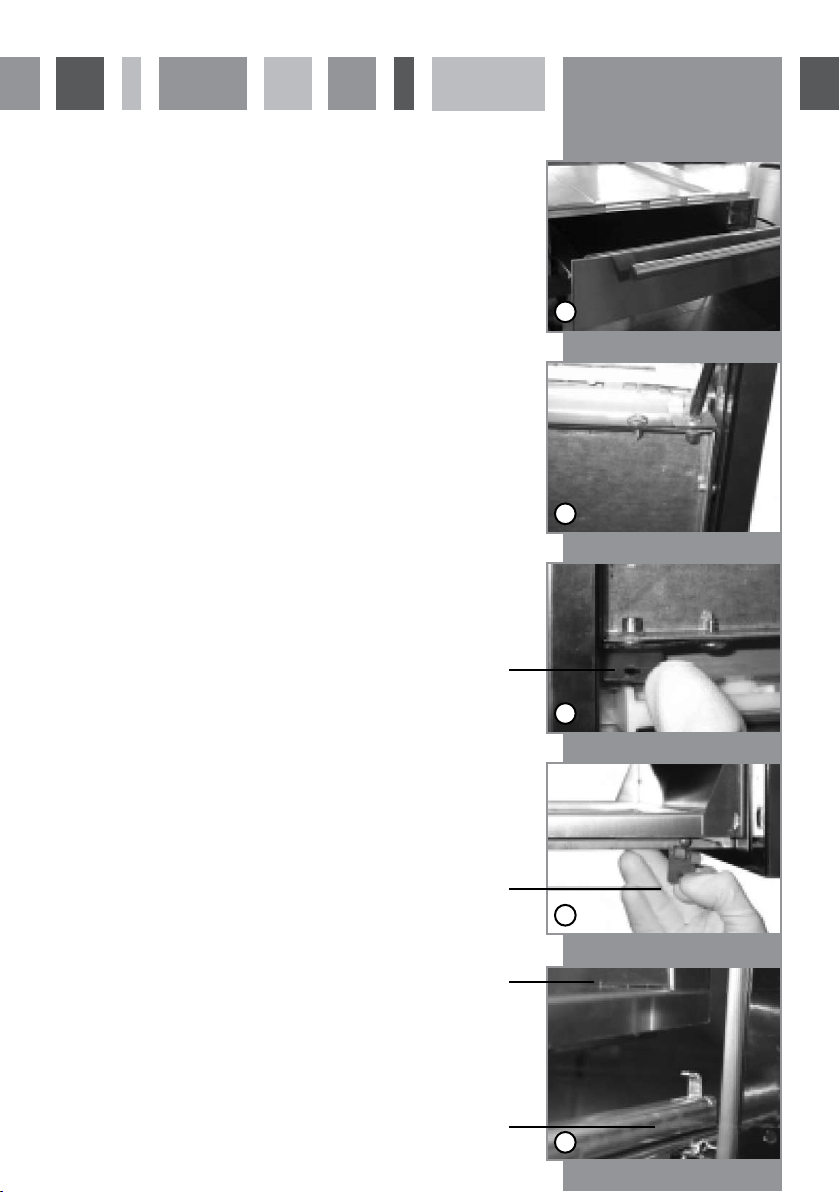

Installation
Important : The warming drawer must be immediately fixed to the
cabinet, complying with the following instructions. Do not install the
combined electrical appliance provided for, before fixing the warming
drawer to the cabinet.
Spacers : fix the drawer as shown opposite.
Note : should it be necessary to align the appliance aesthetically with
other combinations of product, the drip tray at the bottom can be
removed and eliminated by unfastening the two fixing screws.
• Before connecting the appliance to the power supply, compare the connection data (voltage and frequency) given on
the dataplate with that of the electrical mains.
• The data must match, otherwise the appliance could become damaged.
• In case of doubt, contact a qualified technician.
• Make sure the socket can be easily accessed even after the appliance has been fitted.
• The warming drawer can only be fitted in combination with other appliances not weighing more than 40 kg and
provided with adequate cooling ventilation. Otherwise, the right to the warranty is invalidated, since correct use cannot
be guaranteed.
• For combined appliance installation comply with the instructions given in the relevant use and installation handbook.
• Fitting and installation of this appliance must only be carried out by qualified personnel who guarantee that the
requirements for safe use are met.
Measurements
• All measurements are given in mm.
Using Your
Warming Drawer
Operation
• Place the dishes in the drawer
• Set a temperature
• Switch the appliance on; the switch lights up
• Close the drawer gently
• Switch the appliance off before removing the warmed dishes
Selecting the Temperature
• The temperature knob enables a temperature adjustment of
between approx. 30°C and 85°C.
• Turn the temperature knob all the way clockwise to max. and
then anticlockwise.
• Do not force it past the stop, otherwise the thermostat will be
damaged.
• The temperature scale does not indicate the absolute
temperature values in °C, but gives symbols that represent the
optimum temperature for the respective dish group.
Warming Times
The time necessary for warming dishes, glasses, etc. depends on
various factors:
• Material and thickness of the dishes
• Load amount
• Load arrangement
• Temperature setting
Therefore exact indications cannot be provided.
It is advisable to find the required optimum settings by practical
experience.
Load Capacity
• The load capacity depends on the height of the appliance and
the size of the dishes.
• The following load examples are only a guide.
• Remember that the maximum drawer load is 25kg.
1. Temperature knob
2. Luminous ON-OFF switch
1
3. ON-OFF light
The control parts are the temperature knob and
2
the luminous ON-OFF switch.
With the switch pressed (position 1) the drawer is
on, whereas with the switch released (position 0)
3
the drawer is off.
These parts are visible only when the drawer is
open.
When the drawer is closed, a control light on the
front of the appliance indicates if the drawer is
switched on.
Temperature
Control
Cups, Glasses
Plates
Crockery
Temperature Information Regarding Use
Hot drinks in glasses previously warmed at this
temperature do not become cool so quickly,
and in any case the container can be touched
The food on these plates stays hot for a longer
time. The containers can be touched without
any risk, otherwise use gloves or pot-holders
The thermostat is set to max temperature.
The containers can be touched with special
6
6
1
1
1
2
20
36
30
10
10
10
80
40
30
18
2
approx. 40°C
approx. 60°C
approx. 85°C
plates
broth cups
soup plate
soup plate
soup plate
meat plates
plates
soup plates
soup bowls
plates
soup plates
pizza plates
espresso coffee cups
cappuccino cups
glasses (grog)
soup plates
meat plates
without any risk
gloves or pot-holders
dishes for 6 persons
Ø28cm
Ø10cm
Ø22cm
Ø19cm
Ø17cm
Ø36cm
or as required
Ø26cm
Ø22cm
Ø10cm
Ø27cm
Ø22cm
Ø36cm
Ø22cm
21cmx18cm
