Twin cavity
ceramic cooker
RV 1060 ..
Users Operating Instructions
Installation instructions
Before operating this cooker,
please read these instructions carefully
2
Important:
This appliance is designed and manufactured solely for the cooking of domestic
(household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi commercial, commercial or communal environment.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF
THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
Dear Customer
Thank you for choosing one of our appliances, carefully designed and built by
our specialist staff and thoroughly tested to satisfy your cooking requirements.
We suggest that you read this Instruction Booklet so that you will understand
fully how to operate your appliance.
Please keep the booklet handy. You may wish to refer to it at a later date.
CDA
3
Contents
Models RV 1060 ..
Page Number
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembling the backguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features and technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Clock and timer with “Touch-Control” keys (main oven only) . . . . . . . . . . . 7
How to use the vitroceramic hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How to use the multifunction main oven . . . . . . . . . . . . . . . . . . . . . . . . 15
How to use the conventional oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Do’s and do not’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
For the installer
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Levelling the cooker - Moving the cooker . . . . . . . . . . . . . . . . . . . . . 34-35
Stability bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Appliance servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4
Introduction
Congratulations on your purchase of this CDA cooker which has been carefully
designed and produced to give you many years of satisfactory use.
Before using this appliance it is essential that the following instructions are carefully
read and fully understood.
We would emphasise that the installation section must be fully complied with for your
safety to ensure that you obtain the maximum benefits from your appliance.
Declaration of CE conformity
✓
This cooker has been designed, constructed and marketed in compliance with:
- Safety requirements of EU Directive "Low Voltage" 2006/95/EC;
- Protection requirements of EU Directive "EMC" 89/336/EEC;
- Requirements of EU Directive 93/68/EEC.
Assembling the
backguard
Before installing the cooker,
assemble the backguard “V”
(fig. 1).
Please note that :
■ The backguard “V” can
be found packed at the
rear of the cooker.
■ Before assembling
remove any protective
film/adhesive tape.
■ The backguard must be
fixed to the cooktop using
the three supports “B”
supplied with the appliance (see fig. 1).
V
A
B
Fig. 1
5
Features and technical data
Fig. 2
Multifunction
oven
Conventional
oven
Attention: Detach the
appliance from the
mains if the ceramic hob
is cracked and contact
the After-Sales service.
Vitroceramic cooking hob
1. 3 circuits cooking zone Ø 180 1700 W
2. 3 circuits cooking zone Ø 145 1200 W
3. Oval cooking zone Ø 145 x 250 1800/1000 W
4. Double cooking zone Ø 210/120 2100/700 W
5. 3 circuits cooking zone Ø 145 1200 W
6. Cooking zone residual heat indicators
2
1
3
5
4
6
6
Control panel
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan is to reduce the external temperature of the appliance and cool the internal components.
Fig. 3
87654 932110
11 12
13
Control panel - Controls description
1. Front right
cooking zone
control knob
2. Rear right
cooking zone
control knob
3. Central
cooking zone
control knob
4. Rear left
cooking zone
control knob
5. Front left
cooking zone
control knob
6. Multifunction main oven switch control knob
7. Multifunction main oven thermostat control knob
8. Clock and timer with “Touch-Control” keys (main oven only)
9. Conventional oven thermostat control knob
10.Conventional oven switch control knob
Pilot lamps:
11. Main oven thermostat indicator light
12. Conventional oven thermostat indicator light
13. Cooking hob ON indicator light
7
Clock and timer with “Touch-Control” keys
(main oven only)
Fig. 4
keys
+ and – Touched simultaneously (for
more than 2 seconds):
• setting the clock;
• setting the timer volume (by
touching once, along with
the “MODE” key);
• to cancel automatic cooking
at any time.
MODE
Function selection (touched for
more than 2 seconds):
• setting the clock (only after
first connection or after a
power failure);
• timer;
Illuminated symbols:
AUTO
flashing
- automatic cooking completed, oven in automatic position
but not set
AUTO
steady illumination
- oven set for automatic cooking, cooking still
not taking place
“”
flashing
- timer being set
“”
steady illumination
- timer in operation
“”
steady illumination
- oven set for manual cooking
“”
and
AUTO
AUTO flashing
- automatic cooking being set
“”
and
AUTO
steady illumination
- oven set for automatic cooking, cooking tak-
ing place.
• automatic cooking “
dur
” (duration) - how long the food will take to cook
(by touching the “MODE” key again);
• automatic cooking “
End
” - the time you would like the oven turns off (by
touching the “MODE” key two more times);
+ Increases the number shown on the display
– Decreases the number shown on the display
8
“TOUCH-CONTROL” keys
The “touch-control” keys shall be operated by the fingers (just by touching the key).
When using touch controls it is best to use the ball of your finger rather than the tip.
The keys are automatically deactivated:
• 8 seconds after the last selection; the deactivation is indicated by an acoustic signal
(“beep”).
To reactivate just touch the “MODE” key or the “+” and “–” keys (simultaneously) for
more than 2 seconds.
Setting the clock
When first connected, or after a power failure, the digits and “AUTO” will shown on
the display. To set the clock, touch the “MODE“ key, for more than 2 seconds, and
then the “+” or “–” keys.
Important: the oven does not operate, in manual cooking, without first having set the clock.
To set the clock, with the appliance already connected, touch the “+” and “–” keys
simultaneously (for more than 2 seconds), then “+” or “–” keys.
Important:
• changing the time will delete any automatic program;
• after setting the clock, the oven starts to operate in the selected function
(manual cooking). The “ ” symbol is steady illuminated.
Using the timer
You can use the timer at any time, even when the oven is not in use.
The timer does not turn the oven off.
The timer can be set for up to 23 hours and 59 minutes.
• To set the timer, touch the “MODE” key for more than 2 seconds (the “ ” symbol
flashes), than the “+” or “–” keys.
• After about 8 seconds an acoustic signal (“beep”) will sound confirming the regula-
tion (“ ” symbol steady illuminated).
• To check the remaining time touch the “MODE“ key for more than 2 seconds. If the
remaining time is more than a minute the display will show hours and minutes; if
less than a minute the display will show seconds.
• When the time is up, the timer will beep. Touch the “MODE” key , for more then 2
seconds, to turn it off; or press the “+” or “–” key to stop the beep and than the
“MODE” key, for more than 2 seconds, to deactivate the “ ” symbol flashing on the
display.
• Turn off the oven manually (function and thermostat knobs in the off position) if the
manual cooking has been completed.
9
Setting the timer volume
You can select from three volume levels.
• Touch the “+” and “–” keys simultaneously for more than 2 seconds.
• Touch the “MODE” key; you can read on the display the current timer volume
(“
ton1
”, “
ton2
” or “
ton3
”).
• Touch the “–” key to listen or change the timer volume.
• Timer volume activated: the last displayed.
• After about 8 seconds an acoustic signal (“
beep
”) will sound confirming the volume
setting; then the time of day will be displayed.
Automatic cooking
Use automatic cooking to automatically turn the oven on, cook, and then turn the oven
off.
1. Check the clock shows the correct time.
2. Select the function and temperature (function and temperature knobs). The oven will
come on.
3. Decide how long the food will take to cook, allowing time for preheating if necessary.
4. Touch the “MODE” key for more than 2 seconds and then touch again. “
dur
” will
show (duration). Using the “+” and “–” keys, set the cooking time.
5. Decide the time you would like the oven to turn off; touch the “MODE” key for more
than 2 seconds and then touch it two times again. “
End
” will show. Using the “+”
and “–” keys, set the cooking time.
Note: while “
dur
” is displayed you can change to “
End
” just by touching one time
the “MODE” key (within 8 seconds from the last selection).
If there is time to wait before cooking starts, the current time of day and “AUTO” will
show in the clock display. The oven will switch off but is now set for automatic cooking.
If you are already at home to turn the oven on and only want the oven to turn off automatically, start cooking as normal, then follow step 4 or step 5 to set a time to stop the
oven.
When automatic cooking starts, “ ” will be displayed and the oven will turn on.
• To see the remaining cook time, follow step 4 up to display “
dur
” (duration).
• To see the set stop time, follow step 5 up to display “
End
”.
• To cancel automatic cooking at any time, touch the “+” and “–” keys simultaneously
(for more than 2 seconds) and turn the temperature and function knobs to the off
position.
When the stop time is reached, the oven will turn off, the timer will beep and “AUTO”
will flash:
• Touch any key to stop the beeping.
• Touch the “MODE” key, for more than 2 seconds, to return the oven to the manual
mode (“ ” symbol steady illuminated on the display).
• Turn the temperature and function knobs to the off position.
Attention: after a power failure any automatic program is deleted. Turn off the
oven manually.
10
How to use the vitroceramic hob
Fig. 6
Fig. 5
The ceramic surface of the hob allows a
fast transmission of heat in the vertical
direction, from the heating elements
underneath the ceramic glass to the
pans sat on it.
The heat does not spread in the horizontal direction, so that the glass stays
“cool” at only a few centimeters from
the cooking plate.
The 5 cooking plates are shown by
painted disks on the ceramic surface.
3 circuit radiant zones
Incorporating 3 heating elements (fig. 6)
you can control and light up all 3
together or separately by selecting from
the 6 positions on the control knob (fig.
5).
The working temperature required is
reached in a very short time.
Important note:
The heating elements incorporate a
thermolimiter that switches the element
ON/OFF during all the settings to protect the ceramic glass from overheating.
The use of incorrect pans and/or
wrong pan positioning will cause the
temperature limiter to operate more frequently, resulting in a reduction of
cooking performance.
11
Fig. 7
Fig. 9
Fig. 8
Second element
Second element
Double and oval radiant
zones
The heating element is formed of a coil
of resistant material which reaches the
working temperature quickly.
Operation of the cooking zone is controlled by a continuous energy regulator
from “1” to “12” (maximum temperature)
(fig. 7).
By switching on the second element (fig.
8 and 9), the surface area of the rear
right and central radiant zones can be
extended.
For this purpose, turn the control knob
(fig. 7)
fully to the right (position
).
12
1
2
3
4
5
6
After a short period of use, experience
will teach you which setting is the right
one for your needs.
Cooking hints
Heating
Cooking
Roasting-frying
Fig. 10
1
2
3
4
5
6
7
8
9
10
11
12
Cooking plate
controlled by a
7 position
switch
Cooking plate
controlled by
a 12 position
switch
Type of cooking
Switched OFF
For melting operations
(butter, chocolate).
To maintain food hot and to
heat small quantities of liquid
(sauces, eggs).
To heat bigger quantities; to
whip creams and sauces.
(vegetables, fruits, soups).
Slow boiling, i.e.: boiled meats,
spaghetti, soups, continuations
of steam cooking of roasts,
stews, potatoes.
For every kind of frying,
cutlets, uncovered cooking,
i.e.: risotto.
Browning of meats, roasted
potatoes, fried fish, omelettes,
and for boiling large quantities
of water.
Fast frying, grilled steaks, etc.
Switching on the second
element (Double and oval
radiant plate only)
0
Knob
setting
1
2
3
4
5
6
2
0
1
2
2
3
4
3
4
6
7
4
7
8
4
5
8
9
10
6
11
12
13
Residual heat indicator
The hob also features 5 warning lights
which are connected to the corresponding plates.
When the temperature of a cooking
plate is above 60°C, the relevant warning light will also light up to warn of
heat on the surface of the hob.
This light also stay on after the cooking
plate has been switched off to show
that the hob surface is still hot.
This residual heat will lasts for a long
time after the cooking plate has been
switched off.
During this time you should avoid
touching the hob surface over the
cooking area.
Please pay special attention to
ensure that children are not
allowed near the hob.
The light will switch off automatically as
soon as the surface temperature of the
cooking plate falls below 60°C.
Cooking hints:
– To reduce the cooking time, you can
turn the control knob to the max when
you switch the plate on.
After a short time you can set the control knob to the position required for
cooking.
– You should only use pots and pans
with flat bases (pans with the test mark
for glass-ceramic hobs are available
from specialist shops).
The diameter of the pan should match
that of the cooking plate (or be slightly
bigger) to make the most of the energy.
– Since the cooking surface will stays hot
for a certain time after the plate has
been switched off, you can switch it off
5 or 10 minutes before the end of the
cooking.
The residual heat of the hob will complete the cooking.
– To save electricity, use pan lids whenev-
er possible.
– Never cook the food directly on the
glass ceramic cooktop.
Caution!
the cooking hob becomes very
hot during operation.
Keep children well out of reach.
Fig. 11
DO NOT USE GLASSWARE ON CERAMIC HOBS.
DO NOT USE PANS WITH ROUGH CIRCULAR MACHINED BASE.
Deep fat frying
For safety purposes when deep fat frying, do not fill the pan more than one
third full of oil.
DO NOT cover the pan with a lid and
DO NOT leave the pan unattended.
In the unfortunate event of a fire, leave
the pan where it is and turn off the control knobs.
Place a damp cloth or lid over the pan
to smother the flames. Leave the pan to
cool for at least 30minutes before moving the pan.
DO NOT USE WATER ON THE FIRE.
14
Fig. 12
Safety hints:
– Before you switch the hob on, make
sure you know which knob controls the
required cooking plate. We advise you
to set the pan over the cooking plate
before switching it on. Remove the pan
after you have switched the cooking
plate off.
– Do not use pots and pans with rough
bases (pay attention to cookware made
of cast-iron). Rough bases can damage
(scratch) the glass surface of the hob.
Make sure that the bottom of the pan is
dry and clean.
– Pots with aluminium bottoms may leave
silver streaks or spots on the hob.
– Do not leave wet or damp lids on the
hob.
– The glass-ceramic surface and pans must
be clean. Carefully remove any food
debris (especially containing sugar), dirt
etc. with the aid of a cleansing agent.
– Pan handles should never stand out
beyond the kitchen worktop, as there is
a great danger of knocking the pan
over.
This will also ensure that children
cannot reach them.
– Do not use the hob if the glass sur-
face is broken or cracked in any
way. Please disconnect the hob
from the mains and contact the
after-sales service.
– Do not lean over the cooking plate
when in use.
– Do not lay cooking foil or plastic materi-
als on the ceramic surface when it is
hot.
– Remember that the surface remains hot
for a long time (about 30 min.) after the
cooking plate has been switched off.
– Follow the cleaning instructions carefully.
Do not use the glass surface for storage.
Cleaning the hob
Before you begin cleaning make
sure that the appliance is switched
off.
Remove spillages and other types of
incrustations.
Dust or food particles can be removed
with a damp cloth.
If you use a detergent, please make sure
that it is not abrasive or scouring.
Abrasive or scouring powders can damage the glass surface of the hob.
All traces of the cleaner must be removed
with a damp cloth.
Do not put articles on the hob which can
melt: i.e plastic, aluminium foil, sugar,
sugar syrup mixtures etc.
If any of these products items have melted on the ceramic surface, you should
remove it immediately (when the surface
is still hot) by using a scraper to avoid any
permanent damage to the surface of the
hob. (Available under part No. 103138).
Avoid using a knife or other sharp utensils
since these can damage the ceramic.
Do not use steel wool or an abrasive
sponge which could scratch the surface
permanently.
ATTENTION: MOST IMPORTANT!
If cleaning
the glass ceramic hob
using a special scraper tool take
extra care to avoid damaging the
seal at the edges of the glass ceramic
surface.
15
How to use the Multifunction main oven
Operating principles
Heating and cooking in the MULTI-FUNCTION oven are obtained in the following
ways:
a. by normal convection
The heat is produced by the upper and lower heating elements.
b. by forced convection
A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is
sucked back again by the fan to repeat the described cycle, it envelops the food in
the oven, provoking a complete and rapid cooking.
It is possible to cook several dishes simultaneously.
c. by semi-forced convection
The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.
d. by radiation
The heat is radiated by the infra red grill element.
e. by radiation and ventilation
The irradiated heat from the infra red grill element is distributed throughout the oven
by the fan.
f. by ventilation
The food is defrosted by using the fan only function without heat.
General features
As its name indicates, this is an oven that presents particular features from an operational point of view.
In fact, it is possible to insert 7 different programs to satisfy every cooking need.
The 7 positions, thermostatically controlled, are obtained by 4 heating elements which
are:
– Bottom element 1200 W
– Top element 1000 W
– Grill element 2000 W
– Circular element 2200 W
Note:
Upon first use, it is advisable to operate the oven for 30 minutes in the position and for
another 30 minutes at the maximum temperature (thermostat knob on position 250) in the
positions
and
, to eliminate possible traces of grease on the heating elements.
Clean the oven and accessories with warm water and washing-up liquid.
ATTENTION - MOST IMPORTANT
Pay special attention not to touch
the hot heating element inside the
oven cavity.
WARNING:
The door is hot, use the handle.
16
Traditional convection cooking
The upper and lower heating elements come on. The heat is dispersed by natural convection and the temperature must be set to between 50° and 250°C via the thermostat knob.
The oven must be preheated before cooking.
Recommended for:
Food that requires the same degree of cooking both inside and out, for example
roasts, spare pork ribs, meringues etc.
Function selector knob
(Fig. 14)
Rotate the knob clockwise to set the oven for one of the following functions.
Thermostat knob
(Fig. 13)
This only sets the cooking temperature and does not switch the oven on.
Rotate clockwise until the required temperature is reached (from 50 to 250°C).
The light between the thermostat and the function selector will illuminate when the
oven is switched on and turns off when the oven reaches the correct temperature.
The light will cycle on and off during cooking in line with the oven temperature.
Fig. 13
Fig. 14
Oven light
By setting the knob to this position, only the oven light comes on.
It remains on in all the cooking modes.
17
Hot air cooking
The circular element and fan come on. The heat is dispersed by forced convection and
the temperature can be regulated to between 50° and 250°C via the thermostat knob.
The oven does not require preheating.
Recommended for:
Food which has to be well-cooked outside and soft or rosy inside, for example
lasagne, lamb, roast beef, whole fish etc.
Defrosting frozen foods
Only the oven fan comes on. Use with the thermostat knob set to “ ” - other positions have no effect. The food is thawed by ventilation without heating.
Recommended for:
Quick thawing of frozen foods; one kg requires approximately 1 hour.
Thawing times vary according to the quantity and type of food to be thawed.
Grilling
The infrared grill element comes on. The heat is dispersed by radiation.
Use with the oven door closed
and the thermostat knob to position 225°C for max
15 minutes, then to position 175°C.
For cooking hints, see the chapter “USE OF THE GRILL”.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
It is recommended that you do not grill for longer than 30 minutes at any
one time.
Caution: the oven door becomes very hot during operation. Keep children
well out of reach.
18
Ventilated grill cooking
The infrared grill element and the fan come on. The heat is dispersed mainly by radiation and the fan then distributes it all over the oven.
Use with the door closed. The temperature can be regulated via the thermostat
knob to between 50° and 175° max.
The oven must be preheated for approximately 5 minutes. For cooking hints, see the
chapter “GRILLING AND AU GRATIN.
Recommended for:
Grilling where quick browning on the outside is required to keep the juices in.
For example: veal steaks, chops, hamburgers etc.
It is recommended that you do not grill for longer than 30 minutes at any
one time.
Caution: the oven door becomes very hot during operation. Keep children
well out of reach.
Maintaining temperature after cooking or slowly
heating foods
The upper heating element, the circular element and the fan come on.
The heat is dispersed by forced convection with greater intensity in the upper part.
The temperature can be set to between 50° and 150°C via the thermostat knob.
Recommended for:
Keeping food warm after any type of cooking. Slow heating of cooked food.
Convection cooking with ventilation
The upper and lower heating elements come on and the fan.
The heat coming from above and below is dispersed by convection with ventilation.
The temperature can be set to between 50° and 250°C via the thermostat knob.
Recommended for:
Voluminous dishes and large quantities which require the same degree of cooking
both inside and out, for example rolled roasts, turkey, roast legs, cakes etc.
19
Cooking advice
Sterilization
Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the
following way:
a. Set the switch to position .
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and
the door and set the thermostat knob to position 135 °C.
When sterilization has begun, that is, when the contents of the jars start to bubble,
turn off the oven and let cool.
Regeneration
Set the switch to position and the thermostat knob to position 150° C.
Bread becomes fragrant again if wet with a few drops of water and put into the oven
for about 10 minutes at the highest temperature.
Simultaneous cooking of different foods
The MULTI-FUNCTION oven set on position and gives a simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be
cooked together without mixing the smells and flavors together.
This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods.
The only precaution to follow are:
– The cooking temperatures of the different foods must be as close to as possible, with
a maximum difference of 20° - 25 °C.
– The introduction of the different dishes in the oven must be done at different times in
relation to the cooking times of each one.
The time and energy saved with this type of cooking is obvious.
20
Use of the grill
Preheat the oven for about 5 minutes.
Introduce the food to be cooked, positioning the rack as close to the grill as possible.
The dripping pan should be placed under the rack to catch the cooking juices and
fats.
Grilling with the oven door closed.
Do not grill for longer than 30 minutes at any one time.
Caution: the oven door becomes very hot during operation. Keep children
well out of reach.
Roasting
To obtain classical roasting, it is necessary to remember:
– that it is advisable to maintain a temperature between 180° and 200 °C.
– that the cooking time depends on the quantity and the type of foods.
Grilling and “au gratin”
Grilling may be done without the roasting jack on position of the switch, because
the hot air completely envelops the food that is to be cooked.
Set the thermostat to position 175 °C and after having preheated the oven, simply
place the food on the rack.
Close the door and let the oven operate with the thermostat on position 175 °C, until
grilling is done.
Adding a few dabs of butter before the end of the cooking time gives the golden “au
gratin” effect.
It is recommended that you do not grill for longer than 30 minutes at any
one time.
Caution: the oven door becomes very hot during operation. Keep children
well out of reach.
21
Fig. 15 Fig. 16
How to use the Conventional oven
General features
As its name indicates, this is an oven that presents particular features from an operational point of view.
The conventional oven is provided with 3 heating elements which are:
– Bottom element 800 W
– Top element 700 W
– Grill element 1450 W
Note:
Upon first use, it is advisable to operate the oven at the maximum temperature (thermostat knob on position 250) for 60 minutes in the position and for another 15
minutes in the position to eliminate possible traces of grease on the heating elements.
Thermostat knob (Fig. 16)
This only sets the cooking temperature and does not switch the oven on.
Rotate clockwise until the required temperature is reached (from 50 to 250°C).
The light between the thermostat and the function selector will illuminate when the
oven is switched on and turns off when the oven reaches the correct temperature.
The light will cycle on and off during cooking in line with the oven temperature.
ATTENTION - MOST IMPORTANT
Pay special attention not to touch
the hot heating element inside the
oven cavity.
WARNING:
The door is hot, use the handle.
22
Oven light
By setting the knob to this position, only the oven light comes on.
It remains on in all the cooking modes.
Traditional convection cooking
The upper and lower heating elements come on.
The heat is dispersed by natural convection and the temperature must be set to
between 50° and 250°C via the thermostat knob. The oven must be preheated before
cooking.
In the position the rotisserie motor come on for cooking with the rotisserie.
Recommended for:
Food that requires the same degree of cooking both inside and out, for example
roasts, spare pork ribs, meringues etc.
Function selector knob (Fig. 15)
Rotate the knob clockwise to set the oven for one of the following functions.
Traditional grilling
The infrared electrical resistance comes on.
The heat is diffused by radiation.
Use with the oven door closed
and the thermostat knob to position 225°C for 15
minutes then to 175°C.
In the position the rotisserie motor come on for cooking with the rotisserie.
For cooking hints, see the chapter “USE OF THE GRILL”.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
It is recommended that you do not grill for longer than 30 minutes at any
one time.
Attention: the oven door becomes very hot during operation.
Keep children away.
23
Use of the rotisserie
– Insert the dripping pan into the lowest rack holders of the oven and insert the rod
support into the intermediate rack holders.
– Put the meat to be cooked onto the rod, being careful to secure it in the center with
the special forks.
– Insert the rod into the motor opening and rest it onto the support of the spit collar;
then remove the grip by turning it to the left.
Fig. 17
Use of the grill
Switch the grill on, setting the two knobs:
– Function selector to or position.
– Thermostat selector to position 225°C for 15 minutes then to 175°C.
Leave to warm up for approximately 5 minutes with the door closed
.
Place the food inside positioning the rack as near as possible to the grill.
Insert the drip pan under the rack to collect the cooking juices.
Grilling with the oven door closed and do not for longer than 30 minutes at any
one time.
Attention: the oven door becomes very hot during operation.
Keep children away.
Rotisserie
The oven is equipped with a rotisserie.
This device is made up of:
– an electrical motor mounted on the rear part of the oven
– a stainless steel rod, equipped with a detachable athermic grip and 2 recordable forks
– a rod support to be inserted into the central rack holders of the oven.
The rotation direction of the rotisserie
can be either clockwise or counter-clockwise.
24

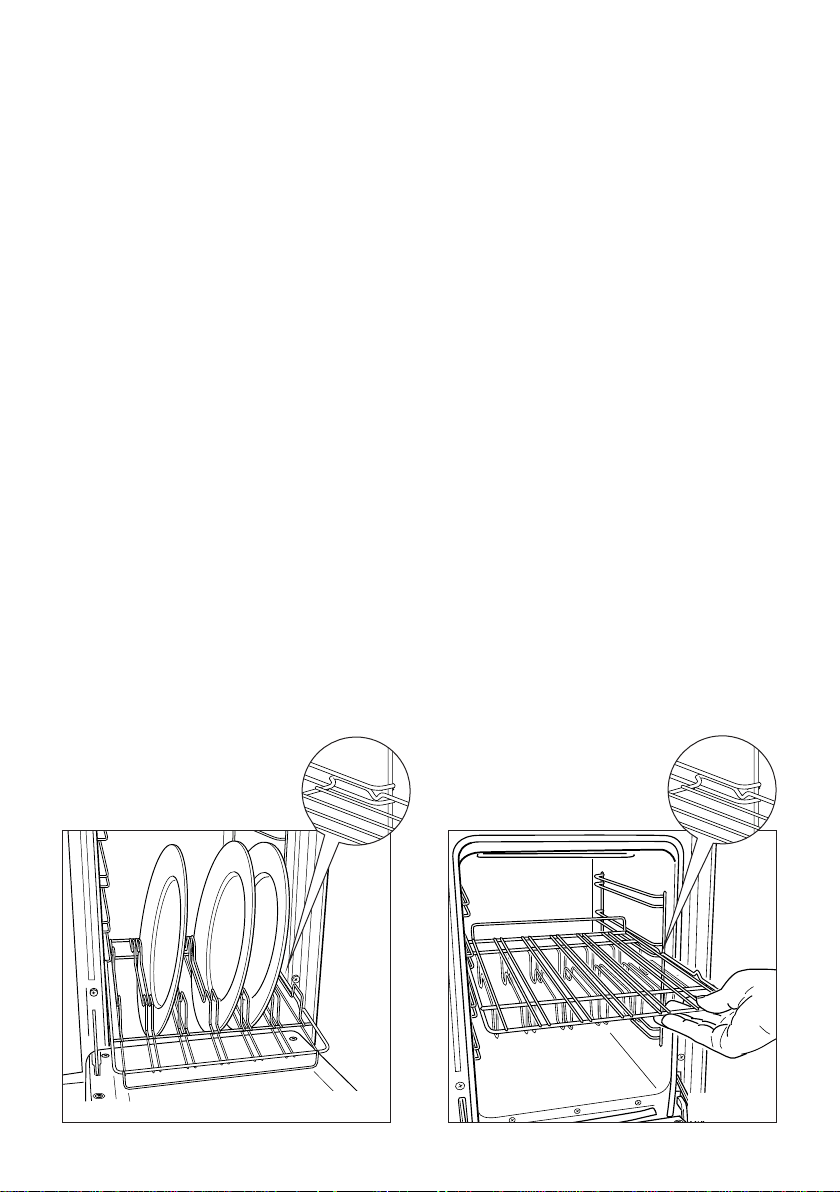

Use of special dish rack
This special shelf can be used as dish rack or turning over, as normal shelf for oven
cooking.
It must be inserted between the guides of the lateral racks.
Using the special shelf as a dish rack
Slide in the shelf on the guides, on the lower level of the lateral racks.
The prongs where the plates are to be inserted, must be turned upwards.
The shelf must be fitted so that the safety catch, which stops it sliding out, faces the
bottom of the oven (see detail of figure 18).
The plates must be positioned as indicated in figure 18.
To facilitate this operation, pull the special rack up to the safety lock.
KEEP ATTENTION: Plates are hot after warming. It is advisable to handle the
plates using oven gloves.
Using the special rack for normal cooking
Slide in the shelf on the guides: the safety catch must be turned toward the oven base
(see detail of figure 19).
The flat surface can be used to put cooking pans or food directly on the rack - the dripping pan should be placed under the rack to catch the cooking juices and fats.
Fig. 18
Fig. 19
25
Do’s and do not’s
Do’s and do not’s
• Do always grill with the oven door closed.
• Do read the user instructions carefully before using the cooker for first time.
• Do allow the oven to heat for one and a half hours, before using for the first time, in
order to expel any smell from the new oven insulation, without the introduction of
food.
• Do clean your oven regularly.
• Do remove spills as soon as they occur.
• Do always use oven gloves when removing food shelves and trays from the oven.
• Do not allow children near the cooker when in use.
• Do not allow fat or oils to build up in the oven trays, or oven base.
• Do not place cooking utensils or plates directly onto the oven base.
• Do not grill food containing fat without using the grid.
• Do not cover the grilling grid with aluminium-foil.
• Do not use the oven tray for roasting.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in contact with enamel parts (inside the oven and on the oven tray).
• Do not use abrasive cleaners or powders that will scratch the surface of the stainless
steel and the enamel.
• Do not attempt to repair the internal workings of your cooker.
• Do remove the protective film before the first use.
• Fire risk! Do not store flammable material in the ovens and in the bottom drawer
26
Installation, and any demonstration, information or adjustments are not included in
the warranty.
The cooker must be installed by a qualified person in accordance with the relevant
Standards.
Important notes
For your safety
The product should only be used for its intended purpose which is for the cooking of
domestic foodstuffs.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.
Attention
The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.
27
Care and maintenance
Important:
As a safety measure, before you start cleaning the cooker be sure to disconnect it from
the mains supply.
Do not use a steam cleaner because the moisture can get into the appliance
thus make it unsafe.
The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance.
WARNING
When correctly installed, your product meets all safety requirements laid down for this
type of product category.
However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain
sharp or rough edges, that may cause injury.
Spillage
Any spillage should be dealt with as soon as possible to prevent it becoming burnt on.
Vitroceramic cooking hob
- See page 14.
Enamelled parts
All the enamelled parts must be cleaned with a sponge and soapy water only or other
non-abrasive products.
Dry preferably with a microfibre or soft cloth.
Stainless steel, aluminium, painted parts and silkscreen printed surfaces
Clean using an appropriate product. Always dry thoroughly.
Stainless steel surfaces: can be cleaned with an appropriate stainless steel cleaner.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.
CAUTION: Do not use abrasive substances or non-neutral detergents as these will
irreparably damage the surface.
28
Oven doors - removing
the inner pane of glass
The inner pane of glass can easily be
removed for cleaning.
Removing the inner pane
– Open the door to the full extent.
– Gently pull out the inner pane of glass
(Fig. 20a).
– Clean the glass with an appropriate
cleaner.
– Dry thoroughly, and place the pane on
a soft surface.
– Now you can also clean the inside of
the outer glass.
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the
panes of glass since they can scratch
the surface, which may result in shattering of the glass.
Reassembling the inner
pane
– Check the correct positioning of the
no.4 (four) silicon rubbers D (fig. 20b).
– Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
– Insert the inner pane in the left E and
right F side guides (fig. 20c) and gently
let it slide up to the retainers H (fig.
20d).
Fig. 20a
D
Fig. 20b
Fig. 20c
H
Fig. 20d
It is normal the opened gap between the
top edge of the inner glass and the top of
the door. This allows the cooling air
circulation.
E
F
29
Drawer
– The drawer (fig. 21) comes out like a normal drawer.
Attention: Do not store flammable material in the ovens, or the drawer.
Fig. 21
30
Assembling and
dismantling of the side
runner frames
– Fit the side runner frames into the
holes on the side walls inside the
oven (Fig. 22).
– Slide the tray and rack into the run-
ners (Fig. 23).
The rack must be fitted so that the
safety catch, which stops it sliding out,
faces the inside of the oven.
– To dismantle, operate in reverse order.
Fig. 22
Fig. 23
Inside of oven
The oven should always be cleaned
after use when it has cooled down.
The cavity should be cleaned using a
mild detergent solution and warm
water. Suitable proprietary chemical
cleaners may be used after first consulting with the manufacturers recommendations and testing a small sample of the
oven cavity. Abrasive cleaning agents or
scouring pads/cloths should not be used
on the cavity surface.
NOTE: The manufacturers of this appliance will accept no responsibility for
damage caused by chemical or abrasive
cleaning.
Let the oven cool down and pay special
attention no to touch the hot heating
elements inside the oven cavity.
Changing the oven light
1. Disconnect the electrical power supply (for example, by switching off the main
power switch).
2. Unscrew the light cover
3. Fit a new bulb.
4. Refit the cover.
Note:
Use only bulbs designed to resist up to 300°C with the following characteristics: 230 V,
type E14 and same power (check watt power as stamped in the bulb itself) of the
replaced bulb
.
31
Fig. 24
Fig. 24a
Fig. 24b
Fig. 24c
Fig. 24d
Door assembly
● Grip the door (as indicated in figure
24) and refit it in reverse order of
removing procedure.
Removing the oven
door
Please operate as follows:
● Open the door completely.
● The swivel retainers of the rh and lh
hinges (fig. 24a) are hooked onto
the metal bar above them (fig. 24b).
● Lift the oven door slightly. The noch
on the bottom of the hinge will disengage (fig. 24c).
● Now pull the oven door forwards off
the appliance. Release both hinge
sections from the slots (fig. 24d).
32
The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments and
could affect any third party or public liability insurances you may have.
FOR THE
INSTALLER
33

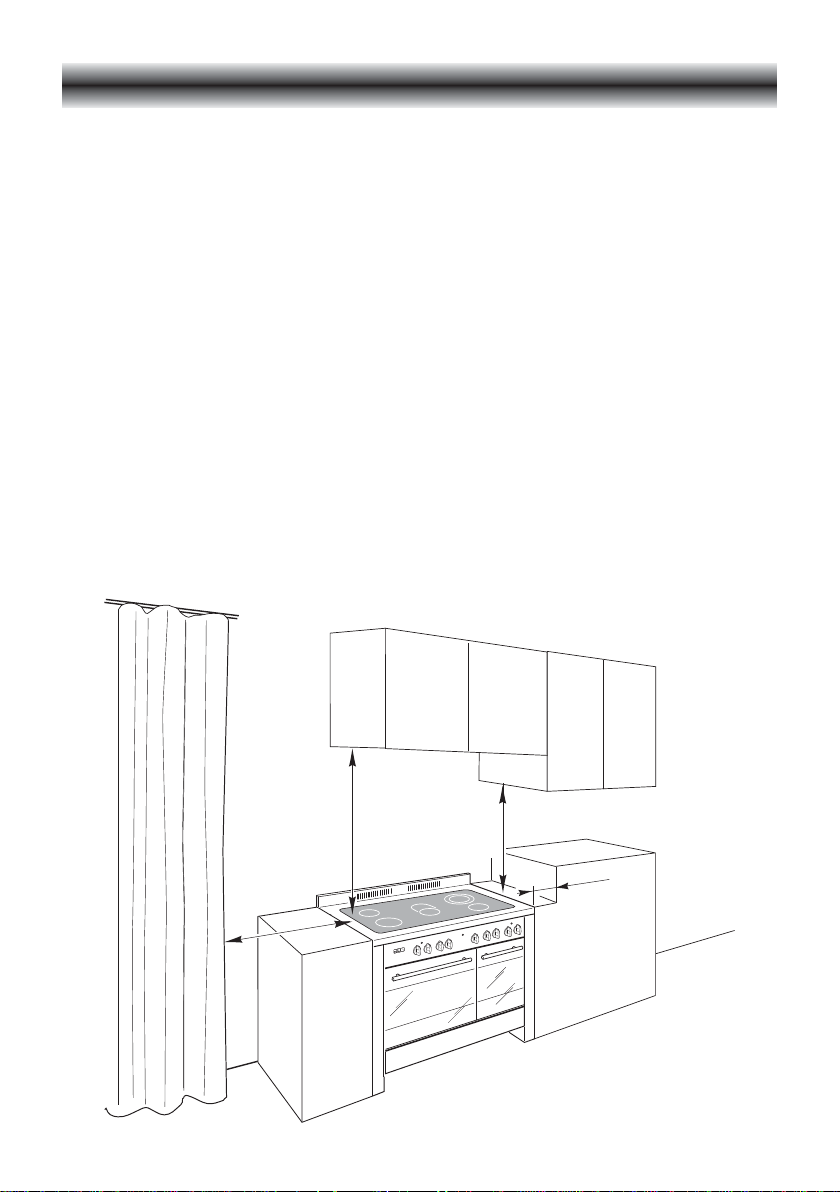

Location
Fig. 25
The cooker must be installed no less than 50 mm away from any side wall which
exceed the height of the cooktop;
The appliance must be housed in heat resistant units.
The walls of the units must be capable of resisting temperatures of 75 °C
above room temperature.
Do not install the appliance near inflammable materials (eg. curtains).
If the cooker is located on a pedestal it is necessary to provide safety measures to prevent falling out.
Important
– The appliance should be installed by a qualified electrician in compliance with the
laws in force in your country and in observation of the instructions supplied by the
manufacturer.
Failure to comply with this condition will render the guarantee invalid.
– Always disconnect the cooker from mains power supply before carrying out any
maintenance operations or repairs.
500 mm
750 mm
450 mm
50 mm
A
U
T
O
34
Levelling the cooker
Fig. 26
+ 8 mm
+ 8
0
mm
+ 35 mm
Fig. 27a
Fig. 27b
The cooker is equipped with 4 LEVELLING FEET and may be levelled by screwing or unscrewing the feet with a spanner (fig. 26).
It is important to obser
ve the prescriptions
of figures 27a - 27b.
35
Moving the cooker
Warning
When raising cooker to upright
position always ensure two people
carry out this manoeuvre to prevent damage to the adjustable feet
(fig. 28).
Warning
Be carefull: do not lift the cooker
by the door handle when raising
to the upright position (fig. 29).
Warning
When moving cooker to its final position DO
NOT DRAG (fig. 30).
Lift feet clear of floor (fig. 28).
Fig. 28
Fig. 29
Fig. 30
36

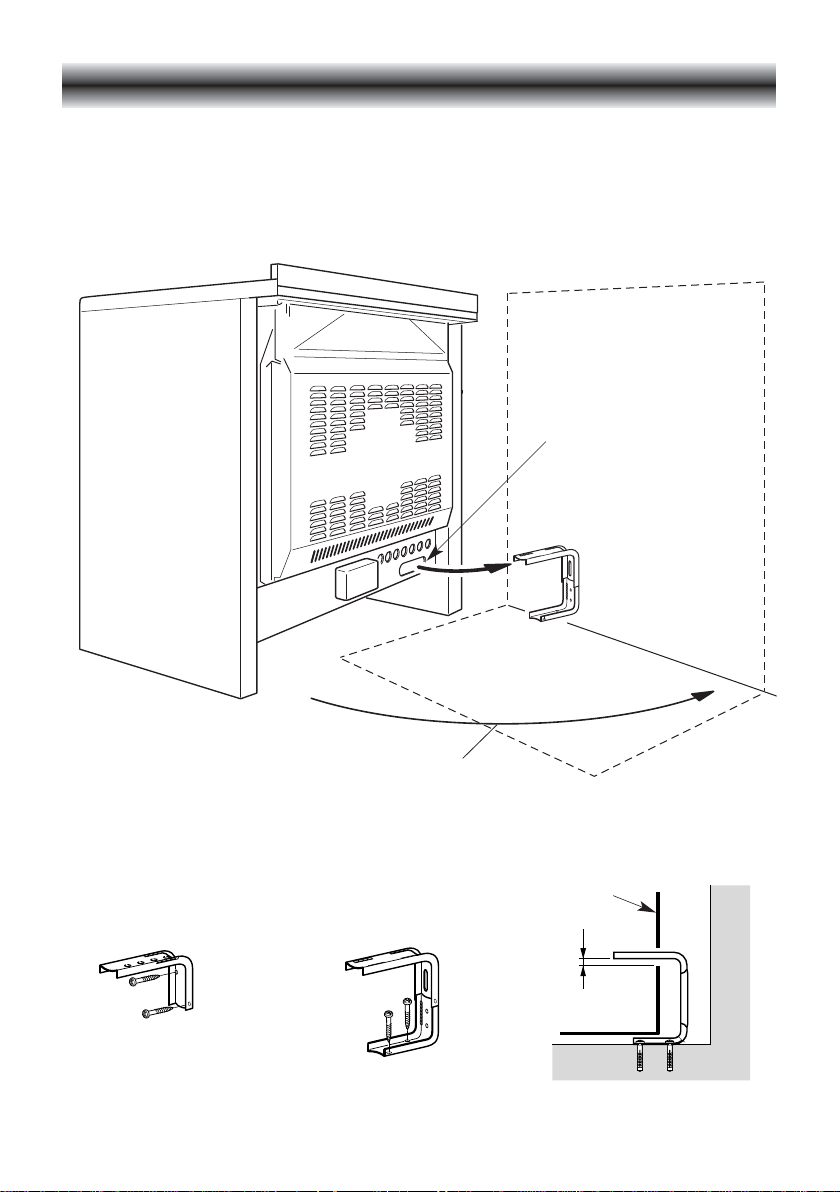

Stability bracket
We recommend a stability bracket is fitted to the cooker.
The type shown in fig. 31 can be purchased from most plumbers merchants and do it
yourself (D.I.Y.) shops.
Wall fixing
Floor fixing
Dimension is in millimetres
3
Outline of cooker
backplate at the
engagement slot
Fig. 31
Brackets
Existing slot
in rear of
cooker
Dotted line showing the
position of cooker when fixed
37
Electrical installation
For your safety please read the following
information:
– Connection to the mains must be carried out by qualified technician in
accordance with current regulations.
– The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical cable
sections can withstand the load specified on the plate.
– The cooker can be connected directly to the mains placing an omnipolar switch
with minimum opening between the contacts of 3 mm between the appliance
and the mains.
– The power supply cable must not touch any hot parts and must be positioned so
that it does not exceed 75°C at any point.
– Once the cooker has been installed, the switch must always be accessible.
N.B. For connection to the mains, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
If the installation requires alterations to the domestic electrical system, call an expert.
He should also check that the domestic electrical system is suitable for the power
absorbed by the appliance.
– The connection of the appliance to earth is mandatory.
The manufacturer declines all responsability for any inconvenience
resulting from the none observance of this condition.
Before carrying out any work on the electrical parts of the appliance, the
appliance must first be disconnected from the electrical supply.
IMPORTANT: The cooker must be installed in accordance with the
manufacturer’s instructions.
Incorrect installation, for which the manufacturer accepts no responsibility,
may cause injury to persons
, animals or equipment.
IMPORTANT: this cooker must be connected to a suitable double pole control
unit adjacent to the cooker.
No diversity can be applied to this control unit.
38
A
D
B
Fig. 32
Connecting the mains cable
To connect the feeder cable to the cooker it is necessary to:
– Remove the two screws that hold shield A behind the cooker.
– Open completely the cable clamp D.
– Insert the mains cable (see FEEDER CABLE SECTION) into the cable clamp D.
– Connect the phase and earth cables to terminal B according figure 33 and 34.
– Pull the feeder cable and block it with the cable
clamp D.
– Re-mount shield A.
Connecting the power cord must be entrusted to skilled personnel in
accordance with the instructions supplied by the manufacturer and in
compliance with established safety standards.
Feeder cable section
“TYPE H05RR-F or H05VV-F”
230V 3 x 4 mm2(**)
(**)
– Connection with wall box connection.
– Diversity factor applied.
– A diversity factor may be applied to the total
loading of the cooker only by a suitable qualified person.
PE
12345
N (L2)L1
230 V
23451
230 V ~
N(L2)
PE
L1
PE Earth
N Neutral
L Live
Fig. 33
Fig. 34
Red
or
Brown
(Live)
Black
or
Blue
(Neutral)
Green
and
Yellow
(Earth)
39
Appliance servicing
CDA provide a quality and effective after-sales service to cover all your
servicing needs.
Please attach your receipt to this page for safekeeping.
Please help us to help you by having the following information available
when booking a service-call:
1. Model type, make and model – see the product data plate.
2. Evidence of installation / purchase date
3. Retailer where appliance was purchased
4. Clear and concise details of the fault
5. Full address including postcode and any contact phone numbers
Contact telephone numbers
CDA Customer Care Department
• Telephone: 01949 862012
• Fax: 01949 862003
• Email: service@cda.eu
40
Guarantee
CDA appliances carry a five-year parts and a one-year labour guarantee.
CDA will repair or replace any defect or part attributable to faulty material or workman-
ship. Within the first year this will be free of both labour and parts charges. After the
first year and within five years, the parts will be supplied free of charge provided that
the repair is carried out by an agent authorised by CDA and the labour will be charged
at the commercial rate applicable at the time of repair.
The appliance must have been installed by a suitably qualified person and in accordance with the manufacturer’s instructions and current legislation. The guarantee does
not cover faults caused by the incorrect fitting of appliances.
Limit of Cover
• The guarantee does not cover cosmetic damage e.g. discolouration or oxidisation.
• Proof of purchase or installation date must be produced before a service-call will be
booked.
• The appliance must be used for domestic purposes only. Appliances used for com-
mercial or professional purposes are not covered by the guarantee. Commercial warranty is available at extra cost.
• The appliance must not be modified or tampered with or repair attempted by any
unauthorised person.
• The guarantee does not cover damage caused in transit or by misuse, accident,
abuse or neglect.
• The guarantee does not cover routine maintenance.
• Use of parts not supplied or recommended by |C|D|A| will invalidate the warranty.
• Rubber seals, filters, removable glass parts, control knobs and buttons, fuses and
light bulbs will need replacing periodically and are not covered by the guarantee.
• Second-hand or reconditioned appliances are not covered by the guarantee.
The conditions under which this guarantee is offered are in addition to the statutory
rights of the domestic purchaser and these statutory rights are not affected by this
guarantee.
CDA reserve the right to change specification without prior notice.
414243
RV 1060 .. cookers
The Group Ltd
Harby Road ●Langar
●
Nottingham
●
NG13 9HY ● UK
VAT No : 528 7168 19
●
Registered in England : 2621460
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the models described here, at
any time and without notice, to make eventual necessary modifications for their construction or for
commercial needs.
Cod. 1103129
ß3
Loading...
