CDA RC 9021 User Manual

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu

GB

RC 9021 .. - Dual Fuel Cookers

Manual for Installation, Use and Maintenance

2

Important

This appliance is designed and manufactured solely for the cooking of domestic (household) food and
is not suitable for any non domestic application and therefore should not be used in a commercial
environment.

The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi
commercial, commercial or communal environment.

The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation
of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.

Appliance information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in
the event of a fault with your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

Declaration of CE conformity

This cooker has been designed, constructed and marketed in compliance with:

- Safety requirements of EU Directive “Gas” 2009/142/EC;

- Safety requirements of EU Directive “Low Voltage” 2006/95/EC;

- Protection requirements of EU Directive “EMC” 2004/108/EC;

- Requirements of EU Directive 93/68/EEC.

Important information for correct disposal of the product in accordance with
EC Directive 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban
waste. It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with a
crossed-out wheeled dustbin.

3

Features and Technical Data

Gas Burners

1. Auxiliary burner (A) 1.00 kW

2. Semi-Rapid burner (SR) 1.75 kW

3. Semi-Rapid burner (SR) 1.75 kW

4. Rapid burner (R) 3.00 kW

5. Triple Ring burner (TR) 3.50 kW

Note:

The electric ignition is incorporated in the knobs.
The appliance has a safety valve system fitted, the flow of gas will be stopped if and when the flame should
accidentally go out.

3

5

4

2

1

Fig. 1

Conventional
oven

Multifunction
main oven

4

A
U
T
O

Control Panel

Controls Description

1. Front right burner control knob

2. Rear right burner control knob

3. Central burner control knob

4. Rear left burner control knob

5. Front left burner control knob

6. Multifunction main oven switch knob

7. Multifunction main oven thermostat knob

8. Electronic programmer (main oven only)

9. Conventional oven thermostat knob

10. Conventional oven switch knob

Pilot Lamps:

11. Main oven thermostat indicator light

12. Conventional oven thermostat indicator light

Please note: This appliance incorporates a safety cooling fan which you will hear operating whenever
the oven or grill are in use. The cooling fan may also operate when the oven is switched off. This fan is to
reduce the external temperature of the appliance and cool the internal components.

11

12

Fig. 2

8 7 6 5 4 3 2 1

10

9

5

Electronic Programmer (Main Oven Only)

A
U
T
O

The electronic programmer is a device that groups together the following functions:
– 24 hour clock with illuminated display
– Timer (up to 23 hours and 59 minutes)
– Programme for automatic oven cooking
– Programme for semi-automatic oven cooking.

Description of the buttons:

Symbols Description

Timer

Cooking time

End of cooking time

Manual position and cancellation of
the set cooking program

To increase the numbers on the
digital display

To decrease the numbers on the
digital display.

Description of the illuminated symbols:

Symbols Description

AUTO

flashing

AUTO

always lit

Programmer in automatic position
but not programmed.

Programmer in automatic position
with program set.

Automatic cooking taking place.

Timer in operation

Program error.

and

AUTO

flashing

(The time of day lies between the
calculated cooking start and end
time).

Note:

Select a function by the respective button and, in 5 seconds, set the required time with the
(“one-hand” operation).
After a power cut the display resets to zero and cancels the set programs.

/ buttons

Fig. 3 Fig. 4

6

Electronic Clock (fig. 4)

The programmer is equipped with an electronic clock with illuminated numbers which indicates hours
and minutes. Upon immediate connection of the oven or after a power cut, three zeros will flash on the
programmer display.
To set the correct time of day it is necessary to push the
you have set the correct time. In another way push simul tane ously the
time push the or button.
Note: If the clock is reset it deletes any previously set programs.

button and then the or button until

two buttons and at the same

Normal Cooking without the Use of the Programmer

To manually use the oven, that is, without the aid of the programmer, it is necessary to cancel the flashing

AUTO by pushing the button (AUTO will be switched off and the symbol will go on - Fig. 5).
Attention: If the A UTO is steadily lit (which means a cooking program has already been set), the program

can be cancelled and switched to manual by pushing the button .
If the oven is switched on, you must switch off manually.

Electronic Timer

The timer program consists only of a buzzer which may be set for a maximum period of 23 hours and 59
minutes. If the AUTO is flashing push the button.
To set the time, push the button and the or until you obtain the desired time in the panel
(fig. 6). Having finished the setting, the clock hour will appear on the panel and the symbol will be
illuminated.
The countdown will start immediately and may be seen at any moment on the panel by simply pressing
the button .
At the end of the time, the symbol will disappear and the buzzer will sound and continue for
approximately 7 minutes or until a button is pressed (not the / buttons).
After a short time the display will revert back to the time of day.

Setting the Frequency of the Audible Signal

The buzzer has 3 different tones and can be changed by pressing the button, but only when the time
of day is displayed.

Fig. 5 Fig. 6

7

Automatic Oven Cooking

A
U
T
O

A
U
T
O

To cook food automatically in the oven, it is necessary to:

1. Set the length of the cooking time

2. Set the end of the cooking time

3. Set the temperature and the oven cooking program.

These operations are done in the following way:

1. Set the length of the cooking period by pushing the
decrease if you have passed the desired time (fig. 7). The AUTO and the symbol will illuminate.

2. Set the end of the cooking time by pressing the

time will appear), and the button (fig. 8); if you pass the desired time you may get back by pushing
the button.
After this setting, the symbol will disappear. If after this setting, the AUTO flashes on the display
and a buzzer sounds, it means there was an error in the programming, that is that the cooking cycle has
been superimposed on the clock. In this case, modify the end of cooking time or the cooking period
itself by following again the above mentioned instructions.

3. Set the temperature and the cooking program by using the switch and thermostat knobs of the oven

(see specific chapters).

Now the oven is programmed and every thing will work automatically, that is the oven will turn on at the
right moment to end the cooking at the established hour.
During cooking, the

symbol remains illuminated.

By pushing the button you can see the time that remains until the end of cooking.

The cooking program may be cancelled at any time by pushing

At the end of the cooking time the oven will turn off automatically, the
will flash and a buz zer will be sound, which can be turned off by pushing any of the but tons except the

/ buttons.

Turn the switch and thermostat knobs to zero and put the programmer onto “manual” by pressing the

button.

button and the button to increase, or to

button (the cooking time already added to the clock

.

symbol will turn off, AUTO

Attention: After a power cut the clock resets to zero and cancels the set programs. After a power cut,

three zeros will flash on the display.

Fig. 7 Fig. 8

8

A
U
T
O

A
U
T
O

Semi - Automatic Cooking

This is used to switch the oven off automatically after the desired cooking time has elapsed.
There are two ways to set the semi-automatic cooking function:

1. Set the length of time you need to cook the food by pushing the
advance, or to go backwards (Fig. 9).

This sets the desired “stop” time.
AUTO and the symbol will be on.

or

2. Set the time you need the food to stop cooking by pushing the button and the button to

advance, or to go backwards if you have passed the desired time (Fig. 10).
AUTO and the symbol will be on.

Then set the temperature and the cooking program (see the relevant sections).
The oven is switched on and it will switch off automatically at the end of the desired time.
During cooking, the symbol remains on and by pressing the button you can see the time that
remains until the end of the cooking.

The cooking program can be cancelled at any moment by pushing the

At the end of the cooking period, the oven and the

symbol will disappear, AUTO will flash and a buzzer

will sound and can be stopped by pushing any of the buttons except the / buttons.

Turn the function selector switch and thermostat knobs to zero and put the programmer onto “manual”
by pressing the button.

button and the button to

button.

Attention: After a power cut the clock resets to zero and cancels the set programs. After a power cut,

three zeros will flash on the display.

Fig. 9 Fig. 10

9

How to Use the Hob Burners

Hob Burners

Each hob burner is controlled by a separate gas valve operated
by a control knob (fig. 11) which has 3 positions marked on the
control panel, these are:

– Symbol

: Tap closed (burner off)

– Symbol

– Symbol

Push in and turn the knob anti-clockwise to the selected
position.
The maximum aperture position permits rapid boiling of liquids,
whereas the minimum aperture position allows slower warming
of food or maintaining boiling conditions of liquids.
To reduce the gas flow to minimum, rotate the knob further anti­clockwise to point the indicator towards the small flame symbol.
Other intermediate operating adjustments can be achieved by
positioning the indicator between the maximum and minimum
aperture positions, not between the maximum aperture and
closed positions.

Note: When the hob is not being used, set the gas knobs to their closed positions and also
close the cock valve on the gas bottle or the main gas supply line.

: High (maximum)

: Low (minimum)

Fig. 11

Lighting of the Hob Burners

To ignite the burner, the following instructions are to be followed:
1 - Press in the corresponding knob and turn counter-clockwise to the full flame position marked by the

symbol (fig. 11) and hold the knob in until the flame has been lit.

In the case of a mains failure light the burner with a match or lighted taper.
2 - Wait about ten seconds after the gas lighting before releasing the knob (starting time for the valve).
3 - Adjust the gas valve to the desired power.

Important

If the burner flame should go out for some reason, the safety valve will automatically stop the gas flow.
To re-light the burner, return the knob to the closed position, wait for at least 1 minute and then
repeat the lighting procedure.
If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob
to minimum and repeat the operation.

10

Choice of Burner

The burner must be choosen according to the diameter of the
pans and energy required. Saucepans with handles which are
excessively heavy, in relationship to the weight of the pan, are
safer as they are less likely to tip. Pans which are positioned
centrally on burners are more stable than those which are offset.
It is far safer to position the pan handles in such a way that they
cannot be accidentally knocked.
When deep fat frying fill the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the unfortunate event of a fire, leave the pan where it is and turn off all controls. Place a damp cloth or
correct fitting lid over the pan to smother the flames.
DO NOT use water on the fire.
Leave the pan to cool for at least 30 minutes.

Do not use pans with concave or convex bases

Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)

Auxiliary 12 14

Semi-Rapid 16 24

Rapid 24 26

Triple Ring 26 28

Wok - 36

Fig. 12

Correct Use of Triple-Ring Burner

The flat-bottomed pans are to be placed directly onto the pan-support.
To use the WOK you need to place the proper stand in order to avoid any faulty operation of the triple­ring burner (Figs. 13 - 14).
Important: The wok pan stand (fig. 14) MUST BE PLACED ONLY over the pan-rest for the triple-ring
burner.

Fig. 13

WRONG

Fig. 14

CORRECT

11

How to Use the Multifunction Main Oven

General Features

As its name indicates, this is an oven that presents particular features from
an operational point of view.
In fact, it is possible to insert 7 different programmes to satisfy every
cooking need.
The 7 positions, thermostatically controlled, are obtained by 4 heating
elements which are:
– Bottom element 1200 W
– Top element 1000 W
– Grill element 2000 W
– Circular element 2200 W

Note:

Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30
minutes at the maximum temperature (thermostat knob on position 250) in the positions and , to
eliminate possible traces of grease on the heating elements.
Clean the oven and accessories with warm water and washing-up liquid.

WARNING:
The door is hot, use the handle.

ATTENTION - MOST IMPORTANT
Pay special attention not to touch the hot heating element
inside the oven cavity.

Attention:

The oven door
becomes very hot
during operation.

Operating Principles

Heating and cooking in the MULTI-FUNCTION oven are obtained in the following ways:
a. by normal convection
The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element

and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat

the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking.
It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the

fan.

d. by radiation
The heat is radiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

12

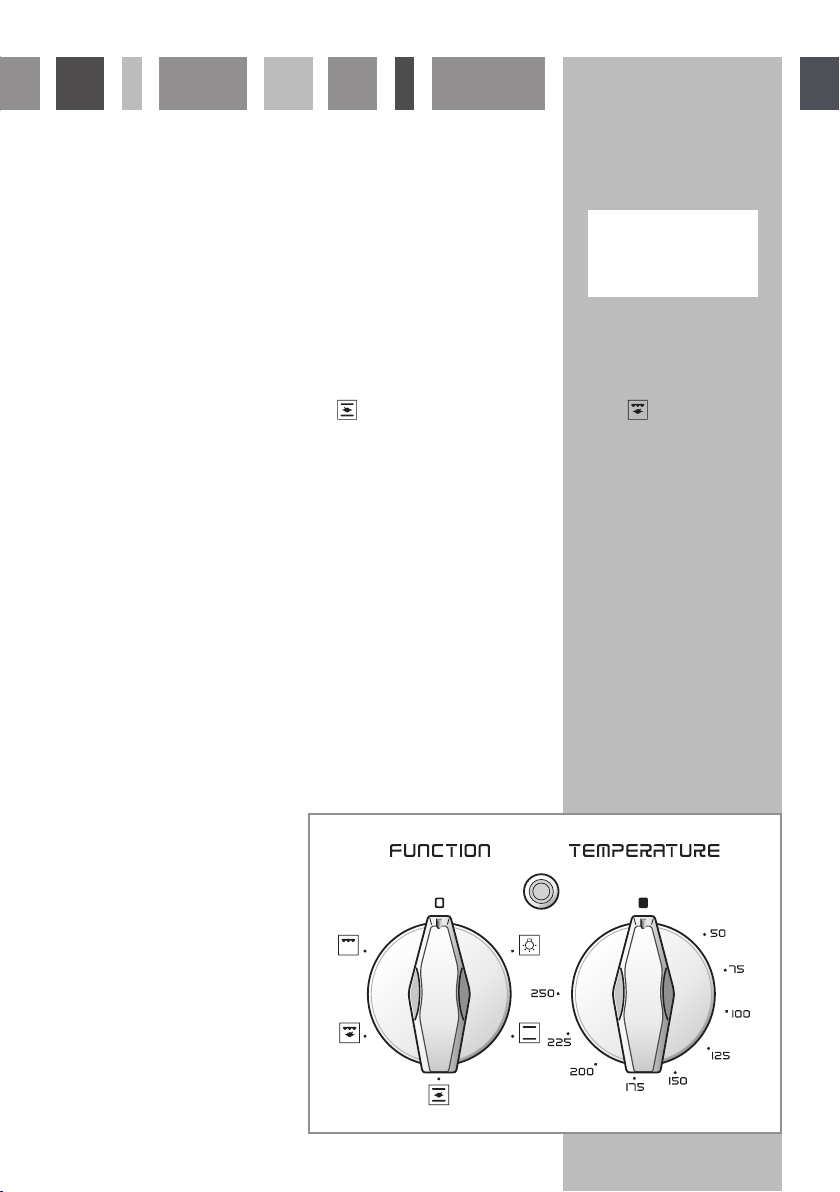

Thermostat Knob (fig. 15)

This only sets the cooking temperature and does not switch the oven on.
Rotate clockwise until the required temperature is reached (from 50 to 250°C).
The light between the thermostat and the function selector will illuminate when the oven is switched on
and turns off when the oven reaches the correct temperature.
The light will cycle on and off during cooking in line with the oven temperature.

Fig. 15 Fig. 16

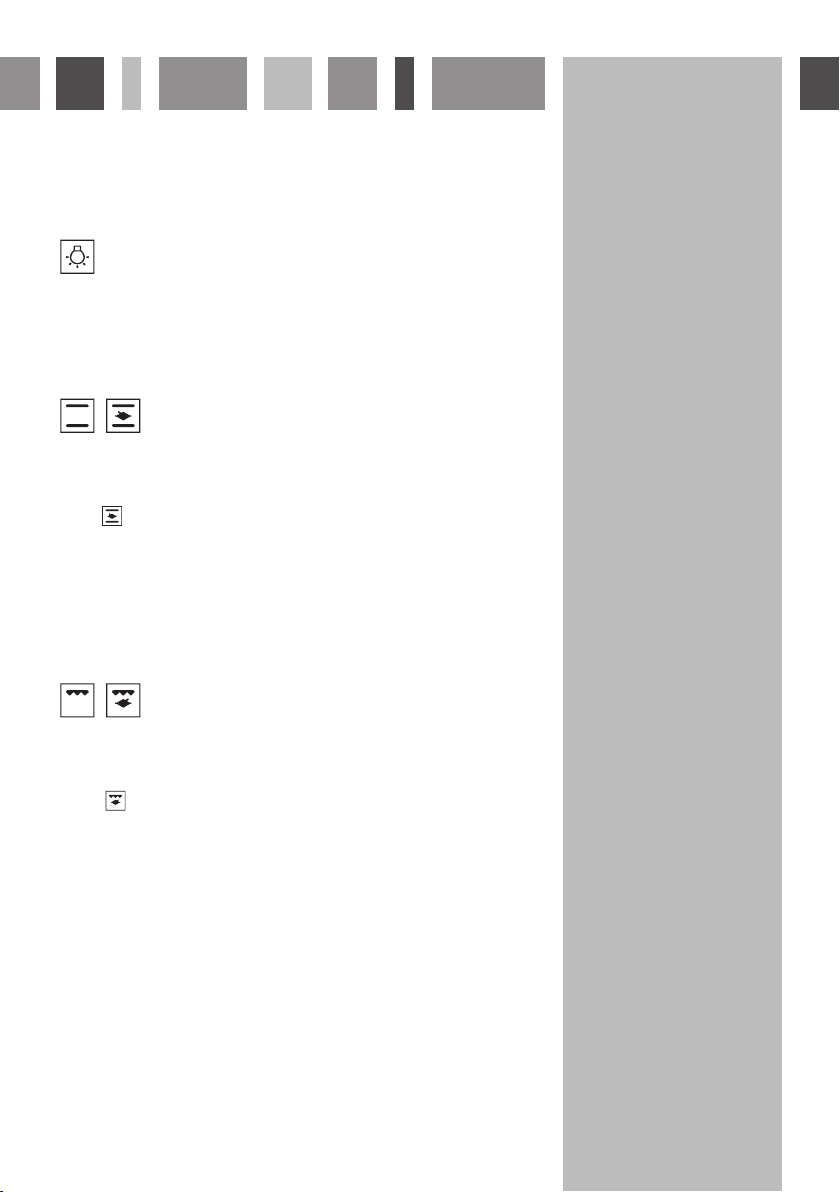

Function Selector knob (fig. 16)

Rotate the knob clockwise to set the oven for one of the following functions.

Oven Light

By setting the knob to this position, only the oven light comes on.
It remains on in all the cooking modes.

Traditional Convection Cooking

The upper and lower heating elements come on. The heat is dispersed by natural convection and the
temperature must be set to between 50° and 250°C via the thermostat knob.
The oven must be preheated before cooking.

Recommended for:

Food that requires the same degree of cooking both inside and out, for example roasts, spare pork ribs,
meringues etc.

13

Grilling

The infrared grill element comes on. The heat is dispersed by radiation.

Use with the oven door closed and the thermostat knob to position 225°C for max 15 minutes, then
to position 175°C.
For cooking hints, see the chapter “USE OF THE GRILL”.

Recommended for:

Intense grilling, browning, cooking au gratin and toasting etc.

It is recommended that you do not grill for longer than 30 minutes at any one time.
Caution: the oven door becomes very hot during operation. Keep children well out of reach.

Defrosting Frozen Foods

Only the oven fan comes on. Use with the thermostat knob set to “ ” - other positions have no effect.
The food is thawed by ventilation without heating.

Recommended for:

Quick thawing of frozen foods; one kg requires approximately 1 hour.
Thawing times vary according to the quantity and type of food to be thawed.

Hot Air Cooking

The circular element and fan come on. The heat is dispersed by forced convection and the temperature can
be regulated to between 50° and 250°C via the thermostat knob. The oven does not require preheating.

Recommended for:

Food which has to be well-cooked outside and soft or rosy inside, for example lasagne, lamb, roast beef,
whole fish etc.

14

Ventilated Grill Cooking

The infrared grill element and the fan come on. The heat is dispersed mainly by radiation and the fan then
distributes it all over the oven.
Use with the door closed. The temperature can be regulated via the thermostat knob to between 50°
and 175° max.
The oven must be preheated for approximately 5 minutes. For cooking hints, see the chapter “GRILLING
AND AU GRATIN.

Recommended for:

Grilling where quick browning on the outside is required to keep the juices in.
For example: veal steaks, chops, hamburgers etc.

It is recommended that you do not grill for longer than 30 minutes at any one time.
Caution: the oven door becomes very hot during operation. Keep children well out of reach.

Maintaining Temperature After Cooking or Slowly Heating Foods

The upper heating element, the circular element and the fan come on.
The heat is dispersed by forced convection with greater intensity in the upper part.
The temperature can be set to between 50° and 150°C via the thermostat knob.

Recommended for:

Keeping food warm after any type of cooking. Slow heating of cooked food.

Convection Cooking with Ventilation

The upper and lower heating elements come on and the fan.
The heat coming from above and below is dispersed by convection with ventilation.
The temperature can be set to between 50° and 250°C via the thermostat knob.

Recommended for:

Voluminous dishes and large quantities which require the same degree of cooking both inside and out, for
example rolled roasts, turkey, roast legs, cakes etc.
