CDA PC85SC User Manual

Table of ContentsTable of Contents

Before Use

Features ................................................1

Names of Parts .....................................2

Safety Alert Symbols ..........................3-5

Safety Precautions.................................6

Installation..............................................7

Removing & Replacing Door..............8~9

Preparation.....................................10~13

Initial Use..............................................14

Operation Instructions

Functions........................................15~18

Refrigerator Compartment..............19~21

Storing Food in Refrigerator

Compartment........................................22

Useful Tips............................................23

Freezer Compartment....................24~25

Storing Food in Freezer Compartment......26

Care and Maintenance

Defrosting • Cleaning............................27

Vacation..........................................28~29

Troubleshooting • After-Sales Services

Troubleshooting..............................30~31

After-Sales Services.......................32~33

Technical Data• / Packing List

Technical Data• Circuit Diagram...........34

Packing List..........................................35

After-Sale Information

• Please read this User Manual carefully before use.

• Please keep this User Manual in a safe place.

• Your refrigerator could be slightly different from that
illustrated herein with respect to appearance, or
colour.

FeaturesFeatures

Refrigerator light

Dairy compartment

Dairy product

Bottle racks

fruit and

Ice making

A built-in automatic icemaker will produce ready-to-use ice
your preference.

Chill drawer for delicatessen

The delicatessen drawer at the bottom of the refrigerator compartment is intended
for storage of delicatessen within the temperature range from -2°C to +3°C.

Slide-out shelf for easy food access

The refrigerator compartment is equipped with slide-out shelves for easy loading
and unloading. The shelves can be removed when the door is in the right-angle
position.

Artificial Intelligent (AI)

The optimum refrigeration performance is secured based on control of the inner
temperature and the ambient temperature without manual intervention.

Super slim, super large and super luxurious

Compact dimensions, large capacity, spacious refrigerator compartment and
freezer compartment, excellent internal and external design

CFC-free and frost-free deep freezing enabled by efficient
air cooling system

Air Curtain technology

The air curtain located at the front end of the refrigerator compartment is intended
to provide the desired food storage by preventing invasion of warm air into the appliance
and facilitating equal distribution of cooled air.

Cooling before defrosting to prevent thawing

A pre-cooling process will be activated based on the inner temperature measured
to avoid the adverse impact of temperature rise on food stored in the refrigerator.

Optimized refrigeration performance and long service life of compressor
enabled by efficient condenser unit and fan motor

Door-open alarm, touch button and large-screen LCD display

Smooth and effortless drawer slide.

1

cubes based on

Names of parts Names of parts

Water filter

Ice scoop

2

Safety Alert SymbolsSafety Alert Symbols

Dear Customer
Thank you for using this product. For better understanding of this user
manual and safe use of the product, please make sure the safety messages
following these safe symbols are observed:

A Prohibition symbol indicates actions that are likely to
cause product damage or personal injury and therefore

Prohibition

Warning

Caution

are prohibited.

A Warning symbol indicates information related to

>

product safety and personal injury, and instructions
following this symbol should be immediately observed.

A Caution system indicates information related to product

>

safety and personal injury and instructions following this
symbol should be observed.

Safety Precautions Safety Precautions

Power supply: AC 220~240V/50HZ

If the voltage fluctuates violently
(beyond 187~242V), consult a qualified

electrician

to prevent startup failure,

damaged control board or
compressor, or unusual noise.

sMOO

may cause a fire hazard.

òeMR

The appliance must be plugged into a
dedicated socket that is earthed

securely.

The power cord of this appliance is fitted
with the three-pin plug (earthed ) that
complies with the standard three-pin
socket. Never cut off or remove
the third prong. The refrigerator should be
located so that the plug is accessible.
WARNING! The plug should be securely
connected to the socket or otherwise it

>

Be careful not to damage the power
cord.

Always pull at the plug and not the
cord itself to disconnect the appliance
from the socket.
Route the power cord in a way to
eliminate the risk of damage caused by
the weight of refrigerator.
Be careful not to damage the power
cord when moving the appliance away
from the wall.

When the power cord is damaged

The use of cracked cord or worn plug
is strictly prohibited. If the power cord
is damaged, it should be replaced by
an authorised service engineer.

>

If there is a gas leakage

Shut off the gas valve.
Open the doors and windows for
ventilation.
Do not plug or unplug the refrigerator
or other electric appliances.

3

Always remember to unplug
the appliance in the following cases:

Unplug the appliance before cleaning
and reparation.
Unplug the appliance before replacing
the old light bulb to prevent electric
shock.

>

4

>

Safety PrecautionsSafety Precautions

Never store inflammable or explosive
items and strong corrosive acids or
alkalis in the appliance.

Spraying

agent

Mousse

To prevent risk of fire, keep the
appliance away from petrol or any
other inflammables.

Alkali

Gas

Acid

This appliance is a household
refrigerator, which is produced in
accordance with the national
standard. It is intended for food
storage only, not for storage of blood,
medicine and biological products.

Vaccine

Strain

>

To prevent risk of electromagnetic
interference or other accidents, do not
place a microwave oven on top of the
refrigerator or use any electric appliance
inside the refrigerator.

Chemicals

> >

Safety Precautions Safety Precautions

Hold the door handle when opening and
closing the door.The gap between the
doors and the gap between the doors and
the cabinet is very small. Make sure items
do not get stuck. Always keep
children away when a door is opened or
closed.

>

No dismantlement or modification can be
made without authorization. Damage to
refrigeration system may occur invalidating

your warranty.

Reparation must be carried out by
authorized personnel.

Do not splash water onto the
refrigerator. Keep it away from places
of high humidity that may have adverse
effect on the electric insulation
performance.

> >

Bottled beer or cans should not be
stored in the freezer compartment – risk
of explosion.

Children should not be allowed to play

with the door or the bottle racks. Serious
injurymay occur. Do not walk on the door
or the cabinet when loading and unloading
the refrigerator. Do not sit on the drawers.

>

The internal surface of freezer
compartment is very cold when the
appliance is running. Do not touch the
surface especially when hands are wet.

>

Unplug the appliance in the event of power
interruption or cleaning. The appliance can
be plugged in again only after an interval of
at least 5 minutes to prevent damage to
the compressor caused by frequent
startups.

>

Please remove the door, door seal and
shelves before disposal of the old
appliance and put them away in a safe
place to prevent children from being
entrapped.

65

>

Installation

Levelling

The appliance should stand firmly on solid floor. To support it, use firm and solid
pads that are inflammable. Never use the packaging materials for supporting.
Level the appliance with the adjustable legs whenever necessary. Turn clockwise
to raise the refrigerator, and anticlockwise to lower it.

Do not expose the appliance to direct
sunlight or heat source.

The appliance should be placed in a well
ventilated room. 10cm minimum
clearance at both sides and at rear
is required.

10cm minimum

Distance

clearance above

10cm minimum
clearance at rear

10c m m in im um

cle ara nc e at bo th

sid es

>

Do not expose the appliance to rain and
moisture. Keep the appliance dry and
clean to prevent rust and deterioration of
electric insulation.

To prevent risk of injury and accident, do
not place heavy load and water container
on top of the refrigerator.

Removing & Replacing DoorRemoving & Replacing Door

To avoid injury, property loss or damage to the refrigerator, make sure to
remove all food from door racks and then remove bottle bin(s), unplug the
refrigerator and shut off water supply before removing and replacing a

>

door.To avoid injury or property loss, remove or replace the door with the
help of 2 persons or more. The following instructions should be observed.Be

NOTE

careful to prevent the door from falling onto you when lifting the door from the
hinge.To prevent the risk of suffocation, keep children and pets away from
the drawers, in case they may get entrapped in the drawers.

Removing and replacing the right door of refrigerator compartment

Unscrew the upper right hinge cover
by means of screwdriver and then

>

remove the hinge cover.

Remove the door and place it in
a proper position.

Unscrew the upper right hinge by
means of hexagonal screwdriver and
then remove the hinge.

Remove the middle hinge if necessary.

>

Replace the door in a reverse sequence of removal.

Removing and replacing the left door of refrigerator compartment

Unscrew the upper left hinge cover
by means of screwdriver and then
remove the hinge cover.

Unscrew the upper left hinge by means
of hexagonal screwdriver and then
remove the hinge.

>

7

>

8

Removing & Replacing DoorRemoving & Replacing Door

Remove the door and place it in a
proper position.

Remove the middle hinge
if necessary.

PreparationPreparation

Remove all packaging materials.

Foam support and adhesive tapes
should be removed.

Replace the door in a reverse sequence of removal.

Removing & Replacing Ice Bin

Pull out the ice bin entirely and remove
it from the refrigerator.

Replace the ice bin in a reversal sequence to removal.

Removing & Replacing Freezer Drawer

Pull out the freezer drawer entirely
and remove it from the refrigerator.

Replace the freezer drawer in a reversal sequence to removal.

9

Check the accessories and literature.

Check the accessories in accordance
with the packing list. Any doubt, contact
the dealer.

Locate the appliance in a proper
position. See “Installation”.

It is recommended to clean the
appliance before operation.

Standstill

To ensure normal operation, allow the

.

appliance to stand still for 6 hours or
longer after installation and cleaning.

Please write down the model number and serial

>

number for later reference.

Note

01

Preparation Preparation Preparation Preparation

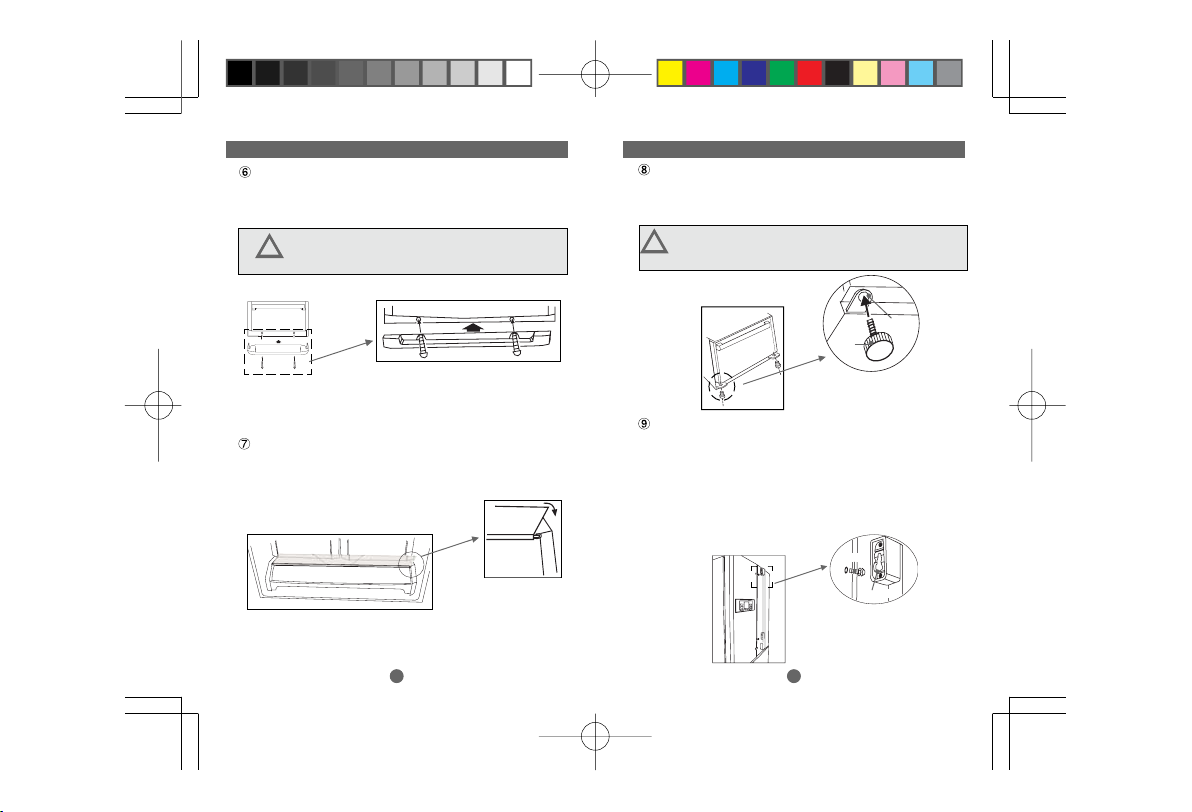

Installing Bottom Trim

Open the door of refrigerator compartment and take out the bottom trim.
Fasten it to the bottom of refrigerator with screws as illustrated.

Wear a pair of gloves to protect your hands when

>

removing or installing the bottom trim and adjustable
legs of the refrigerator.

NOTE

Installing front cover of delicatessen drawer

Open the door of refrigerator compartment. Take out the front cover of
delicatessen drawer from the crisper cover. Then place the rotary shaft at both
ends of the drawer into the supporting slot of the slide guide, and turn the
front cover of delicatessen drawer down.

Installing Legs

Take out the accessory bag containing the legs from the refrigerator
compartment. The appliance should be tilted.by one person and the
legs should be installed as illustrated by the other person.

Installation of legs requires the joint efforts of at least two adults. Don’t
attempt to handle it by yourself. Make sure the appliance is not tilted too

>

NOTE

much so that it overbalances.Before moving a refrigerator, the adjustable
legs should be removed to prevent floor damage.

Removing & Replacing Door Handle

Take out the door handles from the refrigerator compartment (2 longer handles
to be installed on the refrigerator and 1 shorter handle to be installed on the
freezer). The following instructions should be observed.
Removing & Replacing Refrigerator Door Handle
Get 2 fasteners out of the accessory bag and place them in 2 reserved holes in
the left door. Install a handle by attaching the reinforcing plate to the fasteners
and then pushing the handle to the left into its place. Install the right handle
in the same way. To remove the handle, push it to the right.

Leg

Fastener

Reinforcing
plate

Reserved

hole

1

1

1

2

Preparation Preparation

Removing & Replacing Freezer Door Handle

Get 2 fasteners out of the accessory bag and place them in 2 reserved
holes in the freezer door. Install a handle by attaching the reinforcing
plate to the fasteners and then pushing the handle into its place. To
remove the handle, push it to the right.

Fastener

Reinforcing
plate

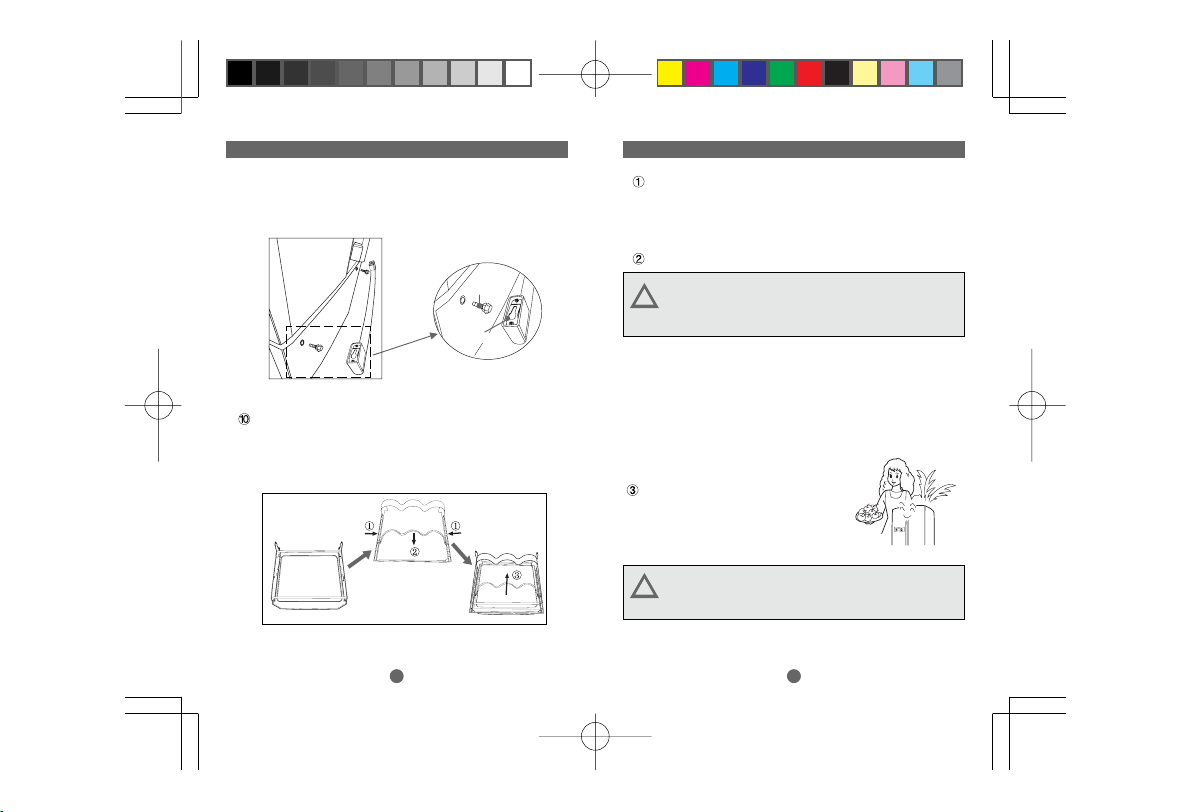

Installing wine shelf

Open the door of refrigerator compartment. Take out the food shelf at the
upper left corner. Place the glass shelf downward on a table. Then take
out the wine shelf from the delicatessen drawer at the bottom. Hold the
wine shelf at both ends, attach it to the food shelf (as (1) shown below)
and then push it in place (as (3) shown below).

Initial UseInitial Use

Connect the appliance to the power supply.

The appliance has a ba
a power interruption will be sto
(See Backup Memory section on Page 18 for details)

Operation Modes

Once the AI mode is selected, there is no need to make any

>

adjustment within a prescribed range of temperature, notwithstand­ing the changes in ambient temperature.

NOTE

You can select one of the following operation modes.

(1) AI: Unless otherwise required, it is recommended that the

AI mode is used. Tap the AI button and the indicator will

illuminate. The appliance will start an automatic operation.

(See the AI Mode section on Page 15)

(2) Manual: Alternatively, you can adjust the inner

temperature by means of the temperature control button.

(See the Temperature Setting & Regulation section on

Page 17)

Loading the refrigerator

The inner compartment will be cold enough and ready for

food storage after a couple of hours of non-load operation.

When the temperature setting is adjusted, it takes some time to reach the

>

desired inner temperature. The period will be longer or shorter, depending on

the ambient temperature, amount of food and how often the door is opened.

NOTE

ckup memory and the settings before

red.

31

1

4

FunctionsFunctions FunctionsFunctions

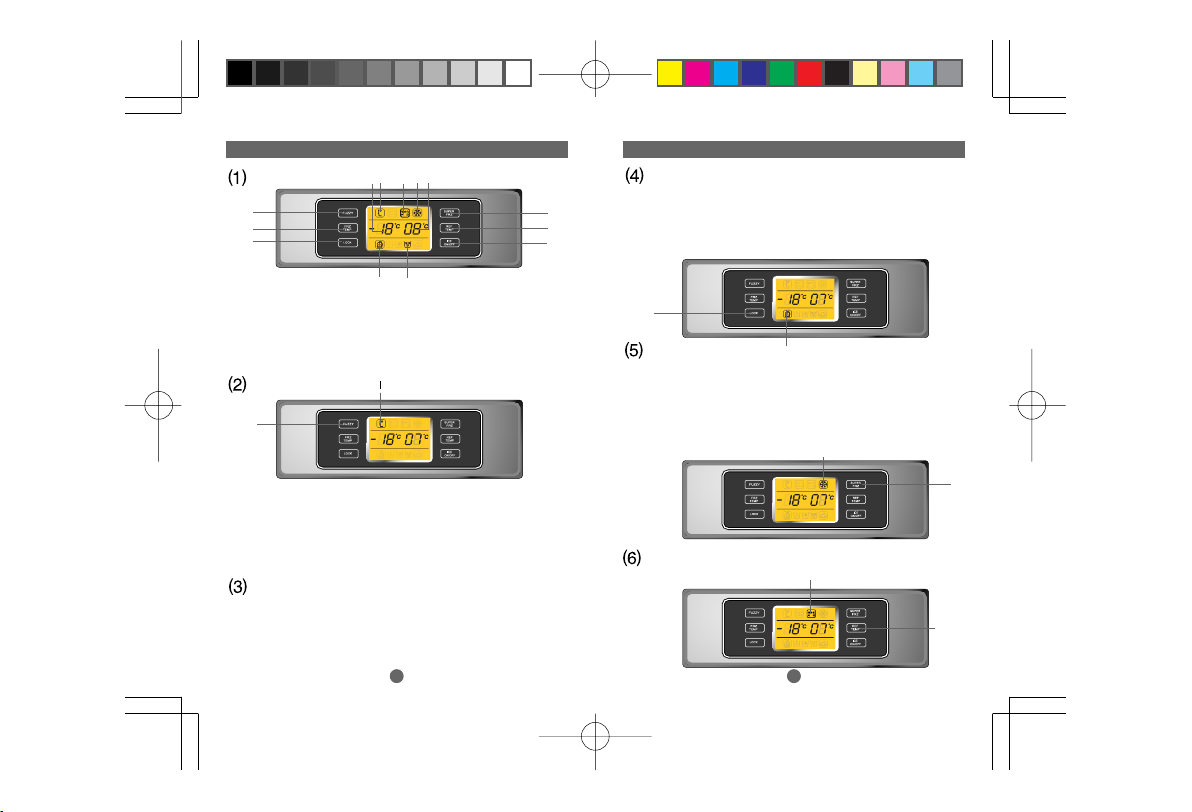

Control panel

G

A

B

C

A .......... AI button

B .......... Freezer temperature control button

C ......... Lock / unlock button

D .......... Icemaker ON/OFF button

E .......... Refrigerator temperature control button

Fast freeze button

F ..........

G .......... Freezer temperature display

AI Mode

A

J

I

H

K

I

J

H .......... Refrigerator temperature display

I .......... AI icon

J .......... Icemaker OFF icon

K .......... Fast freeze icon

L .......... Lock icon

M .......... Fast icemaking ON icon

F
E

D

Lock & Unlock

Under the Unlock mode, the Lock / Unlock button (C) may be tapped to display the
Lock icon (L) and enter into the Lock mode. To quit the Lock mode, tap the Lock /
Unlock button (C) again. The Lock icon (L) will disappear.
NOTE: Controls for selecting temperatures in refrigerator and freezer compartments
and functions such as fast freeze, fast chill ,ice on/off

are not available under the Lock mode.

C

Fast Freeze

This function is intended for retaining nutrients contained in the food stored in the

freezer by freezing the food fully within a short period of time.

Under the Unlock mode, the Fast Freeze button (F) may be tapped to display the

Fast Free icon (K) and activate the Fast Freeze mode. To quit the Fast Freeze mode,

tap the Fast Freeze button (F) again. The Fast Freeze icon (K) will disappear.

NOTE: The Fast Freeze mode is not available under the AI mode.

and AI (artificial intelligence)

L

K

The AI mode means there is no need for manual intervention and the
temperature setting will change automatically along with the ambient

temperature and the inner temperature. Under the Unlock mode, the AI button

(A) may be tapped to display the AI icon (I) and activate the AI mode. To quit the

AI mode, tap the AI button (A) again. The AI icon (L) will disappear.

Fault Display

When a fault with a control or function is detected, the refrigerator

temperature display and the freezer temperature display will disappear In this

case, please call the service center for information and support.

51

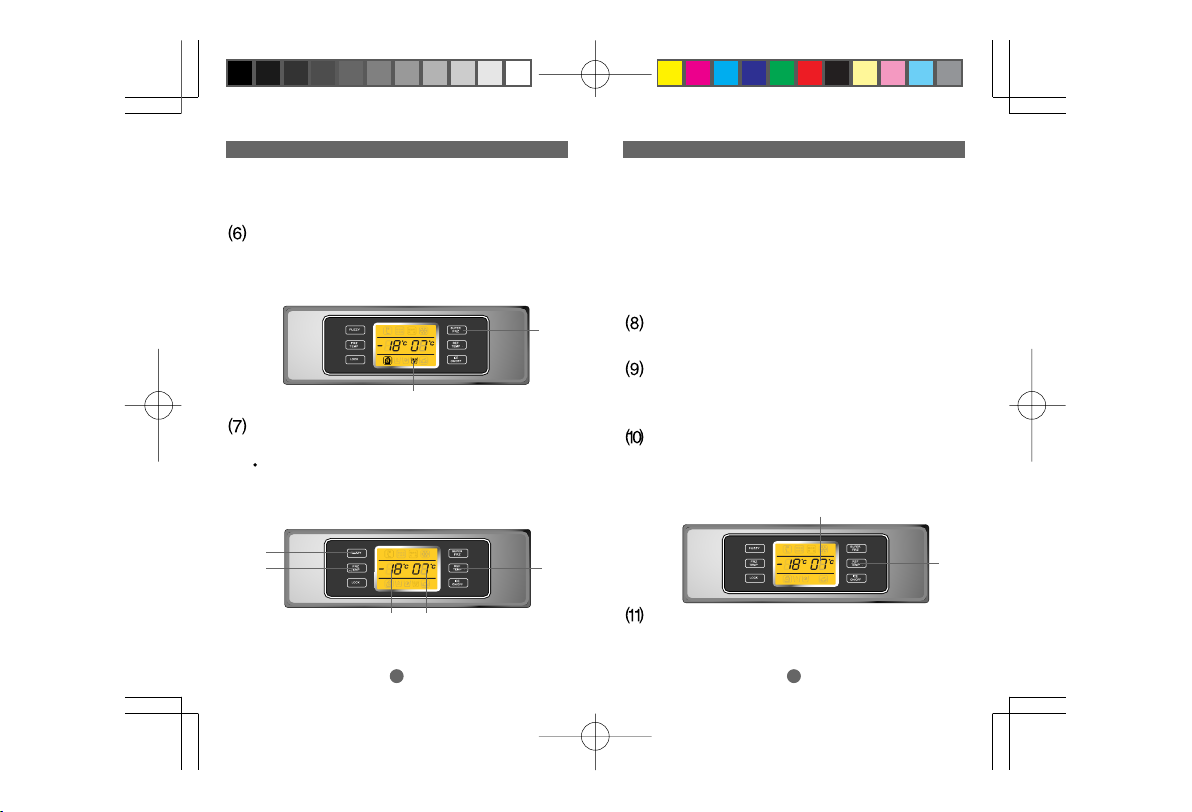

ON/OFF setting of icemaker

F

J

D

61

FunctionsFunctions FunctionsFunctions

The icemaker is activated upon switching on the refrigerator.
The Icemaker OFF icon (J) is dark. If the icemaker is not needed for
the moment, tap the Icemaker ON/OFF button (D) to turn off the
icemaker. The Icemaker OFF icon (J) is displayed.

Fast icemaking

Under the Lock mode, tap the ast Freeze button to display the Fast
Freeze icon (M). The buzzer will give a beep and the Fast Icemaking
will be activated. To quit the Fast Icemaking mode, tap the Fast Freeze
button (F) again. The buzzer will give a beep and the Fast Icemaking
icon (M) will disappear.

M

Temperature Setting & Regulation

This function is available only when the AI mode is deactivated.
The following instructions should be observed.

F

To set the refrigerator temperature: Under the Unlock mode, the
refrigerator temperature control button (E) may be tapped. The
refrigerator temperature display (H) will glisten. Each time the refrigerator
temperature control button (E) is tapped, the display sequence is as
follows:

7°C –5°C –3°C –2°C–1°C –7°C

To set the freezer temperature: Under the Unlock mode, the freezer
temperature control button (B) may be tapped. The freezer temperature
display (G) will glisten. Each time the freezer temperature control button
(B) is tapped, the display sequence is as follows:

-16°C–- -17°C –- -18°C –- -20°C–- -22°C –- -16°C

Door-open Alarm

When the door is kept open or not properly closed, an audible alarm will be
given once for a while until the door is closed.

Economic Display Control

Once the operation of control panel is finished, the display screen will go
dark after 30 seconds. The display is restored when a control button is
tapped or a door is opened. However, this button operation will not change
the existing settings of the refrigerator.

Refrigerator On / Off Control

Under the Lock mode, hold the refrigerator temperature control button (E)
3 seconds to turn off the refrigerator. The refrigerator temperature display
(H) will disappear while the refrigerator light will remain functional. Hold the
refrigerator temperature control button (E) 3 seconds to turn on the
refrigerator. The refrigerator temperature display (H) will illuminate and the
refrigerator will restart.

H

A

B

H

G

71

E

Backup Memory

The temperature settings will be memorized and, in case of a power
interruption, restored after the power interruption is over.

81

E

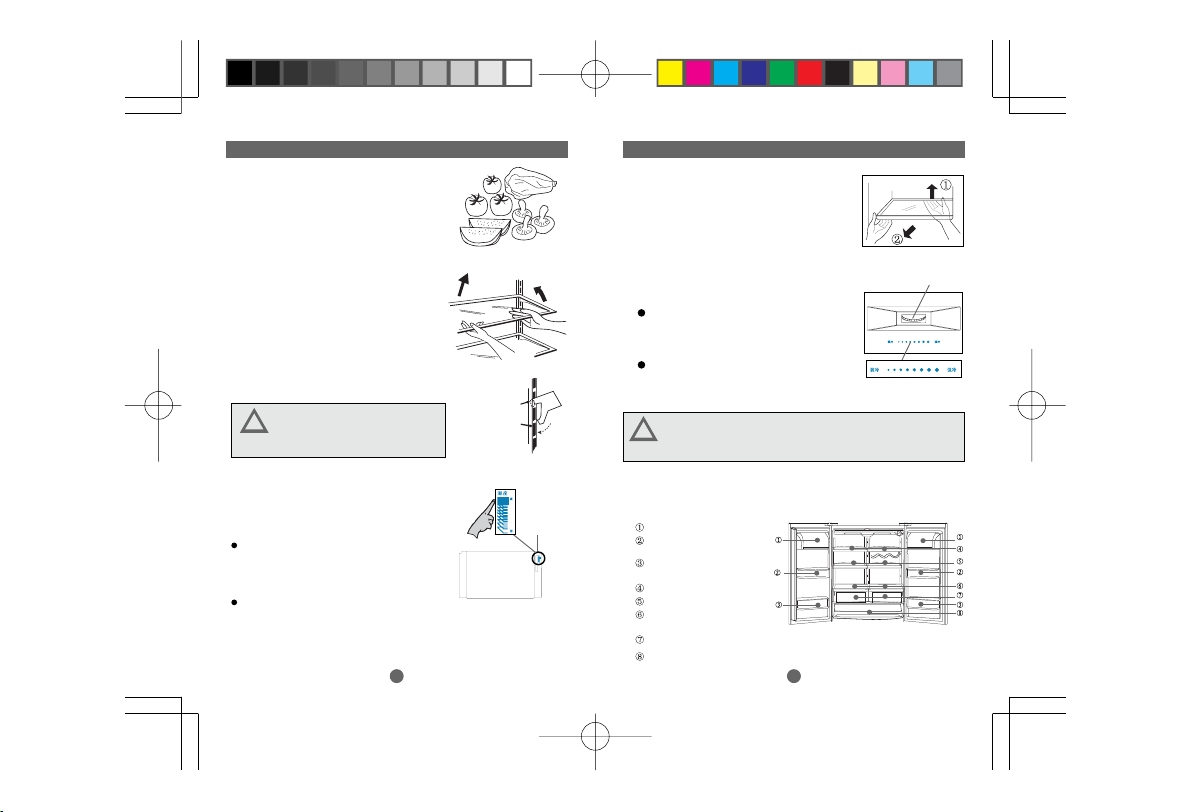

Refrigerator CompartmentAbout Refrigerator Compartment

The refrigerator can be used for
short-term food storage：

The average temperature of the compartment is about
0~10°C (-2~3°C in the delicatessen drawer).
Therefore it is only used for short-term food storage
and not suitable for keeping food fresh for a long time.

Height-adjustable Shelf

The height of shelf can be adjusted to meet your
storage needs.
To adjust the shelf height, remove the shelf first. The
steps are as follows: tilt the shelf up at front, and lift it
up and out of tracks. To replace the shelf, with shelf
front raised slightly, engage the lugs in tracks. Then
lower shelf front until it locks into position.

Make sure the shelf is installed securely

>

and level to prevent shelf falling or food

NOTE

spills.

How to Use the Crisper

The appliance is equipped with a crisper for vegetable
and fruit storage. You can set the humidity to meet your
storage needs.

Turn the humidity regulator (located at the upper
right corner of the crisper) up to get a higher
humidity suitable for storage of cucumber, grape,
kiwifruit etc.

Turn the humidity regulator (located at the upper
right corner of the crisper) down to get a lower
humidity suitable for storage of strawberry,
orange, bean, garlic, watermelon, plum and
tomato etc.

9

1

Lift and
remove

To remove

Engaged the lugs

To replace

Up

Down

Tilt up

Humidity regulator

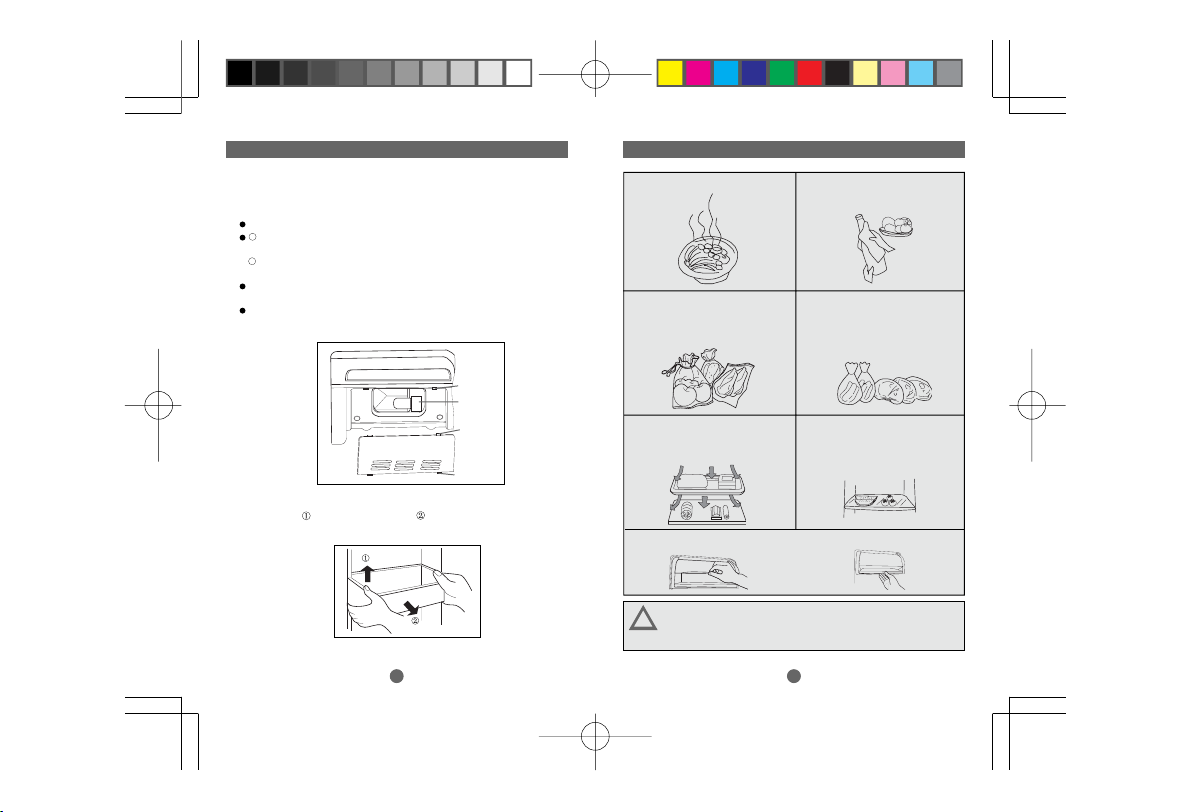

Removing Crisper Cover

Take out the crisper and put it away. Lift up the cover
end (1) and remove it (2).

How to Use the Delicatessen Drawer

The appliance is equipped with a delicatessen
drawer with a temperature range from -2°C~+3°C.
The temperature can be adjusted by the air control
knob to meet your storage needs.

Turn the air control knob to the left to reduce
the cooled air moving in the delicatessen
drawer and maintain a higher temperature;

Turn the air control knob to the right to increase
the cooled air moving in the delicatessen
drawer and maintain a lower temperature.

In order to prevent damage, do not push the centre of delicatessen

>

drawer cover when loading or unloading the refrigerator.
In order to prevent damage, do not operate the air control knob

NOTE

with force.

Food Arrangement

As a result of air circulation in the refrigeration
compartment, some areas are warmer and the others
are colder. Foods should be organized accordingly.

Egg, butter and cheese etc.

Pop cans, canned food,
condiments etc.
Beverages and bottled food
etc.
Pickles and canned food etc.

Sausage and snacks etc.
Pastries, canned food, milk
and bean curd etc.

Fruit, vegetable and salad etc.

Delis and sausage etc.

2

Air control knob

0

Refrigerator Compartment

Replacing the Light Bulb

Bulb specifications: 220V~, 25W

Socket: E14 (DO NOT use a bulb over 25W)
To replace the light bulb:

Unplug the appliance.

1

To remove the light cover, press the stopper at rear out of the
square hole.

2

Pull the cover backward until the retainer is separated from the
square hole.
Turn the bulb anticlockwise and remove. Replace a bulb of the same
specifications in the reverse sequence of removal.
To replace the light cover: Replace the retainer into the square
hole and then press the shield rear forward until the stopper is
locked in the square hole.

Square
hole

Refrigerator
light socket

Retainer

Stopper

Cleaning door bin

Lift the bin up and pull it towards you . Replace the bin in the
reverse sequence of removal after cleaning.

Light bulb Light bulb

2

1

Storing Food in Refrigerator CompartmentStoring Food in Refrigerator Compartment

Allow warm foods to cool down before
putting them into the refrigerator.

Wrap or cover food before storing.
This will help prevent the loss of water
content, keep fruit and vegetable fresh
and avoid any unpleasant odours.

Do not overfill your refrigerator.
Leave enough space between foods
stored in the refrigerator to keep good
air-circulation for better refrigeration.

When loading or unloading the dairy bin, it is safe to open and close the dairy
compartment in such a way as illustrated below.

Greasy foods may cause gradual corrosion of lining materials .

>

Keep them away from the walls of inner compartment. Keep the
inner compartment clean and free of oil stains.

NOTE

Make sure the food is clean and the
extra water is wiped away before
storing.

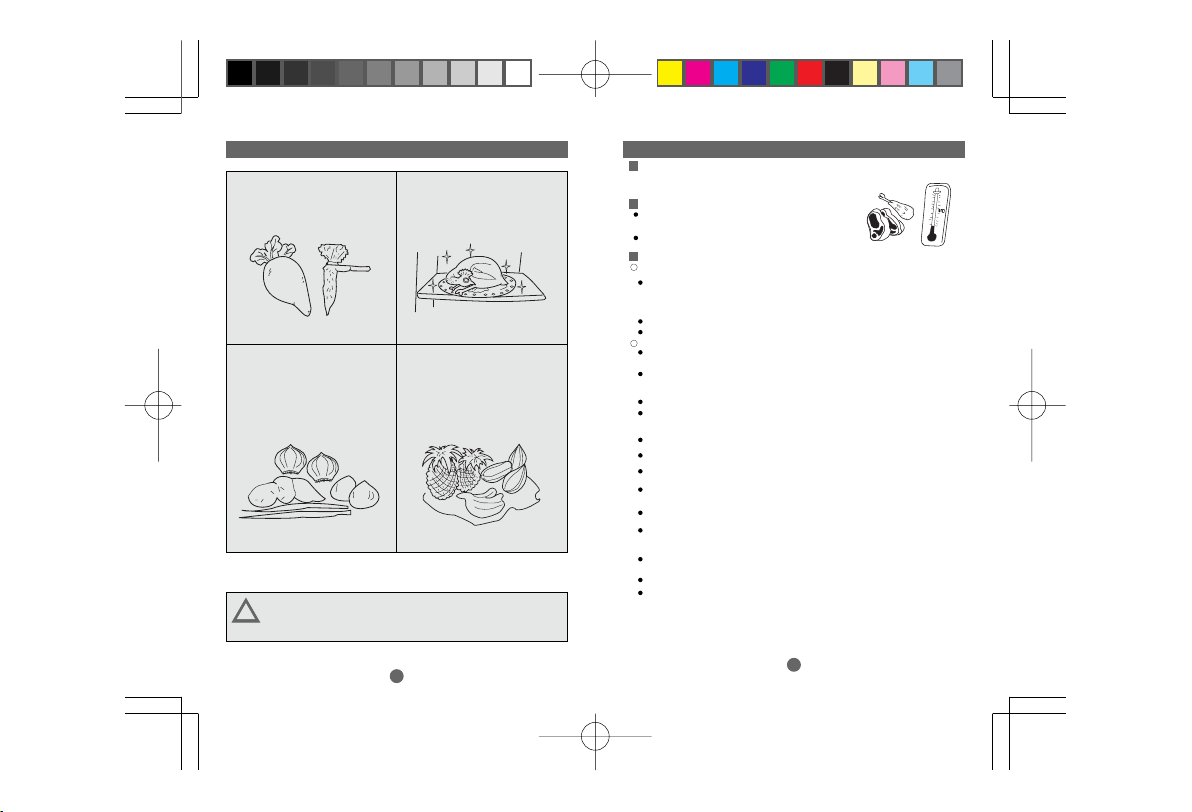

Sorting before storage
Sort the foods by category. For those to
be used up soon, place them at the
front of the shelf, so as to avoid
frequent and prolonged door opening
and food deterioration.

Food should be kept away from the
inner wall.
Food with high moisture content should
be kept away from the inner wall to
prevent freezing and sticking to the
inner wall.

2

2

Useful TipsUseful Tips

Remove leaves of carrots and radishes
before adding them to the refrigerator,
to save space.

For food which can maintain freshness
under ambient temperature storage,
such as onions, garlic, and other roots, it
is not necessary to put them in the
refrigerator.

When the ambient temperature is within the range of 0
winter months, the inner temperature of refrigerator compartment is quiet

>

low, i.e. approx. 0°C at the bottom. Therefore, it’s recommended to put

NOTE

vegetables and fruits in the upper part of the refrigerator compartment.

Thaw frozen food in the refrigerator
compartment, this will help cooling food
in the refrigerator compartment and
save energy.

Fruits such as rice melon, Chinese
quince, sweet melon, banana and pine
apple can get ripe faster under lower
temperatures, these fruits are not
suitable for refrigerated storage unless
you need them to ripen sooner.

3

2

～10°C during

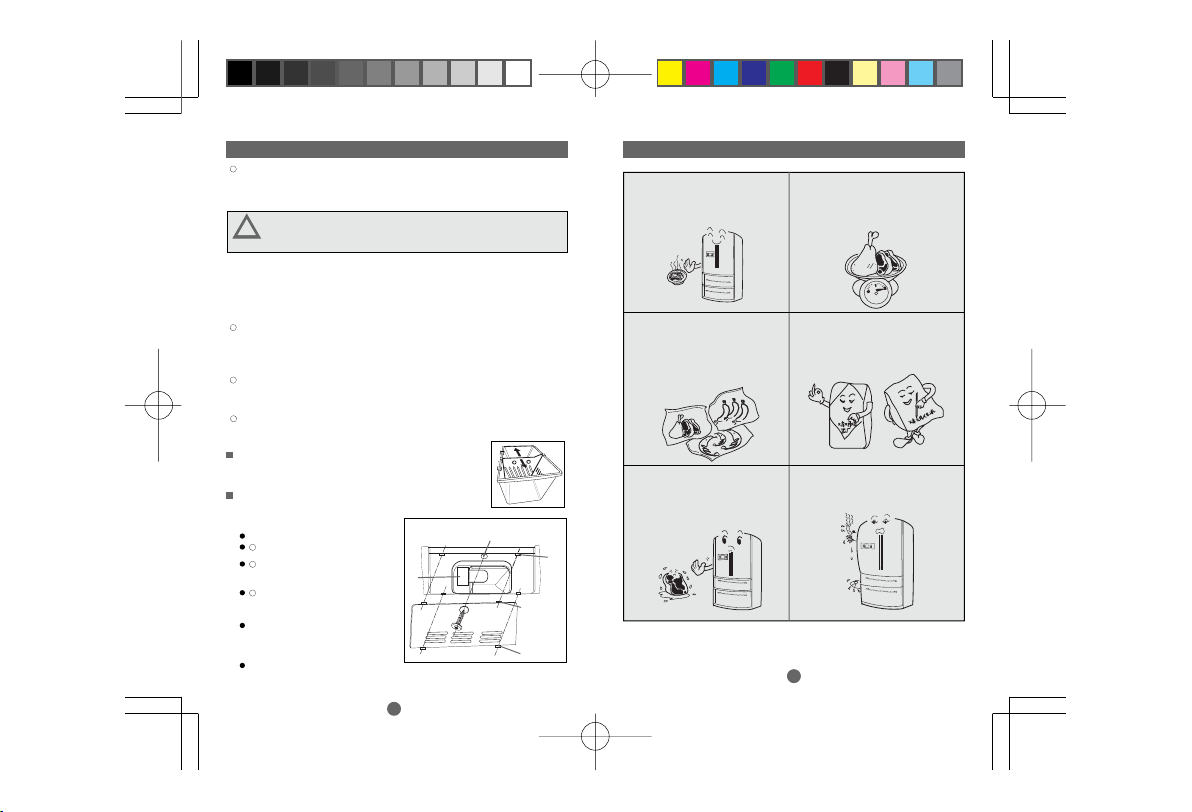

Freezer Compartment

The Freezer is intended for long-term food storage.

The temperature in the freezer is very low, making it ideal for storage of
frozen food. Add food expected to be stored for a longer period of time in the
freeze, but the expiry date indicated on its packing should be observed.

Ice compartment

It is used to store ice cubes produced by the ice maker.

How to get ice cubes

Pull out the ice compartment entirely, remove ice cubes with a spoon
or remove the ice compartment if necessary.

Usage of Ice Maker

1

Preparation

Prepare the hose, and make sure the hose is not twisted too much.

Usually, the hose should have a length less than 5 meters, otherwise pressure loss

will occur and the production of ice will be reduced.

The hose is not heat resistant and should be kept away from heat sources.

The hose should be installed by a qualified technician.

Precautions

2

The water pump should be connected to a dedicated outlet that is properly
grounded.

It’s prohibited to dismantle or modify the water pump without authorization or
damage the water supply line. Repairs of ice maker should be carried out only by
qualified technicians.

In order to avoid the risk of fire, do not use or store petrol or other flammables near the water pump.

This water pump is intended to be used with water at room temperature and should
not be used with chemicals, juices, beverage with sliced fruits, coffee or high-temperature
liquids.

If not used for a long time, the water pump should be unplugged from the power source.

Do not press, wobble or strike the water pump violently

The water pump should be installed on a flat and solid surface.

Do not install the water hose of ice maker in a place where the temperature may get below
0°C, as it may freeze.

Open the water valve to flush the hose with water until water is clear. Check leakage
around connectors.
The ice maker will produce ice cubes only after the temperature becomes -15°C or lower
(discard first several batches of ice made, to remove possible foreign matters in the water
piping.).

When installing the refrigerator, make sure that the hose is properly located to avoid
damage.

The icemaker should be installed only by a qualified technician.

This icemaker is intended to be connected to a drinkable water source.

.

2

4

Freezer Compartment Ab

3

How to use the icemaker

The ice maker can produce 8 cubes at a time. The icemaking capacity depends on
ambient temperature, frequency of door openings and inner temperature of freezer
compartment.

After the refrigerator is installed and started, allow 24 hours

>

for the freezer compartment to cool down before the initial icemaking.

NOTE

For initial icemaking, discard the first batches of ice cubes produced. This is also applicable
If the icemaker has been idle for a long period of time. Arrange ice cubes
in the ice bin from time to time to ensure the maximum storage. Eight ice cubes are
produced at a time. It’s normal that some of them may get frozen to each other.

If this is your first icemaker

You may hear some creaking noise when the icemaker is running. That’s normal.

5

If ice cubes have been stored too long

Ice cubes may get gray and off-taste. Please discard old ice cubes and clean the ice bin with
warm water regularly. Before replacing the ice bin, make sure it cools down to ambient
temperature and air dries, or otherwise ice cubes may stick to other parts of the icemaker
and reduce ice production.

6

If ice compartment is not used during winter

During winter months, if you don’t need the icemaker for a long time, please take out ice
cubes from the ice compartment, and wash the bin with warm water, then replace it back
after wiping it dry. Shut off

7

If icemaker is not used

If you don’t need the icemaker , take down the icemaker shelf and it can be used as freezer room.

Adjustable partition wall of freezer drawer

A movable partition wall is provided in the freezer drawer to divide
the drawer into two parts. You may move the partition wall right or
left to meet your storage needs.

Replacing the Light Bulb

Bulb specifications: 220V~, 25W
Socket: E14 (DO NOT use a bulb over 25W)
To replace the light bulb:

Unplug the appliance.

Remove the front screw with a

1

screwdriver.

2

To remove the light cover,
press the stopper at front out
of the square hole.

3

Pull the cover forward until
the retainer is separated

from the square hole.
Turn the bulb anticlockwise and remove.
Replace a bulb of the same
specifications in the reverse sequence
of removal.

To replace the light cover: Replace the retainer
into the square hole and then press the shield front
until the stopper is locked in the square
hole. Replace and tighten the screw.

the water supply to the refrigerator

Freezer light socket

2

5

Screw hole

freezer bulb freezer bulb

Stopper

Retainer

Square
hole

Storing Food in Freezer CompartmentStoring Food in Freezer Compartment

Allow warm foods to cool down before
putting them into the freezer.

Wrap food before storing. Make sure
the wrappings are dry to prevent them
from sticking to each other. The
wrapping materials used should be
odourless airtight, leak-proof, nontoxic
and environmental friendly to prevent
unpleasant odour or food deterioration.

Once thawed, food cannot be returned
to the freezer unless it has been
cooked. Always get frozen food from
the freezer for thawing according to
actual needs.

Store food in smaller packages. This will
make it easier to freeze the food and
provide better quality when the food is
thawed. It’s recommended that each
package should not exceed 2.5kg.

The food package should indicate
information such as type of food, date
of storage and expiry date.

Do not put too much fresh food in your
freezer. The freezing capacity (as
indicated in the Technical Data sheet)
should be observed.

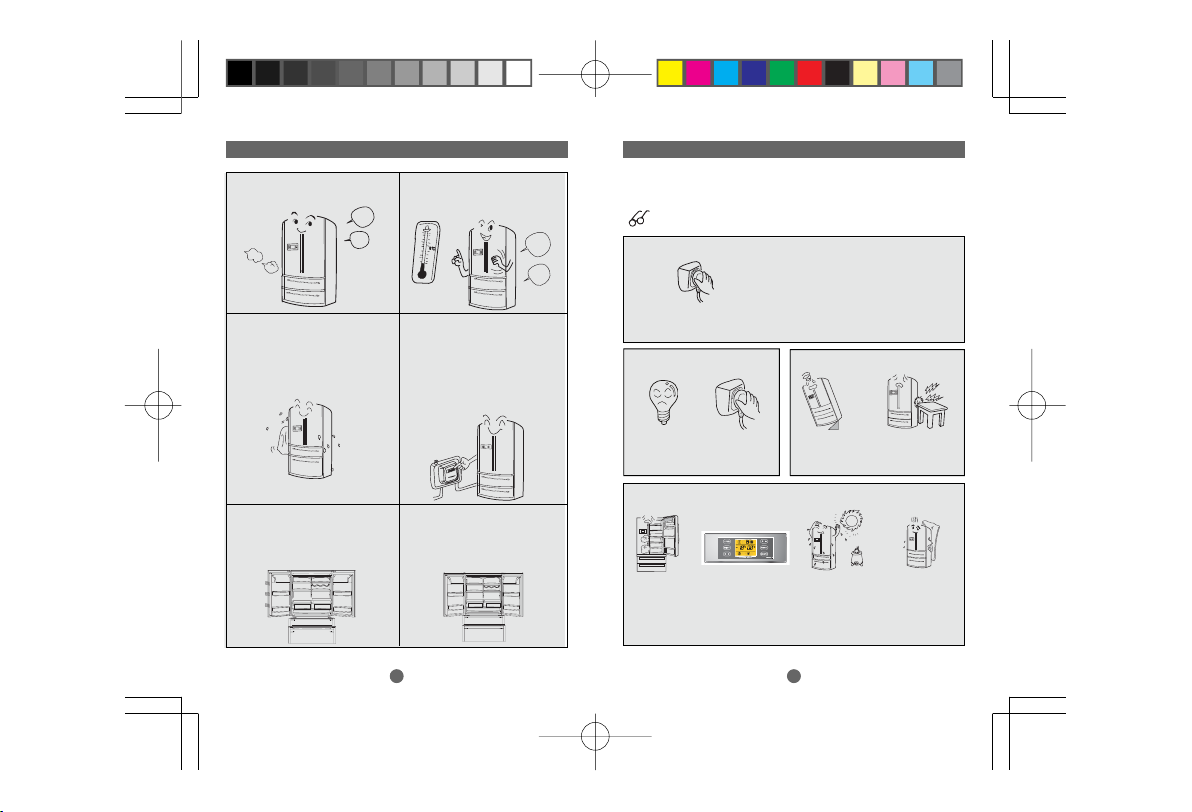

2

6

Defrosting • CleaningDefrosting • Cleaning

Defrosting Freezer Compartment

The defrost cycle of freezer compartment is automatic and no manual operation is
needed.

Cleaning

Clean the inner compartments to get rid of food residues and eliminate
unpleasant odors.

Unplug the appliance before cleaning.

Use a cloth or sponge to wash the inner compartments
with lukewarm water and mild detergent.

Dry the external surface with a dry cloth.

1

The appliance is heavy. Protect the finish of flooring if the appliance has
to be moved during cleaning and servicing.

2

For the sake of electric insulation, do not splash water on the appliance.
To clean electric components such as switches and illuminators, make

3

sure the appliance is not connected before cleaning with a dry cloth.

4

When cleaning, do not use sharp or pointed brush, hard cleansers,

>

gasoline, amyl acetate, acetone or other organic solvents, boiled water,
acid or alkali.

5

NOTE

Do not touch the cold metal surface when the hands are wet.
When cleaning, do not use hot water to clean the glass shelves. Glass

6

may get broken due to thermal shock and cause the risk of injury and
property loss.

7

Clean the door seal from time to time.
Never use amyl acetate to get rid of any unpleasant odour. This will

8

cause the risk of fire.

9

Only mild detergents should be used in cleaning.

Clean the door seal from time to time.

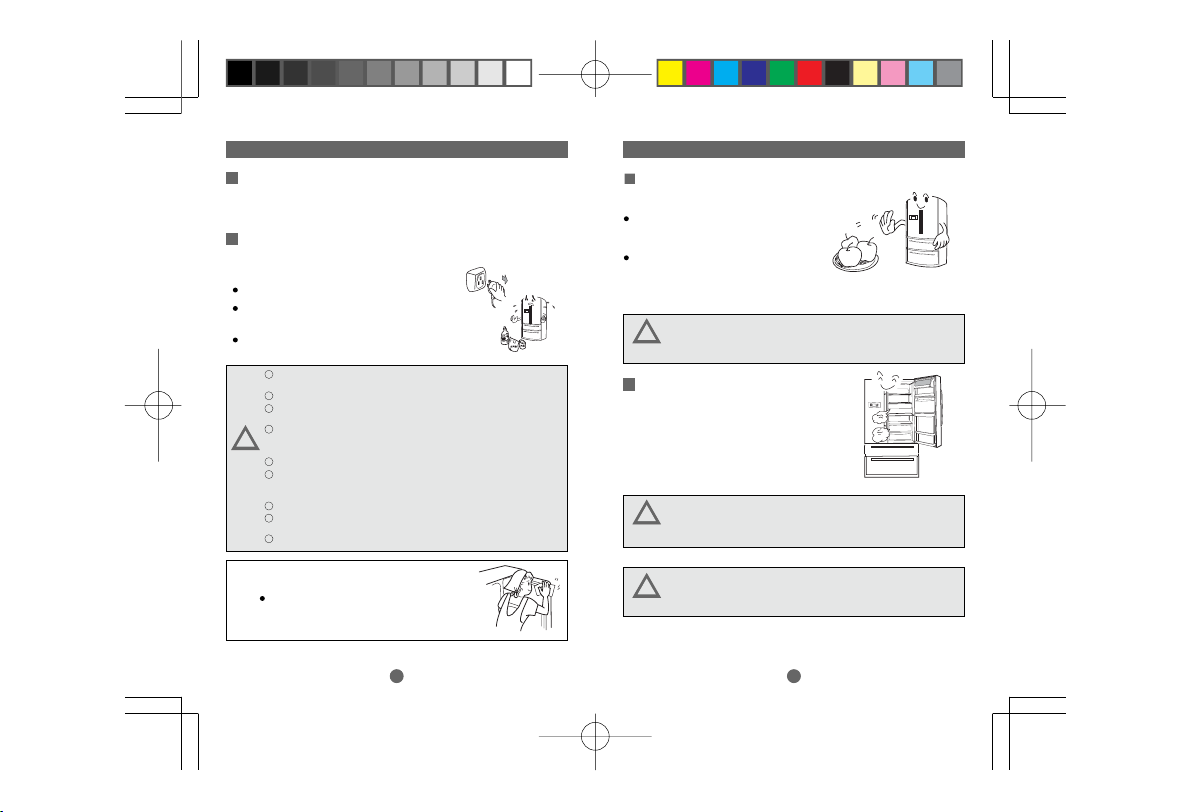

Vacation Vacation

Power failure

Food can be stored well for several hours in the
event of power failure even if it is in summer.

Do not add foods in the appliance and keep the
doors closed as far as possible when there is a
power failure.

If a power failure is announced beforehand,
make some extra ice cubes and hold them in a
leak-proof container. Place the container on the
top shelf in the refrigerator compartment.

Temperature rise in the freezer due to power interruption or other faults

>

may shorten the shelf life and have an adverse effect on food quality.

NOTE

Stopping Use

Please unplug the appliance and clean it as described
above if the appliance will not be used for a long period
of time.
Keep the door open to prevent unpleasant odours
caused by food residues.

>

To ensure a long service life, do not stop the appliance frequently.

NOTE

After unplugging the appliance, wait 5 minutes at least before

>

connecting it to the power supply again.

NOTE

72

82

Vacat ionVaca tio n

When leaving for a vacation

If you are leaving for a long vacation, it is recommended to

shut off the power, take out all of the foods, defrost and

clean the appliance. Dry the appliance and leave the door

open to prevent odours.

A discarded appliance must be disposed of by professional personnel,

>

otherwise it may have an impact on the environment or give rise to

other hazards.

WARNING

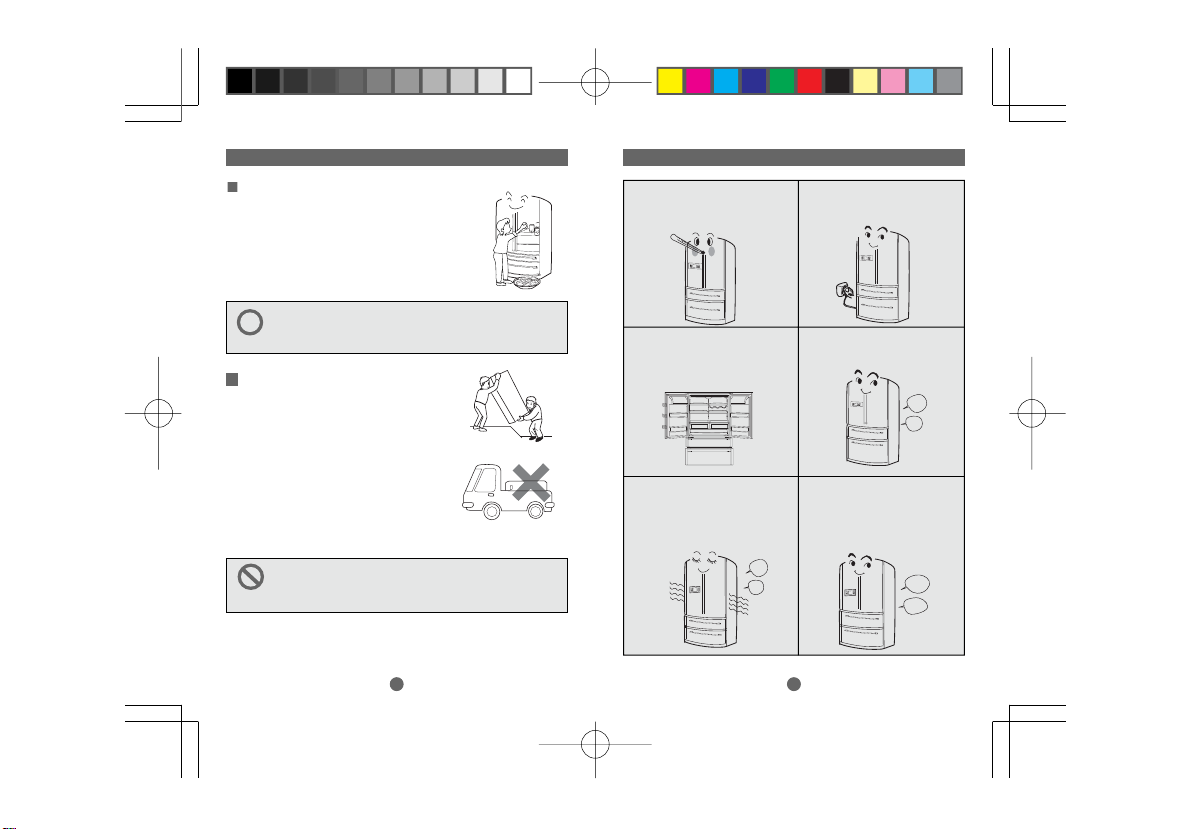

When moving your refrigerator

Unplug the appliance before transportation.

Take out foods from the appliance.

Fix the shelves in refrigerator, crisper and shelves

in freezer in position with adhesive tapes.

Keep the door closed during transportation with

adhesive tapes.

When moving the refrigerator, it cannot be tilted

more than 45 degrees (the angle to the vertical

direction). Otherwise it may cause A

malfunction of the refrigeration system.

Keep the refrigerator upright during transport and never horizontal.

WARNING

Trou bleshooting TipsTrou bleshooting Tips

It’s normal that when the refrigerator is first
plugged in, the compressor operates for long
periods or cycles on and off frequently. It
takes a longer time for the inner
temperature to reach the desired level.

It’s normal that the external surface of
refrigerator gets warm, especially when first
plugged in.

The flow of refrigerant through the
refrigeration coils may make a babbling
noise. The noise is usually found at the
evaporator and the compressor. When the
compressor comes to a stop, the backflow
of refrigerant will make a noise like running
water from time to time or continuously.

Babble

Babble

It’s normal that the refrigerator is
humming when first plugged in or started
up. The sound will fade away when the
refrigerator is in stable operation.

The compressor may cause a humming
sound during operation and a clicking
sound upon starts and stops.

Click

Click

Water dropping on the defrost heater
can cause a sizzling or buzzing sound
during a defrost cycle. At the end of a
defrost cycle, a slight popping sound
may be heard, and the evaporator may
make a gurgling noise like boiling noise.

Sizzle

Gurgle

2

9

03

Troubleshooting TipsTroubleshooting Tips

Wipe down with a dry cloth.

It’s normal that there is a noise from the
fan during operation.

Whir

Whir

Expansion and contraction of the
evaporator and refrigerating coils due to
temperature change can cause a
cracking or popping sound.

Crack

Crack

After-Sales Service

When calling for service, provide the model name, and the serial number
(described on the nameplate of the product which is located inside the appliance).

Before making a call, check the following points to see if you can
solve the problems yourself.

Refrigerator does not work.

Moisture may form on the outside of
refrigerator and between the doors

during periods of high humidity.

It’s normal that the vertical beam on the
left door of refrigerator compartment gets
warm after the refrigerator has operated
long cycles. The vertical beam contains a
heating element to prevent
condensation.

The rated power consumption specified
in the Technical Data sheet is measured
during a period of 24 hours under stable
operation at an ambient temperature of
25°C with the refrigerator and freezer
maintained at 5°C and -18°C
respectively. The actual power
consumption depends on the amount of
fresh food stored in the refrigerator.

When closing the left door of refrigerator
compartment, make sure the vertical
beam is in the right place (as shown
below). Otherwise the door is not closed
properly and the inner temperature may
rise and finally cause an alarm.

1

3

Refrigerator is not connected to the
power supply (plug, outlet and fuse) or
the power control is set to OFF.

Interior light does not work.

Light bulb
is faulty.

Compartments are warmer than expected.

Door is not closed
properly, opened
frequently or kept
open too long.

Refrigerator is not
connected to the
power supply.

Temperature is set a
warmer setting. (See
the Functions section
from Page 15 to Page

18.)

•

Unusual noise

Refrigerator is not
level.

The appliance is
exposed to direct
sunshine or placed
near a stove or radiator.

23

Refrigerator rubs
against the wall or
furniture.

Poor ventilation.
Check if the heat
radiation unit on
the rear is
blocked.

After-Sales Service

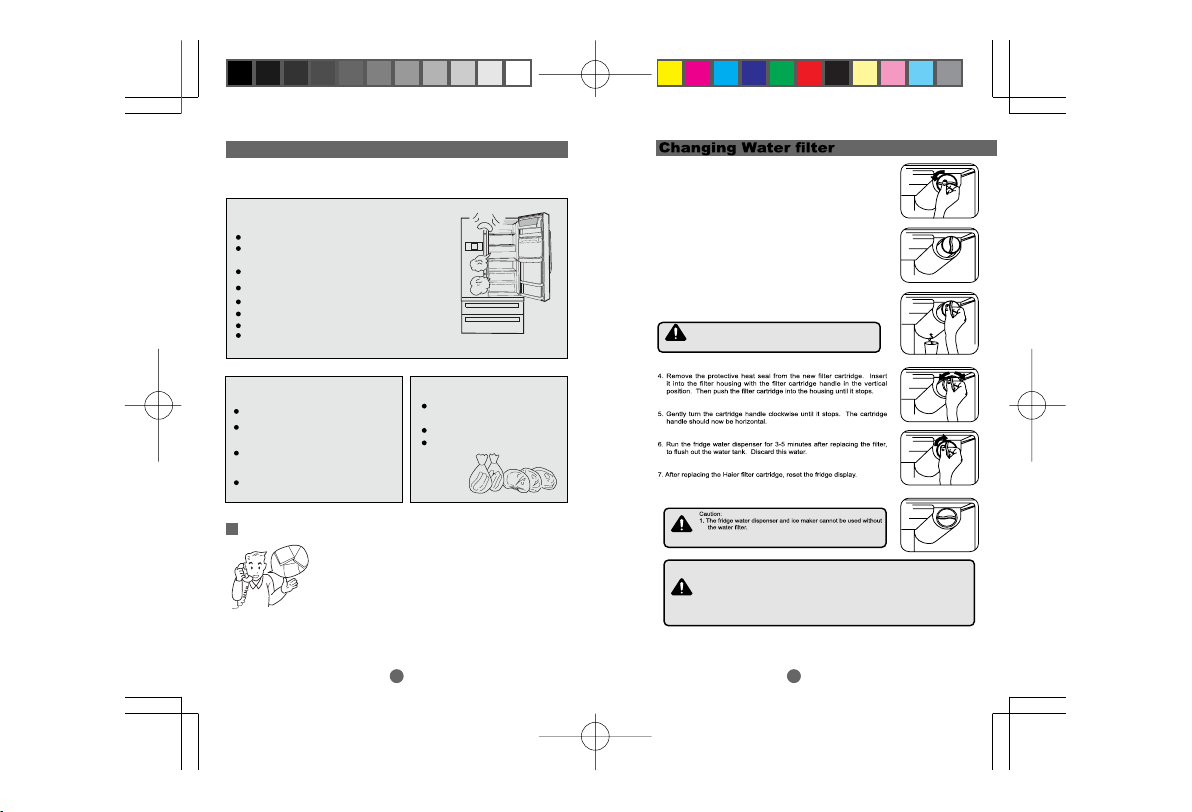

You should change the water filter at least every 2 years or when the water

capacity or the ice-making capacity has shown an obvious decrease.

Please pay attention to your water type, you may need to change the water

filter more frequently due to the difference between water properties.

1. Remove the old filter by turning the filter cartridge handle anticloclwise.

2. For filter replacement questions or information on your appliance,

contact CDA Customer Care.

Compressor operates for long periods or
cycles on and off frequently.

It’s normal when refrigerator is first plugged in.
A large amount of food is placed in the refrigerator
for storage or freezing.
Door is left open or held open by food package.

It is hot weather.

Door is opened frequently.
Temperature is set a warmer setting. See the Initial
Use section.
Poor ventilation

Frost or ice crystals form on food.

Frost within package is normal.

Door is left open or held open by food
package.
Door is opened frequently or kept open
too long.

Food is placed near the vent.

Warranty

Warranty: Keep the warranty in a safe place.
When calling for service, you will be required
to present your warranty.

Unpleasant odour

Food with strong odours should
be tightly wrapped.

Food is deteriorated.
Compartments need cleaning.

3

3

.Note

1. After installing a new water filter, discard all ice produced during the first 24 hours.

2. If the fridge drinking dispenser or ice maker has not been used actively for an extensive
period of time, or ice cubes have an unpleasant taste, change the water filter.

3. Air trapped in the system may cause water and filter cartridge to eject. Use caution

Note

when removing.

43

PC85SS
