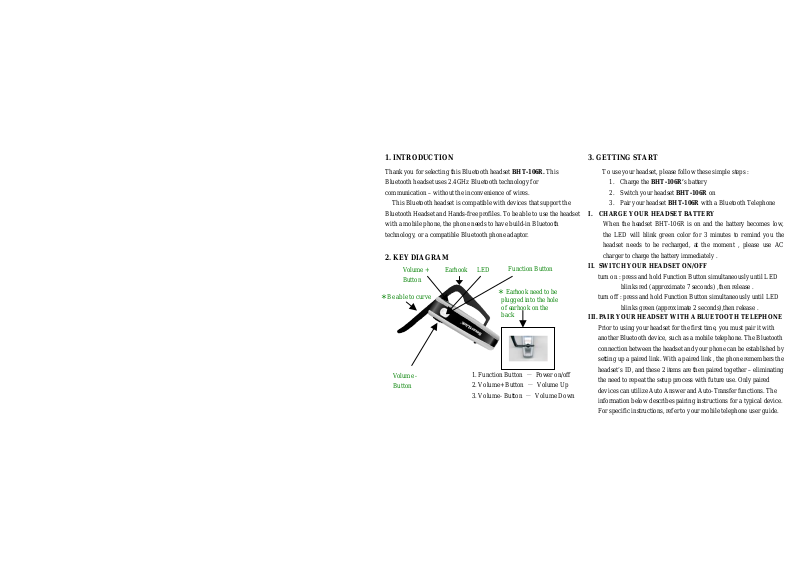

1. INTRODUCTION
k
p
Thank you for selecting this Bluetooth headset BHT-106R. This
Bluetooth headset uses 2.4GHz Bluetooth technology for
communication – without the inconvenience of wires.
This Bluetooth headset is compatible with devices that support the
Bluetooth Headset and Hands-free profiles. To be able to use the headset
with a mobile phone, the phone needs to have build-in Bluetooth
technology, or a compatible Bluetooth phone adaptor.
2. KEY DIAGRAM
Volume +
Button
½Be able to curve
LEDEarhoo
Function Button
½ Earhook need to be
lugged into the hole
of earhook on the
back
Volume Button
1. Function Button － Power on/off
2. Volume+ Button － Volume Up
3. Volume- Button － Volume Down
3. GETTING START
To use your headset, please follow these simple steps :
1. Charge the BHT-106R’s battery
2. Switch your headset BHT-106R on
3. Pair your headset BHT-106R with a Bluetooth Telephone
I. CHARGE YOUR HEADSET BATTERY
When the headset BHT-106R is on and the battery becomes low,
the LED will blink green color for 3 minutes to remind you the
headset needs to be recharged, at the moment , please use AC
charger to charge the battery immediately .
II. SWITCH YOUR HEADSET ON/OFF
turn on : press and hold Function Button simultaneously until LED
blinks red (approximate 7 seconds) ,then release .
turn off : press and hold Function Button simultaneously until LED
blinks green (approximate 2 seconds),then release .
III. PAIR YOUR HEADSET WITH A BLUETOOTH TELEPHONE
Prior to using your headset for the first time, you must pair it with
another Bluetooth device, such as a mobile telephone. The Bluetooth
connection between the headset and your phone can be established by
setting up a paired link. With a paired link , the phone remembers the
headset’s ID, and these 2 items are then paired together – eliminating
the need to repeat the setup process with future use. Only paired
devices can utilize Auto Answer and Auto-Transfer functions. The
information below describes pairing instructions for a typical device.
For specific instructions, refer to your mobile telephone user guide.
4. PLEASE NOTE :
1. The battery pack for your headset is already installed when you
get your headset. The battery is not fully charged when you get
the headset. Before you can use the headset, you need to charge
the headset’s self-contained battery for up to 3~4 hours.
To charge the headset, please follow this guide :
Connect the included AC charger to the main power
supply and then to the headset charger port. While
charging, the LED will indicate green color and remains
on until charging is complete. When charging is complete,
the green LED light will go out, you can then remove the
charger from the headset.
2. Please make sure that the button has been pressed indeed when
you use this headset.
5. PAIRING PROCEDURE
1. Switch off BHT-106R and turn on your mobile phone, Make
sure the Bluetooth feature of your telephone is turned on.
2. On your BHT-106R ( under off mode ), press and hold
Function Button simultaneously for 10 seconds until the LED
blinks Red/ Green rapidly, then release the Function Button,
headset now enters into pairing mode.
3. Your headset BHT-106R is now entering into pairing mode and
will remain discoverable by other Bluetooth devices for 60
seconds.
4. On your mobile phone, search for devices by selecting
DISCOVER from the Bluetooth options menu. Check your
mobile phone display and follow the instruction.
5. Select BHT-106R on the menu of your phone, enter the PIN
code 0000 , when your phone menu prompts you, and the
phone will start to pair the headset with the phone ( the device
ID is now stored in the phone’s memory ).
6. Your phone screen will advise that pairing has been successful,
and headset indicator light will then go to stand-by mode. ( LED
blinks red 1 times per 3 seconds ) .
Then go to connect mode ( LED blinks red 3 times per 4
seconds )
7. If your mobile phone is Bluetooth 1.1 , you need to manually
connect to headset by selecting CONNECT item from your
phone , Bluetooth 1.2 mobile phone will automatically connect
to headset .
8. Once the headset and phone have been successfully paired, you
are ready to place and receive calls.
6. USING YOUR HEADSET (AFTER PAIRED )
Answering a call
To answer a call, just press the Function Button to answer
the call.
Ending a call
To end a call, press the Function Button to terminate the call
at any time .
Reject a call
To reject a call, wait for the headset to ring, keep holding the
“function button” for 2 seconds to reject a call.
Voice Transfer ( hands-free function )
Just turn the Bluetooth headset on/off when you are talking,
to determine the voice be transferred to mobile phone or
headset . This function is subject to your mobile phone
supporting call transfer function.
Last number redial ( hands-free function )
If you want to dial the last number called using your
headset during connect mode , press and hold
“Volume-“ button simultaneously for 3 seconds to redial
the last number.
Voice dialing ( hands-free function )
Make sure that your mobile phone supports voice dialing
function and voice tags are stored. Pressing the “function
button” under connect mode, you will hear short beep tone
and then speak the voice tag name, then the phone will
automatically dial your selection.
Operating environment
1. 90 % relative Humidity .
2. Operating temperature range -20
3. Storage temperature range -40
℃ to 60℃
℃ to 85℃
7. OPERATING FLOW CHART
To turn on BHT-106R ,
Press and hold “FunctionButton” for 10 sec onds
until the LED blinks Red/ Green ra pidly, then
release the “Function Button”, headset now
entering into pairing mode
Bluetooth device BHT-106R by selecting
“DISCOVER” from Bluetooth options menu
PAIRING
PROCEDURE
Turn on Bluetooth mobile phone and
enable Bluetooth function
On your Bluetooth mobile phone, sear ch for
Select discovered
on the menu of your phone
BHT-106R
Enter the PIN C ode “ 0000＂
P airing has been successful
Bluetooth 1.1 m obile phone need to m anually
select CONNECT item from phone scr een to
finish connection, Bluetooth 1.2 mobile phone
will automatica lly finish the connection
LED blinks red 1 tim es per 3 seconds
LED blinks red 3 times per 4 seconds
Start to use BHT-106R
Turn on and us e the BHT-
106R after paired with your
Bluetooth mobile phone
Pre ss and hold “Function
Button ” for 7 seconds until
the LED blinks Red rapidly,
then release the “Function
Button ” to turn on BHT-106R
Your Bluetooth mobile phone will
automa tically detect BHT- 106R, and
request you the PIN Code
If your mobile phone does not r equest
you the PIN code or disconne ction ,
you may re-press headset “Function
Button ” for one time to reconnect
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
