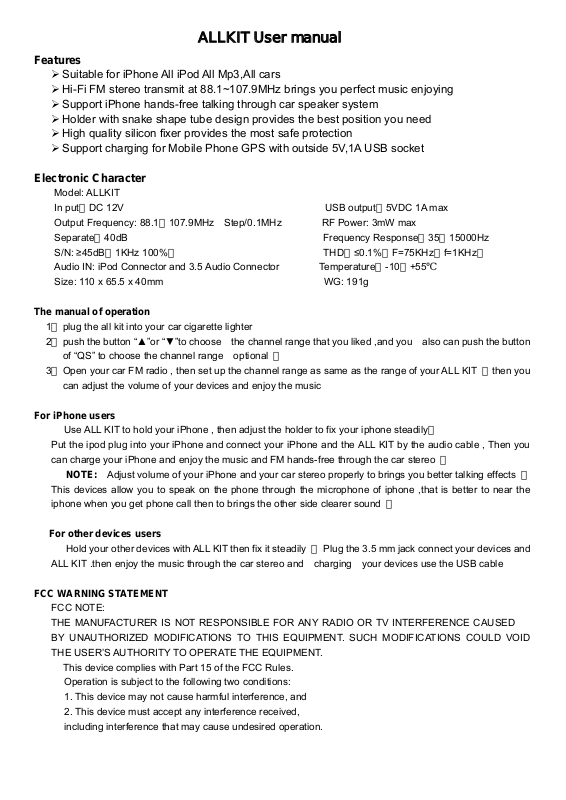

ALLKIT User manual

Features

 Suitable for iPhone All iPod All Mp3,All cars
 Hi-Fi FM stereo transmit at 88.1~107.9MHz brings you perfect music enjoying
 Support iPhone hands-free talking through car speaker system
 Holder with snake shape tube design provides the best position you need
 High quality silicon fixer provides the most safe protection
 Support charging for Mobile Phone GPS with outside 5V,1A USB socket

Electronic Character

Model: ALLKIT

In put：DC 12V USB output：5VDC 1A max
Output Frequency: 88.1～107.9MHz Step/0.1MHz RF Power: 3mW max
Separate：40dB Frequency Response：35～15000Hz
S/N: ≥45dB（1KHz 100%） THD：≤0.1%（F=75KHz，f=1KHz）
Audio IN: iPod Connector and 3.5 Audio Connector Temperature：-10～+55℃

Size: 110 x 65.5 x 40mm WG: 191g

The manual of operation

1、 plug the all kit into your car cigarette lighter
2、 push the button “▲”or “▼”to choose the channel range that you liked ,and you also can push the button

of “QS” to choose the channel range optional ；

3、 Open your car FM radio , then set up the channel range as same as the range of your ALL KIT ，then you

can adjust the volume of your devices and enjoy the music

For iPhone users

Use ALL KIT to hold your iPhone , then adjust the holder to fix your iphone steadily；

Put the ipod plug into your iPhone and connect your iPhone and the ALL KIT by the audio cable , Then you
can charge your iPhone and enjoy the music and FM hands-free through the car stereo ；

NOTE: Adjust volume of your iPhone and your car stereo properly to brings you better talking effects ；

This devices allow you to speak on the phone through the microphone of iphone ,that is better to near the
iphone when you get phone call then to brings the other side clearer sound ；

For other devices users

Hold your other devices with ALL KIT then fix it steadily ， Plug the 3.5 mm jack connect your devices and

ALL KIT .then enjoy the music through the car stereo and charging your devices use the USB cable

FCC WARNING STATEMENT

FCC NOTE:

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID

THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired operation.
