CCA Electronic Factory QI 1208A User Manual

1

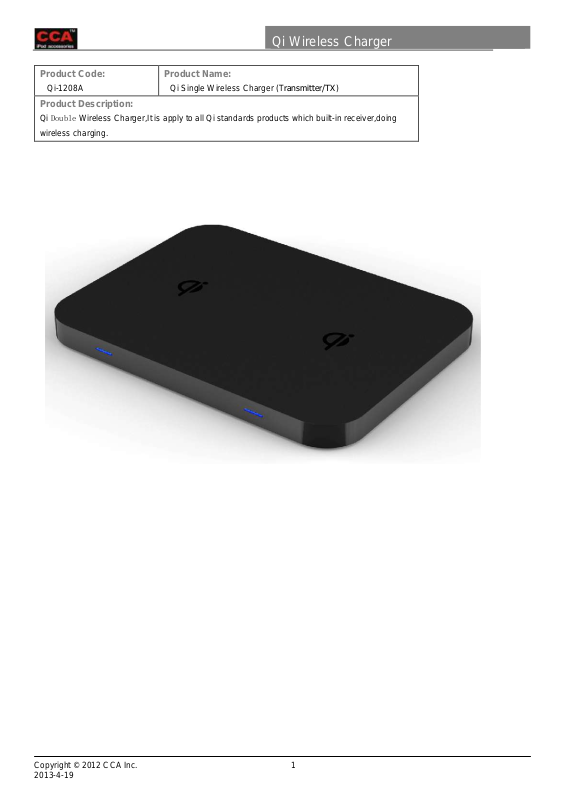

Qi Wireless Charger

Product Code:

Qi-1208A

Product Name:

Qi Single Wireless Charger (Transmitter/TX)

Product Description:

Qi Double Wireless Charger,It is apply to all Qi standards products which built-in receiver,doing wireless charging.

2

Qi Wireless Charger

1. Electrical specifications

Dimensions

(L)175*(W)130*(H)12mm

Products weight

350g

LED | State

Standby

Deviating

Charging

Charging end

Failure

Red

/ / Light

/

Rapid Flash

Green

/ / /

Light

/

Power Input

AC Adapter: AC100-240V, DC 18V/ 1.65A, 3.5 DC.

USB output

5V/2.1A, 10W, Charging for iPad and other smart phone.

Wireless output

DC 6V-9V / Sinusoidal voltage, 5W*2

Charging frequency

110K-205KHZ

Standby power

＜0.3W

Wireless distance

5~8mm

Coil Alignment

Guided Positioning with tactile feedback (Magnetic Attraction)

Wireless efficiency

70% max

Ripple & Noise

＜50mV

Temperature protection

60°C

Protection function

OVP/OCP/OTP/SCP

State remind

LED

Compatibility

All wireless charging receiver terminal facilities that comply with Qi Standard.

Regulatory & Compliance

Design conforms to the Qi standard/Energy star/ERP/CE/FCC/C-Tick, Manufacturing conform to RoHS/REACH.

Operating Temperature / Humidity

0°C (32 F) – 40°C (104 F), 10 – 85%

Storage Temperature / Humidity

-20°C (-4 F), 60°C (140 F), 95%

1.1．Physical Properties

1.2．Electrical specifications

1.3．State remind

2. User Interface Guide

2.1. When you plug AC adapter and single wireless charger into the socket on the wall, QI product in on standby.

2.2. When a USB device is plugged into the USB socket, up to 2.1A of power will be supplied immediately.

2.3. If a Qi wireless mobile phone placed to Qi logo center position, If a Qi sleeve or Qi battery pack placed to Qi logo center position, Red LED will be lighted mobile phones show charging.2.4. If the Qi device charging end, Green LED will light.

2.5. If the Qi device deviating from the coil center too much, LED will turn on slow flashing warning users position shift and stop charging. If you move back to the center position, charge will automatically start(ref. 2.3).

2.6. If Qi device malfunction, Red LED will Rapid Flash. Note:

charging saturation tip is from phones emit signal instruction.

3

Qi Wireless Charger

3. lD/CMF

Noted:

1. The PCBA is a standard parts.

2. Can accept customization.

3. The above picture is only for reference.

Noted:

The above process only for reference , will eventually refer to tooling to revise.

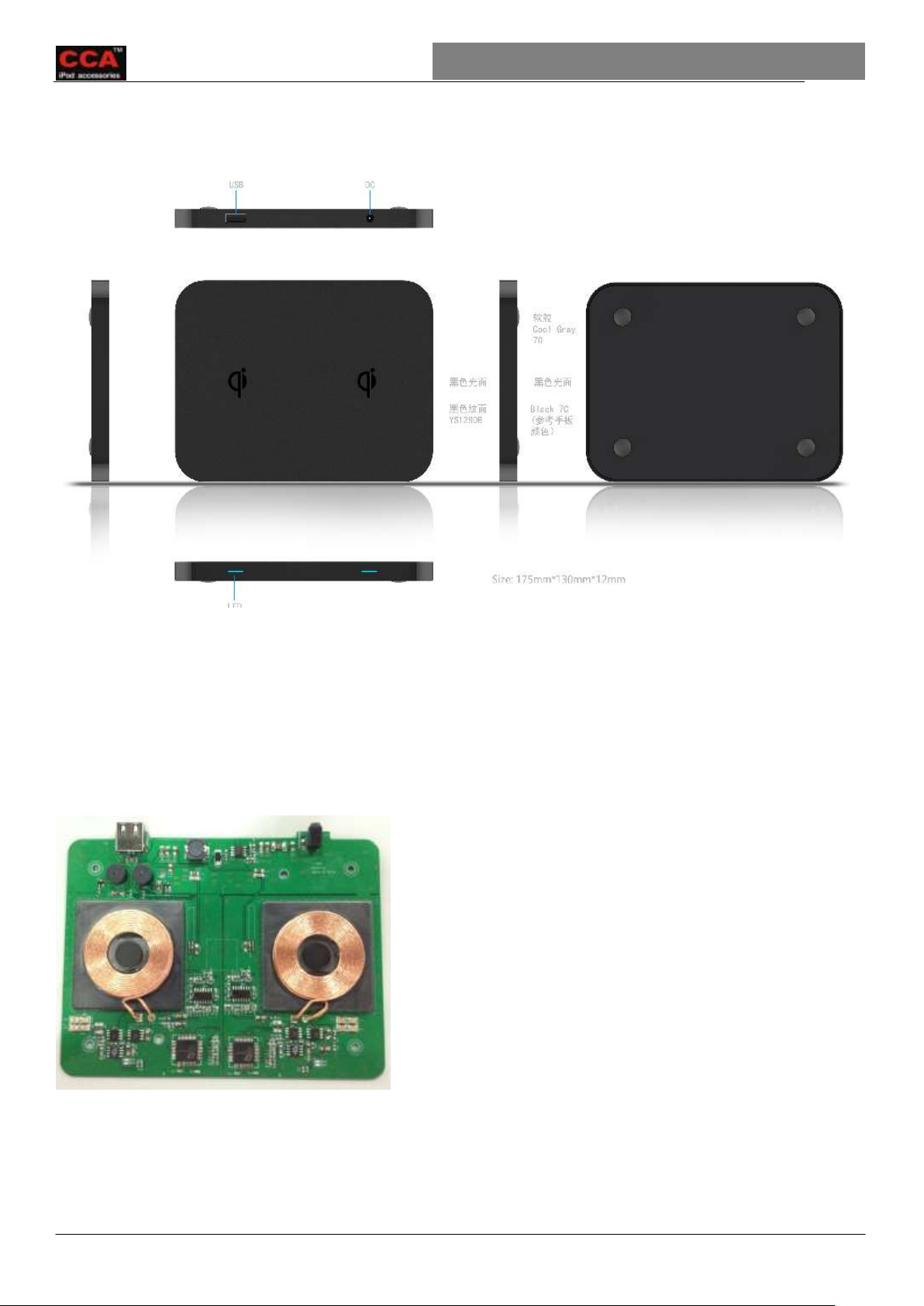

4. PCBA Module

4

Qi Wireless Charger

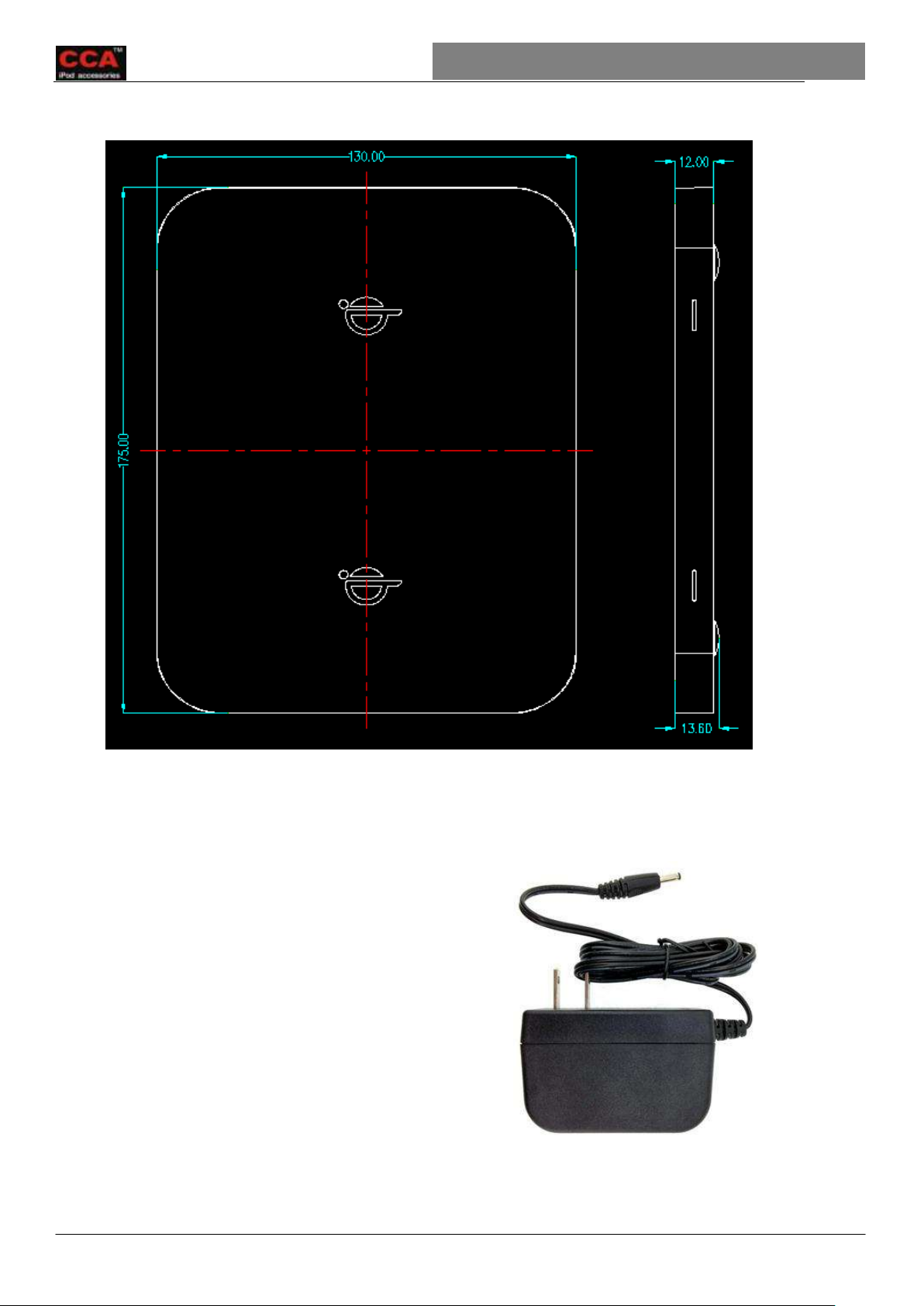

5. Mechanism size drawing

Noted:

1. AC adapter will have two versions: US/OUS.

2. US versions is not be separated plug.

3. OUS versions with UL/AU/VDE/UK Plug.

4. Can accept customization other plug.

5. Adapter conforms to the global certification.

6. AC Adapter(But according to demand specially)

5

Qi Wireless Charger

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC NOTE： THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
