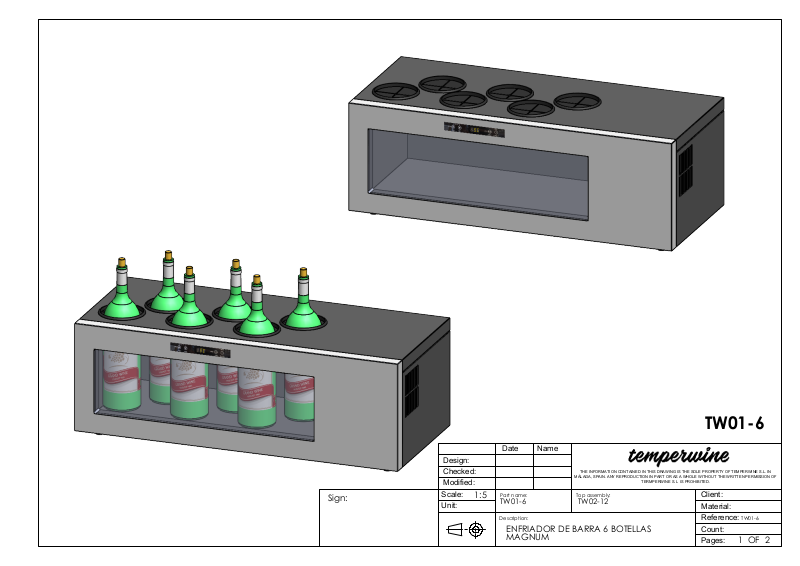

TW01-6
Sign:
Design:
Checked:
Modified:
Scale:
Unit:
1:5
Date
Part name:
TW01-6
Description:
Name
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF TEMPERWINE S.L. IN
MÁLAGA, SPAIN. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
Top assembly:
TW02-12
ENFRIADOR DE BARRA 6 BOTELLAS
MAGNUM
TERMPERWINE S.L IS PROHIBITED.
Client:
Material:
Reference:
Count:
Pages:
TW01-6
1
OF
2
COMPRESOR
320
DESAGUE
ALZADO
DESAGUE
PERFIL
DISPLAY
MAGNUM, CAVA...
390
DATOS TÉCNICOS
Voltaje
Frecuencia
Amperaje
115
PLANTA
910
Potencia de entrada
Refrigerante
Peso neto
Botellas
Sign:
Design:
Checked:
Modified:
Scale:
Unit:
1:5
Date
Part name:
TW01-6
Description:
Name
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF TEMPERWINE S.L. IN
MÁLAGA, SPAIN. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
Top assembly:
TW02-12
TERMPERWINE S.L IS PROHIBITED.
220V-240V
50Hz
0.45A
90W
R600a/23g
33kg
6 botellas
Client:
Material:
Reference:
TW01-6
ENFRIADOR DE BARRA 6 BOTELLAS
MAGNUM
Count:
Pages:
2
OF
2
