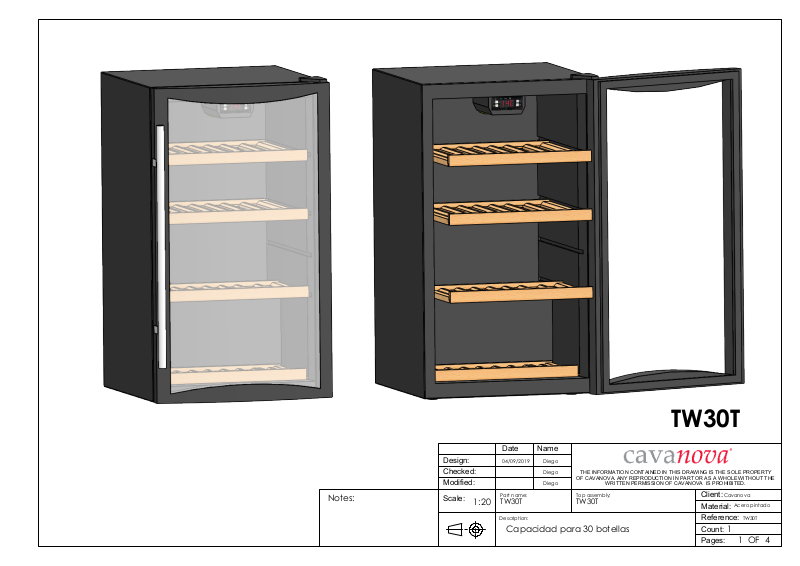

Page 1
TW30T
Notes:
Design:
Checked:
Modified:
Scale:
1:20
Date
04/09/2019
Part name:
Name
Diego
Diego
Diego
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY
OF CAVANOVA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF CAVANOVA IS PROHIBITED.
Top assembly:
TW30TTW30T
Description:
Capacidad para 30 botellas
Client:
Cavanova
Material:
Reference:
Count:
1
Pages:
Acero pintado
TW30T
OF
1
4
Page 2
480
ALZADO
848
CONDENSADOR
COMPRESOR
545
PERFIL
DATOS TÉCNICOS
Volumen
Peso
Botellas
Rango de temperatura
115L
33.5kg
30
4-18ºC
Sign:
Design:
Checked:
Modified:
Scale:
Unit:
mm
1:20
Humedad interior
Date
04/09/2019
Part name:
Description:
Name
Diego
Diego
Diego
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CAVANOVA WINE S.L. IN
MÁLAGA, SPAIN. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
Top assembly:
TW30TTW30T
Capacidad para 30 botellas
Frecuencia
Consumo
Voltaje
Ruido
Refrigerante
Sistema de frío
CAVANOVA WINE S.L IS PROHIBITED.
50-60hz
160Kwh/año
220/240V
43db
R600a
>70%RH
Compresor
Client:
Material:
Reference:
Count:
1
Pages:
Cavanova
Acero pintado
TW30T
2
OF
4
Page 3
4 baldas de
madera
Baldas extraibles
Compresor
ALZADO
PLANTA
Sign:
Luz
Design:
Checked:
Modified:
Scale:
Unit:
mm
PERFIL
Control de
temperatura
Date
04/09/2019
1:20
Part name:
Description:
Name
Diego
Diego
Diego
DATOS TÉCNICOS
Volumen
Peso
Botellas
Rango de temperatura
Frecuencia
Consumo
Voltaje
Ruido
Refrigerante
Humedad interior
Sistema de frío
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CAVANOVA WINE S.L. IN
MÁLAGA, SPAIN. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
Top assembly:
TW30TTW30T
CAVANOVA WINE S.L IS PROHIBITED.
Client:
Material:
Reference:
115L
33.5kg
30
4-18ºC
50-60hz
160Kwh/año
220/240V
43db
R600a
>70%RH
Compresor
Cavanova
Acero pintado
TW30T
Capacidad para 30 botellas
Count:
1
Pages:
4
OF
3
Page 4
B
Medidas recomendadas
Altura
Anchura
Profunidad
50mm por cada
100mm de espacio
898mm
lado
898
50
580
50
condensador
compresor
100
645
SECCIÓN
B-B
898
645
580
B
Hueco para vinoteca
Sign:
Design:
Checked:
Modified:
Scale:
Unit:
mm
1:20
Compresor
(correcta ventilación)
Date
03/09/2019
Part name:
TW30T-ENTORNO
Description:
Name
Diego
Diego
Diego
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CAVANOVA WINE S.L. IN
MÁLAGA, SPAIN. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
Top assembly:
TW80T
CAVANOVA WINE S.L IS PROHIBITED.
Empotramiento del equipo (built-in)
Client:
Material:
Reference:
Count:
1
Pages:
Cavanova
Varios
TW30T-ENTORNO
OF
4
4
