This product is not a medical device and is only intended to enhance comfort.
Note: This manual is compiled from the latest product information available at the time of publication. We reserve the
right to make changes as they become necessary.
Safety
Read and follow all instructions, notes, and warnings in this manual. If you require additional assistance or
encounter information that you do not understand, contact your authorized retailer. Failure to follow these
instructions can result in product damage or personal injury.
Shipping and Delivery
Before using your chair, make sure your delivery is complete. This is important because some
components/accessories may be individually packaged separate from the product. If your delivery is incomplete
or missing parts/accessories, contact your authorized retailer immediately.
If your product is damaged during transport, please contact the delivering company.
Modifications
Do not modify, add, or remove any parts or features of the product. Unauthorized modifications can lead to
product damage, personal injury, and void of product warranty.
If repair or service is needed, only use original manufacturer parts to ensure safety and compatibility.
Weight Limitations
All lift chairs are rated for a specific maximum weight capacity. Always stay within the specified weight capacity
of your chair, the manufacturer and retailer will not be held responsible for damage or injuries resulting from
failure to observe the weight limitation of the product.
Hazards
The reclining and lift mechanisms are moving parts and are considered “pinch or crush” points, always keep
clear of these areas and ensure that the product path of motion is unobstructed. In addition, keep these points
clear of any loose wires, pets, children, and fabrics (example: clothing or blankets).
Duty Cycle: Lift Chair Motors
2 minutes on and 18 minutes off is the intended maximum duty cycle for lift chair motors. Excessive use and
failure to observe this can result in injury, product damage or premature failure.
Page 3
Storage and Transportation
Product can be stored or transported in the -40F – 149F temperature range.
Interference: EMI and RFI
EMI and RFI (Electromagnetic Interference/Radio Frequency Interference) can affect the operation of the
electronic devices in this product. Common sources of EMI/RFI include but are not limited to: Cell phones,
mobile radios, television/radio stations, HAM transmitters, microwaves, pagers, and wireless telephones. The
owner or user of this product can reduce the impact of interference by maintaining a distance of at least 9-Feet
between the chair and any possible source of EMI/RFI.
If unintended motion occurs, discontinue use of the chair and contact your authorized retailer immediately.

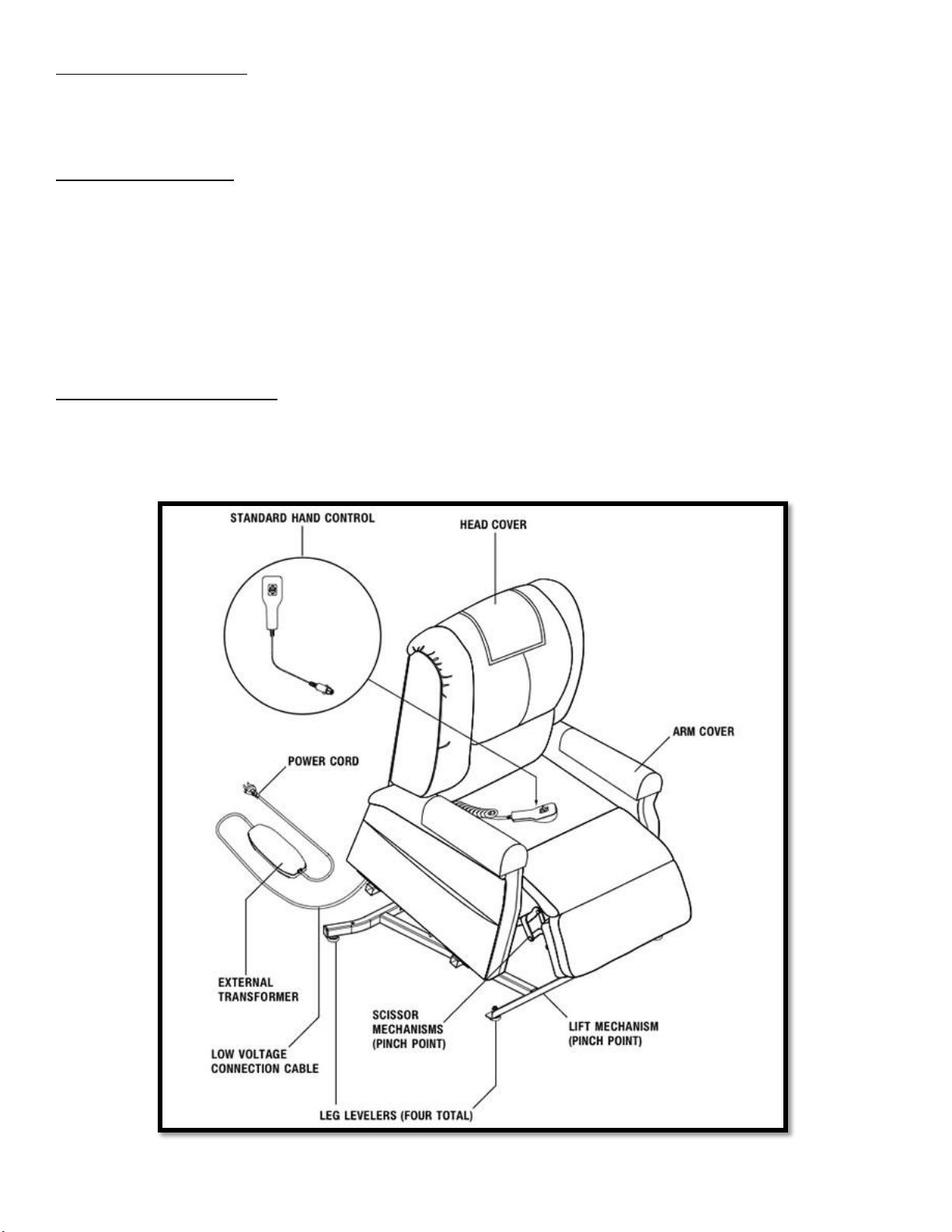

Standard Lift Chair Components
Lift chairs are composed of several frame and electronic components. A typical lift chair contains a removable
back frame, seat, ottoman, leg levelers, lift frame, scissor mechanism, transformer, hand control wand, and
motor/s.
Page 4
Battery Backup Transformers and Electronic Components
Some lift chair transformers are equipped with a dual 9v battery backup feature that will allow the chair to
return to a normal seated position a single time in the event of a power outage.
The battery back-up is intended to return a reclined chair to a seated position one time during a power outage.
For the models equipped with a battery back-up transformer, the batteries (not included) must be installed into
the transformer.
For these transformers to work properly during an outage it is imperative that the 9v batteries be fresh and
unused. Heavy Duty or industrial strength batteries are recommended. Replace these batteries after any power
outage or every 3-6 months to ensure that the batteries have enough charge to cycle the chair.
Keep all electronic components free of moisture to prevent damage. These electronic components include but
are not limited to: Motors, hand wands, button controls, junction boxes, heating pads, and all wires.
Assembly

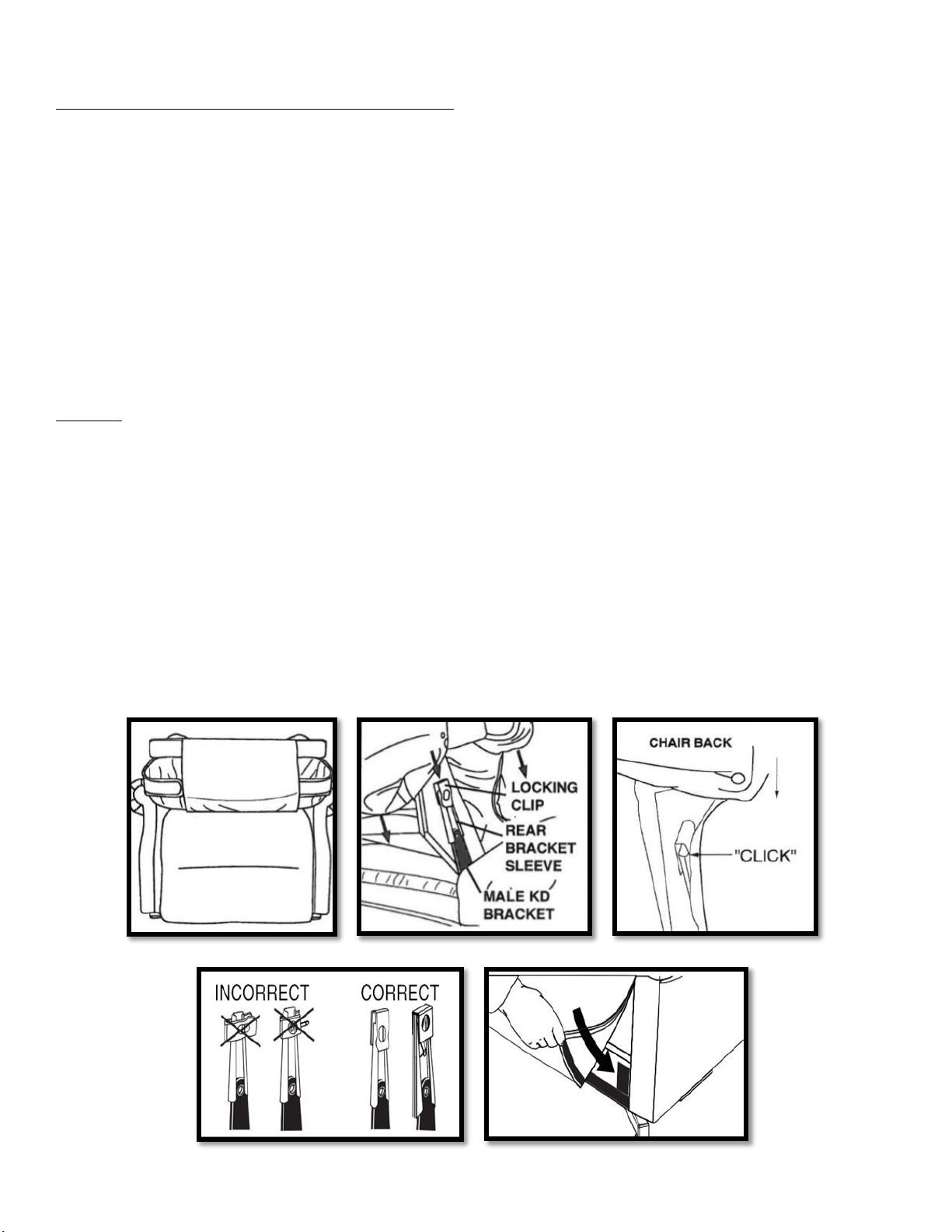

Your product may require assembly or disassembly before use or service. This Catnapper lift chair has a
removable “Knock Down” back frame known as a “KD” backs. The KD backs use metal slide brackets with a
locking tab to attach the back frame to the mechanism.
To attach a KD back, simply line up the KD brackets on the back frame with the mechanism and press firmly
down until both sides click. You must hear an audible clicking sound to ensure the back is properly locked in
place. Once the back is locked into place, secure the back cover to the Hook and Loop fastener (Velcro) on the
bottom of the chair.
If you are experiencing difficulty attaching the back frame be sure to visually inspect the KD brackets and locking
tabs to ensure they are in the correct position.
Page 5
Place the chair on dry, level ground where there is ample room for proper operation.
Before using the chair, make sure all leg levelers are present and screwed all the way in. With all leg levelers
screwed completely in – you can now use the leg levelers to make small adjustments to ensure the chair is level
and completely stable.
Connect any loose wires in the back of the furniture (some models will have wires for a heating pad, massage
motors, headrest/lumbar motors, etc.)
Connect the hand control wand, make sure the wire is routed away from any moving parts or pinch points in the
lift frame or mechanism.
If you discover a problem at any point during setup, stop and contact your authorized retailer immediately. To
avoid product damage or personal injury - do not plug the product into the electrical outlet until the issue is
resolved. Do not attempt to fix any electrical problems by yourself.

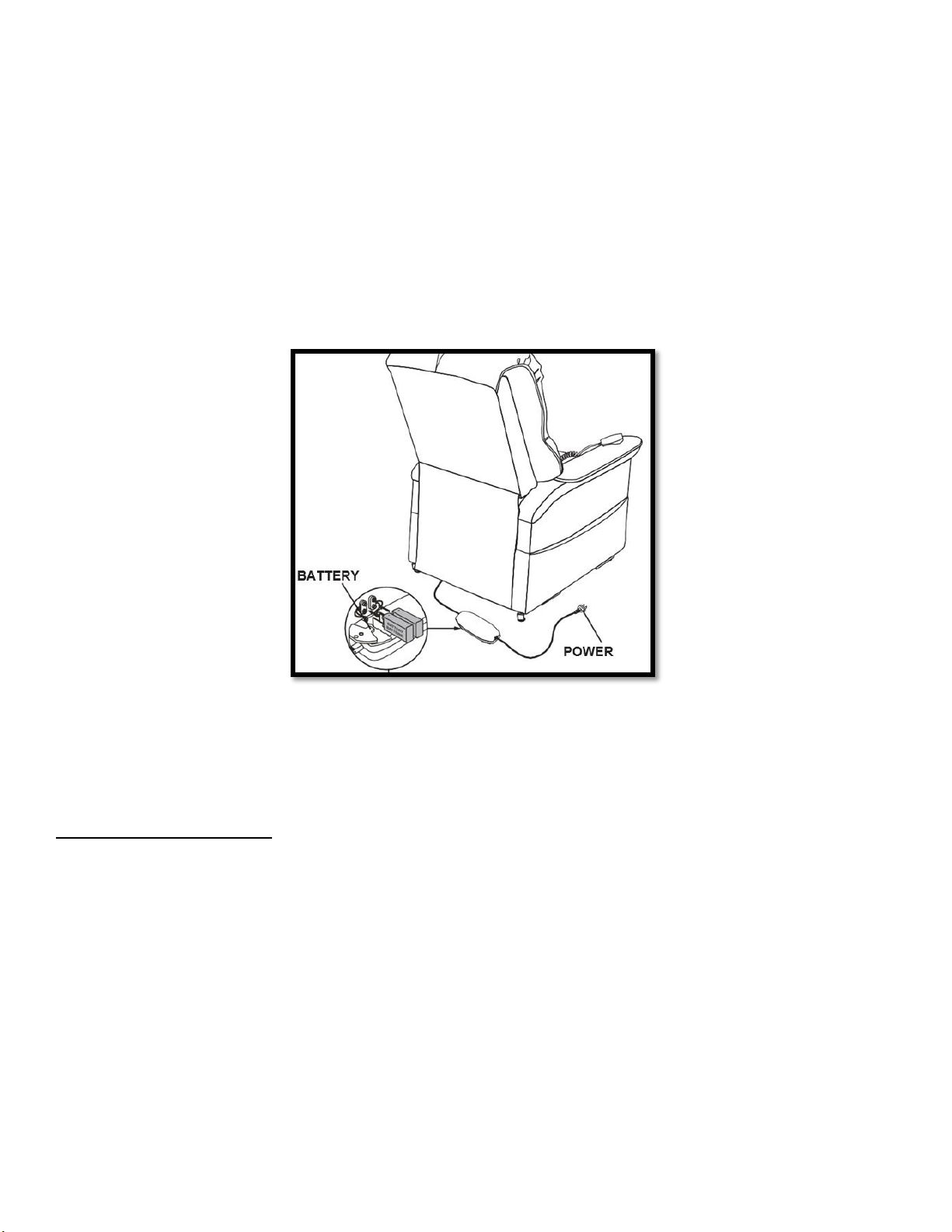

Install new 9v batteries (not included) into the battery backup transformer. See figure below.
Connect the transformer to the chair and then directly to a standard wall outlet. Do NOT use an extension cord
with this product. Make sure to place the transformer in an open well ventilated area to avoid damage or
premature failure.
Care and Routine Maintenance
Routine maintenance checks on the fabric and electronics should be performed periodically over the lifetime of
the product.
Inspect the fabric on a regular basis for any discoloration, pulls, tears, or gaps.
Always use the correct cleaning method by consulting the cleaning code for your specific product, the cleaning
code will list authorized cleaning products and method to ensure the product isn’t damaged during this process.
If you are unsure of what cleaning code applies to your product, contact your authorized retailer before
cleaning.
This product is intended for indoor use only. Fabric should be kept away from heat sources, out of direct
sunlight, and away from moisture.
Routinely inspect all wiring and connections to ensure they are not damaged in any way. Make sure all
connections are secure and there are no pinched or frayed wires.
Keep all electronics away from moisture and extreme temperatures.
If damage or exposure is discovered at any time during maintenance unplug the product and contact your
authorized retailer.
Page 6
This article meets the flammability
requirements of California bureau of
electronic and appliance repair, home
furnishings, and thermal insulations
technical bulletin 117-2013. Care should
be exercised near open flame or burning
cigarettes.
The upholstery materials in this product:
___ Contains no added flame retardant
chemicals.
The State of California has updated the
flammability standard and determined
that the fire safety requirements for this
product can be met without adding flame
retardant chemicals. The State has
identified many flame retardant
chemicals as being known to, or strongly
suspected of, adversely impacting human
heath of development.
