Caterpillar MD6640 BROCHURE

Download

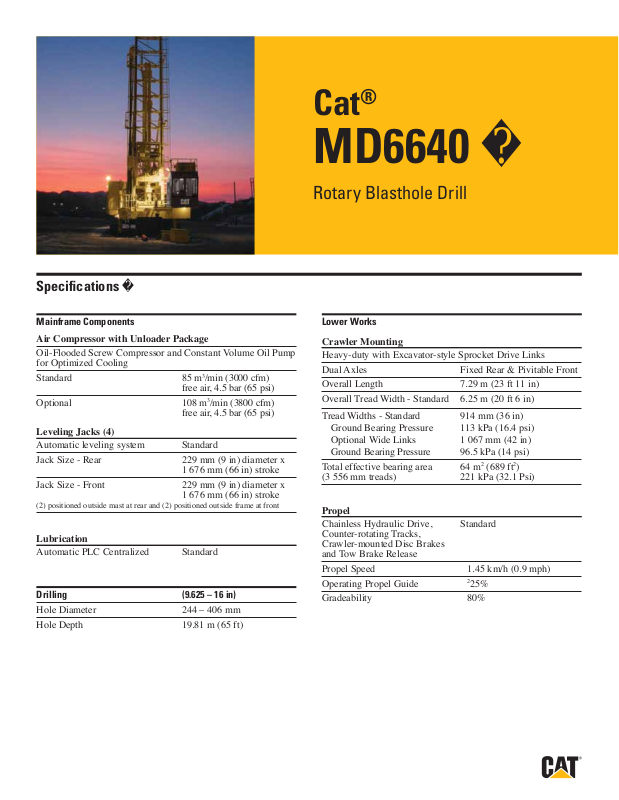

Page 1

Speciﬁcations �

Cat

MD6640 �

Rotary Blasthole Drill

Mainframe Components

Air Compressor with Unloader Package

Oil-Flooded Screw Compressor and Constant Volume Oil Pump for Optimized Cooling

Standard 85 m

Optional 108 m

Leveling Jacks (4)

Automatic leveling system Standard Jack Size - Rear 229 mm (9 in) diameter x

Jack Size - Front 229 mm (9 in) diameter x

(2) positioned outside mast at rear and (2) positioned outside frame at front

Lubrication

Automatic PLC Centralized Standard

Drilling

Hole Diameter

Hole Depth

/min (3000 cfm)

free air, 4.5 bar (65 psi)

/min (3800 cfm)

free air, 4.5 bar (65 psi)

1 676 mm (66 in) stroke

(9.625 – 16 in)

244 – 406 mm

19.81 m (65 ft)

Lower Works

Crawler Mounting

Heavy-duty with Excavator-style Sprocket Drive Links Dual Axles Fixed Rear & Pivitable Front Overall Length 7.29 m (23 ft 11 in)

Overall Tread Width - Standard 6.25 m (20 ft 6 in)

Tread Widths - Standard 914 mm (36 in)

Ground Bearing Pressure 113 kPa (16.4 psi) Optional Wide Links 1 067 mm (42 in) Ground Bearing Pressure 96.5 kPa (14 psi)

Total effective bearing area 64 m2 (689 ft2) (3 556 mm treads) 221 kPa (32.1 Psi)

Propel

Chainless Hydraulic Drive, Standard Counter-rotating Tracks, Crawler-mounted Disc Brakes and Tow Brake Release

Propel Speed 1.45 km/h (0.9 mph) Operating Propel Guide Gradeability 80%

25%

Page 2

Rotary Blasthole Drill—MD6640 �

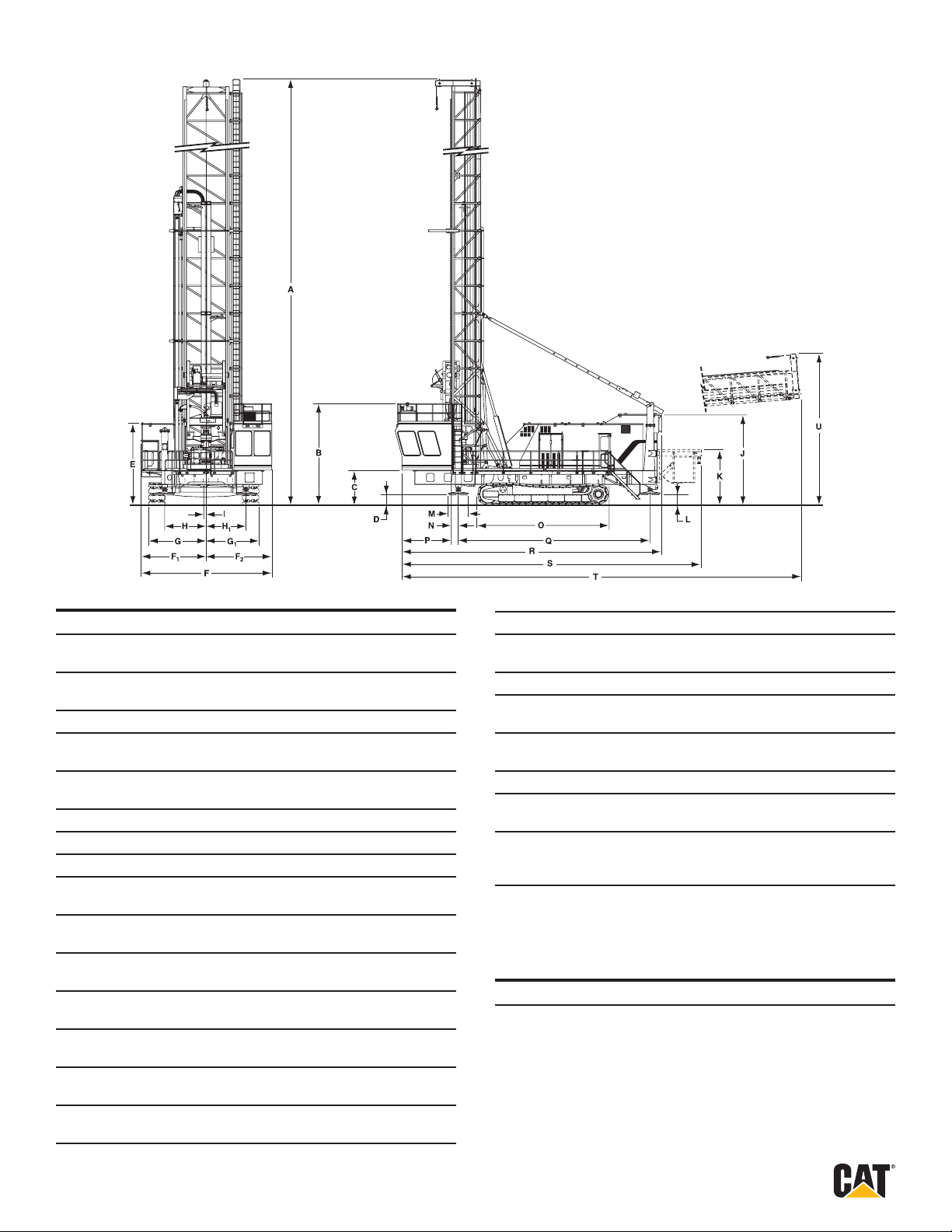

Optimal Working Ranges �

A Overall height w/mast for 65’ single pass 31.22 m (102 ft 5 in)

B Height to top of handrails on operator cab 5.64 m (18 ft 6 in)

C Groundline to top of deck 1.93 m (6 ft 4 in)

D Groundline to bottom of rear jack pads 0.61 m (2 ft)

E Groundline to top of machinery house roof 4.60 m (15 ft 1 in)

F Overall width of machine 7.24 m (23 ft 9 in)

Centerline of machine to LH side 3.61 m (11 ft 10 in)

F2 Centerline of machine to RH side 3.63 m (11 ft 11 in)

G Centerline of machine to LH outside edge of 914 mm (36 in) tracks 3.17 m (10 ft 5 in)

G1 Centerline of machine to RH outside edge of 914 mm (36 in) tracks 2.92 m (9 ft 7 in)

H Centerline of machine to centerline of LH rear leveling jack 2.29 m (7 ft 6 in)

H1 Centerline of machine to centerline of RH rear leveling jack 2.21 m (7 ft 3 in)

I Centerline of hole to centerline of equalizer jack 127 mm (5 in)

J Height to top of machinery house pressurizing unit 5.05 m (16 ft 7 in)

K Height to top of cable reel (optional) 3.07 m (10 ft 1 in)

L Groundline to bottom of front jack panels 0.63 m (2 ft 1 in)

M Diameter of jack pads 1.12 m (3 ft 8 in)

N Centerline of hole to centerline of rear jacks 400 mm (15.75 in)

O Overall length of crawlers 7.29 m (23 ft 11 in)

P Centerline of hole to rear of operator’s cab 3.10 m (10 ft 2 in)

Q Centerline of rear jacks to centerline of front jacks 11.02 m (36 ft 2 in)

R Overall length of machine 14.73 m (48 ft 4 in)

S Overall length of machine with optional cable reel 16.97 m (55 ft 8 in)

T Overall length of machine w/mast for 65’ single pass drill depth mast at rest 31.24 m (102 ft 6 in)

U Groundline to high point w/mast for 65’ single pass drill depth - mast at rest 9.88 m (32 ft 5 in)

Weight*

Working Weight 154 224 kg (340,000 lbs)

* Type and number of options will affect machine weight.

Page 3

Rotary Blasthole Drill—MD6640 �

Bailing Velocities: 15.5º C (60º F) @ Sea Level

Diameter Nominal Compressor Rating - m3/min (icfm)

Hole Pipe 84.9 (3,000) 107.6 (3,800)

cm in cm in m/min fpm m/min fpm

25.1 9.875 17.8 7 3 450 11,300 4 378 14,359

27.0 10.625 19.4 7.625 3 050 10,000 3 879 12,724

31.1 12.25 21.9 8.625 2 200 7,300 2 807 9,206

31.1 12.25 23.5 9.25 2 600 8,500 3 293 10,800

34.9 13.75 27.3 10.75 2 300 7,500 2 890 9,478

38.1 15 32.4 12.75 2 700 8,800 3 402 11,157

38.1 15 34.0 13.375 3 650 11,900 4 606 15,108

40.6 16 32.4 12.75 1 800 5,900 2 273 7,456

40.6 16 34.0 13.375 2 150 7,100 2 754 9,034

Recommended Bailing Velocity Range: 1,524 - 3,658 m/min (5,000 - 12,000 fpm)

Mast Components

Mast

Standard mast for drill pipe & one pipe rack 19.81 m (65 ft)

Computer analyzed, HD tubular lattice construction with back braces

Raising and Lowering (2) 228.6 mm (9 in diameter

Angle Hole Drilling

hydraulic cylinders

25˚ off vertical in 5˚ increments

Hoist/Pulldown

Chainless rack and pinion system driven by head-mounted excavator grade DC motor

Bit Loading Up to 63 975 kg (to 141,000 lbs) Feed Rate Up to 7.62 m/min (to 25 fpm) Hoist Rate Up to 22.86 m/min (to 75 fpm) Lowering Rate Up to 22.86 m/min (to 75 fpm) Electronic Depth Indicator Standard Auxiliary Winch -

Std. Capacity 4 536 kg (to 10,000 lbs)

Pipe Racks

Single Rack 0.31 m (13.375 in) OD pipe 25 mm (1 in) wall thickness Standard

Optional Rack Congurations and Max. Drill Pipe Diameter

2 Pipe Racks Max. diameter may vary. 3 Pipe Racks Max. diameter may vary. 4 Pipe Racks Max. diameter may vary.

Rotary Drive

Rotary Drive - DC motor 145 kw (195 hp) @ 475V

Bit Maximum Speed 125 rpm

Cat Shock Coupling Standard

Electrical

Equipment

Static DC Variable Output

Power Requirements

Voltage

3 Phase, 60 Hz, 4,160V

Main Electrical Systems

Air Compressor/AC Induction Motor

Dual Shaft - 448 kw (600 hp) @ 4,160V Standard available for 85 m

Optional 597 kw (800 hp) @ 4,160V

Hoist/Pulldown - DC Motor 97 kw (130 hp) @ 475V

Main Hydraulic Oil Pumps - 186.4 kw (250 hp) @ 460V Driven from Main Air Compressor Motor Nominal

Machinery House Pressurization - 15 kw (20 hp) @ 460V @ 529 m3/min (18,700 cfm)

Operator Cab Pressurization with Heater and Air Conditioner Standard

Hydraulic Oil Cooler Fan 4 kw (5 hp)

Drive Transformer 3 Phase, 425 KVA Dry-Type

Transformer, Auxiliary 3 Phase, 250 KVA Dry-Type

Lighting 120/240V

Windshield Wipers Upper and Lower Front Standard

With optional angle hole equipment. Stability limitations apply.

For alternate power congurations consult Caterpillar.

/min

(3,000 cfm) compressor

available for 108 m3/min (3,800 cfm) compressors

Page 4

Rotary Blasthole Drill—MD6640 �

Leveling Jack,

Left Rear

Jack Pad

L.H. Pipe Rack

Deck

Bushing

Machine

and

Deck Bushing

Operator’s

Cab

Operator’s

Seat

Pipe Thread

Lubricators

Tool Wrench

Deck Bushing

R.H.

Pipe Rack

Auxiliary Console

Jack Pad

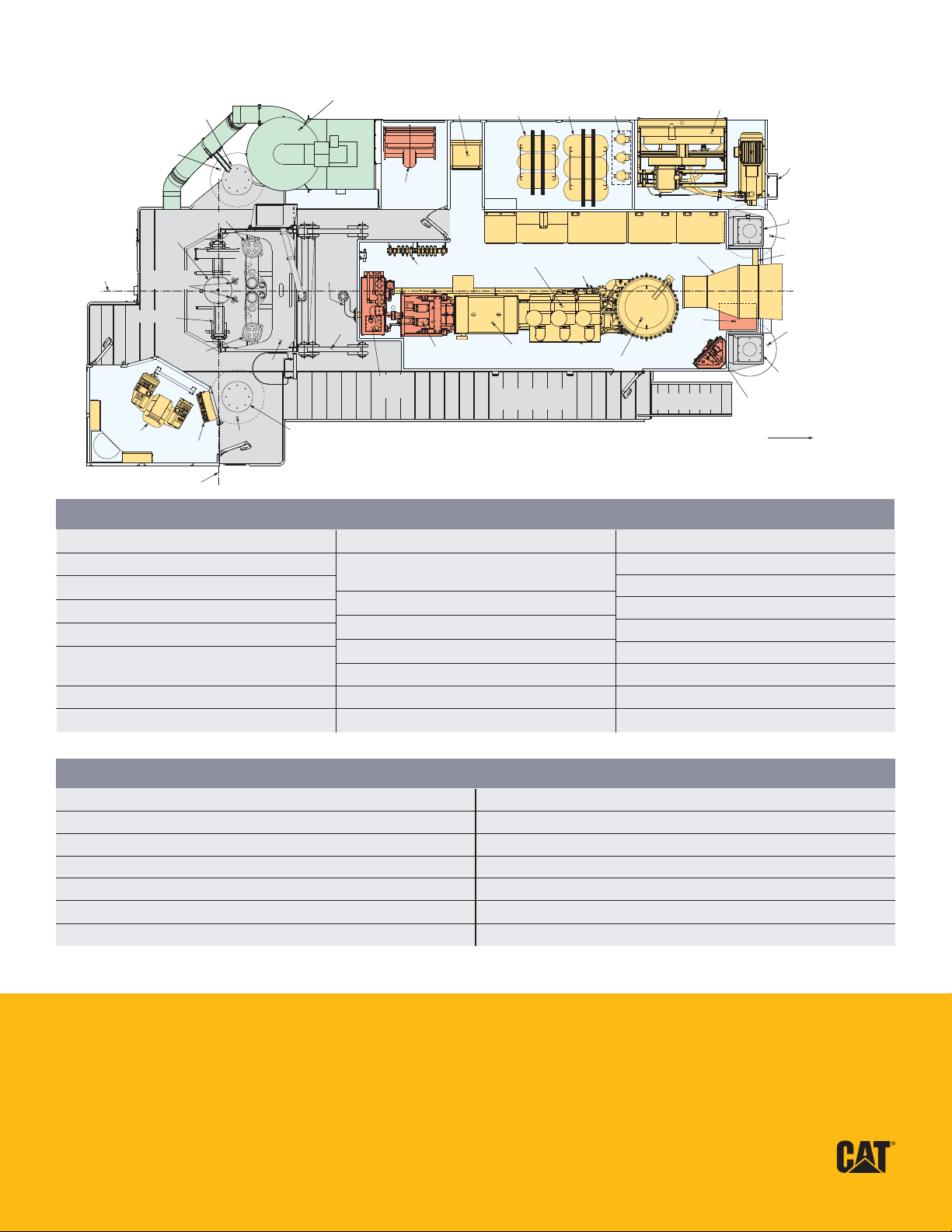

Components

1. Bit Viewing Hatch - Hydraulic Operated

2. Hydraulic Breakout Wrench (optional)

3. Tipton Dry Dust Control (optional)

4. Leveling Jack (4)

5. Service Platform

6. Water Injection Dust Control 3,785 L (1,000 gal)

7. Hydraulic Oil Cooler & Guard

8. Transformers

Mast

Main

Air

Pipe

A-Frame

Leveling Jack,

Right Rear

Dust Collector

Hydraulic

Oil Tank

Hydraulic

Oil Cooler

Electro/Hydraulic

Valves

Hydraulic Pumps

and Gearcase

Hi-Voltage

Disconnect

Auxiliary

Transformer

Hi Voltage

Compressor

Start

Cabinet

Main Air Compressor

& Filter Assembly

Main Drive

Walkway, Right

9. Compressor Oil Cooler

10. Heated & Insulated Cooler Compartment (optional)

11. Cable Reel (optional)

12. Boarding Stairs

13. Main Air Compressor Package

14. Main Drive Motor

15. Hydraulic Pumps & Gearcase

16. Pipe Racks - 1 Standard (2-4 optional)

Main Lightning

Transformer Arresters

Low Voltage

Cabinet

Butterfly Valve

Motor

Compressor Oil Cooler and Radiator

Programmable Rotary Drive Hoist/Pulldown

Controller Control Drive Control

Cabinet Cabinet Cabinet

House Ventilation Filter & Fan

Main Air

Lubricator

Separator

Boarding Stairs

17. Operator’s Cab

18. Hydraulic Oil Reservoir

19. Electro/Hydraulic Valves

20. Air Compressor Motor Control Center (MCC)

21. Low Voltage Motor Control Center (MCC)

22. Programmable Controller (PLC)

23. Rotary Drive Control Cabinet

24. Hoist/Pulldown Drive Control Cabinet

25. Auto-Lube System

Service Ladder

Leveling Jack,

Left Front

Jack Pad

Loadcenter

Bit

Jack Pad

Leveling Jack,

Right Front

Auto Lube

Reservoir

Front of Machine

Options

18.3 m (60 ft) or 21.3 m (70 ft) Masts

Angle Hole Drilling

Automatic Fire Suppression Systems

Cold Weather Options

Dry Dust and Water Injection Dust Control Systems

Dust Curtains

Remote Propel

Additional options to meet customer’s needs.

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at mining.cat.com and www.cat.com

CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

Front Tow Bar / Rear Tow Hooks

GPS Interface

Hydraulic Breakout Wrench (controlled from operator’s control console)

Hydraulic Drive Cable Reels

Optional 3,800 cfm Compressor

Programmed Drill Control

Quick-Fill System for Oils and Lubricants
