Specifications
®
Cat
MD1001
ELECTRIC SHAFT JUMBO DRILL
Features
Overall Length
(with TR 16 ft Feed, SJ105 Boom)
Overall Frame Dimensions
1 Boom
Drill
Model (Qty. 1) HPRH 4519
Weight 300 kg 660 lb
Impact Frequency 42-45 Hz 2,500-2,700 bmp
Impact Energy 908.386 j 670 ft-lb
Rotation Speed 240 rpm 240 rpm
Hydraulic System (per Boom)
Two (2) variable displacement piston pumps
One (1) for hammer, feed and boom positioning;
one (1) for drill rotation
Hydraulic Reservoir 170 L 45 gal
Oil to Water Heat Exchanger
Boom
Models
Face Coverage Diameter
(MD-105-SD) per Boom 10 m 32.83 ft
Face Coverage Diameter
(MD-135-SD) per Boom 11.59 m 38 ft
11.5 m 37.5 ft
0.97 m × 0.91 m × 3.96 m LG
38 in × 36 in × 156 in LG
Feed
Model (Qty. 1) TR16
Steel Length 4.88 m 16 ft
Maximum Hole Depth 4.42 m 14 ft 6 in
Overall Length 6.76 m 23.2 ft
Power Unit
Model (Qty. 1) per Boom EP75 Electric
Optional Equipment
• Model TR12-TR20 (heavy aluminum) Feed for 12-20 ft steel length
in lieu of TR16 Feed
• Hydraulic opening fixed centralizer
• Manual opening centralizer
• 3 ft feed extension for probing
• 220 VAC control voltage in lieu of 110 VAC
• 1,000 volt Electrics
• Radio Remote
Page 2

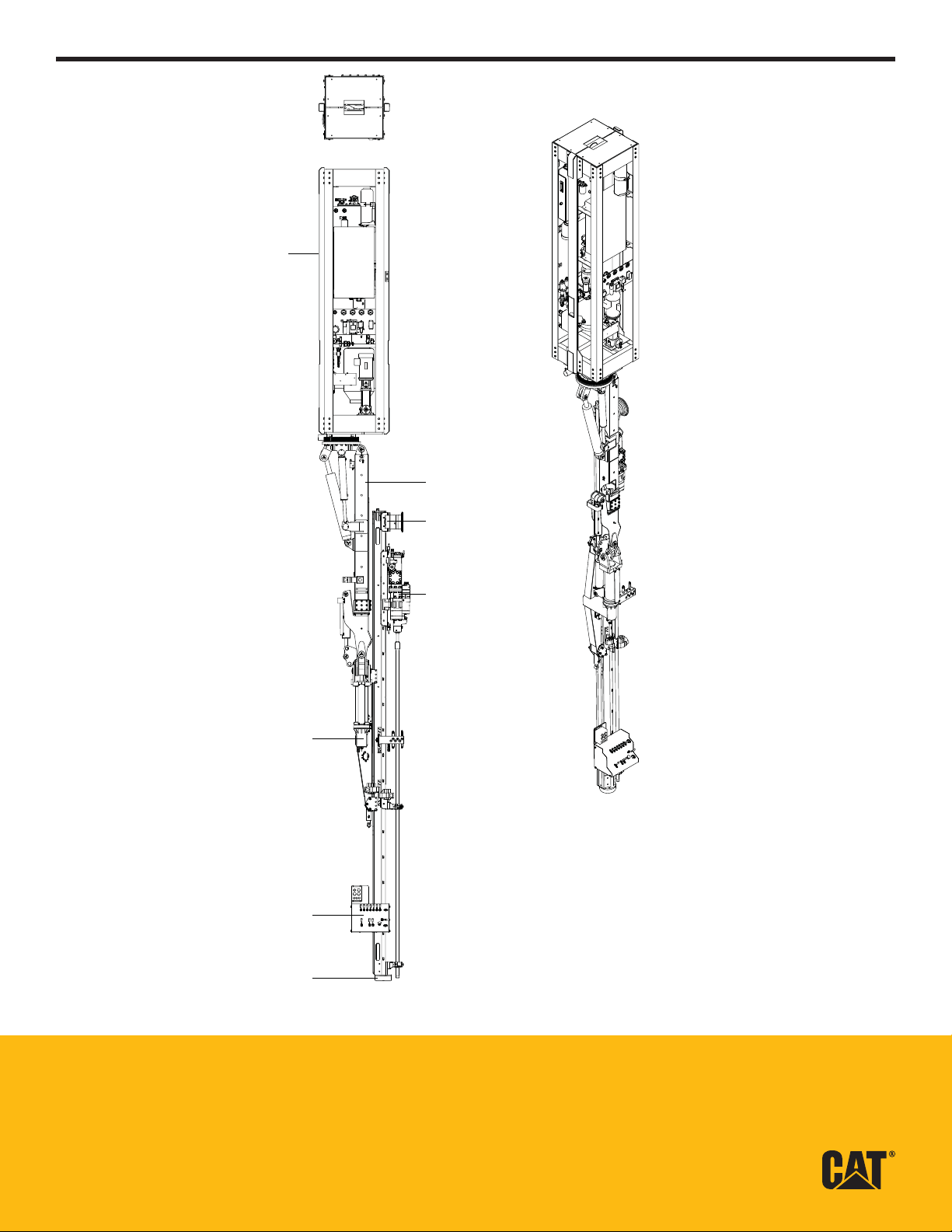

Electric Shaft Jumbo Drill – MD1001
Frame Guides
LOCATED IN FRAME
– Drill Lubrication System
– Electric Driven Power Pack
– Variable Displacement Pumps
– Water Booster Pump
– Hydraulic Tank
– Fire Suppression System
– High Pressure Filter
– Return Filter
SJ105 Booms
Feed Table
Control Valves
TR Series SJ Feed
HPRH4519 Rock Drill
Stinger
