Page 1
Engine
Engine Model Cat®C18 ACERT™
Flywheel Power 306 kW 410 hp
Gross Power 346 kW 464 hp
Weights
Operating Weight 47 900 kg 105,600 lb
Shipping Weight 37 104 kg 81,800 lb
• Operating Weight: Includes hydraulic controls, blade tilt
cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab,
SU-Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes,
and operator.
• Shipping Weight: Includes coolant, lubricants, 20% fuel,
ROPS, FOPS cab, and 610 mm (24 in) ES shoes.
D9T
Track-Type Tractor
®
®
Page 2
2
D9T Track-Type Tractor
Strength from the past. Power for the future.™ The D9T combines power and efficiency with
advanced technology for outstanding production at a lower cost-per-yard.
Engineered for demanding work.
The durable construction of the D9T is
well suited for tough working conditions.
Combined with the C18 engine for superior
performance, fuel economy and meeting
emission targets with the help of ACERT
Technology, it keeps material moving with
the reliability and low operating costs you
expect from Cat
®
tractors.
Serviceability and Customer Support
Combining easy to access, modular
components with your Caterpillar
®
Dealer’s advanced rebuild and repair
capabilities ensures rapid component
replacement and minimum downtime.
pg. 13
✔

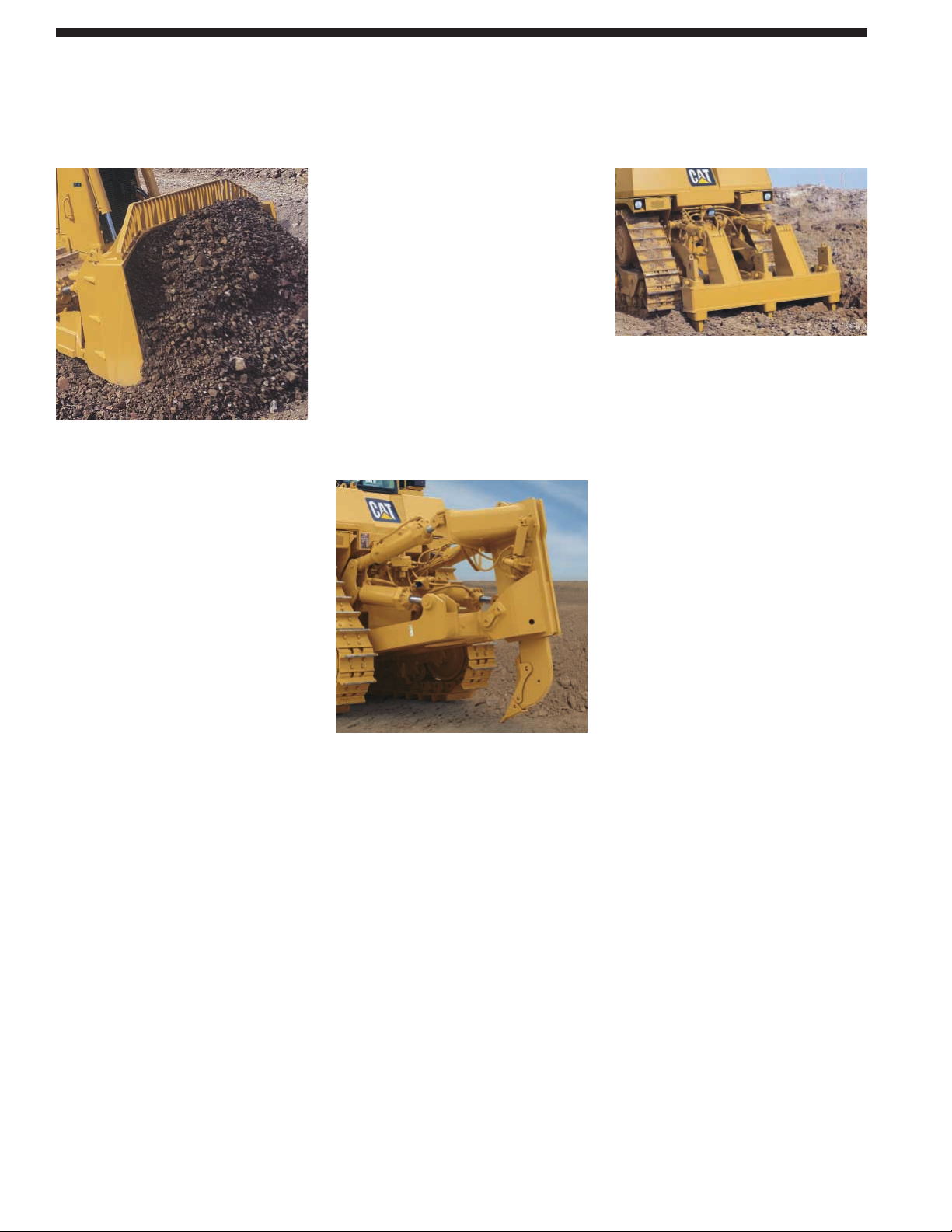

Work Tools
Various bulldozer blades, rippers,
winches, and other options allow you
to adapt the D9T to match your specific
application, making you more
productive. pg. 12
Implement and Steering Controls
Electro-hydraulic implement controls
allow low operator effort for dozing and
ripping. Steering and gear selection in a
one-hand control system enhances
operator comfort. pg. 8
✔
Operator Station
Designed for operator comfort,
convenience, and productivity.
Machine control and vital information
is provided at the operator’s fingertips.
A full day of work is no problem in this
efficient work place. pg. 6
✔
C18 Engine with ACERT®Technology
ACERT Technology works at the point
of combustion to optimize engine
performance and provide low exhaust
emissions. Matched with the torque
converter and power shift transmission,
it provides years of dependable and
efficient service. pg. 4
✔
Page 3
✔ New Feature
3

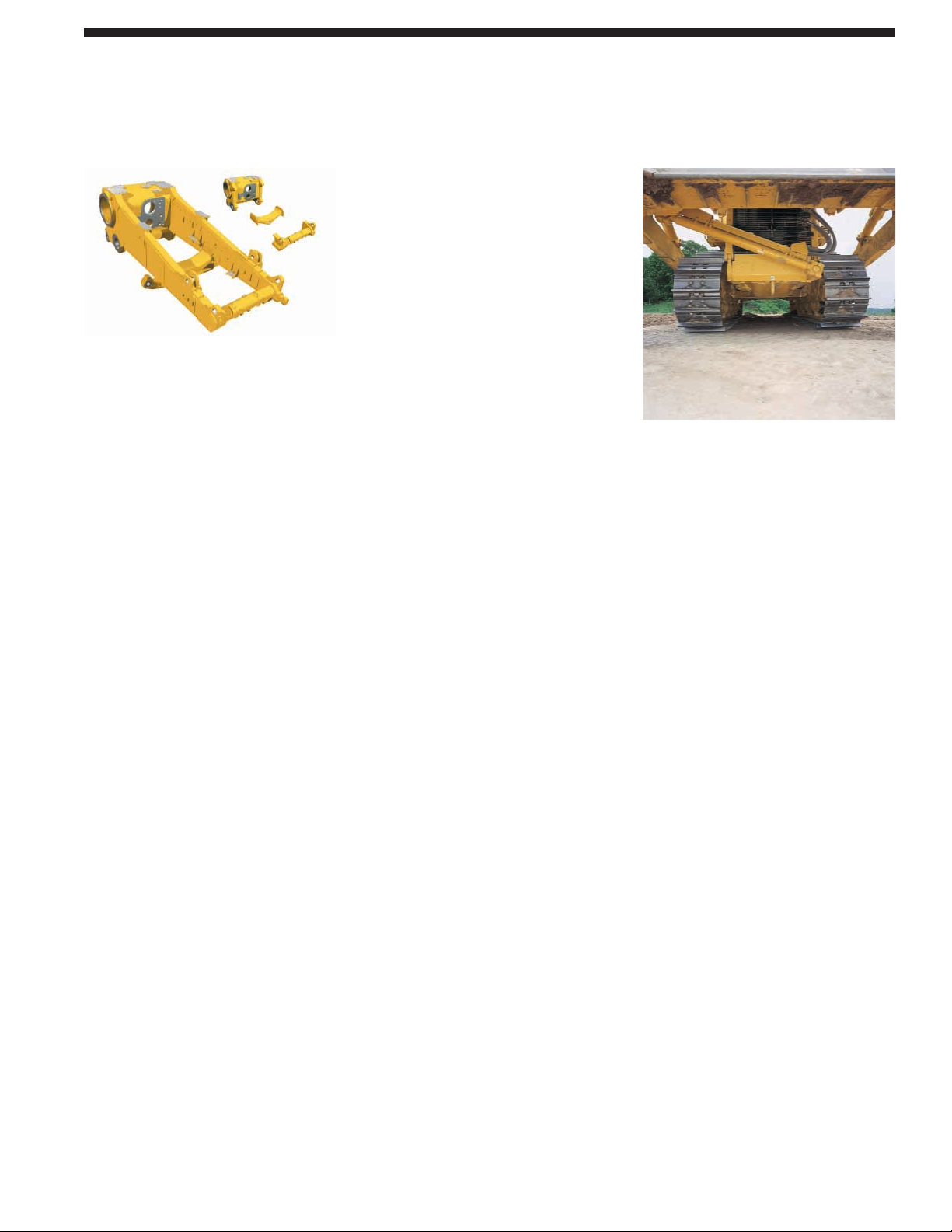

Structure
Mainframe is heavy, strong and durable.
Full box sections, steel castings and
continuous rolled rails provide durable
support to the suspended undercarriage,
elevated final drives and other integral
frame components. pg. 11

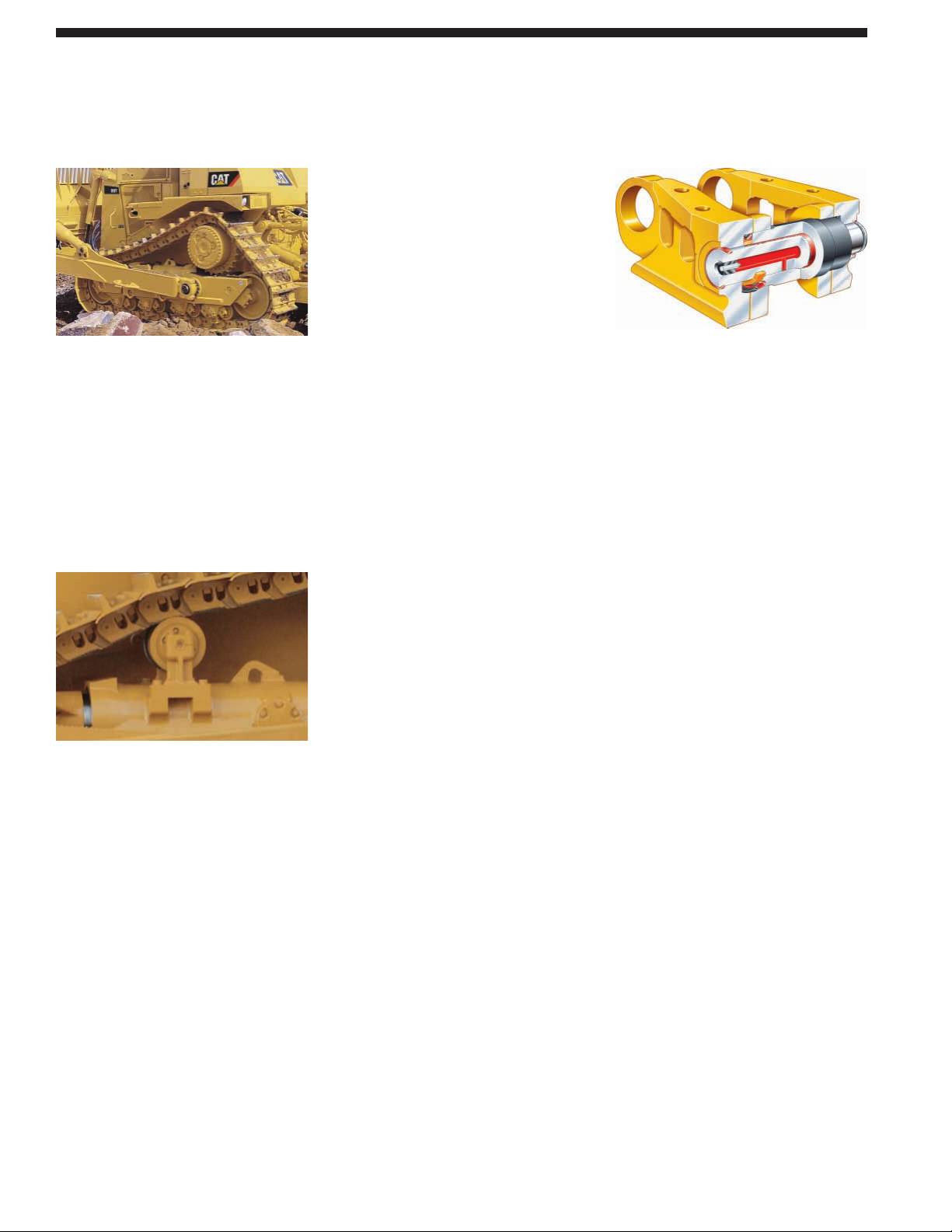

Undercarriage
The proven elevated sprocket
undercarriage isolates the drive train
components from ground-induced
impacts. The suspended undercarriage
puts more track on the ground for
higher traction and less track slip.
It absorbs shocks for a smoother ride
and longer machine life. pg. 10
Drive Train
The electronically controlled power
shift transmission, efficient differential
steering and durable planetary final
drives deliver outstanding power transfer
and long life to ensure maximum
productivity. pg. 9
Page 4

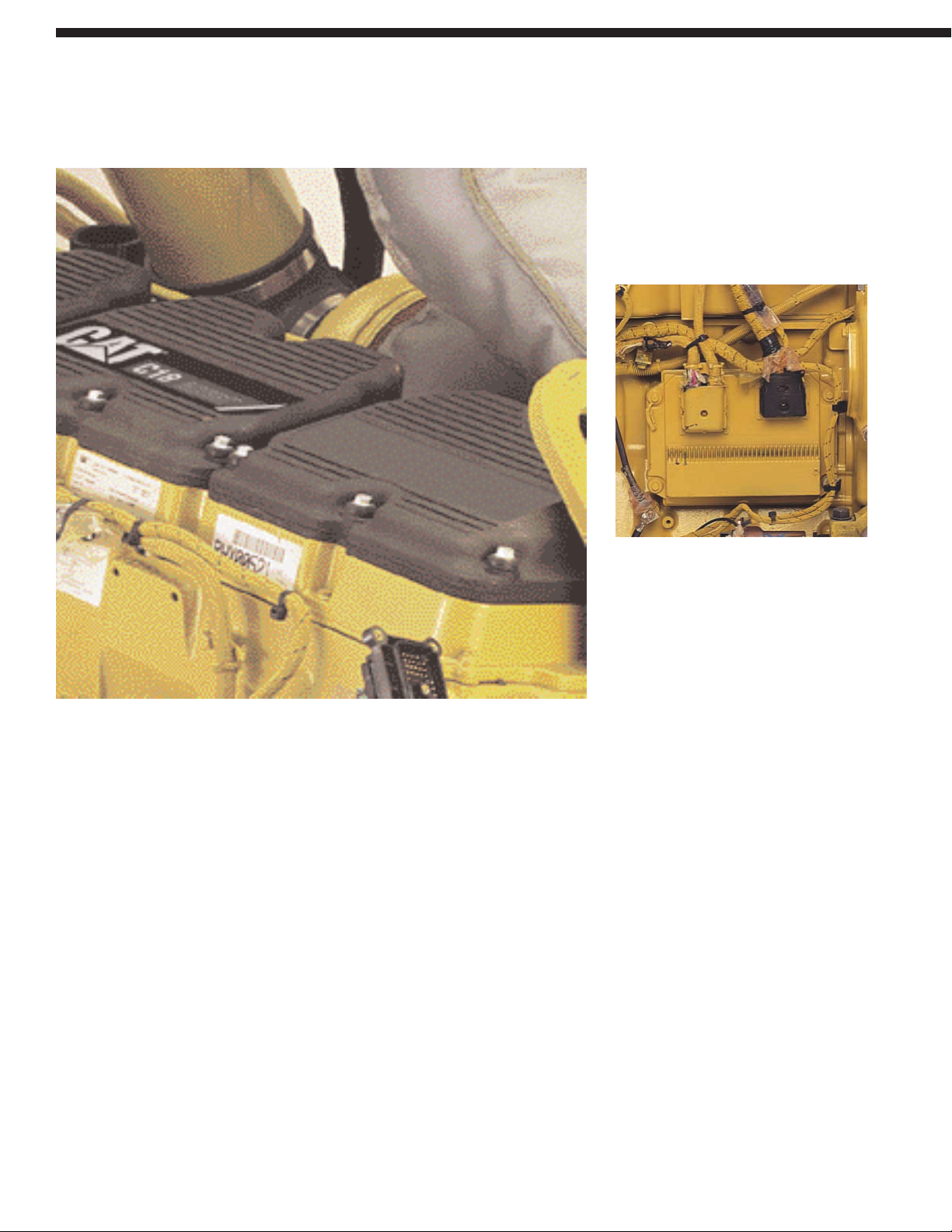

C18 Engine. Performing at full-rated net
power of 306 kW (410 hp) at 1,800 rpm,
the large displacement and high torque
rise allow the D9T to doze through
tough material. Matched to the high
efficiency torque converter and
electronically controlled power shift
transmission, it will provide years of
dependable service.
C18 Block. The one-piece, grey iron
block features generous ribbing for
stiffness and heavy bearing bulkheads
for rigidity and strength. Incorporation
of straight o-ring connection points
reduces the loss of engine oil and fluids.
Overhead Cam. Gears drive an overhead
cam on the front end of the engine.
To reduce wear, a pendulum absorber
is mounted at the front of the camshaft.
These features contribute to the long-life
and durability of this engine.
ADEM™ A4 Engine Controller.
The ADEM A4 electronic control
module manages fuel delivery to get
the best performance per gallon (liter)
of fuel used. It provides flexible fuel
mapping, allowing the engine to respond
quickly to varying application needs.
It tracks engine and machine conditions
while keeping the engine operating at
peak efficiency.
Fuel Delivery. Multiple injection fuel
delivery involves a high degree of
precision. Precisely shaping the
combustion cycle lowers combustion
chamber temperatures, generating
fewer emissions and optimizing fuel
combustion; translating into more work
output for your fuel cost.
4
A combination of innovations working at the point of combustion, ACERT Technology
optimizes engine performance while meeting EPA Tier 3 and EU Stage IIIa engine exhaust
emission regulations for off-road applications.
C18 Engine with ACERT®Technology
Page 5

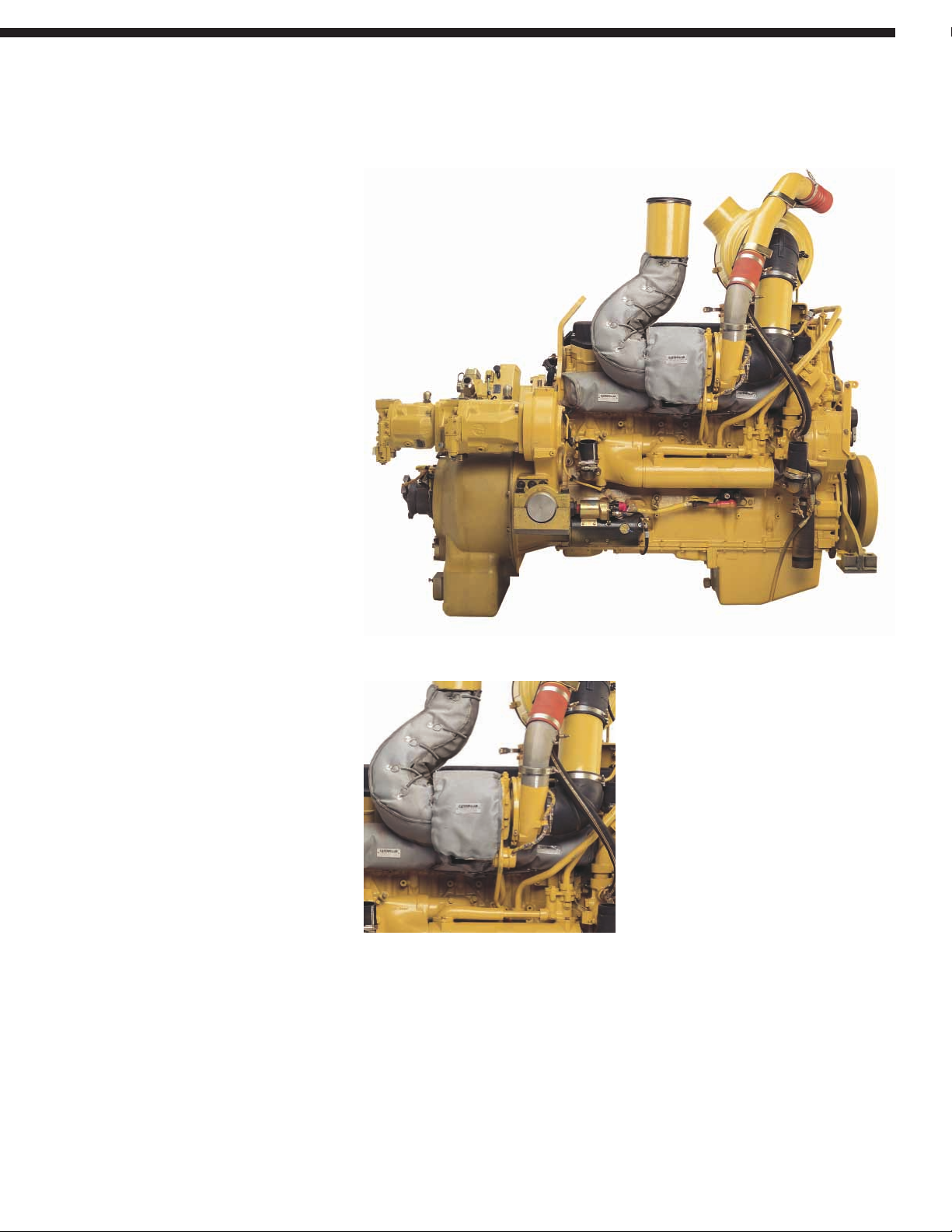

More Complete Fuel Combustion.
High cylinder pressures combined with
tightly controlled tolerances promote
extremely efficient fuel burn, less blow
by, and lower emissions.
MEUI Fuel System. A highly evolved
fuel system with a proven record of
reliability in the field. MEUI combines
the technical advancement of an
electronic control system with the
simplicity of direct mechanically
controlled unit fuel injection. The MEUI
system excels in its ability to control
injection pressure over the entire engine
operating speed range. These features
allow the C18 to have complete
control over injection timing, duration,
and pressure.
ATAAC and Airflow. Air-to-air
aftercooling keeps air intake temperatures
down and, in concert with the tight
tolerance combustion chamber
components, maximizes fuel efficiency
and minimizes emissions. Significant
improvements in air flow are generated
by a water-cooled turbocharger,
unique cross-flow head and a single
overhead cam.
Turbocharging and Air-to-Air
Aftercooling. Provides high horsepower
with faster response time while keeping
intake temperatures low for long hours
of continuous operation.
Service. Easier maintenance and repair
through monitoring key functions and
logging critical indicators. Electronic
diagnostic access is possible with a
single tool, the Cat Electronic Technician.
5
Page 6
6
Designed for operator comfort, convenience, and productivity, the state-of-the-art cab sets
a new standard.

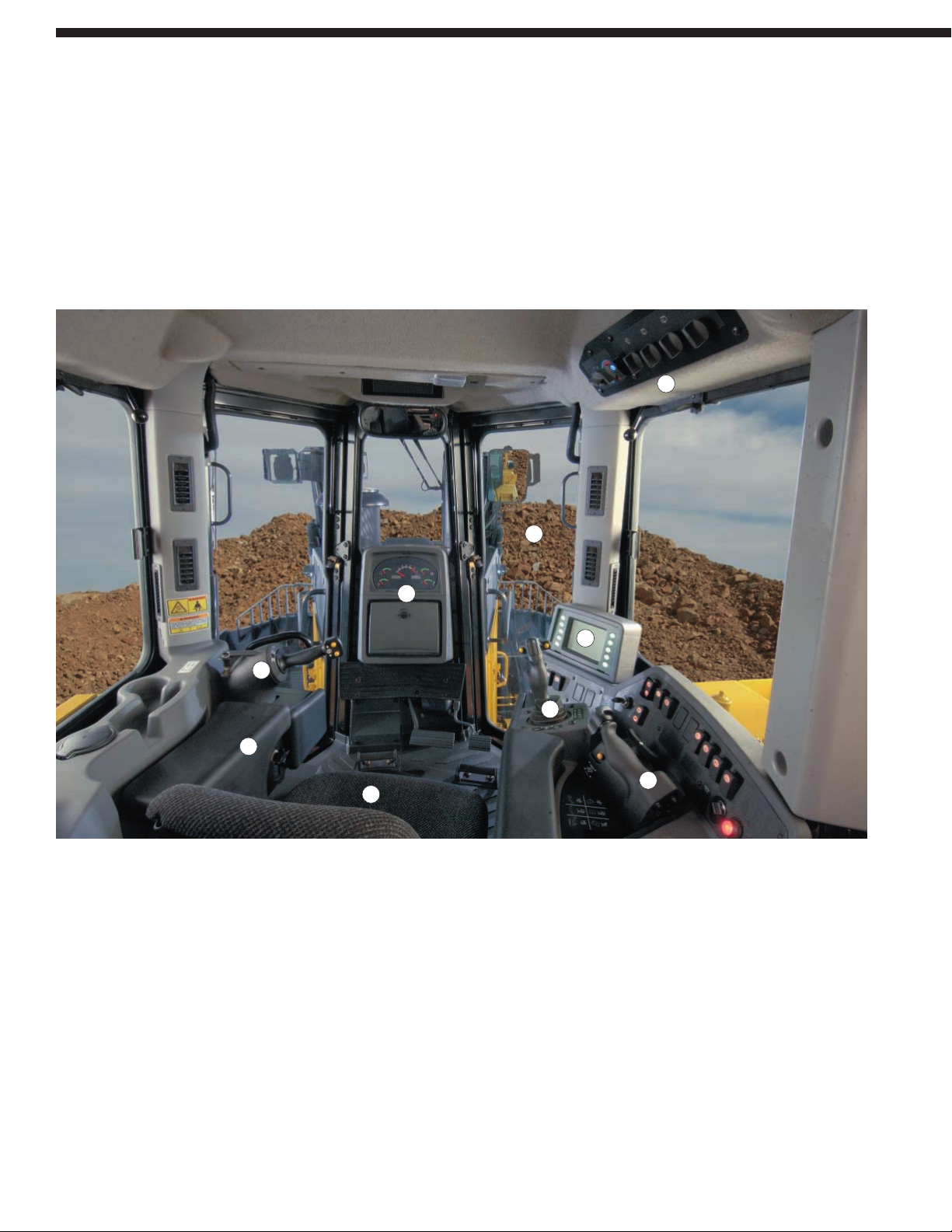

Operator Station
8
7
6
6
1
5
3
2
4
Page 7

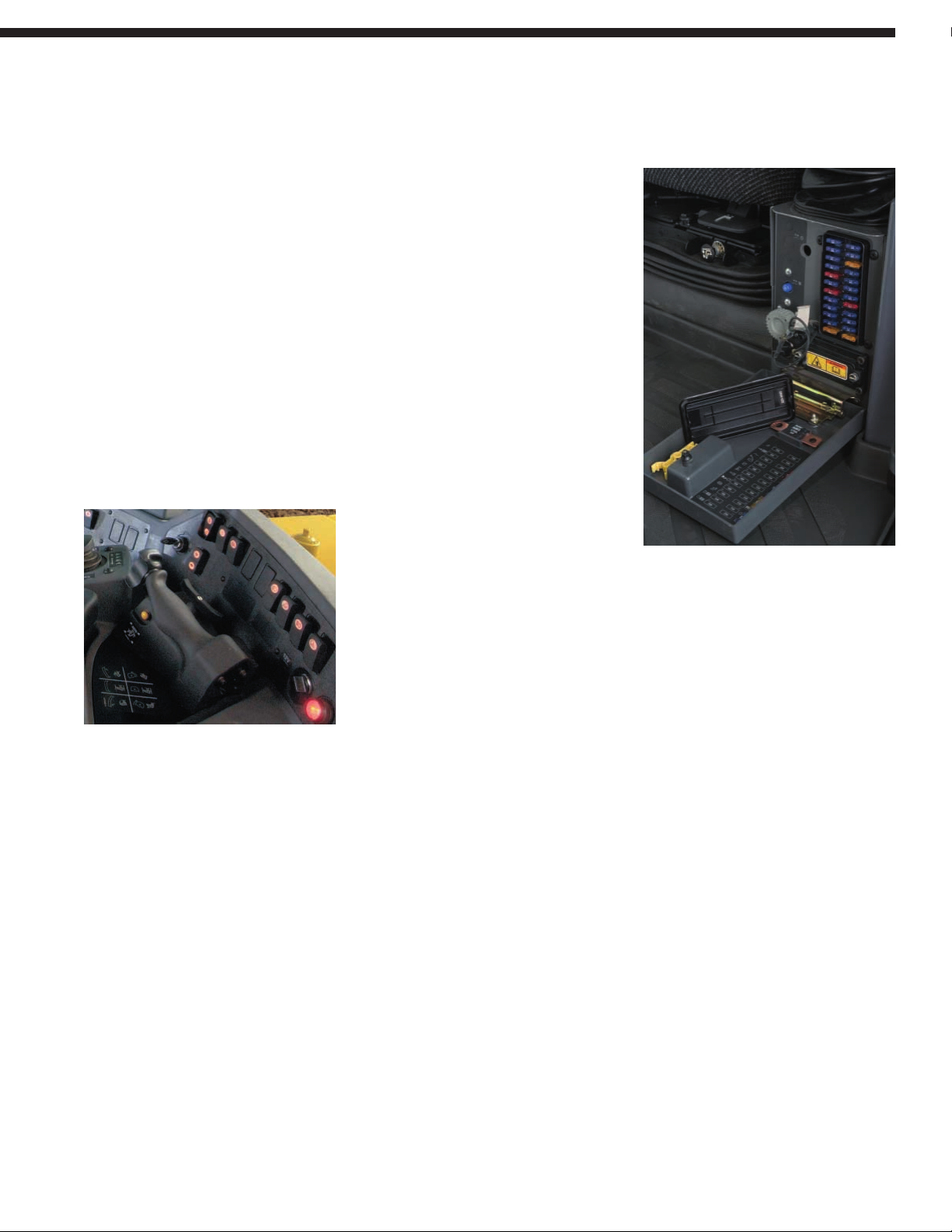

1) Steering Control. Dual-twist tiller
control with standard differential steering
controls direction and degree of turns,
forward-reverse shifting, and gear
selection in a single control handle –
enhancing operator comfort.
2) Cat Comfort Series Seat.
Fully adjustable and designed for
comfort and support. Thick seat and
back cushions provide support for the
lower back and thighs, while allowing
unrestricted arm and leg movement.
Wide retractable seat belt provides
positive and comfortable restraints.
3) Adjustable Armrests. Standard
adjustable armrests provide additional
comfort for the operator.
4) Electronic Ripper Control. A rigidly
mounted handgrip, with low effort
thumb and finger controls, provides
firm support and positive control of
the ripper when operating in tough
conditions. Programmable features,
such as Auto Lift, Shank-Out and
Auto Stow, increase efficiency for
the operator.
5) Electronic, Programmable Dozer
Control. Features such as blade
response, blade float and auto blade can
be set and adjusted using the Advisor
panel. Auto Blade Assist option makes
the tractor even more efficient in
specific applications.
6) Cat Monitoring Display System.
The combination dash mounted
instrument cluster and the Advisor
Monitoring System provide key machine
operating information and give the
operator and service technician insight
into the machine’s operation and
maintenance needs.
In-Dash Instrument Cluster.
The instrument panel, with easy to read
gauges and warning lamps, keeps the
operator aware of any potential problems.
All gauges and readouts are easily
visible in direct sunlight.
Advisor Monitoring System (AMS).
On-board diagnostic abilities minimize
downtime and maximize machine
performance.
7) Wide Panoramic View. The operator
station offers an exceptional viewing
area. A large view hole in the singleshank ripper frame provides a view
of the ripper tip. The tapered hood,
notched fuel tank and narrow singleshank ripper carriage give the operator
a clear line of sight to the front and rear
work areas. The large single-pane door
windows provide an excellent view to
the sides and blade.
8) Heating and Air Conditioning.
Conveniently located air circulation
vents evenly distribute airflow within
the cab. Controls are easily accessible
from the operator seat.
Fuse Panel and Diagnostic Access.
The new compartment features a single
location fuse panel that includes a
diagnostic port for the Cat ET to connect
for rapid machine diagnostics.
Comfortable Operation. Standard
isolation-mounted cab reduces noise
and vibration. The cab is pre-wired for
a 12-volt or 24-volt entertainment radio,
equipped with two speakers, an antenna
and a radio mount recessed in the
headliner which is also pre-wired for
a 12-volt communications radio.
Footpads. Two footpads, mounted on
the floor and wide, sweeping stabilizer
pad keep the operator comfortable and
in control while working on slopes.
Other Features.
• Built-in storage space with tie
downs for lunch box or other
personal items, plus a glove box
and coat hook.
• Ashtray and cup holder.
• Inside door releases.
• Power point plug-in on the right
hand console (12-volt laptop and
wireless phone compatible) and a
similar power point in the fuse panel.
7
Page 8

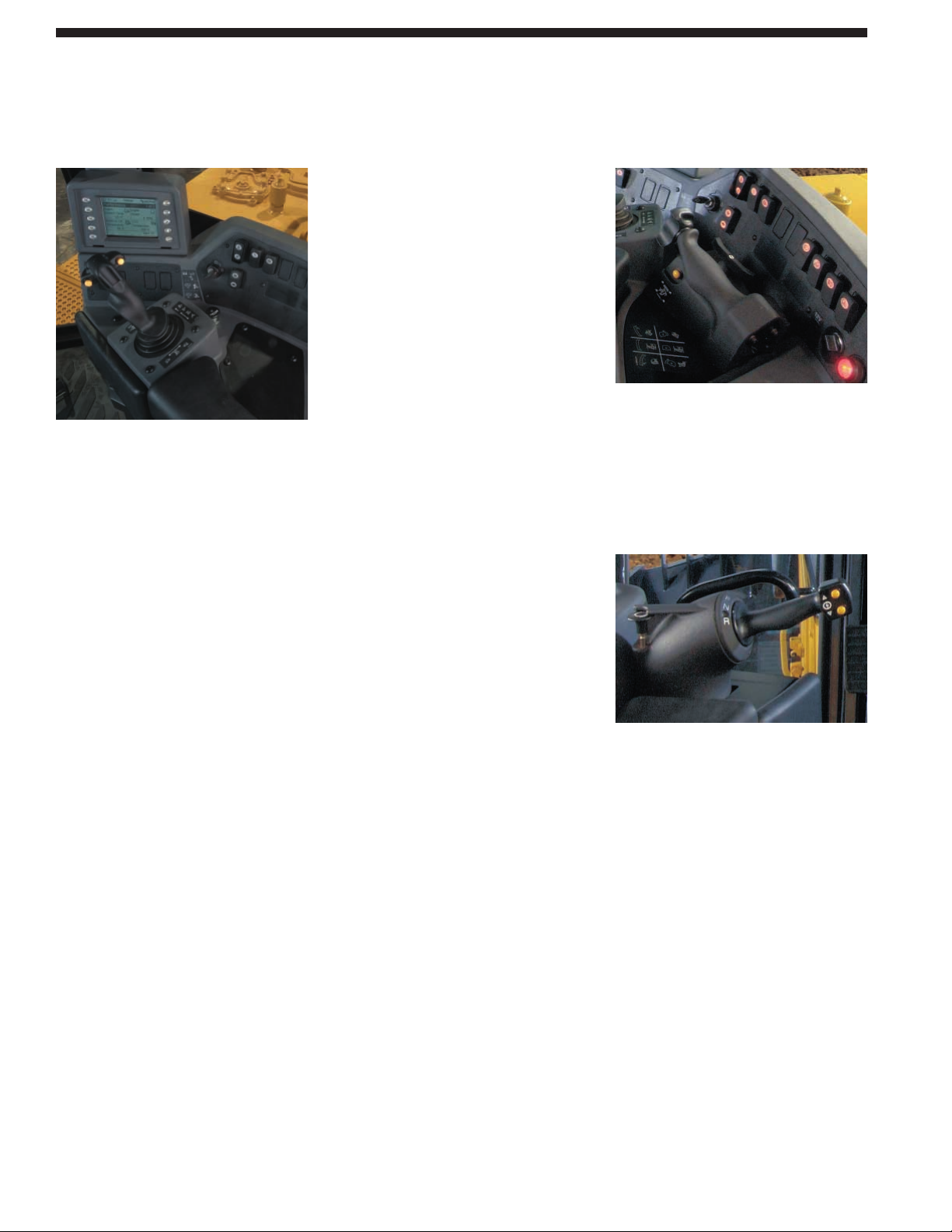

Dozer Control Lever. A low-effort
electronic dozer control handle gives
the operator control of all dozer functions
with one hand. Fore/aft movement of
the lever lowers and raises the blade.
Left/right movement directionally tilts
the blade.
When equipped with the optional Dual
Tilt feature, the thumb lever at the top
of the handle controls blade pitch fore
and aft. The trigger switch toggles
between single and dual tilt.
The left and right side thumb buttons
provide control over the semi-automated
blade pitch functions that the Dual Tilt
attachment provides. Blade pitch for
load, carry and spread segments can
be preset on Advisor and controlled by
the buttons. The left side button cycles
between the pitch settings for each
segment of the push cycle. The right
side button cancels out of the pitch
functions without losing the preset pitch
angles. This Auto Blade Assist (ABA)
feature is turned on and off using a
switch on the right side console.
The two buttons also provide control
over the AccuGrade™ blade control
attachment when the machine is
so equipped. The buttons turn on
AccuGrade, provide manual increment
and decrement control, and turn off
AccuGrade.
AccuGrade
®
Ready Option (ARO).
The AccuGrade Ready Option (ARO)
provides a factory installed on-board
platform for the AccuGrade GPS
installation. All of the changes required
to the electrical system, hydraulic
system, blade, and cab are incorporated
into the ARO. Mounting brackets added
on the blade allow easy installation of
the masts. Console mounting in the cab
secure the in-cab display. Plug-in points
inside the cab and on the front of the
machine make it easy to install
electronic components.
AccuGrade GPS Control System.
The AccuGrade Global Positioning
System (GPS) is the best solution when
the construction site involves contours,
rather than single or dual slope planes.
A GPS system compares the blade
position to a three-dimensional
computerized job site plan and signals
the operator or hydraulic system to raise
or lower the blade to achieve the design
requirements.
Computer Aided Earthmoving System
(CAES) (optional). This on-board
electronic site plan directs machine
operators, in real-time, where to cut and
fill. A graphical map of the design plan
and a view of the machine’s horizontal
and vertical position simplify operation
and enhance production. This advanced
information tool combines GPS
technology (centimeter-level) and in-cab
computing capabilities for precise grade
and slope control. It has proven to
provide measurable impact on work
quality and overall productivity.
Ripper Control Lever. A rigidly mounted
handgrip provides firm support for
the operator even when ripping in the
roughest terrain. The low effort thumb
lever controls raising and lowering.
The finger lever controls shank-in and
shank-out positioning. The thumb
button automatically raises the ripper.
Tiller Control System. A single lever,
dual-control tiller controls machine
speed, direction, and steering. The tiller
allows the operator to work precisely
in close areas, around structures, grade
stakes, other machines and during
fine grading.
8
Implement and Steering Controls
Low effort control functions significantly reduce operator fatigue for increased performance.
Page 9

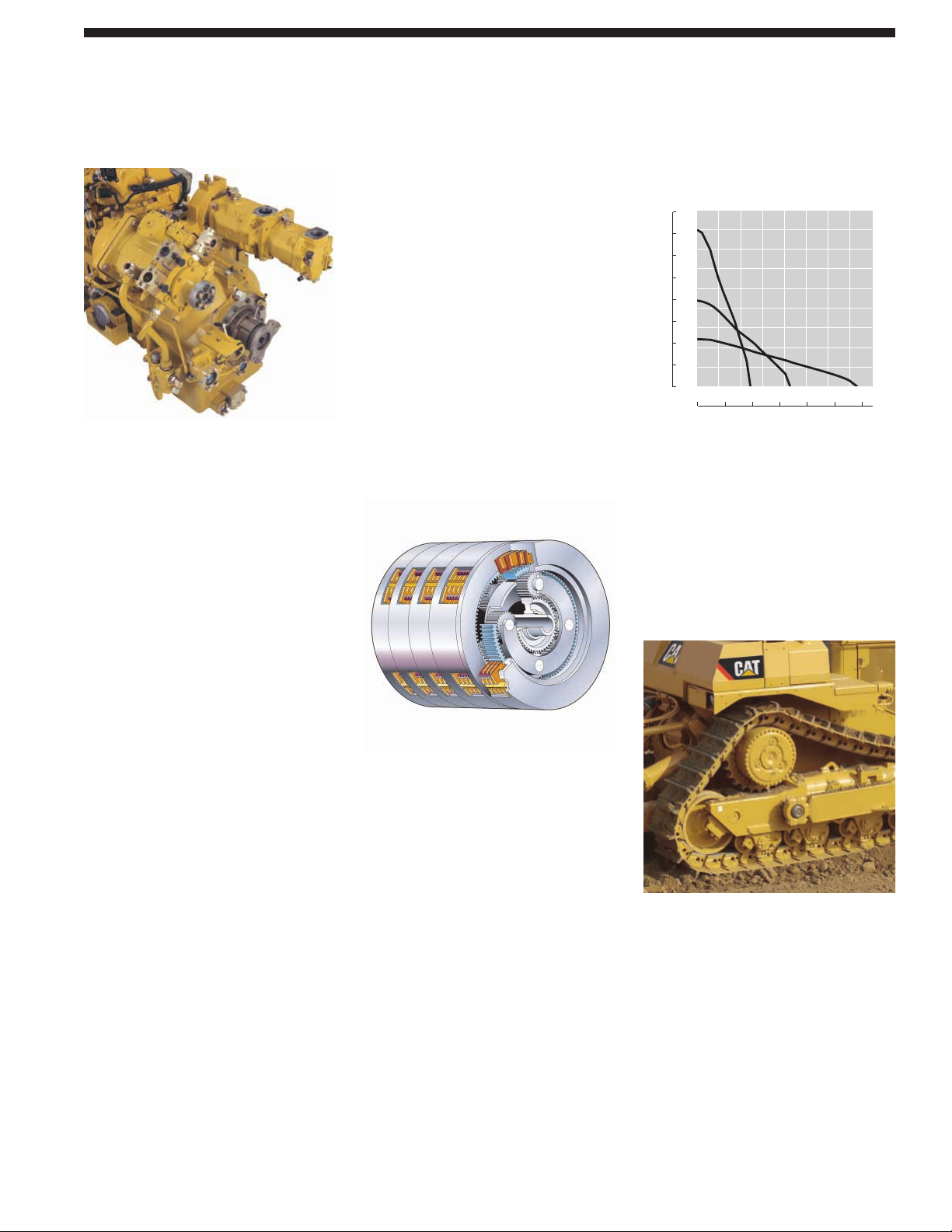

Torque Converter. A high efficiency
torque converter with fixed stator
provides high torque multiplication
while shielding the drive train from
sudden torque shocks and vibration.
Additional Feedback. A minor, but
important, by-product of the torque
converter is its tendency to increase
engine lug all the way to converter
stall. This gives the operator additional
feedback concerning tractor speed
and drawbar pull.
Differential Steering System. A planetary
differential turns the machine by speeding
up one track and slowing the other,
while maintaining full power to both.
Differential steering system consists of:
• Three planetary gear sets:
• Two planetary gear sets (steering
and drive) make up the “dual
differential,” which performs the
traditional drive function (forward
or reverse). Unlike competitive
machines, the differential also
performs a steering function with
input from the steering motor.
• A third planetary gear set, the
“equalizing planetary,” resides
inside the transmission case. It is
connected to the dual differential,
which provides a maximum speed
difference between the right and
left final drives during a turn.
• A dedicated variable-displacement
hydraulic pump.
• A bi-directional, fixed-displacement
steering motor.
• Heavy-duty steering drive gears.
Operation. When moving straight
ahead, power flows through the
transmission pinion and bevel gear into
the dual differential, transmitting equal,
uninterrupted power to each final drive.
While turning, power is shifted to
the outboard track speeding it up.
The inboard track slows down to
accommodate a tighter turning radius.
Forward ground speed remains the
same throughout the turn.
Planetary Power Shift Transmission.
Three speeds forward and three speeds
reverse, utilizing large diameter, high
capacity, oil-cooled clutches.
• Modulation system permits fast
speed and direction changes.
• Modular transmission and differential
slide into rear case for servicing
ease, even with ripper installed.
• Oil-to-water cooler for maximum
cooling capacity.
• Forced oil flow lubricates and cools
clutch packs to provide maximum
clutch life.
Drawbar Pull vs. Speed. As loads on
the tractor increase, the D9T offers
unmatched lugging capability and
smooth shifting as the need occurs
to change gears under varying loads.
The 3-speed forward, 3-speed reverse
transmission, backed by differential
steering, offers excellent runout speeds
and accurate steering capability
under load.
Elevated Final Drives. Isolated from
ground and equipment induced impact
loads for extended power train life.
• Crown-shaved drive gears provide
smooth, quiet, low maintenance
operation.
• Splash lubrication and Duo-Cone
®
Seals extend service life.
h
h
9
Drive Train
The drive train provides maximum efficiency in combination with the C18 engine with
ACERT Technology.
Power Shift with Differential Steer
lbs x
N x
1000
1000
180
800
160
700
600
500
400
300
Drawbar Pull
200
100
0
1F
140
120
100
80
60
40
20
0
012345678
02 46 81012
2F
3F
Speed
mp
km/
Page 10
Suspended Undercarriage Design.
Suspended undercarriage design absorbs
impact loads, to reduce the shock loads
transferred to the undercarriage, by up
to 50 percent in uneven terrain.
Bogie Suspension. Bogie suspension
conforms closely to the ground providing
up to 15 percent more ground contact,
especially in hard, uneven terrain.
Higher traction means less slippage,
better balance, and a smoother ride.
Integrated Carrier Roller Mount.
The carrier roller mount is cast into
the track roller frame making it easier
to add the optional carrier roller in
the field, if conditions require it.
Rollers and Idlers. Feature symmetric
Duo-Cone seals for long sealing life to
prevent oil loss and dirt entry. Toric rings
maintain performance over a wide range
of temperatures. Rollers and idlers are
serviceable and rebuildable to provide
value. Abutment-style caps securely
attach rollers and idlers to the bogies.
Roller Frames. Roller frames are tubular
to resist bending and twisting, with
added reinforcement where operating
loads are highest.
• Roller frames attach to tractor by a
pivot shaft and pinned equalizer bar.
• Large pivot shaft bushings operate
in an oil reservoir.
• A low friction, no maintenance
bushing is used in the saddle
connection.
• Aligned to use more of the available
wear material, running the track to
the outside of the rollers in forward
and to the inside in reverse.
Sprocket Segments. Made exclusively
of Caterpillar Tough Steel™ for longer
wear life and precision machined after
heat treat for proper fit. Segments can
be removed or replaced without
breaking the track.
Positive Pin Retention (PPR) Sealed
and Lubricated Track. Designed for
high-impact and high load applications.
The PPR exclusive Caterpillar design
locks the link to the pin.
Track Shoes. Track shoes available in a
variety of sizes and styles to best match
the working conditions.
ARM Shoes. Abrasion Resistant
Material (ARM) shoes are available
for hard rock applications, significantly
reducing unbalanced track shoe wear
and improving grouser life.
10
Undercarriage
The Caterpillar elevated sprocket undercarriage is designed for optimized machine balance
and best possible performance and component life.
Page 11
Mainframe Strength. The D9T mainframe
is built to absorb high impact shock
loads and twisting forces.
Frame Rails. Full box section, designed
to keep components rigidly aligned.
Heavy Steel Castings. Adds strength
to the main case, equalizer bar saddle,
front cross member and tag-link trunnion.
Top and Bottom Rails. Continuous rolled
sections, with no machining or welding,
to provide superior mainframe durability.
Main Case. Elevates the final drives
well above the ground level work area
to protect them from impact loads,
abrasion and contaminants.
Pivot Shaft. The D9T pivot shaft runs
through the mainframe and connects to
the roller frames, allowing independent
oscillation. The full-length pivot shaft
distributes impact loads throughout the
case, reducing the bending stress on
the case.
Equalizer Bar. The equalizer bar features
limited slip seals and an oil-lubricated
joint for better oil flow. Large forged
pads reduce wear on the mainframe
and extend sealed joint life.
Tag-Link. The Tag-Link brings the
blade closer to the machine for more
precise dozing and load control.
The Tag-Link design provides solid
lateral stability and better cylinder
positions for constant break out force,
independent of blade height.
11
Structure
Engineered to provide durability and the solid support necessary for maximum production
and service life in the most demanding work.
Page 12
Bulldozers. All blades feature a strong
box-section design that resists twisting
and cracking. Blades are made of
Cat DH-2™ steel that has high tensile
strength and stands up to the most
severe applications. Heavy moldboard
construction and hardened bolt-on
cutting edges and end bits add strength
and durability.
• High-Capacity Universal Blade.
The high-capacity Universal blade
offers maximum capacity and is perfect
for moving big loads over long distances.
The “U” blade has large blade wings
and is ideal for stockpile work,
reclamation, charging hoppers or
trapping for loaders.
• Semi-Universal Blade. The Semi-
Universal blade is built for tough
applications where penetration is more
important than capacity. The “SU” blade
is more aggressive in penetrating and
loading material than the “U” blade.
The blade wings are designed for superior
load retention and penetration in tightly
packed materials and for finishing
applications. Can also be configured with
a push plate for push loading scrapers.
• Abrasion Versions. The abrasion
versions of the “SU” blade and “U”
blade are available to extend blade life
in more severe applications. Abrasion
blades are equipped with rock guards,
wear plates and extended wear-life
cutting edges and end bits.
Optional Dual Tilt. Improves load control
and allows the operator to optimize the
blade pitch angle for each portion of the
dozing cycle.
Single Lever. Controls all blade
movements, including the optional
dual tilt.
Cutting Edges and End Bits. Cutting edges
are DH-2 steel. End bits are DH-3™
steel to provide maximum service life
in tough materials.
Rippers. Single and multi-shank rippers
are made to penetrate tough material
fast and rip thoroughly for use in a
variety of materials.
Single-Shank Ripper. Operator can adjust
the shank depth from the seat using
an optional single-shank pin puller.
Large upper frame view hole improves
ripper tip visibility. Heat-treated spacer
bars in the ripper carriage extend
pocket life and reduce shank notching.
Large one-piece shank is available in
deep ripping configuration.
Multi-Shank Ripper. Tailors the tractor
to the material by using one, two or
three shanks.
Hydraulic Pitch Adjustment Cylinders.
Hydraulic pitch adjustment cylinders
vary the shank angle to get the best
penetration so the material is lifted
and shattered.
Hydraulics. The D9T features fieldproven load-sensing hydraulics which
respond to operating requirements by
automatically and continually adjusting
attachment hydraulic power, increasing
both operator and machine efficiency.
Precise Power for Dozing or Ripping.
During normal blade or ripper
corrections, pump output increases
and decreases to provide precise power
for dozing or ripping.
More Drawbar Power. Lower pump
requirements reduce engine power
requirements for the hydraulics, making
more drawbar power available for
increased machine production
Variable-Flow Design. The D9T
variable-flow design minimizes hydraulic
oil temperatures and saves on fuel.
Implement Valve. The standard D9T
implement valve incorporates the
components necessary to install a ripper.
This makes it “ripper ready,” improving
versatility and resale value.
Rear Counterweights. Provide proper
tractor balance to maximize dozing
production. Recommended if not
equipped with any other rear attachment.
Winches. Several options are available.
Contact your Caterpillar Dealer.
12
Work Tools
Work Tools and Ground Engaging Tools (G.E.T.) provide the flexibility to match the machine
to the job, maximizing performance.
Page 13
Serviceability . Minimizes maintenance
and repair downtime. New sight gauges,
filter locations, improved access to oil
and coolant sampling ports, and an engine
compartment mounted work lamp,
make daily and periodic service faster
and easier. Equipped with a dozer and
ripper, there are only 16 lube points.
Built-in Servicing Ease. Less service
time means more working time. Major
components are made as modules and
most can be removed without disturbing
or removing others.
Service Intervals. The time between
fluid and filter service intervals
minimizes downtime and maximizes
productivity.
Engine Oil Filter. Engine oil filter is
located on the engine for easy servicing
access and minimal downtime. Further
time is saved with the optional fast fuel
and quick oil change attachments.
Water Separator and Fuel Filter.
Easily located in compartment on front
of fuel tank, on top of the fender, the
water separator functions as the primary
fuel filter, just ahead of the secondary
fuel filter.
Quick Disconnect Fittings. Allow for
fast diagnosis of the power train,
hydraulics and attachment oil systems.
S•O•S
SM
Analysis. Scheduled Oil
Sampling made easier through live
sampling ports for the engine oil,
hydraulics and coolant.
Caterpillar Product Link PL321 SR
(optional). This option allows the
customer or dealer to obtain machine
diagnostics and location information
from their offices. Product Link PL321 SR
provides updates on service meter hours,
machine condition and machine location,
as well as integrated mapping/route
planning. Built-in flexibility allows
for future technology development.
Machine Selection. Make detailed
comparisons of the machines you are
considering before you buy. How long
do components last? What is the cost of
preventive maintenance? What is the true
cost of lost production? Your Cat Dealer
can give you answers to these very
important questions.
Purchase. Consider the financing options
available, as well as day-to-day operating
costs. This is also the time to look at
dealer services that can be included in
the cost of the machine to yield lower
equipment owning and operating costs
over the long run.
Product Support. Plan for effective
maintenance before buying equipment.
Choose from your dealer’s wide range
of maintenance services at the time you
purchase your machine. Programs such
as Custom Track Service (CTS),
S•O•S analysis, Technical Analysis
and guaranteed maintenance contracts
give peak life and performance to
your machine.
Parts Program. You will find nearly
all parts at your dealer parts counter.
Cat Dealers use a worldwide computer
network to find in-stock parts to
minimize machine downtime.
Ask about your Cat Dealer’s exchange
program for major components. This can
shorten repair time and lower costs.
Remanufactured Components.
Genuine Cat Remanufactured parts
save you money. You receive the same
warranty and reliability as new products
at cost savings of 40 to 70 percent.
Components available for drive train,
engine, and hydraulics.
Operation. Improving operating
techniques can boost your profits.
Your Cat Dealer has training videotapes,
literature, and other ideas to help you
increase productivity.
Replacement. Repair, rebuild or replace?
Your Cat Dealer can help you evaluate
the costs involved so you can make the
right choice.
13
Serviceability and Customer Support
The most serviceable machines from the most committed dealers. World-class product
support. The Cat Dealer network trained experts keep your fleet up and running, maximizing
your equipment investments. Caterpillar. The difference counts.™
Page 14
14
D9T Track-Type Tractor specifications
Undercarriage
Shoe Type Extreme Service
Width of Shoe 610 mm 24 in
Shoes/Side 43
Grouser Height 84 mm 3.3 in
Pitch 240 mm 9.44 in
Ground Clearance 596 mm 23.5 in
Track Gauge 2250 mm 89 in
Length of Track on Ground 3474 mm 11 ft 5 in
Ground Contact Area 4.24 m
2
6,569 in
2
Track Rollers/Side 8
Number of Carrier Rollers 1 per side (optional)
Standard – Ground Pressure 110.9 kPa 16.08 psi
• Positive Pin Retention Track.
Hydraulic Controls
Pump Type Piston-type pump geared
from flywheel
Pump Output (Steering) 383 L/min 101 gal/min
Pump Output (Implement) 226 L/min 60 gal/min
Tilt Cylinder Rod End Flow 137 L/min 36 gal/min
Tilt Cylinder Head End Flow 167 L/min 44 gal/min
Bulldozer Relief Valve Setting 26 200 kPa 3,800 psi
Tilt Cylinder Relief Valve Setting 19 300 kPa 2,800 psi
Ripper (Lift) Relief Valve Setting 26 200 kPa 3,800 psi
Ripper (Pitch) Relief Valve Setting 26 200 kPa 3,800 psi
Steering 40 500 kPa 5,875 psi
Tank Capacity 89 L 23.5 gal
• Steering Pump output measured at 2239 rpm and 30 000 kPa
(4,351 psi).
• Implement Pump output measured at 1800 rpm and
20 000 kPa (2900 psi).
• Electro-hydraulic pilot valve assists operations of ripper
and dozer controls. Standard hydraulic systems includes
four valves.
• Complete system consists of pump, tank with filter,
oil cooler, valves, lines, linkage and control levers.
Engine
Engine Model Cat®C18 ACERT™
Flywheel Power 306 kW 410 hp
Gross Power 346 kW 464 hp
Net Power – Caterpillar 306 kW 410 hp
Net Power – ISO 9249 306 kW 410 hp
Net Power – SAE J1349 302 kW 405 hp
Net Power – EU 80/1269 306 kW 410 hp
Net Power – DIN 70020 428 PS
Bore 145 mm 5.7 in
Stroke 183 mm 7.2 in
Displacement 18.1 L 1,106 in
3
• Engine ratings apply at 1,800 rpm.
• Net power advertised is the power available at the
flywheel when the engine is equipped with fan at max
speed, air cleaner, muffler and alternator.
• No derating required up to 2286 m (7,500 ft) altitude, beyond
2286 m (7500 ft) auto derating occurs at 3% per 1,000 ft.
Service Refill Capacities
Fuel Tank 889 L 235 gal
Cooling System 104 L 27.5 gal
Engine Crankcase* 38 L 10 gal
Power Train 164 L 43.4 gal
Final Drives (each) 15 L 3.9 gal
Roller Frames (each) 45 L 11.7 gal
Pivot Shaft Compartment 30 L 7.8 gal
Hydraulic Tank 89 L 23.5 gal
* With oil filters.
Weights
Operating Weight 47 900 kg 105,600 lb
Shipping Weight 37 104 kg 81,800 lb
• Operating Weight: Includes hydraulic controls, blade tilt
cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab,
SU-Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes,
and operator.
• Shipping Weight: Includes coolant, lubricants, 20% fuel,
ROPS, FOPS cab, and 610 mm (24 in) ES shoes.
Page 15
15
D9T Track-Type Tractor specifications
Rippers
Type Single-Shank,
Adjustable Parallelogram
Number of Pockets 1
Maximum Clearance Raised 882 mm 34.7 in
(under tip, pinned in bottom hole)
Maximum Penetration 1231 mm 48.46 in
(standard tip)
Maximum Penetration Force 153.8 kN 34,581 lb
(shank vertical)
Pry out Force 320.5 kN 72,025 lb
Weight (without hydraulic controls) 4854 kg 10,700 lb
Total Operating Weight* 47 900 kg 105,600 lb
(with SU-Blade and Ripper)
Type Multi-Shank,
Adjustable Parallelogram
Number of Pockets 3
Overall Beam Width 2640 mm 103.9 in
Maximum Clearance Raised 885 mm 34.8 in
(under tip, pinned in bottom hole)
Maximum Penetration 498 mm 19.61 in
(standard tip)
Maximum Penetration Force 147.9 kN 33,249 lb
(shank vertical)
Pry out Force (Multi-Shank 332 kN 74,639 lb
Ripper with one tooth)
Weight (one shank, without 5550 kg 12,235.64 lb
hydraulic controls)
Additional Shank 340 kg 749.5 lb
Total Operating Weight* 48 596 kg 107,136 lb
(with SU-Blade and Ripper)
* Total Operating Weight: Includes hydraulic controls, blade
tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab,
SU-Blade, Ripper, 610 mm (24 in) ES shoes, and operator.
Transmission
1 Forward 3.9 km/h 2.4 mph
2 Forward 6.8 km/h 4.2 mph
3 Forward 11.7 km/h 7.3 mph
1 Reverse 4.7 km/h 2.9 mph
2 Reverse 8.4 km/h 5.2 mph
3 Reverse 14.3 km/h 8.9 mph
1 Forward – Drawbar Pull (1000) 716.5 N 161 lbf
2 Forward – Drawbar Pull (1000) 400.5 N 90 lbf
3 Forward – Drawbar Pull (1000) 222.5 N 50 lbf
Blades
Type 9SU
Capacity (SAE J1265) 13.5 m
3
17.7 yd
3
Width (over end bits) 4310 mm 14 ft 3 in
Height 1934 mm 6 ft 5 in
Digging Depth 606 mm 23.9 in
Ground Clearance 1422 mm 56 in
Maximum Tilt 940 mm 37 in
Weight* (without hydraulic 6543 kg 14,425 lb
controls)
Total Operating Weight** (with 47 900 kg 105,600 lb
Blade and Single-Shank Ripper)
Type 9U
Capacity (SAE J1265) 16.4 m
3
21.4 yd
3
Width (over end bits) 4650 mm 15 ft 3 in
Height 1934 mm 6 ft 5 in
Digging Depth 606 mm 23.9 in
Ground Clearance 1422 mm 56 in
Maximum Tilt 1014 mm 39.9 in
Weight* (without hydraulic controls) 7134 kg 15,727 lb
Total Operating Weight** (with 48 491 kg 106,902 lb
Blade and Single-Shank Ripper)
* Includes blade tilt cylinder.
**Total Operating Weight: Includes hydraulic controls, blade
tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab,
Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes,
and operator.
Page 16
16
D9T Track-Type Tractor specifications
Standards
• ROPS (Rollover Protective Structure) offered by Caterpillar
for the machine meets ROPS criteria SAE J1040 MAY94,
ISO 3471:1994.
• FOPS (Falling Object Protective Structure) meets
SAE J/ISO 3449 APR98 Level II, and ISO 3449:1992 Level II.
• Operator sound exposure Leq (equivalent sound pressure
level) measured according to the work cycle procedures
specified in ANSI/SAE J1166 OCT 98 is 79 dB(A), for cab
offered by Caterpillar, when properly installed and
maintained and tested with the doors and windows closed.
• The exterior sound pressure level for the standard machine
measured at a distance of 15 meters according to the test
procedures specified in SAE J88 APR95, mid-gear-moving
operation, is 87 dB(A).
Winches
Winch Model PA140VS
Weight* 1790 kg 3,947 lb
Oil Capacity 15 L 4 gal
Increased Tractor Length 557 mm 21.93 in
Winch Length 1550 mm 61 in
Winch Case Width 1160 mm 45.6 in
Drum Width 320 mm 12.6 in
Flange Diameter 457 mm 18 in
Recommended Cable size 29 mm 1.13 in
Optional Cable size 32 mm 1.25 in
Drum Capacity – Recommended 84 m 276 ft
Cable
Drum Capacity – Optional Cable 59 m 193 ft
Cable Ferrule Sizes – Outside 60 mm 2.36 in
Diameter
Cable Ferrule Sizes – Length 70 mm 2.75 in
• Variable speed, hydraulically driven, dual braking system,
three-roller fairlead.
* Weight: Includes pump and operator controls.
With counterweight: 3705 kg (8169 lb).
Page 17
17
D9T Track-Type Tractor specifications

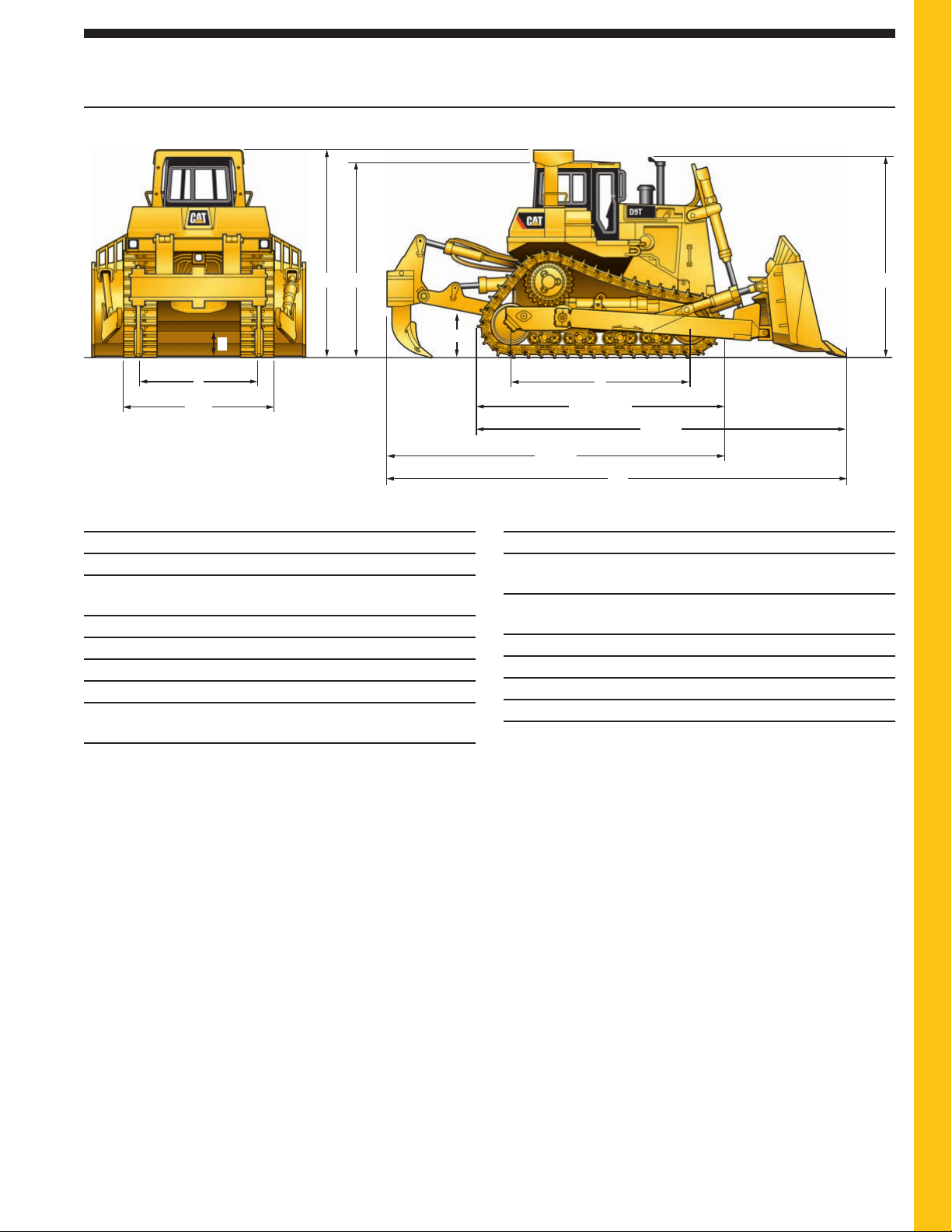

Dimensions
All dimensions are approximate.
7 5
1
2
3, 4
1 Ground Clearance 596 mm 23.5 in
2 Track Gauge 2.25 m 89 in
3 Width without Trunnions 2865 mm 9.4 ft
(Standard Shoe)
4 Width Over Trunnions 3308 mm 10.9 ft
5 Height (FOPS Cab) 3815 mm 12.5 ft
6 Height (Top of Stack) 3980 mm 13 ft
7 Height (ROPS/Canopy) 3999 mm 13.1 ft
8 Drawbar Height 763 mm 30 in
(Center of Clevis)
9 Length of Track on Ground 3474 mm 136.8 in
6
8
9
10, 11, 12
13, 14
15, 16
17
10 Overall Length Basic Tractor 4912 mm 16.1 ft
11 Length Basic Tractor 5242 mm 17.2 ft
with Drawbar
12 Length Basic Tractor 5545 mm 18.2 ft
with Winch
13 Length with SU-blade 6633 mm 21.8 ft
14 Length with U-blade 6905 mm 22.7 ft
15 Length with Single-Shank Ripper 6755 mm 22.2 ft
16 Length with Multi-Shank Ripper 6559 mm 21.5 ft
17 Overall Length 8476 mm 27.8 ft
(SU Blade/SS Ripper)
Page 18
18
D9T Track-Type Tractor specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
POWER TRAIN
C18 with ACERT Technology
24-volt electric start
Advanced Modular Cooling System (AMOCS)
Aftercooler, air-to-air
Coolant, extended life
Directional shift management
Ether starting aid, automatic
Fan, suction with hydraulic demand drive
Fuel priming pump, electric
Muffler with rain cap
Parking brake
Pre-cleaner with dust ejector
Prescreener
Separator, water/fuel
Thermal shields
Torque converter
Transmission, electronic control (ECPC), (3F/3R speeds)
Three planet, double-reduction planetary final drives
OTHER STANDARD EQUIPMENT
Air conditioner box, corrosive resistant
CD ROM Parts Book
Ecology drains: engine oil, coolant,
hydraulic oil, torque converter, fuel tank,
power train case and transmission
Engine enclosures and hood, perforated
Guards:
Bottom, hinged extreme service
Crankcase, hinged extreme service
Radiator, with towing device
Radiator grill doors, extreme service
Independent steering and attachment hydraulic
pumps with Differential Steering with dual-twist
tiller control and hydraulic oil cooler
Product Link ready
S•O•SSMsampling ports
Under-hood standard service lamp
Vandalism protection (8 caplocks)
ELECTRICAL
Alternator, 95-amp
Back-up alarm
Batteries (2), 12-volt, 200 amp-hour
Converter, 12-volt, 10-amp
Diagnostic connector
Horn, forward warning
Lighting system, Halogen
(2 forward, 2 rear)
Starting receptacle
OPERATOR ENVIRONMENT
Advisor-electronic monitoring system
Armrest, adjustable
Cab, FOPS
Controls, electronic implement with lockout
Decelerator pedal
Dual-twist tiller control
Engine speed control, electronic
Heater and ventilation
Hydraulic system, electronically controlled for
bulldozer and ripper control
Mirror, rearview
Radio-ready cab
Seat, adjustable contour suspension
(gray fabric)
Seat belt, retractable 76 mm (3 in)
Wipers, intermittent
UNDERCARRIAGE
610 mm (24 inch) extreme service grouser
with PPR sealed and lubricated track (43 section)
Rollers and idlers, lifetime lubricated
Sprocket rim segments, replaceable
Suspension-type undercarriage,
Eight-roller tubular track roller frame
Track adjusters, hydraulic
Track guides
Two-piece master link
Page 19
D9T Track-Type Tractor specifications
19
Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for details.
SPECIAL ARRANGEMENTS
Mining arrangement, Stock Piling arrangement,
Waste Handling arrangement and Woodchip arrangement,
in addition to other optional attachments are available
from the factory. Contact your Dealer for availability.
BULLDOZER ATTACHMENTS
AccuGrade GPS ready installation
(provides hydraulics, electrical, and blade mount for system)
9SU Blade, rock guard and wear plate
9SU Blade, pushplate
9U Blade, rock guard
Dual tilt cylinders
RIPPERS
Single-Shank* – Standard depth
Single-Shank* – Deep ripping (includes pin puller)
Multi-Shank* (includes one tooth)
Ripper attachments:
Pin puller
Additional tooth
(for multi-shank ripper)
OTHER ATTACHMENTS
Counterweights*:
Front mounted
Rear mounted (basic)
Rear mounted (additional)
Drawbar, rigid
Heater, diesel fuel
Heater, engine coolant, 120- or 240-volt
Low temperature start
(includes two additional heavy-duty batteries and
additional starting motor)
Parts book, paper
Striker bars, front
Winch*
* A rear attachment and/or counterweight is recommended
for improved performance and balance.
ELECTRICAL
Converter, 24-volt to 12-volt
additional 15-amp converter
Lights, supplemental:
6 Halogen
10 Halogen for mining application
10 Halogen for waste application
11 – 6 Halogen, 5 HID for waste application
11 – 6 Halogen, 5 HID for mining application
GUARDS
Crankcase, extreme service, sealed
(part of waste handling arrangement)
Dozer lines
Final drive seals
Fuel tank
Metal hose protective sleeve
Power train, rear upper
Power train, rear lower
Undercarriage
OPERATOR ENVIRONMENT
Air conditioner
Dual pane glass
Powered precleaner with glass
Glass, ultra-strength up to 40 psi
Operators arrangement, modified
(Improves comfort for smaller operators)
Seat, air suspension
Seat, vinyl
Steps, heavy-duty and Handles
Mounting for communication radio
POWER TRAIN
Fast fuel system
Quick oil change system, engine and power train
Prelube, engine
UNDERCARRIAGE
Tracks, pair, Sealed and Lubricated:
560 mm (22 in), Extreme Service
685 mm (27 in), Extreme Service
760 mm (30 in), Moderate Service
Roller:
Carrier rollers, pin-on (one per side)
Page 20
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2007 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, their respective logos, ACERT, ADEM, ACCUGRADE,
“Caterpillar Yellow” and the POWER EDGE trade dress, as well as corporate and product
identity used herein, are trademarks of Caterpillar and may not be used without permission.
AEHQ5591-02 (7-07)
Replaces AEHQ5591-01
D9T Track-Type Tractor
R
Loading...
