Caterpillar D6K2 BROCHURE

D6K2

Track-Type Tractor

Engine Engine (continued)

Engine Model Cat
Emissions U.S. Tier 4 Interim/EUStage IIIB Net Power – ISO 9249 (DIN) 132 hp
Gross Power – SAE J1995 118 kW 158 hp Net Power – EU 80/1269/EEC 97 kW 130 hp
Engine Power – ISO 14396 116 kW 155 hp Weights
Engine Power – ISO 14396 (DIN) 157 hp Operating Weight – XL 13 311 kg 29,346 lb
Net Power – SAE J1349 95 kW 128 hp Operating Weight – LGP 13 948 kg 30,750 lb

®

C6.6 ACERT™ Net Power – ISO 9249 97 kW 130 hp

D6K2 Features

Powerful Productivity

Boost your productivity with the new Stable
BladeControl feature, dozer and undercarriage.
Eco Modes and Auto Engine Speed Controlhelp
reduce overall fuel use. Experience maneuverability,
precision and response, from the hydrostatic
power train, powerturn capability and standard
electro-hydraulic controls.

Comfortable Operator Station

Work longer with less fatigue in the spacious
andcomfortable cab. The D6K2 is easy to handle
and includes features that help your operators
bemore productive.

Engine and Emissions Technology

The D6K2 meets EPA/ARB U.S. Tier 4 Interim,
EU Stage IIIB and Japan MLIT (Step 4) emission
standards.

Integrated Technologies

Maximize utilization and control costs with the
CatProduct Link. AccuGrade™ Ready Option
means easy installation of the performance
enhancing Cat AccuGrade system.

Serviceability and Customer Support

Easy service, reliability and Cat dealer expertise
keep you working and help to reduce overall costs.

Contents

Sustainability .......................................................3

Safety ....................................................................3

Operator Station ..................................................4

Ergonomic Controls ............................................5

Stable Blade Control...........................................5

Power Train ..........................................................6

Fuel Economy.......................................................6

Undercarriage .....................................................7

Work Tools ............................................................8

Integrated Technologies ....................................9

Rear Attachments and Options ......................10

Value Packages .................................................10

Cooling ................................................................11

Engine and Emissions Technology .................12

Engine .................................................................12

Serviceability .....................................................13

Speci cations ....................................................14

Standard Equipment .........................................18

Optional Equipment...........................................19

2

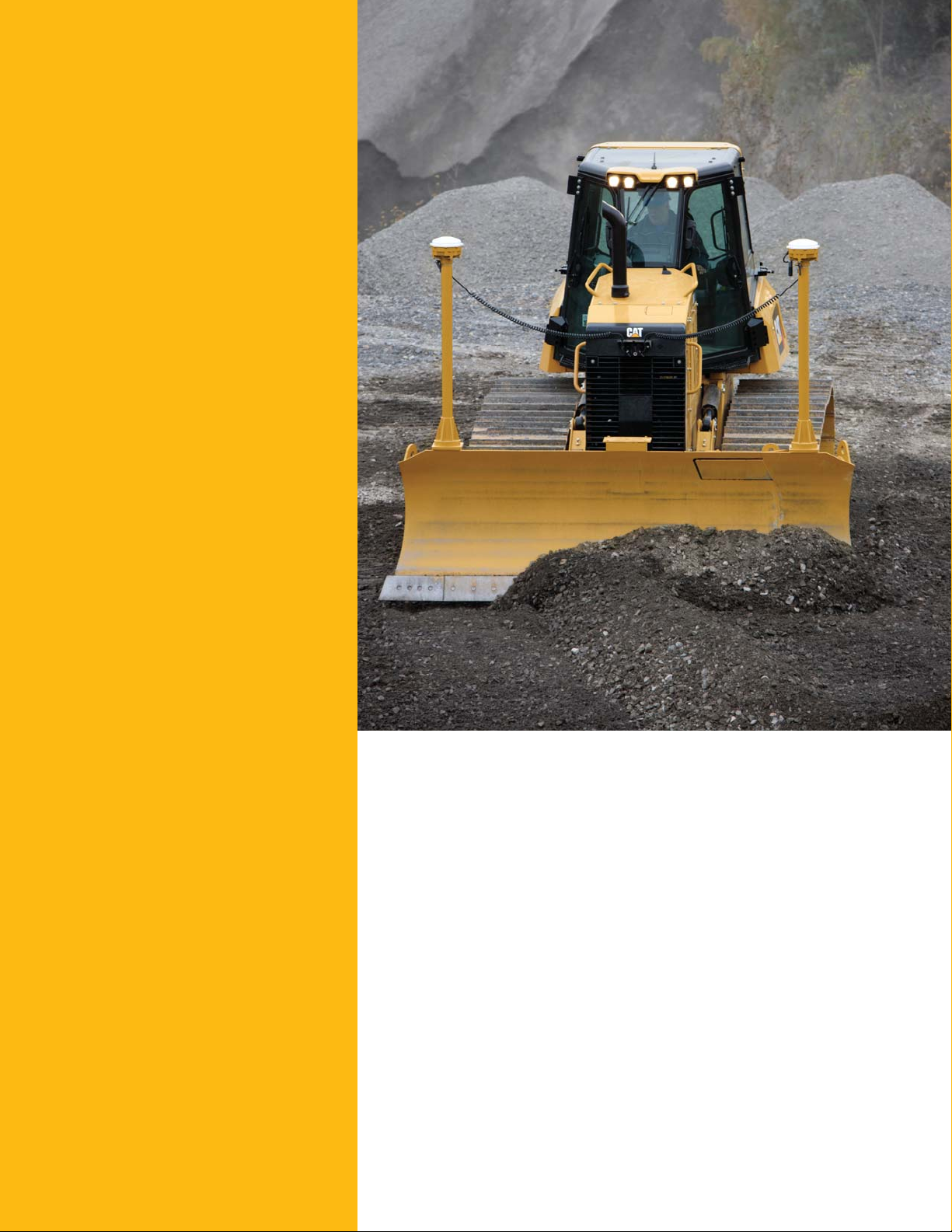

Experience the most intuitive nish grading tractor with the new
Cat®D6K2.

Redesigned to help you meet your goals, it improves your fuel efciency
and productivity. It is an excellent platform for the integrated AccuGrade
grade control system, which will help you get to target grade faster,
with fewer passes and less manpower. Stable Blade Control senses
ground conditions and works with the operator to produce the desired
grade, allowing better nish grading results at higher speed, with
less effort. The new undercarriage design improves stability to further
enhance nish grading performance.

The D6K2 helps you get more done with less fuel. Choose the D6K2 for
best-in-class productivity with the lowest owning and operating costs
in his size class.

Sharper, from the rst cut to nish grade, the D6K2 sets the standard.

Sustainability

Thinking generations ahead

Sustainable development for Caterpillar means leveraging technology to increase
your efciency and productivity with less impact on the environment andassisting
our customers do the same. Caterpillar is providing products, services and solutions
that use resources more efciently – from reducing emissions to remanufacturing.

Sustainable Features

• Meets U.S. EPA Tier 4 Interim, EU Stage IIIB and Japan MLIT Step 4

• Fuel efcient engine and features such as the Eco Modes help reduce your

• Technologies like AccuGrade and Product Link™ help improve overall

• Biodiesels (20% maximum, mixed with Ultra Low Sulfur Diesel Fuel) and

• Major components are built to be rebuilt, eliminating waste and saving

emission standards.

overall fuel consumption. Decreases in fuel consumption result in a decrease
incombustion of carbon.

efciency, save fuel and uids as well as wear and tear on equipment.

biodegradable hydraulic oil can be used without reducing the life of the system.
Always refer to your Operation and Maintenance Manual for proper usage
of uids.

customers money.

Safety

Make sure
you’resafe

• ROPS/FOPS for added operator
protection with an enclosed cab

• Excellent visibility, large glass
panels, various mirrors

• Various grab handles and steps
make climbing on and off the
tractor easy, with threepoints
of contact

• Anti-slip surfaces

• Operator Not Present
monitoring system preventing
from unintentional movements
to move the machine

• Work tools lock-out feature

• Back-up alarm

These are some of the various
features that enhance safety during
operation of the D6K2.

3

Operator Station

Makes operation easy, comfortable and productive

Spacious and Comfortable

• Pressurized cab reducing dust entry and noise

• Standard heating – air conditioning

• Dash mounted air vents for improved air circulation

• Generous leg room

• Foot rests

• Single and combined hystat, brake and engine decelpedal

Outstanding Visibility

Large door windows provide
unobstructed view to the blade
corners and help increase your  nish
grading precision when working near
foundations. Intermittent wipers
maximize visibility in poor weather
conditions.

Large side windows offer a clear view
to the sides of the machine.

4

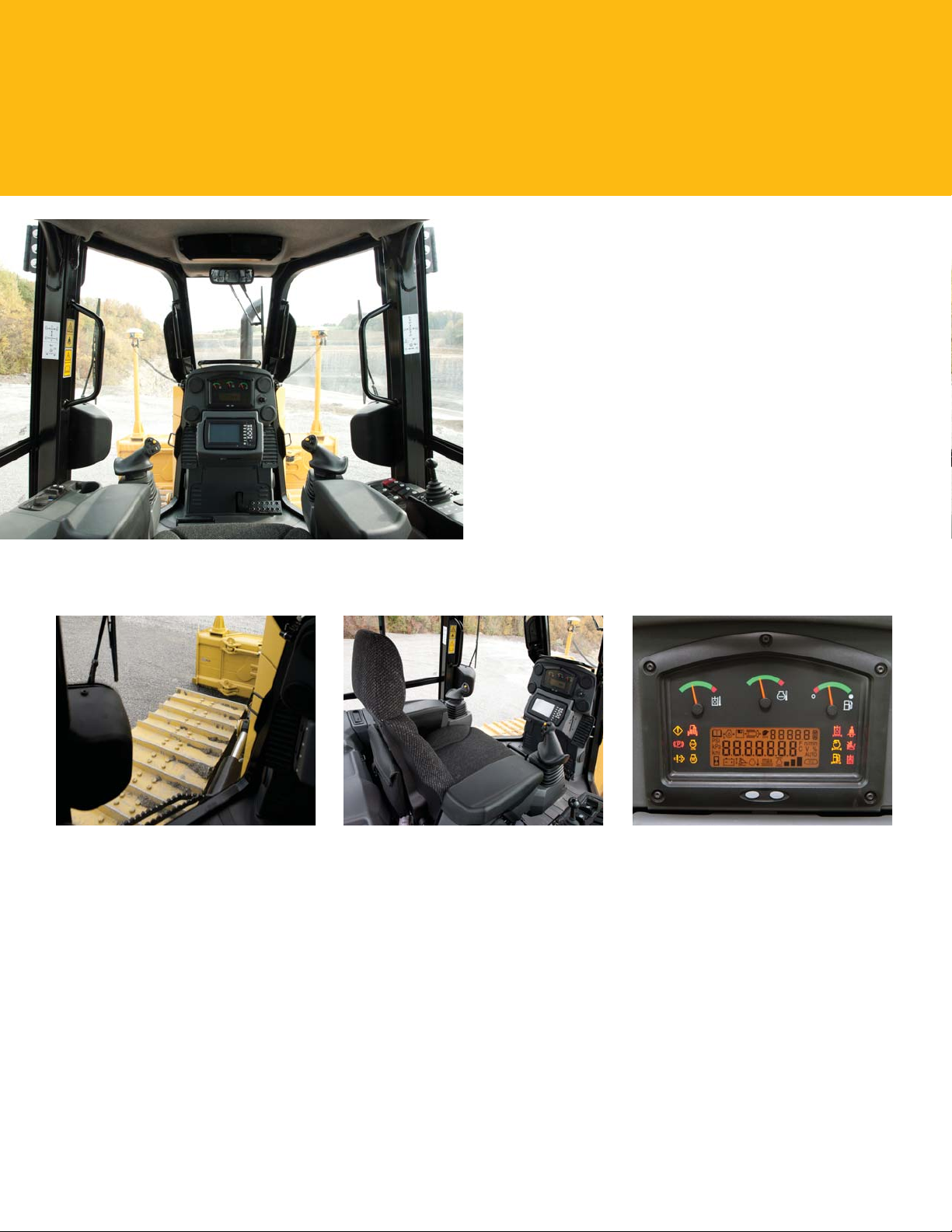

Comfortable Drive – Monitoring Package
Air Suspension Seat

• Fully adjustable

• Lumbar support

• Heated seat (optional)

• Heated and ventilated seat
(optional)

• Seat-mounted controls

The display keeps you informed of the
system conditions.

• Easy to read

• Various available languages

• Large gauges

• New AccuGrade display support
position, in line with blade corners
and integrated into the dashboard

Ergonomic Controls

Work longer with less effort

Convenient Seat-Mounted Controls Reducing Vibrations

• Seat-mounted controls isolate vibrations from the operator for optimum
comfort and precise control

• New easy to adjust armrest and contoured armrest cushion

Electro-Hydraulic Controls

• Precision and maneuverability when working around structures

• Easy to grip handles

• Easy intuitive and low effort operation

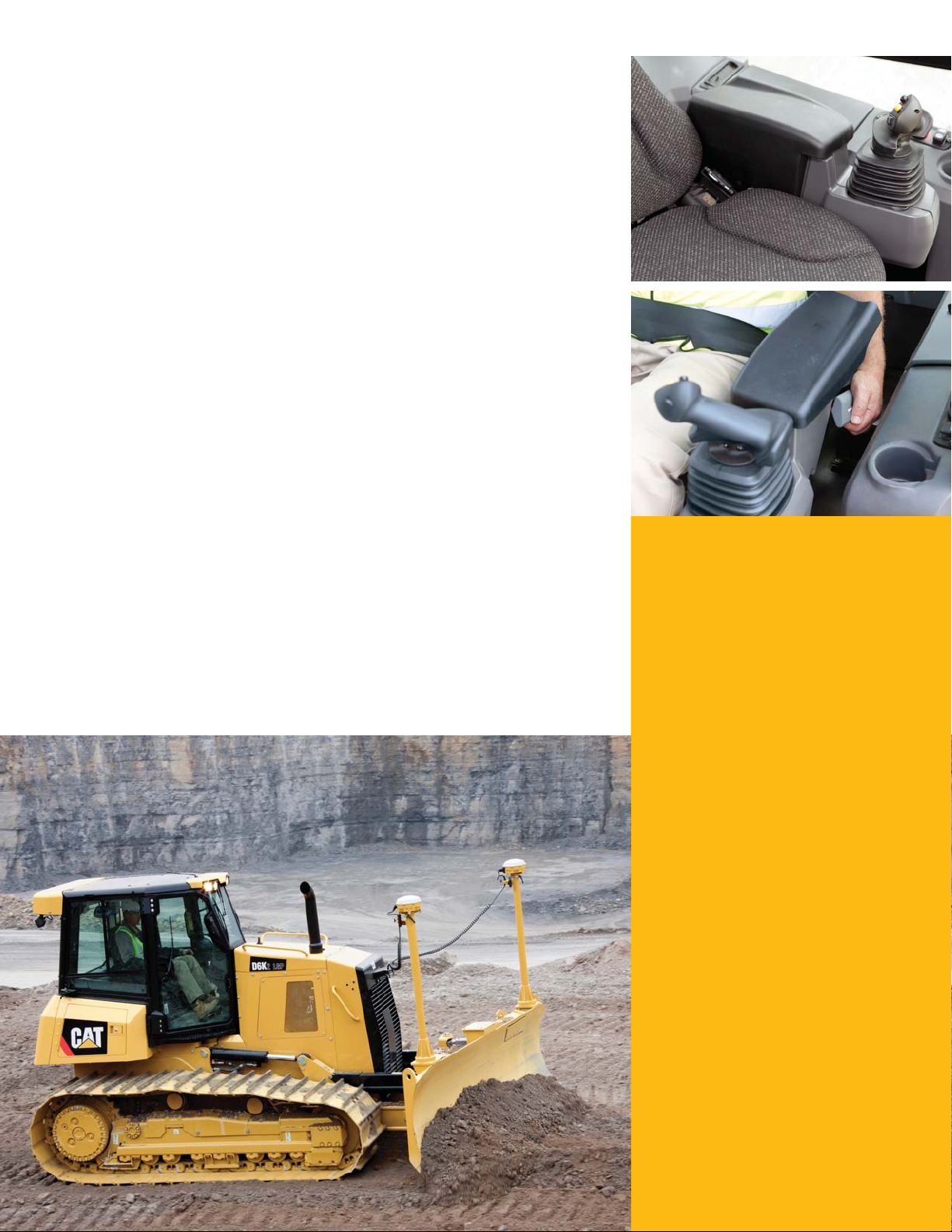

Steering and Transmission Joystick

Single joystick for the speed, direction and steering. It includes a thumb wheel
forspeed adjustment and the Traction Control button.

Dozer and Implements Controls

• Six-way control of the VPAT blade

• Blade shake feature for effective removal of sticky material

• Blade response can be adjusted through the monitoring system

• Rear attachments are controlled by a single lever

Stable
Blade
Control…

…assists you
in nish grading
applications.

Both new and experienced operators
will nd operating the machine easy
with our new Stable Blade Control.

Stable Blade Control senses ground
conditions to complement operator
input for smooth  nish grading
results with less operator effort.
This system reacts faster than
humanly possible.

5

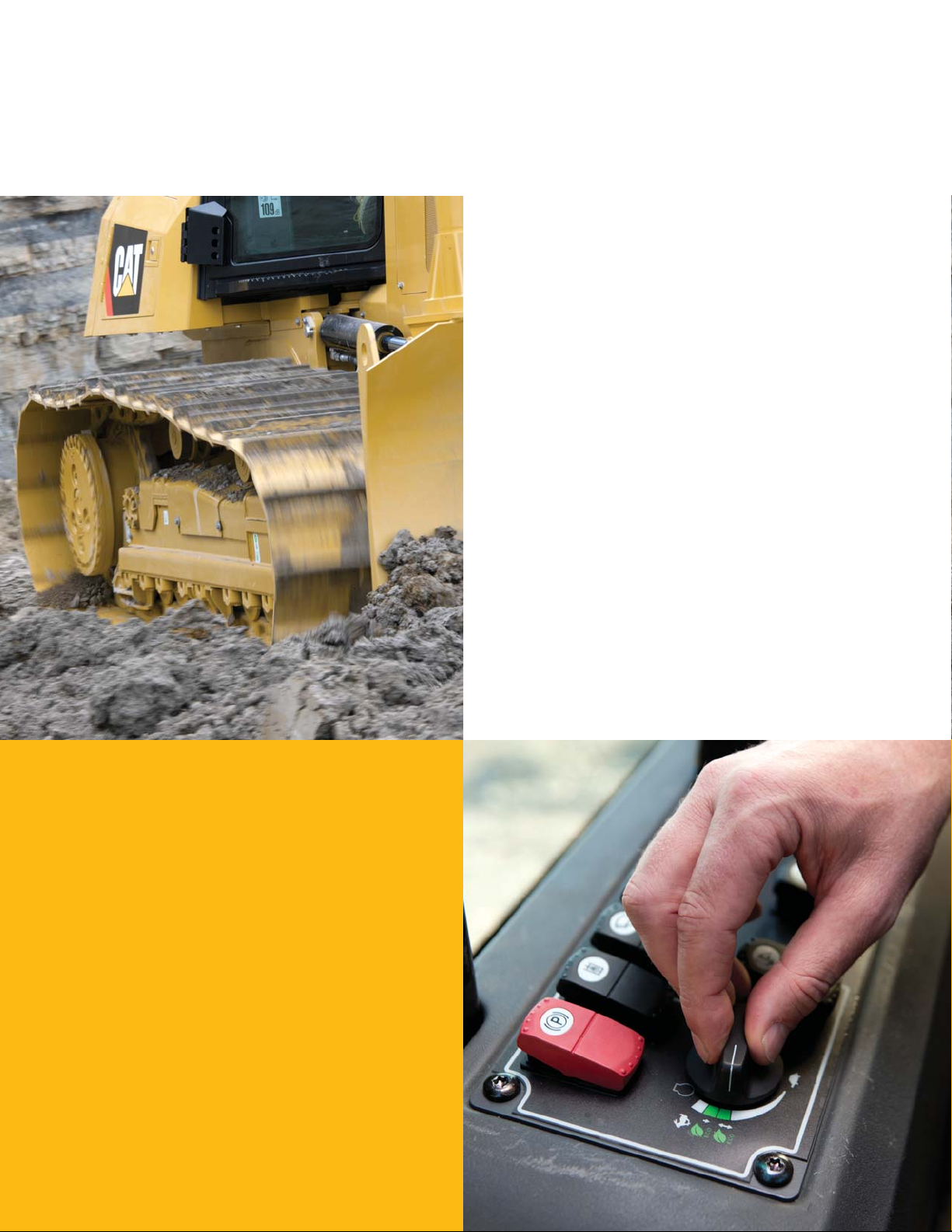

Power Train

Smooth and responsive to changing loads

Performance: Hydrostatic Transmission

Engine speed is automatically maintained to match the
power requirements of the application. It also offers
independent power and control of each track, for fast
acceleration and on-the-go direction changes.

• Quick response to varying loads for shorter cycle times

• Traction control allows better traction when working in
poor underfoot conditions

Unsurpassed Maneuverability

• Intuitive controls help you work in tight areas

• Power turn feature provides power to both tracks while
working in con ned area

• Counter-rotation provides quick steering corrections
during side loading applications

Fuel Economy

Eco Modes

Eco Modes achieve signicant fuel consumption
reduction by allowing the engine to run at lower speed
whenever possible, and rapidly increasing speed when
power is needed. Designed to save fuel in light or medium
duty applications, the extremely fast engine response
allows these modes to be used even in power demanding
applications and eliminates the need to constantly shift
into and out of Eco Modes.

• Operators can either select the “Reverse only” or
“Forward and Reverse” mode

• Can help save from 5 percent up to 22 percent of fuel
depending on the application

6

Undercarriage

Solutions to lower your costs per hour

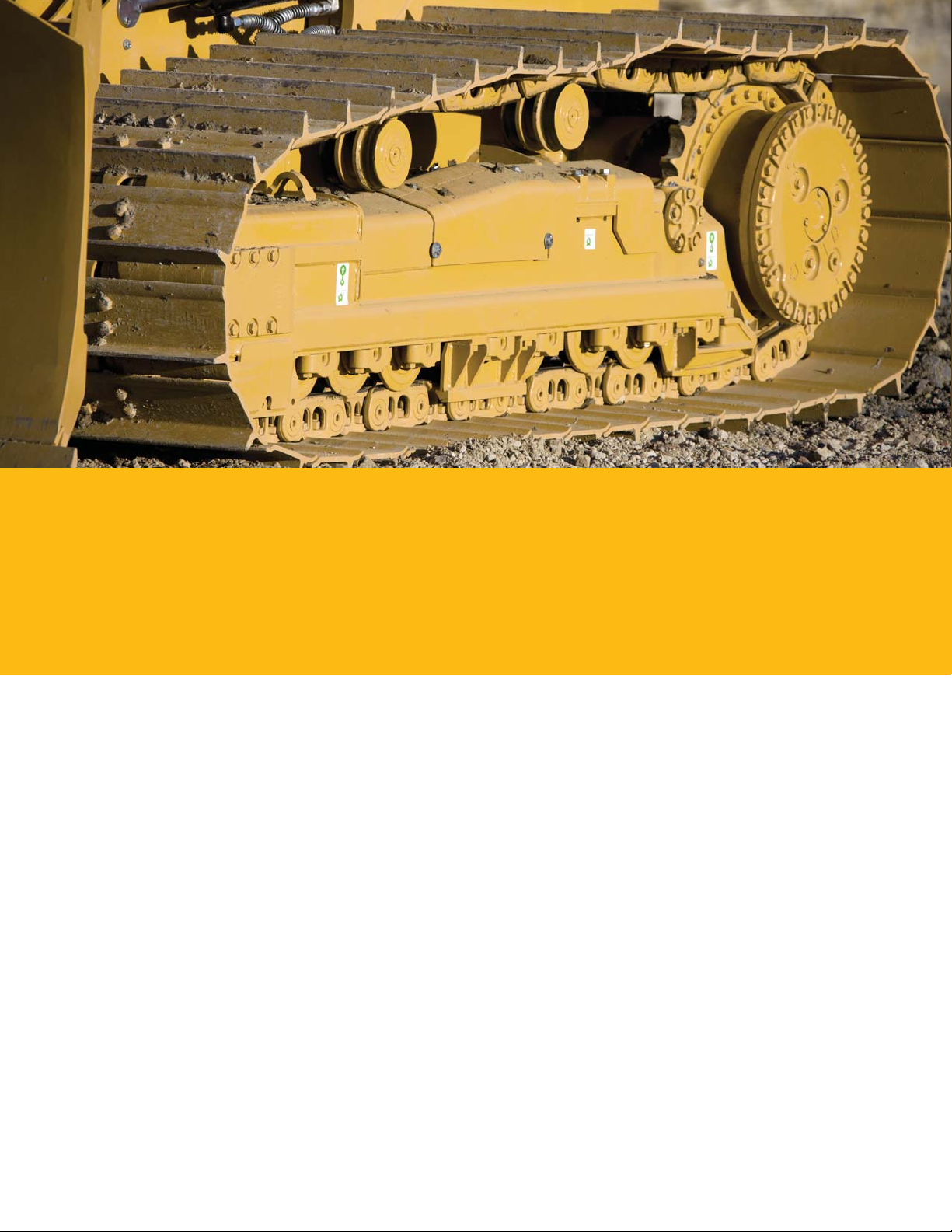

Updated Undercarriage Design

The new undercarriage design improves durability and increases stability to allow smoother ride and excellent  nish grading
performance. You can grade faster, while still producing a top quality nish grade at the  rst pass.

Choice of Undercarriage Congurations to Meet Your Application

Track frames are available in extra long (XL) or low ground pressure (LGP) con gurations:

• XL undercarriage for most applications where otation and side stability are not extreme

• LGP undercarriage for soft underfoot conditions where additional otation is required

Track Selection

Caterpillar offers a choice of two undercarriages – Sealed and Lubricated Track (S<) and SystemOne™.
Matching the correct undercarriage to the application and soil conditions will deliver the lowest costs per hour.

• Sealed and Lubricated Track (S<) Undercarriage

– For aggressive impact applications, with the necessary wear material for long life

– Designed to ease disassembly for bushing turn service to maximize wear life

• SystemOne Undercarriage

– For moderate to high abrasion applications

– For reduced maintenance costs and increased life of all undercarriage components

– Innovative rotating bushing design that eliminates the need for bushing turns

7

Work Tools

Move more with productive and durable blades

New Bulldozer and Wider Blade Design

• Both XL and LGP blades are now wider; this improves
nish grading productivity by covering more ground
ateach pass

• Strong design allows Cat blades to stand up to the most
severe applications

• Large spherical linkage bearing for easier blade removal
and designed for the life of the machine

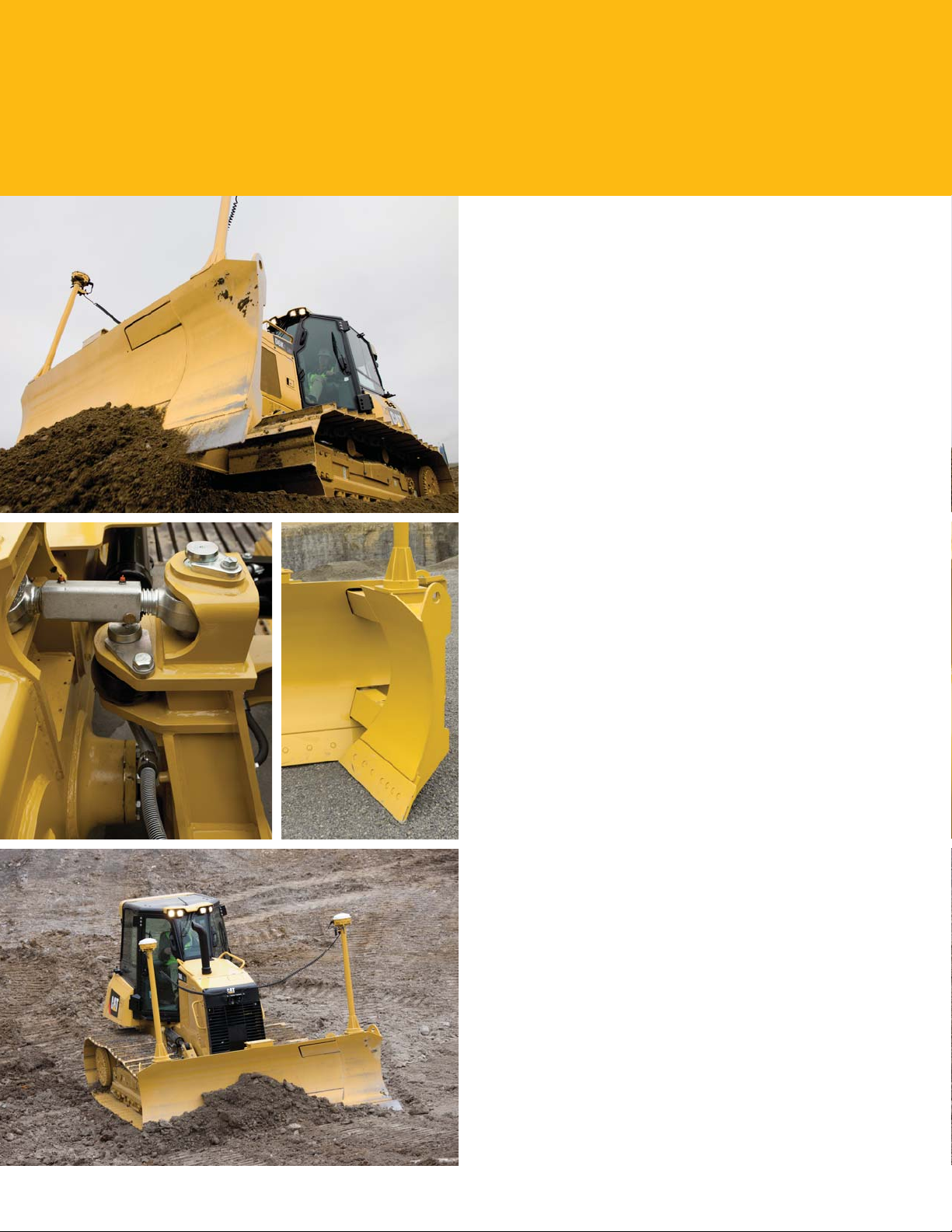

New Variable Pitch Angle Tilt (VPAT) Blade

The versatility of the VPAT Blade gives the D6K2 the ability
to take on a variety of applications and material conditions,
such as nish grading, spreading material or back lling.

This blade allows the operator to adjust the blade lift, angle
and tilt simultaneously. The blade pitch adjustment is made
easier, which can help increase your productivity.

New Foldable Blade Option

Designed to facilitate transportation without blade removal,
foldable blades reduce the overall shipping width. The blade
can be easily folded without the need for tools.

8

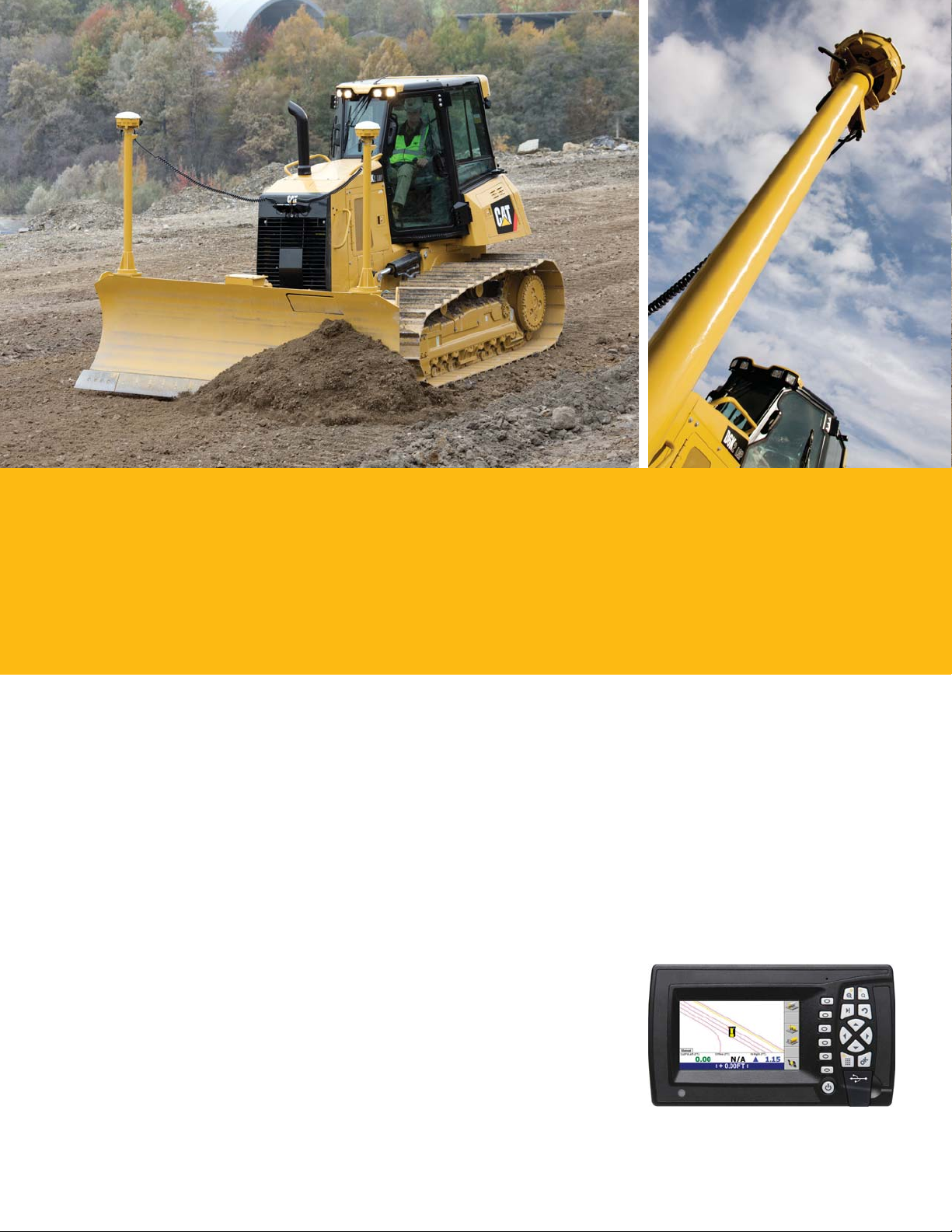

Integrated Technologies

Get to grade faster with fewer passes than ever before

AccuGrade

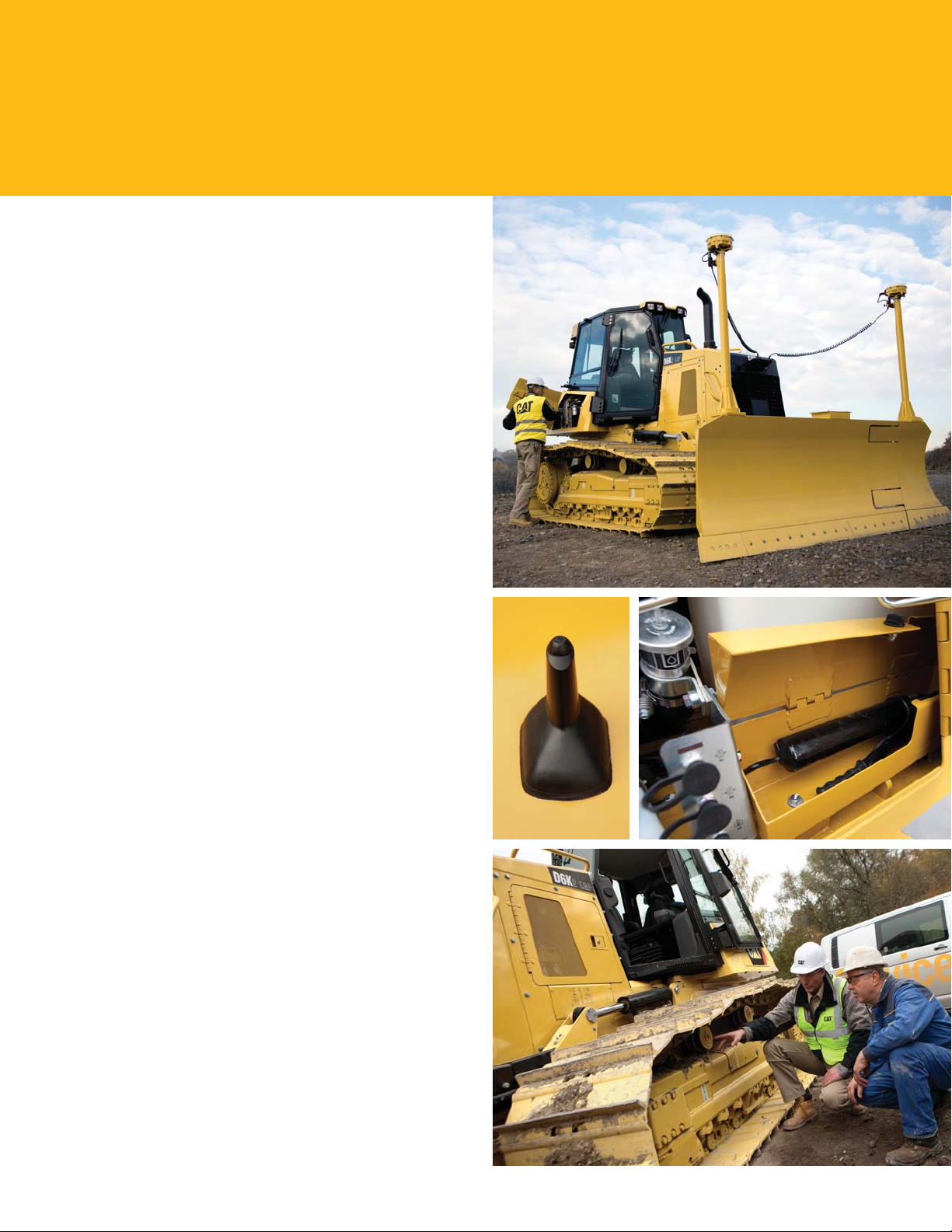

This dealer installed machine control and guidance system enables operators to cut and ll to grade with increased accuracy,
minimizing the need for traditional stakes and grade checkers. Caterpillar offers a choice of:

• AccuGrade Laser – for two dimensional at type of work

• AccuGrade Global Navigation Satellite System – for three dimensional cut to contour work

• Universal Total Station – for ne and nish grade applications

These technologies provide precise elevation information on an in-cab display to achieve accurate blade positioning
andimprove productivity by as much as 50 percent over conventional methods.

AccuGrade Ready Option (ARO)

This option provides the pre-assembly that is required to make the AccuGrade installation quick and easy.

New Larger Displays

Easy to read, large displays let you focus on your work:

• CB450 Larger Display – larger 109 mm (4.3 in) color display, USB data port

• CB460 GNSS Display – larger 178 mm (7 in) color display, USB data port

9

Rear Attachments
andOptions

Increase your versatility

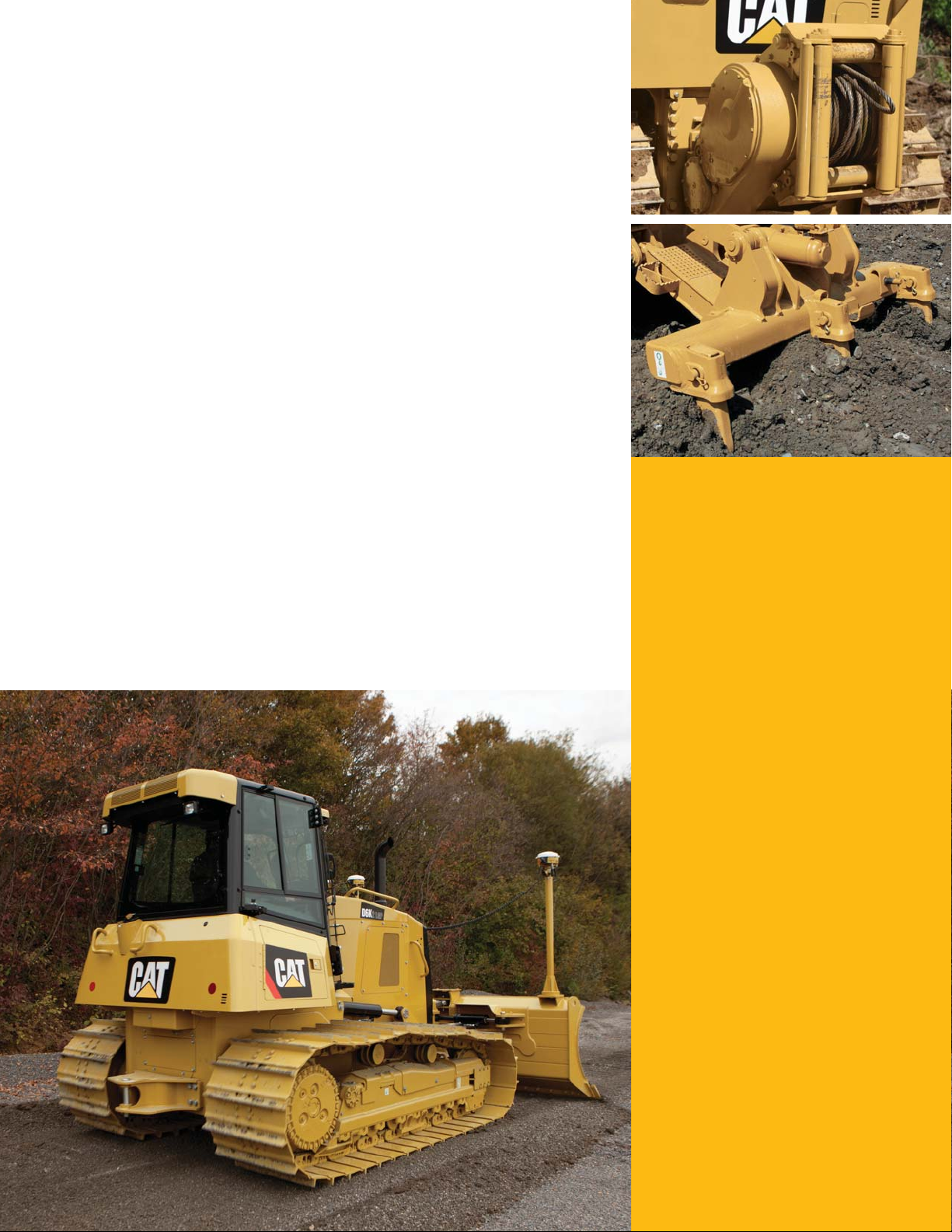

Multi-Shank Ripper

The aggressive parallelogram ripper lets you do more productive ripper work.
Theparallel linkage design provides better penetration and maneuverability
intight working areas.

Hydrostatic Winch

The winch features excellent line pull at any speed, innitely variable drum speed,
lower operator effort and unmatched load control.

Dual Control Package

This option makes attachment installation easy for machines that will be used
forboth ripper and winch applications.

Drawbar

The drawbar is useful for retrieving other equipment or pulling work tools such
asdiscs or compactors.

Value
Packages…

Forestry and HeavyDuty Options

An easier way to work in the
woods or in severe applications:

• 360 degree guarding, for added
protection of the cab

• Sweeps

• Various heavy duty guards,
including rear tank guard

Cold Weather Packages

Start your machine even when
ambient temperatures are down to
–32° C (–25.6° F).

• Heater, 120V/240V jacket water
heater, engine coolant, ether
starting aid

• Electrical insulated breather

• Antifreeze uids, –50° C
(–58°F) capability

10

Cooling

Durable and efcient

The engine radiator, Air To Air After Cooler (ATAAC), and hydraulic oil cooler are packaged in a single
plane. Aluminum bar plate construction provides durability and allows for higher heat transfer and
superior corrosion resistance.

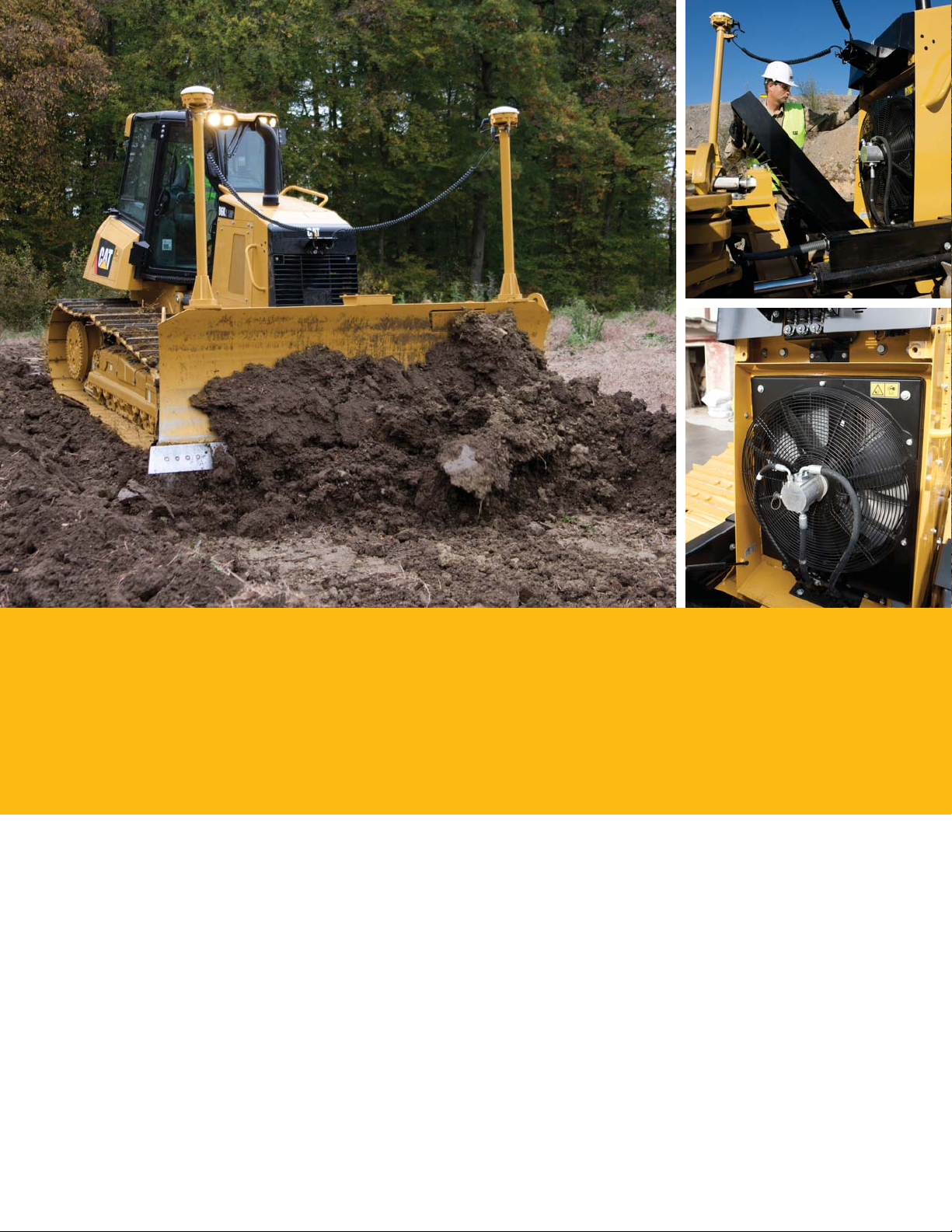

Hydraulic Demand Fan

The demand fan provides engine cooling capability that is matched to the ambient conditions. Fan speed
is automatically reduced when not needed to save fuel.

Hydraulic Reversing Fan

This option allows the fan to reverse airow and blow debris out of the radiator cores. Both automatic
and manual modes are available.

11

Engine and Emissions Technology

Improved fuel economy

Low Temperature Regeneration System

The engine meets U.S. EPA Tier 4 Interim, EU Stage IIIB and Japan MLIT Step 4
emission standards using a passive regeneration solution:

• Simple, no operator interaction required

• Efcient, no work interruption, even in case of extended idling time

• Reliable, long life diesel particulate lter (no service required for over
10,000hours)

Fuel Consumption Efciency

Automatic Engine Speed Control (AESC) – reduces engine speed when the machine is

not under load for more than ve seconds, which can help reduce fuel consumption
signicantly depending on the application.

Engine Idle Shutdown Timer – This option (when activated by the operator) shuts
down the engine after the machine has been idling for a pre-set period of time.

Engine

Power and reliability

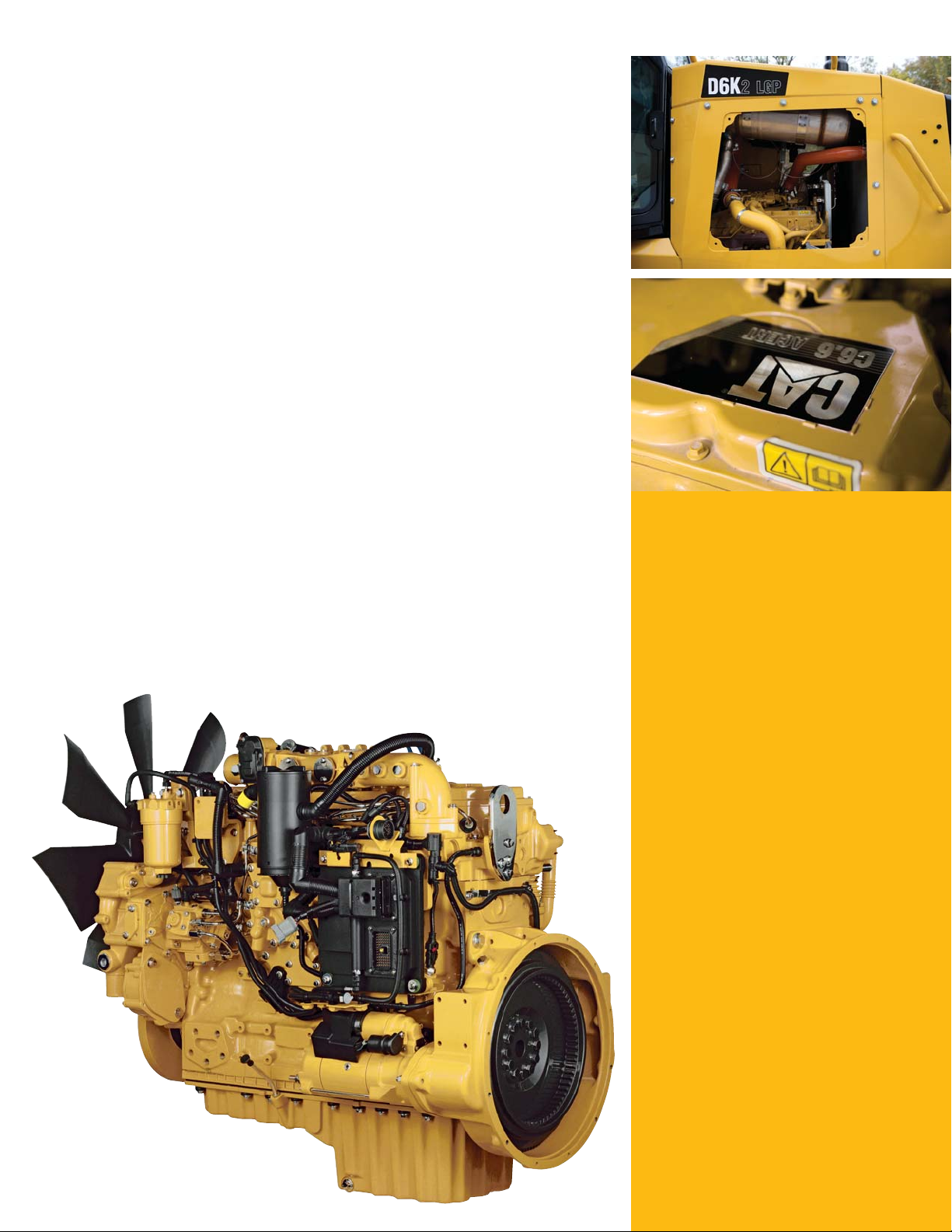

The Cat C6.6 ACERT™ engine
delivers the performance that
customers demand.

• Responds quickly to changing
loads

• Constant power strategy:
delivers the same amount of
power whatever the conditions
may be

• Optimized based on engine
size, the type of application and
the geographic location where
D6K2 customers work

To assure that our technology will
meet our customers expectations
for reliable trouble-free service, we
subjected these products to over
one million operating hours of test
and validation.

12

Serviceability

When uptime counts

Accessible, Quick and Easy Maintenance
to Keep You Working

Long service intervals and easy maintenance keep the
machine up and running, lower your costs and reduce
servicetime.

• Large, hinged door on the engine compartment for
easyaccess to all regular engine maintenance points

• Grouped pressure taps for quick testing and
troubleshooting of the hydraulic system

• Ground level access to hydraulic  lters

• Engine automatic hydraulic valve lash

• Tool box to keep your tools and grease gun at hand

• Monitoring system with automatic checks at start up

• Robust and convenient modular design

Product Link

Remote monitoring with Product Link improves and simpli es
overall eet management effectiveness. Using satellite or
cellular technology, the system automatically reports events
and diagnostic codes, as well as location, fuel,idle time
orsecurity alarms.

Renowned Cat Dealer Support

From helping you choose the right machine to knowledgeable
ongoing support, Cat dealers provide the best in sales
andservice.

• Preventive maintenance programs and guaranteed

• Best-in-class parts availability

• Operator training to help boost your pro ts

• Genuine Cat Remanufactured parts

maintenance contracts

13

D6K2 Specications

Engine Weights

Engine Model Cat® C6.6 ACERT™ Weight – XL 13 036 kg 28,740 lb

Emissions U.S. EPA Tier 4Interim/ Weight – LGP 13 673 kg 30,144 lb

EU Stage IIIB/JapanMLIT
Step 4

Gross Power – SAE J1995 118 kW 158 hp

Engine Power – ISO 14396 116 kW 155 hp

Engine Power – ISO 14396 (DIN) 157 hp

Net Power – SAE J1349 95 kW 128 hp

Net Power – ISO 9249 97 kW 130 hp

Net Power – ISO 9249 (DIN) 132 hp

Net Power – EU 80/1269/EEC 97 kW 130 hp

Bore 105 mm 4.13 in

Stroke 127 mm 4.99 in

Displacement 6.6 L 402.75 in

• Engine ratings at 2,200 rpm.

• Net power advertised is the power available at the engine  ywheel

when the engine is equipped with the air cleaner, alternator, A/C
compressor at full load and cooling fan at maximum speed.

• No engine derating required up to 3000 m (8,840 ft) altitude;

beyond 3000 m (8,840 ft) automatic derating occurs.

3

Transmission – Travel Speed

Transmission Type Hydrostatic Track Gauge – LGP 2000 mm 79 in

Forward 0-10 km/h 0-6.2 mph Track on Ground – XL 2645 mm 104 in

Reverse 0-10 km/h 0-6.2 mph Track on Ground – LGP 2645 mm 104 in

Service Re ll Capacities

Fuel Tank 295 L 77.9 gal

Cooling System 32.5 L 8.58 gal

Engine Crankcase 16.5 L 4.35 gal

Final Drives (each XL) 15 L 4 gal

Final Drives (each LGP) 23 L 6 gal

Hydraulic Tank 58 L 15.3 gal

Operating Weight – XL 13 311 kg 29,346 lb

Operating Weight – LGP 13 948 kg 30,750 lb

Shipping Weight – XL 13 131 kg 28,949 lb

Shipping Weight – LGP 13 768 kg 30,353 lb

• Weights: includes pumps, operator controls, oil, mounting brackets
and spacers.

• Operating Weights: includes EROPS, A/C, lights, VPAT Dozer,
transmission, drawbar, engine enclosure, 3-valve hydraulics,
100%fuel, Cat Comfort Series air suspension seat and operator.

• Shipping Weights: includes EROPS, A/C, lights, VPAT Dozer,
transmission, drawbar, engine enclosure, 3-valve hydraulics,
10%fuel, Cat Comfort Series air suspension seat.

Undercarriage

Width of Shoe – XL 560 mm 22 in

Width of Shoe – LGP 760 mm 30 in

Shoes/Side – XL 40

Shoes/Side – LGP 40

Grouser Height 48 mm 1.9 in

Track Gauge – XL 1770 mm 70 in

Ground Contact Area – XL 3 m² 4650 in²

Ground Contact Area – LGP 4 m² 6200 in²

Ground Pressure – XL (ISO 16754) 39.8 kPa 5.77 psi

Ground Pressure – LGP (ISO 16754) 30.7 kPa 4.45 psi

Track Rollers/Side – XL 8

Track Rollers/Side – LGP 8

14

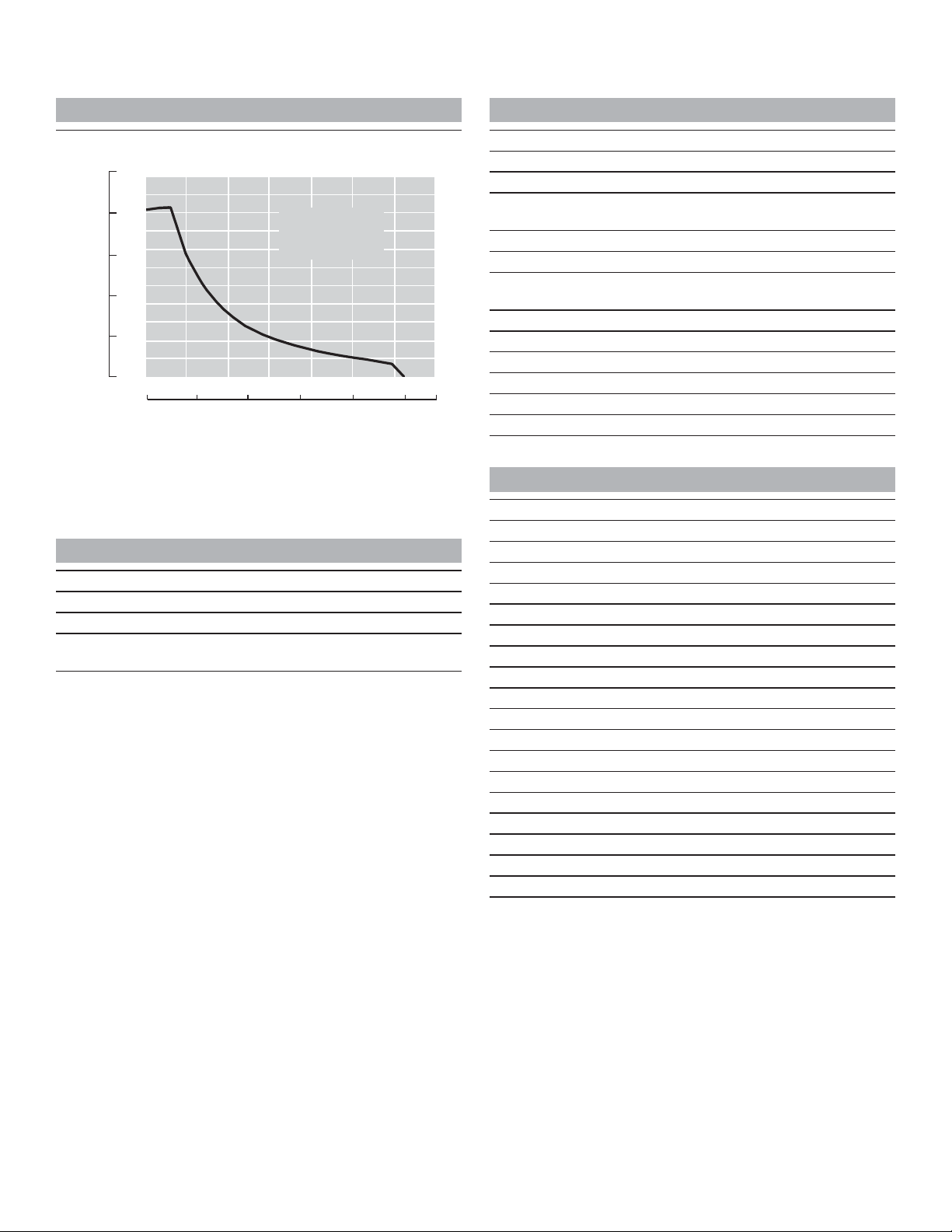

Drawbar Pull Ripper

N x lb x
1000 1000

250

55

50

45

200

40

35

150

30

25

100

Drawbar Pull

20

15

50

10

5

0

0

0

02 4 6 810

D6K2 Drawbar Pull

Drawbar Pull

vs.

Ground Speed

1 2 3 4 5 6 7

mph

km/h

Speed

• The direct injection electronic fuel system provides a controlled fuel
delivery increase as the engine lugs back from rated speed. This results
in increased horsepower below rated power. A combination of
increased torque rise and maximum horsepower improves response,
provides greater drawbar pull and faster dozing cycles.

Blades

Blade Type VPAT, VPAT Foldable*

XL, VPAT – Blade Capacity 3.07 m 4.01 yd

LGP, VPAT – Blade Capacity 3.35 m 4.38 yd

XL, VPAT – Blade Width 3196 mm 10.5 ft
over End Bits

LGP, VPAT – Blade Width 3682 mm 12 ft
over End Bits

• VPAT foldable blades have the same capacity and width as the
XL/LGP VPAT blades.

Type Fixed Parallelogram

Pocket Spacing 896 mm 35.3 in

Shank Gauge 1792 mm 70.6 in

Shank Section 58.5 × 2.3 ×

138mm 5.4 in

Number of Pockets 3

Overall Beam Width 1951 mm 76.8 in

Beam Cross Section 165 × 6.5 ×

211 mm 8.3 in

Maximum Penetration Force – XL 42.2 kN 9,480 lb

Maximum Pry-out Force – XL 166.7 kN 37,480 lb

Maximum Penetration Force – LGP 45.1 kN 10,138 lb

Maximum Pry-out Force – LGP 166.7 kN 37,480 lb

Maximum Penetration – XL & LGP 360 mm 14.2 in

Weight with One Shank 845 kg 1,863 lb

Each Additional Shank 34 kg 75 lb

Winch

Winch Model PA50

Winch Drive Hydrostatic

Weight* 907 kg 2,000 lb

Winch and Bracket Length 845 mm 33.2 in

Winch Case Width 905 mm 35.6 in

Drum Diameter 205 mm 8 in

Drum Width 274 mm 11 in

Flange Diameter 457 mm 18 in

Drum Capacity (Recommended Rope) 93 m 306 in

Drum Capacity (Optional Rope) 67 mm 220 in

Rope Recommended Diameter 19 mm 0.75 in

Optional Cable Size 22 mm 0.87 in

Cable Ferrule Size (O.D.) 54 mm 2.13 in

Cable Ferrule Size (Length) 67 mm 2.63 in

Maximum Bare Drum

Line Pull 222.4 kN 50,000 lbf

Line Speed 38 m/min 124 fpm

Maximum Full Drum

Line Pull 115.7 kN 26,000 lbf

Line Speed 70 m/min 230 fpm

• Slow and standard speed winches are available.
* Weight includes: pump, operator controls, oil, mounting brackets

and spacers.

15

D6K2 Specications

Standards

• ROPS (Rollover Protective Structure) offered by Caterpillar for the
machine meets ROPS criteria SAE J1040-1994, ISO 3471:2008 and
DLV criteria SAE J397B-2009, ISO 3164:1995.

• FOPS (Falling Object Protective Structure) meets ISO 3449-2005
Level II and DLV criteria SAE J397B-2009, ISO 3164:1995.

• Brakes meet the standard ISO 10265:2008.

• Hearing protection may be needed when the machine is operated
with an open operator station for extended periods or in a noisy
environment. Hearing protection may be needed when the machine
is operated with a cab that is not properly maintained, or when the
doors and windows are open for extended periods or in a noisy
environment.

• The declared average exterior sound pressure level is 79 dB(A)
when the “SAE J88 FEB2006 – Constant Speed Moving Test”
procedure is used to measure the value for the standard machine.
The measurement was conducted under the following conditions:
distance of 15 m (49.2 ft) and “the machine moving forward in an
intermediate gear ratio.”

Sound Level Information for Machines in European Union
Countries and in Countries that Adopt the “EU Directives.”
Theinformation below applies to only the machine con gurations
that have the “CE” mark on the Product Identi cation Plate.

• The declared dynamic operator sound pressure level is 78 dB(A)
when “ISO 6396:2008” is used to measure the value for an enclosed
cab. The measurement was conducted at 100% of the maximum
engine cooling fan speed. The sound level may vary at different
engine cooling fan speeds. The cab was properly installed and
maintained. The measurement was conducted with the cab doors
and the cab windows closed.

• If equipped, the certication label – 109 dB(A) – is used to verify
the environmental sound certication of the machine to the
requirements of the European Union. The value that is listed on
the label indicates the guaranteed exterior sound power level (Lwa)
at the time of manufacture for the conditions that are speci ed in
“2000/14/EC.” Your machine may have a different value.

Sustainability

Engine Emissions Fully complies with

U.S.EPA Tier 4Interim/
EU Stage IIIB/JapanMLIT
Step 4 emission standards

Sound Levels

Average Exterior Sound
PressureLevel

Maximum Sound Power Level 109 dB(A) 2000/14/EC

Dynamic Operator Sound
PressureLevel (LpA)*

Vibration Levels

Maximum Hand/Arm** 2.5 m/s ISO 5349:2001

Maximum Whole Body 0.5 m/s ISO/TR

Seat Transmissibility Factor <0.7 ISO 7096:2000 –

* Measured at 100% of the maximum engine cooling fan speed.

** Values are for an experienced operator in a dozing application,

consult the Operating and Maintenance Manual for further details.

79 dB(A) SAE J88:2006

78 dB(A) ISO 6396:2008

25398:2006

spectralclass EM6

16

Dimensions

All dimensions are approximate.

3

4

9

1
2

5

6

8

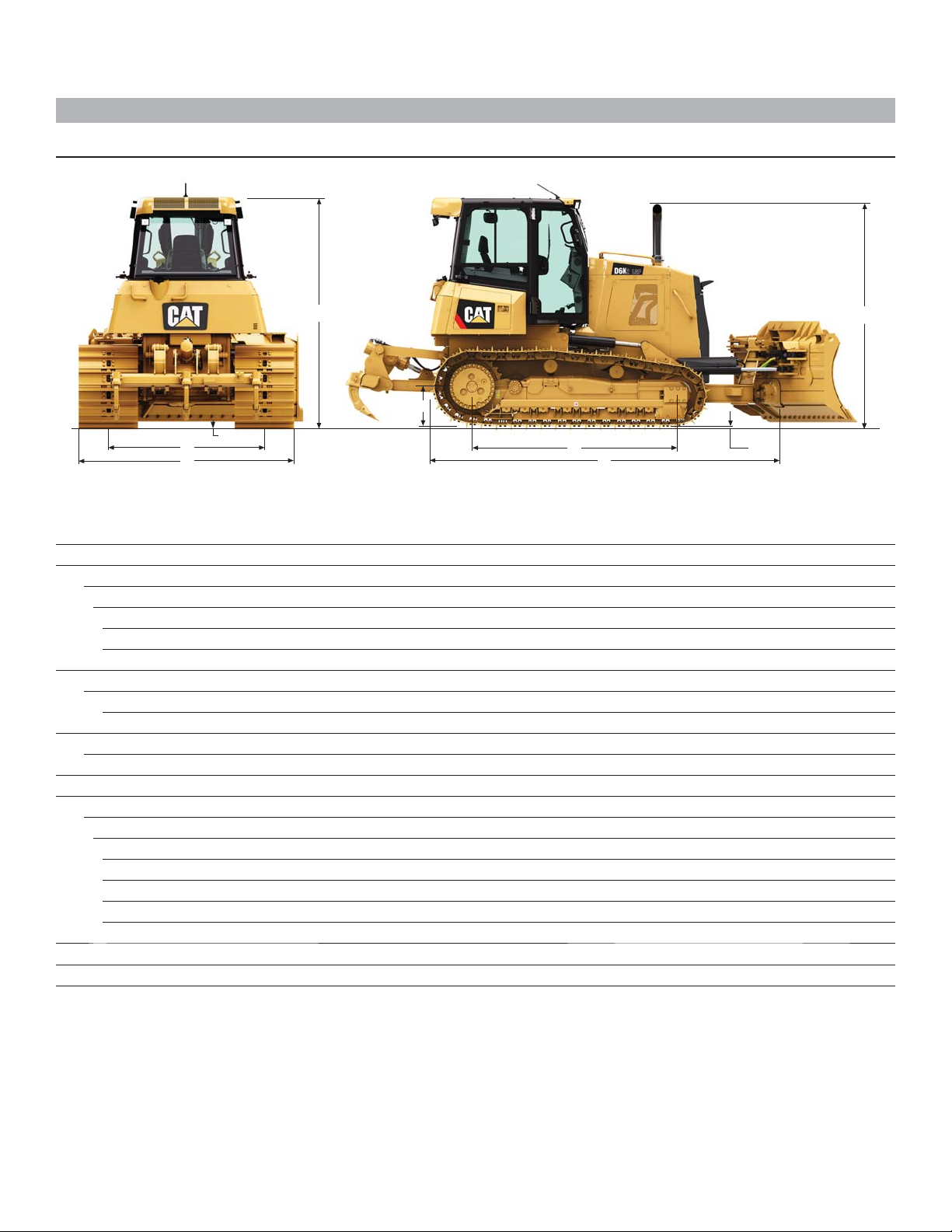

Tractor Dimensions

XL LGP

Track Gauge 1770 mm 70 in 2000 mm 79 in

1

Width of Tractor

2

With the Following Attachments:

Standard Shoes without Blade 2330 mm 92 in 2760 mm 109 in

Standard Shoes with VPAT Blade Angled 25° 2896 mm 114 in 3337 mm 131 in

Standard Shoes with Foldable Blade in Transport Position 2364 mm 93 in 2850 mm 112 in

Machine Height from Tip of Grouser

3

With the Following Equipment:

ROPS Cab 2958 mm 116 in 2958 mm 116 in

Drawbar Height (Center of Clevis)

4

From Ground Face of Shoes 466 mm 18 in 483 mm 19 in

Length of Tack on Ground 2645 mm 104 in 2645 mm 104 in

5

Length of Basic Tractor (with C-Frame) 4354 mm 171 in 4220 mm 166 in

6

With the Following Attachments, Add to Basic Tractor Length:

Drawbar 229 mm 9 in 320 mm 13 in

Ripper 1082 mm 42 in 1133 mm 45 in

PA50 Winch 567 mm 22 in 640 mm 25 in

VPAT Blade, Straight 384 mm 15 in 468 mm 18 in

VPAT Blade, Angled 25° (Standard and Foldable) 1015 mm 40 in 1179 mm 46 in

Height over Stack from Tip of Grouser 2873 mm 113 in 2914 mm 115 in

7

Height of Grouser 48 mm 2 in 48 mm 2 in

8

Ground Clearance from Ground Face of Shoe (per SAE J1234) 360 mm 14 in 360 mm 14 in

9

7

17

D6K2 Standard Equipment

Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

OPERATOR STATION

• ROPS/FOPS cab, pressurized,
with sliding side windows

• Air conditioning

• Seat, air suspension, cloth
– Adjustable armrests

• 76 mm (3 in) retractable seat belt

• Adjustable seat-mounted, electro-hydraulic
controls with fore/aft adjustment

• Footrests, dash-mounted

• Electric monitoring system including:
– Gauges: engine coolant temperature,

hydraulic oil temperature and fuel level

– Indicators: including electronic engine

air cleaner service indicator, electronic
water-in-fuel indicator, and regeneration
indicator

– Digital display: electronic engine rpm,

gear display, hour meter

• Rotary throttle switch

• Eco Modes throttle switch

• Stable blade switch

• Electronic travel speed limiter

• Independent forward/reverse speed settings

• Single pedal combining deceleration
andbraking functions

• Rearview mirrors

• Auxiliary mirror for rear attachment

• 12V radio ready

• One 12V power port

• Coat hook

• Storage compartment

• Cup holder

• Heavy duty rubber  oor mat

• Windshield washers and wipers
frontandrear

• Intermittent wipers (doors)

UNDERCARRIAGE

• Undercarriage arrangements:

– SystemOne undercarriage including:

• Sprocketed relieved tread idler,
lifetimelubricated

• Eight bottom track rollers

• Two carrier rollers

• Idlers, lifetime lubricated

• Tracks, 40 sections

– XL conguration, 560 mm (22 in)
– LGP conguration, 760 mm (30 in)

• Adjustable idler height position

• Hydraulic track adjusters

• Roller frame:

– 8/2 SystemOne (eight bottom rollers,

twocarrier rollers)

• Track pairs, XL:

– Tracks, 560 mm (22 in) MS XL,

SystemOne

• Track pairs, LGP:

– Tracks, 760 mm (30 in) MS LGP,

SystemOne

POWER TRAIN

• Cat C6.6 ACERT diesel engine,
turbocharged, meets U.S. EPA/ARB Tier4
Interim, EU Stage IIIB and Japan MLIT
(Step 4) emission standards

• Aluminum bar plate cooling system
(radiator, hydraulic oil cooler, aftercooler)

• Hydraulic demand fan

• Air cleaner with precleaner, automatic dust
ejection and under-hood intake

• Electric fuel priming pump

• Integrated fuel/water separator

• Tank fuel, standard

• Dual path, electronic control, closed-loop
hydrostatic transmission

• Glowplugs starting aid

ELECTRICAL

• Horn, electric

• Backup alarm

• Converter 12V, 10-Amp

• Diagnostic connector

• Batteries, heavy duty, high output,
maintenance free, 900 CCA

• Integrated four front halogen lights
(roofmounted)

• Integrated two rear halogen lights
(A/C unit mounted)

• Alternator, 24V, 115-Amp, heavy duty
brush type

• Starter, 24V, electric

REAR ATTACHMENT

• Drawbar, rigid

TECHNOLOGY PRODUCTS

• Cat Product Link, PL522*
GSM Cellular networks

HYDRAULICS

• 3 valves, electro-hydraulics

• Load sensing hydraulics/pump

• Single lever with three functions control

• Hydraulic oil, standard

OTHER STANDARD EQUIPMENT

• C-frame with variable pitch link,
hydrauliccylinder and lines

• Fuel tank, standard

• Hinged crankcase guards

• Lockable engine enclosures

• Idler guards

• Hinged radiator grill, with bolts

• Front pull device

• Swing-out radiator fan

• Scheduled Oil Sampling ports, S·O·S
(engine, power train, hydraulics)

PROTECTION EQUIPMENT

• Guard, fuel tank

• Guard, crankcase

• Grill radiator

ANTI-FREEZE

• Extended life coolant, –37° C (–35° F)

HYDRAULIC FLUID

• Cat HYDO™ Advanced 10

* Product Link licensing not available

in all areas.

SM

18

Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

D6K2 Optional Equipment

POWER TRAIN

• Oil change system, high speed

• Hydraulic demand fan, reversing

UNDERCARRIAGE

• Undercarriage arrangement:

– Heavy duty undercarriage

• Roller frames:

– 8/2 heavy duty (eight bottom rollers,

twocarrier rollers)

– 7/1 heavy duty (seven bottom rollers,

onecarrier roller)*

• Track pairs, XL:

– Tracks, 510 mm (20 in), MS XL,

SystemOne

– Tracks, 510 mm (20 in), ES XL,

SystemOne

– Tracks, 560 mm (22 in), ES XL,

SystemOne

– Tracks, 510 mm (20 in) ES, XL,

heavy duty

– Tracks, 560 mm (22 in) ES XL,

heavyduty

• Track pairs, LGP:

– Tracks, 760 mm (30 in) ES LGP,

SystemOne

– Tracks, 760 mm (30 in) ES LGP,

heavyduty

– Tracks, 760 mm (30 in), ES self-cleaning,

LGP, heavy duty

• Track guiding guards:

– Guard, track guiding, center
– Guard, track guiding, front and rear
– Guard, track guiding, full length

OPERATOR ENVIRONMENT

• Heavy duty cab with polycarbonate
windshield and door windows

• Heated air suspension seat

• Heated and ventilated air suspension seat

HYDRAULICS

• Hydraulic oil, biodegradeable

• Hydraulic, four valves

GUARDS AND PROTECTION PACKAGES

• Cab protection package, sweeps
and rear screen

• Cab protection package, heavy duty,
withsweeps, screens (rear and sides)
andlighting guards

• Cab rear screen

• Guard, lift cylinder

• Heavy duty radiator grill

• Heavy duty protection with heavy duty
fueltank guard, crankcase guard and
radiator grill

BLADES

• VPAT XL blade, ARO

• VPAT LGP blade, ARO

• VPAT XL blade, ARO foldable

• VPAT LGP blade, ARO foldable

REAR ATTACHMENT

• Ripper, parallelogram, multi-shank,
withthree straight teeth

• Ripper, parallelogram, multi-shank,
withthree curved teeth

• Winch preparation

REAR ATTACHMENT CONTROL

• Control ripper ready package

• Control winch ready package

• Control winch and ripper ready package

TECHNOLOGY PRODUCTS

• Machine Security System (MSS)

• Cat Product Link, PL321,
satellitenetworks

MACHINE CONTROL AND GUIDANCE

• Installation, AccuGrade Ready Option
(ARO)

COLD WEATHER PACKAGES

• Cold weather package, 120V

• Cold weather package, 240V

• Electrical insulated breather with
heatedlter and insulated hoses

ANTIFREEZE

• Cooling system antifreeze protection
–50°C (–58°F)

OTHER ATTACHMENTS

• Rotating beacon

FIELD INSTALLED ATTACHMENTS

• Radios:

– Radio, 12V, AM/FM
– Radio, 12V, AM/FM CD player
– Radio, 12V, AM/FM CD player

(XMsatellite radio antenna)**

– Radio, 12V, AM/FM CD player

(Siriussatellite radio antenna)**

• Winch:

– PA50 hydrostatic winch, variable speed
– Winch step

Fairleads:

•

– Fairlead, three rollers
– Conversion kit, fourth roller

* For Europe, Africa and Middle East only.

Not compatible with Stable Blade Control.

** Available through Parts Distribution for

U.S.A. and Canada only.

19

D6K2 Track-Type Tractor

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2012 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

AEHQ6823 (08-2012)
