CAT D10T SCHEMATIC

Download
Page 1

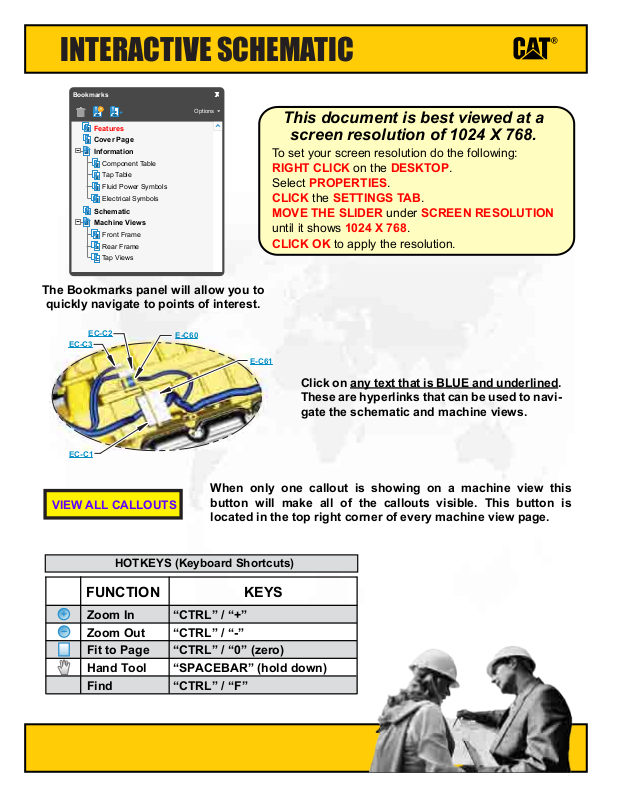

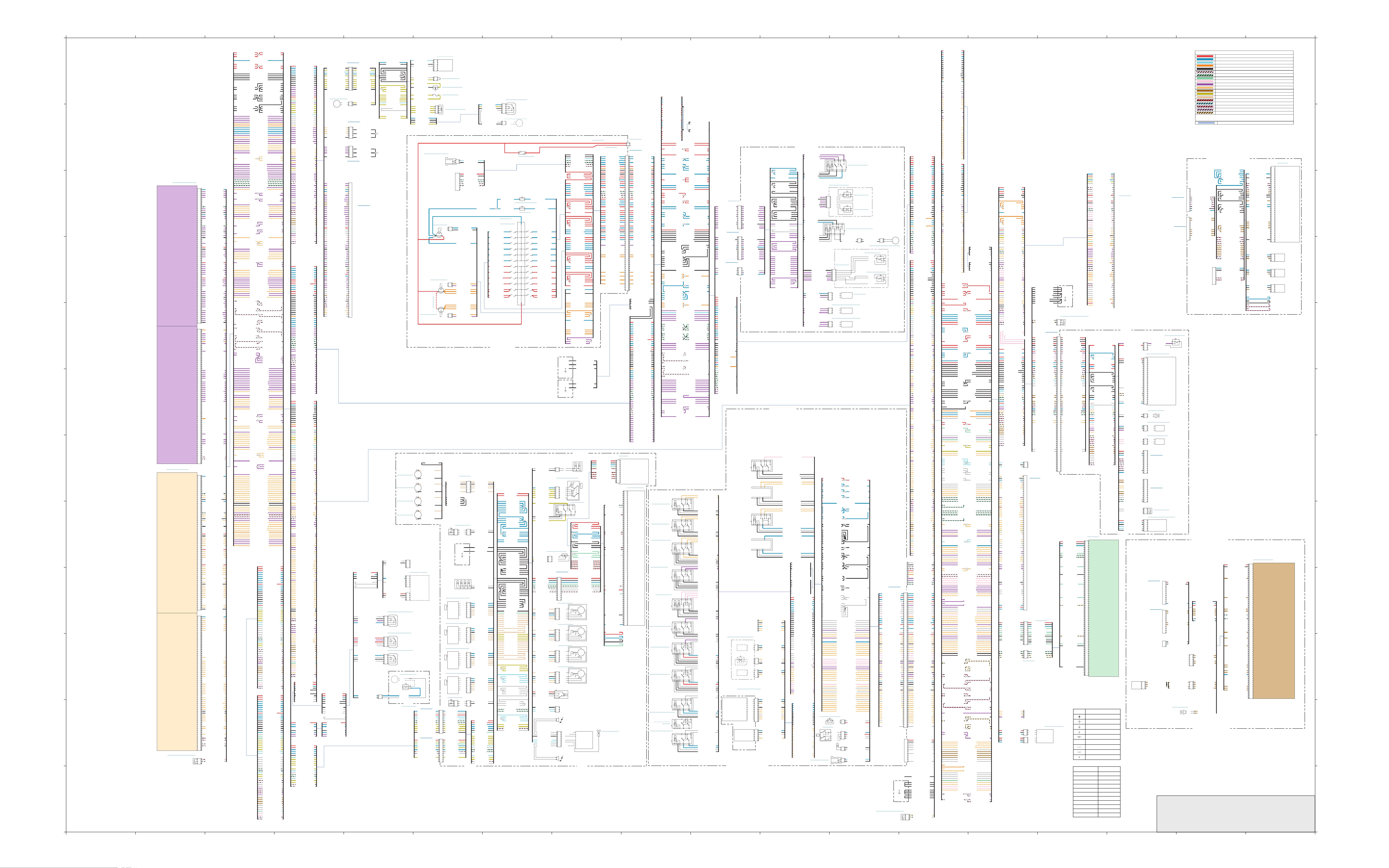

INTERACTIVE SCHEMATIC
Bookmarks
Features
Cover Page
Information
Component Table
Tap Table

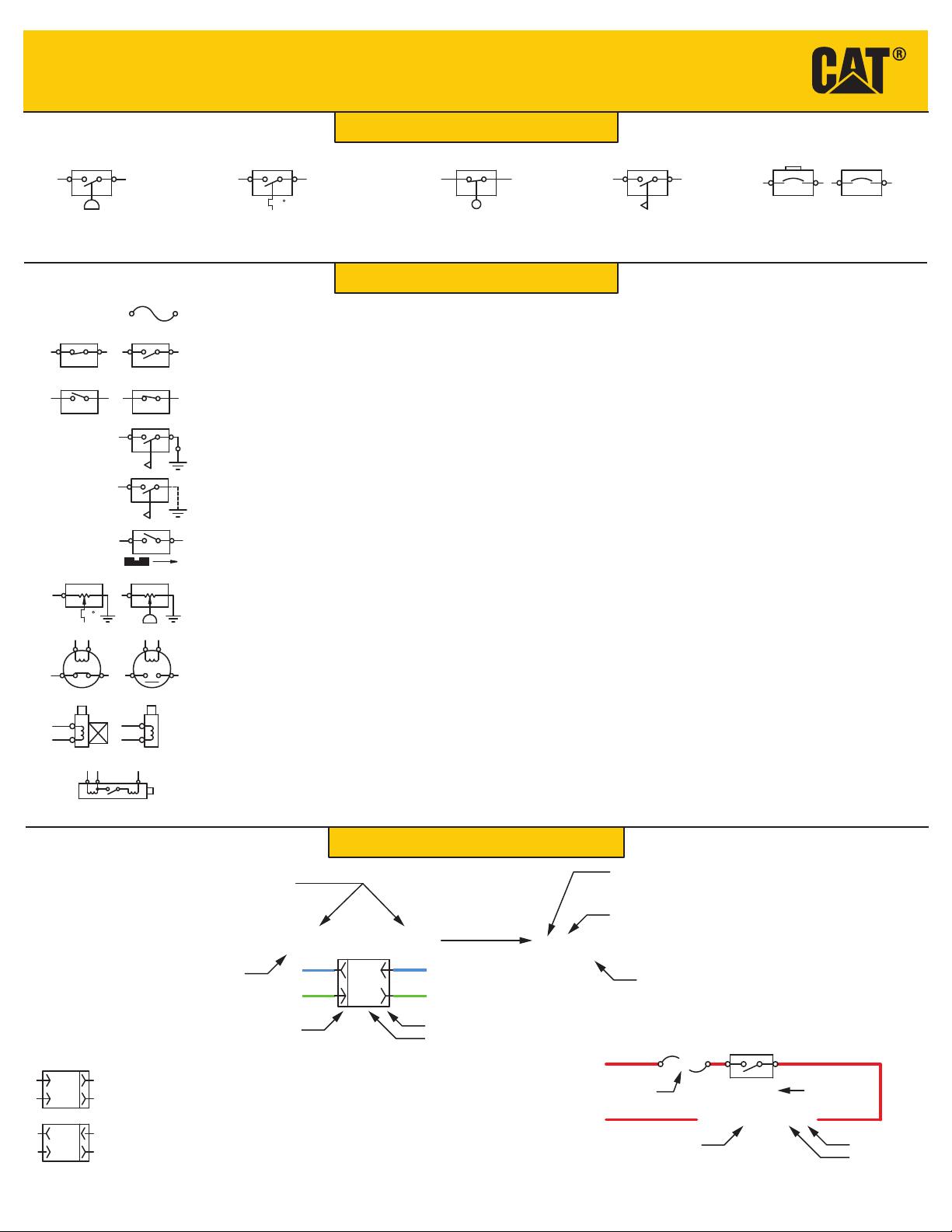

Fluid Power Symbols
Electrical Symbols

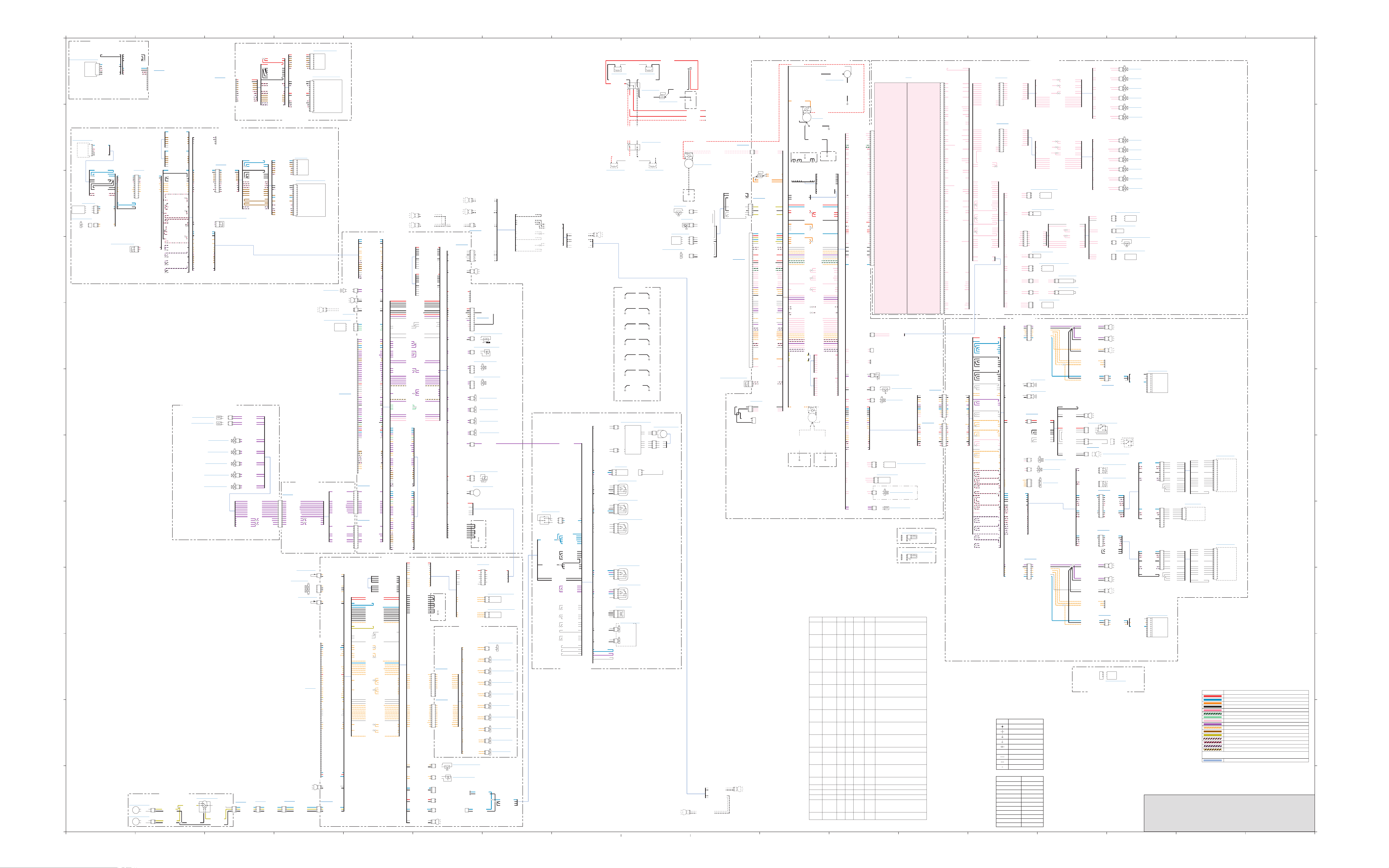

Schematic

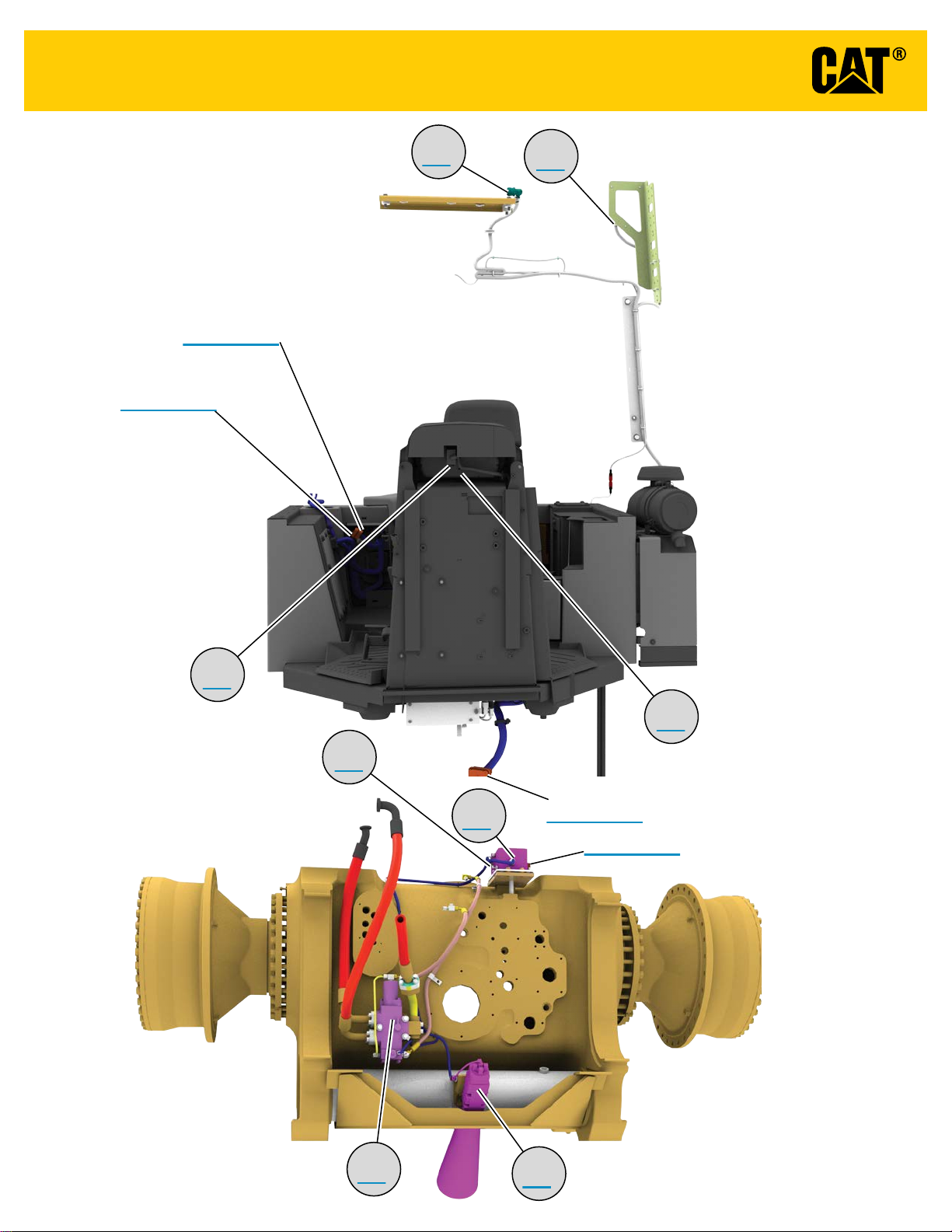

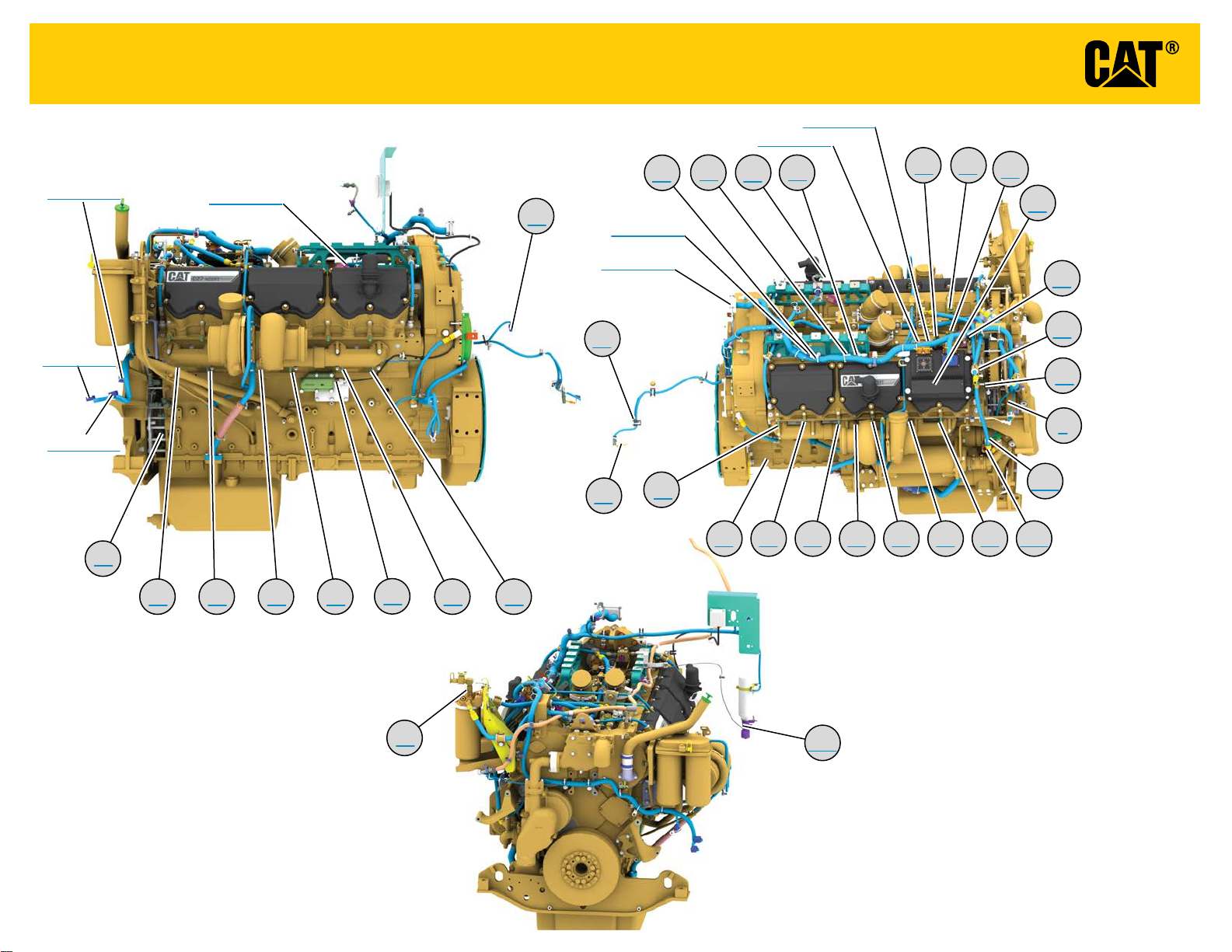

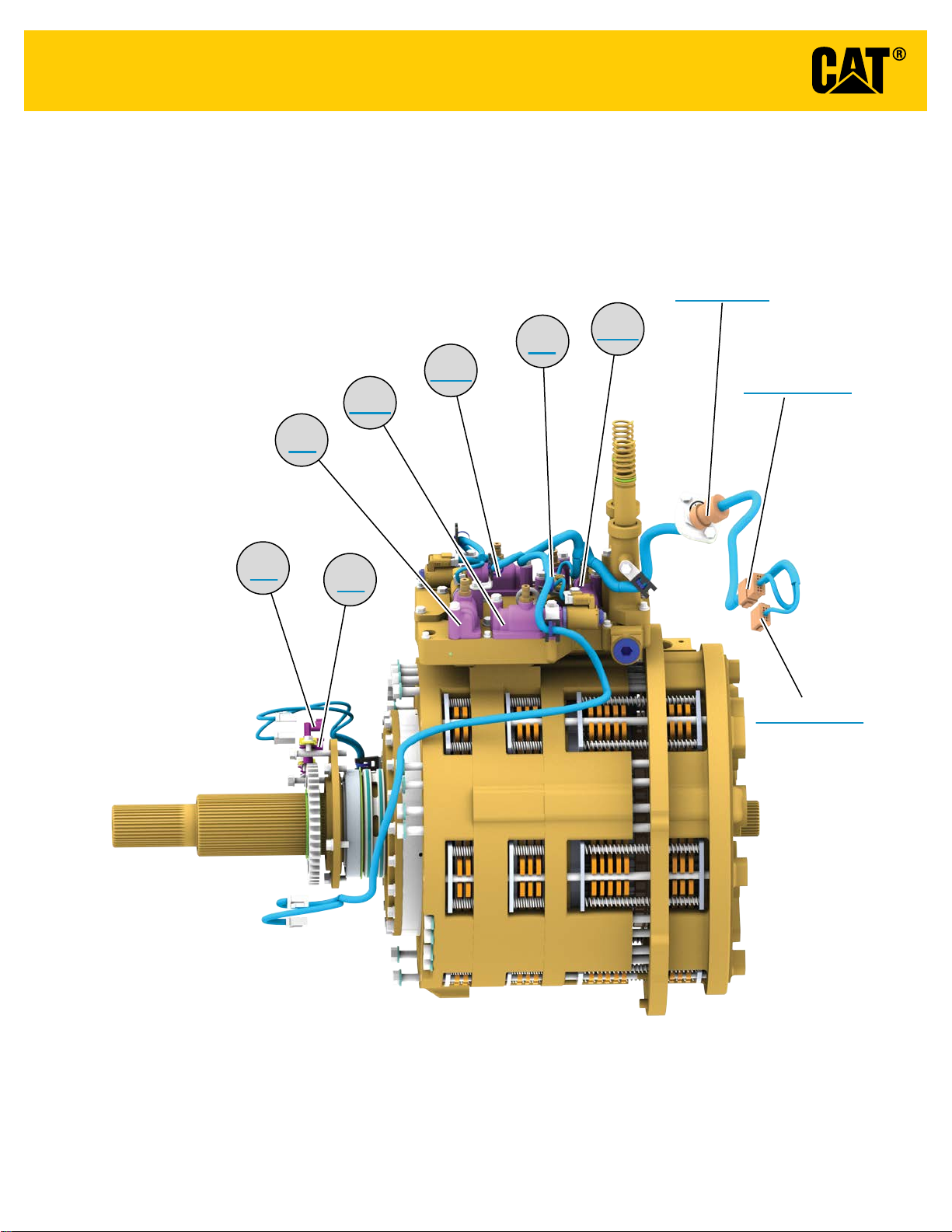

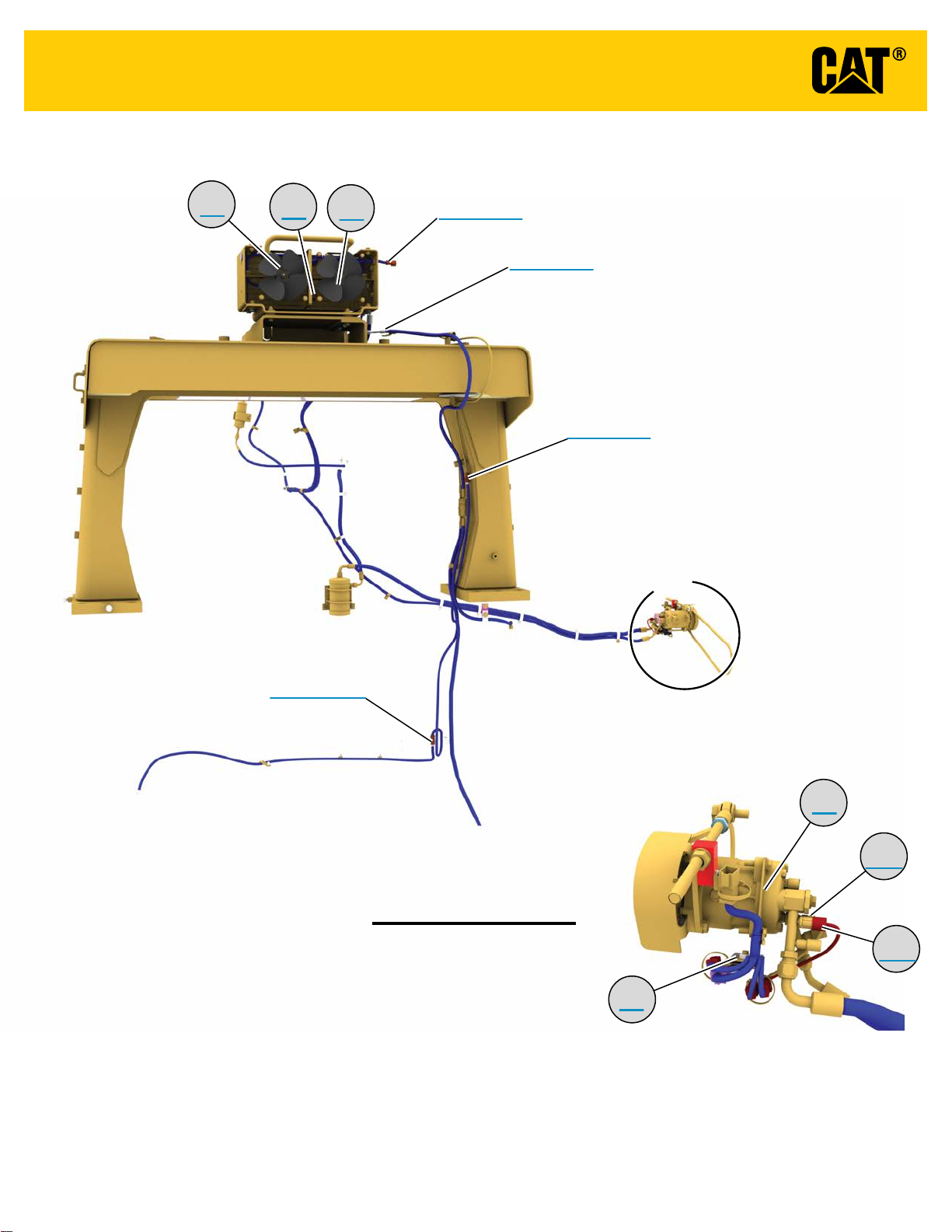

Machine Views
Front Frame
Rear Frame
Tap Views
X
Options
The Bookmarks panel will allow you to
quickly navigate to points of interest.
EC-C2
EC-C3
E-C60
E-C61
This document is best viewed at a
screen resolution of 1024 X 768.
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB. MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
Click on any text that is BLUE and underlined. These are hyperlinks that can be used to navi­gate the schematic and machine views.
EC-C1
HOTKEYS (Keyboard Shortcuts)
FUNCTION
Zoom In
Zoom Out
Fit to Page
Hand Tool
Find
When only one callout is showing on a machine view this button will make all of the callouts visible. This button is located in the top right corner of every machine view page.
KEYS
“CTRL” / “+”
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
“CTRL” / “F”
Page 2
UENR1752-05
August 2017
D10T Track-Type Tractor Electrical System
RJG685-UP
Volume 1 of 2: Engine and Chassis Volume 2 of 2: Cab
©
2017 Caterpillar, All Rights Reserved
Printed in U.S.A.
Page 3

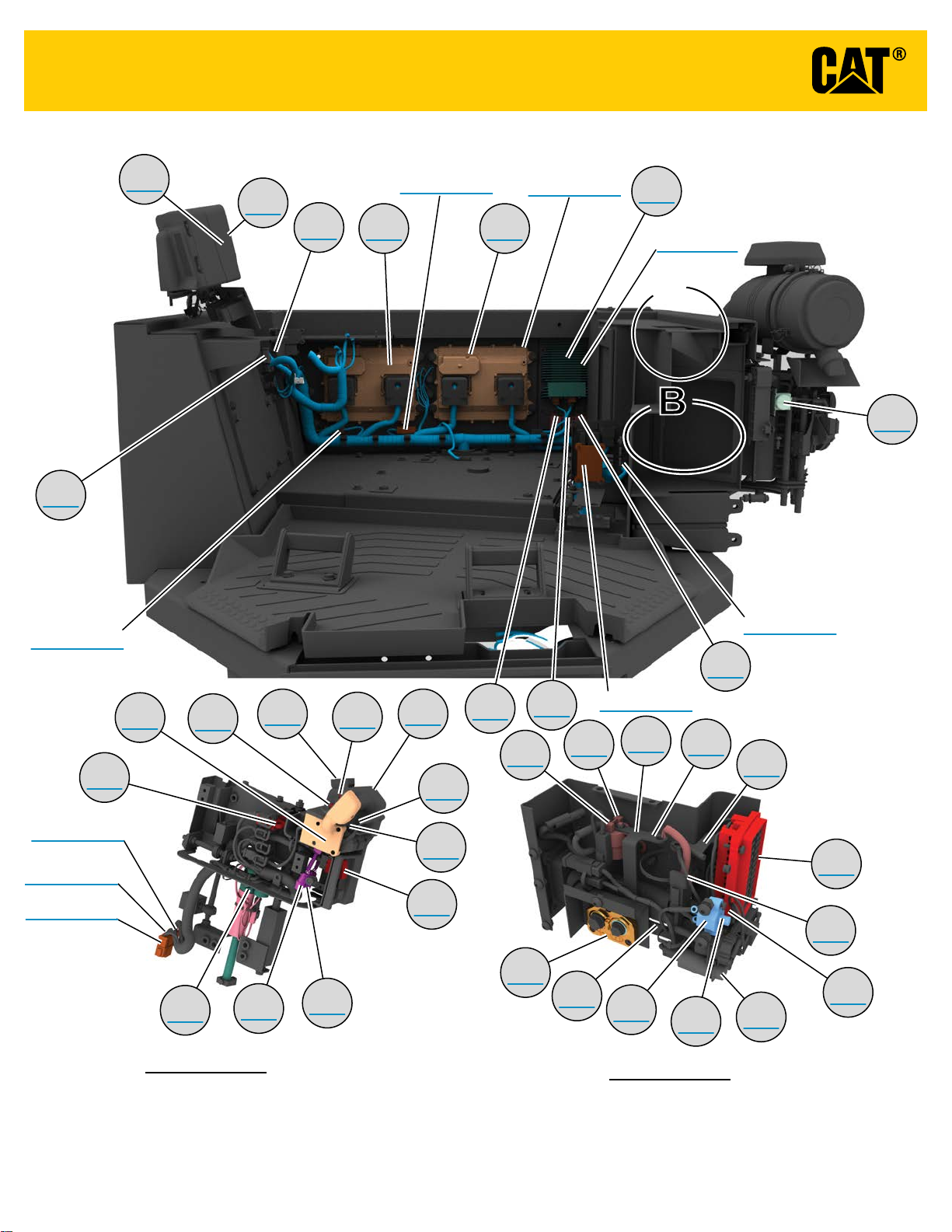

COMPONENT LOCATION Volume 1 of 2 - ENGINE AND CHASSIS
Component
Actuator G-10 1
Actuator Gp G-10 2
Alarm - Backup I-15 3
Alternator L-7 4
Arc Suppressor 1 D-15 5
Arc Suppressor 2 D-15 6
Battery 1 - Attachment K-11 7
Battery 1 - Standard L-11 7
Battery 2 - Attachment K-10 7
Battery 2 - Standard L-10 7
Control - Engine L-6 11
Diode (Arc Suppressor) D-11 12
Horn - Forward Hi G-5 13
Horn - Forward Lo G-5 14
Jacket Water Heater (120V/1500W) E-6 15
Jacket Water Heater (240V/1500W) E-6 16
Junction Block - Battery L-10 17
Junction Block - Battery Attachment K-10 17
Module - A/C Control I-10 19
Motor - Fender Cond Fan1 A-17 20
Motor - Fender Cond Fan2 A-17 21
Motor - Fuel Priming Pump F-13 22
Motor - Prelube K-9 23
Motor - Starter K-8 24
Motor - Starter Attachment G-8 25
Radar Gun J-18
Radio - GPS (Accugrade) L-15 27
Radio - GPS (CAES) K-15 28
Receiver - GPS (Accugrade) L-15 30
Receiver - GPS (CAES) J-15 31
Receiver - GPS (LH) (Blade) F-2 32
Receiver - GPS (RH) (Blade) E-2 29
Receptacle - Auxiliary Start L-10 33
Relay - Actuator Enable D-11
Relay - Ladder Lower E-11 35
Relay - ladder Raise F-11 36
Relay - Latching Actuator E-11 37
Relay - Raise solenoid CutOut D-11 38
Relay - Fender Condenser A-16 39
Resistor - CAN D Datalink Te rm 1 J-16 40
Resistor - CAN A Datalink Term2 G-9 41
Resistor - CAN B Datalink 2 F-3 42
Resistor - CAN B Datalink Term 1 I-17 43
Resistor - CAN D Datalink Term 2 F-3 44
Sender - Hydraulic Oil Temperature A-13 45
Sender - XMSN Sump Temperature H-13 46
Sensor - Dynamic Inclination (Position) L-18 47
Sensor - Lift Cylinder Position C-3 48
Sensor - Angle (Blade) E-2 49
Sensor - Atmospheric Pressure I-4 50
Sensor - Cam Speed I-4 51
Sensor - Coolant Temperature I-4 52
Sensor - Crank Speed I-4 53
Sensor - Dynamic Inclination (Ground Speed) K-18 54
Sensor - Fan Pressure F-7 55
Sensor - Fuel Pressure J-3 56
Sensor - Fuel Temperature J-3 57
Sensor - Intake Air Pressure J-4 58
Sensor - Intake Air Temperature J-5 59
Sensor - LH Cylinder Position G-3 60
Sensor - LH Intake Air Pressure I-3 61
Sensor - Main Pump Pressure D-12 62
Sensor - Oil Pressure I-4 63
Schematic
Location
Machine
Location
Component
Sensor - RH Cylinder Position D-3 64
Sensor - TC Oil Temperature G-7 65
Sensor - TC Outlet Speed E-7 66
Sensor - Tilt Pump Pressure D-12 67
Sensor - Turbo Inlet Pressure F-7 68
Sensor - Ultrasonic Fuel Level H-15 69
Sensor - XMSN Output Speed 1 G-16 70
Sensor - XMSN Output Speed 2 G-16 71
Solenoid - A/C Clutch I-10 72
Solenoid - Blade Lower B-12 73
Solenoid - Blade Raise B-12 74
Solenoid - Blade Tilt (Left) Rack B-12 75
Solenoid - Blade Tilt (Right) Dump C-12 76
Solenoid - Demand Fan F-7 77
Solenoid - Diverter J-18 78
Solenoid - Dual Tilt F-4 79
Solenoid - Fan Bypass F-4 80
Solenoid - First Gear Clutch 5 F-16 81
Solenoid - Forward Clutch 2 F-16 82
Solenoid - Implement Shutoff C-12 83
Solenoid - Injector 1 L-3 84
Solenoid - Injector 10 J-3 85
Solenoid - Injector 11 K-3 86
Solenoid - Injector 12 J-3 87
Solenoid - Injector 2 K-3 88
26
34
Solenoid - Injector 3 L-3 89
Solenoid - Injector 4 K-3 90
Solenoid - Injector 5 L-3 91
Solenoid - Injector 6 K-3 92
Solenoid - Injector 7 L-3 93
Solenoid - Injector 8 K-3 94
Solenoid - Injector 9 K-3 95
Solenoid - LH Steer Brake G-13 96
Solenoid - LH Steer Clutch G-13 97
Solenoid - Park Brake Dump H-13 98
Solenoid - PCO / Ripper RV C-12 99
Solenoid - Reverse Clutch 1 F-16 100
Solenoid - Reversing Fan F-4 101
Solenoid - RH Steer Brake G-13 102
Solenoid - RH Steer Clutch G-13 103
Solenoid - Ripper Lower C-12 104
Solenoid - Ripper Pin D-15 105
Solenoid - Ripper Raise B-12 106
Solenoid - Ripper Shank In C-12 107
Solenoid - Ripper Shank Out B-12 108
Solenoid - Second Gear Clutch 4 F-16 109
Solenoid - Service Brake Dump G-13 110
Solenoid - Start Aid G-7 111
Solenoid - Third Gear Clutch 3 F-16 112
Switch - A/C High J-10 113
Switch - A/C Low J-10 114
Switch - Coolant Flow G-7 115
Switch - Disconnect L-10 116
Switch - Fan Return Filter Bypass A-13 117
Switch - Fuel Diff Filter Pressure I-3 118
Switch - Fuel Priming Pump F-12 119
Switch Gp - Motor (Ladder) E-11 126
Switch Gp - Position (Ladder) F-11 120
Switch - PTO Filter Bypass Limit H-13 121
Switch - Starter Disconnect J-8 122
Switch - Under Hood Work Light 1 (LH) G-4
Switch - Under Hood Work Light 2 (RH) F-3 124
Valve Gp - Ladder D-11 125
Schematic
Location
Machine
Location
123
Page 4

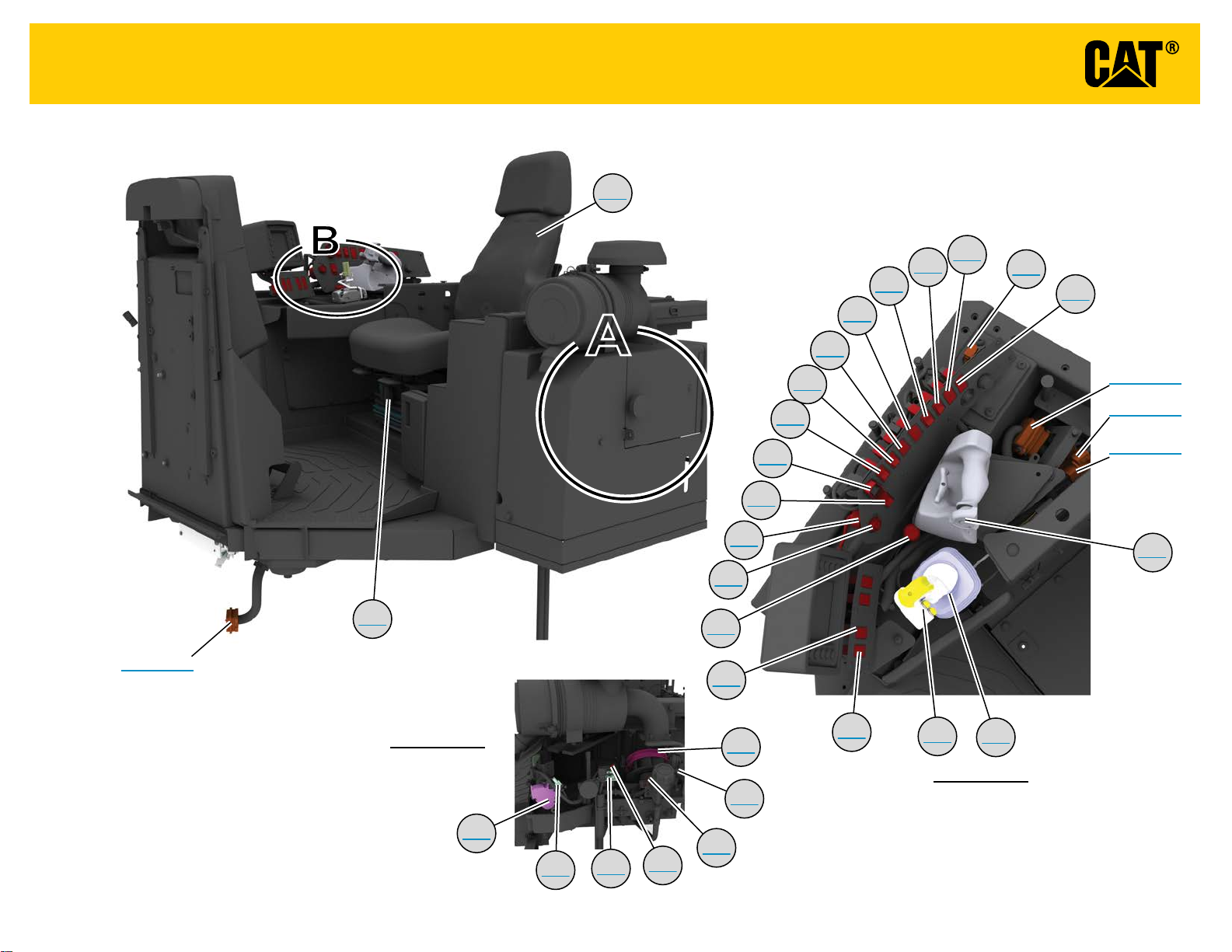

COMPONENT LOCATION Volume 2 of 2 - CAB
Component
Alarm - Action G-3 126 Relay - Remote Lighting C-14 174
Alarm - Navigator B-2 127 Relay - Start 1 H-13 175
Battery Backup B-4 128 Relay - Start 2 H-13 176
Block Assembly K-10 129 Resistor - Blower K-13 177
Breaker - Blower J-12 130 Resistor - CAN A Datalink 1 B-17 178
Breaker - Remote Condenser J-12 131 Resistor - CAN C Datalink 2 A-6 179
Bus - CH Strip J-12 132 Resistor - CAN C Datalink Term 1 H-4 180
Bus - CJ Strip K-11 133 Resistor - HVAC L-13 181
Bus - CK Strip K-11 134 Seat B-14 182
Bus - CL Strip H-13 135 Sensor - Decel Pedal F-3 183
Compressor C-14 136 Sensor - FNR H-7 184
Control - A/C Temp E-11 137 Sensor - LH Steer Lever Position H-7 185
Control - Advisor E-4 138 Sensor - RH Steer Lever Position H-7 186
Control - Implement F-17 139 Sensor - Service Brake F-3 187
Control - Navigator D-1 140 Switch - 4 Speed Blower F-11 188
Control - Powertrain J-16 141 Switch - A/C E-11 189
Control - Product Link E-10 142 Switch As - Limit I-7 190
Control - Shifter J-7 143 Switch - Auto Blade E-10 191
Converter - (20A) D-13 144 Switch - Auto Carry E-10 192
Converter - 24V To 12V (10A) E-3 145 Switch - Auto Downshift C-10 193
Display - Instrument Cluster G-3 147
Display - Monitor (Accugrade) J-1 148
Fuse Block J-12 149
Fuse - Standard Alternator K-12 150
Fuse - Thermal L-13 151
Handle - Implement Control B-8 152
Handle - Ripper Control C-9 153
Motor - Blower L-14 154
Motor - Console Raise/Lower I-7 155
Motor - Front Washer F-13 156
Motor - Front Wiper C-11 157
Motor - Left Washer F-13 158
Motor - Left Wiper C-11 159
Motor - Pressurizer K-12 160
Motor - Rear Washer E-13 161
Motor - Rear Wiper D-11 162
Motor - Right Washer E-13 163
Motor - Right Wiper D-11 164
Outlet - 12 Volt K-13
Outlet - RH Console 12 Volt B-7 166
Radio Antenna B-11 167
Radio - Product Link F-10 168
Receptacle As - Connector E-3 169
Relay - Cylinder Floods C-14 170
Relay - Fender Floods C-14 171
Relay - Main J-13 172
Relay - Pressurizer K-12 173
Schematic
Location
Machine Location
165
Component
Switch - Bi-Dir Shift D-9 194
Switch - Console Raise/Lower J-7 195
Switch - Cylinder Light C-10 196
Switch - Down Shift J-7 197
Switch - Fender Light C-10 198
Switch - Forward I-7 199
Switch - Forward Horn B-7 200
Switch - Front Intermittent Wiper D-13 201
Switch - Fwd HID Light B-10 202
Switch - Fwd ROPS Light B-10 203
Switch - Implement Shutoff E-9 204
Switch - Key Start B-7 205
Switch - Left Intermittent Wiper C-13 206
Switch - LH Door E-13 207
Switch - Parking Brake J-7 208
Switch - Rear Intermittent Wiper C-13 209
Switch - Rear ROPS Light B-10 210
Switch - Reverse I-7 211
Switch - Reversing Fan F-9 212
Switch - RH Door B-13 213
Switch - Right Intermittent Wiper C-13 214
Switch - Ripper Pin Puller E-8 215
Switch - Service Brake H-2 216
Switch - Throttle D-9 217
Switch - Up Shift J-7 218
Thermostat - HVAC L-13 219
Water Valve L-13 220
Schematic
Location
Machine Location
Page 5
CONNECTOR LOCATION Volume 1 of 2 - ENGINE AND CHASSIS
Connector Number
CONN 1
CONN 2
CONN 3
CONN 4
CONN 5
CONN 6
CONN 7
CONN 8
CONN 9
CONN 10
CONN 11
CONN 12
CONN 13
CONN 14
CONN 15
CONN 16
CONN 17
CONN 18
CONN 19
CONN 20
CONN 22
CONN 23
CONN 24
CONN 25
CONN 26
CONN 27
CONN 28
CONN 29
CONN 30
CONN 32
CONN 33
CONN 34
CONN 35
CONN 36
CONN 37
CONN 38
Schematic
Location
L-17
J-17
A-16
A-16
J-16
L-16
E-15
C-15
A-15
A-15
E-14
F-14
G-14
H-14
J-13
I-13
H-13
D-13
C-13
B-13
K-9
J-9
I-9
G-9
G-6
G-6
L-5
K-5
J-5
G-5
D-5
D-4
E-4
E-4
F-4
G-4
The connectors shown in this chart are for harness to harness connectors. Connectors that join a harness to a component are generally located at or near the component. See the Component Location Chart.
Page 6
CONNECTOR LOCATION Volume 2 of 2 - CAB
Connector Number
CONN 8 F-5
CONN 24 J-3
CONN 13 J-14
CONN 40 L-14
CONN 41 K-14
CONN 42 Data Link Service K-14
Schematic
Location
CONN 43 F-13
CONN 44 B-13
CONN 45 B-13
CONN 46 D-11
CONN 47 K-10
CONN 48 J-9
CONN 49 J-9
CONN 50 I-9
CONN 51 D-6
CONN 52 H-4
CONN 53 C-5
CONN 54 C-5
CONN 55 D-3, F-3, J-2
CONN 56 D-3, F-3, J-2
Page 7
CID / MID / FMI Page 1 of 3
Component Identifiers (CID¹)
Module Identifier (MID²)
Engine ECM
(MID No. 036)
tnenopmoCDIC
0001 Cylinder 1 Injector Solenoid
0002 Cylinder 2 Injector Solenoid
0003 Cylinder 3 Injector Solenoid
0004 Cylinder 4 Injector Solenoid
0005 Cylinder 5 Injector Solenoid
0006 Cylinder 6 Injector Solenoid
0007 Cylinder 7 Injector Solenoid
0008 Cylinder 8 Injector Solenoid
0009 Cylinder 9 Injector Solenoid
0010 Cylinder 10 Injector Solenoid
0011 Cylinder 11 Injector Solenoid
0012 Cylinder 12 Injector Solenoid
0041 8 Volt DC Supply
0091 Throttle Switch
0100 Engine Oil pressure Sensor
0102 Boost Pressure Sensor
0110 Engine Coolant Temperature Sensor
0168 System Voltag
0172 Intake Manifold Air Temperature
0174 Fuel Temperature sensor
0190 Engine Speed Sensor
0248 Cat Data Link
0253 Personality Module
0254 Engine ECM
0262 5V Sensor DC Power Supply
0264 Decel Throttle Position Sensor
0266 Incorrect Crank W/O Inject Inputs
0268 Programmable Parameters
0274 Atmospheric Pressure Sensor
0290 Engine Fan Pump Pressure
0291 Engine Cooling Fan Solenoid
0296 Transmission ECM
0342 Secondary Engine Speed Sensor
0338 Pre-Lube Relay
0485 Engine Fan Reverse Solenoid
1076 Engine Cooling Fan Bypass Solenoid
1589 Turbo Inlet Air Pressure Sensor
2417 Ether Injection Control Solenoid
e
ADVISOR ECM (MID No. 053)
tnenopmoCDIC
0096 Fuel Level Sensor
0168 Electrical System
0248 Cat Datalink
0271 Action Alarm
0324 Front Action (Warning) Lamp
0296 Power Train ECM
0590 Engine ECM
0596 Implement ECM
0811 Quad Gage Module
1251 Alternator R Terminal
1426 Action Lamp
¹ The Cid is a diagnostic code that indicates which component is faulty.
²The MID is a diagnostic code that indicates which electronic component module diagnosed the fault.
Implement ECM
(MID No. 082)
tnenopmoCDIC
0041 8 Volt DC Power Supply
0168 Electrical System Voltage
0247 CAN Data Link
0262 5 Volt Sensor Supply
0296 Power tTrain ECM
0490 Implement Lockout Switch
0497 Blade Tilt Right Solenoid Valve
0498 Blade Tilt Left Solenoid Valve
0588 Monitoring System Display
0590 Engine ECM
0650 Harness Code
0869 Right Lift Cylinder Position Sensor (CDO)
0870 Left Lift Cylinder Position Sensor (CDO)
0873 Tilt Hydraulic Pump Pressure Sensor
0874 Mode Select Switch
0875 Blade Control Handle
0879 Ripper Shank In/Out Sensor
0880 Ripper Raise/Lower Sensor
0881 Ripper Shank Auto Stow Switch
0882 Implement Lockout Solenoid Valve
0884 Pitch Solenoid of Dual Tilt Solenoid Valve
0885 Pressure Compensation Override Solenoid Valve
0886 Ripper Shank In Solenoid Valve
0887 Ripper Shank Out Solenoid Valve
0888 Ripper Shank Lower Solenoid Valve
0889 Ripper Shank Raise Solenoid Valve
1047 Single Tilt Solenoid of Dual Tilt Solenoid Valve
1078 Blade Control Handle Raise/Lower Sensor
1079 Blade Control Handle Tilt Sensor
1197 Blade Lower Solenoid Valve
1198 Blade Raise Solenoid Valve
1298 All Solenoids Out Of Calibration
1326 ECM Location Code
1450 Main Hydraulic Pump Oil Pressure Sensor
1482 10 Volt DC Power Supply
1709 Implement Oil DiverterSolenoid Valve
1870 Blade Control Handle Posistion Sensor
1871 Blade Quick Drop Solenoid
1872 Blade Quick Drop Solenoid
1995 Blade Float Solenoid
2114 Trigger Switch
Page 8
CID / MID / FMI Page 2 of 3
Power Train ECM
(MID No. 113)
tnenopmoCDIC
0041 8 Volt DC Power Supply
0070 Parking Brake Switch
0168 Electrical System
0177 Transmission Oil Temperature Sensor
0262 5 Volt Sensor Power Supply
0298
0299 Transmission Direction Lever position Sensor
0368 Autoshift Switch
0468 Service Brake Pedal Position Sensor
0473 Charge Oil Pressure
0585 Transmission Output Speed 1 Sensor
0590 Engine ECM
0596 Implement ECM
0618 Parking Brake Switch - Brake Backup Pole
0621 Downshift Switch
0622 Upshift Switch
0650 Harness Code
0668 Transmission Shift Lever
0672 Torque Converter Output Speed Sensor
0673 Transmission Output Speed 2 Sensor
0676 Left Steering Lever Position Sensor
0677 Right Steering Lever Position Sensor
0681 Parking Brake Solenoid
0689 Left Steering Brake Solenoid
0690 Right Steering Brake Solenoid
0697 Priority Solenoid Valve
0698 Left Steering Clutch Solenoid Valve
0699 Right Steering Clutch Solenoid Valve
0722 Secondary Brake Solenoid Valve
0726 Right Steering Solenoid Valve
0727 Left Steering Solenoid Valve
0826 Torque Converter Oil Temperature Sensor
1326 ECM Location Code
1401 Transmission Solenoid Valve 1
1402 Transmission Solenoid Valve 2
1403 Transmission Solenoid Valve 3
1404 Transmission Solenoid Valve 4
1405 Transmission Solenoid Valve 5
1469
1470 Steering Motor Speed Sensor 2
147
1472 Steering Tilt Position Sensor 2
1473 Steering Tilt Position Sensor 3
1482 10 Volt Sensor Power Supply
1582 Transmission Lube Oil Temperature Sensor
2121 Forward Switch
2122 Reverse Switch
¹ The Cid is a diagnostic code that indicates which component is faulty.
²The MID is a diagnostic code that indicates which electronic component module diagnosed the fault.
Service Brake Switch
Steering Motor Speed Sensor 1
1 Steering Tilt Position Sensor 1
Failure Mode Identifiers (FMI)¹
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.
Warning Operation
Event Codes
Warning
Level
Level 1 OFF OFF ON
Level 2 OFF Flash ON and OFF ON
Level 3 Pulse ON and OFF Flash ON and OFF ON
Action Alarm Action Indicator
Advisor Display
Pop Up Message
Page 9
CID / MID / FMI

Page 3 of 3

Event Codes
Implement ECM
noitidnoCedoC tnevE
E078 ABA Pitch Not Reset
E080 ABA Low Engine Speed
E081 ABA Incorrect Gear
E236 Fan Return Filter Plugged
E296 Implement Controls Active
E467 Blade Lift Control Fault
E468 Blade Tilt Control
E469 Blade Pitch Control
E470 Mode
E471 Manual Select Switch
E472 Ripper In/Out Control
E473 Ripper Lift Control
E474 Ripper Auto Stow Switch
E475 Winch Spool In/Out
E476 Winch Drum Release
E540 Oil Renewal Tank Level low
E788 Aux 1 Control Out Of Neutral
E789 Aux 2 Control Out Of Neutral
E790 Aux 3 Control Out Of N
E861 Clock Manual
E878 High Hydraulic Temperature
E887 Blade Function Disabled
E888 Ripper Function Disabled
E
889 Winch Function Disabled
E892 Tilt Limiting Not available
E1005 Main Pump Screen Plugged
E1006 Tilt Pump Screen Plugged
E1007 Fan Pump Screen Plugged
E1047 Blade Tilt Limit Reached
E1048 Blade Tilt Position Exceeded
E2086 Hydraulic Fan Return Filter Plugged
E2089 Oil Renewal Disabled
E2092 ABA Disabled
E2094 Auto Return Disabled
E2095 Auto Spread Disabled
E2115 Implement Disabled
E2136 Auto Carry Disabled
E2137 Auto Carry
E2155 Auto
Select Switch
eutral
Alignment Required
Inhibited
Carry Incorrect Gear
Event Codes
Engine ECM
noitidnoCedoC tnevE
E035 Loss Of Coolant Flow
E172 High Air Filter Restriction
E194 High Exhaust Temperature
E360 Low Engine Oil Pressure Warning
E361 High Engine Coolant Temperature
E362 Engine Overspeed (rpm)
E390 Fuel Filter Restriction
E539 High Intake Manifold Air Temperature
Event Codes
Advisor ECM
noitidnoCedoCtnevE
E119 Fuel Level Low
E179 Alternator R Terminal Frequency Low
E441 System Voltage Low
E861 Clock Manual Alignment Required
E875 System Voltage Low
E876 System Voltage High
Event Codes
Powertrain ECM
noitidnoCedoC tnevE
E030 Transmission Oil Temperature High
E116 PTO Filter Plugged
E155 High TCO Oil Temperature
E192 Steering System Malfunction Warning
E256 Steering In Wrong Direction
E257 Steering with No Command
E258 No Steering With Command
E281 Steering Oil Filter Plugged
E283 Low Hydraulic Charge Pressure
E564 Transmission Slip Detected
E572 Transmission Cold Code
E861 Clock Manual Alignment Required
Page 10
SPECIFICATIONS AND RELATED MANUALS Volume 1 of 2 - ENGINE AND CHASSIS
Resistor, Sender, and Solenoid Specifications
Part No. Resistance (Ohms)¹
Component Description
CAN D Datalink Term 1 CAN A Datalink Term 2 CAN B Datalink 2 Resistor134-2540 CA
N B Datalink Term 1
CAN D Datalink Term 2
120 ± 12
Sender145-7028
Solenoid174-4916
Solenoid Diverter 152-8340
3E-9205 Solenoid Dual Tilt 24.9 ± 0.4
279-6528 Solenoid
244-3114 Solenoid
380-9849 Solenoid
222-3137 Solenoid PCO / Ripper RV 38.12 ± 1.9 152-8340 Solenoid Reversing Fan 32.6 ± 1.6
3e-8575 Solenoid Ripper Pin 24.9 ± 0.4
239-1134 Solenoid Start Aid 20
¹ At room temperature unless otherwise noted.
Hydraulic Oil Temperature XMSN Sump Temperature
Blade Lower Blade Raise Blade Tilt (Left) Rack Blade Tilt (Right) Dump
Fan Bypass Implement Shutoff
Forward Clutch 2 / Reverse Clutch 1 First Gear Clutch 5 / Second Gear Clutc Third Gear
Park Brake Dump Service Brake Dump
Clutch 3
h 4
17.6 ± 0.6 A/C ClutchSolenoid106-5122
8.7 ± 0.4
32.6 ± 1.6
32.6 ± 1.6
1.6 ± 0.08
41.9 ± 2.1
Off-Machine Switch Specification
Part No. Function Actuate Deactuate
275 kPa MAX 170 ± 55 kPa
A/C High Pressure355-3148
149-6371 A/C Low Pressure Normally Open
Coolant Flow100-4417 Normally Open
253-2673 Fan Return Bypass Pressure Normally Closed
258-0883
¹ With increasing pressure the closed condition can be maintained up to 2800 kPa (405 psi), with decreasing pressure the closed condition can be maintained down to 170 kPa (25 psi).
² Contact position at the contacts of the harness connector.
Fan Diff Filter Pressure Normally Closed
(39.88 psi MAX) (24.65 ± 7.9 psi)
2800 ± 140 kPa 1750 ± 200 kPa
(406.10 ± 20.30 psi) (253.81 ± 29 psi)
103.4 ± 13.8 kPa 34.5 ± 7 kPa
(14.99 ± 2 psi) (5 ± 1 psi)
362 ± 29 mN 303 mN MIN
(1.3 ± 0.1 oz) (1.1 oz MIN)
at point X at point X
148 ± 28 kPa 69 kPa
(21.46 ± 4 psi) (10 psi)
110.3 ± 13.8 kPa 69 Kpa MIN
(15.99 ± 2 psi)
(10 psi MIN)
Contact Position
Normally Closed
0-2
0-1 and 0-3 Normally
Open
Related Electrical Service Manuals
Title
Alternator: 197-8820
Electric Starting Motor: 2371962
Attachment:
239-8035 (Ducted)
6V-0928
Form Number
SENR4130
SENR3860
6508RNER:MCE rosivdA
0905RNER:MCE enignE
6508RNER:MCE tnemelpmI
6508RNER:MCE niartrewoP
Page 11
SPECIFICATIONS AND RELATED MANUALS Volume 2 of 2 - CAB
Resistor, Sender and Solenoid Specification
P
1
239-9368 Resistor: HVAC 27K ± 270
248-2921 Resistor: Blower
¹ At room temperature unless otherwise noted.
Off Machine Switch Specification
3E-5464 Refrigerant Thermostat
-1.1 ± 0.8°C (30 ± 1.4°F)
2.2 ± 0.8°C
(36 ± 1.4°F)
Related Electrical Service Manuals
Title
Alternator: 197-8820
Electric Starting Motor: 2371962
Attachment:
239-8035 (Ducted)
6V-0928
Form Number
SENR4130
SENR3860
6508RNER:MCE rosivdA
0905RNER:MCE enignE
6508RNER:MCE tnemelpmI
6508RNER:MCE niartrewoP
(A-C) 2 ± 0.1 (B-C) 1 ± 0.5
(C-D) 0.36 ± 0.018
¹)smhO( ecnatsiseRnoitpircseD tnenopmoC.oN tra
21 ± 021rotanimreT knilataD C naC , A naC:rotsiseR0452-43
soP tcatnoCetautcaeDetautcAnoitcnuF.oN traP
Normally Closed
noiti
Page 12
HARNESS and WIRE
Electrical Schematic Symbols
Symbols
Pressure
Symbol
T
T
Temperature
Symbol
Level
Symbol
Flow
Symbol
Circuit Breaker
Symbol
Symbols and Definitions
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates that the component has
screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.). No circle indicates that the wire cannot be disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire. The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground. It is grounded by being fastened to the
machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge. The sender measures the temperature or pressure. Its resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current flows through it. The electromagnet can open or close the switch part of the relay.
Solenoid: A solenoid is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current flows through it. The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is activated by electricity and held latched by a permanent magnet. It has two coils (latch and unlatch) that make electromagnet when current flows through internal switch that places the latch coil circuit open at the time the coil latches.
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness Connector Serialization Codes (see sample).
Part Number: for
Connector Plug
Plug
Deutsch connector: Typical representation
1
of a Deutsch connector. The plug contains all
2
sockets and the receptacle contains all pins.
1 2
Sure-Seal connector: Typical representation of a Sure-Seal connector. The plug and receptacle contain both pins and sockets.
AG-C4
111-7898
Harness and Wire Symbols
1
2
L-C12 3E-5179
Receptacle Pin or Socket Number
L-C12 3E-5179
Fuse (5 Amps)
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
them. It also has an
Harness Identification Letter(s): (A, B, C, ..., AA, AB, AC, ...)
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the harness (C1, C2, C3, ...).
Part Number: for Connector Receptacle
5A
9X-1123
Component Part Number
325-AG135 PK-14
Wire Gauge Wire Color
Page 13
(47) DYNAMIC INCLINATION SENSOR
L
K
(54) DYNAMIC INCL SNSR
249-5648
+ BATTERY
SELECT A
SELECT B
J
(78) DIVERTER SOLENOID
(26) RADAR GUN
+ BATTERY
GROUND
GROUND SP
152-8340
I
H
G
F
E
D
C
B
A
SLOPE MONITORING
249-5652
+ BATTERY
SELECT A
CAN HI
CAN LO
SELECT B
GND
AK-C2 9X4385
A
B
CAN HI
C
CAN LO
D
E
GND
F
209-1280
RD-18
BK-18
GN-18
WH-18
AK-C5
3E3364
GN-18
GN-18
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
SENSOR
(27) GPS RADIO ACCUGRADE
AY-C2
200-WR5 BK-14-GXL 200-WR5 BK-14-GXL
WR-C1 9X4385
A
116-WR1 BR-14-GXL
B
200-WR7 BK-18-GXL
C
K960-WR3 PK-18-GXL
D
K961-WR4 GN-18-GXL
E
200-WR6 BK-18-GXL
F
200-WR2 BK-14-GXL
200-WR2 BK-14-GXL 200-WR6 BK-18-GXL 200-WR7 BK-18-GXL
116-WR1 BR-14-GXL 200-WR5 BK-14-GXL K960-WR3 PK-18-GXL K961-WR4 GN-18-GXL
WR-C2
1552252
1
CONN 1
2
3
CONNECT TO LF-C19
4
SH1 LOC J-17
5
6
7
8
9
10
11
12
CONN 6
WHEN USED CONNECT TO LF-C15
AY-C1 1552252
1
2
3
4
5
6
7
8
9
10
11
12
122-AY1 BU-14 200-AY2 BK-14 N961-AY3 OR-18 N958-AY4 PK-18 N960-AY6 OR-18 N957-AY7 PK-18 K960-AY9 PK-18 K961-AY10 GN-18 Y787-AY13 WH-18 Y788-AY14 GY-18 K960-AY11 PK-18 K961-AY12 GN-18
122-AY16 BU-14 122-AY15 BU-14
122-AY1 BU-14
200-AY17 BK-18 200-AY18 BK-18 200-AY19 BK-18 200-AY20 BK-14 200-AY21 BK-14 200-AY2 BK-14
K960-AY9 PK-18 K960-AY11 PK-18
K961-AY10 GN-18 K961-AY12 GN-18 N957-AY7 PK-18 N958-AY4 PK-18 N960-AY6 OR-18 N961-AY3 OR-18 Y787-AY13 WH-18
122-AY16 BU-14 200-AY21 BK-14 N961-AY3 OR-18 N958-AY4 PK-18 K960-AY9 PK-18 N960-AY6 OR-18 N957-AY7 PK-18 K961-AY10 GN-18
200-AY19 BK-18 200-AY20 BK-14 Y788-AY14 GY-18
122-AY15 BU-14 200-AY18 BK-18
K961-AY12 GN-18 200-AY17 BK-18
1678987
2600218
K960-AY11 PK-18
ACCUGRADE (ATCH)
CTCT ARO HIGH PERFORMANCE / CAES APPLICATIONS
1
FOR USE WITH
2
THIRD PARTY RADIO
3
4
CONN 5
AL-C1 1552252
1
122-AL1 BU-14
2
200-AL2 BK-14 200-AL2 BK-14
3
N961-AL3 OR-18
4
N958-AL4 PK-18
5
N960-AL5 OR-18
6
N957-AL6 PK-18
7
K960-AL16 PK-18
8
K961-AL18 GN-18
9
Y787-AL21 WH-18
10
Y788-AL23 GY-18
11
K960-AL17 PK-18
12
K961-AL19 GN-18
(40) CAN D DATALINK TERM RES 1
134-2540
A
B
C
122-AL1 BU-14
122-AL11 BU-14 122-AL12 BU-14
200-AL13 BK-14 200-AL14 BK-14 200-AL15 BK-18
K960-AL16 PK-18 K960-AL17 PK-18 K961-AL18 GN-18 K961-AL19 GN-18 N957-AL6 PK-18 N958-AL4 PK-18 N960-AL5 OR-18 N961-AL3 OR-18 N961-AL3 OR-18
N966-AL24 BU-18
N972-AL25 YL-18
Y787-AL21 WH-18
122-AL11 BU-14 200-AL14 BK-14 N960-AL5 OR-18 N957-AL6 PK-18 K960-AL16 PK-18 N966-AL24 BU-18 N972-AL25 YL-18 K961-AL18 GN-18
200-AL15 BK-18 200-AL13 BK-14 Y788-AL23 GY-18
122-AL12 BU-14
N958-AL4 PK-18
K961-AL19 GN-18
Y787-AL21 WH-18Y788-AL23 GY-18 K960-AL17 PK-18 N966-AL24 BU-18 N972-AL25 YL-18
AL-C2
(28) GPS RADIO
1678987
2600218
+ BATTERY
A
GROUND
B
C
COM 2 TXD
D
COM 2 RXD
E
CAN 0 +
F
COM 1 TXD
G
COM 1 RXD
H
CAN 0 -
(31) GPS RECEIVER FOR CAES ONLY
AL-C3
347-0910
A
SPARE
B
GROUND
CAN 2 LOW
C
CAN 2 SHIELD
D
E
SPARE
F
COM 1 TXD
SWITCHED POWER
G
H
SPARE
J
COM 1 RXD
K
CAN 1 SHIELD
L
CAN 1 LOW
ID PIN
M
N
CAN 2 HIGH
P
CAN 1 HIGH
R
COM 2 RXD
COM 2 TXD
S
116-AK1 BR-14
K960-AK3 PK-18
K961-AK4 GN-18
200-AK12 BK-18 200-AK2 BK-14
116-AK1 BR-14
116-AK5 BR-14 116-AK10 BR-14 116-AK10 BR-14
200-AK2 BK-14 K960-AK3 PK-18 200-AK12 BK-18
200-AK11 BK-14 200-AK6 BK-14
K960-AK3 PK-18 K961-AK4 GN-18
AK-C3 1552272
1
116-AK5 BR-14
2
200-AK6 BK-14
3
C913-AK7 BU-18
4
AK-C4 1552269
1
334-AK8 BU-18
2
C443-AK9 BU-18
200-AK11 BK-14
K961-AK4 GN-18
C913-AK7 BU-18 334-AK8 BU-18 C443-AK9 BU-18
116-AK5 BR-14
200-AK6 BK-14
(43) CAN B DATALINK TERM 1
134-2540
AK-C1
1552252
CONN 2
LF-C19 3E5179
1
116-LF64 BR-14-GXL
2
200-LF89 BK-14-GXL
3
K960-LF91 PK-18-GXL
4
K961-LF99 GN-18-GXL
5
709-LF84 OR-18-GXL
6
J764-LF85 BR-18-GXL
7
C913-LF81 BU-18-GXL
8
334-LF82 BU-18-GXL
9
C443-LF83 BU-18-GXL
10
11
12
LF-C20 1740502
A
K960-LF97 PK-18-GXL
B
K961-LF105 GN-18-GXL
C
122-LF75 BU-14-GXL
N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL
122-LF75 BU-14-GXL
N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL
116-LF64 BR-14-GXL
200-LF89 BK-14-GXL 200-LF74 BK-14-GXL 200-LF90 BK-14-GXL
334-LF82 BU-18-GXL 709-LF84 OR-18-GXL C443-LF83 BU-18-GXL C913-LF81 BU-18-GXL J764-LF85 BR-18-GXL
K960-LF77 PK-18-GXL
K960-LF91 PK-18-GXL
K960-LF92 PK-18-GXL
K960-LF93 PK-18-GXL
K960-LF94 PK-18-GXL
K960-LF97 PK-18-GXL
K960-LF98 PK-18-GXL
K961-LF78 GN-18-GXL
K961-LF99 GN-18-GXL
K961-LF100 GN-18-GXL
K961-LF101 GN-18-GXL
K961-LF102 GN-18-GXL
K961-LF105 GN-18-GXL
K961-LF106 GN-18-GXL
Y787-LF108 WH-18-GXL Y787-LF95 WH-18-GXL
Y787-LF96 WH-18-GXL
Y787-LF107 WH-18-GXL Y787-LF79 WH-18-GXL
Y788-LF110 GY-18-GXL Y788-LF87 GY-18-GXL Y788-LF88 GY-18-GXL
Y788-LF109 GY-18-GXL Y788-LF80 GY-18-GXL
Y787-LF95 WH-18-GXL Y788-LF87 GY-18-GXL N976-LF103 PU-18-GXL N967-LF104 GY-18-GXL
122-LF75 BU-14-GXL 200-LF90 BK-14-GXL N961-LF63 OR-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N957-LF45 PK-18-GXL K960-LF93 PK-18-GXL K961-LF101 GN-18-GXL Y787-LF107 WH-18-GXL Y788-LF109 GY-18-GXL K960-LF98 PK-18-GXL K961-LF106 GN-18-GXL
Y787-LF108 WH-18-GXL Y788-LF110 GY-18-GXL
116-LF64 BR-14-GXL 122-LF75 BU-14-GXL 200-LF74 BK-14-GXL
1552272
LF-C27
1740502
334-LF82 BU-18-GXL
709-LF84 OR-18-GXL
C443-LF83 BU-18-GXL C913-LF81 BU-18-GXL J764-LF85 BR-18-GXL K960-LF77 PK-18-GXL K961-LF78 GN-18-GXL N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL Y787-LF79 WH-18-GXL Y788-LF80 GY-18-GXL
LF-C33
LF-C15 3E5179
TRANSMISSION SPEED CLUTCHES / SENSORS
TR-C7 1552269
1
(71) XMSN OUTPUT SPEED2
(70) XMSN OUTPUT SPEED1
191-8304
191-8305
(82) FORWARD CLUTCH 2
(100) REVERSE CLUTCH 1
(81) FIRST GEAR CLUTCH 5
(109) SECOND GEAR CLUTCH 4
(112) THIRD GEAR CLUTCH 3
BK-18
WH-18
WH-18
BK-18
244-3114
244-3114
244-3114
244-3114
244-3114
2
2
1
H2
E901-TR1 GN-18 E900-TR2 WH-18
E906-TR3 OR-18 E907-TR4 GY-18
TR-C8 1552269
TR-C6 1552269
1
752-TR11 YL-18
2
975-TR16 WH-18
TR-C5 1552269
1
751-TR12 GN-18
2
975-TR17 WH-18
TR-C4 1552269
1
900-TR13 PU-18
2
924-TR18 GN-18
TR-C3 1552269
1
755-TR14 OR-18
2
924-TR20 GN-18
TR-C2 1552269
1
754-TR15 BU-18
2
924-TR19 GN-18
H2
E901-TR1 GN-18 E906-TR3 OR-18 E907-TR4 GY-18 755-TR14 OR-18 751-TR12 GN-18 752-TR11 YL-18 754-TR15 BU-18 E900-TR2 WH-18
975-TR16 WH-18 975-TR8 WH-18 975-TR17 WH-18 924-TR19 GN-18 924-TR20 GN-18 924-TR18 GN-18
900-TR13 PU-18
H2
975-TR9 WH-18 924-TR21 GN-18 924-TR22 GN-18
TR-C1
2503508
CONN 7
TJ-C3 1543172
A
B
C
D
E
F
G
H
I
J
K
L
M
N
E901-TJ1 GN-18 E906-TJ6 OR-18
755-TJ8 OR-18 751-TJ9 GN-18 752-TJ10 YL-18 754-TJ11 BU-18 E900-TJ12 WH-18 900-TJ13 PU-18 975-TJ21 WH-18 975-TJ20 WH-18 924-TJ18 GN-18 924-TJ19 GN-18
XMSN JUMPER
(5) ARC SUPPRESSOR 1
(105) RIPPER PIN SOL
3E-8575
(6) ARC SUPPRESSOR 2
TO PLATFORM
P-C2 SHT 2 F-5
RH REAR FENDER FLOOD
153-2073
FENDER A/C CONDENSER
(39) FENDER COND RELAY
(20) FENDER COND FAN 1
(21) FENDER COND FAN 2
MOTOR
MOTOR
399-4829
WH/RD-14
BK-14
399-4829
WH/RD-14
BK-14
2
2
1
FC-C1 1552269
FC-C3 1552269
593-FC8 GN-14
200-FC6 BK-14
593-FC7 GN-14
200-FC4 BK-14
200-FC5 BK-16
3E-5239
3
87a
4
87
85 86
5
1
30
158-FC1 BR-14593-FC9 GN-14
FC-C4 9X1054
2
FC-C2
3E3370
CONN 3
AC-C1 3E3367
A
B
C1
158-AC1 BR-14 521-AC2 YL-14 200-AC3 BK-14
AC-C2
3E3370
CONN 5
AR-C1 3E3367
A
B
C
158-AR1 BR-14 521-AR2 YL-14 200-AR3 BK-14
521-FC2 YL-16
200-FC3 BK-14
AR-C2
3E3370
CONN 9
AU-C1 1552267
A
B
C
158-AU1 BR-14 521-AU2 YL-14 200-AU3 BK-14
18 17 16 15 14 13 12 11
+ BATTERY
A
GROUND
B
C
COM 2 TXD
D
COM 2 RXD
E
CAN 0 +
F
COM 1 TXD
G
COM 1 RXD
H
CAN 0 -
(30) GPS RECEIVER (ACCUGRADE)
AY-C3
A
COM GND
B
GROUND
C
CAN 2 LOW
D
E
F
G
SWITCHED POWER
H
BOOT MONITOR
J
K
L
CAN 1 LOW
M
ID PIN
N
CAN 2 HIGH
P
CAN 1 HIGH
R
S
RIPPER FLOOD
147-0319
975-TJ14 WH-18 975-TJ15 WH-18 924-TJ16 GN-18 924-TJ17 GN-18
AU-C2
3E3370
RF-C11 1552269
1
2
RF-C19 1552272
1
2
3
4
RF-C20 1552269
1
2
RF-C1 1607689
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
RF-C15 1552269
1
2
CONN 10
RF-C4 1552267
A
B
C
189-3158
BK-18
WH-18
WH-18
BK-18
189-3158
CONN 8
RH FENDER
CONNECTOR
(3) BACKUP ALARM
213-9100
LH REAR FENDER FLOOD
RL-C2 1552269
1
2
(69) ULTRASONIC FUEL LVL SNSR
153-2073
630-RL1 GY-16 200-RL2 BK-16
CONN 14
124-9325
+V ANALOG
DIGITAL RET
SIG-DEEP
SIG-SHALLOW
TO PLATFORM LH FENDER CONNECTOR P-C3 SHT 2 J-14
CONN 13
E901-TJ1 GN-18
E906-TJ6 OR-18 E907-TJ7 GY-18 755-TJ8 OR-18E907-TJ7 GY-18 751-TJ9 GN-18 924-TJ17 GN-18 975-TJ15 WH-18 E900-TJ12 WH-18
924-TJ16 GN-18
752-TJ10 YL-18 754-TJ11 BU-18
900-TJ13 PU-18 975-TJ14 WH-18
779-RF40 WH-18-GXL 200-RF18 BK-18-GXL
779-RF39 WH-18-GXL 200-RF23 BK-18-GXL 200-RF25 BK-18-GXL 780-RF33 PU-18-GXL
780-RF38 PU-18-GXL 200-RF57 BK-18-GXL
T997-RF12 OR-18-GXL 210-RF49 BK-18-GXL 158-RF3 BR-14-GXL 609-RF4 YL-14-GXL T993-RF36 BR-18-GXL E798-RF1 PK-18-GXL 921-RF6 WH-18-GXL
J913-RF7 GN-18-GXL J914-RF14 PU-18-GXL M928-RF15 BU-18-GXL
131-RF66 RD-14-GXL J922-RF32 GY-18-GXL J921-RF19 PK-18-GXL M929-RF20 WH-18-GXL H714-RF21 OR-18-GXL H801-RF22 PU-18-GXL
H802-RF24 GY-18-GXL M921-RF64 BR-18-GXL M919-RF62 BU-18-GXL 779-RF26 WH-18-GXL 780-RF27 PU-18-GXL 521-RF28 YL-14-GXL R131-RF67 RD-14-GXL Y773-RF10 GY-18-GXL
E450-RF34 GN-18-GXL H817-RF70 OR-18-GXL H818-RF69 GN-18-GXL 638-RF71 WH-18-GXL
J842-RF68 BK-18-GXL E918-RF42 GN-18-GXL C443-RF17 BU-18-GXL 491-RF44 PK-18-GXL
A571-RF30 PU-16-GXL 113-RF29 RD-16-GXL 174-RF9 PK-16-GXL
609-RF5 YL-14-GXL 200-RF56 BK-14-GXL
158-RF3 BR-14-GXL 521-RF28 YL-14-GXL 200-RF55 BK-14-GXL
RD-16
BK-16
RL-C1
1552269
OR-18
BK-18
BU-18
YL-18
TJ-C1
3E5179
TJ-C2
1552252
116-LF64 BR-14-GXL 122-LF75 BU-14-GXL 200-LF74 BK-14-GXL
334-LF82 BU-18-GXL
709-LF84 OR-18-GXL C443-LF83 BU-18-GXL
C913-LF81 BU-18-GXL J764-LF85 BR-18-GXL K960-LF77 PK-18-GXL K961-LF78 GN-18-GXL N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL Y787-LF79 WH-18-GXL Y788-LF80 GY-18-GXL
LF-C17 1552269
1
321-LF32 BR-18-GXL
2
F761-LF65 BR-18-GXL
LF-C10 1552269
1
609-LF21 YL-14-GXL
2
200-LF55 BK-14-GXL
LF-C18 3E3364
1
630-LF25 GY-14-GXL
2
200-LF56 BK-14-GXL
LF-C16 1552272
1
123-LF76 WH-18-GXL
2
T936-LF51 GN-18-GXL
3
T936-LF52 GN-18-GXL
4
469-LF38 GN-18-GXL
LF-C3 1607689
1
E900-LF1 WH-18-GXL
2
E901-LF2 GN-18-GXL
3
709-LF84 OR-18-GXL
4
116-LF64 BR-14-GXL
5
122-LF75 BU-14-GXL
6
J764-LF85 BR-18-GXL
7
E906-LF7 OR-18-GXL
8
E907-LF8 GY-18-GXL
9
752-LF9 YL-18-GXL
10
751-LF10 GN-18-GXL
11
N957-LF45 PK-18-GXL
12
N958-LF46 PK-18-GXL
13
975-LF12 WH-18-GXL
14
900-LF13 PU-18-GXL
15
755-LF14 OR-18-GXL
16
754-LF15 BU-18-GXL
17
924-LF16 GN-18-GXL
18
F792-LF17 WH-18-GXL
19
K952-LF18 BR-18-GXL
20
G731-LF19 GY-18-GXL
21
G730-LF20 PK-18-GXL
22
F761-LF66 BR-18-GXL
23
609-LF22 YL-14-GXL
24
326-LF31 PU-18-GXL
25
608-LF23 GN-14-GXL
26
615-LF24 YL-14-GXL
27
630-LF25 GY-14-GXL
28
N976-LF103 PU-18-GXL
29
X918-LF27 PU-18-GXL
30
X919-LF28 WH-18-GXL
31
A607-LF6 PK-18-GXL
32
N967-LF104 GY-18-GXL
33
471-LF26 PK-18-GXL
34
321-LF32 BR-18-GXL
35
202-LF34 BK-18-GXL
36
37
F761-LF67 BR-18-GXL
38
F791-LF62 BU-18-GXL
39
X754-LF70 GN-18-GXL
40
X755-LF73 WH-18-GXL
41
469-LF38 GN-18-GXL
42
924-LF39 GN-18-GXL
43
975-LF40 WH-18-GXL
44
229-LF4 BK-18-GXL
45
T936-LF42 GN-18-GXL
46
N960-LF59 OR-18-GXL
47
A405-LF11 WH-18-GXL
48
102-LF53 RD-14-GXL
49
123-LF76 WH-18-GXL
50
G460-LF71 GN-18-GXL
51
L740-LF72 BR-18-GXL
52
651-LF30 PK-14-GXL
53
54
55
56
57
58
59
N961-LF63 OR-18-GXL
60
K900-LF29 YL-18-GXL
61
K990-LF43 GN-18-GXL
62
Y787-LF79 WH-18-GXL
63
Y788-LF80 GY-18-GXL
64
K960-LF77 PK-18-GXL
65
K961-LF78 GN-18-GXL
66
C913-LF81 BU-18-GXL
67
334-LF82 BU-18-GXL
68
C443-LF83 BU-18-GXL
69
70
CONN 12
LF-C1 1552252
1
E901-LF2 GN-18-GXL
2
3
4
5
6
E906-LF7 OR-18-GXL
7
E907-LF8 GY-18-GXL
8
755-LF14 OR-18-GXL
9
751-LF10 GN-18-GXL
10
924-LF49 GN-18-GXL
11
975-LF47 WH-18-GXL
12
E900-LF1 WH-18-GXL
CONN 11
LF-C2 3E5179
1
924-LF50 GN-18-GXL
2
3
4
5
752-LF9 YL-18-GXL
6
754-LF15 BU-18-GXL
7
8
900-LF13 PU-18-GXL
9
975-LF48 WH-18-GXL
10
11
12
113-RF29 RD-16-GXL 131-RF66 RD-14-GXL
158-RF3 BR-14-GXL
174-RF9 PK-16-GXL 200-RF18 BK-18-GXL 200-RF23 BK-18-GXL 200-RF25 BK-18-GXL 200-RF55 BK-14-GXL 200-RF56 BK-14-GXL 200-RF57 BK-18-GXL 210-RF49 BK-18-GXL 491-RF44 PK-18-GXL
521-RF28 YL-14-GXL
609-RF5 YL-14-GXL 609-RF4 YL-14-GXL
638-RF71 WH-18-GXL
779-RF40 WH-18-GXL 779-RF26 WH-18-GXL 779-RF39 WH-18-GXL
780-RF38 PU-18-GXL 780-RF27 PU-18-GXL 780-RF33 PU-18-GXL
921-RF6 WH-18-GXL A571-RF30 PU-16-GXL C443-RF17 BU-18-GXL E450-RF34 GN-18-GXL E798-RF1 PK-18-GXL E918-RF42 GN-18-GXL H713-RF16 PK-18-GXLH713-RF16 PK-18-GXL H714-RF21 OR-18-GXL
H801-RF22 PU-18-GXL
H802-RF24 GY-18-GXL
H817-RF70 OR-18-GXL H818-RF69 GN-18-GXL J842-RF68 BK-18-GXL J913-RF7 GN-18-GXL J914-RF14 PU-18-GXL J921-RF19 PK-18-GXL J922-RF32 GY-18-GXL M919-RF62 BU-18-GXL M921-RF64 BR-18-GXL M928-RF15 BU-18-GXL M929-RF20 WH-18-GXL R131-RF67 RD-14-GXL
T993-RF36 BR-18-GXL
T997-RF12 OR-18-GXL
Y773-RF10 GY-18-GXL

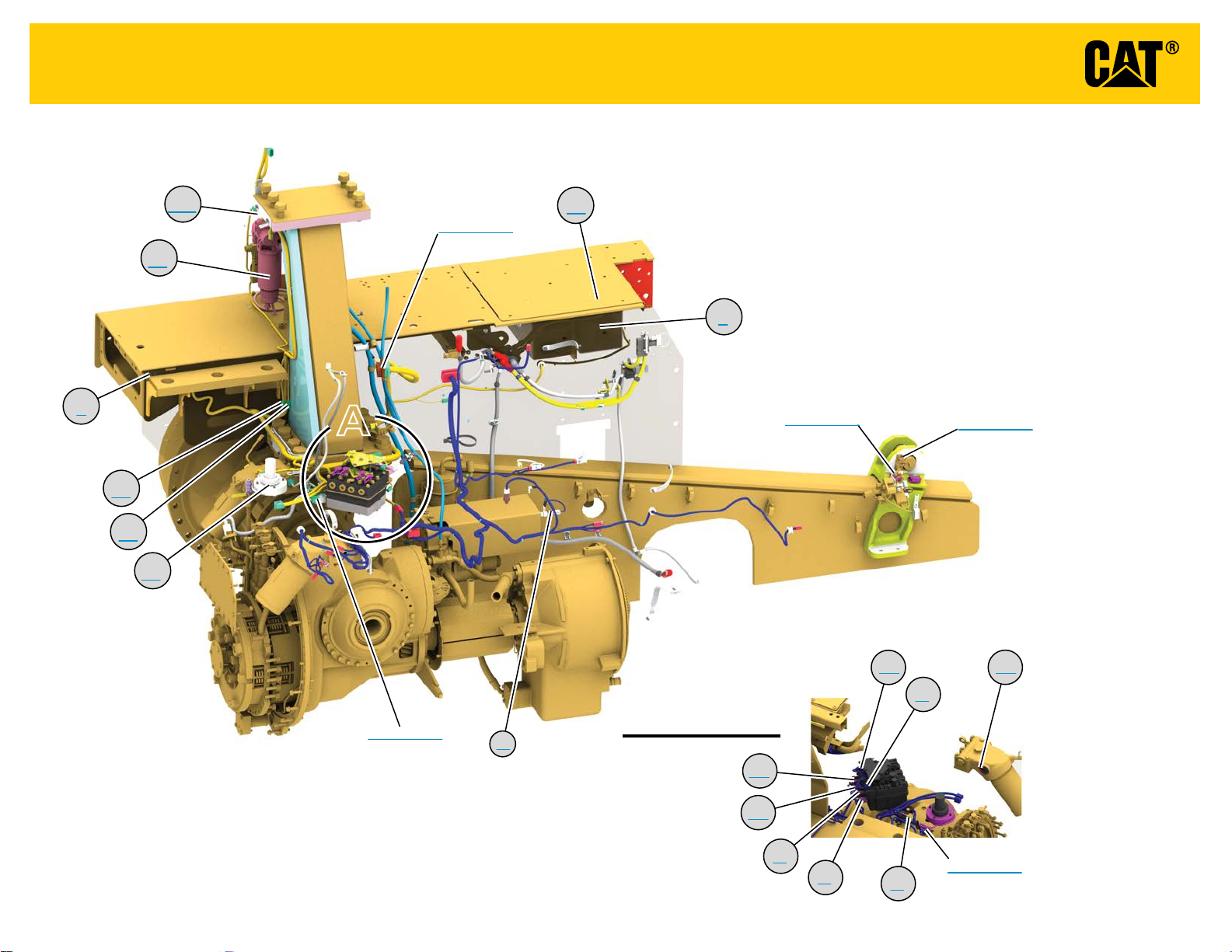

LEFT HAND FENDER
609-LF22 YL-14-GXL 609-LF21 YL-14-GXL
924-LF16 GN-18-GXL 924-LF39 GN-18-GXL 924-LF49 GN-18-GXL 924-LF50 GN-18-GXL
975-LF12 WH-18-GXL 975-LF47 WH-18-GXL 975-LF48 WH-18-GXL 975-LF40 WH-18-GXL
F761-LF65 BR-18-GXL F761-LF66 BR-18-GXL F761-LF67 BR-18-GXL
K952-LF18 BR-18-GXL
T936-LF51 GN-18-GXL T936-LF52 GN-18-GXL T936-LF42 GN-18-GXL
116-LF64 BR-14-GXL 122-LF75 BU-14-GXL 123-LF76 WH-18-GXL 321-LF32 BR-18-GXL 334-LF82 BU-18-GXL 469-LF38 GN-18-GXL 630-LF25 GY-14-GXL 709-LF84 OR-18-GXL 751-LF10 GN-18-GXL 752-LF9 YL-18-GXL 754-LF15 BU-18-GXL 755-LF14 OR-18-GXL 900-LF13 PU-18-GXL C443-LF83 BU-18-GXL C913-LF81 BU-18-GXL
E900-LF1 WH-18-GXL E901-LF2 GN-18-GXL E906-LF7 OR-18-GXL E907-LF8 GY-18-GXL J764-LF85 BR-18-GXL K960-LF77 PK-18-GXL K961-LF78 GN-18-GXL N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL Y787-LF79 WH-18-GXL Y788-LF80 GY-18-GXL
116-LF64 BR-14-GXL 122-LF75 BU-14-GXL 123-LF76 WH-18-GXL 321-LF32 BR-18-GXL 334-LF82 BU-18-GXL 469-LF38 GN-18-GXL 630-LF25 GY-14-GXL 709-LF84 OR-18-GXL 751-LF10 GN-18-GXL 752-LF9 YL-18-GXL 754-LF15 BU-18-GXL 755-LF14 OR-18-GXL 900-LF13 PU-18-GXL
C443-LF83 BU-18-GXL C913-LF81 BU-18-GXL E900-LF1 WH-18-GXL E901-LF2 GN-18-GXL E906-LF7 OR-18-GXL E907-LF8 GY-18-GXL J764-LF85 BR-18-GXL K960-LF77 PK-18-GXL K961-LF78 GN-18-GXL N957-LF45 PK-18-GXL N958-LF46 PK-18-GXL N960-LF59 OR-18-GXL N961-LF63 OR-18-GXL N967-LF104 GY-18-GXL N976-LF103 PU-18-GXL Y787-LF79 WH-18-GXL Y788-LF80 GY-18-GXL
RIGHT HAND FENDER
200-RF45 BK-16-GXL 200-RF47 BK-16-GXL 200-RF48 BK-16-GXL 200-RF59 BK-14-GXL
200-RF45 BK-16-GXL 200-RF47 BK-16-GXL 200-RF48 BK-16-GXL 200-RF59 BK-14-GXL
609-RF35 YL-14-GXL
H801-RF60 PU-18-GXL H801-RF61 PU-18-GXL H801-RF54 PU-18-GXL H801-RF53 PU-18-GXL
H802-RF51 GY-18-GXL H802-RF41 GY-18-GXL H802-RF58 GY-18-GXL H802-RF52 GY-18-GXL
T993-RF46 BR-18-GXL T993-RF65 BR-18-GXL
T997-RF31 OR-18-GXL T997-RF63 OR-18-GXL
WDA FLOOD LH
147-0319
WDA FLOOD RH
147-0319
102-LF53 RD-14-GXL 200-LF55 BK-14-GXL 200-LF56 BK-14-GXL 200-LF74 BK-14-GXL
202-LF34 BK-18-GXL
326-LF31 PU-18-GXL 471-LF26 PK-18-GXL 608-LF23 GN-14-GXL
615-LF24 YL-14-GXL
651-LF30 PK-14-GXL
A405-LF11 WH-18-GXL A607-LF6 PK-18-GXL
F791-LF62 BU-18-GXL F792-LF17 WH-18-GXL G460-LF71 GN-18-GXL G730-LF20 PK-18-GXL G731-LF19 GY-18-GXL K900-LF29 YL-18-GXL
K990-LF43 GN-18-GXL L740-LF72 BR-18-GXL
X754-LF70 GN-18-GXL X755-LF73 WH-18-GXL X918-LF27 PU-18-GXL X919-LF28 WH-18-GXL
LW-C2 1552269
1
609-LW3 YL-14
2
200-LW4 BK-14
LW-C3 1552269
1
2
131-LF112 RD-14-GXL 200-LF35 BK-18-GXL 200-LF41 BK-18-GXL 200-LF44 BK-14-GXL 200-LF57 BK-14-GXL
200-LF58 BK-14-GXL 329-LF33 YL-18-GXL H817-LF113 OR-18-GXL H818-LF114 GN-18-GXL J842-LF115 BK-18-GXL R131-LF116 RD-14-GXL
131-LF112 RD-14-GXL 200-LF35 BK-18-GXL 200-LF41 BK-18-GXL 200-LF44 BK-14-GXL 200-LF57 BK-14-GXL
200-LF58 BK-14-GXL 329-LF33 YL-18-GXL H817-LF113 OR-18-GXL H818-LF114 GN-18-GXL J842-LF115 BK-18-GXL R131-LF116 RD-14-GXL
609-LF5 YL-14-GXL 609-LF36 YL-14-GXL 609-LF3 YL-14-GXL
F761-LF68 BR-18-GXL F761-LF69 BR-18-GXL
K952-LF37 BR-18-GXL K952-LF54 BR-18-GXL K952-LF60 BR-18-GXL K952-LF61 BR-18-GXL
131-RF66 RD-14-GXL 638-RF71 WH-18-GXL H817-RF70 OR-18-GXL H818-RF69 GN-18-GXL J842-RF68 BK-18-GXL M919-RF62 BU-18-GXL M921-RF64 BR-18-GXL
R131-RF67 RD-14-GXL T993-RF46 BR-18-GXL T993-RF65 BR-18-GXL T997-RF31 OR-18-GXL T997-RF63 OR-18-GXL
200-RF59 BK-14-GXL 200-RF48 BK-16-GXL 200-RF25 BK-18-GXL 200-RF23 BK-18-GXL 200-RF47 BK-16-GXL 200-RF55 BK-14-GXL 200-RF45 BK-16-GXL 200-RF56 BK-14-GXL 200-RF18 BK-18-GXL 200-RF57 BK-18-GXL
J913-RF7 GN-18-GXL J914-RF14 PU-18-GXL M928-RF15 BU-18-GXL H713-RF16 PK-18-GXL J922-RF32 GY-18-GXL H802-RF41 GY-18-GXL E918-RF42 GN-18-GXL C443-RF17 BU-18-GXL
H801-RF61 PU-18-GXL H802-RF58 GY-18-GXL H801-RF60 PU-18-GXL H714-RF21 OR-18-GXL M929-RF20 WH-18-GXL J921-RF19 PK-18-GXL H802-RF51 GY-18-GXL H802-RF52 GY-18-GXL E798-RF1 PK-18-GXL
H801-RF53 PU-18-GXL H801-RF54 PU-18-GXL
E450-RF34 GN-18-GXL 210-RF49 BK-18-GXL
491-RF44 PK-18-GXL Y773-RF10 GY-18-GXL
A571-RF30 PU-16-GXL 200-RF45 BK-16-GXL
113-RF29 RD-16-GXL 200-RF47 BK-16-GXL
174-RF9 PK-16-GXL 200-RF48 BK-16-GXL
609-RF35 YL-14-GXL 200-RF59 BK-14-GXL
1552252
1552269
1552269
1552267
1552269
1552269
RF-C3
3E5179
RF-C2
RF-C16
RF-C6
RF-C12
RF-C13 3E3364
RF-C14
RF-C7
147-0319 (HALOGEN)
CENTER REAR ROPS HID
RH FENDER
GROUND
CONN 19
EH-C1 1552252
1
J913-EH1 GN-18
2
J914-EH2 PU-18
3
M928-EH3 BU-18
4
H713-EH4 PK-18
5
J922-EH6 GY-18
6
H802-EH7 GY-18
7
E918-EH5 GN-18
8
C443-EH8 BU-18
9
10
11
12
CONN 20
EH-C2 3E5179
1
H801-EH17 PU-18
2
H802-EH18 GY-18
3
H801-EH16 PU-18
4
H714-EH15 OR-18
5
M929-EH14 WH-18
6
J921-EH13 PK-18
7
H802-EH12 GY-18
8
H802-EH11 GY-18
9
E798-EH19 PK-18
10
921-EH20 WH-18921-RF6 WH-18-GXL
11
H801-EH9 PU-18
12
H801-EH10 PU-18
1
BK-18
2
BK-18
BK-18
1
BK-18
2
A
CUSTOM 24V SWITCHED
B
POWER CONNECTOR
C
(FROM AUXILIARY SW)
1
CUSTOM 24V UNSWITCHED
2
POWER CONNECTOR
1
CUSTOM 24V SWITCHED
2
POWER CONNECTOR
1
RH FRONT FENDER FLOOD
2
153-2073
LH REAR ROPS
157-0305 (SPOT)
332-9402
LW-C1
609-LW1 YL-14609-LW5 YL-14 200-LW2 BK-14200-LW6 BK-14
3E3364
CONN 16
LF-C4
608-LF23 GN-14-GXL 615-LF24 YL-14-GXL 200-LF57 BK-14-GXL 609-LF3 YL-14-GXL 651-LF30 PK-14-GXL 200-LF44 BK-14-GXL
609-LF36 YL-14-GXL 200-LF58 BK-14-GXL
131-LF112 RD-14-GXL
H817-LF113 OR-18-GXL H818-LF114 GN-18-GXL J842-LF115 BK-18-GXL R131-LF116 RD-14-GXL
102-LF53 RD-14-GXL 200-LF41 BK-18-GXL 229-LF4 BK-18-GXL229-LF4 BK-18-GXL K900-LF29 YL-18-GXL K990-LF43 GN-18-GXL 609-LF5 YL-14-GXL A607-LF6 PK-18-GXL
X918-LF27 PU-18-GXL X919-LF28 WH-18-GXL
A405-LF11 WH-18-GXL 202-LF34 BK-18-GXL
G460-LF71 GN-18-GXL L740-LF72 BR-18-GXL
G730-LF20 PK-18-GXL F761-LF68 BR-18-GXL
G731-LF19 GY-18-GXL F761-LF69 BR-18-GXL
F792-LF17 WH-18-GXL K952-LF37 BR-18-GXL
X754-LF70 GN-18-GXL K952-LF54 BR-18-GXL
F791-LF62 BU-18-GXL K952-LF60 BR-18-GXL
X755-LF73 WH-18-GXL K952-LF61 BR-18-GXL
471-LF26 PK-18-GXL
326-LF31 PU-18-GXL
329-LF33 YL-18-GXL
329-LF33 YL-18-GXL 200-LF35 BK-18-GXL
131-LF112 RD-14-GXL
H817-LF113 OR-18-GXL
H818-LF114 GN-18-GXL J842-LF115 BK-18-GXL R131-LF116 RD-14-GXL
200-LF35 BK-18-GXL 200-LF44 BK-14-GXL 200-LF55 BK-14-GXL 200-LF57 BK-14-GXL 200-LF58 BK-14-GXL 200-LF41 BK-18-GXL 200-LF74 BK-14-GXL 200-LF56 BK-14-GXL
(117) FAN RTN FILTER BYPASS SW
253-2673
(45) HYD OIL TEMP SENDER
145-7028
T
1552273
LF-C7
1552269
LF-C32
1552273
LF-C14
1552252
LF-C5
1552269
LF-C6
1552269
LF-C9
1552272
LF-C11
1552272
LF-C12
1552269
LF-C22
1552269
LF-C23
1552269
LF-C25
1552269
LF-C26
1552269
LF-C21
1552267
LF-C8
1552269
131-RF66 RD-14-GXL
J842-RF68 BK-18-GXL H818-RF69 GN-18-GXL H817-RF70 OR-18-GXL
R131-RF67 RD-14-GXL 638-RF71 WH-18-GXL
T997-RF31 OR-18-GXL T993-RF46 BR-18-GXL M921-RF64 BR-18-GXL
T997-RF63 OR-18-GXL T993-RF65 BR-18-GXL M919-RF62 BU-18-GXL

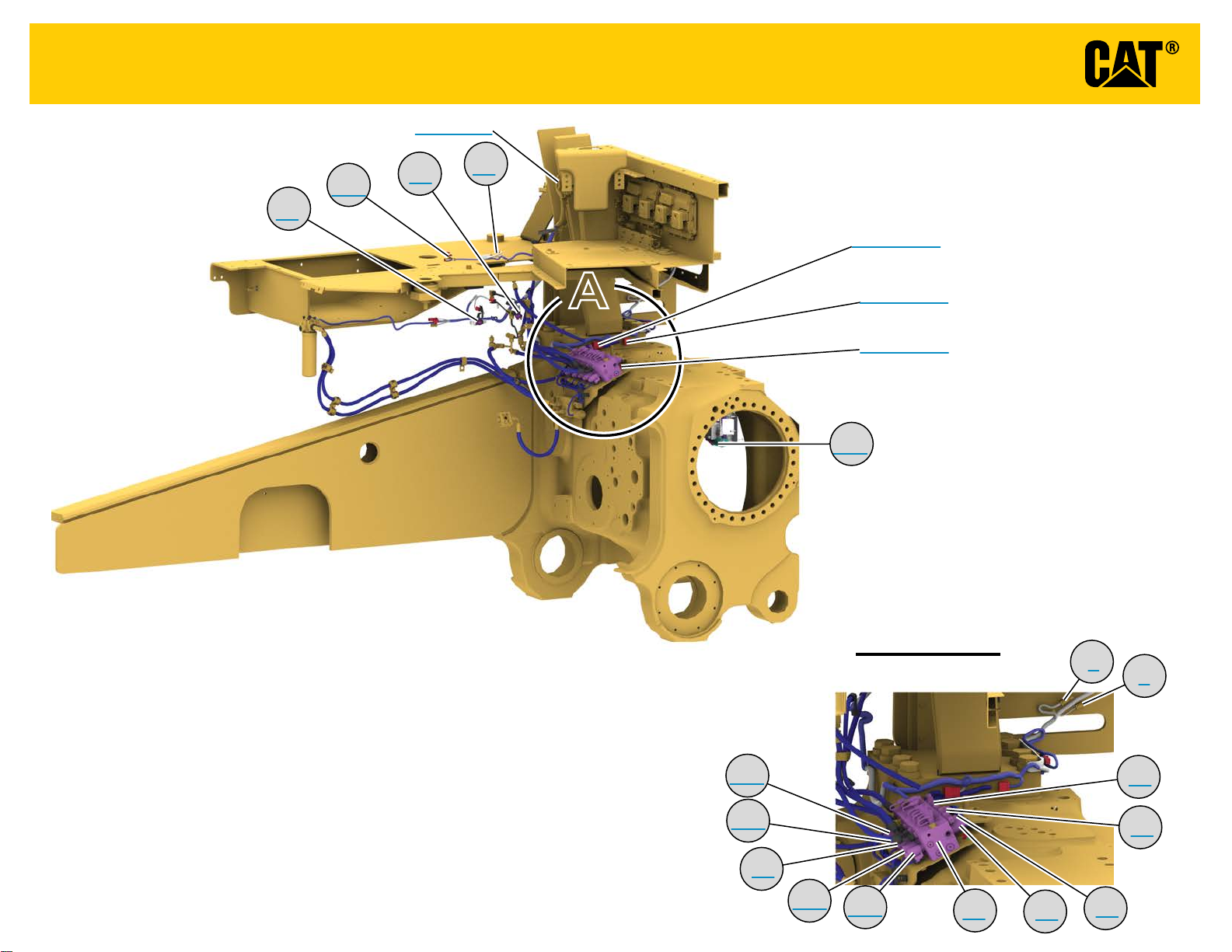

PILOT MANIFOLD
E918-EH5 GN-18 C443-EH8 BU-18
E798-EH19 PK-18 921-EH20 WH-18
J913-EH1 GN-18 H802-EH12 GY-18
J914-EH2 PU-18 H802-EH11 GY-18
M928-EH3 BU-18 H801-EH10 PU-18
H713-EH4 PK-18 H801-EH9 PU-18
J922-EH6 GY-18 H802-EH7 GY-18
J921-EH13 PK-18 H802-EH18 GY-18
M929-EH14 WH-18 H801-EH17 PU-18
H714-EH15 OR-18 H801-EH16 PU-18
LK-C2 3E3364
1
2
WHEN USED CONNECT TO RF-C14
CONN 21
LR-C9 1552269
1
608-LR15 GN-14-GXL
2
200-LR16 BK-14-GXL
LR-C3 1552269
1
651-LR10 PK-14-GXL
2
200-LR8 BK-14-GXL
LR-C5 1552269
1
609-LR11 YL-14-GXL
2
200-LR12 BK-14-GXL
CONN 15
LR-C1 3E3382
1
608-LR9 GN-14-GXL
2
615-LR6 YL-14-GXL
3
200-LR3 BK-14-GXL
4
609-LR11 YL-14-GXL
5
651-LR10 PK-14-GXL
6
200-LR12 BK-14-GXL
1
LH FRONT FENDER FLOOD
2
153-2073
1
WHEN USED
2
CONNECT TO LM-C5
3
4
5
6
LG-C1 3E5179
1
2
3
229-LG1 BK-18
4
5
CONN 17
6
7
8
9
10
11
12
(121) PTO FILTER BYPASS LIMIT SW
341-6644
BK-18
1
BK-18
2
(46) XMSN SUMP TEMP SENDER
145-7028
BK-18
1
BK-18
2
(98) PARK BRAKE DUMP SOL
380-9849
GN-18
1
GN-18
2
3
4
(110) SERVICE BRAKE DUMP SOL
380-9849
GN-18
1
GN-18
2
3
4
1
2
1
2
1
2
1
2
LK-C1 3E3364
1
2
PARK BRAKE STATUS T0 ACCESS LADDER ENABLE RELAY
(119) FUEL PRIMING PUMP SW
165-5970
RD-18
B
WH-18
C
BK-18
A
(22) FUEL PRIMING PUMP
217-8342
1
MOTOR
2
LH FENDER
GROUND
RF-C21 3E3388
LK-C21 1552269
1
174-LK1 PK-16
2
200-LK58 BK-16
174-LK2 PK-16
200-LK57 BK-16
T

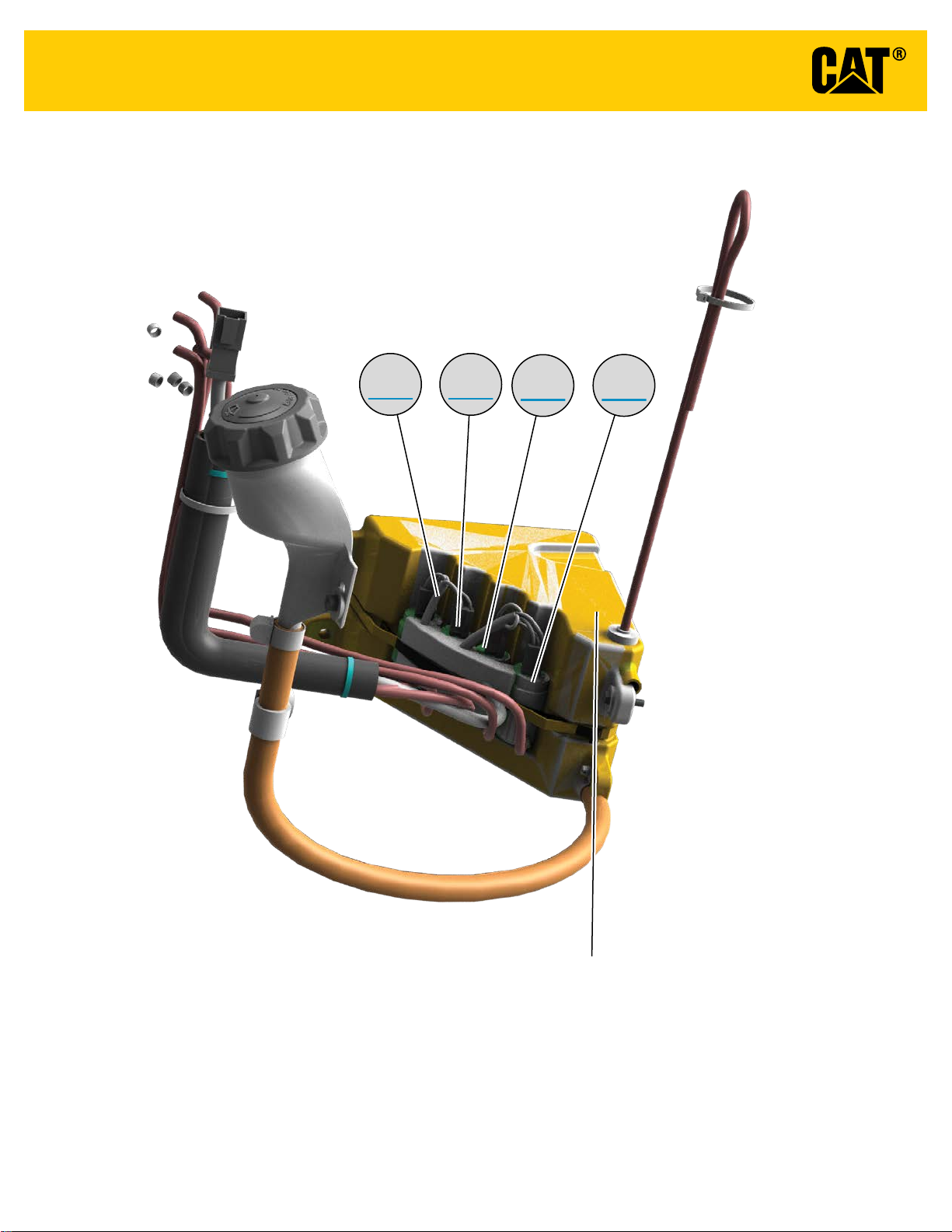

(96) LH STEER BRAKE
174-4909
(97) LH STEER CLUTCH
174-4909
(102) RH STEER BRAKE
174-4909
(103) RH STEER CLUTCH
174-4909
471-LK35 PK-18
CONN 18
LF-C30 1552264
1
2
3
4
5
6
7
8
RF-C8
2370227
1
2
3
RF-C5
2370227
1
2
3
EH-C7
1552269
1
2
EH-C12
1552269
1
2
EH-C3
1552269
1
2
EH-C4
1552269
1
2
EH-C5
1552269
1
2
EH-C6
1552269
1
2
EH-C8
1552269
1
2
EH-C9
1552269
1
2
EH-C10
1552269
1
2
EH-C11
1552269
1
2
GROUND LEVEL SHUTDOWN SWITCH JUMPER (252-1788) NEEDED WHEN GROUND LEVEL SERVICE CENTER NOT INSTALLED
131-LF112 RD-14-GXL
J842-LF115 BK-18-GXL H818-LF114 GN-18-GXL H817-LF113 OR-18-GXL
R131-LF116 RD-14-GXL
(67) TILT PUMP PRESSURE SNSR
375-6126
+5V
GROUND
SIGNAL
(62) MAIN PUMP PRESSURE SNSR
375-6126
+5V
GROUND
SIGNAL
(83) IMPLEMENT SHUTOFF SOL
279-6528
BK-18
BK-18
(99) PCO/RIPPER RV SOL
222-3137
(107) RIPPER SHANK IN SOL
174-4916
(104) RIPPER LOWER SOL
174-4916
(76) BLADE TILT RIGHT SOL
174-4916
(74) BLADE RAISE SOL
174-4916
(108) RIPPER SHANK OUT SOL
174-4916
(106) RIPPER RAISE SOL
174-4916
(75) BLADE TILT LEFT SOL
174-4916
(73) BLADE LOWER SOL
174-4916
174-LK3 PK-16 200-LK56 BK-16 200-LK54 BK-16 200-LK55 BK-16
200-LR12 BK-14-GXL
200-LR8 BK-14-GXL 200-LR3 BK-14-GXL 200-LR16 BK-14-GXL
608-LR15 GN-14-GXL 608-LR9 GN-14-GXL
609-LR11 YL-14-GXL
615-LR6 YL-14-GXL
651-LR10 PK-14-GXL
200-LR4 BK-14-GXL 200-LR13 BK-14-GXL 200-LR5 BK-14-GXL
608-LR14 GN-14-GXL
615-LR2 YL-14-GXL 615-LR1 YL-14-GXL
(126) LADDER MTR SW
301-2980
BK-18
BK-18
BK-18
174-LK3 PK-16
200-LK56 BK-16
200-LK54 BK-16 200-LK55 BK-16
615-LR1 YL-14-GXL 200-LR5 BK-14-GXL
200-LR4 BK-14-GXL 200-LR13 BK-14-GXL
608-LR14 GN-14-GXL 615-LR2 YL-14-GXL
471-LK35 PK-18
LK-C3 1552267
A
C709-LK13 WH-16
B
174-LK7 PK-16
C
C708-LK14 PU-16
174-LK4 PK-16
174-LK7 PK-16 174-LK5 PK-16 174-LK8 PK-16 174-LK45 PK-16 174-LK51 PK-16
200-LK47 BK-16 200-LK44 BK-16 200-LK46 BK-18 200-LK48 BK-18 200-LK49 BK-16
200-LK50 BK-18 200-LK52 BK-18 200-LK53 BK-18
471-LK36 PK-18 471-LK37 PK-18 471-LK38 PK-18 471-LK35 PK-18
C709-LK13 WH-16 C709-LK26 WH-16 C709-LK27 WH-16
C738-LK33 BU-16 C738-LK32 BU-16 C738-LK34 BU-16
C756-LK28 BU-16 C756-LK30 BU-16 C756-LK29 BU-16
C797-LK43 YL-16
C798-LK41 GN-16 C798-LK40 GN-16 C798-LK39 GN-16
E552-LK23 GY-18
E553-LK16 GN-18
E562-LK42 PU-16

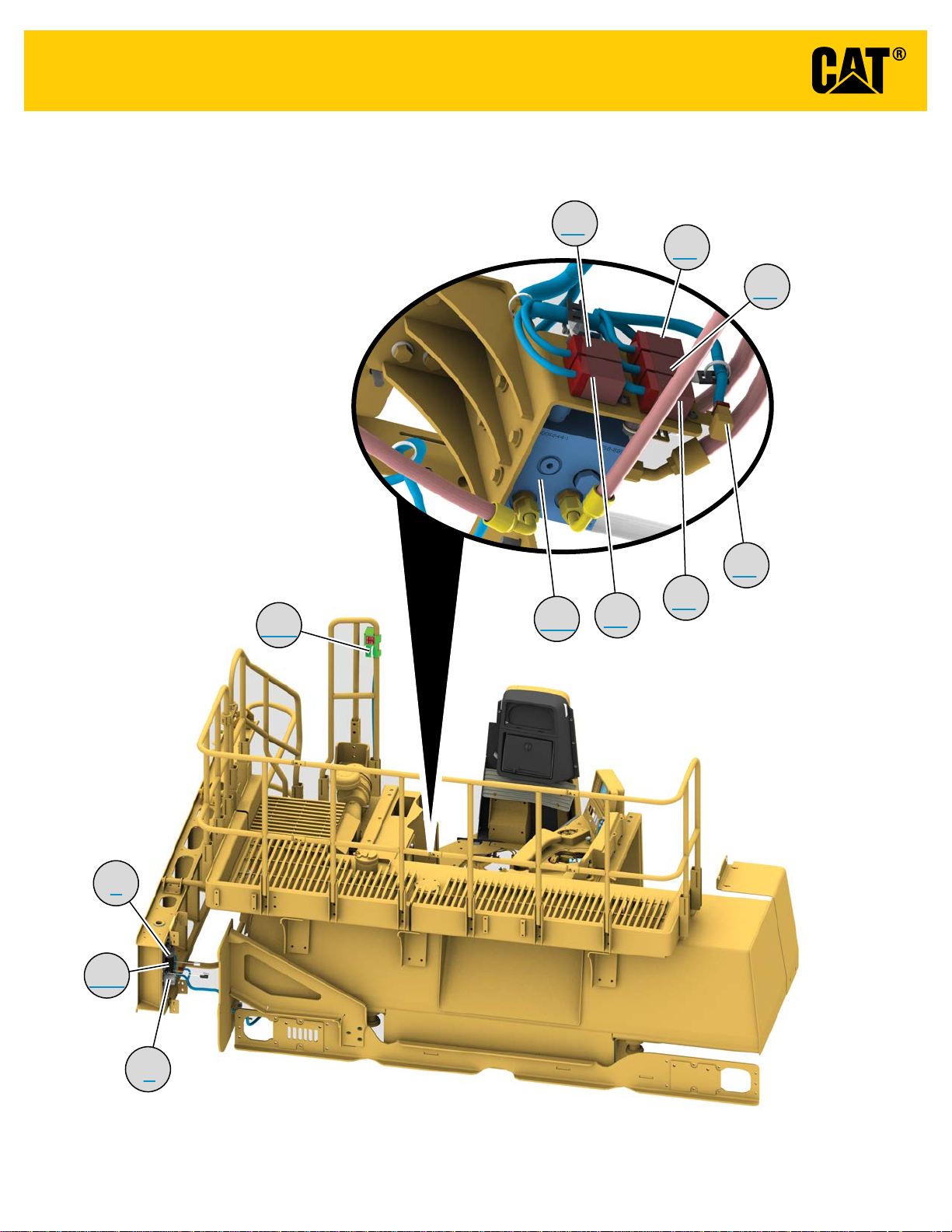

ACCESS LADDER (ATCH)
CBL-AA1 RD-00
NEGPOS
(7) STD BATTERY 1
153-5710
(7) STD BATTERY 2
NEGPOS
153-5710
CBL-EE1 RD-00-SGX CBL-HH1 BK-00-SGX
CBL-GG2 RD-00
M10 STUDM12 STUD
(17) JUNCTION BLOCK
324-3336
CBL-FF1 BK-00
CBL-TT1 RD-00
CBL-RR1 RD-00
CBL-MM1 BK-00
CBL-LL1 RD-00
(17) JUNCTION BLOCK 2
324-3336
M10 STUDM12 STUD
CBL-UU1 RD-00-SGX CBL-CC1 BK-00-SGX
CBL-JJ1 RD-00
NEGPOS
(7) ATTACH BATTERY 2(7) ATTACH BATTERY 1
153-5710
LR-C2
1552269
1
2
153-5710
LH FWD ROPS FLOOD 147-0319 (HALOGEN) 332-9402 (HID) 157-0305 (SPOT)
H1
GROUNDING
AK
RH FENDER
GROUND
AK
LH FENDER
GROUND
AN
FUEL TANK
GROUND
AN
FRAME (RH)
GROUND
AN
PLATFORM
GROUND
AN
PLATFORM
GROUND
200-AP1 BK-6
PLATFORM
GROUND
LK-C5
C797-LK43 YL-16 C798-LK41 GN-16
E552-LK23 GY-18 E553-LK16 GN-18 ACTUATOR HAS
200-LK53 BK-18 174-LK4 PK-16 471-LK36 PK-18
C797-LK43 YL-16 C709-LK27 WH-16 200-LK52 BK-18 E562-LK42 PU-16 200-LK54 BK-16
C798-LK40 GN-16 C708-LK14 PU-16 200-LK50 BK-18 174-LK5 PK-16 200-LK55 BK-16
C798-LK39 GN-16 E552-LK23 GY-18 E553-LK16 GN-18
1552269
LK-C7
3E3364
LK-C8
1552267
LK-C9
3E5519
LK-C10 3E5519
LK-C11 3E5519
C738-LK34 BU-16
LK-C14
174-LK8 PK-16 471-LK38 PK-18 174-LK51 PK-16 E562-LK42 PU-16
C709-LK26 WH-16 471-LK37 PK-18 174-LK45 PK-16
3E5519
LK-C15 3E5519
C756-LK28 BU-16
LK-C18
C756-LK30 BU-16 200-LK48 BK-18 200-LK46 BK-18 C738-LK33 BU-16
C756-LK29 BU-16 200-LK44 BK-16
C738-LK32 BU-16 200-LK47 BK-16
1552272
LK-C17
1552269
LK-C19
1552269
(1) LADDER ACTUATOR CONTROLLER
315-6039
RD-18
1
EXTEND-LATCH
BK-18
2
RETRACT-UNLATCH
BK-18
1
2
(120) PROX SW
174-7165
A
B
C
1
5
2
4
3
1
5
2
4
3
1
5
2
4
3
1
5
2
4
3
1
5
2
4
3
1
2
3
4
1
2
1
2
CONTROL RLY
BK-18
CONTROL RLY
GROUND
+V
DRIVER
(36) LADDER RAISE RLY
3E-5239
30
86
85 87
87a
(35) LADDER LOWER RLY
3E-5239
30
86
85 87
87a
(37) LATCHING ACTUATOR RLY
3E-5239
30
86
85 87
87a
(34) ACTUATOR ENABLE RLY
3E-5239
30
86
85 87
87a
(38) RAISE SOL CUTOUT RLY
3E-5239
30
86
85 87
87a
(12) DIODE BLOCK 2
200-1898
(125) LADDER VALVE GP
258-8894
LADDER RAISE
LADDER LOWER
174-LK7 PK-16
471-LK35 PK-18
C709-LK13 WH-16
BEAM
GROUND
BEAM
GROUND
RH FENDER
GROUND
BEAM
GROUND
CASE
GROUND
GROUND
FRAME 2
GROUND
GY BK
BK WH RD GN
LV-C22 3E3370
A
200-LV59 BK-18-GXL
B
C
PROX SW BYPASS TO DISABLE ALARM

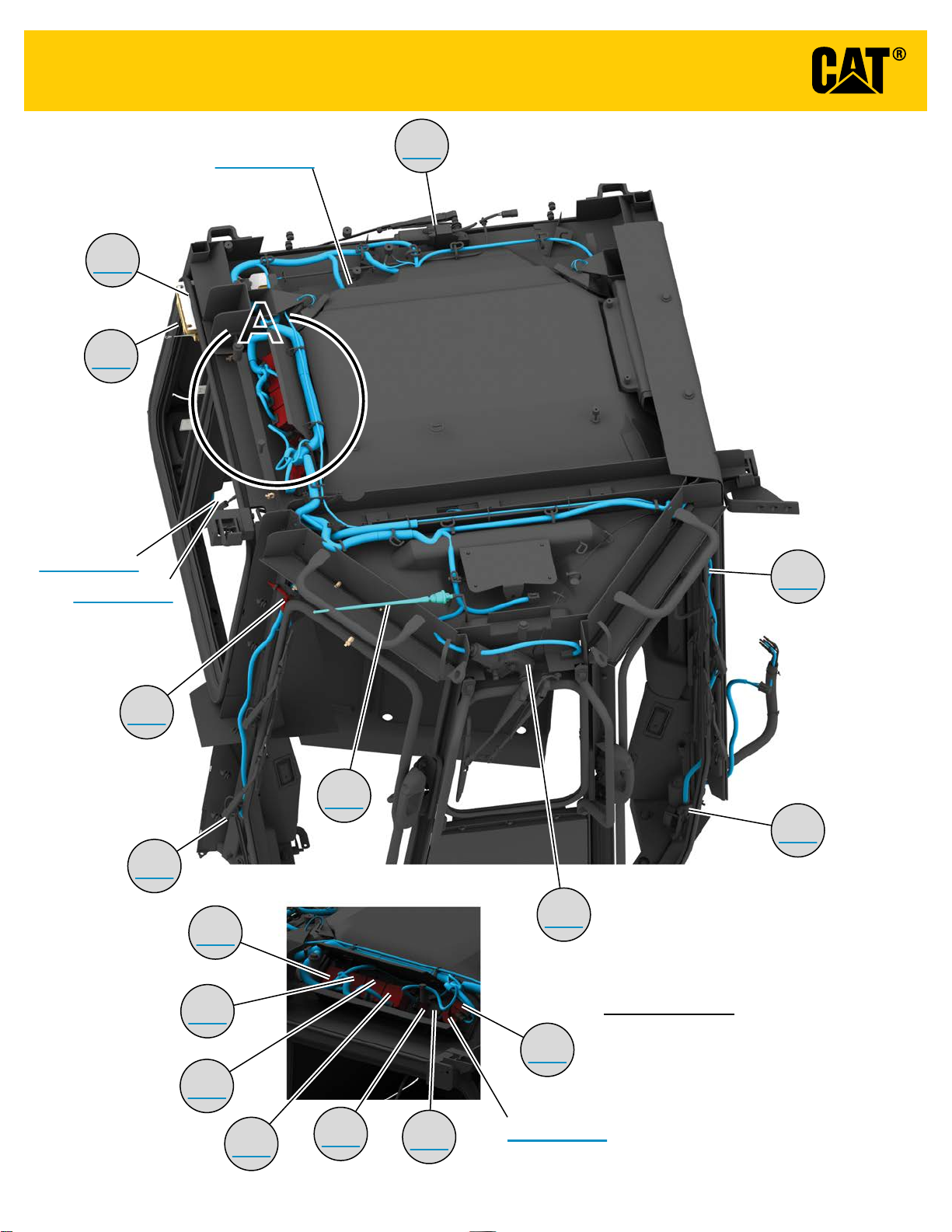

CAB
CBL-GG2 RD-00
CBL-GG1 BK-00
CBL-NN1 BK-00
(116) DISCONNECT SW
7N-0719
NEGPOS
(114) AC SW LO
149-6371

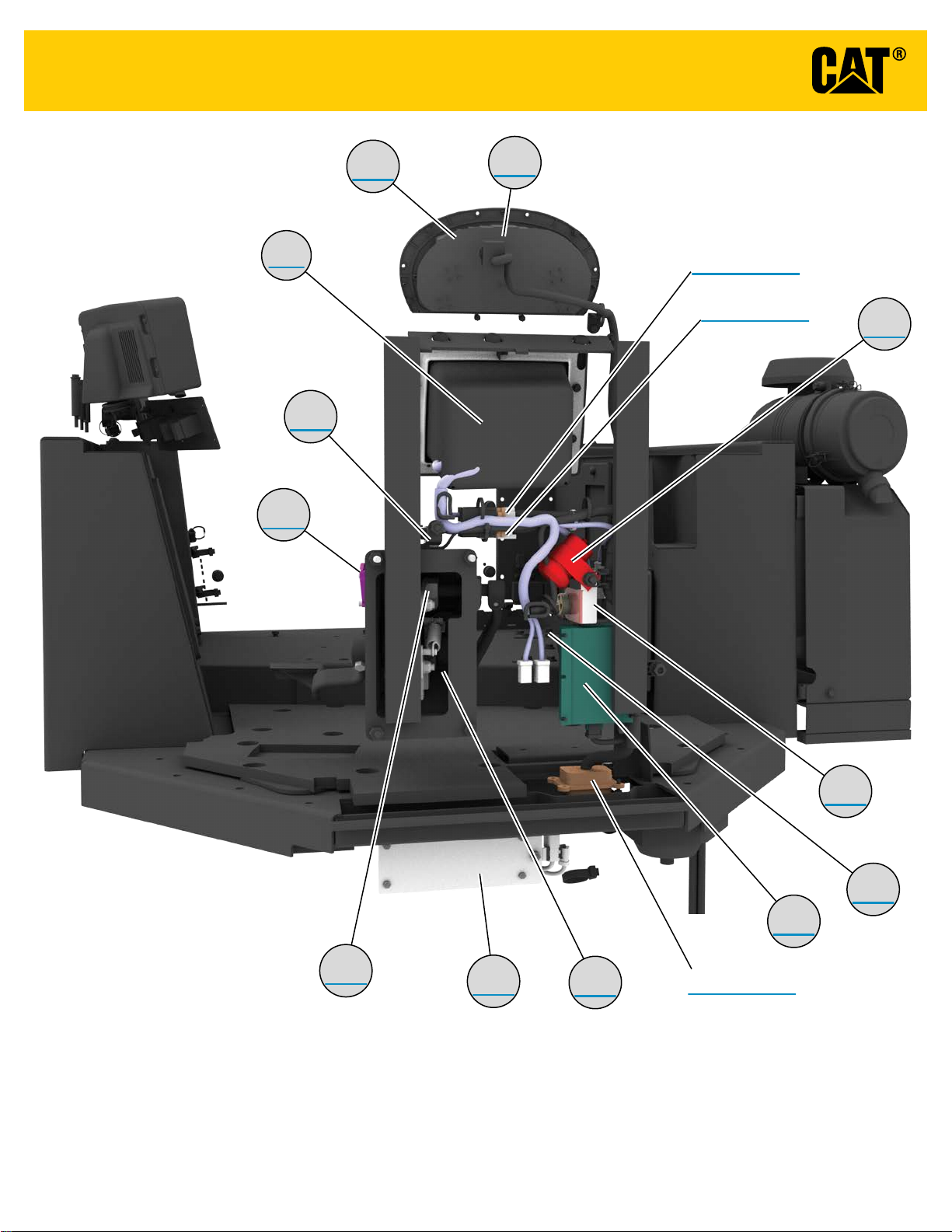

(19) AC CTRL MODULE
24VDC SW
CLUTCH
(72) A/C CLUTCH SOLENOID
(2) LADDER ACTUATOR MOTOR
310-3988
1
2
MOTOR
1
BK
2
WH
3
RD
4
GN
END-OF-STROKE LIMIT SWITCHES
RH REAR ROPS HALOGEN 147-0319 (HALOGEN) 157-0305 (SPOT)
(33) AUX START
(113) AC SW HI
355-3148
338-1942
SIG
GND
106-5122
N
FRAME
GROUND
CBL-PP1 RD-00
CBL-TT1 RD-00
CBL-RR1 RD-00
+B RTM
MOTOR
GND STRAP AK
FRAME
GROUND
BK-18
BK-18
NOTE A
GN-18
RD-18
BK-18
BU-18
GN-18
GN-18
1
2
P
101-PH3 RD-4
GS
(23) PRELUBE MOTOR
228-8553
T-C4 1552269
1
513-T3 GN-16-GXL
2
519-T7 GN-16-GXL
T-C2 1552269
1
519-T7 GN-16-GXL
2
522-T1 WH-16-GXL
T-C5 2305008
1
513-T3 GN-16-GXL
4
521-T5 YL-14-GXL
2
200-T9 BK-14-GXL
3
122-T8 BU-14-GXL
T-C3 1552269
1
122-T8 BU-14-GXL
2
200-T2 BK-14-GXL
H1
LR-C8 1552269
608-LR14 GN-14-GXL 200-LR13 BK-14-GXL
TO STANDARD STARTER BAT TERMINAL
TO FUSEPANEL (CJ STRIP)
TO ATCH STARTER (COLD START ONLY)
F705-PH1 PK-18 A289-PH2 BK-18
200-T9 BK-14-GXL 200-T2 BK-14-GXL
200-T10 BK-14-GXL
522-T1 WH-16-GXL
200-T10 BK-14-GXL 521-T4 YL-14-GXL 521-T6 YL-14-GXL 521-T5 YL-14-GXL
CONN 24
TO PLATFORM
CONNECTOR
P-C1 SHT 2 J-3
(41) CAN A DATALINK TERM RES 2
FOR NORMAL OPERATING MODE
LR-C4
1552269
615-LR2 YL-14-GXL 200-LR4 BK-14-GXL
200-LR13 BK-14-GXL 608-LR14 GN-14-GXL
1
2
CONN 22
PH-C1
3E3364
T-C1
3E3382
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
134-2540
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
A
B
C
ENGINE
CONN 25
CV-C1
3E3370
200 BK-16
NOTE: USE ONLY FOR CRANK WITHOUT FUEL INJECTION
A
B
C
CV-C2
3E3370
201 BK-16
RH FWD ROPS FLOOD 147-0319 (HALOGEN) 332-9402 (HID) 157-0305 (SPOT)
EP-C4 1552269
1
F705-EP76 PK-18-GXL
2
A289-EP77 BK-18-GXL
(122) STARTER DISCONNECT SW
7N-0719
349-EA1 OR-8 345-EP71 GN-8
304-EP81 WH-8 314-EP87 PU-8
CONN 23
EP-C17 1552273
522-EP4 WH-16-GXL
200-EP28 BK-14-GXL
521-EP15 YL-14-GXL
EP-C1 2144208
150-EP57 RD-14-GXL 521-EP15 YL-14-GXL 116-EP34 BR-14-GXL 522-EP4 WH-16-GXL 322-EP45 GY-18-GXL
F711-EP58 GN-18-GXL F712-EP60 GY-18-GXL
102-EP66 RD-14-GXL
150-EP25 RD-14-GXL 229-EP3 BK-18-GXL A700-EP69 OR-18-GXL 998-EP67 BR-18-GXL 892-EP6 BR-18-GXL 893-EP5 GN-18-GXL F715-EP8 PU-18-GXL F716-EP9 WH-18-GXL F717-EP12 YL-18-GXL F718-EP13 BU-18-GXL
H702-EP88 PU-18-GXL X918-EP72 PU-18-GXL X919-EP96 WH-18-GXL 610-EP50 OR-14-GXL 553-EP47 YL-18-GXL J949-EP54 GY-18-GXL J950-EP53 PU-18-GXL 210-EP49 BK-14-GXL
403-EP26 GN-18-GXL 304-EP84 WH-14-GXL 304-EP85 WH-14-GXL F702-EP24 GN-18-GXL E908-EP43 BR-18-GXL E909-EP44 WH-18-GXL 444-EP74 BU-18-GXL
554-EP48 PK-18-GXL
304-EP83 WH-14-GXL L740-EP27 BR-18-GXL
Y787-EP62 WH-18-GXL Y788-EP65 GY-18-GXL 921-EP33 WH-18-GXL 314-EP94 PU-14-GXL 314-EP95 PU-14-GXL J764-EP92 BR-18-GXL 709-EP91 OR-18-GXL
K960-EP11 PK-18-GXL K961-EP30 GN-18-GXL 611-EP63 PU-14-GXL
314-EP89 PU-14-GXL
G966-EP31 PU-18-GXL
EP-C19 1552267
F711-EP59 GN-18-GXL F712-EP61 GY-18-GXL
EP-C7 1552267
229-EP36 BK-18-GXL F719-EP37 BR-18-GXL F720-EP38 GN-18-GXL
A
B
C
101-PH3 RD-4
TO FUSEPANEL (CK STRIP) CBL-VV1 RD-0
345-EP71 GN-8
G S
MTR B+
MOTOR
200-GX1 BK-12
101-PH3 RD-4
(24) STARTER
338-3454
CBL-YY1 BK-4
CBL-WW1 BK-00
FRAME GND
200-EP46 BK-14-GXL 200-EP70 BK-14-GXL
229-EP22 BK-14-GXL
229-EP52 BK-18-GXL
229-EP36 BK-18-GXL
229-EP21 BK-14-GXL
229-EP3 BK-18-GXL
229-EP23 BK-14-GXL
200-EP28 BK-14-GXL 229-EP3 BK-18-GXL 229-EP36 BK-18-GXL
102-EP66 RD-14-GXL 116-EP34 BR-14-GXL
150-EP25 RD-14-GXL 150-EP57 RD-14-GXL
229-EP21 BK-14-GXL
200-EP28 BK-14-GXL
200-EP46 BK-14-GXL
200-EP70 BK-14-GXL
229-EP22 BK-14-GXL 229-EP23 BK-14-GXL 229-EP52 BK-18-GXL
200-EP28 BK-14-GXL 229-EP3 BK-18-GXL 229-EP36 BK-18-GXL
150-EP19 RD-14-GXL 150-EP16 RD-14-GXL 150-EP18 RD-14-GXL
210-EP49 BK-14-GXL
304-EP81 WH-8 304-EP83 WH-14-GXL 304-EP84 WH-14-GXL 304-EP85 WH-14-GXL
308-EP73 YL-18-GXL308-EP73 YL-18-GXL
314-EP87 PU-8 314-EP89 PU-14-GXL 314-EP94 PU-14-GXL 314-EP95 PU-14-GXL
322-EP45 GY-18-GXL 444-EP74 BU-18-GXL 553-EP47 YL-18-GXL 554-EP48 PK-18-GXL 610-EP50 OR-14-GXL 611-EP63 PU-14-GXL 709-EP91 OR-18-GXL 892-EP6 BR-18-GXL 893-EP5 GN-18-GXL 921-EP33 WH-18-GXL
993-EP2 BR-18-GXL 993-EP90 BR-18-GXL 993-EP75 BR-18-GXL
997-EP82 OR-18-GXL 997-EP1 OR-18-GXL 997-EP68 OR-18-GXL
998-EP67 BR-18-GXL
A289-EP20 BK-18-GXL
A289-EP77 BK-18-GXL
F711-EP59 GN-18-GXL F711-EP58 GN-18-GXL
F712-EP60 GY-18-GXL F712-EP61 GY-18-GXL
521-EP15 YL-14-GXL 522-EP4 WH-16-GXL
521-EP15 YL-14-GXL 522-EP4 WH-16-GXL
349-EA1 OR-8
A700-EP69 OR-18-GXL E908-EP43 BR-18-GXL E909-EP44 WH-18-GXL F702-EP24 GN-18-GXL F705-EP76 PK-18-GXL
F715-EP8 PU-18-GXL F716-EP9 WH-18-GXL F717-EP12 YL-18-GXL F718-EP13 BU-18-GXL F719-EP37 BR-18-GXL F720-EP38 GN-18-GXL G966-EP31 PU-18-GXL H702-EP88 PU-18-GXL J764-EP92 BR-18-GXL J949-EP54 GY-18-GXL J950-EP53 PU-18-GXL K960-EP11 PK-18-GXL K961-EP30 GN-18-GXL L740-EP27 BR-18-GXL X918-EP72 PU-18-GXL X919-EP96 WH-18-GXL Y787-EP62 WH-18-GXL Y788-EP65 GY-18-GXL
A289-EP86 BK-18-GXL A289-EP29 BK-18-GXL
F711-EP41 GN-18-GXL
F712-EP40 GY-18-GXL
310-EP17 PU-18-GXL E799-EP10 BR-18-GXL F700-EP7 BU-18-GXL F703-EP39 GY-18-GXL F714-EP14 PK-18-GXL H704-EP55 PK-18-GXL L912-EP35 WH-18-GXL L913-EP42 OR-18-GXL X412-EP51 BU-18-GXL Y779-EP93 GN-18-GXL
310-EP17 PU-18-GXL E799-EP10 BR-18-GXL F700-EP7 BU-18-GXL F703-EP39 GY-18-GXL F714-EP14 PK-18-GXL H704-EP55 PK-18-GXL L912-EP35 WH-18-GXL L913-EP42 OR-18-GXL X412-EP51 BU-18-GXL Y779-EP93 GN-18-GXL
(25) ATTACHMENT STARTER 353-7274
S
+B RTM
MOTOR
200-GY1 BK-12
CBL-XX1 BK-00
ATTACH STARTER
FRAME GND
ATTACH STARTER
BLOCK GND
HARNESS AS PART NUMBER CHANGE SHEET LOCATION NOTE DESCRIPTION
A 296-7520 02 1 I-5 BASIC ENGINE
C 312-2959 02 2 C-12 CAB
N 295-0175 00 1 J-5 FUEL PRESSURE
P 326-4762 00 2 J-4 PLATFORM
T 170-5293 05 1 J-9 ATTACH AC COMPRESSOR
AC 109-3875 03 1 A-16 ATTACH ROOF MOUNTED CONDENSER JUMPER 1
AE 188-9429 02 1 I-4 CRANK SP SNSR JUMPER
AF 285-6647 03 1 L-5 INJECTORS - ODD
AJ 285-6647 03 1 K-5 INJECTORS - EVEN
AK 326-9492 00 1 J-18 ATTACH AUTO CARRY
AL 281-9297 04 1 J-15 ATTACH CTCT ARO
AM 189-0852 02 1 I-4 CAM SP SNSR JUMPER
AR 109-3875 03 1 A-16 ATTACH ROOF MOUNTED CONDENSER JUMPER 2
AU 174-4445 02 1 A-15 ATTACH ROOF MOUNTED CONDENSER JUMPER 3
AV 211-4232 13 2 D-5 ADVISOR
AY 253-0040 02 1 L-15 ATTACH ACCUGRADE RADIO
CA 334-8617 02 1 H-4 ATTACH LH CYLINDER
CE 334-8617 02 1 D-4 ATTACH RH CYLINDER
CF 213-7012 03 2 I-8 STEERING
CG 242-5203 00 2 I-7 CONSOLE RAISE/LOWER MOTOR JUMPER
CN 325-4732 03 2 C-1 ATTACH CAES NAVIGATOR
CT 306-2050 02 2 I-1 ATTACH ACCUGRADE DISPLAY
CV 121-2844 02 1 D-8 CRANK W/O INJECT
EH 213-7008 06 1 C-13 PILOT MANIFOLD
EP 417-3530 01 1 H-7 TTT ENGINE
FC 124-8490 04 1 A-16 ATTACH CONDENSER GROUP
FH 192-7805 00 2 B-14 SEAT
FP 213-2304 09 2 K-11 FUSE PANEL
GL NOTE M 1 L-12 ATTACH GROUND LEVEL SERVICE CENTER
LF 214-1067 13 1 H-13 LEFT HAND FENDER
LK 354-3073 01 1 C-11 ATTACH ACCESS LADDER
LR 247-0495 03 1 I-12 ATTACH ROPS FLOODS
LV 331-0158 00 1 F-10 ATTACH PROXIMITY SWITCH BYPASS
LW NOTE L 1 J-13 ATTACH WDA FLOOD LIGHTS
PA 216-1319 16 2 H-4 FRONT CONSOLE
PC 164-9541 04 2 H-3 SERVICE BRAKE
PH 234-4407 01 1 K-9 ATTACH PRELUBE
PL 324-6111 00 2 E-11 ATTACH PRODUCT LINK
PR 298-2643 03 2 L-14 HVAC
PV 227-3127 02 2 K-14 IMPLEMENT CODE PLUG
PW 227-312
RC 273-9929 05 2 C-7 RH CONSOLE
RF 417-3529 00 1 C-14 RIGHT HAND FENDER
RG 330-9101 01 1 G-6 RADIATOR GUARD
RK 276-3507 00 1 G-5 UNDERHOOD SERVICE LIGHTS
RL 125-2000 02 1 H-14 ATTACH RIPPER LIGHT JUMPER
TJ 283-9854 01 1 E-15 TRANSMISSION JUMPER
TR 268-0208 01 1 E-16 TRANSMISSION
WP 186-4857 03 2 F-13 WASHER PUMP JUMPER
WR 316-3522 03 1 L-18 ATTACH SLOPE SENSOR
CABLE AS
AA 8V-0622 01 1 L-10 LH BTRY 1- TO LH BTRY 2+
FF 280-7095 01 1 L-10 LH JUNCTION BLOCK TO DISCONNECT SW
GG 213-7021 02 1 L-10 JUMP START RECEPTACLE
JJ 8V-0622 01 1 K-10 ATTACH RH BTRY 1- TO RH BTRY 2+
LL 213-7016 01 1 K-10 ATTACH LH JUNCTION BLOCK + TO RH JUNCTION BLOCK +
MM 213-7020 02 1 K-10 ATTACH RH JUNCTION BLOCK - TO LH JUNCTION BLOCK -
NN 236-0848 02 1 L-9 DISCONNECT SW TO FRAME
PP 236-0849 01 1 L-9 LH JUNCTION BLOCK TO STANDARD STARTER
RR
TT 236-0846 01 1 K-9 FUSEPANEL TO LH JUNCTION BLOCK
VV 213-7009 04 1 L-7 ALTERNATOR TO FUSEPANEL
WW 7Y-3948 01 1 K-7 STD STARTER FRAME GROUND
XX 061-7661 03 1 F-8 ATTACH ATTACH STARTER FRAME GROUND
STRAP AS
AG 208-4622 02 1 L-7 ALTERNATOR GROUND
AN 7G-1060 00 1 G-10 GROUND STRAPS
WIRE AS
AP 220-8397 03 1 G-10 PLATFORM GND TO FRAME GND
CM 5R-7755 01 1 F-8 ATTACH ATTACH STARTER BLOCK GROUND
EA 253-7138 01 1 G-8 ATTACH ATTACHMENT STARTER COIL
EJ 214-1703 02 2 J-12 BLOWER/CONDENSER FUSE
GX 3T-3422 01 1 K-8 STD STARTER COIL GND
GY 3T-3422 01 1 G-8 ATTACH ATTACH STARTER COIL GND
LG 252-1788 01 1 H-13 GROUND LEVEL SHUTDOWN JUMPER
YY 105-4728 01 1 K-7 STD STARTER BLOCK GROUND
403-EP26 GN-18-GXL
ALT
R
+
(4) ALTERNATOR (95A)
197-8820
CBL-AG1 BK-4
ENGINE ALT GND
EP-C2
1607689
A-C19
1552269
EP-C20 3E3364
EP-C6
1552269
EP-C14
1552269
EP-C5
1552269
EP-C3
1552269
1552269
EP-C10
1552269
J1
1
2
ANALOG SENSOR POWER
3
ANALOG SENSOR RETURN
4
THROTTLE POWER +8V
5
THROTTLE RETURN
6
7
USED ON J2 PIN 7
8
CAT DATALINK (HIGH)
9
CAT DATALINK (LOW)
10
ETHER AID SOLENOID
11
12
REVERSING FAN SOLENOID
13
PRELUBE SOLENOID
14
15
TURBO INLET PRESSURE SENSOR
16
FUEL PRESSURE SENSOR
17
18
DIGITAL RETURN
19
REVERSING FAN BYPASS SOL
20
21
22
THROTTLE SW (LO IDLE)
23
THROTTLE SW (LO IDLE PAR)
24
USED ON J2 PIN 22
25
USED ON J2 PIN 23
26
27
FAN PRESSURE SENSOR
28
29
30
31
32
ENGINE SPEED SIGNAL +
33
ENGINE SPEED SIGNAL -
34
CAN DATALINK (LOW)
35
CRANK W/O INJ (NC)
36
37
38
39
40
THROTTLE SW (HI IDLE)
41
THROTTLE SW (HI IDLE PAR)
42
CAN DATALINK SHIELD
43
FAN PUMP SOLENOID
44
CRANK W/O INJ (NO)
45
COOLANT FLOW SW
46
GROUND LEVEL SHUTDOWN SW (N/O)
47
GROUND LEVEL SHUTDOWN SW (N/C)
48
+ BATTERY
49
ETHER AID SW
50
CAN DATALINK (HIGH)
51
DEMAND FAN SOLENOID RETURN
52
+ BATTERY
+ BATTERY
53
REVERSING FAN SW
54
55
56
57
58
USER SHUTDOWN
59
60
- BATTERY
61
62
63
- BATTERY
64
- BATTERY
65
DECEL PEDAL THROTTLE
66
67
-
68
69
KEY SWITCH
70
A-C18 3E3364
1
2
1
NOT USED ON
2
THIS MODEL
1
NOT USED ON
2
THIS MODEL
1
2
T
1
BK-18
2
BK-18
1
BK-18
2
BK-18
EP-C15 3E3370
A
OR-18
B
YL-18
C
GN-18
(55) FAN PRESSURE SNSR
EP-C12
375-6126
2370227
1
+BATTERY
2
GROUND
3
SIGNAL
EP-C9
GY-18
1
GY-18
2
BK-18
1
BK-18
2
J721-A63 PK-18 J713-A64 GN-18
(65) TC OIL TEMP SNSR
145-7028
(115) COOLANT FLOW SW
100-4417
(111) ETHER AID SOL
239-1134
+5V
GROUND
SIGNAL
(77) DEMAND FAN SOLENOID
220-0780 FAN PUMP MANIFOLD
(66) TC OUT SPEED SNSR
318-1181
(68) TURBO INLET PRESSURE SNSR
161-9926
(15) JACKET WATER HTR (240V/1500W)
396-4988
(16) JACKET WATER HTR (120V/1500W)
392-0895
BLOCK GND
FRAME GROUND 2
CBL-CM1 BK-4
997-EP1 OR-18-GXL 993-EP2 BR-18-GXL A700-EP69 OR-18-GXL 998-EP67 BR-18-GXL
893-EP5 GN-18-GXL 892-EP6 BR-18-GXL 310-EP17 PU-18-GXL
H704-EP55 PK-18-GXL F705-EP76 PK-18-GXL
F714-EP14 PK-18-GXL
A289-EP86 BK-18-GXL Y779-EP93 GN-18-GXL
F715-EP8 PU-18-GXL F716-EP9 WH-18-GXL
F703-EP39 GY-18-GXL
F712-EP40 GY-18-GXL F719-EP37 BR-18-GXL
F717-EP12 YL-18-GXL F718-EP13 BU-18-GXL
F700-EP7 BU-18-GXL F720-EP38 GN-18-GXL X412-EP51 BU-18-GXL X919-EP96 WH-18-GXL X918-EP72 PU-18-GXL
150-EP16 RD-14-GXL
F711-EP41 GN-18-GXL E799-EP10 BR-18-GXL 150-EP18 RD-14-GXL 150-EP19 RD-14-GXL H702-EP88 PU-18-GXL
G966-EP31 PU-18-GXL
229-EP21 BK-14-GXL
229-EP22 BK-14-GXL
229-EP23 BK-14-GXL F702-EP24 GN-18-GXL
308-EP73 YL-18-GXL
NOT USED ON THIS MODEL
L912-EP35 WH-18-GXL L913-EP42 OR-18-GXL
L913-EP42 OR-18-GXL L912-EP35 WH-18-GXL
444-EP74 BU-18-GXL L740-EP27 BR-18-GXL
X412-EP51 BU-18-GXL 229-EP52 BK-18-GXL
310-EP17 PU-18-GXL A289-EP20 BK-18-GXL
102-EP66 RD-14-GXL 116-EP34 BR-14-GXL 116-EP34 BR-14-GXL 200-EP46 BK-14-GXL 200-EP70 BK-14-GXL 210-EP49 BK-14-GXL 322-EP45 GY-18-GXL 553-EP47 YL-18-GXL 554-EP48 PK-18-GXL 610-EP50 OR-14-GXL 611-EP63 PU-14-GXL 709-EP91 OR-18-GXL 921-EP33 WH-18-GXL
A289-EP29 BK-18-GXL H704-EP55 PK-18-GXL J764-EP92 BR-18-GXL J949-EP54 GY-18-GXL J950-EP53 PU-18-GXL K960-EP11 PK-18-GXL K961-EP30 GN-18-GXL Y779-EP93 GN-18-GXL Y787-EP62 WH-18-GXL Y788-EP65 GY-18-GXL
997-EP82 OR-18-GXL 993-EP90 BR-18-GXL F714-EP14 PK-18-GXL
997-EP68 OR-18-GXL 993-EP75 BR-18-GXL F703-EP39 GY-18-GXL
F700-EP7 BU-18-GXL E799-EP10 BR-18-GXL
E909-EP44 WH-18-GXL E908-EP43 BR-18-GXL
7 02 2 K-14 POWERTRAIN CODE PLUG
213-7018 03 1 K-9 ATTACH RH JUNCTION BLOCK + TO ATTACH STARTER
K739-A60 BK-16
(11) ECM
A4:E4
239-7902
BRAKE SOLENOID L/H (6,8)
BRAKE SOLENOID L/H (5,7)
BRAKE SOLENOID M/H (1,3,9,11)
BRAKE M/H (2,4,10,12)
COOLANT TEMPERATURE
BRAKE LEFT & RIGHT RETURN
INTAKE MANIFOLD AIR PRESSURE
PRESSURE SENSOR COMMON
INJECTOR 8 LS
INJECTOR 10 LS
INJECTOR 4 LS
PASSIVE SPD -1: A CRANK SPEED
LUBE OIL PRESSURE SENSOR
TEMPERATURE SENSOR COMMON
INJECTOR 6 LS
MAKE-UP OIL LEVEL
PASSIVE SPD +1: A CRANK SPEED
FUEL PRESSURE
INJECTOR 12 LS
PASSIVE SPD +2: B CAM SPEED
PASSIVE SPD -2: B CAM SPEED
INJECTOR 2 LS
ANALOG RETURN
INTAKE MANIFOLD AIR TEMPERATURE
ATMOSPHERIC PRESSURE SENSOR
INJECTOR 10,12 HS
FUEL TEMPERATURE SENSOR
DIFFERENTIAL FUEL PRESSURE SW
INJECTOR 6,8 HS
INJECTOR 2,4 HS
PRESSURE SENSOR +5V
INPUT SWITCH RETURN
S/T SHIELD
INJECTOR 9,11 HS
INJECTOR 1,3 HS
INJECTOR 11 LS
INJECTOR 5 LS
INJECTOR 9 LS
INJECTOR 7 LS
INJECTOR 5,7 HS
INJECTOR 1 LS
INJECTOR 3 LS
UNUSED
J2
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
A-C1 2645732
K738-A49 GN-16
J701-A19 GN-16
J700-A24 BR-16
K737-A57 BR-16
995-A22 BU-18 K739-A62 BU-16 R746-A26 PK-18
G829-A12 GN-18 T959-A51 BR-16 HV
T958-A50 YL-16 HV T961-A55 GN-16 HV
E963-A30 BK-18
994-A20 GY-18
G833-A17 PK-18 T960-A54 BU-16 HV
J721-A63 PK-18
E964-A29 WH-18
C991-A7 PK-18 T746-A1 PK-18 T957-A52 PU-16 HV
E966-A32 YL-18 E965-A15 BU-18
T962-A56 WH-16 HV
J713-A64 GN-18
C967-A25 BU-18 R747-A14 GY-18 T858-A47 GY-16 HV
F421-A23 YL-18
T725-A21 WH-18
T859-A41 WH-16 HV T860-A53 OR-16 HV
G828-A11 WH-18
N707-A6 PU-18
T860-A46 OR-16 HV
T858-A27 GY-16 HV T962-A13 WH-16 HV T959-A8 BR-16 HV T961-A10 GN-16 HV T960-A9 BU-16 HV
T859-A18 WH-16 HV T957-A2 PU-16 HV
T958-A5 YL-16 HV
H3 H3
CONN 26
EP-C16

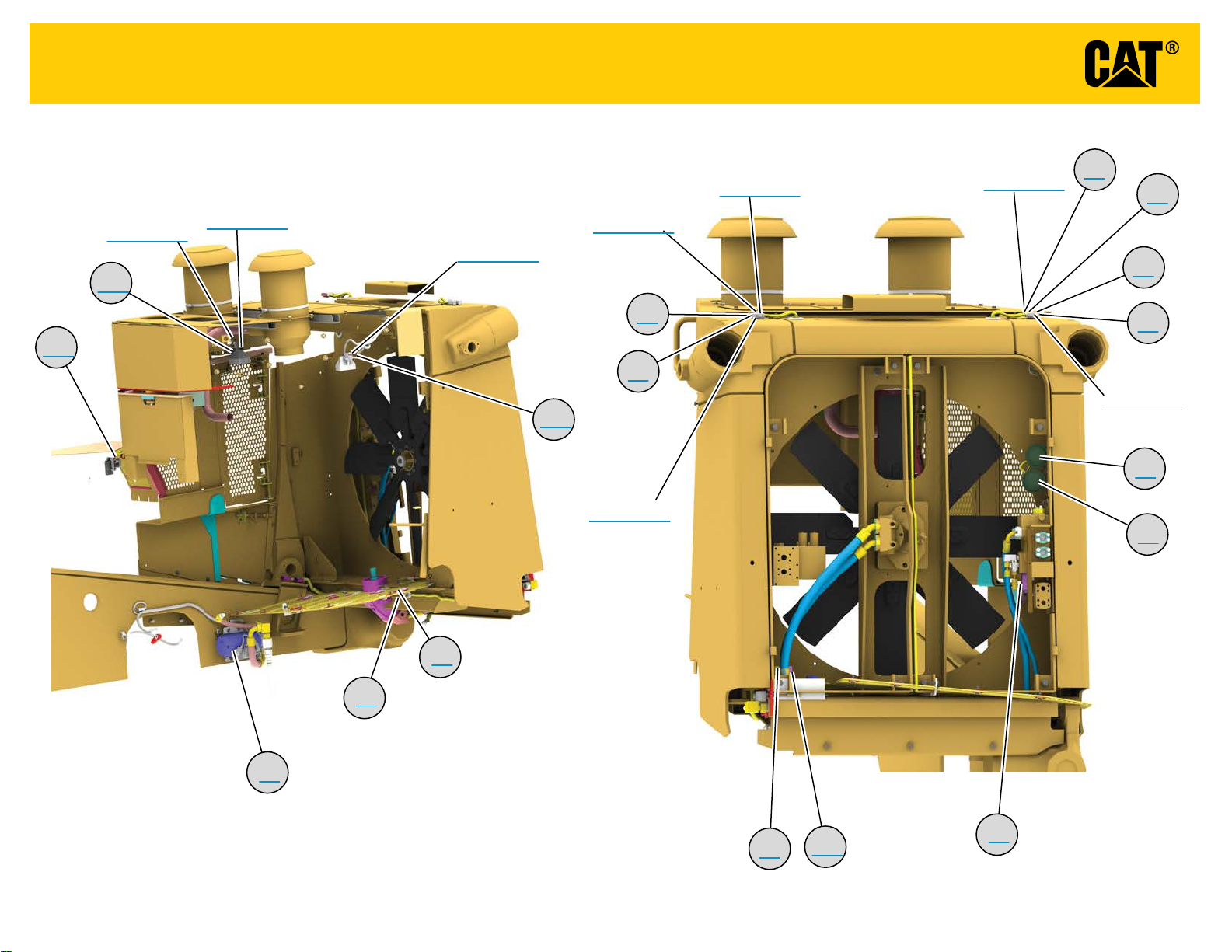

RG-C1
1552252
3E5179
EP-C18
1552254
1
322-RG1 GY-18-GXL
2
200-RG27 BK-14-GXL
3
553-RG10 YL-18-GXL
4
554-RG7 PK-18-GXL
5
6
610-RG13 OR-14-GXL
7
8
116-RG46 BR-14-GXL
9
J950-RG34 PU-18-GXL
10
J949-RG35 GY-18-GXL
11
H704-RG3 PK-18-GXL
12
Y779-RG17 GN-18-GXLY779-EP93 GN-18-GXL
RG-C3 1907613
1
921-RG8 WH-18-GXL
2
Y787-RG12 WH-18-GXL
3
Y788-RG22 GY-18-GXL
4
A289-RG55 BK-18-GXL
5
102-RG37 RD-14-GXL
6
611-RG39 PU-14-GXL
7
8
709-RG48 OR-18-GXL
9
J764-RG49 BR-18-GXL
10
200-RG54 BK-14-GXL
11
K960-RG30 PK-18-GXL
12
K961-RG31 GN-18-GXL
322-EP45 GY-18-GXL 200-EP46 BK-14-GXL 553-EP47 YL-18-GXL 554-EP48 PK-18-GXL
610-EP50 OR-14-GXL 210-EP49 BK-14-GXL
J950-EP53 PU-18-GXL J949-EP54 GY-18-GXL H704-EP55 PK-18-GXL
CONN 27
921-EP33 WH-18-GXL Y787-EP62 WH-18-GXL Y788-EP65 GY-18-GXL A289-EP29 BK-18-GXL 102-EP66 RD-14-GXL 611-EP63 PU-14-GXL
709-EP91 OR-18-GXL J764-EP92 BR-18-GXL 200-EP70 BK-14-GXL K960-EP11 PK-18-GXL K961-EP30 GN-18-GXL
BK
BK
GN
BK
BK
GN
ELEMENT 246-4258 CORD 239-8051
ELEMENT 230-3525 CORD 234-4300
CONN 28
A-C3
AF-C1
1552252
3E8969
1
T957-A2 PU-16 HV T958-A5 YL-16 HV T959-A8 BR-16 HV T960-A9 BU-16 HV T961-A10 GN-16 HV T962-A13 WH-16 HV T858-A27 GY-16 HV T859-A18 WH-16 HV T860-A46 OR-16 HV J700-A24 BR-16 J701-A19 GN-16 K739-A60 BK-16
T957-A52 PU-16 HV T958-A50 YL-16 HV T959-A51 BR-16 HV T960-A54 BU-16 HV T961-A55 GN-16 HV T962-A56 WH-16 HV T858-A47 GY-16 HV T859-A41 WH-16 HV T860-A53 OR-16 HV K737-A57 BR-16 K738-A49 GN-16 K739-A61 BU-16
K739-A61 BU-16 K739-A60 BK-16 K739-A62 BU-16
994-A20 GY-18 995-A22 BU-18 C967-A25 BU-18 C991-A7 PK-18 E963-A30 BK-18 E964-A29 WH-18 E965-A15 BU-18 E966-A32 YL-18 F421-A23 YL-18
G828-A38 WH-18 G828-A36 WH-18 G828-A3 WH-18 G828-A28 WH-18 G828-A11 WH-18
G829-A35 GN-18 G829-A37 GN-18 G829-A4 GN-18 G829-A31 GN-18 G829-A12 GN-18
G833-A44 PK-18 G833-A45 PK-18 G833-A43 PK-18 G833-A17 PK-18
N707-A6 PU-18 R746-A26 PK-18 R747-A14 GY-18 T725-A21 WH-18 T746-A1 PK-18
J713-A64 GN-18
CONN 29
A-C5
1552252
H3
T957-AF18 PU-16
2
T958-AF19 YL-16
3
T959-AF20 BR-16
4
T960-AF21 BU-16
5
T961-AF22 GN-16
6
T962-AF23 WH-16
7
T858-AF10 GY-16
8
T859-AF12 WH-16
9
T860-AF8 OR-16
10
11
12
AJ-C1 3E8969
1
T957-AJ18 PU-16
2
T958-AJ19 YL-16
3
T959-AJ20 BR-16
4
T960-AJ21 BU-16
5
T961-AJ22 GN-16
6
T962-AJ23 WH-16
7
T858-AJ10 GY-16 T858-AJ10 GY-16 T858-AJ2 GY-16
8
9
T860-AJ8 OR-16
10
11
12
G828-A38 WH-18 G829-A37 GN-18 R746-A26 PK-18
C967-A25 BU-18 G833-A44 PK-18
CONN 30
F421-A23 YL-18 G833-A45 PK-18 T725-A21 WH-18 N707-A6 PU-18 G828-A28 WH-18 G829-A31 GN-18 C991-A7 PK-18 T746-A1 PK-18
1552264
995-A22 BU-18 G833-A43 PK-18
J721-A63 PK-18
G828-A36 WH-18 G829-A35 GN-18 R747-A14 GY-18
E965-A15 BU-18 E966-A32 YL-18
E963-A30 BK-18 E964-A29 WH-18
G828-A3 WH-18 G829-A4 GN-18 994-A20 GY-18
BASIC ENGINE C27
RADIATOR GUARD
610-RG14 OR-14-GXL 200-RG16 BK-14-GXL 709-RG51 OR-18-GXL J764-RG53 BR-18-GXL J950-RG34 PU-18-GXL
102-RG37 RD-14-GXL
611-RG40 PU-14-GXL 116-RG65 BR-14-GXL
116-RG46 BR-14-GXL
116-RG64 BR-14-GXL 116-RG65 BR-14-GXL 116-RG2 BR-14-GXL 116-RG11 BR-14-GXL 116-RG25 BR-14-GXL
200-RG27 BK-14-GXL 200-RG16 BK-14-GXL 200-RG21 BK-14-GXL 200-RG24 BK-18-GXL 200-RG23 BK-18-GXL
200-RG54 BK-14-GXL
200-RG9 BK-14-GXL 200-RG36 BK-14-GXL 200-RG28 BK-14-GXL 200-RG29 BK-14-GXL
322-RG1 GY-18-GXL 322-RG6 GY-18-GXL 322-RG5 GY-18-GXL
553-RG10 YL-18-GXL
610-RG13 OR-14-GXL 610-RG14 OR-14-GXL 610-RG15 OR-14-GXL
611-RG39 PU-14-GXL 611-RG41 PU-14-GXL 611-RG40 PU-14-GXL
709-RG48 OR-18-GXL 709-RG50 OR-18-GXL 709-RG51 OR-18-GXL
921-RG8 WH-18-GXL 921-RG19 WH-18-GXL 921-RG18 WH-18-GXL
A289-RG55 BK-18-GXL A289-RG56 BK-18-GXL A289-RG4 BK-18-GXL
322-RG6 GY-18-GXL 200-RG23 BK-18-GXL
322-RG5 GY-18-GXL554-RG7 PK-18-GXL 200-RG24 BK-18-GXL
102-RG37 RD-14-GXL 200-RG21 BK-14-GXL
H704-RG3 PK-18-GXL
J764-RG49 BR-18-GXL J764-RG52 BR-18-GXL J764-RG53 BR-18-GXL
J949-RG35 GY-18-GXL
J950-RG34 PU-18-GXL
K960-RG30 PK-18-GXL K960-RG32 PK-18-GXL K960-RG62 PK-18-GXL
K960-RG60 PK-18-GXL K960-RG58 PK-18-GXL
K960-RG47 PK-18-GXL K960-RG44 PK-18-GXL
K961-RG33 GN-18-GXL
K961-RG31 GN-18-GXL K961-RG63 GN-18-GXL
K961-RG61 GN-18-GXL K961-RG59 GN-18-GXL
K961-RG57 GN-18-GXL K961-RG45 GN-18-GXL
Y779-RG17 GN-18-GXL
Y787-RG12 WH-18-GXL Y787-RG20 WH-18-GXL Y787-RG67 WH-18-GXL
Y787-RG69 WH-18-GXL Y787-RG69 WH-18-GXL Y787-RG42 WH-18-GXL
Y788-RG22 GY-18-GXL Y788-RG26 GY-18-GXL
Y788-RG66 GY-18-GXL Y788-RG68 GY-18-GXL Y788-RG43 GY-18-GXL
H704-RG3 PK-18-GXL A289-RG4 BK-18-GXL
Y779-RG17 GN-18-GXL A289-RG56 BK-18-GXL
554-RG7 PK-18-GXL 921-RG18 WH-18-GXL 921-RG19 WH-18-GXL 553-RG10 YL-18-GXL
116-RG2 BR-14-GXL 116-RG11 BR-14-GXL 116-RG25 BR-14-GXL 200-RG28 BK-14-GXL 200-RG29 BK-14-GXL
200-RG36 BK-14-GXL K960-RG32 PK-18-GXL K960-RG44 PK-18-GXL K960-RG47 PK-18-GXL K960-RG60 PK-18-GXL
K961-RG33 GN-18-GXL K961-RG45 GN-18-GXL K961-RG57 GN-18-GXL K961-RG61 GN-18-GXL Y787-RG20 WH-18-GXL Y787-RG42 WH-18-GXL
Y788-RG26 GY-18-GXL Y788-RG43 GY-18-GXL Y788-RG68 GY-18-GXL
610-RG15 OR-14-GXL 200-RG9 BK-14-GXL 709-RG50 OR-18-GXL J764-RG52 BR-18-GXL J949-RG35 GY-18-GXL 611-RG41 PU-14-GXL 116-RG64 BR-14-GXL
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION TO SURFACE OF COMPONENT
CONNECTOR
H#
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW TERMINAL
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
A-C9
3E3370
A-C13
1552269
A-C6
N-C1 3E3388
1
2
3
4
5
6
7
8
A-C15
1552269
A-C8
3E3370
A-C12
1552269
A-C11
1552269
A-C7
3E3370
RG-C11
1552264
CONN 31
RG-C4
1552269
RG-C6
1552269
CONN 32
RG-C10
1552269
RG-C2
1552269
RG-C16
1552269
RG-C12
1552272
CONN 33
RG-C9
1552264
COLOR
ORANGE
YELLOW
BASIC ENGINETTT ENGINE
T858-AF10 GY-16 T858-AF1 GY-16
T859-AF12 WH-16 T859-AF3 WH-16
T860-AF8 OR-16
T957-AF18 PU-16 T958-AF19 YL-16 T959-AF20 BR-16 T960-AF21 BU-16 T961-AF22 GN-16 T962-AF23 WH-16
T859-AJ12 WH-16 T859-AJ4 WH-16
T860-AJ8 OR-16 T860-AJ6 OR-16
T957-AJ18 PU-16 T958-AJ19 YL-16 T959-AJ20 BR-16 T960-AJ21 BU-16 T961-AJ22 GN-16 T962-AJ23 WH-16
(58) INTAKE AIR PRESSURE SNSR
194-6724
OR-18
A
B
C
G833-N2 PK-18 T725-N3 WH-18 N707-N4 PU-18 G828-N5 WH-18 G829-N6 GN-18 C991-N7 PK-18 T746-N8 PK-18
CA-C1 3E3388
1
2
3
4
5
6
7
8
1
2
1
2
RK-C1 3E3364
1
2
1
2
1
2
1
2
3
4
CE-C1 3E3388
1
2
3
4
5
6
7
8
+ 5V
YL-18
GROUND
GN-18
SIGNAL
(59) INTAKE AIR TEMP SNSR
264-4297
1
SIGNAL GROUND
2
G829-N6 GN-18
(52) COOLANT TEMP SNSR
264-4297
1
SIGNAL GROUND
2
(50) ATMOSPHERIC PRESSURE SNSR
194-6722
OR-18
A
B
C
AM-C1 3E3364
1
2
AE-C1 3E3364
1
2
A
B
C
(13) FWD HORN HI
174-7875
(14) FWD HORN LO
163-1201
+5V
BK-18
GROUND
YL-18
SIGNAL
AM-C2
1552269 AM1 BK-18 AM2 WH-18
AE-C2
1552269 AE1 BK-18 AE2 WH-18
(63) OIL PRESSURE SNSR
194-6725
OR-18
+5V
BK-18
GROUND
YL-18
SIGNAL
610-CA1 OR-14-GXL 200-CA2 BK-14-GXL 709-CA9 OR-18-GXL J764-CA10 BR-18-GXL J950-CA15 PU-18-GXL 611-CA7 PU-14-GXL 116-CA12 BR-14-GXL
102-RK1 RD-14 200-RK2 BK-14
200-RK2 BK-14 200-RK3 BK-14 200-RK4 BK-14
625-RK7 PK-14 625-RK6 PK-14 625-RK5 PK-14
GY-18
GY-18
BK-18
BK-18
BK-16
BK-16
BK-16
BK-16
610-CE1 OR-14-GXL 200-CE2 BK-14-GXL 200-CE4 BK-14-GXL 709-CE9 OR-18-GXL J764-CE10 BR-18-GXL J950-CE15 PU-18-GXL 611-CE7 PU-14-GXL 116-CE12 BR-14-GXL
(101) REVERSING FAN SOL
152-8340
(80) FAN BYPASS SOL
279-6528
(79) DUAL TILT SOL
3E-9205
RED
WHITE
PINK
BLACK
GRAY
T858-AF2 GY-16
T859-AF4 WH-16
T860-AF5 OR-16 T860-AF6 OR-16
T858-AJ1 GY-16T859-AJ12 WH-16
T859-AJ3 WH-16
T860-AJ5 OR-16
C991-N7 PK-18 F421-N1 YL-18
G828-N9 WH-18G828-N5 WH-18 G828-N10 WH-18
G829-N11 GN-18 G829-N12 GN-18
G833-N2 PK-18 N707-N4 PU-18 N707-N4 PU-18 T725-N3 WH-18 T746-N8 PK-18
(51) CAM SPEED SNSR
201-6616
BC SP/T NEG
1
BC SP/T POS
2
(53) CRANK SPEED SNSR
201-6615
TC SP/T NEG
1
TC SP/T POS
2
200-RK2 BK-14
RK-C2
625-RK5 PK-14 200-RK4 BK-14
102-RK1 RD-14 688-RK8 PU-14 689-RK9 BU-14
689-RK9 BU-14 688-RK8 PU-14 625-RK7 PK-14
625-RK6 PK-14 200-RK3 BK-14
THIS DIAGRAM IS FOR THE D10 TRACTOR MODEL TT053 PART NUMBER 212-2751 CHG 04
COMPONENTS ARE SHOWN INSTALLED ON A FULLY OPERABLE MACHINE WITH THE KEY AND ENGINE OFF, AND TRANSMISSION SHIFTER IN NEUTRAL
1552269
RK-C3
1552267
RK-C5
1552267
RK-C4
1552269
Y787-RG42 WH-18-GXL Y788-RG43 GY-18-GXL
K960-RG44 PK-18-GXL K961-RG45 GN-18-GXL
116-RG2 BR-14-GXL 200-RG36 BK-14-GXL Y788-RG26 GY-18-GXL Y787-RG20 WH-18-GXL K961-RG33 GN-18-GXL K960-RG32 PK-18-GXL
116-RG11 BR-14-GXL 200-RG28 BK-14-GXL K960-RG60 PK-18-GXL K961-RG61 GN-18-GXL
116-RG25 BR-14-GXL 200-RG29 BK-14-GXL Y788-RG68 GY-18-GXL Y787-RG69 WH-18-GXL K961-RG57 GN-18-GXL K960-RG47 PK-18-GXL
NOTE A: NORMALLY OPEN BEFORE REFRIGERANT CHARGE
NOTE B: NORMALLY OPEN BEFORE INSTALLATION
NOTE C: FUSES 10A 9W-1442, 15A 9W-1441, 20A 9W-1446
NOTE E: THE FOLLOWING WIRE PAIRS MUST BE TWISTED AT LEAST 1 TURN/25 MILLIMETERS (F711-GN, F712-GY), (892-BR, 893-GN), (E900-WH, E901-GN) (E902-PU, E903-YL), (E904-BR, E905-BU), (E906-OR, E907-GY) (E908-BR, E909-WH), (K900-YL, K990-GN), (K960-PK, K961-GN) (L912-WH, L913-OR)
NOTE F: DIFFERENTIAL STEER TRACTOR ONLY
NOTE G: CLUTCH BRAKE TRACTOR ONLY
NOTE H: TIE BACK TO HARNESS WHEN RIPPER IS USED
NOTE J: TIE BACK TO HARNESS WHEN WINCH IS USED
NOTE K: WHEN HALOGEN ROPS LIGHTS PACKAGE INSTALLED USE SWITCH 246-5625 WHEN HID LIGHT PACKAGE INSTALLED USE SWITCH 231-9306
NOTE L: HARNESS LW, WDA FLOODS, IS PART OF A WASTE DISPOSAL LIGHT RELOCATION PACKAGE, THERE IS CURRENTLY NO ACTIVE PART NUMBER FOR THIS HARNESS
NOTE M: HARNESS GL, GROUND LEVEL SERVICE CENTER, IS AN ATTACHMENT MAINTAINED ON DIAGRAM FOR FUTURE DEVELOPMENT
PURPLE
BROWN
GREEN
BLUE
T858-AF1 GY-16 T957-AF18 PU-16
T858-AF2 GY-16 T958-AF19 YL-16
T859-AF3 WH-16 T959-AF20 BR-16
T859-AF4 WH-16 T960-AF21 BU-16
T860-AF5 OR-16 T961-AF22 GN-16
T860-AF6 OR-16 T962-AF23 WH-16
T860-AJ6 OR-16 T962-AJ23 WH-16
T860-AJ5 OR-16 T961-AJ22 GN-16
T859-AJ4 WH-16 T960-AJ21 BU-16
T859-AJ3 WH-16 T959-AJ20 BR-16
T858-AJ2 GY-16 T958-AJ19 YL-16
T858-AJ1 GY-16 T957-AJ18 PU-16
G828-N9 WH-18
G829-N11 GN-18
C991-N7 PK-18
F421-N1 YL-18 G833-N2 PK-18F421-N1 YL-18
T725-N3 WH-18
G828-N10 WH-18 G829-N12 GN-18
T746-N8 PK-18
CA-C2
610-CA3 OR-14-GXL 200-CA4 BK-14-GXL
610-CA5 OR-14-GXL 200-CA6 BK-14-GXL
611-CA7 PU-14-GXL 200-CA8 BK-14-GXL
709-CA9 OR-18-GXL J764-CA10 BR-18-GXL J950-CA11 PU-18-GXL
116-CA12 BR-14-GXL 200-CA13 BK-18-GXL J950-CA14 PU-18-GXL
1
2
B
A
C
RH-C1 3E3370
C
A
B
1552269
CA-C3
1552269
CA-C4
1552269
CA-C5
1552272
CA-C6
1552267
UNDERHOOD WORK LIGHT 1 219-6485
(123) UNDERHOOD WORK LIGHT SW 1
139-2116
RD-18
BK-18
WH-18
RH1 BK-18
CONN 37
1
2
RG-C19
1552267
A
B
C
RG-C18
1552267
A
B
C
CONN 36
RG-C5
1552252
1
2
3
4
5
6
7
8
9
10
11
12
CONN 35
RG-C13
1552273
1
2
3
4
5
6
CE-C2
610-CE3 OR-14-GXL
610-CE5 OR-14-GXL 200-CE6 BK-14-GXL
611-CE7 PU-14-GXL 200-CE8 BK-14-GXL
709-CE9 OR-18-GXL J764-CE10 BR-18-GXL J950-CE11 PU-18-GXL
116-CE12 BR-14-GXL 200-CE13 BK-18-GXL J950-CE14 PU-18-GXL
1552269
CE-C3
1552269
CE-C4
1552269
CE-C5
1552272
CONN 34
CE-C6
1552267
OPTIONAL CYL POSN SNSR
AF-C2
7E6513
1
2
AF-C3
7E6513
1
2
AF-C4
7E6513
1
2
AF-C5
7E6513
1
2
AF-C6
7E6513
1
2
AF-C7
7E6513
1
2
AJ-C7
7E6513
1
2
AJ-C6
7E6513
1
2
AJ-C5
7E6513
1
2
AJ-C4
7E6513
1
2
AJ-C3
7E6513
1
2
AJ-C2
7E6513
1
2
(56) FUEL PRESSURE SENSOR
N-C4
194-6725
3E3370
A
OR-18 YL-18
B
GN-18
C
(57) FUEL TEMP SENSOR
N-C3
264-4297
1552269
1
SIGNAL GROUND
2
(118) DIFFERENTIAL FILTER PRESSURE SW
N-C2
258-0883
1552269
1
2
1
2
1
2
1
2
3
4
A
B
C
BK-18
1
BK-18
2
(61) LH INTAKE AIR PRESSURE SNSR
N-C5
194-6724
3E3370
OR-18
A
YL-18
B
C
GN-18
LH CYLINDER FLD 1 147-0319
LH CYLINDER FLD 2 147-0319
LH CYL HID FLOOD 332-9402
SEE OPTIONAL POSITION SENSOR SH1 LOC (C-3)
HF-C1 3E3370
116-HF1 BR-18 200-HF2 BK-18 J952-HF3 GN-18
CONN 38
UNDERHOOD WORK LIGHT SW 2 139-2116
WH-18
C
BK-18
A
RD-18
B
(124) UNDERHOOD WORK LIGHT 2
219-6485
(44) CAN D DATALINK TERM 2
134-2540
(42) CAN B DATALINK TERM 2
134-2540
EL-C1 3E5179
116-EL1 BR-14 200-EL2 BK-14 Y788-EL3 GY-18 Y787-EL4 WH-18 K961-EL5 GN-18 K960-EL6 PK-18
116-EL7 BR-14 200-EL8 BK-14 K960-EL9 PK-18 K961-EL10 GN-18
EM-C1 3E3382
116-EM7 BR-14 200-EM8 BK-14 Y788-EM4 GY-18 Y787-EM5 WH-18 K961-EM3 GN-18 K960-EM2 PK-18
200-EM1 BK-14 200-EM6 BK-18
RH CYLINDER FLD 1 147-0319
1
2
RH CYLINDER FLD 2 147-0319
1
2
RH CYL HID FLOOD 332-9402
1
2
1
SEE OPTIONAL POSITION SENSOR
2
SH1 LOC (C-3)
3
4
HC-C1 3E3370
A
116-HC1 BR-14
B
200-HC2 BK-16
C
J952-HC3 GN-18
+BATTERY
OR
GROUND
BK
WH
SIGNAL
(48) LIFT CYL POSN SNSR
261-8021
RH OR LH
(84) INJECTOR 1
374-0751
(89) INJECTOR 3
374-0751
(91) INJECTOR 5
374-0751
(97) INJECTOR 7
374-0751
(95) INJECTOR 9
374-0751
(86) INJECTOR 11
374-0751
(88) INJECTOR 2
374-0751
(90) INJECTOR 4
374-0751
(92) INJECTOR 6
374-0751
(94) INJECTOR 8
374-0751
(85) INJECTOR 10
374-0751
(87) INJECTOR 12
374-0751
+ 5V
GROUND
SIGNAL
+ 5V
GROUND
SIGNAL
200-HF2 BK-18
J952-HF3 GN-18
116-HF1 BR-18
200-HC2 BK-16
J952-HC3 GN-18
116-HC1 BR-14
(60) LH CYL POSN SNSR
HF-C2
324-8979
3E3367
116-EL1 BR-14
K960-EL6 PK-18 K961-EL5 GN-18
200-EL2 BK-14
Y787-EL4 WH-18 Y788-EL3 GY-18
116-EL7 BR-14
K960-EL9 PK-18 K961-EL10 GN-18
200-EL8 BK-14
116-EM7 BR-14 200-EM6 BK-18200-EM8 BK-14 K960-EM2 PK-18 K961-EM3 GN-18
200-EM1 BK-14
Y787-EM5 WH-18 Y788-EM4 GY-18
200-EM8 BK-14
HC-C2
1494037
GROUND
A B
SIGNAL- (POSN)
C
SIGNAL+ (POSN)
D E
+ BATTERY
F G H J K
COILED CABLE ET
EL-C2
311-4862
2302566
A
B
C
D
E
F
G
H
I
J
COILED CABLE EV
EL-C4
311-4864
2302566
A
B
C
D
E
F
G
H
I
J
COILED CABLE EW
EM-C2
311-4862
2302566
A
B
C
D
E
F
G
H
I
J
1 2
(64) RH CYL POSN SNSR
324-8979
GROUND
A B
SIGNAL- (POSN)
C
SIGNAL+ (POSN)
D E
+ BATTERY
F G H J K
RD-14 BU-20 GN-20 WH-20
BK-14
GY-14 OR-20
BK-14 BK-20 BK-20 BK-20 BK-20
RD BU GN WH BR BK
RD-14 BU-20 GN-20 WH-20
BK-14
GY-14 OR-20
BK-14 BK-20 BK-20 BK-20 BK-20
(49) ANGLE SENSOR
276-6146
A
POWER
B
SELECT A
C
CAN HI
CAN LO
D
E
SELECT B
F
GROUND
BK-20 BK-20 OR-20 BK-20
RD-14
BK-20 WH-20 BU-20 GY-20 GN-20
BK-14
BK-20 BK-20 OR-20 BK-20
RD-14
BK-20 WH-20 BU-20 GY-20 GN-20
BK-14
(32) LH NOSE GPS REC
291-1913
SPARE
A
GROUND
B
C
CAN 2 LOW
CAN 2 SHIELD
D
E
F
G
SWITCHED POWER
H
J
K
L
CAN 1 LOW ID PIN
M
N
CAN 2 HIGH
P
CAN 1 HIGH
R
S
(29) RH NOSE GPS REC
291-1913
A
SPARE
B
GROUND
C
CAN 2 LOW
CAN 2 SHIELD
D
E
F
G
SWITCHED POWER
H
J
K
L
CAN 1 LOW ID PIN
M
N
CAN 2 HIGH
P
CAN 1 HIGH
R
S
WIRE GROUP COLOR DESCRIPTIONS
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
STARTING CIRCUIT
GROUND CIRCUIT
START AID CIRCUIT
CAT DATA LINK
ADVISOR
ENGINE CONTROL CIRCUIT
POWERTRAIN CONTROL CIRCUIT
IMPLEMENT CONTROL CIRCUIT
NAVIGATOR / ACCUGRADE / CAES CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
J1939 DATA LINK
CAN DATA LINK A
CAN DATA LINK B
CAN DATA LINK C
OTHER COLOR DESCRIPTIONS
HIGHWAYS
THIS SCHEMATIC IS FOR THE D10T TRACK - TYPE TRACTOR ELECTRICAL SYSTEM VOLUME 1 of 2: ENGINE AND CHASSIS
MEDIA NUMBER: UENR1752-05 SCHEMATIC PART NUMBER: 212-2751, CHANGE: 04,
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter in neutral and with parking brake set. Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
VERSION: -
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
10 9 8 7 6 5 4 3 2 1
L
K
J
I
H
G
F
E
D
C
B
A
Page 14
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
105-P143 RD-18-GXL 140-P416 RD-14-GXL 140-P133 RD-14-GXL 140-P134 RD-14-GXL
176-P457 OR-18-GXL
197-P138 RD-18-GXL 197-P139 RD-18-GXL
L
K
197-P140 RD-18-GXL
202-P106 BK-14-GXL 202-P107 BK-14-GXL 202-P129 BK-14-GXL 202-P179 BK-14-GXL
202-P323 BK-18-GXL 202-P326 BK-18-GXL
210-P11 BK-18-GXL 210-P12 BK-18-GXL 210-P3 BK-18-GXL
210-P321 BK-18-GXL 210-P1 BK-18-GXL 210-P319 BK-18-GXL
276-P173 BK-18-GXL 277-P174 BK-18-GXL 278-P175 BK-18-GXL 279-P176 BK-18-GXL 306-P223 GN-18-GXL 307-P141 OR-18-GXL 308-P309 YL-18-GXL 308-P322 YL-18-GXL 308-P461 YL-18-GXL 308-P462 YL-18-GXL 321-P351 BR-18-GXL 334-P332 BU-18-GXL 419-P109 YL-18-GXL 444-P344 BU-18-GXL 471-P426 PK-18-GXL 491-P370 PK-18-GXL 553-P317 YL-18-GXL 554-P316 PK-18-GXL 633-P417 BU-18-GXL 646-P427 OR-18-GXL
709-P299 OR-18-GXL
751-P40 GN-18-GXL 752-P41 YL-18-GXL 754-P36 BU-18-GXL 755-P34 OR-18-GXL 828-P183 WH-18-GXL 829-P185 GN-18-GXL 830-P184 OR-18-GXL 851-P104 WH-18-GXL
(141) POWERTRAIN CONTROL
XMSN OUTPUT SPEED SNSR 1 +
XMSN OUTPUT SPEED SNSR 1 -
XMSN OUTPUT SPEED SNSR 2 +
XMSN OUTPUT SPEED SNSR 2 -
XMSN INTER SPEED SNSR 1 +
XMSN INTER SPEED SNSR 1 -
J
I
H
XMSN INTER SPEED SNSR 2 +
XMSN INTER SPEED SNSR 2 -
XMSN OIL TEMP SNSR (SUMP)
XMSN LUBE OIL TEMP SENSOR (COOLER)
STEERING PUMP CHARGE PRESSURE SENSOR
AUTOSHIFT (BI-DIRECTIONAL) SW (N/O)
AUTOSHIFT (BI-DIRECTIONAL) SW (N/C)
PARKING BRAKE DUMP VALVE SOL
SECONDARY BRAKE DUMP VALVE SOL
STEERING (DS) FILTER BYPASS SWITCH
STEERING LEVER POSN SNSR 1
STEERING LEVER POSN SNSR 2
STEERING LEVER POSN SNSR 3
SERVICE BRAKE PEDAL POSN SNSR
DIRECTION LEVER (FNR) POSITION SNSR
STEERING MOTOR SPEED SNSR 1
STEERING MOTOR SPEED SNSR 2
G
F
(139) IMPLEMENT CONTROL
HYD OIL TEMP SENDER (PASSIVE)
IMPLEMENT SHUTOFF SW (PIN 1 POLE 1)
E
BLADE PITCH FWD TRIGGER SW (N/C)
BLADE PITCH FWD TRIGGER SW (N/O)
BLADE MANUAL SELECT SW (N/C)
MAIN E/H PUMP PRESSURE SNSR
TILT E/H PUMP PRESSURE SNSR
BLADE MANUAL SELECT SW (N/O)
BLADE MODE SELECT SW (N/C)
BLADE MODE SELECT SW (N/O)
FAN RETURN FILTER BYPASS SW
QUICK DROP SOLENOID RETURN
D
IMPLEMENT SHUTOFF SW COMMON
DUAL TILT - SINGLE TILT SOLENOID
AUX FUNCTION SELECT RELAY
BLADE RAISE/LOWER POSITION SNSR
C
BLADE PITCH/ANGLE POSITION SNSR
RIPPER RAISE/LOWER POSN SNSR
RIPPER IN/OUT POSITION SNSR
AUTOBLADE ASSIST SW (N/C)
AUTOBLADE ASSIST SW (N/O)
WINCH SPOOL IN/OUT POSN SNSR
WINCH DRUM CLUTCH RELEASE POSN SNSR
WINCH LOW SPEED LOCK SW (N/C)
WINCH LOW SPEED LOCK SW (N/O)
IMPLEMENT SHUTOFF SW (PIN 4 POLE 2)
IMPLEMENT SHUTOFF SW (PIN 6 POLE 2)
RIGHT CYLINDER LIFT POSITION SNSR
LEFT CYLINDER LIFT POSITION SNSR
CASE DRAIN FILTER BYPASS SW
B
(178) CAN A DATALINK TERM RES 1
304-5687
KEY SWITCH ON
CAT DATALINK (HIGH)
+5V SENSOR PWR
PRIORITY VALVE SOLENOID
- BATTERY (1)
KEY SWITCH ON
TC OUTPUT SPEED SNSR +
TC OUTPUT SPEED SNSR -
ENGINE SPEED SNSR +
ENGINE SPEED SNSR -
GROUND (EXTRA PIN)
CAT DATALINK (LOW)
5V SENSOR RETURN
TC OIL TEMP SNSR
- BATTERY (2)
REMOTE LIGHT SW
FENDER FLOODS SW
LOCATION CODE 0
LOCATION CODE 1
LOCATION CODE 2
+ BATTERY (1)
LOCATION CODE ENABLE
REVERSE SWITCH (N/O)
REVERSE SWITCH (N/C)
PARKING BRAKE SW (N/O)
ANALOG ACT 2
+ BATTERY (4)
+ BATTERY (2)
PARKING BRAKE SW (N/C)
AUTO KICKDOWN SW (N/O)
8V SENSOR POWER
8V SENSOR RETURN
+ BATTERY (5)
+ BATTERY (3)
XMSN - SPEED CLUTCH 1
XMSN - SPEED CLUTCH 2
PWM DR RTN 1-4
XMSN - SPEED CLUTCH 3
PWM DR 4+
GROUND (EXTRA PIN)
PWM DR RTN 11-12
PWM DR RTN 9-10
10V RETURN
- BATTERY (3)
LEFT BRAKE SOL
RIGHT BRAKE SOL
PWM DR RTN 5-8
LEFT STEER CLUTCH SOL
RIGHT STEER CLUTCH SOL
PTO FILTER BYPASS SW
XMSN - REVERSE CLUTCH
XMSN - FORWARD CLUTCH
LEFT STEERING VALVE SOL
RIGHT STEERING VALVE SOL
TC OUTPUT SPEED MIRROR
FORWARD SWITCH (N/O) 19
FORWARD SWITCH (N/C) 20
CAN DATALINK B+ (PHS)
CAN DATALINK B- (PHS)
CAN DATALINK B SHIELD
CAN DATALINK A+ (J1939)
CAN DATALINK A- (J1939)
CAN DATALINK A SHIELD
SWG 12
+10V POWER SUPPLY
- BATTERY (4)
KEY SWITCH START
2A ON/OFF STD 1
LOAD RTN 1
BACKUP ALARM
NEUTRAL START RELAY
LOAD RTN 2
FENDER FLOODS RELAY
SWG/FREQ PHS 1
SWG/FREQ PHS 2
SWG/FREQ PHS 3
SWG/FREQ PHS 4
DIGITAL RETURN
SWG/FREQ STD 8
UPSHIFT SW (N/O)
UPSHIFT SW (N/C)
DOWNSHIFT SW (N/O)
DOWNSHIFT SW (N/C)
ACCESS LADDER
SWG 22
SWG/FREQ STD 13
SWG/FREQ STD 14
SWG/FREQ STD 15
SWG/FREQ STD 16
SWG 23
SWG 24
SWG 25
SWG 26
SWG/FREQ STD 17
SWG/FREQ STD 18
SWG/FREQ STD 19
SWG/FREQ STD 20
SWG 27
SWG 28
SWG 29
HARNESS CODE 0
GROUND (EXTRA PIN)
HARNESS CODE 1
HARNESS CODE 2
HARNESS CODE 3
HARNESS CODE 4
HARNESS CODE 5
GROUND (EXTRA PIN)
GROUND (EXTRA PIN)
304-5687
KEY SWITCH ON
CAT DATA LINK (HIGH)
+5V SENSOR POWER
PCO (RIPPER RV) SOL
- BATTERY
KEYSWITCH ON
CAT DATA LINK (LOW)
5V SENSOR RETURN
- BATTERY
LOCATION CODE 0
LOCATION CODE 1
LOCATION CODE 3
+ BATTERY
LOCATION CODE ENABLE
+ BATTERY
+ BATTERY
+8V SENSOR POWER
8V SENSOR RETURN
+ BATTERY
+ BATTERY
BLADE RAISE SOL
BLADE LOWER SOL
BLADE SOLENOID RETURN
BLADE TILT LEFT SOL
BLADE TILT RIGHT SOL
GROUND (EXTRA PIN)
+10V RETURN
- BATTERY
RIPPER RAISE SOL
RIPPER LOWER SOL
RIPPER SOLENOID RETURN
RIPPER SHANK IN SOL
RIPPER SHANK OUT SOL
RIPPER AUTOSTOW SW (N/C)
RIPPER AUTOSTOW SW (N/O)
QUICK DROP SOLENOID
+10V POWER
- BATTERY
+ BATTERY (SWITCHED)
PITCH REGEN SOL
SOLENOID RETURN
DUAL TILT PITCH SOLENOID
AUTO CARRY DIVERTER SOL
DUAL TILT/PCO SOL RETURN
DIGITAL RETURN
BLADE TILT POSITON SNSR
HARNESS CODE 0
HARNESS CODE 1
HARNESS CODE 2
HARNESS CODE 3
AUTO CARRY SW (N/C)
AUTO CARRY SW (N/O)
GROUND SPEED RADAR
NOT USED ON THIS MODEL
NOT USED ON THIS MODEL
PUMP OUTLET SCREEN 1
PUMP OUTLET SCREEN 2
PUMP OUTLET SCREEN 3
GROUND (EXTRA PIN)
WINCH LOCKOUT SW (N/C)
WINCH LOCKOUT SW (N/O)
GROUND (EXTRA PIN)
CAN B DATA LINK (HIGH)
CAN B DATA LINK (LOW)
CAN A DATA LINK (HIGH)
CAN A DATA LINK (LOW)
GROUND (EXTRA PIN)
134-2540
J1
J2
J1
J2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
A
B
C
P-C4 1471445
P-C5 1471446
P-C6 1471445
P-C7 1471446
P-C36 1552267
308-P322 YL-18-GXL E900-P24 WH-18-GXL E901-P25 GN-18-GXL E906-P30 OR-18-GXL E907-P31 GY-18-GXL
893-P158 GN-18-GXL G879-P345 OR-18-GXL K978-P32 BU-18-GXL 202-P106 BK-14-GXL 308-P461 YL-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL
892-P154 BR-18-GXL J767-P298 GY-18-GXL 444-P344 BU-18-GXL 202-P107 BK-14-GXL
646-P427 OR-18-GXL 202-P323 BK-18-GXL
G460-P236 GN-18-GXL
140-P416 RD-14-GXL 202-P326 BK-18-GXL F782-P103 OR-18-GXL F786-P105 GY-18-GXL 419-P109 YL-18-GXL C462-P348 PK-18-GXL
140-P133 RD-14-GXL F780-P108 PK-18-GXL F848-P101 OR-18-GXL F849-P102 WH-18-GXL 977-P100 YL-18-GXL C985-P261 BU-18-GXL J766-P262 PU-18-GXL
140-P134 RD-14-GXL 900-P33 PU-18-GXL 755-P34 OR-18-GXL 924-P382 GN-18-GXL 754-P36 BU-18-GXL
H804-P180 GN-18-GXL 975-P384 WH-18-GXL J765-P311 BU-18-GXL 202-P129 BK-14-GXL F792-P38 WH-18-GXL F791-P313 BU-18-GXL K952-P39 BR-18-GXL X754-P315 GN-18-GXL X755-P331 WH-18-GXL
A405-P341 WH-18-GXL 751-P40 GN-18-GXL 752-P41 YL-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL U727-P310 YL-18-GXL 202-P179 BK-14-GXL
307-P141 OR-18-GXL
G730-P337 PK-18-GXL F761-P320 BR-18-GXL G731-P339 GY-18-GXL 321-P351 BR-18-GXL 306-P223 GN-18-GXL F761-P386 BR-18-GXL
633-P417 BU-18-GXL
L740-P346 BR-18-GXL C455-P355 PU-18-GXL 828-P183 WH-18-GXL 830-P184 OR-18-GXL 829-P185 GN-18-GXL
F785-P112 WH-18-GXL F783-P110 GN-18-GXL F781-P113 BR-18-GXL F784-P111 YL-18-GXL F790-P130 BR-18-GXL 851-P104 WH-18-GXL A334-P356 BU-18-GXL A335-P357 GY-18-GXL E914-P296 BU-18-GXL E915-P295 GY-18-GXL 471-P426 PK-18-GXL
P991-P481 PK-18-GXL
276-P173 BK-18-GXL
277-P174 BK-18-GXL 278-P175 BK-18-GXL 279-P176 BK-18-GXL
F711-P281 GN-18-GXL F712-P284 GY-18-GXL
308-P309 YL-18-GXL
893-P157 GN-18-GXL T997-P435 OR-18-GXL E798-P400 PK-18-GXL 210-P1 BK-18-GXL 308-P462 YL-18-GXL
892-P152 BR-18-GXL T993-P436 BR-18-GXL 491-P370 PK-18-GXL 210-P3 BK-18-GXL E918-P2 GN-18-GXL
210-P319 BK-18-GXL
197-P138 RD-18-GXL 210-P321 BK-18-GXL J996-P86 BR-18-GXL J991-P85 OR-18-GXL J946-P84 OR-18-GXL M919-P73 BU-18-GXL M921-P372 BR-18-GXL
197-P139 RD-18-GXL J945-P83 WH-18-GXL J944-P82 BU-18-GXL J943-P81 GN-18-GXL E450-P330 GN-18-GXL
197-P140 RD-18-GXL H713-P5 PK-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL M929-P8 WH-18-GXL M928-P9 BU-18-GXL
H805-P51 BR-18-GXL
J764-P347 BR-18-GXL 210-P12 BK-18-GXL J921-P13 PK-18-GXL J914-P14 PU-18-GXL H802-P15 GY-18-GXL J913-P16 GN-18-GXL J922-P17 GY-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL
G703-P52 GN-18-GXL 709-P299 OR-18-GXL 210-P11 BK-18-GXL
176-P457 OR-18-GXL M927-P20 GN-18-GXL F799-P395 BU-18-GXL C443-P117 BU-18-GXL 554-P316 PK-18-GXL 553-P317 YL-18-GXL 334-P332 BU-18-GXL 921-P119 WH-18-GXL
Y773-P314 GY-18-GXL
H710-P79 PK-18-GXL H711-P80 GN-18-GXL K757-P235 YL-18-GXL J948-P76 PK-18-GXL A210-P168 BK-18-GXL A211-P169 BK-18-GXL A212-P170 BK-18-GXL A213-P171 BK-18-GXL J947-P75 YL-18-GXL
E562-P21 PU-18-GXL E563-P22 YL-18-GXL C978-P53 BR-18-GXL C975-P54 WH-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL
C913-P405 BU-18-GXL F884-P122 BU-18-GXL F868-P126 OR-18-GXL E913-P4 YL-18-GXL E912-P204 PU-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL C495-P440 OR-18-GXL A404-P465 BU-18-GXL C436-P466 BU-18-GXL H448-P467 BR-18-GXL
G767-P18 WH-18-GXL G766-P19 GN-18-GXL
P991-P483 PK-18-GXL
K960-P368 PK-18-GXL K961-P367 GN-18-GXL
F711-P193 GN-18-GXL F712-P283 GY-18-GXL
F711-P282 GN-18-GXL F712-P362 GY-18-GXL
924-P382 GN-18-GXL
975-P384 WH-18-GXL 975-P383 WH-18-GXL
A405-P341 WH-18-GXL
A607-P464 PK-18-GXLA607-P464 PK-18-GXL
C985-P261 BU-18-GXL
F711-P281 GN-18-GXL
F711-P193 GN-18-GXL F711-P374 GN-18-GXL
F711-P282 GN-18-GXL
F712-P284 GY-18-GXL
F712-P283 GY-18-GXL F712-P396 GY-18-GXL
F712-P208 GY-18-GXL
F712-P362 GY-18-GXL
F761-P386 BR-18-GXL F761-P320 BR-18-GXL
G730-P337 PK-18-GXL
G731-P339 GY-18-GXL
J764-P347 BR-18-GXL
J766-P262 PU-18-GXL
892-P152 BR-18-GXL 892-P154 BR-18-GXL 893-P157 GN-18-GXL 893-P158 GN-18-GXL 900-P33 PU-18-GXL 921-P119 WH-18-GXL
977-P100 YL-18-GXL A210-P168 BK-18-GXL A211-P169 BK-18-GXL A212-P170 BK-18-GXL A213-P171 BK-18-GXL A334-P356 BU-18-GXL A335-P357 GY-18-GXL A404-P465 BU-18-GXL
C436-P466 BU-18-GXL
C455-P355 PU-18-GXL C462-P348 PK-18-GXL C495-P440 OR-18-GXL C913-P405 BU-18-GXL C975-P54 WH-18-GXL C978-P53 BR-18-GXL
E450-P330 GN-18-GXL E562-P21 PU-18-GXL E563-P22 YL-18-GXL E798-P400 PK-18-GXL E900-P24 WH-18-GXL E901-P25 GN-18-GXL E906-P30 OR-18-GXL E907-P31 GY-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL E912-P204 PU-18-GXL E913-P4 YL-18-GXL E914-P296 BU-18-GXL E915-P295 GY-18-GXL E918-P2 GN-18-GXL
F780-P108 PK-18-GXL F780-P108 PK-18-GXL
F783-P110 GN-18-GXL F783-P110 GN-18-GXL F784-P111 YL-18-GXL F784-P111 YL-18-GXL
F786-P105 GY-18-GXL F786-P105 GY-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL F790-P130 BR-18-GXL F791-P313 BU-18-GXL F792-P38 WH-18-GXL F799-P395 BU-18-GXL
F848-P101 OR-18-GXL F849-P102 WH-18-GXL F868-P126 OR-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL F884-P122 BU-18-GXL G460-P236 GN-18-GXL G703-P52 GN-18-GXL
G766-P19 GN-18-GXL G767-P18 WH-18-GXL
G879-P345 OR-18-GXL H448-P467 BR-18-GXL H710-P79 PK-18-GXL H711-P80 GN-18-GXL H713-P5 PK-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL H802-P15 GY-18-GXL H804-P180 GN-18-GXL H805-P51 BR-18-GXL
J765-P311 BU-18-GXL
J767-P298 GY-18-GXL J913-P16 GN-18-GXL J914-P14 PU-18-GXL J921-P13 PK-18-GXL J922-P17 GY-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL J943-P81 GN-18-GXL J944-P82 BU-18-GXL J945-P83 WH-18-GXL J946-P84 OR-18-GXL J947-P75 YL-18-GXL J948-P76 PK-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL J991-P85 OR-18-GXL J996-P86 BR-18-GXL K757-P235 YL-18-GXL K952-P39 BR-18-GXL K960-P368 PK-18-GXL K961-P367 GN-18-GXL K978-P32 BU-18-GXL L740-P346 BR-18-GXL M919-P73 BU-18-GXL M921-P372 BR-18-GXL M927-P20 GN-18-GXL M928-P9 BU-18-GXL M929-P8 WH-18-GXL P991-P481 PK-18-GXL P991-P483 PK-18-GXL T993-P436 BR-18-GXL T997-P435 OR-18-GXL U727-P310 YL-18-GXL X754-P315 GN-18-GXL X755-P331 WH-18-GXL Y773-P314 GY-18-GXL
A
18
17
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
140-P132 RD-14-GXL 140-P131 RD-14-GXL
197-P137 RD-14-GXL 197-P415 RD-14-GXL
202-P327 BK-18-GXL 202-P210 BK-18-GXL 202-P350 BK-18-GXL 202-P305 BK-18-GXL 202-P97 BK-18-GXL
210-P205 BK-14-GXL 210-P55 BK-14-GXL 210-P68 BK-18-GXL 210-P209 BK-14-GXL
210-P285 BK-18-GXL 210-P72 BK-18-GXL 210-P304 BK-14-GXL 210-P325 BK-18-GXL
709-P458 OR-18-GXL 709-P114 OR-18-GXL 709-P231 OR-18-GXL
924-P381 GN-18-GXL 924-P35 GN-18-GXL
975-P37 WH-18-GXL
A405-P349 WH-18-GXL A405-P340 WH-18-GXL
A607-P459 PK-18-GXL A607-P428 PK-14-GXL
C443-P409 BU-18-GXLC443-P117 BU-18-GXL C443-P439 BU-18-GXL C443-P50 BU-18-GXL
C985-P379 BU-18-GXL C985-P257 BU-18-GXL C985-P260 BU-18-GXL
F711-P275 GN-18-GXL F711-P279 GN-18-GXL
F711-P224 GN-18-GXL
F711-P194 GN-18-GXL F711-P393 GN-18-GXL
F712-P277 GY-18-GXL
F712-P280 GY-18-GXL
F712-P233 GY-18-GXL
F712-P397 GY-18-GXL
F761-P318 BR-18-GXL F761-P45 BR-18-GXL F761-P385 BR-18-GXL F761-P378 BR-18-GXL
G730-P46 PK-18-GXL G730-P480 PK-18-GXL
G731-P44 GY-18-GXL G731-P338 GY-18-GXL
J764-P329 BR-18-GXL J764-P74 BR-18-GXL J764-P116 BR-18-GXL
J766-P259 PU-18-GXL J766-P380 PU-18-GXL J766-P258 PU-18-GXL
102-P359 RD-18-GXL 102-P460 RD-14-GXL 106-P164 RD-16-GXL 108-P163 BU-14-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL 123-P335 WH-18-GXL 123-P414 WH-18-GXL 124-P365 GN-14-GXL 149-P408 RD-12 174-P394 PK-14-GXL 176-P182 OR-16-GXL 186-P203 WH-18-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P242 BK-14-GXL 201-P358 BK-16-GXL 202-P306 BK-18-GXL 229-P432 BK-18-GXL 308-P429 YL-14-GXL 326-P442 PU-18-GXL 403-P353 GN-18-GXL 469-P369 GN-18-GXL 515-P290 GY-14-GXL 516-P288 GN-14-GXL 517-P291 BU-14-GXL 521-P286 YL-14-GXL 522-P239 WH-16-GXL 567-P292 WH-18-GXL 592-P66 BU-18-GXL 592-P200 BU-18-GXL 600-P241 BR-18-GXL 608-P125 GN-14-GXL 609-P127 YL-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 651-P447 PK-14-GXL 892-P165 BR-18-GXL 893-P166 GN-18-GXL A513-P206 PK-18-GXL A524-P61 BR-18-GXL C568-P289 WH-14-GXL C991-P423 PK-18-GXL F711-P177 GN-18-GXL F712-P418 GY-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL J767-P240 GY-18-GXL K960-P402 PK-18-GXL K961-P403 GN-18-GXL L740-P328 BR-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL
102-P359 RD-18-GXL 102-P460 RD-14-GXL 106-P164 RD-16-GXL 108-P163 BU-14-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL 123-P335 WH-18-GXL 123-P414 WH-18-GXL 124-P365 GN-14-GXL 149-P408 RD-12 174-P394 PK-14-GXL 176-P182 OR-16-GXL 186-P203 WH-18-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P242 BK-14-GXL 201-P358 BK-16-GXL 202-P306 BK-18-GXL 229-P432 BK-18-GXL 308-P429 YL-14-GXL 326-P442 PU-18-GXL 403-P353 GN-18-GXL 469-P369 GN-18-GXL 515-P290 GY-14-GXL 516-P288 GN-14-GXL 517-P291 BU-14-GXL 521-P286 YL-14-GXL 522-P239 WH-16-GXL 567-P292 WH-18-GXL 592-P66 BU-18-GXL 592-P200 BU-18-GXL
600-P241 BR-18-GXL 608-P125 GN-14-GXL 609-P127 YL-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 651-P447 PK-14-GXL 892-P165 BR-18-GXL 893-P166 GN-18-GXL A513-P206 PK-18-GXL A524-P61 BR-18-GXL C568-P289 WH-14-GXL C991-P423 PK-18-GXL F711-P177 GN-18-GXL F712-P418 GY-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL J767-P240 GY-18-GXL K960-P402 PK-18-GXL K961-P403 GN-18-GXL L740-P328 BR-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL
(220) WATER VALVE
PR-C2
CONN 40
P-C27
PR-C1
1642336
RD-14
BK-14
P-C23
1552273
P-C24
1552273
P-C3
2144208
1552252
1
2
3
4
5
6
7
8
9
10
11
12
PR-C4 1552269
1
2
CONN 41
PV-C1 3E3382
1
2
3
4
5
6
PW-C1 3E3382
1
2
3
4
5
6
CONN 42
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
200-PR1 BK-14 A524-PR2 BR-18 592-PR6 BU-18 174-PR8 PK-14 522-PR7 WH-16
567-PR9 WH-18 516-PR10 GN-14 C568-PR3 WH-14 515-PR11 GY-14 517-PR12 BU-14 200-PR13 BK-14
C555-PR4 BR-14 200-PR15 BK-14
Y773-PV2 BK-18
Y773-PV3 BK-18
Y773-PV1 BK-18
Y773-PW2 BK-18
Y773-PW3 BK-18
Y773-PW1 BK-18
CONN 13
CONNECTS TO LEFT HAND FENDER LF-C3 SHT 1 H-15
102-P460 RD-14-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL 123-P335 WH-18-GXL 174-P394 PK-14-GXL 174-P394 PK-14-GXL 200-P190 BK-14-GXL 200-P242 BK-14-GXL 202-P306 BK-18-GXL 202-P350 BK-18-GXL 210-P285 BK-18-GXL 229-P432 BK-18-GXL 276-P173 BK-18-GXL 277-P174 BK-18-GXL 278-P175 BK-18-GXL 279-P176 BK-18-GXL 321-P351 BR-18-GXL 326-P442 PU-18-GXL 334-P332 BU-18-GXL 469-P369 GN-18-GXL 471-P426 PK-18-GXL 515-P290 GY-14-GXL 516-P288 GN-14-GXL 517-P291 BU-14-GXL 522-P239 WH-16-GXL 567-P292 WH-18-GXL 592-P66 BU-18-GXL 608-P125 GN-14-GXL 609-P127 YL-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 651-P447 PK-14-GXL 709-P231 OR-18-GXL 751-P40 GN-18-GXL 752-P41 YL-18-GXL 754-P36 BU-18-GXL 755-P34 OR-18-GXL 900-P33 PU-18-GXL 924-P35 GN-18-GXL 924-P381 GN-18-GXL 975-P37 WH-18-GXL 975-P383 WH-18-GXL
A210-P168 BK-18-GXL A211-P169 BK-18-GXL A212-P170 BK-18-GXL A213-P171 BK-18-GXL A405-P340 WH-18-GXL A524-P61 BR-18-GXL A607-P428 PK-14-GXL C443-P409 BU-18-GXL C455-P355 PU-18-GXL C462-P348 PK-18-GXL C568-P289 WH-14-GXL C913-P405 BU-18-GXL C991-P423 PK-18-GXL E900-P24 WH-18-GXL E901-P25 GN-18-GXL E906-P30 OR-18-GXL E907-P31 GY-18-GXL F711-P177 GN-18-GXL F712-P418 GY-18-GXL F761-P45 BR-18-GXL F761-P385 BR-18-GXL F791-P313 BU-18-GXL F792-P38 WH-18-GXL G460-P236 GN-18-GXL G730-P46 PK-18-GXL G731-P44 GY-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL G879-P345 OR-18-GXL J764-P329 BR-18-GXL J767-P240 GY-18-GXL K952-P39 BR-18-GXL K960-P402 PK-18-GXL K961-P403 GN-18-GXL L740-P328 BR-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL X754-P315 GN-18-GXL X755-P331 WH-18-GXL X918-P412 PU-18-GXL X918-P412 PU-18-GXL
Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL
106-P164 RD-16-GXL 108-P163 BU-14-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL 123-P335 WH-18-GXL 123-P414 WH-18-GXL 124-P365 GN-14-GXL 140-P131 RD-14-GXL 140-P132 RD-14-GXL 149-P408 RD-12 176-P182 OR-16-GXL 308-P144 YL-18-GXL 176-P457 OR-18-GXL 186-P203 WH-18-GXL 197-P137 RD-14-GXL 197-P415 RD-14-GXL 202-P97 BK-18-GXL 202-P106 BK-14-GXL 202-P107 BK-14-GXL 202-P129 BK-14-GXL 202-P179 BK-14-GXL 202-P210 BK-18-GXL 202-P305 BK-18-GXL 202-P306 BK-18-GXL 202-P327 BK-18-GXL 210-P205 BK-14-GXL 210-P304 BK-14-GXL 306-P223 GN-18-GXL 308-P309 YL-18-GXL 308-P322 YL-18-GXL 308-P429 YL-14-GXL 308-P461 YL-18-GXL 308-P462 YL-18-GXL 419-P109 YL-18-GXL 828-P183 WH-18-GXL 829-P185 GN-18-GXL 830-P184 OR-18-GXL 851-P104 WH-18-GXL 892-P152 BR-18-GXL 892-P154 BR-18-GXL 892-P165 BR-18-GXL 893-P157 GN-18-GXL 893-P158 GN-18-GXL 893-P166 GN-18-GXL C985-P257 BU-18-GXL C985-P260 BU-18-GXL
E914-P296 BU-18-GXL E915-P295 GY-18-GXL F711-P177 GN-18-GXL F711-P275 GN-18-GXL F712-P277 GY-18-GXL F712-P418 GY-18-GXL F761-P318 BR-18-GXL
F781-P113 BR-18-GXLF781-P113 BR-18-GXL F782-P103 OR-18-GXLF782-P103 OR-18-GXL
200-P242 BK-14-GXL A524-P61 BR-18-GXL 592-P66 BU-18-GXL
522-P239 WH-16-GXL
567-P292 WH-18-GXL 516-P288 GN-14-GXL C568-P289 WH-14-GXL 515-P290 GY-14-GXL 517-P291 BU-14-GXL 200-P190 BK-14-GXL
A210-P168 BK-18-GXL A211-P169 BK-18-GXL A212-P170 BK-18-GXL A213-P171 BK-18-GXL
210-P285 BK-18-GXL
276-P173 BK-18-GXL 277-P174 BK-18-GXL 278-P175 BK-18-GXL 279-P176 BK-18-GXL
202-P306 BK-18-GXL
E900-P24 WH-18-GXL E901-P25 GN-18-GXL 709-P231 OR-18-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL J764-P329 BR-18-GXL E906-P30 OR-18-GXL E907-P31 GY-18-GXL 752-P41 YL-18-GXL 751-P40 GN-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL 975-P37 WH-18-GXL 900-P33 PU-18-GXL 755-P34 OR-18-GXL 754-P36 BU-18-GXL 924-P35 GN-18-GXL F792-P38 WH-18-GXL K952-P39 BR-18-GXL G731-P44 GY-18-GXL G730-P46 PK-18-GXL F761-P45 BR-18-GXL 609-P127 YL-14-GXL 326-P442 PU-18-GXL 608-P125 GN-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL N976-P470 PU-18-GXL
X919-P430 WH-18-GXLX919-P430 WH-18-GXL A607-P428 PK-14-GXL N967-P471 GY-18-GXL 471-P426 PK-18-GXL 321-P351 BR-18-GXL 202-P350 BK-18-GXL C455-P355 PU-18-GXL F761-P385 BR-18-GXL F791-P313 BU-18-GXL X754-P315 GN-18-GXL X755-P331 WH-18-GXL 469-P369 GN-18-GXL 924-P381 GN-18-GXL 975-P383 WH-18-GXL 229-P432 BK-18-GXL T936-P390 GN-18-GXL N960-P446 OR-18-GXL A405-P340 WH-18-GXL 102-P460 RD-14-GXL 123-P335 WH-18-GXL G460-P236 GN-18-GXL L740-P328 BR-18-GXL 651-P447 PK-14-GXL G879-P345 OR-18-GXL J767-P240 GY-18-GXL C462-P348 PK-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL C991-P423 PK-18-GXL N961-P445 OR-18-GXL F711-P177 GN-18-GXL F712-P418 GY-18-GXL Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL K960-P402 PK-18-GXL K961-P403 GN-18-GXL C913-P405 BU-18-GXL 334-P332 BU-18-GXL C443-P409 BU-18-GXL T725-P354 WH-18-GXL N707-P454 PU-18-GXL
H4
(154) BLOWER MOTOR
268-8792
MOTOR
174-PR8 PK-14 200-PR13 BK-14
200-PR14 BK-18 200-PR20 BK-18 200-PR1 BK-14 200-PR15 BK-14 200-PR16 BK-16
515-PR11 GY-14 515-PR17 GY-14 515-PR18 GY-14
516-PR10 GN-14 517-PR12 BU-14 522-PR7 WH-16 567-PR9 WH-18 592-PR6 BU-18 A524-PR2 BR-18
A526-PR5 PK-18
C555-PR4 BR-14 C568-PR3 WH-14
IMPLEMENT CODE PLUG
POWERTRAIN CODE PLUG
592-PR6 BU-18
200-PR14 BK-18 A526-PR5 PK-18
A526-PR5 PK-18 A524-PR2 BR-18
522-PR7 WH-16
200-PR16 BK-16
C555-PR4 BR-14
515-PR18 GY-14
174-PR8 PK-14 200-PR13 BK-14 200-PR20 BK-18 567-PR9 WH-18 200-PR13 BK-14
2470281
517-PR12 BU-14 516-PR10 GN-14 C568-PR3 WH-14 515-PR17 GY-14
(165) 12V OUTLET FUSEPANEL
(176) START RELAY 2
F785-P112 WH-18-GXLF785-P112 WH-18-GXL
J765-P311 BU-18-GXL J766-P258 PU-18-GXL J766-P259 PU-18-GXL J767-P240 GY-18-GXL J767-P298 GY-18-GXL U727-P310 YL-18-GXL
102-P359 RD-18-GXL 102-P460 RD-14-GXL 174-P394 PK-14-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P242 BK-14-GXL 201-P358 BK-16-GXL 210-P55 BK-14-GXL 210-P68 BK-18-GXL 210-P72 BK-18-GXL 210-P325 BK-18-GXL 229-P432 BK-18-GXL 307-P141 OR-18-GXL 326-P442 PU-18-GXL
403-P353 GN-18-GXL 444-P344 BU-18-GXL 469-P369 GN-18-GXL 491-P370 PK-18-GXL 521-P286 YL-14-GXL 522-P239 WH-16-GXL 553-P317 YL-18-GXL 554-P316 PK-18-GXL 592-P66 BU-18-GXL 592-P200 BU-18-GXL 600-P241 BR-18-GXL 608-P125 GN-14-GXL 609-P127 YL-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 646-P427 OR-18-GXL 651-P447 PK-14-GXL
709-P114 OR-18-GXL 709-P458 OR-18-GXL 921-P119 WH-18-GXL 977-P100 YL-18-GXL A334-P356 BU-18-GXL A335-P357 GY-18-GXL A404-P465 BU-18-GXL A405-P349 WH-18-GXL A513-P206 PK-18-GXL C436-P466 BU-18-GXL C443-P50 BU-18-GXL C443-P439 BU-18-GXL C495-P440 OR-18-GXL C975-P54 WH-18-GXL C978-P53 BR-18-GXL C985-P379 BU-18-GXL C991-P423 PK-18-GXL E450-P330 GN-18-GXL E562-P21 PU-18-GXL
E563-P22 YL-18-GXL E798-P400 PK-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL E912-P204 PU-18-GXL E913-P4 YL-18-GXL E918-P2 GN-18-GXL F711-P224 GN-18-GXL F712-P233 GY-18-GXL F761-P378 BR-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL F790-P130 BR-18-GXL F799-P395 BU-18-GXL
F848-P101 OR-18-GXL F849-P102 WH-18-GXL F868-P126 OR-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL F884-P122 BU-18-GXL G703-P52 GN-18-GXL G730-P480 PK-18-GXL G731-P338 GY-18-GXL G766-P19 GN-18-GXL G767-P18 WH-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL H448-P467 BR-18-GXL H710-P79 PK-18-GXL H711-P80 GN-18-GXL H713-P5 PK-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL H802-P15 GY-18-GXL H804-P180 GN-18-GXL H805-P51 BR-18-GXL J764-P74 BR-18-GXL J764-P116 BR-18-GXL J766-P380 PU-18-GXL J913-P16 GN-18-GXL J914-P14 PU-18-GXL J921-P13 PK-18-GXL J922-P17 GY-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL J943-P81 GN-18-GXL J944-P82 BU-18-GXL J945-P83 WH-18-GXL J946-P84 OR-18-GXL J947-P75 YL-18-GXL J948-P76 PK-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL J991-P85 OR-18-GXL J996-P86 BR-18-GXL K757-P235 YL-18-GXL K960-P368 PK-18-GXL K960-P402 PK-18-GXL
K961-P367 GN-18-GXL K961-P403 GN-18-GXL K978-P32 BU-18-GXL L740-P328 BR-18-GXL L740-P346 BR-18-GXL M919-P73 BU-18-GXL M921-P372 BR-18-GXL M927-P20 GN-18-GXL M928-P9 BU-18-GXL M929-P8 WH-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL P991-P481 PK-18-GXL P991-P483 PK-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL T993-P436 BR-18-GXL T997-P435 OR-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y773-P314 GY-18-GXL Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL
102-P23 RD-18-GXL 102-P64 RD-14-GXL 133-P59 OR-14-GXL 200-P58 BK-18-GXL 200-P215 BK-12
200-P216 BK-12 200-P434 BK-18-GXL 609-P212 YL-14-GXL 610-P115 OR-14-GXL 645-P65 PK-18-GXL
H5
102-P23 RD-18-GXL 102-P64 RD-14-GXL 133-P59 OR-14-GXL 200-P58 BK-18-GXL 200-P215 BK-12 200-P216 BK-12
200-P434 BK-18-GXL 609-P212 YL-14-GXL 610-P115 OR-14-GXL 645-P65 PK-18-GXL
A628-P433 PU-14-GXL
149-P408 RD-12 149-P408 RD-12 176-P182 OR-16-GXL 186-P203 WH-18-GXL 186-P203 WH-18-GXL
200-P192 BK-16-GXL 308-P429 YL-14-GXL 308-P429 YL-14-GXL
A607-P459 PK-18-GXL A607-P459 PK-18-GXL
102-P359 RD-18-GXL 106-P164 RD-16-GXL 108-P163 BU-14-GXL 123-P414 WH-18-GXL 124-P365 GN-14-GXL 201-P358 BK-16-GXL 403-P353 GN-18-GXL 515-P290 GY-14-GXL 516-P288 GN-14-GXL 517-P291 BU-14-GXL 521-P286 YL-14-GXL
567-P292 WH-18-GXL 592-P200 BU-18-GXL 600-P241 BR-18-GXL 892-P165 BR-18-GXL 893-P166 GN-18-GXL A513-P206 PK-18-GXL A524-P61 BR-18-GXL C568-P289 WH-14-GXL F711-P393 GN-18-GXL F712-P397 GY-18-GXL
176-P182 OR-16-GXL
200-P192 BK-16-GXL
633-P417 BU-18-GXL633-P417 BU-18-GXL
H4 H4
H5 H5
200-WP2 BK-16
WP-C3
3T4412
1
529-WP4 WH-16
MOTOR
7T-8891
2
WP-C2
3T4412
1
MOTOR
7T-8891
2
WP-C5
3T4412
1
MOTOR
7T-8891
2
WP-C4
3T4412
1
MOTOR
7T-8891
2
1
20A CONVERTER
2
OUTPUT CONNECTOR
3
4
(144) 20A CONVERTER
443-6362
1
+24V SWITCHED IN
2
3
+12V MEMORY OUT
4
5
6
1
+24V BATTERY IN
2
GROUND
+12V OUTPUT
3
4
0
0
108-P163 BU-14-GXL 600-P241 BR-18-GXL 106-P164 RD-16-GXL 592-P200 BU-18-GXL A513-P206 PK-18-GXL 892-P165 BR-18-GXL 893-P166 GN-18-GXL 516-P288 GN-14-GXL C568-P289 WH-14-GXL 515-P290 GY-14-GXL 517-P291 BU-14-GXL 201-P358 BK-16-GXL
200-WP7 BK-16
506-WP5 PU-16
200-WP8 BK-16
507-WP1 WH-16
200-WP6 BK-16
530-WP3 OR-16
200-WP9 BK-16
CONN 44
149-P408 RD-12 186-P203 WH-18-GXL 200-P215 BK-12 200-P216 BK-12
C569-P217 YL-12
E555-P218 OR-14-GXL
A628-P433 PU-14-GXL 200-P434 BK-18-GXL A607-P459 PK-18-GXL 308-P429 YL-14-GXL
102-P64 RD-14-GXL 633-P417 BU-18-GXL 102-P23 RD-18-GXL 609-P212 YL-14-GXL A628-P433 PU-14-GXL
133-P59 OR-14-GXL 645-P65 PK-18-GXL 200-P58 BK-18-GXL 610-P115 OR-14-GXL
176-P182 OR-16-GXL 200-P192 BK-16-GXL
1552269
P-C26
C569-P217 YL-12 200-P215 BK-12 E555-P218 OR-14-GXL
186-P203 WH-18-GXL
E555-P218 OR-14-GXL
149-P408 RD-12 200-P216 BK-12 C569-P217 YL-12
(174) REMOTE LIGHTING RELAY
P-C46
3E-5239
9X1054
P-C41
3E5519
P-C42
9X1054
30
1
86
5
2
85
4
87
3
87a
(171) FENDER FLOODS RELAY
3E-5239
30
1
86
5
2
85
4
87
3
87a
(170) CYLINDER FLOODS RELAY
3E-5239
30
1
86
5
2
85
4
87
3
87a
FH-C1 3E3364
1
2
(158) LEFT WASHER
(156) FRONT WASHER
(161) REAR WASHER
(163) RIGHT WASHER
P-C30
1779654
P-C40
1552273
P-C25
1779654
(136) COMPRESSOR
397-6405
BK-16
MOTOR
OR-16
SEAT SW
192-7799
FH1 RD-16 FH2 BK-16
(182) SEAT
CONN 45
102-P359 RD-18-GXL A524-P61 BR-18-GXL 403-P353 GN-18-GXL 123-P414 WH-18-GXL 521-P286 YL-14-GXL 124-P365 GN-14-GXL F711-P393 GN-18-GXL F712-P397 GY-18-GXL
567-P292 WH-18-GXL
245-1596
A
B
C
D
E
F
PR-C3
1552269
2
1
T
PR-C7
2603157
A
B
C
D
(172) MAIN RELAY
(175) START RELAY 1
274-2143
(135) CL STRIP
125-1302
P-C21
1552252
P-C37
1552253
+12V
GROUND
SIGNAL
FB WIPER
(181) HVAC RESISTOR
239-9368
(219) HVAC THERMOSTAT
3E-5464
(151) THERMAL FUSE
133-9012
(177) BLOWER RESISTOR
257-5029
117-2311
DATALINK
SERVICE
CONNECTOR
FP-C7
BK-16 BK-16
BK-18
BK-18
BK-18 BK-18
3E3364
1
2
FP-C2 1552269
1
2
1
2
FP-C3 1552269
507-WP1 WH-16 200-WP2 BK-16 530-WP3 OR-16 529-WP4 WH-16
241-8368
125-1302
506-WP5 PU-16
200-WP8 BK-16 200-WP7 BK-16 200-WP6 BK-16 200-WP9 BK-16 200-WP2 BK-16
(201) FRONT INTER WIPER SW
275-7741
WIPER B+
WASHER B+
(206) LEFT INTER WIPER SW
275-7741
WIPER B+
WASHER B+
(214) RIGHT INTER WIPER SW
275-7741
WIPER B+
WASHER B+
(209) REAR INTER WIPER SW
275-7741
WIPER B+
WASHER B+
(213) RH DOOR SW
C-C1 3E5179
1
108-C3 BU-14
2
600-C4 BR-18
3
106-C5 RD-16
4
5
A513-C7 PK-18
6
892-C8 BR-18
7
893-C9 GN-18
8
516-C83 GN-14
9
C568-C82 WH-14
10
515-C81 GY-14
11
517-C84 BU-14
12
201-C14 BK-16
C-C6 1907612
1
102-C71 RD-18
2
A524-C90 BR-18
3
403-C2 GN-18
4
123-C34 WH-18
5
521-C86 YL-14
6
124-C80 GN-14
7
F711-C93 GN-18
8
F712-C94 GY-18
9
10
567-C95 WH-18
11
12
(173) PRESSURIZER RELAY
PR-C5
3E-5239
174-PR8 PK-14 567-PR9 WH-18 200-PR20 BK-18 A599-PR19 YL-14
1552269
1
2
A
B
C
D
E
F
G
H
J
FP-C4 7T5957
FP-C6 9W1951
592-FP60 BU-16 200-FP58 BK-16
113-FP5 RD-16 201-FP26 BK-18
893-FP42 GN-18 892-FP15 BR-18 F712-FP28 GY-18 F711-FP30 GN-18
A599-PR19 YL-14
112-EJ4 PU-10
9X1054
308-FP2 YL-18 200-FP13 BK-16
134-FP34 YL-14
123-FP55 WH-14
112-FP23 PU-14
174-FP32 PK-14
122-FP54 BU-14
186-FP52 WH-16
116-FP37 BR-14
105-FP36 RD-18
114-FP33 RD-16
198-FP1 RD-18
306-FP46 GN-18 F761-FP63 BR-18
304-FP65 WH-14 304-FP66 WH-14 304-FP67 WH-14
314-FP68 PU-14 314-FP69 PU-14 314-FP70 PU-14
306-FP47 GN-18 306-FP47 GN-18 F761-FP64 BR-18
106-FP51 RD-16
197-FP27 RD-14 197-FP24 RD-14
150-FP11 RD-14 150-FP22 RD-14
30
1
86
5
2
85
4
87
3
87a
PR-C6
(160) PRESSURIZER MOTOR
385-7511
1
WH/RD-14
2
BK-14
112-EJ1 PU-14
112-EJ3 PU-14
(132) CH STRIP
212-6167
(149) FUSE BLOCK
225-8553
ROPS FWD FLOODS
1 2
ENG/XMSN/MONITORING
3 4
PRESSURIZER/AUXILIARY
5 6
GPS RADIO
7 8
10A/20A CONVERTERS
9 10
ACCUGRADE
11
13 14
HORN/10A CONVERTER
15 16
SECONDARY BRAKE
17 18
PRODUCT LINK
19 20
IMPLEMENT ECM
21 22
ENGINE ECM
23 24
MOTOR
175A
(150) STD ALT FUSE
239-8107 STD ALT FUSE HOLDER 223-8173
15
(131) REMOTE CONDENSOR
6T-3643
15A
(130) BLOWER
6T-3643
CYLINDER/RIPPER FLOODS
15A
15A
15A
15A
10A
15A
KEY
10A
15A
10A
10A
15A
15A
REAR ROPS/HID FLOODS
15A
SPARE 1
20A
SEAT/RIPPER/IMPLEMENTS
15A
SPARE 2
15A
WIPERS
15A
FENDER FLOODS
15A
NAVIGATOR/SV270
15A
AUXILIARY
15A
ADVISOR/INSTR CLUSTER
15A
POWERTRAIN ECM
15A
20A CONVERTER
20A20A
158-FP45 BR-14
124-FP7 GN-14
FUSES
NOTE C
0
12
0
133-FP17 OR-14
130-FP31 GN-14
184-FP10 BU-14
176-FP9 YL-16
125-FP8 OR-14
108-FP3 BU-14
102-FP6 RD-14
131-FP38 RD-14
113-FP48 RD-16
145-FP57 RD-14
140-FP19 RD-14 140-FP14 RD-14
149-FP21 RD-14 149-FP20 RD-14
200-FP58 BK-16 201-FP26 BK-18 592-FP60 BU-16 892-FP15 BR-18 893-FP42 GN-18 F711-FP30 GN-18 F712-FP28 GY-18
113-FP5 RD-16 113-FP4 RD-16 113-FP48 RD-16
102-FP6 RD-14 108-FP3 BU-14 124-FP7 GN-14 125-FP8 OR-14 130-FP31 GN-14 131-FP38 RD-14 133-FP17 OR-14
140-FP19 RD-14 140-FP14 RD-14 140-FP43 RD-14 140-FP49 RD-14
145-FP57 RD-14
149-FP21 RD-14 149-FP20 RD-14 149-FP41 RD-14 149-FP61 RD-14
158-FP45 BR-14 176-FP9 YL-16 184-FP10 BU-14
105-FP36 RD-18 106-FP51 RD-16 114-FP33 RD-16 116-FP37 BR-14 122-FP54 BU-14 123-FP55 WH-14 134-FP34 YL-14
150-FP11 RD-14 150-FP22 RD-14 150-FP16 RD-14 150-FP18 RD-14
174-FP32 PK-14 186-FP52 WH-16
197-FP24 RD-14 197-FP27 RD-14 197-FP35 RD-14 197-FP29 RD-14
198-FP1 RD-18
112-FP23 PU-14
200-FP13 BK-16
304-FP65 WH-14 304-FP66 WH-14 304-FP67 WH-14
306-FP12 GN-18
306-FP46 GN-18
308-FP2 YL-18
314-FP68 PU-14 314-FP69 PU-14 314-FP70 PU-14
F761-FP62 BR-18 F761-FP63 BR-18 F761-FP64 BR-18
FUSE PANEL
LEFT REAR
GROUND 1
LEFT REAR
GROUND 2
HVAC BACKLIGHT
C-C15
1552269
1
2
(188) 4 SPEED BLOWER SW
C-C19
1552273
1
BK-14
6
WH-14
5
GY-14
4
GN-14
3
BU-14
2
BR-14
C-C18
7 9 8 10
(137) AC TEMP CONTROL
291-2165
A
RD-14
B
BK-14
C
BR-14
CONN 46
C-C13
PL-C1
1552252
3E5179
1
2
3
4
5
6
7
8
9
10
11
12
(162) REAR WIPER
330-5017
C-C7
1552273
1552273
1552273
1552273
1552267
GN-16
4
1
2
BK-16
GY-16
6
BR-16
3
OR-16
5
(164) RIGHT WIPER
135-0611
C-C9
GN-16
4
1
BK-16
2
GY-16
6
3
BR-16
OR-16
5
(159) LEFT WIPER
222-5376
C-C10
GN-16
4
1
BK-16
2
6
GY-16
3
BR-16
OR-16
5
(159) FRONT WIPER
330-5015
C-C11
GN-16
4
1
BK-16
2
GY-16
6
BR-16
3
OR-16
5
PWR ON
DOOR
OFF
C-C12
A
B
C
­+
12V RADIO
C-C8
DEALER INSTALLED OPTION
1552264
1
2
3
4
5
6
7
8
­+
CB RADIO 12 V POWER CONNECTION
WH/BK,GN/BK
WH/GN
BK
YL
RD
GY/PU
RD BK
157-1361
(189) AC SWITCH
229-2578
6 4 3 1
2 5
GND
GND
GND
GND
DOME LAMP 226-2811
LEFT SPEAKER 168-8772
RIGHT SPEAKER 168-8772
CONN 43
WP-C1
3E3382
(207) LH DOOR SW
221-0851
BK-18 BK-18 BK-18
0
0
CAB
GROUND
WIPER BACKLIGHTS
360-7923
RD-16
RD-16
BK-16
GROUND
WH-16
HIGH
YL-16
LOW
BU-16
PARK
BR-16
WASH
UNUSED
RD-16
RD-16
BK-16
GROUND
WH-16
HIGH
YL-16
LOW
BU-16
PARK
BR-16
WASH
UNUSED
RD-16
RD-16
BK-16
GROUND
WH-16
HIGH
YL-16
LOW
BU-16
PARK
BR-16
WASH
UNUSED
RD-16
RD-16
BK-16
GROUND
WH-16
HIGH
YL-16
LOW
BU-16
PARK
BR-16
WASH
UNUSED
221-0851
BK-18 BK-18 BK-18
CONNECTOR C-C14 IS CALLED OUT IN WIRING GROUP AND ASSEMBLED TO HARNESS AFTER ROUTING
C-C14 1552273
1
507-C43 WH-18
2
200-C25 BK-18
3
530-C53 OR-18
4
529-C52 WH-18
5
6
506-C42 PU-18
C-C16 1552267
A
602-C68 WH-18
B
200-C67 BK-18
C
200-C35 BK-12
200-C1 BK-14
0
600-C72 BR-16
0
200-C73 BK-16
C-C2 1552264
1
108-C59 BU-18
2
108-C44 BU-18
3
200-C45 BK-18
4
502-C55 OR-18
5
501-C37 GN-18
6
500-C36 BR-18
7
506-C42 PU-18
8
C-C3 1552264
1
108-C75 BU-18
2
108-C56 BU-18
3
200-C57 BK-18
4
525-C48 GY-18
5
524-C47 BU-18
6
523-C46 BR-18
7
529-C52 WH-18
8
C-C4 1552264
1
108-C58 BU-18
2
108-C32 BU-18
3
200-C74 BK-18
4
528-C51 PK-18
5
527-C50 GN-18
6
526-C49 YL-18
7
530-C53 OR-18
8
C-C5 1552264
1
108-C38 BU-18
2
108-C54 BU-18
3
200-C76 BK-18
4
505-C41 BU-18
5
504-C40 YL-18
6
503-C39 BR-18
7
507-C43 WH-18
8
C-C17 1552267
A
602-C69 WH-18
B
200-C66 BK-18
C
102-C71 RD-18 106-C5 RD-16 108-C3 BU-14 123-C34 WH-18 124-C80 GN-14 201-C14 BK-16 403-C2 GN-18
515-C81 GY-14 516-C83 GN-14 517-C84 BU-14 521-C86 YL-14 567-C95 WH-18 592-C6 BU-18 600-C4 BR-18 892-C8 BR-18 893-C9 GN-18
A513-C7 PK-18 A524-C90 BR-18 C568-C82 WH-14 F711-C93 GN-18 F712-C94 GY-18
102-C71 RD-18 106-C5 RD-16
108-C32 BU-18 108-C44 BU-18 108-C56 BU-18 108-C59 BU-18 108-C75 BU-18 108-C58 BU-18 108-C77 BU-18
108-C54 BU-18 108-C38 BU-18 108-C3 BU-14 108-C33 BU-16 108-C28 BU-18
108-C30 BU-18 108-C29 BU-18 108-C31 BU-18
123-C34 WH-18 124-C80 GN-14
200-C1 BK-14 200-C66 BK-18 200-C67 BK-18 200-C22 BK-18 200-C19 BK-18 200-C64 BK-18 200-C92 BK-18
200-C92 BK-18 200-C10 BK-16 200-C87 BK-18 200-C91 BK-18
200-C35 BK-12 200-C73 BK-16 200-C25 BK-18 200-C21 BK-18 200-C20 BK-18 200-C24 BK-18 200-C23 BK-18
200-C27 BK-18 200-C74 BK-18 200-C57 BK-18 200-C45 BK-18 200-C76 BK-18
201-C14 BK-16 403-C2 GN-18 500-C36 BR-18 501-C37 GN-18 502-C55 OR-18 503-C39 BR-18 504-C40 YL-18 505-C41 BU-18 506-C42 PU-18
507-C43 WH-18
515-C81 GY-14 516-C83 GN-14 517-C84 BU-14 521-C86 YL-14 523-C46 BR-18 524-C47 BU-18 525-C48 GY-18 526-C49 YL-18 527-C50 GN-18 528-C51 PK-18 529-C52 WH-18
530-C53 OR-18
567-C95 WH-18 567-C85 WH-14 567-C96 WH-14
592-C6 BU-18 592-C89 BU-18 592-C17 BU-18 592-C18 BU-18
600-C4 BR-18 600-C88 BR-18 600-C11 BR-16 600-C72 BR-16
602-C70 WH-18 602-C69 WH-18 602-C68 WH-18
892-C8 BR-18 893-C9 GN-18
A513-C7 PK-18592-C6 BU-18 A513-C15 PK-18 A513-C16 PK-18
A524-C90 BR-18 C568-C82 WH-14 F711-C93 GN-18 F712-C94 GY-18
600-C11 BR-16 200-C10 BK-16
124-C80 GN-14 515-C81 GY-14 C568-C82 WH-14 516-C83 GN-14 517-C84 BU-14 567-C85 WH-14
521-C86 YL-14
200-C87 BK-18 600-C88 BR-18 567-C96 WH-14
C-C24
1552267
592-C89 BU-18 A524-C90 BR-18 200-C91 BK-18
106-C5 RD-16 201-C14 BK-16 123-C34 WH-18 403-C2 GN-18 893-C9 GN-18 892-C8 BR-18 F712-C94 GY-18 F711-C93 GN-18
504-C40 YL-18
200-C23 BK-18 108-C28 BU-18 503-C39 BR-18 505-C41 BU-18
527-C50 GN-18
200-C24 BK-18 108-C29 BU-18 526-C49 YL-18 528-C51 PK-18
524-C47 BU-18
200-C20 BK-18 108-C30 BU-18 523-C46 BR-18 525-C48 GY-18
501-C37 GN-18
200-C21 BK-18 108-C31 BU-18 500-C36 BR-18 502-C55 OR-18
102-C71 RD-18 200-C64 BK-18 602-C70 WH-18
200-C19 BK-18 592-C17 BU-18 A513-C15 PK-18
509-C60 WH-18 508-C61 PU-18 200-C22 BK-18
A513-C16 PK-18 592-C18 BU-18 512-C62 GN-18 511-C63 BR-18
2234778
210-P304 BK-14-GXL
202-P99 BK-14-GXL
201-P300 BK-16-GXL
210-P205 BK-14-GXL
202-P98 BK-14-GXL
CAB
360-7924
106-PL12 RD-16 106-PL3 RD-16 106-PL1 RD-16
123-PL19 WH-18
123-PL18 WH-18 123-PL6 WH-18
201-PL11 BK-16
201-PL4 BK-16 201-PL2 BK-16
403-PL21 GN-18
403-PL20 GN-18 403-PL5 GN-18
N970-PL14 YL-18 N973-PL13 BR-18 T964-PL15 OR-18 T965-PL16 GN-18 T966-PL17 BK-18
106-PL1 RD-16 201-PL2 BK-16 123-PL6 WH-18 403-PL5 GN-18 893-PL7 GN-18 892-PL8 BR-18 F712-PL10 GY-18 F711-PL9 GN-18
L
MOTOR
H
T
P
B+
L
MOTOR
H
T
P
B+
L
MOTOR
H
T
P
B+
L
MOTOR
H
T
P
B+
LEFT SPKR -
LEFT SPKR +
GROUND
+V MEMORY
+ BATTERY (12V)
RIGHT SPKR -GY/BK,PU/BK
RIGHT SPKR +
ANTENNA
CABCAB
(133) CJ STRIP
212-6169
106-PL12 RD-16 201-PL11 BK-16 123-PL19 WH-18 403-PL21 GN-18 T964-PL15 OR-18
T965-PL16 GN-18 T966-PL17 BK-18 N970-PL14 YL-18 N973-PL13 BR-18
ANTENNA CABLE 9U-8746
(134) CK STRIP
212-6168
124-FP7 GN-14 158-FP45 BR-14 125-FP8 OR-14 176-FP9 YL-16 184-FP10 BU-14 197-FP35 RD-14 306-FP12 GN-18 200-FP13 BK-16 140-FP49 RD-14 201-FP26 BK-18 140-FP43 RD-14 113-FP4 RD-16 108-FP3 BU-14 106-FP51 RD-16 150-FP16 RD-14 133-FP17 OR-14 150-FP18 RD-14
892-FP15 BR-18 893-FP42 GN-18 F712-FP28 GY-18 F711-FP30 GN-18 198-FP1 RD-18 112-FP23 PU-14 186-FP52 WH-16 308-FP2 YL-18 149-FP41 RD-14
149-FP61 RD-14 197-FP29 RD-14 131-FP38 RD-14 130-FP31 GN-14 174-FP32 PK-14 114-FP33 RD-16 134-FP34 YL-14
105-FP36 RD-18 116-FP37 BR-14 102-FP6 RD-14 200-FP58 BK-16 592-FP60 BU-16 123-FP55 WH-14 145-FP57 RD-14 122-FP54 BU-14
F761-FP62 BR-18
304-FP65 WH-14 314-FP68 PU-14
304-FP66 WH-14
304-FP67 WH-14
314-FP69 PU-14
314-FP70 PU-14
PL-C3
1552252
893-PL7 GN-18 892-PL8 BR-18
T964-PL15 OR-18
T965-PL16 GN-18 N970-PL14 YL-18
N973-PL13 BR-18 T966-PL17 BK-18
F712-PL10 GY-18
F711-PL9 GN-18
106-PL3 RD-16
403-PL20 GN-18
201-PL4 BK-16
123-PL18 WH-18
106-PL1 RD-16
123-PL6 WH-18
201-PL2 BK-16
403-PL5 GN-18
(167) RADIO ANTENNA
8E-1118
FP-C1
2144208
(168) RADIO
336-3545
+ BATTERY
1
- BATTERY
2
KEYSWITCH ON
3
R-TERM
4
RS-232 - TXD
5
6
RS-232 - RXD
7
RS-232 - GND
8
RS-232 - DTR
9
10
RS-232 - DSR
11
12
PL-C2
1607690
106-P164 RD-16-GXL 108-P163 BU-14-GXL 122-P453 BU-14-GXL 124-P365 GN-14-GXL 140-P131 RD-14-GXL
140-P132 RD-14-GXL 197-P137 RD-14-GXL 197-P415 RD-14-GXL 306-P223 GN-18-GXL F761-P318 BR-18-GXL
106-P164 RD-16-GXL 108-P163 BU-14-GXL 122-P453 BU-14-GXL 124-P365 GN-14-GXL 140-P131 RD-14-GXL
140-P132 RD-14-GXL 197-P137 RD-14-GXL 197-P415 RD-14-GXL
(129) BLOCK AS
TO + BATTERY TO ALTERNATOR
CONN 47
P-C16 1607689
1
124-P365 GN-14-GXL
2
158-P160 BR-14-GXL
3
4
176-P181 OR-16-GXL
5
6
197-P415 RD-14-GXL
7
306-P223 GN-18-GXL
8
200-P191 BK-16-GXL
9
140-P131 RD-14-GXL
10
201-P303 BK-18-GXL
11
140-P132 RD-14-GXL
12
113-P490 RD-16-GXL
13
108-P163 BU-14-GXL
14
106-P164 RD-16-GXL
15
150-P420 RD-14-GXL
16
17
150-P419 RD-14-GXL
18
19
892-P151 BR-18-GXL
20
893-P155 GN-18-GXL
21
F712-P278 GY-18-GXL
22
F711-P276 GN-18-GXL
23
198-P207 RD-18-GXL
24
25
186-P197 WH-16-GXL
26
308-P324 YL-18-GXL
27
149-P406 RD-14-GXL
28
29
149-P407 RD-14-GXL
30
197-P137 RD-14-GXL
31
131-P484 RD-14-GXL
32
130-P229 GN-14-GXL
33
174-P238 PK-14-GXL
34
114-P244 RD-16-GXL
35
134-P228 YL-14-GXL
36
37
105-P143 RD-18-GXL
38
116-P450 BR-14-GXL
39
102-P243 RD-14-GXL
40
200-P189 BK-16-GXL
41
592-P198 BU-16-GXL
42
123-P377 WH-14-GXL
43
145-P148 RD-14-GXL
44
122-P453 BU-14-GXL
45
46
47
F761-P318 BR-18-GXL
48
49
50
51
52
304-P70 WH-14-GXL
53
314-P161 PU-14-GXL
54
55
56
57
58
59
60
61
304-P71 WH-14-GXL
62
63
304-P87 WH-14-GXL
64
65
314-P159 PU-14-GXL
66
67
314-P162 PU-14-GXL
68
69
70
201-P300 BK-16-GXL 202-P98 BK-14-GXL 202-P99 BK-14-GXL
210-P304 BK-14-GXL 210-P205 BK-14-GXL
106-P164 RD-16-GXL 108-P163 BU-14-GXL 116-P451 BR-14-GXL 122-P453 BU-14-GXL 123-P335 WH-18-GXL 123-P414 WH-18-GXL 124-P365 GN-14-GXL 140-P131 RD-14-GXL 140-P132 RD-14-GXL 149-P408 RD-12 176-P182 OR-16-GXL 176-P457 OR-18-GXL 186-P203 WH-18-GXL 197-P137 RD-14-GXL 197-P415 RD-14-GXL 202-P97 BK-18-GXL 202-P106 BK-14-GXL 202-P107 BK-14-GXL 202-P129 BK-14-GXL 202-P179 BK-14-GXL 202-P210 BK-18-GXL 202-P305 BK-18-GXL 202-P306 BK-18-GXL 202-P327 BK-18-GXL 306-P223 GN-18-GXL 308-P309 YL-18-GXL 308-P322 YL-18-GXL 308-P429 YL-14-GXL 308-P461 YL-18-GXL 308-P462 YL-18-GXL 419-P109 YL-18-GXL F780-P108 PK-18-GXL 828-P183 WH-18-GXL 829-P185 GN-18-GXL 830-P184 OR-18-GXL 851-P104 WH-18-GXL 892-P152 BR-18-GXL 892-P154 BR-18-GXL 892-P165 BR-18-GXL 893-P157 GN-18-GXL 893-P158 GN-18-GXL 893-P166 GN-18-GXL C985-P257 BU-18-GXL C985-P260 BU-18-GXL E914-P296 BU-18-GXL E915-P295 GY-18-GXL F711-P177 GN-18-GXL F711-P275 GN-18-GXL F712-P277 GY-18-GXL F712-P418 GY-18-GXL F761-P318 BR-18-GXL F780-P108 PK-18-GXL F781-P113 BR-18-GXL F782-P103 OR-18-GXL F783-P110 GN-18-GXL F784-P111 YL-18-GXL F785-P112 WH-18-GXL F786-P105 GY-18-GXL J765-P311 BU-18-GXL J766-P258 PU-18-GXL J766-P259 PU-18-GXL J767-P240 GY-18-GXL J767-P298 GY-18-GXL U727-P310 YL-18-GXL
(142) PRODUCT LINK
239-9954
1
2
3
4
5
6
7
8
CDL (HIGH)
9
CDL (LOW)
10
11
12
RS-232 PORT 1 - TXD
13
14
15
16
17
18
19
20
21
RS-232 PORT 1 - RXD
22
RS-232 PORT 1 - DTR
23
24
25
26
27
28
29
RS-232 PORT 1 - DCD
30
RS-232 PORT 1 - GND
31
32
33
34
CAN LOW
35
36
37
38
39
40
41
CAN SHIELD
42
43
44
45
46
47
48
49
CAN HIGH
50
51
BTRY +
52
53
R-TERM
54
55
56
57
58
59
60
61
62
63
64
BTRY -
65
66
67
68
69
KEYSWITCH ON
70
(192) AUTO CARRY SW
(191) AUTO BLADE SW
(204) IMPL SHUTOFF SW
(194) BI-DIR SHIFT SW
(193) AUTO DOWNSHIFT SW
(198) FENDER LIGHT SW
(196) CYLINDER LIGHT SW
(203) FORWARD ROPS LIGHT SW
(210) REAR ROPS LIGHT SW
306-P223 GN-18-GXL F761-P318 BR-18-GXL
113-P490 RD-16-GXL 113-P487 RD-16-GXL
116-P450 BR-14-GX 116-P451 BR-14-GXL
123-P414 WH-18-GXL 123-P377 WH-14-GXL 123-P335 WH-18-GXL
131-P484 RD-14-GX
149-P408 RD-12 149-P406 RD-14-GXL 149-P407 RD-14-GXL
150-P419 RD-14-GXL 150-P420 RD-14-GXL
176-P181 OR-16-GXL 176-P182 OR-16-GXL 176-P457 OR-18-GXL
186-P197 WH-16-GXL 186-P203 WH-18-GXL
202-P99 BK-14-GXL 202-P98 BK-14-GXL
202-P306 BK-18-GXL 202-P327 BK-18-GXL 202-P106 BK-14-GXL 202-P179 BK-14-GXL 202-P129 BK-14-GXL 202-P107 BK-14-GXL
304-P70 WH-14-GXL 304-P71 WH-14-GXL 304-P87 WH-14-GXL
308-P462 YL-18-GXL 308-P309 YL-18-GXL
308-P463 YL-18-GXL 308-P322 YL-18-GXL 308-P461 YL-18-GXL 308-P324 YL-18-GXL 308-P429 YL-14-GXL
314-P159 PU-14-GXL 314-P161 PU-14-GXL 314-P162 PU-14-GXL
892-P151 BR-18-GXL 892-P152 BR-18-GXL 892-P165 BR-18-GXL 892-P154 BR-18-GXL
893-P155 GN-18-GXL 893-P157 GN-18-GXL 893-P158 GN-18-GXL 893-P166 GN-18-GXL
F711-P276 GN-18-GXL F711-P275 GN-18-GXL F711-P271 GN-18-GXL
F711-P177 GN-18-GXL
F712-P278 GY-18-GXL F712-P277 GY-18-GXL F712-P274 GY-18-GXL
F712-P418 GY-18-GXL
J767-P240 GY-18-GXL J767-P298 GY-18-GXL
222-7881
222-7882
222-7883
222-7879
(217) THROTTLE SW
222-7877
222-7880
222-7884
229-0774
(202) FORWARD HID
LIGHT SW
231-9306
NOTE K
246-5625
NOTE K
246-5626
102-P243 RD-14-GXL 105-P143 RD-18-GXL
113-P294 RD-16-GXL
114-P244 RD-16-GXL
L 116-P452 BR-14-GXL
116-P10 BR-14-GXL
123-P237 WH-18-GXL 123-P333 WH-18-GXL 123-P334 WH-18-GXL
130-P229 GN-14-GXL
131-P482 RD-14-GXL
L 131-P489 RD-14-GXL
131-P172 RD-14-GXL
133-P230 OR-14-GXL133-P230 OR-14-GXL 134-P228 YL-14-GXL 145-P148 RD-14-GXL
150-P135 RD-14-GXL 150-P136 RD-14-GXL
158-P160 BR-14-GXL 174-P238 PK-14-GXL
198-P207 RD-18-GXL 200-P189 BK-16-GXL 200-P191 BK-16-GXL 201-P300 BK-16-GXL 201-P303 BK-18-GXL 202-P97 BK-18-GXL
202-P210 BK-18-GXL
202-P96 BK-18-GXL 202-P308 BK-18-GXL 202-P363 BK-14-GXL
202-P305 BK-18-GXL
304-P26 WH-8
308-P145 YL-18-GXL
308-P219 YL-18-GXL
314-P60 PU-8
419-P109 YL-18-GXL 592-P198 BU-16-GXL 828-P183 WH-18-GXL 829-P185 GN-18-GXL 830-P184 OR-18-GXL 851-P104 WH-18-GXL
892-P477 BR-18-GXL 892-P455 BR-18-GXL 892-P149 BR-18-GXL 892-P153 BR-18-GXL
893-P478 GN-18-GXL 893-P456 GN-18-GXL 893-P150 GN-18-GXL 893-P156 GN-18-GXL
C985-P257 BU-18-GXL C985-P260 BU-18-GXL E914-P296 BU-18-GXL E915-P295 GY-18-GXL
F711-P178 GN-18-GXL
F712-P424 GY-18-GXL
F781-P113 BR-18-GXL F782-P103 OR-18-GXL F783-P110 GN-18-GXL F784-P111 YL-18-GXL F785-P112 WH-18-GXL F786-P105 GY-18-GXL
G730-P479 PK-18-GXL
J765-P311 BU-18-GXL J766-P258 PU-18-GXL J766-P259 PU-18-GXL
J767-P95 GY-18-GXL J767-P468 GY-18-GXL
U727-P310 YL-18-GXL
4 3 1
8 1067 9
2 5
4 3 1
7 968 10
2 5
6 4 3 1
7 9 8 10
2 5
6 4 3 1
7 9 8 10
2 5
4 3 1
7 9 1068
2 5
4 3 1
8 1067 9
2 5
6
4 3 1
7 9 8 10
2 5
6
4 3 1
7 9 8 10
2 5
6 4 3 1
7 9 8 10
2 5
3 6
4
1
2
7 9 8 10
7 9 8 10
5
6 4 3 1
2 5
200-P226 BK-16-GXL 600-P312 BR-18-GXL
200-P226 BK-16-GXL 600-P312 BR-18-GXL
176-P225 OR-16-GXL 176-P245 OR-18-GXL
186-P202 WH-18-GXL
C978-RC92 BR-18-GXL C975-RC21 WH-18-GXL
RC-C23 2234778
210-RC93 BK-18-GXL 600-RC14 BR-18-GXL 200-RC34 BK-18-GXL E562-RC72 PU-18-GXL E563-RC74 YL-18-GXL
RC-C11 2234778
210-RC73 BK-18-GXL 600-RC3 BR-18-GXL 200-RC44 BK-18-GXL E918-RC41 GN-18-GXL E913-RC43 YL-18-GXL E912-RC111 PU-18-GXL
RC-C10 2234778
210-RC113 BK-18-GXL M927-RC42 GN-18-GXL 600-RC1 BR-18-GXL 200-RC18 BK-18-GXL 200-RC47 BK-18-GXL 600-RC48 BR-18-GXL F849-RC88 WH-18-GXL F848-RC87 OR-18-GXL
RC-C21 2234778
202-RC84 BK-18-GXL 600-RC48 BR-18-GXL 200-RC47 BK-18-GXL 200-RC51 BK-18-GXL 600-RC52 BR-18-GXL F715-RC35 PU-18-GXL F718-RC36 BU-18-GXL F716-RC37 WH-18-GXL F717-RC38 YL-18-GXL
RC-C2 2234778
229-RC95 BK-18-GXL 229-RC32 BK-18-GXL 600-RC52 BR-18-GXL 200-RC51 BK-18-GXL 977-RC69 YL-18-GXL
RC-C22 2234778
202-RC83 BK-18-GXL 200-RC59 BK-18-GXL 600-RC60 BR-18-GXL 646-RC103 OR-18-GXL 630-RC86 GY-16-GXL
RC-C12 2234778
133-RC63 OR-16-GXL 102-RC108 RD-18-GXL 600-RC60 BR-18-GXL 200-RC59 BK-18-GXL 200-RC71 BK-18-GXL 600-RC79 BR-18-GXL 600-RC61 BR-16-GXL 645-RC106 PK-18-GXL
RC-C13 2234778
133-RC110 OR-18-GXL 102-RC97 RD-16-GXL 600-RC79 BR-18-GXL 200-RC71 BK-18-GXL 200-RC53 BK-18-GXL 600-RC54 BR-18-GXL
615-RC115 YL-16-GXL 611-RC55 PU-16-GXL
RC-C14 2234778
134-RC116 YL-16-GXL 134-RC65 YL-16-GXL 600-RC7 BR-18-GXL 200-RC39 BK-18-GXL
608-RC100 GN-16-GXL 651-RC9 PK-16-GXL
RC-C15 2234778
130-RC50 GN-16-GXL 130-RC49 GN-16-GXL 600-RC5 BR-18-GXL 200-RC40 BK-18-GXL
STEERING HARNESS
G730-CF42 PK-18 419-CF18 YL-18
CONN 48
J767-P95 GY-18-GXL F782-P103 OR-18-GXL 851-P104 WH-18-GXL E915-P295 GY-18-GXL 828-P183 WH-18-GXL 830-P184 OR-18-GXL F786-P105 GY-18-GXL E914-P296 BU-18-GXL 829-P185 GN-18-GXL 202-P305 BK-18-GXL C985-P257 BU-18-GXL J766-P258 PU-18-GXL
3E5179
CONN 49
U727-P310 YL-18-GXL 202-P97 BK-18-GXL F780-P108 PK-18-GXL J766-P259 PU-18-GXL 419-P109 YL-18-GXL 176-P225 OR-16-GXL 200-P226 BK-16-GXL F783-P110 GN-18-GXL F784-P111 YL-18-GXL C985-P260 BU-18-GXL F785-P112 WH-18-GXL F781-P113 BR-18-GXL
1552252
CONN 50
J765-P311 BU-18-GXL 600-P312 BR-18-GXL G730-P479 PK-18-GXL 123-P334 WH-18-GXL
102-P243 RD-14-GXL 105-P143 RD-18-GXL 113-P294 RD-16-GXL 113-P487 RD-16-GXL 114-P244 RD-16-GXL 116-P10 BR-14-GXL 116-P452 BR-14-GXL 123-P237 WH-18-GXL 123-P333 WH-18-GXL 130-P229 GN-14-GXL 131-P172 RD-14-GXL 131-P489 RD-14-GXL 133-P230 OR-14-GXL 134-P228 YL-14-GXL 145-P148 RD-14-GXL 150-P135 RD-14-GXL 150-P136 RD-14-GXL 158-P160 BR-14-GXL 174-P238 PK-14-GXL 176-P245 OR-18-GXL 186-P202 WH-18-GXL 198-P207 RD-18-GXL 200-P189 BK-16-GXL
200-P191 BK-16-GXL 200-P226 BK-16-GXL 201-P300 BK-16-GXL 201-P303 BK-18-GXL 202-P96 BK-18-GXL 202-P210 BK-18-GXL 202-P308 BK-18-GXL 304-P26 WH-8 308-P144 YL-18-GXL 308-P145 YL-18-GXL 131-P482 RD-14-GXL 308-P219 YL-18-GXL 314-P60 PU-8 592-P198 BU-16-GXL 600-P312 BR-18-GXL 892-P149 BR-18-GXL 892-P153 BR-18-GXL 892-P455 BR-18-GXL 892-P477 BR-18-GXL 893-P150 GN-18-GXL 893-P156 GN-18-GXL 893-P456 GN-18-GXL 893-P478 GN-18-GXL F711-P178 GN-18-GXL F712-P424 GY-18-GXL G730-P479 PK-18-GXL J767-P468 GY-18-GXL
1552272
F780-CF17 PK-18
CF-C13
P-C17
P-C18
P-C32
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
CF-C2 1552252
CF-C1 3E5179
CF-C8 3E3376
J767-CF33 GY-18 F782-CF28 OR-18 851-CF25 WH-18 E915-CF29 GY-18 828-CF22 WH-18 830-CF27 OR-18 F786-CF30 GY-18 E914-CF31 BU-18
202-CF6 BK-18 C985-CF24 BU-18 J766-CF34 PU-18
202-CF7 BK-18 F780-CF17 PK-18 J766-CF15 PU-18 419-CF18 YL-18 176-CF1 YL-16 200-CF40 BK-16 F783-CF21 GN-18 F784-CF19 YL-18 C985-CF14 BU-18 F785-CF23 WH-18 F781-CF26 BR-18
600-CF44 BR-18 G730-CF42 PK-18 123-CF37 WH-18
123-CF37 WH-18 123-CF43 WH-18 123-CF3 WH-18
176-CF1 YL-16
200-CF40 BK-16 200-CF4 BK-16 200-CF41 BK-18
200-CF45 BK-18
202-CF6 BK-18 202-CF9 BK-18 202-CF10 BK-18 202-CF8 BK-18 202-CF5 BK-18
202-CF11 BK-18 202-CF12 BK-18 202-CF13 BK-18 202-CF7 BK-18
419-CF18 YL-18 600-CF44 BR-18
600-CF46 BR-18
828-CF22 WH-18 830-CF27 OR-18 851-CF25 WH-18
C985-CF14 BU-18 C985-CF16 BU-18 C985-CF20 BU-18 C985-CF24 BU-18
E914-CF31 BU-18 E915-CF29 GY-18 F780-CF17 PK-18 F781-CF26 BR-18 F782-CF28 OR-18 F783-CF21 GN-18 F784-CF19 YL-18 F785-CF23 WH-18 F786-CF30 GY-18 G730-CF42 PK-18
J766-CF32 PU-18 J766-CF15 PU-18 J766-CF34 PU-18
J767-CF33 GY-18
600-CF46 BR-18 200-CF45 BK-18 202-CF8 BK-18 123-CF43 WH-18
F783-CF21 GN-18 202-CF9 BK-18 F785-CF23 WH-18 F784-CF19 YL-18 202-CF10 BK-18 F781-CF26 BR-18
200-CF4 BK-16 176-CF1 YL-16
2234778
600-CF44 BR-18 200-CF41 BK-18 200-CF45 BK-18 600-CF46 BR-18
202-CF12 BK-18 E914-CF31 BU-18 E915-CF29 GY-18 202-CF13 BK-18 F782-CF28 OR-18 F786-CF30 GY-18
123-CF3 WH-18 202-CF11 BK-18 851-CF25 WH-18
C985-CF16 BU-18 J766-CF32 PU-18 828-CF22 WH-18
C985-CF20 BU-18 J767-CF33 GY-18 830-CF27 OR-18
2234778
CF-C12
CF-C4
1552273
1552272
CF-C14
1552267
CF-C15
1552267
7 9 8 10
1552273
CF-C7
7 9 8 10
(143) SHIFTER CONTROL
125-0583
GN-22
1
PK-22
2
WH-22
6
YL-22
3
RD-22
5
BR-22
4
CF-C5
1
2
3
4
(185) LH STEER LEVER POSN SNSR
266-1467
A
B
C
(186) RH STEER LEVER POSN SNSR
266-1467
A
B
C
H6 H6
2 5
6 4 3 1
2 5
A929-CF38 BR-18
208-CF39 BK-18
(190) SWITCH AS.
237-0159
1
2
3
4
5
6
OR-18
+BTRY
BK-18
GROUND
SIGNAL
WH-18
RD-18
+8V
BK-18
GROUND
SIGNAL
YL-18
RD-18
+8V
BK-18
GROUND
SIGNAL
YL-18
6 4 3 1
(208) PARKING BRAKE SW
222-7890 (SHOWN IN OFF/BOTTOM POSITION)
2 1
(218) UP SHIFT SW
4 3
132-7450
2 1
(197) DN SHIFT SW
4 3
132-7419
(195) CONSOLE RAISE/LOWER SW
222-7891
CF-C10 3E3364
1
2
CG-C2 1552269
(184) FNR SNSR
266-1475
CG-C1
3E3364 A929-CG1 BR-18 208-CG2 BK-18
1
2
(155) CONSOLE RAISE/LOWER MOTOR
(199) FORWARD SW
244-0911
GN-18
BK-18
WH-18
(211) REVERSE SWITCH
244-0911
GN-18
BK-18
WH-18
CMM
CMM
NC
NO
NC
NO
H5 H5
RIGHT HAND CONSOLE
H702-RC68 PU-18-GXL
6 4 3 1
(212) REVERSING FAN SW
RIPPER PIN PULLER SW
(153) RIPPER CONTROL HANDLE
PROP THUMB ROCKER PWM SIG
LEFT PUSH-BUTTON N.O.
LEFT PUSH-BUTTON N.C.
RIGHT PUSH-BUTTON N.O.
RIGHT PUSH-BUTTON N.C.
222-7887
WINCH CONNECTOR RC-C24 NOT USED ON THIS MODEL
222-7889
AUXILIARY POWER SW
(CUSTOM PRODUCT)
NOT USED ON THIS MODEL
226-7420
SHANK IN/OUT
266-1474
GROUND
POSITION
NCNOC
GROUND
POSITION
+ BATTERY
GROUND
SIG X-AXIS (TILT)
CALIBRATION-S
CALIBRATION-R
RD-18
BK-18
YL-18
132-7450
GN-22
WH-22
RD-22
266-1475
RD-18
BK-18
YL-18
OR-20
BK-20
BU-20
GY-20
PU-20
WH-20
BR-20
GN-20
PK-20
WH-20
YL-20
BATTERY
GROUND
+ BATTERY
RIPPER AUTOSTOW SW
RIPPER RAISE/LOWER
+ BATTERY
(152) IMPL CONTROL HANDLE
DUAL TILT 327-3548
SINGLE TILT 327-3542
ACCUGRADE 327-3550
CALIBRATION
SWITCH COMMON
TRIGGER N.O.
TRIGGER N.C.
SIG Y-AXIS (RAISE/LOWER)
7 9 8 10
2 5
7 9 8 10
2 5
7 9 8 10
2 5
7 9 8 10
2 5
RC-C30 1552273
1
F884-RC104 BU-18-GXL
2
210-RC123 BK-18-GXL
3
F868-RC107 OR-18-GXL
4
176-RC132 YL-18-GXL
5
F869-RC56 PK-18-GXL
6
F870-RC57 BU-18-GXL
RC-C19 1552267
A
176-RC134 YL-18-GXL
B
210-RC122 BK-18-GXL
C
J947-RC112 YL-18-GXL
RC-C25 3E3370
A
J929-RC119 YL-18-GXL
B
J930-RC118 PK-18-GXL
C
210-RC126 BK-18-GXL
RC-C26 1552272
1
176-RC135 YL-18-GXL
2
210-RC121 BK-18-GXL
3
J948-RC109 PK-18-GXL
4
RC-C27 1552252
1
176-RC136 YL-18-GXL
2
210-RC127 BK-18-GXL
3
K757-RC101 YL-18-GXL
4
5
210-RC128 BK-18-GXL
6
J943-RC99 GN-18-GXL
7
J944-RC98 BU-18-GXL
8
J945-RC91 WH-18-GXL
9
J946-RC82 OR-18-GXL F868-RC107 OR-18-GXL
10
J991-RC81 OR-18-GXL
11
J996-RC80 BR-18-GXL
12
RC-C28 1552273
1
176-RC131 YL-18-GXL
2
210-RC129 BK-18-GXL
3
H711-RC67 GN-18-GXL
4
5
H710-RC102 PK-18-GXL
6
RC-C16 2234778
6 4 3 1
RC-C24 2234778 NOTE H
6 4 3 1
RC-C4 2234778 NOTE J
6 4 3 1
RC-C17 2234778
NOTE H
NOTE J
NOTE J
NOTE J
229-RC8 BK-18-GXL 600-RC4 BR-18-GXL 200-RC45 BK-18-GXL
G766-RC78 GN-18-GXL G767-RC85 WH-18-GXL
210-RC77 BK-18-GXL 600-RC15 BR-18-GXL 200-RC20 BK-18-GXL
779-RC11 WH-18-GXL 780-RC13 PU-18-GXL
176-RC12 YL-18-GXL 600-RC16 BR-18-GXL 200-RC33 BK-18-GXL
A571-RC70 PU-18-GXL
174-RC66 PK-18-GXL 600-RC17 BR-18-GXL 200-RC46 BK-18-GXL
200-RC47 BK-18-GXL 200-RC51 BK-18-GXL 200-RC59 BK-18-GXL 200-RC71 BK-18-GXL 600-RC48 BR-18-GXL 600-RC52 BR-18-GXL 600-RC60 BR-18-GXL 600-RC79 BR-18-GXL
200-RC47 BK-18-GXL 200-RC51 BK-18-GXL 200-RC59 BK-18-GXL 200-RC71 BK-18-GXL 600-RC48 BR-18-GXL 600-RC52 BR-18-GXL 600-RC60 BR-18-GXL 600-RC79 BR-18-GXL
102-RC97 RD-16-GXL 102-RC108 RD-18-GXL 130-RC49 GN-16-GXL 130-RC50 GN-16-GXL 133-RC63 OR-16-GXL 133-RC110 OR-18-GXL 134-RC65 YL-16-GXL 134-RC116 YL-16-GXL 200-RC18 BK-18-GXL 200-RC34 BK-18-GXL 200-RC39 BK-18-GXL 200-RC40 BK-18-GXL 200-RC44 BK-18-GXL 200-RC53 BK-18-GXL 202-RC83 BK-18-GXL 202-RC84 BK-18-GXL 210-RC73 BK-18-GXL 210-RC93 BK-18-GXL 210-RC113 BK-18-GXL 229-RC32 BK-18-GXL 229-RC95 BK-18-GXL 600-RC1 BR-18-GXL 600-RC3 BR-18-GXL 600-RC5 BR-18-GXL 600-RC7 BR-18-GXL 600-RC14 BR-18-GXL 600-RC54 BR-18-GXL 600-RC61 BR-16-GXL
608-RC100 GN-16-GXL 611-RC55 PU-16-GXL 615-RC115 YL-16-GXL 630-RC86 GY-16-GXL 645-RC106 PK-18-GXL 646-RC103 OR-18-GXL 651-RC9 PK-16-GXL 977-RC69 YL-18-GXL C975-RC21 WH-18-GXL C978-RC92 BR-18-GXL E562-RC72 PU-18-GXL E563-RC74 YL-18-GXL E912-RC111 PU-18-GXL E913-RC43 YL-18-GXL E918-RC41 GN-18-GXL F715-RC35 PU-18-GXL F716-RC37 WH-18-GXL F717-RC38 YL-18-GXL F718-RC36 BU-18-GXL F848-RC87 OR-18-GXL F849-RC88 WH-18-GXL M927-RC42 GN-18-GXL
176-RC131 YL-18-GXL 176-RC132 YL-18-GXL 176-RC134 YL-18-GXL 176-RC135 YL-18-GXL 176-RC136 YL-18-GXL 210-RC121 BK-18-GXL 210-RC122 BK-18-GXL 210-RC123 BK-18-GXL 210-RC126 BK-18-GXL 210-RC127 BK-18-GXL 210-RC128 BK-18-GXL 210-RC129 BK-18-GXL F868-RC107 OR-18-GXL F869-RC56 PK-18-GXL F870-RC57 BU-18-GXL F884-RC104 BU-18-GXL H710-RC102 PK-18-GXL H711-RC67 GN-18-GXL J929-RC119 YL-18-GXL J930-RC118 PK-18-GXL J943-RC99 GN-18-GXL J944-RC98 BU-18-GXL J945-RC91 WH-18-GXL J946-RC82 OR-18-GXL J947-RC112 YL-18-GXL J948-RC109 PK-18-GXL J991-RC81 OR-18-GXL J996-RC80 BR-18-GXL K757-RC101 YL-18-GXL
102-RC97 RD-16-GXL 102-RC108 RD-18-GXL
130-RC49 GN-16-GXL 130-RC50 GN-16-GXL
133-RC63 OR-16-GXL 133-RC110 OR-18-GXL
134-RC65 YL-16-GXL 134-RC116 YL-16-GXL
176-RC132 YL-18-GXL 176-RC135 YL-18-GXL 176-RC12 YL-18-GXL 176-RC134 YL-18-GXL
176-RC136 YL-18-GXL 176-RC131 YL-18-GXL
200-RC18 BK-18-GXL 200-RC53 BK-18-GXL
200-RC39 BK-18-GXL 200-RC20 BK-18-GXL 200-RC33 BK-18-GXL 200-RC34 BK-18-GXL 200-RC40 BK-18-GXL 200-RC44 BK-18-GXL 200-RC45 BK-18-GXL 200-RC46 BK-18-GXL
202-RC83 BK-18-GXL 202-RC84 BK-18-GXL
210-RC73 BK-18-GXL 210-RC77 BK-18-GXL 210-RC93 BK-18-GXL 210-RC113 BK-18-GXL
210-RC121 BK-18-GXL 210-RC122 BK-18-GXL 210-RC123 BK-18-GXL 210-RC126 BK-18-GXL
210-RC127 BK-18-GXL 210-RC128 BK-18-GXL 210-RC129 BK-18-GXL
229-RC8 BK-18-GXL 229-RC95 BK-18-GXL 229-RC32 BK-18-GXL
600-RC1 BR-18-GXL 600-RC54 BR-18-GXL 600-RC61 BR-16-GXL
600-RC17 BR-18-GXL 600-RC4 BR-18-GXL 600-RC3 BR-18-GXL 600-RC7 BR-18-GXL 600-RC5 BR-18-GXL 600-RC15 BR-18-GXL 600-RC16 BR-18-GXL 600-RC14 BR-18-GXL
(200) FORWARD HORN SW
(205) KEY SW
OFF
REAR ACTION LAMP
(166) 12V OUTLET RHC
117-2311
110-7887
R
ON ST
170-3461
174-RC66 PK-18-GXL
608-RC100 GN-16-GXL 611-RC55 PU-16-GXL 615-RC115 YL-16-GXL 630-RC86 GY-16-GXL 645-RC106 PK-18-GXL 646-RC103 OR-18-GXL 651-RC9 PK-16-GXL 779-RC11 WH-18-GXL 780-RC13 PU-18-GXL 977-RC69 YL-18-GXL
A571-RC70 PU-18-GXL C975-RC21 WH-18-GXL C978-RC92 BR-18-GXL E562-RC72 PU-18-GXL E563-RC74 YL-18-GXL E912-RC111 PU-18-GXL E913-RC43 YL-18-GXL E918-RC41 GN-18-GXL
F715-RC35 PU-18-GXL F716-RC37 WH-18-GXL F717-RC38 YL-18-GXL F718-RC36 BU-18-GXL F848-RC87 OR-18-GXL F849-RC88 WH-18-GXL F868-RC107 OR-18-GXL F869-RC56 PK-18-GXL F870-RC57 BU-18-GXL F884-RC104 BU-18-GXL G766-RC78 GN-18-GXL G767-RC85 WH-18-GXL
H702-RC68 PU-18-GXL H710-RC102 PK-18-GXL H711-RC67 GN-18-GXL J929-RC119 YL-18-GXL J930-RC118 PK-18-GXL J943-RC99 GN-18-GXL J944-RC98 BU-18-GXL J945-RC91 WH-18-GXL J946-RC82 OR-18-GXL J947-RC112 YL-18-GXL J948-RC109 PK-18-GXL J991-RC81 OR-18-GXL J996-RC80 BR-18-GXL
M927-RC42 GN-18-GXL
158-6632
BK-18
BK-18
YL-16
C
PU-16
S
OR-16
B
BR-16
102-RC62 RD-14-GXL
130-RC58 GN-14-GXL
133-RC105 OR-14-GXL
134-RC117 YL-14-GXL
176-RC138 YL-18-GXL
176-RC140 YL-18-GXL
200-RC76 BK-18-GXL
200-RC19 BK-18-GXL
202-RC89 BK-18-GXL
210-RC22 BK-18-GXL
210-RC120 BK-18-GXL
210-RC10 BK-18-GXL
210-RC139 BK-18-GXL
229-RC90 BK-18-GXL
600-RC75 BR-18-GXL
600-RC2 BR-18-GXL
RC-C5 1552269
1
322-RC28 GY-18-GXL
2
114-RC29 RD-18-GXL
RC-C18 1552272
1
308-RC25 YL-18-GXL
2
326-RC6 PU-18-GXL
3
307-RC24 OR-18-GXL
4
105-RC23 RD-18-GXL
RC-C3 1552269
1
222-RC26 BK-18-GXL
2
411-RC27 PK-18-GXL
RC-C6 7T5957
1
592-RC30 BU-16-GXL
2
200-RC31 BK-16-GXL
FOR DEVELOPMENT OF REMOTE CONTROL FEATURE
CONN 51
134-RC117 YL-14-GXL 130-RC58 GN-14-GXL 114-RC29 RD-18-GXL 308-RC25 YL-18-GXL 105-RC23 RD-18-GXL 645-RC106 PK-18-GXL 646-RC103 OR-18-GXL 615-RC115 YL-16-GXL 608-RC100 GN-16-GXL 630-RC86 GY-16-GXL 611-RC55 PU-16-GXL H702-RC68 PU-18-GXL 307-RC24 OR-18-GXL 176-RC138 YL-18-GXL A571-RC70 PU-18-GXL 133-RC105 OR-14-GXL 102-RC62 RD-14-GXL
174-RC66 PK-18-GXL
600-RC75 BR-18-GXL 326-RC6 PU-18-GXL E913-RC43 YL-18-GXL E562-RC72 PU-18-GXL E563-RC74 YL-18-GXL E918-RC41 GN-18-GXL 210-RC22 BK-18-GXL M927-RC42 GN-18-GXL 322-RC28 GY-18-GXL 779-RC11 WH-18-GXL 780-RC13 PU-18-GXL F715-RC35 PU-18-GXL F718-RC36 BU-18-GXL F716-RC37 WH-18-GXL F717-RC38 YL-18-GXL 200-RC76 BK-18-GXL 977-RC69 YL-18-GXL C975-RC21 WH-18-GXL 202-RC89 BK-18-GXL G767-RC85 WH-18-GXL G766-RC78 GN-18-GXL 229-RC90 BK-18-GXL F848-RC87 OR-18-GXL F849-RC88 WH-18-GXL C978-RC92 BR-18-GXL 592-RC30 BU-16-GXL 222-RC26 BK-18-GXL 200-RC31 BK-16-GXL 411-RC27 PK-18-GXL E912-RC111 PU-18-GXL 210-RC10 BK-18-GXL F869-RC56 PK-18-GXL F870-RC57 BU-18-GXL H711-RC67 GN-18-GXL J996-RC80 BR-18-GXL J991-RC81 OR-18-GXL J946-RC82 OR-18-GXL J945-RC91 WH-18-GXL J944-RC98 BU-18-GXL J943-RC99 GN-18-GXL K757-RC101 YL-18-GXLK757-RC101 YL-18-GXL H710-RC102 PK-18-GXL F884-RC104 BU-18-GXL
J948-RC109 PK-18-GXL J947-RC112 YL-18-GXL J930-RC118 PK-18-GXL J929-RC119 YL-18-GXL
651-RC9 PK-16-GXL
FOR DEVELOPMENT OF REMOTE CONTROL FEATURE
RIGHT HAND CONSOLE
(179) CAN C DATALINK TERM RES 2
MOTOR
149-4889
RC-C1
2144208
RHC
GROUND
134-2540
102-P243 RD-14-GXL 105-P143 RD-18-GXL 113-P294 RD-16-GXL 113-P487 RD-16-GXL 114-P244 RD-16-GXL 116-P10 BR-14-GXL 116-P452 BR-14-GXL 123-P237 WH-18-GXL 123-P333 WH-18-GXL 130-P229 GN-14-GXL 131-P172 RD-14-GXL 131-P482 RD-14-GXL 131-P489 RD-14-GXL 133-P230 OR-14-GXL 134-P228 YL-14-GXL 145-P148 RD-14-GXL 150-P135 RD-14-GXL 150-P136 RD-14-GXL 158-P160 BR-14-GXL 174-P238 PK-14-GXL 176-P245 OR-18-GXL 186-P202 WH-18-GXL 198-P207 RD-18-GXL 200-P189 BK-16-GXL 200-P191 BK-16-GXL
H6
200-P226 BK-16-GXL 201-P300 BK-16-GXL 201-P303 BK-18-GXL 202-P96 BK-18-GXL 202-P210 BK-18-GXL 202-P308 BK-18-GXL 304-P26 WH-8 308-P144 YL-18-GXL 308-P145 YL-18-GXL 308-P219 YL-18-GXL 314-P60 PU-8 592-P198 BU-16-GXL 600-P312 BR-18-GXL 892-P149 BR-18-GXL 892-P153 BR-18-GXL 892-P455 BR-18-GXL 892-P477 BR-18-GXL 893-P150 GN-18-GXL 893-P156 GN-18-GXL 893-P456 GN-18-GXL 893-P478 GN-18-GXL F711-P178 GN-18-GXL F712-P424 GY-18-GXL G730-P479 PK-18-GXL J767-P468 GY-18-GXL
102-P23 RD-18-GXL 102-P64 RD-14-GXL 102-P359 RD-18-GXL 102-P460 RD-14-GXL 133-P59 OR-14-GXL 174-P394 PK-14-GXL 200-P58 BK-18-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P215 BK-12 200-P216 BK-12 200-P242 BK-14-GXL 200-P434 BK-18-GXL 201-P358 BK-16-GXL 210-P55 BK-14-GXL 210-P68 BK-18-GXL 210-P72 BK-18-GXL 210-P325 BK-18-GXL 229-P432 BK-18-GXL 307-P141 OR-18-GXL 326-P442 PU-18-GXL 403-P353 GN-18-GXL 444-P344 BU-18-GXL 469-P369 GN-18-GXL 491-P370 PK-18-GXL 521-P286 YL-14-GXL 522-P239 WH-16-GXL 553-P317 YL-18-GXL 554-P316 PK-18-GXL 592-P66 BU-18-GXL 592-P200 BU-18-GXL 600-P241 BR-18-GXL 608-P125 GN-14-GXL 609-P127 YL-14-GXL 609-P212 YL-14-GXL 610-P115 OR-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 645-P65 PK-18-GXL 646-P427 OR-18-GXL 651-P447 PK-14-GXL 709-P114 OR-18-GXL 709-P458 OR-18-GXL 921-P119 WH-18-GXL 977-P100 YL-18-GXL
A334-P356 BU-18-GXL A335-P357 GY-18-GXL A404-P465 BU-18-GXL A405-P349 WH-18-GXL A513-P206 PK-18-GXL C436-P466 BU-18-GXL C443-P50 BU-18-GXL C443-P439 BU-18-GXL C495-P440 OR-18-GXL C975-P54 WH-18-GXL C978-P53 BR-18-GXL C985-P379 BU-18-GXL C991-P423 PK-18-GXL
E450-P330 GN-18-GXL E562-P21 PU-18-GXL E563-P22 YL-18-GXL E798-P400 PK-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL E912-P204 PU-18-GXL E913-P4 YL-18-GXL E918-P2 GN-18-GXL F711-P224 GN-18-GXL F712-P233 GY-18-GXL F761-P378 BR-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL F790-P130 BR-18-GXL
F799-P395 BU-18-GXL F848-P101 OR-18-GXL F849-P102 WH-18-GXL F868-P126 OR-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL F884-P122 BU-18-GXL
G703-P52 GN-18-GXL G730-P480 PK-18-GXL G731-P338 GY-18-GXL G766-P19 GN-18-GXL G767-P18 WH-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL H448-P467 BR-18-GXL H710-P79 PK-18-GXL H711-P80 GN-18-GXL H713-P5 PK-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL H802-P15 GY-18-GXL H804-P180 GN-18-GXL H805-P51 BR-18-GXL
J764-P74 BR-18-GXL J764-P116 BR-18-GXL J766-P380 PU-18-GXL J913-P16 GN-18-GXL J914-P14 PU-18-GXL J921-P13 PK-18-GXL J922-P17 GY-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL J943-P81 GN-18-GXL J944-P82 BU-18-GXL J945-P83 WH-18-GXL J946-P84 OR-18-GXL J947-P75 YL-18-GXL J948-P76 PK-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL J991-P85 OR-18-GXL J996-P86 BR-18-GXL K757-P235 YL-18-GXL K960-P368 PK-18-GXL K960-P402 PK-18-GXL K961-P367 GN-18-GXL K961-P403 GN-18-GXL K978-P32 BU-18-GXL L740-P328 BR-18-GXL L740-P346 BR-18-GXL M919-P73 BU-18-GXL M921-P372 BR-18-GXL M927-P20 GN-18-GXL M928-P9 BU-18-GXL M929-P8 WH-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL P991-P481 PK-18-GXL P991-P483 PK-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL T993-P436 BR-18-GXL T997-P435 OR-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y773-P314 GY-18-GXL Y787-P49 WH-18-GXL Y788-P128 GY-18-GXL
P-C44 1552252
1
R131-P196 RD-14-GXL
2
200-P195 BK-16-GXL
3
F711-P224 GN-18-GXL
4
F712-P233 GY-18-GXL
5
131-P482 RD-14-GXL
6
P991-P483 PK-18-GXL
7
P991-P481 PK-18-GXL
8
9
G730-P479 PK-18-GXL
10
G730-P480 PK-18-GXL
11
892-P477 BR-18-GXL
12
893-P478 GN-18-GXL
P-C8 1607689
1
134-P228 YL-14-GXL
2
130-P229 GN-14-GXL
3
114-P401 RD-18-GXL
4
308-P144 YL-18-GXL
5
105-P143 RD-18-GXL
6
645-P65 PK-18-GXL
7
646-P427 OR-18-GXL
8
615-P124 YL-14-GXL
9
608-P125 GN-14-GXL
10
630-P118 GY-14-GXL
11
611-P142 PU-14-GXL
12
H702-P94 PU-18-GXL H702-P94 PU-18-GXL
13
307-P141 OR-18-GXL
14
176-P245 OR-18-GXL
15
A571-P256 PU-16-GXL
16
133-P63 OR-14-GXL
17
102-P360 RD-14-GXL
18
19
174-P232 PK-16-GXL
20
21
600-P425 BR-18-GXL
22
326-P88 PU-18-GXL
23
E913-P4 YL-18-GXL
24
E562-P21 PU-18-GXL
25
E563-P22 YL-18-GXL
26
E918-P48 GN-18-GXL
27
210-P325 BK-18-GXL
28
M927-P20 GN-18-GXL
29
322-P246 GY-18-GXL
30
779-P252 WH-18-GXL
31
780-P247 PU-18-GXL
32
F715-P89 PU-18-GXL
33
F718-P90 BU-18-GXL
34
F716-P91 WH-18-GXL
35
F717-P92 YL-18-GXL
36
200-P248 BK-18-GXL
37
977-P100 YL-18-GXL
38
C975-P54 WH-18-GXL
39
202-P96 BK-18-GXL
40
G767-P18 WH-18-GXL
41
G766-P19 GN-18-GXL
42
229-P373 BK-18-GXL
43
F848-P101 OR-18-GXL
44
F849-P102 WH-18-GXL
45
C978-P53 BR-18-GXL
46
592-P251 BU-16-GXL
47
222-P249 BK-18-GXL
48
200-P250 BK-16-GXL
49
411-P361 PK-18-GXL
50
E912-P204 PU-18-GXL
51
210-P68 BK-18-GXL
52
F869-P220 PK-18-GXL
53
F870-P221 BU-18-GXL
54
H711-P80 GN-18-GXL
55
J996-P86 BR-18-GXL
56
J991-P85 OR-18-GXL
57
J946-P84 OR-18-GXL
58
J945-P83 WH-18-GXL
59
J944-P82 BU-18-GXL
60
J943-P81 GN-18-GXL
61
K757-P235 YL-18-GXL
62
H710-P79 PK-18-GXL
63
F884-P122 BU-18-GXL
64
F868-P126 OR-18-GXL
65
J948-P76 PK-18-GXL
66
J947-P75 YL-18-GXL
67
J930-P78 PK-18-GXL
68
J929-P77 YL-18-GXL
69
70
651-P447 PK-14-GXL
P-C48 3E5179
1
113-P487 RD-16-GXL
2
259-P488 BK-14-GXL
3
R970-P336 WH-18-GXL
4
R976-P485 BU-18-GXL
5
H817-P213 OR-18-GXL
6
H818-P214 GN-18-GXL
7
8
J842-P297 BK-18-GXL
9
10
11
12
638-P486 WH-16-GXL
259-P488 BK-14-GXL
200-P195 BK-16-GXL 200-P248 BK-18-GXL 200-P434 BK-18-GXL
200-P189 BK-16-GXL 200-P191 BK-16-GXL 200-P226 BK-16-GXL 200-P187 BK-14-GXL 200-P250 BK-16-GXL
P-C35 1552267
A
K900-P265 YL-18-GXL
B
K990-P266 GN-18-GXL
C
130-P229 GN-14-GXL 131-P482 RD-14-GXL 134-P228 YL-14-GXL 176-P245 OR-18-GXL 200-P189 BK-16-GXL 200-P191 BK-16-GXL 200-P195 BK-16-GXL 200-P226 BK-16-GXL 200-P248 BK-18-GXL 200-P250 BK-16-GXL 200-P434 BK-18-GXL 202-P96 BK-18-GXL 210-P68 BK-18-GXL 210-P325 BK-18-GXL 307-P141 OR-18-GXL 308-P144 YL-18-GXL
608-P125 GN-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 645-P65 PK-18-GXL 646-P427 OR-18-GXL 651-P447 PK-14-GXL 977-P100 YL-18-GXL C975-P54 WH-18-GXL C978-P53 BR-18-GXL E562-P21 PU-18-GXL E563-P22 YL-18-GXL E912-P204 PU-18-GXL E913-P4 YL-18-GXL F711-P224 GN-18-GXL F712-P233 GY-18-GXL
F848-P101 OR-18-GXL F849-P102 WH-18-GXL
F868-P126 OR-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL F884-P122 BU-18-GXL G766-P19 GN-18-GXL G767-P18 WH-18-GXL
H710-P79 PK-18-GXL H711-P80 GN-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL J943-P81 GN-18-GXL J944-P82 BU-18-GXL J945-P83 WH-18-GXL J946-P84 OR-18-GXL J947-P75 YL-18-GXL J948-P76 PK-18-GXL J991-P85 OR-18-GXL J996-P86 BR-18-GXL K757-P235 YL-18-GXL M927-P20 GN-18-GXL
105-P143 RD-18-GXL 130-P229 GN-14-GXL 131-P482 RD-14-GXL 134-P228 YL-14-GXL 176-P245 OR-18-GXL 200-P189 BK-16-GXL 200-P191 BK-16-GXL 200-P195 BK-16-GXL 200-P226 BK-16-GXL 200-P248 BK-18-GXL 200-P250 BK-16-GXL 200-P434 BK-18-GXL 202-P96 BK-18-GXL 210-P68 BK-18-GXL 210-P325 BK-18-GXL 307-P141 OR-18-GXL 308-P144 YL-18-GXL
608-P125 GN-14-GXL 615-P124 YL-14-GXL 630-P118 GY-14-GXL 645-P65 PK-18-GXL 646-P427 OR-18-GXL 651-P447 PK-14-GXL 977-P100 YL-18-GXL C975-P54 WH-18-GXL C978-P53 BR-18-GXL E562-P21 PU-18-GXL E563-P22 YL-18-GXL E912-P204 PU-18-GXL E913-P4 YL-18-GXL F711-P224 GN-18-GXL F712-P233 GY-18-GXL
F848-P101 OR-18-GXL F849-P102 WH-18-GXL F868-P126 OR-18-GXL F869-P220 PK-18-GXL F870-P221 BU-18-GXL F884-P122 BU-18-GXL G766-P19 GN-18-GXL G767-P18 WH-18-GXL
H710-P79 PK-18-GXL H711-P80 GN-18-GXL J929-P77 YL-18-GXL J930-P78 PK-18-GXL J943-P81 GN-18-GXL J944-P82 BU-18-GXL J945-P83 WH-18-GXL J946-P84 OR-18-GXL J947-P75 YL-18-GXL J948-P76 PK-18-GXL J991-P85 OR-18-GXL J996-P86 BR-18-GXL K757-P235 YL-18-GXL M927-P20 GN-18-GXL
102-P64 RD-14-GXL
102-P243 RD-14-GXL
102-P23 RD-18-GXL
102-P460 RD-14-GXL 102-P391 RD-14-GXL 102-P359 RD-18-GXL 102-P360 RD-14-GXL
200-P227 BK-16-GXL 200-P307 BK-18-GXL C989-P375 PU-18-GXL J713-P444 BR-18-GXL J721-P443 YL-18-GXL
200-P227 BK-16-GXL 200-P307 BK-18-GXL C989-P375 PU-18-GXL J713-P444 BR-18-GXL J721-P443 YL-18-GXL
102-P222 RD-14-GXL
113-P294 RD-16-GXL
113-P487 RD-16-GXL
114-P244 RD-16-GXL 114-P401 RD-18-GXL
133-P63 OR-14-GXL 133-P59 OR-14-GXL
133-P230 OR-14-GXL
116-P10 BR-14-GXL 116-P452 BR-14-GXL 123-P237 WH-18-GXL 123-P333 WH-18-GXL 131-P172 RD-14-GXL 131-P489 RD-14-GXL
114-P371 RD-16-GXL
145-P146 RD-18-GXL 145-P147 RD-18-GXL
145-P148 RD-14-GXL
150-P135 RD-14-GXL 150-P136 RD-14-GXL 158-P160 BR-14-GXL
174-P394 PK-14-GXL
174-P238 PK-14-GXL 174-P232 PK-16-GXL
201-P300 BK-16-GXL 201-P358 BK-16-GXL 201-P303 BK-18-GXL
229-P373 BK-18-GXL 229-P432 BK-18-GXL
186-P202 WH-18-GXL 198-P207 RD-18-GXL 200-P58 BK-18-GXL 200-P187 BK-14-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P215 BK-12 200-P216 BK-12 200-P242 BK-14-GXL
202-P210 BK-18-GXL 202-P308 BK-18-GXL 210-P55 BK-14-GXL 210-P72 BK-18-GXL 222-P249 BK-18-GXL
174-P366 PK-16-GXL
201-P301 BK-18-GXL 201-P302 BK-18-GXL
229-P431 BK-18-GXL
259-P488 BK-14-GXL
304-P26 WH-8 308-P145 YL-18-GXL 308-P219 YL-18-GXL 314-P60 PU-8 322-P246 GY-18-GXL
326-P88 PU-18-GXL
326-P442 PU-18-GXL
403-P353 GN-18-GXL
411-P361 PK-18-GXL 444-P344 BU-18-GXL 469-P369 GN-18-GXL 491-P370 PK-18-GXL
521-P286 YL-14-GXL
522-P239 WH-16-GXL 553-P317 YL-18-GXL 554-P316 PK-18-GXL
592-P66 BU-18-GXL 592-P198 BU-16-GXL 592-P200 BU-18-GXL
592-P251 BU-16-GXL
600-P312 BR-18-GXL 600-P241 BR-18-GXL 600-P425 BR-18-GXL
609-P127 YL-14-GXL 609-P212 YL-14-GXL 609-P123 YL-14-GXL
610-P115 OR-14-GXL 611-P142 PU-14-GXL 638-P486 WH-16-GXL 709-P114 OR-18-GXL 709-P458 OR-18-GXL 779-P252 WH-18-GXL 780-P247 PU-18-GXL 892-P149 BR-18-GXL 892-P153 BR-18-GXL 892-P455 BR-18-GXL
326-P441 PU-18-GXL
403-P352 GN-18-GXL 403-P167 GN-18-GXL
521-P293 YL-14-GXL 521-P364 YL-14-GXL
592-P201 BU-16-GXL 592-P199 BU-16-GXL
600-P413 BR-18-GXL 600-P469 BR-18-GXL
892-P477 BR-18-GXL
893-P150 GN-18-GXL 893-P156 GN-18-GXL 893-P456 GN-18-GXL
893-P478 GN-18-GXL
921-P119 WH-18-GXL
A334-P356 BU-18-GXL A335-P357 GY-18-GXL A404-P465 BU-18-GXL A405-P349 WH-18-GXL
A513-P206 PK-18-GXL
A571-P256 PU-16-GXL C436-P466 BU-18-GXL C443-P50 BU-18-GXL C443-P439 BU-18-GXL C495-P440 OR-18-GXL C985-P379 BU-18-GXL C991-P423 PK-18-GXL E450-P330 GN-18-GXL E798-P400 PK-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL
E918-P2 GN-18-GXL
E918-P48 GN-18-GXL
F711-P178 GN-18-GXL F712-P424 GY-18-GXL F715-P89 PU-18-GXL F716-P91 WH-18-GXL F717-P92 YL-18-GXL F718-P90 BU-18-GXL F761-P378 BR-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL F790-P130 BR-18-GXL F799-P395 BU-18-GXL G703-P52 GN-18-GXL
921-P387 WH-18-GXL 921-P388 WH-18-GXL
A513-P376 PK-18-GXL A513-P404 PK-18-GXL
E918-P47 GN-18-GXL
G730-P479 PK-18-GXL
G730-P480 PK-18-GXL
G731-P338 GY-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL H448-P467 BR-18-GXL
H713-P5 PK-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL H802-P15 GY-18-GXL H804-P180 GN-18-GXL H805-P51 BR-18-GXL H817-P213 OR-18-GXL H818-P214 GN-18-GXL J764-P74 BR-18-GXL J764-P116 BR-18-GXL J766-P380 PU-18-GXL J767-P468 GY-18-GXL J842-P297 BK-18-GXL J913-P16 GN-18-GXL J914-P14 PU-18-GXL J921-P13 PK-18-GXL J922-P17 GY-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL
K900-P269 YL-18-GXL
K900-P265 YL-18-GXL
K900-P270 YL-18-GXL K900-P263 YL-18-GXL K900-P267 YL-18-GXL
K960-P402 PK-18-GXL
K960-P368 PK-18-GXL
K960-P410 PK-18-GXL
K961-P403 GN-18-GXL
K961-P367 GN-18-GXL
K961-P437 GN-18-GXL
K960-P287 PK-18-GXL
K960-P234 PK-18-GXL
K960-P186 PK-18-GXL K960-P411 PK-18-GXL
K961-P399 GN-18-GXL
K961-P398 GN-18-GXL
K961-P188 GN-18-GXL K961-P438 GN-18-GXL
K978-P32 BU-18-GXL
K990-P272 GN-18-GXL
K990-P266 GN-18-GXL
K990-P273 GN-18-GXL K990-P264 GN-18-GXL K990-P268 GN-18-GXL
L740-P328 BR-18-GXL L740-P346 BR-18-GXL
L740-P392 BR-18-GXL
M919-P73 BU-18-GXL M921-P372 BR-18-GXL M928-P9 BU-18-GXL M929-P8 WH-18-GXL N707-P454 PU-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL
P991-P481 PK-18-GXL
P991-P483 PK-18-GXL
R131-P196 RD-14-GXL R970-P336 WH-18-GXL R976-P485 BU-18-GXL T725-P354 WH-18-GXL T936-P390 GN-18-GXL T993-P436 BR-18-GXL T997-P435 OR-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y773-P314 GY-18-GXL
Y787-P49 WH-18-GXL
Y788-P128 GY-18-GXL
Y787-P93 WH-18-GXL Y787-P211 WH-18-GXL
Y788-P120 GY-18-GXL Y788-P121 GY-18-GXL
102-P222 RD-14-GXL 116-P10 BR-14-GXL 150-P135 RD-14-GXL 150-P136 RD-14-GXL 210-P55 BK-14-GXL 229-P431 BK-18-GXL
304-P26 WH-8 304-P27 WH-14-GXL 304-P28 WH-14-GXL 304-P29 WH-14-GXL
308-P145 YL-18-GXL
314-P60 PU-8 314-P62 PU-14-GXL 314-P67 PU-14-GXL 314-P69 PU-14-GXL
322-P246 GY-18-GXL 326-P441 PU-18-GXL 403-P167 GN-18-GXL 444-P344 BU-18-GXL 521-P293 YL-14-GXL 522-P239 WH-16-GXL 553-P317 YL-18-GXL 554-P316 PK-18-GXL 610-P115 OR-14-GXL
611-P142 PU-14-GXL 709-P114 OR-18-GXL 892-P149 BR-18-GXL 893-P150 GN-18-GXL 921-P387 WH-18-GXL C443-P439 BU-18-GXL C989-P375 PU-18-GXL C991-P423 PK-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL F711-P178 GN-18-GXL F712-P424 GY-18-GXL F715-P89 PU-18-GXL F716-P91 WH-18-GXL F717-P92 YL-18-GXL F718-P90 BU-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL F799-P395 BU-18-GXL G703-P52 GN-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL H702-P94 PU-18-GXL H804-P180 GN-18-GXL H805-P51 BR-18-GXL J713-P444 BR-18-GXL J721-P443 YL-18-GXL J764-P116 BR-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL J951-P473 BR-18-GXL J952-P474 GN-18-GXL K960-P411 PK-18-GXL K961-P438 GN-18-GXL L740-P392 BR-18-GXL N707-P454 PU-18-GXL T725-P354 WH-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL Y787-P211 WH-18-GXL Y788-P121 GY-18-GXL
998-P254 BR-18-GXL A700-P255 OR-18-GXL
F702-P253 GN-18-GXL
114-P371 RD-16-GXL
123-P333 WH-18-GXL
145-P146 RD-18-GXL 186-P202 WH-18-GXL 198-P207 RD-18-GXL 200-P58 BK-18-GXL 200-P187 BK-14-GXL 200-P190 BK-14-GXL 200-P192 BK-16-GXL 200-P215 BK-12 200-P216 BK-12 200-P227 BK-16-GXL 200-P242 BK-14-GXL 200-P307 BK-18-GXL 200-P389 BK-14-GXL 201-P301 BK-18-GXL
202-P210 BK-18-GXL 205-P476 BK-14-GXL 308-P219 YL-18-GXL 592-P201 BU-16-GXL 600-P413 BR-18-GXL 709-P458 OR-18-GXL 892-P455 BR-18-GXL 893-P456 GN-18-GXL A116-P475 BR-14-GXL A131-P472 RD-14-GXL A513-P404 PK-18-GXL F790-P130 BR-18-GXL G731-P338 GY-18-GXL J764-P74 BR-18-GXL K900-P263 YL-18-GXL K900-P267 YL-18-GXL K960-P186 PK-18-GXL K960-P234 PK-18-GXL K961-P188 GN-18-GXL K961-P398 GN-18-GXL K990-P264 GN-18-GXL K990-P268 GN-18-GXL N957-P449 PK-18-GXL N958-P448 PK-18-GXL N960-P446 OR-18-GXL N961-P445 OR-18-GXL N967-P471 GY-18-GXL N976-P470 PU-18-GXL R970-P336 WH-18-GXL R976-P485 BU-18-GXL Y787-P93 WH-18-GXL Y788-P120 GY-18-GXL
592-P199 BU-16-GXL 200-P227 BK-16-GXL A513-P376 PK-18-GXL
T997-P435 OR-18-GXL 210-P72 BK-18-GXL 158-P160 BR-14-GXL 609-P123 YL-14-GXL T993-P436 BR-18-GXL E798-P400 PK-18-GXL 921-P388 WH-18-GXL
K978-P32 BU-18-GXL J913-P16 GN-18-GXL J914-P14 PU-18-GXL M928-P9 BU-18-GXL H713-P5 PK-18-GXL 131-P172 RD-14-GXL J922-P17 GY-18-GXL J921-P13 PK-18-GXL
M929-P8 WH-18-GXL H714-P6 OR-18-GXL H801-P7 PU-18-GXL
H802-P15 GY-18-GXL M921-P372 BR-18-GXL M919-P73 BU-18-GXL 779-P252 WH-18-GXL 780-P247 PU-18-GXL 521-P364 YL-14-GXL R131-P196 RD-14-GXL Y773-P314 GY-18-GXL
C495-P440 OR-18-GXL E450-P330 GN-18-GXL H817-P213 OR-18-GXL H818-P214 GN-18-GXL 638-P486 WH-16-GXL
A334-P356 BU-18-GXL
A335-P357 GY-18-GXL J842-P297 BK-18-GXL E918-P47 GN-18-GXL C443-P50 BU-18-GXL 491-P370 PK-18-GXL
F761-P378 BR-18-GXL C985-P379 BU-18-GXL J766-P380 PU-18-GXL
202-P308 BK-18-GXL A405-P349 WH-18-GXL
C989-P375 PU-18-GXL J721-P443 YL-18-GXL J713-P444 BR-18-GXL
A571-P256 PU-16-GXL 113-P294 RD-16-GXL 174-P366 PK-16-GXL
145-P147 RD-18-GXL 201-P302 BK-18-GXL 123-P237 WH-18-GXL 403-P352 GN-18-GXL 600-P469 BR-18-GXL T936-P390 GN-18-GXL 469-P369 GN-18-GXL 200-P307 BK-18-GXL 411-P361 PK-18-GXL 222-P249 BK-18-GXL
893-P156 GN-18-GXL 892-P153 BR-18-GXL K900-P269 YL-18-GXL K990-P272 GN-18-GXL
A404-P465 BU-18-GXL C436-P466 BU-18-GXL H448-P467 BR-18-GXL J767-P468 GY-18-GXL
A131-P472 RD-14-GXL
205-P476 BK-14-GXL A116-P475 BR-14-GXL
131-P489 RD-14-GXL 200-P389 BK-14-GXL 116-P452 BR-14-GXL
1552267
P-C28
1552267
A
B
12V CONNECTOR
C
FOR CB RADIO
P-C2
2144208
1
CONN 8
2
CONNECTS TO
3
RIGHT HAND FENDER
4
RF-C1 SHT 1 C-15
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
AV-C1
P-C9
1552252
1552272
3E5179
1
145-AV1 RD-18
2
201-AV2 BK-18
3
123-AV3 WH-18
4
403-AV17 GN-18
5
6
T936-AV21 GN-18
7
469-AV22 GN-18
8
200-AV
9
411-AV15 PK-18
10
222-AV16 BK-18
11
228-AV19 BK-18
12
447-AV18 PK-18
AV-C4
P-C33
3E3376
1
893-AV4 GN-18
2
892-AV5 BR-18
3
K900-AV6 YL-18
4
K990-AV7 GN-18
CONN 54
P-C47
1552272
1
2
CONNECTOR P-C47 IS NOT
3
USED ON THIS MACHINE
4
P-C10
3E3370
RD-16
A
BK-16
B
C
PK-16
RD-16
A
BK-16
B
C
P-C11
PK-16
WHEN BATTERY BACKUP OPTION IS NOT USED PLUG P-C11 INTO P-C10
200-P192 BK-16-GXL 200-P227 BK-16-GXL 200-P307 BK-18-GXL 200-P242 BK-14-GXL 200-P58 BK-18-GXL 200-P190 BK-14-GXL 200-P215 BK-12 200-P216 BK-12 200-P389 BK-14-GXL
K900-P267 YL-18-GXL K990-P268 GN-18-GXL
CONN 52
145-P146 RD-18-GXL 201-P301 BK-18-GXL 200-P187 BK-14-GXL 114-P371 RD-16-GXL 202-P210 BK-18-GXL F790-P130 BR-18-GXL 123-P333 WH-18-GXL 198-P207 RD-18-GXL G731-P338 GY-18-GXL A700-P255 OR-18-GXL 998-P254 BR-18-GXL F702-P253 GN-18-GXL
186-P202 WH-18-GXL 600-P413 BR-18-GXL 308-P219 YL-18-GXL K960-P186 PK-18-GXL K961-P188 GN-18-GXL Y787-P93 WH-18-GXL Y788-P120 GY-18-GXL K900-P263 YL-18-GXL K990-P264 GN-18-GXL 592-P201 BU-16-GXL A513-P404 PK-18-GXL R970-P336 WH-18-GXL R976-P485 BU-18-GXL
N961-P445 OR-18-GXL N960-P446 OR-18-GXL
N958-P448 PK-18-GXL N957-P449 PK-18-GXL K960-P234 PK-18-GXL K961-P398 GN-18-GXL
205-P476 BK-14-GXL 892-P455 BR-18-GXL 893-P456 GN-18-GXL
J764-P74 BR-18-GXL 709-P458 OR-18-GXL
N976-P470 PU-18-GXL N967-P471 GY-18-GXL
CONN 53
8 BK-18
(128) BATTERY BACKUP
167-8984
+B UNSW (OUTPUT)
GROUND (OUTPUT)
+B SWD (OUTPUT)
+B UNSW (INPUT)
GROUND (INPUT)
+B SWD (INPUT)
P-C31
1552267
P-C45
1607689
308-P145 YL-18-GXL 150-P136 RD-14-GXL 521-P293 YL-14-GXL 116-P10 BR-14-GXL 522-P239 WH-16-GXL 322-P246 GY-18-GXL
F711-P178 GN-18-GXL F712-P424 GY-18-GXL J713-P444 BR-18-GXL C989-P375 PU-18-GXL 102-P222 RD-14-GXL J721-P443 YL-18-GXL
150-P135 RD-14-GXL 229-P431 BK-18-GXL A700-P255 OR-18-GXL 998-P254 BR-18-GXL 892-P149 BR-18-GXL 893-P150 GN-18-GXL F715-P89 PU-18-GXL F716-P91 WH-18-GXL F717-P92 YL-18-GXL F718-P90 BU-18-GXL J951-P473 BR-18-GXL H702-P94 PU-18-GXL X918-P412 PU-18-GXL X919-P430 WH-18-GXL 610-P115 OR-14-GXL 553-P317 YL-18-GXL J949-P56 GY-18-GXL J950-P57 PU-18-GXL 210-P55 BK-14-GXL
G703-P52 GN-18-GXL
H805-P51 BR-18-GXL 403-P167 GN-18-GXL 304-P29 WH-14-GXL 304-P28 WH-14-GXL F702-P253 GN-18-GXL E908-P342 BR-18-GXL E909-P343 WH-18-GXL 444-P344 BU-18-GXL F788-P42 PU-18-GXL F789-P43 YL-18-GXL 554-P316 PK-18-GXL H804-P180 GN-18-GXL 304-P27 WH-14-GXL L740-P392 BR-18-GXL J952-P474 GN-18-GXL Y787-P211 WH-18-GXL Y788-P121 GY-18-GXL 921-P387 WH-18-GXL 314-P69 PU-14-GXL 314-P67 PU-14-GXL J764-P116 BR-18-GXL 709-P114 OR-18-GXL
K960-P411 PK-18-GXL K961-P438 GN-18-GXL 611-P142 PU-14-GXL T725-P354 WH-18-GXL N707-P454 PU-18-GXL G828-P421 WH-18-GXL G829-P422 GN-18-GXL C991-P423 PK-18-GXL 314-P62 PU-14-GXL
C443-P439 BU-18-GXL DASH GROUND
(180) CAN C DATALINK TERM RES 1
134-2540
A
B
C
PA-C1 2144208
1
145-PA2 RD-18-GXL
2
201-PA3 BK-18-GXL
3
200-PA4 BK-14-GXL
4
114-PA27 RD-16-GXL
5
202-PA12 BK-18-GXL
6
F790-PA13 BR-18-GXL
7
123-PA33 WH-18-GXL
8
198-PA9 RD-18-GXL
9
G731-PA10 GY-18-GXL
10
A700-PA14 OR-18-GXL
11
998-PA15 BR-18-GXL
12
F702-PA16 GN-18-GXL
13
A131-PA17 RD-14-GXLA131-P472 RD-14-GXL
14
186-PA28 WH-18-GXL
15
600-PA18 BR-18-GXL
16
308-PA19 YL-18-GXL
17
K960-PA23 PK-18-GXL
18
K961-PA24 GN-18-GXL
19
Y787-PA25 WH-18-GXL
20
Y788-PA26 GY-18-GXL
21
K900-PA6 YL-18-GXL
22
K990-PA7 GN-18-GXL
23
592-PA30 BU-16-GXL
24
A513-PA29 PK-18-GXL
25
R970-PA54 WH-18-GXL
26
R976-PA55 BU-18-GXL
27
28
29
30
31
N961-PA40 OR-18-GXL
32
N960-PA41 OR-18-GXL
33
34
N958-PA43 PK-18-GXL
35
N957-PA44 PK-18-GXL
36
K960-PA45 PK-18-GXL
37
K961-PA46 GN-18-GXL
38
A116-PA47 BR-14-GXLA116-P475 BR-14-GXL
39
205-PA49 BK-14-GXL
40
892-PA50 BR-18-GXL 892-PA50 BR-18-GXL
41
893-PA51 GN-18-GXL 893-PA51 GN-18-GXL
42
43
44
J764-PA34 BR-18-GXL
45
709-PA35 OR-18-GXL
46
47
48
49
50
51
52
53
54
55
56
57
58
59
N976-PA52 PU-18-GXL
60
N967-PA53 GY-18-GXL
61
62
63
64
65
66
67
68
69
70
AV-C2
145-AV1 RD-18 201-AV2 BK-18 123-AV3 WH-18
403-AV17 GN-18 893-AV4 GN-18 892-AV5 BR-18
1471444
447-AV18 PK-18
228-AV19 BK-18
T936-AV21 GN-18
469-AV22 GN-18
K990-AV7 GN-18
K900-AV6 YL-18
411-AV15 PK-18 222-AV16 BK-18
200-AV8 BK-18
326-P441 PU-18-GXL
F799-P395 BU-18-GXL
114-PA27 RD-16-GXL
123-PA33 WH-18-GXL 123-PA11 WH-18-GXL 123-PA8 WH-18-GXL
145-PA2 RD-18-GXL 186-PA28 WH-18-GXL 198-PA9 RD-18-GXL
200-PA4 BK-14-GXL 200-PA31 BK-16-GXL 200-PA21 BK-18-GXL 200-PA20 BK-14-GXL 200-PA32 BK-16-GXL
201-PA3 BK-18-GXL 201-PA22 BK-18-GXL 201-PA5 BK-18-GXL
202-PA12 BK-18-GXL 205-PA49 BK-14-GXL 308-PA19 YL-18-GXL
410-PA1 WH-18-GXL
592-PA30 BU-16-GXL 600-PA18 BR-18-GXL 709-PA35 OR-18-GXL
998-PA15 BR-18-GXL A116-PA47 BR-14-GXL A131-PA17 RD-14-GXL A513-PA29 PK-18-GXL A700-PA14 OR-18-GXL F702-PA16 GN-18-GXL F790-PA13 BR-18-GXL G731-PA10 GY-18-GXL J764-PA34 BR-18-GXL
K900-PA6 YL-18-GXL K960-PA23 PK-18-GXL K960-PA45 PK-18-GXL K961-PA24 GN-18-GXL K961-PA46 GN-18-GXL K990-PA7 GN-18-GXL N957-PA44 PK-18-GXL N958-PA43 PK-18-GXL N960-PA41 OR-18-GXL N961-PA40 OR-18-GXL N967-PA53 GY-18-GXL N976-PA52 PU-18-GXL R970-PA54 WH-18-GXL R976-PA55 BU-18-GXL
Y788-PA26 GY-18-GXL Y788-PA26 GY-18-GXL
(138) ADVISOR
284-8906
+ BATTERY
1
GND
2
KEYSWITCH
3
SWITCH TO BATTERY
4
5
KEYPAD INPUT
6
ALTERNATOR
7
CAT DATA LINK (HIGH)
8
CAT DATA LINK (LOW)
9
10
11
12
13
FUEL LEVEL SENDER
14
ANALOG 2
15
ANALOG 3
16
ANALOG 4
17
ANALOG RETURN
18
19
20
21
22
DIGITAL COMMON
23
DIGITAL 1
24
25
DIGITAL 2
26
DIGITAL 3
27
DIGITAL 4
28
DIGITAL 5
29
DIGITAL 6
30
DIGITAL 7
31
DIGITAL 8
32
33
CAN C DATA LINK (LOW)
34
CAN B DATA LINK (HIGH)
35
36
CAN B DATA LINK (LOW)
CAN B DATA LINK SHIELD
37
38
39
40
41
42
CAN C DATA LINK SHIELD
43
44
RS232 TxD
45
RS232 RxD
46
RS232 GROUND
47
48
49
50
CAN C DATA LINK (HIGH)
51
52
53
+ BATTERY
54
REAR ACTION LAMP
RETURN REAR ACTION LAMP
55
56
HIGH SIDE 2
HIGH SIDE 2 RETURN
57
INSTRUMENT SUPPLY
58
INSTRUMENT RETURN
59
SENSOR SUPPLY
60
SENSOR RETURN
61
62
63
64
GROUND
65
66
CHASSIS GROUND
GROUND
67
68
+ BATTERY
GROUND
69
KEYSWITCH
70
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION TO SURFACE OF COMPONENT
CONNECTOR
H#
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW TERMINAL
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
P-C1
1607689
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
1
2
3
4
5
6
7
8
9
10
11
CONN 24
12
13
CONNECTS TO
14
ENGINE
15
EP-C1 SHT 1 G-8
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
DASH
DASH
G731-PA10 GY-18-GXL 198-PA9 RD-18-GXL
145-PA2 RD-18-GXL 201-PA22 BK-18-GXL 200-PA21 BK-18-GXL
600-PA18 BR-18-GXL
K900-PA6 YL-18-GXL K990-PA7 GN-18-GXL
410-PA1 WH-18-GXL 123-PA8 WH-18-GXL
410-PA1 WH-18-GXL 201-PA5 BK-18-GXL
123-PA11 WH-18-GXL 202-PA12 BK-18-GXL F790-PA13 BR-18-GXL
A700-PA14 OR-18-GXL 998-PA15 BR-18-GXL F702-PA16 GN-18-GXL
A131-PA17 RD-14-GXL 205-PA49 BK-14-GXL 308-PA19 YL-18-GXL
K960-PA23 PK-18-GXL K961-PA24 GN-18-GXL Y787-PA25 WH-18-GXLY787-PA25 WH-18-GXL
K960-PA45 PK-18-GXL K961-PA46 GN-18-GXL 200-PA20 BK-14-GXL A116-PA47 BR-14-GXL
N957-PA44 PK-18-GXL N958-PA43 PK-18-GXL
J764-PA34 BR-18-GXL 709-PA35 OR-18-GXL
N960-PA41 OR-18-GXL N961-PA40 OR-18-GXL N976-PA52 PU-18-GXL N967-PA53 GY-18-GXL 892-PA50 BR-18-GXL 893-PA51 GN-18-GXL
R970-PA54 WH-18-GXL R976-PA55 BU-18-GXL
114-PA27 RD-16-GXL 186-PA28 WH-18-GXL 200-PA31 BK-16-GXL A513-PA29 PK-18-GXL 592-PA30 BU-16-GXL 200-PA32 BK-16-GXL
LIGHTBAR CAES
+ BATTERY
GROUND
RS232 RX
PA-C3
1552272
PA-C4
7X6222
PA-C5
1552269
PA-C6
1552267
PA-C7
1552267
PA-C8
1552252
PA-C2
1552254
PA-C10
1552267
PA-C9
1552273
286-9124
PC-C1 3E3376
1
G731-PC1 GY-18
2
198-PC2 RD-18
3
4
(147) INSTRUMENT CLUSTER
303-4372
1
+ BATTERY
2
- BATTERY
CHASSIS GND
3
STB - L13
4
NC
5
NC
6
NC
7
NC
8
NC
9
10
STB - L1
11
STB - L2
GENERIC INPUT #1
12
NC
13
NC
14
15
STB - L14
16
BACKLIGHTING
17
STB - GENERIC INPUT 3
18
STB - GENERIC INPUT 4
19
CAN DATA (HIGH)
20
CAN DATA (LOW)
21
CAN SHIELD
22
STB - GENERIC INPUT 2
23
HORN DRIVER
24
KEY SW INPUT
(126) ACTION ALARM
3E-6328
BK-18
1
BK-18
2
(187) SERVICE BRAKE SNSR
266-1470
+BATTERY
RD-18
A
B
C
A
B
C
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
A
B
C
1
2
3
4
5
6
CONNECT TO PA-C8 WHEN USED
CONNECT TO PA-C2 WHEN USED
CONNECT TO PA-C10 WHEN USED
LX-C1 2305008
1
2
3
4
GROUND
BK-18
SIGNAL
YL-18
(183) DECEL PEDAL SNSR
266-1467
RD-18
+8 VOLTS
BK-18
GROUND
YL-18
SIGNAL
CONN 55
CTCT ARO CONNECTOR
CONN 56
CTCT ARO CONNECTOR
(169) RC TERM RC2
134-2540
(145) 24 TO 12V CONVERTER (10A)
340-7161
+24V BATTERY IN
+24V SWITCHED IN
GROUND
+12V MEMORY
+12V SWITCHED OUT
GROUND
CONN 55
10
11
12
CONN 56
10
11
12
N979-LX2 GN-16-TFE E752-LX3 YL-16-TFE
THIS SCHEMATIC IS FOR THE D10T TRACK - TYPE TRACTOR ELECTRICAL SYSTEM VOLUME 2 of 2: CAB
MEDIA NUMBER: UENR1752-05 SCHEMATIC PART NUMBER: 212-2751, CHANGE: 04, VERSION: -
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations. Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
CONN 55
CONNECT TO PA-C8 SH2 (F-3) WHEN USED
CONN 56
CONNECT TO PA-C2 SH2 (F-3) WHEN USED
(216) SERVICE BRAKE SW
132-7077
NC COM
NO
CN-C3 3E5179
1
A131-CN1 RD-16-GXL
2
205-CN2 BK-14-GXL
3
4
5
6
7
8
9
CN-C2 1907613
1
N957-CN21 PK-16-GXL
2
N958-CN20 PK-16-GXL
3
4
5
6
7
N960-CN29 OR-16-GXL
8
N961-CN30 OR-16-GXL
9
CN-C6 3E3370
A
R970-CN35 WH-18-GXL
B
R976-CN37 BU-18-GXL
C
KEYBOARD CONNECTOR
CONN 57
E472-LX1 GN-16-TFE
E752-LX3 YL-16-TFE N979-LX2 GN-16-TFE
(127) ALARM (CAES)
CT-C3 3E5179
1
2
3
4
5
K960-CT6 PK-18-GXL
6
K961-CT8 GN-18-GXL
7
Y787-CT10 WH-18-GXL
8
Y788-CT11 GY-18-GXL
9
10
K961-CT38 GN-18-GXL
11
200-CT3 BK-14-GXL
12
116-CT25 BR-14-GXL
CT-C2 1907613
1
N957-CT12 PK-18-GXL
2
N958-CT14 PK-18-GXL
3
4
5
6
7
N960-CT13 OR-18-GXL
8
N961-CT15 OR-18-GXL
9
N976-CT16 PU-18-GXL
10
N967-CT17 GY-18-GXL
11
12
IMPL CAN DIAG CONN
CAES DISPLAY OPTION (ATCH)
HIGH TEMP TFE WIRE
205-CN2 BK-14-GXL A116-CN24 BR-16-GXLA116-CN24 BR-16-GXL A131-CN1 RD-16-GXL
N957-CN21 PK-16-GXL N958-CN20 PK-16-GXL N960-CN29 OR-16-GXL N961-CN30 OR-16-GXL
R970-CN35 WH-18-GXL R976-CN37 BU-18-GXL
CN-C4 1552273
1
N987-CN5 GN-16-GXL
2
N980-CN7 GN-16-GXL
3
4
N982-CN22 YL-16-GXL
5
N983-CN23 OR-16-GXL
6
CN-C5
LX-C2
1552272
3E3376
1
E472-CN31 GN-16-GXLE472-LX1 GN-16-TFE
2
E753-CN17 WH-16-GXL
3
E752-CN28 YL-16-GXL E752-CN28 YL-16-GXL
4
BK-18
BK-18
N979-CN8 GN-16-GXL
SERVICE MODE CONNECTOR
0
A487-CN13 PU-16-GXL
0
A235-CN15 BK-16-GXL
CONN 58
167-8712
CAES DISPLAY OPTION (ATCH)
WIRE GROUP COLOR DESCRIPTIONS
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
VOLTAGE CONVERTER OUTPUT CIRCUIT
STARTING CIRCUIT
GROUND CIRCUIT
J1939 CAN DATA LINK CAT DATA LINK ADVISOR
ENGINE CONTROL CIRCUIT POWERTRAIN CONTROL CIRCUIT
IMPLEMENT CONTROL CIRCUIT
NAVIGATOR/ACCUGRADE/CAES CURCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL/WIPER/WASHER CIRCUIT
RS-232 DATA LINK
CAN DATA LINK D CAN DATA LINK A
CAN DATA LINK B
CAN DATA LINK C
OTHER COLOR DESCRIPTIONS
HIGHWAYS
ACCUGRADE GPS DISPLAY (ATCH)
CT-C4
2485358
116-CT39 BR-18-GXL
A
B
C
D
E
F
G
H
J
CT-C7 8T8736
116-CT32 BR-18-GXL 116-CT1 BR-18-GXL 116-CT29 BR-18-GXL 116-CT30 BR-18-GXL
116-CT31 BR-18-GXL 116-CT35 BR-14-GXL 116-CT25 BR-14-GXL
200-CT3 BK-14-GXL 200-CT34 BK-18-GXL
200-CT5 BK-18-GXL 200-CT2 BK-18-GXL
200-CT24 BK-18-GXL
200-CT36 BK-14-GXL
200-CT26 BK-18-GXL 200-CT27 BK-18-GXL 200-CT28 BK-18-GXL
E752-CT9 YL-18-GXL E752-CT18 YL-18-GXL E752-CT19 YL-18-GXL E752-CT20 YL-18-GXL
K960-CT6 PK-18-GXL K960-CT37 PK-18-GXL K961-CT8 GN-18-GXL K961-CT38 GN-18-GXL N957-CT12 PK-18-GXL N958-CT14 PK-18-GXL N960-CT13 OR-18-GXL N961-CT15 OR-18-GXL N967-CT17 GY-18-GXL N976-CT16 PU-18-GXL Y787-CT10 WH-18-GXL Y788-CT11 GY-18-GXL
116-CT35 BR-14-GXL 200-CT36 BK-14-GXL
K961-CT38 GN-18-GXL K960-CT37 PK-18-GXL
A131-CN1 RD-16-GXL 205-CN2 BK-14-GXL
E472-CN31 GN-16-GXL
N987-CN5 GN-16-GXL
N980-CN7 GN-16-GXL N979-CN8 GN-16-GXL
R970-CN35 WH-18-GXL
R976-CN37 BU-18-GXL
A235-CN15 BK-16-GXL
A487-CN13 PU-16-GXL
E753-CN17 WH-16-GXL
N958-CN20 PK-16-GXL N957-CN21 PK-16-GXL
N982-CN22 YL-16-GXL N983-CN23 OR-16-GXL A116-CN24 BR-16-GXL
N960-CN29 OR-16-GXL N961-CN30 OR-16-GXL
CN-C1
1607689
116-CT1 BR-18-GXL
200-CT5 BK-18-GXL
K961-CT8 GN-18-GXL K960-CT6 PK-18-GXL Y787-CT10 WH-18-GXL Y788-CT11 GY-18-GXL N957-CT12 PK-18-GXL N960-CT13 OR-18-GXL 200-CT2 BK-18-GXL200-CT4 BK-18-GXL 200-CT4 BK-18-GXL
E752-CT9 YL-18-GXL
116-CT32 BR-18-GXLK960-CT37 PK-18-GXL 116-CT39 BR-18-GXL
N976-CT16 PU-18-GXL N967-CT17 GY-18-GXL N961-CT15 OR-18-GXL N958-CT14 PK-18-GXL
200-CT34 BK-18-GXL
116-CT30 BR-18-GXL 200-CT28 BK-18-GXL E752-CT20 YL-18-GXL
116-CT31 BR-18-GXL 200-CT26 BK-18-GXL E752-CT19 YL-18-GXL
116-CT29 BR-18-GXL 200-CT27 BK-18-GXL E752-CT18 YL-18-GXL
116-CT35 BR-14-GXL
200-CT36 BK-14-GXL
K960-CT37 PK-18-GXL
K961-CT38 GN-18-GXL
(140) NAVIGATOR (CAES)
239-9531
J1
B+ UNSWITCHED IN
1
2
GROUND
3
4
5
6
7
+12V 0.5A
8
9
10
11
12
13
14
15
16
17
KEYBOARD +5V
18
19
20
21
22
CAN 1 HIGH
23
KEYBOARD GND
24
COM 2 GND
25
26
CAN 2 HIGH
27
CAN 1 LOW
28
CAN 2 LOW
29
30
31
32
33
34
35
ALARM RETURN
36
37
38
AUDIBLE ALARM
39
40
41
42
COM 1 RXD
43
44
45
46
47
48
49
50
51
52
COM 2 TXD
53
COM 3 TXD
54
55
KEYBOARD DATA
56
KEYBOARD CLOCK
57
B+ SWITCHED IN
58
59
60
61
62
63
COM 1 TXD
64
COM 3 RXD
65
COM 2 RXD
66
67
68
GND SENSOR RETURN
69
70
CT-C1
2305008
CT-C5
2305008
CT-C6
2305008
(148) CD700C
244-1716
A
B
C
B+
D
E
GND
F
G
H
CAN B (LOW)
J
CAN B (HIGH)
K
CAN D (HIGH)
L
CAN D (LOW)
M
COM 2 TX-TC RADIO
N
P
COM 2 RX-TC RADIO
COM 2 GND
R
COM 1 GND
S
COM 1 RX-LIGHTBAR
T
COM 1 TX-LIGHTBAR
U
V
B+
W
KEYSW ON
X
Y
Z
AA
BB
CC
DD
EE
COM 0 RTS-3RD PARTY RAD
FF
COM 0 CTS-3RD PARTY RAD
GG
COM 0 RX-TC RADIO
HH
COM 0 TX-TC RADIO
II
JJ
KK
MM
NN
PP
GND
QQ
RR
LEFT LIGHTBAR 286-9124
1
+ BATTERY
2
GROUND
RS232 RX
3
RS232 TX
4
MIDDLE LIGHTBAR 286-9124
1
+ BATTERY
2
GROUND
3
RS232 RX
RS232 TX
4
RIGHT LIGHTBAR 286-9124
1
+ BATTERY
2
GROUND
3
RS232 RX
4
RS232 TX
L
K
J
I
H
G
F
E
D
C
B
A
Page 15

ACCESS LADDER

VIEW ALL CALLOUTS
38
37
35
2
120
126
125
12
36
34
1
Page 16

CTCT ARO

VIEW ALL CALLOUTS
CONN 2
CONN 1
31
27
28
47
54
30
NOT SHOWN
CONN 6
CONN 5
78
26
Page 17

ENGINE

VIEW ALL CALLOUTS
CONN 23
CONN 28
77
41
CONN 25
CONN 24
58
CONN 22
56
68
CONN 29
6159
52
11
50
CONN 27
CONN 26
53
84
93
16
57
95
86
66
65
87
24
85
94
111
9291908988
15
63
51
4
118
115
Page 18

FENDER A/C CONDENSER

A
VIEW ALL CALLOUTS
20
39
21
CONN 3
CONN 4
CONN 9
CONN 10
72
113
VIEW OF AREA (A)
ROTATED FOR CLARITY
114
19
Page 19

LEFT HAND FENDER

A
VIEW ALL CALLOUTS
NOT SHOWN
119
17
CONN 13
22
7
3
CONN 15
CONN 16
40
43
69
CONN 17
55
VIEW OF AREA (A)
ROTATED FOR CLARITY
102
103
96
97
110
121
98
CONN 14
46
Page 20

RADIATOR GUARD

VIEW ALL CALLOUTS
116
CONN 38
124
CONN 37
CONN 34
123
CONN 35
60
32
CONN 31
CONN 32
CONN 36
49
48
29
64
CONN 33
13
14
23
44
42
80
101
79
Page 21

RIGHT HAND FENDER

A
VIEW ALL CALLOUTS
CONN 8
62
117
67
45
CONN 19
CONN 20
CONN 18
105
108
104
99
107
VIEW OF AREA (A)
ROTATED FOR CLARITY
106
83
76
5
6
73
74
75
Page 22

TRANSMISSION

VIEW ALL CALLOUTS
CONN 7
70
82
109
100
CONN 11
112
81
71
CONN 12
Page 23

CAB (HEADLINER WIRING)

A
VIEW ALL CALLOUTS
168
142
CONN 44
CONN 45
CONN 46
162
207
213
164
209
214
206
201
167
189
137
159
157
VIEW OF AREA (A)
ROTATED FOR CLARITY
188
CONN 43
Page 24

DASH WIRING

VIEW ALL CALLOUTS
148
216
187
147
139
CONN 55
CONN 56
126
180
128
183
145
CONN 52
127
169
NOT SHOWN
Page 25

RIGHT HAND CONSOLE

B
A
VIEW ALL CALLOUTS
182
192
196
198
203
202
166
210
CONN 24
136
VIEW OF AREA (A)
ROTATED FOR CLARITY
215
200
191
205
154
160
204
217
194
193
188
126
ROTATED FOR CLARITY
152
VIEW OF AREA (B)
CONN 51
CONN 53
CONN 54
153
220
181
177
173
151
Page 26

STEERING AND FUSE PANEL

A
B
VIEW ALL CALLOUTS
178
CONN 42
138
140
179
CONN 41
141
139
CONN 13
144
CONN 8
219
CONN 40
190
CONN 48
CONN 49
CONN 50
143
197
155
VIEW OF AREA (A)
ROTATED FOR CLARITY
185
208
186
218
184
199
211
195
174
175
129
170
CONN 47
176
133
134
131
VIEW OF AREA (B)
ROTATED FOR CLARITY
135
130
171
132
149
172
150
165
Page 27

WASHER WIRING

VIEW ALL CALLOUTS
156
158
161
163
WASHER BOTTLE
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
