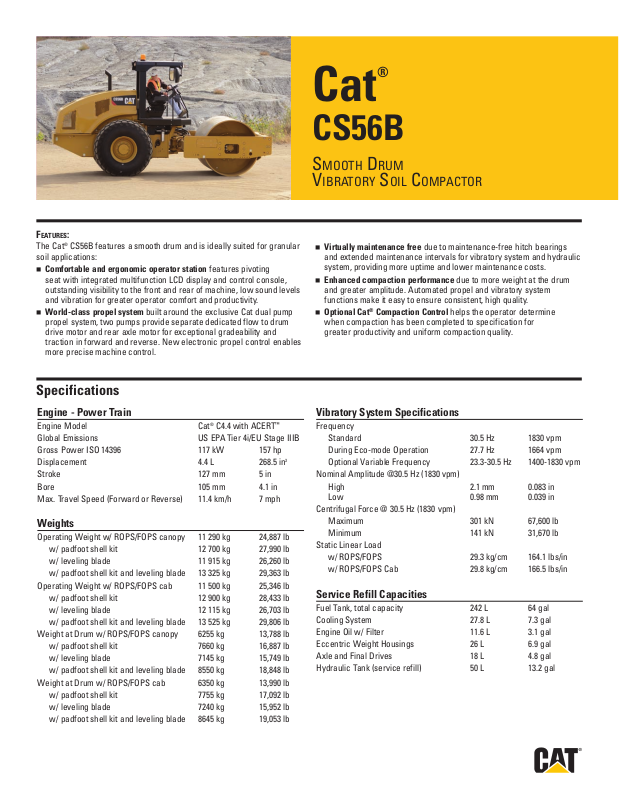

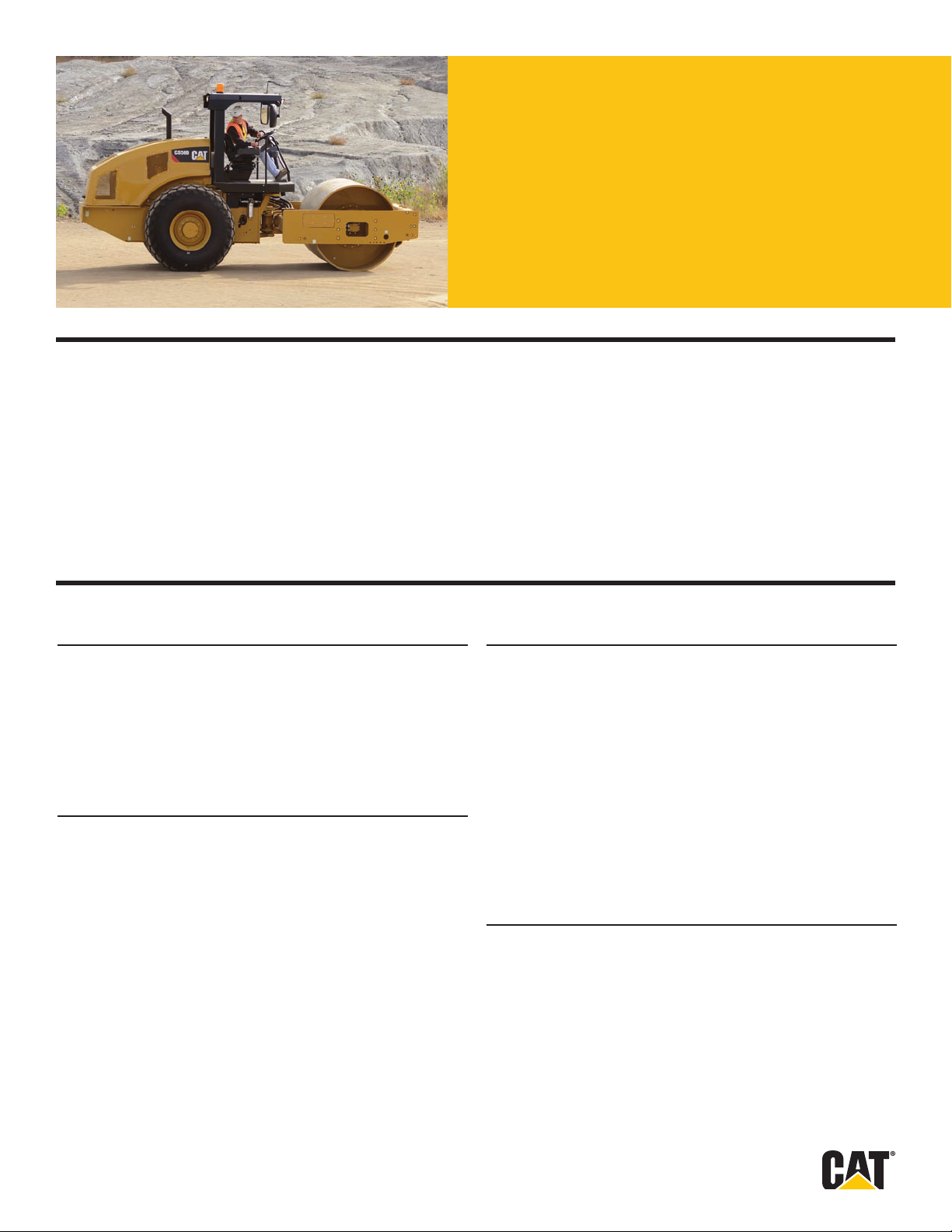

Features:

The Cat® CS56B features a smooth drum and is ideally suited for granular soil applications:

n Comfortable and ergonomic operator station features pivoting

seat with integrated multifunction LCD display and control console, outstanding visibility to the front and rear of machine, low sound levels and vibration for greater operator comfort and productivity.

n World-class propel system built around the exclusive Cat dual pump

propel system, two pumps provide separate dedicated flow to drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse. New electronic propel control enables more precise machine control.

Cat

CS56B

Smooth Drum Vibratory Soil CompaCtor

n Virtually maintenance free due to maintenance-free hitch bearings

and extended maintenance intervals for vibratory system and hydraulic system, providing more uptime and lower maintenance costs.

n Enhanced compaction performance due to more weight at the drum

and greater amplitude. Automated propel and vibratory system functions make it easy to ensure consistent, high quality.

n Optional Cat

when compaction has been completed to specification for greater productivity and uniform compaction quality.

Compaction Control helps the operator determine

Specifications

Engine - Power Train

Engine Model Cat® C4.4 with ACERT Global Emissions US EPA Tier 4i/EU Stage IIIB Gross Power ISO 14396 117 kW 157 hp Displacement 4.4 L 268.5 in Stroke 127 mm 5 in Bore 105 mm 4.1 in Max. Travel Speed (Forward or Reverse) 11.4 km/h 7 mph

Weights

Operating Weight w/ ROPS/FOPS canopy 11 290 kg 24,887 lb

w/ padfoot shell kit 12 700 kg 27,990 lb w/ leveling blade 11 915 kg 26,260 lb w/ padfoot shell kit and leveling blade 13 325 kg 29,363 lb

Operating Weight w/ ROPS/FOPS cab 11 500 kg 25,346 lb

w/ padfoot shell kit 12 900 kg 28,433 lb w/ leveling blade 12 115 kg 26,703 lb w/ padfoot shell kit and leveling blade 13 525 kg 29,806 lb

Weight at Drum w/ ROPS/FOPS canopy 6255 kg 13,788 lb

w/ padfoot shell kit 7660 kg 16,887 lb w/ leveling blade 7145 kg 15,749 lb w/ padfoot shell kit and leveling blade 8550 kg 18,848 lb

Weight at Drum w/ ROPS/FOPS cab 6350 kg 13,990 lb

w/ padfoot shell kit 7755 kg 17,092 lb w/ leveling blade 7240 kg 15,952 lb w/ padfoot shell kit and leveling blade 8645 kg 19,053 lb

™

Vibratory System Specifications

Frequency

Standard 30.5 Hz 1830 vpm During Eco-mode Operation 27.7 Hz 1664 vpm Optional Variable Frequency 23.3-30.5 Hz 1400-1830 vpm

Nominal Amplitude @30.5 Hz (1830 vpm)

High 2.1 mm 0.083 in Low 0.98 mm 0.039 in

Centrifugal Force @ 30.5 Hz (1830 vpm)

Maximum 301 kN 67,600 lb Minimum 141 kN 31,670 lb

Static Linear Load

w/ ROPS/FOPS 29.3 kg/cm 164.1 lbs/in w/ ROPS/FOPS Cab 29.8 kg/cm 166.5 lbs/in

Service Refill Capacities

Fuel Tank, total capacity 242 L 64 gal Cooling System 27.8 L 7.3 gal Engine Oil w/ Filter 11.6 L 3.1 gal Eccentric Weight Housings 26 L 6.9 gal Axle and Final Drives 18 L 4.8 gal Hydraulic Tank (service refill) 50 L 13.2 gal

Page 2

CS56B Vibratory Soil Compactor

34 5

Dimensions

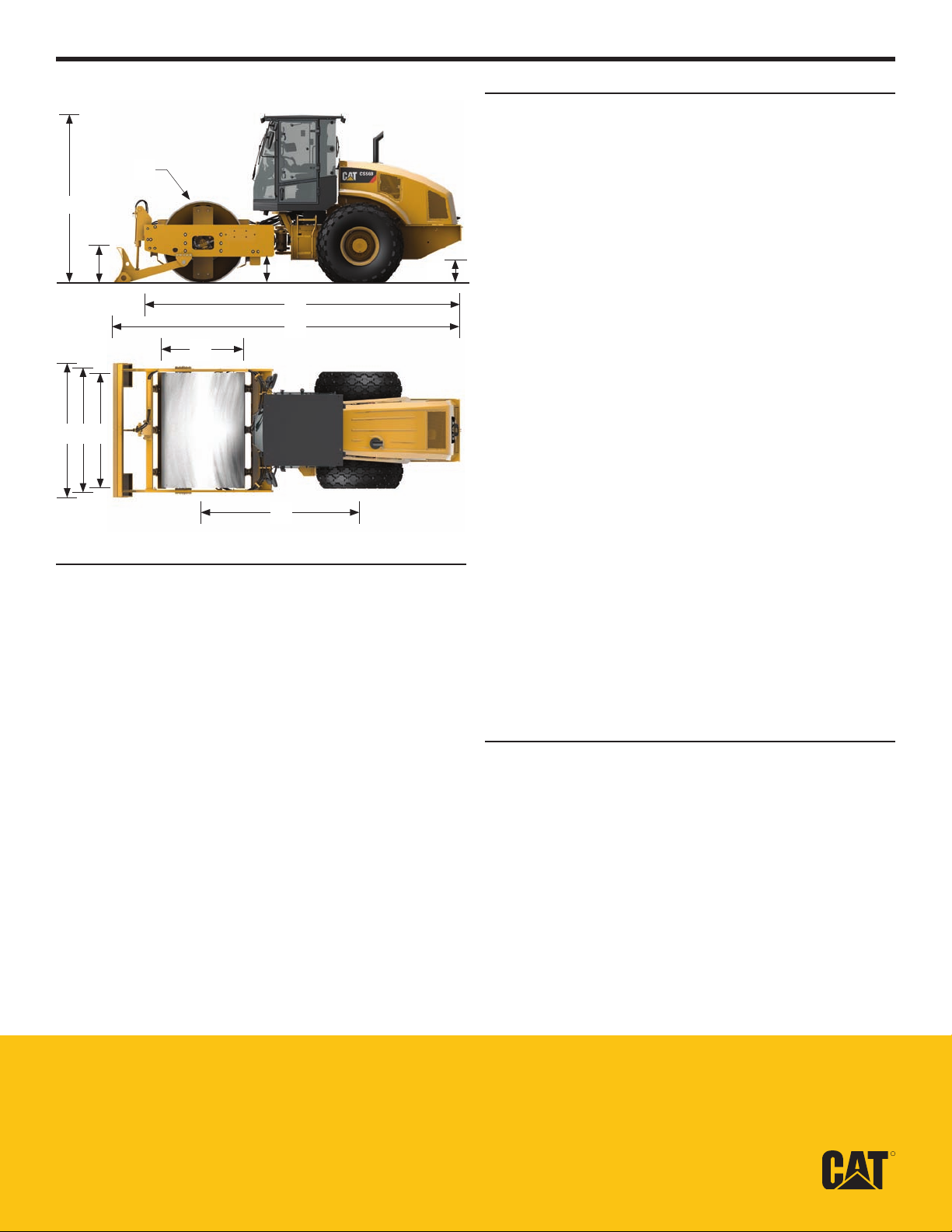

1 Overall Length 5.86 m 19.2 ft 2 Overall Length w/ optional Leveling Blade 6.4 m 20.9 ft 3 Overall Width 2.30 m 7.53 ft 4 Overall Width w/ optional Leveling Blade 2.50 m 8.25 ft 5 Drum Width 2134 mm 84 in 6 Drum Shell Thickness 30 mm 1.18 in 7 Drum Diameter 1434 mm 56.5 in 8 Overall Height

-Cab 3.11 m 10.2 ft

-ROPS/FOPS 3.08 m 10.1 ft

9 Wheelbase 2.9 m 9.5 ft 10 Ground Clearance 442 mm 17.4 in 11 Curb Clearance 494 mm 19.3 in 12 Optional Leveling Blade Height 688 mm 27.1 in

Inside Turning Radius 3.68 m 12.07 ft Hitch Articulation Angle 34° Hitch Oscillation Angle 15°

STANDARD EQUIPMENT Varies by market- contact your Dealer for specifics.

ELECTRICAL

n 24 volt Electrical System n 100 ampere Alternator n 750 Cold-cranking Amps Battery Capacity

OPERATOR ENVIRONMENT

n ROPS/FOPS n Vinyl Adjustable Pivoting Seat with Integrated Console, Seat Belt n Multifunction LCD Display with gauges and/or audible warning alarm

for: Hydraulic oil temperature, Engine oil pressure, Engine coolant temperature, Alternator charge, Fuel level, Service hour meter, Engine RPM, Ground speed, Vibe frequency, Fuel rate, Air filter constriction, Engine load and Optional Cat Compaction Control

n Platform Handrails/Guardrails n Adjustable Tilting Steering Column with Integrated Cup Holders n Lockable Vandalism Guard on LCD Display n 12-volt Power Outlet n Floor Mat n Interior Rear View Mirror n Horn, Backup Alarm

POWER TRAIN

n Cat

C4.4 Diesel Engine

n Three-speed Throttle Switch w/ Eco-mode, Automatic Speed Control n Dual Propel Pumps; One for Drum Drive, One for Rear Axle n Fuel Filter, Water Separator, Electronic Priming Pump, Water Indicator n Tilting Radiator/Hydraulic Oil Cooler n Dual Braking System n Two-speed Hydrostatic Transmission

VIBRATORY SYSTEM

n Smooth Drum n Dual Amplitude, Single Frequency n Pod-Style Eccentric Weight System n Auto-vibe Function n Front Adjustable Steel Scraper

OTHER

n Hydraulic Oil Level Sight Gauge n Radiator Coolant Level Sight Gauge

n Cat

ToughGuard™ Hose

n S·O·S

Sampling Valves, Engine Oil and Hydraulic Oil

OPTIONAL EQUIPMENT

n ROPS/FOPS Cab with Climate Control n Padfoot Shell Kit n Leveling Blade n Variable Vibration Frequency n Beacon, Rotating n Polyurethane Drum Scrapers n Steel Rear-side Drum Scraper n Bio-oil Factory Fill n High Ambient Temperature Oil Factory Fill n Sun Visor n Deluxe High-back Air-ride Pivoting Seat (with Cab only) n Cat Compaction Control, Machine Drive Power or CMV n SBAS GNSS Mapping for Cat Compaction Control (RTK available) n Upgraded Halogen Light Package n Cab Internal Rear View Mirrors n Cab Internal Roll-down Sun Screen n Product Link n Additional Rear View Mirrors
