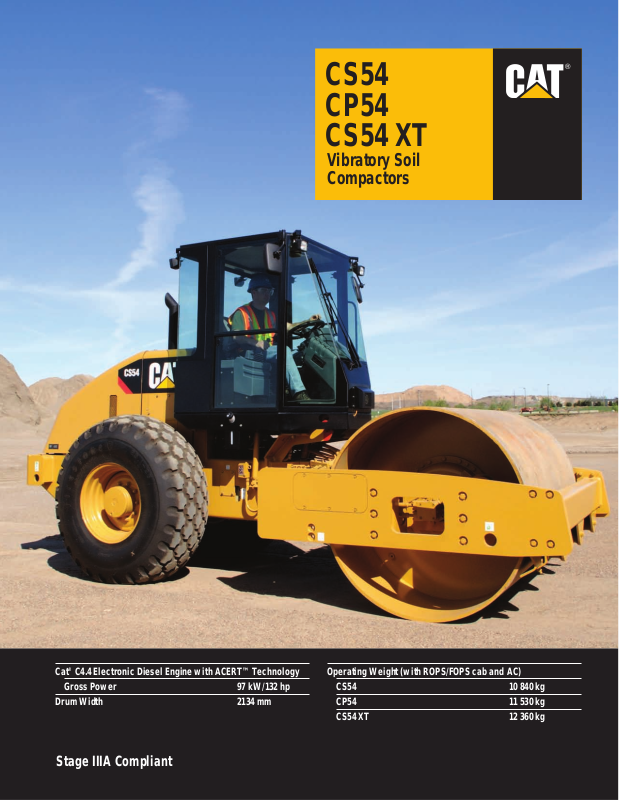

Page 1
Operating Weight (with ROPS/FOPS cab and AC)
CS54 10 840 kg
CP54 11 530 kg
CS54 XT 12 360 kg
Cat®C4.4 Electronic Diesel Engine with ACERT™ Technology
Gross Power 97 kW/132 hp
Drum Width 2134 mm
CS54
CP54
CS54 XT
Vibratory Soil
Compactors
®
Stage IIIA Compliant
Page 2
Productivity and Reliability in a Durable Package
The durable and reliable CS54, CP54 and CS54 XT Soil Compactors offer high compaction
performance, speed and gradeability to maximize productivity while providing exceptional
reliability and durability.
2
Vibratory System
Pod-style eccentric weights ensure peak
compaction performance and minimal
service. High dynamic force helps
achieve density in the fewest number of
passes. pg. 4
Engine
Cat®C4.4 Electronic Diesel Engine
with ACERT™ Technology delivers
97 kW (132 hp) and is built for
performance and reliability. pg. 5
Visibility
The sloped hood design provides
exceptional operator visibility to the
outside edge of the rear tires and to the
rear of the machine. pg. 6
New feature
Page 3
3
Gradeability and Machine Control
The exclusive dual pump propel system
provides a separate balanced hydraulic
flow to both the rear drive axle and the
front drum drive motor. This unique
dual pump propel system provides good
grade climbing, machine control and
tractive power. Dual pumps also
minimize drum and wheel spin-out in
low traction conditions. High working
speeds increases productivity. pg. 6
Operator’s Station
The CS54, CP54 and CS54 XT Soil
Compactors feature excellent operator
comfort and visibility. A propel lever
wrist rest, grouped control gauges and
conveniently located control switches
enhance operator productivity and
reduce fatigue. Four heavy-duty
isolation mounts provide a smooth ride.
Standard rearview mirrors, two frontfacing and two rear-facing working
lights are provided. Machines with the
open ROPS/FOPS platform are
surrounded by handrails that feature
integrated angled foot rests for sure
footing when working on a grade. pg. 7
Versatility
Standard dual amplitude expands the
compactor’s application range. The
large spread between high and low
centrifugal force makes it easier to
tailor the compactive effort to density
specifications. Variable vibration
frequency option is now available. pg. 4
The optional padfoot shell kit makes the
CS54 an extremely adaptable machine
when compacting semi-cohesive or
cohesive materials. pg. 8

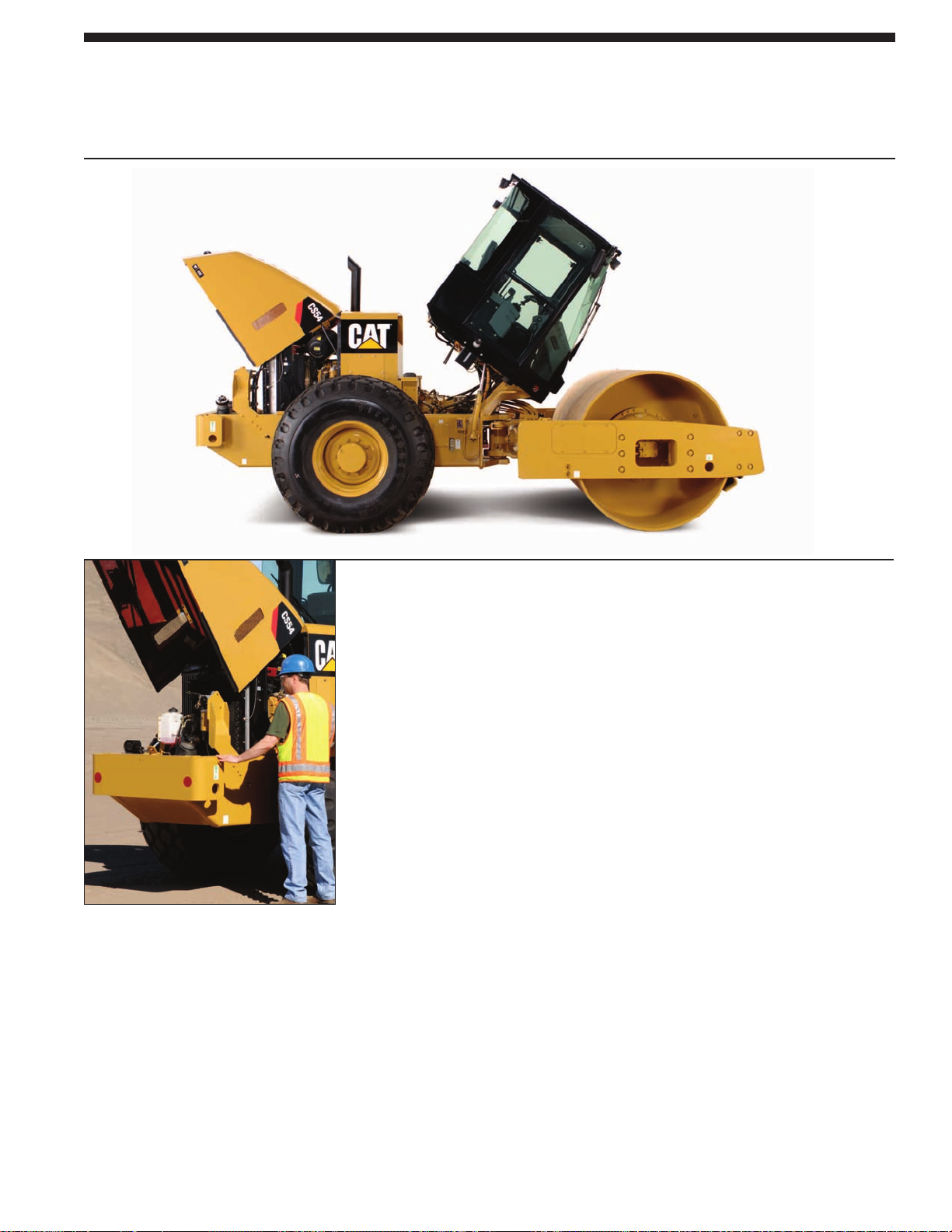

Serviceability
The fiberglass hood tilts forward to
allow access to the engine and daily
maintenance points. Daily check points
are accessible from ground level. The
rear mounted cooling system features a
hydraulic oil cooler that tilts down for
easier access for cleaning. The
operator’s platform tilts forward to
provide convenient access to the
hydraulic components. Access panels
have been added to the steel portion of
the engine hood for greater
accessability. Vibratory bearing lube
service interval of 3 year/3000 hours
and no required oil sampling keeps
maintenance to a minimum and
maximizes production. The engine
lubrication change interval is 500 hours.
The articulation hitch area features
sealed-for-life bearings that effectively
eliminate the need for maintenance.
Hydraulic system oil change interval is
now 2 years/2000 hours. pg. 9
Performance and reliability you can depend on.
Durable, field-proven powertrain and vibratory
systems and the world’s largest and most dedicated
dealer support system ensure the CS54, CP54 and
CS54 XT Soil Compactors will provide maximum
utilization.
Comfort and serviceability you deserve.
The operator’s station provides a spacious and comfortable
work environment that allows simple and pr oductive operation.
Good service access and long service intervals minimize
maintenance time and increases pr oductive work time.
Page 4
4
1
4
2
3

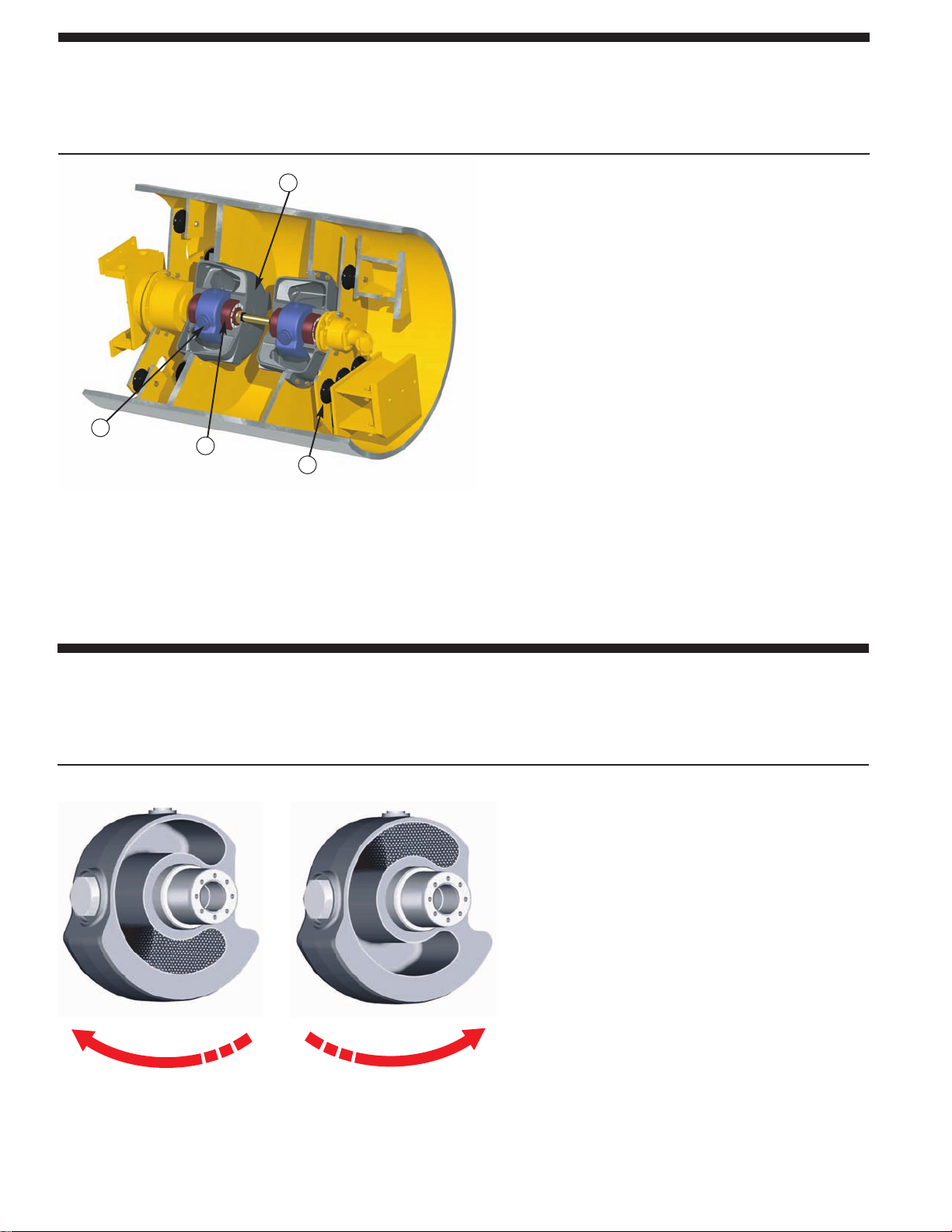

Vibratory System
The pod-style vibratory system, proven reliable on previous soil compactors, delivers
superior compactive force while offering serviceability advantages.
Pod-style weight housings. They are assembled
and sealed at the factory to ensure cleanliness, longer
bearing life and easier field exchange or service.
Dual amplitude. Dual amplitude works efficiently in
a wider range of applications. High or low amplitude
is selected from the operator’s station.
Heavy-duty bearings. Large heavy-duty bearings
for the eccentric weight shaft designed for high
compactive forces.
Variable frequency option. Variable vibratory
frequency increases machine versatility.
Service interval. 3 year/3000 hour vibratory bearing
lube service interval for reduced maintenance.
Scheduled oil sampling is no longer required,
reducing maintenance costs and increasing machine
uptime.
Isolation mounts. Improved isolation mounts allow
more force to be transmitted to the ground and less
vibration to the drum yoke.
1 Pod-style Weight Housings
2 Patented Eccentric Weights
3 Heavy-duty Bearings
4 Isolation Mounts
Patented Eccentric Weights
Reliable dual amplitude selection and innovative design ensure precise performance.
Amplitude selection. Positive amplitude selection
is accomplished when the steel shot is repositioned
inside the hollow eccentric weight. Direction of
weight shaft rotation determines amplitude level.
High reliability. High reliability since there is no
chance of the high-strength spherical steel shot
wedging together. System reliability is superior to
swinging mechanical weights and is also quieter
during starts and stops.
Simplified control. Simplified control from
the operator’s station with a selection switch on
the operator’s console.
Longer service life. No heavy weights to slam
together, no metal fragments to contaminate
the bearing lubrication system.
High Amplitude Low Amplitude
Page 5

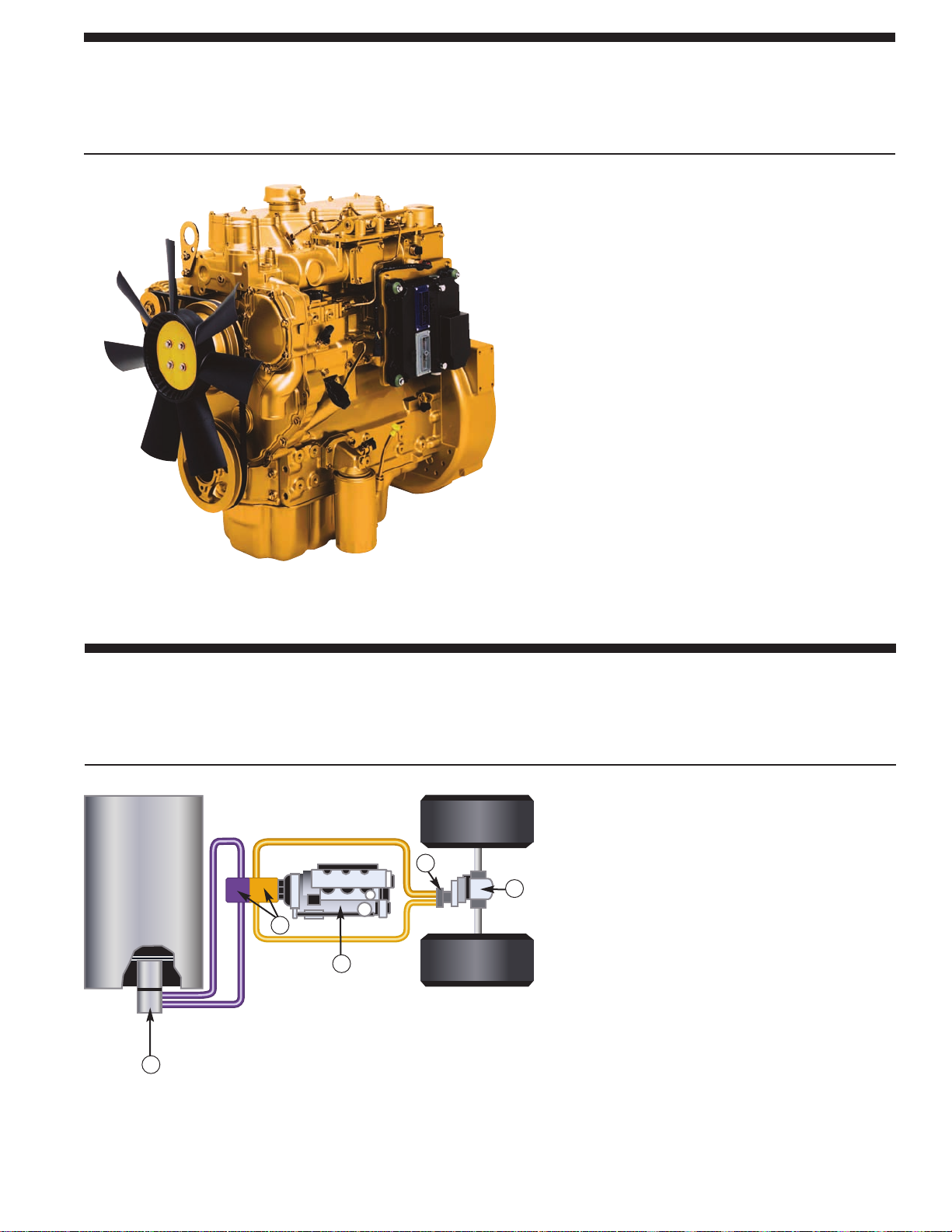

Cat®C4.4 Electronic Diesel Engine with ACERT™ Technology
High-tech four cylinder engine provides outstanding durability, performance, reliability and
operating economy while producing less emissions.
5
ACERT Technology. This technology combines
proven systems with innovative new technologies to
precisely shape the combustion process, providing
more complete combustion of fuel and lower
emissions.
Cold weather starting. Improved cold weather
starting for maximum reliability.
Optimum durability and reliability. More robust block
and components improves durability and reliability
while producing less noise.
Low-mounted oil pump. Low-mounted oil pump for
quick start-up-lubrication.
Large oil cooler. The large oil cooler reduces oil
deterioration and varnishing of internal components.
Allows for 500 hour engine oil change intervals.
Emissions compliant. The emissions compliant
engine meets European EU Stage IIIA emissions
control standards.
Dual Pump Propel System
Superior tractive effort and gradeability for outstanding productivity in demanding
applications.
Dual propel pumps. Dual propel pumps provide
separate, balanced hydraulic flow to the rear wheel
axle and the drum drive motors. Provides superior
gradeability on steep slopes and increases tractive
effort in loose or poor underfoot conditions.
Limited slip differential. It provides balanced
tractive effort and smooth torque transfer to both
rear wheels.
Speed ranges. Two speed ranges for versatile
operation. Low speed range for vibratory operation
and maximum torque when climbing grades.
High speed range moves machine quickly over
longer distances.
Valves. Flushing valves in each propel circuit helps
keep hydraulic oil cool and clean for maximum
system efficiency.
1 Dual Propel Pumps
2 Cat C4.4 Engine
3 Limited Slip Differential
4 Rear Wheel Drive Motor
5 Drum Drive Motor
1
2
3
4
5
Page 6

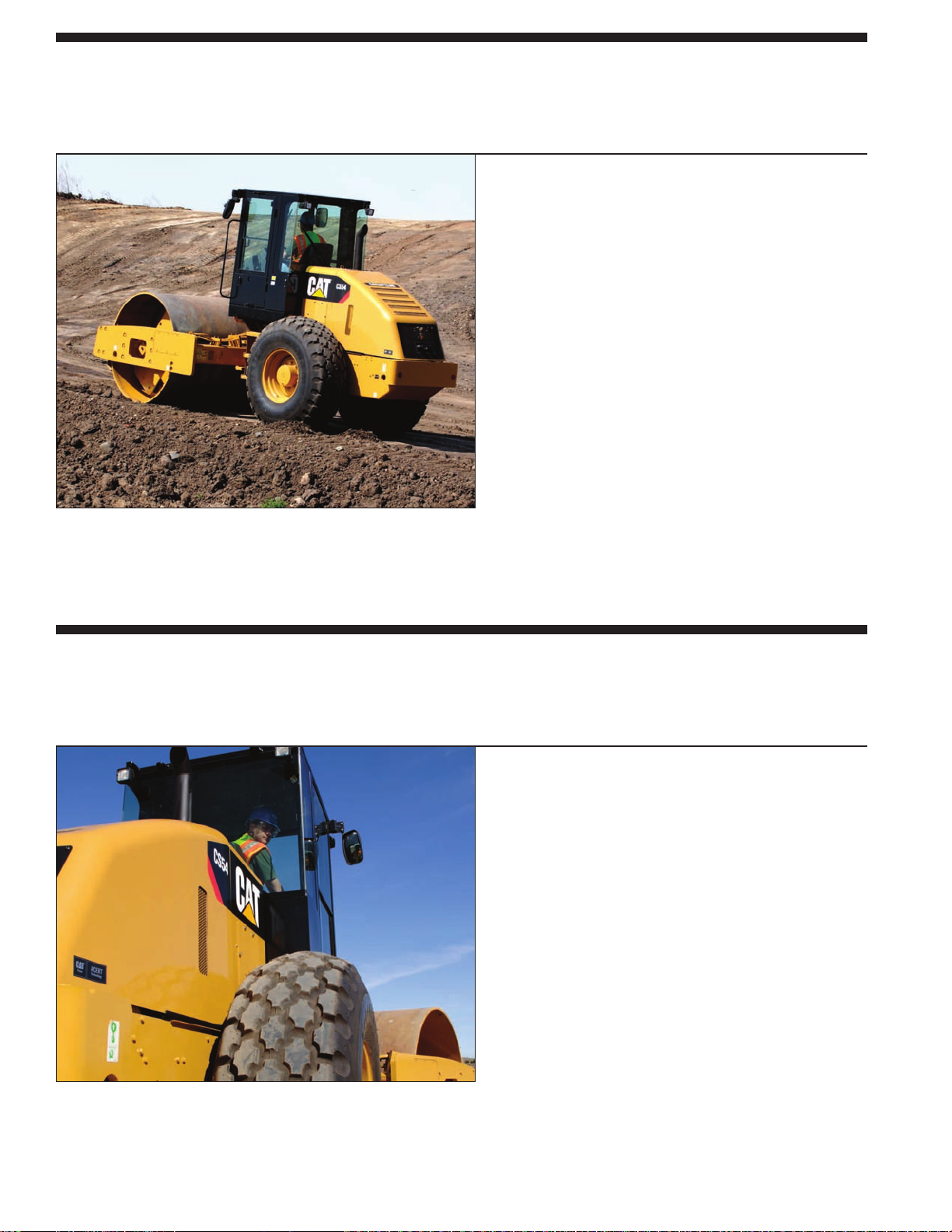

Gradeability and Machine Control
The exclusive dual pump propel system provides superior performance, machine control and
exceptional grade climbing capability.
6
Propel pump system. The dual propel pump system has
dedicated pumps to independently drive the heavy-duty,
high-torque rear wheel and drum motors. Should the drum
or wheels begin to spin, the non-spinning motor still
receives hydraulic flow, allowing continuous tractive
effort especially useful in loose underfoot conditions.
Controllability. Controllability gives the operator
complete machine control to stop, maintain machine
position and change directions while on a slope,
especially useful on loose underfoot conditions.
High productivity. Optimum gradeability allows high
productivity. Designed for typical applications working
on level to moderate grades.
Rear Visibility
The sloped fiberglass hood design provides exceptional operator visibility and good service
access.
Visibility. The line of sight to the tire edges and rear of
machine is exceptional. Operator can see obstacles
measuring 1 meter high located 1 meter to the rear of the
machine. Excellent visibility increases productivity when
working near obstructions or maneuvering around the job
site.
Lockable engine hood. The one-piece lockable engine
hood opens quickly and easily with the use of gas struts,
providing good access to the engine, cooling system, and
all service points.
Sound levels. Low sound levels due to hood design and
cooling air flow through the rear mounted radiator,
lowering sound levels for the operator and the ground
crew.
Page 7

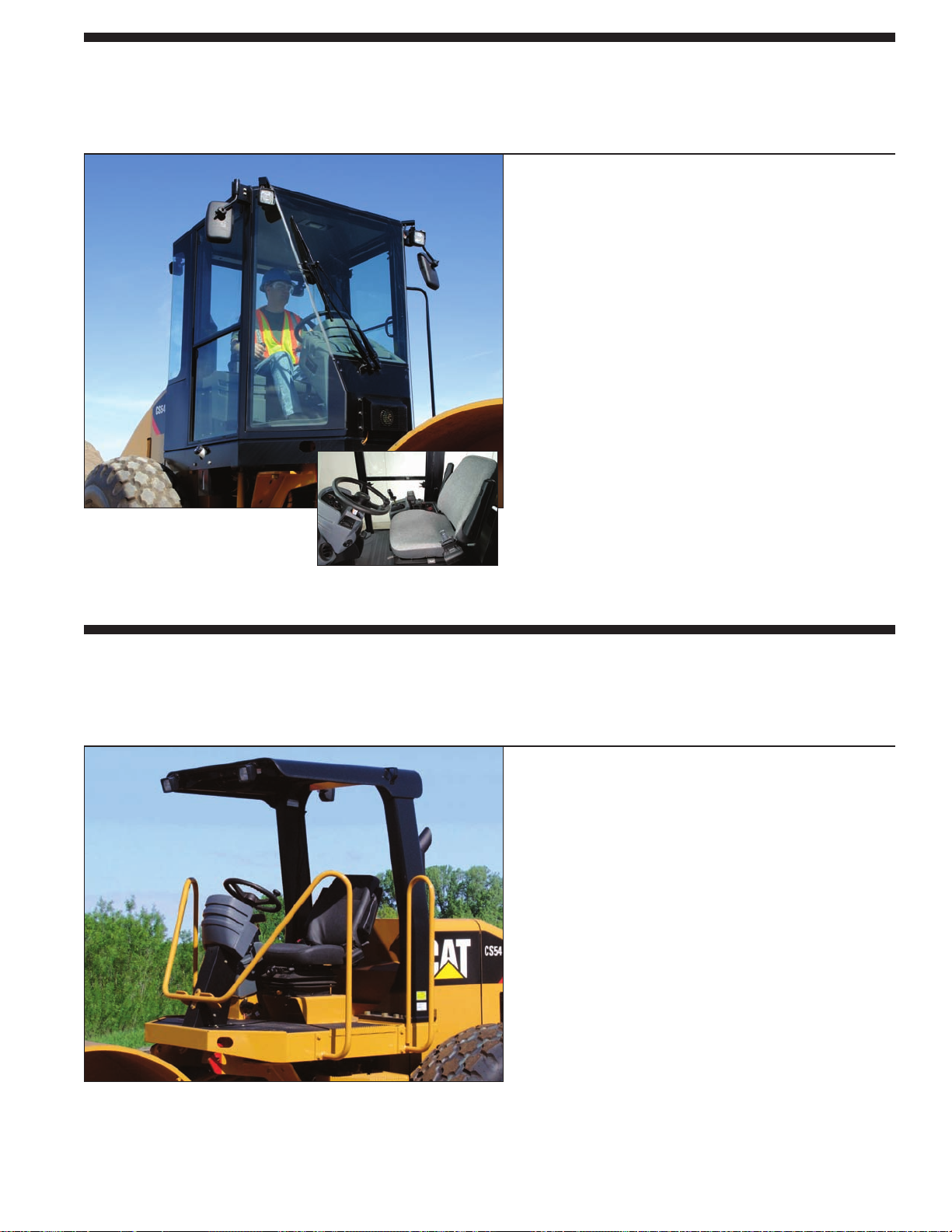

ROPS/FOPS Cab
Optional cab can increase machine utilization and provides greater year-round comfort in
extreme environment conditions.
7
Cab. The cab provides a spacious and comfortable work
environment that includes large windows, more interior
room with storage areas, a cup holder, better ergonomics
and low noise levels.
Visibility. Unrestricted visibility to the drum and tire edge
and to the side and rear of the machine.
Fully equipped cab. Items included with cab include two
exterior rear view mirrors, two front-facing and two rearfacing working lights, front and rear windshield wipers,
slide-open side windows and climate control with heater
and defroster, and angled foot rests for sure footing and
support when working on a grade. Optional 12-volt outlet
for powering personal communication devices.
Air conditioning option. The cab can be fitted with air
conditioning for increased operator comfort.
Open Platform with ROPS/FOPS Canopy
The platform is equipped with a ROPS/FOPS canopy and is enclosed by handrails and
features angled foot rests for sure footing and support when working on a grade.
Spacious and comfortable working environment.
All controls, levers, switches and gauges positioned
to maximize productivity.
Visibility. Unrestricted visibility to the drum and tire edge
and to the side and rear of the machine.
Platform. The platform is enclosed by handrails and
features angled foot rests for sure footing and support
when working on a grade.
Standard equipment. Standard equipment includes two
front-facing and two rear-facing working lights, handrails
with angled foot rests, a lockable vandalism guard and a
rear view mirror.
Page 8

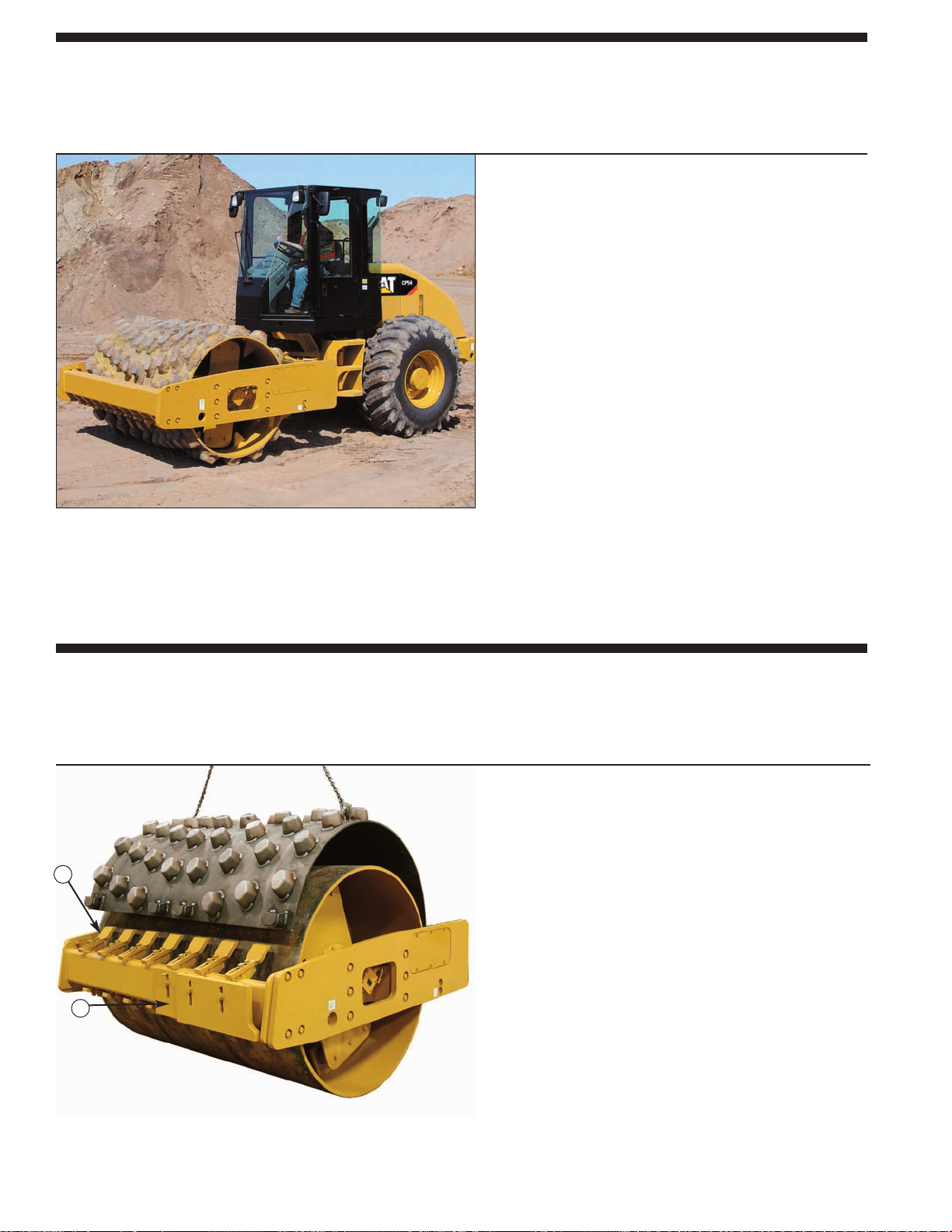

Padfoot Drum and Scrapers
Padfoot drums provide superior performance when compacting semi-cohesive or cohesive
materials.
8
Padfoot drum. The padfoot drum has 140 pads welded on
the drum in a chevron arrangement.
Pads are tapered to help clean themselves. New wider
design removes more debris for more efficient operation
Pads. Each pad is 127 mm high and has a pad face
surface area of 89.4 cm
2
.
Heavy-duty scraper. The scraper design features wide,
individually adjustable and replaceable scrapers mounted
on the front and rear of the drum. Reduces excessive
material build-up between the pads.

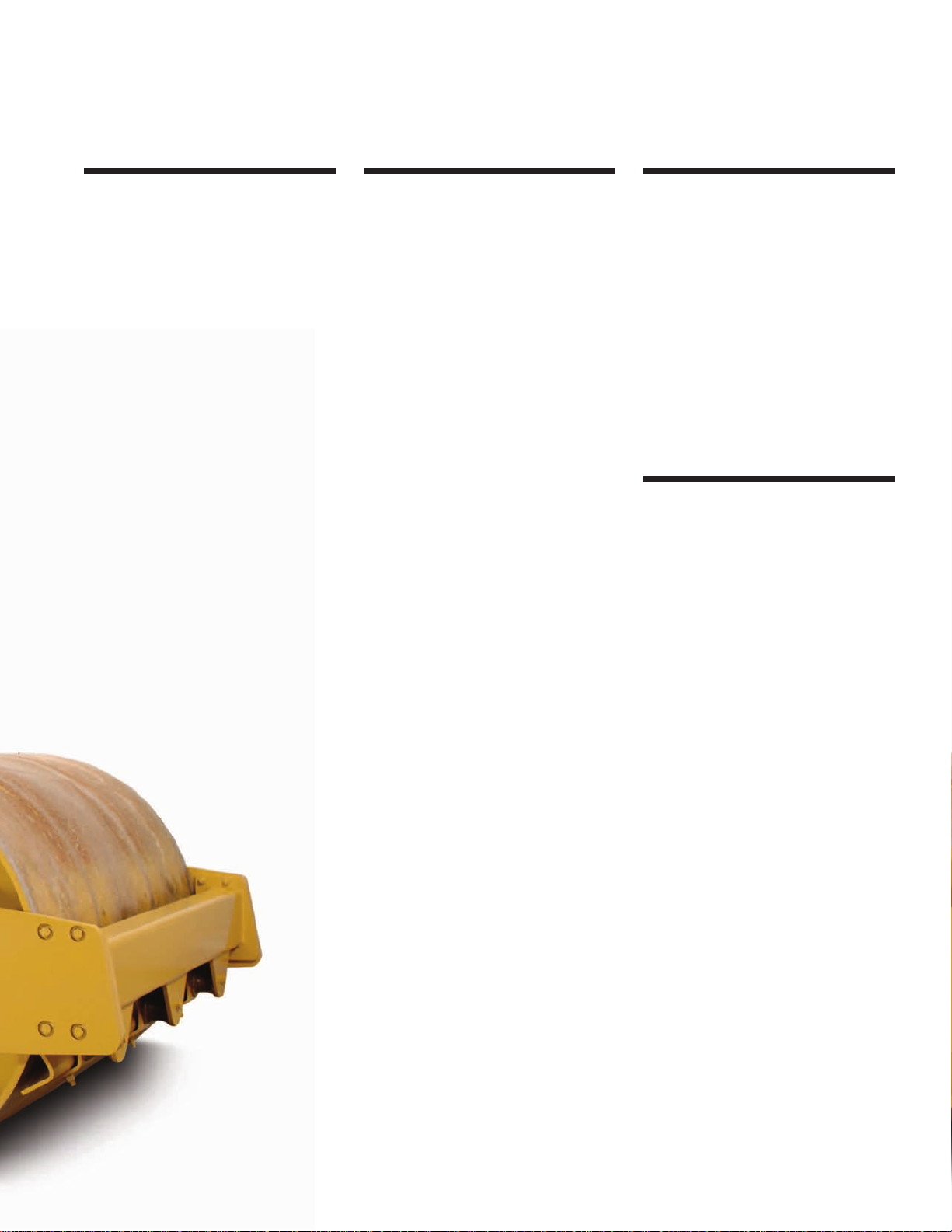

Padfoot Shell Kit
Optional padfoot shell kit expands the application range of the CS54 to work in either semicohesive or cohesive material.
Versatility and utilization. Expands machine versatility
and utilization while providing a simple and costeffective solution for jobs that may require both padfoot
and smooth drum compaction.
Dual-purpose bumper. The bumper included with the
shell kit does not need to be removed. This bumper can
also accept the optional leveling blade which increases
machine versatility even further. Bumper provides
convenient, bolt-on storage for smooth drum scraper
plates when they are not being used.
Scrapers for smooth drum kit. Scrapers for smooth drum
kit are provided. New shell kit scraper design provides
better debris-removal performance.
Padfoot shell halves. Padfoot shell halves can be quickly
and easily installed or removed in about an hour with the
use of an approved lifting device.
1 Improved shell kit scraper design
2 Smooth drum scrapers are stored
on the front of the bumper
1
2
Page 9
9
Reliability and Serviceability
The CS54, CP54 and CS54 XT Soil Compactors provides exceptional reliability and
serviceability that you’ve come to expect from Caterpillar.
Indicators. Visual indicators allow easy
check of engine coolant, hydraulic oil
tank level and air filter restriction.
Operator’s station. The operator’s station
tilts forward to allow convenient access
to the hydraulic pumps.
Access panels. Added to the steel
portion of the hood enhance service
access to the engine.
Bearings. Sealed-for-life bearings
on the articulation hitch never need
to be greased.
Extended service interval. 500 hour
engine oil change interval and
3 year/3000 hour vibratory bearing lube
service interval reduce maintenance costs
and machine downtime. Hydraulic
system oil change interval has been
increased to 2 years/2000 hours.
Ecology drains. Ecology drains provide
an environmentally safer method to drain
fluids. Drains are included on the
radiator, engine oil pan, hydraulic and
fuel tank.
Simple fluid collection. S•O•S
SM
(Scheduled Oil Sampling) ports
allow for simple fluid collection of
engine and hydraulic oil.
Hose routing. Secure hose routing
with polyethylene mounting blocks
reduces rubbing and increases
service life.
All-weather connectors. Nylon
braided wrap and all-weather
connectors ensure electrical system
integrity. Electrical wiring is colorcoded, numbered and labeled with
circuit identifiers to simplify
troubleshooting. Fuses are easy to
access.
Hydraulic test. Quick connect
hydraulic test ports simplify system
diagnostics.
Caterpillar batteries. Maintenancefree Cat batteries provide maximum
cranking power and protection
against vibration. New jump start
receptacle design is consistent with
all Cat machines.
The fiberglass hood tilts forward for
good access to the engine and cooling
system. Daily service points are
accessible from ground level and are
grouped on one side of the machine.
Page 10
Product Link is not standard equipment in all markets.
Consult your local Cat Dealer for details.
Product Watch (optional)
• monitors your fleet for
unauthorized machine usage
• notifies you by email or pager
Caterpillar Product Link System
Simplifies the tracking of equipment fleets to ensure maximum uptime and minimum
repair costs.
10
Product Link. The machine is Product Link wire ready.
Product Link streamlines diagnostic efforts, downtime,
and maintenance scheduling and costs by providing
communication flow of vital machine data and location
information between the dealer and the customer. Product
Link provides updates on service meter hours, machine
condition, and machine location.
Two-way wireless data flow. Communication between
on-board machine systems and Cat Dealer/customers.
Product Watch. The Product Watch service option
monitors your fleet for unauthorized machine usage.
Product Watch can notify the owner via email or a pager
if a machine operates outside of a configurable set of
parameters.
Product Link
• machine hours
• machine diagnostics
• machine location
Your Cat Dealer
Caterpillar backs your machine purchase with the best support system and personnel in the
industry.
Caterpillar is the industry service leader. Your machine
purchase comes with something the competition cannot
offer: a reputation for unmatched, exceptional service and
support that comes from years of exceeding customer
expectations.
Industry experience. The industry experience of Cat
Dealer personnel makes them familiar with the products
and services that are valuable to your industry.
Depth. Depth of knowledge gives Cat Dealers an
understanding of the machines that is technical and
practical. Service personnel can service the entire
machine, regardless of how it is configured.
Single source. One location for sales, parts and service
creates a relationship with the customer, allowing
Caterpillar to understand and meet their unique set of
needs.
Page 11
11
Engine
Four-stroke cycle, four cylinder Cat
C4.4 diesel engine with ACERT
Technology. Certified to meet European
EU Stage IIIA emissions control
standards worlwide.
Ratings at 2200 rpm kW hp
Gross power 97 132
Net Power
EEC 80/1269 91 124
ISO 9249 91 124
Ratings of Caterpillar machine engines
are based on standard air conditions of
25°C and 100 kPa dry barometer. Power
is based on using 35° API gravity fuel
having an LHV of 42 780 kJ/kg when
used at 30°C (ref. a fuel density of
838.9 g/L). Net power advertised is the
power available at the flywheel when
the engine is equipped with fan, air
cleaner, muffler and alternator. No
derating required up to 3000 m altitude.
Dimensions
Bore 105 mm
Stroke 127 mm
Displacement 4.4 liters
Dual-element, dry-type air cleaner with
visual restriction indicator, thermal
starting aid electric priming pump and
fuel/water separator are standard.
Transmission
Two variable displacement piston
pumps supply pressurized flow to two
dual displacement piston motors. One
pump and motor drives the drum propel
system while the other pump and motor
drives the rear wheels. The dual pump
system ensures equal flow to the drive
motors regardless of the operating
conditions. In case the drum or wheels
lose traction, the other motor can still
build additional pressure to provide
added torque.
The drive motors have two swashplate
positions allowing operation at either
maximum torque for compaction and
gradeability or greater speed for moving
around the job site. A rocker switch at
the operator’s console triggers an
electric over hydraulic control to change
speed ranges.
Max. speeds (forward and reverse)
Smooth Drum
Low Range 5.8 km/h
High Range 11.1 km/h
Operator and Machine
Protective Equipment
Forward Roll Over Protective
Structure/Falling Object Protective
Structure (ROPS/FOPS) canopy is a
two-post structure that bolts directly
onto flanges welded to the operator
platform. The structure meets SAE
J1040 May94, SAE J231 Jan81, ISO
3449-1992 and ISO 3471-1994. This
structure may be an option in some
areas and standard in others. Consult
your dealer for specifics.
Backup Alarm. 107 dB(A) alarm sounds
whenever the machine is in reverse.
Forward Warning Horn. Located on
the front of machine to alert ground
personnel.
Seat Belt. 76 mm wide seat belt
is standard.
Final Drives and Axle
Final drive is hydrostatic with planetary
gear reducer to the drum and
hydrostatic with differential and
planetary gear reduction to each wheel.
Axle
Heavy-duty fixed rear axle with a
limited slip differential for smooth and
quiet torque transfer.
Tires
Smooth and Padfoot Drum
587 mm x 660 mm (23.1" x 26")
Steering
A priority-demand hydraulic powerassist steering system provides smooth
low-effort steering. The system always
receives the power it needs regardless
of other hydraulic functions.
Minimum turning radius:
Inside 3680 mm
Outside 5810 mm
Steering angle
(each direction) ± 34°
Oscillation angle
(each direction) ± 15°
Hydraulic system
Two 76 mm bore, double-acting
cylinders powered by a gear-type pump.
CS54, CS54 XT and CP54 specifications
Page 12
12
CS54, CS54 XT and CP54 specifications
Frame
Fabricated from heavy gauge steel plate
and rolled sections and joined to the
drum yoke at the articulation pivot.
Articulation area is structurally
reinforced and joined by hardened steel
pins. One vertical pin provides a
steering angle of ± 34° and a horizontal
pin allows frame oscillation of ± 15°.
The articulation lock prevents machine
articulation when placed in the locked
position. Sealed-for-life hitch bearings
require no maintenance. Frame also
includes tie-down points for transport.
Instrumentation
Electronic Control Module (ECM)
constantly monitors condition of the
engine, and alerts the operator of
problems with three levels of warning.
Warning system includes: Action Alarm
and Lamp, Low Engine Oil Pressure,
High Engine Coolant Temperature,
High Hydraulic Oil Temperature, Low
Charge Pressure, Starting Aid and High
Combustion Air Temperature.
Instrumentation also includes an
Alternator Malfunction Light, Check
Engine/Electrical Fault, Service Hour
Meter and Fuel Gauge.
Electrical
The 24-volt electrical system consists
of two maintenance-free Cat batteries,
electrical wiring is color-coded,
numbered, wrapped in vinyl-coated
nylon braid and labeled with circuit
identifiers. The starting system provides
750 cold cranking amps (cca).
The system includes an 55 alternator.
Service Refill Capacities
Liters
Fuel tank 180
Full fuel capacity 200
Cooling system 15.4
Engine oil with filter 8.5
Eccentric weight housings 26
Axle and final drives 18
Hydraulic tank 60
Vibratory System
Frequency
High amplitude
Low amplitude 34 Hz 34 Hz 31 Hz
Optional variable frequency
Nominal Amplitude
High
Low
Centrifugal Force
Maximum
Minimum
Brakes
Service brake features
Closed-loop hydrostatic drive system
provides dynamic braking during
operation.
Secondary brake features*
Spring-applied/hydraulically-released
multiple disc type brake mounted on the
drum drive gear reducer. Secondary
brakes are activated by: a button on the
operator’s console; loss of hydraulic
pressure in the brake circuit; or when
the engine is shut down. A brake
interlock system helps prevent driving
through the secondary brake.
* All machines sold within European Union are
equipped with a brake release pump which
allows the manual release of the secondary
brake system for towing the machine.
Braking system meets EN 500.
CS54 CS54 XT CP54
31 Hz 31 Hz 31 Hz
34 Hz 34 Hz 31 Hz
23.3 - 31 Hz 23.3 - 31 Hz 23.3 - 31 Hz
1.8 mm 1.8 mm 1.7 mm
0.85 mm 0.85 mm 0.85 mm
234 kN 234 kN 266 kN
133 kN 133 kN 133 kN
Page 13
13
CS54, CS54 XT and CP54 specifications
Operating Weights
Weights shown are approximate and include lubricants, coolant, full fuel and hydraulic tanks and a 80 kg operator.

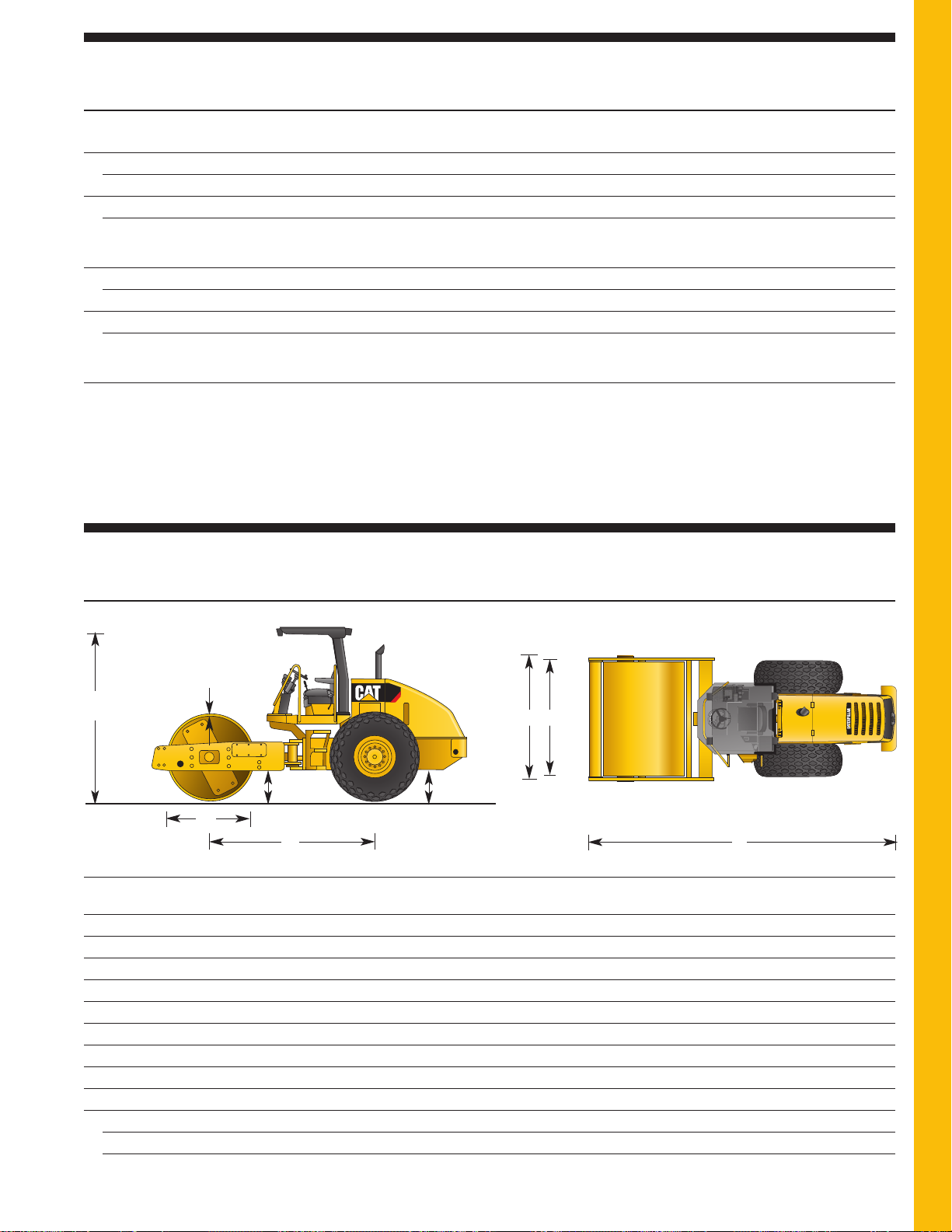

Dimensions
All dimensions are approximate.
CS54
J
I
D
F-G
A
H
E
B
C
A Overall length
B Overall width
C Drum width
D Drum shell thickness
E Drum diameter
F Height at ROPS/FOPS canopy
G Height at ROPS/FOPS cab
H Wheelbase
I Ground clearance
J Curb clearance
Inside turning radius
Outside turning radius
CS54 CS54 XT CP54
mm mm mm
5570 5580 5570
2300 2360 2300
2134 2134 2134
25 25 25
1534 1534 1295
3070 3070 3070
3070 3070 3070
2900 2900 2900
516 495 524
516 495 524
3680 3680 3680
5810 5810 5810
CS54 CS54 XT CP54
kg kg kg
10 265 11 760 11 100
11 690 13 185 —
10 840 12 360 11 530
12 265 13 785 —
5510 6780 6180
6935 8205 —
5760 7030 6300
7185 8455 —
27 kg/cm
(1)
32.9 kg/cm
(2)
—
Machine Weights
with open platform
equipped with padfoot shell kit
with ROPS/FOPS cab & AC
equipped with padfoot shell kit
Weight at Drum
with open platform
equipped with padfoot shell kit
with ROPS/FOPS cab & AC
equipped with padfoot shell kit
Static Linear Load- kg per linear cm
with ROPS/FOPS cab & AC
(1)
Meets NFP 98736 class: VM2
(2)
Meets NFP 98736 class: VM3
Page 14
14
CS54, CS54 XT and CP54 specifications
Optional Equipment
Optional equipment may vary. Consult your Cat dealer for specifics.
Roll Over Protective Structure/
Falling Object Protective Structure
(ROPS/FOPS) Canopy. A two-post
structure that bolts directly onto flanges
welded to the operator platform. The
structure meets SAE J1040 May94, SAE
J231 Jan81, ISO 3449-1992 and ISO
3471-1994.
ROPS/FOPS Cab. Includes a cloth
suspension seat, one access door, tinted
safety glass windows, electric wipers
front and rear, heater/defroster, two
vertically sliding side windows for
ventilation, rear view mirrors, two frontfacing and two rear-facing working
lights, interior dome light, and coat
hook. New foot rests have been added to
the floor of the cab for sure footing and
greater operator comfort. More rear
glass has been added to provide even
greater rear visibility to the operator.
The cab is now pre-wired for the
addition of a radio set (radio not
included). A 12 volt outlet is standard in
some markets, available as an option in
others. Other options include cab lift
cylinder, air conditioning, sun visor,
roll-down sun screen and internal rear
view mirrors. Cab is fully EROPS rated
and meets ISO 3449-1992 and ISO
3471-1994.
Two-Piece Padfoot Shell Kit.
Bolts onto the smooth drum CS54.
Features 90 mm high pads. Includes
heavy-duty scraper teeth and a special
bumper that provides a secure area to
store smooth drum scraper plates when
not in use. Each shell half weighs 810
kg.
Transmission Guard. Consists of a heavy
plate which covers the rear axle, axle
drive motor and input gearbox.
Smooth Drum Rear Steel Scraper.
Mounted at the rear of the drum.
Flexible Drum Scrapers. Designed for
use with smooth drum models. Mounted
at the front and rear of drum. They are
made of polyurethane and are designed
to contact the drum, cleaning debris
from the drum surface.
Vibration Auto On/Off. Vibration system
switches on/off automatically.
Variable Frequency. Allows the operator
to vary drum frequency.
VPM Gauge. Mounted on the console,
this gauge displays the actual vibratory
system frequency.
Speedometer
Recording Module. Provides a visual
gauge for reading worktime, machine
speed, distance covered and amplitude
selection.
Compaction Indicator A30 RMV.
Includes compaction meter value gauge
and RMV indicator.
Compaction Indicator with Analog
Display. Includes Volkel Analog
Compaction Display (ACD) compaction
meter.
Operator Platform Lift Cylinder. Features
a hydraulic cylinder to raise and lower
the operator’s platform for easier access
to the hydraulic pumps.
Rotating Beacon. Includes an amber
beacon and mount that can be attached
to machines with ROPS/FOPS canopy
or ROPS/FOPS cab.
Rotating Seat. Provides 20 degrees of
pivot adjustment for greater operator
comfort.
Bio Hydraulic Oil Ready. Hydraulic
system is designed and tested for use
with Cat BIO HYDO™ HEES hydraulic
fluid and is available as a factory fill.
12-Volt Outlet. Allows operator to plug
in portable communication devices.
Page 15
15
CS54, CS54 XT and CP54 specifications
Estimated Production (CS54)
1100
1000
900
800
700
600
500
400
300
200
100
0
CS54
100%
98%
95%
900
250
450
Productivity Comparisons
Cubic Meters Per Hour
% Compaction of Standard Proctor
150 mm Crushed Limestone Base
Results are similar for padfoot drum.
Results may vary for different applications.
Depth
mm
Surface
Shallow
Deep
Density
%
>98
95-98
90-95
0-500
500-3000
>3000
150/300 mm
Layers
190/380 m3/h
345/610 m3/h
610/1150 m3/h
Based on depth of fill below final grade (surface)
Based on final compacted thickness of layer
Density spec. is based on Standard Proctor Test
Application
Sand, Clayey or Silty Sand, Mine Tailing
Clay, Sandy or Silty Clay, Stabilized Clay
Silt, Sandy or Clayey Silt, Coal, Ash, Solid Waste
Base Aggregate, Gravel, Crushed Rock,
Stabilized Base
Layer
Thickness
mm
150-300
300-450
150-300
300-450
150-300
300-450
150-300
300-450
Smooth
Drum
Padfoot
Drum
CS54 CP54
Good Better Best
Machine Selection
Padfoot Drum
Number of Pads
Pad Height
Weight at Drum
Max. Amplitude
Shell Kit
120
90 mm
5570 kg
1.2 mm
140
127 mm
6240 kg
1.7 mm
Shell Kit Performance Performance Ranking
Shell Kit Performance
Heavy Clay
Sandy Clay
Silt with Clay
Slopes/Trenches
Thick Layers
Less Kneading
better for silt
Less Penetration
better for silt and sandy clay
Higher Ground Pressure
better for sandy clay
Smaller Drum Movement
better for silt and clay
Padfoot Drum
The CS54 and CP54
vibratory soil compactors
provide high compaction
performance. Ideal for
medium to large construction projects with low to
moderate grades.
Shell Kit
Page 16
CS54, CS54 XT and CP54 Vibratory Soil Compactors
HEHG3671-01 (02/2011) hr
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at
www.cat.com
Materials and specifications are subject to change without notice. Featured machines in photos
may include additional equipment. See your Caterpillar dealer for available options.
© 2011 Caterpillar -- All rights reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
®
Loading...
