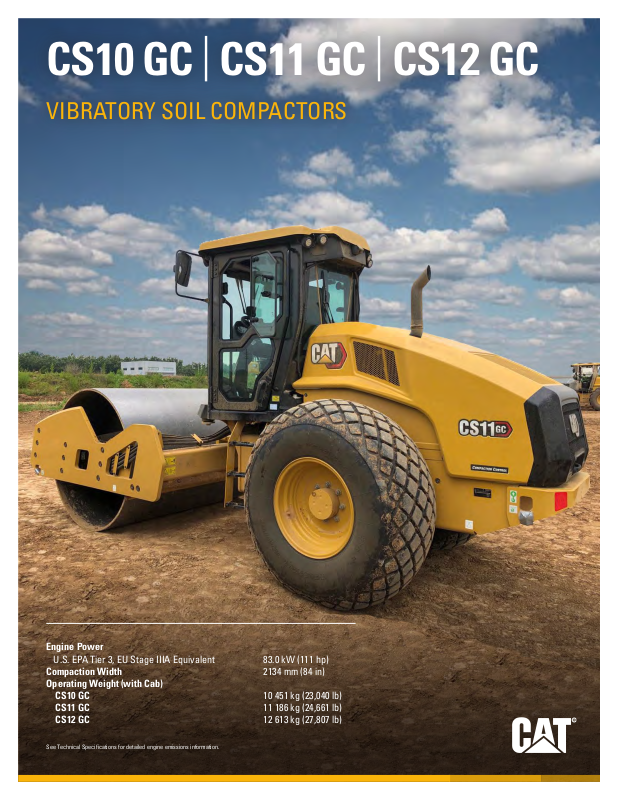

CS10 GC
CS11 GC | CS12 GC
VIBRATORY SOIL COMPACTORS
Engine Power
U.S. EPA Tier 3, EU Stage IIIA Equivalent 83.0 kW (111 hp)
Compaction Width 2134 mm (84 in)
Operating Weight (with Cab)
CS10 GC 10 451 kg (23,040 lb)
CS11 GC 11 186 kg (24,661 lb)
CS12 GC 12 613 kg (27,807 lb)
See Technical Specications for detailed engine emissions information.
Page 2
VIBRATORY SOIL COMPACTORS
GC-SERIES
EVERYTHING YOU WANT.
EXACTLY WHAT YOU NEED.
GC-Series Vibratory Soil Compactors
deliver dependable, economical
production with performance that exceeds
expectations. Ready to help you make
your business stronger, Cat® GC-Series
Vibratory Soil Compactors give you new
ways to get the most work done at the
lowest cost—so you put more money in
your pocket.
GC-SERIES VIBRATORY SOIL COMPACTORS
Cat GC-Series Vibratory Soil Compactors provide the production you need from the 10-12 metric tonne class
while still offering the kind of dependability, versatility and serviceablity you have come to expect from Caterpillar:
+ CLASS-LEADING VIBRATORY SYSTEM PERFORMANCE
+ EXCEPTIONAL COMFORT, EASE OF USE
+ CAT EXCLUSIVE TECHNOLOGY
2 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 3
SIMPLE TO
LOW OPERATION
ENHANCED
OPERATE
The GC-Series feature an easy to use
interface for the operator with excellent
visibility to the ground, and an autovibe function providing dependable
compaction.
* Compared to using high engine idle. Data may vary based on specic model.
COSTS
Experience up to 18% fuel savings with
eco-mode* and benet from extended
maintenance intervals. Enjoy the sealedfor-life maintenance-free hitch.
COMPACTION
Improve compaction with increased
amplitude and static linear load, upgrade
with exible XT weight kits, and choose
from scalable compaction technologies.
3GC-SERIES VIBRATORY SOIL COMPACTORS
Page 4
OPERATOR COMFORT
COMFORTABLE AND ERGONOMIC
SIMPLE CONTROL
• One button, 2-setting vibration control switch
• Propel and safety controls grouped for easy access on
operator’s right side
• Auto-vibe function to automatically start and stop vibration
based on propel lever position
• Congurable LED digital readout
EXCELLENT VISIBILITY
• Internal and external mirrors for broad view of the jobsite
• Optional rear vision camera provides a wide view behind the
machine for better visibility
• Upgraded LED lighting for super night time illumination
4 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 5
OPERATE IN COMFORT
EXCELLENT VISIBILITY
Internal and external mirrors provide a broad
view of the jobsite. Optional rear vision
camera enhances operation and safety.
Tilting steering column and adjustable seat reduce
fatigue while the ISO-mounted operator station
and rubber oormats dampen noise and vibrations,
providing comfort during operation.
SMOOTH DRUM
GC-Series vibratory soil compactors are available
with smooth drums. Two piece padfoot shell kit
options are available to maximize versatility.
ERGONOMIC ENTRY/EXIT
Large station entry provides outstanding accessibility
featuring angled steps, convenient right and left
handrails, and antiskid entrance surface.
5GC-SERIES VIBRATORY SOIL COMPACTORS
Page 6
FUEL EFFICIENCY
SAVINGS ADD UP
E F
USING ECO-MODE
LOWERS FUEL CONSUMPTION
THE ADVANTAGE
USE UP TO
18%
LESS FUEL PER YEAR
NOTE: COMPARED TO OPERATING USING HIGH ENGINE IDLE.
DATA MAY VARY BASED ON SPECIFIC APPLICATION, MODEL,
AND CONFIGURATION.
POWERFUL
ENGINE
MEETS EMISSIONS STANDARDS
The Cat C4.4 engine meets U.S. EPA Tier 3 and EU Stage
IIIA equivalent emissions standards. This engine is reliable,
quiet, and has durable power for vibratory soil compactor
applications.
6 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 7
55%
CS10 GC | CS11 GC
50%
CS12 GC
THEORETICAL
GRADEABILITY
THEORETICAL
GRADEABILITY
SIMPLE DESIGN
EXCEPTIONAL
RESULTS
REACH HIGHER WITH THE GC-SERIES
+ One-button switches between working and travel speed ranges
+ Limited slip differential axle
+ Traction tire options
+ Climbing ability that exceeds expectations
7GC-SERIES VIBRATORY SOIL COMPACTORS
Page 8
POD-STYLE VIBRATORY
AMPLITUDE AND
FLEXIBLE WEIGHT
SYSTEM
Exclusive Caterpillar pod-style eccentric
weights offer an industry best 3 year, 3000
hour maintenance interval and keep you
running longer between services.
STATIC LINEAR LOAD
High amplitudes and increased static
linear loads help to ensure the GC-Series
can meet your compaction needs.
GC-SERIES
ENHANCED COMPACTION
KITS
Flexibilty is designed in. Optional XT weight
kits upgrade the CS10 GC and CS11 GC
models to a heavier class, allowing them
to work on a wider range of jobsites and
lift thicknesses.
8 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 9
CAT® COMPACT TECHNOLOGY
SCALABLE TO MEET YOUR NEEDS
Cat COMPACT is a suite of technologies that help operators compact to specication with greater consistency, uniformity and
efciency than is possible using human intuition alone. Cat COMPACT technology is easy-to-use, versatile and scalable, allowing you
to customize your solution to meet your needs, now and in the future.
MACHINE DRIVE POWER (MDP)
MDP
Measures energy required to overcome rolling resistance to
indicate soil stiffness. MDP works with vibratory system on or
off. It measures 30-60 cm deep–about the depth of a typical lift
and works on all soil types, granular and cohesive.
GNSS MAPPING
Correlates compaction data with satellite location coordinates
(GPS) to provide real-time maps that can help the operator
visualize progress of the work. The data can be mined to nd
hidden efciencies that can contribute to greater prot, or used
to document work for QA/QC purposes. SBAS or RTK available
depending on positional accuracy desired.
CMV
Utilizes a drum-mounted accelerometer to provide indications of
soil stiffness of multiple aggregate base and sub-base layers, up
to 1.2 m deep. It can indicate issues with the road structure or
help the operator determine the status of the work. For granular
applications only.
Helps keep rolling patterns in sync by sharing mapped data such
as MDP, CMV, coverage area and pass-count maps between the
displays of multiple machines.
COMPACTION METER VALUE (CMV)
MACHINE-TO-MACHINE COMMUNICATION
9GC-SERIES VIBRATORY SOIL COMPACTORS
Page 10
EASY-ACCESS
MAINTENANCE
Conducting daily inspections will help keep your machine running day in and day out. That’s why we focused on making those
inspections as easy as possible. Daily check points are grouped, with key components within easy reach from the ground. The durable
one-piece hood tilts forward quickly and easily for exceptional access to the engine and cooling system. S·O·SSM ports are provided to
make oil sampling simple and quick. Of course the most convenient and least costly service of all is that which can be avoided. That’s
why the GC-Series vibratory soil compactors feature long service intervals and no-maintenace components like the articulation hitch
and battery.
EXTENDED MAINTENANCE INTERVALS MAINTENANCE-FREE HITCH
Industry-leading maintenance intervals keep you
working longer between scheduled services.
• 12,000 hr coolant change
• 3,000 hr hydraulic oil change
• 3,000 hr vibration bearing oil check
• 500 hr engine oil and lter
10 GC-SERIES VIBRATORY SOIL COMPACTORS
Just like on other Cat vibratory soil compactors you’ve
known over the years, the GC-Series features a
maintenance-free hitch that requires no greasing.
Page 11
CAT LINK TECHNOLOGY
TAKES THE GUESSWORK OUT OF MANAGING YOUR EQUIPMENT
CAT LINK telematics helps take the complexity out of managing your equipment and job sites by gathering data generated
from your machines, materials, and people – delivering it to you in customizable formats.
CAT PRODUCT LINK™
The ProductLinkTM system tracks location and hours of use of the machine. The
system streamlines diagnostic efforts, maintenance scheduling, and costs by
providing communication of hours and location information between dealer and
customer.
VISIONLINK
Access product data anytime, anywhere with VisionLink
informed decisions that boost productivity, lower costs, simplify maintenance,
and improve safety and security on your job site. With different subscription
level options, your Cat dealer can help you congure exactly what you need
to connect your eet and manage your business, without paying for extras
you don’t want. Subscriptions are available for cellular and/or satellite-based
reporting.
®
®
and use it to make
MACHINE DATA AT YOUR FINGERTIPS
The Cat App delivers machine data to your smartphone or tablet, so you can
check in on your equipment from the eld, the ofce or anywhere in between.
And when it’s paired with other Cat Equipment Management tools, the Cat
App makes it even easier to make smart decisions and be in control of your
business.
Caterpillar releases products, services and technologies in each region at different time intervals. Please verify with your local Cat dealer for technology availability and specications.
11GC-SERIES VIBRATORY SOIL COMPACTORS
Page 12
EXPAND PERFORMANCE
WITH OPTIONS TO INCREASE PRODUCTIVITY
Cat drum and operator station options improve performance, safety, and stability designed to t the weight and horsepower
of the GC-Series Vibratory Soil Compactors.
SHELL KIT OPTION
Oval-faced pad design produces superior thick-lift compaction
results by penetrating deeper into the lift. The tapered design
introduces horizontal compaction force and inhibits material
accumulation between pads.
Square-faced pad design produces good thin-lift compaction
results and provides best surface sealing.
Cat padfoot shell halves are universal and work on 2134 mm
(84 inch) drum B-Series and GC-Series machines.
NOTE: Bumper and scraper design is different between the B-Series and GC-Series.
Please consult your Caterpillar Dealer for more information.
OPTIONAL XT WEIGHT KIT FOR FIELD INSTALL
Kits add additional weight that upgrades the CS10 GC to over 11
metric tonnes and the CS11 GC to over 12 metric tonnes.
The additional weight also brings higher static linear loads,
allowing the machines to work in a wider range of applications
and lift thicknesses. These options give exible machine weights
for governmental tenders and rental eets.
OPERATOR STATION OPTIONS
ISO mounted sun canopy, ROPS/FOPS canopy, and ROPS/FOPS cab satisfy customer demand comfortably. Upgrade your canopy
machine with an aftermarket cab kit to increase operator comfort or meet changing requirements.
ROPS/FOPS CANOPY ROPS/FOPS CABSUN CANOPY
12 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 13
STANDARD & OPTIONAL EQUIPMENT
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT STANDARD OPTIONAL
Sun Canopy with Platform Handrails/
Guardrails, Floor Mat
Vinyl Adjustable Seat, Seat Belt
Adjustable Tilting Steering Column
12-volt Power Outlet
Horn, Backup Alarm
Internal Rear View Mirror
Cab Internal Roll-down Sun Screen (Cab)
ROPS/FOPS Cab with Climate Control and
External Rear View Mirrors
Deluxe High-back Air-ride seat (Cab)
Sun/Debris Shields (Canopy)
Additional Mirror Options
Rear View Camera with Color
Touchscreen Display
Sound Reduction Kit
VIBRATORY SYSTEM STANDARD OPTIONAL
Smooth Drum
Dual Amplitude, Dual Frequency
Pod-Style Eccentric Weight Housings
Auto-vibe Function
Rear Adjustable Steel Scraper
Padfoot Shell Kit (oval or square pads)
Dual Adjustable Steel Scrapers
Dual Adjustable Polyurethane Scrapers
l
l
l
l
l
l
l
l
l
l
l
POWERTRAIN STANDARD OPTIONAL
Cat® C4.4 Diesel Engine, 4 cylinder
Eco-mode
Single Propel Pump
Fuel Filter, Water Separator, Priming Pump,
Water Indicator
Radiator/Hydraulic Oil Cooler
Dual Braking System
Two-speed Hydrostatic Transmission
Transmission Guard
TECHNOLOGY SOLUTIONS STANDARD OPTIONAL
Measure - Machine Drive Power and/or
CMV
Map - SBAS GNSS Mapping
Connect - Cloud and Machine Connectivity
ELECTRICAL STANDARD OPTIONAL
12 volt Electrical System
120 ampere Alternator
900 Cold-cranking Amps Battery Capacity
OTHER STANDARD OPTIONAL
Product Link
Sight Gauges for Hydraulic Oil Level and
Radiator Coolant Level
S·O·SSM Sampling Valves: Engine Oil,
Hydraulic Oil and Coolant
Upgraded LED Light Package
Amber Rotating Beacon
Flotation Tread or Lug Tread Tires
XT Weight Kit
TM
l
l
l
l
l
l
l
l
l
l
l
l
l
13GC-SERIES VIBRATORY SOIL COMPACTORS
Page 14
TECHNICAL SPECIFICATIONS
ENGINE
Engine Model Cat C4.4
Emissions US EPA Tier 3 EU Stage IIIA Equivalent
Gross Power ISO 14396 83.0 kW 111.3 hp
Gross Power SAE J1995 83.8 kW 112.4 hp
Net Power ISO 9249* 79.4 kW 106.5 hp
Net Power SAE J1349* 78.5 kW 105.3 hp
Displacement 4.4 L 268.5 in
Stroke 127 mm 4.1 in
Bore 105 mm 4.1 in
Max. Travel Speed
(Forward or Reverse)
Theoretical Gradeability, with or without vibration**
CS10 GC 55%
CS11 GC 55%
CS12 GC 50%
* Net power advertised is the power available at the engine ywheel when equipped with a
fan at maximum speed, air cleaner, clean emissions module, and alternator.
** Actual gradeability may vary based on site conditions and machine conguration. Refer to
the Operation and Maintenance Manual for more information.
11.0 km/h 6.84 mph
3
MACHINE WEIGHT
Operating Weight with Sun Canopy
CS10 GC 10 111 kg 22,291 lb
CS11 GC 10 849 kg 23,918 lb
CS12 GC 12 275 kg 27,061 lb
Operating Weight with ROPS/FOPS Canopy
CS10 GC 10 288 kg 22,681 lb
CS11 GC 11 026 kg 24,308 lb
CS12 GC 12 453 kg 27,454 lb
Operating Weight with ROPS/FOPS Cab
CS10 GC 10 451 kg 23,040 lb
CS11 GC 11 186 kg 24,661 lb
CS12 GC 12 613 kg 27,807 lb
Weight at Drum with Sun Canopy
CS10 GC 5734 kg 12,641 lb
CS11 GC 6000 kg 13,228 lb
CS12 GC 7594 kg 16,742 lb
Weight at Drum with ROPS/FOPS Canopy
CS10 GC 5803 kg 12,793 lb
CS11 GC 6069 kg 13,380 lb
CS12 GC 7663 kg 16,894 lb
Weight at Drum with ROPS/FOPS Cab
CS10 GC 5850 kg 12,897 lb
CS11 GC 6114 kg 13,479 lb
CS12 GC 7708 kg 16,993 lb
VIBRATORY SYSTEM
Nominal Amplitude - High 2.0 mm 0.079 in
Frequency at High Idle 30.0 Hz 1800 vpm
Frequency at Eco-Mode 28.6 Hz 1716 vpm
Nominal Amplitude - Low 1.0 mm 0.039 in
Frequency at High Idle 33 Hz 1980 vpm
Frequency at Eco-Mode 31.5 Hz 1890 vpm
Centrifugal Force
Maximum 250 kN 56,200 lb
Minimum 149 kN 33,500 lb
Static Linear Load with Sun Canopy
CS10 GC 26.9 kg/cm 150.6 lb/in
CS11 GC 28.1 kg/cm 157.4 lb/in
CS12 GC 35.6 kg/cm 199.3 lb/in
Static Linear Load with ROPS/FOPS Canopy
CS10 GC 27.2 kg/cm 152.9 lb/in
CS11 GC 28.4 kg/cm 159.0 lb/in
CS12 GC 35.9 kg/cm 201.0 lb/in
Static Linear Load with ROPS/FOPS Cab
CS10 GC 27.4 kg/cm 153.4 lb/in
CS11 GC 28.7 kg/cm 160.7 lb/in
CS12 GC 36.1 kg/cm 202.1 lb/in
French Classication, Data/Class with ROPS/FOPS Cab
CS10 GC 38.8 VM2
CS11 GC 40.5 VM3
CS12 GC 51.1 VM3
SERVICE REFILL CAPACITIES
Fuel Tank (total capacity) 248 L 65.6 gal
Cooling System 18.5 L 4.9 gal
Engine Oil with Filter 9.5 L 2.5 gal
Eccentric Weight Housings (combined) 26 L 6.9 gal
Axle and Final Drives 10 L 2.6 gal
Hydraulic Tank (service rell) 23 L 6.1 gal
14 GC-SERIES VIBRATORY SOIL COMPACTORS
Page 15
SMOOTH DRUM DIMENSIONS
1 Overall Length 5.70 m 18.71 ft
2
Overall Width 2.30 m 7.53 ft
3
Drum Width 2134 mm 84 in
4
Drum Shell Thickness 25 mm 0.98 in
5
Drum Diameter 1535 mm 60.4 in
6
Overall Height 3.0 m 9.8 ft
with Padfoot Shell Kit option 3.03 m 9.93 ft
7
Wheelbase 3.0 m 9.8 ft
8
Ground Clearance 518 mm 20.4 in
9
Curb Clearance 492 mm 19.4 in
Inside Turning Radius 3.86 m 12.7 ft
Hitch Articulation Angle 34°
Hitch Oscillation Angle 15°
OPTIONAL PADFOOT SHELL KIT SPECIFICATIONS
Number of Pads 120
Pad Height (oval pads) 90 mm 3.5 in
Pad Face Area (oval pads) 63.5 cm
2
9.8 in
Pad Height (optional square pads) 90 mm 3.5 in
Pad Face Area (optional square pads) 105.6 cm
2
16.4 in
Number of Chevrons 16
4
6
9 8
1
5
32
2
2
7
15GC-SERIES VIBRATORY SOIL COMPACTORS
Page 16
For more complete information on Cat products, dealer services, andindus tr y solutions, visit us on the web atwww.cat.com
© 2021 Caterpillar
All rights reserved
Materials and specications are subject to change w ithout notice. Featured machines in photos may include additional
equipment. Seeyour Cat dealer for available options.
CAT, CATERPILL AR, LET ’S DO T HE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “Power Edge” and Cat
“Modern Hex” tradedress as well as corporate and product identit y used herein, are trademarks of Caterpillar and may not be
used without permission.
VisionLink is a trademark of Trimble Navigation Limited, registered in the United States and in other countries.
QEDQ2247-02 (05-2021)
