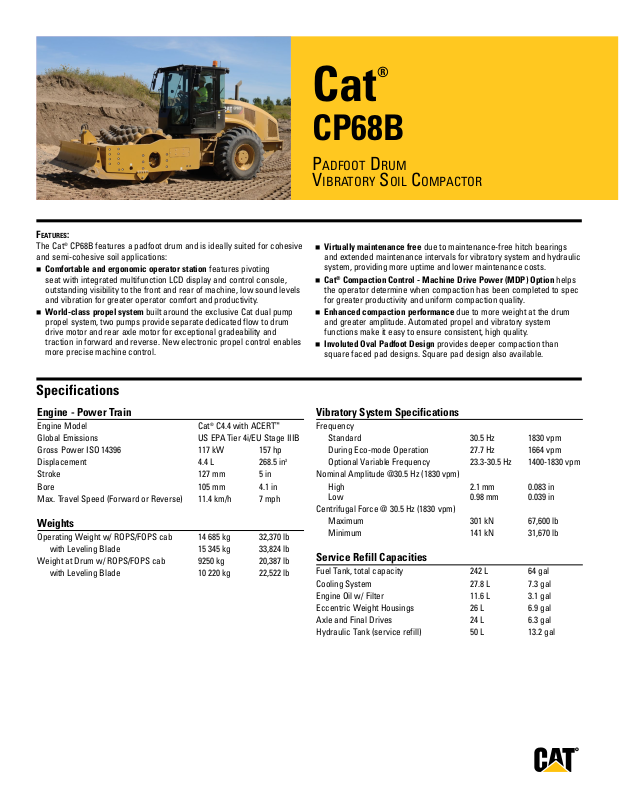

Caterpillar CP68B BROCHURE

Page 1

Features:

The Cat® CP68B features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications:

n Comfortable and ergonomic operator station features pivoting

seat with integrated multifunction LCD display and control console, outstanding visibility to the front and rear of machine, low sound levels and vibration for greater operator comfort and productivity.

n World-class propel system built around the exclusive Cat dual pump

propel system, two pumps provide separate dedicated flow to drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse. New electronic propel control enables more precise machine control.

Cat

CP68B

Padfoot drum Vibratory Soil ComPaCtor

n Virtually maintenance free due to maintenance-free hitch bearings

and extended maintenance intervals for vibratory system and hydraulic system, providing more uptime and lower maintenance costs.

n Cat

Compaction Control - Machine Drive Power (MDP) Option helps

the operator determine when compaction has been completed to spec for greater productivity and uniform compaction quality.

n Enhanced compaction performance due to more weight at the drum

and greater amplitude. Automated propel and vibratory system functions make it easy to ensure consistent, high quality.

n Involuted Oval Padfoot Design provides deeper compaction than

square faced pad designs. Square pad design also available.

Specifications

Engine - Power Train

Engine Model Cat® C4.4 with ACERT Global Emissions US EPA Tier 4i/EU Stage IIIB Gross Power ISO 14396 117 kW 157 hp Displacement 4.4 L 268.5 in Stroke 127 mm 5 in Bore 105 mm 4.1 in Max. Travel Speed (Forward or Reverse) 11.4 km/h 7 mph

Weights

Operating Weight w/ ROPS/FOPS cab 14 685 kg 32,370 lb with Leveling Blade 15 345 kg 33,824 lb Weight at Drum w/ ROPS/FOPS cab 9250 kg 20,387 lb with Leveling Blade 10 220 kg 22,522 lb

™

Vibratory System Specifications

Frequency Standard 30.5 Hz 1830 vpm During Eco-mode Operation 27.7 Hz 1664 vpm Optional Variable Frequency 23.3-30.5 Hz 1400-1830 vpm Nominal Amplitude @30.5 Hz (1830 vpm) High 2.1 mm 0.083 in

Low 0.98 mm 0.039 in Centrifugal Force @ 30.5 Hz (1830 vpm) Maximum 301 kN 67,600 lb Minimum 141 kN 31,670 lb

Service Refill Capacities

Fuel Tank, total capacity 242 L 64 gal Cooling System 27.8 L 7.3 gal Engine Oil w/ Filter 11.6 L 3.1 gal Eccentric Weight Housings 26 L 6.9 gal Axle and Final Drives 24 L 6.3 gal Hydraulic Tank (service refill) 50 L 13.2 gal

Page 2

CP68B Vibratory Soil Compactor

34 5

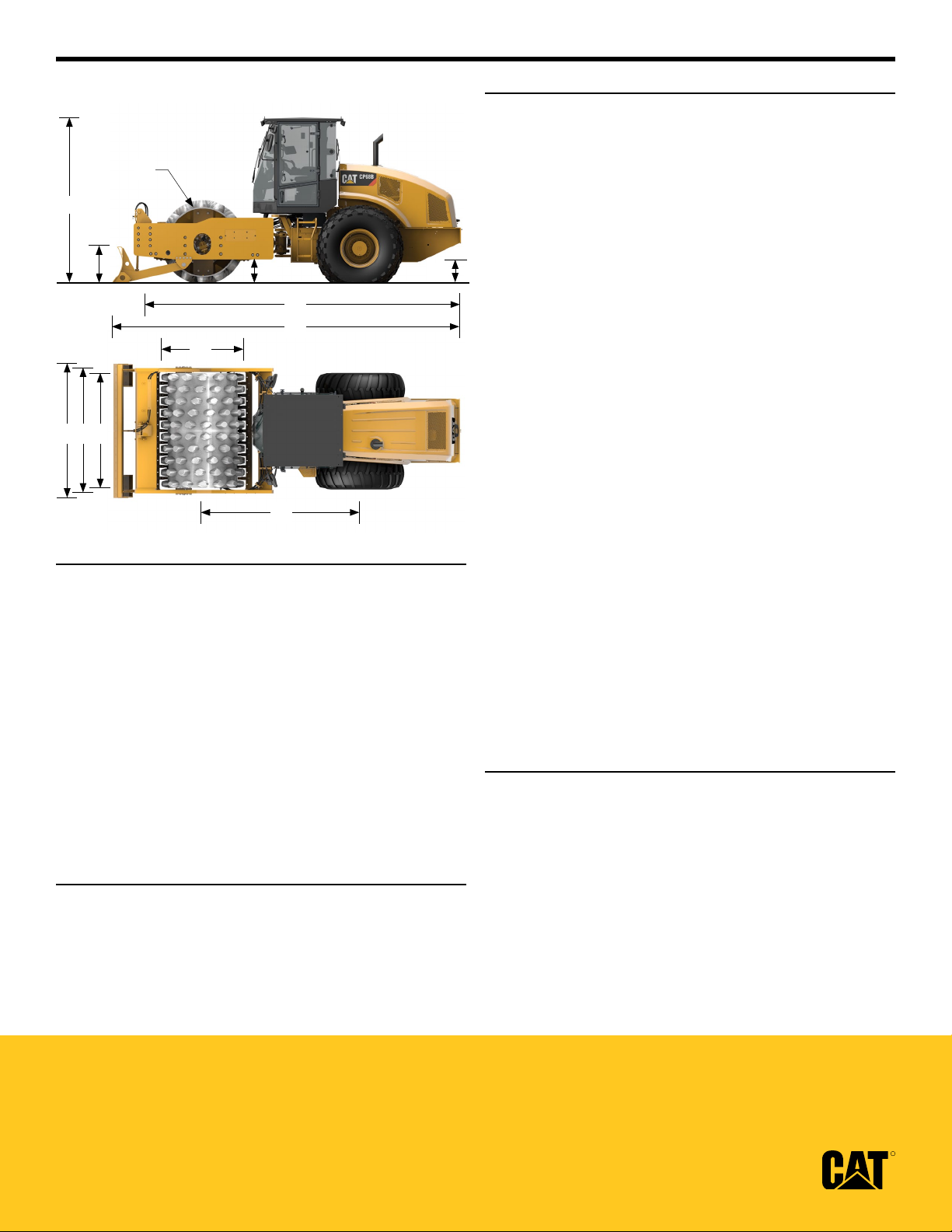

Dimensions

1 Overall Length 6.05 m 19.8 ft 2 Overall Length w/ optional Leveling Blade 6.55 m 21.5 ft 3 Overall Width 2.33 m 7.64 ft 4 Overall Width w/ optional Leveling Blade 2.50 m 8.25 ft 5 Drum Width 2134 mm 84 in 6 Drum Shell Thickness 25 mm 1 in 7 Drum Diameter (over pads) 1549 mm 60.9 in 8 Overall Height 3.11 m 10.2 ft 9 Wheelbase 2.9 m 9.5 ft 10 Ground Clearance 445 mm 17.5 in 11 Curb Clearance 497 mm 19.6 in 12 Optional Leveling Blade Height 688 mm 27.1 in

Inside Turning Radius 3.68 m 12.07 ft Hitch Articulation Angle 34° Hitch Oscillation Angle 15°

Padfoot Specifications

Number of Pads 140 Pad Height 128 mm 5 in Pad Face Area 89.4 cm Number of Chevrons 14

13.9 in

STANDARD EQUIPMENT Varies by market- contact your Dealer for specifics.

ELECTRICAL

n 24 volt Electrical System n 100 ampere Alternator n 750 Cold-cranking Amps Battery Capacity

OPERATOR ENVIRONMENT

n ROPS/FOPS Cab with Climate Control (Heat, Air Conditioning) n Cloth Adjustable Pivoting Seat w/ Integrated Console and LCD Display n Multifunction LCD Display with gauges and/or audible warning alarm

for: Hydraulic oil temperature, Engine oil pressure, Engine coolant temperature, Alternator charge, Fuel level, Service hour meter, Engine RPM, Ground speed, Vibe frequency, Fuel rate, Air filter constriction, Engine load and Optional Cat Compaction Control

n Adjustable Tilting Steering Column with Integrated Cup Holders n Seat Belt n 12-volt Power Outlet n Floor Mat n Interior Rear View Mirror n Horn, Backup Alarm n Radio-ready

POWER TRAIN

n Cat

C4.4 Diesel Engine

n Air Cleaner, Dual Element n Three-speed Throttle Switch with Eco-mode and Automatic Speed

Control

n Dual Propel Pumps; One for Drum Drive, One for Rear Axle n Fuel Filter, Water Separator, Electronic Priming Pump, Water Indicator n Tilting Radiator/Hydraulic Oil Cooler n Dual Braking System n Two-speed Hydrostatic Transmission

VIBRATORY SYSTEM

n Padfoot Drum n Dual Amplitude, Single Frequency n Dual Pod-Style Eccentric Weight Housings n Auto-vibe Function n Front Adjustable Steel Scrapers

OTHER

n Hydraulic Oil Level Sight Gauge n Radiator Coolant Level Sight Gauge

n Cat

ToughGuard™ Hose

n S·O·S

Sampling Valves, Engine Oil and Hydraulic Oil

OPTIONAL EQUIPMENT

n Leveling Blade n Variable Vibration Frequency n Beacon, Rotating n Polyurethane Drum Scrapers n Steel Rear-side Drum Scraper n Bio-oil Factory Fill n Sun Visor n Deluxe High-back Air-ride Pivoting Seat (with Cab only) n Cat Compaction Control, Machine Drive Power n SBAS GNSS Mapping for Cat Compaction Control (RTK available)

n Upgraded Halogen Light Package n Cab Internal Rear View Mirrors n Cab Internal Roll-down Sun Screen n Product Link n Additional Rear View Mirrors

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com

Weights and dimensions listed are approximate. Materials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

QEHQ1561-01 (03-12)
