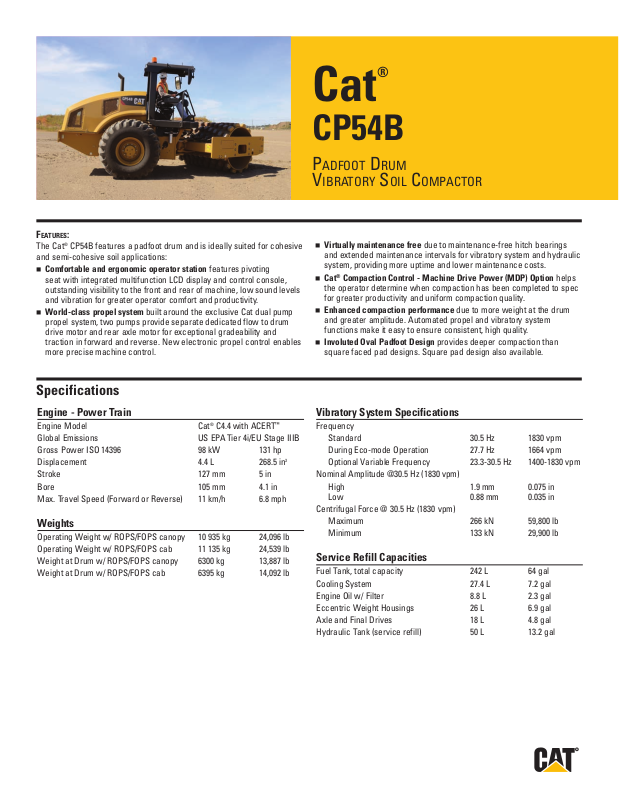

Page 1
Features:
The Cat® CP54B features a padfoot drum and is ideally suited for cohesive
and semi-cohesive soil applications:
n Comfortable and ergonomic operator station features pivoting
seat with integrated multifunction LCD display and control console,
outstanding visibility to the front and rear of machine, low sound levels
and vibration for greater operator comfort and productivity.
n World-class propel system built around the exclusive Cat dual pump
propel system, two pumps provide separate dedicated flow to drum
drive motor and rear axle motor for exceptional gradeability and
traction in forward and reverse. New electronic propel control enables
more precise machine control.
®
Cat
CP54B
Padfoot drum
Vibratory Soil ComPaCtor
n Virtually maintenance free due to maintenance-free hitch bearings
and extended maintenance intervals for vibratory system and hydraulic
system, providing more uptime and lower maintenance costs.
®
n Cat
Compaction Control - Machine Drive Power (MDP) Option helps
the operator determine when compaction has been completed to spec
for greater productivity and uniform compaction quality.
n Enhanced compaction performance due to more weight at the drum
and greater amplitude. Automated propel and vibratory system
functions make it easy to ensure consistent, high quality.
n Involuted Oval Padfoot Design provides deeper compaction than
square faced pad designs. Square pad design also available.
Specifications
Engine - Power Train
Engine Model Cat® C4.4 with ACERT
Global Emissions US EPA Tier 4i/EU Stage IIIB
Gross Power ISO 14396 98 kW 131 hp
Displacement 4.4 L 268.5 in
Stroke 127 mm 5 in
Bore 105 mm 4.1 in
Max. Travel Speed (Forward or Reverse) 11 km/h 6.8 mph
Weights
Operating Weight w/ ROPS/FOPS canopy 10 935 kg 24,096 lb
Operating Weight w/ ROPS/FOPS cab 11 135 kg 24,539 lb
Weight at Drum w/ ROPS/FOPS canopy 6300 kg 13,887 lb
Weight at Drum w/ ROPS/FOPS cab 6395 kg 14,092 lb
™
3
Vibratory System Specifications
Frequency
Standard 30.5 Hz 1830 vpm
During Eco-mode Operation 27.7 Hz 1664 vpm
Optional Variable Frequency 23.3-30.5 Hz 1400-1830 vpm
Nominal Amplitude @30.5 Hz (1830 vpm)
High 1.9 mm 0.075 in
Low 0.88 mm 0.035 in
Centrifugal Force @ 30.5 Hz (1830 vpm)
Maximum 266 kN 59,800 lb
Minimum 133 kN 29,900 lb
Service Refill Capacities
Fuel Tank, total capacity 242 L 64 gal
Cooling System 27.4 L 7.2 gal
Engine Oil w/ Filter 8.8 L 2.3 gal
Eccentric Weight Housings 26 L 6.9 gal
Axle and Final Drives 18 L 4.8 gal
Hydraulic Tank (service refill) 50 L 13.2 gal
Page 2
CP54B Vibratory Soil Compactor
4
6
9
1
5
2 3
7

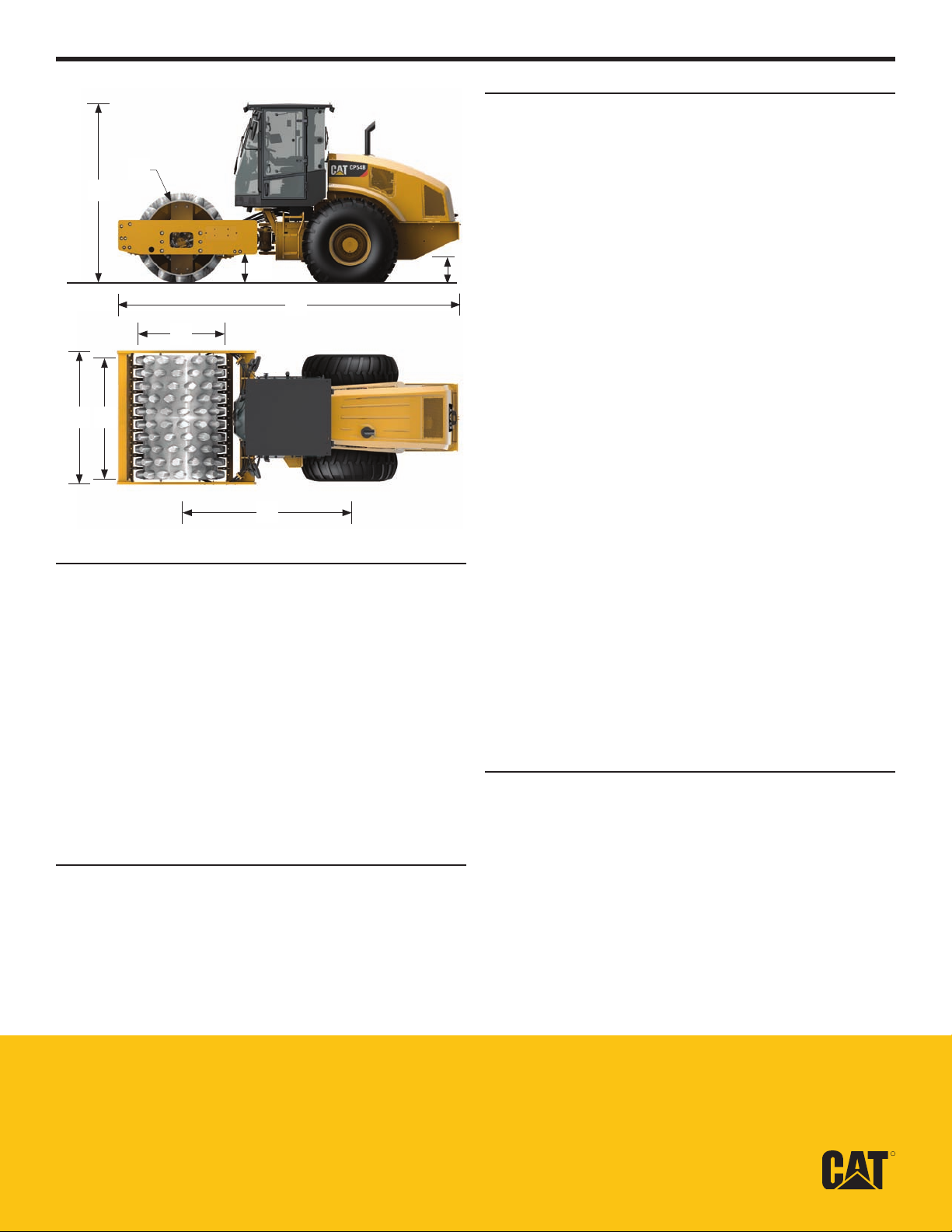

Dimensions
1 Overall Length 5.85 m 19.21 ft
2 Overall Width 2.30 m 7.53 ft
3 Drum Width 2134 mm 84 in
4 Drum Shell Thickness 25 mm 1 in
5 Drum Diameter (over pads) 1549 mm 60.9 in
6 Overall Height
-Cab 3.11 m 10.2 ft
-ROPS/FOPS 3.08 m 10.1 ft
7 Wheelbase 2.9 m 9.5 ft
8 Ground Clearance 450 mm 17.7 in
9 Curb Clearance 551 mm 21.7 in
Inside Turning Radius 3.68 m 12.07 ft
Hitch Articulation Angle 34°
Hitch Oscillation Angle 15°
Padfoot Specifications
Number of Pads 140
Pad Height 128 mm 5 in
Pad Face Area 89.4 cm
Number of Chevrons 14
2
13.9 in
8
STANDARD EQUIPMENT Varies by market- contact your Dealer for specifics.
ELECTRICAL
n 24 volt Electrical System
n 100 ampere Alternator
n 750 Cold-cranking Amps Battery Capacity
OPERATOR ENVIRONMENT
n ROPS/FOPS
n Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display
n Multifunction LCD Display with gauges and/or audible warning alarm
for: Hydraulic oil temperature, Engine oil pressure, Engine coolant
temperature, Alternator charge, Fuel level, Service hour meter, Engine
RPM, Ground speed, Vibe frequency, Fuel rate, Air filter constriction,
Engine load and Optional Cat Compaction Control
n Platform Handrails/Guardrails
n Adjustable Tilting Steering Column with Integrated Cup Holders
n Seat Belt
n Lockable Vandalism Guard on LCD Display
n 12-volt Power Outlet
n Floor Mat
n Interior Rear View Mirror
n Horn, Backup Alarm
POWER TRAIN
®
n Cat
C4.4 Diesel Engine
n Air Cleaner, Dual Element
n Three-speed Throttle Switch, Eco-mode and Automatic Speed Control
n Dual Propel Pumps; One for Drum Drive, One for Rear Axle
n Fuel Filter, Water Separator, Electronic Priming Pump, Water Indicator
n Tilting Radiator/Hydraulic Oil Cooler
n Dual Braking System
n Two-speed Hydrostatic Transmission
VIBRATORY SYSTEM
n Padfoot Drum
n Dual Amplitude, Single Frequency
n Dual Pod-Style Eccentric Weight Housings
n Auto-vibe Function
n Front Adjustable Steel Scrapers
OTHER
n Hydraulic Oil Level Sight Gauge
n Radiator Coolant Level Sight Gauge
®
n Cat
ToughGuard™ Hose
SM
n S·O·S
Sampling Valves, Engine Oil and Hydraulic Oil
OPTIONAL EQUIPMENT
n ROPS/FOPS Cab with Climate Control
n Variable Vibration Frequency
n Beacon, Rotating
n Polyurethane Drum Scrapers
n Steel Rear-side Drum Scraper
n Bio-oil Factory Fill
n Sun Visor
n Deluxe High-back Air-ride Pivoting Seat (with Cab only)
n Cat Compaction Control, Machine Drive Power
2
n SBAS GNSS Mapping for Cat Compaction Control (RTK available)
n Upgraded Halogen Light Package
n Cab Internal Rear View Mirrors
n Cab Internal Roll-down Sun Screen
n Product Link
n Additional Rear View Mirrors
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com
© 2012 Caterpillar
All Rights Reserved
Printed in U.S.A.
Weights and dimensions listed are approximate. Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as
well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
QEHQ1557 (02-12)
