541/551/552

Track Feller Bunchers & Track Harvesters - FTS (Full Tail Swing)

541/551/552 Engine Model Cat

Gross Power @ 1800 rpm 305 hp / 227.4 kW

Operating weights (w/o head): 541 30191 kg / 66560 lb* 30512 kg / 67267 lb** 30499 kg / 67239 lb***

551 31057 kg / 68468 lb* 31377 kg / 69175 lb** 31365 kg / 69147 lb*** 552 35680 kg / 78660 lb* 36000 kg / 79367 lb** 35988 kg / 79339 lb***

* Track Feller Bunchers (Standard Linkage) ** Track Harvesters *** Track Feller Bunchers (Long Felling Linkage)

C9 ACERT™ Tier II

Page 2

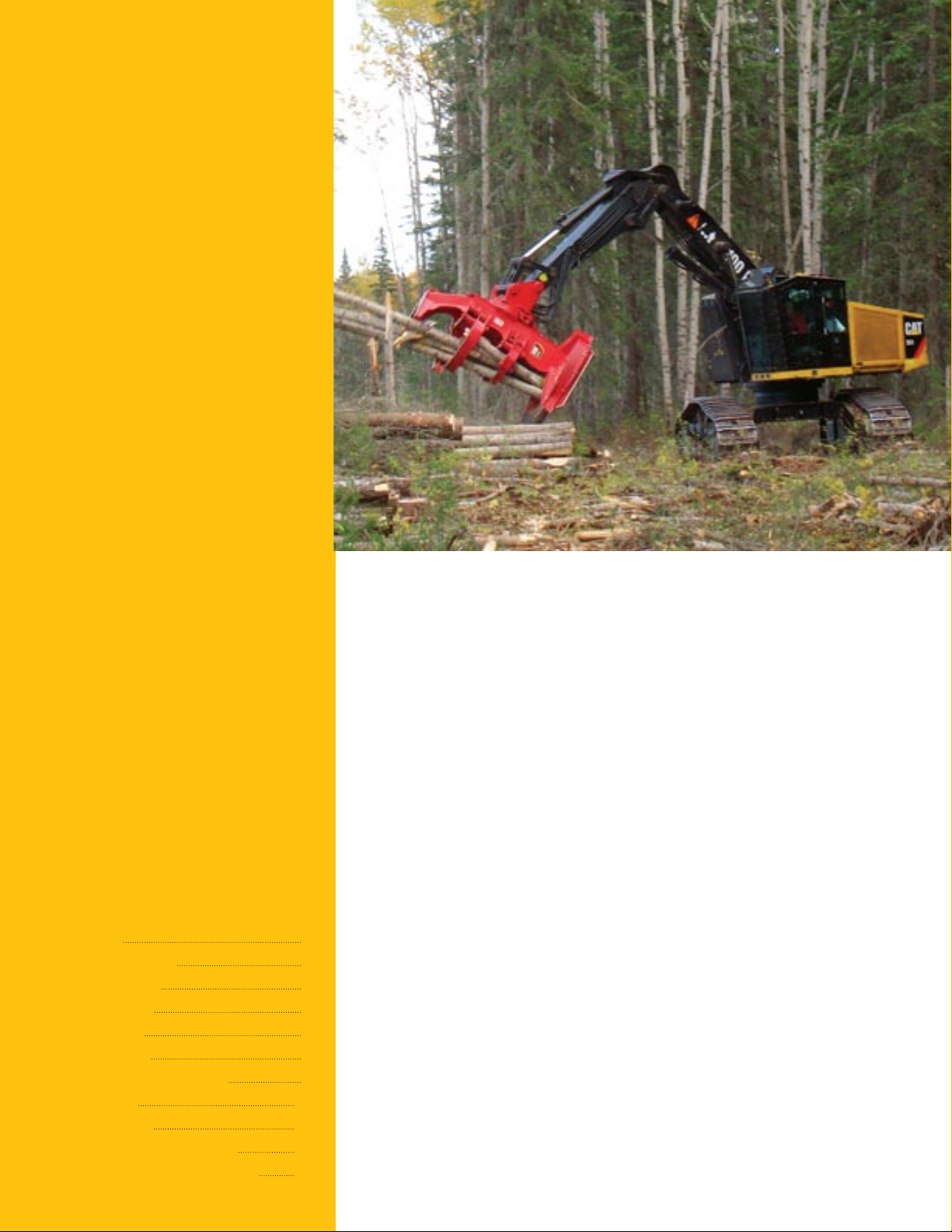

Cat® 541/551/552 Track Feller Buncher/Track Harvester

Power Train

The Cat® C9 ACERT™ Tier II high torque engine provides excellent power, fuel economy, serviceability and durability. With 5% greater fuel efficiency than its predecessor, and meeting the Tier II emission standards, the Cat C9 ACERT is a dependable performer.

Hydraulics

Closed Center hydraulic system with electronic programmable controls that produces excellent multi-function capability; dedicated saw pump.

Operator Comfort

The Cat 500 Series has a purpose built forestry cab with heavy-duty guarding, meeting FOPS/ ROPS/OPS requirements. Designed with operator friendly controls and ergonomics, the cab gives excellent front, side and rear visibility. Isolation mounted cab and engine reduce sound levels and vibration for quiet and comfortable operation.

Leveling System

The most reliable tilt mechanism in the industry provides stability and productivity even in the steepest applications on the 552 model.

Undercarriage

Cat track machines feature a rugged undercarriage custom designed for reliable operation in tough harvesting conditions, from wet bottomlands to steep rocky slopes.

Contents

Powertrain 3 Hydraulic Packages 4 Operator Comfort 5 Leveling System 6 Undercarriage 7 Boom and Stick 8 Owning and Operating Costs 9 Serviceability 10 Customer Focus 11 Cat 541/551/552 Specifications 12 Standard and Optional Equipment 18

Versatility

Cat machines are available with factoryinstalled felling heads to meet your application needs. Cat 500 series machines utilize high pressure hydraulics and proven components. All models are available with hot saw, intermittent or harvesting linkage fronts.

Serviceability

The hydraulically actuated clam-shell service doors provide full service access to daily service points simplifying maintenance. Regularly scheduled maintenance extends machine service life and lowers overall operating costs.

ForestPro Consulting

Cat’s ForestPro Consulting Services provide application consulting, training, market development and leading forestry system solutions to meet dealer and customer needs.

Boom and Stick

Harvester and Feller Buncher Linkage Arrangements are available for all models. All boom and stick structures are stress relieved for extended service life.

Owning and Operating Costs

Proven fuel efficiency combined with easier access and extended service intervals maximize uptime, reduce operating costs and maximize productivity.

Customer Focus

Your Cat dealer offers a wide range of services that can be set up to meet your equipment needs. The dealer will help you choose a plan that can cover everything from machine and attachment selection, service and maintenance, to replacement.

A robust, reliable undercarriage utilizes proven components, customized for the most rugged forestry conditions. The unique boom design provides industry leading lift capacity throughout full reach range, a beneﬁt in large timber.

Three models are available with just the right horsepower, track size and hydraulic conﬁgurations to ﬁt your application needs.

Page 3

Powertrain

Built for power, reliability, low maintenance, excellent fuel economy and low emissions.

Powerful Performance

The Cat® C9 electronically controlled ACERT delivers power

while meeting all current Tier II emission standards. All

models contain a fuel/water separator, engine air intake heater

and a dual-stage combination air cleaner with pre-cleaner.

High Capacity Cooling System

The side-by-side radiator/oil cooler gives excellent cooling

capacity for high production bunching and harvesting.

On-demand Flexxaire™ fan activates only when required and

allows the cooling fan to purge debris from the radiator area,

keeping a cleaner cooling system. The IQAN control system

infinitely controls blade pitch angle to reduce horsepower

demand from the cooling package, and lower operating costs.

Engine Oil

Caterpillar engine oil is formulated to optimize engine life and

performance and is recommended for use in Cat diesel engines.

The engine oil change interval has been increased to 500 hours.

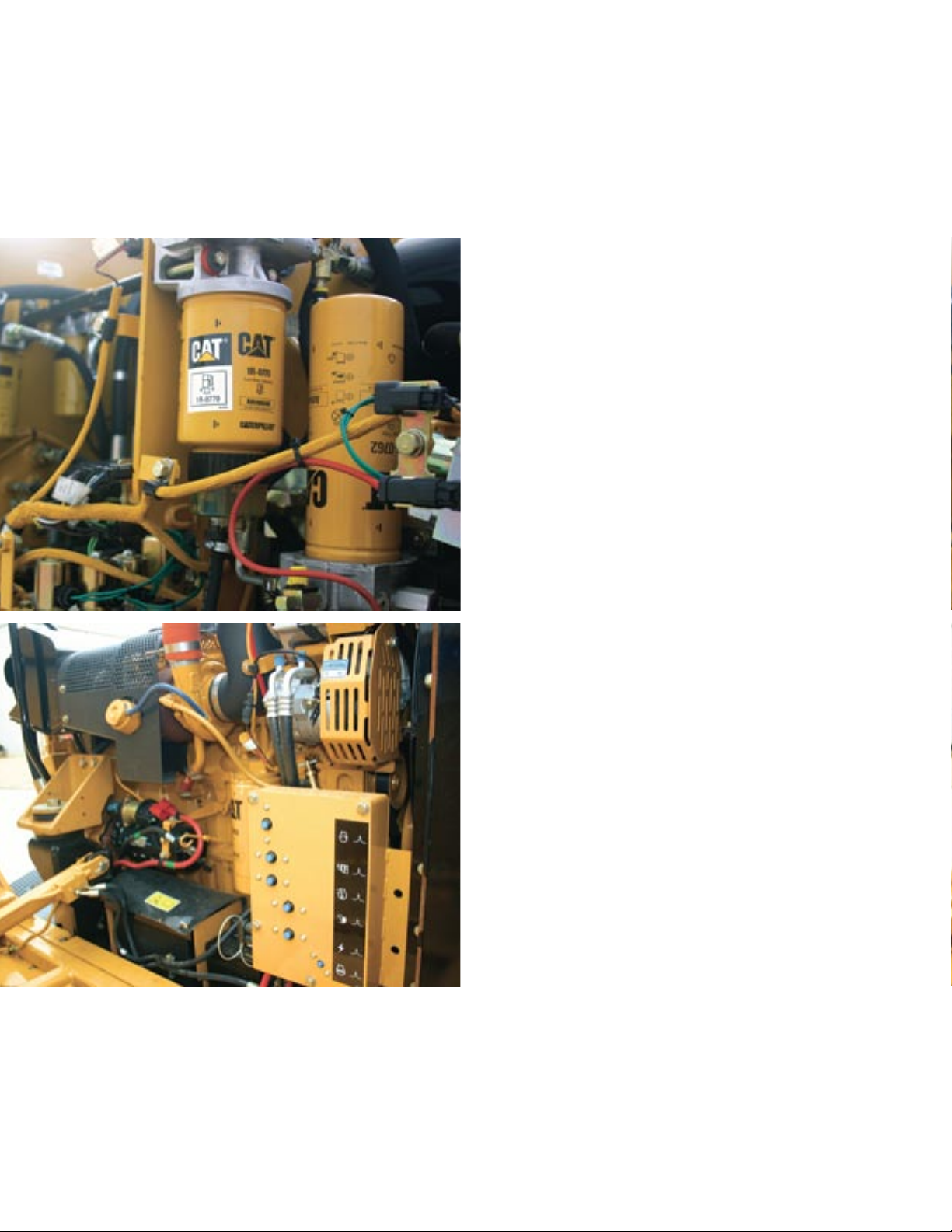

Service

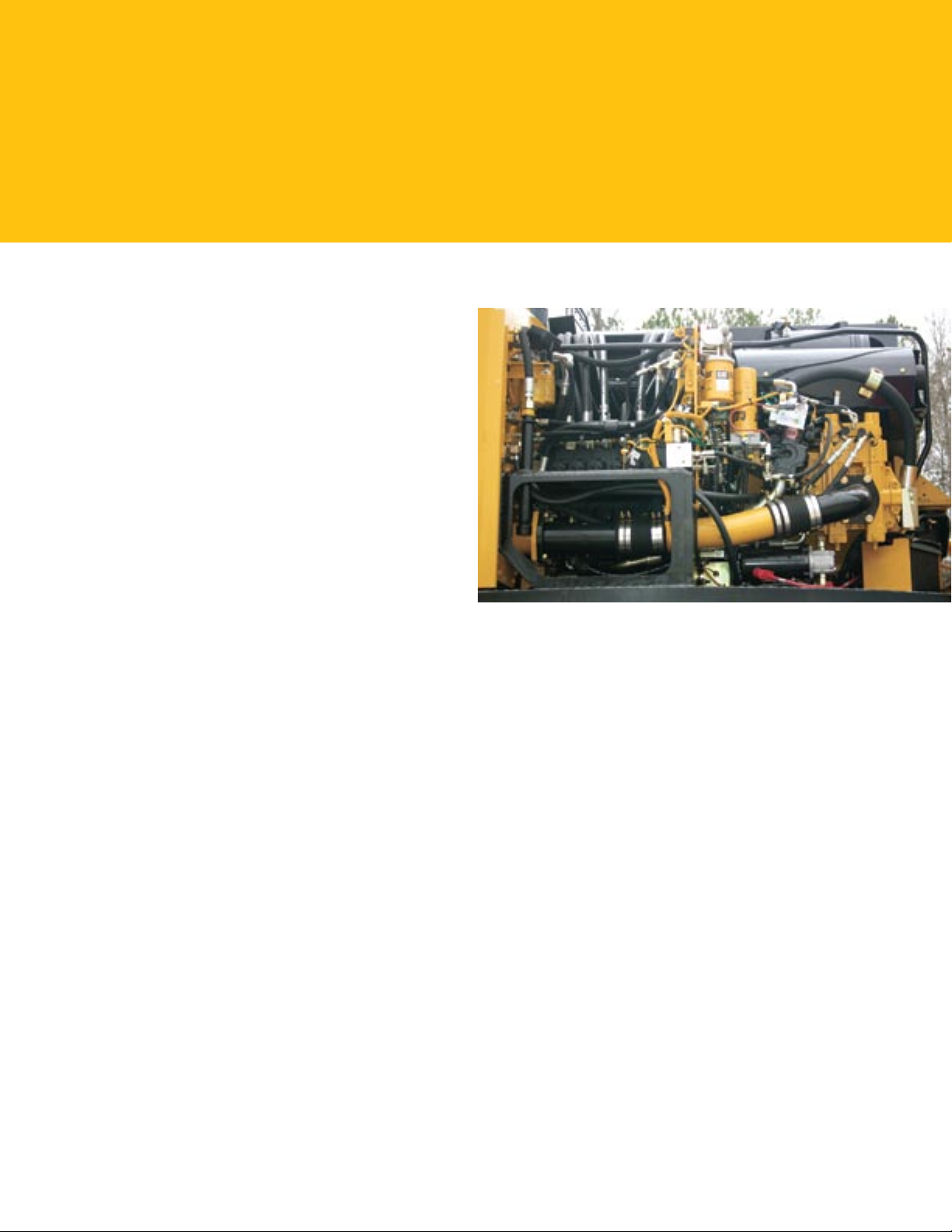

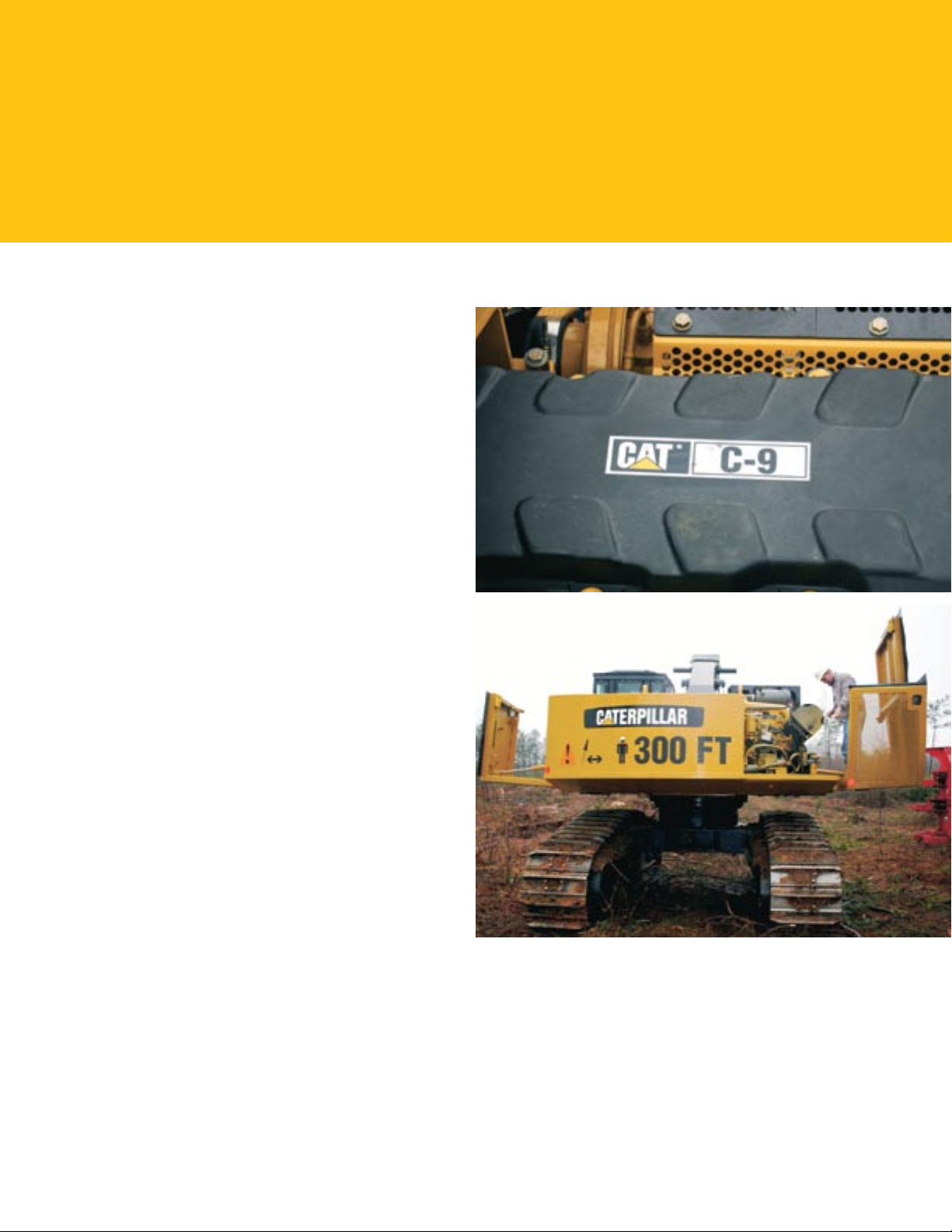

The clamshell engine compartment provides easy access to

oil filters, oil dipstick, hydraulic fill pump and hoses reducing

maintenance time.

Low Exhaust Emissions

The Cat C9 ACERT engine is a low emission engine designed

to meet US EPA off-road Tier II emission regulations.

Page 4

Hydraulic Packages

Powerful hydraulic system combined with a powerful boom and

stick maximize productivity in any felling or harvesting job.

Electric Hydraulic Oil fill Pump

The hydraulic oil site gauge provides easy visibility to know

when hydraulic oil needs to be added. An easy accessible

service wand allows hydraulic oil to be pumped through the

hydraulic filtering system and into the tank. This reduces

maintenance down time and helps to maintain oil cleanliness

requirements.

Variable Displacement Pump

All Cat® 500 series FTS Track Feller Bunchers are equipped

with 200 cc variable displacement pump for travel, a 200 cc

boom and implement functions, and a dedicated 55 cc variable

displacement pump for felling attachments. Optional hydraulics

for dangle harvesting or processor heads and intermittent

saw heads are available for all models.

Caterpillar® Hydraulic Oil

Provides maximum protection against mechanical and corrosive

wear in all hydraulic systems. It’s high zinc content reduces

wear, and extends pump life. Provided certain requirements are

met (e.g. S-O-SSM analysis every 500 hours), the hydraulic oil

change interval is extended from 2,000 hours to 4,000 hours.

Biodegradable Hydraulic Oil

The optional biodegradable hydraulic oil (HEES) is formulated

to provide excellent high-pressure and high-temperature

characteristics and is fully compatible with the all hydraulic

components. HEES is fully decomposed by soil or water

microorganisms, providing a more environmentally-sound

alternative to mineral-based oils.

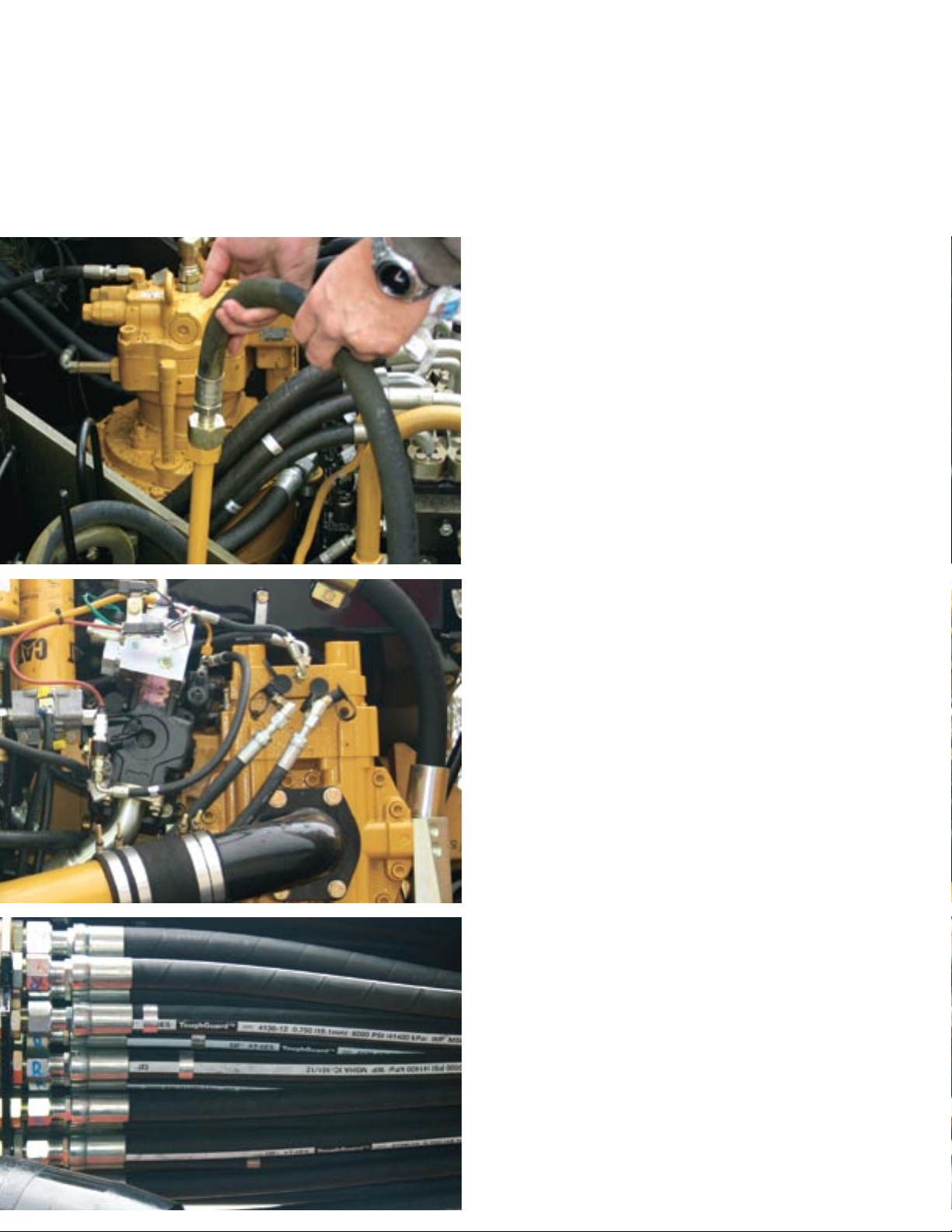

ToughGuard Hoses

Abrasion resistant hoses along the boom and stick provide

strength and flexibility. The ToughGuard cover consists of a

thin layer of UHMW polyethylene bonded to the rubber cover,

providing exceptional abrasion resistance. In many applications,

it eliminates the need for external guarding.

™

Page 5

Operator Comfort

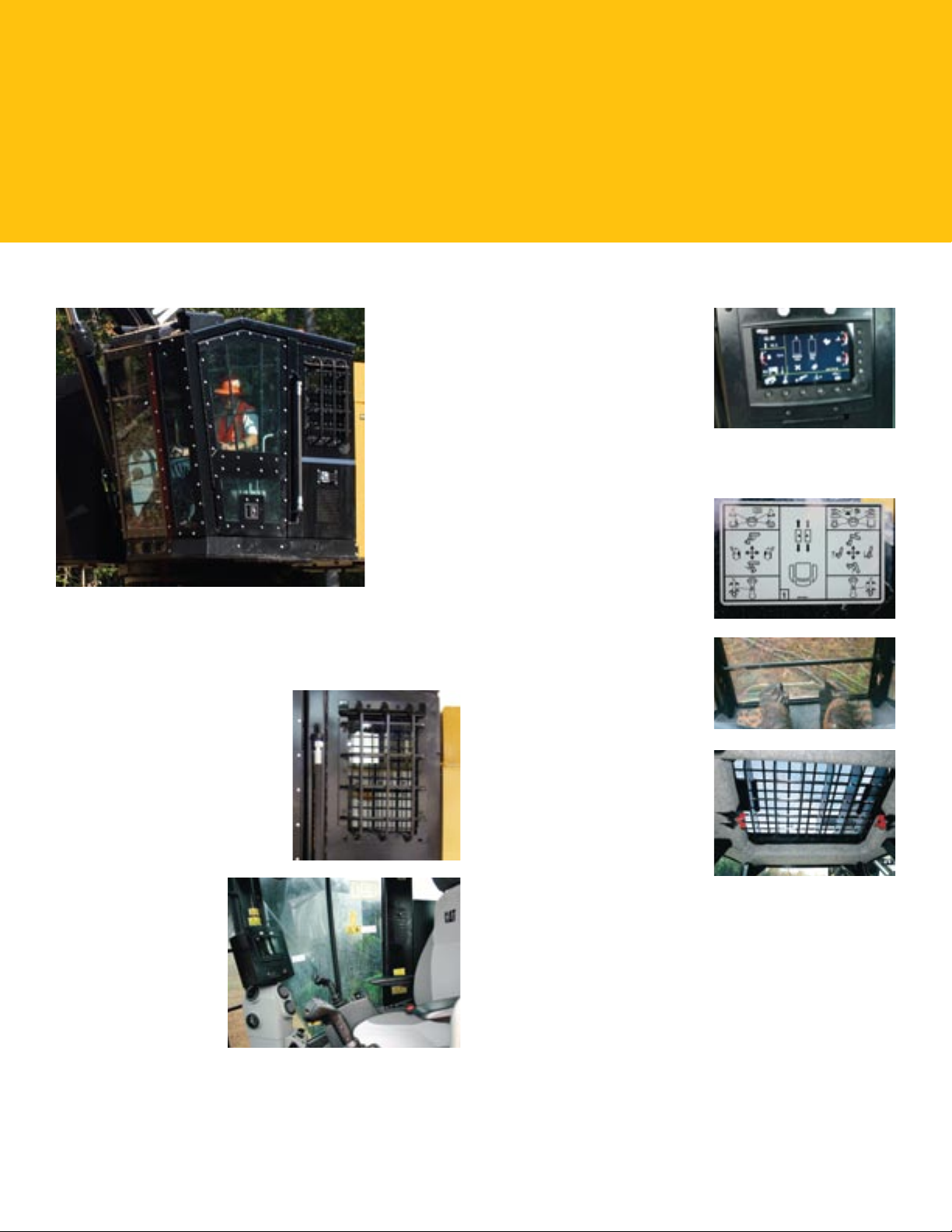

The interior layout maximizes operator space, provides exceptional comfort and reduces operator fatigue.

IQAN

IQAN display allows the operator

to continuously monitor the

operating systems of the machine.

This provides early warning for

potential problems, and allows the

operator to adjust control parameters maximizing performance

and productivity.

Control Convenience

Each control is placed within easy

reach of the operator. Joysticks

control the implement and

attachment functions, providing

Viewing

Cab design optimizes post structures and window placement

to provide excellent operator visibility to front, sides and rear.

Standard 1.25" thick “Margard” front window maximizes

operator protection. All purpose

built forestry cabs are designed

with heavy-duty guarding, meeting

FOPS/ROPS/OPS requirements.

Fresh Air

Large sliding side window with

screen to allow fresh air into cab.

easy operation.

Foot Pedals

Ergonomically located pedals with

side-by-side foot rests provide for

maximum operator comfort while

operating machine travel.

Skylight

A unique large polycarbonate

skylight provides excellent

upward visibility, and acts as an

alternate escape hatch.

Interior Operator Station

The operator station is

quiet with conveniently

placed controls, joysticks

and an ergonomically

designed seat reducing

operator fatigue.

Quiet Operation

Isolation mounted cab and engine reduces sound levels and

vibration for quiet and comfortable operation.

Large Storage Compartment

A large storage space behind the seat, provides

sufficient room for a lunch box, hard hats and work tools.

Electrical System

24-volt electrical system with

in-cab 24-12 volt converter,

dual in-cab 12 volt power points and one 24 volt power point.

Power is provided by two 12 volt maintenance free batteries and

95 amp alternator. An optional cold weather starting attachment

may be selected to provide two additional batteries, a HD starter,

and HD cables.

Page 6

Leveling System

Tilting mechanism provides stability and

comfort in steep slope conditions.

Tilt Mechanism

With the most robust tilt mechanism in the industry, the

FTS 552 tilter has a patented 3-cylinder tilt mechanism with

simultaneous tilting forward and side-to-side. Trunion cylinders

are mounted on 2" (51 mm) steel plates and transfer vertical

loads down to the interface of the track frames and carbody,

putting the load into the track and ground.

Cylinders

Three-cylinder tilt mechanism with simultaneously

20 degree forward tilt and 11 degree side-to-side tilt.

Ground Clearance

FTS machines have excellent ground clearance and

open carbody design. This provides increased mobility

by eliminating debris interference and other obstacles

encountered in rugged working conditions.

Page 7

Undercarriage

High quality custom engineered, heavy duty forestry undercarriage.

Reliable

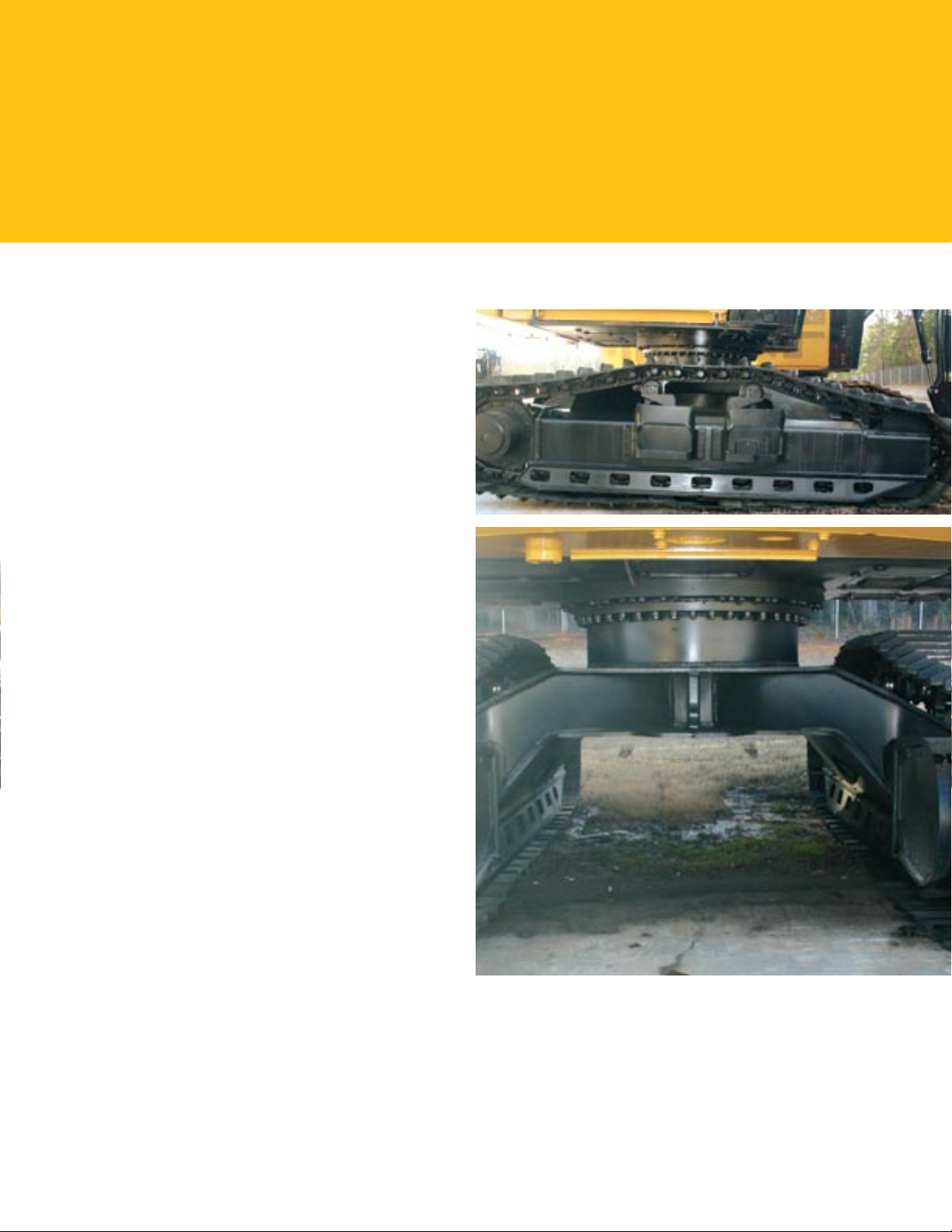

Precision welded, high-wide carbody has strong frames that

reduce flexing and increase reliability of rollers and track

links throughout the life of the machine. Nine bottom rollers

per side.

Travel Motor

Proven final drives and travel motors provide up to

104,000 lb (47174 kg) of tractive effort on the 552 giving

excellent traction and power to the ground.

Track Guards

All models contain bolt-on track guards.

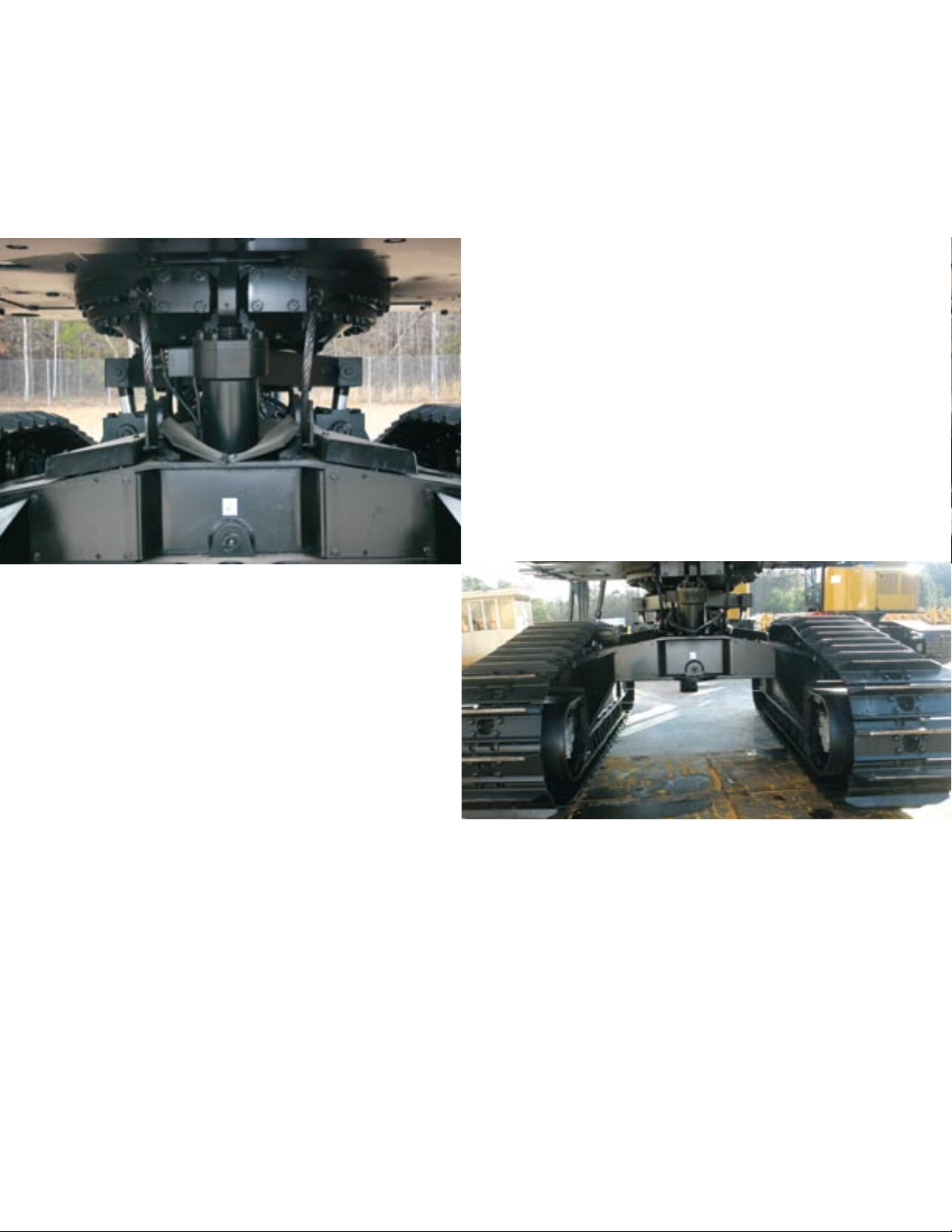

Carbody

Leveling 552 model features a bolted track frame to

carbody design. This provides a standard gauge width,

or allows adjustment to a wide gauge width to improve

machine stability, and increase productivity on steep slope

applications.

Page 8

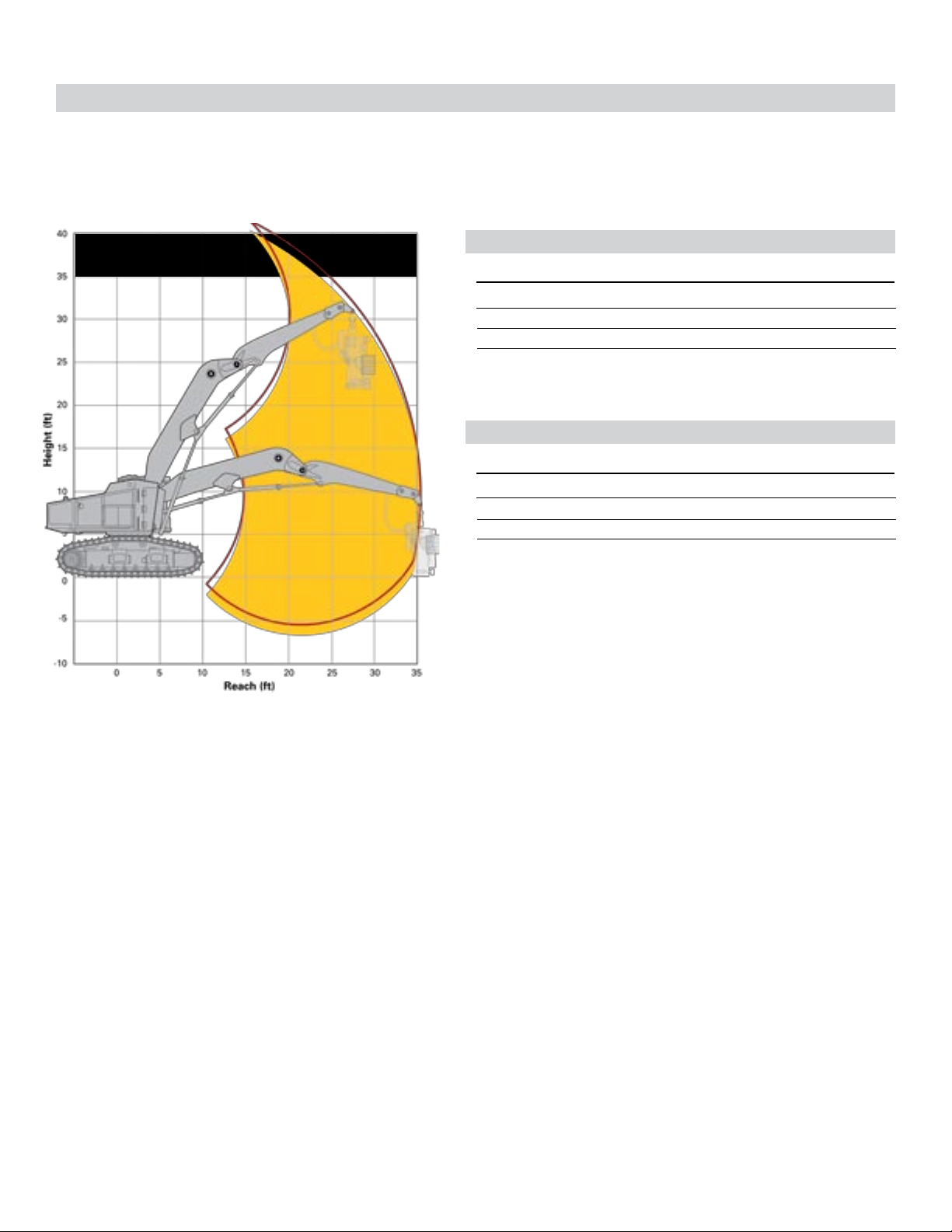

Boom and Stick

Designed for maximum reach and lift capacity.

With up to 21,800 lbs (9400 kg) of bare pin lift capacity at

21.5' (6.6 m) on the 552 track feller buncher (with the

standard linkage), the 500 series machines are dominant

over competitors in their size classes. With market leading

lift capacity, 28.8' (8.6 m) of reach, and tight stick tuck-in

capabilities, these machines deliver high performance felling in

all applications. The 552 track harvester delivers the same high

performance with 12,500 lbs (5700 kg) of bare pin lift capacity

and 37' (11.3 m) of maximum reach, while the 552 long felling

linkage delivers 16,900 lbs (7700 kg) of bare pin lift capacity at

32' (9.7 m).

Versatility

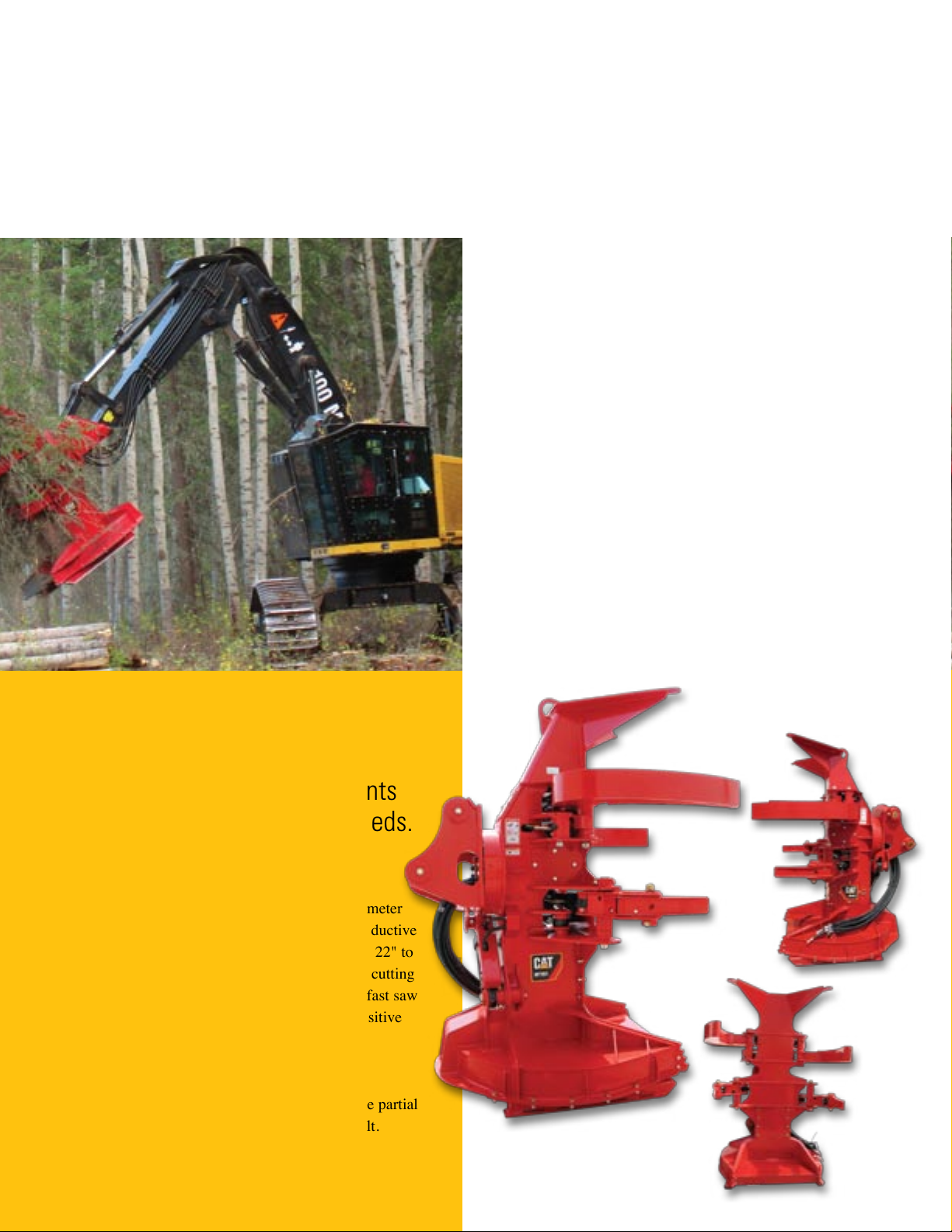

Caterpillar® disc saw attachments are available to meet felling needs.

Attachments

From plantation thinning to select cut of large diameter

wood, Cat felling attachments provide reliable productive

felling solutions. These range in cut capacity from 22" to

24". Designed to allow maximum visibility of the cutting

area, all saws utilize high pressure hydraulics for fast saw

recovery and quick arm speed. This provides a positive

impact on production and better tree control.

Tilt

All models are available with a standard 40 degree partial

lateral tilt, or an optional 220 degree full lateral tilt.

Page 9

Owning and Operating Costs

Cat provide the best value for your operation.

ACERT Technology Fuel Economy.

Based on Caterpillar

engines with ACERT technology is 3 to 5 percent better

than current competing technologies. This fuel economy

is directly related to the complete combustion of fuel

due to the integration between the electronic control that

monitors conditions, the air management system that

controls air volume and the fuel injection system that

delivers just the right amount of fuel as needed.

500 Series Track Feller Bunchers and Track Harvesters

testing, the fuel economy of Cat®

Clam-Shell Service Doors

The hydraulically actuated clam-shell service doors provide

easy and quick access reducing machine maintenance time.

Less service time means less down time, more work time

and greater productivity.

Page 10

Serviceability

Extended Service intervals and easy

access reduce operating costs.

Extended Service Intervals

Caterpillar

extended to reduce machine service time, increase machine

availability and reduce operating costs. Hydraulic oil change

intervals can be extended from 2,000 hours to 4,000 hours.

Engine coolant change intervals are 12,000 hour with Cat

Extended Life Coolant/Anti-freeze. Regularly scheduled

maintenance extends machine service life and lowers overall

operating costs. 500-hour oil change interval reduces overall

maintenance costs.

Flexxaire™ Fan

Standard Flexxaire fan operates only when required and allows

the cooling fan to purge debris from the radiator area, reducing

cleaning maintenance time.

service and maintenance intervals have been

Clam-Shell Service Doors

The hydraulically actuated clam-shell service doors provide

easy and quick access reducing maintenance down time.

Page 11

Customer Focus

Cat® dealer services help you operate longer with lower costs.

Product Support

Your Cat

efficiently by utilizing the Cat worldwide dealer network parts

system, minimizing downtime.

Machine Selections

Make detailed comparisons of the machines you are

considering before you buy. What are job requirements,

machine attachments and operating hours? What production is

needed? Your Cat dealer can provide recommendations.

Purchase

Look past the initial price. Consider the financing options

available as well as day-to-day operating costs. This is also the

time to look at dealer services that can be included in the cost

of the machine to yield lower equipment owning and operating

costs over the long run.

dealer will help provide you with parts quickly and

Customer Support Agreements

Cat dealers offer a wide variety of product support agreements,

and work with customers to develop a plan that best meets

specific needs. These plans can help protect your investment.

Operation

Improving operating techniques can boost your profits. The

Cat Forest Products Consulting Services Group offers certified

operator training classes to help maximize the return on your

machine investment.

Maintenance Services

Repair option programs guarantee the cost of repairs up front.

Diagnostic programs such as S-O-S

Sampling and Technical Analysis help avoid unscheduled

repairs.

Replacement

Repair, rebuild or replace? Your Cat dealer can help you

evaluate the cost involved so you can make the right choice.

Analysis and Coolant

Page 12

CAT® 541/551/552 Speciﬁcations

Powertrain

Engine Model Cat C9 ACERT

Gross Power @ 1800 RPM 227.4 kW / 305 hp

Rated Power@ 2100 RPM 210.3 kW / 282 hp

Displacement 537 in3 / 8.8 L

Operating Weights (w/o heads)*

541 30191 kg / 66560 lb

551 31057 kg / 68468 lb

552 35680 kg / 78660 lb

Operating Weights (w/o heads)**

541 30512 kg / 67267 lb

551 31377 kg / 69175 lb

552 36000 kg / 79367 lb

Operating Weights (w/o heads)***

541 30499 kg / 67239 lb

551 31365 kg / 69147 lb

552 35988 kg / 79339 lb

Boom System

Max. Reach (w/ head)* 8.6 m / 28 ft 1 in

Max. Reach (w/ head)** 11.3 m / 37 ft

Bare Pin Lift @ Max Reach (w/o head)* 9400 kg / 21800 lb @ 21.5 ft / 6.6 m

Bare Pin Lift @ Max Reach (w/o head)**

541 4300 kg / 9500 lb @ 35 ft / 10.7 m (541)

551 5000 kg / 11000 lb @ 35 ft / 10.7 m (551)

552 5700 kg / 12500 lb @ 35 ft / 10.7 m (552)

Bare Pin Lift @ Max Reach (w/o head)***

541 6400 kg / 14200 lb @ 27 ft / 8.2 m (541)

551 7400 kg / 16300 lb @ 27 ft / 8.2 m (551)

552 7700 kg / 16900 lb @ 27 ft / 8.2 m (552)

* Track Feller Buncher (Standard Linkage) – Lift over front of tracks

** Track Harvester Configuration – Lift over front of tracks

*** Track Feller Buncher (Long Felling Linkage) – Lift over front of tracks

Hydraulic System

Electric hydraulic oil fill pump

Dedicated 110 gpm variable displacement pump for travel functions

Dedicated 110 gpm variable displacement pump for boom and

implement functions

Dedicated 30 gpm variable displacement pump for saw motor

Undercarriage (size/pitch)

541 330 HEX / 8.5 in (215.9 mm)

551/552 345 HEX / 8.5 in (215.9 mm)

Track Gauge

541/551/552 102 in – 113 in / 2591 mm – 2870 mm

Track Length

541 192.6 in / 4893 mm

551/552 193 in / 4903 mm

Ground Clearance

541/551/552 35 in / 889 mm

Tractive Effort

541 34246 kg / 75500 lb

551 47174 kg / 104,000 lb

552 47174 kg / 104,000 lb

Nine bottom rollers per side

Bolt-on track guards

Non-leveling carbody – 541 / 551

Three-cylinder tilt mechanism w/ simultaneous 20 degree

forward tilt and 11 degree side-to-side tilt – 552

Standards

Cab meets FOPS/OPS/ROPS requirements

Service Refill Capacities

Fuel Capacity 312 US gal / 1181 L

Cooling System 16.1 US gal / 61 L

Engine Oil 10.3 US gal / 39 L

Hydraulic Tank 85.3 US gal / 323 L

Hydraulic System 97.7 US gal / 370 L

Swing Drive 2.6 US gal / 10 L

Page 13

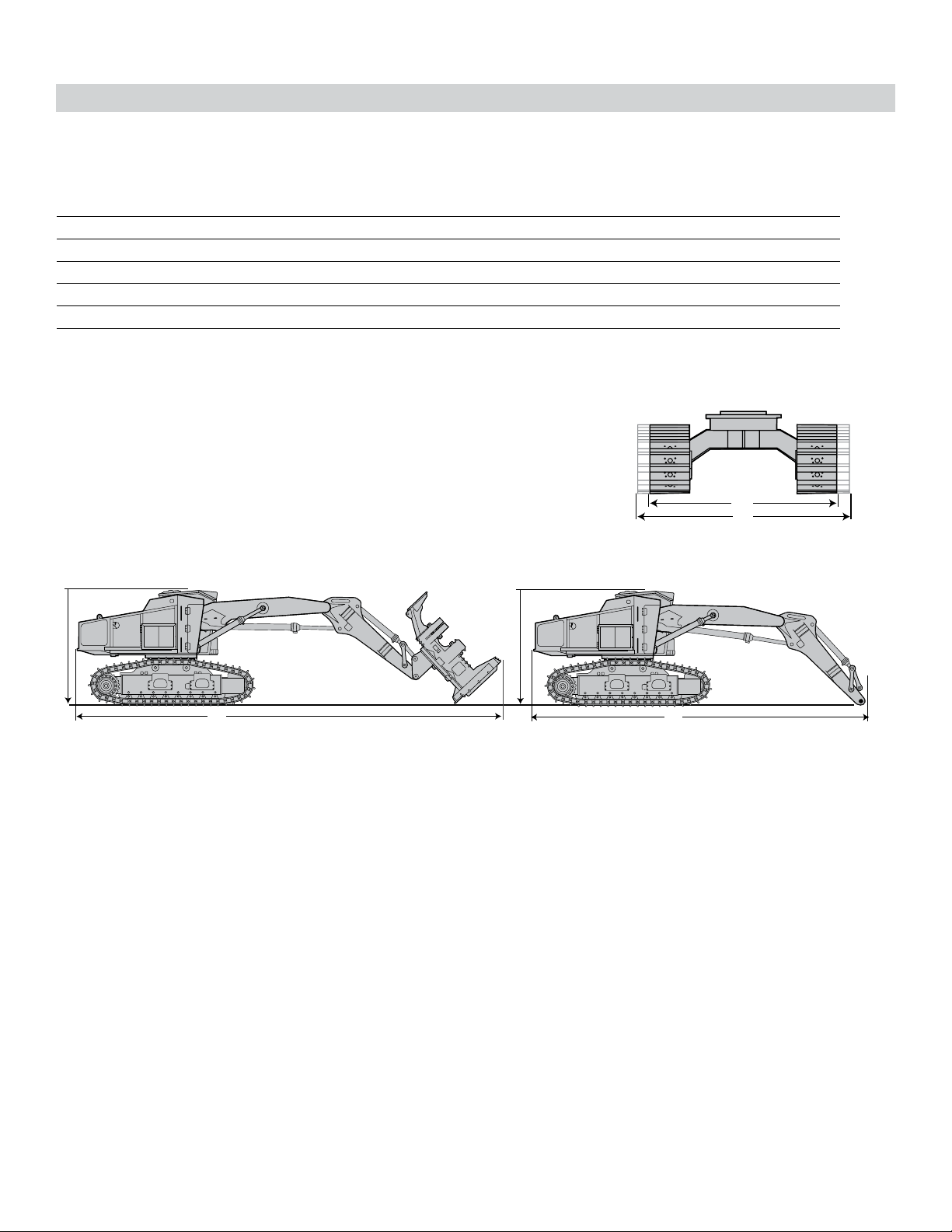

Caterpillar® FTS Track Harvesters Shipping Dimensions

MODEL Length Height* Width 1+ Width 2++ Weight

541 536 in (13614 mm) 140 in (3556 mm) 131 in (3327 mm) 142 in (3607 mm) 67,267 lb / 30512 kg

551 536 in (13614 mm) 144 in (3658mm) 131 in (3327 mm) 142 in (3607 mm) 69,175 lb / 31377 kg

552 276 in (7010 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 79,367 lb / 36000 kg

(boom tucked)

Length, Height and Width assume 28 in ( 711 mm) SG shoes

* Height to top of cab w/ standard skylight + Width 1 is minimum width ++ Width 2 is maximum width when undercarriage is set wide

All 541/551/552 TFB models are shipped in the maximum width configuration using Width 2++ dimension. These illustrations and values are ESTIMATED for TRUCK SHIPMENT ONLY FROM THE FACTORY. These are subject to change based on attachments, configurations, add-ons, etc.

552 (Tilter) Track Harvester 541/551 (Non-Tilter) FTS Track Harvester

Page 14

CAT® 541/551/552 Speciﬁcations

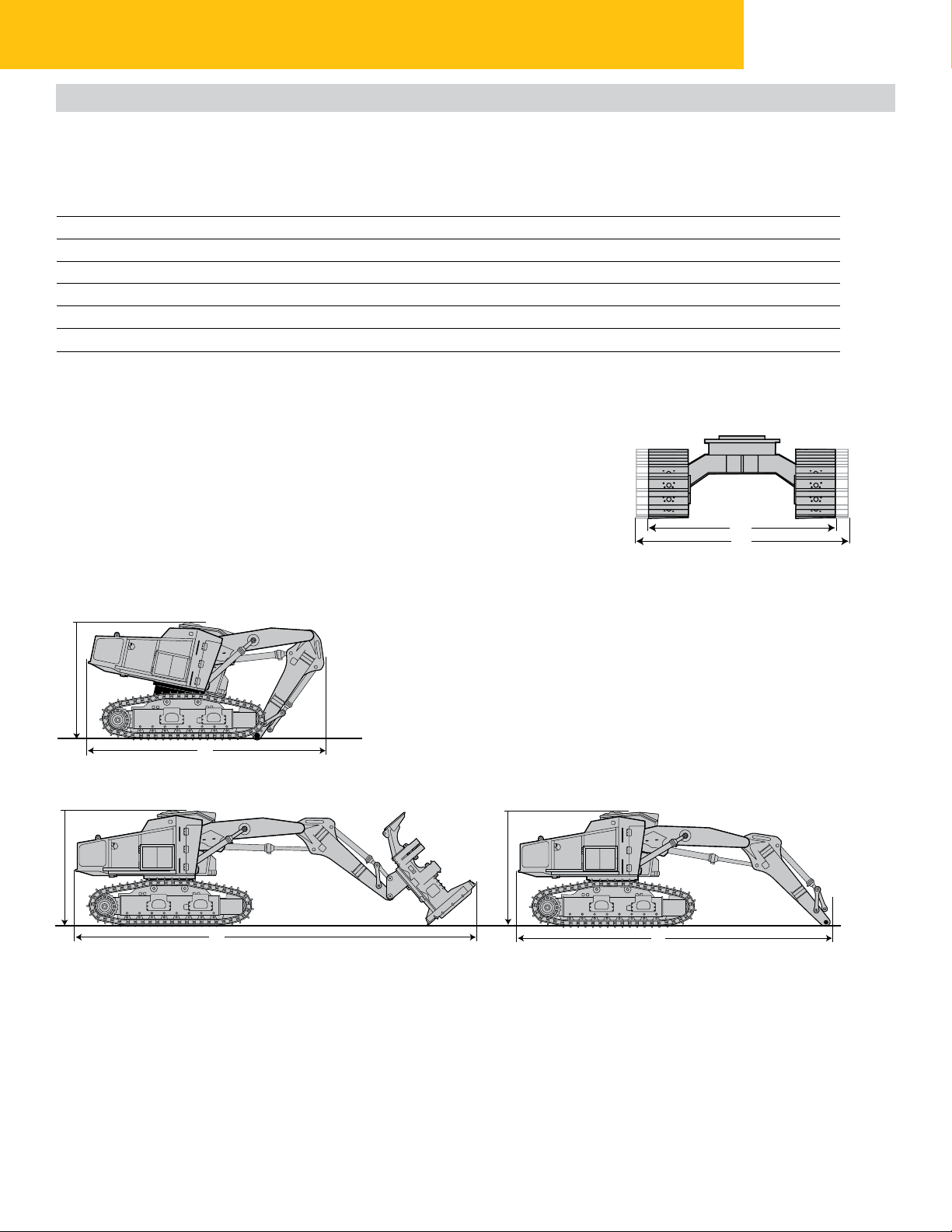

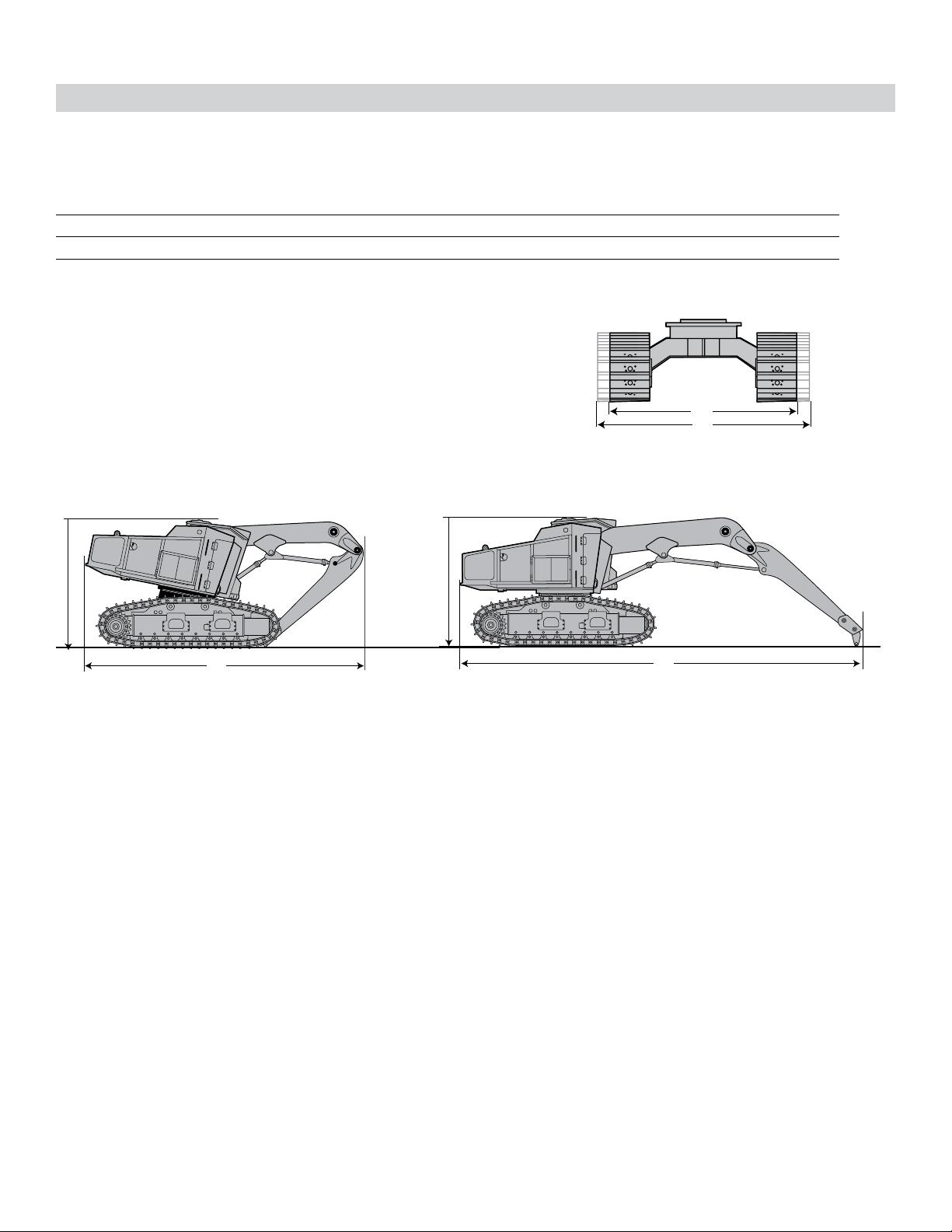

Caterpillar® FTS Track Feller Bunchers Shipping Dimensions

MODEL Length Height ** Width 1+ Width 2++ Weight

541 371 in (9423 mm) 140 in (3556 mm) 131 in (3327 mm) 142 in (3607 mm) 66,560 lb (30191 kg)

541* 461 in (11709 mm) 140 in (3556 mm) 131 in (3327 mm) 142 in (3607 mm) 74,119 lb (33627 kg)

551 371 in (9423 mm) 144 in (3658 mm) 131 in (3327 mm) 142 in (3607 mm) 68,468 lb (31057 kg)

551* 461 in (11709 mm) 144 in (3658 mm) 131 in (3327 mm) 142 in (3607 mm) 76,027 lb (34493 kg)

552 371 in (9423 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 78,660 lb (35680 kg)

552 * 461 in (11709 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 86,219 lb (39116 kg)

552 276 in (7010 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 78,660 lb (35680 kg)

(boom tucked)

Length, Height and Width assume 28 in ( 711 mm) SG shoes

* w/ HF 221 Partial Tilt Felling Head, tilted back and lifted (assumes an estimated additional head weight of 7559 lb (3436 kg) ** Height to top of cab w/ standard skylight + Width 1 is minimum width ++ Width 2 is maximum width when undercarriage is set wide

Tilter 552 Track Feller Buncher (Tilter) Standard Linkage

541/551 (Non-Tilter) 752 (Tilter) Standard Linkage

Page 15

W1 W2

Caterpillar® FTS Track Feller Bunchers Shipping Dimensions

MODEL Length Height ** Width 1+ Width 2++ Weight

541 436 in (11074 mm) 140 in (3556 mm) 131 in (3327 mm) 142 in (3607 mm) 67,239 lb (30499 kg)

541* 526 in (13360 mm) 140 in (3556 mm) 131 in (3327 mm) 142 in (3607 mm) 74,798 lb (33935 kg)

551 436 in (11074 mm) 144 in (3658 mm) 131 in (3327 mm) 142 in (3607 mm) 69,147 lb (31365 kg)

551* 526 in (13360 mm) 144 in (3658 mm) 131 in (3327 mm) 142 in (3607 mm) 76,706 lb (34801 kg)

552 434 in (11024 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 79,339 lb (35988 kg)

552 * 524 in (13310 mm) 156 in (3962 mm) 131 in (3327 mm) 142 in (3607 mm) 86,898 lb (39424 kg)

Length, Height and Width assume 28 in ( 711 mm) SG shoes

541/551 (Non-Tilter) 552 (Tilter) Long Felling Linkage

Page 16

CAT® 541/551/552 Speciﬁcations

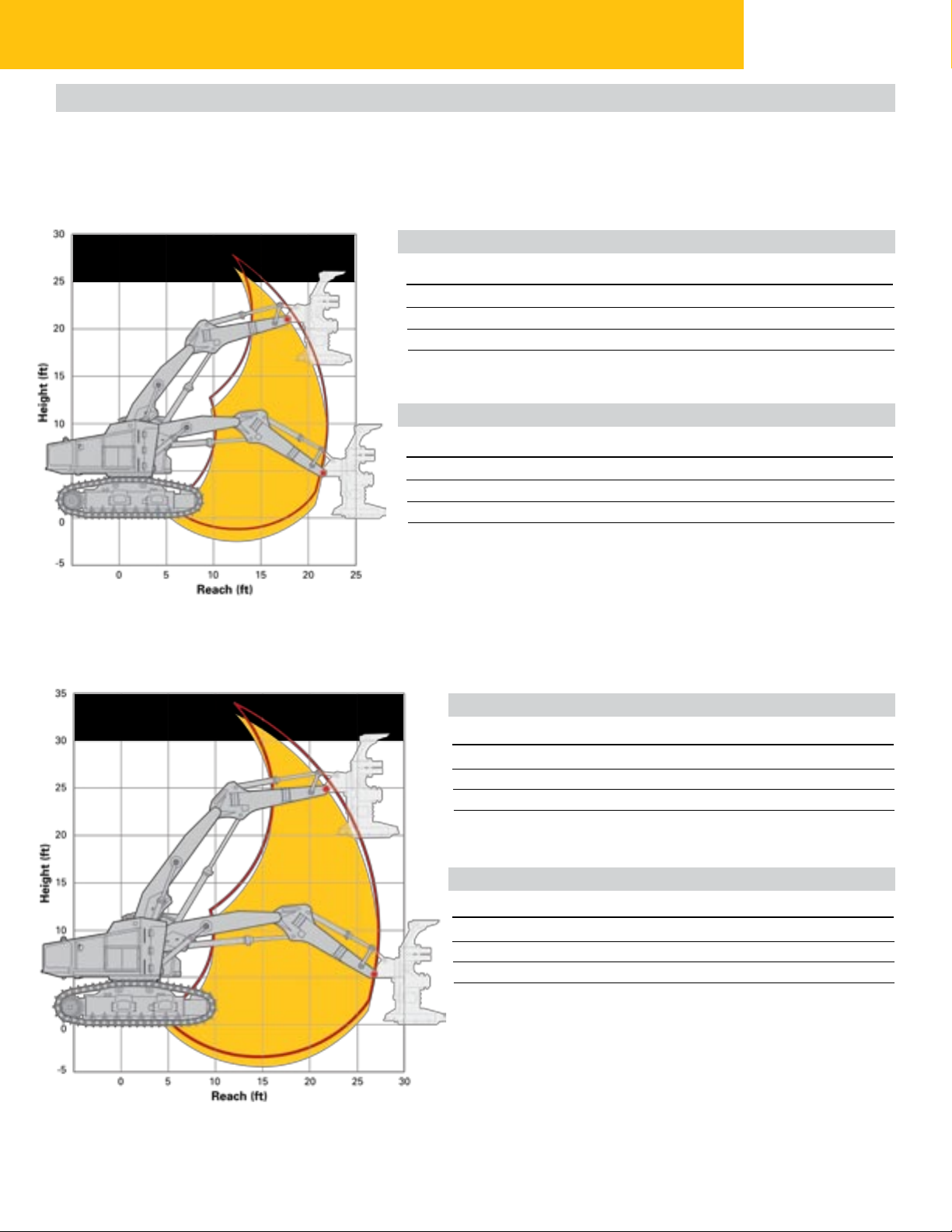

FTS Track Feller Bunchers & Track Harvesters – Range Diagrams

Lift Range Information - Standard Felling Linkage 541/551/552 - FTS

Non-tilter — 541/551

Tilter — 552

Lift Range Information - Long Felling Linkage 541/551/552 - FTS

Lift Over Front of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

3.2 m / 10.5 ft 21600 kg / 47700 lb 21800 kg / 48000 lb 22200 kg / 49000 lb

4.5 m / 15 ft 15200 kg / 33500 lb 15300 kg / 33700 lb 15500 kg / 34200 lb

6.6 m / 21.5 ft 9400 kg / 21800 lb 9400 kg / 21800 lb 9400 kg / 21800 lb

Lift Over Side of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

3.2 m / 10.5 ft 19400 kg / 42800 lb 21800 kg / 48000 lb 22200 kg / 49000 lb

4.5 m / 15 ft 10600 kg / 23400 lb 13200 kg / 29100 lb 14900 kg / 32900 lb

6.6 m / 21.5 ft 6100 kg / 13500 lb 7600 kg / 16700 lb 8600 kg / 19000 lb

Note: Lift Capacity shown without attachment. Additional reach and attachment weight will reduce lift capacity.

Non-tilter — 541/551

Tilter — 552

Lift Over Front of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

3.0 m / 10 ft 20800 kg / 45900 lb 21000 kg / 46400 lb 21800 kg / 48000 lb

6.1 m / 20 ft 10400 kg / 22900 lb 10700 kg / 23500 lb 10900 kg / 23900 lb

8.2 m / 27 ft 6400 kg / 14200 lb 7400 kg / 16300 lb 7700 kg / 16900 lb

Lift Over Side of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

3.0 m / 10 ft 20800 kg / 45900 lb 21000 kg / 46400 lb 21800 kg / 48000 lb

6.1 m / 20 ft 6600 kg / 14600 lb 8200 kg / 18100 lb 9300 kg / 20600 lb

8.2 m / 27 ft 4100 kg / 9100 lb 5200 kg / 11400 lb 6000 kg / 13100 lb

Note: Lift Capacity shown without attachment. Additional reach and attachment weight will reduce lift capacity.

Page 17

FTS Track Feller Bunchers & Track Harvesters – Range Diagrams

Lift Range Information - Harvesting Linkage 541/551/552 - FTS

Non-tilter — 541/551

Tilter — 552

Lift Over Front of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

4.5 m / 15 ft 9100 kg / 20200 lb 9100 kg / 20200 lb 9100 kg / 20200 lb

7.6 m / 25 ft 7100 kg / 15700 lb 8200 kg / 18100 lb 9400 kg / 20600 lb

10.7 m / 35 ft 4300 kg / 9500 lb 5000 kg / 11000 lb 5700 kg / 12500 lb

Lift Over Side of Tracks

MODEL 541 551 552

Reach Lift Capacity Lift Capacity Lift Capacity

4.5 m / 15 ft 9100 kg / 20200 lb 9100 kg / 20200 lb 9100 kg / 20200 lb

7.6 m / 25 ft 4500 kg / 9900 lb 5700 kg / 12500 lb 6500 kg / 14300 lb

10.7 m / 35 ft 2700 kg / 5900 lb 3400 kg / 7600 lb 4000 kg / 8800 lb

Note: Lift Capacity shown without attachment. Additional reach and attachment weight will reduce lift capacity.

Page 18

CAT® 541/551/552 Standard Equipment

Standard equipment may vary. Consult your Caterpillar® dealer for details.

ELECTRICAL

24-volt electrical system

2-12 volt maintenance free batteries

95 Amp alternator

IQAN programmable controls

MDL large screen display

GUARDS

Twin hydraulically actuated hinged

engine enclosure with warning alarm

Engine fan guard

Bottom guards

Isolation mounted cab and engine

Heavy duty radiator guard door

OPERATOR ENVIRONMENT

OPS/FOPS/ROPS cab

Dual joystick control

Reverse slope windshield

Air ride seat

Skylight - alternate escape hatch

Top escape hatch

3 inch retractable seat belt

Heater/air conditioner w/climate control

DIN mount radio ready with speakers

Operator sound suppression to standards

Travel alarm

Cup holders (2)

2-12 volt and 1-24 volt power outlets

Front Window, 1.25 in Thick Margard

UNDERCARRIAGE

Track roller guards with access holes

Hydraulic track adjusters

Double flange bottom rollers

Caterpillar® 330 HEX bolted, non-leveling carbody, variable gauge

GFT 80 final drives (541)

Caterpillar 345 undercarriage bolted, variable gauge non-leveling carbody, GFT 110 final drives (551)

Caterpillar 345 undercarriage bolted, variable gauge leveling carbody, GFT 110 final drives (552)

OTHER STANDARD EQUIPMENT

Vandalism protection

Spare hose storage area

Grease gun bracket and storage area

FlexxaireTM Fan

Fuel water separator

312 US gallon fuel tank

HYDRAULICS

Dedicated fixed displacement pilot pump

Dedicated variable displacement pumps for track

and implement functions

30 gpm variable displacement saw pump

Cat® 325C swing drive and swing motor

Electric hydraulic oil fill pump

84 US gal hydraulic tank

ANTIFREEZE

50% concentration extended life coolant

POWERTRAIN

C9 ACERT engine meets Tier II emissions requirements

Infinitely variable travel speed

Under hood centrifugal precleaner and primary air filter

Heavy-duty cooling package

- Aluminum core ATAAC and side-by-side

radiator and oil cooler

- Removable debris screen

- Swing out A/C condenser

- 43C ambient temperature capable

Electric fuel priming pump

Page 19

CAT® 541/551/552 Optional Equipment

Optional equipment may vary. Consult your Caterpillar® dealer for details.

TRACK SYSTEMS

24" SG pads, clipped corners, with mud/snow reliefs

28" SG pads, clipped corners, with mud/snow reliefs

28" DG pads, with mud/snow reliefs (541)

Star carrier Rollers

OTHER EQUIPMENT

Starting Aid, Cold Weather

Starting Aid, Arctic - Includes engine and hydraulic heaters

FIELD INSTALLED ATTACHMENTS

CD Player with AM/FM Stereo – remote capable

Skylight, peaked, removable

Loose Linkage Arrangements

Page 20

CAT® 541/551/552 Track Feller Bunchers & Track Harvesters - FTS (Full Tail Swing)

For more complete information on Cat® products, dealer services, and industry solutions, visit us on the web at www.cat.com/forestry

Materials and speciﬁcations are subject to change without notice. Featured machines may include additional equipment. See your Caterpillar® dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

CATFTS(01-09)
