Page 1

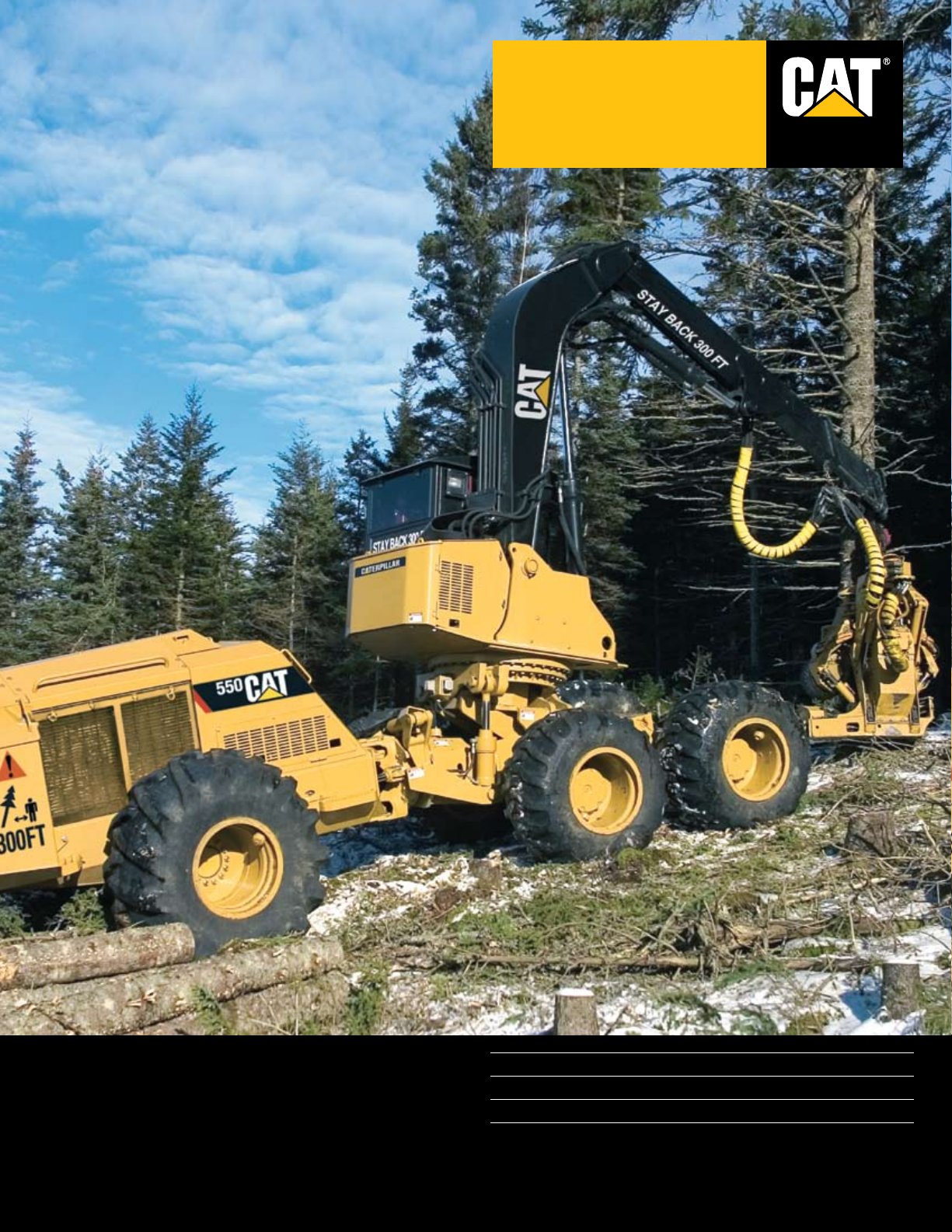

550

Wheel Harvester

CAT® C7 ACERT Tier III Compliant Engine

Gross Power 147 kW 197 HP

Boom Length 8.23 m – 10.1 m 27 ft – 33 ft

Operating Weight 21,319 kg 47,040 lb

Page 2

Caterpillar® 550 Wheel Harvester

Power Train

• Cat C7 ACERT Tier III

• 147 kW (197 HP)

• Side by Side Engine, Air & Hyd. Cooling

• Under Hood Exhaust System

• Under Hood Air Intake

• 24 Volt 85 Amp Alternator

• NAF Gear Drive Bogie

• Differential Lock

• Wet Disc Brakes

• Hydrostatic – Drive With Two Speed Drop Box

• Straight Axle

Work Tools

• PD-46 Harvesting Head with Three Pillar Tower Design

• Load-sense Valves To Carrier Hyd. Pump

• 11H High Speed Bar System

• Auto Tension System

• Power Down Ability In Bail Design

• Large Pins and Bushings

• Standard “auto-seek” processing head computer cuts at operator specified length

• Optional volume calculator / printer

• Optional PE-41, PE-42, PE-44, and PE-50 Processing heads with DASA Optimization Computers

Leveling System

• Two Cylinder Tilt Mechanism

• 17 Degrees Forward Tilt

• 15 Degrees Side Tilt (Each Way)

• 3 Degrees Rear Tilt

• Auto Leveling

• Taper Lock Pins

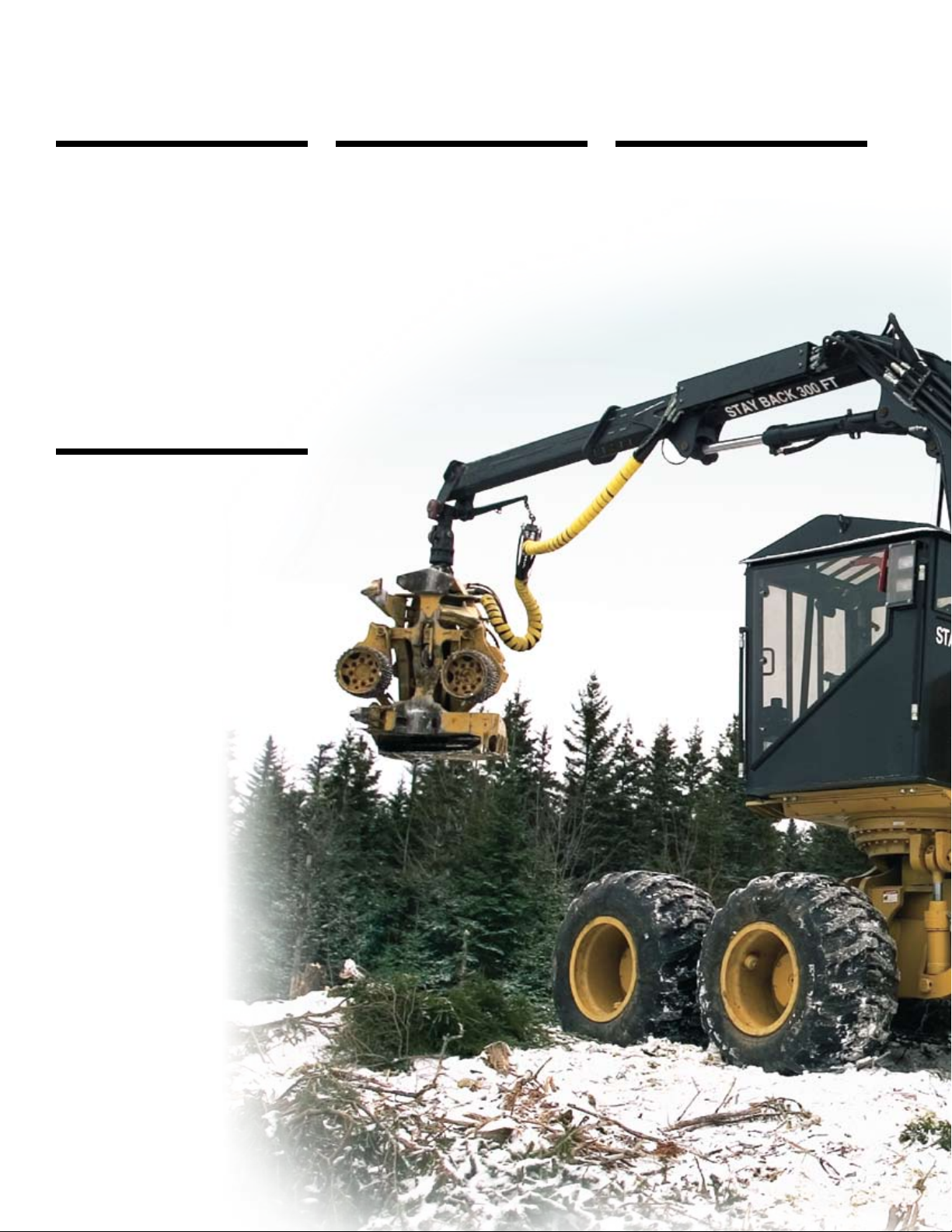

Booms

• Telescoping “V” Bottom (5-sided) Harvester Boom

• 8.23 m (27’) Reach To Tree

• Optional 10.1m (33’) reach telescoping parallel boom

• Steel Tube Hydraulic Lines

• Cylinders Protected Under Boom

Page 3

Operator Station

• Front Entry Door

• Spacious Cab Area

• High Visibility Over Entire Work Area

• 360 Degree Lighting Package

• IQAN MDL Control System

• IQAN Full Function Graphics Display

Hydraulics

• 140 cc Implement Pump

• 379 L (100 gal) Hydraulic Tank

• Filtering of All Return Oil

• Electric Refill Pump

• Optional Warm Up System

Structures Upper House

• Boom and Cab Swing Together

• Heavy Duty Boom Mount Base

• 907.19 kg (2,000 lb) Counterweight

• Load-sense Valves for Upper Functions

Front Frame

• NAF Gear Drive Bogie

• Differential Lock

• Wet Disc Brakes

Rear Frame

• Straight Axle

• Side Mounted Fuel Tanks

• Heavy Duty Engine Canopy Protection

• Large Access Doors

Center Joint

• Heavy Duty Center Oscillation Bearing

• 15 Degrees Oscillation Each Way

• Frame Lock Cylinder System

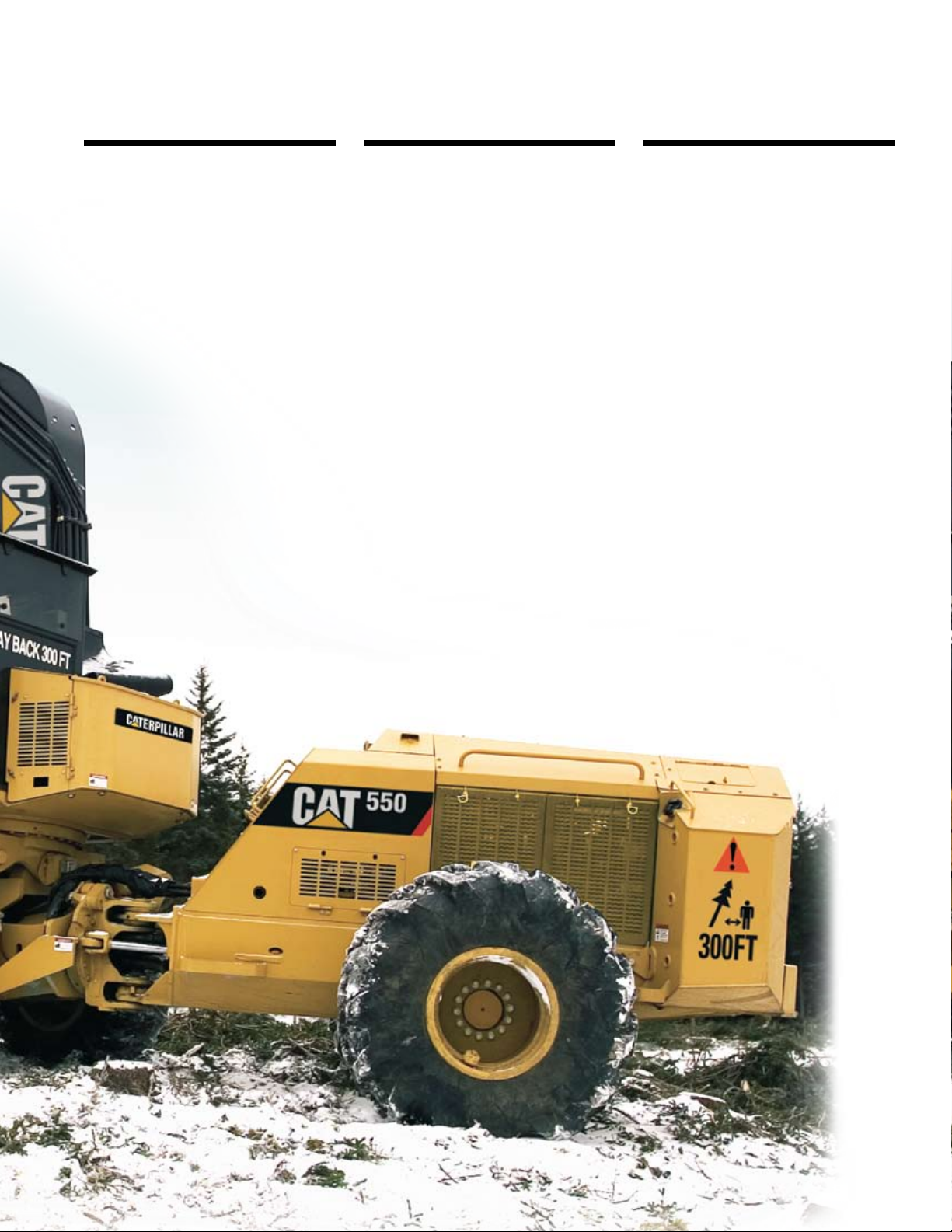

The 550 Wheel Harvester features engineered versatility that provides solid footing and level working conditions in extreme forestry conditions.

Articulation

• Cast Articulation Knuckle

• 40 Degrees Articulation Each Way

• Captured Lower Pin

• Heavy Duty Steering Cylinders

• Electronic Cushioned Steering Stops

Page 4

Wheel Harvester General Specifications

Engine

C7 ACERT Tier III, 147 kW/197 HP @ 1800 rpm

Fuel Tank Capacity

120 gal./ 454 L

Structural

Heavy duty house leveling system; 17° forward, 15° each side, 3° backwards Heavy duty engine house and center oscillation bearing, 15° each way Cast steel articulation knuckle, 40° each way

Booms

Standard 27’ (8.23 m) reach telescoping harvester boom Optional 10.1 m reach telescoping parallel boom

Drive Train

Hydrostatic drive with two speed drop box (0-19 km/hr)

Axles

Gear drive front bogie with differential lock and wet disc brakes Straight rear axle with wet disc brakes and differential locks

Tires

700 / 50 x 26.5 front tires and 28 L x 26 rear tires Optional bogie tracks

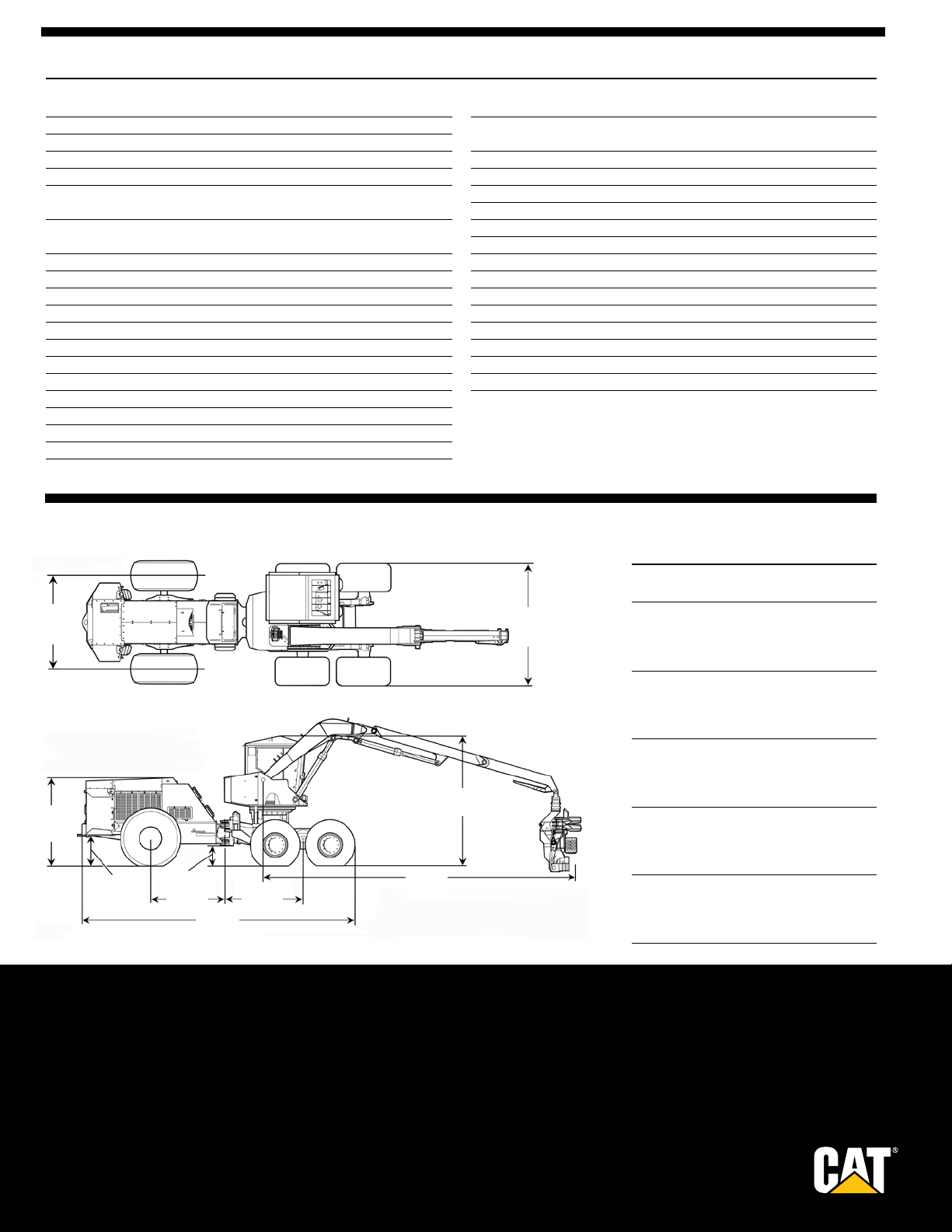

Wheel Harvester Basic Dimensions

Brakes

Service brake: hydrostatic-dynamic braking plus pedal operated front and rear wet disc brakes Parking brake on front bogie

Hydraulic System

Pump: 140 cc implement pump; load sensing; variable displacement 100 gal. / 378.43 L hydraulic tank with ﬁltering of all return oil Electric reﬁll pump Optional Proheat warm up system

Cab Controls

High visibility cab with front entry cab door; 360° lighting package Reverse slope windshield/Side window escape hatches A/C heater AM/FM cassette IQAN MDL control system with full function graphics display

Weight

47,000 lbs. / 21319 kg with attachment

90”

2.28 m

94.25”

2.39 m

33”

.84 m

Weight: with PD-46 Head @ 10’ Radius

117.75”

3.0 m

Point A (Rear axle): 15,120 lb 6 858.3 kg

Point B (Front axle): 31,920 lb 14 479 kg

Total: with 180 Head installed 47,040 lb

139”

3.52 m

21 319 kg

Turning Radius without differential lock: 38’ 8”

22”

.56 m

80”

2.03 m

299.25”

7.6 m

84”

2.13 m

333.5”

8.47 m

11.785 m

Turning Radius with differential lock: 44’ 2”

13.462 m

Cat, CATERPILLAR their respective logos ACERT and "Caterpillar Yellow", as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

For more complete information on CAT products, dealer services, and industry solutions, visit us on the web at: www.cat.com and www.forestpro.com

Materials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Caterpillar dealer for available options.
