Caterpillar 390D Specification

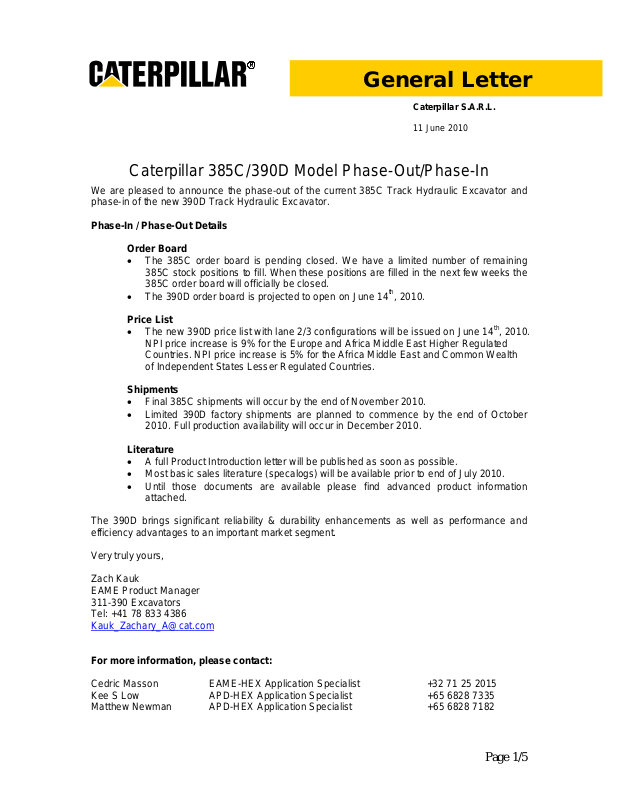

General Letter

Caterpillar S.A.R.L.

11 June 2010

Caterpillar 385C/390D Model Phase-Out/Phase-In

We are pleased to announce the phase-out of the current 385C Track Hydraulic Excavator and
phase-in of the new 390D Track Hydraulic Excavator.

Phase-In / Phase-Out Details
Order Board

• The 385C order board is pending closed. We have a limited number of remaining
385C stock positions to fill. When these positions are filled in the next few weeks the
385C order board will officially be closed.

• The 390D order board is projected to open on June 14

Price List

• The new 390D price list with lane 2/3 configurations will be issued on June 14
NPI price increase is 9% for the Europe and Africa Middle East Higher Regulated
Countries. NPI price increase is 5% for the Africa Middle East and Common Wealth
of Independent States Lesser Regulated Countries.

Shipments

• Final 385C shipments will occur by the end of November 2010.

• Limited 390D factory shipments are planned to commence by the end of October

2010. Full production availability will occur in December 2010.

Literature

• A full Product Introduction letter will be published as soon as possible.

• Most basic sales literature (specalogs) will be available prior to end of July 2010.

• Until those documents are available please find advanced product information

attached.

The 390D brings significant reliability & durability enhancements as well as performance and
efficiency advantages to an important market segment.

Very truly yours,
Zach Kauk

EAME Product Manager
311-390 Excavators
Tel: [phone]

[email protected]

For more information, please contact:

Cedric Masson EAME-HEX Application Specialist [phone]
Kee S Low APD-HEX Application Specialist [phone]
Matthew Newman APD-HEX Application Specialist [phone]

th

, 2010.

th

, 2010.

Page 1/5

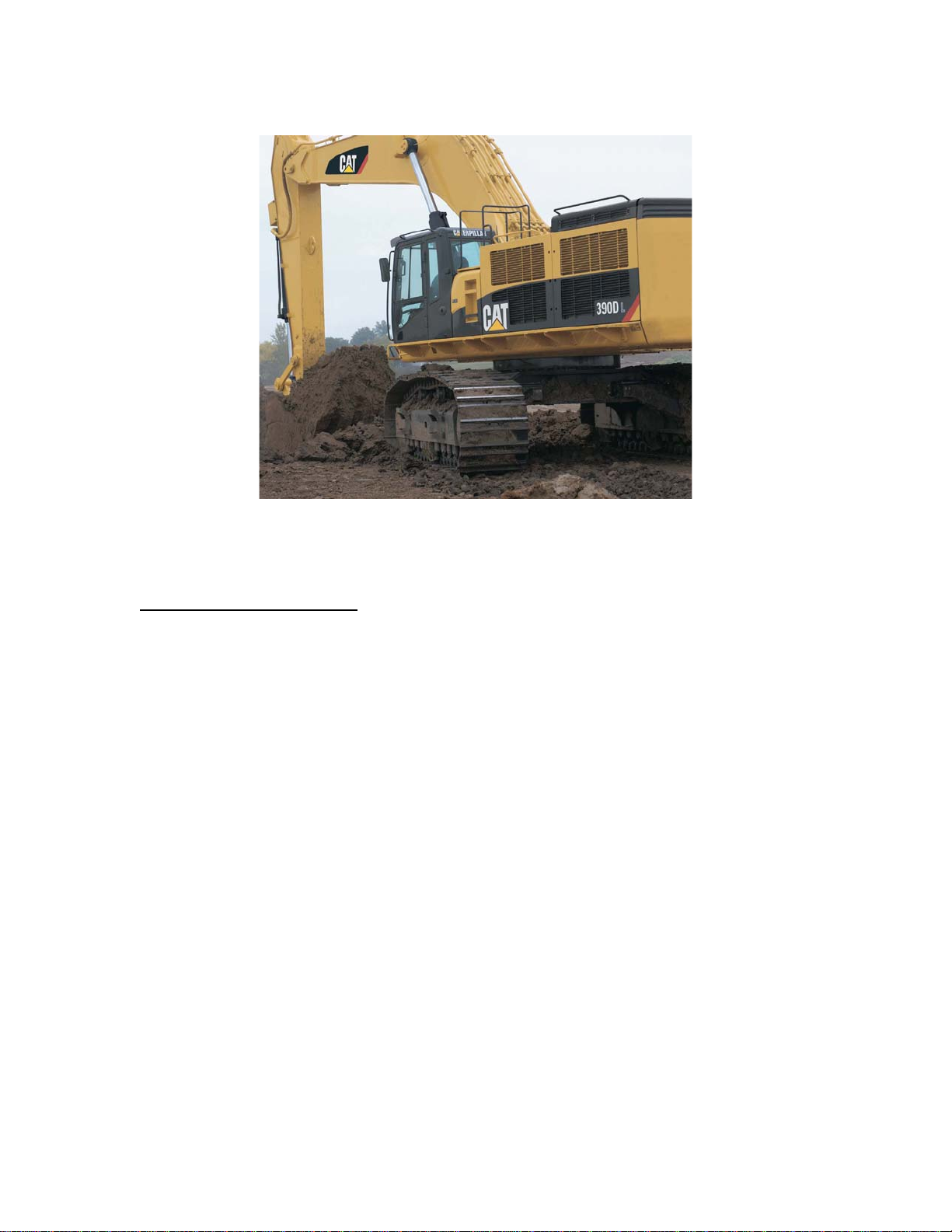

Caterpillar 390D Advanced Product Information

Since the introduction of the 300 family Excavators in 1994, the 385 has become the standard of
the industry in a large variety of General, Heavy and Quarry applications. The 390D continues,
extends, & enhances this position as a higher performance replacement for the 385C.

Key features of the 390D

• Outstanding performance versus 385C

9 Increased digging forces (+6% with Reach front, +7% with Mass)
9 Drawbarpull increase
9 Superior lift capacity
9 Stability improvement
9 Enhanced wo rking ra nges

• Improved versatility and serviceability

• World class operator comfort

• Lower operating cost and improved uptime

Page 2/5

Spec comparison chart

Model 390D 385C

Weight

Operating Weight (kg) 90,070 84,980
Counterweight (kg) 12,410 11,660

Engine

Engine Model C18 ATAAC C18 ATAAC
Engine Power - (kW) 390 390

Hydraulics

Main System – Maximum Flow (L/min) 2 x 715 2 x 715
Max Pressure Implements - (kPa) 350 (normal) 350 (with Heavy Lift)
Travel Speed - (km/h) 4.4 4.4

Performance

Max Digging Depth (m)* 11.81 11.75
Max Reach Ground Level (m)* 17.25 17.20
Lift Capacity - Over Front @ (3.0 m) Below

ground @ (6.0 m) kg *
Lift Capacity - Over Side @ (3.0 m) Below

ground @ (6.0 m) kg *
Drawbar Pull - (kN) 592 590

28250 25660

28250 23560

*Machines equipped similar with 10.0m Reach boom and Reach 4.4m stick

New range of Work Tools offering

A wide variety of work tools are available for the 390D – extending the versatility of the machine
into an extended range of applications.

New 390D Bucket Line Up

With the introduction of the 390D comes a whole new bucket line with a naming convention
slightly different from the past. Excavator buckets are evolving to a common naming system and
consistent design platform worldwide. The introduction of the 390D and the buckets for this
machine is the first step in this evolution.

For the 390D, you will see these bucket types:

• General Duty (GD)

• Heavy Duty (HD)

• Severe Duty (SD)

• Extreme Duty (XD)

Regarding bucket interchangeability in between 385C and 390D or for any inquiry regarding Work
Tool matching please get in touch with you local Caterpillar Work Tool Representative.

Page 3/5

Ordering Guide

Serial Number Prefix

Market Model Prefix

EU and AME RC 390DL WAG
AME, CIS, LACD & APD LRC 390D KCZ
AME, CIS, LACD & APD LRC 390DL WAP
NACD, LACD RC & South Korea 390DL WBT
Japan 390D BYP

Sales Support

390D - Sales Literature

Title Media No. Available

390D Specalog AEHQ6127 2010
Product Bulletin TEJB9556 2010
Competitive Bulletin TEJB9567 2010
HEX Field Reference Guide AEXQ0454 2010

Sales training

Course Title Date Location

TBD* TBD* TBD*

*Your Large Contractor Representative will be contacting you about the details of the Sales
Training that will take place in 2010.

Product Support Materials

Title Media No. Available

Service Manual KENR7730 1st ship 2010
Parts Manual – S/N WAG SEBP5233 1st ship 2010
Parts Manual – S/N WBT SEBP5234 1st ship 2010
Parts Manual – S/N WAP SEBP5236 1st ship 2010
Parts Manual – S/N BYP SEBP5615 1st ship 2010
Parts Manual – S/N KCZ SEBP5616 1st ship 2010
OMM SEBU8301 1st ship 2010
D&A Manual KENR6408 1st ship 2010

Page 4/5

Service Training / Materials

Reference the following website for updates

https://productsupportglobalcontent.cat.com/cda/layout?m=120203&x=7

The new service training manual format is now called an ITTP (Instructor Technical Training
Package). The ITTP media number for the 390D will be SERV1884.

The ITTP will contain an Introduction Module (machine walk around) and ten more instructional
modules:

• Operator Station

• Engine and Cooling Systems

• Hydraulic Cooling Fan System

• Pilot Hydraulic System

• Main Hydraulic Pumps

• Main Hydraulic Control Valve

• Swing Hydraulic System

• Travel System

• Return Oil Hydraulic System

• Electronic Control System and Monitor
