Caterpillar 350 Technical Specifications

Download
Page 1

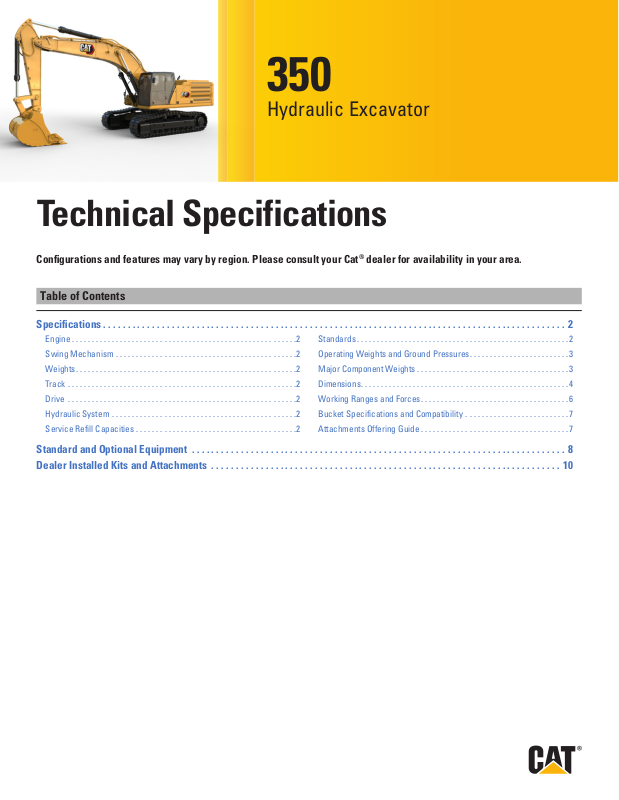

350
Hydraulic Excavator

Technical Specifications

Congurations and features may vary by region. Please consult your Cat® dealer for availability in your area.

Table of Contents

Specications ..............................................................................................2
Standard and Optional Equipment ............................................................................8
Dealer Installed Kits and Attachments .......................................................................10
Page 2
350 Hydraulic Excavator Specifications
Engine
Engine Model Cat® C9.3B
Net Power – ISO 9249 307 kW 412 hp
Engine Power – ISO 14396 309 kW 414 hp
Bore 115 mm 5 in
Stroke 149 mm 6 in
Displacement 9.3 L 568 in
• Meets China Nonroad Stage III emission standards.
• Recommended for use up to 4500 m (14,770 ft) altitude with engine power derate above 3000 m (9,840 ft).
• Net power is tested per ISO 9249. Standards in effect at the time ofmanufacture.
• Net power advertised is the power available at the ywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
• Max engine working speed at 1,800 rpm.
• Net power – ISO 9249 – 277 kW (371 hp) – engine speed at 2,200rpm.
• Engine power – ISO 14396 – 280 kW (375 hp) – engine speed at 2,200 rpm.
3
Swing Mechanism
Swing Speed 8.44 rpm
Maximum Swing Torque 187 kN·m 137,924 lbf-ft
Weights
Operating Weight 48 100 kg 106,000 lb
• Long undercarriage, Mass boom, M3.0UB (9'10") stick, SD3.2m and 9.0mt(19,840 lb) counterweight.
3
(4.20 yd3) bucket, 600 mm (24") double grouser shoes
Hydraulic System
Main System – Maximum Flow – Implement
Maximum Pressure – Equipment – Implement
Maximum Pressure – Travel 35 000 kPa 5,076 psi
Maximum Pressure – Swing 25 700 kPa 3,727 psi
Boom Cylinder – Bore 160 mm 6 in
Boom Cylinder – Stroke 1575 mm 62 in
Stick Cylinder – Bore 190 mm 7 in
Stick Cylinder – Stroke 1758 mm 69 in
TB Bucket Cylinder – Bore 160 mm 6 in
TB Bucket Cylinder – Stroke 1356 mm 53 in
UB Bucket Cylinder – Bore 170 mm 7 in
UB Bucket Cylinder – Stroke 1396 mm 55 in
779 L/min (389 × 2 pumps)
35 000 kPa 5,076 psi
206 gal/min (103 × 2 pumps)
Service Refill Capacities
Fuel Tank Capacity 680 L 180 gal
Cooling System 48 L 13 gal
Engine Oil (with lter) 32 L 8 gal
Swing Drive 11 L 3 gal
Final Drive (each) 12 L 3 gal
Hydraulic System (including tank) 550 L 145 gal
Hydraulic Tank (includingsuctionpipe)
217 L 57 gal
Standards
Track
Standard Track Shoes Width 600 mm 24 in
Optional Track Shoes Width 750 mm 30 in
Number of Shoes (each side) 52
Number of Track Rollers (each side) 9
Number of Carrier Rollers (each side) 2
Drive
Gradeability 35°/70%
Maximum Travel Speed 4.7 km/h 2.9 mph
Maximum Drawbar Pull 336 kN 75,558 lbf
Brakes ISO 10265:2008
Cab/FOGS ISO 10262:1998
2
Page 3
Operating Weights and Ground Pressures
350 Hydraulic Excavator Specifications
Base Machine Configurations
600 mm (24") Double
Grouser Track Shoes
Ground
Weight
Pressure Weight
kg (lb) kPa (psi) kg (lb) kPa (psi) kg (lb) kPa (psi) kg (lb) kPa (psi)
600 mm (24") HD Double
Grouser Track Shoes
Ground
Pressure Weight
750 mm (30") Double
Grouser Track Shoes
Ground
Pressure Weight
750 mm (30") Triple
Grouser Track Shoes
Ground
Pressure
Base Frame with Track Rollers and Carrier Rollers
9.0 mt (19,840 lb) Counterweight + Long Undercarriage Base Machine
Mass Boom + M2.5UB (8'2") Stick
3
+ 3.2 m
Mass Boom + M3.0UB (9'10") Stick + 3.2 m
Reach Boom + R2.9TB (9'6") Stick + 2.7 m
Reach Boom + R3.35TB (11'0") Stick + 2.7 m
All operating weights include a 90% fuel tank with 75 kg (165 lb) operator.
(4.20 yd3) SD bucket
3
(4.20 yd3) SD bucket
3
(3.60 yd3) SD bucket
3
(3.60 yd3) SD bucket
47 900
(105,500)
48 100
(106,000)
47 100
(103,900)
47 400
(104,500)
82.9
(12.0)
83.3
(12.1)
81.6
(11.8)
82.1
(11.9)
48 500
(106,800)
48 700
(107,300)
47 700
(105,200)
48 000
(105,800)
83.9
(12.2)
84.3
(12.2)
82.6
(12.0)
83.1
(12.1)
48 600
(107,200)
48 800
(107,700)
47 900
(105,600)
48 200
(106,200)
67.5
(9.8)
67.8
(9.8)
66.5
(9.6)
66.9
(9.7)
48 500
(106,900)
48 700
(107,400)
47 800
(105,300)
48 000
(105,900)
67.3
(9.8)
67.6
(9.8)
66.3
(9.6)
66.6
(9.7)
Major Component Weights
kg lb
Base Machine Weight: including upper frame, undercarriage, counterweight, boom cylinders, without boom, stick, bucket, stick cylinder, bucket cylinder, tracks, fuel, operator
With 9.0 mt (19,840 lb) Counterweight, Swing Frame, Base Frame with Track Rollers and Carrier Rollers 31 260 68,920
Track Shoes:
600 mm (24") Double Grouser Track Shoes 5300 11,670
600 mm (24") HD Double Grouser Track Shoes 5890 12,970
750 mm (30") Double Grouser Track Shoes 6060 13,360
750 mm (30") Triple Grouser Track Shoes 5910 13,030
Two Boom Cylinders 780 1,730
Weight of 90% Fuel Tank and 75 kg (165 lb) Operator 630 1,380
Counterweight:
9.0 mt (19,840 lb) Counterweight 9000 19,840
Swing Frame 3980 8,760
Long Undercarriage:
Base Frame with Track Rollers and Carrier Rollers 10 370 22,860
Booms (including lines, pins, stick cylinder):
Mass Boom 6.55 m (21'6") 4900 10,800
Reach Boom 6.9 m (22'8") 4580 10,100
Sticks (including lines, pins, bucket cylinder, bucket linkage):
Mass Stick M2.5UB (8'2") 2620 5,770
Reach Stick R2.9TB (9'6") 2420 5,340
Mass Stick M3.0UB (9'10") 2830 6,250
Reach Stick R3.35TB (11'0") 2690 5,930
Buckets (without linkage):
3
(3.60 yd3) SD 2960 6,520
2.7 m
3
(4.20 yd3) SD 3170 6,990
3.2 m
3
Page 4
350 Hydraulic Excavator Specifications
3
2

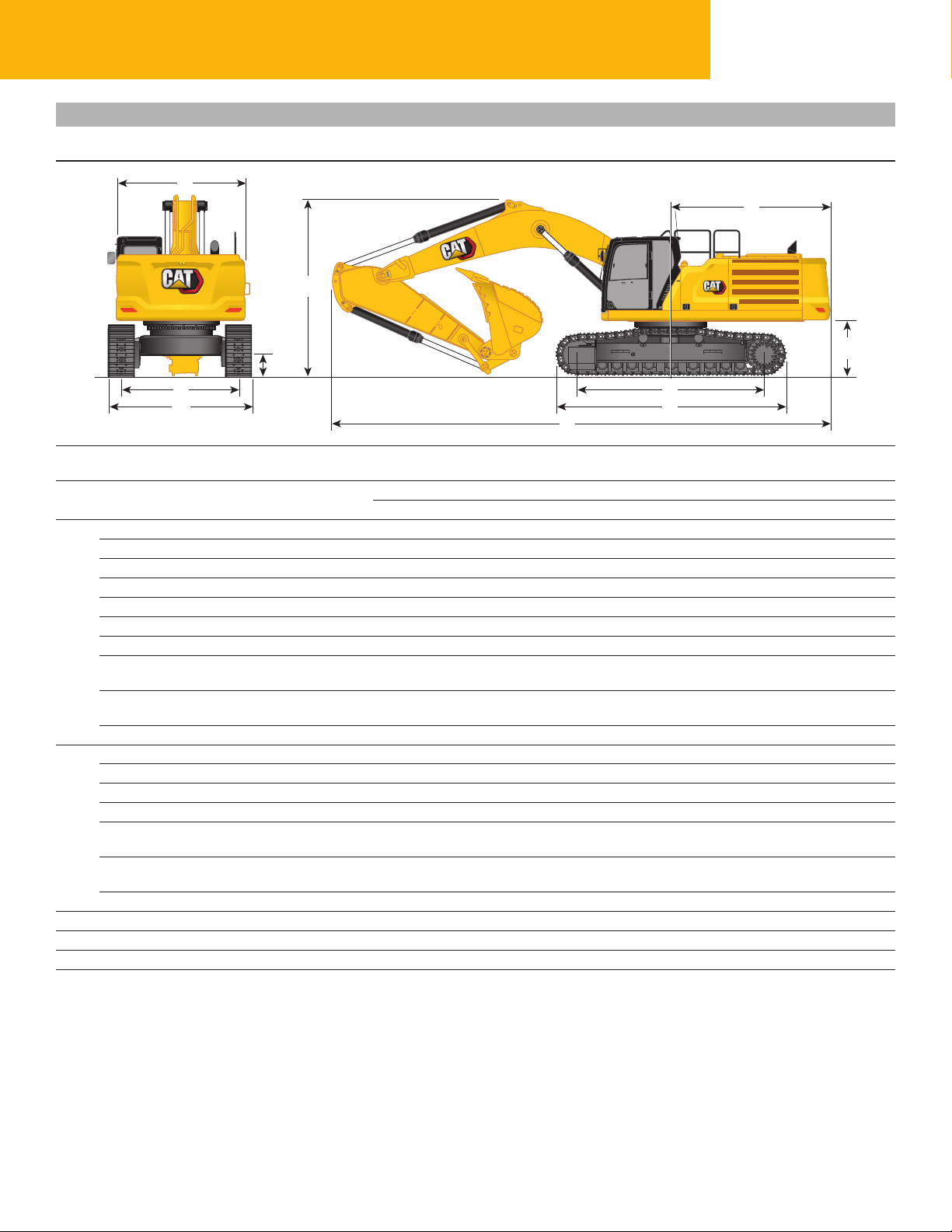

Dimensions
All dimensions are approximate and may vary depending on bucket selection.
1
6
9
10
4
5
7 8
Boom Options Mass Boom
Stick Options Mass Stick Reach Stick
M2.5UB (8'2") M3.0UB (9'10") R2.9TB (9'6") R3.35TB (11'0")
Machine Height:
1
Cab Height 3260 mm 10'8" 3260 mm 10'8" 3260 mm 10'8" 3260 mm 10'8" FOGS Height 3400 mm 11'2" 3400 mm 11'2" 3400 mm 11'2" 3400 mm 11'2" Handrail Height 3400 mm 11'2" 3400 mm 11'2" 3400 mm 11'2" 3400 mm 11'2" With Boom/Stick/BucketInstalled 4340 mm 14'3" 4220 mm 13'10" 3890 mm 12'9" 3590 mm 11'9" With Boom/Stick Installed 3530 mm 11'7" 3780 mm 12'5" 3440 mm 11'3" 3530 mm 11'7" With Boom Installed 3190 mm 10'6" 3190 mm 10'6" 3110 mm 10'2" 3110 mm 10'2" With Boom/Stick/Bucket Installed
(withauxiliary lines) With Boom/Stick Installed
(withauxiliarylines) With Boom Installed (withauxiliarylines) 3190 mm 10'6" 3190 mm 10'6" 3110 mm 10'2" 3110 mm 10'2"
Machine Length:
2
With Boom/Stick/BucketInstalled 11 830 mm 38'10" 11 630 mm 38'2" 11 890 mm 39'0" 11 880 mm 39'0" With Boom/Stick Installed 11 580 mm 38'0" 11 510 mm 37'9" 11 830 mm 38'10" 11 860 mm 38'11" With Boom Installed 10 270 mm 33'8" 10 270 mm 33'8" 10 630 mm 34'11" 10 630 mm 34'11" With Boom/Stick/Bucket Installed
(withauxiliary lines) With Boom/Stick Installed
(withauxiliarylines) With Boom Installed (withauxiliarylines) 10 570 mm 34'8" 10 570 mm 34'8" 10 630 mm 34'11" 10 630 mm 34'11"
Upperframe Width without Walkways 3020 mm 9'11" 3020 mm 9'11" 3020 mm 9'11" 3020 mm 9'11"
3
Tail Swing Radius 3760 mm 12'4" 3760 mm 12'4" 3760 mm 12'4" 3760 mm 12'4"
4
Counterweight Clearance 1340 mm 4'5" 1340 mm 4'5" 1340 mm 4'5" 1340 mm 4'5"
5
Ground Clearance 520 mm 1'8" 520 mm 1'8" 520 mm 1'8" 520 mm 1'8"
6
4340 mm 14'3" 4220 mm 13'10" 3890 mm 12'9" 3590 mm 11'9"
3530 mm 11'7" 3780 mm 12'5" 3440 mm 11'3" 3530 mm 11'7"
11 830 mm 38'10" 11 630 mm 38'2" 11 890 mm 39'0" 11 880 mm 39'0"
11 580 mm 38'0" 11 510 mm 37'9" 11 830 mm 38'10" 11 860 mm 38'11"
6.55 m (21'6")
Reach Boom
6.9 m (22'8")
(continued on next page)
4
Page 5
3
2
350 Hydraulic Excavator Specifications

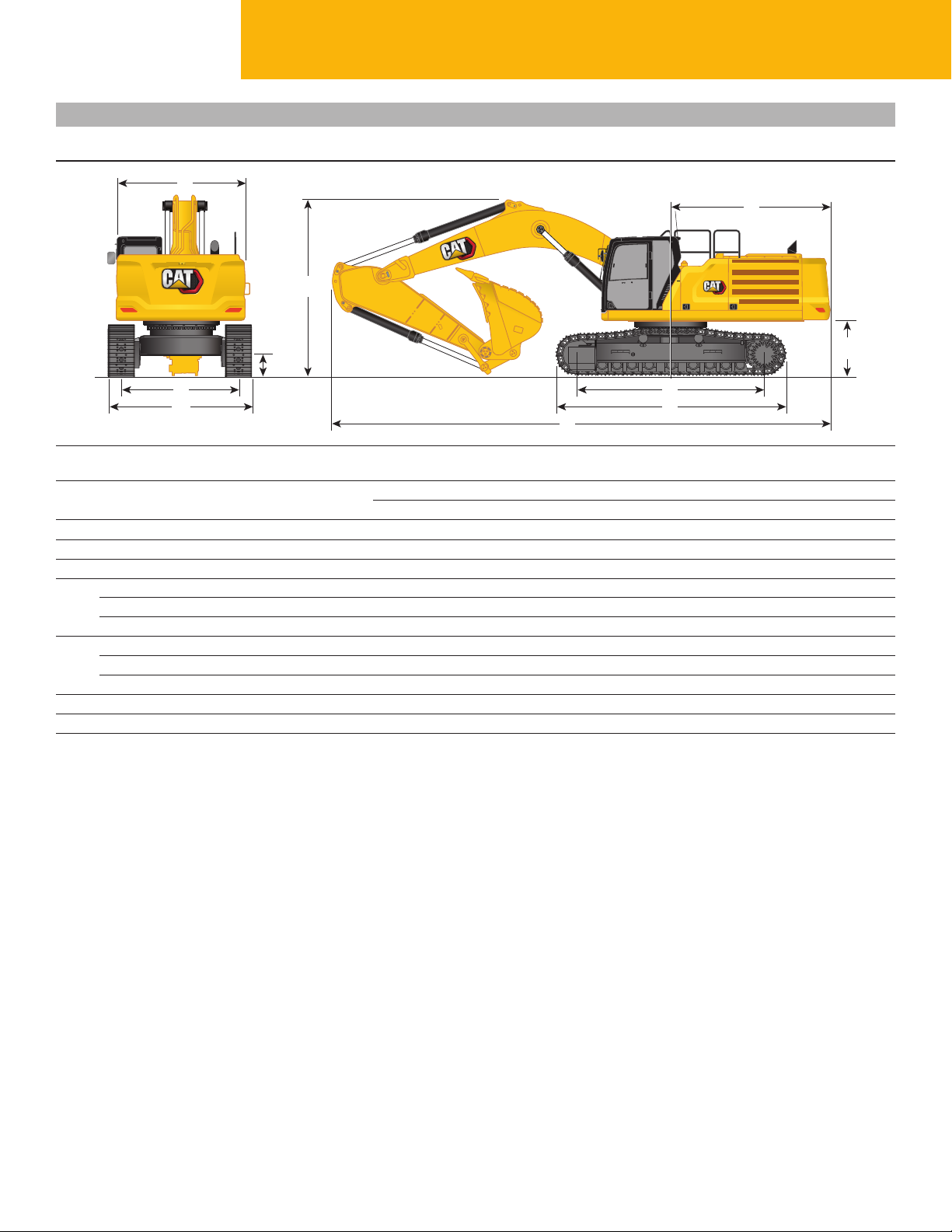

Dimensions (continued)
All dimensions are approximate and may vary depending on bucket selection.
1
6
9
10
4
5
7 8
Boom Options Mass Boom
Stick Options Mass Stick Reach Stick
M2.5UB (8'2") M3.0UB (9'10") R2.9TB (9'6") R3.35TB (11'0")
Length to Center of Rollers 4360 mm 14'4" 4360 mm 14'4" 4360 mm 14'4" 4360 mm 14'4"
7
Track Length 5400 mm 17'9" 5400 mm 17'9" 5400 mm 17'9" 5400 mm 17'9"
8
Track Gauge – Extended 2740 mm 9'0" 2740 mm 9'0" 2740 mm 9'0" 2740 mm 9'0"
9
Track Width – Extended:
650 mm (26") Shoes 3340 mm 10'11" 3340 mm 10'11" 3340 mm 10'11" 3340 mm 10'11" 750 mm (30") Shoes 3490 mm 11'5" 3490 mm 11'5" 3490 mm 11'5" 3490 mm 11'5"
Undercarriage Width – Extended(withsteps):
10
650 mm (26") Shoes 3350 mm 11'0" 3350 mm 11'0" 3350 mm 11'0" 3350 mm 11'0"
750 mm (30") Shoes 3500 mm 11'6" 3500 mm 11'6" 3500 mm 11'6" 3500 mm 11'6" Bucket Type SD SD SD SD Bucket Capacity 3.20 m Bucket Tip Radius 2080 mm 6'10" 2080 mm 6'10" 1940 mm 6'4" 1940 mm 6'4"
6.55 m (21'6")
3
4.20 yd33.20 m34.20 yd32.70 m33.60 yd32.70 m33.60 yd
Reach Boom
6.9 m (22'8")
3
5
Page 6
Meters
051015202530354045 Feet
Feet
Meters
051015202530354045 Feet
Feet
350 Hydraulic Excavator Specifications

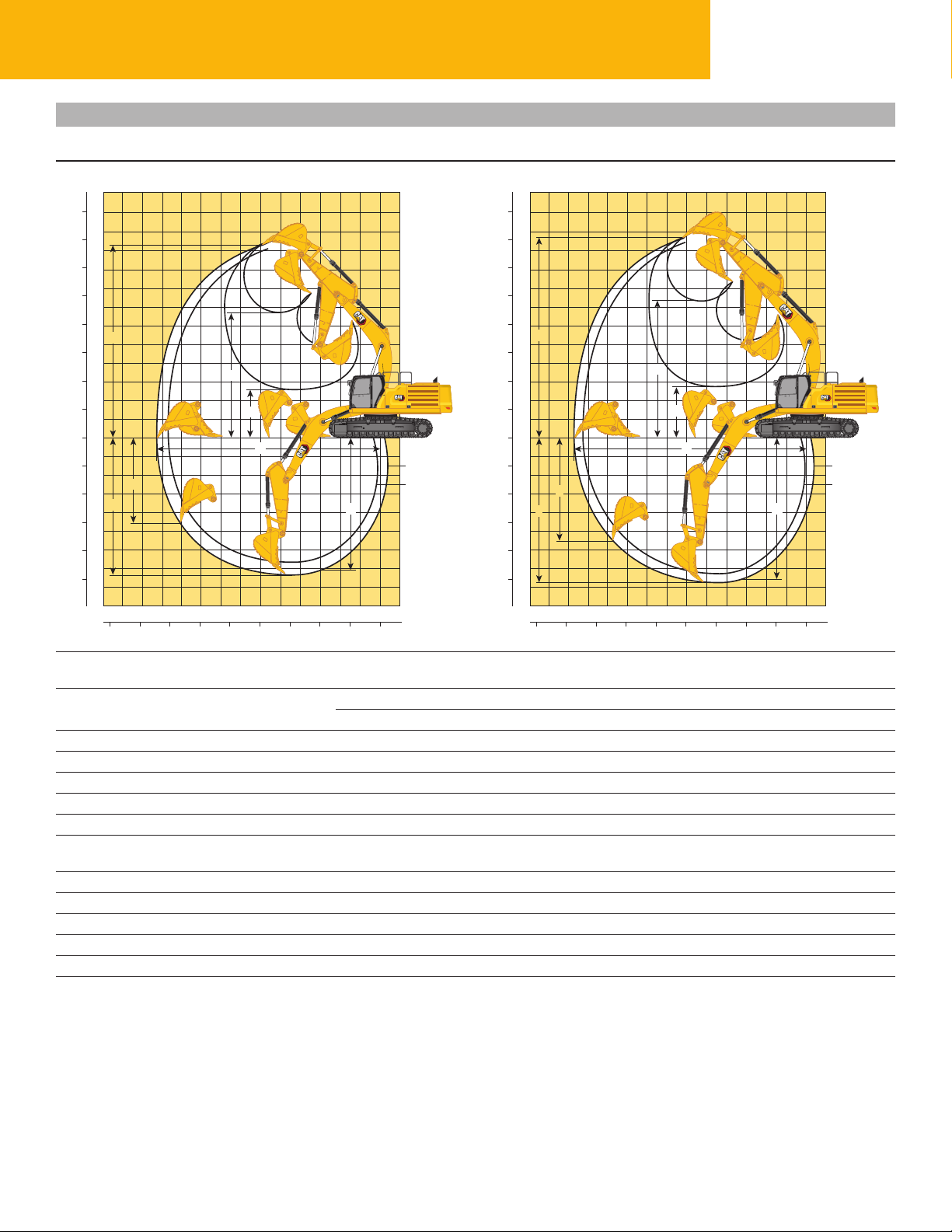

Working Ranges and Forces
All dimensions are approximate and may vary depending on bucket selection.
13
40
12
11
35
10
30
9
8
25
7
20
6
3
5
15
4
3
10
2
5
1
0
0
1
5
2
7
3
10
1
4
15
5
6
20
7
25
8
9
4
5
2
M3.0UB (9'10")
M2.5UB (8'2")
6
01234567891011121314 –1
Meters
13
40
12
11
35
10
30
9
8
25
7
20
6
3
5
15
4
3
10
2
5
1
0
0
1
5
2
7
3
10
1
4
15
5
6
20
7
25
8
9
4
5
2
R3.35TB (11'0")
R2.9TB (9'6")
6
01234567891011121314 –1
Meters
Boom Options Mass Boom
6.55 m (21'6")
Reach Boom
6.9 m (22'8")
Stick Options Mass Stick Reach Stick
M2.5UB (8'2") M3.0UB (9'10") R2.9TB (9'6") R3.35TB (11'0")
Maximum Digging Depth 6760 mm 22'2" 7260 mm 23'10" 7260 mm 23'10" 7710 mm 25'4"
1
Maximum Reach at Ground Line 10 760 mm 35'4" 11 230 mm 36'10" 11 350 mm 37'3" 11 770 mm 38'7"
2
Maximum Cutting Height 10 080 mm 33'1" 10 280 mm 33'9" 10 530 mm 34'7" 10 700 mm 35'1"
3
Maximum Loading Height 6580 mm 21'7" 6770 mm 22'3" 7190 mm 23'7" 7370 mm 24'2"
4
Minimum Loading Height 3110 mm 10'2" 2610 mm 8'7" 3150 mm 10'4" 2700 mm 8'10"
5
Maximum Depth Cut for 2240 mm (8'0")
6
6600 mm 21'8" 7110 mm 23'4" 7100 mm 23'4" 7560 mm 24'10"
Level Bottom
Maximum Vertical Wall Digging Depth 4140 mm 13'7" 4570 mm 15'0" 5060 mm 16'7" 5460 mm 17'11"
7
Bucket Digging Force (ISO) 296 kN 66,610 lbf 296 kN 66,610 lbf 266 kN 59,820 lbf 266 kN 59,820 lbf
Stick Digging Force (ISO) 241 kN 54,090 lbf 212 kN 47,680 lbf 220 kN 49,530 lbf 201 kN 45,070 lbf
Bucket Type SD SD SD SD
3
Bucket Capacity 3.20 m
4.20 yd33.20 m34.20 yd32.70 m33.60 yd32.70 m33.60 yd
Bucket Tip Radius 2080 mm 6'10" 2080 mm 6'10" 1940 mm 6'4" 1940 mm 6'4"
3
6
Page 7
Bucket Specifications and Compatibility
350 Hydraulic Excavator Specifications
Width Capacity Weight Fill Mass Boom Reach Boom
Linkage
Pin-On (No Quick Coupler)
Severe Duty TB 1700 67 2.41 3.15 2375 5,236 90
TB 1850 74 2.70 3.52 2672 5,891 90 Severe Duty Extreme TB 1850 73 2.60 3.40 3003 6,620 90 Heavy Duty UB 1950 77 3.50 4.58 2883 6,355 100 Severe Duty UB 1550 61 2.61 3.41 2597 5,725 90
UB 1650 65 2.80 3.62 2710 5,974 90
UB 1750 69 3.20 4.19 2751 6,064 90
The above loads are in compliance with hydraulic excavator standard EN474-5:2006 + A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended atground line with bucket curled.
Capacity based on ISO 7451:2007. Bucket weight with Long tips.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m
3
Maximum load with pin-on (payload + bucket)
3
yd
kg lb % M2.5 (8'2") M3.0 (9'10") R2.9 (9'6") R3.35 (11'0")
kg
lb
7453 6707 6707 6245
16,431 14,786 14,786 13,768
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3)
1800 kg/m3 (3,000 lb/yd3)
1500 kg/m3 (2,500 lb/yd3)
1200 kg/m3 (2,000 lb/yd3)
900 kg/m3 (1,500 lb/yd3)
Attachments Offering Guide
Not all Attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
Working range front only
*
PIN-ON ATTACHMENTS
Boom Type Mass Boom Reach Boom Stick Length M2.5 (8'2") M3.0 (9'10") R2.9 (9'6") R3.35 (11'0")
Hydraulic Hammers H180 GC
H180 GC S
ü ü ü ü
ü ü ü ü
7
Page 8
350 Standard and Optional Equipment

Standard and Optional Equipment

Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOMS, STICKS AND LINKAGES
6.55 m (21'6") Mass boom
6.9 m (22'8") Reach boom
2.5 m (8'2") Mass stick
2.9 m (9'6") Reach stick
3.0 m (9'10") Mass stick
3.35 m (11'0") Reach stick
Bucket Linkage, UB type without liftingeye
Bucket Linkage, TB type without liftingeye
CAB
Sound suppressed with viscous mounts
High-resolution 203 mm (8") LCD touchscreen monitor
Mechanically adjustable seat withheadrest
51 mm (2") non-retractable seat belt
Automatic bi-level air conditioner
Keyless push-to-start engine control
Fixed left-side console
One button joystick
Three button joystick
BT non CAN radio
24V DC outlet
Console storage
Coat hook
70/30 tempered glass windshield
Openable steel hatch
Read window emergency exit
LED dome light
Roller front sunscreen
Roller rear sunscreen
FOGS compatible ISO10262:1998 levelII
Washable oor mat
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
CAT TECHNOLOGY
Cat Product Link™
Auto hammer stop
ELECTRICAL SYSTEM
Maintenance-free battery
Power fuse module
Centralized electrical disconnect switch
LED exterior lights
ENGINE
Two selectable modes: Power, Smart
Auto engine speed control
Up to 4500 m (14,760 ft) altitude capability
52° C (126° F) high-ambient coolingcapacity
–18° C (0° F) cold start capability
–32° C (–25° F) cold start capability
Hydraulic reverse fan
Cold start block heaters
Electric fuel priming pump
Double element air lter with integrated pre-cleaner
115 amp alternator
Single plane three horizontal coolingsystem
Primary lter with water separator andwater separator indicator switch
Secure start with PIN code
Biodiesel capability up to B20
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
(continued on next page)
8
Page 9
350 Standard and Optional Equipment
Standard and Optional Equipment (continued)
Standard and optional equipment may vary. Consult your Cat dealer for details.
HYDRAULIC SYSTEM
Electronic main control valve
Hydraulic main pump
Boom and stick regeneration circuit
Auto hydraulic oil warm up and cold lock out
Reverse swing damping valve
Automatic swing parking brake
High performance hydraulic return lter
Two-speed travel
Bio hydraulic oil capability
SAFETY AND SECURITY
Caterpillar One Key security system
Lockable external tool/storage box
Lockable door, fuel, and hydraulic tanklocks
Right-hand handrail and hand hold (ISO2867 compliant)
Mirror package
Signaling/warning horn
Ground-level secondary engine shutoffswitch
Camera, rearview and right-hand­sideview mirrors
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
SERVICE AND MAINTENANCE
Grouped location for engine oil andfuellters
SM
S·O·S
sampling ports
UNDERCARRIAGE AND STRUCTURES
600 mm (24") double grouser track shoes
600 mm (24") HD double grouser trackshoes
750 mm (30") double grouser track shoes
750 mm (30") triple grouser track shoes
Grease lubricated track
Three-piece segmented track guidingguards
Full-length track guiding guards
Bottom guards
HD bottom guards
9.0 mt (19,840 lb) counterweight
Towing eye on base frame (ISO15818compliant)
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
9
Page 10
350 Dealer Installed Kits and Attachments

Dealer Installed Kits and Attachments

Attachments may vary. Consult your Cat dealer for details.
CAB
• Sunshade
GUARDS
• FOGS (not compatible with cab light cover, rain protector)
• Mesh guard full front (not compatible withcab light cover, rain protector)
• Mesh guard lower half front
For more complete information on Cat products, dealer services, andindustry solutions, visit us on the web atwww.cat.com
© 2021 Caterpillar All rights reserved
Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “PowerEdge” and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, aretrademarks ofCaterpillar and may not be used without permission.
10
AEXQ3033-01 (02-2021)
Replaces AEXQ3033
Build Number: 06A
(China)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
