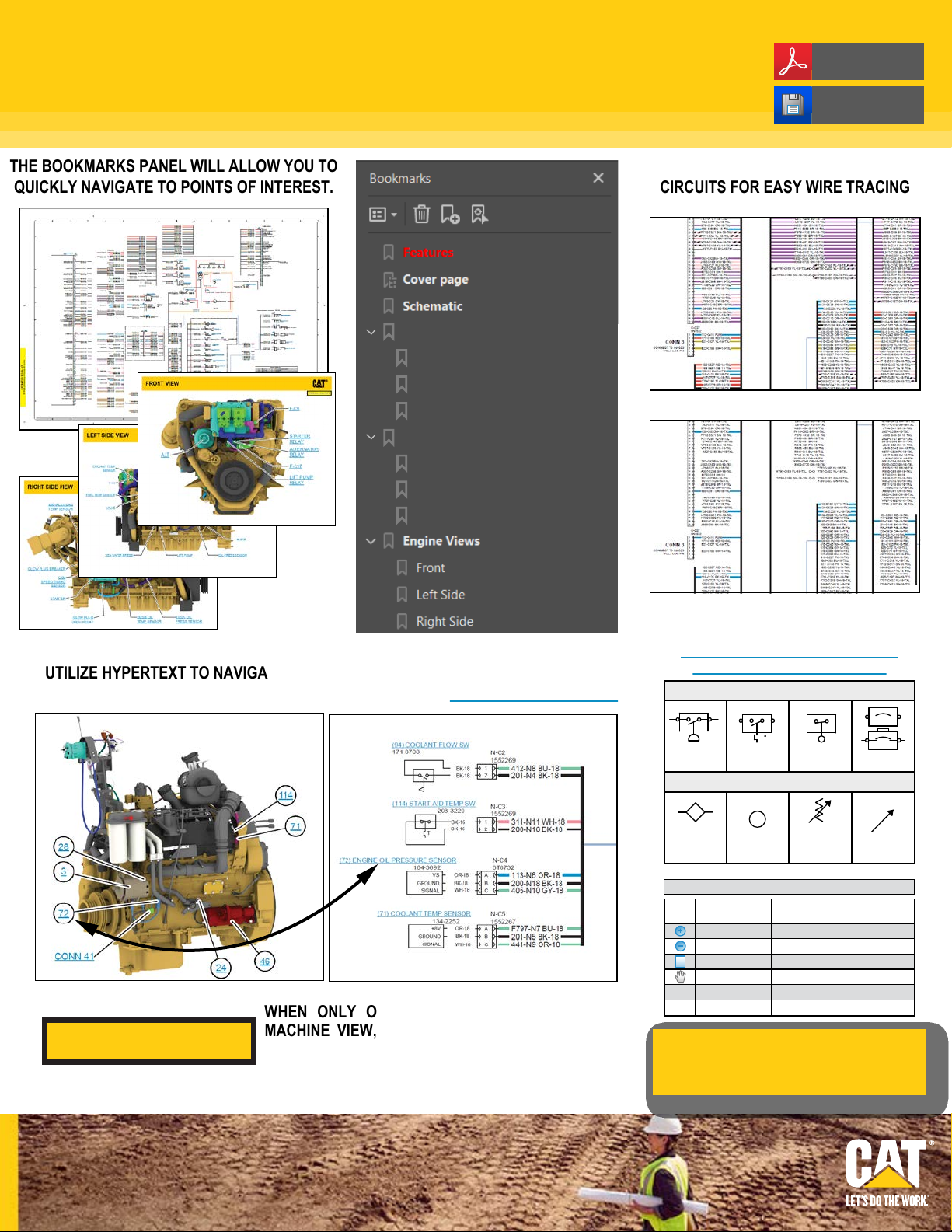

SCHEMATIC FEATURES AND TIPS
Make sure your Adobe Acrobat Reader is up
to date in order to access the latest features
of this schematic.
GET
Adobe Acrobat Reader
SAVE
a copy of this schematic
THE BOOKMARKS PANEL WILL ALLOW YOU TO
QUICKLY NAVIGATE TO POINTS OF INTEREST.
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Vol 1 - Cab Wiring
032 (Red) (Battery Power)
640 (Blue) (Key Power)
021 (Orange) (Starting)
THE FUNCTION ISOLATION TOOLS ISOLATE
CIRCUITS FOR EASY WIRE TRACING
STANDARD VIEW
640 (Blue) (Key Power) CIRCUIT ISOLATED
UTILIZE HYPERTEXT TO NAVIGATE TO COMPONENTS AND THEIR MACHINE LOCA-
TION QUICKLY. HYPERTEXT IS INDICATED BY TEXT THAT IS BLUE AND UNDERLINED.
WHEN ONLY ONE CALLOUT IS SHOWING ON A
VIEW ALL CALLOUTS
MACHINE VIEW, CLICKING ON THIS BUTTON WILL
MAKE ALL OF THE CALLOUTS VISIBLE. THIS
BUTTON IS TYPICALLY LOCATED IN THE TOP RIGHT
CORNER OF EVERY MACHINE VIEW PAGE.
CLICK HERE TO VIEW THE SCHEMATIC
SYMBOLS AND DEFINITIONS PAGE
ELECTRICAL SYMBOLS
Pressure
Switch
T
Temperature
Switch
Level
Switch
Circuit Breaker
BASIC HYDRAULIC SYMBOLS
Fluid
Conditioner
Due to different monitor sizes and PDF reader
preferences there may be some variance in linked
schematic locations. This document is best viewed at
a screen resolution of 1024 X 768.
Pump
or Motor
HOTKEYS (Keyboard Shortcuts)
FUNCTION
Zoom In
Zoom Out
Fit to Page
Hand Tool
Find
Search
Spring
(Adjustable)
“CTRL” / “+”
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
“CTRL” / “F”
“CTRL” / “SHIFT” / “F”
Variability
KEYS
© 2022 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE
WORK, their respective logos, “Caterpillar Corporate Yellow”, the “Power Edge”
and Cat “Modern Hex” trade dress as well as corporate and product identity used
herein, are trademarks of Caterpillar and may not be used without permission.
Page 2

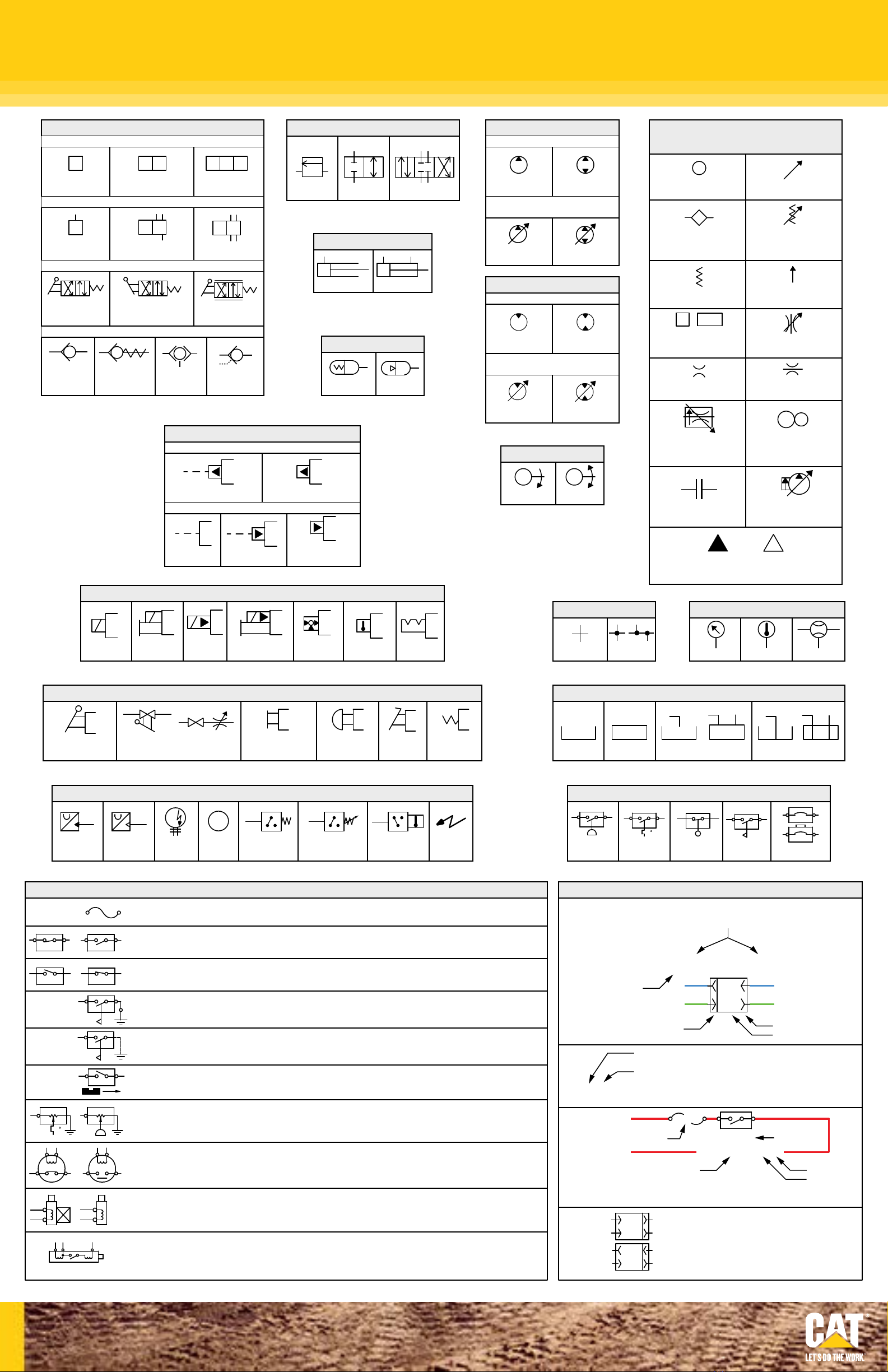

SCHEMATIC SYMBOLS AND DEFINITIONS
One Position
Two-way
A B
P T
Normal Position
Basic
Symbol
VALVES
ENVELOPES
Two Position
PORTS
Three-Way
CONTROL
A B
P T
Shifted Position
CHECK
Spring
Loaded
Shuttle
Three Position
Four-Way
Infinite Position
Pilot
Controlled
PILOT CONTROL
RELEASED PRESSURE
INTERNAL PASSAGEWAYS
FLOW IN ONE
DIRECTION
Infinite
Positioning
FLOW ALLOWED IN
EITHER DIRECTION
Two
Position
CYLINDERS
Single Acting
Double Acting
ACCUMULATORS
Spring Loaded
Gas Charged
PARALLEL
FLOW
Three
Position
CROSS
FLOW
PUMPS
FIXED DISPLACEMENT
Unidirectional
Bidirectional
VARIABLE DISPLACEMENT
NON- COMPENSATED
Unidirectional
Bidirectional
MOTORS
FIXED DISPLACEMENT
Unidirectional
Bidirectional
VARIABLE DISPLACEMENT
NON- COMPENSATED
Unidirectional
Bidirectional
ROTATING SHAFTS
BASIC HYDRAULIC
COMPONENT SYMBOLS
Pump
or Motor
Fluid
Conditioner
Spring
Control
Valves
Restriction
Line Restriction
Variable and Pressure
Compensated
Variability
Spring
(Adjustable)
Pressure
Compensation
Line Restriction
(Variable)
Line Restriction
(Fixed)
AUX.
MAIN
2-Section
Pump
External Return
Simplified
Solenoid
Push-pull Lever PedalGeneral Manual Push Button SpringManual Shutoff
Solenoid
or Manual
Solenoid
and Pilot
HYDRAULIC SYMBOLS - ELECTRICAL
Internal Return
REMOTE SUPPLY PRESSURE
Complete
Internal
Supply Pressure
COMBINATION CONTROLS
Solenoid and
Pilot or Manual
Servo
MANUAL CONTROL
Thermal
Detent
Unidirectional
Bidirectional
Pump: Variable and
Pressure Compensated
MEASUREMENT
Temperature
Flow
Crossing
LINES
Joining
Attachment
Hydraulic Pneumatic
Energy Triangles
Pressure
FLUID STORAGE RESERVOIRS
Vented Pressurized Return Above Fluid Level Return Below Fluid Level
ELECTRICAL SYMBOLS
Transducer
(Fluid)
T
Transducer
(Gas / Air)
G
Generator
M
Electric
Motor
Pressure
Switch
Pressure Switch
(Adjustable)
Temperature
Switch
Electrical
Wire
BASIC ELECTRICAL COMPONENT SYMBOLS
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.).
Ground (Wired): This indicates that the component is connected to a grounded wire.
The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not haveawire connected to ground.
It is grounded by being fastened to the machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of
a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge.
The sender measures the temperature or pressure.
Its resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity.
Solenoid: A solenoid is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: An electrical component that is activated by electricity and held latched by a
that the component has screw terminals and a wire can be disconnected from it.
No circle indicates that the wire cannot be disconnected from the component.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close the switch part of the relay.
permanent magnet. It has two coils (latch and unlatch) that make electromagnet
when current flows through them. It also has an internal switch that places
the latch coil circuit open at the time the coil latches.
Pressure
Switch
T
Temperature
Switch
Switch
HARNESS AND WIRE SYMBOLS
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
AG-C4
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, AA, AB, AC, ...)
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...)
L-C12
3E-5179
Fuse (5 Amps)
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
1
2
1
2
111-7898
Plug
5A
*Wire gauge is shown in AWG (American Wire Gauge)
but could also be shown in metric denoted with mm
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the recept
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Level
Flow
Switch
L-C12
3E-5179
1
2
9X-1123
325-AG135 PK-14
acle contains all pins.
Circuit Breaker
Receptacle
Pin or Socket Number
Component
Part Number
Wire Gauge*
Wire Color
© 2022 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE
WORK, their respective logos, “Caterpillar Corporate Yellow”, the “Power Edge”
and Cat “Modern Hex” trade dress as well as corporate and product identity used
herein, are trademarks of Caterpillar and may not be used without permission.
Page 3
M0129513-01
October 2022

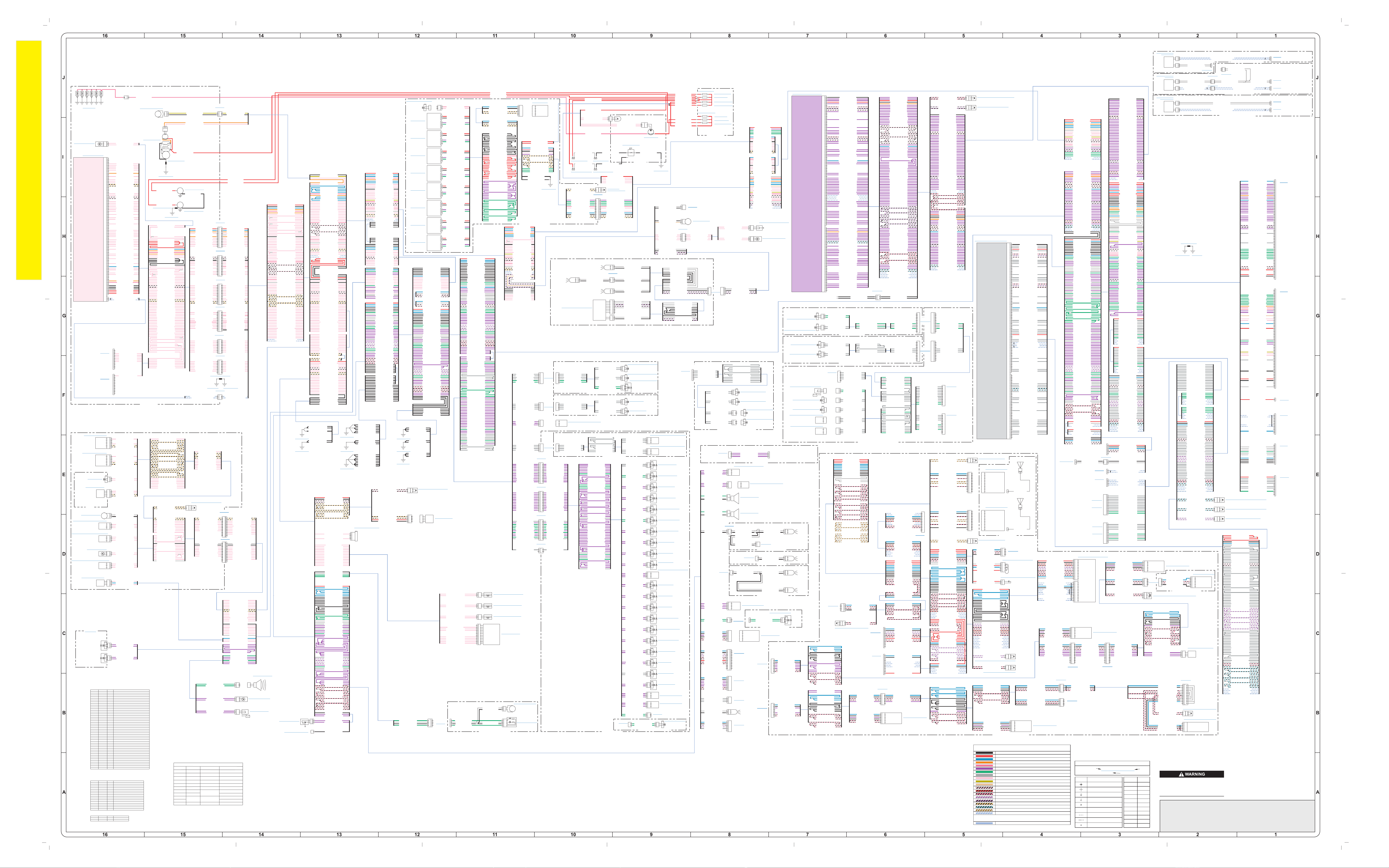

326 and 330 GC Excavator
Electrical System
MFJ20001-UP
HKP20001-UP
SCZ30001-40000
TML20001-30000
Volume 1 of 3: Cab Wiring and Product Link
Volume 2 of 3: Chassis and CAT Grade Control
Volume 3 of 3: Engine
PUBLICATIONS.CAT.COM
© 2022 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow”, the “Power Edge”
and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
Page 4

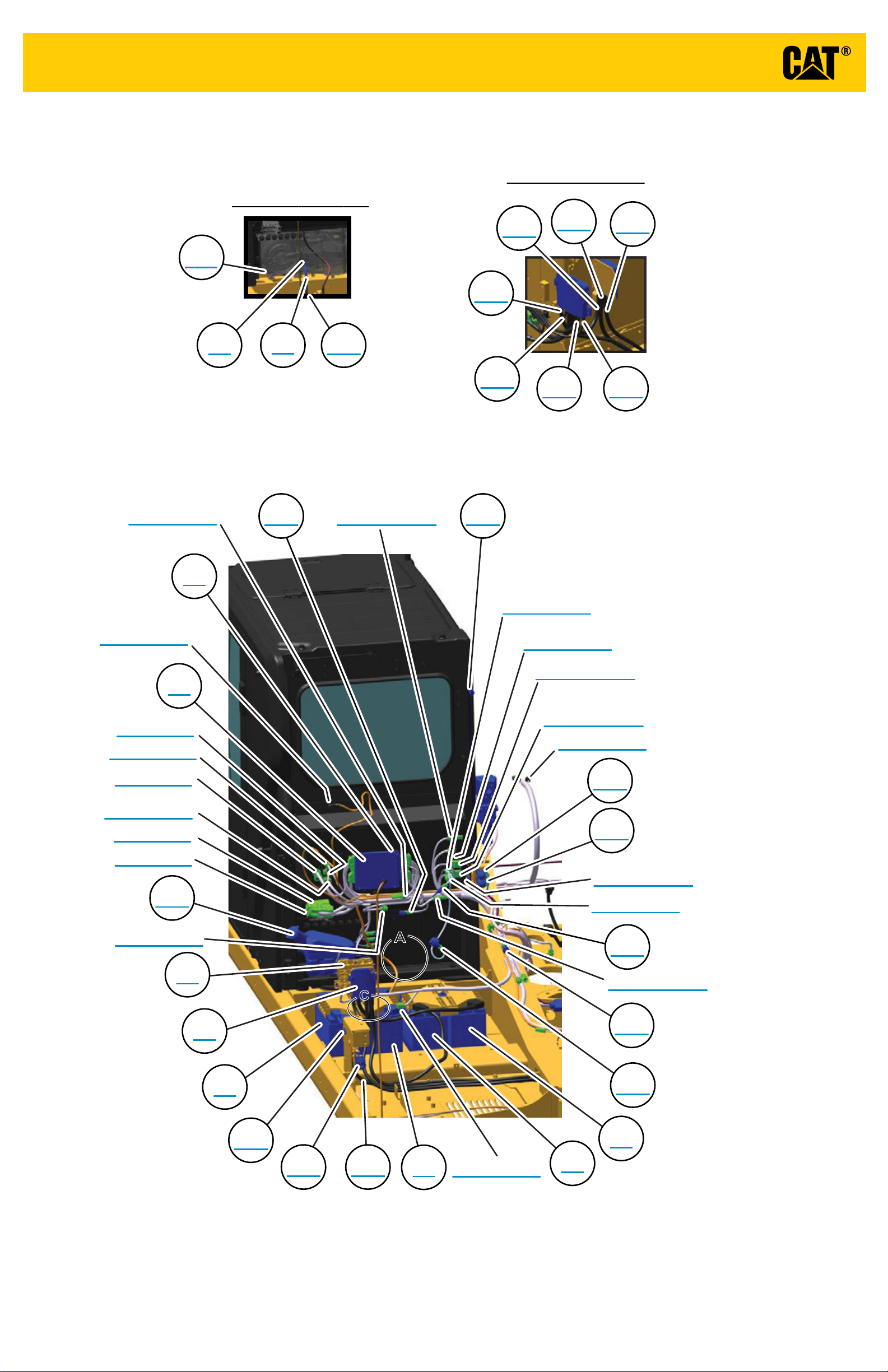

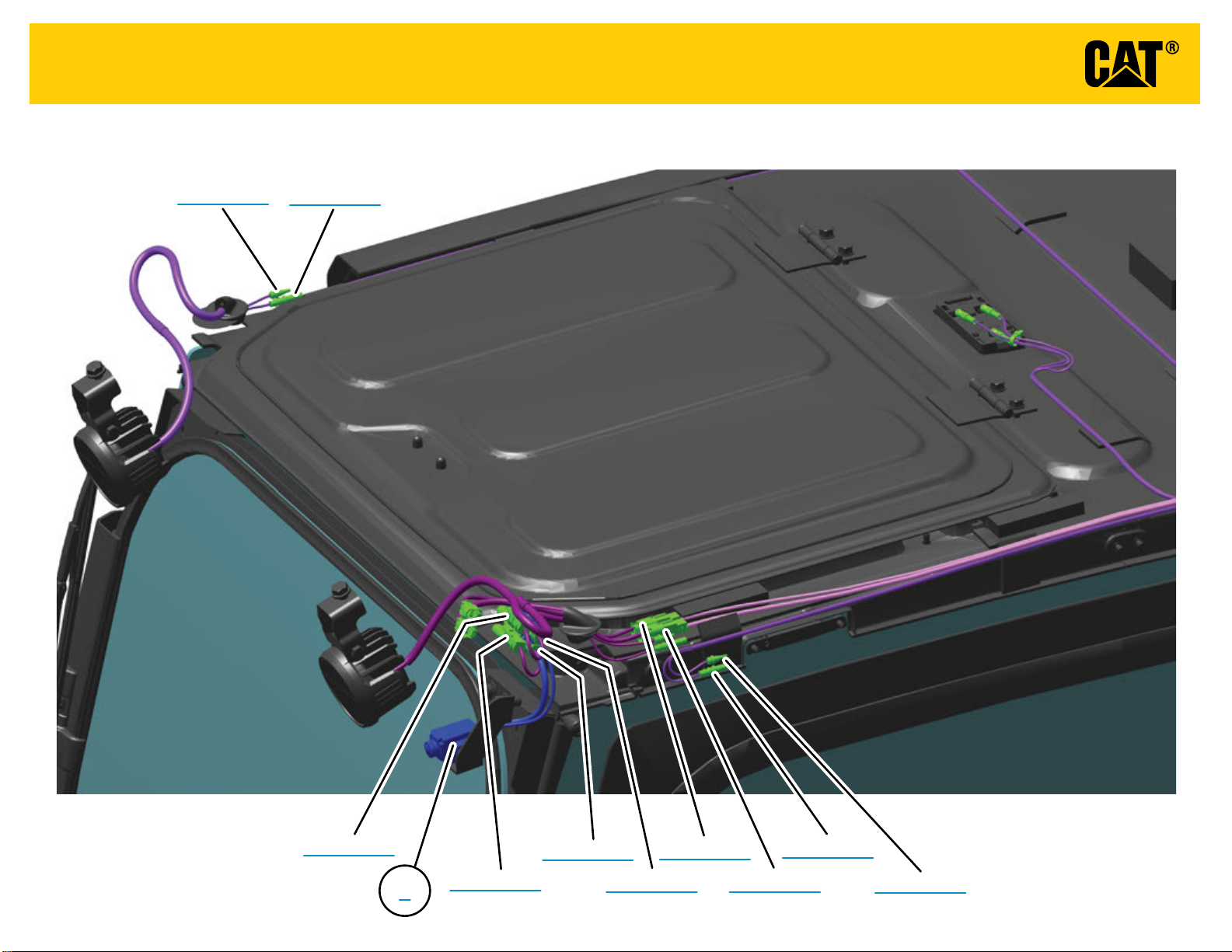

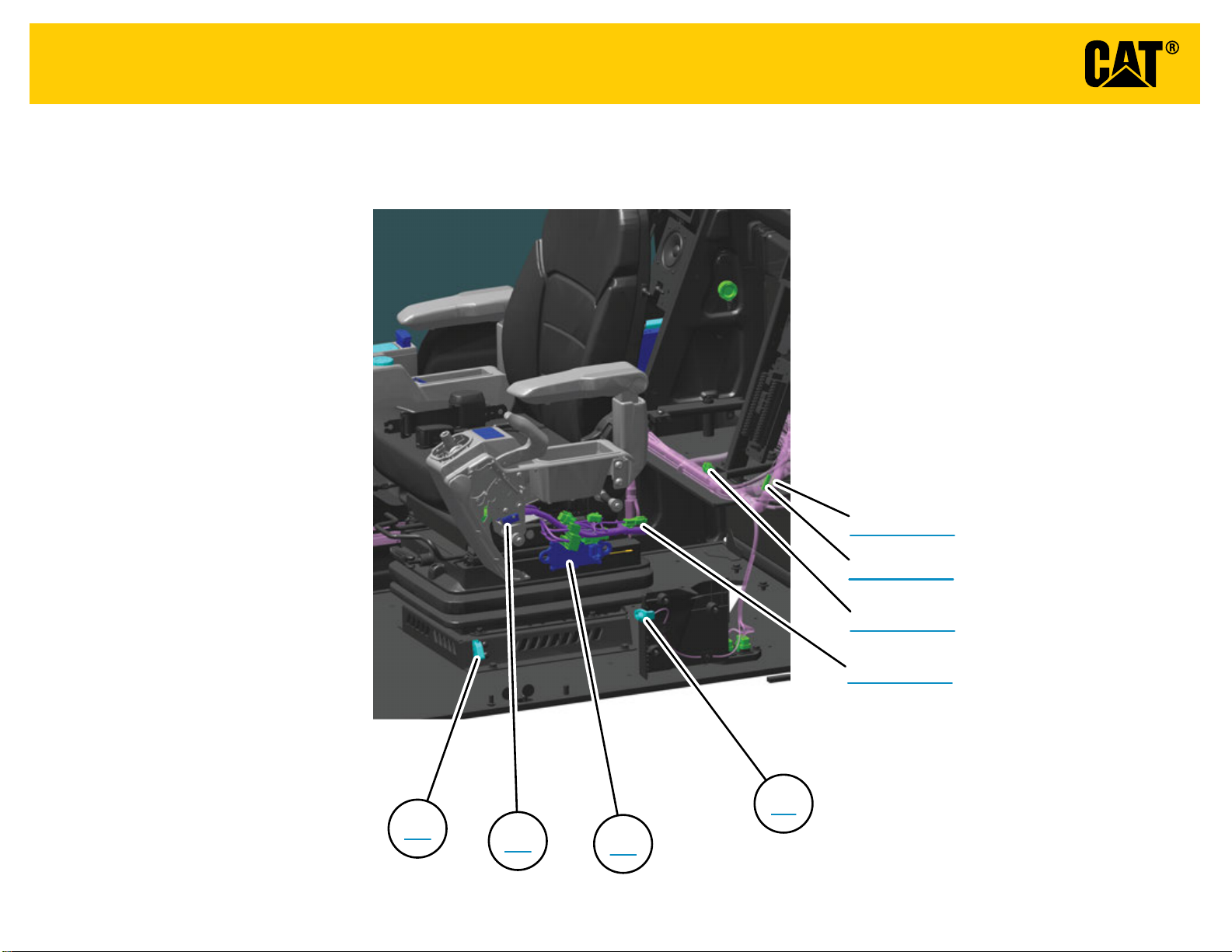

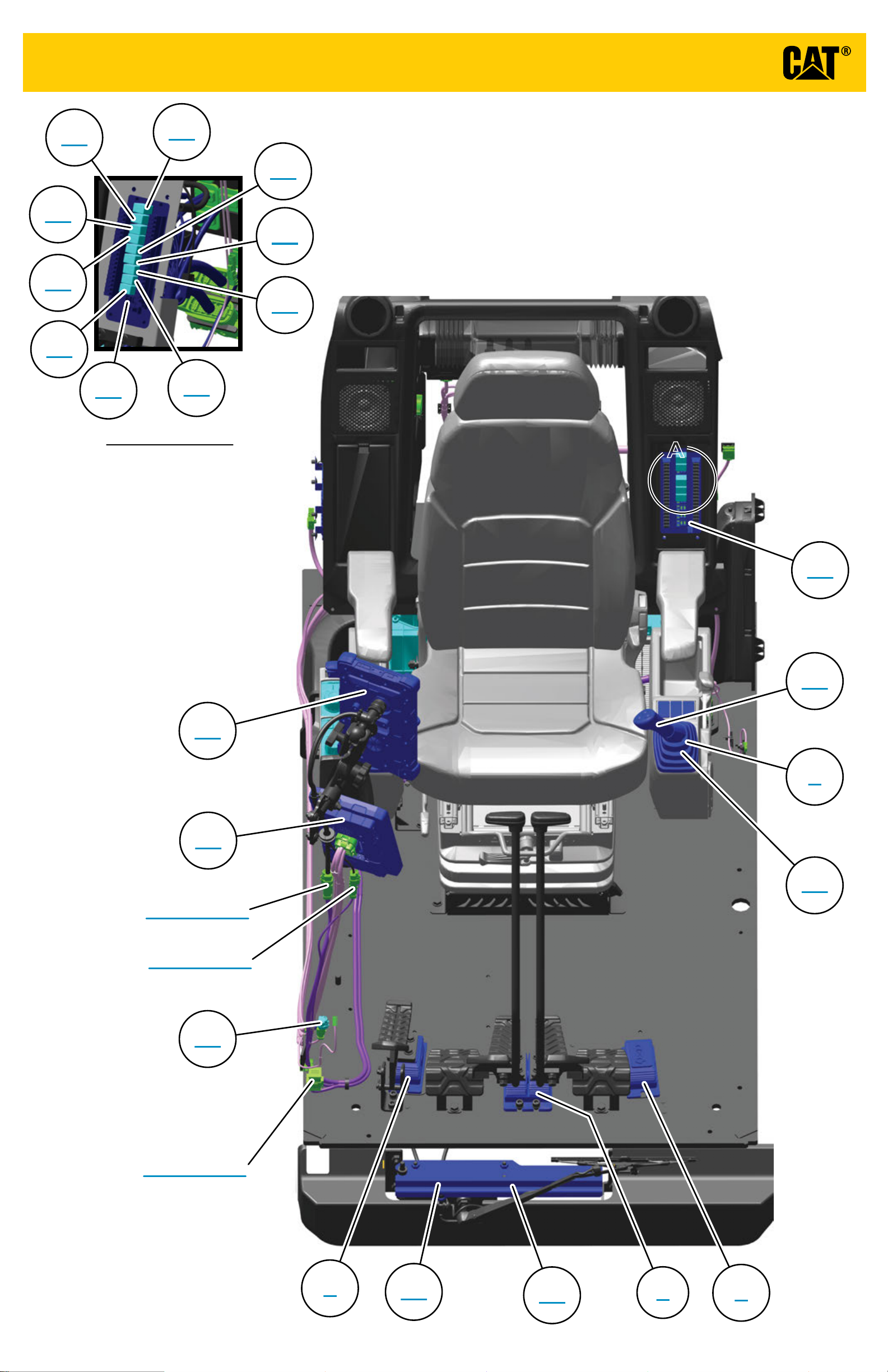

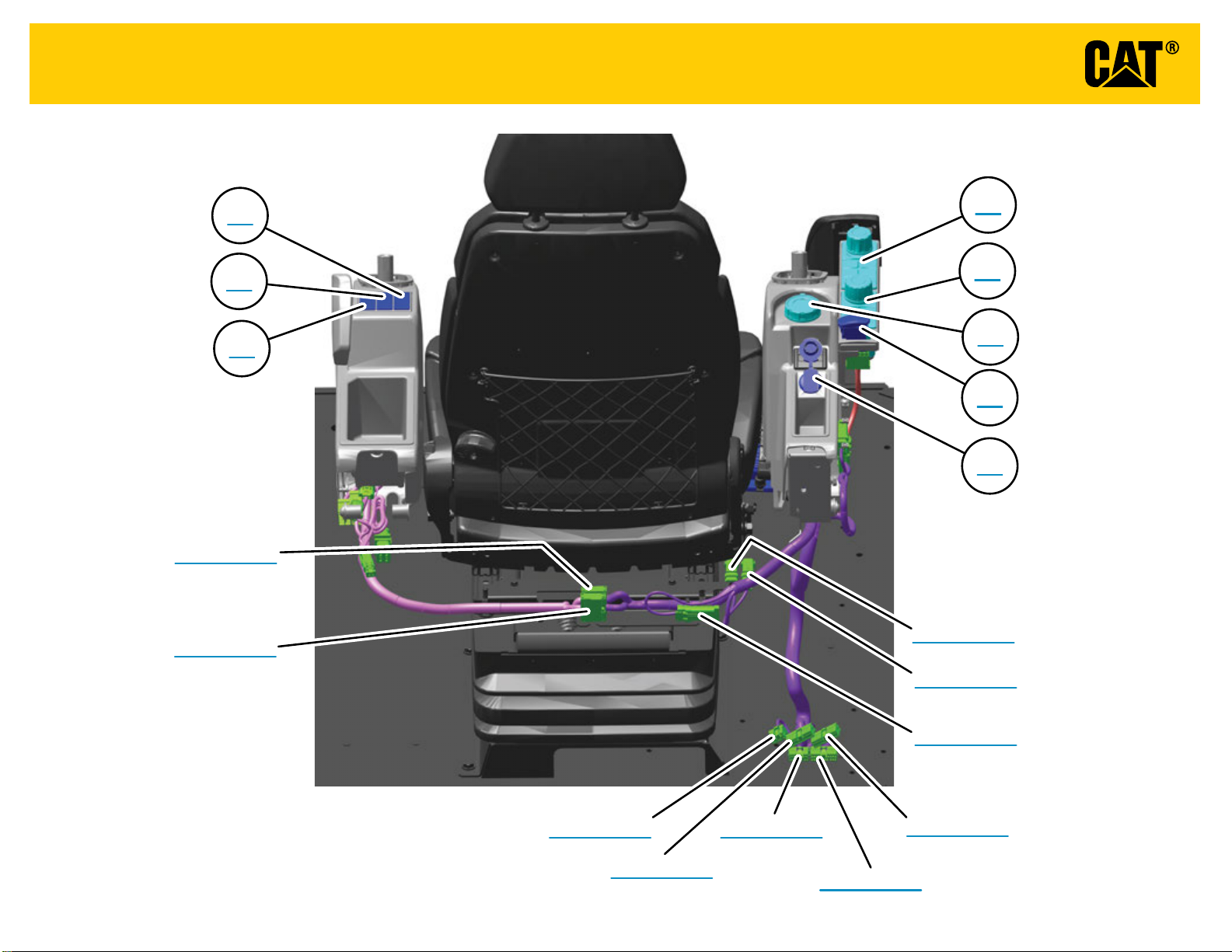

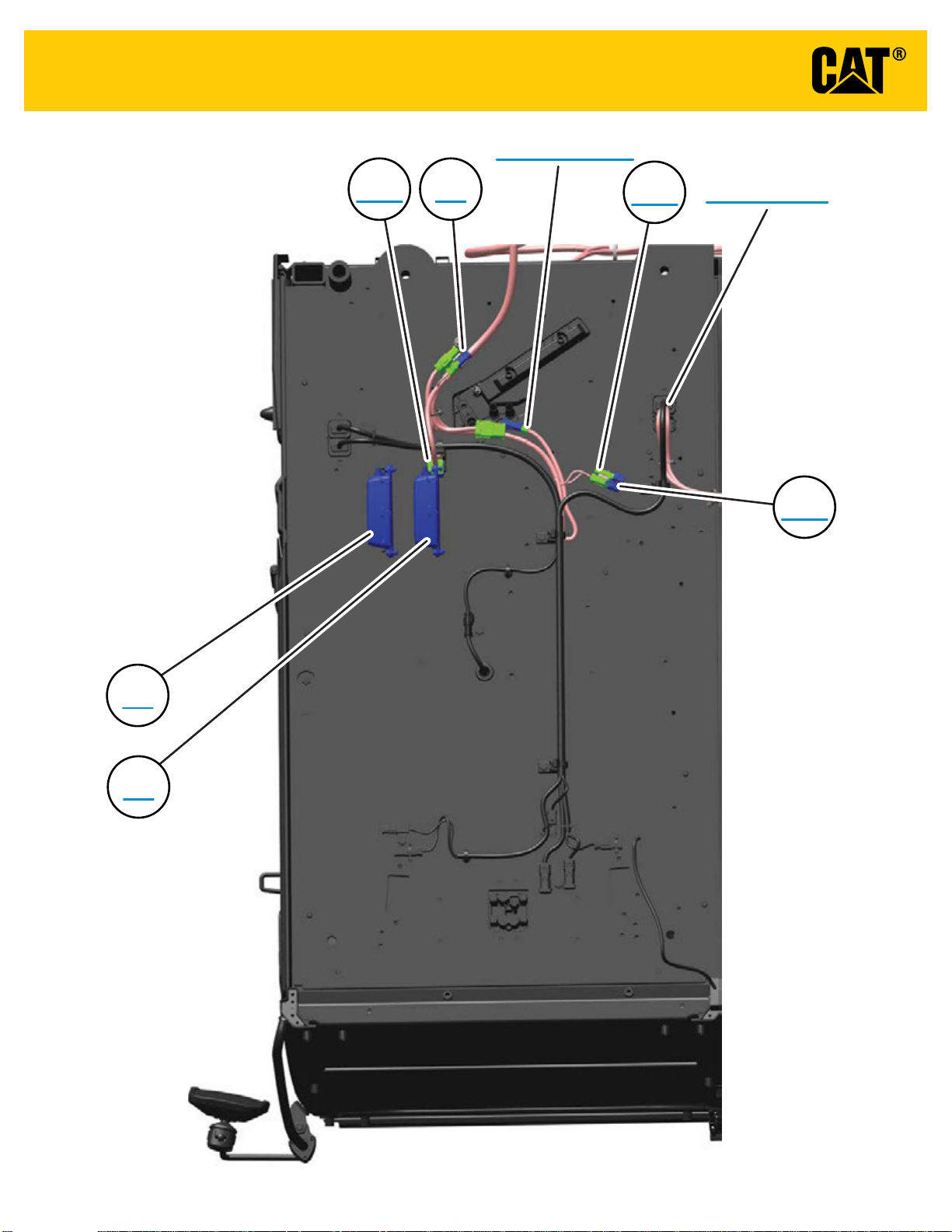

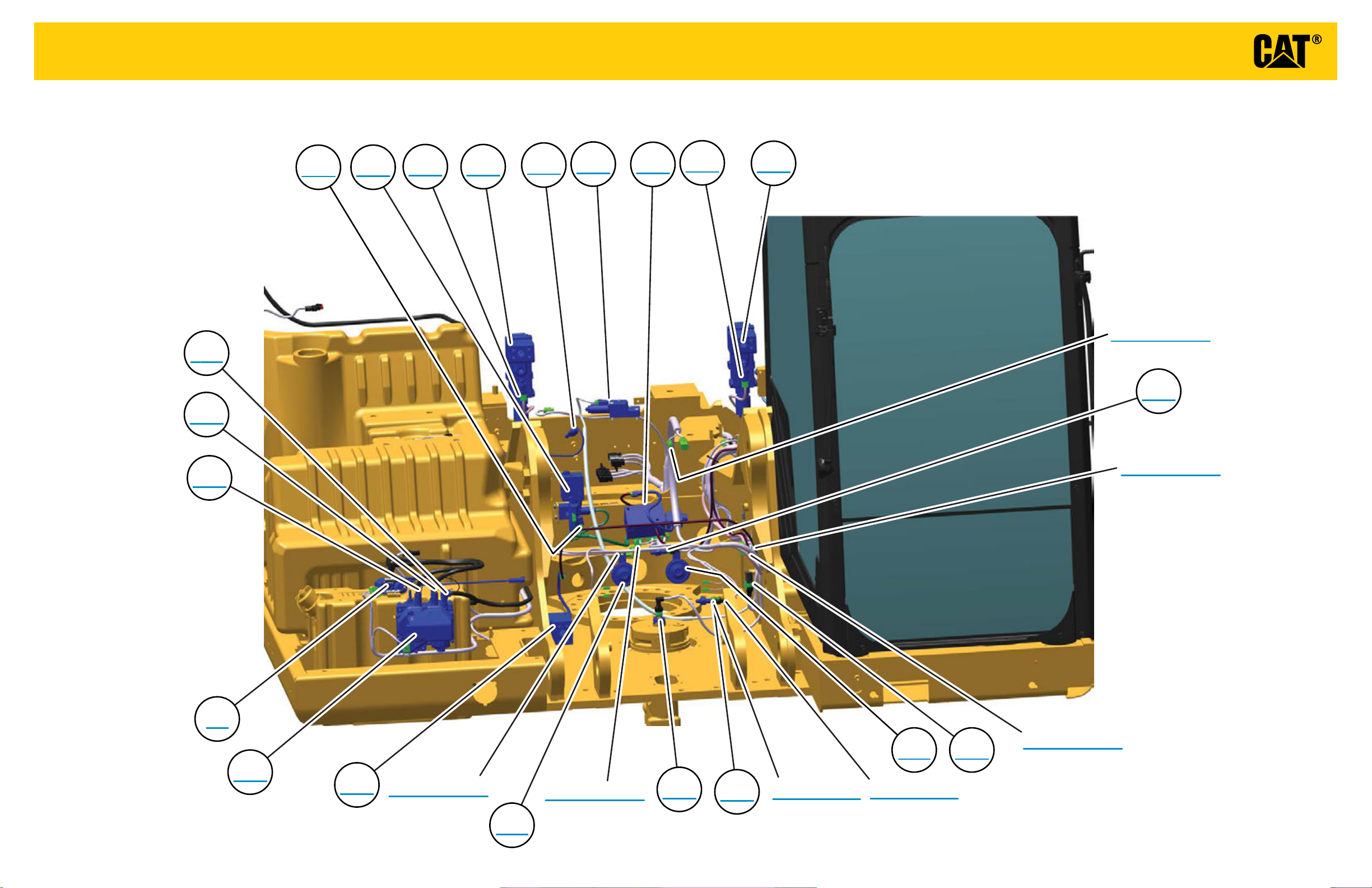

COMPONENT LOCATION

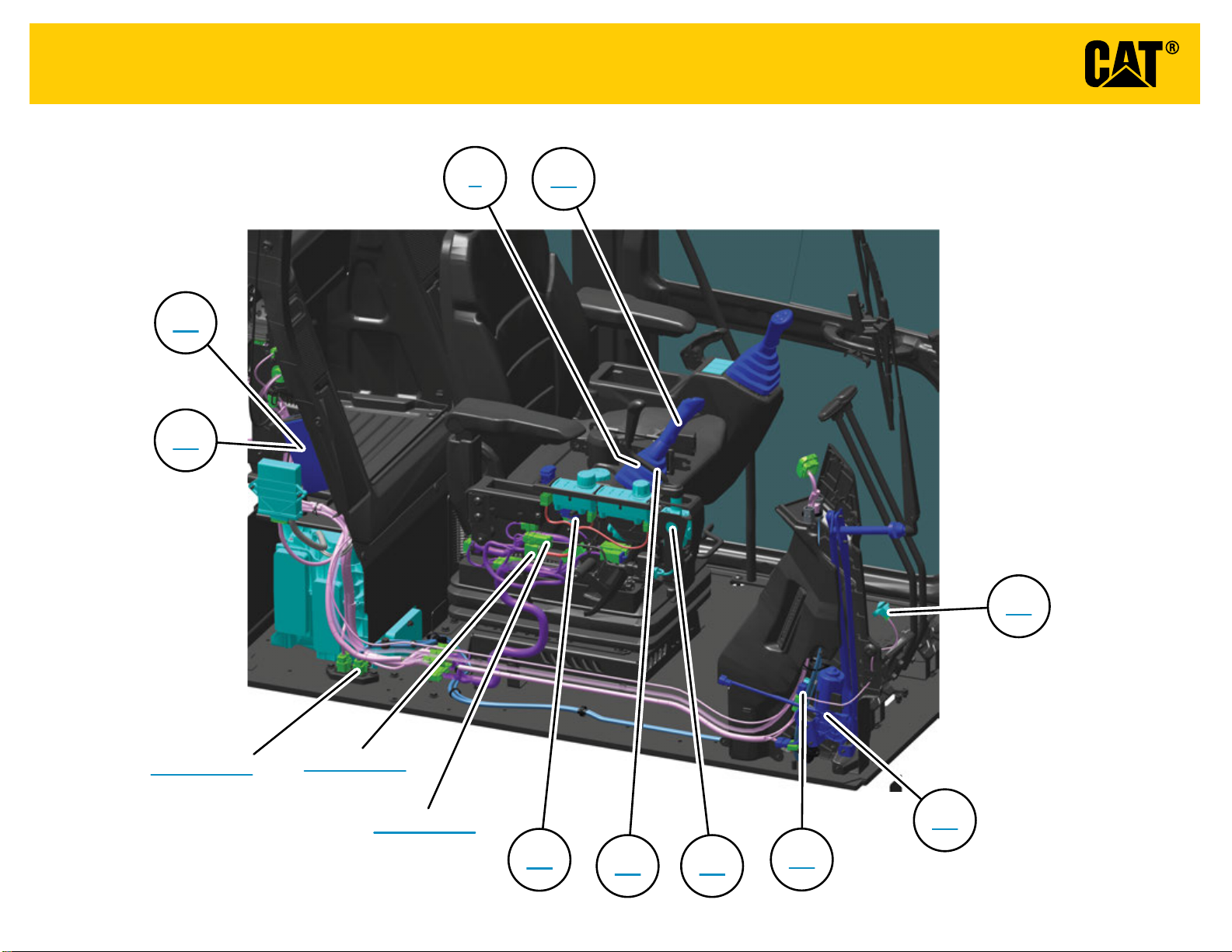

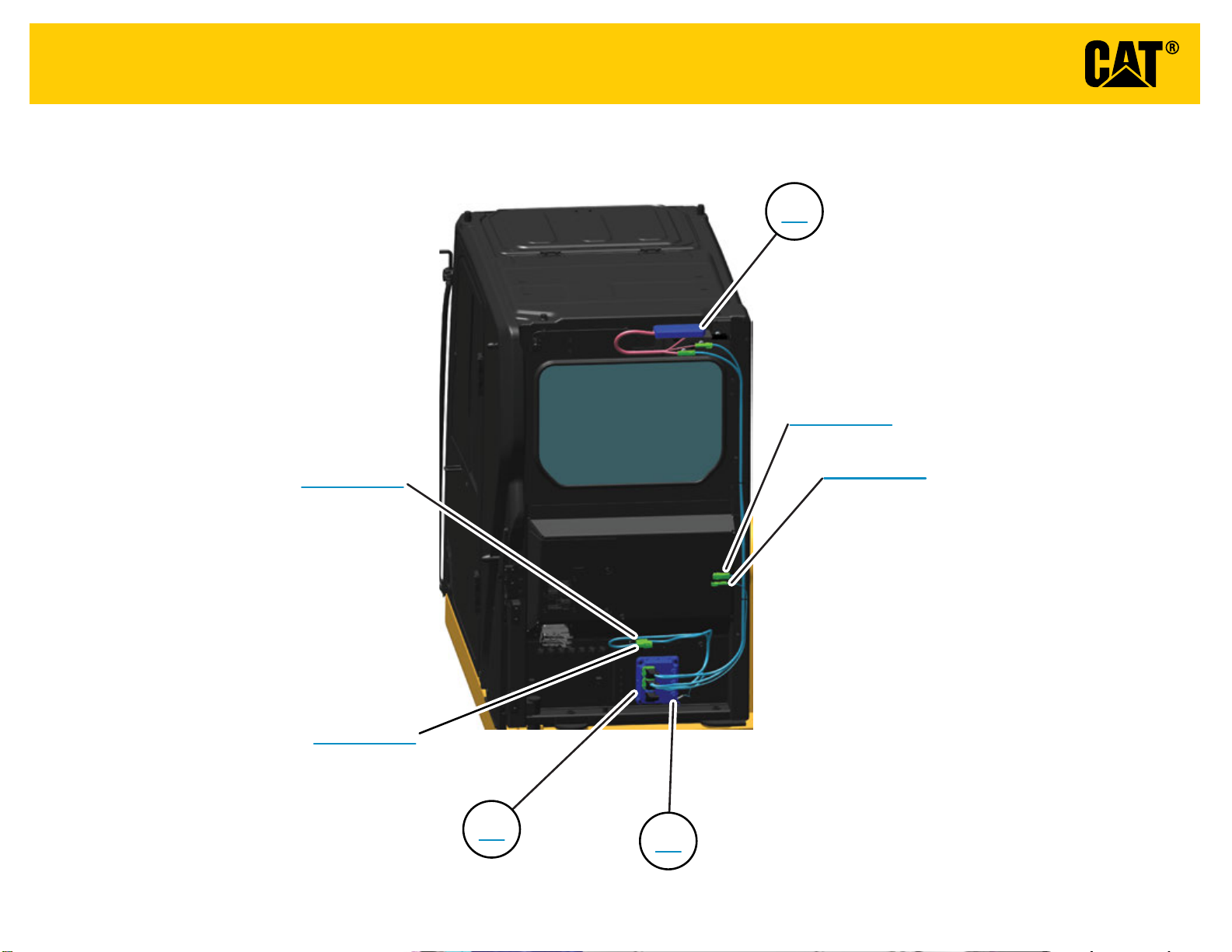

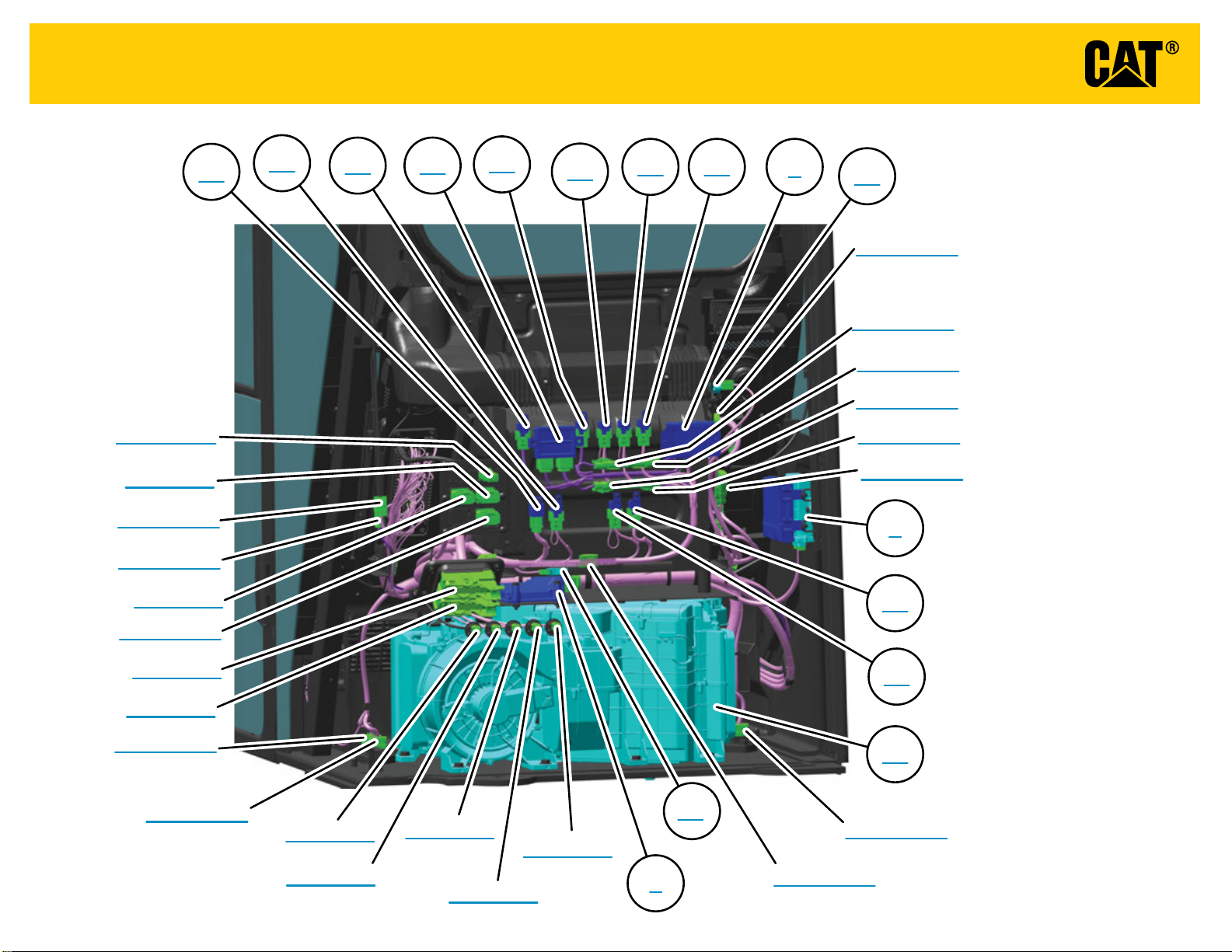

VOLUME 1 - CAB WIRING AND PRODUCT LINK
Component
Base As - Atch Blade Lever E-3
Base As - Fuse C-5 12
Base As - Joystick Left Hand G-2 1
Base As - Joystick Right Hand F-1 2
Camera - Atch Front View J-1 3
Control Gp - Atch Electric Pedal Left Hand I-5 4
Control Gp - Atch Electric Pedal Right Hand I-5 5
Control Gp - Cab (Body Control Module) D-16 6
Control Gp - Product Link I-14 62
Control Gp - Network Manager (A6N2) H-14 63
Control Gp - Radial Wiper C-15 7
Control Gp - Travel Pedal I-5 8
Converter - Power (12 V/10 A ) D-15 9
Diode - Main Relay B-9 10
Grip As - Atch Left Hand F-1 13
Grip As - Atch Right Hand E-1 14
Grip As - Left Hand F-2 15
Grip As - Right Hand E-2 16
Ground - Product Link F-14 64
HVAC D-15 17
Module Gp - Display J-3 18
Module Gp - Display-CGC Atch H-3 19
Module Gp - Jog Dial D-2 20
Module Gp - Rotary Dial D-2 21
Module Gp - MSS Key Reader Atch F-1 22
Motor - Atch Lower Wiper I-5 23
Motor - Atch Parallel Wiper H-5 24
Motor - Wiper D-7 25
Radio - CAN (Atch) C-15 26
Radio - DAB (Atch) B-15 27
Receptacle As - Connector (USB/AUX/MIC) E-2 28
Relay - Auxiliary 1 C-11 29
Schematic
Location
Machine
Location
51
Component
Relay - Auxiliary 2 B-11 30
Relay - Atch Ether Start Aid B-3 31
Relay - DEF Pump Reversing Valve B-4 32
Relay - Engine Key B-3 33
Relay - Engine Main Power B-4 34
Relay - Lifting Pump (C9) C-3 35
Relay - Main Power B-3 36
Relay - Priming Pump (C13) B-4 37
Relay - R1 Horn C-6 38
Relay - R10 Atch Autolube C-4 39
Relay - R2 Aftertreatment Power C-6 40
Relay - R3 Atch Refuel C-6 41
Relay - R4 Lifting Pump C-6 42
Relay - R5 Boom Lamp C-6 43
Relay - R6 Chassis Lamp C-4 44
Relay - R7 Atch Seat Belt C-4 45
Relay - R8 Atch Lower Wiper C-4 46
Relay - R9 Atch Caution C-4 47
Relay As - Solid State Driver Module B-11 48
Resistor - CAN (J1939) Data Link H-3 49
Resistor - Machine CAN Data Link I-3 50
Socket - Auxiliary Power (12 V) D-15 52
Socket - Auxiliary Power 12 V (Console) D-1 53
Switch - 2nd Shutdown I-5 54
Switch - Atch Beacon H-1 55
Switch - Atch OVLD H-1 56
Switch - Atch Quick Coupler G-1 57
Switch - Door Limit I-12 11
Switch - Neutral Start Limit F-2 58
Switch - Start D-2 59
Switch - Travel Alarm Atch D-1 60
Switch - Upper Window Limit B-9 61
Schematic
Location
Machine
Location
Page 5

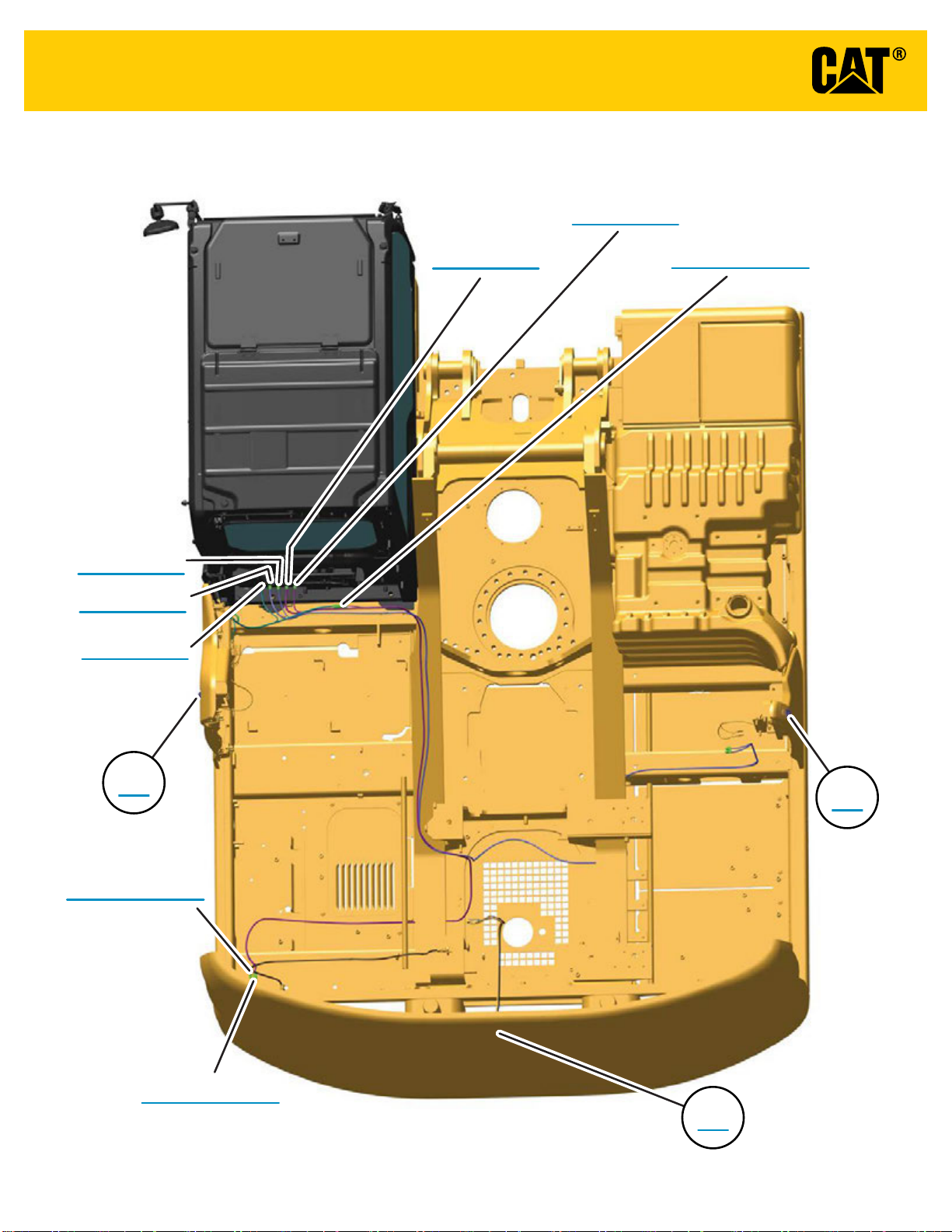

COMPONENT LOCATION

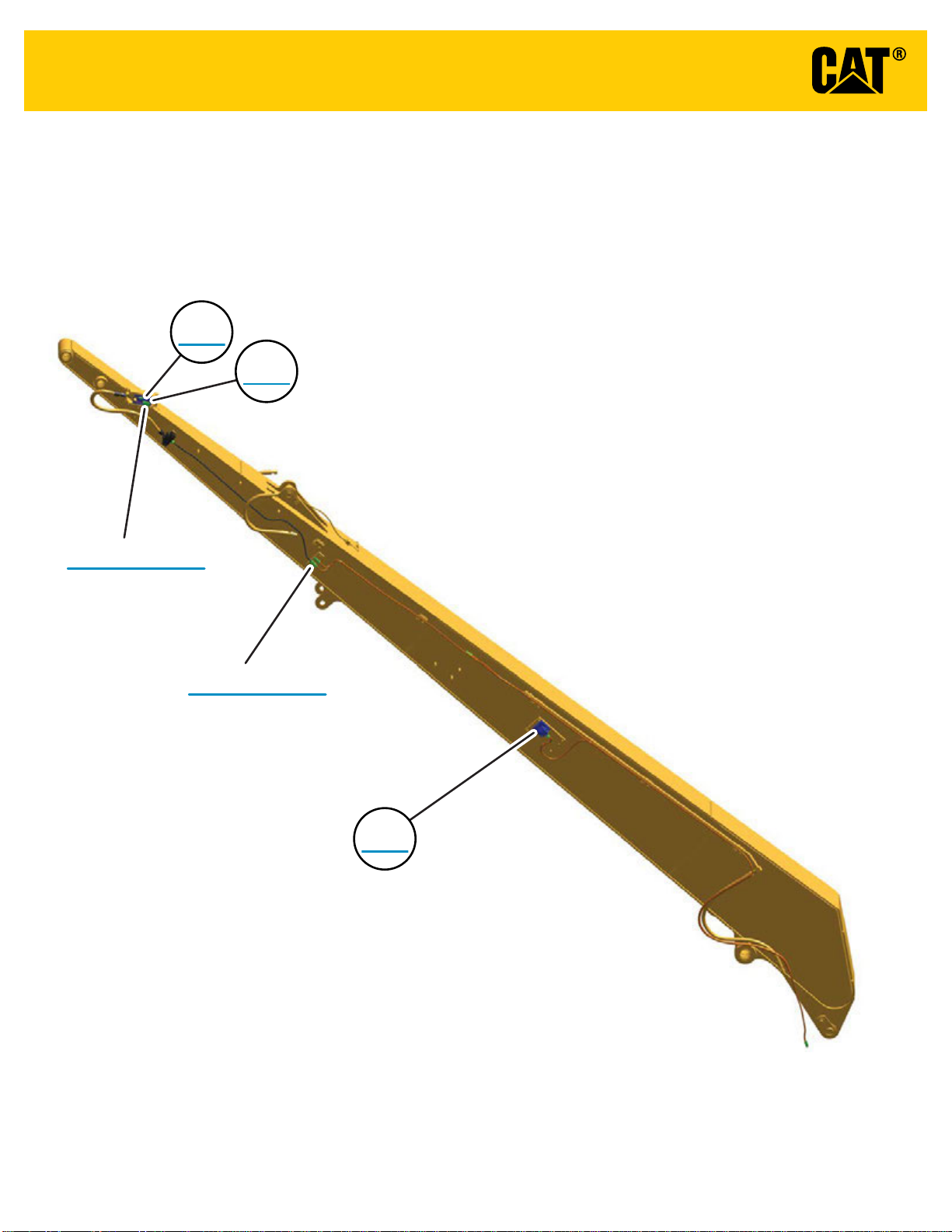

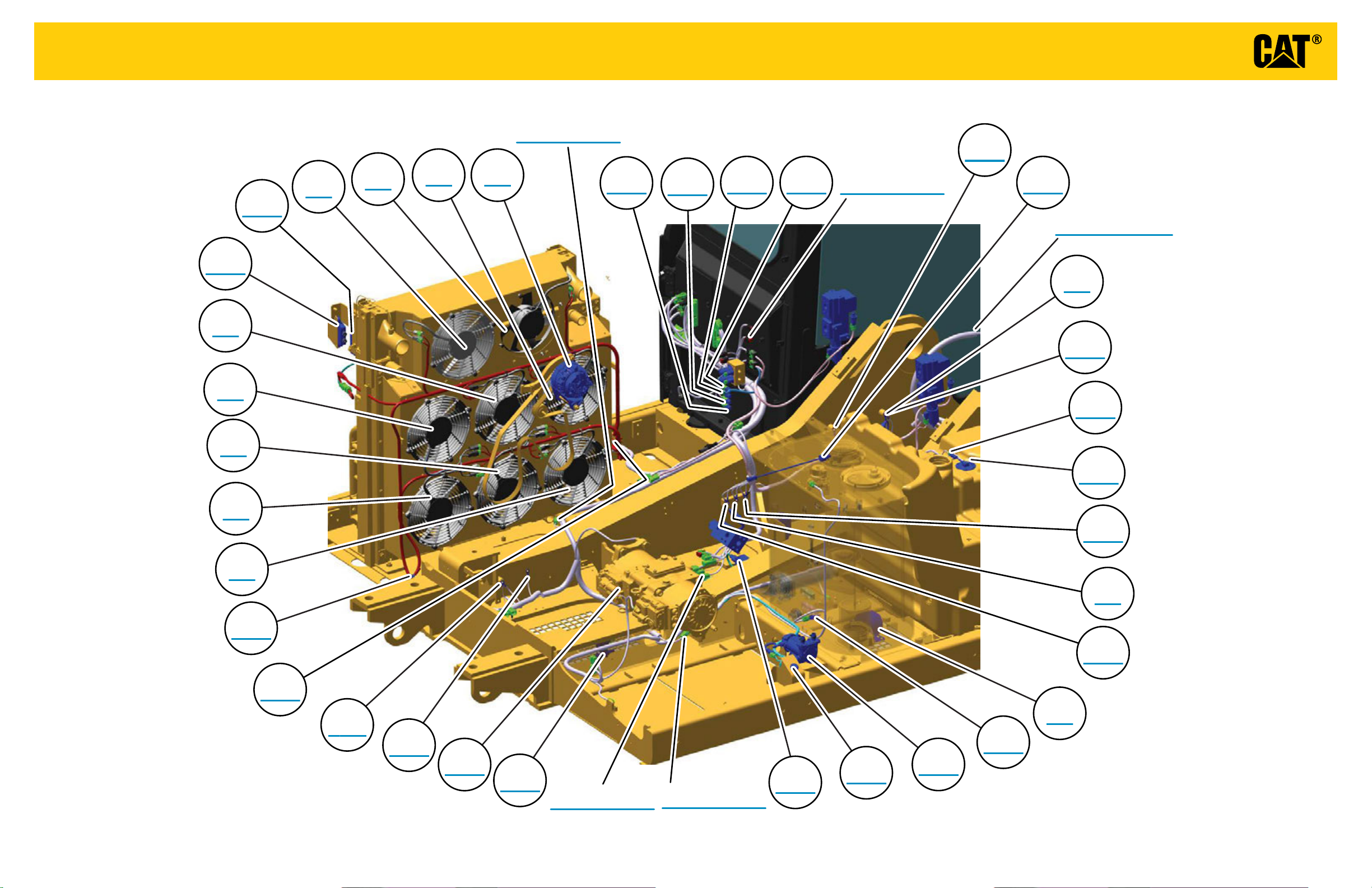

VOLUME 2 - CHASSIS AND CAT GRADE
CONTROL
Page 1 of 2
Component
Alarm - Travel (Atch) B-14
Alternator - Lower H-15 66 Sensor - Chassis IMU (Atch) C-8 145
Alternator - Upper I-15 67 Sensor - Air Inlet Temperature H-8 146
Battery - Left I-10 68 Sensor - Boom IMU (SLR) B-6 147
Battery - Left (Atch) I-10 69 Sensor - Boom IMU 3 C-3 148
Battery - Right I-10 70 Sensor - Bucket Cylinder Head Pressure (Atch) E-9 149
Battery - Right (Atch) I-10 71 Sensor - Squeeze Head Pressure (Atch) F-7 150
Camera Gp - Left Side View J-2 72 Sensor - Squeeze Rod Pressure (Atch) E-7 151
Camera Gp - Rear View J-2 73 Sensor - Temperature (ATAAC) I-16 152
Camera Gp - Right Side View J-2 74 Sensor - Boom Cylinder Head Pressure E-8 153
Control Gp - Machine (Primary) J-7 75 Sensor - Boom Cylinder Rod Pressure E-8 154
Control Gp - Machine (Secondary) H-5 76 Sensor - Bucket AMR (Atch) C-2 156
Control Gp - Engine I-16 77 Sensor - Bucket Cylinder Rod Pressure (Atch) E-9 157
Control Gp - Electronic EC520 D-3 78 Sensor - Bucket IMU for SLR B-2 158
Diode - GC System Power Relay D-4 81 Sensor - Fuel Pressure After Primary D-16 159
Fan As - Axial Control 1 I-12 83 Sensor - Fuel Pressure After Secondary D-16 160
Fan As - Axial Control 2 I-12 84 Sensor - Fuel Pressure Before Secondary D-16 161
Fan As - Axial Control 3 I-12 85 Sensor - Fuel Temperature D-16 162
Fan As - Axial Control 4 I-12 86 Sensor - Hydraulic Oil Temperature B-14 163
Fan As - Axial Control 5 I-12 87 Sensor - Laser Catcher (Atch) D-2 164
Fan As - Axial Control 6 H-12 88 Sensor - Pump 1 Pressure B-9 165
Fan As - Axial Control 7 H-12 89 Sensor - Pump 2 Pressure B-9 166
Fan As - Axial Control 8 H-12 90 Sensor - SCR Inlet NOx E-16 167
Fuse As - Alternator (Lower) I-8 270 Sensor - SCR Outlet NOx E-16 168
Fuse As - Alternator (Upper) J-8 271 Sensor - Soot J-10 169
Fuse As - Block 1 J-8 91 Sensor - Stick Cylinder Head Pressure D-9 141
Fuse As - Block 2 J-8 92 Sensor - Stick Cylinder Rod Pressure (Atch) F-10 170
Fuse As - Electric Fan 1 J-8 272 Sensor - Boom IMU 2 (SLR) B-4 155
Fuse As - Electric Fan 2 J-8 273 Sensor - Stick IMU D-2 171
Fuse As - Glow I-8 274 Sensor - Swing Angle C-8 172
Fuse As - Main J-8 275 Sensor - Water In Fuel D-16 219
Fuse As - PTU J-8 276 Socket - 24V E-4 173
Glow Plug J-16 93 Solenoid - A/C Compressor Clutch J-15 175
GPS - Receiver LH (Atch) E-5 94 Solenoid - Boom Down Electric Check (Atch) G-7 176
GPS - Receiver RH (Atch) E-5 95 Solenoid - Boom Up Electric Check (Atch) G-7 177
Ground - Cab H-2 98 Solenoid - DEF Injector E-16 79
Ground - Chassis 1 E-12 96 Solenoid - Heavy Lift (Atch) B-9 178
Ground - Chassis 2 E-12 105 Solenoid - Stem 1 Extend EPRV F-8 174
Ground - Chassis 3 E-12 106 Solenoid - Stem 1 Retract EPRV F-8 179
Ground - Chassis 4 E-13 107 Solenoid - Stem 2 Extend EPRV F-8 180
Schematic
Location
Machine
Location
65 Sender - Fuel Level B-14 143
Component
Schematic
Location
Machine
Location
Page 6
COMPONENT LOCATION
VOLUME 2 - CHASSIS AND CAT GRADE
CONTROL
Page 2 of 2
Component
Ground - Chassis 5 E-13
Ground - Chassis 6 E-13 108 Solenoid - Stem 3 Extend EPRV (Atch) G-7 182
Ground - Chassis 7 E-13 109 Solenoid - Stem 3 Retract EPRV (Atch) G-7 183
Ground - Chassis 8 E-13 11 0 Solenoid - Variable Relief 1 (Atch) F-7 184
Ground - Chassis 9 H-15 111 Solenoid - Variable Relief 2 (Atch) F-7 185
Ground - Chassis 10 I-15 103 Solenoid - EH Boom 2 Up D-9 186
Ground - Chassis 11 I-10 100 Solenoid - EH Boom Down E-9 187
Ground - Chassis 12 I-9 102 Solenoid - EH Boom Up C-9 188
Ground - Chassis 13 F-14 104 Solenoid - EH Bucket Curl E-9 189
Ground - Chassis 14 H-2 101 Solenoid - EH Bucket Un-Curl C-9 190
Ground - Engine F-15 112 Solenoid - EH Stick 2 In C-9 191
Ground - Sender Fuel Level B-14 144 Solenoid - EH Stick In C-9 192
Heater - DEF Pressure Line C-11 11 8 Solenoid - EH Stick Out D-9 193
Heater - DEF Return Line C-11 142 Solenoid - EH Swing Left D-9 194
Heater - DEF Suction Line C-11 213 Solenoid - EH Swing Right C-9 195
Header - DEF Tank D-12 80 Solenoid - EH Travel Left Forward C-9 196
Horn - High Tone E-8 116 Solenoid - EH Travel Left Reverse D-9 197
Horn - Low Tone E-8 117 Solenoid - EH Travel Right Forward C-9 198
Module - Solid State Driver G-10 11 9 Solenoid - EH Travel Right Reverse E-9 199
Motor - Starter I-15 120 Solenoid - Ether Start Aid J-12 207
Motor - Washer H-8 121 Solenoid - Fine Swing (Atch) C-7 200
Pump - DEF Dosing C-11 122 Solenoid - Hydraulic Lock D-9 201
Pump - Fuel Lifting D-16 123 Solenoid - Quick Coupler Bypass Cut (Atch) F-9 202
Pump - Refueling (Atch) B-11 124 Solenoid - Quick Coupler Lock/Unlock 1 (Atch) F-9 203
Pump Gp - Hydraulic C-16 125 Solenoid - Quick Coupler Lock/Unlock 2 (Atch) F-9 204
Relay - GC System Power D-4 126 Solenoid - Straight Travel D-9 205
Relay - Glow I-9 127 Solenoid - Travel Speed E-9 206
Resistor - CAN for Data Sharing Network 1 E-2 128 Solenoid - Stick Unload C-9 208
Resistor - CAN for Data Sharing Network 2 E-2 129 Solenoid - Swing Brake E-9 209
Resistor - CAN (J1939 for CGC) Data Link J-5 130 Solenoid - Swing Priority B-9 210
Resistor - CAN (J1939 for CGC) Data Link 2 C-2 222 Solenoid - VAB Down F-9 211
Resistor - CGC CAN Data Link 1 C-7 131 Solenoid - VAB Up F-9 212
Resistor - CAN (J1939) Data Link E-12 132 Strap As - PE Alternator H-15 11 5
Resistor - CGC CAN Data Link C-5 133 Strap As - Cab H-2 99
Resistor - CGC CAN Data Link 2 B-2 134 Strap As - Engine I-15 11 3
Resistor - Engine CAN Data Link E-15 135 Strap As - Engine 1 F-15 11 4
Resistor - Engine CAN Data Link 2 I-10 221 Switch - Air Filter Restriction H-8 214
Resistor - GPS CAN LH E-5 136 Switch - Hammer Return Filter F-7 215
Resistor - GPS CAN RH D-5 137 Switch - Disconnect I-9 216
Resistor - Machine CAN Data Link J-5 138 Switch - Hydraulic Oil Filter B-14 217
Resistor - Rotor Tilt CAN Data Link D-2 139 Switch - Refueling (Atch) B-11 218
Resistor - Rotor Tilt CAN Data Link 2 C-5 140 Valve - Coolant Diverter D-13 220
Sensor - DPF In/SCR In Temperature E-16 82
Schematic
Location
Machine
Location
97 Solenoid - Stem 2 Retract EPRV F-8 181
Component
Schematic
Location
Machine
Location
Page 7
COMPONENT LOCATION

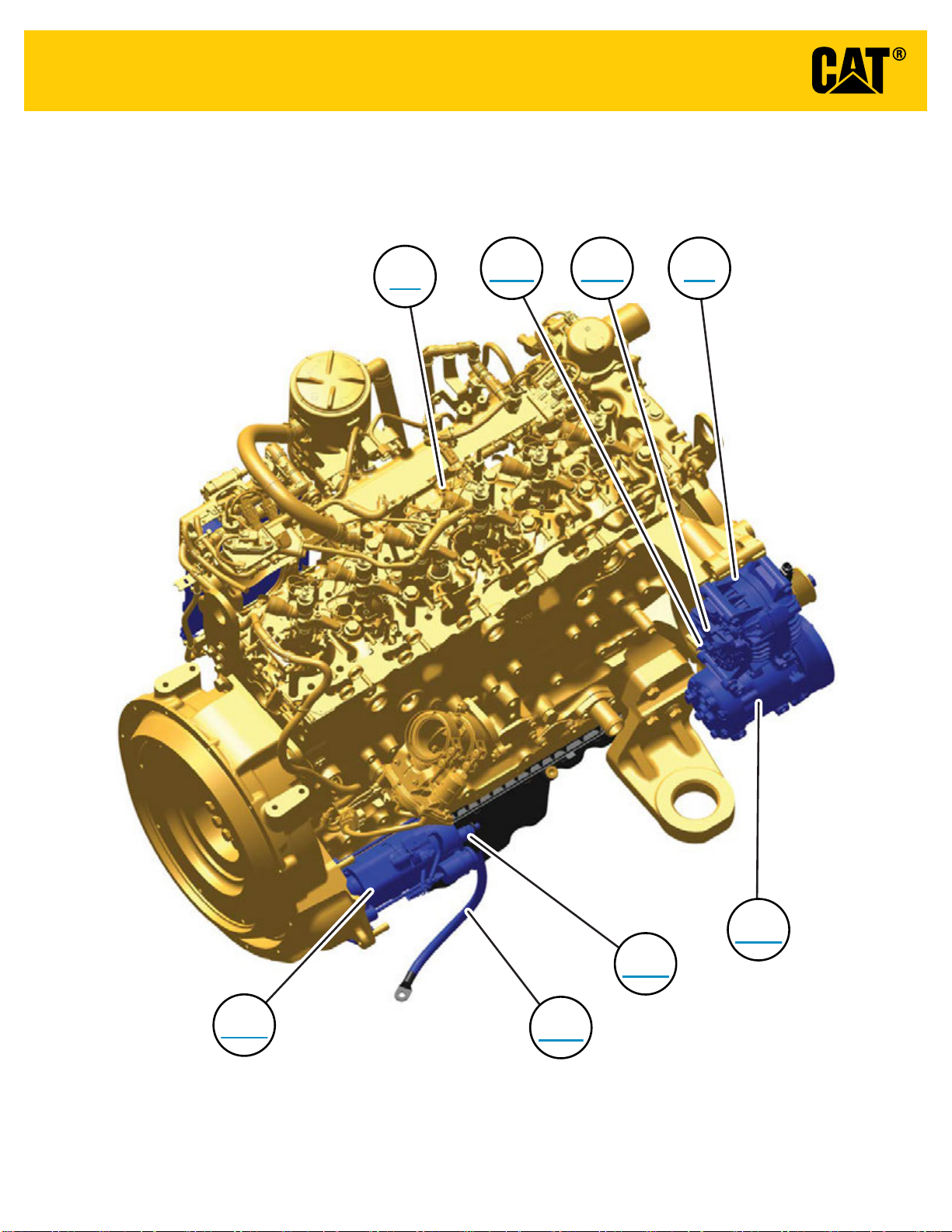

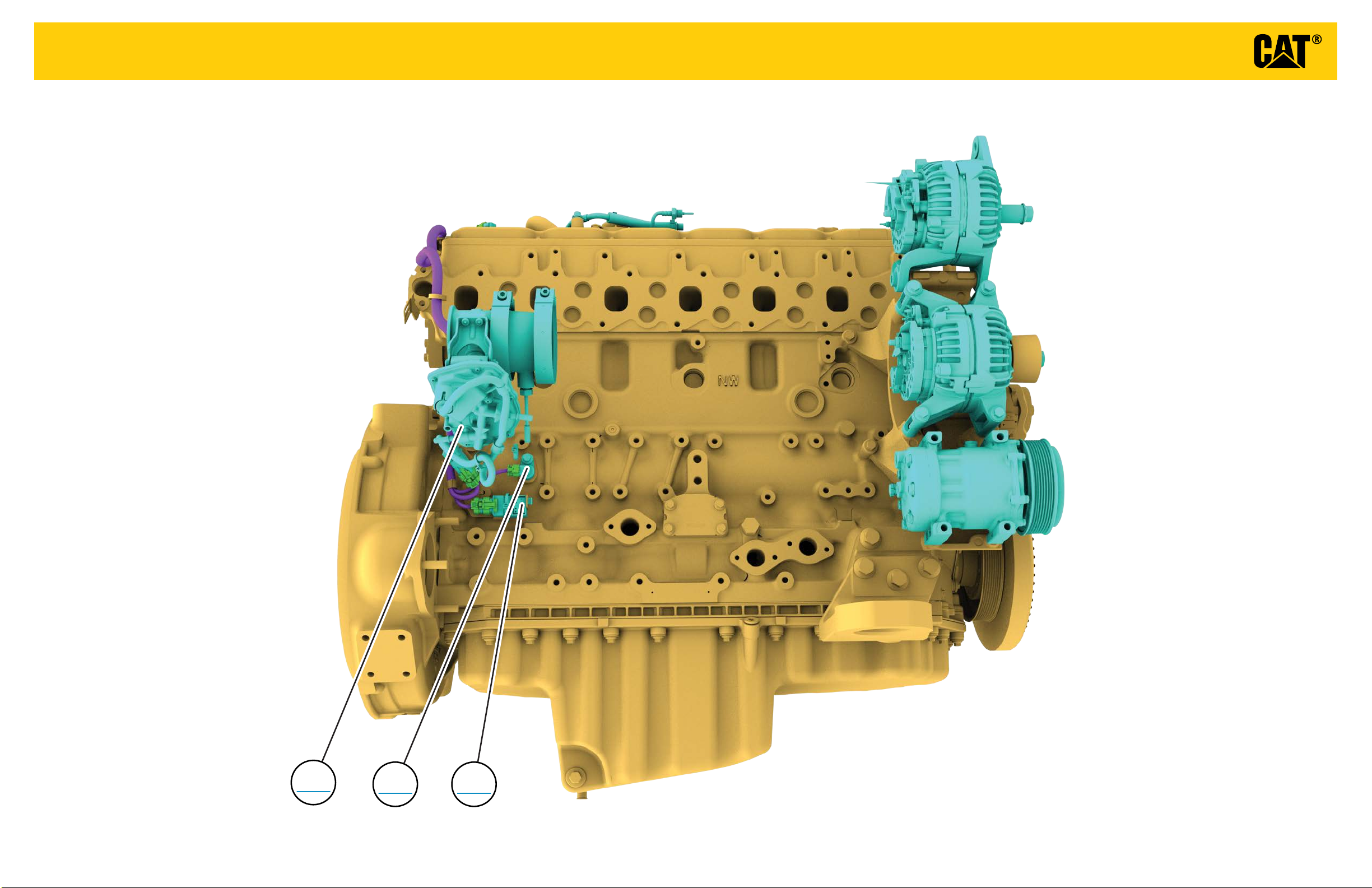

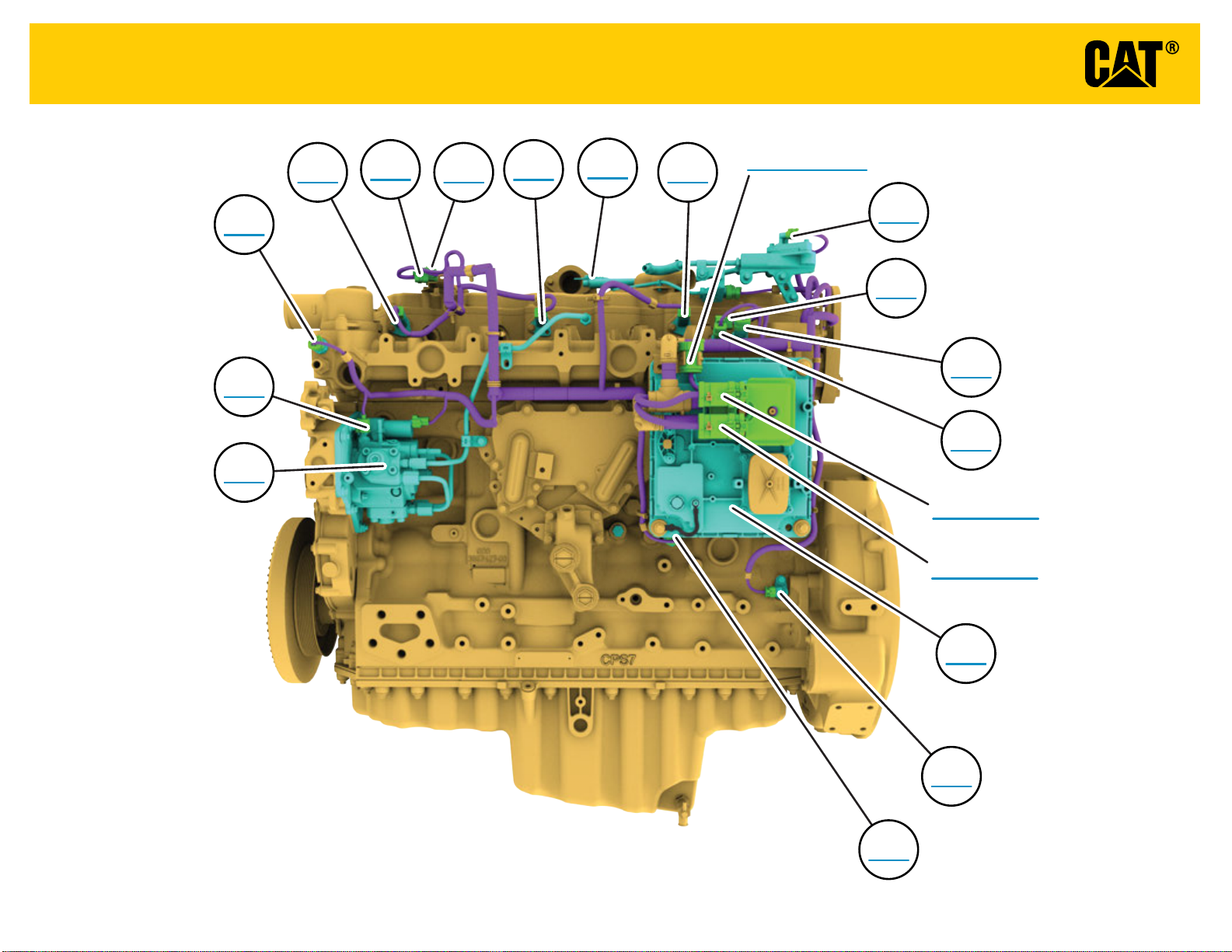

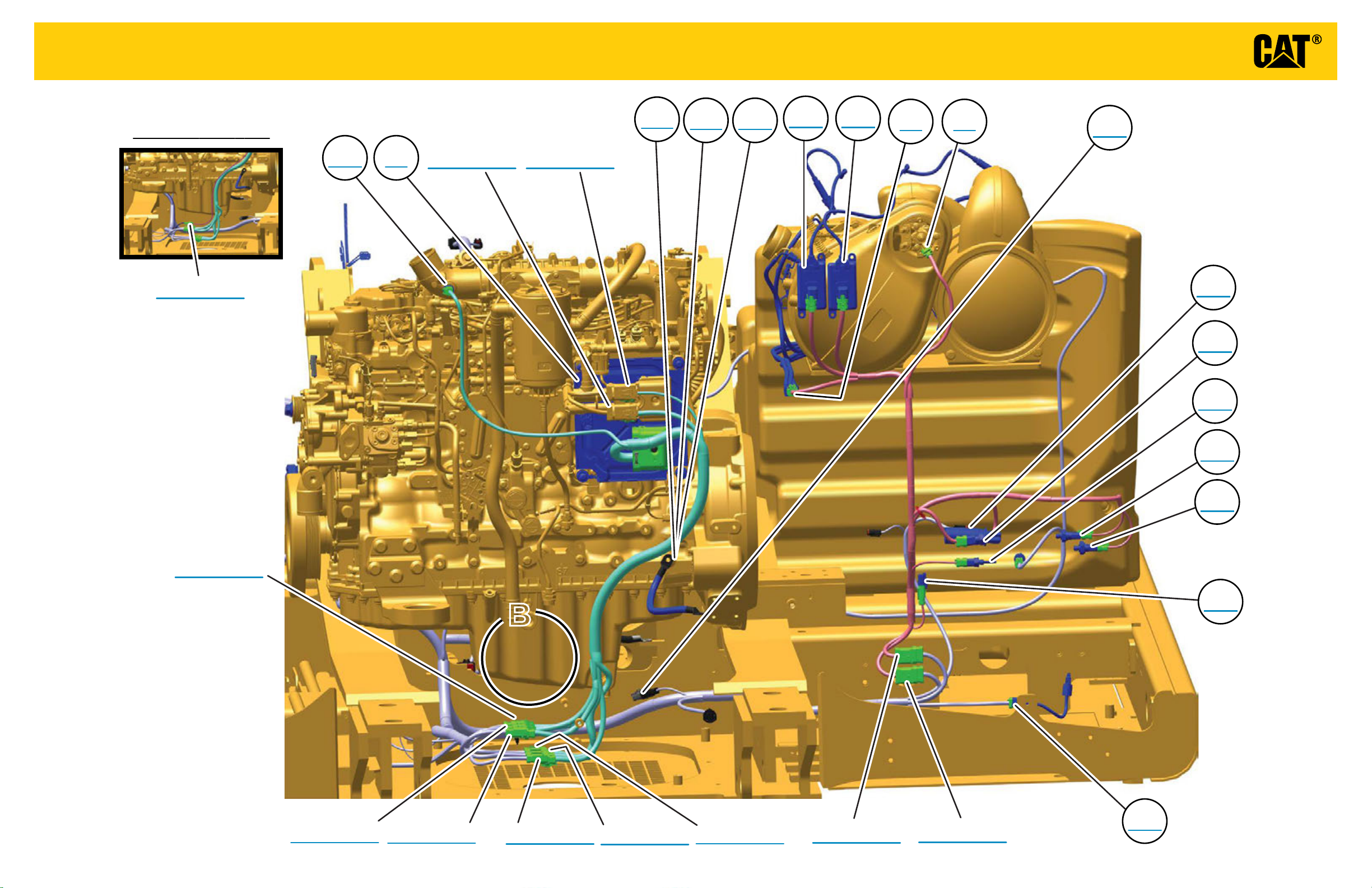

VOLUME 3 - ENGINE
Component
Control Gp - Engine
Injectors 1 & 2
Injectors 3 & 4
Injectors 5 & 6
Pump Gp - Fuel Injector
Sensor - CAM Speed
Sensor - Crank Speed
Sensor - EGR Differential Pressure
Sensor - EGR Inlet Temperature
Schematic
Location
E-6
E-3 252
E-3 253
E-3 254
D-3 255
C-3 256
C-3 257
D-2 258
D-2 259
Machine
Location
251
Sensor - Engine Coolant Temperature
Sensor - Engine Inlet Manifold Pressure
Sensor - Engine Inlet Manifold Temperature
Sensor - Engine Oil Pressure
Sensor - Fuel Pressure
Sensor - Fuel Temperature
Sensor - Turbo Out Temperature
Solenoid - Smart Wastegate
Valve EGR
Valve Gp - Exhaust Gas (Back Pressure)
D-2 260
E-2 261
E-2 262
E-2 263
C-3 264
D-3 265
B-2 266
B-2 267
C-2
C-2
268
269
Page 8
CONNECTOR LOCATION
VOLUME 1 - CAB WIRING AND PRODUCT LINK
Connector Number
CONN 1
CONN 2 I-15
CONN 3 I-15
CONN 4 I-15
CONN 5 I-15
CONN 6 H-15
CONN 7 F-15
CONN 8 E-15
CONN 9 E-15
CONN 10 E-15
CONN 11 D-15
CONN 12 D-15
CONN 13 B-15
CONN 14 J-12
CONN 15 I-12
CB Radio Ready (12V) Atch
Service Port Connector
Schematic
Location
I-15
Connector Number
CONN 30 E-7
CONN 31 H-5
CONN 32 H-5
CONN 33 G-5
CONN 34 D-4
CONN 35 E-4
CONN 36 E-4
CONN 37 E-4
CONN 38 E-4
CONN 39 F-4
CONN 40 G-4
CONN 41 J-2
CONN 42 J-2
CONN 43 I-2, J-2
CONN 44 I-2, J-2
Seat Belt Switch Atch
Seat Heater Atch
Air Suspension Atch
Schematic
Location
CONN 16 B-12
CONN 17 B-12
CONN 18 B-12
CONN 19 B-12
CONN 20 B-12
CONN 21 I-9
CONN 22 H-8
CONN 23 I-8
CONN 24 I-8
CONN 25 I-8
CONN 26 G-7
CONN 27 F-6
CONN 28 F-7
CONN 29 F-7
The connectors shown in this chart are for harness to harness connectors. Connectors that join a harness to a
Aux Connector 1
Aux Connector 2
Aux Connector 4
Aux Connector 3
component are generally located at or near the component. See the Component Location Chart.
CONN 45 I-2
CONN 46 H-2, I-2
CONN 47 G-2
CONN 48 I-1
CONN 49 I-1
CONN 50 I-2
CONN 51 I-2
CONN 52 D-7
CONN 53 D-7
CONN 54 H-16
CONN 55 H-16
CONN 56 H-16
CONN 57 G-16
Page 9
CONNECTOR LOCATION
VOLUME 2 - CHASSIS AND CAT GRADE
CONTROL
Connector Number
CONN 1
CONN 2 J-1
CONN 3 J-1
CONN 4 J-1
CONN 5 J-1
CONN 6 I-1
CONN 7 G-1
CONN 8 F-1
CONN 9 E-1
CONN 10 E-1
CONN 11 F-1 CONN 99 D-8
CONN 22 D-6 CONN 100 D-8
CONN 54 E-3 CONN 101 C-8
CONN 55 E-3 CONN 102 C-6, C-8
CONN 56 E-3 CONN 103 B-8, C-8
CONN 57 C-6 CONN 104 C-7
CONN 70 G-16 CONN 105 G-6
CONN 71 F-16 CONN 106 G-6, D-3
CONN 72 J-15 CONN 107 G-6, E-3
CONN 73 H-15 CONN 108 F-5, E-3
CONN 74 H-15 CONN 109 F-5, D-3
CONN 75 G-15 CONN 110 D-4
CONN 76 G-15 CONN 111 B-6
CONN 77 G-15 CONN 112 E-3
CONN 78 G-15 CONN 113 C-4
CONN 79 F-15 CONN 114 C-3
CONN 80 E-14 CONN 115 B-4
CONN 81 D-14 CONN 116 D-3, B-4
CONN 82 B-12 CONN 117 B-2
CONN 83 I-10 CONN 118 J-2
CONN 84 H-10 CONN 119 J-2
CONN 85 F-10 CONN 120 J-2
CONN 86 F-10 CONN 121 B-8
CONN 87 E-10 CONN 122 B-8
Schematic
Location
J-1
Connector Number
CONN 88 E-10
CONN 89 E-10
CONN 90 D-10
CONN 91 D-10
CONN 92 B-9
CONN 93 F-7, F-9
CONN 94 H-9
CONN 95 H-8
CONN 96 G-8
CONN 97 E-8
Schematic
Location
The connectors shown in this chart are for harness to harness connectors. Connectors that join a harness to
a component are generally located at or near the component. See the Component Location Chart.
Page 10
CONNECTOR LOCATION
VOLUME 3 - ENGINE
Connector Number
Schematic
Location
CONN 70
CONN 71
CONN 130 - Diagnostic Connector
The connectors shown in this chart are for harness to harness
connectors. Connectors that join a harness to a component
are generally located at or near the component. See the
Component Location Chart.
B-6
A-6
B-2
Page 11

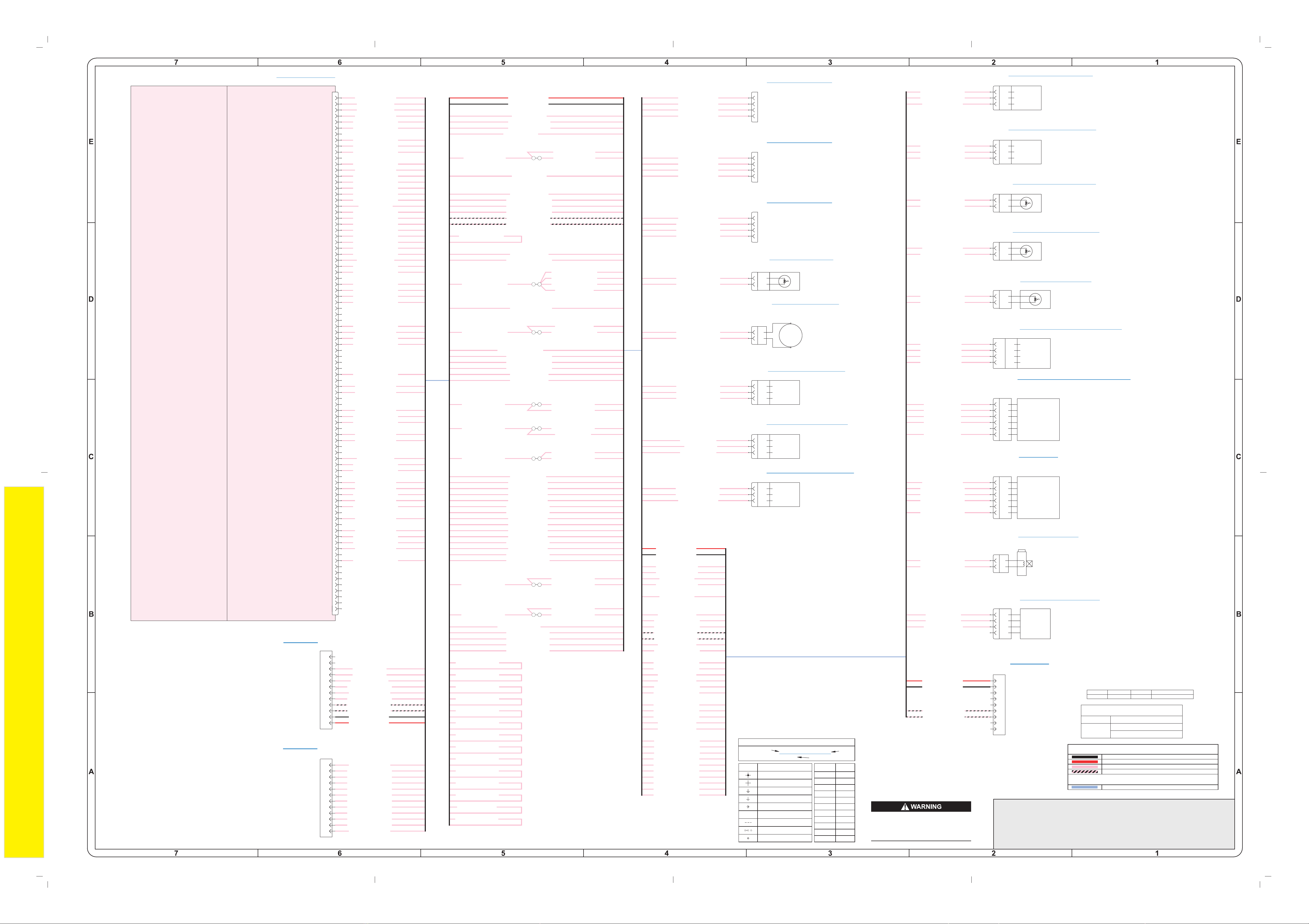

ET-C10
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
CONN 54
CONNECTS TO C-C113
VOL 2, LOC E-3
42 Page, (Dimensions: 56 inches x 35 inches)
CONN 55
CONNECTS TO C-C42
VOL 2, LOC E-3
490-0572
1
CBL-ET5:1812-ET2 WH-BU-20
2
CBL-ET5:1813-ET1 BU-20
ET-C5
361-7886
1
2
3
4
F711-ET4 YL-18-TXL
5
F712-ET5 GN-18-TXL F712-ET5 GN-18-TXL
6

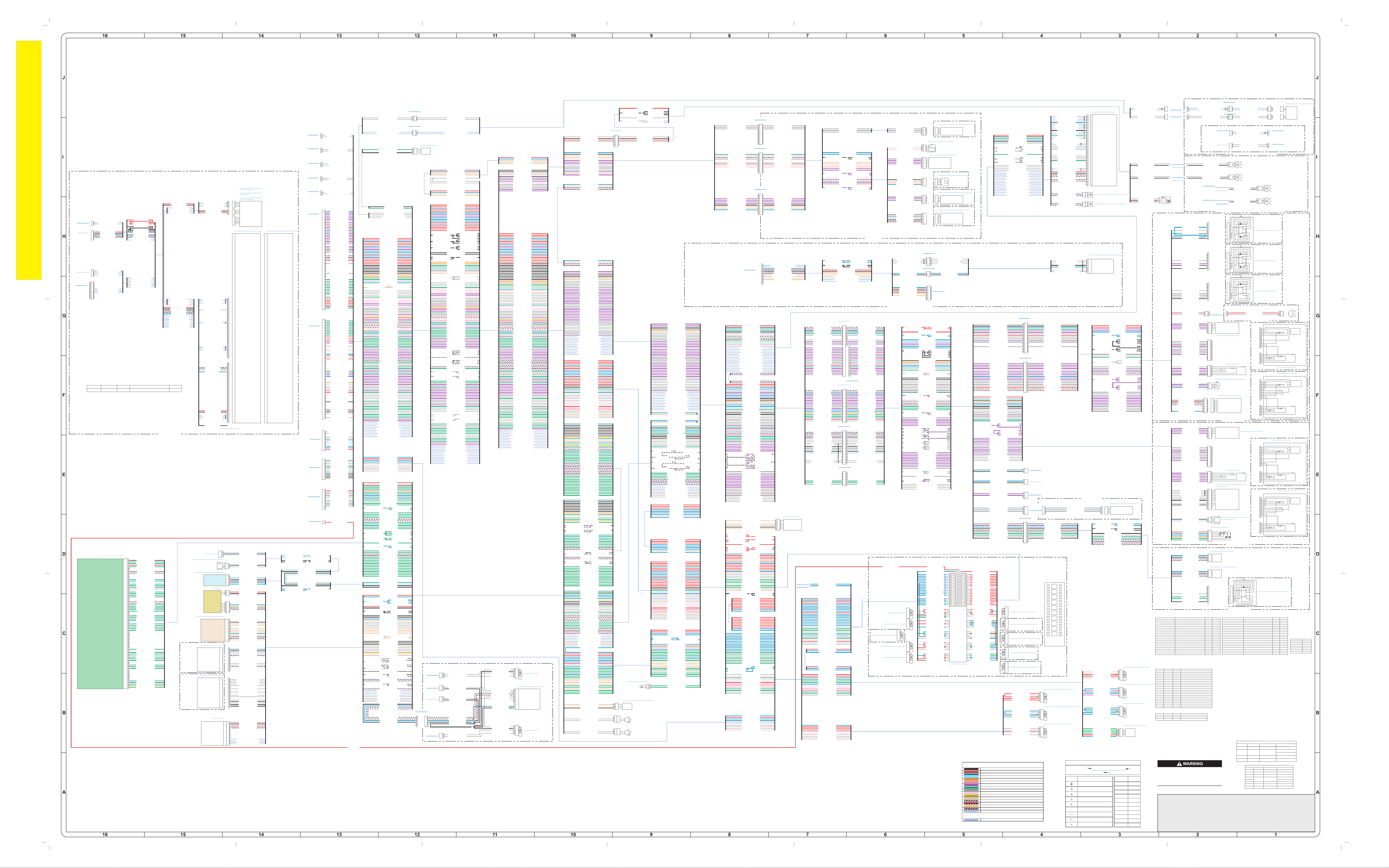

M0129513-01 VOL 1 of 3
ET-C9
335-8849
1
CONN 56
CONNECTS TO C-C93
VOL 2, LOC E-3
ET-C12
556-1075
CONN 57
CONNECTS TO GP-C3
VOL 2, LOC C-6
REF DES PART NO. CHG LVL DESCRIPTION NOTE
ET 594-2027 00 HARNESS AS-CHAS (PL243/083)
QUICK / ISO CPLR 2 / QCPLR BYPASS CUT SOL / AUTO LUBE RELAY
CBL-ET1:1630-ET1 WH-OR-18
2
CBL-ET1:1631-ET2 OR-18
3
CBL-ET1:1632-ET4 WH-GN-18
4
CBL-ET1:1633-ET3 GN-18
ET-C4
558-6138
1
1
2
2
3
3
4
4
5
5
CBL-ET2:1650-ET1 WH-OR-18
6
6
CBL-ET2:1651-ET2 OR-18
7
7
CBL-ET2:1652-ET4 WH-GN-18
8
8
CBL-ET2:1653-ET3 GN-18
9
9
10
10
11
11
12
12
(6) CONTROL GP - CAB (BCM)
ON/OFF DRIVER / RELAY RETURN 9-12
ON/OFF DRIVER / RELAY RETURN 5-8
ON/OFF DRIVER / RELAY RETURN 1-4
CHASSIS/CAB LIGHT RELAY (SINK)
CAUTION LAMP (FOR CRANE & BEACON)
BOOM UP ELE CHECK (EC-1 OF SMART BOOM)
KEY SW NORMALLY CLOSE (PTS)
ENG START SIGNAL TO ENG ECM
172-ET1 RD-18-TXL
235-ET2 BK-18-TXL
390-ET3 YL-18-TXL
489-7907
J1939 CAN 1 +
LOCAL CAN 2 +
CTWT REMOVAL SW
NEW CTWT SW UP (LHEX)
ENG START BUTTON LED (GN)
ENG START BUTTON LED (RD)
WAKE UP INPUT 3 (DOOR SW)
NEW CTWT SW DOWN (LHEX)
SEAT BELT CAUTION (OPTION)
ECM (D6:CX)
DOME LIGHT / FOOT LIGHT
WAKE UP INPUT 1 (D6:CX)
MAIN POWER RELAY
MECM (PRIMARY) KEY SW
J1939 CAN 1 -
LOCAL CAN 2 -
TRAVEL ALARM CANCEL
(WASHER FLUID LEVEL)
STG RETURN 7-8
BEACON SW
REFUEL PUMP RELAY
ENG KEY SW (SINK)
BOOM LIGHT RELAY (SINK)
STRAIGHT TRAVEL SOL
ATT HYD OIL FILTER SW
KEY SW
ELE FAN CONTROL 1
ELE FAN CONTROL 2
HORN RELAY
HEAVY LIFT SOL
TRAVEL ALARM
ELE FAN CONTROL 3
STG RETURN 5-6
REFUEL START SW
TRAVEL SPEED SOL
FINE SWING SOL
HYD REVERSE FAN
NOTE A
CZ-C4
490-0582
CONN 14
CZ-C1
F-C35
273-3288
240-7874
CONN 15
CY-C1
490-0582
F-C45
506-5915
F-C73
197-4406
1
2
CZ-C3
490-0578
1
2
(11) DOOR LIMIT SW
488-6548
1
1
2
2
3
3
H2
CONN 19
1
2
3
4
5
6
200-F138 BK-14-TXL
200-F150 BK-14-TXL
200-F246 BK-14-TXL
235-F252 BK-20-TXL
235-F253 BK-18-TXL
607-F242 PK-16-TXL
L730-F363 OR-18-TXL
L740-F364 BR-18-TXL
R896-F165 GY-20-TXL
R896-F239 GY-20-TXL
R897-F156 WH-20-TXL
R897-F157 WH-20-TXL
KX-CAP1
342-2972
CONN 16
AUX CONNECTOR 1
KX-CAP2
342-2972
CONN 17
AUX CONNECTOR 2
KX-CAP4
342-2972
CONN 18
AUX CONNECTOR 4
KX-C1
204-1805
1
2
3
4
5
6
KX-CAP3
342-2972
CONN 20
AUX CONNECTOR 3
R896-CZ3 GY-20-TXL
R897-CZ4 WH-20-TXL
H8
CBL-CZ1:1806-CZ2 WH-BU-20
CBL-CZ1:1807-CZ1 BU-20
115-F237 RD-18-TXL
118-F67 GY-16-TXL
596-F132 WH-16-TXL
X795-F131 OR-16-TXL
602-F271 WH-18-TXL
602-F386 WH-18-TXL
602-F296 WH-18-TXL
115-F237 RD-18-TXL
118-F67 GY-16-TXL
596-F132 WH-16-TXL
X795-F131 OR-16-TXL
110-F105 RD-14-TXL
115-F388 RD-18-TXL
122-F126 BU-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
147-F217 PU-18-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
200-F250 BK-14-TXL
235-F180 BK-14-TXL
200-F135 BK-16-TXL
200-F136 BK-18-TXL
200-F137 BK-16-TXL
200-F392 BK-16-TXL
200-F145 BK-16-TXL
200-F313 BK-16-TXL
200-F149 BK-16-TXL
200-F160 BK-16-TXL
200-F164 BK-18-TXL
200-F244 BK-16-TXL
235-F251 BK-18-TXL
307-F141 OR-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
322-F170 GY-16-TXL
323-F221 WH-14-TXL
390-F249 YL-18-TXL
506-F69 PU-18-TXL
506-F316 PU-18-TXL
616-F233 BU-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
780-F382 PU-18-TXL
998-F269 BR-18-TXL
A278-F359 BK-18-TXL
C251-F128 BK-18-TXL
C878-F154 WH-18-TXL
C879-F155 BU-18-TXL
C903-F358 BU-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E554-F305 PK-18-TXL
E740-F129 GN-18-TXL
E996-F174 WH-18-TXL
E996-F175 WH-18-TXL
F461-F193 GN-18-TXL
F710-F11 BR-18-TXL
F711-F61 YL-18-TXL
F712-F62 GN-18-TXL
F716-F268 WH-18-TXL
F762-F12 GY-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
G797-F266 BU-18-TXL
G985-F117 PU-18-TXL
H702-F332 PU-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H863-F215 BU-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
607-F238 PK-16-TXL
607-F86 PK-16-TXL
607-F241 PK-18-TXL
K960-F31 YL-18-TXL
K960-F35 YL-18-TXL
K960-F33 YL-18-TXL
K960-F39 YL-18-TXL
K961-F32 GN-18-TXL
K961-F36 GN-18-TXL
K961-F40 GN-18-TXL
L466-F184 BU-18-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M740-F198 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
N794-F353 GY-18-TXL
N795-F148 WH-18-TXL
P702-F213 GY-18-TXL
R816-F380 PK-16-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
K961-F34 GN-18-TXL
L730-F257 OR-18-TXL
L730-F351 OR-18-TXL
L740-F258 BR-18-TXL
L740-F352 BR-18-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
R981-F212 YL-18-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X739-F191 BR-20-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
Y947-F176 BR-18-TXL
Y947-F177 BR-18-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
KX-C6
230-4011
1
F518-KX15 YL-14-TXL
2
KX-C7
230-4011
1
U703-KX12 YL-16-TXL
2
200-KX3 BK-16-TXL
KX-C9
230-4011
1
U705-KX14 PU-16-TXL U705-KX14 PU-16-TXL
2
200-KX4 BK-16-TXL
F711-KX9 YL-18-TXL
F712-KX10 GN-18-TXL
170-KX8 YL-16-TXL
200-KX1 BK-16-TXL
200-KX2 BK-16-TXL
U702-KX11 GY-18-TXL
F518-KX15 YL-14-TXL
F519-KX16 OR-14-TXLF519-KX16 OR-14-TXL
U702-KX11 GY-18-TXL
U703-KX12 YL-16-TXL
F711-KX9 YL-18-TXL
F712-KX10 GN-18-TXL
U704-KX13 PK-18-TXL
U704-KX13 PK-18-TXL
KX-C8
230-4011
1
F520-KX17 BU-14-TXL
2
F521-KX18 GN-14-TXL
F520-KX17 BU-14-TXL
F521-KX18 GN-14-TXL
200-KX6 BK-18-TXL
170-KX8 YL-16-TXL
200-KX5 BK-16-TXL
200-KX7 BK-18-TXL
607-F86 PK-16-TXL
200-F160 BK-16-TXL
115-F237 RD-18-TXL
602-F271 WH-18-TXL
118-F67 GY-16-TXL
200-F137 BK-16-TXL
115-F237 RD-18-TXL
118-F67 GY-16-TXL
596-F132 WH-16-TXL
602-F271 WH-18-TXL
X795-F131 OR-16-TXL
200-F160 BK-16-TXL
200-F137 BK-16-TXL
506-F69 PU-18-TXL
607-F86 PK-16-TXL
998-F269 BR-18-TXL
C878-F154 WH-18-TXL
C879-F155 BU-18-TXL
E996-F174 WH-18-TXL
F716-F268 WH-18-TXL
L730-F351 OR-18-TXL
L740-F352 BR-18-TXL
N794-F353 GY-18-TXL
N795-F148 WH-18-TXL
Y947-F176 BR-18-TXL
110-F105 RD-14-TXL
115-F237 RD-18-TXL
115-F388 RD-18-TXL
118-F67 GY-16-TXL
122-F126 BU-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
147-F217 PU-18-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
200-F135 BK-16-TXL
200-F136 BK-18-TXL
200-F145 BK-16-TXL
200-F149 BK-16-TXL
200-F164 BK-18-TXL
200-F244 BK-16-TXL
200-F250 BK-14-TXL
200-F392 BK-16-TXL
200-F313 BK-16-TXL
235-F180 BK-14-TXL
235-F251 BK-18-TXL
307-F141 OR-18-TXL 607-F241 PK-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
322-F170 GY-16-TXL
323-F221 WH-14-TXL
390-F249 YL-18-TXL
506-F316 PU-18-TXL
596-F132 WH-16-TXL
602-F296 WH-18-TXL
602-F386 WH-18-TXL
607-F238 PK-16-TXL
607-F241 PK-18-TXL
616-F233 BU-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
780-F382 PU-18-TXL
A278-F359 BK-18-TXL
C251-F128 BK-18-TXL
C903-F358 BU-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E554-F305 PK-18-TXL
E740-F129 GN-18-TXL
E996-F175 WH-18-TXL
F461-F193 GN-18-TXL
F710-F11 BR-18-TXL
F711-F61 YL-18-TXL
F712-F62 GN-18-TXL
F762-F12 GY-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
G797-F266 BU-18-TXL
G985-F117 PU-18-TXL
H702-F332 PU-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H863-F215 BU-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
K960-F31 YL-18-TXL
K960-F33 YL-18-TXL
K960-F35 YL-18-TXL
K960-F39 YL-18-TXL
K961-F32 GN-18-TXL
K961-F34 GN-18-TXL
K961-F36 GN-18-TXL
K961-F40 GN-18-TXL
L466-F184 BU-18-TXL
L730-F257 OR-18-TXL
L740-F258 BR-18-TXL 165-F297 YL-14-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M740-F198 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
P702-F213 GY-18-TXL
R816-F380 PK-16-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
R981-F212 YL-18-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X739-F191 BR-20-TXL
X795-F131 OR-16-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
Y947-F177 BR-18-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
F711-F57 YL-18-TXL
F711-F59 YL-18-TXL
F712-F58 GN-18-TXL
F712-F60 GN-18-TXL
506-F69 PU-18-TXL
596-F132 WH-16-TXL
998-F269 BR-18-TXL
C878-F154 WH-18-TXL
C879-F155 BU-18-TXL
E996-F174 WH-18-TXL
L730-F351 OR-18-TXL
L740-F352 BR-18-TXL
N794-F353 GY-18-TXL
N795-F148 WH-18-TXL
X795-F131 OR-16-TXL
Y947-F176 BR-18-TXL
118-F321 GY-16-TXL
A584-F70 BU-18-TXL
K960-F65 YL-18-TXL
K961-F66 GN-18-TXL
118-F321 GY-16-TXL
A584-F70 BU-18-TXL
K960-F65 YL-18-TXL
K961-F66 GN-18-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
200-F135 BK-16-TXL
200-F145 BK-16-TXL
307-F141 OR-18-TXL
602-F386 WH-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E996-F175 WH-18-TXL
G985-F117 PU-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
L730-F257 OR-18-TXL
L740-F258 BR-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
Y947-F177 BR-18-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
110-F105 RD-14-TXL
115-F237 RD-18-TXL
115-F388 RD-18-TXL
122-F126 BU-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
147-F217 PU-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
200-F164 BK-18-TXL
200-F313 BK-16-TXL
322-F170 GY-16-TXL
323-F221 WH-14-TXL
390-F249 YL-18-TXL
596-F132 WH-16-TXL
607-F238 PK-16-TXL
616-F233 BU-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
A278-F359 BK-18-TXL
C251-F128 BK-18-TXL
C903-F358 BU-18-TXL
E740-F129 GN-18-TXL
F710-F11 BR-18-TXL
F762-F12 GY-18-TXL
G797-F266 BU-18-TXL
R816-F380 PK-16-TXL
X795-F131 OR-16-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
118-F67 GY-16-TXL
200-F136 BK-18-TXL
200-F149 BK-16-TXL
200-F244 BK-16-TXL
200-F250 BK-14-TXL
200-F392 BK-16-TXL
235-F180 BK-14-TXL
235-F251 BK-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
506-F316 PU-18-TXL
602-F296 WH-18-TXL
780-F382 PU-18-TXL
E554-F305 PK-18-TXL
F461-F193 GN-18-TXL
F711-F61 YL-18-TXL
F712-F62 GN-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
H702-F332 PU-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H863-F215 BU-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
K960-F31 YL-18-TXL
K960-F33 YL-18-TXL
K960-F35 YL-18-TXL
K960-F39 YL-18-TXL
K961-F32 GN-18-TXL
K961-F34 GN-18-TXL
K961-F36 GN-18-TXL
K961-F40 GN-18-TXL
L466-F184 BU-18-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M740-F198 PK-18-TXL
P702-F213 GY-18-TXL
R981-F212 YL-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X739-F191 BR-20-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
118-F67 GY-16-TXL
200-F136 BK-18-TXL
200-F149 BK-16-TXL
200-F244 BK-16-TXL
200-F250 BK-14-TXL
200-F392 BK-16-TXL
235-F180 BK-14-TXL
235-F251 BK-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
506-F316 PU-18-TXL
602-F296 WH-18-TXL
780-F382 PU-18-TXL
E554-F305 PK-18-TXL
F461-F193 GN-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
H702-F332 PU-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H863-F215 BU-18-TXLH863-F215 BU-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
K960-F31 YL-18-TXL
K960-F33 YL-18-TXL
K960-F37 YL-18-TXLK960-F37 YL-18-TXL
K961-F32 GN-18-TXL
K961-F34 GN-18-TXL
K961-F38 GN-18-TXL
L466-F184 BU-18-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M740-F198 PK-18-TXL
P702-F213 GY-18-TXL
R981-F212 YL-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X739-F191 BR-20-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
135-F361 BU-16-TXL
210-F362 BK-16-TXL
303-F188 BR-20-TXL
326-F211 PU-18-TXL
333-F197 GN-18-TXL
603-F2 PK-18-TXL
A584-F70 BU-18-TXL
C249-F301 BK-18-TXL
C252-F303 BK-18-TXL
C253-F284 BK-20-TXL
C560-F299 OR-18-TXL
C562-F285 BU-20-TXL
C564-F286 GN-20-TXL
C566-F8 PK-18-TXL
E703-F333 WH-18-TXL
F512-F302 YL-18-TXL
F711-F53 YL-18-TXL
F712-F54 GN-18-TXL
F711-F395 YL-18-TXL
F712-F396 GN-18-TXL
H416-F186 GN-18-TXL
H417-F187 OR-18-TXL
H864-F335 GN-18-TXL
J906-F190 BR-20-TXL
K960-F25 YL-18-TXL
K960-F27 YL-18-TXL
K961-F26 GN-18-TXL
K961-F28 GN-18-TXL
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1643-F14 OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
CBL-F30:M754-F292 RD-20
CBL-F30:M753-F295 BK-20
118-F321 GY-16-TXL
118-F321 GY-16-TXL
103-F283 RD-16-TXL
105-F82 RD-14-TXL
113-F287 OR-18-TXL
118-F308 GY-14-TXL
118-F310 GY-16-TXL
120-F113 YL-16-TXL
124-F304 RD-14-TXL
KX-C4
149-5051
1
86
85
2
87
3
87A
4
30
5
(48) RELAY AS - SSD MODULE
KX-C2
517-0414
578-4213
5 A DRIVER 1
1
13 A DRIVER 1
2
CAN HI
3
CAN LO
4
5 A DRIVER 2
5
13 A DRIVER 2
6
N/C
7
CAN SHIELD
8
V BTRY(+)
1
V BTRY(-)
2
KX-C3
517-0413
KX-C5
149-5051
1
86
2
85
87
3
87A
4
30
5
(29) RELAY - AUX 1
149-5050
(30) RELAY - AUX 2
149-5050
165-F274 YL-18-TXL
170-F391 YL-16-TXL
308-F192 YL-18-TXL
322-F398 GY-18-TXL
364-F115 BU-18-TXL
365-F196 YL-18-TXL
390-F248 YL-18-TXL
676-F378 PU-18-TXL
780-F383 PU-18-TXL
A579-F311 OR-16-TXL
A580-F312 BR-16-TXL
A581-F315 GN-16-TXL
A582-F314 PU-16-TXL
A625-F205 BR-18-TXL
A627-F204 PK-18-TXL
E581-F317 OR-18-TXL
H807-F223 YL-18-TXL
H807-F384 YL-18-TXL
H808-F228 WH-18-TXL
A584-F134 BU-20-TXL
200-F209 BK-20-TXL
509-F289 WH-18-TXL
508-F288 PU-18-TXL
512-F291 GN-18-TXL
511-F290 BR-18-TXL
F711-F61 YL-18-TXL
F712-F62 GN-18-TXL
K960-F35 YL-18-TXL
K960-F39 YL-18-TXL
K961-F40 GN-18-TXL
K961-F36 GN-18-TXL
CONN 21
F-C37
197-4406
F-C7
506-5915
F-C27
7Y
-3955
F-C28
7Y-3955
R896-F239 GY-20-TXL
R897-F157 WH-20-TXL
NOTE A
CX-C1
490-0571
1
CBL-CX1:1804-CX2 WH-BU-20
2
CBL-CX1:1805-CX1 BU-20
F-C38
490-0578
1
R896-F165 GY-20-TXL
2
R897-F156 WH-20-TXL
F-C40
490-0571
1
CBL-F26:1802-F87 WH-BU-20
2
CBL-F26:1803-F88 BU-20
F-C39
490-0578
1
R893-F89 GY-20-TXL
2
R894-F97 WH-20-TXL
F-C54
490-0571
1
CBL-F27:1800-F100 WH-BU-20
2
CBL-F27:1801-F99 BU-20
F-C1
444-7595
1
G738-F111 GY-18-TXL
2
E480-F116 PK-18-TXL
3
G985-F117 PU-18-TXL
4
M951-F118 WH-18-TXL
5
151-F123 RD-18-TXL
6
154-F124 RD-18-TXL
7
M969-F130 YL-18-TXL
8
K843-F139 GN-18-TXL
9
K847-F140 PU-18-TXL
10
307-F141 OR-18-TXL
11
K841-F142 BR-18-TXL
12
K845-F143 OR-18-TXL
13
304-F114 WH-18-TXL
14
J767-F147 GY-18-TXL
15
N795-F148 WH-18-TXL
16
M962-F151 YL-18-TXL
17
M963-F152 BU-18-TXL
18
E996-F174 WH-18-TXL
19
J765-F166 BU-18-TXL
20
M952-F101 BU-18-TXL
21
M953-F102 BU-18-TXL
22
23
C878-F154 WH-18-TXL
24
C879-F155 BU-18-TXL
25
M949-F158 PK-18-TXL
26
M950-F159 PU-18-TXL
27
M968-F343 BU-18-TXL
28
29
K960-F39 YL-18-TXL
30
K961-F40 GN-18-TXL
31
Y947-F176 BR-18-TXL
32
198-F397 RD-18-TXL
33
34
E476-F263 PU-18-TXL
35
36
37
38
39
40
E475-F262 PK-18-TXL
41
42
43
44
Y712-F200 GY-18-TXL
45
Y713-F201 PK-18-TXL
46
Y714-F206 PU-18-TXL
47
L973-F207 GN-18-TXL
48
G723-F202 YL-18-TXL
49
L976-F210 GN-18-TXL
50
H863-F215 BU-18-TXL
51
F461-F193 GN-18-TXL
52
H864-F334 GN-18-TXL
53
L466-F184 BU-18-TXL
54
55
F711-F61 YL-18-TXL
56
F712-F62 GN-18-TXL
57
130-F255 RD-14-TXL
58
133-F106 RD-14-TXL
59
186-F273 RD-14-TXL
60
184-F93 RD-14-TXL
61
235-F180 BK-14-TXL
62
165-F297 YL-14-TXL
F-C2
506-5910
1
X735-F185 YL-18-TXL
2
X736-F195 GN-18-TXL
3
H702-F332 PU-18-TXL
4
R981-F212 YL-18-TXL
5
P702-F213 GY-18-TXL
6
M740-F198 PK-18-TXL
7
780-F382 PU-18-TXL
8
H807-F224 YL-18-TXL
9
321-F203 BR-18-TXL
10
H808-F231 WH-18-TXL
11
318-F214 BR-18-TXL
12
F710-F11 BR-18-TXL
13
F762-F12 GY-18-TXL
14
E996-F175 WH-18-TXL
15
Y947-F177 BR-18-TXL
16
17
506-F68 PU-18-TXL
18
19
C903-F358 BU-18-TXL
20
A278-F359 BK-18-TXL
21
22
390-F249 YL-18-TXL
23
E740-F129 GN-18-TXL
24
C251-F128 BK-18-TXL
25
172-F254 RD-18-TXL
26
27
28
29
30
31
32
G797-F266 BU-18-TXL
33
H867-F181 YL-18-TXL
34
M711-F100 BU-18-TXL
35
M715-F109 PK-18-TXL
36
158-F256 BR-18-TXL
37
38
39
40
E554-F305 PK-18-TXL
41
F716-F268 WH-18-TXL
42
998-F269 BR-18-TXL
43
N744-F218 OR-18-TXL
44
998-F219 BR-18-TXL
45
T800-F99 OR-18-TXL
46
115-F388 RD-18-TXL
47
T794-F331 GY-18-TXL
48
C905-F369 OR-18-TXL
49
50
51
52
235-F253 BK-18-TXL
53
54
55
56
57
110-F105 RD-14-TXL
58
200-F250 BK-14-TXL
59
122-F126 BU-14-TXL
60
61
62
323-F221 WH-14-TXL
F-C30
324-5684
1
CBL-F9:1630-F1 WH-OR-18
2
CBL-F9:1631-F2 OR-18
3
4
R816-F380 PK-16-TXL
5
M790-F370 GY-14-TXL
6
180-F389 GN-16-TXL
7
CBL-F9:1632-F4 WH-GN-18
8
CBL-F9:1633-F3 GN-18
9
10
122-F367 BU-14-TXL
11
175-F390 PK-16-TXL
12
150-F366 OR-14-TXL
F-C4
324-5684
1
147-F217 PU-18-TXL
2
607-F242 PK-16-TXL
3
616-F233 BU-16-TXL
4
657-F377 YL-16-TXL
5
322-F170 GY-16-TXL
6
638-F280 WH-16-TXL
7
X977-F360 YL-16-TXL
8
X976-F267 GN-16-TXL
9
159-F104 BU-14-TXL
10
200-F246 BK-14-TXL
11
200-F150 BK-14-TXL
12
200-F138 BK-14-TXL
F-C15
324-5684
1
185-F243 RD-14-TXL
2
J766-F1 PU-18-TXL
3
E473-F260 GY-18-TXL
4
E474-F261 OR-18-TXL
5
N794-F353 GY-18-TXL
6
7
L730-F363 OR-18-TXL
8
L740-F364 BR-18-TXL
9
U706-F259 BR-18-TXL
10
X738-F208 PK-18-TXL
11
T788-F173 GN-14-TXL
12
FE-C1
324-5685
1
177-FE1 RD-4-SXL
172-ET1 RD-18-TXL
172-ET13 RD-18-TXL
172-ET12 RD-18-TXL
235-ET2 BK-18-TXL
235-ET15 BK-18-TXL
235-ET38 BK-16-GXL
235-ET14 BK-18-TXL
390-ET3 YL-18-TXL
F711-ET4 YL-18-TXL
CBL-ET5:1812-ET2 WH-BU-20
CBL-ET5:1813-ET1 BU-20
CBL-ET1:1630-ET1 WH-OR-18
CBL-ET1:1631-ET2 OR-18
CBL-ET1:1632-ET4 WH-GN-18
CBL-ET1:1633-ET3 GN-18
CBL-ET2:1650-ET1 WH-OR-18
CBL-ET2:1651-ET2 OR-18
CBL-ET2:1652-ET4 WH-GN-18
CBL-ET2:1653-ET3 GN-18
172-ET13 RD-18-TXL
235-ET15 BK-18-TXL
N990-ET34 WH-18-TXL
CBL-ET3:1646-ET1 WH-OR-18
CBL-ET3:1647-ET2 OR-18
CBL-ET3:1648-ET4 WH-GN-18
CBL-ET3:1649-ET3 GN-18
N990-ET34 WH-18-TXL
CBL-ET3:1646-ET1 WH-OR-18
CBL-ET3:1647-ET2 OR-18
CBL-ET3:1648-ET4 WH-GN-18 CBL-ET3:1649-ET3 GN-18
CBL-ET3:1649-ET3 GN-18
172-ET12 RD-18-TXL
235-ET38 BK-16-GXL
235-ET14 BK-18-TXL
F711-ET4 YL-18-TXL
F712-ET5 GN-18-TXL
390-ET3 YL-18-TXL
CBL-ET1:1630-ET1 WH-OR-18
CBL-ET1:1631-ET2 OR-18
CBL-ET1:1632-ET4 WH-GN-18
CBL-ET1:1633-ET3 GN-18
CBL-ET2:1650-ET1 WH-OR-18
CBL-ET2:1651-ET2 OR-18
CBL-ET2:1652-ET4 WH-GN-18
CBL-ET2:1653-ET3 GN-18
CBL-ET5:1812-ET2 WH-BU-20
CBL-ET5:1813-ET1 BU-20
PRODUCT LINK
CBL-ET3:1646-ET1 WH-OR-18
CBL-ET3:1647-ET2 OR-18
CBL-ET3:1648-ET4 WH-GN-18
CBL-ET3:1649-ET3 GN-18
172-ET13 RD-18-TXL
235-ET15 BK-18-TXL
N990-ET34 WH-18-TXL
CBL-ET3:1646-ET1 WH-OR-18
CBL-ET3:1647-ET2 OR-18
CBL-ET3:1648-ET4 WH-GN-18
N990-ET34 WH-18-TXL
CBL-ET5:1813-ET1 BU-20
CBL-ET5:1812-ET2 WH-BU-20
CBL-ET2:1650-ET1 WH-OR-18
CBL-ET2:1651-ET2 OR-18
CBL-ET2:1652-ET4 WH-GN-18
CBL-ET2:1653-ET3 GN-18
F712-ET5 GN-18-TXL
F711-ET4 YL-18-TXL
390-ET3 YL-18-TXL
172-ET12 RD-18-TXL
235-ET14 BK-18-TXL
CBL-ET1:1630-ET1 WH-OR-18
CBL-ET1:1631-ET2 OR-18
CBL-ET1:1632-ET4 WH-GN-18
CBL-ET1:1633-ET3 GN-18
235-ET38 BK-16-GXL
ET-C7
176-2946
1
1
2
2
3
3
4
4
A
A
B
B
C
C
ET-C13
1
269-8222
2
3
4
5
6
(63) CONTROL GP - NETWORK MANAGER
494-6472
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
BR+
34
BR-
35
ETH TX+
36
ETH TX-
37
ETH RX+
38
ETH RX-
39
40
ETH TX+
41
ETH TX-
42
ETH RX+
43
ETH RX-
44
ET-C2
483-2762
ET-C3
483-2763
(64) GROUND - PRODUCT LINK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
ETH TX+
1
ETH TX-
2
ETH RX+
3
ETH RX-
4
5
6
7
8
DTR WAKEUP
9
10
11
12
13
14
15
16
17
ETH BR-
18
ETH BR+
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
ETH TX+
36
ETH TX-
37
ETH RX+
38
ETH RX-
39
40
41
42
43
44
1
2
3
J1939 CAN LOW
4
J1939 CAN HIGH
5
6
KEY SWITCH ON
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
BTRY+
36
BTRY-
37
38
ETH TX+
39
ETH TX-
40
ETH RX+
41
ETH RX-
42
43
44
(62) CONTROL GP - ELECTRONIC
(PL243-4G CELLULAR)
550-3269
(62) CONTROL GP - ELECTRONIC
(PL243 CHINA)
563-3801
(62) CONTROL GP - ELECTRONIC
(PL083- SATL & CELL)
545-3987
ETHERNET TRANSMIT +
ETHERNET TRANSMIT ETHERNET RECEIVE +
ETHERNET RECEIVE -
+V BATTERY MAIN
-V BATTERY MAIN
DTR/NM WAKEUP
WIRELESS DISABLE
+12 V EXTERNAL BACKUP BATTERY
LOW SIDE DRIVER NO. 1
LOW SIDE DRIVER NO. 2
ENGINE RUNNING/R-TERM
NOT CONNECTED
(63) CONTROL GP - NETWORK MANAGER A6N1
517-4512
ETH TX+1
ETH TX-
2
ETH RX+
3
ETH RX-
4
5
6
7
8
DTR WAKEUP
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
J1939 CAN LOW
4
J1939 CAN HIGH
5
6
KEY SWITCH ON
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
BTRY+
36
BTRY-
37
38
ETH TX+
39
ETH TX-
40
ETH RX+
41
ETH RX-
42
43
44
CONN 1
CONNECTS TO EM-C1
VOL 2, LOC J-1
CONN 2
CONNECTS TO EK-C1
VOL 2, LOC J-1
CONN 3
CONNECTS TO EK-C3
VOL 2, LOC J-1
CONN 4
CONNECTS TO EL-C1
VOL 2, LOC J-1
CONN 5
CONNECTS TO EL-C5
VOL 2, LOC J-1
CONN 6
CONNECTS TO C-C1
VOL 2, LOC I-1
CONN 7
CONNECTS TO C-C2
VOL 2, LOC G-1
CONN 8
CONNECTS TO C-C91
VOL 2, LOC F-1
CONN 9
CONNECTS TO C-C13
VOL 2, LOC E-1
CONN 10
CONNECTS TO C-C92
VOL 2, LOC E-1
CONN 11
CONNECTS TO C-C3
VOL 2, LOC F-1
H807-F183 YL-18-TXL
H808-F182 WH-18-TXL H808-F228 WH-18-TXL
H5
F-CAP1
F-C52
342-2973
240-7878
335-5365
508-8884
+12 V SWITCHED
+12 V SWITCHED
GND(+12 V)
GND(+24 V)
+24 V INPUT
IGNITION
(17) HVAC
488-6601
488-6528
487-7440
GND
CAN LOW
N/C
N/C
N/C
N/C
CAN HIGH
N/C
N/C
487-7442
USB1 D-
USB1 D+
N/C
NA
N/C
D- (USB2)
D+ (USB2)
N/C
AUX1 GND
AUX2 GND
AUX3 GND
CONN 13
GND
BATTERY
J1939 CAN +
J1939 CAN -
ETHERNET RX -
ETHERNET RX +
ETHERNET TX ETHERNET TX +
1
2
3
GND
ACC
CAN H
CAN L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
N/C
N/C
N/C
N/C
N/C
N/C
F-C51
7Y-3952
1
2
F-C23
197-4406
1
2
3
4
5
6
F-C53
506-5917
1
2
F-C19
204-1805
1
2
3
4
5
6
F-C20
111-4816
N/C
1
2
3
4
5
6
7
8
9
10
11
12
13
F-C21
507-1383
1
2
3
4
5
6
7
8
9
10
11
12
13
14
F-C22
507-1384
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
F-C24
451-8019
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
J
J
K
K
L
L
M
M
N
N
P
P
CONN 12
F-C8
442-7945
-B
1
2
3
+B
4
5
6
N/C
7
N/C
8
9
N/C
10
11
N/C
N/C
12
13
14
15
N/C
16
17
18
19
N/C
20
21
22
23
24
25
N/C
26
N/C
27
28
29
30
31
32
33
34
N/C
35
N/C
36
37
38
39
40
N/C
41
42
43
44
45
46
N/C
47
N/C
48
N/C
49
N/C
50
N/C
51
N/C
52
N/C
53
N/C
54
N/C
55
N/C
56
N/C
57
58
N/C
59
60
61
62
63
64
65
N/C
66
N/C
67
68
69
70
N/C
71
N/C
72
N/C
73
N/C
74
N/C
75
N/C
76
N/C
77
78
79
80
81
235-F180 BK-14-TXL
H867-F181 YL-18-TXL
H808-F182 WH-18-TXL
105-F82 RD-14-TXL
H807-F183 YL-18-TXL
F711-F59 YL-18-TXL
K960-F37 YL-18-TXL
L466-F184 BU-18-TXL
X735-F185 YL-18-TXL
H417-F187 OR-18-TXL
H416-F186 GN-18-TXL
303-F188 BR-20-TXL
602-F296 WH-18-TXL
J906-F190 BR-20-TXL
X739-F191 BR-20-TXL
308-F192 YL-18-TXL
G738-F111 GY-18-TXL
F712-F60 GN-18-TXL
K961-F38 GN-18-TXL
E703-F333 WH-18-TXL
F461-F193 GN-18-TXL
H864-F194 GN-18-TXL
X736-F195 GN-18-TXL
603-F2 PK-18-TXL
365-F196 YL-18-TXL
364-F115 BU-18-TXL
A625-F205 BR-18-TXL
A627-F204 PK-18-TXL
333-F197 GN-18-TXL
M740-F198 PK-18-TXL
780-F381 PU-18-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
322-F398 GY-18-TXL
G723-F202 YL-18-TXL
321-F203 BR-18-TXL
165-F274 YL-18-TXL
P702-F213 GY-18-TXL
Y714-F206 PU-18-TXL
676-F378 PU-18-TXL
X738-F208 PK-18-TXL
H863-F215 BU-18-TXL
L976-F210 GN-18-TXL
326-F211 PU-18-TXL
R981-F212 YL-18-TXL
L973-F207 GN-18-TXL
318-F214 BR-18-TXL
H702-F332 PU-18-TXL
H5
RADIO CONN 1
RADIO CONN 2
ATCH-CB RADIO READY (12 V)
(52) SOCKET - AUXILIARY POWER (12 V)
(9) CONVERTER - POWER (12 V/10 A)
(7) CONTROL GP - RADIAL WIPER
UPPER WIPER MOTOR OUTPUT 2
UPR WIPER MOTOR SNSR SPLY +
LWR WASHER PUMP RLY DRIVE +
LWR WIPER MOTOR RLY DRIVE +
UPPER WIPER CUT SWITCH
UPPER WASHER PUMP DRIVE +
UPPER WIPER MOTOR OUTPUT 1
UPPER WIPER MOTOR SENSOR
(26) RADIO - CAN (ATCH)
SWITCHED BATTERY
SPEAKER LH (-)
SPEAKER RH (-)
SPEAKER LH (+)
SPEAKER RH (+)
(27) RADIO - DAB (ATCH)
V BUS USB1 V+
RHI (RH SPEAKER FOR AUX1)
RH (RH SPEAKER FOR AUX2)
LHI (LH SPEAKER FOR AUX1)
GND USB1 V-
MIC (MIC INPUT FOR AUX3)
LH (LH SPEAKER FOR AUX2)
SERVICE PORT CONNECTOR
135-F327 BU-16-TXL
210-F328 BK-16-TXL
210-F329 BK-16-TXL
135-F300 BU-16-TXL
135-F325 BU-16-TXL
210-F326 BK-16-TXL
200-F149 BK-16-TXL
120-F323 YL-16-TXL
120-F324 YL-16-TXL
124-F304 RD-14-TXL
200-F250 BK-14-TXL
390-F248 YL-18-TXL
E554-F305 PK-18-TXL
K960-F33 YL-18-TXL
K961-F34 GN-18-TXL
200-F216 BK-16-TXL
A580-F312 BR-16-TXL
A582-F314 PU-16-TXL
E581-F317 OR-18-TXL
A584-F71 BU-18-TXL
506-F316 PU-18-TXL
118-F309 GY-16-TXL
A579-F311 OR-16-TXL
K960-F25 YL-18-TXL
K961-F26 GN-18-TXL
A581-F315 GN-16-TXL
113-F287 OR-18-TXL
200-F136 BK-18-TXL
509-F289 WH-18-TXL
512-F291 GN-18-TXL
K961-F30 GN-18-TXL
508-F288 PU-18-TXL
511-F290 BR-18-TXL
K960-F29 YL-18-TXL
CBL-F30:M754-F292 RD-20
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
CBL-F30:M753-F295 BK-20
C560-F299 OR-18-TXL
C564-F286 GN-20-TXL
F512-F302 YL-18-TXL
F566-F298 GN-18-TXL
C566-F8 PK-18-TXL
C249-F301 BK-18-TXL
C562-F285 BU-20-TXL
C253-F284 BK-20-TXL
C252-F303 BK-18-TXL
235-F251 BK-18-TXL
103-F283 RD-16-TXL
F711-F55 YL-18-TXL
F712-F56 GN-18-TXL
CBL-F15:1643-F14 OR-18
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1645-F16 GN-18
CBL-F15:1644-F15 WH-GN-18
135-F300 BU-16-TXL
135-F327 BU-16-TXL
210-F328 BK-16-TXL
210-F329 BK-16-TXL
135-F325 BU-16-TXL
210-F326 BK-16-TXL
210-F362 BK-16-TXL
135-F361 BU-16-TXL
135-F361 BU-16-TXL
210-F362 BK-16-TXL
120-F323 YL-16-TXL
120-F324 YL-16-TXL
135-F325 BU-16-TXL
135-F361 BU-16-TXL
210-F326 BK-16-TXL
210-F362 BK-16-TXL
120-F113 YL-16-TXL
H864-F194 GN-18-TXL
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
X739-F191 BR-20-TXL
235-F252 BK-20-TXL
235-F252 BK-20-TXL
X739-F191 BR-20-TXL
R896-F239 GY-20-TXL
R897-F157 WH-20-TXL
CBL-CY1:1807-CY1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
110-F105 RD-14-TXL
115-F388 RD-18-TXL
122-F126 BU-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
147-F217 PU-18-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
200-F138 BK-14-TXL
200-F150 BK-14-TXL
200-F246 BK-14-TXL
200-F250 BK-14-TXL
235-F180 BK-14-TXL
235-F253 BK-18-TXL
307-F141 OR-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
322-F170 GY-16-TXL
323-F221 WH-14-TXL
390-F249 YL-18-TXL
506-F68 PU-18-TXL
607-F242 PK-16-TXL
616-F233 BU-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
780-F382 PU-18-TXL
998-F269 BR-18-TXL
A278-F359 BK-18-TXL
C251-F128 BK-18-TXL
C878-F154 WH-18-TXL
C879-F155 BU-18-TXL
C903-F358 BU-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E554-F305 PK-18-TXL
E740-F129 GN-18-TXL
E996-F174 WH-18-TXL
E996-F175 WH-18-TXL
F461-F193 GN-18-TXL
F710-F11 BR-18-TXL
F711-F61 YL-18-TXL
F712-F62 GN-18-TXL
F716-F268 WH-18-TXL
F762-F12 GY-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
G797-F266 BU-18-TXL
G985-F117 PU-18-TXL
H702-F332 PU-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H863-F215 BU-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
K960-F39 YL-18-TXL
K961-F40 GN-18-TXL
L466-F184 BU-18-TXL
L730-F363 OR-18-TXL
L740-F364 BR-18-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M740-F198 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
N794-F353 GY-18-TXL
N795-F148 WH-18-TXL
P702-F213 GY-18-TXL
R816-F380 PK-16-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F165 GY-20-TXL
R897-F156 WH-20-TXL
R981-F212 YL-18-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
Y947-F176 BR-18-TXL
Y947-F177 BR-18-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
122-F367 BU-14-TXL
150-F366 OR-14-TXL
175-F390 PK-16-TXL
304-F114 WH-18-TXL
998-F219 BR-18-TXL
C905-F369 OR-18-TXL
M790-F370 GY-14-TXL
N744-F218 OR-18-TXL
T788-F173 GN-14-TXL
T794-F331 GY-18-TXL
105-F82 RD-14-TXL
165-F274 YL-18-TXL
235-F180 BK-14-TXL
303-F188 BR-20-TXL
308-F192 YL-18-TXL
318-F214 BR-18-TXL
321-F203 BR-18-TXL
322-F398 GY-18-TXL
326-F211 PU-18-TXL
333-F197 GN-18-TXL
364-F115 BU-18-TXL
365-F196 YL-18-TXL
602-F296 WH-18-TXL
603-F2 PK-18-TXL
676-F378 PU-18-TXL
780-F381 PU-18-TXL 780-F382 PU-18-TXL
A625-F205 BR-18-TXL
A627-F204 PK-18-TXL
E703-F333 WH-18-TXL
F461-F193 GN-18-TXL
F711-F59 YL-18-TXL
F712-F60 GN-18-TXL
G723-F202 YL-18-TXL
G738-F111 GY-18-TXL
H416-F186 GN-18-TXL
H417-F187 OR-18-TXL
H702-F332 PU-18-TXL
506-F69 PU-18-TXL
506-F316 PU-18-TXL
780-F383 PU-18-TXL
H807-F384 YL-18-TXL
H807-F223 YL-18-TXL
H807-F224 YL-18-TXL
H808-F231 WH-18-TXL
H864-F334 GN-18-TXL
H867-F181 YL-18-TXL
J906-F190 BR-20-TXL
L466-F184 BU-18-TXL
L973-F207 GN-18-TXL
L976-F210 GN-18-TXL
M740-F198 PK-18-TXL
P702-F213 GY-18-TXL
R981-F212 YL-18-TXL
X735-F185 YL-18-TXL
X736-F195 GN-18-TXL
X738-F208 PK-18-TXL
X739-F191 BR-20-TXL
Y712-F200 GY-18-TXL
Y713-F201 PK-18-TXL
Y714-F206 PU-18-TXL
118-F309 GY-16-TXL
200-F216 BK-16-TXL
A579-F311 OR-16-TXL
A580-F312 BR-16-TXL
A581-F315 GN-16-TXL
A582-F314 PU-16-TXL
A584-F71 BU-18-TXL
C249-F301 BK-18-TXL
C252-F303 BK-18-TXL
C253-F284 BK-20-TXL
C560-F299 OR-18-TXL
C562-F285 BU-20-TXL
C564-F286 GN-20-TXL
E554-F305 PK-18-TXL
E581-F317 OR-18-TXL
F512-F302 YL-18-TXL
F711-F55 YL-18-TXL
F712-F56 GN-18-TXL
K961-F38 GN-18-TXL
120-F113 YL-16-TXL
135-F361 BU-16-TXL
200-F149 BK-16-TXL200-F149 BK-16-TXL
210-F362 BK-16-TXL
103-F283 RD-16-TXL
113-F287 OR-18-TXL
124-F304 RD-14-TXL
200-F136 BK-18-TXL
200-F250 BK-14-TXL
235-F251 BK-18-TXL
390-F248 YL-18-TXL
506-F316 PU-18-TXL
508-F288 PU-18-TXL
509-F289 WH-18-TXL
511-F290 BR-18-TXL
512-F291 GN-18-TXL
C566-F8 PK-18-TXL
H864-F335 GN-18-TXL
118-F67 GY-16-TXL
118-F308 GY-14-TXL
118-F310 GY-16-TXL
200-F209 BK-20-TXL
200-F244 BK-16-TXL
A584-F134 BU-20-TXL
A584-F70 BU-18-TXL
F711-F53 YL-18-TXL
F711-F57 YL-18-TXL
F712-F54 GN-18-TXL
F712-F58 GN-18-TXL
K960-F25 YL-18-TXL
K960-F29 YL-18-TXL
K961-F30 GN-18-TXL
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1643-F14 OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
CBL-F30:M753-F295 BK-20
CBL-F30:M754-F292 RD-20
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
K960-F27 YL-18-TXL
K960-F31 YL-18-TXL
K960-F33 YL-18-TXL
K961-F26 GN-18-TXL
K961-F28 GN-18-TXL
K961-F32 GN-18-TXL
K961-F34 GN-18-TXL
200-F392 BK-16-TXL
170-F391 YL-16-TXL
F712-F396 GN-18-TXL
F711-F395 YL-18-TXL
F711-F395 YL-18-TXL
F712-F396 GN-18-TXL
170-F391 YL-16-TXL
200-F392 BK-16-TXL
200-K4 BK-16-TXL
607-K1 PK-16-TXL
K-C1
204-1805
1
2
3
4
5
6
H3
H4
(61) SWITCH - UPPER WINDOW LIMIT
488-6548
1
1
2
2
3
3
3
2
1
3
2
1
115-K8 RD-18-TXL
602-K9 WH-18-TXL
607-K1 PK-16-TXL
200-K4 BK-16-TXL
115-K8 RD-18-TXL
602-K9 WH-18-TXL
(10) DIODE - MAIN RELAY
SPEAKER L
528-1514
SPEAKER R
528-1514
121-1022
200-K5 BK-16-TXL
200-K6 BK-16-TXL
200-K7 BK-18-GXL
607-K2 PK-16-TXL
607-K3 PK-16-TXL
F711-F395 YL-18-TXL
F711-F53 YL-18
H4
F712-F396 GN-18-TXL
F712-F54 GN-18
H3
118-F310 GY-16-TXL
118-F321 GY-16-TXL
F-C42
7Y-3952
1
2
H7
151-F123 RD-18-TXL
154-F124 RD-18-TXL
200-F135 BK-16-TXL
200-F145 BK-16-TXL
307-F141 OR-18-TXL
602-F386 WH-18-TXL
607-F241 PK-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E996-F175 WH-18-TXL
G985-F117 PU-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
K960-F65 YL-18-TXL
K961-F66 GN-18-TXL
L730-F257 OR-18-TXL
L740-F258 BR-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
Y947-F177 BR-18-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
118-F321 GY-16-TXL
A584-F70 BU-18-TXL
118-F321 GY-16-TXL
A584-F70 BU-18-TXL
135-F361 BU-16-TXL
210-F362 BK-16-TXL
303-F188 BR-20-TXL
326-F211 PU-18-TXL
333-F197 GN-18-TXL
603-F2 PK-18-TXL
C249-F301 BK-18-TXL
C252-F303 BK-18-TXL
C253-F284 BK-20-TXL
C560-F299 OR-18-TXL
C562-F285 BU-20-TXL
C564-F286 GN-20-TXL
C566-F8 PK-18-TXL
E703-F333 WH-18-TXL
F512-F302 YL-18-TXL
F711-F49 YL-18
F711-F393 YL-18-TXL
F711-F51 YL-18
F712-F50 GN-18
F712-F394 GN-18-TXL
F712-F52 GN-18
H416-F186 GN-18-TXL
H417-F187 OR-18-TXL
H864-F335 GN-18-TXL
J906-F190 BR-20-TXL
K960-F25 YL-18-TXL
K960-F27 YL-18-TXL
K961-F26 GN-18-TXL
K961-F28 GN-18-TXL
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1643-F14 OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
CBL-F30:M753-F295 BK-20
CBL-F30:M754-F292 RD-20
103-F282 RD-16
105-F83 RD-18
115-F385 RD-18
123-F307 WH-16
127-F306 OR-18
189-F171 WH-18
199-F277 OR-18
320-F169 OR-18
390-F247 YL-18
103-F282 RD-16-TXL
105-F83 RD-18-TXL
115-F385 RD-18-TXL
123-F307 WH-16-TXL
127-F306 OR-18-TXL
189-F171 WH-18-TXL
199-F277 OR-18-TXL
320-F169 OR-18-TXL
390-F247 YL-18-TXL
110-F105 RD-14-TXL
115-F237 RD-18-TXL
115-F388 RD-18-TXL
122-F126 BU-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
147-F217 PU-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
200-F164 BK-18-TXL
200-F313 BK-16-TXL
322-F170 GY-16-TXL
323-F221 WH-14-TXL
390-F249 YL-18-TXL
596-F132 WH-16-TXL
607-F238 PK-16-TXL
616-F233 BU-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
A278-F359 BK-18-TXL
C251-F128 BK-18-TXL
C903-F358 BU-18-TXL
E740-F129 GN-18-TXL
F710-F11 BR-18-TXL
F762-F12 GY-18-TXL
G797-F266 BU-18-TXL
R816-F380 PK-16-TXL
X795-F131 OR-16-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
103-F283 RD-16-TXL
105-F82 RD-14-TXL
113-F287 OR-18-TXL
118-F308 GY-14-TXL
118-F322 GY-16-
120-F113 YL-16-TXL
124-F304 RD-14-TXL
165-F274 YL-18-TXL
308-F192 YL-18-TXL
322-F398 GY-18-TXL
364-F115 BU-18-TXL
365-F196 YL-18-TXL
390-F248 YL-18-TXL
676-F378 PU-18-TXL
780-F383 PU-18-TXL
A579-F311 OR-16-TXL
A580-F312 BR-16-TXL
A581-F315 GN-16-TXL
A582-F314 PU-16-TXL
A625-F205 BR-18-TXL
A627-F204 PK-18-TXL
E581-F317 OR-18-TXL
H807-F223 YL-18-TXL
H807-F384 YL-18-TXL
H808-F228 WH-18-TXL
H807-F225 YL-18-TXL
308-F222 YL-18-TXL
TXL
L730-F351 OR-18-TXL
L740-F352 BR-18-TXL
N794-F353 GY-18-TXL
118-F67 GY-16-TXL
A584-F70 BU-18-TXL
K960-F65 YL-18-TXL
K961-F66 GN-18-TXL
506-F69 PU-18-TXL
N795-F148 WH-18-TXL
F716-F268 WH-18-TXLF716-F268 WH-18-TXL
998-F269 BR-18-TXL
E996-F174 WH-18-TXL
Y947-F176 BR-18-TXL
C878-F154 WH-18-TXL
C879-F155 BU-18-TXL
200-F137 BK-16-TXL
596-F132 WH-16-TXL
X795-F131 OR-16-TXL
118-F321 GY-16-TXL
K960-F25 YL-18-TXL
K960-F41 YL-18-TXL
K960-F65 YL-18-TXL
K960-F27 YL-18-TXL
K961-F26 GN-18-TXL
K961-F42 GN-18-TXL
K961-F66 GN-18-TXL
K961-F28 GN-18-TXL
103-F282 RD-16-TXL
103-F283 RD-16-TXL
105-F82 RD-14-TXL
105-F83 RD-18-TXL
115-F237 RD-18-TXL
115-F385 RD-18-TXL
115-F388 RD-18-TXL
200-F164 BK-18-TXL
390-F247 YL-18-TXL
390-F248 YL-18-TXL
390-F249 YL-18-TXL
H2
CONN 25
F-C46
281-3395
CONN 24
F-C44
230-4009
CONN 23
F-C10
281-3395
CONN 22
CONNECTS TO GP-C10
VOL 2, LOC D-6
103-F282 RD-16-TXL
200-F145 BK-16-TXL
303-F188 BR-20-TXL
390-F247 YL-18-TXL
C253-F284 BK-20-TXL
C562-F285 BU-20-TXL
C564-F286 GN-20-TXL
F711-F49 YL-18-TXL
F712-F50 GN-18-TXL
J906-F190 BR-20-TXL
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1643-F14 OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
K960-F21 YL-18-TXL
K961-F22 GN-18-TXL
K960-F21 YL-18-TXL
K961-F22 GN-18-TXL
105-F83 RD-18-TXL
115-F385 RD-18-TXL
123-F307 WH-16-TXL
127-F306 OR-18-TXL
135-F361 BU-16-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
189-F171 WH-18-TXL
199-F277 OR-18-TXL
200-F135 BK-16-TXL
210-F362 BK-16-TXL
307-F141 OR-18-TXL
320-F169 OR-18-TXL
326-F211 PU-18-TXL
333-F197 GN-18-TXL
602-F386 WH-18-TXL
603-F2 PK-18-TXL
607-F241 PK-18-TXL
C249-F301 BK-18-TXL
C252-F303 BK-18-TXL
C560-F299 OR-18-TXL
C566-F8 PK-18-TXL
E473-F260 GY-18-TXL
E474-F261 OR-18-TXL
E475-F262 PK-18-TXL
E476-F263 PU-18-TXL
E480-F116 PK-18-TXL
E703-F333 WH-18-TXL
E996-F175 WH-18-TXL
F512-F302 YL-18-TXL
F711-F51 YL-18-TXL
F712-F52 GN-18-TXL
G985-F117 PU-18-TXL
H416-F186 GN-18-TXL
H417-F187 OR-18-TXL
H864-F335 GN-18-TXL
J765-F166 BU-18-TXL
J766-F1 PU-18-TXL
J767-F147 GY-18-TXL
K841-F142 BR-18-TXL
K843-F139 GN-18-TXL
K845-F143 OR-18-TXL
K847-F140 PU-18-TXL
K960-F23 YL-18-TXL
K961-F24 GN-18-TXL
L730-F257 OR-18-TXL
L740-F258 BR-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
M968-F343 BU-18-TXL
M969-F130 YL-18-TXL
T800-F99 OR-18-TXL
U706-F259 BR-18-TXL
Y947-F177 BR-18-TXL
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
CBL-F30:M753-F295 BK-20
CBL-F30:M754-F292 RD-20
A579-F311 OR-16-TXL
A580-F312 BR-16-TXL
A582-F314 PU-16-TXL
200-F313 BK-16-TXL
A581-F315 GN-16-TXL
103-F281 RD-16-TXL
105-F81 RD-14-TXL
110-F105 RD-14-TXL
115-F236 RD-16-TXL
118-F322 GY-16-TXL
124-F304 RD-14-TXL
130-F255 RD-14-TXL
133-F106 RD-14-TXL
165-F274 YL-18-TXL
172-F254 RD-18-TXL
180-F389 GN-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
186-F273 RD-14-TXL
198-F397 RD-18-TXL
199-F277 OR-18-TXL
596-F132 WH-16-TXL
607-F238 PK-16-TXL
638-F280 WH-16-TXL
657-F377 YL-16-TXL
676-F378 PU-18-TXL
780-F383 PU-18-TXL
A627-F204 PK-18-TXL
E581-F317 OR-18-TXL
H807-F384 YL-18-TXL
H808-F228 WH-18-TXL
R816-F380 PK-16-TXL
X795-F131 OR-16-TXL
106-F357 RD-18-TXL
114-F167 RD-16-TXL
119-F127 RD-14-TXL
141-F319 RD-14-TXL
149-F232 RD-16-TXL
168-F172 RD-14-TXL
177-F178 RD-10-GXL
180-F379 GN-16-TXL
199-F375 OR-16-TXL
106-F357 RD-18-TXL
114-F167 RD-16-TXL
119-F127 RD-14-TXL
141-F319 RD-14-TXL
149-F232 RD-16-TXL
168-F172 RD-14-TXL
177-F178 RD-10-GXL
180-F379 GN-16-TXL
199-F375 OR-16-TXL
113-F287 OR-18-TXL
118-F308 GY-14-TXL
120-F113 YL-16-TXL
122-F126 BU-14-TXL
123-F307 WH-16-TXL
127-F306 OR-18-TXL
147-F217 PU-18-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
170-F391 YL-16-TXL170-F391 YL-16-TXL
189-F171 WH-18-TXL
308-F192 YL-18-TXL
308-F222 YL-18-TXL
320-F169 OR-18-TXL
322-F170 GY-16-TXL
322-F398 GY-18-TXL
323-F221 WH-14-TXL
364-F115 BU-18-TXL
365-F196 YL-18-TXL
616-F233 BU-16-TXL
A278-F359 BK-18-TXL
A625-F205 BR-18-TXL
C251-F128 BK-18-TXL
C903-F358 BU-18-TXL
E740-F129 GN-18-TXL
F710-F11 BR-18-TXL
F762-F12 GY-18-TXL
G797-F266 BU-18-TXL
H807-F223 YL-18-TXL
H807-F225 YL-18-TXL
X976-F267 GN-16-TXL
X977-F360 YL-16-TXL
122-F367 BU-14-TXL
150-F366 OR-14-TXL
175-F390 PK-16-TXL
304-F114 WH-18-TXL
998-F219 BR-18-TXL
C905-F369 OR-18-TXL
M790-F370 GY-14-TXL
N744-F218 OR-18-TXL
T788-F173 GN-14-TXL
T794-F331 GY-18-TXL
200-F162 BK-18-TXL
200-F374 BK-18-TXL
390-F144 YL-18-TXL
390-F245 YL-18-TXL
A-C9
328-0076
1
2
3
4
5
6
7
8
9
10
11
12
A-C7
328-0076
1
2
3
4
5
6
7
8
9
10
11
12
A-C1
328-0076
1
2
3
4
5
6
7
8
9
10
11
12
GM-C1
281-3395
1
2
3
4
5
6
7
8
9
10
11
12
115-F4 RD-16-TXL
L730-A26 OR-18-GXL
L740-A27 BR-18-GXL
N794-A28 GY-18-GXL
A584-A19 BU-18-GXL
K960-A20 YL-18-GXL
K961-A21 GN-18-GXL
N795-A13 WH-18-GXL
F716-A1 WH-18-GXL
998-A2 BR-18-GXL
E996-A14 WH-18-GXL
Y947-A15 BR-18-GXL
C878-A5 WH-18-GXL
C879-A6 BU-18-GXL
200-A17 BK-16-GXL
596-A8 WH-16-GXL
X795-A9 OR-16-GXL
118-A10 GY-16-GXL
CBL-GM1:1657-GM3 GN-18
187-GM1 PU-18-TXL
235-GM2 BK-18-TXL
N961-GM3 OR-18-TXL
N958-GM4 PK-18-TXL
CBL-GM1:1654-GM1 WH-OR-18
CBL-GM1:1655-GM2 OR-18
Y787-GM5 YL-18-TXL
Y788-GM6 GN-18-TXL
H6
(25) MOTOR - WIPER
F-C25
7Y-3958
487-6806
1
2
3
4
5
6
H1
MOTOR DRIVE NOT USED
MOTOR DRIVE +
HALL SENSOR SUPPLY +
HALL SENSOR SUPPLY HALL SENSOR OUTPUT
CONN 52
CONN 53
118-A10 GY-16-GXL
200-A17 BK-16-GXL
118-A18 GY-16-GXL118-A18 GY-16-GXL
A584-A19 BU-18-GXL
C878-A5 WH-18-GXL
C879-A6 BU-18-GXL
E996-A14 WH-18-GXL
F716-A1 WH-18-GXL
K960-A20 YL-18-GXL
K961-A21 GN-18-GXL
N795-A13 WH-18-GXL
X795-A9 OR-16-GXL
Y947-A15 BR-18-GXL
506-A22 PU-18-GXL506-A22 PU-18-GXL
596-A8 WH-16-GXL
998-A2 BR-18-GXL
200-A7 BK-16-GXL
200-A16 BK-16-GXL
E996-A3 WH-18-GXL
E996-A11 WH-18-GXL
Y947-A4 BR-18-GXL
Y947-A12 BR-18-GXL
PLATFORM
187-GM1 PU-18-TXL
235-GM2 BK-18-TXLCBL-GM1:1656-GM4 WH-GN-18
N958-GM4 PK-18-TXL
N961-GM3 OR-18-TXL
Y787-GM5 YL-18-TXL
Y788-GM6 GN-18-TXL
CBL-GM1:1654-GM1 WH-OR-18
CBL-GM1:1655-GM2 OR-18
CBL-GM1:1656-GM4 WH-GN-18
CBL-GM1:1657-GM3 GN-18
CONN 26
F-C1
F711-F51 YL-18-TXL
F712-F52 GN-18-TXL
200-F135 BK-16-TXL
199-F277 OR-18-TXL
603-F2 PK-18-TXL
607-F241 PK-18-TXL
J765-F166 BU-18-TXL
E480-F116 PK-18-TXL
M969-F130 YL-18-TXL
E996-F175 WH-18-TXL
Y947-F177 BR-18-TXL
M949-F158 PK-18-TXL
M950-F159 PU-18-TXL
320-F169 OR-18-TXL
M951-F118 WH-18-TXL
M952-F101 BU-18-TXL
M953-F102 BU-18-TXL
L730-F257 OR-18-TXL
L740-F258 BR-18-TXL
E474-F261 OR-18-TXL
105-F83 RD-18-TXL
189-F171 WH-18-TXL
151-F123 RD-18-TXL
154-F124 RD-18-TXL
M711-F100 BU-18-TXL
M715-F109 PK-18-TXL
E476-F263 PU-18-TXL
K960-F21 YL-18-TXL
K961-F22 GN-18-TXL
127-F306 OR-18-TXL
M962-F151 YL-18-TXL
M963-F152 BU-18-TXL
J767-F147 GY-18-TXL
K843-F139 GN-18-TXL
K847-F140 PU-18-TXL
K841-F142 BR-18-TXL
K845-F143 OR-18-TXL
E473-F260 GY-18-TXL
G985-F117 PU-18-TXL
326-F211 PU-18-TXL
333-F197 GN-18-TXL
307-F141 OR-18-TXL
H417-F187 OR-18-TXL
H416-F186 GN-18-TXL
123-F307 WH-16-TXL
115-F385 RD-18-TXL
602-F386 WH-18-TXL
K960-F23 YL-18-TXL
K961-F24 GN-18-TXL
T800-F99 OR-18-TXL
C249-F301 BK-18-TXL
F512-F302 YL-18-TXL
C560-F299 OR-18-TXL
C566-F8 PK-18-TXL
CBL-F30:M754-F292 RD-20
CBL-F30:M753-F295 BK-20
C252-F303 BK-18-TXL
E475-F262 PK-18-TXL
U706-F259 BR-18-TXL
210-F362 BK-16-TXL
135-F361 BU-16-TXL
CBL-F30:F556-F293 GN-20
CBL-F30:F557-F294 WH-20
E703-F333 WH-18-TXL E703-G115 WH-18-TXL
H864-F335 GN-18-TXL
F-C50
7Y-3967
190-F112 PK-14-TXL
179-F371 BU-14-TXL
F-C62
7Y-3967
113-F287 OR-18-TXL
114-F167 RD-16-TXL
118-F308 GY-14-TXL
119-F127 RD-14-TXL
120-F113 YL-16-TXL
122-F126 BU-14-TXL
123-F307 WH-16-TXL
127-F306 OR-18-TXL
147-F217 PU-18-TXL
149-F232 RD-16-TXL
158-F256 BR-18-TXL
159-F104 BU-14-TXL
165-F297 YL-14-TXL
170-F391 YL-16-TXL
175-F390 PK-16-TXL
180-F379 GN-16-TXL
189-F171 WH-18-TXL
199-F375 OR-16-TXL
320-F169 OR-18-TXL
322-F170 GY-16-TXL
322-F398 GY-18-TXL
323-F221 WH-14-TXL
365-F196 YL-18-TXL
390-F245 YL-18-TXL
616-F233 BU-16-TXL
A625-F205 BR-18-TXL
C251-F128 BK-18-TXL
E740-F129 GN-18-TXL
G797-F266 BU-18-TXL
X976-F267 GN-16-TXL
106-F264 RD-18-TXL
112-F179 PU-10-GXL
169-F9 PK-18-TXL
106-F264 RD-18-TXL
112-F179 PU-10-GXL
169-F9 PK-18-TXL
106-F357 RD-18-TXL
177-F178 RD-10-GXL
304-F114 WH-18-TXL
308-F192 YL-18-TXL
308-F222 YL-18-TXL
364-F115 BU-18-TXL
390-F144 YL-18-TXL
A278-F359 BK-18-TXL
C903-F358 BU-18-TXL
F710-F11 BR-18-TXL
F762-F12 GY-18-TXL
H807-F223 YL-18-TXL
H807-F225 YL-18-TXL
X977-F360 YL-16-TXL
122-F367 BU-14-TXL
141-F319 RD-14-TXL
150-F366 OR-14-TXL
168-F172 RD-14-TXL
998-F219 BR-18-TXL
C905-F369 OR-18-TXL
M790-F370 GY-14-TXL
N744-F218 OR-18-TXL
T788-F173 GN-14-TXL
T794-F331 GY-18-TXL
163-6800
CONN 28
F-C13
491-8349 143-1630
CONN 29
F-C14
491-8349 143-1630
CONN 30
F-C58
483-9066 167-3463
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
G-C1
163-6659
10
11
12
13
14
15
16
17
18
CONN 27
G-C2
G-C3
G-C18
187-GM7 PU-18-TXL
187-GM8 PU-18-TXL
235-GM9 BK-18-TXL
235-GM10 BK-18-TXL
F711-G72 YL-18-TXL
F712-G73 GN-18-TXL
200-G127 BK-16-TXL
199-G49 OR-18-TXL
603-G50 PK-18-TXL
M968-G103 BU-18-TXLM968-F343 BU-18-TXL
607-G47 PK-18-TXL
J765-G75 BU-18-TXL
E480-G51 PK-18-TXL
1
2
3
4
5
6
7
8
9
M969-G56 YL-18-TXL
E996-G76 WH-18-TXL
Y947-G77 BR-18-TXL
M949-G59 PK-18-TXL
M950-G60 PU-18-TXL
320-G61 OR-18-TXL
M951-G62 WH-18-TXL
M952-G63 BU-18-TXL
M953-G64 BU-18-TXL
L730-G78 OR-18-TXL
L740-G79 BR-18-TXL
E474-G70 OR-18-TXL
105-G80 RD-18-TXL
189-G65 WH-18-TXL
151-G66 RD-18-TXL
154-G67 RD-18-TXL
M711-G120 BU-18-TXL
M715-G121 PK-18-TXL
E476-G88 PU-18-TXL
G-C19
163-6699
K960-G37 YL-18-TXL
K961-G38 GN-18-TXL
127-G35 OR-18-TXL
M962-G9 YL-18-TXL
M963-G10 BU-18-TXL
J767-G81 GY-18-TXL
K843-G12 GN-18-TXL
K847-G14 PU-18-TXL
K841-G15 BR-18-TXL
K845-G16 OR-18-TXL
E473-G19 GY-18-TXL
G985-G33 PU-18-TXL
H417-G5 OR-18-TXL
H416-G6 GN-18-TXL
123-G82 WH-16-TXL
115-G124 RD-18-TXL
602-G125 WH-18-TXL
K960-G45 YL-18-TXL
K961-G46 GN-18-TXL
T800-G116 OR-18-TXL
C249-G26 BK-18-TXL
F512-G27 YL-18-TXL
C560-G24 OR-18-TXL
C566-G25 PK-18-TXL
CBL-G1:M754-G20 RD-20
CBL-G1:M753-G23 BK-20
C252-G28 BK-18-TXL
E475-G87 PK-18-TXL
U706-G85 BR-18-TXL
210-G89 BK-16-TXL
135-G90 BU-16-TXL
CBL-G1:F556-G21 GN-20
CBL-G1:F557-G22 WH-20
H864-G111 GN-18-TXL
J766-G102 PU-18-TXLJ766-F1 PU-18-TXL
326-G2 PU-18-TXL
333-G3 GN-18-TXL
307-G4 OR-18-TXL
ATCH-ADVANCED 2D/3D CGC
177-FE1 RD-4-SXL
(38) RELAY - R1 HORN
(40) RELAY - R2 ATFM PWR
(41) RELAY - R3 ATCH-REFUEL
161-3128
(42) RELAY - R4 LIFTING PUMP
(43) RELAY - R5 BOOM LAMP
A-C10
L730-A26 OR-18-GXLL730-A26 OR-18-GXL
L740-A27 BR-18-GXLL740-A27 BR-18-GXL
N794-A28 GY-18-GXLN794-A28 GY-18-GXL
998-A2 BR-18-GXL
F716-A1 WH-18-GXL
E996-A3 WH-18-GXL
Y947-A4 BR-18-GXL
C879-A6 BU-18-GXL
C878-A5 WH-18-GXL
200-A7 BK-16-GXL
596-A8 WH-16-GXL
X795-A9 OR-16-GXL
118-A10 GY-16-GXL
E996-A11 WH-18-GXL
Y947-A12 BR-18-GXL
N795-A13 WH-18-GXL
K960-A20 YL-18-GXL
118-A18 GY-16-GXL
A584-A19 BU-18-GXL
K961-A21 GN-18-GXL
200-A16 BK-16-GXL
506-A22 PU-18-GXL
CBL-GM1:1654-GM1 WH-OR-18
CBL-GM1:1655-GM2 OR-18
CBL-GM1:1657-GM3 GN-18
CBL-GM1:1656-GM4 WH-GN-18
187-GM7 PU-18-TXL
235-GM9 BK-18-TXL
187-GM8 PU-18-TXL
235-GM10 BK-18-TXL
N961-GM3 OR-18-TXL
N958-GM4 PK-18-TXL
Y787-GM5 YL-18-TXL
Y788-GM6 GN-18-TXL
155-2272
155-2267
155-2273
230-5008
155-2272
230-5010
105-G80 RD-18-TXL
123-G82 WH-16-TXL
200-G127 BK-16-TXL
602-G125 WH-18-TXL
607-G47 PK-18-TXL
C560-G24 OR-18-TXL
E703-G115 WH-18-TXL
E996-G76 WH-18-TXL
H864-G111 GN-18-TXL
J765-G75 BU-18-TXL
J766-G102 PU-18-TXL
K960-G37 YL-18-TXL
K960-G45 YL-18-TXL
K961-G38 GN-18-TXL
K961-G46 GN-18-TXL
L730-G78 OR-18-TXL
L740-G79 BR-18-TXL
M711-G120 BU-18-TXL
M715-G121 PK-18-TXL
M951-G62 WH-18-TXL
M952-G63 BU-18-TXL
M953-G64 BU-18-TXL
M963-G10 BU-18-TXL
M968-G103 BU-18-TXL
T800-G116 OR-18-TXL
U706-G85 BR-18-TXL
Y947-G77 BR-18-TXL
CBL-G1:F556-G21 GN-20
CBL-G1:F557-G22 WH-20
CBL-G1:M754-G20 RD-20
CBL-G1:M753-G23 BK-20
1
85
86
2
30
3
87A
161-3128
4
87
5
1
85
86
2
30
3
87A
161-3128
4
87
5
1
85
86
2
30
3
87A
4
87
5
1
85
86
2
30
3
87A
161-3128
4
87
5
1
85
86
2
30
3
87A
161-3128
4
87
5
A-C11
3E-3376
1
2
3
4
(54) SWITCH - 2ND SHUTDOWN
A-C2
301-2981
A
A
BC
B
C
A-C3
A-C4
A-C5
A-C8
(8) CONTROL GP - TRAVEL PEDAL
561-7001
1
BATTERY+
2
GROUND
3
PWM AXIS 1
4
PWM AXIS 2
5
PWM AXIS 1 RED
6
PWM AXIS 2 RED
CAP A1
342-2978
1
2
3
4
A-C6
3E-3376
1
2
3
4
CAP A2
342-2974
1
2
3
4
5
6
CONN 31
GX-C2
GM-C3
230-5008
243-4507
1
2
3
4
CONN 32
GX-C3
GM-C4
240-7874
273-3288
1
2
GM-C2
GM-C5
269-8224 3E-3388
1
2
3
CONN 33
4
ATCH-LIGHTBAR
5
6
7
8
105-G71 RD-18-TXL
105-G1 RD-18-TXL
115-G124 RD-18-TXL
123-G31 WH-18-TXL
127-G35 OR-18-TXL
135-G90 BU-16-TXL
151-G66 RD-18-TXL
154-G67 RD-18-TXL
189-G65 WH-18-TXL
199-G49 OR-18-TXL
210-G89 BK-16-TXL
307-G4 OR-18-TXL
320-G61 OR-18-TXL
326-G2 PU-18-TXL
333-G3 GN-18-TXL
123-G29 WH-16-TXL
200-G30 BK-16-TXL
200-G32 BK-18-TXL
200-G48 BK-18-TXL
200-G36 BK-18-TXL
200-G114 BK-18-TXL
603-G50 PK-18-TXL
607-G112 PK-18-TXL
C249-G26 BK-18-TXL
C252-G28 BK-18-TXL
C566-G25 PK-18-TXL
E473-G19 GY-18-TXL
E474-G70 OR-18-TXL
E475-G87 PK-18-TXL
E476-G88 PU-18-TXL
E480-G51 PK-18-TXL
F512-G27 YL-18-TXL
F711-G72 YL-18-TXL
F712-G73 GN-18-TXL
G985-G33 PU-18-TXL
H416-G6 GN-18-TXL
H417-G5 OR-18-TXL
J767-G81 GY-18-TXL
K841-G15 BR-18-TXL
K843-G12 GN-18-TXL
K845-G16 OR-18-TXL
K847-G14 PU-18-TXL
M949-G59 PK-18-TXL
M950-G60 PU-18-TXL
607-G113 PK-18-TXL
E996-G7 WH-18-TXL
E996-G57 WH-18-TXL
J765-G34 BU-18-TXL
J765-G52 BU-18-TXL
K960-G39 YL-18-TXL
K960-G41 YL-18-TXL
K960-G43 YL-18-TXL
K961-G40 GN-18-TXL
K961-G42 GN-18-TXL
K961-G44 GN-18-TXL
L730-G17 OR-18-TXL
L730-G68 OR-18-TXL
L730-G126 OR-18-TXL
L740-G18 BR-18-TXL L740-G18 BR-18-TXL
M962-G9 YL-18-TXL
M969-G56 YL-18-TXL
T800-G117 OR-18-TXL
T800-G118 OR-18-TXL
Y947-G8 BR-18-TXL
Y947-G58 BR-18-TXL
177-FE1 RD-4-SXL
112-F179 PU-10-GXL
390-F245 YL-18-TXL
127-F306 OR-18-TXL
123-F307 WH-16-TXL
199-F375 OR-16-TXL
147-F217 PU-18-TXL
167-F220 OR-14-TXL
120-F113 YL-16-TXL
118-F308 GY-14-TXL
113-F287 OR-18-TXL
159-F104 BU-14-TXL
158-F256 BR-18-TXL
169-F9 PK-18-TXL
165-F297 YL-14-TXL
189-F171 WH-18-TXL
180-F379 GN-16-TXL
170-F391 YL-16-TXL
175-F390 PK-16-TXL
179-F371 BU-14-TXL
114-F168 RD-18-TXL
320-F169 OR-18-TXL
114-F168 RD-18-TXL
114-F167 RD-16-TXL
322-F170 GY-16-TXL
322-F398 GY-18-TXL
E740-F129 GN-18-TXL
C251-F128 BK-18-TXL
119-F127 RD-14-TXL
122-F126 BU-14-TXL
167-F240 OR-18-TXL
365-F196 YL-18-TXL
167-F240 OR-18-TXL
167-F220 OR-14-TXL
323-F221 WH-14-TXL
106-F265 RD-18-TXL
G797-F266 BU-18-TXL
106-F265 RD-18-TXL
106-F264 RD-18-TXL
X976-F267 GN-16-TXL
149-F229 RD-18-TXL
A625-F205 BR-18-TXL
149-F229 RD-18-TXL
149-F232 RD-16-TXL
616-F233 BU-16-TXL
(4) CONTROL GP - ATCH-ELEC PEDAL LH
561-7005
BATTERY+
GROUND
SPWM
ISO K
(23) MOTOR - ATCH-LOWER WIPER
346-7441
M
(5) CONTROL GP - ATCH-ELEC PEDAL RH
561-7005
BATTERY+
GROUND
SPWM
ISO K
(24) MOTOR - ATCH-PARALLEL WIPER
488-6513
CAN H
ACC
LIMIT SW (WIPER CUT SWITCH)
CAN L
GND
WASHER PUMP RELAY
CBL-GX1:1654-GX1 WH-OR-18
CBL-GX1:1655-GX2 OR-18
CBL-GX1:1657-GX3 GN-18
CBL-GX1:1656-GX4 WH-GN-18
187-GX5 PU-18-TXL
235-GX6 BK-18-TXL
UN-SWITCHEDSWITCHED
25
5
F1
F1
5
F2
F2
15
F3
F3
10
F4
F4
5
F5
F5
25
F6
F6
10
F7
F7
15
F8
F8
10
F9
F9
20
F10
F10
5
F11
F11
5
F12
F12
15
F13
F13
5
F14
F14
5
F15
F15
10
F16
F16
20
F17
F17
10
F18
F18
15
F19
F19
20
F20
F20
R1
R1-1
R1-2
R1-3
R1-4
R1-5
R2
R2-1
R2-2
R2-3
R2-4
R2-5
R3
R3-1
R3-2
R3-3
R3-4
R3-5
R4
R4-1
R4-2
R4-3
R4-4
R4-5
R5 R10
R5-1
R5-2
R5-3
R5-4
R5-5
(12) BASE AS - FUSE
238-2319
F21
F21
10
F22
F22
15
F23
F23
30
F24
F24
15
F25
F25
15
F26
F26
15
F27
F27
10
F28
F28
30
F29
F29
5
F30
F30
20
F31
F31
10
F32
F32
15
F33
F33
15
F34
F34
15
F35
F35
15
F36
F36
5
F37
F37
25
F38
F38
10
F39
F39
5
F40
F40
R6
R6-1
R6-2
R6-3
R6-4
R6-5
R7
R7-1
R7-2
R7-3
R7-4
R7-5
R8
R8-1
R8-2
R8-3
R8-4
R8-5
R9
R9-1
R9-2
R9-3
R9-4
R9-5
R10-1
R10-2
R10-3
R10-4
R10-5
J767-G81 GY-18-TXL
177-F178 RD-10-GXL
119-F127 RD-14-TXL
103-F281 RD-16-TXL
105-F81 RD-14-TXL
130-F255 RD-14-TXL
115-F236 RD-16-TXL
184-F93 RD-14-TXL
185-F243 RD-14-TXL
149-F232 RD-16-TXL
172-F254 RD-18-TXL
124-F304 RD-14-TXL
114-F167 RD-16-TXL
186-F273 RD-14-TXL
133-F106 RD-14-TXL
168-F172 RD-14-TXL
110-F105 RD-14-TXL
106-F357 RD-18-TXL
141-F319 RD-14-TXL
142-F108 RD-16-TXL190-F112 PK-14-TXL
198-F397 RD-18-TXL
115-F16 RD-18-TXL
A627-F204 PK-18-TXL
115-F16 RD-18-TXL
115-F4 RD-16-TXL
607-F238 PK-16-TXL
676-F378 PU-18-TXL
200-F374 BK-18-TXL
199-F375 OR-16-TXL
199-F376 OR-16-TXL
657-F377 YL-16-TXL
E581-F317 OR-18-TXL
200-F162 BK-18-TXL
X795-F131 OR-16-TXL
596-F132 WH-16-TXL
118-F322 GY-16-TXL
165-F274 YL-18-TXL
H808-F228 WH-18-TXL
199-F376 OR-16-TXL
199-F277 OR-18-TXL
638-F280 WH-16-TXL
780-F383 PU-18-TXL
H807-F384 YL-18-TXL
180-F379 GN-16-TXL
180-F389 GN-16-TXL
R816-F380 PK-16-TXL
103-F282 RD-16-TXL
200-F145 BK-16-TXL
303-F188 BR-20-TXL
390-F247 YL-18-TXL
C253-F284 BK-20-TXL
C562-F285 BU-20-TXL
F711-F49 YL-18-TXL
F712-F50 GN-18-TXL
F711-F45 YL-18-TXL
F711-F47 YL-18-TXL
F712-F46 GN-18-TXL
F712-F48 GN-18-TXL
J906-F190 BR-20-TXL
K960-F21 YL-18-TXL
K961-F22 GN-18-TXL
H6
607-G112 PK-18-TXL
200-G48 BK-18-TXL
199-G49 OR-18-TXL
603-G50 PK-18-TXL
E480-G51 PK-18-TXL
J765-G52 BU-18-TXL
115-G124 RD-18-TXL
602-G125 WH-18-TXL
M969-G56 YL-18-TXL
T800-G117 OR-18-TXL
E996-G57 WH-18-TXL
Y947-G58 BR-18-TXL
M949-G59 PK-18-TXL
M950-G60 PU-18-TXL
320-G61 OR-18-TXL
M951-G62 WH-18-TXL
M952-G63 BU-18-TXL
M953-G64 BU-18-TXL
189-G65 WH-18-TXL
151-G66 RD-18-TXL
154-G67 RD-18-TXL
L730-G68 OR-18-TXL
L740-G69 BR-18-TXL
E474-G70 OR-18-TXL
E476-G88 PU-18-TXL
105-G71 RD-18-TXL
F711-G72 YL-18-TXL
F712-G73 GN-18-TXL
105-G1 RD-18-TXL
135-G90 BU-16-TXL
210-G89 BK-16-TXL
307-G4 OR-18-TXL
326-G2 PU-18-TXL
333-G3 GN-18-TXL
C249-G26 BK-18-TXL
C252-G28 BK-18-TXL
C560-G24 OR-18-TXL
C566-G25 PK-18-TXL
E473-G19 GY-18-TXL
E475-G87 PK-18-TXL
E996-G7 WH-18-TXL
F512-G27 YL-18-TXL
H416-G6 GN-18-TXL
H417-G5 OR-18-TXL
K841-G15 BR-18-TXL
K843-G12 GN-18-TXL
K845-G16 OR-18-TXL
K847-G14 PU-18-TXL
L730-G17 OR-18-TXL
M715-G121 PK-18-TXL
M962-G9 YL-18-TXL
M963-G10 BU-18-TXL
T800-G118 OR-18-TXL
Y947-G8 BR-18-TXL
CBL-G1:F556-G21 GN-20
CBL-G1:F557-G22 WH-20
CBL-G1:M754-G20 RD-20
CBL-G1:M753-G23 BK-20
123-G29 WH-16-TXL
200-G30 BK-16-TXL
123-G31 WH-18-TXL
200-G32 BK-18-TXL
G985-G33 PU-18-TXL
J765-G34 BU-18-TXL
L730-G126 OR-18-TXL
U706-G85 BR-18-TXL
L740-G86 BR-18-TXL
K960-G39 YL-18-TXL
K961-G40 GN-18-TXL
127-G35 OR-18-TXL
200-G36 BK-18-TXL
K960-G43 YL-18-TXL
K961-G44 GN-18-TXL
E703-G115 WH-18-TXL
H864-G111 GN-18-TXL
607-G113 PK-18-TXL 607-J13 PK-18-TXL
F-C48
7Y-3967
R893-F89 GY-20-TXL
R894-F97 WH-20-TXL
R896-F95 GY-20-TXL
R897-F98 WH-20-TXL
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1631-F2 OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1643-F14 OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
CBL-F27:1800-F100 WH-BU-20
CBL-F27:1801-F99 BU-20
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
CBL-CX1:1804-CX2 WH-BU-20
CBL-CX1:1805-CX1 BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
J767-G101 GY-18-TXL
J767-G122 GY-18-TXL
J767-G99 GY-18-TXL
J767-G100 GY-18-TXL
J767-G11 GY-18-TXL
J767-G13 GY-18-TXL
H1
1
85
86
2
30
(44) RELAY - R6 CHASSIS LAMP
3
87A
161-3128
4
87
5
1
85
86
2
30
(45) RELAY - R7 ATCH-SEAT BELT
3
87A
161-3128
4
87
5
1
85
86
2
30
(46) RELAY - R8 ATCH-LOWER WIPER
3
87A
161-3128
4
87
5
1
85
86
2
30
(47) RELAY - R9 ATCH-CAUTION
3
87A
161-3128
4
87
5
1
85
86
2
30
(39) RELAY - R10 ATCH-AUTOLUBE
3
87A
161-3128
4
87
5
141-F330 RD-18-TXL
T794-F331 GY-18-TXL
141-F330 RD-18-TXL
141-F319 RD-14-TXL
150-F366 OR-14-TXL
122-F368 BU-18-TXL
C905-F369 OR-18-TXL
122-F368 BU-18-TXL
122-F367 BU-14-TXL
M790-F370 GY-14-TXL
N744-F218 OR-18-TXL
998-F219 BR-18-TXL
168-F172 RD-14-TXL
T788-F173 GN-14-TXL
K960-F17 YL-18-TXL
K960-F19 YL-18-TXL
K961-F18 GN-18-TXL
K961-F20 GN-18-TXL
CONN 40
H-C1G-C10
291-7548
163-6699
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
CONN 39
G-C11
H-C2
291-7548
163-6699
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
G CAP4
G-C13
342-2972
240-7876
1
2
G CAP3
G-C14
342-2972
240-7874
1
2
G CAP2
G-C15
342-2973
240-7878
1
2
3
G CAP1
G-C16
342-2978
261-0524
1
2
3
4
CONN 34
G-C12
J-C1
197-4296 163-6659
1
2
3
4
5
6
7
8
9
10
11
12
CONN 38
ATCH-AIR SUSPENSION
CONN 37
ATCH-SEAT HEATER
CONN 36
ATCH-SEAT BELT SW
GG-C1
335-8849
CONN 35
F-C60
149-5051
1
2
3
4
5
F-C61
149-5051
1
2
3
4
5
F-C56
149-5051
1
2
3
4
5
607-H36 PK-18-TXL
200-H35 BK-18-TXL
199-H23 OR-18-TXL
603-H22 PK-18-TXL
E480-H27 PK-18-TXL
J765-H37 BU-18-TXL
J766-H53 PU-18-TXLJ766-G102 PU-18-TXL
115-H63 RD-18-TXL
602-H64 WH-18-TXL
M969-H40 YL-18-TXL
T800-H60 OR-18-TXL
M711-H62 BU-18-TXLM711-G120 BU-18-TXL
M968-H54 BU-18-TXLM968-G103 BU-18-TXL
E996-H8 WH-18-TXL
Y947-H9 BR-18-TXL
M949-H10 PK-18-TXL
M950-H11 PU-18-TXL
320-H13 OR-18-TXL
M951-H15 WH-18-TXL
M952-H16 BU-18-TXL
M953-H17 BU-18-TXL
189-H3 WH-18-TXL
151-H2 RD-18-TXL
154-H1 RD-18-TXL
L730-H18 OR-18-TXL
L740-H19 BR-18-TXL
E474-H20 OR-18-TXL
E476-H44 PU-18-TXL
105-H4 RD-18-TXL
F711-H6 YL-18-TXL
F712-H7 GN-18-TXL
1
2
3
4
K960-J3 YL-20-TXL
K961-J4 GN-20-TXL
127-J1 OR-20-TXL
200-J2 BK-20-TXL 200-J2 BK-20-TXL 200-J9 BK-20-TXL
K960-J5 YL-20-TXL
K961-J6 GN-20-TXL
E703-J11 WH-18-TXL
H864-J12 GN-18-TXL
200-J14 BK-18-TXL200-G114 BK-18-TXL
F1
R1
F2
F3
R2
F4
F5
R3
F6
F7
R4
F8
F9
R5
F10
F11
R6
F12
F13
R7
F14
F15
R8
F16
F17
R9
F18
F19
R10
F20
FUSE PANEL
(34) RELAY - ENGINE MAIN POWER
149-5050
(32) RELAY - DEF PUMP REVERSING VALVE
149-5050
(37) RELAY - PRIMING PUMP (C13)
149-5050
CBL-F9:1631-F2 OR-18
CBL-F9:1630-F1 WH-OR-18
CBL-F9:1632-F4 WH-GN-18
CBL-F9:1633-F3 GN-18
390-F247 YL-18-TXL
CBL-F15:1643-F14 OR-18
CBL-F15:1642-F13 WH-OR-18
CBL-F15:1644-F15 WH-GN-18
CBL-F15:1645-F16 GN-18
C253-F284 BK-20-TXL
CBL-F26:1802-F87 WH-BU-20
CBL-F26:1803-F88 BU-20
303-F188 BR-20-TXL
CBL-F27:1801-F99 BU-20
CBL-F27:1800-F100 WH-BU-20
CBL-CY1:1806-CY2 WH-BU-20
CBL-CY1:1807-CY1 BU-20
C562-F285 BU-20-TXL
R897-F98 WH-20-TXL
R894-F97 WH-20-TXL
C564-F286 GN-20-TXL
R896-F95 GY-20-TXL
R893-F89 GY-20-TXL
J906-F190 BR-20-TXL
CBL-CX1:1805-CX1 BU-20
CBL-CX1:1804-CX2 WH-BU-20
103-F282 RD-16-TXL
200-F145 BK-16-TXL
F711-F47 YL-18-TXL
F712-F48 GN-18-TXL
K960-F19 YL-18-TXL
K961-F20 GN-18-TXL
K960-F17 YL-18-TXL
K961-F18 GN-18-TXL
F711-F45 YL-18-TXL
F712-F46 GN-18-TXL
CBL-GX1:1655-GX2 OR-18
CBL-GX1:1657-GX3 GN-18
235-GX6 BK-18-TXL
187-GX5 PU-18-TXL
CBL-GX1:1656-GX4 WH-GN-18
CBL-GX1:1654-GX1 WH-OR-18
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
313-2495
313-2495
L730-GG1 OR-18-TXL
U706-GG2 BR-18-TXL
L740-GG3 BR-18-TXL
F-C9
483-2762
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
NOTE A
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
NOTE A
34
35
36
37
38
39
40
41
42
43
44
F-C41
1
2
F-C43
1
2
(19) MODULE GP - DISPLAY-CGC ATCH
509-0268
GX-C1
317-8734
509-0267 (CHINA MARKET)
A ETHERNET TX(-)
B ETHERNET RX(-)
C NOT CONNECTED
D POWER GND
E BTRY+
F NOT CONNECTED
G ETHERNET RX(+)
H ETHERNET TX(+)
ATCH-BLADE
(18) MODULE GP - DISPLAY
490-5874
J1-PIN1 ETHERNET 2 TX J1-PIN2 ETHERNET 2 TX +
J1-PIN3 ETHERNET 2 RX +
J1-PIN4 ETHERNET 2 RX J1-PIN5 KEY SWITCH
J1-PIN6 ETHERNET 1 TX J1-PIN7 ETHERNET 1 TX +
J1-PIN8 ETHERNET 1 RX +
J1-PIN9 ETHERNET 1 RX J1-PIN10 AUDIO OUT RETURN
J1-PIN11 BROADR-REACH 4 +
J1-PIN12 BROADR-REACH 4 J1-PIN13 WAKE UP
J1-PIN14 BROADR-REACH 3 J1-PIN15 BROADR-REACH 3 +
J1-PIN16 N/C
J1-PIN17 N/C
J1-PIN18 BROADR-REACH 2 +
J1-PIN19 BROADR-REACH 2 J1-PIN20 AUDIO OUT L+
J1-PIN21 12V - 2
J1-PIN22 12V - 1
J1-PIN23 N/C
J1-PIN24 N/C
J1-PIN25 N/C
J1-PIN26 AUDIO OUT R+
J1-PIN27 12V + 2
J1-PIN28 12V + 1
J1-PIN29 HSD / ON-OFF OUTPUT
J1-PIN30 N/C
J1-PIN31 N/C
J1-PIN32 N/C
J1-PIN33 N/C
J1-PIN34 BROADR-REACH 1 J1-PIN35 BROADR-REACH 1 +
J1-PIN36 UNSWITCHED BATTERY
J1-PIN37 GROUND
J1-PIN38 CAN 1+ / CDL +
J1-PIN39 CAN 1- / CDL J1-PIN40 N/C
J1-PIN41 CAN 2+
J1-PIN42 CAN 2J1-PIN43 N/C
J1-PIN44 N/C
(50) RESISTOR - MACHINE CAN DATA LINK
324-5678
(49) RESISTOR - CAN (J1939) DATA LINK
324-5678
105-H4 RD-18-TXL
115-H63 RD-18-TXL
151-H2 RD-18-TXL
154-H1 RD-18-TXL
199-H23 OR-18-TXL
189-H3 WH-18-TXL
199-H47 OR-18-TXL
199-H48 OR-18-TXL
200-H21 BK-18-TXL
200-H25 BK-18-TXL
200-H38 BK-18-TXL
200-H34 BK-18-TXL
POWER
PWM SIGNAL 1
GND
PWM SIGNAL 2
200-H12 BK-18-TXL
200-H5 BK-18-TXL
607-H24 PK-18-TXL
607-H28 PK-18-TXL
607-H41 PK-18-TXL
J765-H14 BU-18-TXL
J765-H26 BU-18-TXL
J765-H39 BU-18-TXL
J765-H49 BU-18-TXL
J765-H50 BU-18-TXL
J765-H61 BU-18-TXL
127-J8 OR-20-TXL
200-H35 BK-18-TXL
320-H13 OR-18-TXL
602-H64 WH-18-TXL
603-H22 PK-18-TXL
607-H36 PK-18-TXL
E474-H20 OR-18-TXL
E476-H44 PU-18-TXL
E480-H27 PK-18-TXL
E996-H8 WH-18-TXL
F711-H6 YL-18-TXL
F712-H7 GN-18-TXL
J765-H37 BU-18-TXL
J766-H53 PU-18-TXL
L730-H18 OR-18-TXL
L740-H19 BR-18-TXL
M711-H62 BU-18-TXL
M949-H10 PK-18-TXL
M950-H11 PU-18-TXL
M951-H15 WH-18-TXL
M952-H16 BU-18-TXL
M953-H17 BU-18-TXL
M968-H54 BU-18-TXL
M969-H40 YL-18-TXL
T800-H60 OR-18-TXL
Y947-H9 BR-18-TXL
GG-C2
261-0524
(51) BASE AS - ATCH-BLADE LEVER
568-2461
1
2
3
4
127-J1 OR-20-TXL 127-J7 OR-20-TXL
200-J10 BK-20-TXL
200-J14 BK-18-TXL
607-J13 PK-18-TXL
E703-J11 WH-18-TXL
H864-J12 GN-18-TXL
K960-J3 YL-20-TXL
K960-J5 YL-20-TXL
K961-J4 GN-20-TXL
K961-J6 GN-20-TXL
(35) RELAY - LIFTING PUMP (C9)
F-C33
C903-F358 BU-18-TXL
A278-F359 BK-18-TXL
106-F264 RD-18-TXL
106-F357 RD-18-TXL
X977-F360 YL-16-TXL
169-F10 PK-18-TXL
F710-F11 BR-18-TXL
169-F10 PK-18-TXL
169-F9 PK-18-TXL
F762-F12 GY-18-TXL
390-F153 YL-18-TXL
364-F115 BU-18-TXL
390-F153 YL-18-TXL
390-F144 YL-18-TXL
304-F114 WH-18-TXL
308-F192 YL-18-TXL
308-F222 YL-18-TXL
H807-F223 YL-18-TXL
H807-F225 YL-18-TXL
177-F178 RD-10-GXL
112-F179 PU-10-GXL
149-5051
149-5051
149-5051
267-9973
149-5050
1
2
3
4
5
(31) RELAY - ATCH-ETHER START AID
F-C34
149-5050
1
2
3
4
5
(33) RELAY - ENGINE KEY
F-C57
149-5050
1
2
3
4
5
F-C32
1
2
3
4
CBL-CZ1:1806-CZ2 WH-BU-20
CBL-CZ1:1807-CZ1 BU-20
H8
R896-CZ3 GY-20-TXL
R897-CZ4 WH-20-TXL
607-K2 PK-16-TXL
200-K5 BK-16-TXL
H7
607-K3 PK-16-TXL
200-K6 BK-16-TXL
602-K9 WH-18-TXL
200-K7 BK-18-GXL
115-K8 RD-18-TXL
(36) RELAY - MAIN POWER
272-5841
1
2
3
4
1
CONN 41
2
1
CONN 42
2
CZ-C2
490-0572
NOTE A
K-C2
7Y-3967
CONN 45
CONN 46
K-C3
7Y-3966
K-C4
7Y-3967
CONN 50
CONN 51
K-C5
7Y-3966
DOME LAMP
431-9515
DOOR
ON
BTRY+
SWITCHED POWER FUSE FUNCTION RATING CID-CLR
F1 HVAC (KEY SW) 5 390-YL
F2 SCM (JOG DIAL, KEY PAD MODULE) 5 127-OR
F3 ATT AIR SUSPENSION 15 123-WH
F4 ATT BEACON LAMP 10 199-OR
F5 ATT CTWT RMVL 5 147-PU
F6 SMART REFUELING 25 167-OR
F7 DC-DC CONVERTER 10 120-YL
F8 WIPER CONTROLLER 15 118-GY
F9 CAN RADIO 10 113-OR
F10 ATT CGC IMU 1 20 159-BU
F11 GLOW RELAY / OCV FILTER 5 158-BR
F12 ETHER START AID SOL 5 169-PK
F13 SMART RELAY 15 165-YL
F14 HYD LOCK 5 189-WH
F15 SPARE 5 F16 AUTO LUBE 10 180-GN
F17 AUX RELAY 20 170-YL
F18 ROTO TILT 10 175-PK
F19 AUX 15 190-PK
F20 AUX 20 179-BU
REF DES PART NO. CHG LVL DESCRIPTION

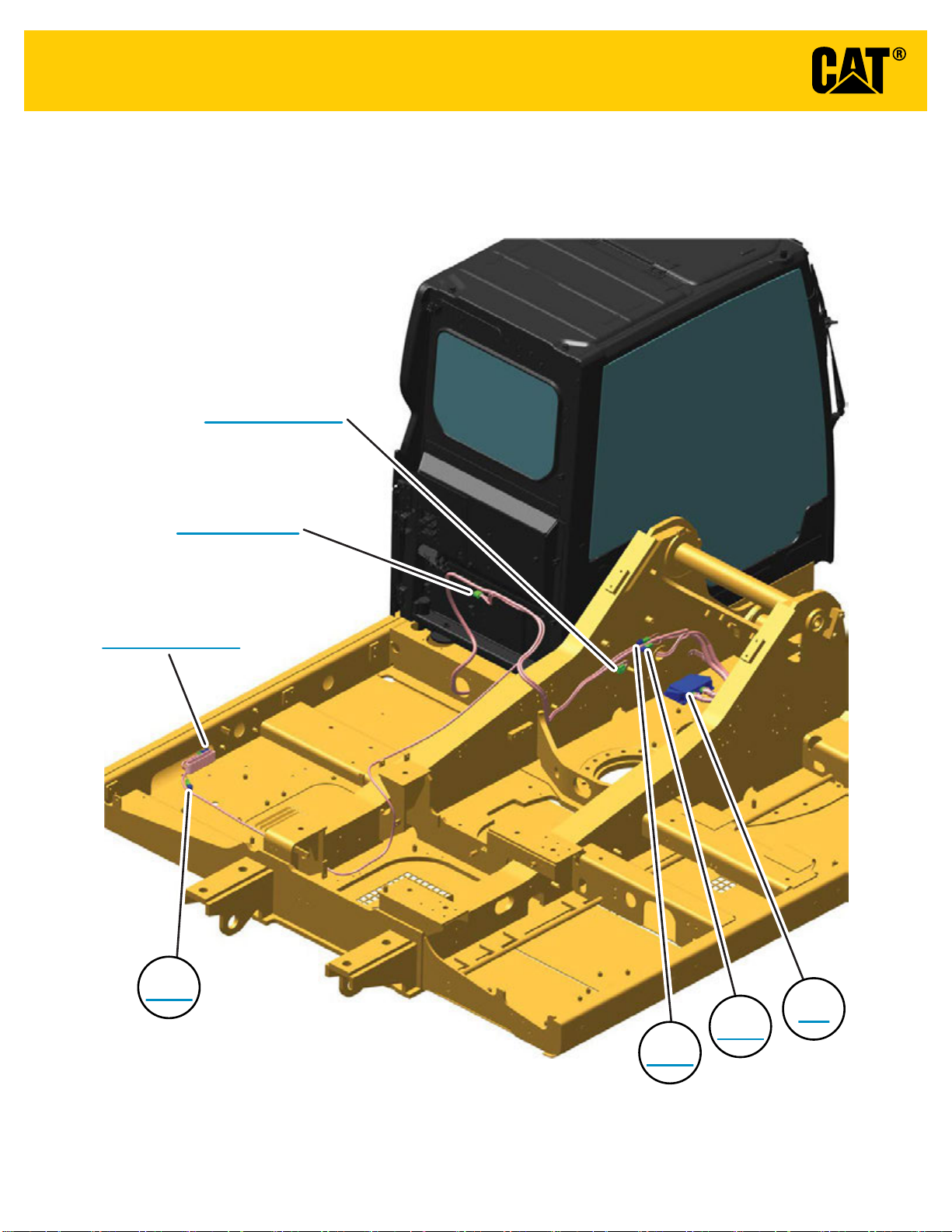

A 585-4979 02 HARNESS AS-PLATF
F 610-4733 00 HARNESS AS-CAB
G 543-2649 00 HARNESS AS-CSL (RH)
H 547-9984 01 HARNESS AS-CSL (LH)
J 530-1945 00 HARNESS AS-CSL (SCM)
K 543-2647 01 HARNESS AS-CAB (ROOF)
R 578-8718 01 HARNESS AS-CAB (LAMP)
M 578-8720 00 HARNESS AS-CAB (RH)(WITH COVER)
M 533-2343 00 HARNESS AS-CAB (RH)(WITH COVER)
CZ 543-2648 00 HARNESS AS-CAMR (FRONT CAMERA)
GG 569-2439 01 HARNESS AS-CSL (BLADE LEVER)
GM 530-1953 01 HARNESS AS-CAB (CGC DISPLAY)
GX 593-8080 00 HARNESS AS-MON (CGC)
HH 530-1946 00 HARNESS AS (FOOT LAMP)
KX 611-2256 00 HARNESS AS-CAB (AUX RELAY)
RC 578-8721 01 HARNESS AS-CAB (LH)(FOGS GUARD)
RC 530-1948 02 HARNESS AS-CAB (LH)(WITH COVER)
RD 538-9804 00 HARNESS AS-CAP (KEY-A)
RE 538-9805 00 HARNESS AS-CAP (KEY-B)
RG 539-2833 01 HARNESS AS-CAMR (KEY-A)
RH 539-2834 00 HARNESS AS-CAMR (KEY-B)
REF DES PART NO. CHG LVL DESCRIPTION
CX 549-7500 00 CABLE AS (ETHERNET)(KEY-A)
CY 549-7501 00 CABLE AS (ETHERNET)(KEY-B)
FE 490-3875 02 CABLE AS-CAB
NOTE A: EXCEPT GC COMFORT CONFIGURATION
RC-C7
490-0578
1
2
1
2
RC-C5
490-0571
R-C1
7Y-3966
R-C2
7Y-3967
R-C1 1
7Y-3966
R-C2 1
7Y-3967
199-H65 OR-18-TXL
607-H24 PK-18-TXL
603-H22 PK-18-TXL
199-H47 OR-18-TXL
200-H21 BK-18-TXL
607-H28 PK-18-TXL
J765-H26 BU-18-TXL
E480-H27 PK-18-TXL
200-H25 BK-18-TXL
607-H41 PK-18-TXL
M969-H40 YL-18-TXL
J766-H53 PU-18-TXL
M968-H54 BU-18-TXL
200-H38 BK-18-TXL
115-H63 RD-18-TXL
602-H64 WH-18-TXL
E996-H8 WH-18-TXL
Y947-H9 BR-18-TXL
M949-H10 PK-18-TXL
M950-H11 PU-18-TXL
L730-H18 OR-18-TXL
L740-H19 BR-18-TXL
M953-H17 BU-18-TXL
J765-H50 BU-18-TXL
E474-H20 OR-18-TXL
T800-H60 OR-18-TXL
M711-H62 BU-18-TXL
E476-H44 PU-18-TXL
J765-H61 BU-18-TXL
320-H13 OR-18-TXL
M951-H15 WH-18-TXL
M952-H16 BU-18-TXL
J765-H14 BU-18-TXL
J765-H49 BU-18-TXL
200-H12 BK-18-TXL
154-H1 RD-18-TXL
151-H2 RD-18-TXL
189-H3 WH-18-TXL
105-H4 RD-18-TXL
200-H5 BK-18-TXL
F711-H6 YL-18-TXL
F712-H7 GN-18-TXL
199-H48 OR-18-TXL
E996-G7 WH-18-TXL
Y947-G8 BR-18-TXL
M962-G9 YL-18-TXL
M963-G10 BU-18-TXL
L730-G17 OR-18-TXLL740-G69 BR-18-TXL
L740-G18 BR-18-TXLL740-G86 BR-18-TXL
K845-G16 OR-18-TXL
J767-G101 GY-18-TXL
E473-G19 GY-18-TXL
T800-G118 OR-18-TXL
M715-G121 PK-18-TXL
E475-G87 PK-18-TXL
J767-G122 GY-18-TXL
J767-G11 GY-18-TXL
K847-G14 PU-18-TXL
K841-G15 BR-18-TXL
J767-G13 GY-18-TXL
J767-G100 GY-18-TXL
K843-G12 GN-18-TXL
CBL-G1:M754-G20 RD-20
CBL-G1:F556-G21 GN-20
CBL-G1:F557-G22 WH-20
CBL-G1:M753-G23 BK-20
C560-G24 OR-18-TXL
C566-G25 PK-18-TXL
C249-G26 BK-18-TXL
F512-G27 YL-18-TXL
C252-G28 BK-18-TXL
210-G89 BK-16-TXL
135-G90 BU-16-TXL
105-G1 RD-18-TXL
326-G2 PU-18-TXL
333-G3 GN-18-TXL
307-G4 OR-18-TXL
H416-G6 GN-18-TXL
H417-G5 OR-18-TXL
127-J7 OR-20-TXL
200-J9 BK-20-TXL
K960-J3 YL-20-TXL
K961-J4 GN-20-TXL
127-J8 OR-20-TXL
200-J10 BK-20-TXL
K960-J5 YL-20-TXL
K961-J6 GN-20-TXL
607-J13 PK-18-TXL
H864-J12 GN-18-TXL
E703-J11 WH-18-TXL
200-J14 BK-18-TXL
CBL-RC1:1806-RC6 WH-BU-20
CBL-RC1:1807-RC5 BU-20
R896-RC3 GY-20-TXL
R897-RC4 WH-20-TXL
CONNECTS TO RC-C6
CONNECTS TO RC-C4
607-R1 PK-16-GXL
200-R2 BK-16-GXL
607-R1 1 PK-16-GXL
200-R2 1 BK-16-GXL
CONN 45
CONNECTS TO K-C2
VOL 1, LOC I-2
CONNECTS TO K-C3
CONN 50
CONNECTS TO K-C4
VOL 1, LOC I-2
CONNECTS TO K-C5
H-C8
490-6690
1
2
3
4
5
6
7
8
9
10
H-C9
490-6690
1
2
3
4
5
6
7
8
9
10
H-C11
490-6690
1
2
3
4
5
6
7
8
9
10
H-C16
H-C15
155-2269
3E-3364 155-2269
1
CONN 47
2
H-C4
281-3132
1
2
3
4
5
6
H-C6
3E-5179
1
2
3
4
5
6
7
8
9
10
11
12
H-C5
3E-3382
1
2
3
4
5
6
H-C3
155-2267
A
B
C
H-C12
H-C7
3E-3388
155-2264
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
G-C5
281-3132
1
2
3
4
5
6
G-C7
3E-5179
1
2
3
4
5
6
7
8
9
10
11
12
G-C6
3E-3382
1
2
3
4
5
6
G-C8
163-6659
1
2
3
4
5
6
7
8
9
10
11
12
G-C9
7Y-3952
1
2
(59) SWITCH - START
G-C4
526-5708
155-2273
BTRY+
1
RTRY N/C
2
RTRY SW N/O
3
PUSH SW N/O
4
LED-1 RED
5
LED-2 GREEN
6
(20) MODULE GP - JOG DIAL
J-C2
478-8975
487-8430
487-8430
490-6690
BATTERY
1
GND
2
J1939+
3
J1939-
4
(21) MODULE GP - ROTARY DIAL
J-C3
478-8977
BATTERY
1
GND
2
J1939+
3
J1939-
4
J-C4
1
2
3
4
5
6
7
8
9
10
CONN 43
RC-C6
490-0571
1
2
RD-C1
490-0572
R896-RD2 WH-20-TXL
R897-RD1 BU-20-TXL
RD-C2
490-0572
1
2
RD-C3
505-7637
CONN 44
RC-C4
490-0578
CONN 43
VOL 1, LOC J-2
CONN 44
VOL 1, LOC J-2
1
2
1
2
1
2
R896-RE2 GY-20-TXL
R897-RE1 WH-20-TXL
RE-C1
490-0582
RG-C2
490-0572
CBL-RG1:1806-RG6 WH-BU-20
CBL-RG1:1807-RG5 BU-20
RH-C2
490-0582
R896-RH1 GY-20-TXL
R897-RH2 WH-20-TXL
1
2
RE-C2
RE-C3
490-0582 505-7638
RG-C1
490-0571
CONN 48
ATCH-FRONT VIEW CAMERA-FOGS
1
512-6385
2
RH-C1
490-0578
CONN 49
1
ATCH-FRONT VIEW CAMERA-FOGS
2
512-6385
ATCH-FRONT VIEW CAMERA
R-C3
155-2269
R-C3 1
155-2269
RC-C9
7Y-3966
CONN 46
VOL 1, LOC I-2
M-C1
7Y-3966
CONN 51
VOL 1, LOC I-2
1
2
1
2
RC-C8
7Y-3967
M-C2
7Y-3967
ATCH-CAB LAMP(LH)
577-7404
ATCH-CAB LAMP(RH)
577-7404
607-RC1 PK-16-GXL
200-RC2 BK-16-GXL
607-M1 PK-16-GXL
200-M2 BK-16-GXL
RC-C3
155-2269
M-C3
155-2269
ATCH-CAB LAMP(LH)(FOGS GUARD)
1
2
1
2
577-7404
ATCH-CAB LAMP(LH)(WITH COVER)
577-7403
ATCH-CAB LAMP(RH)(FOGS GUARD)
577-7404
ATCH-CAB LAMP(RH)(WITH COVER)
577-7403
ATCH-CAB LAMP FOGS GUARD/WITH COVER
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
HH-C2
1
2
(55) SWITCH - ATCH-BEACON
489-7908
(56) SWITCH - ATCH-OVLD
489-7909
(57) SWITCH - ATCH-QCPLR
498-9091
115-HH1 RD-18-TXL
602-HH2 WH-18-TXL
HH-C1
155-2269
FOOT LAMP
POWER
GND
SIGNAL 2/4
SIGNAL 1/3
(1) BASE AS - JOYSTICK LH
487-8455
(15) GRIP AS - LH
526-8848
BUTTON 3
(58) SWITCH - NEUTRAL START LIMIT
111-4799
(22) ATCH-MSS KEY READER
462-0441
+BTRY
-BTRY
CAN+
CANSWG (LOC 0)
SWG (LOC 1)
GND
KEY SWITCH
BUTTON 2
BUTTON 1
CONNECTS TO
1
2
3
4
5
6
7
8
9
10
11
12
CONNECTS T
1
2
3
4
5
6
CONNECTS TO
H-C6
1
2
3
4
5
6
7
8
9
10
11
12
CONNECTS TO
H-C5
1
2
3
4
5
6
H-C5
H-C6
BUTTON 8
O
BUTTON 7
(13) GRIP AS - ATCH-LH
512-1247/512-1254
(13) GRIP AS - ATCH-LH
493-2743
BUTTON 5
BUTTON 2
BUTTON 1
CONSOLE (LH)
POWER
GND
SIGNAL 2/4
SIGNAL 1/3
(16) GRIP AS - RH
512-1242
BUTTON 3
(28) RECEPTACLE AS - CONNECTOR
(USB/AUX/MIC)
494-0023
USB VBUS
USB USB +
USB GND
AUX RHI
AUX LHI
AUX GND
MIC IN
MIC GND
RESERVED
RESERVED
(53) SOCKET - AUXILIARY POWER
12V (CONSOLE)
335-5365
(2) BASE AS - JOYSTICK RH
487-8455
CONNECTS TO
CONNECTS TO
BUTTON 1
BUTTON 2
CONNECTS TO
CONNECTS TO
10
11
12
10
11
12
1
2
3
4
5
6
7
8
9
G-C6
1
2
3
4
5
6
G-C7
1
2
3
4
5
6
7
8
9
G-C6
1
2
3
4
5
6
G-C7
(14) GRIP AS - ATCH-RH
512-1248 / 512-1255
BUTTON 8
BUTTON 7
(14) GRIP AS - ATCH-RH
493-2744
BUTTON 5
BUTTON 2
BUTTON 1
CONSOLE (RH)
1
2
3
4
5
6
7
8
9
10
(60) SWITCH - TRAVEL ALARM-ATCH
516-3432
SCM MODULE
UNSWITCHED POWER FUSE FUNCTION RATING CID-CLR
F21 AFTM CONT UN 25 119-RD
F22 MONITOR 10 103-RD
F23 BCM 15 105-RD
F24 ADEM 30 130-RD
F25 CAB / CHASSIS LAMP 15 115-RD
F26 PRIMARY MECM 15 184-RD
F27 SECONDARY MECM 15 185-RD
F28 BOOM LAMP 10 149-RD
F29 SPARE 30 F30 NETWORK MANAGER (A6N2) FOR PL 5 172-RD
F31 HVAC BLOWER 20 124-RD
F32 HORN 10 114-RD
F33 3RD ECM FOR UHD 15 186-RD
F34 PERSONNEL DETECTION / SPARE 15 133-RD
F35 PRIMING PUMP FOR C13.1 15 168-RD
F36 ATT CGC 2D / 3D 15 110-RD
F37 LIFTING PUMP 5 106-RD
F38 SPARE 25 141-RD
F39 AUX 10 142-RD
F40 INSPECTION LAMP 5 198-RD
ETHERNET PATCH CABLES (PRODUCT LINK)
REF DES PART NO
DESCRIPTION CIRCUIT NUMBER
(3) CAMERA - ATCH-FRONT VIEW
512-6385
ETHERNET+
1
2
ETHERNET-
12V+ POWER
3
4
GROUND
FOOT LAMP
456-0632
BK-16
1
WH-16
2
POWER (+5V)
GND
PWM NORMAL
PWM REVERSE
BUTTON 2
BUTTON 4
POWER (+8V)
GND
PWM NORMAL
PWM REVERSE
BUTTON 3
BUTTON 4
POWER (+5V)
GND
PWM NORMAL
PWM REVERSE
BUTTON 3
BUTTON 5
POWER (+8V)
GND
PWM NORMAL
PWM REVERSE
BUTTON 3
BUTTON 4
FUSE RATING PART NO.
5A 141-2759
10A 113-8490
15A 113-8491
20A 113-8492
25A 113-8493
30A 124-3548
TOOL 170-6888
177-FE1 RD-4
4 WIRE 1m
4 WIRE 3m
2 WIRE 1m
4 WIRE 3m
ETHERNET PATCH CABLES (CAB WIRING)
DESCRIPTION CIRCUIT NUMBER
513-0346
2 WIRE 3m
513-0351
2 WIRE 3m
2 WIRE 3m
513-0366
2 WIRE 3m
513-0351
510-4990
4 WIRE 3m
4 WIRE 5m
510-4991
2 WIRE 1m
513-0345
1638-1641
1646-1649
1650-1653
1810-1811
1642-1645
1806-1807
1804-1805
1806-1807
1800-1801
1802-1803
1642-1645
1630-1633
1806-1807
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
VOLTAGE CONVERTER OUTPUT CIRCUIT
STARTING CIRCUIT
START AID CIRCUIT
MACHINE PRIMARY CONTROL CIRCUIT
CAB BODY CONTROL MODULE CIRCUIT
MACHINE SECONDARY CONTROL CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
WIPER WASHER CIRCUIT
CAN DATA LINK
RS-232 DATA LINK
J1939 CGC CAN DATA LINK
CAN DATA LINK B
ETHERNET
OTHER COLOR DESCRIPTIONS
HIGHWAYS
CALLOUT FORMAT IF APPLICABLE
Callout Number
(Machine Location from
Component Locations Table)
(52) VALVE GP - CONTROL
138-1234
SYMBOL DESCRIPTION
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
H#
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
/
SPLICE
BLADE, SPADE, RING OR SCREW
TERMINAL
Part Number
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
Component
Name
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
510-4989
ET
510-4990
ET
ET
513-0365
510-4990
EP
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or
death. Proper care is your responsibility.
REF DES PART NO
CZ
CX
CY
F
F
F
F
RG
THIS SCHEMATIC IS FOR THE 326 AND 330 GC EXCAVATOR ELECTRICAL SYSTEM
VOLUME 1 of 3: CAB WIRING AND PRODUCT LINK
MEDIA NUMBER: M0129513-01
SCHEMATIC PART NUMBER (CAB WIRING) : 515-8071, CHANGE: 08, VERSION: HE
SCHEMATIC PART NUMBER (PRODUCT LINK): 594-2422, CHANGE: 01, VERSION: HE
Components are shown installed on a fully operable machine with the key and engine off.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
Page 12
(93) GLOW PLUG
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
TO MATING CONNECTOR
462-2235
(152) ATAAC TEMP SENSOR
DEF SYS DEFORST COOL. DIVERTER VALVE (LS)
42 Page, (Dimensions: 56 inches x 35 inches)
RTN FOR AIR INL TEMP, ATAAC TEMP, F TEMP
RTN FOR PRESS. SNSR BEFORE SEC FUEL FLTR
FUEL PRESS. SENSOR BEFORE SEC FUEL FLTR
DEF SYS DEFORST COOL. DIVERTER VALVE (HS)
M0129513-01 VOL 2 of 3
H32
(INTEGRATED CLEAN EMISSIONS MODULE)
(159) FUEL PRESS.SENSOR AFTER PRIMARY
(160) FUEL PRESS.SENSOR AFTER SECONDARY
256-6454
(77) CONTROL GP - ENGINE
PRE-SCR NOx SENSOR SUPPLY
DEF PUMP REVERTING VALVE (HS)
POST SCR NOx SENSOR SUPPLY
DEF HEATED LINE #2 PRESSURE LINE
DEF HEATED LINE #3 SUCTION LINE
RTN FOR START RLY, GLOW PLUG RLY (LS)
DEF PUMP CONTROL SIGNAL
RTN FOR COOL. LV SW, AIR FLTR RSTRN SW
DEF PUMP REVERTING VALVE (LS)
5V :A/T TEMP SPLY, DEF PUMP PRESS. SPLY
ELECTRIC FUEL LIFT PUMP (HS)
RTN FOR DEF PUMP PRESS. & AT 1 ID MOD
8V FOR TURBO OUT TEMP SENSOR
PRE-SCR NOx SENSOR RETURN
AIR FILTER RESTRICTION SWITCH
DEF HEATED LINE #1 BACKFLOW LINE
POST SCR NOx SENSOR RETURN
ETHER START AID SOLENOID
(167) SCR INLET NOx SENSOR
(ENGINE OUT)
(168) SCR OUTLET NOx SENSOR
(TAILPIPE OUT)
(82) DPF IN/SCR IN TEMP
521-0791
DEF INJECTOR (HS)
DEF PUMP SUPPLY
STARTER RELAY
DEF INJECTOR (LS)
DEF HEATED LINE #1 (LS)
CAN C+
CAN C-
DEF HEATED LINE #2 (LS)
CAN A+
CAN A-
DEF PUMP PRESSURE
WATER IN FUEL RTN
GLOW PLUG RELAY (HS)
AIR INLET TEMP SENSOR
FUEL TEMP SENSOR
EGR TEMP SENSOR
DEF HEATED LINE #3 (LS)
ATAAC TEMP SENSOR
DEF PUMP RETURN
A/T TEMP SENSOR RETURN
USER DEFINED SHUTDOWN
DPF-IN TEMPERATURE
SCR-IN TEMPERATURE
KEY SWITCH
ACT ANALOG
TURBO TEMP SENSOR
CRANK INPUT
GND 1
GND 2
GND 3
ETHERNET 1
ETHERNET 2
TO ENGINE HARNESS
CONNECTS TO E-C22
VOL 3, LOC B-6
TO ENGINE HARNESS
CONNECTS TO E-C23
VOL 3, LOC A-6
J1939 SHLD
ADDRESS SELECT
J1939 SHLD
ADDRESS SELECT
(79) DEF INJECTOR
460-9257
366-0450
GROUND
SIGNAL 1
SIGNAL 2
441-5127
441-5128
IGCEM
(123) FUEL LIFTING PUMP
509-4849
533-2245
(162) FUEL TEMP SENSOR
238-0112
+B 1
+B 2
+B 3
CONN 70
CONN 71
GROUND
GROUND
GROUND
320-3060
(161) FUEL PRESS.SENSOR BEFORE SECONDARY
(219) WATER IN FUEL SENSOR
(125) PUMP GP
516-9843
439-5039
SIGNAL
GROUND
EP PUMP SOL 1
EP PUMP SOL 2
REF DES PART NO. CHG LVL DESCRIPTION
C 593-7282 00 HARNESS AS-CHAS
E 533-4475 03 HARNESS AS-ENG (REAR)
K 563-6310 00 HARNESS AS-ENG (FRONT)
L 518-3502 03 HARNESS AS-CHAS (FINE SWING)

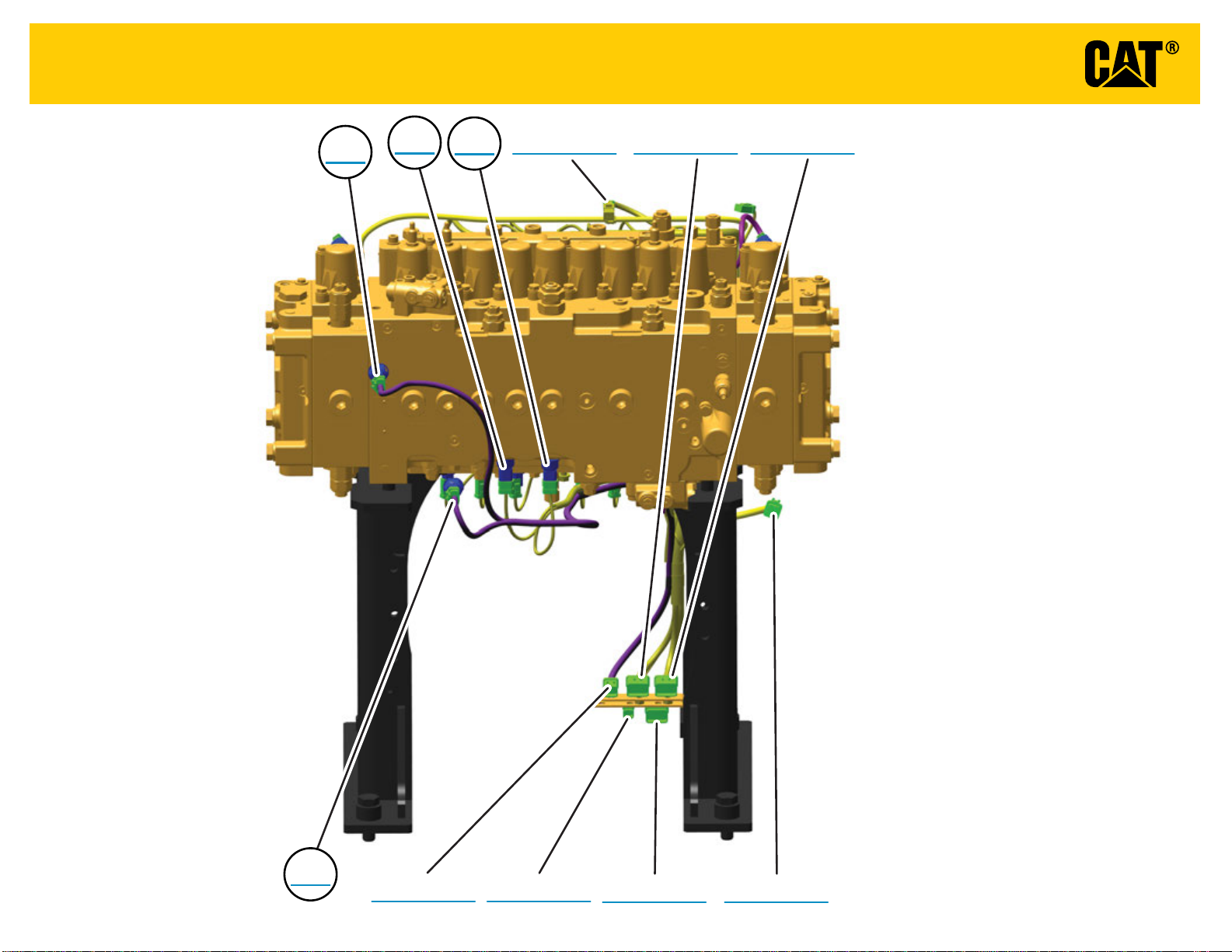

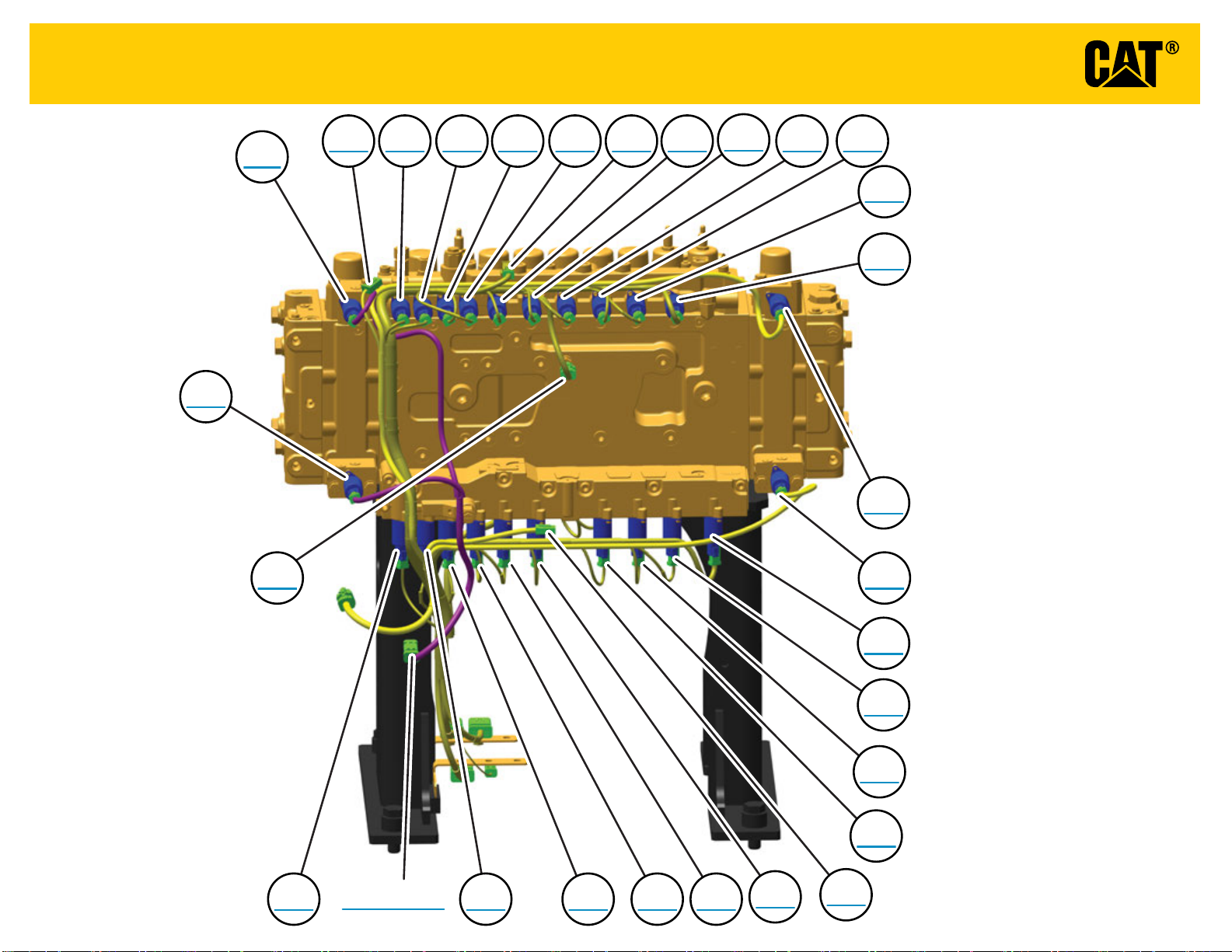

T 549-9283 00 HARNESS AS-VALVE
V 561-3579 00 HARNESS AS-CHAS (REFUELING PUMP)
Y 525-3740 00 HARNESS AS-SNSR (EOU/QCPLR)
AC 576-6849 00 HARNESS AS-CHAS (24 V SOCKET)
AE 577-9069 00 HARNESS AS-CHAS (REAR WORKING LT)
AF 577-9081 00 HARNESS AS-CTWT (REAR WORKING LT)
AR 579-9936 00 HARNESS AS (REACH BOOM LH)
AR 579-9938 00 HARNESS AS (MASS BOOM LH)
AT 579-3008 00 HARNESS AS (MASS BOOM RH)
AT 579-9937 00 HARNESS AS (REACH BOOM RH)
EA 558-7716 00 HARNESS AS-VALVE (COUPLER)
EF 576-9279 00 HARNESS AS-FAN
EK 532-7334 03 HARNESS AS-CAMR (RIGHT SIDE)
EL 577-3257 00 HARNESS AS-CAMR (CHASSIS)(REAR)
EM 566-7849 00 HARNESS AS-CAMR (LEFT SIDE)
EN 535-7227 01 HARNESS AS-CHAS (AIR CLEANER)
ER 551-4108 01 HARNESS AS-CHAS (CEM)
EV 527-8594 01 HARNESS AS-VALVE (VAB)
EY 576-9379 00 HARNESS AS-CAMR (CTWT)(REAR)
GA 563-7826 01 HARNESS AS-SNSR
GE 558-5959 01 HARNESS AS-CHAS (TCS-20,25)
GF 527-1870 01 HARNESS AS-VALVE (TCS-20,25)
GK 519-0444 01 HARNESS AS-CHAS (MEDIUM CIRCUIT)
GP 520-4564 05 HARNESS AS-CHAS (CGC)

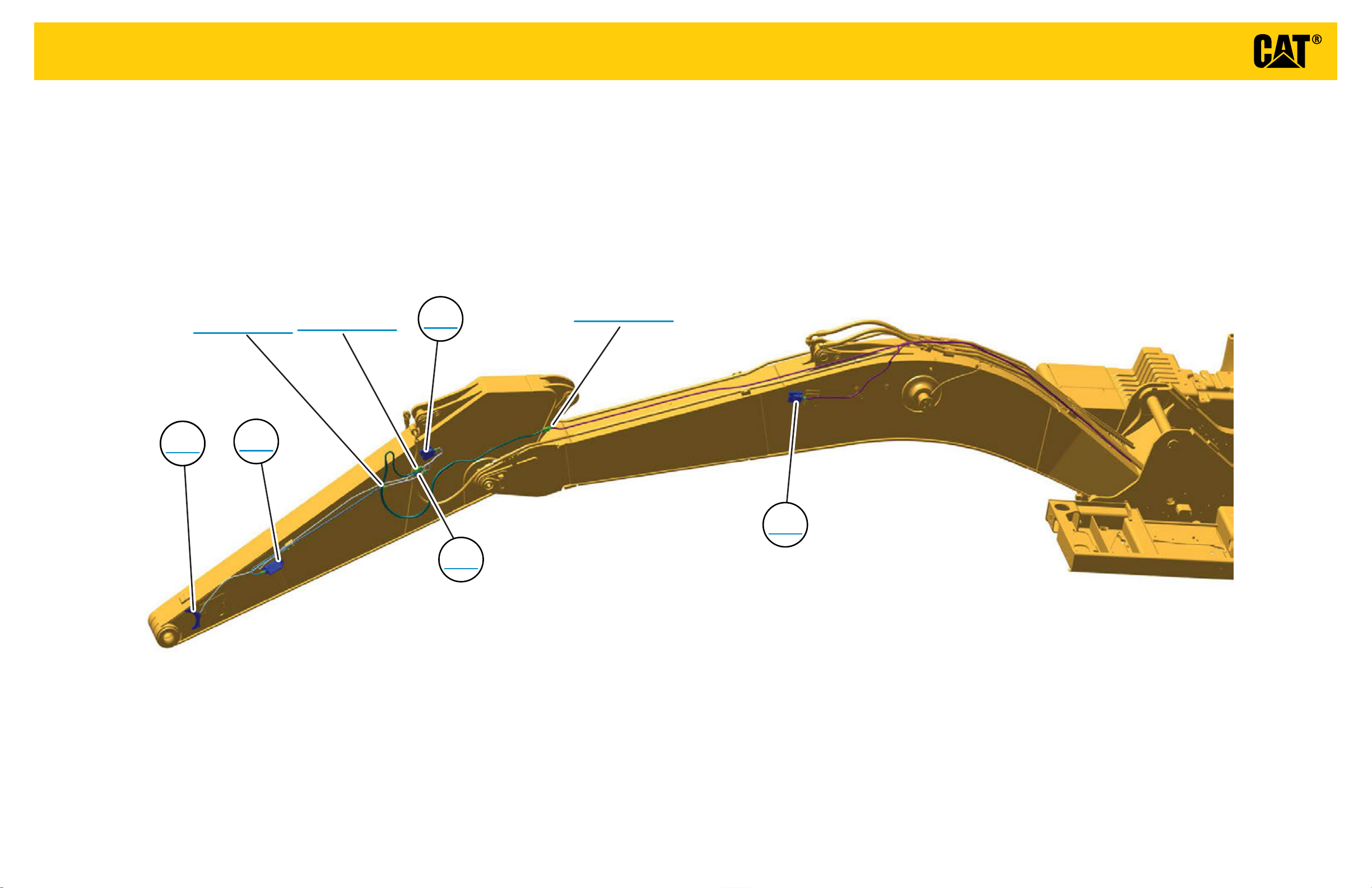

GR 519-6980 01 HARNESS AS-BOOM (CGC) REACH
GR 541-4816 00 HARNESS AS-BOOM (CGC) MASS
GR 576-0543 00 HARNESS AS-BOOM (FORE)(CGC)

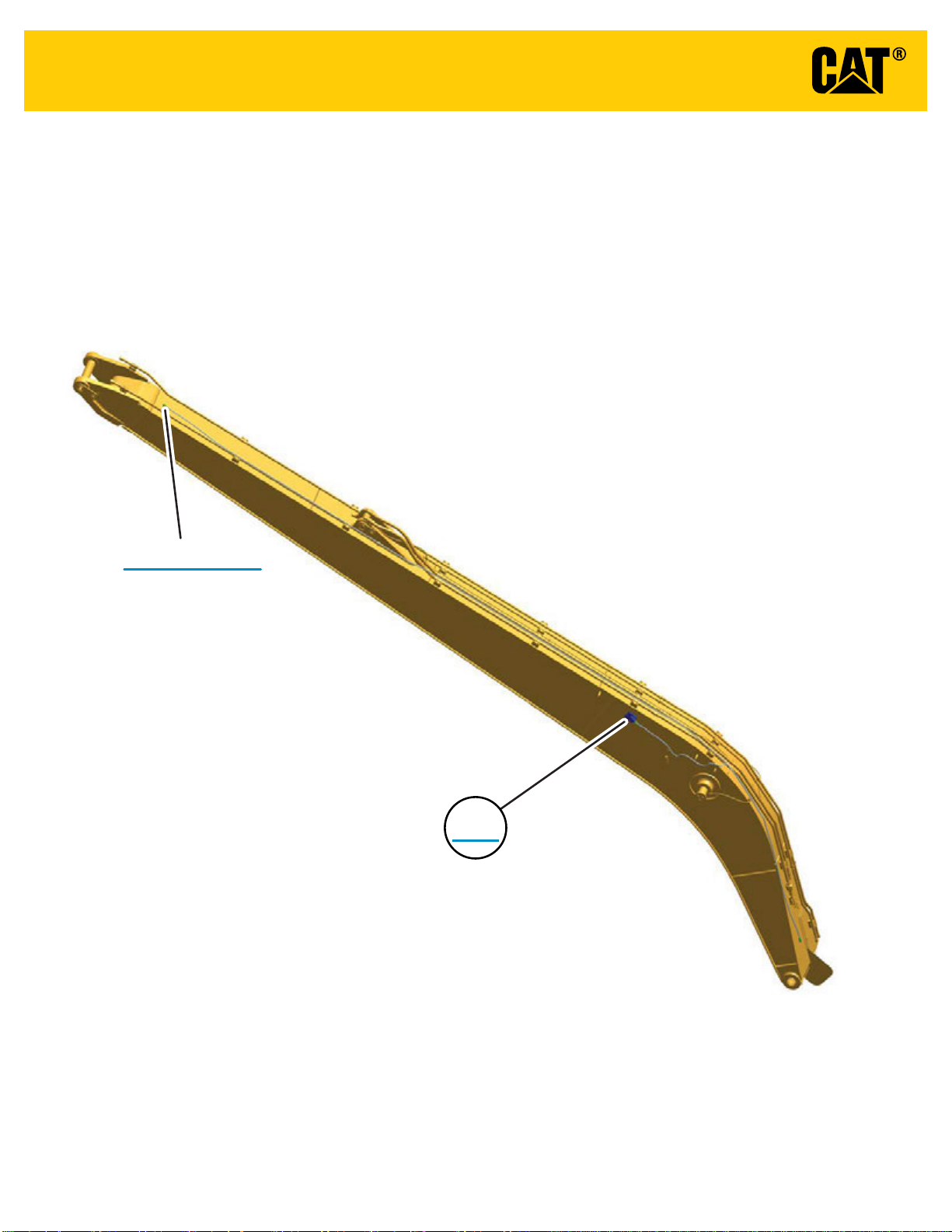

GT 529-0428 01 HARNESS AS-STICK (CGC)
GU 576-6370 01 HARNESS AS-STICK (R2.9 STICK)(CGC)
GU 579-5233 00 HARNESS AS-STICK (R3.2 STICK)(CGC)
GU 579-5232 01 HARNESS AS-STICK (R3.9 STICK)(CGC)
GW 559-8643 00 HARNESS AS-STICK (CGC)(LASER CATCHER)
GW 560-6490 00 HARNESS AS-STICK (CGC)(LASER CATCHER)
GY 519-1585 03 HARNESS AS-CHAS (SMART BOOM)
KF 523-7667 00 HARNESS AS-CHAS (B5M5 GND)
MK 578-4573 00 HARNESS AS-BOOM (SLR)(CGC)
MK 578-4551 00 HARNESS AS-BOOM (SLR)(CGC)
ML 578-4556 00 HARNESS AS-STICK (SLR)(CGC)
MM 595-1594 00 HARNESS AS-BKT (CGC)
MN 572-4779 00 HARNESS AS (BUCKET IMU)
TH 525-2621 00 HARNESS AS-VALVE (HEAVY LIFT)
REF DES PART NO. CHG LVL DESCRIPTION
CA 551-4239 00 CABLE AS-STARTER
CC 328-0132 01 CABLE AS
CE 519-2509 04 CABLE AS-DISC
CF 563-3426 00 CABLE AS-FUSE
CG 328-0132 01 CABLE AS
CH 518-3504 02 CABLE AS-CW
CJ 518-3503 02 CABLE AS-CW
CN 519-2515 04 CABLE AS-ALT (GND)
CP 517-7927 00 CABLE AS-GROUND
CT 519-2514 04 CABLE AS-ALT
CV 519-2513 04 CABLE AS-ALT
EE 533-4477 01 CABLE AS (ETHERNET)(ENGINE)
FA 519-2511 03 CABLE AS-FUSE
YL 520-4568 04 CABLE AS-RECEIVER COAX (CGC LH)
YR 520-4569 05 CABLE AS-RECEIVER COAX (CGC RH)
MP 582-7324 00 HARNESS AS (BUCKET IMU)
REF DES PART NO. CHG LVL DESCRIPTION
WF 520-3163 04 WIRE AS-CHASSIS
WG 594-2895 00 WIRE AS-GLOW
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
VS
J1939-
J1939+
VS
J1939-
J1939+
VS
VS
SIG
VS
GND
SIG
320-3060
VS
GND
SIG
V+
E-C6
230-4011
1
2
E-C5
374-8331
1
2
3
4
5
6
7
8
9
1
CBL-EE1:1810-EE1 WH-BU-20
2
CBL-EE1:1811-EE2 BU-20
EE-C1
490-0571
E-C8
230-4009
1
2
3
4
5
6
7
8
9
10
11
12
E-C9
239-7356
1
2
3
4
5
6
7
8
9
10
11
12
ER-C3
230-5010
1
2
3
4
5
K990-ER18 GN-18-GXL
6
ER-C4
239-7352
1
2
3
4
U948-ER22 GY-18-GXL
5
K990-ER20 GN-18-GXL
6
ER-C5
368-4828
1
2
ER-C7
230-5008
1
2
3
4
K990-ER13 GN-18-GXL
ER-C8
155-2269
1
X976-ER28 GN-16-GXL
2
ER-C10
281-8803
1
2
3
ER-C11
281-8804
1
2
3
A745-ER33 WH-18-GXL
ER-C9
230-4011
1
2
ER-C13
281-8804
1
2
3
C-C95
240-7878
1
G976-C195 BU-18-GXL
2
3
C-C10
331-3582
1
2
C-C45
331-3582
1
2
WG-C1
221-9804
1
L707-E18 WH-18-GXL
993-E45 BR-18-GXL
U959-E9 YL-18-GXL
U953-E4 GN-18-GXL
U945-E23 WH-18-GXL
U943-E61 GN-18-GXL
U947-E27 PU-18-GXL
314-E32 PU-18-GXL
U960-E10 GN-18-GXL
U958-E251 BU-18-GXL
U940-E231 GY-18-GXL
U941-E250 PK-18-GXL
K900-E11 YL-18-GXL
K990-E12 GN-18-GXL
(175) A/C COMPR CLUTCH SOL
(120) STARTER MOTOR
H28
532-7321
C-C100
230-4011
488-2807
K-C2
230-4011
1
2
1
2
G S
MOT BTRY
M
(113) ENG-GND STRAP
167-3583
(103) GND-CHAS-10
109-CV1 RD-0-SGX
U942-E230 GN-18-GXL
U937-E65 WH-18-GXL
F711-E13 YL-18-GXL
F712-E14 GN-18-GXL
C481-E48 GN-18-GXL
P967-E63 PU-18-GXL
A278-E22 BK-18-GXL
U954-E60 BU-18-GXL
F793-E6 OR-18-GXL
C829-E17 GN-18-GXL
T861-E20 YL-18-GXL
998-E19 BR-18-GXL
U944-E62 BR-18-GXL
U938-E218 BU-18-GXL
L707-E18 WH-18-GXL
997-E31 OR-18-GXL
J933-E59 BR-18-GXL
C903-E53 BU-18-GXL
C247-E69 BK-18-GXL
C246-E55 BK-18-GXL
993-E15 BR-18-GXL 993-E15 BR-18-GXL
A700-E56 OR-18-GXL
K897-E16 PK-18-GXL
C991-E71 PK-18-GXL
U955-E64 YL-18-GXL
F716-E28 WH-18-GXL
J894-E51 WH-18-GXL
J890-E52 BU-18-GXL
U946-E66 BR-18-GXL
P875-E24 BU-18-GXL
304-E29 WH-18-GXL
K895-E30 BU-18-GXL
P877-E34 BU-18-GXL
U939-E248 OR-18-GXL
U948-E54 GY-18-GXL
318-E35 BR-18-GXL
317-E7 YL-18-GXL
A244-E38 BK-14-GXL
A244-E39 BK-14-GXL
A244-E40 BK-14-GXL
130-E41 RD-14-GXL
130-E42 RD-14-GXL
130-E43 RD-14-GXL
H32
109-CT1 RD-0-SGX
(115) PE ALT-GND STRAP
H28
519-2516
(111) GND-CHAS-9
L707-E18 WH-18-GXL
993-E45 BR-18-GXL
993-E46 BR-18-GXL
130-E41 RD-14-GXL
130-E42 RD-14-GXL
130-E43 RD-14-GXL
130-E44 RD-14-GXL
304-E29 WH-18-GXL
314-E32 PU-18-GXL
317-E7 YL-18-GXL
318-E35 BR-18-GXL
997-E31 OR-18-GXL
998-E19 BR-18-GXL
A244-E38 BK-14-GXL
A244-E39 BK-14-GXL
A244-E40 BK-14-GXL
A244-E47 BK-14-GXL
A278-E238 BK-18-GXL
A278-E22 BK-18-GXL
A278-E1 BK-18-GXL
A278-E2 BK-18-GXL
A278-E3 BK-18-GXL
A278-E247 BK-18-GXL
C246-E55 BK-18-GXL
C481-E48 GN-18-GXL
C829-E17 GN-18-GXL
C903-E53 BU-18-GXL
C991-E71 PK-18-GXL
F711-E13 YL-18-GXL
F712-E14 GN-18-GXL
F716-E28 WH-18-GXL
F793-E6 OR-18-GXL
J890-E52 BU-18-GXL
J894-E51 WH-18-GXL J894-E51 WH-18-GXL
J933-E59 BR-18-GXL
K895-E30 BU-18-GXL
K897-E16 PK-18-GXL
K900-E11 YL-18-GXL
K990-E12 GN-18-GXL
P875-E24 BU-18-GXL
P967-E63 PU-18-GXL
T861-E20 YL-18-GXL
U937-E65 WH-18-GXL
U938-E218 BU-18-GXL
U939-E248 OR-18-GXL
U940-E231 GY-18-GXL
U941-E250 PK-18-GXL
U942-E230 GN-18-GXL
U943-E61 GN-18-GXL
U944-E62 BR-18-GXL
U945-E23 WH-18-GXL
U946-E66 BR-18-GXL
U947-E27 PU-18-GXL
U948-E54 GY-18-GXL
U953-E4 GN-18-GXL
U954-E60 BU-18-GXL
U955-E64 YL-18-GXL
U958-E251 BU-18-GXL
U959-E9 YL-18-GXL
U960-E10 GN-18-GXL
A700-E56 OR-18-GXL
A700-E58 OR-18-GXL
A700-E57 OR-18-GXL
C247-E69 BK-18-GXL
C247-E68 BK-18-GXL
C247-E70 BK-18-GXL
A700-E58 OR-18-GXL
C247-E68 BK-18-GXL
P877-E34 BU-18-GXL
G976-E33 BU-18-GXL
F725-E37 WH-18-GXL
A745-E36 WH-18-GXL
P877-E34 BU-18-GXL
C247-E68 BK-18-GXL
A700-E58 OR-18-GXL
A745-E36 WH-18-GXL
F725-E37 WH-18-GXL
G976-E33 BU-18-GXL
J710-E200 BR-18-GXL
J710-E200 BR-18-GXL
ENGINE UNIT
U945-ER3 WH-18-GXL
U946-ER5 BR-18-GXL
K900-ER14 YL-18-GXL
U947-ER4 PK-18-GXL
K900-ER16 YL-18-GXL
U959-ER23 YL-18-TXL
U960-ER24 GN-18-TXL
997-ER11 OR-18-GXL
R998-ER8 BR-18-GXL
K900-ER12 YL-18-GXL
200-ER29 BK-16-GXL
997-ER31 OR-18-GXL
K897-ER32 PK-18-GXL
F725-ER30 WH-18-GXL
997-ER34 OR-18-GXL
K897-ER35 PK-18-GXL
993-ER26 BR-18-GXL
997-ER41 OR-18-GXL
K897-ER42 PK-18-GXL
C991-ER40 PK-18-GXL
304-C298 WH-18-GXL
998-C172 BR-18-GXL
H17
H29
997-ER11 OR-18-GXL
K900-ER1 YL-18-GXL
K900-ER12 YL-18-GXL
K900-ER38 YL-18-GXL
K900-ER15 YL-18-GXL
K900-ER14 YL-18-GXL
K900-ER16 YL-18-GXL
K900-ER17 YL-18-GXL
K990-ER2 GN-18-GXL
K990-ER13 GN-18-GXL
K990-ER39 GN-18-GXL
K990-ER19 GN-18-GXL
K990-ER18 GN-18-GXL
K990-ER20 GN-18-GXL
K990-ER25 GN-18-GXL
R998-ER8 BR-18-GXL
U945-ER3 WH-18-GXL
U946-ER5 BR-18-GXL
U947-ER4 PK-18-GXL
U948-ER22 GY-18-GXL
U959-ER23 YL-18-TXL
U960-ER24 GN-18-TXL
K900-ER1 YL-18-GXL
K990-ER2 GN-18-GXL
K900-ER17 YL-18-GXL
K990-ER25 GN-18-GXL
R998-ER8 BR-18-GXL
U945-ER3 WH-18-GXL
U946-ER5 BR-18-GXL
U947-ER4 PK-18-GXL
U948-ER22 GY-18-GXL
U960-ER24 GN-18-TXL
997-ER11 OR-18-GXL
997-ER41 OR-18-GXL
997-ER31 OR-18-GXL
997-ER34 OR-18-GXL
997-ER36 OR-18-GXL
200-ER29 BK-16-GXL
993-ER26 BR-18-GXL
A745-ER33 WH-18-GXL
C991-ER40 PK-18-GXL
F725-ER30 WH-18-GXL F725-ER30 WH-18-GXL
K897-ER37 PK-18-GXL
K897-ER35 PK-18-GXL
K897-ER32 PK-18-GXL
K897-ER42 PK-18-GXL
T861-ER27 YL-18-GXL
X976-ER28 GN-16-GXL
CEM&FUEL FILTER MODULE
Y950-C59 YL-18-TXL
Y951-C2 PU-18-TXL
K918-C60 GN-18-TXL
Y951-C1 PU-18-TXL
CONN 72
E554-K2 PK-18-GXL
200-K3 BK-18-GXL
314-C185 PU-18-GXL
A278-C181 BK-18-GXL
101-CA1 RD-00-SGX
(115 A)
(67) ALTERNATOR UPPER
R
B+
366-2756
BS
I
GND
200-CN1 BK-0-SGX
(115 A)
R
B+
BS
I
GND
(66) ALTERNATOR LOWER
344-5081
H28
130-E44 RD-14-GXL
304-E29 WH-18-GXL
314-E32 PU-18-GXL
318-E35 BR-18-GXL
F716-E28 WH-18-GXL
998-E19 BR-18-GXL
C247-E70 BK-18-GXL
997-E31 OR-18-GXL
993-E46 BR-18-GXL
T861-E20 YL-18-GXL
F711-E13 YL-18-GXL
F712-E14 GN-18-GXL
A244-E47 BK-14-GXL
P875-E24 BU-18-GXL
C829-E17 GN-18-GXL
C991-E71 PK-18-GXL
G976-E33 BU-18-GXL
F725-E37 WH-18-GXL
A745-E36 WH-18-GXL
K897-E16 PK-18-GXL
C481-E48 GN-18-GXL
U945-E23 WH-18-GXL
U947-E27 PU-18-GXL
U946-E66 BR-18-GXL
K895-E30 BU-18-GXL
J890-E52 BU-18-GXL
U953-E4 GN-18-GXL
K900-E11 YL-18-GXL
K990-E12 GN-18-GXL
A278-E247 BK-18-GXL
A278-E238 BK-18-GXL
J710-E200 BR-18-GXL
P967-E63 PU-18-GXL
317-E7 YL-18-GXL
F793-E6 OR-18-GXL
A278-E2 BK-18-GXL
A700-E57 OR-18-GXL
U959-E9 YL-18-GXL
238-8245
230-4009
239-7356
281-8813
241-8834
E-C1
E-C2
E-C4
CONN 76
E-C3
CONN 77
231-2295
U954-E60 BU-18-GXL U954-C214 BU-16-TXL
U943-E61 GN-18-GXL U943-C215 GN-16-TXL
U944-E62 BR-18-GXL U944-C216 BR-16-TXL
U938-E218 BU-18-GXL
U940-E231 GY-18-GXL
U942-E230 GN-18-GXL
C246-E55 BK-18-GXL
U937-E65 WH-18-GXL
U939-E248 OR-18-GXL
U941-E250 PK-18-GXL
U955-E64 YL-18-GXL
U958-E251 BU-18-GXL
U960-E10 GN-18-GXL
A278-E3 BK-18-GXL
CONN 78
E-C11
231-2296 296-3309
(114) STRAP AS - ENG GND
(112) GND-ENG (104) GND-CHAS-13
CONN 79
EE-C2
H32
ER-C12
243-4505
CBL-EE1:1810-EE1 WH-BU-20
CBL-EE1:1811-EE2 BU-20
997-ER11 OR-18-GXL
K900-ER1 YL-18-GXL
K900-ER17 YL-18-GXL
K990-ER2 GN-18-GXL
K990-ER25 GN-18-GXL
R998-ER8 BR-18-GXL
U945-ER3 WH-18-GXL
U946-ER5 BR-18-GXL
U947-ER4 PK-18-GXL
U948-ER22 GY-18-GXL
U959-ER23 YL-18-TXL
U960-ER24 GN-18-TXL
(135) RESISTOR ENGINE CAN DATA LINK
324-5678
1
2
K900-ER17 YL-18-GXL
K990-ER25 GN-18-GXL
U945-ER3 WH-18-GXL
U947-ER4 PK-18-GXL
U946-ER5 BR-18-GXL
U948-ER22 GY-18-GXL
U959-ER23 YL-18-TXL
U960-ER24 GN-18-TXLU959-ER23 YL-18-TXL
R998-ER8 BR-18-GXL
X976-ER28 GN-16-GXL
200-ER29 BK-16-GXL
997-ER36 OR-18-GXL
K897-ER37 PK-18-GXL
T861-ER27 YL-18-GXL
993-ER26 BR-18-GXLT861-ER27 YL-18-GXL
A745-ER33 WH-18-GXL
C991-ER40 PK-18-GXL
H43
490-0571
243-4510
321-C81 BR-18-GXL
H808-C143 WH-18-GXL
491-C20 PK-18-TXL
L731-C124 BR-18-TXL
J878-C33 YL-18-TXL
487-C32 OR-18-TXL
ETHERNET PATCH CABLE - FOR CHASSIS
REF DES PART NO
513-0343
EK
513-0340
EM
EL
513-0342
EY
513-0341
C
510-4989
513-0356
C
C
513-0355
513-0385
C
GP
510-4990
GP
EE
513-0341
DESCRIPTION
2 WIRE 9m
2 WIRE 1m
2 WIRE 5m
2 WIRE 3m
4 WIRE 1m
2 WIRE 3m
2 WIRE 1m
4 WIRE 3m
2 WIRE 3m
C-C9K-C1
296-3286
1
E554-C100 PK-18-GXL
2
200-C193 BK-18-GXL
109-CT1 RD-0-SGX
109-CV1 RD-0-SGX
CONN 73
C-C52
243-4510
1
130-C256 RD-14-GXL
2
304-C173 WH-18-GXL
3
314-C185 PU-18-GXL
4
C903-C8 BU-18-GXLC903-E53 BU-18-GXL
5
G797-C98 BU-18-GXL
6
318-C83 BR-18-GXL
7
F716-C101 WH-18-GXL
8
998-C182 BR-18-GXL
9
C247-C10 BK-18-GXL
10
997-C213 OR-18-GXL
11
993-C183 BR-18-GXL
12
T861-C199 YL-18-GXL
CONN 74
C-C53
272-5000
1
F711-C160 YL-18-GXL
2
F712-C161 GN-18-GXL
3
A244-C211 BK-14-GXL
4
P875-C179 BU-18-GXL
5
C829-C177 GN-18-GXL
6
C991-C261 PK-18-GXL
7
F762-C299 GY-18-GXL
8
G976-C195 BU-18-GXL
9
10
F725-C197 WH-18-GXL
11
A745-C198 WH-18-GXL
12
K897-C222 PK-18-GXL
CONN 75
C-C54
417-2636
1
C481-C286 GN-16-TXL
2
U945-C278 WH-18-GXL
3
U947-C279 PK-18-GXL
4
U946-C280 BR-18-GXL
5
6
J894-C364 WH-18-GXL
7
J890-C365 BU-18-GXL
8
9
U953-C249 GN-16-TXL
10
U948-C9 GY-18-GXLU948-E54 GY-18-GXL
11
K900-C235 YL-18-GXL
12
K990-C236 GN-18-GXL
C-C58
296-3318
1
A278-C285 BK-18-GXL
2
A278-C181 BK-18-GXL
3
F710-C300 BR-18-GXL
4
5
J710-C388 BR-16-GXL
6
998-C172 BR-18-GXL
7
317-C283 YL-18-GXL
8
F793-C223 OR-18-GXL
9
A278-C284 BK-18-GXL
10
A700-C363 OR-18-GXL
11
U959-C369 YL-18-GXL
12
200-C301 BK-18-GXL
C-C28E-C10
325-9571
1
J933-C212 BR-16-TXLJ933-E59 BR-18-GXL
2
3
4
5
U938-C217 BU-18-GXL
6
U940-C229 GY-18-GXL
7
U942-C224 GN-18-GXL
8
C246-C204 BK-16-TXL
C-C32
1
U937-C251 WH-18-GXL
2
U939-C252 OR-18-GXL
3
U941-C253 PK-18-GXL
4
U955-C254 YL-18-GXL
5
U958-C255 BU-18-GXL
6
U960-C370 GN-18-GXL
7
A278-C189 BK-18-GXL
8
132-1806
C-C115
490-0572
1
CBL-C4:1810-C2 WH-BU-20
2
CBL-C4:1811-C1 BU-20
H17
H17
CONN 80
ER-C1
C-C59
247-2695
239-7356
1
2
3
4
5
6
7
8
9
10
11
12
CONN 81
ER-C2
C-C60
230-4009
1
2
3
4
5
6
7
8
9
10
11
12
A700-C363 OR-18-GXL
C247-C290 BK-18-GXL
C991-C261 PK-18-GXL
J890-C365 BU-18-GXL
H16
H29
H43
J894-C364 WH-18-GXL
K895-C289 BU-18-GXL
K900-C239 YL-18-GXL
K990-C240 GN-18-GXL
U945-C278 WH-18-GXL
U946-C280 BR-18-GXL
U947-C279 PK-18-GXL
U948-C9 GY-18-GXL
U959-C369 YL-18-GXL
U960-C370 GN-18-GXL
200-C194 BK-16-GXL
993-C220 BR-18-GXL
997-C288 OR-18-GXL
A745-C198 WH-18-GXL
F725-C197 WH-18-GXL
K897-C222 PK-18-GXL
T861-C199 YL-18-GXL
X977-C118 YL-16-GXL
304-C298 WH-18-GXL
998-C172 BR-18-GXL
G976-C195 BU-18-GXL
K918-C60 GN-18-TXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
Y951-C1 PU-18-TXL
Y951-C2 PU-18-TXL
321-C81 BR-18-GXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
H808-C143 WH-18-GXL
J878-C33 YL-18-TXL
L731-C124 BR-18-TXL
C-C15
331-3582 3E-3364
C-C17
240-7874
C-C18
240-7874
CIRCUIT NUMBER
1802-1803
1804-1805
1800-1801
1800-1801
1630-1633
1810-1811
1812-1813
1814-1815
1650-1653
1654-1657
1810-1811
K900-C239 YL-18-GXL
K990-C240 GN-18-GXL
U945-C278 WH-18-GXL
U947-C279 PK-18-GXL
U946-C280 BR-18-GXL
U948-C9 GY-18-GXL
U959-C369 YL-18-GXL
U960-C370 GN-18-GXL
C247-C290 BK-18-GXL
J894-C364 WH-18-GXL
J890-C365 BU-18-GXL
X977-C118 YL-16-GXL
200-C194 BK-16-GXL
997-C288 OR-18-GXL
K897-C222 PK-18-GXL
F725-C197 WH-18-GXL
T861-C199 YL-18-GXL
993-C220 BR-18-GXL
A745-C198 WH-18-GXL
C991-C261 PK-18-GXL
A700-C363 OR-18-GXL
K895-C289 BU-18-GXL
C-C16
1
2
1
2
1
2
H10 H10
130-C256 RD-14-GXL
200-C301 BK-18-GXL
304-C173 WH-18-GXL
314-C185 PU-18-GXL
317-C283 YL-18-GXL
318-C83 BR-18-GXL
993-C183 BR-18-GXL
993-C178 BR-18-GXL
993-C220 BR-18-GXL
997-C213 OR-18-GXL
997-C288 OR-18-GXL
997-C7 OR-16-TXL
998-C172 BR-18-GXL
998-C176 BR-18-GXL
998-C182 BR-18-GXL
998-C180 BR-18-GXL
A244-C211 BK-14-GXL
A278-C181 BK-18-GXL
A278-C189 BK-18-GXL
A278-C284 BK-18-GXL
A278-C285 BK-18-GXL
A700-C363 OR-18-GXL
A745-C198 WH-18-GXL
C246-C204 BK-16-TXL
C247-C10 BK-18-GXL
C247-C290 BK-18-GXL
C247-C366 BK-16-GXL
C481-C286 GN-16-TXL
C829-C177 GN-18-GXL
C903-C8 BU-18-GXL
C991-C261 PK-18-GXL
F710-C300 BR-18-GXL
F711-C160 YL-18-GXL
F711-C158 YL-18-GXL
F71
F712-C161 GN-18-GXL
F712-C159 GN-18-GXL
F712-C226 GN-18-GXL
F716-C101 WH-18-GXL
F725-C197 WH-18-GXL
F762-C299 GY-18-GXL
F793-C223 OR-18-GXL
G797-C98 BU-18-GXL
G976-C195 BU-18-GXL
J710-C388 BR-16-GXL
J890-C365 BU-18-GXL
J894-C364 WH-18-GXL
J933-C212 BR-16-TXL
K895-C289 BU-18-GXLK895-C289 BU-18-GXL
K897-C222 PK-18-GXL
K900-C235 YL-18-GXL
K900-C292 YL-18-GXL
K900-C233 YL-18-GXL
K990-C236 GN-18-GXL
K990-C293 GN-18-GXL
K990-C234 GN-18-GXL
P875-C179 BU-18-GXL
T861-C199 YL-18-GXL
U938-C217 BU-18-GXL
U939-C252 OR-18-GXL
U940-C229 GY-18-GXL
U941-C253 PK-18-GXL
U942-C224 GN-18-GXL
U943-C215 GN-16-TXL
U944-C216 BR-16-TXL
U945-C278 WH-18-GXL
U946-C280 BR-18-GXL
U947-C279 PK-18-GXL
U948-C9 GY-18-GXL
U953-C249 GN-16-TXL
U954-C214 BU-16-TXL
U955-C254 YL-18-GXL
U958-C255 BU-18-GXL
U959-C369 YL-18-GXL
U960-C370 GN-18-GXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
H12
H13
H16
H16
H14
H12
(65) ATCH-TRAVEL ALARM
454-8482
(163) HYD OIL TEMP SENSOR
256-6453
(217) HYD OIL FILTER SW
504-9586
(143) FUEL LEVEL SENDER
1-C225 YL-18-GXL
(110) GND-CHAS-8
(109) GND-CHAS-7
513-9097
(144) FUEL LEVEL SENDER GND
H10
H14
H15
H42
A244-C282 BK-18-GXL
A244-C211 BK-14-GXL
A283-C358 BK-18-GXL
200-C301 BK-18-GXL
200-C194 BK-16-GXL
H15
H13
1
2
C-C19
331-3582
1
C-C64
153-2602
200-C193 BK-18-GXL
E554-C100 PK-18-GXL
314-C185 PU-18-GXL
A278-C181 BK-18-GXL
304-C173 WH-18-GXL
304-C171 WH-18-TXL
304-C281 WH-18-GXL
304-C298 WH-18-GXL
317-C283 YL-18-GXL
318-C83 BR-18-GXL
390-C94 YL-18-GXL
390-C16 YL-18-TXL
390-C155 YL-18-GXL
993-C220 BR-18-GXL
993-C178 BR-18-GXL
997-C288 OR-18-GXL
998-C172 BR-18-GXL
998-C176 BR-18-GXL
998-C180 BR-18-GXL
A278-C189 BK-18-GXL
A278-C284 BK-18-GXL
A278-C285 BK-18-GXL
A745-C198 WH-18-GXL
C247-C366 BK-16-GXL
C829-C177 GN-18-GXL
C903-C8 BU-18-GXL
F710-C300 BR-18-GXL
F711-C158 YL-18-GXL
F711-C69 YL-18-GXL
F711-C156 YL-18-GXL
F712-C159 GN-18-GXL
F712-C70 GN-18-GXL
F712-C157 GN-18-GXL
F716-C101 WH-18-GXL
F725-C197 WH-18-GXL
F762-C299 GY-18-GXL
F793-C223 OR-18-GXL
G797-C98 BU-18-GXL
G976-C195 BU-18-GXL
J710-C388 BR-16-GXL
K897-C222 PK-18-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
P875-C179 BU-18-GXL
T861-C199 YL-18-GXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
130-C71 RD-14-GXL
130-C257 RD-14-GXL
130-C256 RD-14-GXL
200-C194 BK-16-GXL
A244-C282 BK-18-GXL
A244-C282 BK-18-GXL
200-C194 BK-16-GXL
130-C257 RD-14-GXL
200-C301 BK-18-GXL
997-C7 OR-16-TXL
A244-C211 BK-14-GXL
A700-C363 OR-18-GXL
C246-C204 BK-16-TXL
C247-C290 BK-18-GXL
C481-C286 GN-16-TXL
C991-C261 PK-18-GXL
F711-C225 YL-18-GXL
F712-C226 GN-18-GXL
J890-C365 BU-18-GXL
J894-C364 WH-18-GXL
J933-C212 BR-16-TXL
K895-C289 BU-18-GXL
K900-C292 YL-18-GXL
K990-C293 GN-18-GXL
U937-C251 WH-18-GXL
U938-C217 BU-18-GXL
U939-C252 OR-18-GXL
U940-C229 GY-18-GXL
U941-C253 PK-18-GXLU937-C251 WH-18-GXL
U942-C224 GN-18-GXL
U943-C215 GN-16-TXL
U944-C216 BR-16-TXL
U945-C278 WH-18-GXL
U946-C280 BR-18-GXL
U947-C279 PK-18-GXL
U948-C9 GY-18-GXL
U953-C249 GN-16-TXL
U954-C214 BU-16-TXL
U955-C254 YL-18-GXL
U958-C255 BU-18-GXL
U959-C369 YL-18-GXL
U960-C370 GN-18-GXL
A700-C363 OR-18-GXL
C247-C290 BK-18-GXL
C991-C261 PK-18-GXL
J890-C365 BU-18-GXL
J894-C364 WH-18-GXL
K895-C289 BU-18-GXL
U945-C278 WH-18-GXL
U946-C280 BR-18-GXL
U947-C279 PK-18-GXL
U948-C9 GY-18-GXL
U959-C369 YL-18-GXL
U960-C370 GN-18-GXL
K900-C239 YL-18-GXL
K990-C240 GN-18-GXL
K900-C239 YL-18-GXL
K990-C240 GN-18-GXL
130-C257 RD-14-GXL
997-C7 OR-16-TXL
C246-C204 BK-16-TXL
C481-C286 GN-16-TXL
F711-C225 YL-18-GXL
F712-C226 GN-18-GXL
J933-C212 BR-16-TXL
K900-C292 YL-18-GXL
K990-C293 GN-18-GXL
U937-C251 WH-18-GXL
U938-C217 BU-18-GXL
U939-C252 OR-18-GXL
U940-C229 GY-18-GXL
U941-C253 PK-18-GXL
U942-C224 GN-18-GXL
U943-C215 GN-16-TXL
U944-C216 BR-16-TXL
U953-C249 GN-16-TXL
U954-C214 BU-16-TXL
U955-C254 YL-18-GXL
U958-C255 BU-18-GXL
A283-C358 BK-18-GXL
A283-C358 BK-18-GXL
200-C301 BK-18-GXL
200-C194 BK-16-GXL
A244-C211 BK-14-GXL
A244-C282 BK-18-GXL
H42
130-C257 RD-14-GXL
A283-C358 BK-18-GXL
F711-C225 YL-18-GXL
F712-C226 GN-18-GXL
K900-C239 YL-18-GXL
K900-C245 YL-18-GXL
K900-C292 YL-18-GXL
K990-C240 GN-18-GXL
K990-C246 GN-18-GXL
U955-C254 YL-18-GXL
U958-C255 BU-18-GXL
997-C7 OR-16-TXL
C246-C204 BK-16-TXL
C481-C286 GN-16-TXL
J933-C212 BR-16-TXL
U937-C251 WH-18-GXL
U938-C217 BU-18-GXL
U939-C252 OR-18-GXL
U940-C229 GY-18-GXL
U941-C253 PK-18-GXL
U942-C224 GN-18-GXL
U943-C215 GN-16-TXL
U944-C216 BR-16-TXL
U953-C249 GN-16-TXL
U954-C214 BU-16-TXL
200-C210 BK-14-GXL
323-C113 WH-14-GXL
H863-C67 BU-18-GXL
L976-C66 GN-18-GXL
110-C111 RD-14-TXL
159-C119 BU-16-GXL
159-C149 BU-16-TXL
159-C150 BU-16-TXL
159-C262 BU-16-GXL
175-C372 PK-16-TXL
200-C206 BK-16-GXL
200-C207 BK-16-GXL
200-C208 BK-16-GXL
200-C209 BK-16-GXL
235-C374 BK-16-TXL
235-C205 BK-16-GXL
235-C203 BK-16-TXL
235-C202 BK-16-TXL
235-C466 BK-18-GXL
235-C263 BK-16-GXL
322-C116 GY-16-GXL
322-C147 GY-16-GXL
322-C148 GY-16-GXL
607-C114 PK-16-GXL
616-C115 BU-16-GXL
C985-C460 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F882-C373 YL-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
H867-C393 YL-18-GXL
J844-C75 GY-18-TXL
J850-C134 WH-18-GXL
J850-C467 WH-18-GXL
J850-C136 WH-18-GXL
J850-C138 WH-18-TXL
J850-C31 WH-18-TXL
J850-C137 WH-18-TXL
J850-C139 WH-18-TXL
J850-C140 WH-18-TXL
J850-C394 WH-18-GXL
J879-C462 GN-18-TXL
L854-C423 YL-18-GXL
L854-C368 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
P740-C35 YL-18-TXL
L973-C64 GN-18-GXL
M839-C258 WH-18-TXL
T993-C126 BR-18-GXL
T993-C127 BR-18-GXL
T993-C129 BR-18-GXL
T993-C128 BR-18-TXL
T993-C130 BR-18-TXL
T993-C131 BR-18-TXL
T993-C132 BR-18-TXL
Y787-C91 YL-18-GXL
Y787-C166 YL-18-GXL
Y787-C264 YL-18-GXL
Y787-C168 YL-18-GXL
Y787-C265 YL-18-GXL
Y788-C92 GN-18-GXL
Y788-C167 GN-18-GXL
Y788-C266 GN-18-GXL
Y788-C169 GN-18-GXL
Y788-C267 GN-18-GXL
Y787-C106 YL-18-GXL
Y788-C107 GN-18-GXL
200-C291 BK-18-GXL
495-C19 GN-18-TXL
L731-C123 BR-18-TXL
495-C19 GN-18-TXL
L731-C123 BR-18-TXL
200-C291 BK-18-GXL
(108) GND-CHAS-6
(97) GND-CHAS-5
(107) GND-CHAS-4
C-C62
378-5571
H12
H13
H41
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C192 BK-16-GXL
200-C193 BK-18-GXL
200-C210 BK-14-GXL
200-C12 BK-14-GXL
200-C13 BK-14-GXL
200-C291 BK-18-GXL
200-C206 BK-16-GXL
200-C207 BK-16-GXL
200-C188 BK-18-GXL
200-C122 BK-14-GXL
200-C260 BK-16-GXL
200-C209 BK-16-GXL
200-C208 BK-16-GXL
200-C133 BK-16-TXL
(220) COOLANT DIVERTER VALVE
433-6972
1
2
3
4
H18
H19
H20
H20 H20
130-C71 RD-14-GXL
304-C171 WH-18-TXL
304-C281 WH-18-GXL
317-C283 YL-18-GXL
318-C83 BR-18-GXL
390-C16 YL-18-TXL
390-C94 YL-18-GXL
993-C178 BR-18-GXL
998-C176 BR-18-GXL
998-C180 BR-18-GXL
A244-C282 BK-18-GXL
A278-C189 BK-18-GXL
A278-C284 BK-18-GXL
A278-C285 BK-18-GXL
C247-C366 BK-16-GXL
C829-C177 GN-18-GXL
C903-C8 BU-18-GXL
E554-C100 PK-18-GXL
F710-C300 BR-18-GXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F716-C101 WH-18-GXL
F762-C299 GY-18-GXL
F793-C223 OR-18-GXL
G797-C98 BU-18-GXL
J710-C388 BR-16-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
P875-C179 BU-18-GXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
200-C133 BK-16-TXL
200-C188 BK-18-GXL
200-C260 BK-16-GXL
657-C259 YL-16-GXL
200-C133 BK-16-TXL
200-C188 BK-18-GXL
200-C260 BK-16-GXL
657-C259 YL-16-GXL
200-C193 BK-18-GXL
200-C194 BK-16-GXL
304-C298 WH-18-GXL
390-C155 YL-18-GXL
993-C220 BR-18-GXL
997-C288 OR-18-GXL
998-C172 BR-18-GXL
A745-C198 WH-18-GXL
F711-C156 YL-18-GXL
F712-C157 GN-18-GXL
F725-C197 WH-18-GXL
G976-C195 BU-18-GXL
K897-C222 PK-18-GXL
T861-C199 YL-18-GXL
200-C194 BK-16-GXL
304-C298 WH-18-GXL
321-C81 BR-18-GXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
993-C220 BR-18-GXL
997-C288 OR-18-GXL
998-C172 BR-18-GXL
A745-C198 WH-18-GXL
F725-C197 WH-18-GXL
G976-C195 BU-18-GXL
H808-C143 WH-18-GXL
J878-C33 YL-18-TXL
K897-C222 PK-18-GXL
K918-C60 GN-18-TXL
L731-C124 BR-18-TXL
T861-C199 YL-18-GXL
X977-C118 YL-16-GXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
110-C111 RD-14-TXL
159-C119 BU-16-GXL
175-C372 PK-16-TXL
235-C205 BK-16-GXL
235-C263 BK-16-GXL
235-C374 BK-16-TXL
322-C116 GY-16-GXL
323-C113 WH-14-GXL
495-C19 GN-18-TXL
607-C114 PK-16-GXL
616-C115 BU-16-GXL
C985-C460 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F882-C373 YL-18-TXL
H863-C67 BU-18-GXL
H867-C393 YL-18-GXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J850-C134 WH-18-GXL
J850-C137 WH-18-TXL
J879-C462 GN-18-TXL
L731-C123 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
L973-C64 GN-18-GXL
L976-C66 GN-18-GXL
M839-C258 WH-18-TXL
P740-C35 YL-18-TXL
T993-C126 BR-18-GXL
T993-C128 BR-18-TXL
Y787-C91 YL-18-GXL
Y787-C106 YL-18-GXL
Y788-C92 GN-18-GXL
Y788-C107 GN-18-GXL
200-C206 BK-16-GXL
200-C207 BK-16-GXL
200-C208 BK-16-GXL
200-C209 BK-16-GXL
200-C210 BK-14-GXL
200-C291 BK-18-GXL
200-C206 BK-16-GXL
200-C207 BK-16-GXL
200-C208 BK-16-GXL
200-C209 BK-16-GXL
200-C210 BK-14-GXL
200-C291 BK-18-GXL
200-C12 BK-14-GXL
200-C13 BK-14-GXL
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
200-C133 BK-16-TXL
200-C188 BK-18-GXL
200-C192 BK-16-GXL
200-C193 BK-18-GXL
200-C260 BK-16-GXL
H41
F711-C225 YL-18-GXL
F712-C226 GN-18-GXL
K900-C245 YL-18-GXL
K990-C246 GN-18-GXL
130-C257 RD-14-GXL
A283-C358 BK-18-GXL
H19
(207) ATCH-ETHER START AID SOL
H7
H8
H40
(106) GND-CHAS-3
(105) GND-CHAS-2
(96) GND-CHAS-1
C-C43
243-4505
1
2
C-C33
C-C81
176-2946
3E-3376
1
2
3
4
L976-C66 GN-18-GXL
323-C113 WH-14-GXL
200-C210 BK-14-GXL
H863-C67 BU-18-GXL
447-5581
(83) FAN AS-AXIAL 1
510-8095
(84) FAN AS-AXIAL 2
510-8095
(85) FAN AS-AXIAL 3
510-8095
(86) FAN AS-AXIAL 4
510-8095
(87) FAN AS-AXIAL 5
510-8095
(88) FAN AS-AXIAL 6
510-8095
(89) FAN AS-AXIAL 7
510-8095
(90) FAN AS-AXIAL 8
510-8095
200-C133 BK-16-TXL
200-C188 BK-18-GXL
200-C193 BK-18-GXL
200-C194 BK-16-GXL
200-C260 BK-16-GXL
304-C298 WH-18-GXL
993-C220 BR-18-GXL
997-C288 OR-18-GXL
998-C172 BR-18-GXL
A745-C198 WH-18-GXL
F725-C197 WH-18-GXL
G976-C195 BU-18-GXL
K897-C222 PK-18-GXL
T861-C199 YL-18-GXL
390-C155 YL-18-GXL
657-C259 YL-16-GXL
F711-C156 YL-18-GXL
F712-C157 GN-18-GXL
390-C155 YL-18-GXL
657-C259 YL-16-GXL
110-C111 RD-14-TXL
159-C119 BU-16-GXL
175-C372 PK-16-TXL
200-C12 BK-14-GXL
200-C13 BK-14-GXL
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
200-C192 BK-16-GXL
321-C81 BR-18-GXL
322-C116 GY-16-GXL
323-C113 WH-14-GXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
607-C114 PK-16-GXL
616-C115 BU-16-GXL
C985-C460 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F882-C373 YL-18-TXL
H808-C143 WH-18-GXL
H863-C67 BU-18-GXL
H867-C393 YL-18-GXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J850-C134 WH-18-GXL
J850-C137 WH-18-TXL
J878-C33 YL-18-TXL
J879-C462 GN-18-TXL
K918-C60 GN-18-TXL
L731-C21 BR-18-TXL
L731-C123 BR-18-TXL
L731-C124 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
L973-C64 GN-18-GXL
L976-C66 GN-18-GXL
M839-C258 WH-18-TXL
P740-C35 YL-18-TXL
T993-C126 BR-18-GXL
T993-C128 BR-18-TXL
X977-C118 YL-16-GXL
Y787-C91 YL-18-GXL
Y787-C106 YL-18-GXL
Y788-C92 GN-18-GXL
Y788-C107 GN-18-GXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
235-C205 BK-16-GXL
235-C263 BK-16-GXL
235-C374 BK-16-TXL
235-C72 BK-14-TXL
235-C73 BK-14-TXL
235-C74 BK-14-TXL
235-C191 BK-18-GXL
235-C108 BK-18-GXL
235-C73 BK-14-TXL
235-C72 BK-14-TXL
235-C108 BK-18-GXL
235-C74 BK-14-TXL
235-C191 BK-18-GXL
235-C374 BK-16-TXL
235-C205 BK-16-GXL
235-C263 BK-16-GXL
(132) RESISTOR CAN (J1939) DATA LINK
324-5678
CAN HIGH
CAN LOW
POWER
GROUND
C-C38
243-4507 230-5008
EF-C20
3E-3364
ELEC FAN
CONTROL 1
(FOR HYD)
ELEC FAN
CONTROL 2
(FOR HYD)
ELEC FAN
CONTROL 3
(FOR HYD)
ELEC FAN
CONTROL 4
(FOR HYD)
ELEC FAN
CONTROL 5
(FOR ENG)
ELEC FAN
CONTROL 6
(FOR ENG)
ELEC FAN
CONTROL 7
(FOR ATAAC)
ELEC FAN
CONTROL 8
(FOR ATAAC)
H40
(80) DEF TANK HEADER
528-0549
H18H18
C-C39
1
2
CONN 82
3
4
EF-C19
155-2269
1
2
EF-C2
177-9646
1
2
EF-C3
155-2267
A
B
C
EF-C4
177-9646
1
2
EF-C5
155-2267
A
B
C
EF-C6
177-9646
1
2
EF-C7
155-2267
A
B
C
EF-C8
177-9646
1
2
EF-C9
155-2267
A
B
C
EF-C10
177-9646
1
2
EF-C11
155-2267
A
B
C
EF-C12
177-9646
1
2
EF-C13
155-2267
A
B
C
EF-C14
177-9646
1
2
EF-C15
155-2267
A
B
C
EF-C16
177-9646
1
2
EF-C17
155-2267
A
B
C
317-EF36 YL-18-GXL
E748-EF37 BK-18-GXL
A124-EF4 RD-12-GXL
239-EF44 BK-12-GXL
H439-EF16 PU-18-GXL
Y712-EF26 GY-18-GXL
A124-EF5 RD-12-GXL
H439-EF19 PU-18-GXL
Y712-EF27 GY-18-GXL
A124-EF6 RD-12-GXL
239-EF51 BK-12-GXL
H439-EF21 PU-18-GXL
Y712-EF28 GY-18-GXL
A124-EF7 RD-12-GXL
239-EF55 BK-12-GXL
H439-EF22 PU-18-GXL
Y712-EF29 GY
A124-EF11 RD-12-GXL
H439-EF17 PU-18-GXL
Y713-EF31 PK-18-GXL
A124-EF12 RD-12-GXL
H439-EF18 PU-18-GXL
Y713-EF32 PK-18-GXL
A124-EF13 RD-12-GXL
H439-EF23 PU-18-GXL
Y714-EF34 PU-18-GXL
A124-EF14 RD-12-GXL
H439-EF24 PU-18-GXL
Y714-EF35 PU-18-GXL
U941-C253 PK-18-GXL
U942-C224 GN-18-GXL
U937-C251 WH-18-GXL
U938-C217 BU-18-GXL
U939-C252 OR-18-GXL
U940-C229 GY-18-GXL
C481-C286 GN-16-TXL
C246-C204 BK-16-TXL
J933-C212 BR-16-TXL
U953-C249 GN-16-TXL
U954-C214 BU-16-TXL
U943-C215 GN-16-TXL
U944-C216 BR-16-TXL
-18-GXL
239-EF48 BK-12-GXL
239-EF49 BK-12-GXL
239-EF56 BK-12-GXL
239-EF52 BK-12-GXL
H8
H9
997-C7 OR-16-TXL
V-C1
230-5008
1
L976-V1 GN-18-GXL
2
323-V2 WH-14-GXL
3
200-V3 BK-14-GXL
4
H863-V4 BU-18-GXL
110-C111 RD-14-TXL
159-C119 BU-16-GXL
175-C372 PK-16-TXL
200-C12 BK-14-GXL
200-C13 BK-14-GXL
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
200-C192 BK-16-GXL
235-C72 BK-14-TXL
235-C73 BK-14-TXL
235-C74 BK-14-TXL
235-C108 BK-18-GXL
235-C191 BK-18-GXL
321-C81 BR-18-GXL
322-C116 GY-16-GXL
323-C113 WH-14-GXL
390-C155 YL-18-GXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
607-C114 PK-16-GXL
616-C115 BU-16-GXL
657-C259 YL-16-GXL
J879-C462 GN-18-TXL
C985-C460 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F711-C156 YL-18-GXLF711-C156 YL-18-GXL
F712-C157 GN-18-GXLF712-C157 GN-18-GXL
F882-C373 YL-18-TXL
H808-C143 WH-18-GXL
H867-C393 YL-18-GXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J878-C33 YL-18-TXL
K918-C60 GN-18-TXL
L731-C21 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
L973-C64 GN-18-GXL
L976-C66 GN-18-GXL
M839-C258 WH-18-TXL
P740-C35 YL-18-TXL
T993-C126 BR-18-GXL
X977-C118 YL-16-GXL
Y787-C91 YL-18-GXL
Y787-C106 YL-18-GXL
Y788-C92 GN-18-GXL
Y788-C107 GN-18-GXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
J850-C134 WH-18-GXL
J850-C137 WH-18-TXL
T993-C128 BR-18-TXL
J850-C134 WH-18-GXL
J850-C137 WH-18-TXL
T993-C128 BR-18-TXL
779-C84 WH-18-TXL
780-C85 PU-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
A588-C37 GN-18-TXL
C472-C24 GN-18-TXL
C473-C23 GN-18-TXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
E790-C144 PK-18-TXL
E790-C145 PK-18-TXL
F863-C56 GN-18-TXL
G723-C65 YL-18-GXL
G813-C97 YL-18-TXL
G815-C437 BR-18-TXL
G969-C40 YL-18-GXL
H807-C80 YL-18-GXL
H807-C389 YL-18-GXL
H807-C390 YL-18-TXL
H808-C142 WH-18-GXL
H867-C392 YL-18-GXL
H908-C38 BU-18-TXL
J764-C96 BR-18-TXL
K867-C49 YL-18-GXL
K868-C55 BR-18-GXL
K869-C52 BU-18-GXL
K906-C77 GN-18-TXL
K921-C57 GY-18-TXL
K927-C45 BU-18-GXL
K929-C46 GN-18-TXL
K931-C44 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K943-C51 OR-18-TXL
K944-C50 YL-18-TXL
K946-C54 OR-18-TXL
K947-C53 YL-18-TXL
K949-C41 OR-18-TXL
K950-C39 YL-18-TXL
K952-C36 BR-18-GXL
M739-C456 YL-18-GXL
M740-C78 PK-18-GXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
P722-C103 BU-18-TXL
P723-C104 YL-18-TXL
P752-C79 GY-18-TXL
P976-C87 BR-18-TXL
R981-C76 YL-18-GXL
T800-C93 OR-18-TXL
T993-C125 BR-18-GXL
X783-C5 PK-18-GXL
X783-C105 PK-18-TXL
X783-C4 PK-18-GXL
C-C30
240-7877
1
2
C-C29
240-7874
1
2
C-C31
240-7876
1
2
C-C12
366-8294
1
2
3
4
5
6
7
8
9
10
11
12
ATCH-REFUELING PUMP
109-CT1 RD-0-SGX
109-CV1 RD-0-SGX 109-CV1 RD-0-SGX
101-CA1 RD-00-SGX
877-WG1 YL-8-SXL877-WG1 YL-8-SXL
(169) SOOT SENSOR
EF CAP1
304-EF40 WH-18-GXL
A244-EF41 BK-18-GXL
K990-EF43 GN-18-GXL
K900-EF42 YL-18-GXL
304-EF40 WH-18-GXL
A244-EF41 BK-18-GXL
K900-EF42 YL-18-GXL
K990-EF43 GN-18-GXL
239-EF44 BK-12-GXL
239-EF45 BK-12-GXL239-EF45 BK-12-GXL
239-EF46 BK-8-SXL
239-EF50 BK-4-SXL
239-EF47 BK-8-SXL
239-EF49 BK-12-GXL
239-EF48 BK-12-GXL
239-EF51 BK-12-GXL
239-EF52 BK-12-GXL
239-EF53 BK-8-SXL
239-EF57 BK-4-SXL
239-EF54 BK-8-SXL
239-EF55 BK-12-GXL
239-EF56 BK-12-GXL
317-EF36 YL-18-GXL
A124-EF4 RD-12-GXL
A124-EF5 RD-12-GXL
A124-EF2 RD-8-SXL
A124-EF1 RD-4-SXL
A124-EF3 RD-8-SXL
A124-EF6 RD-12-GXL
A124-EF7 RD-12-GXL
A124-EF11 RD-12-GXL
A124-EF12 RD-12-GXL
A124-EF9 RD-8-SXL
A124-EF8 RD-4-SXL
A124-EF10 RD-8-SXL
A124-EF13 RD-12-GXL
A124-EF14 RD-12-GXL
E748-EF37 BK-18-GXL
H439-EF15 PU-18-GXL
H439-EF16 PU-18-GXL
H439-EF17 PU-18-GXL
H439-EF18 PU-18-GXL
H439-EF19 PU-18-GXL
H439-EF20 PU-18-GXL
H439-EF21 PU-18-GXL
H439-EF22 PU-18-GXL
H439-EF23 PU-18-GXL
H439-EF24 PU-18-GXL
Y712-EF25 GY-18-GXL
Y712-EF26 GY-18-GXL
Y712-EF28 GY-18-GXL
Y712-EF29 GY-18-GXL
Y712-EF27 GY-18-GXL
Y713-EF30 PK-18-GXL
Y713-EF31 PK-18-GXL
Y713-EF32 PK-18-GXL
Y714-EF33 PU-18-GXL
Y714-EF34 PU-18-GXL
Y714-EF35 PU-18-GXL
H7H7
H3
EF-C21
281-8811
1
2
3
4
5
6
ELECTRIC FAN MODULE
130-C71 RD-14-GXL
304-C171 WH-18-TXL
304-C281 WH-18-GXL
317-C283 YL-18-GXL
318-C83 BR-18-GXL
390-C16 YL-18-TXL
390-C94 YL-18-GXL
998-C176 BR-18-GXL
998-C102 BR-18-GXL
998-C175 BR-18-GXL
A244-C282 BK-18-GXL
A278-C285 BK-18-GXL
A278-C189 BK-18-GXL
A278-C284 BK-18-GXL
C247-C366 BK-16-GXL
C903-C8 BU-18-GXL
E554-C100 PK-18-GXL
J710-C388 BR-16-GXL
F710-C300 BR-18-GXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F716-C101 WH-18-GXL
F762-C299 GY-18-GXL
F793-C223 OR-18-GXL
G797-C98 BU-18-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
K960-C305 YL-18-TXL
506-C89 PU-18-GXL
K961-C302 GN-18-TXL
607-C15 PK-16-TXL
200-C133 BK-16-TXL
200-C260 BK-16-GXL
200-C188 BK-18-GXL
657-C259 YL-16-GXL
993-C178 BR-18-GXL
998-C180 BR-18-GXL
C829-C177 GN-18-GXL
P875-C179 BU-18-GXL
P976-C87 BR-18-TXL
E790-C144 PK-18-TXL
779-C84 WH-18-TXL
E789-C86 PU-18-GXL
780-C85 PU-18-TXL
H807-C390 YL-18-TXL
342-2974
464-4914
SUPPLY VOLTAGE
GROUND
RESERVED
CAN -
CAN +
CAN SHIELD
A124-EF1 RD-4-SXL
A124-EF8 RD-4-SXL
304-EF40 WH-18-GXL
317-EF36 YL-18-GXL
A244-EF41 BK-18-GXL
E748-EF37 BK-18-GXL
H439-EF15 PU-18-GXL
K900-EF42 YL-18-GXL
K900-EF58 YL-18-GXL
K900-EF59 YL-18-GXL
K990-EF43 GN-18-GXL
K990-EF60 GN-18-GXL
K990-EF61 GN-18-GXL
Y712-EF25 GY-18-GXL
Y713-EF30 PK-18-GXL
Y714-EF33 PU-18-GXL
239-EF50 BK-4-SXL
239-EF57 BK-4-SXL
H38
H39
C-C40
281-3132
1
2
3
4
5
6
(100) GND-CHAS-11
PREMIUM LIGHT
REAR
577-7406
C-CAP1
342-2974
CONN 85
H23
H23
H24
H24
+
(70) BATTERY (RIGHT) (68) BATTERY (LEFT)
263-9574
+
(71) ATCH BATTERY (RIGHT) (69) ATCH BATTERY (LEFT)
263-9574
H22 H22
K900-EF59 YL-18-GXL
K990-EF61 GN-18-GXL
H439-EF15 PU-18-GXL
Y712-EF25 GY-18-GXL
Y713-EF30 PK-18-GXL
Y714-EF33 PU-18-GXL
317-EF36 YL-18-GXL
E748-EF37 BK-18-GXL
304-EF40 WH-18-GXL
A244-EF41 BK-18-GXL
K900-EF58 YL-18-GXL
K990-EF60 GN-18-GXL
F
(119) MODULE AS - SOLID STATE DRIVER
EA-C1
243-4508
1
P976-EA1 BR-18-GXL
2
E790-EA2 PK-18-GXL
3
779-EA3 WH-18-GXL 779-EA3 WH-18-GXL
4
5
780-EA5 PU-18-GXL
6
H807-EA6 YL-18-GXL
177-C17 RD-4-SXL
H22
J710-C388 BR-16-GXL
C247-C366 BK-16-GXL
877-WG1 YL-8-SXL
101-CC1 RD-00-SGX
101-CG1 RD-00-SGX
243-4505
PREMIUM LIGHT
LEFT SIDE
577-7406
AF-C2
155-2269
1
2
650-AF1 OR-16-GXL
200-AF2 BK-16-GXL
PREMIUM LIGHT
RIGHT SIDE
577-7406
578-4213
EF-C22
243-4510
C-C68
155-2269
1
2
PURGE LAMP
I
419-3911
F793-C223 OR-18-GXL
A278-C285 BK-18-GXL
(216) DISCONNECT SW
7N-0719
200-CE1 BK-00-SGX 200-CP1 BK-00-SGX
+
263-9574
200-CH1 BK-00-SGX
+
263-9574
177-C17 RD-4-SXL
A278-C285 BK-18-GXL
C247-C366 BK-16-GXL
F793-C223 OR-18-GXL
J710-C388 BR-16-GXL
(221) RESISTOR
1
ENGINE CAN DATA LINK
2
CONN 83
10
11
12
324-5678
C-C8EF-C1
281-3395
1
H439-C34 PU-18-TXL
2
Y712-C61 GY-18-GXL
3
Y713-C62 PK-18-GXL
4
Y714-C63 PU-18-GXL
5
6
A278-C284 BK-18-GXL
7
8
998-C175 BR-18-GXL
9
304-C281 WH-18-GXL
A244-C282 BK-18-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
F
AF-C1
243-4505
F
5 A DRIVER-1
13 A DRIVER-1
CAN HI
CAN LO
5A DRIVER-2
13A DRIVER-2
NC
CAN SHIELD
V BTRY+
V BTRY-
P976-EA1 BR-18-GXL
E790-EA2 PK-18-GXL
E789-EA4 PU-18-GXLE789-EA4 PU-18-GXL
780-EA5 PU-18-GXL
H807-EA6 YL-18-GXL
317-C283 YL-18-GXL
AE-C6
331-3582
1
2
CONN 84
AE-C4
240-7874
1
2
AE-C5
331-3582
1
2
AE-C3
517-0414
1
2
3
4
5
6
7
8
1
2
AE-C2
517-0413
EA-C2
155-2269
EA-C3
155-2269
EA-C4
155-2269
653-AE12 GN-16-TXL
200-AE9 BK-16-TXL
650-AE11 OR-16-TXL
200-AE8 BK-16-TXL
652-AE10 YL-16-TXL
200-AE7 BK-16-TXL
652-AE10 YL-16-TXL
650-AE11 OR-16-TXL
K960-AE5 YL-16-TXL
K961-AE6 GN-16-TXL
653-AE12 GN-16-TXL
607-AE3 PK-16-TXL
200-AE2 BK-16-TXL
(204) ATCH-QCPLR LOCK/UNLOCK SOL2
514-7723
1
2
(203) ATCH-QCPLR LOCK/UNLOCK SOL1
514-7723
1
2
(202) ATCH-QCPLR BYPASS CUT SOL
457-9878
1
2
1
2
C-C78
151-9278
PANEL GP
H37
(127) GLOW RELAY
241-8368
(102) GND-CHAS-12
H39
H23
657-C259 YL-16-GXL
200-C260 BK-16-GXL
506-C89 PU-18-GXL
C829-C177 GN-18-GXL
993-C178 BR-18-GXL
P875-C179 BU-18-GXL
998-C180 BR-18-GXL
607-C15 PK-16-TXL
200-C133 BK-16-TXL
K960-C305 YL-18-TXL
K961-C302 GN-18-TXL
H33
K961-AE6 GN-16-TXL
653-AE12 GN-16-TXL
650-AE11 OR-16-TXL
652-AE10 YL-16-TXL
200-AE9 BK-16-TXL
200-AE7 BK-16-TXL
200-AE8 BK-16-TXL
200-AE8 BK-16-TXL
200-AE7 BK-16-TXL
200-AE9 BK-16-TXL
652-AE10 YL-16-TXL
650-AE11 OR-16-TXL
653-AE12 GN-16-TXL
607-AE3 PK-16-TXL
200-AE1 BK-16-TXL
K960-AE5 YL-16-TXL
ATCH-QUICK COUPLER
EV-C2
155-2269
1
2
EV-C3
155-2269
1
2
CONN 92
CONNECTS TO T-C28
VOL 2, LOC B-9
(212) ATCH-VAB UP
485-5747
(211) ATCH-VAB DOWN
485-5747
T800-Y5 OR-18-GXL
G813-Y3 YL-18-GXL
T800-Y7 OR-18-GXL
J764-Y8 BR-18-GXL
G815-Y4 BR-18-GXL
K906-T1 GN-18-GXL
M739-T2 YL-18-GXL
R981-T3 YL-18-GXL
H867-T4 YL-18-GXL
K949-T5 OR-18-GXL
G969-T6 YL-18-GXL
K931-T7 GN-18-GXL
G969-T8 YL-18-GXL
K946-T9 OR-18-GXL
K869-T10 BU-18-GXL
M740-T11 PK-18-GXL
H807-T12 YL-18-GXL
K943-T13 OR-18-GXL
K867-T14 YL-18-GXL
K932-T15 GN-18-GXL
K927-T16 BU-18-GXL
936-T17 PU-18-GXL
G969-T18 YL-18-GXL
H908-T19 BU-18-GXL
K952-T20 BR-18-GXL
J850-T21 WH-18-GXL
T993-T22 BR-18-GXL
M813-T23 BU-18-GXL
A588-T24 GN-18-GXL
K952-T25 BR-18-GXL
F863-T26 GN-18-GXL
K868-T27 BR-18-GXL
K950-T28 YL-18-GXL
K952-T29 BR-18-GXL
K929-T30 GN-18-GXL
K927-T31 BU-18-GXL
K947-T32 YL-18-GXL
K869-T33 BU-18-GXL
K944-T34 YL-18-GXL
K867-T35 YL-18-GXL
K934-T36 GN-18-GXL
K927-T37 BU-18-GXL
937-T38 WH-18-GXL
G969-T39 YL-18-GXL
-18-GXL
P752-T40 GY
X783-T41 PK-18-GXL
K921-T42 GY-18-GXL
K868-T43 BR-18-GXL
J850-T44 WH-18-GXL
T993-T45 BR-18-GXL
C473-T46 GN-18-GXL
J850-T47 WH-18-GXL
T993-T48 BR-18-GXL
C472-T49 GN-18-GXL
G723-T50 YL-18-GXL
H808-T51 WH-18-GXL
TH-C1
3E-3364
1
G723-TH1 YL-18-GXL
2
H808-TH2 WH-18-GXL
ATCH-HEAVY LIFT SOL
Y-C2
(149) ATCH-BUCKET CYL HEAD PRESS.SENSOR
230-4013
338-6971
1
VS
2
GROUND
3
SIGNAL
Y-C3
(157) ATCH-BUCKET CYL ROD PRESS.SENSOR
230-4013
338-6971
1
VS
2
GROUND
3
SIGNAL
T-C5
155-2269
155-2269
155-2269
155-2269
155-2269
T-C10
155-2269
T-C11
155-2269
T-C12
155-2269
T-C13
155-2269
T-C14
155-2269
T-C15
230-4013
T-C16
155-2269
T-C17
155-2269
T-C18
155-2269
T-C19
155-2269
T-C20
155-2269
T-C21
155-2269
T-C22
155-2269
T-C23
155-2269
T-C24
155-2269
T-C25
155-2269
T-C26
230-4013
T-C27
230-4013
T-C28
155-2269
T-C6
T-C7
T-C8
T-C9
155-2269
(209) SWING BRAKE SOL
1
491-0908
2
(206) TRAVEL SPEED SOL
1
491-0908
2
(187) EH-BOOM DOWN
1
485-5747
2
(189) EH-BUCKET CURL
1
485-5747
2
(199) EH-TRAVEL RIGHT REV
1
485-5747
2
(205) STRAIGHT TRAVEL SOL
1
491-0908
2
(197) EH-TRAVEL LEFT REV
1
485-5747
2
(194) EH-SWING LEFT
1
485-5747
2
(193) EH-STICK OUT
1
485-5747
2
(186) EH-BOOM 2 UP
485-5747
1
2
(141) STICK CYLINDER HEAD PRESSURE
338-6971
1
VS
2
GROUND
3
SIGNAL
(201) HYD LOCK SOL
1
491-0908
2
(191) EH-STICK 2 IN
1
485-5747
2
(188) EH-BOOM UP
1
485-5747
2
(190) EH-BUCKET UN-CURL
1
485-5747
2
(198) EH-TRAVEL RIGHT FWD
1
485-5747
2
(196) EH-TRAVEL LEFT FWD
1
485-5747
2
(195) EH-SWING RIGHT
1
485-5747
2
(192) EH-STICK IN
1
485-5747
2
(208) STICK UNLOAD
1
485-5747
2
(210) SWING PRIORITY
1
485-5747
2
1
VS
GROUND
SIGNAL
VS
GROUND
SIGNAL
CONN 92
CONNECTS TO TH-C1
VOL 2, LOC B-9
TH-C2
1
2
(165) PUMP 1 PRESS.SENSOR
338-6971
(166) PUMP 2 PRESS.SENSOR
338-6971
2
3
1
2
3
T-C29
3E-3364
1
2
(178) ATCH-HEAVY LIFT SOL
491-0908
1
(118) DEF HEATED LINE #2 (PRESSURE)
2
519-4110
1
(213) DEF HEATED LINE #3 (SUCTION)
2
507-9283
1
(142) DEF HEATED LINE #1 (RETURN)
2
507-9282
NC-1
PRESSURE SENSOR +
PRESSURE SENSOR SIG.
PRESSURE SENSOR GND
NC-5
NC-6
NC-7
PUMP MOTOR GND
PUMP MOTOR +
PUMP MOTOR PWM
RVV
RVV SIGNAL
V-C2
323-V5 WH-14-GXL
200-V6 BK-14-GXL
323-V7 WH-14-GXL
200-V8 BK-18-GXL
230-4011
V-C3
155-2272
P722-C103 BU-18-TXL
E790-C145 PK-18-TXL
P723-C104 YL-18-TXL
X783-C105 PK-18-TXL
J850-C137 WH-18-TXL
T993-C128 BR-18-TXL
M814-C26 BR-18-TXL
G815-C437 BR-18-TXL
K868-C55 BR-18-GXL
C473-C23 GN-18-TXL
C472-C24 GN-18-TXL
M813-C25 BU-18-TXL
K952-C36 BR-18-GXL
K949-C41 OR-18-TXL
H9
K931-C44 GN-18-TXL
G969-C40 YL-18-GXL
K929-C46 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K927-C45 BU-18-GXL
K943-C51 OR-18-TXL
K946-C54 OR-18-TXL
K869-C52 BU-18-GXL
A588-C37 GN-18-TXL
M740-C78 PK-18-GXL
H807-C389 YL-18-GXL
H808-C142 WH-18-GXL
H867-C392 YL-18-GXL
J850-C134 WH-18-GXL
T993-C125 BR-18-GXL
G723-C65 YL-18-GXL
M739-C456 YL-18-GXL
K906-C77 GN-18-TXL
(122) DEF DOSING PUMP
485-9753
(124) ATCH-REFUELING PUMP
518-8137
1
2
1
2
3
4
(218) ATCH-REFUELING SW
196-5650
T800-C93 OR-18-TXL
J764-C96 BR-18-TXL
G813-C97 YL-18-TXL
F863-C56 GN-18-TXL
P752-C79 GY-18-TXL
K950-C39 YL-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
K944-C50 YL-18-TXL
K867-C49 YL-18-GXL
K947-C53 YL-18-TXL
K921-C57 GY-18-TXL
X783-C4 PK-18-GXL
R981-C76 YL-18-GXL
H908-C38 BU-18-TXL
C-C41
261-0524
C-C51
240-7878
C-C82
261-0524
C-C4
281-3395
C-C5
281-3396
C-C6
281-3397
C-C7
240-7874
C-CAP2
342-2978
1
2
3
4
C-CAP14
342-2973
1
2
3
C-CAP12
342-2978
1
2
3
4
CONN 88
T-C1
243-4510
1
2
3
4
5
6
7
8
9
10
11
12
CONN 89
T-C2
272-5000
1
2
3
4
5
6
7
8
9
10
11
12
CONN 90
T-C3
296-3318
1
2
3
4
5
6
7
8
9
10
11
12
CONN 91
T-C4
243-4505
1
2
CONN 86
CONN 87
F863-T26 GN-18-GXL
K868-T56 BR-18-GXL
C473-T46 GN-18-GXL
M813-T23 BU-18-GXL
P752-T40 GY-18-GXL
K950-T28 YL-18-GXL
K952-T59 BR-18-GXL
K949-T5 OR-18-GXL
936-T17 PU-18-GXL
937-T38 WH-18-GXL
K931-T7 GN-18-GXL
G969-T52 YL-18-GXL
K929-T30 GN-18-GXL
K932-T15 GN-18-GXL
K934-T36 GN-18-GXL
K927-T58 BU-18-GXL
K944-T34 YL-18-GXL
K943-T13 OR-18-GXL
K867-T55 YL-18-GXL
K947-T32 YL-18-GXL
K946-T9 OR-18-GXL
K869-T57 BU-18-GXL
K921-T42 GY-18-GXL
X783-T41 PK-18-GXL
A588-T24 GN-18-GXL
R981-T3 YL-18-GXL
M740-T11 PK-18-GXL
H807-T12 YL-18-GXL
H808-T51 WH-18-GXL
H908-T19 BU-18-GXL
H867-T4 YL-18-GXL
J850-T54 WH-18-GXL
T993-T60 BR-18-GXL
G723-T50 YL-18-GXL
M739-T2 YL-18-GXL
K906-T1 GN-18-GXL
EV-C1
243-4507
1
P722-EV1 BU-18-GXL
2
E790-EV2 PK-18-GXL
3
P723-EV3 YL-18-GXL
4
X783-EV4 PK-18-GXL
(170) ATCH STICK CYL ROD PRESS.SENSOR
VS
338-6971
GROUND
SIGNAL
Y-C1
243-4507
1
T800-Y1 OR-18-GXL T800-Y1 OR-18-GXL
2
J764-Y2 BR-18-GXL
3
G813-Y3 YL-18-GXL
4
G815-Y4 BR-18-GXL
936-T17 PU-18-GXL
937-T38 WH-18-GXL
A588-T24 GN-18-GXL
C472-T49 GN-18-GXLC472-T49 GN-18-GXL
C473-T46 GN-18-GXL
F863-T26 GN-18-GXL
G723-T50 YL-18-GXL
G969-T52 YL-18-GXL
G969-T6 YL-18-GXL
G969-T8 YL-18-GXL
G969-T18 YL-18-GXL
G969-T39 YL-18-GXL
H807-T12 YL-18-GXL
H808-T51 WH-18-GXL
H867-T4 YL-18-GXL
H908-T19 BU-18-GXL
J850-T54 WH-18-GXL
J850-T44 WH-18-GXL
J850-T47 WH-18-GXL
J850-T21 WH-18-GXL
K867-T55 YL-18-GXL
K867-T14 YL-18-GXL
K867-T35 YL-18-GXL
K868-T56 BR-18-GXL
K868-T27 BR-18-GXL
K868-T43 BR-18-GXL
K869-T57 BU-18-GXL
K869-T10 BU-18-GXL
K869-T33 BU-18-GXL
K906-T1 GN-18-GXL
K921-T42 GY-18-GXL
K927-T58 BU-18-GXL
K927-T31 BU-18-GXL
K927-T16 BU-18-GXL
K927-T37 BU-18-GXL
K929-T30 GN-18-GXL
K931-T7 GN-18-GXL
K932-T15 GN-18-GXL
K934-T36 GN-18-GXL
K943-T13 OR-18-GXL
K944-T34 YL-18-GXL
K946-T9 OR-18-GXL
K947-T32 YL-18-GXL
K949-T5 OR-18-GXL
K950-T28 YL-18-GXL
K952-T59 BR-18-GXL
K952-T25 BR-18-GXL
K952-T20 BR-18-GXL
K952-T29 BR-18-GXL
M739-T2 YL-18-GXL
M740-T11 PK-18-GXL
M813-T23 BU-18-GXL
P752-T40 GY-18-GXL
R981-T3 YL-18-GXL
T993-T60 BR-18-GXL
T993-T45 BR-18-GXL
T993-T48 BR-18-GXL
T993-T22 BR-18-GXL
X783-T41 PK-18-GXL
P722-EV1 BU-18-GXL
E790-EV2 PK-18-GXL
P723-EV3 YL-18-GXL
X783-EV4 PK-18-GXL
ATCH-VAB
J764-Y2 BR-18-GXL
J764-Y8 BR-18-GXL J764-Y6 BR-18-GXL
J764-Y6 BR-18-GXL
T800-Y5 OR-18-GXL
T800-Y7 OR-18-GXL
G813-Y3 YL-18-GXL
G815-Y4 BR-18-GXL
ATCH-EOU/QCPLR
CONTROL VALVE
177-C17 RD-4-SXL
101-CA1 RD-00-SGX
101-CJ1 RD-00-SGX101-CJ1 RD-00-SGX
101-CF1 RD-00-SGX101-CF1 RD-00-SGX
101-FA1 RD-00-SGX
A124-EF1 RD-4-SXL
A124-EF8 RD-4-SXL
108-WF1 RD-6-SXL
109-CT1 RD-0-SGX
101-FA1 RD-00-SGX
C-C61
C-CAP6
230-4011
342-2972
1
2
C-C55
506-2794
1
2
CONN 94
C-C11
EN-C1
261-0524 230-5009
1
2
3
4
652-AE10 YL-16-TXL
650-AE11 OR-16-TXL
653-AE12 GN-16-TXL
200-AE9 BK-16-TXL
200-AE8 BK-16-TXL
200-AE7 BK-16-TXL
200-AE1 BK-16-TXL
200-AE2 BK-16-TXL
607-AE3 PK-16-TXL
K960-AE5 YL-16-TXL
K961-AE6 GN-16-TXL
CONN 93
CONNECTS TO GE-C7
VOL 2, LOC F-7
(91) BLOCK AS.-FUSE
549-2874
150
100
100
100
(92) BLOCK AS.-FUSE 2
549-2878
40
70
150
CONN 95
FOR SEAT BELT CAUTION LAMP
(121) WASHER MOTOR
543-4886
C829-EN1 GN-18-GXL
993-EN2 BR-18-GXL
P875-EN3 BU-18-GXL
998-EN4 BR-18-GXL
H27
AE-C1
335-8849
H33
GF-C1
230-5010
1
K856-GF1 PU-18-GXL
2
K860-GF2 BU-18-GXL
3
K857-GF3 WH-18-GXL
4
K861-GF4 GN-18-GXL
5
J807-GF5 BK-18-GXL
6
H34
J850-C139 WH-18-TXL
T993-C130 BR-18-TXL
E410-C27 OR-18-TXL
J850-C140 WH-18-TXL
T993-C131 BR-18-TXL
E41
322-C147 GY-16-GXL
200-C206 BK-16-GXL
322-C148 GY-16-GXL
200-C207 BK-16-GXL
616-C115 BU-16-GXL
200-C209 BK-16-GXL
H20
J844-C75 GY-18-TXL
T993-C132 BR-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
L973-C64 GN-18-GXL
H867-C393 YL-18-GXL
159-C149 BU-16-TXL
235-C202 BK-16-TXL
J850-C394 WH-18-GXL
235-C466 BK-18-GXL
Y787-C166 YL-18-GXL
Y788-C167 GN-18-GXL
159-C262 BU-16-GXL
235-C263 BK-16-GXL
L854-C423 YL-18-GXL
L855-C424 GN-18-GXL
Y787-C106 YL-18-GXL
Y788-C107 GN-18-GXL
110-C111 RD-14-TXL
Y787-C265 YL-18-GXL
Y788-C267 GN-18-GXL
159-C150 BU-16-TXL
235-C203 BK-16-TXL
J850-C136 WH-18-GXL
T993-C127 BR-18-GXL
P740-C35 YL-18-TXL
J850-C467 WH-18-GXL
Y787-C168 YL-18-GXL
Y788-C169 GN-18-GXL
C985-C460 BU-18-TXL
J879-C462 GN-18-TXL
M839-C258 WH-18-TXL
607-C114 PK-16-GXL
200-C208 BK-16-GXL
175-C372 PK-16-TXL
235-C374 BK-16-TXL
L854-C368 YL-18-GXL
L855-C371 GN-18-GXL
F882-C373 YL-18-TXL
(271) FUSE - ALT (UPR)
1
510-8931
(275) FUSE - MAIN
2
378-1012
(272) FUSE - ELEC FAN 1
3
378-1012
(273) FUSE - ELEC FAN 2
4
378-1012
(276) FUSE - PTU
1
510-8930
2
(274) FUSE - GLOW
455-2302
3
(270) FUSE - ALT (LWR)
510-8931
POWER FUSE
C-CAP4
342-2978
1
2
CONN 96
3
4
K856-GF1 PU-18-GXL
J807-GF9 BK-18-GXL
K857-GF3 WH-18-GXL
J807-GF10 BK-18-GXL
K860-GF2 BU-18-GXL
J807-GF6 BK-18-GXL
K861-GF4 GN-18-GXL
J807-GF7 BK-18-GXL
ATCH-TOOL CONTROL SYSTEM
CONN 97
CONNECTS TO C-C36
VOL 2, LOC E-8
240-7878
240-7878
1-C28 YL-18-TXL
153-2602
153-2602
153-2602
153-2602
230-4011
CONN 99
CONNECTS TO C-C20
VOL 2, LOC D-8
261-0524
243-4505
281-3132
230-4010 230-4009
281-3388
281-3119
155-2269
281-3132
P875-EN3 BU-18-GXL
998-EN4 BR-18-GXL
C829-EN1 GN-18-GXL
993-EN2 BR-18-GXL
C-C108
261-0524
1
2
3
K960-C305 YL-18-TXL
4
K961-C302 GN-18-TXL
GF-C2
155-2269
GF-C3
155-2269
GF-C4
155-2269
GF-C6
155-2269
GA-C1
243-4506
1
2
3
C-C36
1
VS
2
GROUND
3
SIGNAL
C-C37
342-2973
C-CAP8
1
2
3
C-C22
1
1
C-C23
C-C24
1
1
C-C25
CONN 99
C-C20
1
2
AU-C1
243-4505
1
2
C-C26
1
VS
2
GND
3
SIG 1
4
SIG 2
C-C34
C-C35
230-4011
1
2
C-CAP9
C-C47
342-2974
1
2
3
4
5
6
C-C48
C-C49
1
2
3
4
5
6
7
8
9
10
11
12
C-C50
C-CAP10
342-2975
1
2
3
4
5
6
7
8
C-CAP7
C-C44
342-2973
1
2
3
CHASSIS LAMP
C-C21
577-7405
1
2
C-CAP5
C-C114
342-2974
1
2
3
4
5
6
177-C17 RD-4-SXL
H439-C34 PU-18-TXL
Y712-C61 GY-18-GXL
Y713-C62 PK-18-GXL
Y714-C63 PU-18-GXL
304-C281 WH-18-GXL
317-C283 YL-18-GXL
998-C175 BR-18-GXL
A244-C282 BK-18-GXL
H37
A278-C284 BK-18-GXL
A278-C285 BK-18-GXL
C247-C366 BK-16-GXL
F793-C223 OR-18-GXL
J710-C388 BR-16-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
304-C281 WH-18-GXL
317-C283 YL-18-GXL
998-C175 BR-18-GXL
A278-C284 BK-18-GXL
A278-C285 BK-18-GXL
A244-C282 BK-18-GXL
C247-C366 BK-16-GXL
F793-C223 OR-18-GXL
J710-C388 BR-16-GXL
K900-C233 YL-18-GXL
K990-C234 GN-18-GXL
607-C15 PK-16-TXL
130-C71 RD-14-GXL
304-C171 WH-18-TXL
318-C83 BR-18-GXL
390-C16 YL-18-TXL
390-C94 YL-18-GXL
506-C89 PU-18-GXL
998-C102 BR-18-GXL
H38
A278-C189 BK-18-GXL
C903-C8 BU-18-GXL
E554-C100 PK-18-GXL
F710-C300 BR-18-GXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F716-C101 WH-18-GXL
F762-C299 GY-18-GXL
G797-C98 BU-18-GXL
K960-C305 YL-18-TXL
K961-C302 GN-18-TXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
EN-C2
230-4011
1
2
EN-C3
230-4011
1
2
607-C15 PK-16-TXL
200-C133 BK-16-TXL
H27
J807-GF5 BK-18-GXL
J807-GF6 BK-18-GXL
J807-GF7 BK-18-GXL
J807-GF8 BK-18-GXL
J807-GF9 BK-18-GXL
J807-GF10 BK-18-GXL
K856-GF1 PU-18-GXL
K857-GF3 WH-18-GXL
K860-GF2 BU-18-GXL
K861-GF4 GN-18-GXL
(174) ATCH-STEM 1 EXTEND EPRV
1
485-5747
2
(180) ATCH-STEM 2 EXTEND EPRV
1
485-5747
2
GF-C5
3E-3364
1
2
GF-C7
3E-3364
1
2
(153) BOOM CYL HEAD PRESS.SENSOR
338-6971
AR-C1
243-4505
(179) ATCH-STEM 1 RETRACT EPRV
485-5747
(181) ATCH-STEM 2 RETRACT EPRV
485-5747
J850-GA1 WH-18-GXL
T993-GA2 BR-18-GXL
E410-GA3 OR-18-GXL
(154) ATCH-BOOM CYL ROD PRESS.SENSOR
VS
338-6971
GROUND
SIGNAL
(116) HORN (HIGH TONE)
491-7825
(117) HORN (LOW TONE)
491-7826
616-AR1 BU-16-GXL
200-AR2 BK-16-GXL
200-AR6 BK-16-GXL
616-AR5 BU-16-GXL
616-AR5 BU-16-GXL
200-AR6 BK-16-GXL
230-4011
ATCH-BLCV
AR-CAP1
AR-C3
342-2972
1
2
ATCH-BOOM LAMP (LH)
AT-C1
CONN 100
CONNECTS TO AR-C3
VOL 2, LOC D-8
1
2
243-4505
ATCH-BOOM LAMP (RH)
616-AU1 BU-16-GXL
200-AU2 BK-16-GXL
ATCH-BOOM LAMP (VAB)
(172) SWING ANGLE SENSOR
487-5859
L-C2
230-4011
1
CONN 101
BTRY +
BTRY 1 (+)8 V IN
BTRY 2 CAN H
CAN L
CONN 102
TO CGC HARNESS (CHAS)
CONNECTS TO GP-C1
VOL 2, LOC C-6
CONN 103
TO CGC HARNESS (BOOM)
CONNECTS TO GR-C1
VOL 2, LOC C-8
OR
CONNECTS TO MK-C1
VOL 2, LOC B-8
CONN 122
ATCH-BUCKET ANGLE SENSOR
F
CONN 121
ATCH-TILT ROTATOR
2
CONNECTS TO C-C50
CONNECTS TO C-C50
L973-L1 GN-18-GXL
H867-L2 YL-18-GXL
CONN 103
VOL 2, LOC B-8
CONN 103
VOL 2, LOC B-8
H5
(214) AIR FILTER RESTRICTION SWITCH
296-2735
(146) AIR INLET TEMP SENSOR
238-0112
H3
(176) ATCH-BOOM DOWN ELE CHECK SOL
H34
GA-C2
230-4013
1
CONNECTS TO (153) BOOM CYL HEAD PRESS.SENSOR
2
VOL 2, LOC E-8
3
AR-C2
155-2269
AT-C2
155-2269
AU-C2
155-2269
AU-C3
155-2269
L-C1
493-3208
1
2
1
2
1
2
1
2
1
2
616-AR3 BU-16-GXL
200-AR4 BK-16-GXL
CONN 100
CONNECTS TO AT-C1
VOL 2, LOC D-8
616-AT1 BU-16-GXL
200-AT2 BK-16-GXL
616-AU3 BU-16-GXL
200-AU4 BK-16-GXL
616-AU5 BU-16-GXL
200-AU6 BK-16-GXL
(200) ATCH-FINE SWING SOL
155-2269
ATCH-FINE SWING SOL
(145) ATCH-CHASSIS IMU
563-0598
GR-C1
243-4509
1
159-GR1 BU-16-GXL
2
235-GR2 BK-16-GXL
3
J850-GR3 WH-18-GXL
4
T993-GR4 BR-18-GXL
5
P740-GR5 YL-18-GXL
6
J850-GR6 WH-18-GXL
7
Y787-GR7 YL-18-GXL
8
Y788-GR8 GN-18-GXL
MK-C1
243-4509
1
159-MK1 BU-16-GXL
2
235-MK2 BK-16-GXL
3
J850-MK3 WH-18-GXL
4
5
6
J850-MK6 WH-18-GXL
7
Y787-MK7 YL-18-GXL
8
H5
(75) CONTROL GP - MACHINE PRIMARY
PRV8-10 RET
PRV4-7 RET
PRV1-3 RET
ACTIVE ANALOG IN 13
J1939 CGC CAN +
LOCAL CAN +
J1939 CAN +
LOCATION CODE 1
LOCATION CODE 2
ACTIVE ANALOG IN 1
ACTIVE ANALOG IN 2
ACTIVE ANALOG IN 3
ACTIVE ANALOG IN 4
ACTIVE ANALOG IN 5
ACTIVE ANALOG IN 6
HALL EFFECT IN 2
HALL EFFECT IN 1
HYD LOCK SOL
EH-BOOM 2 UP
EH-BOOM UP
ACTIVE ANALOG IN 14
J1939 CGC CAN -
LOCAL CAN -
J1939 CAN LEFT J/S SWITCH 3
LEFT J/S SWITCH 4
ACTIVE ANALOG IN 7
ACTIVE ANALOG IN 8
ANALOG & PWM RETURN 1
HYD OIL TEMPERATURE SENSOR
ANALOG PASSIVE IN 2
FUEL LEVEL SENDER
ANALOG & PWM RETURN 2
KEY SWITCH
EH-BOOM DOWN
EH-STICK OUT
LOCATION CODE 3
LOCATION CODE ENABLE/DISABLE
OLWD WARNING ALARM ENABLE SWITCH
STICK CYLINDER HEAD PRESS SENSOR
STICK CYLINDER ROD PRESS SENSOR
HYD LOCK STATUS-NORMALLY OPEN
START DETECTION/NEUTRAL STARTER STATUS
CAPSULE FILTER PLUGGED SWITCH
BUCKET CYLINDER END DETECTION
BOOM CYLINDER HEAD PRESS SENSOR
BOOM CYLINDER ROD PRESS SENSOR
ENGINE SPEED SENSOR (PANTHER)
AUX PEDAL RH(OR STRAIGHT TRAVEL PEDAL)
(177) ATCH-BOOM UP ELE CHECK SOL
STG RETURN 1
SEAT SWITCH
LEFT J/S SWITCH 2
PUMP 1 PRESS SENSOR
PUMP 2 PRESS SENSOR
FAN DIAGNOSTIC
EH-STICK IN
EH-BUCKET CURL
BR ETH - (MASTER)
BR ETH + (MASTER)
BR ETH + (SLAVE)
BR ETH - (SLAVE)
STG RETURN 2
LEFT J/S SWITCH 5 (SVAB)
RIGHT J/S SWITCH 5 (SVAB)
SWING SENSOR A-PHASE
SWING SENSOR B-PHASE
BUCKET ANGLE
EH-BUCKET UN-CURL
EH-SWING LEFT
EH-SWING RIGHT
RIGHT J/S SWITCH 1
RIGHT J/S SWITCH 2
ENGINE START SWITCH (PTS)
RIGHT J/S SWITCH 3
RIGHT J/S SWITCH 4
ANALOG & PWM RETURN 4
EP PUMP SOLENOID 1
EP PUMP SOLENOID 2
MDTP CAN +
MDTP CAN -
8V POWER SUPPLY
STG RETURN 3
RESERVE LOW SINK FOR B6MX
EH-STICK 2 IN
EH-SWING PRIOIRITY
JOYSTICK RH-X
JOYSTICK RH-Y
ANALOG & PWM RETURN 3
5V POWER SUPPLY
TRAVEL L PEDAL SENSOR
TRAVEL R PEDAL SENSOR
EH-TRAVEL RIGHT FWD
EH-TRAVEL RIGHT REV
ANALOG ACTIVE IN 9
ANALOG ACTIVE IN 10
ANALOG ACTIVE IN 11
ANALOG ACTIVE IN 12
JOYSTICK LH-X
JOYSTICK LH-Y
EH-TRAVEL LEFT FWD
EH-TRAVEL LEFT REV
PRV17-18 RET
PRV13-14 RET
PRV15-16 RET
PRV11-12 RET
297-0371
297-0371
(182) ATCH-STEM 3 EXTEND EPRV
(183) ATCH-STEM 3 RETRACT EPRV
(215) ATCH-HAMMER RETURN FILTER SW
(184) ATCH-VARIABLE RELIEF 1 SOL
(185) ATCH-VARIABLE RELIEF 2 SOL
111-9916
111-9916
266-7949
323-7942
323-7942
(150) ATCH-SQUEEZE HEAD PRESS SENSOR
(151) ATCH-SQUEEZE ROD PRESS SENSOR
BOOM LAMP(LH)
577-7405
F
BOOM LAMP(RH)
577-7405
F
ATCH-BOOM LAMP(LH) 2
577-7405
F
ATCH-BOOM LAMP(RH) 2
577-7405
F
C-C72
489-9456
5V SUPPLY
8V SUPPLY
ETHER TX+
ETHER TXETHER RX+
ETHER RX-
442-7945
1
-B:1
2
3
4
+B:1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
CAN SHLD
32
33
34
35
36
37
38
39
LOW SINK
40
R-TERM
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
STG 14
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
-B:2
116
-B:3
117
118
119
120
+B:2
121
+B:3
C-C73
442-7946
GY-C2
155-2269
1
2
GY-C3
155-2269
1
2
GK-C2
155-2269
1
2
GK-C3
155-2269
1
2
CONNECTS TO GF-C1
VOL 2, LOC F-9
338-6971
VS
GROUND
SIGNAL
338-6971
VS
GROUND
SIGNAL
FOR HEADING SENSOR
159-GR1 BU-16-GXL
159-GR9 BU-16-GXL
159-GR15 BU-16-GXL
235-GR16 BK-16-GXL
235-GR2 BK-16-GXL
235-GR20 BK-16-GXL
235-GR10 BK-16-GXL
235-GR14 BK-16-GXL
J850-GR3 WH-18-GXL
J850-GR6 WH-18-GXL
J850-GR13 WH-18-GXL
J850-GR19 WH-18-GXL
P740-GR5 YL-18-GXL
T993-GR4 BR-18-GXL
Y787-GR7 YL-18-GXL
Y787-GR11 YL-18-GXL
Y787-GR17 YL-18-GXL
Y788-GR8 GN-18-GXL
Y788-GR12 GN-18-GXL
Y788-GR18 GN-18-GXL
J850-MK3 WH-18-GXL
J850-MK6 WH-18-GXL
159-MK1 BU-16-GXL
159-MK4 BU-16-GXL
159-MK5 BU-16-GXL
235-MK9 BK-16-GXL
235-MK2 BK-16-GXL
235-MK13 BK-16-GXL
235-MK10 BK-16-GXL
235-MK14 BK-16-GXL
Y787-MK7 YL-18-GXLY788-MK8 GN-18-GXL
Y787-MK1
1 YL-18-GXL
Y787-MK15 YL-18-GXL
Y788-MK8 GN-18-GXL
Y788-MK12 GN-18-GXL
Y788-MK16 GN-18-GXL
235-C72 BK-14-TXL
K927-C45 BU-18-GXL
G969-C40 YL-18-GXL
184-C307 RD-14-TXL
K952-C36 BR-18-GXL
Y787-C342 YL-18-TXL
K960-C308 YL-18-TXL
F711-C354 YL-18-TXL
J765-C350 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
A588-C37 GN-18-TXL
H908-C38 BU-18-TXL
K950-C39 YL-18-TXL
Y788-C343 GN-18-TXL
K961-C309 GN-18-TXL
F712-C355 GN-18-TXL
M952-C310 BU-18-TXL
M953-C311 BU-18-TXL
L731-C21 BR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
T993-C22 BR-18-TXL
G738-C313 GY-18-TXL
K949-C41 OR-18-TXL
936-C42 PU-18-TXL
J765-C348 BU-18-TXL
J765-C349 BU-18-TXL
G985-C315 PU-18-TXL
M951-C316 WH-18-TXL
C473-C23 GN-18-TXL
C472-C24 GN-18-TXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
151-C317 RD-18-TXL
154-C318 RD-18-TXL
H439-C34 PU-18-TXL
937-C43 WH-18-TXL
K931-C44 GN-18-TXL
CBL-C3:1815-C1 BU-20
CBL-C3:1814-C2 WH-BU-20
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
487-C32 OR-18-TXL
J878-C33 YL-18-TXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
P740-C35 YL-18-TXL
K929-C46 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K843-C320 GN-18-TXL
K847-C321 PU-18-TXL
307-C322 OR-18-TXL
K841-C323 BR-18-TXL
K845-C324 OR-18-TXL
Y947-C170 BR-18-TXL
Y950-C59 YL-18-TXL
K918-C60 GN-18-TXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
J767-C329 GY-18-TXL
N795-C330 WH-18-TXL
F863-C56 GN-18-TXL
K921-C57 GY-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
E996-C333 WH-18-TXL
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
K947-C53 YL-18-TXL
K946-C54 OR-18-TXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
K944-C50 YL-18-TXL
K943-C51 OR-18-TXL
Y951-C58 PU-18-GXL
K869-C52 BU-18-GXL
K868-C55 BR-18-GXL
K867-C49 YL-18-GXL
200-KF1 BK-14-GXL
200-KF2 BK-14-GXL
P702-GY1 GY-18-GXL
H808-GY4 WH-18-GXL
H808-GY4 WH-18-GXL
M739-GY3 YL-18-GXL
X785-GY2 BU-18-GXL
M739-GY3 YL-18-GXL H808-GY4 WH-18-GXL
P702-GY1 GY-18-GXL
X785-GY2 BU-18-GXL
CONN 105
KF-C1
C-C105
230-4011 243-4505
1
2
151-C317 RD-18-TXL
154-C318 RD-18-TXL
184-C307 RD-14-TXL
235-C72 BK-14-TXL
307-C322 OR-18-TXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
A588-C37 GN-18-TXL
C472-C24 GN-18-TXL
C473-C23 GN-18-TXL
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
E996-C333 WH-18-TXL
F711-C352 YL-18-GXL
F711-C354 YL-18-TXL
F711-C356 YL-18-GXL
F711-C151 YL-18-TXL
F711-C69 YL-18-GXL
F712-C353 GN-18-GXL
F712-C355 GN-18-TXL
F712-C357 GN-18-GXL
F712-C152 GN-18-TXL
F712-C70 GN-18-GXL
F863-C56 GN-18-TXL
G738-C313 GY-18-TXL
G969-C40 YL-18-GXL
G985-C315 PU-18-TXL
H439-C34 PU-18-TXL
H908-C38 BU-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J765-C351 BU-18-GXL
J765-C348 BU-18-TXL
J765-C349 BU-18-TXL
J765-C350 BU-18-TXL
J767-C329 GY-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J878-C33 YL-18-TXL
K841-C323 BR-18-TXL
K843-C320 GN-18-TXL
K845-C324 OR-18-TXL
K847-C321 PU-18-TXL
K867-C49 YL-18-GXL
K868-C55 BR-18-GXL
K869-C52 BU-18-GXL
K918-C60 GN-18-TXL
K921-C57 GY-18-TXL
K927-C45 BU-18-GXL
K929-C46 GN-18-TXL
K931-C44 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K943-C51 OR-18-TXL
K944-C50 YL-18-TXL
K946-C54 OR-18-TXL
K947-C53 YL-18-TXL
K949-C41 OR-18-TXL
K950-C39 YL-18-TXL
K952-C36 BR-18-GXL
K960-C308 YL-18-TXL
K960-C346 YL-18-GXL
K960-C304 YL-18-GXL
K960-C305 YL-18-TXL
K960-C344 YL-18-GXL
K961-C309 GN-18-TXL
K961-C347 GN-18-GXL
K961-C303 GN-18-GXL
K961-C302 GN-18-TXL
K961-C345 GN-18-GXL
L731-C21 BR-18-TXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
M951-C316 WH-18-TXL
M952-C310 BU-18-TXL
M953-C311 BU-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
N795-C330 WH-18-TXL
P740-C35 YL-18-TXL
T993-C22 BR-18-TXL
Y787-C342 YL-18-TXL
Y787-C340 YL-18-GXL
Y787-C270 YL-18-GXL
Y788-C343 GN-18-TXL
Y788-C341 GN-18-GXL
Y788-C271 GN-18-GXL
Y947-C170 BR-18-TXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
CBL-C3:1814-C2 WH-BU-20
CBL-C3:1815-C1 BU-20
200-C12 BK-14-GXL
200-C13 BK-14-GXL
P702-GY1 GY-18-GXL
X785-GY2 BU-18-GXL
M739-GY3 YL-18-GXL
ATCH-SMART BOOM
K858-GK1 YL-18-GXL
J807-GK2 BK-18-GXL
K862-GK3 GY-18-GXL
J807-GK4 BK-18-GXL
J807-GK2 BK-18-GXL
J807-GK4 BK-18-GXL
J807-GK5 BK-18-GXL
K858-GK1 YL-18-GXL
K862-GK3 GY-18-GXL
K858-GK1 YL-18-GXL
K862-GK3 GY-18-GXL
J807-GK5 BK-18-GXL
ATCH-MEDIUM CIRCUIT
GE-C7
GE-CAP8
342-2972
GE-CAP1
342-2972
GE-CAP2
342-2972
GE-CAP3
342-2973
GE-CAP4
342-2973
243-4508
1
K856-GE1 PU-18-GXL
2
K860-GE2 BU-18-GXL
3
K857-GE3 WH-18-GXL
4
K861-GE4 GN-18-GXL
5
J807-GE8 BK-18-GXL
6
GE-C10
230-4011
1
X738-GE29 PK-18-GXL
2
H863-GE30 BU-18-GXL
GE-C3
230-4011
1
P761-GE10 OR-18-GXL
2
J809-GE13 BK-18-GXL
GE-C4
230-4011
1
P765-GE11 GN-18-GXL
2
J809-GE14 BK-18-GXL
GE-C5
230-4013
1
C985-GE16 BU-18-GXL
2
J879-GE19 GN-18-GXL
3
M906-GE21 BU-18-GXL
GE-C6
230-4013
1
C985-GE17 BU-18-GXL
2
J879-GE20 GN-18-GXL
3
M907-GE22 GY-18-GXL
H44
H21
H808-GE28 WH-18-GXL
K858-GE5 YL-18-GXL
K862-GE6 GY-18-GXL
M739-GE27 YL-18-GXL
P702-GE25 GY-18-GXL
X785-GE26 BU-18-GXL
J807-GE9 BK-18-GXL
J807-GE8 BK-18-GXL
H44
J807-GE7 BK-18-GXL
K856-GE1 PU-18-GXL
K860-GE2 BU-18-GXL
K857-GE3 WH-18-GXL
K861-GE4 GN-18-GXL
C985-GE15 BU-18-GXL
C985-GE17 BU-18-GXL
C985-GE16 BU-18-GXL
H863-GE30 BU-18-GXL
J809-GE12 BK-18-GXL
J809-GE14 BK-18-GXL
J809-GE13 BK-18-GXL
J879-GE18 GN-18-GXL
J879-GE20 GN-18-GXL
J879-GE19 GN-18-GXL
M906-GE21 BU-18-GXL
M907-GE22 GY-18-GXL
P761-GE10 OR-18-GXL
P765-GE11 GN-18-GXL
X738-GE29 PK-18-GXL
CONN 93
ATCH-TOOL CONTROL SYSTEM
110-GP7 RD-12-GXL
110-GP8 RD-16-GXL
110-GP88 RD-18-GXL
187-GP22 PU-12-GXL
187-GP33 PU-18-GXL
187-GP56 PU-18-GXL
187-GP57 PU-18-GXL
235-GP30 BK-18-GXL
235-GP32 BK-18-GXL
235-GP58 BK-18-GXL
235-GP59 BK-18-GXL
F873-GP91 YL-18-GXL
F873-GP90 YL-16-GXL
F873-GP89 YL-18-GXL
L858-GP74 YL-18-GXL
L858-GP73 YL-18-GXL
L858-GP69 YL-18-GXL
L858-GP70 YL-18-GXL
L858-GP71 YL-18-GXL
L858-GP72 YL-18-GXL
L858-GP86 YL-18-GXL
H26
CONN 104
L859-GP28 GN-18-GXL
L859-GP79 GN-18-GXL
L859-GP75 GN-18-GXL
L859-GP76 GN-18-GXL
L859-GP77 GN-18-GXL
L859-GP78 GN-18-GXL
L859-GP87 GN-18-GXL
R970-GP63 YL-18-GXL
R970-GP61 YL-18-GXL
R970-GP60 YL-18-GXL
R970-GP85 YL-18-GXL
R970-GP64 YL-18-GXL
R976-GP67 GN-18-GXL
R976-GP66 GN-18-GXL
R976-GP65 GN-18-GXL
R976-GP68 GN-18-GXL
R976-GP84 GN-18-GXL
GP-C19GP-C20
155-2272
3E-3376
1
187-GP37 PU-18-GXL
2
L858-GP38 YL-18-GXL
3
L859-GP39 GN-18-GXL
4
235-GP31 BK-18-GXL 235-GP21 BK-18-GXL
GP-C21
243-4505
1
L858-GP49 YL-18-GXL
2
H30
L859-GP50 GN-18-GXL
TO PRODUCT LINK HARNESS
159-MK5 BU-16-GXL
235-MK9 BK-16-GXL
Y787-MK15 YL-18-GXL
Y788-MK16 GN-18-GXL
J850-MK3 WH-18-GXL
159-MK4 BU-16-GXL
235-MK10 BK-16-GXL
J850-MK6 WH-18-GXL
235-MK14 BK-16-GXL
Y787-MK11 YL-18-GXL
Y788-MK12 GN-18-GXL
(131) ATCH-RESISTOR CGC CAN DATA LINK 1
324-5678
CONN 102
CONNECTS TO C-C48
VOL 2, LOC C-8
CONN 57
CONNECTS TO ET-C4
VOL 1, LOC G-16
CONN 111
MK-C2
230-5010
MK-C3
230-5010
H25
H25
H26
H31
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
ML-C1
243-4508
1
2
3
4
5
6
1
2
3
4
5
6
CBL-GP2:1656-GP4 WH-GN-18
CBL-GP2:1657-GP3 GN-18
187-GP34 PU-18-GXL
235-GP62 BK-18-GXL
N961-GP52 OR-18-GXL
N958-GP53 PK-18-GXL
CBL-GP2:1654-GP1 WH-OR-18
CBL-GP2:1655-GP2 OR-18
Y787-GP4 YL-18-GXL
Y788-GP5 GN-18-GXL
187-GP34 PU-18-GXL
235-GP62 BK-18-GXL
N958-GP53 PK-18-GXL
N961-GP52 OR-18-GXL
Y787-GP4 YL-18-GXL
Y788-GP5 GN-18-GXL
CBL-GP2:1654-GP1 WH-OR-18
CBL-GP2:1655-GP2 OR-18
CBL-GP2:1656-GP4 WH-GN-18
CBL-GP2:1657-GP3 GN-18
110-GP7 RD-12-GXL
110-GP8 RD-16-GXL
110-GP88 RD-18-GXL
187-GP22 PU-12-GXL
187-GP33 PU-18-GXL
187-GP56 PU-18-GXL
187-GP57 PU-18-GXL
235-GP58 BK-18-GXL
235-GP59 BK-18-GXL
235-GP30 BK-18-GXL
235-GP32 BK-18-GXL
F873-GP91 YL-18-GXL
L858-GP74 YL-18-GXL
L859-GP28 GN-18-GXL
L858-GP86 YL-18-GXL
L859-GP87 GN-18-GXL
L859-GP87 GN-18-GXL
L858-GP86 YL-18-GXL
235-GP31 BK-18-GXL
187-GP37 PU-18-GXL
187-GP37 PU-18-GXL
235-GP31 BK-18-GXL
L858-GP49 YL-18-GXL
L858-GP38 YL-18-GXL
L858-GP86 YL-18-GXL
L859-GP50 GN-18-GXL
L859-GP39 GN-18-GXL
L859-GP87 GN-18-GXL
GP-C1
230-4009
GP-C3
237-0164
159-GP13 BU-16-GXL
235-GP14 BK-16-GXL
L854-GP2 YL-18-GXL
L855-GP3 GN-18-GXL
Y787-GP4 YL-18-GXL
Y788-GP5 GN-18-GXL
110-GP1 RD-14-GXL
Y787-GP15 YL-18-GXL
Y788-GP16 GN-18-GXL
187-GP93 PU-18-GXL
235-GP94 BK-18-GXL
CBL-GP1:1650-GP1 WH-OR-18
CBL-GP1:1651-GP2 OR-18
CBL-GP1:1652-GP4 WH-GN-18
CBL-GP1:1653-GP3 GN-18
110-GP92 RD-18-GXL
159-ML1 BU-16-GXL
235-ML4 BK-16-GXL
Y787-ML7 YL-18-GXL
Y788-ML10 GN-18-GXL
J850-ML14 WH-18-GXL
BTRY +
BTRY 1 -
(+)8 V IN
BTRY 2 -
CAN H
CAN L
(147) ATCH-BOOM SENSOR IMU
563-0598
GY-C1
272-5000
1
2
3
4
5
CONN 106
6
7
8
9
10
11
12
GK-C1
243-4510
1
2
3
4
5
6
CONN 107
7
8
9
10
11
12
K856-GE1 PU-18-GXL
K860-GE2 BU-18-GXL
K857-GE3 WH-18-GXL
K861-GE4 GN-18-GXL
K858-GE5 YL-18-GXL
K862-GE6 GY-18-GXL
J807-GE7 BK-18-GXL
P761-GE10 OR-18-GXL
P765-GE11 GN-18-GXL
J809-GE12 BK-18-GXL
X738-GE29 PK-18-GXL
H863-GE30 BU-18-GXL
C985-GE15 BU-18-GXL
J879-GE18 GN-18-GXL
M906-GE21 BU-18-GXL
M907-GE22 GY-18-GXL
P702-GE25 GY-18-GXL
X785-GE26 BU-18-GXL
M739-GE27 YL-18-GXL
H808-GE28 WH-18-GXL
GP-C10
328-0076
CONN 22
TO CGC HARNESS (CAB)
CONNECTS TO GM-C1
VOL 1, LOC H-8
H31
(72) ATCH-CAMERA GP
LEFT SIDE VIEW
488-9163
ETHERNET+
ETHERNET-
12V+ POWER
GROUND
(73) ATCH-CAMERA GP
REAR VIEW
488-9163
12V POWER
GROUND
H4
C-C75
Y787-C340 YL-18-GXL
Y788-C341 GN-18-GXL
K960-C344 YL-18-GXL
K961-C345 GN-18-GXL
235-C72 BK-14-TXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
A588-C37 GN-18-TXL
C472-C24 GN-18-TXL
C473-C23 GN-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F863-C56 GN-18-TXL
G969-C40 YL-18-GXL
H439-C34 PU-18-TXL
H908-C38 BU-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J878-C33 YL-18-TXL
K867-C49 YL-18-GXL
K868-C55 BR-18-GXL
K869-C52 BU-18-GXL
K918-C60 GN-18-TXL
K921-C57 GY-18-TXL
K927-C45 BU-18-GXL
K929-C46 GN-18-TXL
K931-C44 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K943-C51 OR-18-TXL
K944-C50 YL-18-TXL
K946-C54 OR-18-TXL
K947-C53 YL-18-TXL
K949-C41 OR-18-TXL
K950-C39 YL-18-TXL
K952-C36 BR-18-GXL
K960-C305 YL-18-TXL
K961-C302 GN-18-TXL
L731-C21 BR-18-TXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
P740-C35 YL-18-TXL
T993-C22 BR-18-TXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
Y787-C270 YL-18-GXL
243-4505
C-C74
243-4505
H4
(130) RESISTOR CAN (J1939 FOR CGC) DATA LINK
1
324-5678
2
(138) RESISTOR MACHINE CAN DATA LINK
1
324-5678
2
Y787-C338 YL-18-GXL
Y787-C415 YL-18-TXL
Y788-C271 GN-18-GXL
Y788-C339 GN-18-GXL
Y788-C416 GN-18-TXL
151-C317 RD-18-TXL
154-C318 RD-18-TXL
184-C307 RD-14-TXL
200-C12 BK-14-GXL
200-C13 BK-14-GXL
307-C322 OR-18-TXL
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
E996-C333 WH-18-TXL
F711-C151 YL-18-TXL
F711-C352 YL-18-GXL
F712-C152 GN-18-TXL
F712-C353 GN-18-GXL
G738-C313 GY-18-TXL
G985-C315 PU-18-TXL
J765-C351 BU-18-GXL
J767-C329 GY-18-TXL
K841-C323 BR-18-TXL
K843-C320 GN-18-TXL
K845-C324 OR-18-TXL
K847-C321 PU-18-TXL
K960-C346 YL-18-GXL
K961-C347 GN-18-GXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
M951-C316 WH-18-TXL
M952-C310 BU-18-TXL
M953-C311 BU-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
N795-C330 WH-18-TXL
Y947-C170 BR-18-TXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
CBL-C3:1814-C2 WH-BU-20
CBL-C3:1815-C1 BU-20
GE-C9
GE-CAP7
239-7356
342-2976
1
2
3
4
5
6
7
P702-GE25 GY-18-GXL
8
X785-GE26 BU-18-GXL
9
M739-GE27 YL-18-GXL
10
H808-GE28 WH-18-GXL
11
12
GE-C8
GE-CAP6
230-4009
342-2976
1
2
3
4
5
K858-GE5 YL-18-GXL
6
K862-GE6 GY-18-GXL
7
J807-GE9 BK-18-GXL
8
9
10
11
12
GE-C1
243-4510
CONN 108
1
CONNECTS TO C-C89
2
VOL 2 LOC E-3
3
4
5
6
7
8
9
10
11
12
GE-C2
272-5000
CONN 109
1
CONNECTS TO C-C90
2
VOL 2 LOC D-3
3
4
5
6
7
8
9
10
11
12
GP-C13
R970-GP85 YL-18-GXL
R976-GP68 GN-18-GXL
187-GP56 PU-18-GXL
235-GP58 BK-18-GXL
243-4505
GP-C14
155-2252
L858-GP70 YL-18-GXL
R970-GP64 YL-18-GXL
R976-GP84 GN-18-GXL
L859-GP76 GN-18-GXL
GP-C16
1
2
3
4
5
6
7
8
9
10
11
12
187-GP57 PU-18-GXL
235-GP59 BK-18-GXL
L858-GP72 YL-18-GXL
R970-GP61 YL-18-GXL
R976-GP66 GN-18-GXL
L859-GP78 GN-18-GXL
235-GP32 BK-18-GXL
R970-GP63 YL-18-GXL
R976-GP67 GN-18-GXL
110-GP7 RD-12-GXL
110-GP8 RD-16-GXL
110-GP88 RD-18-GXL
187-GP22 PU-12-GXL
187-GP33 PU-18-GXL
235-GP30 BK-18-GXL
L858-GP73 YL-18-GXL
L859-GP79 GN-18-GXL
F873-GP89 YL-18-GXL
F873-GP90 YL-16-GXL F873-GP90 YL-16-GXL
155-2252
GP-C18
243-4505
187-GP93 PU-18-GXL
187-GP56 PU-18-GXL
187-GP57 PU-18-GXL
187-GP33 PU-18-GXL
187-GP35 PU-18-GXL
187-GP37 PU-18-GXL
187-GP22 PU-12-GXL
187-GP34 PU-18-GXL
235-GP30 BK-18-GXL
235-GP31 BK-18-GXL
235-GP32 BK-18-GXL
235-GP58 BK-18-GXL
235-GP59 BK-18-GXL
235-GP62 BK-18-GXL
F873-GP91 YL-18-GXL
L858-GP25 YL-18-GXL
L858-GP74 YL-18-GXL
L858-GP26 YL-18-GXL
L859-GP24 GN-18-GXL
L859-GP28 GN-18-GXL
L859-GP29 GN-18-GXL
N958-GP53 PK-18-GXL
N961-GP52 OR-18-GXL
CBL-GP2:1655-GP2 OR-18
CBL-GP2:1654-GP1 WH-OR-18
CBL-GP2:1657-GP3 GN-18
CBL-GP2:1656-GP4 WH-GN-18
110-GP7 RD-12-GXL
110-GP8 RD-16-GXL
110-GP88 RD-18-GXL
Y788-GP5 GN-18-GXL
Y787-GP4 YL-18-GXL
Y787-GP4 YL-18-GXL
Y788-GP5 GN-18-GXL
110-GP1 RD-14-GXL
110-GP88 RD-18-GXL
110-GP8 RD-16-GXL
110-GP7 RD-12-GXL
110-GP6 RD-18-GXL
110-GP92 RD-18-GXL
159-GP13 BU-16-GXL
235-GP14 BK-16-GXL
L854-GP2 YL-18-GXL
L854-GP10 YL-18-GXL
L854-GP9 YL-18-GXL
L855-GP3 GN-18-GXL
L855-GP12 GN-18-GXL
L855-GP11 GN-18-GXL
Y787-GP15 YL-18-GXL
Y788-GP16 GN-18-GXL
110-GP92 RD-18-GXL
187-GP93 PU-18-GXL
235-GP94 BK-18-GXL
CBL-GP1:1650-GP1 WH-OR-18
CBL-GP1:1651-GP2 OR-18
CBL-GP1:1652-GP4 WH-GN-18
CBL-GP1:1653-GP3 GN-18
159-ML1 BU-16-GXL
159-ML2 BU-16-GXL
159-ML3 BU-16-GXL
159-ML15 BU-16-GXL
159-ML17 BU-16-GXL
235-ML4 BK-16-GXL
235-ML5 BK-16-GXL
235-ML6 BK-16-GXL
235-ML13 BK-16-GXL
235-ML18 BK-16-GXL
235-ML20 BK-16-GXL
J850-ML14 WH-18-GXL
Y787-ML7 YL-18-GXL
Y787-ML8 YL-18-GXL
Y787-ML11 YL-18-GXL
Y788-ML10 GN-18-GXL
Y788-ML9 GN-18-GXL
Y788-ML12 GN-18-GXL
H3
(76) CONTROL GP - MACHINE SECONDARY
THUMB WHEEL2-LH FOR SVAB
THUMB WHEEL2-RH FOR SVAB
ATT STEM 1 RETRACT EPRV (REPRV)
ATT STEM 1 EXTEND EPRV (REPRV)
ATT STEM 2 RETRACT EPRV (REPRV)
H3
H21
H21
BOOM DOWN ELE CHECK (EC-2 OF SMART BOOM)
(136) RESISTOR GPS CAN LH ATCH
1
324-5678
2
GP-C15
3E-5179
1
2
3
4
5
6
7
8
9
10
11
12
GP-C17
3E-5179
1
2
3
4
5
6
7
8
9
10
11
12
(137) RESISTOR GPS CAN RH ATCH
1
324-5678
2
187-GP33 PU-18-GXL
L858-GP73 YL-18-GXL
L859-GP79 GN-18-GXL
235-GP30 BK-18-GXL
110-GP8 RD-16-GXL
187-GP22 PU-12-GXL
ANALOG & PWM RETURN 1
ANALOG & PWM RETURN 2
ATT STEM 2 EXTEND EPRV (REPRV)
ATT STEM 3 RETRACT EPRV (REPRV)
LOCATION CODE ENABLE/DISABLE
(RESERVED FOOT SWITCH OR OTHERS)
QUICK COUPLER SW (NORMALLY OPEN)
CTWT REMOVAL CYLINDER PRESS SENSOR
BUCKET CYLINDER ROD PRESS SENSOR
BUCKET CYLINDER HEAD PRESS SENSOR
STB 1 ('+B FOR PRV1 POWER SUPPLY)
ATT STEM 3 EXTEND EPRV (REPRV)
TILT ROTATOR QUICK COUPLER SOL
RESERVED FOR QUICK COUPLER SW
ELE BLADE LEVER FOR CR MACHINE
ENGINE SPEED SENSOR
BLADE DOWN FOR CR MACHINE
ANALOG & PWM RETURN 4
RESERVE LOW SINK FOR B6MX
QCPLR LOCK/UNLOCK SOL2
ANALOG & PWM RETURN 3
QCPLR LOCK/UNLOCK SOL1
BLADE UP FOR CR MACHINE
SQUEEZE HEAD END PRESSURE SENSOR
SQUEEZE ROD END PRESSURE SENSOR
SWING BRAKE SOL (ON/OFF)
(95) ATCH-GPS RECEIVER LH
450-6214
POWER +
POWER TX1 RS232
CAN1 H
TX2 RS232
CAN2 H
CAN2 L
RX2 RS232
CAN1 L
RX1 RS232
ID
BOOT
(94) ATCH-GPS RECEIVER RH
450-6214
POWER +
POWER TX1 RS232
CAN1 H
TX2 RS232
CAN2 H
CAN2 L
RX2 RS232
CAN1 L
RX1 RS232
ID
BOOT
110-GP7 RD-12-GXL
110-GP88 RD-18-GXL
F873-GP89 YL-18-GXL
CBL-GP1:1650-GP1 WH-OR-18
CBL-GP1:1651-GP2 OR-18
CBL-GP1:1652-GP4 WH-GN-18
CBL-GP1:1653-GP3 GN-18
CBL-GP2:1654-GP1 WH-OR-18
CBL-GP2:1655-GP2 OR-18
CBL-GP2:1656-GP4 WH-GN-18
CBL-GP2:1657-GP3 GN-18
230-4011
110-GP6 RD-18-GXL
159-GP13 BU-16-GXL
159-GP17 BU-16-GXL
159-GP18 BU-16-GXL
187-GP93 PU-18-GXL
235-GP14 BK-16-GXL
235-GP30 BK-18-GXL
235-GP59 BK-18-GXL
235-GP94 BK-18-GXL
235-GP31 BK-18-GXL
235-GP19 BK-18-GXL
235-GP58 BK-18-GXL
235-GP32 BK-18-GXL
235-GP62 BK-18-GXL
235-GP20 BK-18-GXL
F873-GP91 YL-18-GXL
L854-GP10 YL-18-GXL
L855-GP12 GN-18-GXL
L858-GP25 YL-18-GXL
L859-GP24 GN-18-GXL
N958-GP53 PK-18-GXL
N961-GP52 OR-18-GXL
Y787-GP15 YL-18-GXL
Y788-GP16 GN-18-GXL
L854-GP9 YL-18-GXL
L855-GP11 GN-18-GXL
(140) ATCH-RESISTOR TILT ROTATOR CAN DATA LINK 2
L858-GP26 YL-18-GXL
L859-GP29 GN-18-GXL
(133) ATCH-RESISTOR CGC CAN DATA LINK
159-ML17 BU-16-GXL
159-ML15 BU-16-GXL
235-ML18 BK-16-GXL
235-ML20 BK-16-GXL
Y787-ML11 YL-18-GXL
Y787-ML21 YL-18-GXL
Y787-ML23 YL-18-GXL
Y788-ML12 GN-18-GXL
Y788-ML22 GN-18-GXL
Y788-ML24 GN-18-GXL
159-ML2 BU-16-GXL
235-ML5 BK-16-GXL
J850-ML14 WH-18-GXL
235-ML6 BK-16-GXL
Y787-ML8 YL-18-GXL
Y788-ML9 GN-18-GXL
C-C83
STG 8
STG 9
CAN SHLD
LOW SINK
R-TERM
STG 7
STB 2
STB 3
STG 10
STG 11
STG 12
STG 13
STG 15
STG 16
STB 4
STG 17
STG 18
-B:1
+B:1
-B:2
-B:3
+B:2
+B:3
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
11
111
112
113
114
115
116
117
118
119
120
121
YL-C2
347-6369
1
YR-C2
347-6369
1
1
2
3
4
5
6
7
8
9
0
442-7945
C-C84
442-7946
ATCH-ANTENNA
LADYBIRD LH
492-7319
1015-YL1 SHLD
ATCH-ANTENNA
LADYBIRD RH
492-7319
1016-YR1 SHLD
CBL-C4:1810-C2 WH-BU-20
CBL-C3:1814-C2 WH-BU-20
489-9456
PRV8-10 RET
PRV4-7 RET
PRV1-3 RET
ACTIVE ANALOG IN 13
J1939 CGC CAN +
TILT ROTATOR CAN +
J1939 CAN +
LOCATION CODE 1
LOCATION CODE 2
ANALOG ACTIVE IN 3
5V SUPPLY 1
ANALOG ACTIVE IN 4
ANALOG ACTIVE IN 5
ANALOG ACTIVE IN 6
HALL EFFECT IN 2
8V SUPPLY 1
HALL EFFECT IN 1
ACTIVE ANALOG IN 14
J1939 CGC CAN -
TILT ROTATOR CAN -
J1939 CAN -
ANALOG ACTIVE IN 7
ANALOG ACTIVE IN 8
ANALOG PASSIVE IN 1
ANALOG PASSIVE IN 2
FUEL LEVEL SENDER
KEY SWITCH
ETHER TX+
ETHER TX-
ETHER RX+
ETHER RX-
LOCATION CODE 3
STG RETURN 1
AUX PEDAL LH
BR ETH - (MASTER)
BR ETH + (MASTER)
BR ETH + (SLAVE)
BR ETH - (SLAVE)
STG RETURN 2
THUMB WHEEL 1 -LH
PWM/FREQ IN 6
THUMB WHEEL 1 -RH
PWM/FREQ IN 8
ATT LINE 1 RERV
ATT LINE 2 RERV
VAB DOWN
STICK UNLOAD VALVE
MDTP CAN +
MDTP CAN -
8V SUPPLY 2
STG RET 3
PWM/FREQ IN 15
VAB UP (MHEX/LHEX)
PWM/FREQ IN 11
PWM/FREQ IN 12
5V SUPPLY 2
PWM/FREQ IN 13
PWM/FREQ IN 14
ANALOG ACTIVE IN 9
ANALOG ACTIVE IN 10
ANALOG ACTIVE IN 11
ANALOG ACTIVE IN 12
PRV17-18 RET
PRV13-14 RET
PRV15-16 RET
PRV11-12 RET
ATCH-3D CGC
GP-C11
GP-C12
3E-3376
176-2946
1
CONN 110
2
FOR GPS RADIO
3
4
GP-C7
(126) RELAY - ATCH-GC SYSTEM POWER
9X-1054
3E-5239
5
2
4
3
1
(81) DIODE - ATCH-GC SYSTEM POWER RELAY
GP-C6
324-5679
1
2
GP-C8
243-4505
1
2
324-5678
GP-C9
243-4505
1
2
324-5678
ML-C2
230-5010
1
BTRY +
2
BTRY 1 -
3
(+)8 V IN
4
BTRY 2 -
5
CAN H
6
CAN L
235-C74 BK-14-TXL
J809-C410 BK-18-GXL
J808-C312 BK-18-GXL
185-C411 RD-14-TXL
J807-C412 BK-18-GXL
Y787-C415 YL-18-TXL
L854-C421 YL-18-TXL
F711-C151 YL-18-TXL
J766-C425 PU-18-TXL
E476-C314 PU-18-TXL
E475-C328 PK-18-TXL
L730-C406 OR-18-TXL
T800-C268 OR-18-TXL
K860-C426 BU-18-TXL
K856-C427 PU-18-TXL
K861-C428 GN-18-TXL
Y788-C416 GN-18-TXL
L855-C422 GN-18-TXL
F712-C152 GN-18-TXL
L740-C407 BR-18-TXL
J764-C96 BR-18-TXL
390-C16 YL-18-TXL
K857-C429 WH-18-TXL
K862-C430 GY-18-TXL
J766-C435 PU-18-TXL
J766-C436 PU-18-TXL
M969-C319 YL-18-TXL
N794-C404 GY-18-TXL
G815-C437 BR-18-TXL
G813-C97 YL-18-TXL
185-C438 RD-18-TXL
K858-C439 YL-18-TXL
F882-C373 YL-18-TXL
CBL-C4:1811-C1 BU-20
CBL-C3:1815-C1 BU-20
E474-C403 OR-18-TXL
E473-C402 GY-18-TXL
P761-C440 OR-18-TXL
P765-C441 GN-18-TXL
J879-C442 GN-18-TXL
P723-C104 YL-18-TXL
P752-C79 GY-18-TXL
Y959-C447 YL-18-TXL
Y960-C448 GN-18-TXL
C985-C451 BU-18-TXL
P976-C87 BR-18-TXL
P722-C103 BU-18-TXL
M839-C258 WH-18-TXL
779-C84 WH-18-TXL
M906-C452 BU-18-TXL
M907-C453 GY-18-TXL
K906-C77 GN-18-TXL
X785-C454 BU-18-TXL
X783-C5 PK-18-GXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
M739-C455 YL-18-GXL
1
YL-C1
347-6370
1
YR-C1
347-6370
H5
H30
159-ML17 BU-16-GXL
235-ML20 BK-16-GXL
Y787-ML23 YL-18-GXL
Y788-ML24 GN-18-GXL
159-ML15 BU-16-GXL
Y787-ML21 YL-18-GXL
Y788-ML22 GN-18-GXL
235-ML18 BK-16-GXL
(155) ATCH-BOOM SENSOR IMU
563-0598
H5
H3
H6
(173) 24V SOCKET
H6 H6
110-GP6 RD-18-GXL
235-GP20 BK-18-GXL
N961-GP52 OR-18-GXL
N958-GP53 PK-18-GXL
L854-GP10 YL-18-GXL
L855-GP12 GN-18-GXL
Y788-GP16 GN-18-GXL
Y787-GP15 YL-18-GXL
L859-GP24 GN-18-GXL
L858-GP25 YL-18-GXL
159-GP18 BU-16-GXL
F873-GP91 YL-18-GXL
CBL-GP2:1657-GP3 GN-18
CBL-GP2:1656-GP4 WH-GN-18
159-GP17 BU-16-GXL
235-GP21 BK-18-GXL
CBL-GP1:1651-GP2 OR-18
CBL-GP1:1650-GP1 WH-OR-18
CBL-GP1:1652-GP4 WH-GN-18
CBL-GP1:1653-GP3 GN-18
CBL-GP2:1654-GP1 WH-OR-18
CBL-GP2:1655-GP2 OR-18
159-GR9 BU-16-GXL
235-GR10 BK-16-GXL
J850-GR13 WH-18-GXL
235-GR14 BK-16-GXL
Y787-GR11 YL-18-GXL
Y788-GR12 GN-18-GXL
159-GR15 BU-16-GXL
235-GR16 BK-16-GXL
Y787-GR17 YL-18-GXL
Y788-GR18 GN-18-GXL
J850-GR3 WH-18-GXL
T993-GR4 BR-18-GXL
P740-GR5 YL-18-GXL
J850-GR19 WH-18-GXL
CONN 115
ML-C3
MM-C1
230-5008 335-8849
1
2
3
4
ML-C4
ML-C5
176-2946 151-9277
1
2
3
4
130-C71 RD-14-GXL
177-C17 RD-4-SXL
304-C171 WH-18-TXL
318-C83 BR-18-GXL
390-C16 YL-18-TXL
390-C94 YL-18-GXL
506-C89 PU-18-GXL
607-C15 PK-16-TXL
998-C102 BR-18-GXL
A278-C189 BK-18-GXL
C903-C8 BU-18-GXL
E554-C100 PK-18-GXL
F710-C300 BR-18-GXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F716-C101 WH-18-GXL
F762-C299 GY-18-GXL
G797-C98 BU-18-GXL
H439-C34 PU-18-TXL
K960-C305 YL-18-TXL
K961-C302 GN-18-TXL
Y712-C61 GY-18-GXL
Y713-C62 PK-18-GXL
Y714-C63 PU-18-GXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
151-C317 RD-18-TXL
154-C318 RD-18-TXL
184-C307 RD-14-TXL
307-C322 OR-18-TXL
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
E996-C333 WH-18-TXL
F711-C151 YL-18-TXL
F711-C352 YL-18-GXL
F712-C152 GN-18-TXL
F712-C353 GN-18-GXL
G738-C313 GY-18-TXL
G985-C315 PU-18-TXL
J765-C351 BU-18-GXL
J767-C329 GY-18-TXL
K841-C323 BR-18-TXL
K843-C320 GN-18-TXL
K845-C324 OR-18-TXL
K847-C321 PU-18-TXL
K960-C346 YL-18-GXL
K961-C347 GN-18-GXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
M951-C316 WH-18-TXL
M952-C310 BU-18-TXL
M953-C311 BU-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
N795-C330 WH-18-TXL
Y787-C415 YL-18-TXL
Y788-C416 GN-18-TXL
Y947-C170 BR-18-TXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
CBL-C3:1814-C2 WH-BU-20
CBL-C3:1815-C1 BU-20
200-C12 BK-14-GXL
200-C13 BK-14-GXL
110-C111 RD-14-TXL
159-C119 BU-16-GXL
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
235-C72 BK-14-TXL
235-C73 BK-14-TXL
235-C74 BK-14-TXL
235-C108 BK-18-GXL
175-C372 PK-16-TXL
321-C81 BR-18-GXL
322-C116 GY-16-GXL
323-C113 WH-14-GXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
607-C114 PK-16-GXL
616-C115 BU-16-GXL
657-C259 YL-16-GXL
779-C84 WH-18-TXL
780-C85 PU-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
A588-C37 GN-18-TXL
C472-C24 GN-18-TXL
C473-C23 GN-18-TXL
C985-C460 BU-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
F863-C56 GN-18-TXL
F882-C373 YL-18-TXL
G723-C65 YL-18-GXL
G813-C97 YL-18-TXL
G815-C437 BR-18-TXL
G969-C40 YL-18-GXL
H807-C80 YL-18-GXL
H808-C82 WH-18-GXL
H808-C143 WH-18-GXL
H808-C142 WH-18-GXL
H808-C391 WH-18-TXL
H863-C67 BU-18-GXLH863-C67 BU-18-GXL
H863-C361 BU-18-GXL
H863-C362 BU-18-GXL
H867-C99 YL-18-GXL
H867-C392 YL-18-GXL
H867-C393 YL-18-GXL
H908-C38 BU-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J764-C96 BR-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J879-C462 GN-18-TXL
J878-C33 YL-18-TXL
K867-C49 YL-18-GXL
K868-C55 BR-18-GXL
K869-C52 BU-18-GXL
K906-C77 GN-18-TXL
K918-C60 GN-18-TXL
K921-C57 GY-18-TXL
K927-C45 BU-18-GXL
K929-C46 GN-18-TXL
K931-C44 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K943-C51 OR-18-TXL
K944-C50 YL-18-TXL
K946-C54 OR-18-TXL
K947-C53 YL-18-TXL
K949-C41 OR-18-TXL
K950-C39 YL-18-TXL
K952-C36 BR-18-GXL
L731-C21 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
L973-C64 GN-18-GXL
L976-C66 GN-18-GXL
M739-C456 YL-18-GXL
M740-C78 PK-18-GXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
M839-C258 WH-18-TXL
P722-C103 BU-18-TXL
P723-C104 YL-18-TXL
P740-C35 YL-18-TXL
P752-C79 GY-18-TXL
P976-C87 BR-18-TXL
R981-C76 YL-18-GXL
T800-C93 OR-18-TXL
T993-C22 BR-18-TXL
T993-C125 BR-18-GXL
T993-C126 BR-18-GXL
X783-C5 PK-18-GXL
X977-C118 YL-16-GXL
Y787-C338 YL-18-GXL
Y787-C106 YL-18-GXL
Y787-C91 YL-18-GXL
Y788-C339 GN-18-GXL
Y788-C107 GN-18-GXL
Y788-C92 GN-18-GXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
172-C95 RD-18-GXL
638-C117 WH-16-GXL
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
172-C95 RD-18-GXL
638-C117 WH-16-GXL
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
200-C192 BK-16-GXL
235-C191 BK-18-GXL
390-C155 YL-18-GXL
F711-C156 YL-18-GXL
F712-C157 GN-18-GXL
AC-C2
123-7615
1
2
9R-7941
GP-C4
(78) CONTROL GP - ELECTRONIC EC520
253-8110
554-8937
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
GP-C5
253-8111
GR-C3
230-5010
1
BTRY +
BTRY 1 -
2
3
(+)8 V IN
BTRY 2 -
4
5
CAN H
6
CAN L
GR-C2
GU-C1
230-4009
243-4510
1
2
3
4
5
6
7
8
9
10
11
12
CONN 113
CBL-MM1:159-1 RD-20
CBL-MM1:235-2 BK-20
CBL-MM1:Y787-3 YL-20
CBL-MM1:Y788-4 GN-20
CONN 116
TO LASER CATCHER HARNESS
CONNECTS TO GW-C1
VOL 2, LOC D-3
TO PRODUCT LINK HARNESS
200-AC1 BK-16-GXL
638-AC2 WH-16-GXL
TO PRODUCT LINK HARNESS
CONNECTS TO ET-C10
TO PRODUCT LINK HARNESS
CONNECTS TO GE-C1
CONNECTS TO GK-C1
CONNECTS TO GE-C2
CONNECTS TO GY-C1
BTRY+
BTRYRS232 TX
RS232 RX
CAN1 H
CAN1 L
CAN2 L
CAN2 H
CAN3 L
CAN3 H
IGN SW
STG
ETH1 RXETH1 RX+
PIN 3
PIN 4
ETH2 TXETH2 TX+
ETH2 RX+
ETH2 RXPIN 9
PIN 10
ETH1 TX+
ETH1 TX-
159-GU1 BU-16-GXL
235-GU2 BK-16-GXL
Y787-GU3 YL-18-GXL
Y788-GU4 GN-18-GXL
J850-GU5 WH-18-GXL
T993-GU6 BR-18-GXL
P740-GU7 YL-18-GXL
J850-GU8 WH-18-GXL
H11
C-C42
281-3132
1
CONN 55
2
CONNECTS TO ET-C5
VOL 1, LOC H-16
CONN 54
VOL 1, LOC H-16
CONN 56
CONNECTS TO ET-C9
VOL 1, LOC H-16
CONN 108
VOL 2, LOC F-6
CONN 107
VOL 2, LOC G-6
CONN 109
VOL 2, LOC F-6
CONN 106
VOL 2, LOC G-6
(148) ATCH-BOOM SENSOR IMU
563-0598
3
4
5
6
CONN 112
AC-C1
243-4505
1
2
1
2
1
2
3
4
C-CAP16
342-2976
1
2
3
4
5
6
OR
7
8
9
10
11
12
C-CAP11
342-2976
1
2
3
4
5
OR
6
7
8
9
10
11
12
H36
GU-C2
230-4009 243-4510
1
2
3
4
5
6
7
8
9
10
11
12
C-C113
490-0571
C-C93
261-0524
C-C89
281-3395
C-C90
281-3396
GT-C1
CONN 114
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1632-C3 WH-GN-18
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1632-C3 WH-GN-18
CBL-C4:1810-C2 WH-BU-20
CBL-C3:1814-C2 WH-BU-20
C-C109
230-4011
CBL-C11:1812-C2 WH-BU-20
CBL-C11:1813-C1 BU-20
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1632-C3 WH-GN-18
159-GT9 BU-16-GXL
235-GT10 BK-16-GXL
J850-GT8 WH-18-GXL
235-GT13 BK-16-GXL
Y787-GT1
Y788-GT12 GN-18-GXL
159-GT16 BU-18-GXL
Y787-GT18 YL-18-GXL
Y788-GT19 GN-18-GXL
235-GT17 BK-18-GXL
Y788-GT21 GN-18-GXL
Y787-GT20 YL-18-GXL
159-GT1 BU-16-GXL
235-GT2 BK-16-GXL
Y787-GT3 YL-18-GXL
Y788-GT4 GN-18-GXL
J850-GT5 WH-18-GXL
235-C72 BK-14-TXL
487-C32 OR-18-TXL
491-C20 PK-18-TXL
495-C19 GN-18-TXL
936-C42 PU-18-TXL
937-C43 WH-18-TXL
A588-C37 GN-18-TXL
C472-C24 GN-18-TXL
C473-C23 GN-18-TXL
E410-C27 OR-18-TXL
E411-C28 YL-18-TXL
F711-C69 YL-18-GXL
F712-C70 GN-18-GXL
F863-C56 GN-18-TXL
G969-C40 YL-18-GXL
H439-C34 PU-18-TXL
H908-C38 BU-18-TXL
H925-C29 GN-18-TXL
H926-C30 BU-18-TXL
J844-C75 GY-18-TXL
J850-C31 WH-18-TXL
J878-C33 YL-18-TXL
K867-C49 YL-18-GXL
K868-C55 BR-18-GXL
K869-C52 BU-18-GXL
K918-C60 GN-18-TXL
K921-C57 GY-18-TXL
K927-C45 BU-18-GXL
K929-C46 GN-18-TXL
K931-C44 GN-18-TXL
K932-C47 GN-18-TXL
K934-C48 GN-18-TXL
K943-C51 OR-18-TXL
K944-C50 YL-18-TXL
K946-C54 OR-18-TXL
K947-C53 YL-18-TXL
K949-C41 OR-18-TXL
K950-C39 YL-18-TXL
K952-C36 BR-18-GXL
K960-C305 YL-18-TXL
K961-C302 GN-18-TXL
L731-C21 BR-18-TXL
M813-C25 BU-18-TXL
M814-C26 BR-18-TXL
P740-C35 YL-18-TXL
T993-C22 BR-18-TXL
Y787-C338 YL-18-GXL
Y788-C339 GN-18-GXL
Y950-C59 YL-18-TXL
Y951-C58 PU-18-GXL
110-C111 RD-14-TXL
130-C71 RD-14-GXL
151-C317 RD-18-TXL
154-C318 RD-18-TXL
159-C119 BU-16-GXL
172-C95 RD-18-GXL
175-C372 PK-16-TXL
177-C17 RD-4-SXL
184-C307 RD-14-TXL
200-C112 BK-14-TXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
235-C73 BK-14-TXL
235-C108 BK-18-GXL
304-C171 WH-18-TXL
307-C322 OR-18-TXL
318-C83 BR-18-GXL
321-C81 BR-18-GXL
322-C116 GY-16-GXL
323-C113 WH-14-GXL
390-C94 YL-18-GXL
506-C89 PU-18-GXL
607-C14 PK-16-GXL
607-C114 PK-16-GXL200-C188 BK-18-GXL
607-C15 PK-16-TXL
616-C115 BU-16-GXL
638-C117 WH-16-GXL
657-C259 YL-16-GXL
780-C85 PU-18-TXL
998-C102 BR-18-GXL
A278-C189 BK-18-GXL
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
C903-C8 BU-18-GXL
E554-C100 PK-18-GXL
E996-C333 WH-18-TXL
E996-C164 WH-18-TXL
E996-C154 WH-18-TXL
F711-C352 YL-18-GXL
F712-C353 GN-18-GXL
F716-C101 WH-18-GXL
F710-C300 BR-18-GXL
F762-C299 GY-18-GXL
G723-C65 YL-18-GXL
G738-C313 GY-18-TXL
G797-C98 BU-18-GXL
G985-C315 PU-18-TXL
H807-C80 YL-18-GXL
H808-C82 WH-18-GXL
H863-C362 BU-18-GXL
H867-C99 YL-18-GXL
J765-C351 BU-18-GXL
J767-C329 GY-18-TXL
K841-C323 BR-18-TXL
K843-C320 GN-18-TXL
K845-C324 OR-18-TXL
K847-C321 PU-18-TXL
K960-C346 YL-18-GXL
K961-C347 GN-18-GXL
L973-C64 GN-18-GXL
L976-C66 GN-18-GXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
M740-C78 PK-18-GXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
M951-C316 WH-18-TXL
M952-C310 BU-18-TXL
M953-C311 BU-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
N795-C330 WH-18-TXL
R981-C76 YL-18-GXL
X977-C118 YL-16-GXL
Y712-C61 GY-18-GXL
Y713-C62 PK-18-GXL
Y714-C63 PU-18-GXL
Y947-C170 BR-18-TXL
Y947-C325 BR-18-TXL
Y947-C165 BR-18-TXL
185-C400 RD-14-TXL
E473-C402 GY-18-TXL
E474-C403 OR-18-TXL
E475-C328 PK-18-TXL
E476-C314 PU-18-TXL
J766-C401 PU-18-TXL
L730-C406 OR-18-TXL
L740-C407 BR-18-TXL
M969-C319 YL-18-TXL
N794-C404 GY-18-TXL
P702-C458 GY-18-TXL
T800-C269 OR-18-TXL
X738-C409 PK-18-GXL
CBL-C1:1631-C1 OR-18
CBL-C1:1633-C4 GN-18
185-C400 RD-14-TXL
E473-C402 GY-18-TXL
E474-C403 OR-18-TXL
E475-C328 PK-18-TXL
E476-C314 PU-18-TXL
J766-C401 PU-18-TXL
L730-C406 OR-18-TXL
L740-C407 BR-18-TXL
M969-C319 YL-18-TXL
N794-C404 GY-18-TXL
P702-C458 GY-18-TXL
T800-C269 OR-18-TXL
X738-C409 PK-18-GXL
CBL-C1:1631-C1 OR-18
CBL-C1:1633-C4 GN-18
235-C74 BK-14-TXL
390-C16 YL-18-TXL
779-C84 WH-18-TXL
C985-C460 BU-18-TXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
F711-C151 YL-18-TXL
F712-C152 GN-18-TXL
F882-C373 YL-18-TXL
G813-C97 YL-18-TXL
G815-C437 BR-18-TXL
H808-C391 WH-18-TXL
H863-C361 BU-18-GXL
J764-C96 BR-18-TXL
J879-C462 GN-18-TXL
K906-C77 GN-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
M739-C456 YL-18-GXL
M839-C258 WH-18-TXL
P722-C103 BU-18-TXL
P723-C104 YL-18-TXL
P752-C79 GY-18-TXL
P976-C87 BR-18-TXL
T800-C93 OR-18-TXL
X783-C5 PK-18-GXL
Y788-C416 GN-18-TXL
Y787-C415 YL-18-TXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
CBL-C4:1811-C1 BU-20
CBL-C3:1815-C1 BU-20
172-C95 RD-18-GXL
235-C191 BK-18-GXL
390-C155 YL-18-GXL
F711-C156 YL-18-GXL
F712-C157 GN-18-GXL
200-C192 BK-16-GXL
638-C117 WH-16-GXL
CBL-C1:1631-C1 OR-18
CBL-C1:1633-C4 GN-18
K856-C427 PU-18-TXL
K860-C426 BU-18-TXL
K857-C429 WH-18-TXL
K861-C428 GN-18-TXL
K858-C439 YL-18-TXL
K862-C430 GY-18-TXL
J808-C312 BK-18-GXL
P761-C440 OR-18-TXL
P765-C441 GN-18-TXL
J809-C410 BK-18-GXL
X738-C409 PK-18-GXL
H863-C361 BU-18-GXL
C985-C459 BU-18-TXL
J879-C461 GN-18-TXL
M906-C452 BU-18-TXL
M907-C453 GY-18-TXL
P702-C458 GY
X785-C454 BU-18-TXL
M739-C457 YL-18-TXL
H808-C391 WH-18-TXL
J807-C412 BK-18-GXL
-18-TXL
1 YL-18-GXL
H4
H1
H11
H2
GT-C3
230-5010
1
2
3
4
5
6
GT-C4
GT-C6
176-2946 151-9277
1
2
3
4
GT-C5
174-0502
A
B
C
BTRY +
BTRY 1 (+)8 V IN
BTRY 2 CAN H
CAN L
CONN 116
(222) RESISTOR CAN (J1939 FOR CGC) DATA LINK ATCH 2
134-2540
159-GT1 BU-16-GXL
159-GT9 BU-16-GXL
159-GT16 BU-18-GXL
235-GT2 BK-16-GXL
235-GT10 BK-16-GXL
235-GT13 BK-16-GXL
235-GT17 BK-18-GXL
J850-GT8 WH-18-GXL
Y787-GT11 YL-18-GXL
Y787-GT3 YL-18-GXL
Y787-GT14 YL-18-GXL
Y787-GT18 YL-18-GXL
Y787-GT20 YL-18-GXL
Y788-GT12 GN-18-GXL
Y788-GT4 GN-18-GXL
Y788-GT15 GN-18-GXL
Y788-GT19 GN-18-GXL
Y788-GT21 GN-18-GXL
J850-GT5 WH-18-GXLT993-GT6 BR-18-GXL
T993-GT6 BR-18-GXLP740-GT7 YL-18-GXL
P740-GT7 YL-18-GXLJ850-GT8 WH-18-GXL
ETHERNET+
ETHERNET-
(74) ATCH-CAMERA GP
RIGHT SIDE VIEW
488-9163
12V POWER
GROUND
ETHERNET+
ETHERNET-
(171) ATCH-STICK SENSOR IMU
563-0598
GW-C1
151-9277
1
159-GW1 BU-18-GXL
2
Y787-GW3 YL-18-GXL
3
Y788-GW4 GN-18-GXL
4
235-GW2 BK-18-GXL
CBL-MM1:159-1 RD-20
CBL-MM1:235-2 BK-20
CBL-MP1:Y788-4 GN-20
CBL-MP1:Y787-3 YL-20
CBL-MM1:Y787-3 YL-20
Y787-MN1 YL-18-GXL
Y788-MN2 GN-18-GXL
CBL-MM1:Y788-4 GN-20
CBL-MP1:235-2 BK-20
CBL-MP1:159-1 RD-20
Y787-MN1 YL-18-GXL
Y788-MN2 GN-18-GXL
CBL-MP1:159-1 RD-20
CBL-MP1:235-2 BK-20
CBL-MP1:Y787-3 YL-20
CBL-MP1:Y788-4 GN-20
EM-C2
490-0571
1
2
1
2
1
2
1
2
1
2
1
2
(101) GND-CHAS-14
H35
R893-EM1 GY-20-TXL
R894-EM2 WH-20-TXL
EM-C4
490-0578
EY-C2
490-0578
R893-EY1 GY-20-TXL
R894-EY2 WH-20-TXL
CBL-EY1:1800-EY4 WH-BU-20
CBL-EY1:1801-EY3 BU-20
EY-C4
490-0571
EK-C2
490-0578
EK-C4
490-0571
(99) CAB-GND STRAP
132-1805
(98) GND CAB
(CONN TO CAB SHELL)
C985-C459 BU-18-TXL
J807-C412 BK-18-GXL
J808-C312 BK-18-GXL
J809-C410 BK-18-GXL
J879-C461 GN-18-TXL
K856-C427 PU-18-TXL
K857-C429 WH-18-TXL
K858-C439 YL-18-TXL
K860-C426 BU-18-TXL
K861-C428 GN-18-TXL
K862-C430 GY-18-TXL
M739-C457 YL-18-TXL
M906-C452 BU-18-TXL
M907-C453 GY-18-TXL
P761-C440 OR-18-TXL
P765-C441 GN-18-TXL
X785-C454 BU-18-TXL
H808-C391 WH-18-TXL
H863-C361 BU-18-GXL
P702-C458 GY-18-TXL
X738-C409 PK-18-GXL
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1631-C1 OR-18
CBL-C1:1632-C3 WH-GN-18
CBL-C1:1633-C4 GN-18
H808-C391 WH-18-TXL
H863-C361 BU-18-GXL
P702-C458 GY-18-TXL
X738-C409 PK-18-GXL
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1631-C1 OR-18
CBL-C1:1632-C3 WH-GN-18
CBL-C1:1633-C4 GN-18
185-C400 RD-14-TXL
235-C74 BK-14-TXL
390-C16 YL-18-TXL
779-C84 WH-18-TXL
C985-C460 BU-18-TXL
E473-C402 GY-18-TXL
E474-C403 OR-18-TXL
E475-C328 PK-18-TXL
E476-C314 PU-18-TXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
F711-C151 YL-18-TXL
F712-C152 GN-18-TXL
F882-C373 YL-18-TXL
G813-C97 YL-18-TXL
G815-C437 BR-18-TXL
J764-C96 BR-18-TXL
J766-C401 PU-18-TXL
J879-C462 GN-18-TXL
K906-C77 GN-18-TXL
L730-C406 OR-18-TXL
L740-C407 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
M739-C456 YL-18-GXL
M839-C258 WH-18-TXL
M969-C319 YL-18-TXL
N794-C404 GY-18-TXL
P722-C103 BU-18-TXL
P723-C104 YL-18-TXL
P752-C79 GY-18-TXL
P976-C87 BR-18-TXL
T800-C93 OR-18-TXL
T800-C269 OR-18-TXL
X783-C5 PK-18-GXL
Y787-C415 YL-18-TXL
Y788-C416 GN-18-TXL
Y959-C326 YL-18-TXL
Y960-C327 GN-18-TXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
CBL-C3:1814-C2 WH-BU-20
CBL-C3:1815-C1 BU-20
Y959-C449 YL-18-TXL
Y960-C450 GN-18-TXL
Y959-C443 YL-18-TXL
Y960-C444 GN-18-TXL
L854-C419 YL-18-TXL
L855-C420 GN-18-TXL
(164) ATCH-LASER CATCHER
GW-C2
369-1562
253-2695
A
B
C
D
E
F
+ BATTERY
SELECT A
CAN HIGH
CAN LOW
SELECT B
GROUND
ATCH-LASER CATCHER
H36
GT-C2
230-4013
269-8225
MN-C2
243-4505
582-7324
(156) ATCH-BUCKET SENSOR AMR
478-4875
VS
1
GROUND
2
SIGNAL
3
CONN 117
MN-C1
MP-C1
MN-C4
387-0818
1
2
3
4
5
6
7
8
9
10
11
12
(134) ATCH-RESISTOR CGC CAN DATA LINK 2
324-5678
1
2
(158) ATCH-BUCKET IMU SENSOR FOR SLR
470-4959
1
NC
2
POWER
3
GROUND
4
CAN HIGH
CAN LOW
5
CBL-EM1:1804-EM4 WH-BU-20
CBL-EM1:1805-EM3 BU-20
EM-C3
240-7874
1
2
CONN 118
CONN 119
EY-C1
240-7874
1
2
CONN 120
1
2
EY-C3
490-0571 490-0572
CBL-EK1:1802-EK1 WH-BU-20
CBL-EK1:1803-EK2 BU-20
C-C85
313-2495
C-C86
313-2495
C-C87
313-2495
ATCH-LEFT SIDE VIEW CAMERA
EL-C3
EL-C4
313-2495
240-7874
1
R893-EL5 GY-20-TXL
2
R894-EL6 WH-20-TXL
CONN 118
EL-C2
313-2495
R893-EL1 GY-20-TXL
R894-EL2 WH-20-TXL R894-EL4 WH-20-TXL
CBL-EL1:1800-EL7 WH-BU-20
EL-C6
R896-EK2 GY-20-TXL
R897-EK1 WH-20-TXL
CBL-EL1:1801-EL8 BU-20
ATCH-REAR VIEW CAMERA
ATCH-RIGHT SIDE VIEW CAMERA
H2
CBL-C1:1630-C2 WH-OR-18
CBL-C1:1632-C3 WH-GN-18
H1
1
(128) RESISTOR CAN FOR DATA SHARING NETWORK 1
2
324-5678
1
(129) RESISTOR CAN FOR DATA SHARING NETWORK 2
2
324-5678
1
(139) RESISTOR TILT ROTATOR CAN DATA LINK
2
324-5678
185-C411 RD-14-TXL
185-C438 RD-18-TXL
185-C400 RD-14-TXL
235-C74 BK-14-TXL
390-C16 YL-18-TXL
779-C84 WH-18-TXL
C985-C459 BU-18-TXL
C985-C451 BU-18-TXL
C985-C460 BU-18-TXL
E473-C402 GY-18-TXL
E474-C403 OR-18-TXL
E475-C328 PK-18-TXL
E476-C314 PU-18-TXL
E789-C86 PU-18-GXL
E790-C88 PK-18-GXL
F711-C151 YL-18-TXL
F712-C152 GN-18-TXL
F882-C373 YL-18-TXL
G813-C97 YL-18-TXL
G815-C437 BR-18-TXL
J764-C96 BR-18-TXL
J766-C401 PU-18-TXL
J766-C425 PU-18-TXL
J766-C435 PU-18-TXL
J766-C436 PU-18-TXL
J807-C412 BK-18-GXL
J808-C312 BK-18-GXL
J809-C410 BK-18-GXL
J879-C461 GN-18-TXL
J879-C442 GN-18-TXL
J879-C462 GN-18-TXL
K856-C427 PU-18-TXL
K857-C429 WH-18-TXL
K858-C439 YL-18-TXL
K860-C426 BU-18-TXL
K861-C428 GN-18-TXL
K862-C430 GY-18-TXL
K906-C77 GN-18-TXL
L730-C406 OR-18-TXL
L740-C407 BR-18-TXL
L854-C368 YL-18-GXL
L854-C423 YL-18-GXL
L854-C359 YL-18-GXL
L854-C419 YL-18-TXL
L854-C421 YL-18-TXL
L855-C371 GN-18-GXL
L855-C424 GN-18-GXL
L855-C367 GN-18-GXL
L855-C420 GN-18-TXL
L855-C422 GN-18-TXL
M739-C455 YL-18-GXL
M739-C456 YL-18-GXL
M739-C457 YL-18-TXL
M839-C258 WH-18-TXL
M906-C452 BU-18-TXL
M907-C453 GY-18-TXL
M969-C319 YL-18-TXL
N794-C404 GY-18-TXL
P722-C103 BU-18-TXL
P723-C104 YL-18-TXL
P752-C79 GY-18-TXL
P761-C440 OR-18-TXL
P765-C441 GN-18-TXL
P976-C87 BR-18-TXL
T800-C268 OR-18-TXL
T800-C269 OR-18-TXL
T800-C93 OR-18-TXL
X783-C5 PK-18-GXL
X785-C454 BU-18-TXL
Y787-C415 YL-18-TXL
Y788-C416 GN-18-TXL
Y959-C447 YL-18-TXL
Y959-C449 YL-18-TXL
Y959-C445 YL-18-TXL
Y959-C443 YL-18-TXL
Y959-C326 YL-18-TXL
Y960-C448 GN-18-TXL
Y960-C450 GN-18-TXL
Y960-C446 GN-18-TXL
Y960-C327 GN-18-TXL
Y960-C444 GN-18-TXL
CBL-C4:1810-C2 WH-BU-20
CBL-C4:1811-C1 BU-20
CBL-C3:1814-C2 WH-BU-20
CBL-C3:1815-C1 BU-20
R893-EL3 GY-20-TXL
G738-C313 GY-18-TXL
G985-C315 PU-18-TXL
M951-C316 WH-18-TXL
151-C317 RD-18-TXL
154-C318 RD-18-TXL
M969-C319 YL-18-TXL
K843-C320 GN-18-TXL
K847-C321 PU-18-TXL
307-C322 OR-18-TXL
K841-C323 BR-18-TXL
K845-C324 OR-18-TXL
304-C171 WH-18-TXL
J767-C329 GY-18-TXL
N795-C330 WH-18-TXL
M962-C331 YL-18-TXL
M963-C332 BU-18-TXL
E996-C164 WH-18-TXL
J765-C351 BU-18-GXL
M952-C310 BU-18-TXL
1 BU-18-TXL
M953-C31
C878-C334 WH-18-TXL
C879-C335 BU-18-TXL
M949-C336 PK-18-TXL
M950-C337 PU-18-TXL
K960-C346 YL-18-GXL
K961-C347 GN-18-GXL
Y947-C325 BR-18-TXL
E476-C314 PU-18-TXL
E475-C328 PK-18-TXL
Y712-C61 GY-18-GXL
Y713-C62 PK-18-GXL
Y714-C63 PU-18-GXL
L973-C64 GN-18-GXL
G723-C65 YL-18-GXL
L976-C66 GN-18-GXL
H863-C362 BU-18-GXL
F711-C352 YL-18-GXL
F712-C353 GN-18-GXL
130-C71 RD-14-GXL
184-C307 RD-14-TXL
235-C73 BK-14-TXL
R981-C76 YL-18-GXL
P702-C458 GY-18-TXL
M740-C78 PK-18-GXL
780-C85 PU-18-TXL
H807-C80 YL-18-GXL
321-C81 BR-18-GXL
H808-C82 WH-18-GXL
318-C83 BR-18-GXL
F710-C300 BR-18-GXL
F762-C299 GY-18-GXL
E996-C154 WH-18-TXL
Y947-C165 BR-18-TXL
506-C89 PU-18-GXL
C903-C8 BU-18-GXL
A278-C189 BK-18-GXL
390-C94 YL-18-GXL
172-C95 RD-18-GXL
G797-C98 BU-18-GXL
H867-C99 YL-18-GXL
M711-C190 BU-18-TXL
M715-C196 PK-18-TXL
E554-C100 PK-18-GXL
F716-C101 WH-18-GXL
998-C102 BR-18-GXL
T800-C269 OR-18-TXL
235-C108 BK-18-GXL
110-C111 RD-14-TXL
200-C112 BK-14-TXL
323-C113 WH-14-GXL
177-C17 RD-4-SXL
CBL-C1:1631-C1 OR-18
CBL-C1:1633-C4 GN-18
175-C372 PK-16-TXL
607-C14 PK-16-GXL
616-C115 BU-16-GXL
657-C259 YL-16-GXL
322-C116 GY-16-GXL
638-C117 WH-16-GXL
X977-C118 YL-16-GXL
159-C119 BU-16-GXL
200-C120 BK-14-GXL
200-C121 BK-14-GXL
200-C122 BK-14-GXL
185-C400 RD-14-TXL
J766-C401 PU-18-TXL
E473-C402 GY-18-TXL
E474-C403 OR-18-TXL
N794-C404 GY-18-TXL
L730-C406 OR-18-TXL
L740-C407 BR-18-TXL
X738-C409 PK-18-GXL
H35
EM-C1
490-0571
EL-C1
490-0578
EL-C5
490-0571
EK-C1
490-0578
EK-C3
490-0571
CONN 1
CONNECTS TO CX-C1
1
2
VOL 1, LOC I-13
CONN 4
1
CONNECTS TO F-C39
2
VOL 1, LOC I-13
CONN 5
1
2
CONNECTS TO F-C54
VOL 1, LOC I-13
CONN 2
1
CONNECTS TO F-C38
2
VOL 1, LOC I-13
CONN 3
1
2
CONNECTS TO F-C40
VOL 1, LOC I-13
C-C1
368-4832
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
C-C2
506-5909
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
C-C3
324-5824
1
C-C91
281-3395
1
2
3
4
5
6
7
8
9
10
11
12
C-C13
230-4009
1
2
3
4
5
6
7
8
9
10
11
12
C-C92
281-3395
1
2
3
4
5
6
7
8
9
10
11
12
CONN 6
CONNECTS TO F-C1
VOL 1, LOC H-13
CONN 7
CONNECTS TO F-C2
VOL 1, LOC G-13
CONN 11
CONNECTS TO FE-C1
VOL 1, LOC D-13
CONN 8
CONNECTS TO F-C30
VOL 1, LOC E-13
CONN 9
CONNECTS TO F-C4
VOL 1, LOC E-13
CONN 10
CONNECTS TO F-C15
VOL 1, LOC E-13
ATCH-ADVANCED 2D/3D CGC
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
STARTING CIRCUIT
START AID CIRCUIT
MACHINE PRIMARY CONTROL CIRCUIT
CAB BODY CONTROL MODULE CIRCUIT
MACHINE SECONDARY CONTROL CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
WIPER WASHER CIRCUIT
CAN DATA LINK
RS-232 DATA LINK
J1939 CGC CAN DATA LINK
TILT ROTATOR CAN DATA LINK
CAN DATA LINK B
CAN DATA LINK C
CAN DATA LINK D
CGC GPS CAN 2 DATA LINK
ETHERNET
OTHER COLOR DESCRIPTIONS
HIGHWAYS
Callout Number
(Machine Location from
Component Locations Table)
SYMBOL DESCRIPTION
H#
/
CALLOUT FORMAT IF APPLICABLE
(52) VALVE GP - CONTROL
138-1234
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW
TERMINAL
Part Number
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
Component
Name
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or
death. Proper care is your responsibility.
THIS SCHEMATIC IS FOR THE 326 AND 330 GC EXCAVATOR ELECTRICAL SYSTEM
VOLUME 2 of 3: CHASSIS AND CAT GRADE CONTROL
MEDIA NUMBER: M0129513-01
SCHEMATIC PART NUMBER: 593-6850, CHANGE: 01, VERSION: HE
Components are shown installed on a fully operable machine with the key and engine off.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
Page 13
16 Page, (Dimensions: 34 inches x 24 inches)
TO MATING CONNECTOR
TO MATING CONNECTOR
M0129513-01 VOL 3 of 3
3.9A H-BRIDGE 3A
3.9A H-BRIDGE 3B
2A ON/OFF DOUT #2
300mA ON/OFF/PWM LAMP DOUT #4
300mA ON/OFF/PWM LAMP DOUT #2
DIGITAL RETURN
300mA ON/OFF/PWM LAMP DOUT #1
5V SUPPLY ENG
GND SWITCH #9
DOUT RETURN
2A ON/OFF DOUT #1
PASSIVE ANALOG #6
PASSIVE ANALOG #7
ANALOG RETURN
GND SWITCH #18
5V SUPPLY ENG
GND SWITCH #10
DIGITAL RETURN
GND SWITCH #11
PASSIVE ANALOG #8
PASSIVE ANALOG #9
GND SWITCH #19
BATTERY PUMP LS
3.9A H-BRIDGE 1A
DIGITAL RETURN
3 WIRE HE INPUT #1
3 WIRE HE INPUT #2
ACTIVE ANALOG #16
ACTIVE ANALOG #17
GND SWITCH #16
BATTERY PUMP HS
3.9A H-BRIDGE 1B
GND SWITCH #12
GND SWITCH #13
GND SWITCH #14
ACTIVE ANALOG #14
ACTIVE ANALOG #15
ANALOG RETURN
300mA ON/OFF/PWM LAMP DOUT #3
3.9A H-BRIDGE 2B
3.9A H-BRIDGE 2A
INJ. BANK 5 HS#1
INJ. BANK 5 LS#1
ACTIVE ANALOG #12
ACTIVE ANALOG #13
ANALOG RETURN
CAN C SHIELD
INJ. BANK 3 LS#1
INJ. BANK 3 LS#2
INJ. BANK 4 LS#1
INJ. BANK 4 LS#2
ACTIVE ANALOG #10
ACTIVE ANALOG #11
ANALOG RETURN
CAN C-
INJ. BANK 3 HS#1
INJ. BANK 3 HS#2
INJ. BANK 4 HS#1
INJ. BANK 4 HS#2
ACTIVE ANALOG #7
ACTIVE ANALOG #8
ACTIVE ANALOG #9
CAN C+
INJ. BANK 1 LS#1
INJ. BANK 1 LS#2
INJ. BANK 2 LS#1
INJ. BANK 2 LS#2
ACTIVE ANALOG #5
GND SWITCH #17
ACTIVE ANALOG #6
CASE GROUND
INJ. BANK 1 HS#1
INJ. BANK 1 HS#2
INJ. BANK 2 HS#1
INJ. BANK 2 HS#2
GND SWITCH #15
ANALOG RETURN
ACTIVE ANALOG #3
ACTIVE ANALOG #4
-
-
-
-
-
-
(251) CONTROL - ENGINE
SENSOR SUPPLY (CRANKSHAFT/BARO/EGR)5V SUPPLY ENG
BACK PRESSURE VALVE +
BACK PRESSURE VALVE -
WAIT TO DISCONNECT LAMP +
WARNING/DERATE LAMP +
LOW DEF LEVEL LAMP +
SHUTDOWN/STOP LAMP +
SENSOR SUPPLY (CAMSHAFT/OIL PRESS.)
COOLANT LEVEL SWITCH
RESERVED
EMISSIONS SYSTEM FAILURE LAMP +
ENGINE COOLANT TEMP.
EGR INLET TEMPERATURE (COOLER OUT)
EGR/BP VALVE POSITION RTNS
SCR DESOX FORCE SWITCH
SNSR SUPPLY (IMAP/FRP/EGR PRESSURE)
MAINTENANCE RESET SWITCH
CAMSHAFT SPEED SNSR RETURN
WATER IN FUEL SENSOR
ENGINE INTAKE MAN AIR TEMPERATURE
FUEL TEMPERATURE
REGEN READINESS (OK TO ELEVATE)
ENG FUEL PUMP METERING VALVE -
EGR VALVE +
CRANKSHAFT SPEED SENSOR RETURN
CRANKSHAFT SPEED SENSOR
CAMSHAFT SPEED SENSOR
EGR ABSOLUTE PRESSURE SNSR
EGR DIFFERENTIAL PRESSURE SNSR
ENG FUEL PUMP METERING VALVE +
EGR VALVE -
FUEL FILTER DIFF. PRESSURE SWITCH
OIL LEVEL SWITCH
SENSOR RETURN (OIL/EGR PRESSURE)
DELAYED ENGINE SHUTDOWN LAMP +
SMART WASTEGATE REGULATOR VALVE -
SMART WASTEGATE REGULATOR VALVE +
SENSOR RETURN (IMAP/EGR PRESSURE)
ENGINE INJECTOR # 3-
ENGINE INJECTOR # 4-
LPFS FUEL FILTER PRESSURE PRIMARY
LPFS FUEL FILTER PRESSURE SECONDARY
FUEL TEMP SNSR RETURN
ENGINE INJECTOR # 3+
ENGINE INJECTOR # 4+
BACK PRESS. VALVE POSITION
ENGINE FUEL RAIL PRESS.
ENG INT MANIFOLD AIR PRESS.
ENGINE INJECTOR # 1-
ENGINE INJECTOR # 6-
ENGINE INJECTOR # 5-
ENGINE INJECTOR # 2-
EGR VALVE POSITION
ENGINE OIL PRESS.
ENGINE INJECTOR # 1+
ENGINE INJECTOR # 6+
ENGINE INJECTOR # 5+
ENGINE INJECTOR # 2+
COOLANT TEMP SNSR RETURN
CONN 70
CONNECTS TO E-C8
VOL 2, LOC G-16
8V SUPPLY (TURBO OUT TEMP)
8V RETURN (TURBO OUT TEMP)
TURBO OUT TEMP SENSOR
WIF SENSOR
LPFS FUEL FILTER PRESS. PRIMARY
LPFS FUEL FILTER PRESS. SECONDARY
CAN A+
CAN A-
GROUND (SERVICE CONNECTOR)
SUPPLY (SERVICE CONNECTOR)
CONN 71
CONNECTS TO E-C9
VOL 2, LOC F-16
WAIT TO DISCONNECT LAMP +
WARNING/DERATE LAMP +
SHUTDOWN/STOP LAMP +
LOW DEF LEVEL LAMP +
SCR DESOX FORCE SWITCH
EMISSIONS SYSTEM FAILURE LAMP +
COOLANT LEVEL SWITCH
REGEN READINESS (OK TO ELEVATE IDLE)
MAINTENANCE RESET SWITCH
FUEL FILTER DIFF. PRESSURE
OIL LEVEL SWITCH/SENSOR
DELAYED ENGINE SHUTDOWN INDICATOR +
511-9086
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
E-C22
260-6728
1
-
2
-
3
4
5
6
7
8
9
10
11
12
E-C23
281-4033
1
2
3
4
5
6
7
8
9
10
11
12
E-C1
374-8332
997-E46 OR-0.75
R883-E32 YL-16
R884-E31 WH-16
674-E81 BU-0.75
L994-E82 YL-0.75
H857-E84 PK-0.75
M765-E83 OR-0.75
R997-E76 OR-0.75
E452-E87 WH-0.75
T970-E86 GY-0.75
995-E25 BU-0.75
Y774-E27 BR-0.75
L740-E17 BR-0.75
P878-E85 GN-0.75
L730-E52 OR-0.75
K953-E89 GY-0.75
993-E78 BR-16
H451-E53 GN-0.75
C967-E24 BU-0.75
F421-E15 YL-0.75
C972-E88 YL-0.75
Y951-E14 PU-0.75
Y964-E47 BR-0.75
L731-E77 BR-0.75
X999-E21 GN-0.75
X900-E20 YL-16
N735-E28 BU-0.75
P893-E29 PU-0.75
Y950-E13 YL-0.75
Y765-E48 GN-0.75
C436-E90 BU-0.75
C989-E91 PU-0.75
R993-E72 BR-0.75
385-E92 OR-0.75
R797-E35 WH-0.75
R798-E34 PK-0.75
T993-E80 BR-0.75
X928-E7 GN-1.00
X929-E5 BU-1.00
413-E93 BR-0.75
A400-E94 PK-0.75
Y947-E60 BR-0.75
X922-E8 WH-1.00
X923-E6 OR-1.00
K443-E30 PK-16
Y946-E18 BU-0.75
C822-E23 YL-0.75
X926-E3 GY-1.00
X931-E9 YL-1.00
X930-E11 GY-1.00
X927-E1 YL-1.00
K446-E33 PU-0.75
994-E22 GY-0.75
X920-E4 BR-1.00
X925-E10 PK-1.00
X924-E12 BR-1.00
X921-E2 PK-1.00
Y948-E79 BR-0.75
996-E73 GN-16
998-E36 BR-16
C440-E37 YL-16
H451-E53 GN-0.75
413-E93 BR-0.75
A400-E94 PK-0.75
F711-E45 YL-0.75
F712-E44 GN-0.75
229-E41 BK-0.75
101-E40 RD-0.75
674-E81 BU-0.75
L994-E82 YL-0.75
M765-E83 OR-0.75
H857-E84 PK-0.75
P878-E85 GN-0.75
T970-E86 GY-0.75
C972-E88 YL-0.75
K953-E89 GY-0.75
C436-E90 BU-0.75
C989-E91 PU-0.75
385-E92 OR-0.75
SENSOR SUPPLY #1
997-E46 OR-0.75
H451-E53 GN-0.75
SENSOR SUPPLY #3
L730-E52 OR-0.75
SENSOR RETURN #1
L740-E17 BR-0.75
SENSOR RETURN #2
R993-E72 BR-0.75
SENSOR SUPPLY #2
R997-E76 OR-0.75
SENSOR RETURN #3
T993-E80 BR-0.75
SENSOR RETURN #4
Y947-E60 BR-0.75
SENSOR RETURN #5
Y948-E79 BR-0.75
674-E81 BU-0.75
L994-E82 YL-0.75
M765-E83 OR-0.75
H857-E84 PK-0.75
P878-E85 GN-0.75
T970-E86 GY-0.75
E452-E87 WH-0.75
C972-E88 YL-0.75
K953-E89 GY-0.75
C436-E90 BU-0.75
C989-E91 PU-0.75
385-E92 OR-0.75
413-E93 BR-0.75
A400-E94 PK-0.75
101-E40 RD-0.75
229-E41 BK-0.75
993-E78 BR-16
994-E22 GY-0.75
995-E25 BU-0.75
996-E73 GN-16
998-E36 BR-16
C440-E37 YL-16
C822-E23 YL-0.75
C967-E24 BU-0.75
F421-E15 YL-0.75
F711-E45 YL-0.75
F712-E44 GN-0.75
K443-E30 PK-16
K446-E33 PU-0.75
L731-E77 BR-0.75
N735-E28 BU-0.75
P893-E29 PU-0.75
R797-E35 WH-0.75
R798-E34 PK-0.75
R883-E32 YL-16
R884-E31 WH-16
X900-E20 YL-16
X920-E4 BR-1.00
X921-E2 PK-1.00
X922-E8 WH-1.00
X923-E6 OR-1.00
X924-E12 BR-1.00
X925-E10 PK-1.00
X926-E3 GY-1.00
X927-E1 YL-1.00
X928-E7 GN-1.00
X929-E5 BU-1.00
X930-E11 GY-1.00
X931-E9 YL-1.00
X999-E21 GN-0.75
Y765-E48 GN-0.75
Y774-E27 BR-0.75
Y946-E18 BU-0.75
Y950-E13 YL-0.75
Y951-E14 PU-0.75
Y964-E47 BR-0.75
997-E54 OR-0.75
997-E59 OR-0.75
L730-E57 OR-0.75
L730-E61 OR-0.75
L730-E67 OR-0.75
L730-E70 OR-16
L740-E71 BR-16
L740-E74 BR-0.75
R993-E56 BR-0.75
R993-E75 BR-0.75
R997-E49 OR-0.75
R997-E58 OR-16
T993-E62 BR-0.75
T993-E69 BR-0.75
Y947-E50 BR-0.75
Y947-E55 BR-0.75
Y948-E51 BR-0.75
Y948-E63 BR-0.75
X927-E1 YL-1.00
X921-E2 PK-1.00
X926-E3 GY-1.00
X920-E4 BR-1.00
X929-E5 BU-1.00
X923-E6 OR-1.00
X928-E7 GN-1.00
X922-E8 WH-1.00
X931-E9 YL-1.00
X925-E10 PK-1.00
X930-E11 GY-1.00
X924-E12 BR-1.00
F421-E15 YL-0.75
Y947-E55 BR-0.75
Y950-E13 YL-0.75
Y951-E14 PU-0.75
R993-E56 BR-0.75
Y946-E18 BU-0.75
L730-E57 OR-0.75
X900-E20 YL-16
993-E78 BR-16
R997-E58 OR-16
X999-E21 GN-0.75
L731-E77 BR-0.75
997-E59 OR-0.75
101-E40 RD-0.75
229-E41 BK-0.75
994-E22 GY-0.75
995-E25 BU-0.75
996-E73 GN-16
997-E54 OR-0.75
998-E36 BR-16
C440-E37 YL-16
C822-E23 YL-0.75
C967-E24 BU-0.75
F711-E45 YL-0.75
F712-E44 GN-0.75
K443-E30 PK-16
K446-E33 PU-0.75
L730-E61 OR-0.75
L730-E67 OR-0.75
L730-E70 OR-16
L740-E71 BR-16
L740-E74 BR-0.75
N735-E28 BU-0.75
P893-E29 PU-0.75
R797-E35 WH-0.75
R798-E34 PK-0.75
R883-E32 YL-16
R884-E31 WH-16
R993-E75 BR-0.75
R997-E49 OR-0.75
T993-E62 BR-0.75
T993-E69 BR-0.75
Y765-E48 GN-0.75
Y774-E27 BR-0.75
Y947-E50 BR-0.75
Y948-E51 BR-0.75
Y948-E63 BR-0.75
Y964-E47 BR-0.75
E-C2
176-2946
E-C3
176-2946
E-C4
176-2946
E-C5
312-0314
(252) INJECTOR HARNESS 1
367-6803
1 INJECTOR #2 LS
2 INJECTOR #2 HS
3 INJECTOR #1 LS
4 INJECTOR #1 HS
(253) INJECTOR HARNESS 2
367-6803
1 INJECTOR #4 LS
2 INJECTOR #4 HS
3 INJECTOR #3 LS
4 INJECTOR #3 HS
(254) INJECTOR HARNESS 3
367-6803
1 INJECTOR #6 LS
2 INJECTOR #6 HS
3 INJECTOR #5 LS
4 INJECTOR #5 HS
(265) SENSOR - FUEL TEMP
(FOR REFERENCE ONLY)
337-3905
1
2
(255) PUMP GP - FUEL VALVE
(FOR REFERENCE ONLY)
E-C6
311-8580
E-C7
187-6419
E-C8
489-2271
E-C9
489-2271
Callout Number
(Machine Location from
Component Locations Table)
SYMBOL DESCRIPTION
H#
/
368-9041 (24V)
368-9040 (12V)
1
2
(264) SENSOR - FUEL PRESSURE
(FOR REFERENCE ONLY)
1
RETURN
2
SIGNAL
3
VS (+5V)
(256) SENSOR - CAMSHAFT SPEED
481-5928
SIGNAL
1
2
GND
3
VS
(257) SENSOR - CRANKSHAFT SPEED
481-5928
SIGNAL
1
GND
2
VS
3
CALLOUT FORMAT IF APPLICABLE
(52) VALVE GP - CONTROL
138-1234
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
CIRCUIT GROUPING DESIGNATION
ATCH WIRE, CABLE, COMPONENT
SPLICE
BLADE, SPADE, RING OR SCREW
TERMINAL
Part Number
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
Component
Name
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
R997-E49 OR-0.75
R993-E75 BR-0.75
994-E22 GY-0.75
L730-E61 OR-0.75
T993-E62 BR-0.75
C822-E23 YL-0.75
C967-E24 BU-0.75
Y947-E50 BR-0.75
995-E25 BU-0.75
Y948-E63 BR-0.75
Y774-E27 BR-0.75
Y948-E51 BR-0.75
L730-E67 OR-0.75
N735-E28 BU-0.75
T993-E69 BR-0.75
P893-E29 PU-0.75
L730-E70 OR-16
L740-E71 BR-16
K443-E30 PK-16
R884-E31 WH-16
R883-E32 YL-16
997-E54 OR-0.75
L740-E74 BR-0.75
K446-E33 PU-0.75
Y765-E48 GN-0.75
Y964-E47 BR-0.75
R798-E34 PK-0.75
R797-E35 WH-0.75
996-E73 GN-16
998-E36 BR-16
C440-E37 YL-16
101-E40 RD-0.75
229-E41 BK-0.75
F712-E44 GN-0.75
F711-E45 YL-0.75
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or
death. Proper care is your responsibility.
E-C10
281-3120
E-C11
281-3120
E-C12
240-7874
E-C13
240-7874
E-C14
281-3115
E-C15
511-2135
E-C16
281-3133
E-C17
281-3133
E-C18
240-7876
E-C19
261-0524
E-C20
270-1784
(263) SENSOR - ENG OIL PRESSURE
320-3060
1
5V
2
RETURN
3
SIGNAL
(261) SENSOR - ENG INT MAN PRESS.
320-3062
1
5V
2
RETURN
3
SIGNAL
(262) SENSOR - ENG INT MAN TEMP
256-6454
1
2
(260) SENSOR - ENG COOLANT TEMP
256-6454
1
2
(259) SENSOR - EGR INT TEMP
339-8822
o
1
2
T
(258) SENSOR - EGR DIFFERENTIAL PRESS.
513-0267
1
2
3
4
5V
ABSOLUTE
GROUND
DIFF
(269) VALVE GP EXHAST GAS (BACK PRESSURE)
(FOR REFERENCE ONLY)
390-5194 (24V)
390-5195 (12V)
SENSOR SUPPLY
1
SENSOR GND
2
SENSOR OUT
3
MOTOR(-)
4
-
5
MOTOR(+)
6
(268) EGR VALVE
(FOR REFERENCE ONLY)
467-0543 (24V)
467-0529 (12V)
SENSOR + (5V)
1
SENSOR GND
2
SENSOR OUT
3
DC MOTOR(-)
4
-
5
DC MOTOR(+)
6
(267) SMART WASTEGATE
(FOR REFERENCE ONLY)
369-1658
1
2
(266) SENSOR - TURBO OUT TEMP
416-2211
1
2
3
4
Vs (+8V)
GROUND
SIGNAL
N / C
CONN 130
DIAGNOSTIC CONNECTOR
A COMM ADAPTER SUPPLY
B COMM ADAPTER RETURN
C RESERVED
D -
E -
CAN A -
F
G CAN A +
H RESERVED
J RESERVED
THIS SCHEMATIC IS FOR THE 326 AND 330 GC EXCAVATOR ELECTRICAL SYSTEM
VOLUME 3 of 3: ENGINE
MEDIA NUMBER: M0129513-01
SCHEMATIC PART NUMBER: 526-7676, CHANGE: 02, VERSION: DX
Components are shown installed on a fully operable machine with the key and engine off.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
Refer to the Parts Manual using a specific serial number prefix in SIS before ordering parts from this schematic.
REF DES PART NO. CHG LVL DESCRIPTION
E 526-4731 02 ENGINE HARNESS
WIRES IN THE FOLLOWING GROUPS SHALL BE TWISTED:
WIRE GROUP WIRE NAME
E_TW1 F711-E45
(ONE TWIST PER 25 mm)
F712-E44
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
ENGINE CONTROL CIRCUIT
CAN DATA LINK
OTHER COLOR DESCRIPTIONS
HIGHWAYS
Page 14
CAB FRONT
A
VIEW ALL CALLOUTS
40
41
42
47
38
39
VIEW OF AREA “A”
(ROTATED FOR CLARITY)
46
43
44
45
19
18
12
13
1
15
CONN 31
CONN 32
49
CONN 33
5
23
24
8
4
Page 15
CAB - PRODUCT LINK
VIEW ALL CALLOUTS
62
CONN 55
CONN 56
CONN 57
63
CONN 54
64
Page 16
CAB REAR
VIEW ALL CALLOUTS
36
CONN 11
CONN 8
CONN 21
CONN 15
CONN 9
33
29
48
30
34
32
37
9
52
CONN 13
CONN 17
CONN 16
CONN 18
CONN 20
CONN 12
7
35
CONN 10
CONN 25
CONN 6
CONN 7
CONN 24
CONN 1
CONN 2
CONN 3
CONN 4
CONN 5
6
31
17
10
CONN 23
CONN 19
Page 17
CAB TOP
VIEW ALL CALLOUTS
CONN 50
CONN 51
CONN 43
CONN 49
3
CONN 44
CONN 48
CONN 42
CONN 41
CONN 45
CONN 46
Page 18
LEFT HAND CONSOLE
VIEW ALL CALLOUTS
54
58
CONN 52
CONN 53
CONN 14
CONN 47
11
22
Page 19
RIGHT HAND CONSOLE
VIEW ALL CALLOUTS
27
26
2
14
61
CONN 22
CONN 34
CONN 35
28
16
51
25
50
Page 20
SEAT REAR
VIEW ALL CALLOUTS
56
57
55
CONN 39
CONN 40
21
20
59
60
53
CONN 38
CONN 30
CONN 28
CONN 26
CONN 37
CONN 36
CONN 29
CONN 27
Page 21
BATTERY COMPARTMENT
VIEW ALL CALLOUTS
VIEW OF AREA “A”
VIEW OF AREA “C”
119
CONN 96
98
99
138
101
CONN 112
271
275
173
270
274
276
272 273
CONN 84
76
CONN 8
CONN 11
CONN 9
CONN 10
CONN 6
CONN 7
121
75
CONN 95
CONN 56
CONN 108
CONN 109
CONN 99
183
182
CONN 107
CONN 94
CONN 55
91
92
69
216
127
C
102
A
71
CONN 83
146
CONN 105
170
214
70
68
Page 22
BOOM AND STICK VIEW
VIEW ALL CALLOUTS
CONN 116
156156
164
CONN 114
171
222
CONN 113
148
Page 23
CAB PLATFORM VIEW
VIEW ALL CALLOUTS
CONN 110
126
81
136
CONN 22
137
94
95
Page 24
CAMERA VIEW
VIEW ALL CALLOUTS
CONN 5
CONN 3
CONN 2
CONN 1
CONN 4
CONN 118
72
CONN 120
74
CONN 119
73
Page 25
CEM AND ENGINE VIEW
VIEW ALL CALLOUTS
VIEW OF AREA “B”
CONN 79
152
77
CONN 70 CONN 71
114
104112
167 168
82
79
132
123
161
162
CONN 77
159
160
135
B
CONN 75
CONN 76
CONN 78
CONN 74
CONN 73
CONN 80
219
CONN 81
Page 26
CHASSIS FRONT VIEW
VIEW ALL CALLOUTS
118
142
213
203
204
150
184
215
200
176
151
185
CONN 103
154
CONN 101
80
122
177
CONN 122
117
CONN 106
172
153
CONN 98
116
CONN 97
145
CONN 121
Page 27
CHASSIS RIGHT REAR
VIEW ALL CALLOUTS
CONN 72
106
169
86
88
84
207
89
90
85
67
139
129
128
130
CONN 54
217
CONN 100
96
105
143
144
87
83
100
221
110
109
125
220
CONN 85
CONN 82
202
218
107
97
108
65
163
124
Page 28
ENGINE TOP VIEW
VIEW ALL CALLOUTS
93
115
111
66
120
175
103
113
Page 29
LONG REACH BOOM
VIEW ALL CALLOUTS
CONN 111
147
Page 30
LONG REACH STICK
VIEW ALL CALLOUTS
134
158
CONN 117
CONN 115
155
Page 31
MACHINE REAR VIEW
VIEW ALL CALLOUTS
CONN 102
CONN 57
CONN 104
131
78
133
140
Page 32
MAIN CONTROL VALVE - FRONT
VIEW ALL CALLOUTS
149
165
166
CONN 92
CONN 89 CONN 88
157
CONN 87
CONN 91
CONN 90
CONN 93
Page 33
MAIN CONTROL VALVE - REAR
VIEW ALL CALLOUTS
212
211
141
180
206 209
186
178
194193
197
205
199
189
187
174
179
CONN 86
191
188
190
198
201208
210
192
195
196
181
Page 34
ENGINE - FRONT
VIEW ALL CALLOUTS
260
265
255
252
267
268
253
259
254
CONN 130
258
264
261
262
CONN 71
CONN 70
251
257
263
Page 35
ENGINE - REAR VIEW
VIEW ALL CALLOUTS
269
256 266
Loading...
