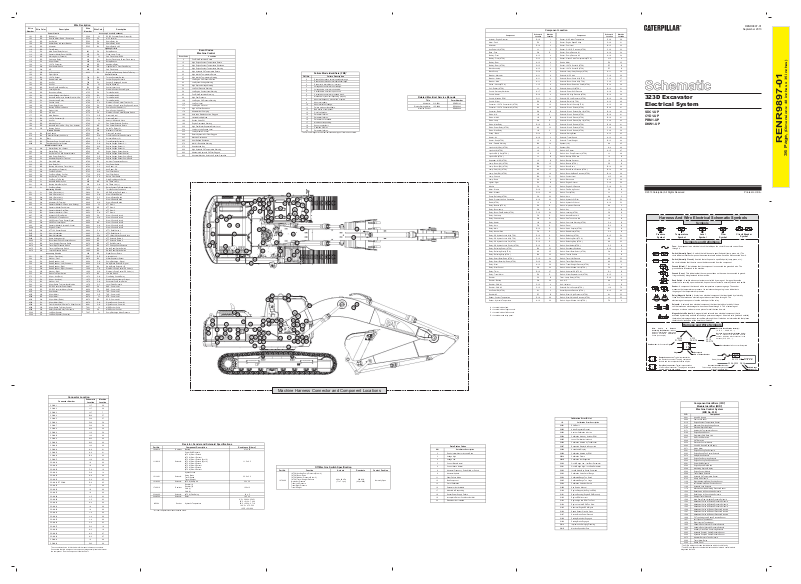

RENR9897-01
September 2013
Printed in U.S.A.
323D Excavator
Electrical System
SDC1-UP
CYD1-UP
PBM1-UP
DKW1-UP
© 2013 Caterpillar, All Rights Reserved
Pressure
Symbol
T
Temperature
Symbol
Level
Symbol
Flow
Symbol
Circuit Breaker
Symbol
Harness and Wire Symbols
Symbols
Symbols and Definitions
Harness And Wire Electrical Schematic Symbols
Fuse: A component in an electrical circuit that will open the circuit if too much current flows
through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The
circle indicates that the component has screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.).
No circle indicates that the wire cannot be disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire. The
grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground.
It is grounded by being fastened to the machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the
contacts of a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge. The sender
measures the temperature or pressure. Its resistance changes to give an indication to
the gauge of the temperature or pressure.
T
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it. The
electromagnet can open or close the switch part of the relay.
Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is
activated by electricity and held latched by a permanent magnet. It has two coils (latch and unlatch)
that make electromagnet when current flows through them. It also has an internal switch that places
the latch coil circuit open at the time the coil latches.
Solenoid: A solenoid is an electrical component that is activated by electricity. It has a
coil that makes an electromagnet when current flows through it. The electromagnet
can open or close a valve or move a piece of metal that can do work.
1
2
AG-C4
111-7898
L-C12
3E-5179
9X-1123
Component
Part Number
Pin or Socket Number
Part Number: for Connector Receptacle
Part Number: for Connector Plug
Harness Identification Letter(s):
(A, B, C, ..., AA, AB, AC, ...)
Plug
325-AG135 PK-14
Wire Color
Wire Gauge
Receptacle
1
1
2
2
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Fuse (5 Amps)
5A
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
L-C12
3E-5179
Wire, Cable, or Harness
Assembly Identification: Includes
Harness Identification Letters and
Harness Connector Serialization
Codes (see sample).
Harness Connector Serialization Code:
The "C" stands for "Connector" and the
number indicates which connector in the
harness (C1, C2, C3, ...).
RENR9897-01
36 Page, (Dimensions: 48 inches x 35 inches)
11
11
12
12
14
14
15
15
13
13
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
3
3
4
4
5
5
6
6
8
8
9
9
10
10
1
1
2
2
7
7
31
31
32
32
37
37
35
35
33
33
34
34
36
36
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
A
A
B
B
C
C
D
D
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
Machine Harness Connector and Component Locations
Failure Mode Identifiers (FMI)¹
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.
ID Calibration Error Description
$0001 ECM Fault
$0002 Active Diagnostic Present
$0003 Another Calibration is Active
$0004 Calibration Active by Another ECM
$0005 Loss of Calibration Interlock
$0006 Calibration Aborted by Tool/Monitor
$0007 Requested Display Not Supported
$0008 Unavailable Display
$0009 Calibration Aborted by ECM
$000A Calibration Failure
$000B Calibration Not Supported
$0100 Out-of-Range Low - Incr/Decr Parameter
$0101 Out-of-Range High - Incr/Decr Parameter
$0102 Invalid Action/Key Stroke Command
$0103 Calibration Value Out-of-Range
$0104 Calibrated Range Too Small
$0105 Calibrated Range Too Large
$0106 Calibration Value Not Saved
$1000 See Service Manual
$1010 Engine Stopped (No Engine RPM)
$1011 Engine Running (Engine RPM Present)
$1012 Engine RPM Incorrect
$1013 Engine High Idle RPM Too Fast
$1014 Engine Low Idle RPM Too Slow
$1015 Abnormal Engine RPM Signal
$1016 Speed Sensor Circuit is Open
$1017 Service Brake Pedal Pressed
$1018 Parking Brake Not Engaged
$1019 Parking Brake Engaged
$101A Implement is Swinging/Traveling
$101B Machine Speed Not Zero
Calibration Error ID List
DSI Data Status Description
2 Erratic, Intermittent or Incorrect Data
3 Voltage High
4 Voltage Low
5 Current Below Normal
6 Current Above Normal
8 Abnormal Frequency, Pulse Width, or Period
9 Abnormal Update
11 Other Failure Mode
12 Bad Component
13 Out of Calibration
16 Parameter Not Available
17 Module Not Responding
18 Sensor Power Supply Failure
19 Incomplete Data or Conditions Not Met
20 Disabled or Not Installed
Data Status Codes
Event Code Condition
5 Fuel Filter Restriction Derate
15 High Engine Coolant Temperature Derate
16 High Engine Coolant Temperature Shutdown
17 High Engine Coolant Temperature Warning
23 High Hydraulic Oil Temperature Derate
25 High Inlet Air Temperature Derate
27 High Inlet Air Temperature Warning
39 Low Engine Oil Pressure Derate
43 Low System Voltage Warning
50 High System Voltage Warning
53 Low Fuel Pressure Warning
59 Low Engine Coolant Level Warning
95 Fuel Filter Restriction Warning
96 High Fuel Pressure
100 Low Engine Oil Pressure Warning
119 Low Fuel Level
171 Low Engine Oil Level
172 High Air Filter Restriction
179 Alternator Not Charging
180 Auto Lube Distribution Line Plugged
181 Limited Mobility Mode
182 Suction Valve Off
190 Engine Overspeed Warning
232 High Fuel/Water Separator Water Level
234 Low Auto Lube Grease Level
235 Low Hydraulic Oil Level
236 Return Hydraulic Oil Filter Plugged
237 Machine Overloaded
265 User Defined Shutdown
272 Inlet Air Restriction Warning
273 Unauthorized Key
600 High Hydraulic Oil Temperature Warning
862 Attachment Hydraulic Oil Filter Plugged
863 Abnormal Machine Auto Lube System Operation
Event Codes
Machine Control
Component Identifiers (CID¹)
Module Identifier (MID²)
Machine Control System
(MID No. 039)
CID Component
0041 8 Volt DC Supply
0096 Fuel Level Sensor
0110 Engine Coolant Temperature Sensor
0167 Alternator Charging Voltage Sensor
0168 Electrical System Voltage
0171 Ambient Air Temperature Sensor
0190 Engine Speed Sensor
0246 Proprietary CAN Data Link
0247 SAE J1939 Data Link
0248 CAT Data Link
0254 Electronic Control Module
0262 5 Volt DC Sensor Power Supply
0271 Action Alarm
0291 Engine Cooling Fan Solenoid
0362 Engine Speed Fan Control Solenoid
0374 Swing Brake Solenoid
0485 Engine Fan Reversing Solenoid
0544 Engine Cooling Fan Speed Sensor
0581 Power Shift Solenoid
0586 Engine Speed Dial Switch
0588 Monitoring System Display
0590 Engine Control Module
0598 Travel Speed Solenoid
0600 Hydraulic Oil Temperature Sensor
0735 Heavy Lift Solenoid
1129 Right Attachment Pedal Position Sensor
1130 Left Attachment Pedal Position Sensor
1160 Hydraulic Lock Solenoid
1178 Machine Overload Warning Pressure Sensor
1522 Relief Valve #2 Check Valve Solenoid
1523 Relief Valve #1 Check Valve Solenoid
1525 Straight Travel Solenoid
1590 Main Pump Flow Limitation Pressure Solenoid
1593 Attachment Valve #1 Extend Pressure Solenoid
1594 Attachment Valve #2 Extend Pressure Solenoid
1595 Attachment Valve #3 Extend Pressure Solenoid
1596 Attachment Valve #1 Retract Pressure Solenoid
1597 Attachment Valve #2 Retract Pressure Solenoid
1598 Attachment Valve #3 Retract Pressure Solenoid
1609 F2 Type Valve Load Sense Pressure Sensor
1657 Left Joystick Thumbwheel
1658 Right Joystick Thumbwheel
1665 Variable Relief Valve #1 Pressure Solenoid
1666 Variable Relief Valve #2 Pressure Solenoid
1931 Auxiliary Circuit Flow Combining Solenoid
2265 Hydraulic Pump #1 Outlet Pressure Sensor
2266 Hydraulic Pump #2 Outlet Pressure Sensor
2275 Hammer Return to Tank Solenoid
2280 Travel Alarm Relay
2300 Switch Panel
¹ The CID is a diagnostic code that indicates which circuit is faulty.
² The MID is a diagnostic code that indicates which electronic control module
diagnosed the fault.
A = Located inside of cab.
B = Located inside of right console.
C = Located inside of left console.
D = Located around relay panel.
Wire
Number
Wire Color Description
Wire
Number
Wire Color Description
Accessory Circuits (Continued)
101 RD Battery (+) C569 YL DC/DC Converter Power Output (2)
103 RD Service Meter / Radio / Dome Lamp E554 PK A/C Controller
105 RD Key Switch E562 PU Spare Relay No
108 RD Heater Relay to Heater Breaker E564 PK Spare Relay Nc #2
109 RD Alternator E565 BU Spare Relay No #2
110 RD Timer Relay
Lighting Circuits
112 PU Main Power Relay Output 603
PK Rotary Beacon
113 OR Operator Monitor Panel VMIS B+ 607 PK Flood Lamp - Front
114 RD Warning Horn (Forward) 615 YL Cab Flood Lamp/ROPS
115 RD Cab Lamp Relay 616 BU Bucket Flood Lamp / Boom Flood Lamp
118 GY Wiper Control 638 W H Rotary Beacon
120 YL 12V 7A Converter 645 RD Headlamp Relay
123 W H Seat Heater Switch 646 RD Light S
witch To Front Flood Relay
124 GN A/C 684 RD Cab Flood Lamp
127 OR Air Suspension A623 BU Right Cab Flood Lamp Switch T
o Relay
129 BU Cigar Lighter
Control Circuits
135 BU 12V 7A Socket 763 BU Torque Converter Switch
139 OR Radio Mute Switch 779 W H Coupler Engage Solenoid
141 RD Aux Ckt 780 PU Coupler Disengage Solenoid
142 RD Aux Ckt 788 YL Engine Speed (+)
143 BR Boom Float Disable Relay 789 RD Control Lever Lock
147 PU Leveling Switch A718 PU Start Aid Coolant Sensor Signal
149 RD Boom Lamp Relay A755 PK Throttle Switch #1
152 BU Under Window Limit Swi
tch A756 BU Thr
ottle Switch #2
154 RD Neutral Start Relay to Neutral Start Limit Sw. A757 GY Throttle Switch #3
160 PU Chassis Lamp Relay A758 BR Throttle Switch #4
165 YL Caution Lamp A760 GY Electronic Pump Control Throttle +5v
168 RD Power Relay Diode A762 PU Electronic Pump Control Eng Speed Ground
169 PK Backup EPR Valve Switch A768 BU Pump Control Valve #1 (+)
172 RD Product Link A769 GY Pump Control Valve #2 (-)
175 RD A/C Unit A770 PK Electronic P
ump Control Bypass Switch
177 RD Main Breaker F773 OR Go
vernor Accel
179 BU 12V 7A Converter (2) F774 WH Governor Decel
180 GN Aux Ckt G723 YL Heavy Lift Solenoid Valve
184 RD Machine Control H746 YL Fan Control Solenoid Positive
189 RD Neutral Start Limit Sw. / Eng. Gov. Actuator H747 BR Fan Control Solenoid Return
199 OR Beacon Switch H792 BR Switch To Relay (2)
K776 GN Alternator L Terminal
200 BK Main Chassis M736 BU Governor Command
210 BK Conver
ter Output (24/12 Volt) M737 WH Front Flow Control Valve Solenoid
229 BK Bat (-) M739 YL Solenoid Return (2)
235 BK Electronic Pump
Control Ground M740 PK Travel Straight Solenoid
A209 BK Hex Machine Control Ground M743 GN Engine Oxygen Sensor V- I-
M744 WH Engine Oxygen Sensor I+
304 W H Starter Relay No. 1 Output M745 BU Engine Oxygen Sensor V+
306 GN Starter Relay Coil M746 YL Engine Oxygen Sensor Heater-
307 OR Key Switch To VMIS Se
nsor Module M747 BU Engine Oxygen Sensor Heater+
308 YL Main Power Relay Coil M748 OR Engine Oxygen Sensor Comp Res A
309 GY Alternator Regulator Terminal M749 WH Engine Oxygen Sensor Comp Res B
310 PU Start Aid Switch N789
BU Ambient Temperature Sensor
320 RD Horn Relay Coil N793 GN Foot Pedal Switch
321 BR Backup Alarm Lamp Travel Alarm N794 GY Aux Pedal - LH
322 GY Warning Horn (Forward) N795 WH Aux Pedal - RH
323 W H Fuel Pump Power R725 W
H Fuel Filter Switch
325 PK Fuel Pump Relay Cut-Out T725 W H Fuel Filter Switch
326 RD Key Switch "C" Terminal X738 PK Return Filter Switch
329 YL Fuel Pump To Switch 877 YL Glow Plug Magnetic Switch
330 YL Neutral Start Relay Coil 892 BR CAT Data Link (-)
331 OR Backup Alarm Relay Coi
l 893 GN CAT Data Link (+)
365 YL Fuel Pump Relay F873 YL Relay Contact To Diode Assembly
F889 W H Throttle Position Feedback
251 YL CAN 1 Data Link (+) G834 PU ADEM Coo
ling Fan Speed +
252 YL CAN 2 Data Link (+) K843 GN Stem 3 Extend Switch
261 GN CAN 1 Data Link (-) K844 GY Stem 4 Extend Switch
262 GN CAN 2 Data Link (-) K847 PU Stem 3 Retract Switch
403 GN Alternator (R) Terminal K848 W H Stem 4 Retract Switch
405 GY Operator Monitor Oil Press. (Low Setting) K849 YL ATT Stem 1
410 W H Operator Monitor Fault Ala
rm K850 BR ATT Stem 2
412 BU Operator Monitor Cool Flow K851 BU ATT Stem 3
430 BU Operator Monitor Air
Filter K852 GN ATT Stem 4
487 OR Hydraulic Oil Flow Switch K856 PU Stem 1 Control Valve A
491 PK VMIS Hyd Oil Temp Sensor K857 WH Stem 2 Control Valve A
492 GY VMIS Coolant Temp Sensor Signal K858 YL Stem 3 Control Valve A
495 GN VMIS Fuel Level Signal K860 BU Stem 1 Control Valve B
496 W H Operator Monitor Hydraulic Oil Level K861 GN Stem 2 Control Valve B
C468 BU Engine Oil Level K862 GY Stem 3 Control Val
ve B
E472 GN ATT 12V Sensor Supp
ly K864 PK ATT1 Relief Valve 1
E473 GY Stem 1 Modulation K865 PU ATT2 Relief Valve 2
E474 OR Stem 2 Modulation K866 WH ATT 1Way / 2Way Control Valve
Wire Decription
Power Circuits
Monitoring Circuits
Ground Circuits
Basic Machine Circuits
E480 PK Spare Analog Input #1 K868 BR ATT Solenoid Return 2
H446 PK Boom Lower Check Pressure Sensor K869 BU ATT Solenoid Return 3
H473 BR Travel Straight Pressure Switch K876 BR ATT Relief Solenoid
H474 GN Travel Right Pressure Switch K877 BU ATT Change Check Solenoid
H475 BU Travel Left Pressure Switch L885 BU Switch Panel Option Switch
H476 WH Joystick Pressure Switch L886 BU Switch Panel Option Switch
998 BR Digital Sensor Return
501 GN Wiper - Front (Low) E997 RD Hydraulic Lock
506 PU Washer - Front G976 BU Water Separator Sensor
508 PU Radio Speaker - Left K904 GN Pump Discharge - Signal
509 W H Radio Speaker - Left (Commom) K906 GN Swing Brake Solenoid - Signal
511 BR Radio Speaker - Right K907 BU Swing Brake Solenoid - +B
512 GN Radio Speaker - Right (Common) L968 OR Electronic Pump Control PS Valve (-)
530 OR Washer - Right L969 WH Electronic Pump Control PS Valve (+)
535 BU Switch To Wiper Switch L972 BU Low Idle Switch
575 YL Wiper - Aux (Park) L973 GN Fine Swing Control Relay
576 PK W iper - Aux (Low) L975 PK Start Aid Control Lamp 1 Output
578 BU Washer - Aux L976 GN Excavator Fuel Pump Switch
590 GY Wiper Switch To Intermittent Module L978 GY Level Finish Solenoid
592 BU DC/DC Converter Power Output N957 PK RXD - Common #1
A513 RD DC/DC Converter Memory Output N959 PK RXD - Common #3
A537
PK Seat Heater N960 OR TXD - Common #1
A579 OR Wiper Motor + N963 OR TXD - Common #3
A580 BR Wiper Motor - N970 YL DTR - Common #1
A581 GN Wiper Motor (Raise) N973 BR DCD - Common #1
A582 PU Wiper Motor (Stop) N979 GN Signal Ground - Comm #1
A584 BU Front Window Limit Switch To W iper Control N981 GN Signal Ground - Comm #3
A586 OR Wiper Switch To Wiper Control T901 YL MSS Exciter Coil In
A588 GN Safety Solenoid Relay To Solenoid T902 PK MSS Exciter Coil Out
C56
0 OR Left Rear Speaker T967 YL Pump Discharge Mean Pressure
C566 PK Left Rear Speaker (Common)
Accessory Circuits
Resistor, Sender and Solenoid Specifications
Part No. Component Description Resistance (Ohms)¹
102-8016 Resistor: Backup 47 ± 2.35
111-9916 Solenoid:
Power Shift Pressure
(ATCH) Stem 1 Extend
(ATCH) Stem 1 Retract
(ATCH) Stem 1 Extend (Sys 16)
(ATCH) Stem 2 Extend (Sys 16)
(ATCH) Stem 2 Extend
(ATCH) Stem 2 Retract
(ATCH) Stem 3 Extend
(ATCH) Stem 3 Retract
11.5 ± 0.5
121-1491 Solenoid:
Hydraulic Lock
Swing Brake
Travel Sp
eed
Travel Straight
32.0 ± 3.2
121-6303 So
lenoid: (ATCH) Heavy Lift 32 ± 3.2
174-3016 Resistor:
Resistor (1)
Resistor (2)
CAN (1)
CAN (2)
120 ± 12
234-4460 Solenoid: (ATCH) Fine Swing 34 ± .5
244-8506 Solenoid: Relief 19.5 ± 2
4I-5394 Sender: Hydraulic Temperature
0°C = 20,824 - 25,451
25°C = 6,134 - 7,496
50°C = 2,224 - 2,718
100°C = 475 - 522
125°C = 221-269
¹ At room temperature unless otherwise noted.
Off Machine Switch Specification
Part No. Function Actuate Deactuate Contact Position
167-3466
(ATCH) Auxiliary Pump Pressure (Stem 4)
(ATCH) Boom Down
(ATCH) Medium Pressure (Stem 3)
(ATCH) Travel Straight Pressure
Implement Pressure
Travel Left Pressure
Travel Right Pressure
Travel Straight
490 ± 49 kPa
(71 ± 7.1 psi)
290 MIN
(42 psi MIN)
Normally Open
The connectors shown in this chart are for harness to harness connectors.
Connectors that join a harness to a component are generally located at or near
the component. See the Component Location Chart.
Related Electrical Service Manuals
Form Number
Alternator: 212-8561 SENR2143
Electric Starting Motor: 125-2988 REG00843
Machine Control: RENR9848
Title
Component
Schematic
Location
Machine
Location
Component
Schematic
Location
Machine
Location
Actuator - Engine Governor D-18 1 Sensor - AIH Coolant Temperature E-18 29
Alarm - Fault E-2 2 Sensor - Engine Speed Pickup G-18 31
Alternat or E-18 3 Sens or - Fuel Level B-15 32
Aux. Pedal LH (ATCH) L-1 2 Sensor - O.L.W.D. Pressure (ATCH) C-10 33
Base - Fuse G-8 D Sensor - Pump Pressure #1 A-18 34
Battery - Front H-13 4 Sensor - Pump Pressure #2 A-18 34
Battery - F
ront (ATCH) G-13 5 Sensor - Viscus Clutch Temperature (ATCH) L-15 9
Battery - Rear H-13 6 Service Meter E-2 35
Battery - Rear (ATCH) G-13 7 Socket - 12V 7A Socket A (ATCH) E-7 B
Block Assembly H-12 4 Socket - 12V 7A Socket B (ATCH) E-7 B
Block Group G-14 8 Solenoid - 1way / 2way C hange (ATCH) A-11 30
Break er - Alt ernator H-11 8 Solenoid - A/C Clutch F-18 36
Breaker - Heater H-11 8 Solenoid - Boom Check #1 (ATCH) C-10 37
Break er - Main H-11 8 Solenoid - B oo
m Check #2 (ATCH) C-10 37
Clutch - Viscus (ATCH) L-15 9 Solenoid - Boom Down Line Cutoff (ATCH) B-14 38
Coil - Exciter (ATCH) J-1 B Solenoid - Heavy Lift (ATCH) B-13 31
Control - Gateway Worldview K-17 10 Solenoid - Power Shift Pressure A-18 34
Control - Heater D-10 4 Solenoid - QC High Pressure (ATCH) B-10 39
Control - Machine ECM G-11 11 Solenoid - QC Low Pressure (ATCH) B-10 39
Control - Wiper D-2 B Solenoid - Relief 1 (ATCH) A-12 40
Converter -
12V 7A Converter #1 (ATCH) K-4 12 Solenoid - Relief 1 Check (ATCH) A-12 40
Converter - 12V 7A Converter #2 (ATCH) K-4 12 Solenoid - Stem 1 Extend (ATCH) B-18 41
Converter - Radio D-8 B Solenoid - Stem 1 Extend (Sys 16) (ATCH) B-18 42
Diode - AIH I-12 C Solenoid - St em 1 Retr act (A TCH ) B-18 41
Diode - AIH #2 I-12 B Solenoid - Stem 2 Ext end (ATCH) B-18 41
Diode - Lamp G-9 D Solenoid - St em 2 Extend (Sys 16) (ATCH) C-18 42
Diode - Main Relay D-
10 D Solenoid - Stem 2 Retract (ATCH) B-18 41
Diode - Power Relay (ATCH) A-6 13 Solenoid - Stem 3 Extend (ATCH) C-18 39
Diode - Start Relay I-12 C Solenoid - St em 3 R etr act (A TCH ) C-18 39
Group - Block G-14 8 Solenoid - Swing Brak e A-13 43
Heater - Air H-18 3 Solenoid - Travel Speed A-13 43
Heater - Seat (ATCH) I-3 A Solenoid - Travel Straight B-13 44
Horn - Forward Warning B-9 14 Speaker (LH) H-4 45
Joystick LH (3 Sw) (ATCH) L-3 C Speaker (RH
) H-4 46
Joystick LH (ATCH) L-3 C Switch - Air Cleaner K-15 47
Joystick RH (3 Sw) (ATCH) J-2 B Switch - Aux. Pump Pressure (ATCH) L-1 48
Joystick RH (ATCH) J-1 B Switch - Backup EPR Valve I-3 B
Keyreader - MSS (ATCH) J-2 B Switch - Backup Governor I-3 B
Lamp - Boom (LH) (ATCH) B-8 15 Switch - Beacon (ATCH) C-5 B
Lamp - Boom (RH) (ATCH) B-8 16 Switch - Boom Down B-14 38
Lamp - Cab (LH) (ATCH) H-2 17 Switch - Boom Down Pressure (ATCH) B-14 38
Lamp - Cab (RH) (ATCH) H-2 18 Switch - Boom Up/Down Pressure (ATCH) B-14 38
Lamp - Chassis B-9 21 Switch - Coolant Level L-15 49
Lamp - Dome G-3 A Switch - Disconnect H-12 26
Lighter - Cigar E-3 B Switch - Engine Oil Level F-18 50
Monitor F-2 19 Switch - Engine Oil Pressure F-18 51
Motor - Starter G-18 1 Switch - Fine Swing Control C-2 B
Motor - Washer G-12 20 Switch - Foot (ATCH) L-1 2
Pump - Refueling (ATCH) C-6 22 Switch - Horn K-4 C
Rad
io - Product Link 2nd Generation H-18 23 Switch - Hydraulic Oil Filter A-15 52
Radio (ATCH) I-2 A Switch - Hydraulic Oil Level A-16 53
Relay - Beacon (ATCH) E-9 D Switch - Implement Pressure K-4 C
Relay - Boom Lamp G-9 D Switch - Key I-1 B
Relay - Boom Float Disable (ATCH) F-10 24 Switch - Leveling (ATCH) C-2 B
Relay - Cab Lamp F-9 D Switch - Neutral Start Limit L-3 C
Relay - Chassis Lamp G-9 D Switch - One Touch Low Idle J-2 B
Relay - Heat
er I-12 24 Switch - Over Load Warning (ATCH) C-4 B
Relay - Horn F-9 D Switch - Panel D-3 B
Relay - Main D-10 D Switch - Quic k Coupler (ATCH) B-1 B
Relay - Neutral Start F-9 D Switch - Radio Mute (ATCH) C-3 B
Relay - QC Hydraulic Lock #1 (ATCH) E-10 D Switch - Refueling (ATCH) A-15 54
Relay - QC Hydraulic Lock #2 (ATCH) D-10 D Switch - Refueling Start (ATCH) A-6 25
Relay - QC Hydraulic Lock On (ATCH) E-10 D Switch - Refueling Stop (ATCH) A-6 25
Relay - QC Hydraulic Lock Priority (ATCH) E-10 D Switch - Seat Heater (ATCH) C-5 B
Relay - Refueling Power (ATCH) B-6 25 Switch - Secondary Shutdown H-10 C
Relay - Refueling Start (ATCH) A-6 25 Switch - Smart Boom Select (ATCH) C-4 B
Relay - Refueling Stop (ATCH) B-6 25 Switch - Throttle Position I-1 B
Relay - Smart Boom Down (ATCH) F-10 24 Switch - Travel Left Pressure K-2 55
Relay - Smart Boom Up/Down (ATCH) G-10 24 Switch - Travel Right Pressur
e K-2 55
Relay - St art H-12 26 Sw itch - Tr avel Straight Pr essur e (A TCH) K-1 2
Relay - Start Control G-9 24 Switch - Under W indow Limit (ATCH) F-2 56
Relay - Timer D-10 27 Switch - Universal QC (ATCH) D-1 B
Relay - Travel Alarm E-9 D Switch - Water Separator Level (ATCH) K-15 6
Resistor C-3 B Timer - Lamp Delay (ATCH) D-10 D
Resistor - Backup G-9 28 Unit - A/C K-9 D
Resistor - CAN #1 C-12 4 Unit - Indicator I-1 B
Resistor - CAN #2 C-12 4
Solenoid - Quick Coupler (ATCH) I-16 70
Aux. Pedal RH (ATCH) K-1 2 Sensor-Squeeze Pressure (ATCH) A-12 40
Resistor #2 D-7 B Switch - Stem 1 High Pressure (ATCH) K-1 55
Sender - Coolant Temperature E-18 29 Switch - Stem 3 Medium Pressure (ATCH) L-1 55
Sender - Hydraulic Temperature A-16 30 Switch - Upper Window Limit (ATCH) F-2 2
Component Location
Connector Number
Schematic
Location
Machine
Location
CONN 1 I-17 26
CONN 2 I-17 26
CONN 3 L-17 7
CONN 4 B-16 57
CONN 5 C-16 57
CONN 6 C-16
58
CONN 7 C-16 58
CONN 8 K-16 26
CONN 9 I-12 59
CONN 10 J-12 60
CONN 11 K-12 60
CONN 12 K-12 60
CONN 13 L-12 60
CONN 14 A-9 61
CONN 15 A-9 61
CONN 16 B-9 62
CONN 17 I-10 63
CONN 18 I-9 60
CONN 19 I-9 60
CONN 20 F-8 10
CONN 21 G-8 14
CONN 22 H-8 64
CONN 23 C-6 65
CONN 24 ET CONN D-6 65
CONN 25 I-7 60
CONN 26 I-6 60
CONN 27 I-6 60
CONN 28 L-5 63
CONN 29 L-5 63
CONN 30 H-4 66
CONN 31 I-4 66
CONN 32 I-4 66
CONN 33 J-4 66
CONN 34 J-4 66
CONN 35 J-4 66
CONN 36 C-2 63
CONN 37 G-3 18
CONN 38 H-3 18
CONN 39 H-3 67
CONN 40 H
-3 67
CONN 41 I-2 68
CONN 42 G-12 69
Connector Location
