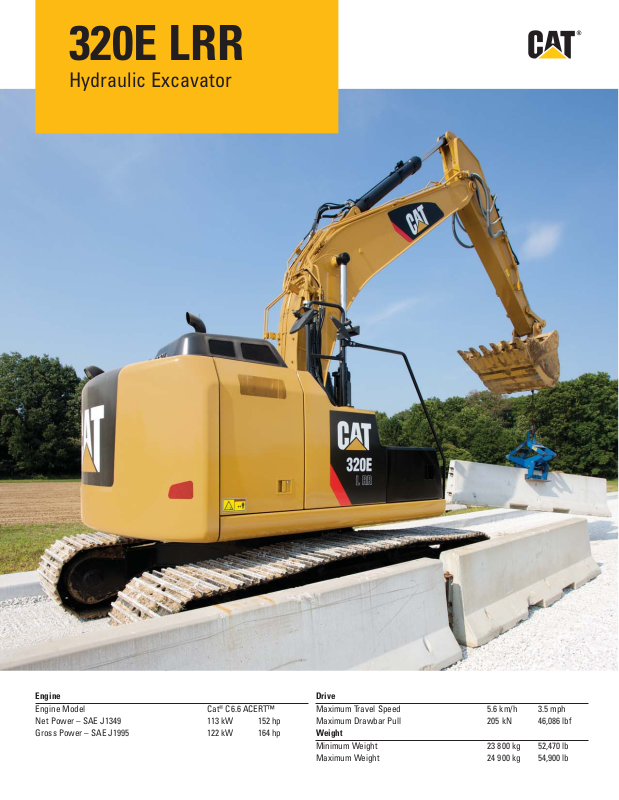

Caterpillar 320E LRR BROCHURE

320ELRR

Hydraulic Excavator

Engine Drive

Engine Model Cat Net Power – SAE J1349 113 kW 152 hp Maximum Drawbar Pull 205 kN 46,086 lbf Gross Power – SAE J1995 122 kW 164 hp Weight

®

C6.6 ACERT™ Maximum Travel Speed 5.6 km/h 3.5 mph

Minimum Weight 23 800 kg 52,470 lb Maximum Weight 24 900 kg 54,900 lb

Introduction

Since its introduction in the 1990s, the 300Series family of excavators has become the industry standard in general, quarry, and heavy construction applications. The all-new E Series and the 320ELRR will continue that trend-setting standard.

The 320ELRR meets today’s U.S. EPA Tier 4 Interim emission standards. It is also built with several new fuel-saving and comfort-enabling features and bene ts that will delight owners andoperators.

If you are looking for more productivity and comfort, less fuel consumption and emissions, andeasier and more sensible serviceability, youwill  nd it in the all-new 320ELRR and theESeries family of excavators.

Engine

Reduced emissions, economical and reliable performance

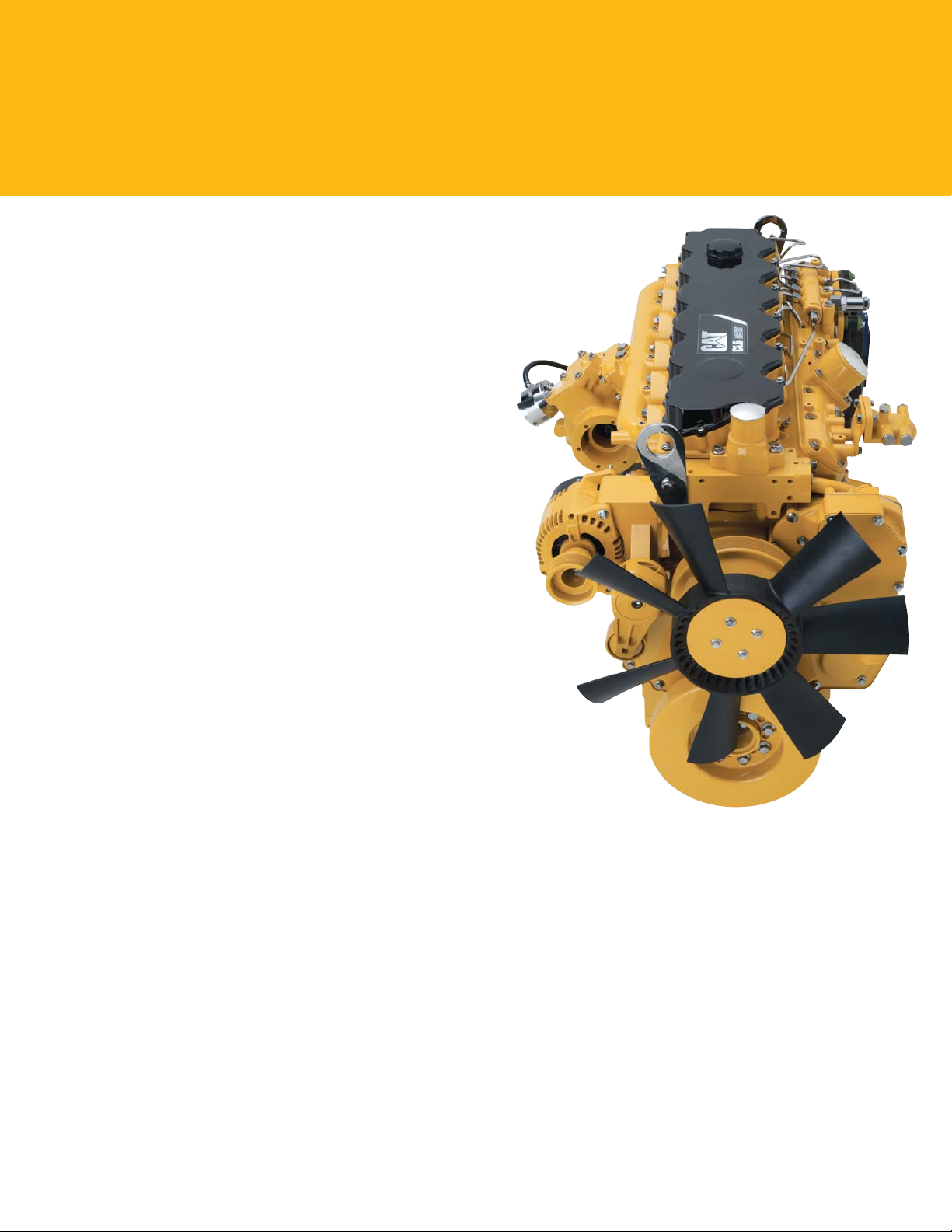

Cat® C6.6 ACERT™ Engine

The Cat C6.6 ACERT engine delivers more horsepower usingless fuel than the previous series engine.

Emissions Solution

Equipped to meet U.S. Tier 4 emission standards, the 320ELRR’s C6.6 ACERT engine features an aftertreatment regeneration solution that requires no operator intervention. Theregeneration process automatically starts once the ltering system reaches acertain level – with no interruption to machine performance or the work process.

Biodiesel-Ready Fuel System

The C6.6 ACERT engine is equipped with an electroniccontrolled high-pressure fuel system that includes an electric priming pump and three-layer fuel hoses to allow the use ofbiodiesel (meeting ASTM 6751 or EN14214) up to B20(biodiesel 20% mixture).

Cooling System

The cooling system features an air-to-air aftercooler and A/Ccondenser positioned for easy servicing; the viscous fan automatically adjusts to ambient temperatures to help reduce fuel consumption and noise.

Speed and Power Control

The 320ELRR features speed control to maintain a constantspeed – regardless of load – to improve fuel economy. Three different power modes are offered: high power, standard power, and economy power. The operator can easily change between modes through the monitor or console switch to meet the needs for the job at hand – all tohelp manage and conserve fuel.

3

Operator Station

Comfort and convenience to keep people productive

Seats

The seat range includes air suspension, heated, and air cooled options. All seats include a reclining back, upper and lower seat slide adjustments, and height and tilt angle adjustments to meet operator needs for comfort and productivity.

Controls

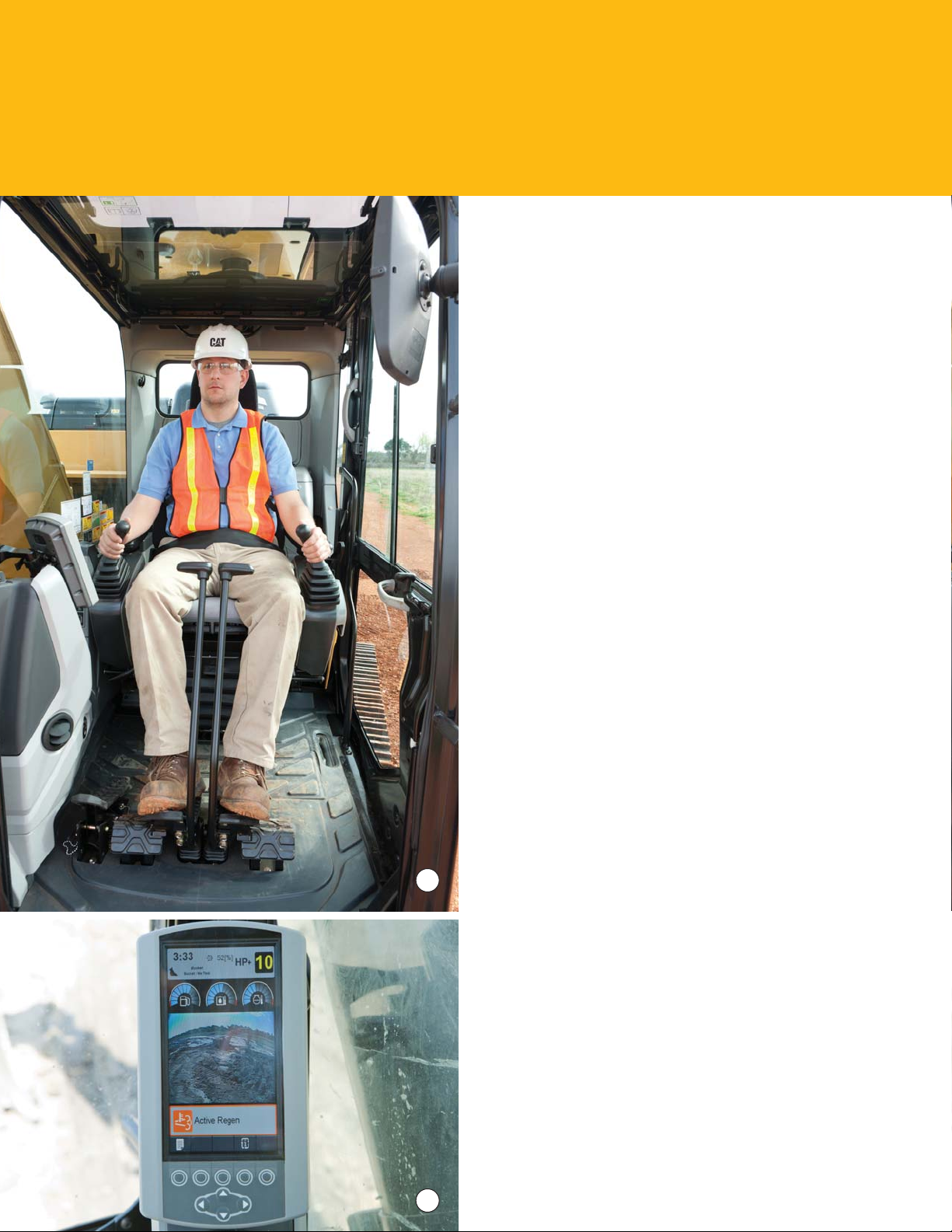

The right and left joystick consoles (1) can be adjusted to meet individual preferences, improving operator comfort and productivity during the course of a day. With the touch of a button, one-touch idle reduces engine speed to help save fuel; touch it again or move the joystick and the machine returns to normal operating level.

Monitor

The 320ELRR is equipped with a 7" LCD (Liquid Crystal Display) monitor (2) that’s 40% bigger than the previous model’s with higher resolution for better visibility. In addition to an improved keypad and added functionality, it’s programmable to provide information in a choice of 42 languages to support today’s diverse workforce.

An “Engine Shutdown Setting” accessible through the monitor allows owners and operators to specify how long the machine should idle before shutting down the engine, which can save signicant amounts of fuel.

The image of the rearview camera is displayed directly on the monitor. Up to two different camera images can be displayed on the screen.

Power Supply

Two 12-volt power supply sockets are located near key storage areas for charging electronic devices.

Storage

1

Storage spaces are located in the front, rear, and side consoles. A specic space near the auxiliary power supply holds MP3 players and cell phones. The drink holder accommodates large mugs with handles, and a shelf behind the seat stores large lunch or toolboxes.

Automatic Climate Control

The climate control system features ve air outlets with positive ltered ventilation, which makes working in the heat and cold much more pleasant.

4

2

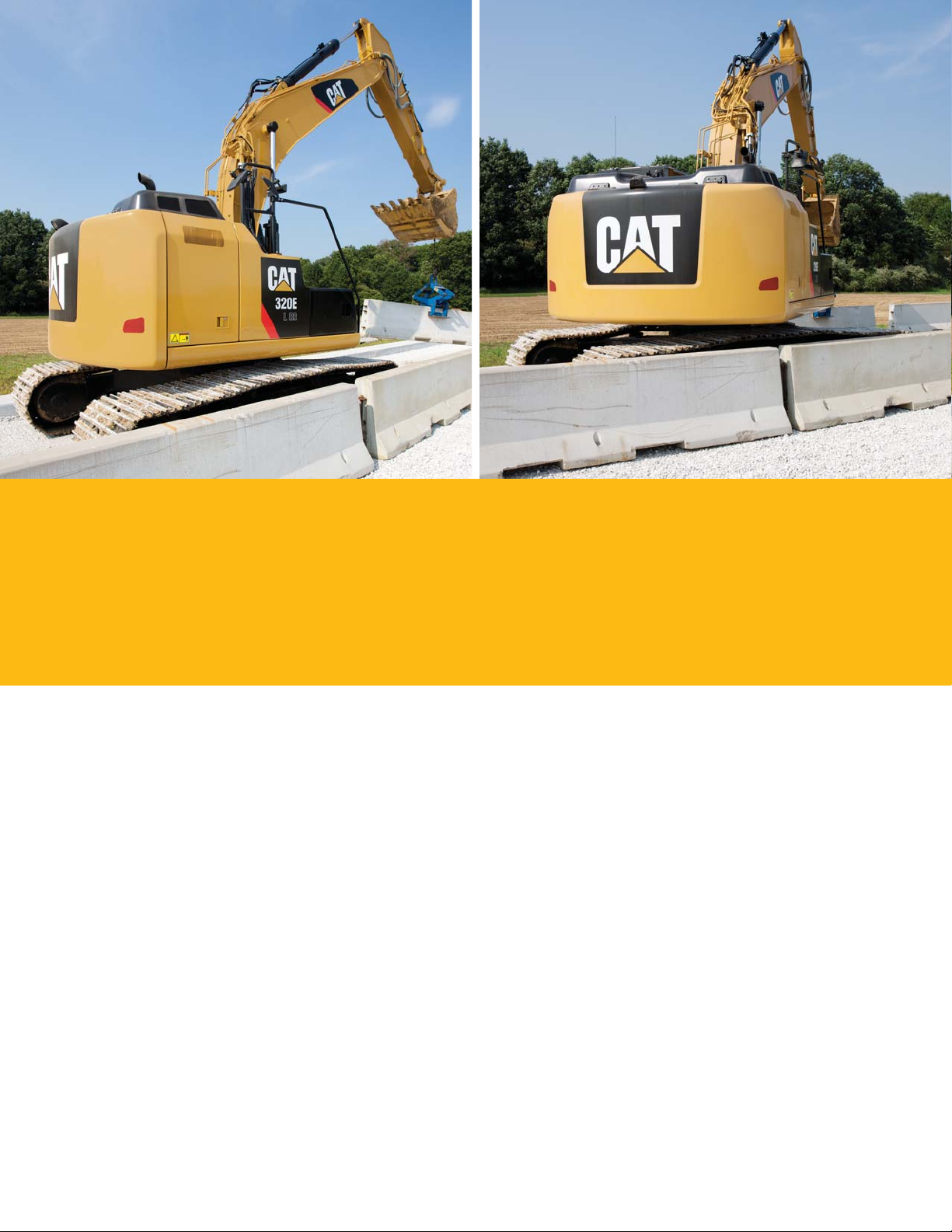

Reduced Radius

Designed for high maneuverability in conned spaces

Reduced Radius

The 320ELRR’s tail swing radius is 2080 mm (6'10") compared to 2830 mm (9'3") on the 320E. Whenrotated 90 degrees and working over the side, just 500 mm (1'6")* hangs over the side, allowing the320ELRR to work well in road construction applications and other space-restricted areas.

Stability

The 320ELRR offers a stable platform for all applications. When compared to 320EL, the 320ELRR delivers up to 16% additional lift over the side with the heavier counterweight. One of the main contributors is the use of an additional counterweight, which allows the balance of the machine to be comparable to a standard machine with a longer tail swing.

Comfort

While the length of the upper structure is reduced to accommodate the work at hand, the cab of the 320ELRR is the same size with all the amenities and attachments found inside the 320EL.

*With 790 mm (31") shoe.

5

Hydraulics

Power to move more dirt, rock, and debris with speed and precision

Hydraulic Horsepower

Hydraulic horsepower is the actual machine power available to do work through implements and work tools. It’s much more than just the engine power under the hood – it’s a core strength that differentiates Cat machines from other brands.

Hydraulic Pumps

The 320ELRR uses a two-pump, high-pressure hydraulic system to tackle the toughest work in short order. A highly efcient and simple back-to-back main control valve improves fuel consumption and allows for greater tool versatility.

Heavy Lift

The 320ELRR features a heavy lift function to give more lift capacity over the front. With a touch of a button, pressure increases and engine speed reduces to give better control in lifting those extra-tough-to-move materials like concrete pipe and road construction barriers.

Swing Priority Circuit

The swing priority circuit on the 320ELRR uses an electric valve that’s operated by the machine’s Electronic Control Module (ECM). Compared to using a hydraulic valve, an electric valve allows for more nely tuned control, which iscritical during material loading.

Electric Boom Regeneration Valve

This valve minimizes pump ow when the boom lowers down, which helps improve fuel efciency. It is optimized for any dial speed setting being used by the operator, which results in enhanced boom lowering speed for greater controllability.

6

7

Structures & Undercarriage

Built to work in rugged environments

Frame

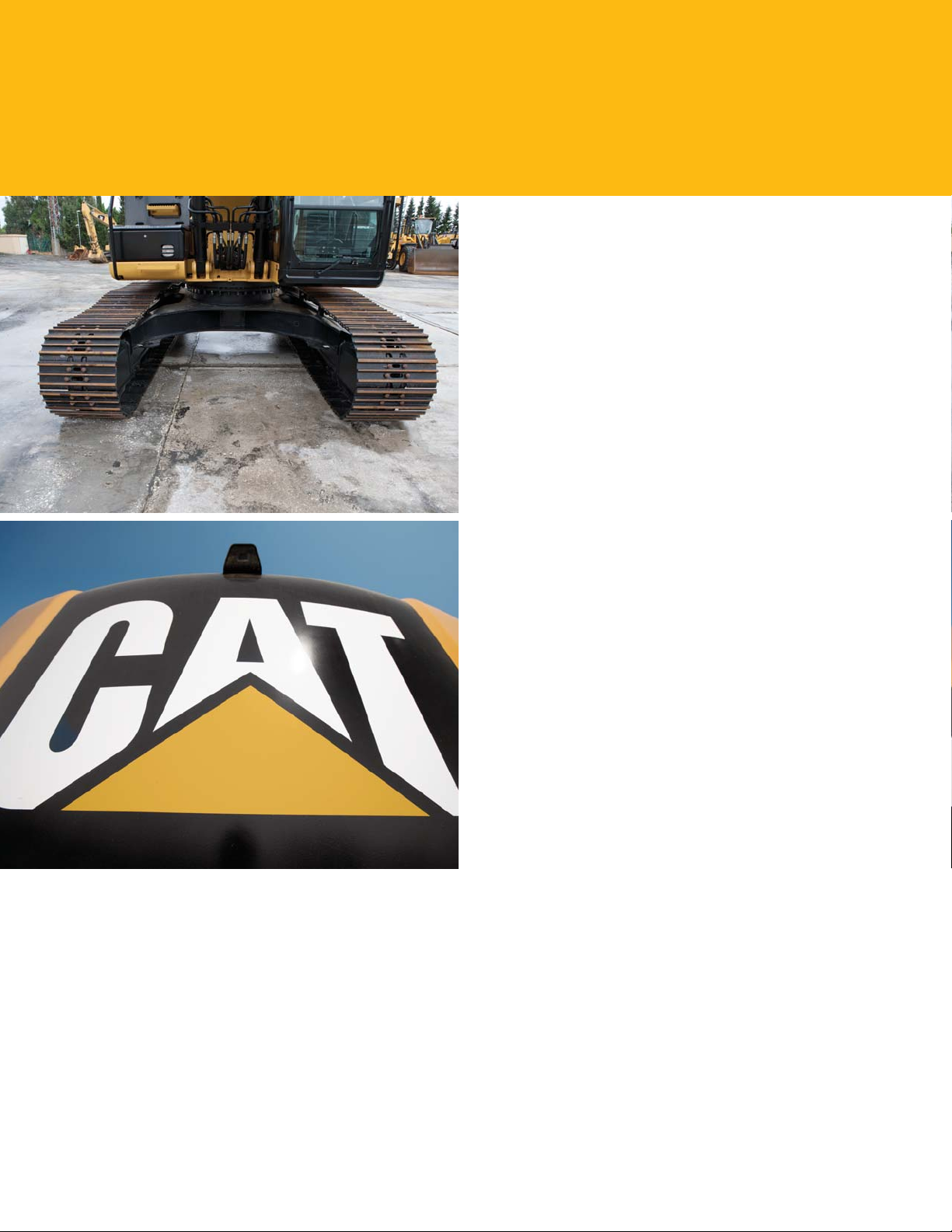

The 320ELRR features a solid foundation that’s built toabsorb the stresses of every day work. The main frame utilizes high-tensile-strength steel and a one-piece swing table to improve strength and reliability. The X-shaped carbody is designed to resist bending and twisting forces. Theupper frame includes reinforced mountings to support the RollOver Protective Structure (ROPS) cab; the lower frame isreinforced to increase component durability.

Undercarriage

The undercarriage is built to support various work applications. Precision-forged carrier rollers, press- t pin master joints, and enhanced track shoe bolts improve durability and reduce the risk of machine downtime and the need and cost to replace components. Heavy-duty rollers and idlers are sealed and lubricated to extend service lift. Track links are assembled and sealed with grease to decrease internal wear and increase life compared to dry seal undercarriage. Also, a segmented two-piece guiding guard is now offered to help maintain track alignment and improve performance in multiple applications.

Counterweights

Two counterweight options are available: 6.2 mt (6.8 ton) and 6.9 mt (7.6 ton). Integrated links enable easy removal of the counterweight for maintenance or shipping.

8

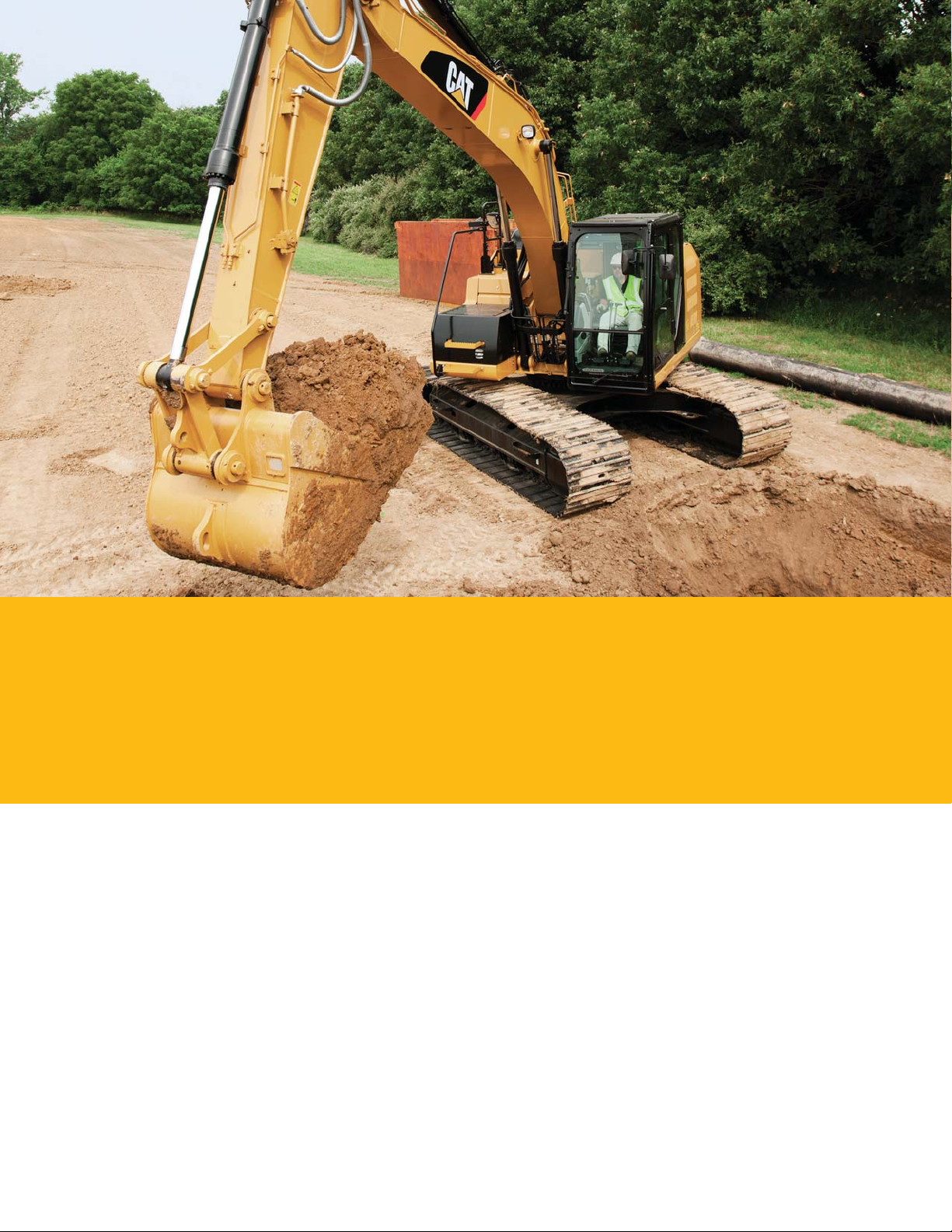

Front Linkage

Made for high stress and long service life

Booms and Sticks

The 320ELRR is offered with a range of booms and sticks (see list below). Each is built with internal baf e plates for added durability, and each undergoes ultrasound inspection to ensure weld quality and reliability.

Large box-section structures with thick, multi-plate fabrications, castings, and forgings are used in high-stress areas such as the boom nose, boom foot, boom cylinder, and stick foot to improve durability.

The boom nose retention method is a durable captured ag design. Boom durability is improved with anumber of plate thickness changes. Also, the front linkage pins’ inner bearing surfaces are welded, andaself-lubricated bearing is used to extend service intervals and increase uptime.

Selections

There are two basic boom options: HD and ES.

• HD = Heavy Duty – This type of boom is designed to balance reach, digging force, and bucket capacity.

It covers the vast majority of applications such as digging, loading, trenching, and working with hydraulic tools.

• ES = Extreme Service – This type of boom is best used for demolition or extreme applications where

stress loads on the boom are increased. It should be used for demanding, harsh applications like 100%rock and extensive hammer use.

9

Work Tools

Dig, hammer, rip, and cut with condence

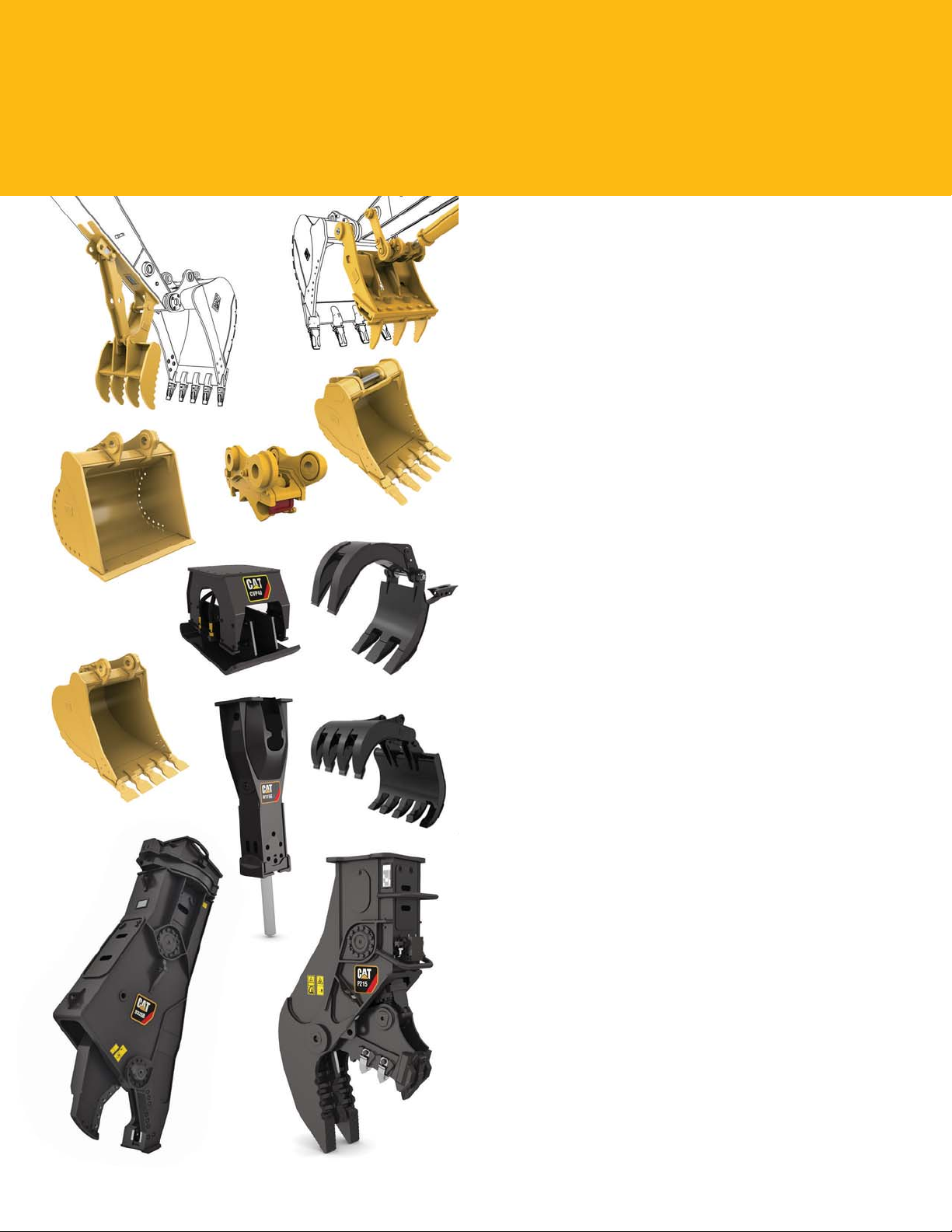

An extensive range of Cat Work Tools for the 320ELRR includes buckets, compactors, grapples, scrap and demolition shears, multi-processors, pulverizers, hammers and thumbs. Each is designed to optimize the versatility and performance of your machine.

Quick Couplers

Quick couplers allow one person to change work tools in seconds for maximum performance and exibility on a job site. One machine can move rapidly from task to task, and a eet of similarly equipped machines can share a common work tool inventory.

Cat Center-Lock™ Pin Grabber Coupler

Center-Lock is the pin grabber style coupler featuring a patented locking system. A highly visible lock clearly shows the operator when the coupler is engaged or disengaged from the bucket or work tool.

Buckets

Cat buckets are designed as an integral part of the 320ELRR system and feature new geometry for better performance. The leading edge has been pushed forward, resulting in more ef cient lling and better operator control for greatly improved productivity. Wear coverage in the corners and side cutter and sidebar protector coverage are improved. All benets are captured in a new bucket line witha new bucket naming convention.

Caterpillar offers standard bucket categories for excavators. Each category is based on intended bucket durability when used in recommended application and material. Buckets are available as pin-on or can be used with a quick coupler.

10

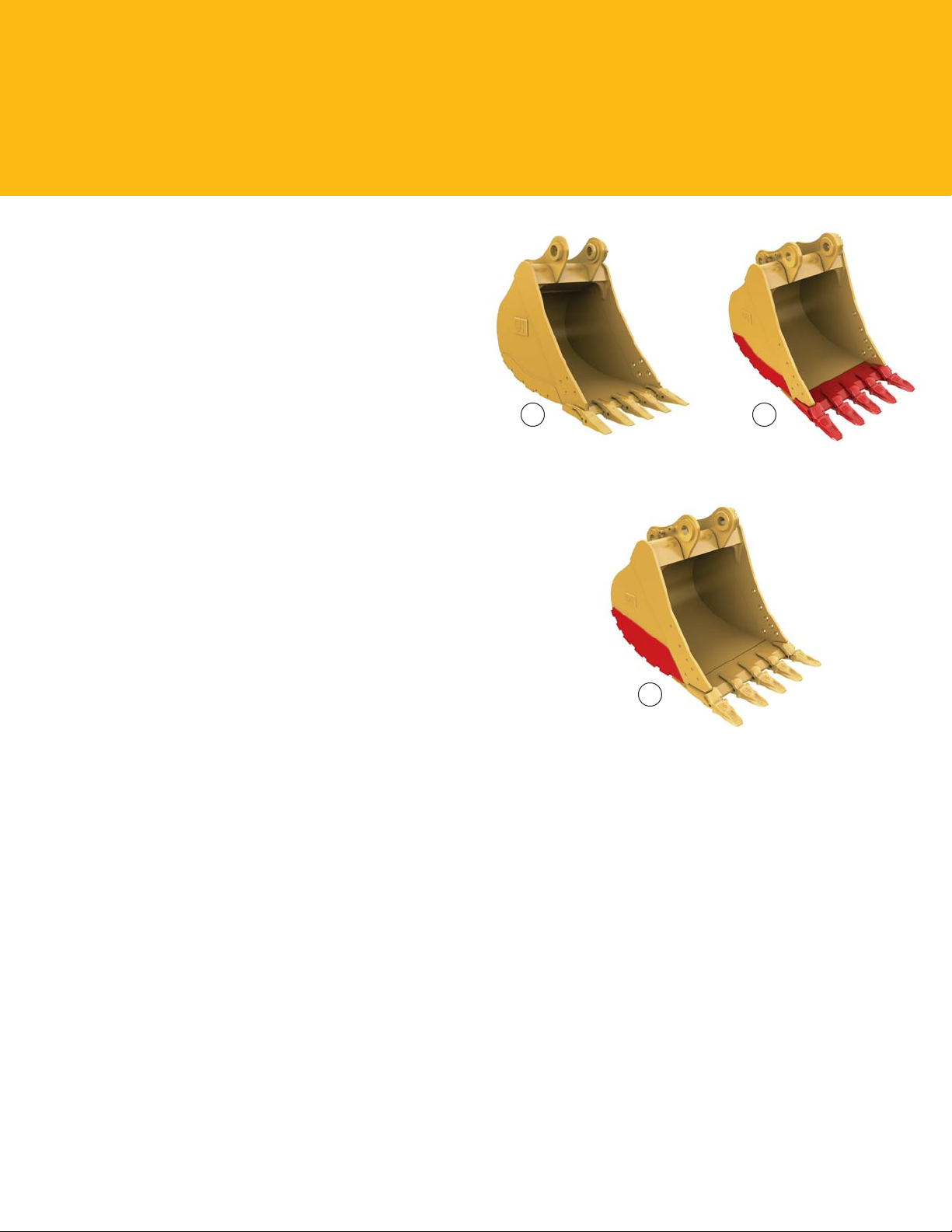

General Duty (GD)

GD buckets are for digging in low-impact, low-abrasion material such as dirt, loam, and mixed compositions of dirt and  ne gravel.

Heavy Duty (HD)

The most popular bucket style, HD buckets are a good starting point when digging conditions are not well known like a wide range of impact and abrasion conditions including mixed dirt, clay, and rock.

Severe Duty (SD)

SD buckets are for higher abrasion conditions such as wellshot granite and caliche. Red area on bucket image illustrates additional protection against wear as compared toa GD bucket.

Specialty Buckets

In addition to the standard four bucket categories, specialty bucket styles are available for the 320ELRR, each with a different purpose:

• Ditch Cleaning buckets for cleaning ditches, slope

grading, and other  nish work.

• Center-Lock Pin Grabber Performance buckets for

maximum digging performance while keeping the versatility and convenience of a coupler.

• Wide Tip buckets for low impact material where leaving

asmoother oor and minimal spillage are necessary.

Hydraulic Kits

Caterpillar offers eld-installed hydraulic kits that are uniquely designed to integrate Cat Work Tool attachments with Cat excavators. Hoses and tubes are pre-made, pre-shaped, and pre-painted to make installation quick and easy.

1

3

1) General Duty 2) Heavy Duty 3) Severe Duty

2

Comprehensive Product Support

All Cat Work Tools are backed up by a world-wide network of well-stocked parts depots and highly experienced service and support personnel.

11

Integrated Technologies

1

Solutions that make work easier and more efcient

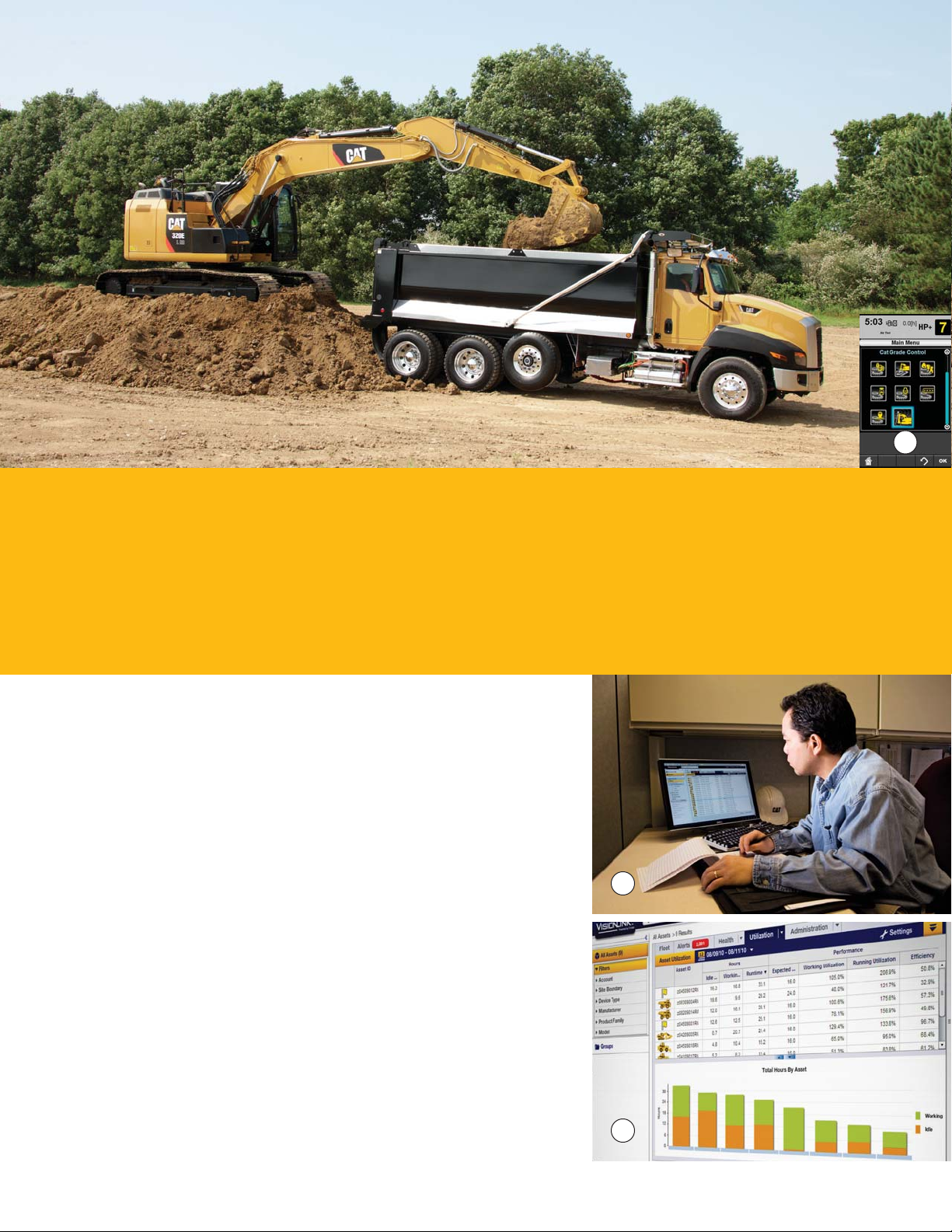

Cat® Grade Control Depth and Slope

This optional system combines traditional machine control and guidance with standard factory-installed and calibrated components, making the system ready to go to work the moment it leaves the factory. The system utilizes internal front linkage sensors – well protected from the harsh working environment – to give operators real-time bucket tip position information through the cab monitor (1), which minimizes the need and cost for traditional grade checking and improves job site safety. It also helps the operator complete jobs in fewer cycles, which means less fuel use. Cat dealers can upgrade the system to full three-dimensional control by adding proven Cat AccuGrade™ positioning technologies, including GPS and Universal Total Station (UTS).

Cat Product Link

This optional system is deeply integrated into the machine monitoring system and is designed to help customers improve their overall  eet management effectiveness. Events and diagnostic codes as well as hours, fuelconsumption, idle time, machine location, and other detailed information are transmitted to a secure web based application (2 and 3) called VisionLink™, which uses powerful tools to communicate to users and dealers.

2

12

3

Serviceability

Fast, easy and safe access built in

Service Doors

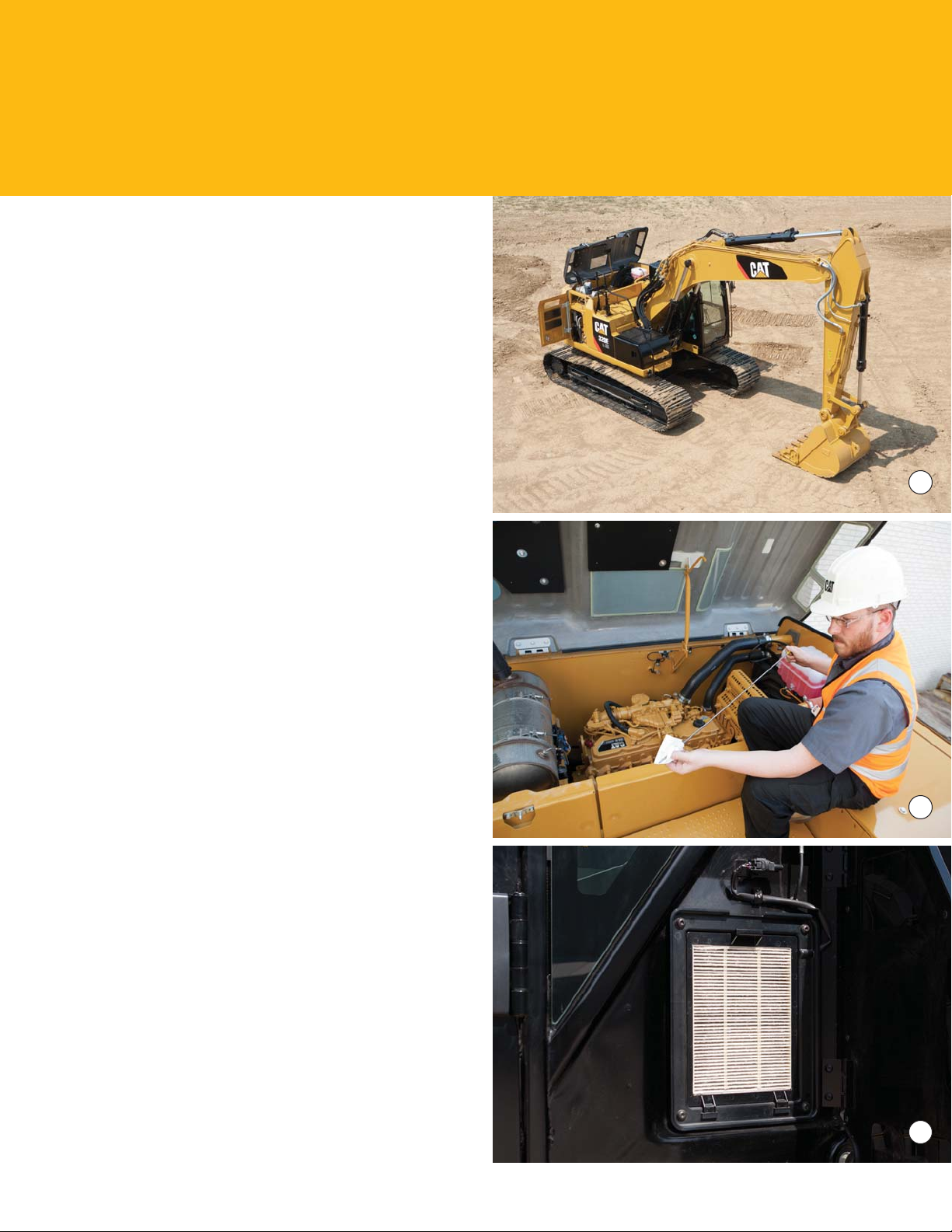

Wide service doors (1) and a one-piece hood (2) provide easy access to the cooling and engine compartments. Both doors and hood feature enhanced hardware and a new screen design tohelp minimize debris entry.

Compartments

The compartments are designed to provide technicians with quick access to major components and regular service items like lters. The fresh air lter (3), for example, is located onthe side of the cab to make it easy to reach and replace asneeded.

Other Service Enhancements

The water separator with water level sensor has a primary fuel lter element located in the pump compartment near ground level.

The fuel tank features a remote drain cock located in the pump compartment to make it easy to remove water and sediment during maintenance.

The engine oil check gauge is situated in front of the engine compartment for easy access, and a uniquely designed drain cock helps prevent spills.

Hydraulic lash adjusters automatically adjust valve opening and closing events to help reduce fuel consumption and engine noise. They also eliminate the need for a valve lash, which reduces maintenance for the customer.

1

13

2

3

Safety

Features to help protect people

ROPS Cab

The ROPS-certied cab allows a Falling Object Guard Structure (FOGS) to be bolted directly to it.

Sound Proong

Improved sealing and cab roof lining lower noise levels by 5dB inside the cab – a signi cant benet to operators.

Anti-Skid Plates

The surface of the upper structure and the top of the storage box area are covered with anti-skid plates to help prevent service personnel and operators from slipping duringmaintenance.

Steps, Hand and Guard Rails

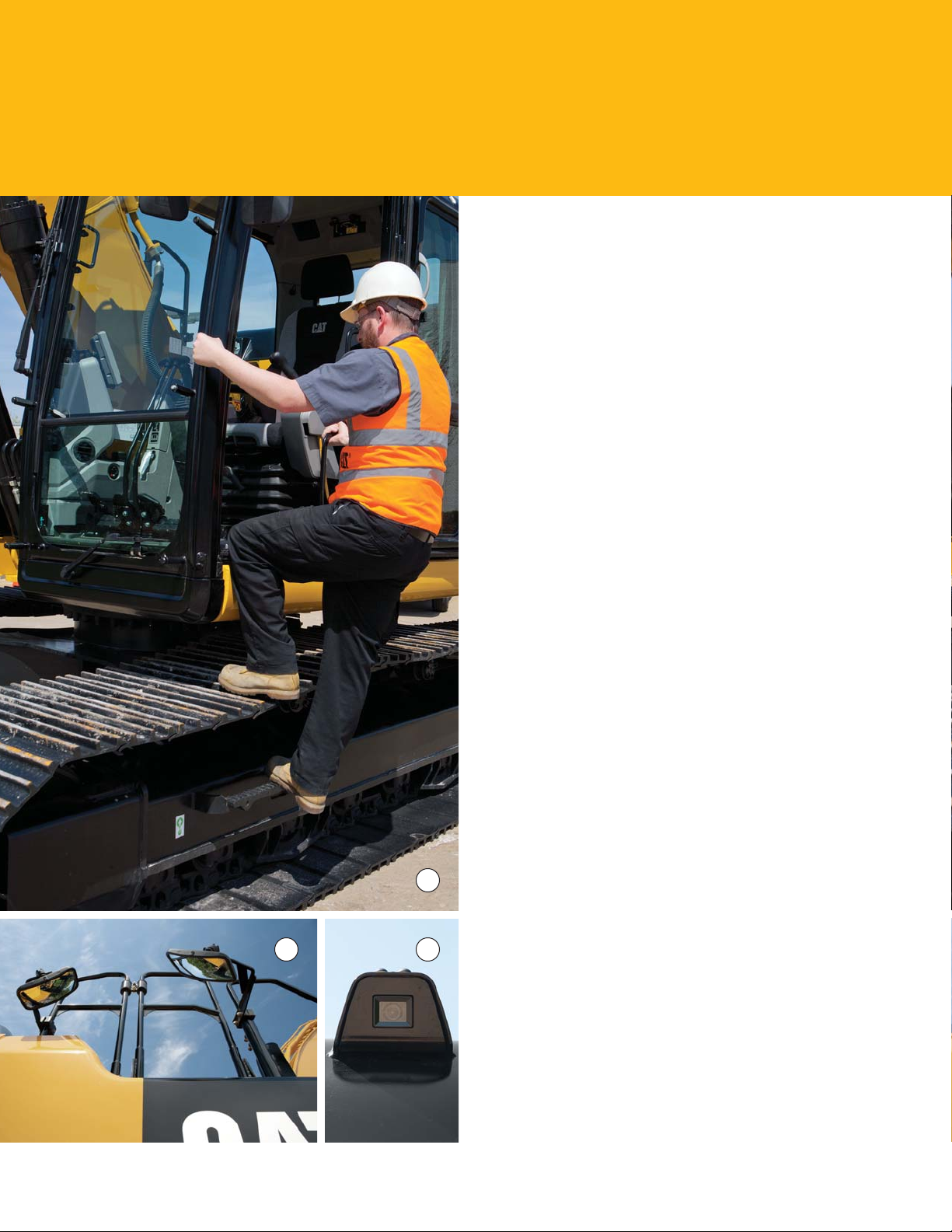

Steps (1) on the track frame and storage box along with extended hand and guard rails (2) to the upper deck enable operators to securely work on the machine.

Time Delay Cab and Boom Lights

After the engine start key has been turned to the “OFF” position, lights will be illuminated to enhance visibility. Thetime delay can vary from 0 to 90 seconds, which can beset through the monitor.

High Intensity Discharge (HID) Lights

Cab lights can be upgraded to HID for greater visibility.

Windows

Two windshield options are available: The 70/30 split conguration features an upper window equipped with handles on the top and both sides so the operator can slide it to store in the ceiling. The lower window is removable and can be stored on the left wall of the cab shell.

The large skylight provides great overhead visibility, excellent

1

natural lighting, and good ventilation. The skylight can be opened completely to become an emergency exit.

14

2 3

Monitor Warning System

The machine’s advanced diagnostic system features a buzzer in the monitor to communicate to operators critical events like full lters or low hydraulic uid levels so they can take immediate action.

Rearview Camera

The standard rearview camera (3) is housed in the counterweight. The image projects through the cab monitor to give the operator a clear view of what is behind the machine.

Complete Customer Care

Service you can count on

Product Support

Cat dealers utilize a worldwide parts network to maximize your machines’ uptime. Plus they can help you save money with Cat remanufactured components.

Machine Selection

What are the job requirements and machine attachments? What production is needed? Your Cat dealer can provide recommendations to help you make the right machine choices.

Purchase

Consider nancing options and day-to-day operating costs. Look at dealer services that can be included in the machine’s cost to yield lower owning and operating costs over time.

Customer Support Agreements

Cat dealers offer a variety of customer support agreements and work with you to develop a plan to meet your specic needs. These plans can cover the entire machine, including attachments, to help protect your investment.

Operation

Improving operating techniques can boost your prots. Your Cat dealer has videos, literature, and other ideas to help you increase productivity. Caterpillar also offers simulators and certied operator training to help maximize the return on your investment.

Replacement

Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the best choice for your business.

15

Sustainability

Generations ahead in every way

• The C6.6 ACERT engine, along with the Cat Clean Emissions Module (CEM), meets U.S. Tier 4 Interim emission standards.

• The 320ELRR has the exibility of running on either ultra-low-sulfur diesel (ULSD) fuel with 15ppm of sulfur or less or biodiesel (B20) fuel blended with ULSD that meets ASTM 6751 orEN14214 standards.

• Even when operating in high horsepower and high production applications, the 320ELRR performs a similar amount of work as the previous D Series model with signi cantly reduced fuelconsumption.

• The 320ELRR is quieter inside and out, which benets operators and the surrounding environment.

• A ground-level overll indicator rises when the tank is full to help the operator avoid spilling.

• The QuickEvac™ option ensures fast, easy, and secure changing of engine and hydraulic oil.

• The 320ELRR is built to be rebuilt with major structures and components capable of being remanufactured to reduce waste and replacement costs.

• An eco-friendly engine oil lter eliminates the need for painted metal cans and aluminum top plates. The cartridge-style spin-on housing enables the internal lter to be separated and replaced; the used internal element can be incinerated to help reduce waste.

• The 320ELRR is an efcient, productive machine that’s designed to conserve our natural resources for generations ahead.

16

Engine Drive Track

320ELRR Hydraulic Excavator Specications

Engine Model Cat® C6.6 ACERT™

Net Power – 113 kW 152 hp SAEJ1349

Gross Power – 122 kW 164 hp SAEJ1995

Bore 105 mm 4.1 in

Stroke 127 mm 5.0 in

Displacement 6.6 L 403 in

3

Hydraulic System

Main System – Maximum Flow (Total)

Swing System – Maximum Flow

Maximum Pressure –Equipment

Maximum Pressure – Travel

Maximum Pressure – Swing

Pilot System – Maximum Flow

Pilot System – Maximum Pressure

Boom Cylinder – Bore

Boom Cylinder – Stroke

Stick Cylinder – Bore

Stick Cylinder – Stroke

B1 Bucket Cylinder – Bore

B1 Bucket Cylinder – Stroke

428 L/min 113.1 gal

214 L/min 56.5 gal

35 000kPa/ 38 000 kPa

35 000 kPa 5,076 psi

25 000 kPa 3,626 psi

24.3 L/min 1,483 in

3920 kPa 569 psi

120 mm 4.7 in

1260 mm 49.6 in

140 mm 5.5 in

1504 mm 59.2 in

120 mm 4.7 in

1104 mm 43.5 in

5,076/ 5,512 psi

min

3

Maximum 5.6 km/h 3.5 mph TravelSpeed

Maximum 205 kN 46,086 lbf DrawbarPull

Swing Mechanism

Swing Speed 11.2 rpm

Swing Torque 61.8 kN·m 45,581 lb-ft

Service Re ll Capacities

Fuel Tank Capacity 290 L 76.6 gal

Cooling System 30 L 7.9 gal

Engine Oil 23 L 6.1 gal (with lter)

Swing Drive (each) 8 L 2.1 gal

Final Drive (each) 8 L 2.1 gal

Hydraulic System 205 L 54.2 gal (including tank)

Hydraulic Tank 115 L 30.4 gal

/

Number of Shoes (each side)

Long Undercarriage 49 pieces

Number of Track Rollers (eachside)

Long Undercarriage 8 pieces

Number of Carrier Rollers (eachside)

Long Undercarriage 2 pieces

Sound Performance

Operator – ISO 6396 71 dB

Spectator – ISO 6395 103 dB

• When properly installed and maintained, the cab offered by Caterpillar, when tested with doors and windows closed according to ANSI/SAE J1166 OCT98, meets OSHA and MSHA requirements for operator sound exposure limits in effect at time of manufacture.

• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environment.

Standards

Brakes ISO 10265 2008

ROPS Cab ISO 12117-2

Cab/OPG ISO 10262 1998

17

320ELRR Hydraulic Excavator Specications

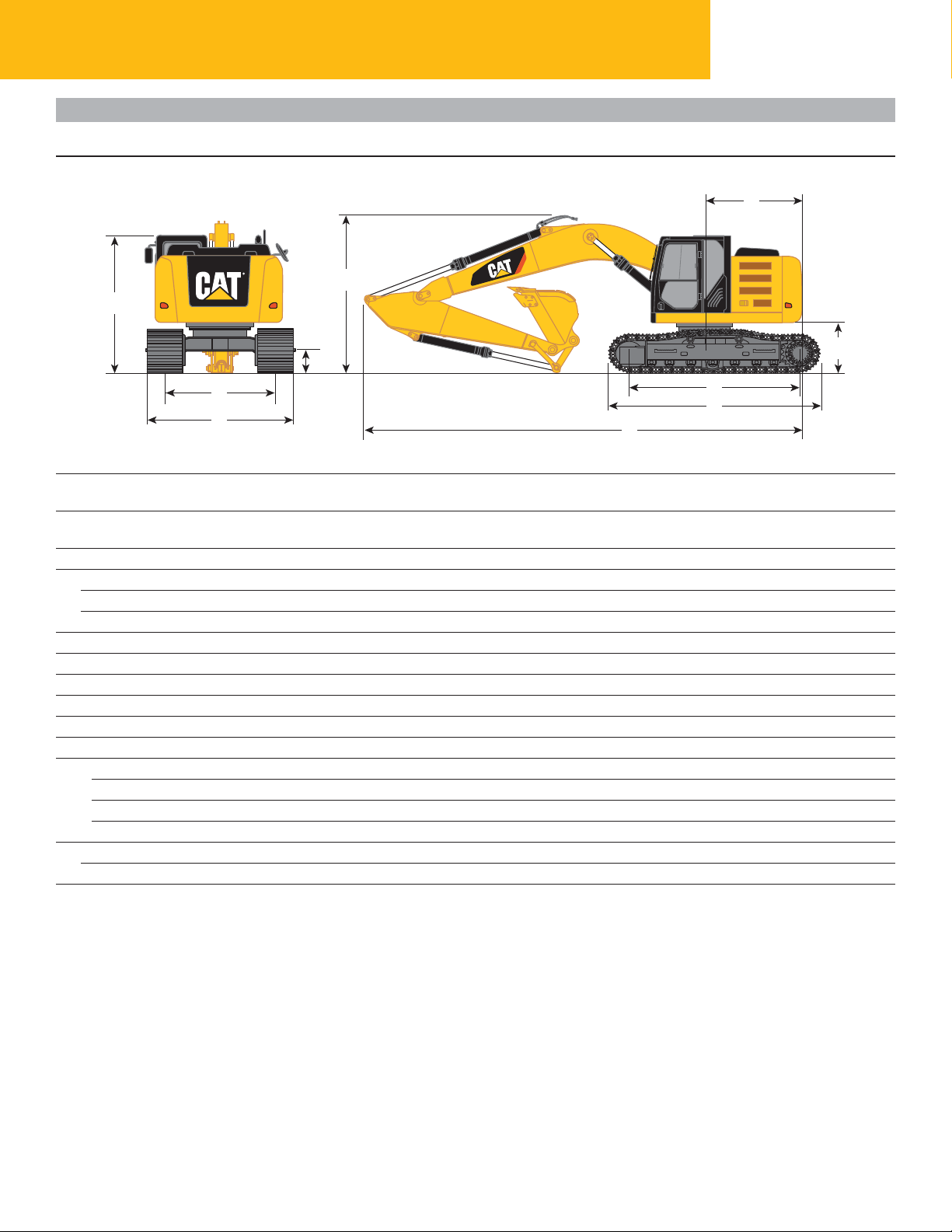

Dimensions

All dimensions are approximate.

1

9

3

7

8

Stick

Shipping Height*

1

Shipping Height with Guard Rail

Shipping Height with Top Guard

Shipping Length

2

Tail Swing Radius

3

Length to Center of Rollers

4

Track Length

5

Ground Clearance

6

Track Gauge

7

Transport Width

8

600 mm (24") Shoes

700 mm (28") Shoes

790 mm (31") Shoes

Cab Height

9

Cab Height with Top Guard

Counterweight Clearance**

10

6

10

4 5

2

Reach Boom

5.7 m (18'8") R2.9B1

(9'6")

mm (ft)

3130 (10'4")

3150 (10'4")

8970 (29'4")

2080 (6'8")

3650 (12'0")

4460 (14'7")

450 (1'6")

2380 (7'10")

2980 (9'9")

3080 (10'1")

3170 (10'5")

2960 (9'9")

3150 (10'4")

1000 (3'3")

*Including shoe lug height without guard rail.

**Without shoe lug height.

18

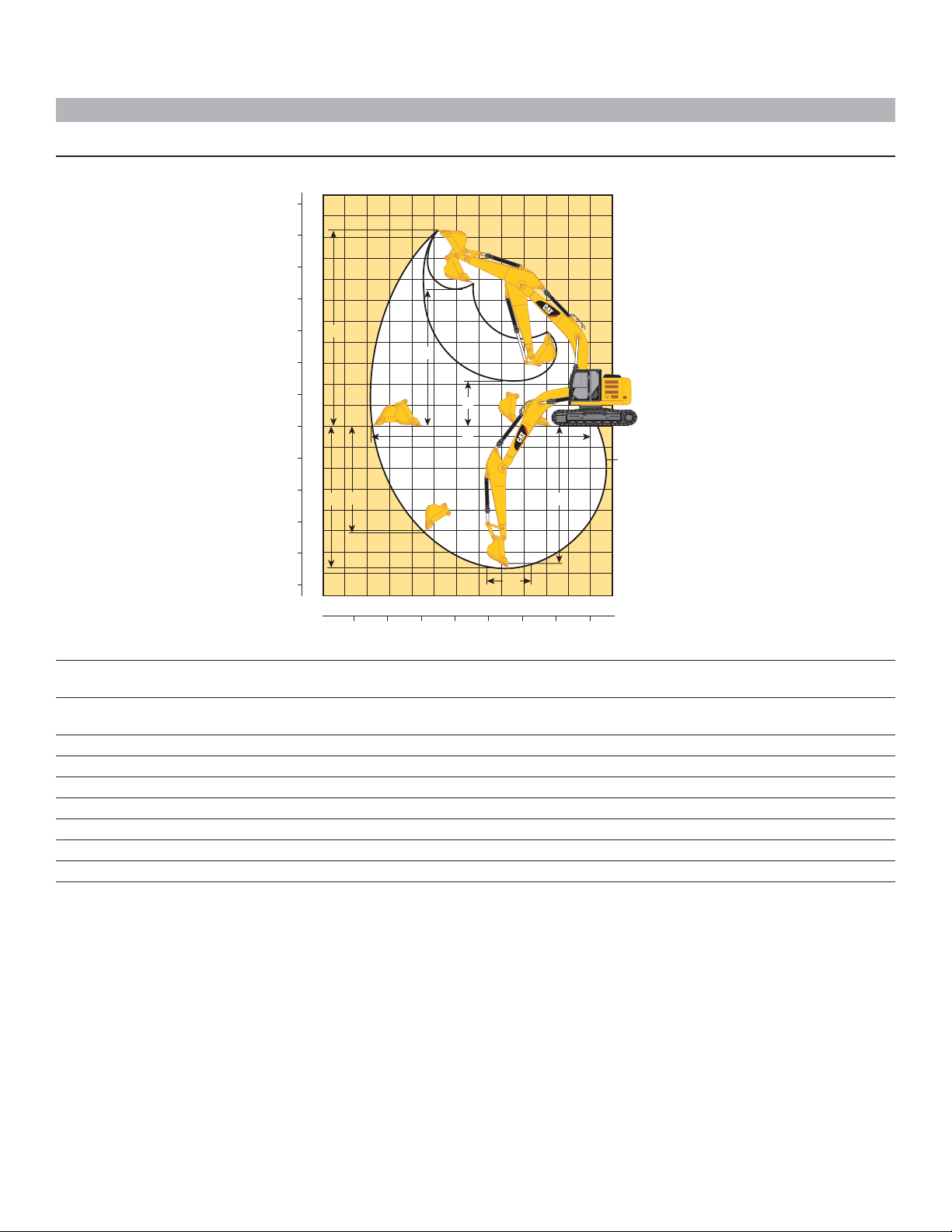

Working Ranges

All dimensions are approximate.

Feet

35

30

25

20

15

10

5

0

5

10

15

20

25

Meters

11

10

9

8

7

6

5

3

4

3

2

1

0

1

2

3

7

1

4

5

6

7

8

11 10 9 8 7 6 5 34

35 30 25 20 15 10 5 0 Feet

4

5

2

8 ft

2 1 0 1

R2.9B1 (9'6")

6

Meters

Stick

Maximum Digging Depth

1

Maximum Reach at Ground Level

2

Maximum Cutting Height

3

Maximum Loading Height

4

Minimum Loading Height

5

Maximum Depth Cut for 2440 mm (8'0") Level Bottom

6

Maximum Vertical Wall Digging Depth

7

Reach Boom

5.7 m (18'8") R2.9B1

(9'6")

mm (ft)

6720 (22'1")

9860 (30'9")

9370 (20'11")

6490 (21'4")

2170 (7'1")

6550 (21'6")

5060 (16'7")

19

320ELRR Hydraulic Excavator Specications

Operating Weight and Ground Pressure

790 mm (31") 700 mm (28") 600 mm (24")

Triple Grouser Shoes Triple Grouser Shoes Triple Grouser Shoes

kg (lb) kPa (psi) kg (lb) kPa (psi) kg (lb) kPa (psi)

Reach Boom – 5.7 m (18'8")

R2.9B1 (9'6") 24 400 (53,790) 38.6 (5.60) 24 100 (53,130) 43.2 (6.27) 23 700 (52,250) 49.5 (7.18)

R2.9B1 (9'6") ES 24 500 (54,010) 39.0 (5.66) 24 200 (53,350) 43.7 (6.34) 23 800 (52,470) 50.1 (7.27)

Reach Boom ES – 5.7 m (18'8")

R2.9B1 (9'6") 24 700 (54,450) 39.1 (5.67) 24 400 (53,790) 43.7 (6.34) 24 000 (52,910) 50.2 (7.28)

R2.9B1 (9'6") ES 24 900 (54,900) 39.3 (5.70) 24 600 (54,230) 43.9 (6.37) 24 200 (53,350) 50.4 (7.31)

Major Component Weights

kg lb

Base Machine (with boom cylinder, without counterweight, front linkage and track) 6500 14,330

Long Undercarriage 7850 17,300

Counterweight

6.2 mt (6.8 ton) 6200 13,670

6.9 mt (7.6 ton) 6900 15,210

Boom (includes lines, pins and stick cylinder)

Reach Boom HD – 5.7 m (18'8") 1720 3,790

Reach Boom ES – 5.7 m (18'8") 2010 4,430

Reach Boom HD for CGC – 5.7 m (18'8") 1730 3,810

Reach Boom ES for CGC – 5.7 m (18'8") 2020 4,450

Stick (includes lines, pins and bucket cylinder)

R2.9B1 (9'6") HD 680 1,510

R2.9B1 (9'6") ES 840 1,850

R2.9B1 (9'6") HD for CGC 690 1,530

R2.9B1 (9'6") ES for CGC 850 1,880

Track Shoe (Long/per two tracks)

600 mm (24") Triple Grouser 2700 5,940

700 mm (28") Triple Grouser 3070 6,780

790 mm (31") Triple Grouser 3360 7,410

790 mm (31") Triple Grouser HD 3800 8,370

Quick Coupler

Center-Lock 252 (UQC) 420 920

Buckets

3

B1 1200 mm (47") GD 347-6731 SAE 1.19 m

All weights are rounded up to nearest 10 kg and lb except for quick coupler and buckets. Kg and lb were rounded up separately so some of the kg and lb do not match.

Base machine includes 75 kg (165 lb) operator weight, 90% fuel weight, and undercarriage with center guard.

(1.56 yd3) 930 2,050

20

Bucket and Stick Forces

Reach Boom

5.7 m (18'8")

Stick R2.9B1 (9'6")

B1 – Family Bucket forCW-40 forCW-40S

kN (lbf) kN (lbf) kN (lbf)

General Duty

Bucket Digging Force (ISO) 140.5 (31,600) 127.7 (28,700) 127.7 (28,700)

Stick Digging Force (ISO) 106.7 (24,000) 103.2 (23,200) 103.2 (23,200)

Bucket Digging Force (SAE) 125.9 (28,300) 116.1 (26,100) 116.1 (26,100)

Stick Digging Force (SAE) 103.9 (23,400) 100.6 (22,600) 100.6 (22,600)

Heavy Duty

Bucket Digging Force (ISO) 150.4 (33,800) 127.4 (28,600) 127.4 (28,600)

Stick Digging Force (ISO) 106.4 (23,900) 103.1 (23,200) 103.1 (23,200)

Bucket Digging Force (SAE) 133.5 (30,000) 114.9 (25,800) 114.9 (25,800)

Stick Digging Force (SAE) 103.2 (23,200) 100.3 (22,500) 100.3 (22,500)

Severe Duty

Bucket Digging Force (ISO) 150.4 (33,800) — —

Stick Digging Force (ISO) 106.4 (23,900) — —

Bucket Digging Force (SAE) 133.5 (30,000) — —

Stick Digging Force (SAE) 103.2 (23,200) — —

B1 – Family Bucket B1 – Family Bucket

21

320ELRR Hydraulic Excavator Specications

HD Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.7 m (18'8") Counterweight – 6.2 mt (6.8 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

kg

Line

lb

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

*6650 *6650 *10 750 *10 750 *10 650 7400 *7900 4950 5900 3700 *5000 3550 7.78

*14,850 *14,850 *24,400 *24,400 *23,100 15,850 *17,050 10,650 12,650 7,950 *11,050 7,800 25.48

*11 400 *11 400 *14 150 *14 150 *9950 7450 *7400 5000 *6050 4150 6.94

*25,600 *25,600 *30,600 *30,600 *21,550 16,000 *15,950 10,750 *13,350 9,150 22.67

*6250 *6250 *10 550 7450 *7700 5050 5900 3750 *4250 3300 8.26

*14,300 *14,300 *22,850 16,050 *16,700 10,800 12,700 8,000 *9,400 7,200 27.09

*11 250 *11 250 *8100 7650 *6100 5650 5.60

*24,100 *24,100 *17,250 16,450 *13,450 12,750 18.08

*7950 *7950 *6250 5400 *5450 3950 *3650 3350 8.35

*17,150 *17,150 *13,550 11,650 *11,900 8,450 *8,000 7,350 27.38

*9650 7750 *7100 5200 *5850 3800 *3850 3200 8.44

*20,800 16,650 *15,400 11,200 *12,750 8,200 *8,500 7,100 27.70

*4550 *4550 *3900 *3900 6.15

*4950 *4950 *3650 *3650 7.28

*10,900 *10,900 *8,000 *8,000 23.71

*5450 *5450 *5150 4000 *3550 *3550 7.98

*11,850 *11,850 *11,250 8,600 *7,850 *7,850 26.10

*8,700 *8,700 19.78

m ft

Boom – 5.7 m (18'8") Counterweight – 6.2 mt (6.8 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser Lift Mode

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

kg

Line

lb

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

*7050 *7050 *11 400 *11 400 *11 750 7400 8100 4950 5900 3700 *5500 3550 7.78

*15,750 *15,750 *25,850 *25,850 *25,450 15,850 17,400 10,650 12,650 7,950 *12,100 7,800 25.48

*12 100 *12 100 *15 600 14 300 *11 000 7450 8100 5000 6600 4150 6.94

*27,100 *27,100 *33,750 30,650 *23,800 16,000 17,450 10,750 14,650 9,150 22.67

*6600 *6600 *11 650 7450 8150 5050 5900 3750 *4650 3300 8.26

*15,150 *15,150 *25,200 16,050 17,550 10,800 12,700 8,000 *10,250 7,200 27.09

*12 450 *12 450 *8950 7650 *6800 5650 5.60

*26,650 *26,650 *19,100 16,450 *14,900 12,750 18.08

*8750 8200 *6900 5400 *6050 3950 *4000 3350 8.35

*18,850 17,700 *14,950 11,650 *13,150 8,450 *8,750 7,350 27.38

*10 600 7750 *7850 5200 6000 3800 *4200 3200 8.44

*22,900 16,650 *16,950 11,200 12,900 8,200 *9,250 7,100 27.70

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

6.0 m/20.0 ft

m ft

*4950 *4950 *4300 *4300 6.15

*5450 *5450 *3950 *3950 7.28

*12,000 *12,000 *8,750 *8,750 23.71

*6000 5650 *5650 4000 *3900 3650 7.98

*13,050 12,150 *12,400 8,600 *8,550 8,050 26.10

*9,500 *9,500 19.78

22

HD Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.7 m (18'8") Counterweight – 6.2 mt (6.8 t) Bucket – None Stick – R2.5B1 (8'2") Shoes – 790 mm (31") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

kg

lb

*11 350 *11 350 *10 550 7400 *7850 4950 6100 3800 7.35

*25,750 *25,750 *22,850 15,900 *16,950 10,700 13,400 8,400 24.08

*13 250 *13 250 *9600 7500 *7100 5050 *6350 4600 6.46

*28,650 *28,650 *20,750 16,100 *15,150 10,850 *13,950 10,150 21.08

*6750 *6750 *5800 5600 *4800 3950 *4250 3900 7.57

*14,550 *14,550 *12,600 12,000 *9,350 8,650 24.74

*8500 8100 *6550 5350 *5700 3900 *4350 3550 7.96

*18,250 17,450 *14,200 11,550 *12,400 8,350 *9,550 7,850 26.08

*10 000 7650 *7350 5150 6000 3800 *4650 3450 8.05

*21,600 16,450 *15,850 11,100 12,900 8,150 *10,200 7,550 26.41

*10 700 7450 *7800 5000 5900 3750 *5200 3500 7.86

*23,150 16,000 *16,950 10,800 12,750 8,000 *11,400 7,700 25.77

*7150 *7150 *6200 *6200 4.98

*15,000 *15,000 *13,600 *13,600 16.03

Boom – 5.7 m (18'8") Counterweight – 6.2 mt (6.8 t) Bucket – None Stick – R2.5B1 (8'2") Shoes – 790 mm (31") triple grouser Lift Mode

*5350 *5350 *4350 *4350 6.83

*11,800 *11,800 *9,550 *9,550 22.19

*4750 *4750 5.59

*10,500 *10,500 17.92

m ft

6.0 m/20.0 ft

*5900 5700 *4750 4650 6.83

*12,950 12,300 *10,450 10,350 22.19

*5150 *5150 5.59

*11,450 *11,450 17.92

m ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 7.5 m/25.0 ft

*7400 *7400 *6400 5600 *5200 3950 *4650 3900 7.57

*16,000 *16,000 *13,900 12,000 *10,200 8,650 24.74

*9350 8100 *7250 5350 6100 3900 *4750 3550 7.96

*20,100 17,450 *15,650 11,550 13,100 8,350 *10,450 7,850 26.08

*11 050 7650 *8100 5150 6000 3800 *5050 3450 8.05

kg

lb

*12 000 *12 000 *11 650 7400 8100 4950 6100 3800 7.35

*27,250 *27,250 *25,200 15,900 17,400 10,700 13,400 8,400 24.08

*14 600 14 400 *10 600 7500 *7850 5050 *7000 4600 6.46

*31,650 30,900 *22,900 16,100 *16,750 10,850 *15,450 10,150 21.08

*23,800 16,450 *17,500 11,100 12,900 8,150 *11,100 7,550 26.41

*11 800 7450 8150 5000 5900 3750 5550 3500 7.86

*25,500 16,000 17,550 10,800 12,750 8,000 12,200 7,700 25.77

*7950 7750 *6900 6750 4.98

*16,650 *16,650 *15,050 *15,050 16.03

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

23

320ELRR Hydraulic Excavator Specications

HD Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

kg

Line

lb

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

*6650 *6650 *10 750 *10 750 *10 650 7850 *7900 5300 *6150 3950 *5000 3800 7.78

*14,850 *14,850 *24,400 *24,400 *23,100 16,950 *17,050 11,400 *13,200 8,500 *11,050 8,300 25.48

*11 400 *11 400 *14 150 *14 150 *9950 7900 *7400 5300 *6050 4400 6.94

*25,600 *25,600 *30,600 *30,600 *21,550 17,050 *15,950 11,450 *13,350 9,750 22.67

*6200 *6200 *10 550 7950 *7700 5350 *6150 4000 *4250 3500 8.26

*14,300 *14,300 *22,850 17,100 *16,700 11,550 *13,350 8,550 *9,400 7,700 27.09

*11 250 *11 250 *8100 *8100 *6100 6000 5.60

*24,100 *24,100 *17,250 *17,250 *13,450 *13,450 18.08

*7950 *7950 *6250 5750 *5450 4200 *3650 3550 8.35

*17,150 *17,150 *13,550 12,400 *11,900 9,000 *8,000 7,850 27.38

*9650 8250 *7100 5550 *5850 4050 *3850 3450 8.44

*20,800 17,700 *15,350 11,900 *12,750 8,750 *8,500 7,550 27.70

*4550 *4550 *3900 *3900 6.15

*4950 *4950 *3650 *3650 7.28

*10,900 *10,900 *8,000 *8,000 23.71

*5450 *5450 *5150 4300 *3550 *3550 7.98

*11,850 *11,850 *11,250 9,200 *7,850 *7,850 26.10

*8,700 *8,700 19.78

m ft

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser Lift Mode

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

kg

Line

lb

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

*7050 *7050 *11 400 *11 400 *11 750 7850 8550 5300 6200 3950 *5500 3800 7.78

*15,750 *15,750 *25,850 *25,850 *25,450 16,950 18,350 11,400 13,400 8,500 *12,100 8,300 25.48

*12 100 *12 100 *15 600 15 200 *11 000 7900 *8200 5300 *6700 4400 6.94

*27,100 *27,100 *33,750 32,600 *23,800 17,050 *17,600 11,450 *14,750 9,750 22.67

*6600 *6600 *11 650 7950 *8500 5350 6250 4000 *4650 3500 8.26

*15,150 *15,150 *25,200 17,100 *18,400 11,550 13,450 8,550 *10,250 7,700 27.09

*12 450 *12 450 *8950 8100 *6800 6000 5.60

*26,650 *26,650 *19,050 17,500 *14,900 13,550 18.08

*8750 8700 *6900 5750 *6050 4200 *4000 3550 8.35

*18,850 18,800 *14,950 12,400 *13,150 9,000 *8,750 7,850 27.38

*10 600 8250 *7850 5550 6350 4050 *4200 3450 8.44

*22,900 17,700 *16,950 11,900 13,650 8,750 *9,250 7,550 27.70

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

6.0 m/20.0 ft

m ft

*4950 *4950 *4300 *4300 6.15

*5450 *5450 *3950 *3950 7.28

*12,000 *12,000 *8,750 *8,750 23.71

*6000 6000 *5650 4300 *3900 3850 7.98

*13,050 12,900 *12,400 9,200 *8,550 8,550 26.10

*9,500 *9,500 19.78

24

HD Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.5B1 (8'2") Shoes – 790 mm (31") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

kg

lb

*11 300 *11 300 *10 550 7900 *7850 5300 *6150 4100 7.35

*25,750 *25,750 *22,850 16,950 *16,950 11,400 *13,550 9,000 24.08

*13 250 *13 250 *9600 7950 *7100 5350 *6350 4900 6.46

*28,650 *28,650 *20,750 17,150 *15,150 11,550 *13,950 10,850 21.08

*6750 *6750 *5800 *5800 *4800 4200 *4250 4150 7.57

*14,550 *14,550 *12,600 *12,600 *9,350 9,200 24.74

*8500 *8500 *6550 5700 *5700 4150 *4350 3800 7.96

*18,250 *18,250 *14,200 12,300 *12,400 8,900 *9,550 8,350 26.08

*10 000 8150 *7350 5500 *6050 4050 *4650 3650 8.05

*21,600 17,500 *15,850 11,800 *13,100 8,700 *10,200 8,050 26.41

*10 700 7900 *7800 5350 *6250 4000 *5200 3750 7.86

*23,150 17,050 *16,950 11,500 13,450 8,550 *11,400 8,250 25.77

*7150 *7150 *6200 *6200 4.98

*15,000 *15,000 *13,600 *13,600 16.03

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.5B1 (8'2") Shoes – 790 mm (31") triple grouser Lift Mode

*5350 *5350 *4350 *4350 6.83

*11,800 *11,800 *9,550 *9,550 22.19

*4750 *4750 5.59

*10,500 *10,500 17.92

m ft

6.0 m/20.0 ft

m ft

*5150 *5150 5.59

*5900 *5900 *4750 *4750 6.83

*12,950 *12,950 *10,450 *10,450 22.19

*11,450 *11,450 17.92

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 7.5 m/25.0 ft

*7400 *7400 *6400 5900 *5200 4200 *4650 4150 7.57

*16,000 *16,000 *13,900 12,750 *10,200 9,200 24.74

*9350 8600 *7250 5700 *6300 4150 *4750 3800 7.96

*20,100 18,500 *15,650 12,300 *13,700 8,900 *10,450 8,350 26.08

*11 050 8150 *8100 5500 6300 4050 *5050 3650 8.05

kg

lb

*12 000 *12 000 *11 650 7900 8550 5300 6400 4100 7.35

*27,250 *27,250 *25,200 16,950 18,400 11,400 14,150 9,000 24.08

*14 600 *14 600 *10 600 7950 *7850 5350 *7000 4900 6.46

*31,650 *31,650 *22,900 17,150 *16,750 11,550 *15,450 10,850 21.08

*23,800 17,500 *17,500 11,800 13,600 8,700 *11,100 8,050 26.41

*11 800 7900 8600 5350 6250 4000 *5650 3750 7.86

*25,500 17,050 18,500 11,500 13,450 8,550 *12,450 8,250 25.77

*7950 *7950 *6900 *6900 4.98

*16,650 *16,650 *15,050 *15,050 16.03

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

25

320ELRR Hydraulic Excavator Specications

ES Reach Boom Lift Capacities

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

*7750 *7750 *6050 5600 *5250 4050 *3600 3400 8.35

*16,650 *16,650 *13,100 12,100 *11,450 8,650 *7,850 7,500 27.38

*9350 8000 *6850 5350 *5650 3900 *3800 3300 8.44

kg

lb

*6600 *6600 *10 700 *10 700 *10 300 7600 *7600 5100 *5900 3800 *4950 3600 7.78

*14,700 *14,700 *24,300 *24,300 *22,350 16,300 *16,450 10,950 *12,700 8,150 *10,900 7,950 25.48

*11 350 *11 350 *13 650 *13 650 *9650 7650 *7150 5100 *5850 4250 6.94

*25,450 *25,450 *29,600 *29,600 *20,800 16,450 *15,350 11,000 *12,850 9,400 22.67

*6150 *6150 *10 250 7700 *7450 5150 *5950 3800 *4200 3350 8.26

*14,150 *14,150 *22,100 16,550 *16,100 11,100 *12,900 8,200 *9,250 7,350 27.09

*10 850 *10 850 *7800 *7800 *5850 5850 5.60

*23,200 *23,200 *16,550 *16,550 *12,900 *12,900 18.08

*20,150 17,200 *14,850 11,500 *12,300 8,400 *8,350 7,250 27.70

*4450 *4450 *3850 *3850 6.15

*4800 *4800 *3550 *3550 7.28

*10,550 *10,550 *7,850 *7,850 23.71

*5300 *5300 *4950 4150 *3500 *3500 7.98

*11,450 *11,450 *10,850 8,900 *7,700 *7,700 26.10

*8,550 *8,550 19.78

m ft

Boom – 5.7 m (18'8") Counterweight – 6.9 mt (7.6 t) Bucket – None Stick – R2.9B1 (9'6") Shoes – 790 mm (31") triple grouser Lift Mode

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 7.5 m/25.0 ft

7.5 m kg

25.0 ft lb

6.0 m kg

20.0 ft lb

4.5 m kg

15.0 ft lb

3.0 m kg

10.0 ft lb

1.5 m kg

5.0 ft lb

Ground

Line

–1.5 m kg

–5.0 ft lb

–3.0 m kg

–10.0 ft lb

–4.5 m kg

–15.0 ft lb

kg

lb

*7000 *7000 *11 350 *11 350 *11 400 7600 8350 5100 6050 3800 *5400 3600 7.78

*15,600 *15,600 *25,700 *25,700 *24,700 16,300 17,950 10,950 13,050 8,150 *11,950 7,950 25.48

*12 000 *12 000 *15 150 14 800 *10 650 7650 *7900 5100 *6450 4250 6.94

*26,950 *26,950 *32,750 31,650 *23,050 16,450 *17,000 11,000 *14,250 9,400 22.67

*6550 *6550 *11 300 7700 *8250 5150 6100 3800 *4600 3350 8.26

*15,000 *15,000 *24,450 16,550 *17,850 11,100 13,100 8,200 *10,100 7,350 27.09

*12 050 *12 050 *8650 7900 *6550 5850 5.60

*25,750 *25,750 *18,400 17,000 *14,350 13,150 18.08

*8550 *8550 *6700 5600 *5850 4050 *3900 3400 8.35

*18,350 *18,350 *14,500 12,100 *12,700 8,650 *8,600 7,500 27.38

*10 300 8000 *7600 5350 6200 3900 *4150 3300 8.44

*22,250 17,200 *16,450 11,500 13,350 8,400 *9,150 7,250 27.70

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a firm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

6.0 m/20.0 ft

m ft

*4900 *4900 *4200 *4200 6.15

*5300 *5300 *3900 *3900 7.28

*11,650 *11,650 *8,600 *8,600 23.71

*5850 *5850 *5450 4150 *3850 3750 7.98

*12,700 12,650 *12,000 8,900 *8,400 8,250 26.10

*9,350 *9,350 19.78

26

Work Tool Offering Guide*

Boom Type Heavy Duty – 5.7 m (18'8") Extreme Service – 5.7 m (18'8") Stick Size R2.9 HD (9'6") R2.9 ES (9'6")

Hydraulic Hammer H115Es H115Es

Multi-Processor MP15** MP15**

Pulverizer P215 P215

Mobile Scrap and Demolition Shear S320B** S320B**

Compactor (Vibratory Plate) CVP110 CVP110

Contractors’ Grapple G120B-G130B G120B-G130B

Trash Grapple

Thumbs

Rakes

Center-Lock Pin Grabber Coupler

Dedicated Quick Coupler

*Matches are dependent on excavator configurations. Consult your Cat dealer for proper work tool match.

**Pin-on only.

***Boom-mount.

H120Es H120Es H130Es H130Es

S325B*** S325B*** S340B*** S340B***

These work tools are available for the 320ELRR.

Consult your Cat dealer for proper match.

27

320ELRR Hydraulic Excavator Specications

Bucket Specifications and Compatibility

Width Capacity Weight Fill

3

Linkage mm in R2.9 HD (9'6") R2.9 ES (9'6")

Without Quick Coupler

General Duty (GDC) B 600 24 0.55 0.72 618 1,363 100%

B 750 30 0.75 0.98 710 1,566 100%

B 900 36 0.95 1.24 786 1,733 100%

B 1050 42 1.16 1.52 847 1,867 100%

B 1200 48 1.38 1.80 925 2,038 100%

B 1350 54 1.59 2.08 1002 2,209 100%

Heavy Duty (HD) B 600 24 0.46 0.61 649 1,430 100%

B 750 30 0.64 0.84 747 1,647 100%

B 900 36 0.81 1.06 825 1,818 100%

B 1050 42 1.00 1.31 879 1,937 100%

B 1200 48 1.19 1.56 970 2,138 100%

B 1350 54* 1.38 1.81 1051 2,316 100%

Severe Duty (SD) B 600 24 0.46 0.61 693 1,527 90%

B 750 30 0.64 0.84 801 1,765 90%

B 900 36 0.81 1.06 887 1,955 90%

B 1050 42 1.00 1.31 962 2,121 90%

B 1200 48 1.19 1.56 1051 2,316 90%

Super Long Reach SLR 813 32 0.46 0.60 341 751 100%

SLR 1143 45 0.61 0.80 289 637 100%

m

Maximum load pin-on (payload + bucket) kg 3620 3520

3

yd

kg lb %

lb 7,978 7,758

Reach Boom (HD) Reach Boom (ES)

*

**

*

**

The above loads are in compliance with hydraulic excavator standard EN474, they do not exceed 87%of hydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended atgroundline with bucket curled.

Capacity based on ISO 7451.

Bucket weight with General Duty tips.

*

*This bucket might reduce boom structure life.

** For light dirt loading applications only. Consult your dealer to understand your application before using this bucket in combination with this stick.

Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.

Maximum Material Density:

2100 kg/m

1800 kg/m3 (3,000 lb/yd3)

1500 kg/m3 (2,500 lb/yd3)

3

(3,500 lb/yd3)

28

Bucket Specifications and Compatibility

Width Capacity Weight Fill

3

Linkage mm in R2.9 HD (9'6") R2.9 ES (9'6")

m

3

yd

kg lb %

With Center Lock Coupler

General Duty (GDC) B 600 24 0.55 0.72 618 1,363 100%

B 750 30 0.75 0.98 710 1,566 100%

B 900 36 0.95 1.24 786 1,733 100%

B 1050 42 1.16 1.52 847 1,867 100%

B 1200 48 1.38 1.80 925 2,038 100%

B 1350 54 1.59 2.08 1002 2,209 100%

Heavy Duty (HD) B 600 24 0.46 0.61 649 1,430 100%

B 750 30 0.64 0.84 747 1,647 100%

B 900 36 0.81 1.06 825 1,818 100%

B 1050 42 1.00 1.31 879 1,937 100%

B 1200 48 1.19 1.56 970 2,138 100%

B 1350 54* 1.38 1.81 1051 2,316 100%

Severe Duty (SD) B 600 24 0.46 0.61 693 1,527 90%

B 750 30 0.64 0.84 801 1,765 90%

B 900 36 0.81 1.06 887 1,955 90%

B 1050 42 1.00 1.31 962 2,121 90%

B 1200 48 1.19 1.56 1051 2,316 90%

B 1200 48 1.19 1.56 1000 2,204 90%

Maximum load with coupler (payload + bucket) kg 3210 3110

lb 7,075 6,855

Reach Boom (HD) Reach Boom (ES)

Maximum Material Density:

The above loads are in compliance with hydraulic excavator standard EN474, they do not exceed 87%of hydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended atgroundline with bucket curled.

Capacity based on ISO 7451.

Bucket weight with General Duty tips.

*

*This bucket might reduce boom structure life.

2100 kg/m

1800 kg/m

1500 kg/m3 (2,500 lb/yd3)

1200 kg/m3 (2,000 lb/yd3)

3

(3,500 lb/yd3)

3

(3,000 lb/yd3)

Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.

29

320ELRR Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

ENGINE

C6.6 diesel engine Biodiesel capable EPA Tier 4 Interim 2300 m (7,500 ft) altitude capability Automatic engine speed control Economy and high power modes Two-speed travel Side-by-side cooling system Radial seal air  lter Primary lter with water separator and

Starting kit, cold weather, –18° C (0° F) Screen fuel lter in fuel line Primary fuel  lter Secondary fuel  lter

HYDRAULIC SYSTEM

Regeneration circuit for boom and stick Reverse swing dampening valve Automatic swing parking brake High-performance hydraulic return  lter Capability of installing HP stackable valve

Capability of installing additional auxiliary

Capability of installing boom lowering

Capability of installing Cat Bio hydraulic oil Fine swing control

water separator indicator switch

and medium and QC valve

pump and circuit

control device and stick lowering checkvalve

CAB

Pressurized operator station

with positive  ltration Mirror package Sliding upper door window

(left-hand cab door) Glass-breaking safety hammer Removable lower windshield

with in cab storage bracket Coat hook Beverage holder Literature holder Radio with MP3 auxiliary audio port Two 12V stereo speakers Storage shelf suitable for lunch or toolbox Color LCD display with warning,  lter/ uid

change, and working hour information Adjustable armrest Height adjustable joystick consoles Neutral lever (lock out) for all controls Travel control pedals

with removable hand levers Capability of installing two additional pedals Two power outlets, 10 amp (total) Laminated glass front upper window

andtempered other windows

UNDERCARRIAGE

Grease Lubricated Track GLT2, resin seal Towing eye on base frame

ELECTRICAL

80 amp alternator Circuit breaker Capability to electrically connect a beacon

LIGHTS

Boom light with time delay Exterior lights integrated into storage box

SECURITY

Cat one key security system Door locks Cap locks on fuel and hydraulic tanks Lockable external tool/storage box Signaling/warning horn Secondary engine shutoff switch Openable skylight for emergency exit Rearview camera Travel alarm

30

Optional equipment may vary. Consult your Cat dealer for details.

320ELRR Optional Equipment

ENGINE

Starting kit, cold weather, –25° C (–13° F) Jump start receptacle Quick drains, engine and hydraulic oil

(QuickEvac) Radiator screen Block heater (jacket water heater)

HYDRAULIC SYSTEM

Control pattern quick-changer, two way Additional circuit Boom and stick lines High-pressure line Medium-pressure line Cat quick coupler line – high- and

medium-pressure capable Electronic Control device, 1/2P,

one-way circuit Electronic Control device (Common),

1/2P,common circuit Electronic Control device, 1P,

two-way circuit

CAB

Cab hatch emergency exit Seat, high-back air suspension with heater Seat, high-back mechanical suspension Sunscreen Windshield wiper withwasher AM/FM radio Left foot switch Left pedal Straight travel pedal

UNDERCARRIAGE

600 mm (24") triple grouser shoes 700 mm (28") triple grouser shoes 790 mm (31") triple grouser shoes Guard, full length for long FG undercarriage Guard, heavy-duty bottom Center track guiding guard Segmented (2 piece) track guiding guard HD track roller

COUNTERWEIGHT

6.2 mt (6.8 t) without lifting eye

6.9 mt (7.6 t) without lifting eye

FRONT LINKAGE

Quick coupler Bucket linkage, B1 family with

and without lifting eye

5.7 m (18'7") reach, heavy-duty, heavy-lift booms

2.9 m (9'6") heavy-duty stick

LIGHTS

Working lights, cab mounted with time delay HID lights, cab mounted with time delay Halogen boom lights

SECURITY

FOGS, bolt-on Side rubber bumper Cat MSS (anti-theft device)

TECHNOLOGY

Cat Grade Control Depth and Slope Product Link

31

320ELRR Hydraulic Excavator

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

20

AEHQ6443 (12-2011)

(Americas)

Caterpillar 320E LRR BROCHURE

Introduction

Contents

Engine

Operator Station

Reduced Radius

Hydraulics

Structures & Undercarriage

Front Linkage

Work Tools

Integrated Technologies

Serviceability

Safety

Complete Customer Care

Sustainability

Engine Drive Track

Hydraulic System

Swing Mechanism

Sound Performance

Standards

Dimensions

Working Ranges

Operating Weight and Ground Pressure

Major Component Weights

Bucket and Stick Forces

HD Reach Boom Lift Capacities

ES Reach Boom Lift Capacities

Bucket Specifications and Compatibility
