Caterpillar 302.4D BROCHURE

302.4D

Mini Hydraulic Excavator

Engine Weights

Gross Power (ISO 14396) 17.9 kW 24.3 hp Operating Weight with Cab 2320 kg 5,115 lb

Operating Weight with Canopy 2210 kg 4,872 lb

Flexibility
andefficiency
to keep you
ontrack.

Dig with more
power and
save time
andeffort
onthe job.

Contents

Versatility ..............................................................4

Performance ........................................................5

Productive Comfort.............................................6

Maintenance and Service.................................8

Speci cations ....................................................10

Standard Equipment.........................................12

Optional Equipment...........................................13

2

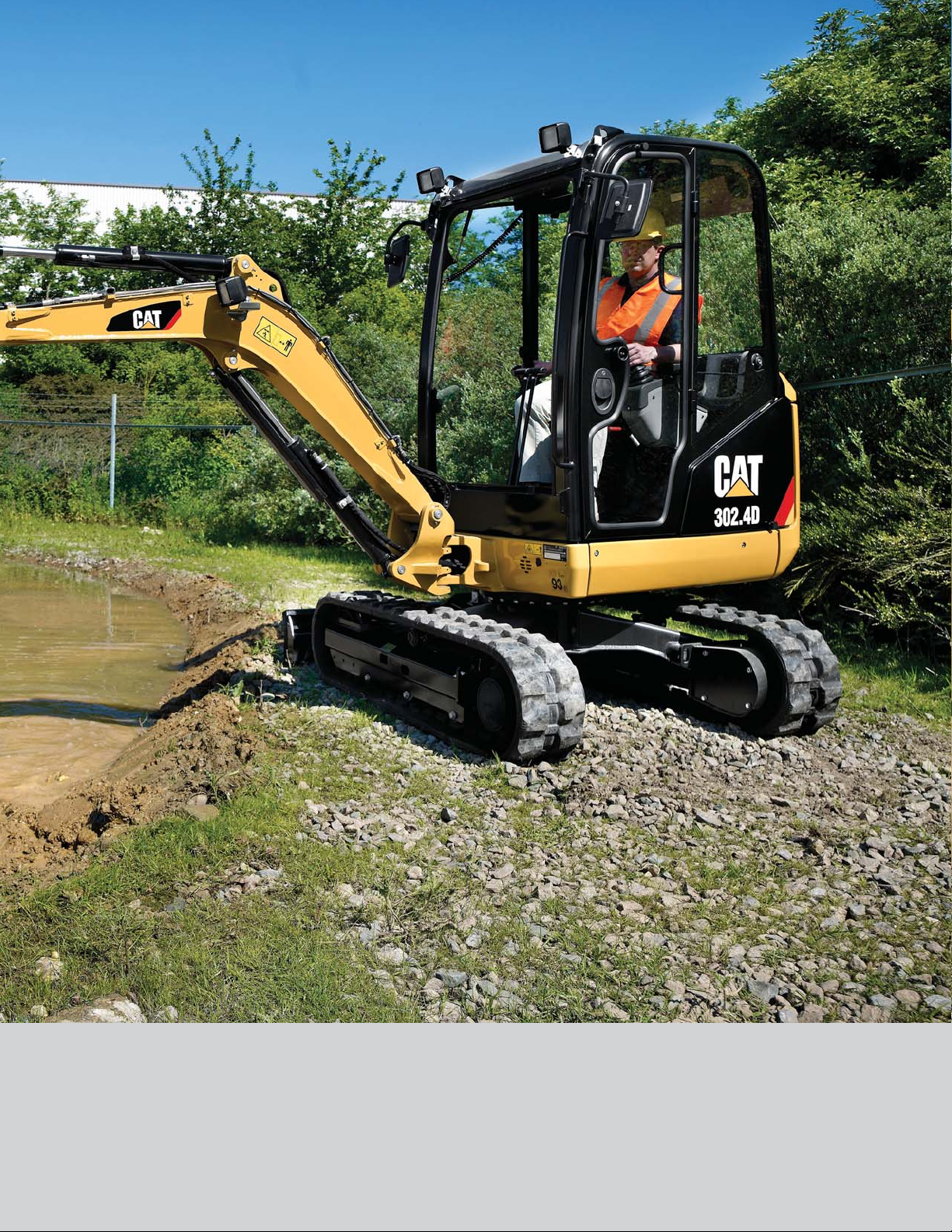

The Cat® 302.4D provides power and efciency so that you can get the best out of your

job without ever feeling the strain. You can be assured of faster, more powerful digging
with a smoother response.

3

Versatility

Flexible and functional for all jobs.

High Flexibility

Compact in size and with a transport weight under
2300 kg (5,070 lb), the 302.4D can be transported
easily using a conventional trailer and pick up truck
or transit van.

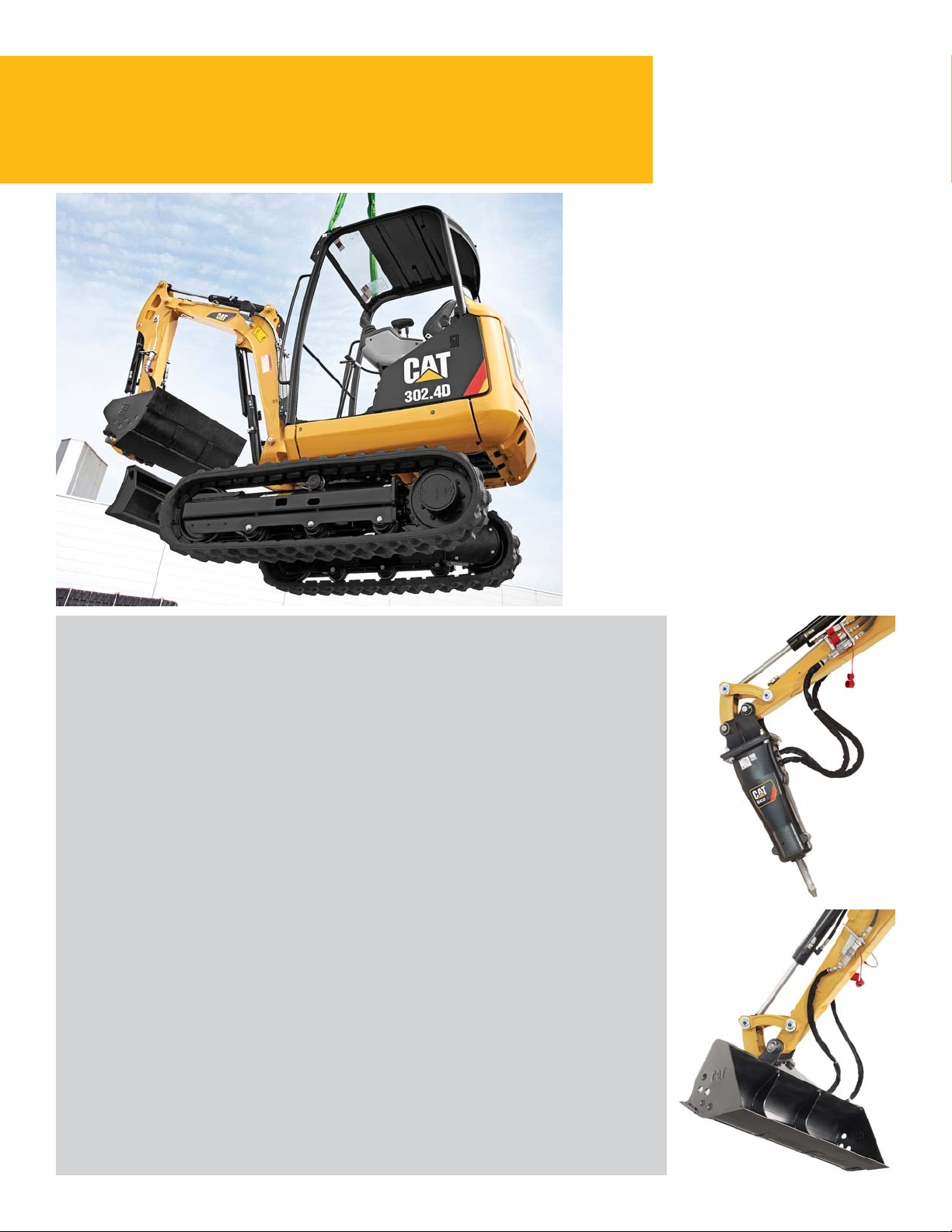

The sturdy hoisting eyelets on the cab roof enable
the easy and rapid relocation of the machine
between sites.

Automatic Swing Lock

Safe transportation of the machine is aided by the
Cat automatic swing lock which locks the machines
upper body in place when the control console is
raised or the engine is stopped.

Work Tools

A variety of purpose designed work tools are available, including buckets, quick couplers,
hammer and auger. All Cat tools are built to last and matched to your machine to deliver
excellent value and optimize performance.

Auxiliary Hydraulics as Standard Fit

Machine is ‘ready to work.’ Hammer and two way lines complete with quick disconnect
ttings are standard. Connections are located close to the tool to reduce hose lengths and
any potential damage. Additional line options are available to further increase machine
versatility. Stick and bucket cylinder hoses are protected byrouting them through the boom.

Auxiliary Flow Control

Machines congured with proportional auxiliary hydraulics, include the ability to adjust
the ow for even greater tool control. Especially useful with tools such as angling ditching
buckets.

Thumb Ready Stick (North American Builds)

The 302.4D is congured with brackets and relief valves for simple and cost effective
mounting of a hydraulic thumb.

4

Built Tough

The front end of the 302.4D is designed
forhard work. Its rugged construction and
protected hydraulics ensure that the machine
is up to the toughest of jobs. Steeltubes,
positioned above the boom supply the
hydraulic uid to the tools, ensuring
protection from damage while keeping
anymaintenance quick and easy.

Components have been located to ensure
the best possible machine center of gravity
and weight distribution and give operator
condence over a range of terrain and
applications.

Performance

Powerful operation and greater uptime.

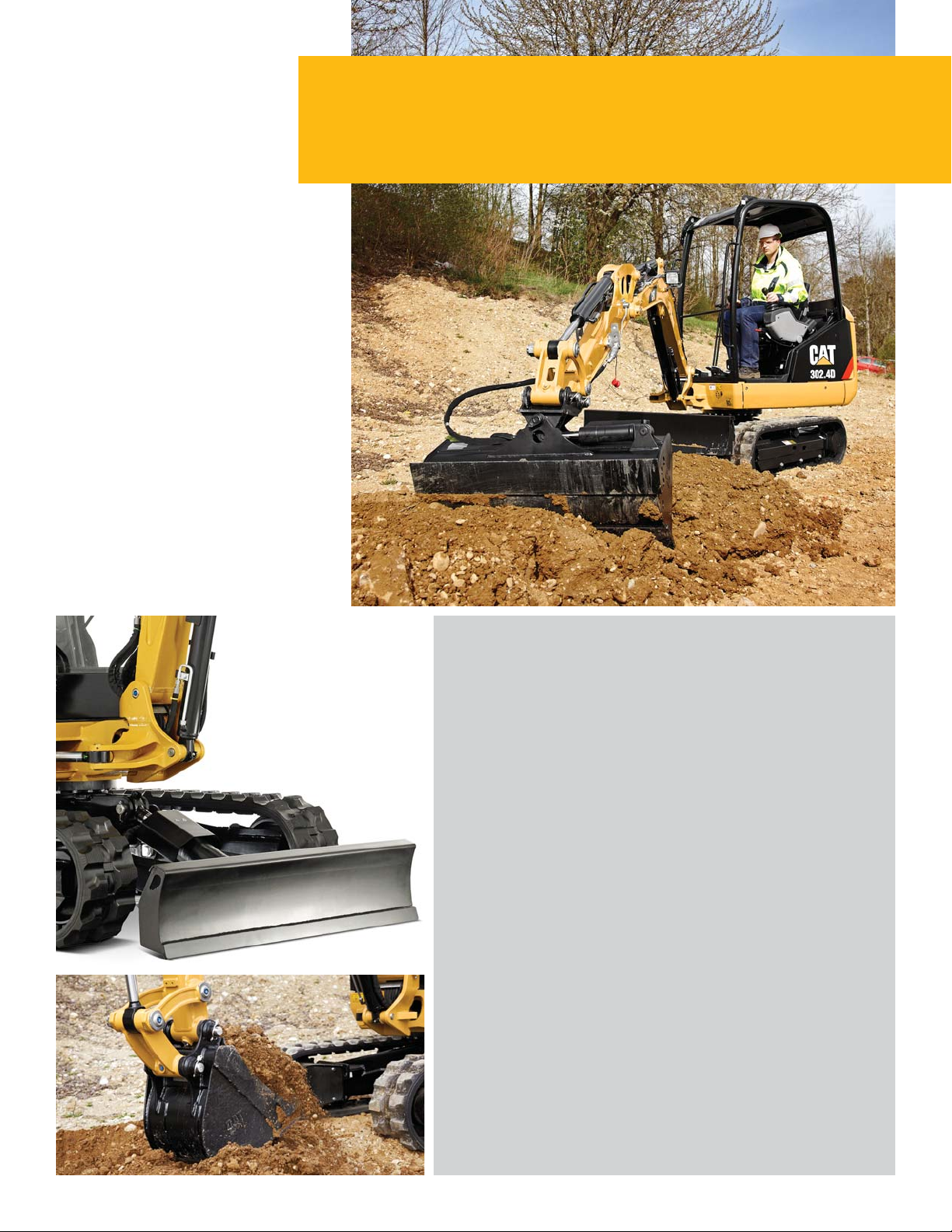

Dozer Float

Ground levelling and nishing applications are fast and easier
withthe dozer oat function engaged making site clean-up much
more efcient.

Dig Force

The 302.4D boasts high bucket and stick forces making it an
impressive and productive excavator.

The choice of two stick lengths allows the customer to congure
hismachine to deliver even higher stick forces or longer reach.
Youhave the choice, we have the solution.

All hydraulic functions are fully pilot operated, delivering
effortless operation, reducing maintenance and lowering owner
operatingcosts.

5

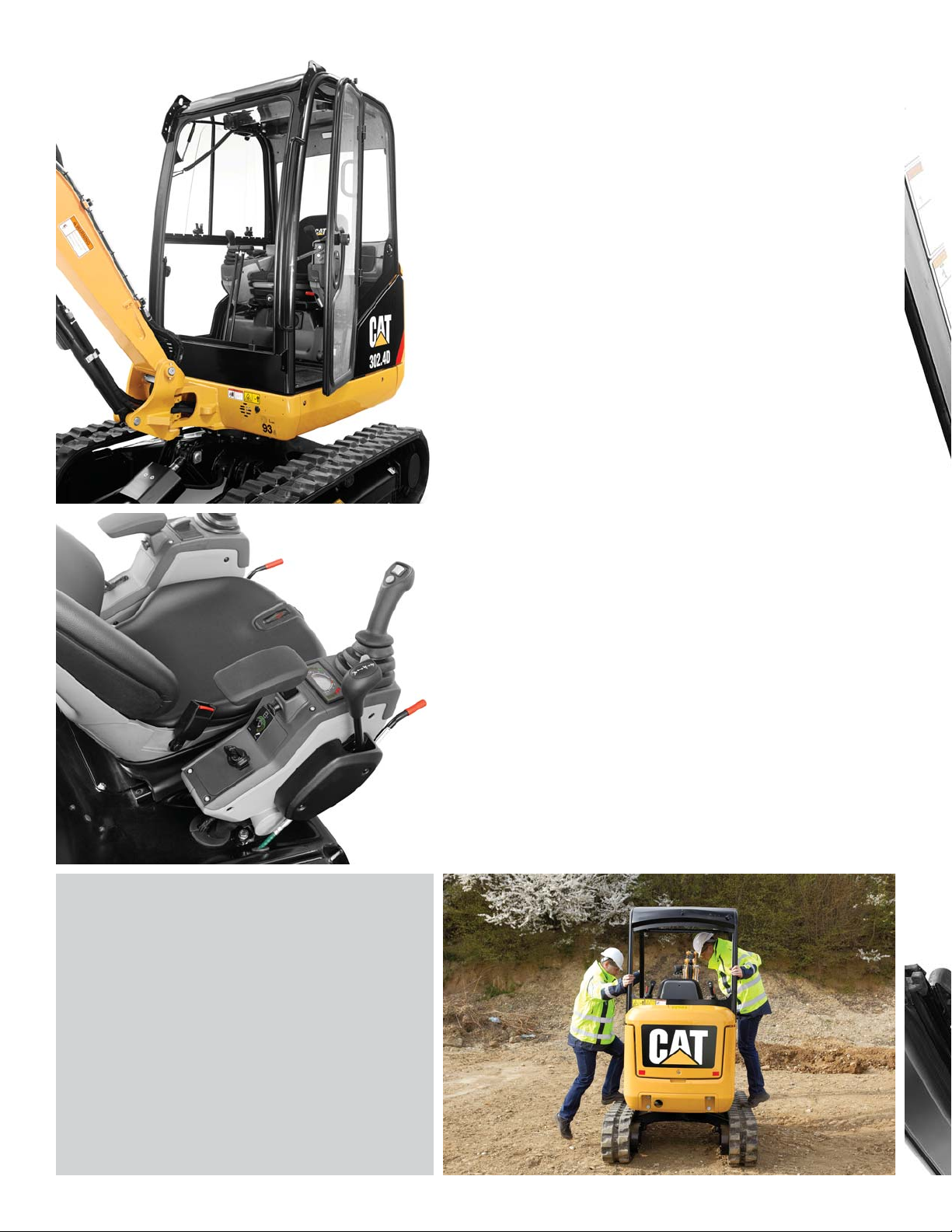

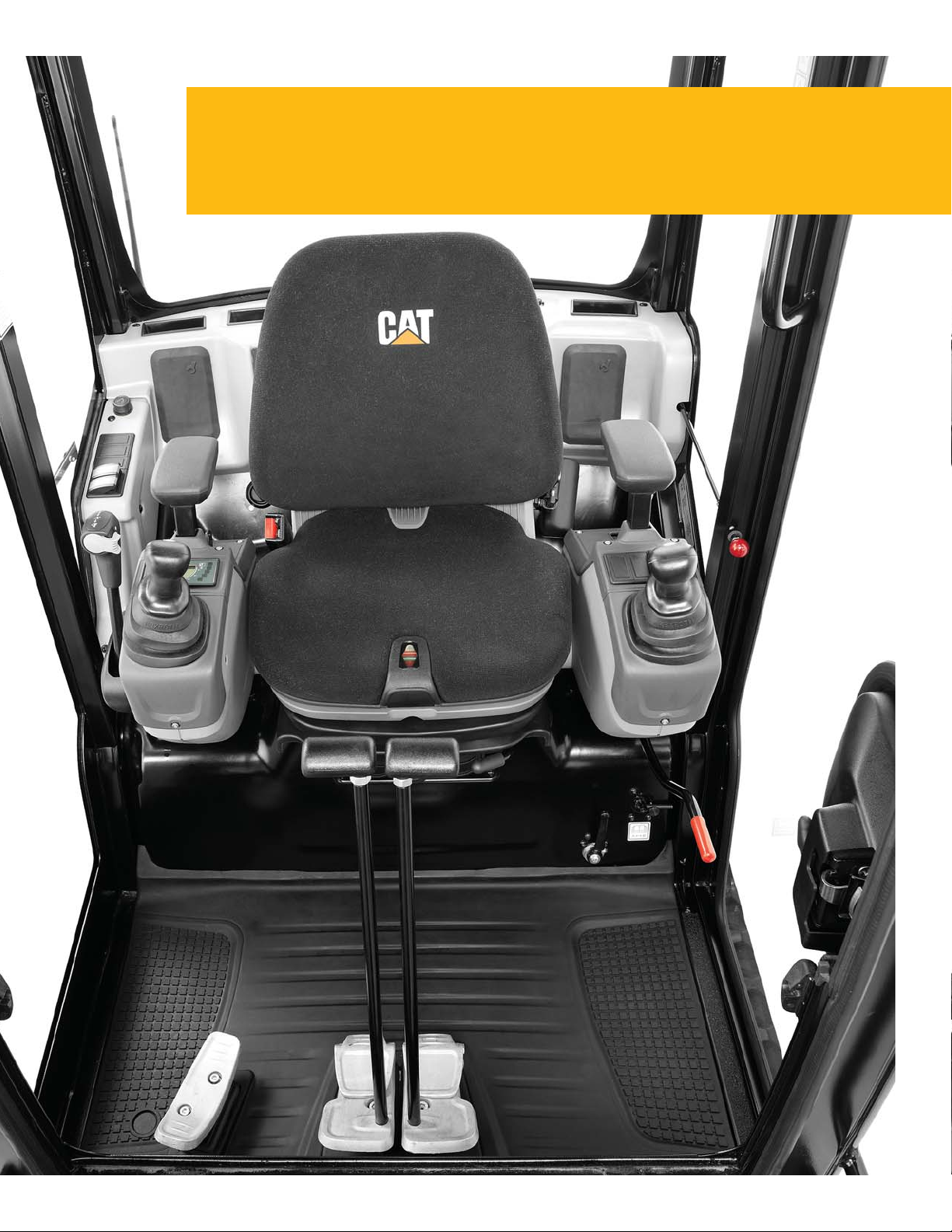

The Cat 302.4D cab is amongst the largest in the industry. The at cab
oor optimizes visibility and increases operator leg room. The ergonomic
control layout provides a comfortable, highly productive workspace.

The large two-part front windscreen allows the driver to slide both lower
and upper panes beneath the cab roof, so protecting them from damage
when the front screen is wide open. This also negates the need to
remove or store the bottom windscreen pane away separately.

100% Pilot Controls

All hydraulic functions are fully pilot operated, delivering effortless
operation, reducing maintenance and lowering owner operating costs.

2 Way Canopy Access

Canopy builds allow the operator to enter and exit
the operator station from both sides of the machine,
helping to increase productivity and making working
around site much easier.

‘As new’ machine controllability is maintenance free without the need
for adjustment of linkages or cables.

Auxiliary and boom swing services are controlled by proportional
switches mounted on the joysticks.

6

Productive Comfort

Large operator environment and ergonomic control layout.

7

Maintenance and Service

Easy access and minimal maintenance
requirements keep you working.

Unmatched support makes the difference

Your Cat dealer is ready to assist you with your purchase decision and everything after.

• Financing packages are exible to meet your needs

• Unmatched parts availability keeps you working

• Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production

• For more information on Cat products, dealer services and industry solutions, visit www.cat.com

8

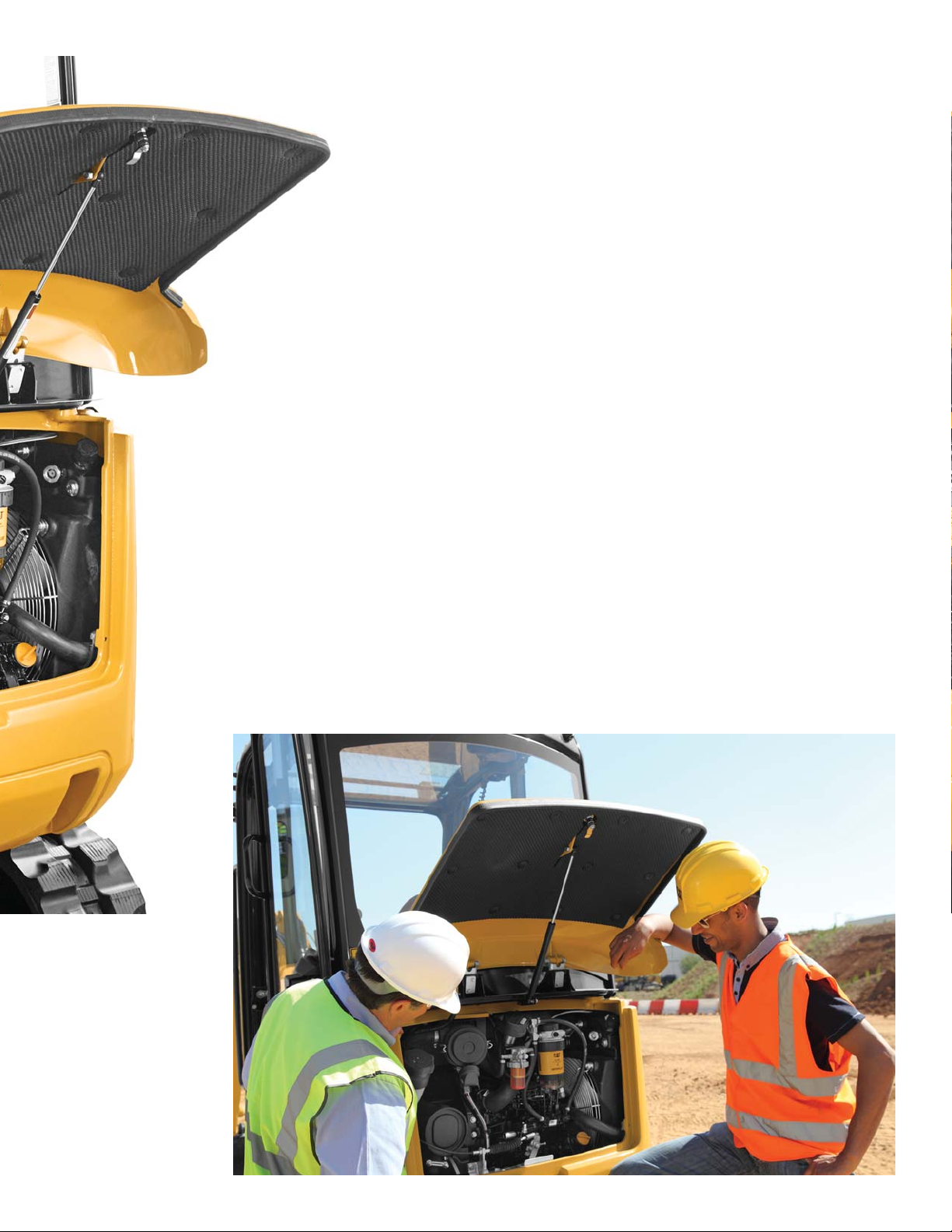

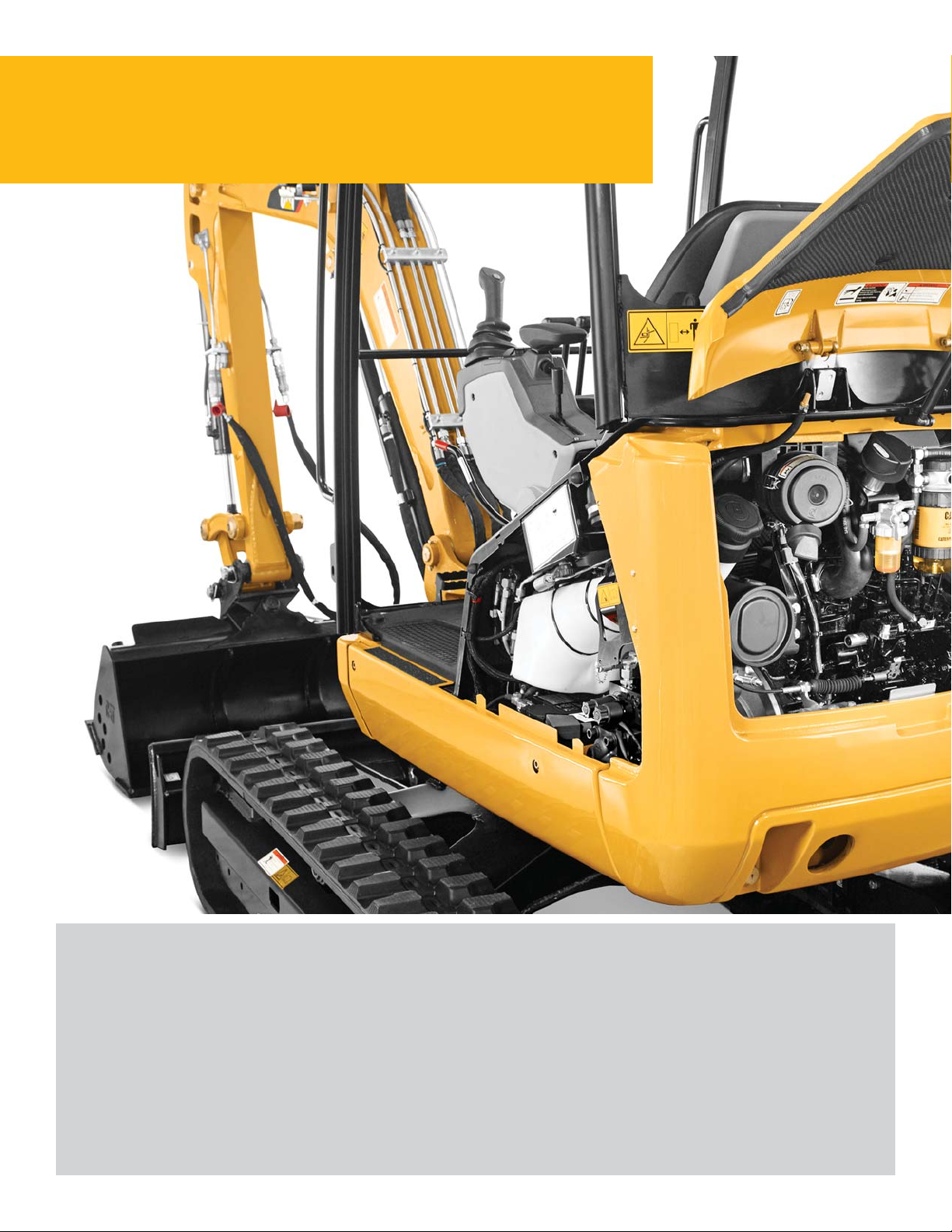

Easy Maintenance and Service

All daily checks and regular service points, are easily accessed.

A large steel rear door and removable panels allow room to efciently work on the machine when
required. The main hydraulic valve and lines are also easily reached through a removable oor plate
andside panels.

Durable steel body panels all round the machine offer good resistance to damage and are easily
maintained to help keep the machine looking good andholding its value.

Both side plates and the cab oor plate are easy to remove and provide unhindered access to all
internalhydraulic components.

9

302.4D Mini Hydraulic Excavator Specifications

Engine Blade

Engine Model Yanmar 3TNV76 Width 1400 mm 55 in

Rated Net Power @ 2,200 rpm 13.2 kW 17.7 hp Height 300 mm 11.8 in
(ISO 9249)

Gross Power (ISO 14396) 17.9 kW 24.3 hp

Displacement 1116 cm 40 in

Weights

Transport Weight with Cab 2175 kg 4,795 lb + 19.4 + + 5.1 +

Transport Weight with Canopy 2065 kg 4,553 lb

Operating Weight with Cab 2320 kg 5,115 lb

Operating Weight with Canopy 2210 kg 4,872 lb

• Operating weight includes standard stick, rubber tracks, bucket,
operator, full fuel.

Travel System

Travel Speed 2.5 km/h-

4km/h

Gradeability

30°/58%

1.55 mph-

2.5 mph

Service Refill Capacities

Dig Depth 334 mm 13 in

Lift Height 294 mm 11.5 in

Hydraulic System

Pump Flow @ 2,200 rpm 26.1 + 26.1 6.9 + 6.9

6.4L/min 1.7 gal/min

Operating Pressure – Equipment 240 bar 3,481 psi

Operating Pressure – Travel 240 bar 3,481 psi

Operating Pressure – Swing 150 bar 2,176 psi

Auxiliary Circuits

Primary 30 L/min

at170 bar

Secondary 17 L/min

at200 bar

Maximum Bucket Force 21.8 kN

Maximum Stick Force – Standard Stick 15 kN

Maximum Stick Force – Long Stick 13.3 kN

8 gal/min
at2,465 psi

4.5 gal/min
at 2,900 psi

4,900 lbf

3,372 lbf

2,990 lbf

Fuel Tank Capacity

Hydraulic Tank Capacity

24 L

19 L

6.3 gal

5 gal

Lift Capacity at Ground Level

2 m (6'7") 2.5 m (8'2") 3 m (9'10") Maximum

Lift Point Radius Front

kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb

Standard Stick 1331*

Long Stick 1315*

*The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO10567:2007 and they do not exceed

87%ofhydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart.

2,934* 734 1,618 963* 2,123* 534 1,177 755* 1,665* 416 917 638* 1,407* 350 772

2,899* 729 1,607 943* 2,079* 530 1,168 740* 1,631* 411 906 584* 1,288* 317 699

Side Front Side Front Side Front Side

10

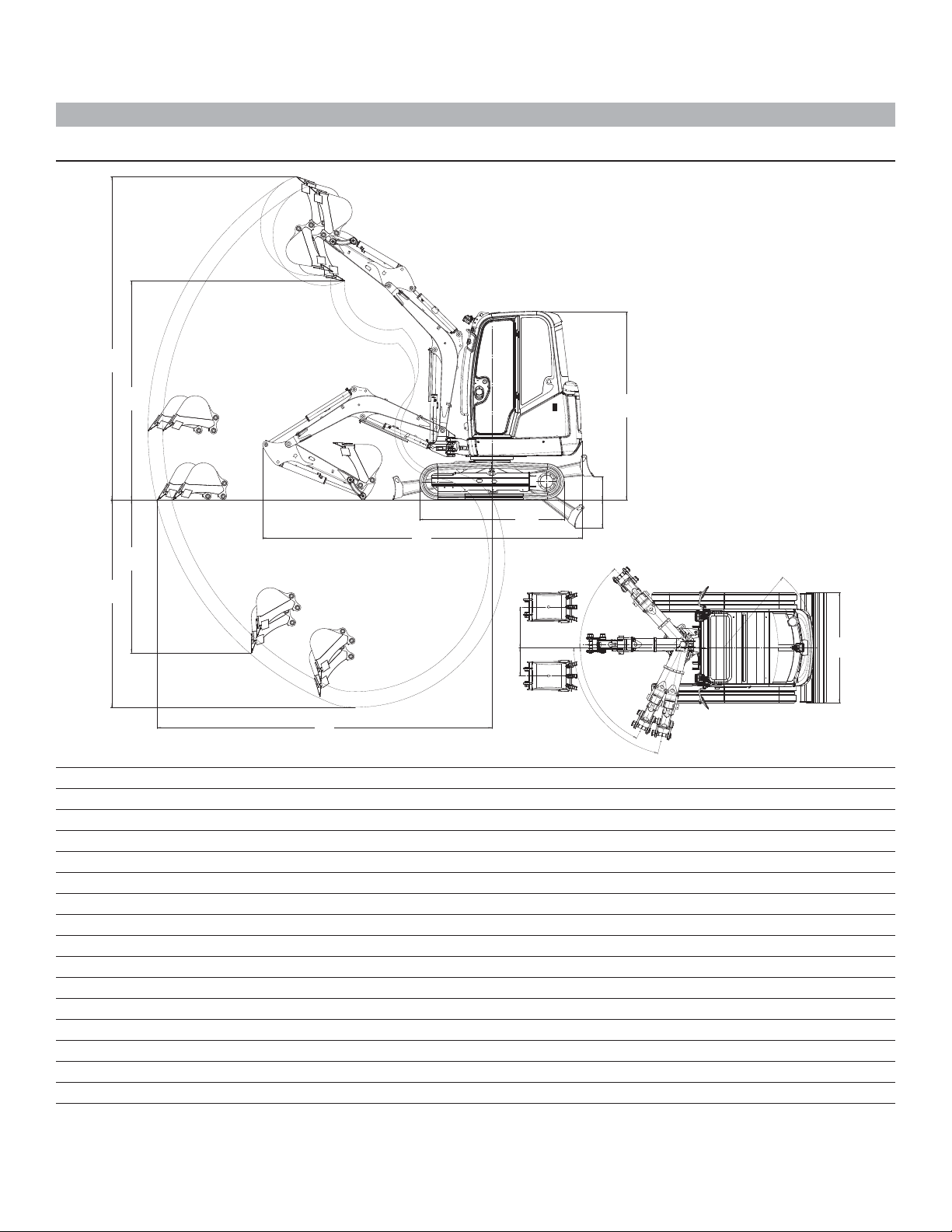

Dimensions

All dimensions are approximate.

6

7

5

4

Height

1

Width

2

Transport Length (arm lowered)

3

Maximum Digging Depth

4

Maximum Vertical Dig Depth

5

Maximum Dig Height

6

Maximum Dump Height

7

Maximum Reach at Ground Level

8

Tail Swing Radius

9

Maximum Boom Offset (RH)

10

Maximum Boom Offset (LH)

11

Maximum Dozer Lift Height

12

Maximum Dozer Dig Depth

13

Length of Undercarriage

14

Boom Swing Angle (RH)

15

Boom Swing Angle (LH)

16

1

12

14

13

3

15

9

10

2

11

16

8

Standard Stick

2390 mm 7'10"

1400 mm 4'6"

4030 mm 13'3"

2400 mm 7'11"

1570 mm 5'2"

3950 mm 12'11"

2750 mm 9'0"

4020 mm 13'2"

1170 mm 3'10"

520 mm 20"

360 mm 14"

300 mm 12"

335 mm 13"

1840 mm 6'0"

48°

77°/64°

2390 mm 7'10"

1400 mm 4'6"

4030 mm 13'3"

2600 mm 8'6"

1750 mm 5'9"

4070 mm 13'4"

2870 mm 9'5"

4220 mm 13'10"

1170 mm 3'10"

520 mm 20"

360 mm 14"

300 mm 12"

335 mm 13"

1840 mm 6'0"

Long Stick

48°

77°/64°

11

302.4D Standard Equipment

Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

• Hammer/two way auxiliary hydraulic lines • Retractable seat belt • Fixed undercarriage

• Auxiliary quick disconnect couplers • Suspension seat, vinyl covered • Rubber track 250 mm (10 in) wide

• Dozer blade • Travel pedals • Automatic swing park brake

• Working light mounted to boom • Maintenance free battery • Dozer  oat

• Canopy – ROPS and TOPS protection • Hydraulic oil cooler

12

302.4D Optional Equipment

Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

• Cab, radio ready – ROPS and TOPS • Mirror pack • Joystick mounted proportional auxiliary
protection, heater/defroster and
windscreenwasher/wiper

• Suspension seat, fabric covered

• Boom stick or dozer blade check valve

• Removable swing stop

• Additional hydraulic circuit diverted
frombucket cylinder • Long stick

• Cab top guard to ISO 10262 (Level 1) • Cab/canopy lights

• Auto engine idle • Second auxiliary lines

control with  ow control

13
