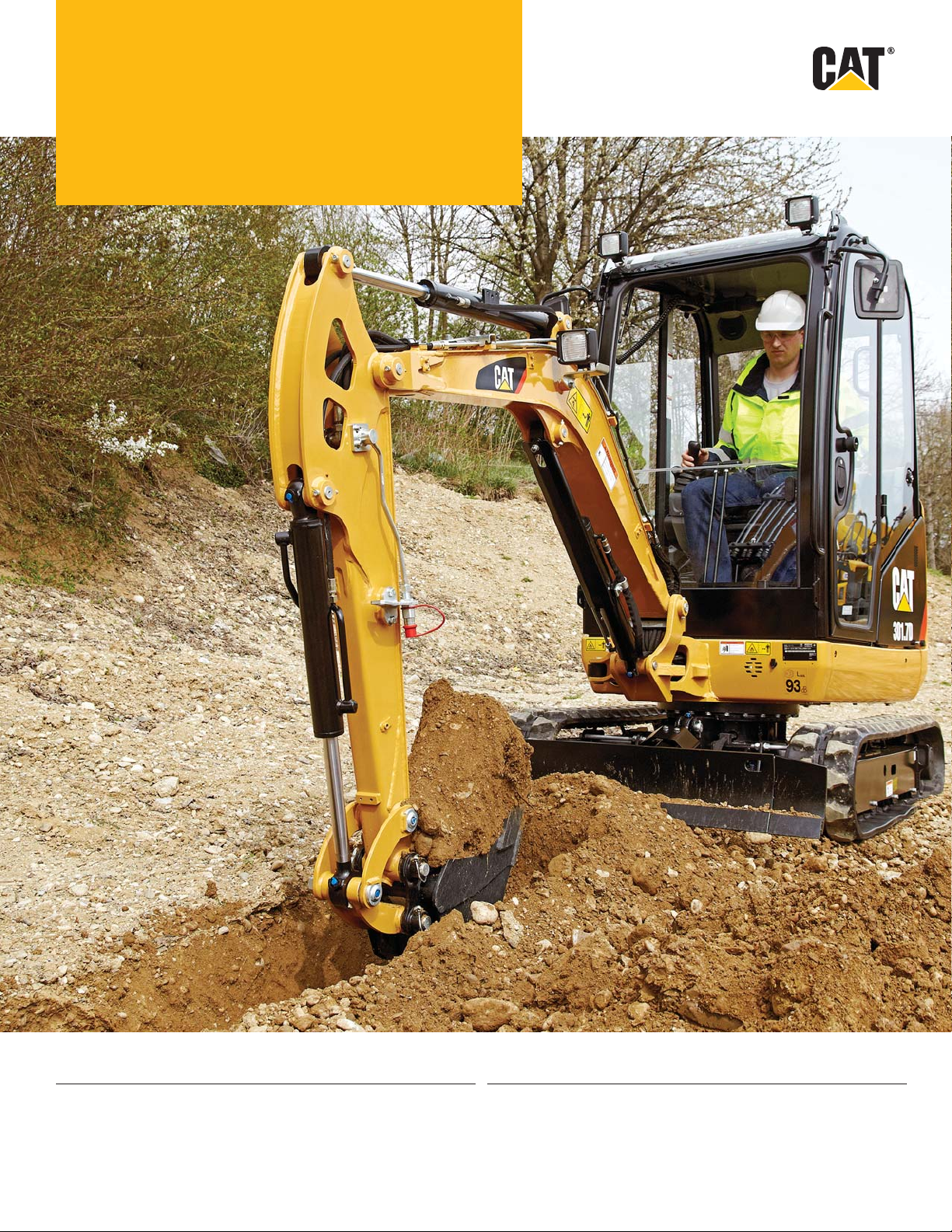

Caterpillar 301.7D BROCHURE

301.7D

Mini Hydraulic Excavator

Engine Weights

Gross Power (ISO 14396) 17.9 kW 24.3 hp Transport Weight with Canopy 1610 kg 3,550 lb

Transport Weight with Cab 1720 kg 3,792 lb
Transport Weight with Canopy 1735 kg 3,825 lb

and Extending Undercarriage
Transport Weight with Cab 1845 kg 4,068 lb

and Extending Undercarriage

High
performance
in a compact
design for
greater
versatility and
controllability.

Contents

Performance ........................................................4

Versatility ..............................................................6

Productive Comfort.............................................7

Engine and Serviceability ..................................8

Speci cations ....................................................10

Standard Equipment.........................................12

Optional Equipment...........................................13

2

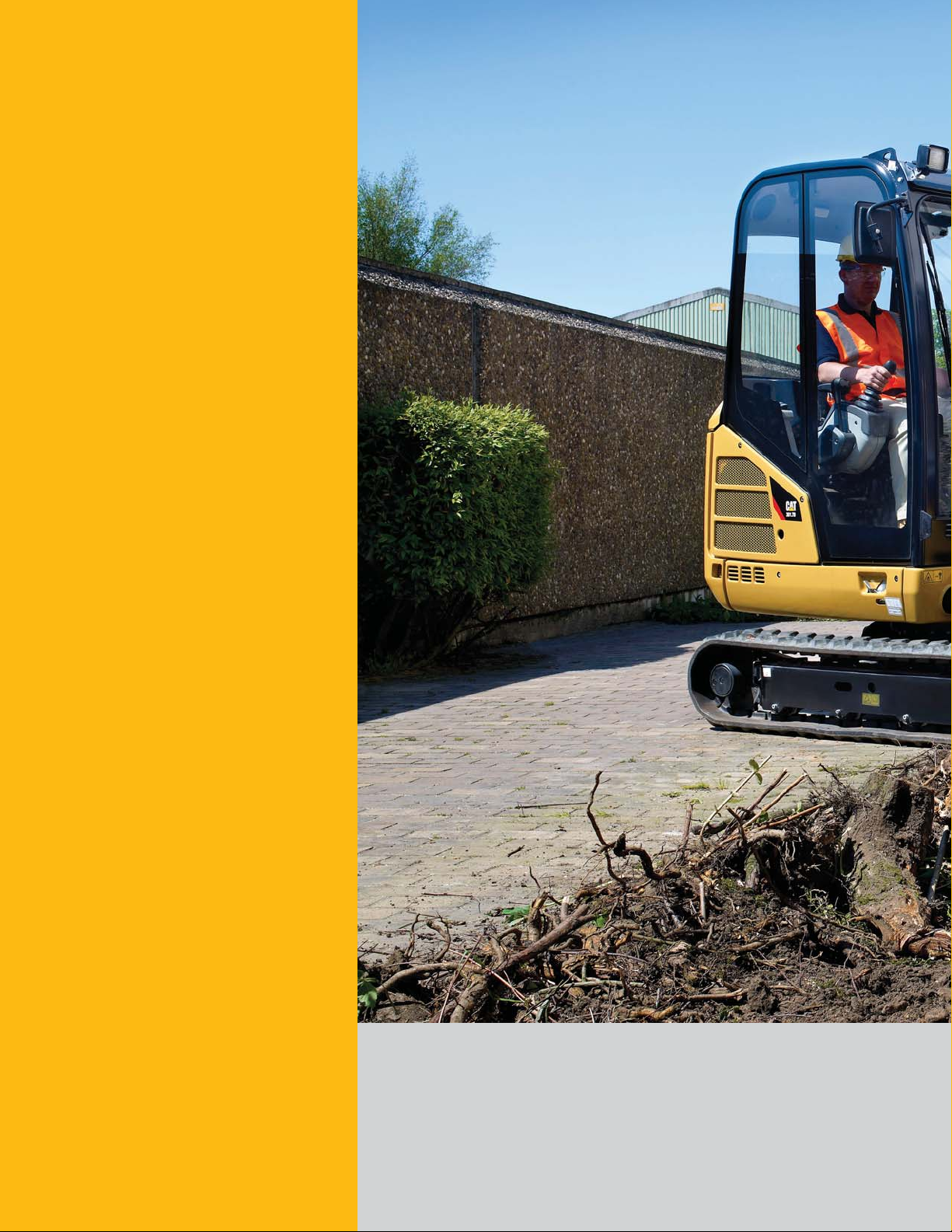

The Cat® 301.7D gives you a blend of power, control and stability to make your
workingday easier and more productive.

3

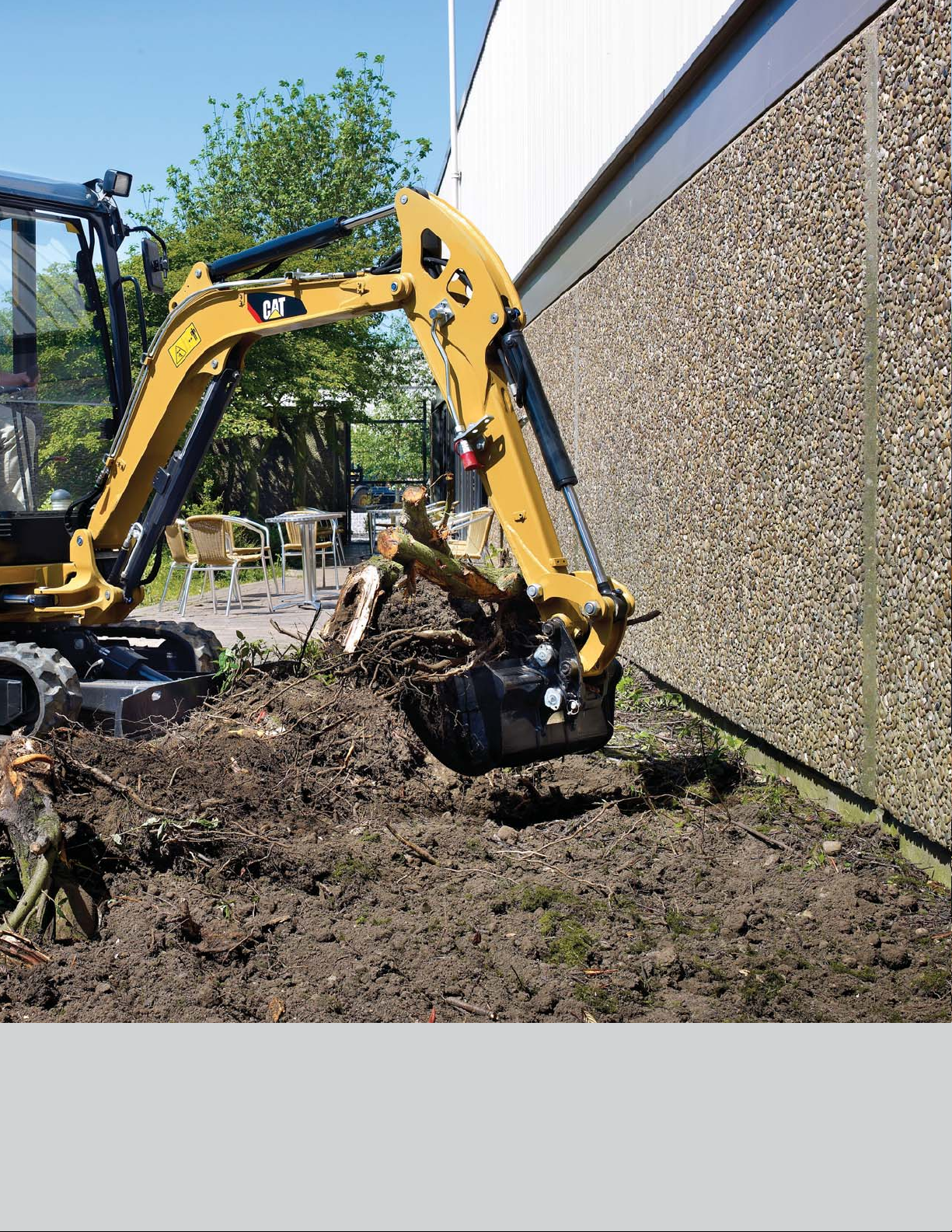

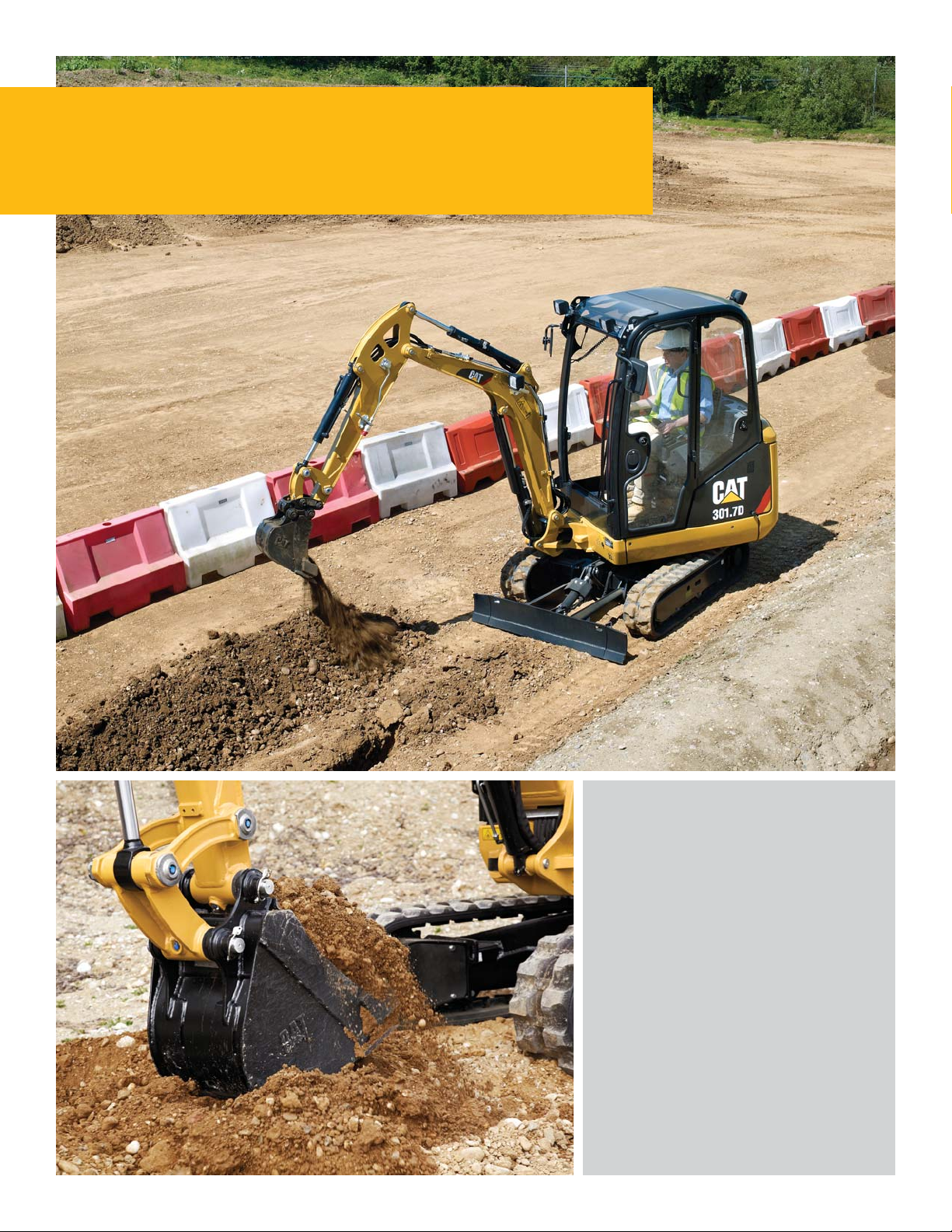

Performance

Powerful digging combined with smooth control.

Dig Force

The new 301.7D boasts high bucket and
stick forces making it an impressive and
productive excavator.

The choice of two stick lengths allows
the customer to congure his machine to
deliver even higher stick forces or reach.

4

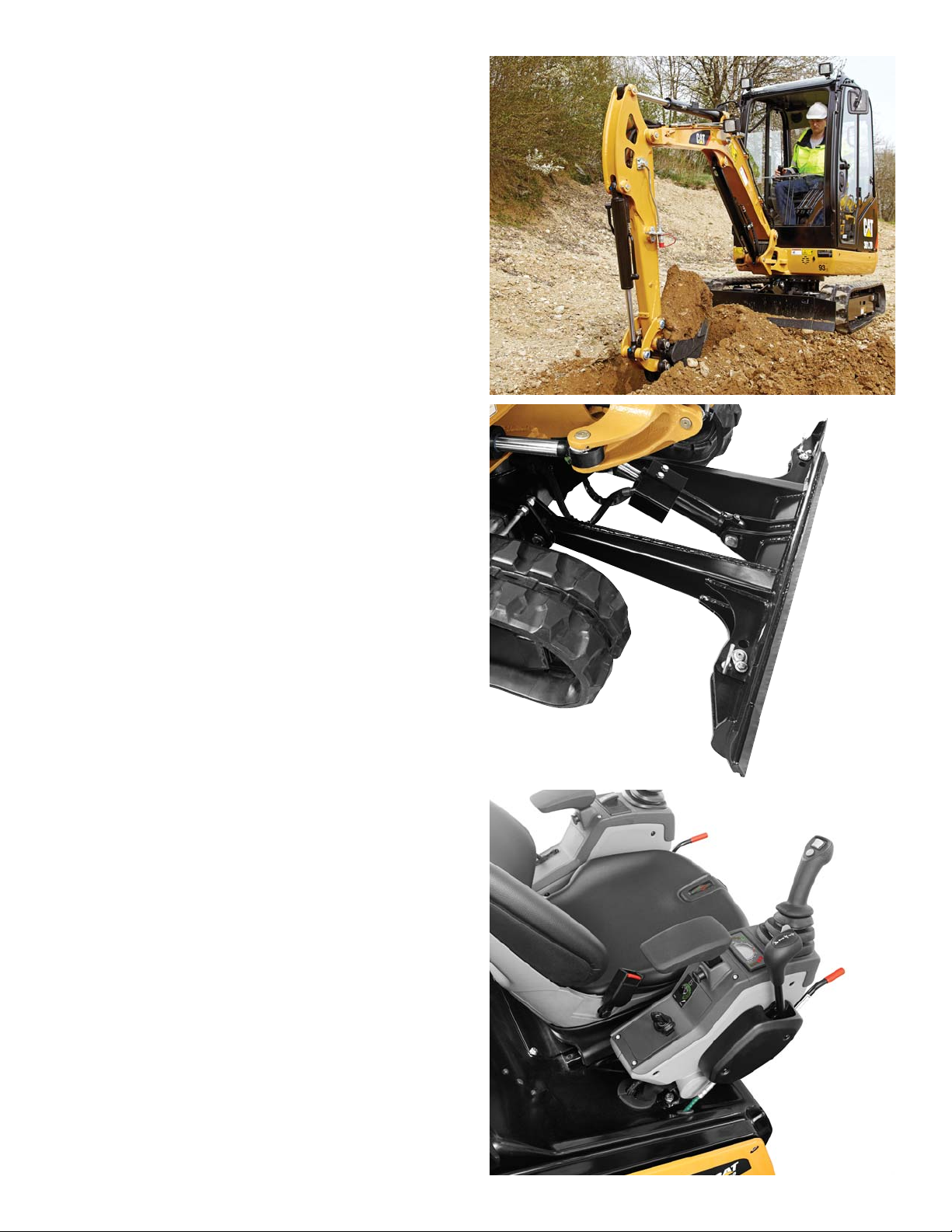

Stability

An extending undercarriage and fold out dozer blade allow
themachine to be congured for optimum performance.
Bladeextensions are retained with the dozer making them
easy to use and ensuring that they are not lost.

Dozer Float

Ground levelling and nishing applications are fast and easy
withthe dozer oat function engaged making site clean-up much
more efcient.

Long Dozer Option

The optional longer dozer blade enables improved ‘dig to blade’
characteristics to give easier on site clean up.

100% Pilot Controls

Delivers excellent machine control and lifetime ‘as new’
performance eliminating the need for linkage and cable
maintenance, lowering owning and operating costs and
resulting in less downtime.

5

Versatility

Flexibility built in for a variety of jobs.

High Flexibility

Compact in size and with a transport weight under 2000kg
(4,500 lb), the 301.7D can be transported easily using a
conventional trailer and pick up truck or transit van.

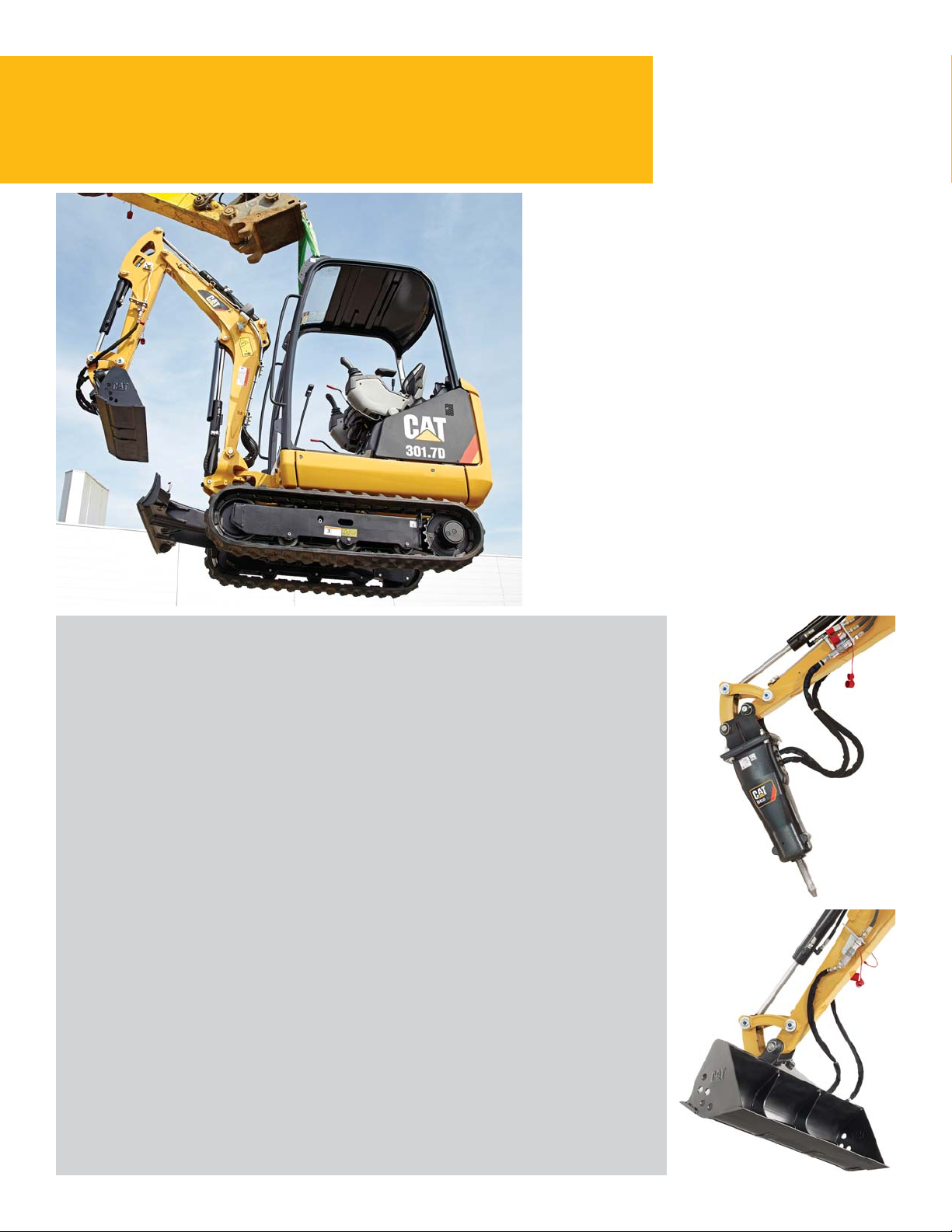

The sturdy hoisting eyelets on the cab roof enable the
easy and rapid relocation of the machine between sites.

Automatic Swing Lock

Safe transportation of the machine is aided by the
Catautomatic swing lock which locks the machines
upperbody in place when the control console is raised
orthe engine is stopped.

Work Tools

A range of work tools are available including buckets, hammer and auger to take advantage
of the machines versatility. All these tools are matched to the machine to optimize
performance and deliver excellent value through productivity and long life.

Auxiliary Hydraulics as Standard Fit

Machine is ‘ready to work’. Hammer and two way lines complete with quick disconnect
ttings as standard. Connections are located close to the tool to reduce hose lengths and
any potential damage. Additional line options are available to further increase machine
versatility. Stick and bucket cylinder hoses are protected by routing them through the boom.

Auxiliary Flow Control

Machines congured with proportional auxiliary hydraulics, include the ability to
adjusttheow for even greater tool control. Especially useful with tools such as angling
ditching buckets.

6

Large operator environment and ergonomic control layout.

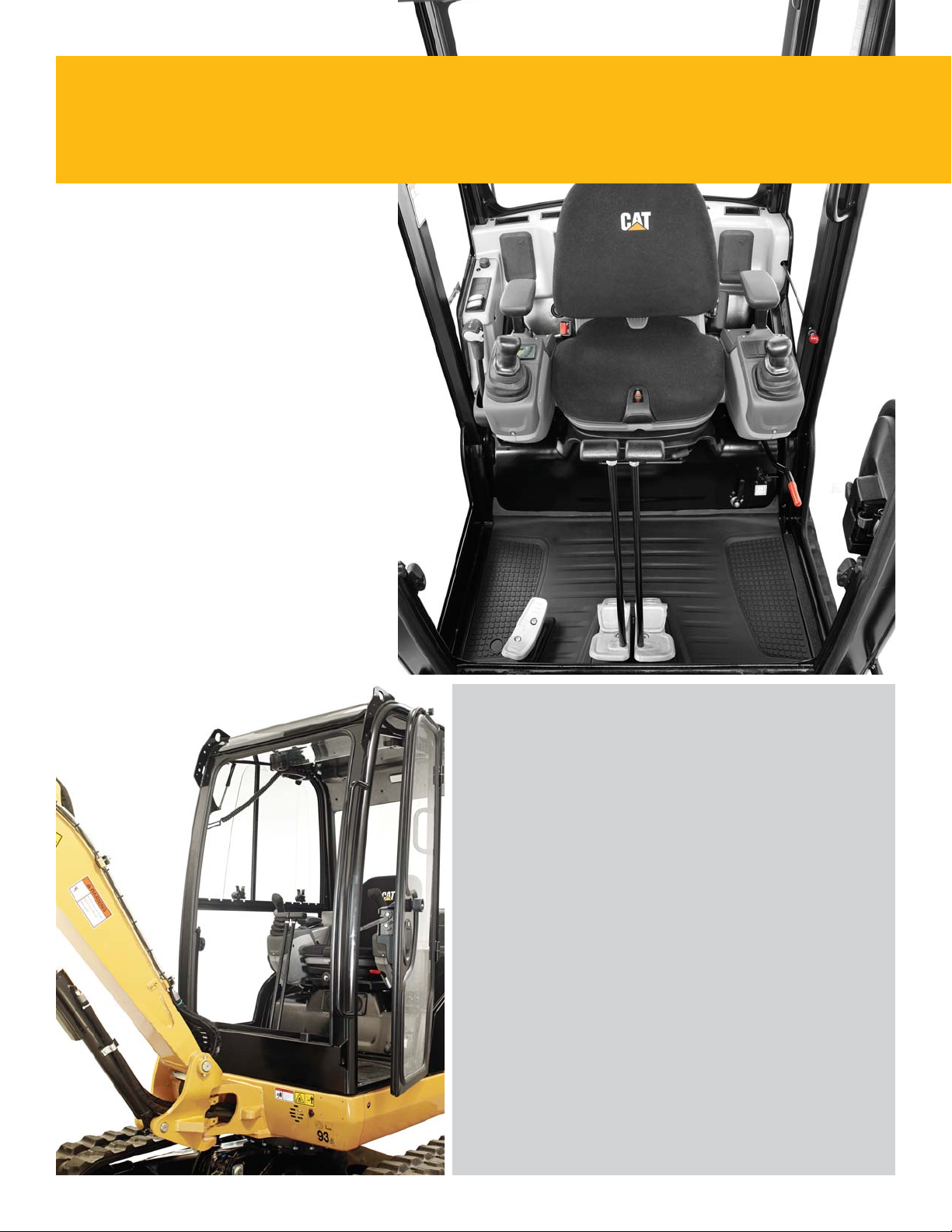

Cab Comfort

The Cat 301.7D gives the operator a large comfortable
space in which to work. The ergonomic control
layout, travel pedals and adjustable wrist resets are
engineered to minimize operator fatigue and increase
productivity.

The layout is designed for easy cleaning, minimizing
downtime between jobs.

There is a choice of cab with heater or canopy
available. The canopy offering two sided access
foreven greater on site versatility.

Productive Comfort

Split Front Window

The lower front window section slides into the upper
sectionframe.

Both sections are then raised and stored in the roof
usinga gas assisted mechanism.

This allows the operator to position in front window tosuit
theirvisibility and ventilation requirements with easystorage.

7

Engine and Serviceability

Superior power with easy access and minimal
maintenance requirements keep you working.

Customer Support – Unmatched Support Makes the Difference

Your Cat dealer is ready to assist you with your purchase decision and everything after.

• Financing packages are exible to meet your needs

• Unmatched parts availability keeps you working

• Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production

• For more information on Cat products, dealer services and industry solutions, visit www.cat.com

8

Powerful Engine

The Cat 301.7D is tted with a 17.9 kW (24.3 hp) gross power engine that is installed at a much lower rated

13.2 kW (17.7 hp). This is designed to reduce engine wear, give cooler running temperatures, with longer
life and lower owner and operating costs.

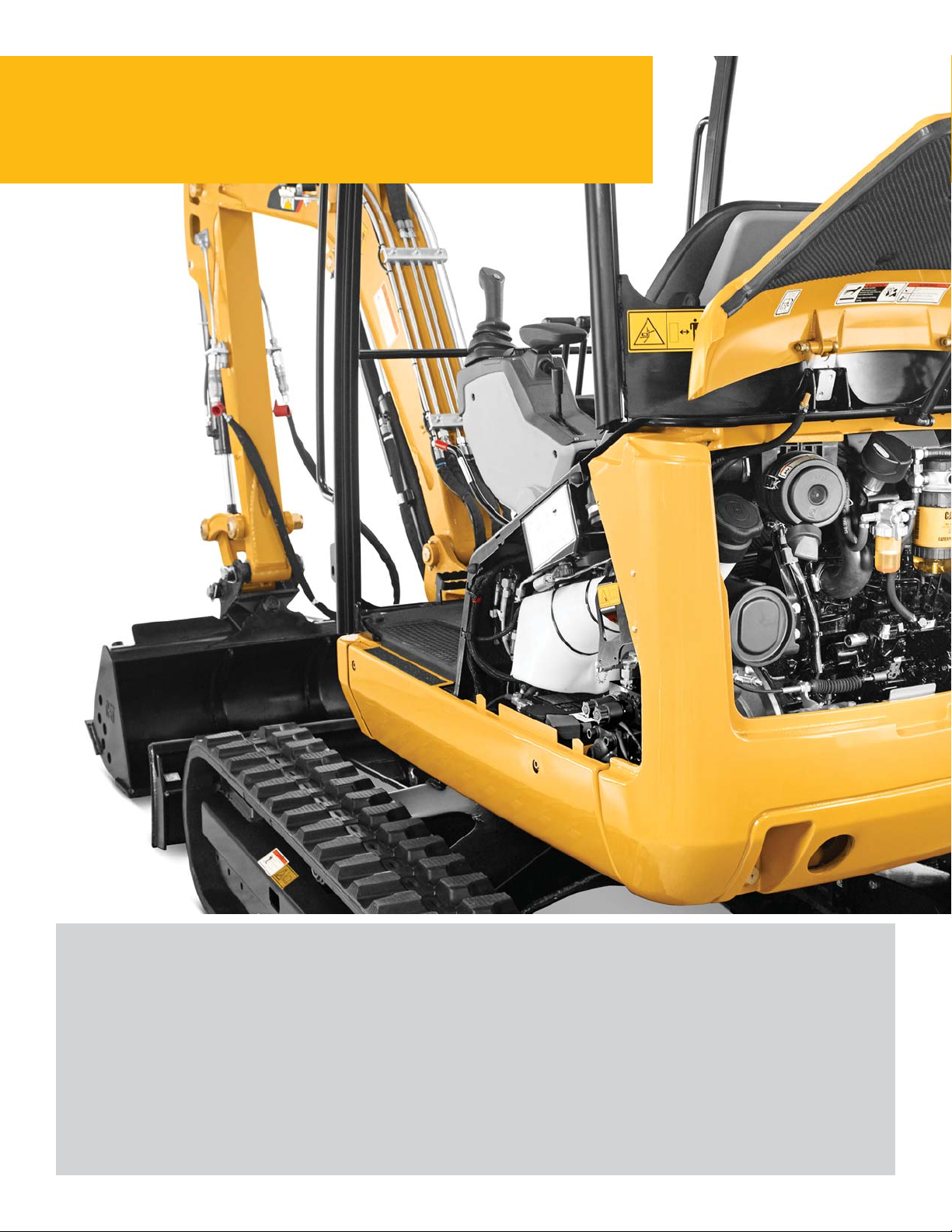

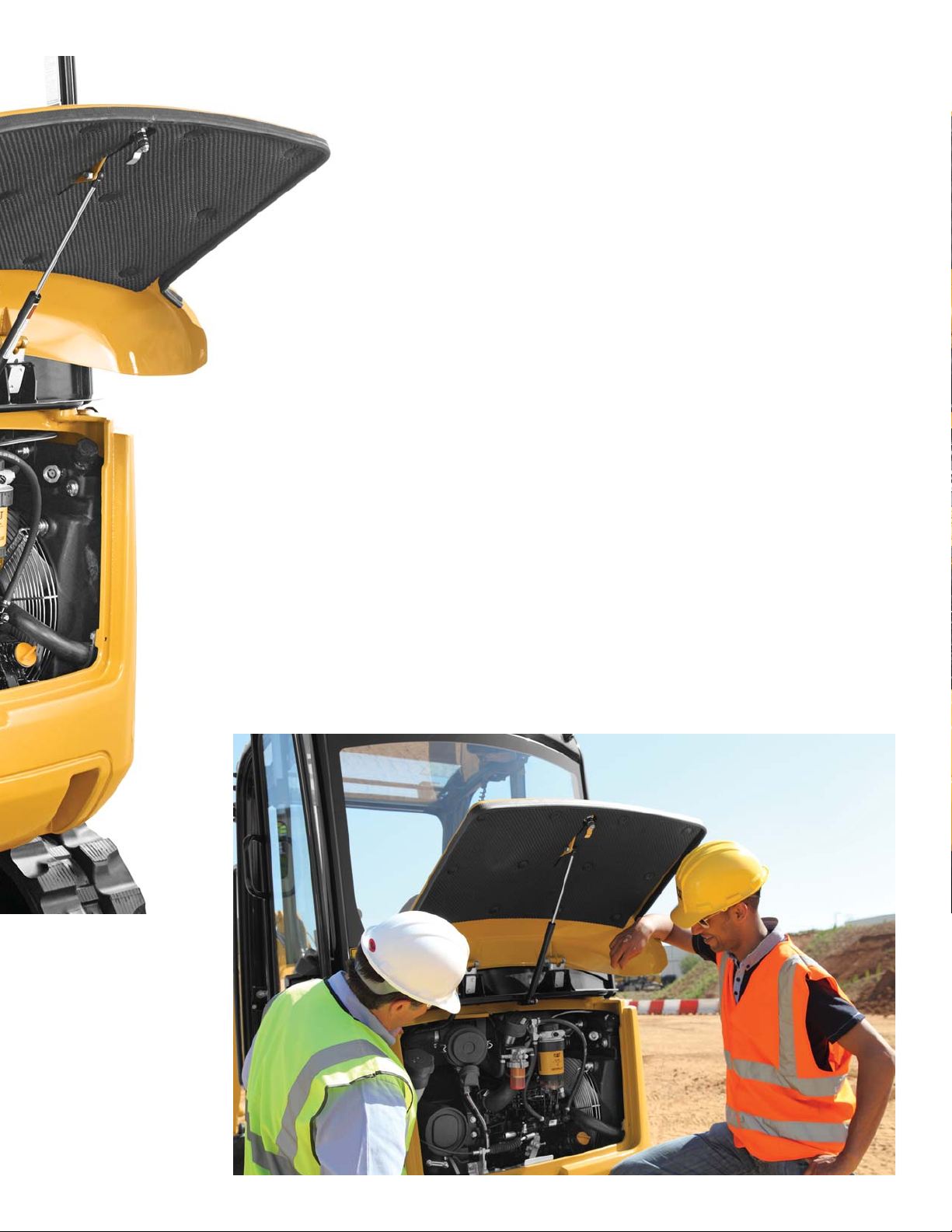

Excellent Service Access

Daily checks and regular service points including fuel and hydraulic oil ll are easily reached via the
largesteel rear door. The main hydraulic valve and lines are also easily reached through a removable
oorplate and side panels.

The machine has durable steel body panels all around, offering good resistance to impact damage
andhelping to maintain the machine’s appearance and value.

9

301.7D Mini Hydraulic Excavator Specifications

Engine Blade

Engine Model Yanmar 3TNV76 Width 990 mm 39 in

Rated Net Power @ 2,200 rpm 13.2 kW 17.7 hp Height 230 mm 9 in
(ISO 9249)

Gross Power (ISO 14396) 17.9 kW 24.3 hp

Displacement 1116 cm 40 in

Weights

Transport Weight with Canopy 1610 kg 3,550 lb + 19.0 + +5.0 +

Transport Weight with Cab 1720 kg 3,792 lb

Transport Weight with Canopy 1735 kg 3,825 lb
andExtending Undercarriage Operating Pressure – Travel 200 bar 2,900 psi

Transport Weight with Cab 1845 kg 4,068 lb Operating Pressure – Swing 125 bar 1,813 psi
andExtending Undercarriage

Travel System

Travel Speed 2.8 km/h/ 1.74 mph/

5.6 km/h 3.48 mph

Gradeability 30°/58%

Service Refill Capacities

Fuel Tank Capacity 24 L 6.3 gal

Hydraulic Tank Capacity 21 L 5.5 gal

Dig Depth – Standard Blade 317 mm 12.5 in

Lift Height – Standard Blade 197 mm 8 in

Hydraulic System

Pump Flow @ 2,200 rpm 23.8 + 23.8 6.29 + 6.29

6.4L/min 1.7gal/min

Operating Pressure – Equipment 200 bar 2,900 psi

Auxiliary Circuits

Primary 30 L/min

at170 bar

Secondary 17 L/min 4.5 gal/min

at200 bar at 2,900 psi

Maximum Bucket Force 18.8 kN 4,226 lbf

Maximum Stick Force – Standard Stick 11.2 kN

Maximum Stick Force – Long Stick 9.8 kN

8 gal/min
at2,465 psi

2,518 lbf

2,203 lbf

Lift Capacity at Ground Level

2 m (6'7") 2.5 m (8'2") 3 m (9'10") Maximum

Lift Point Radius Front Side Front Side Front Side Front Side

kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg

Long Stick/
FixedUndercarriage 835* 1,840* 580 1,279 605* 1,334* 400 882 470* 1,036* 325 717 440* 970* 300

*The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed

87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart.

lb

661

10

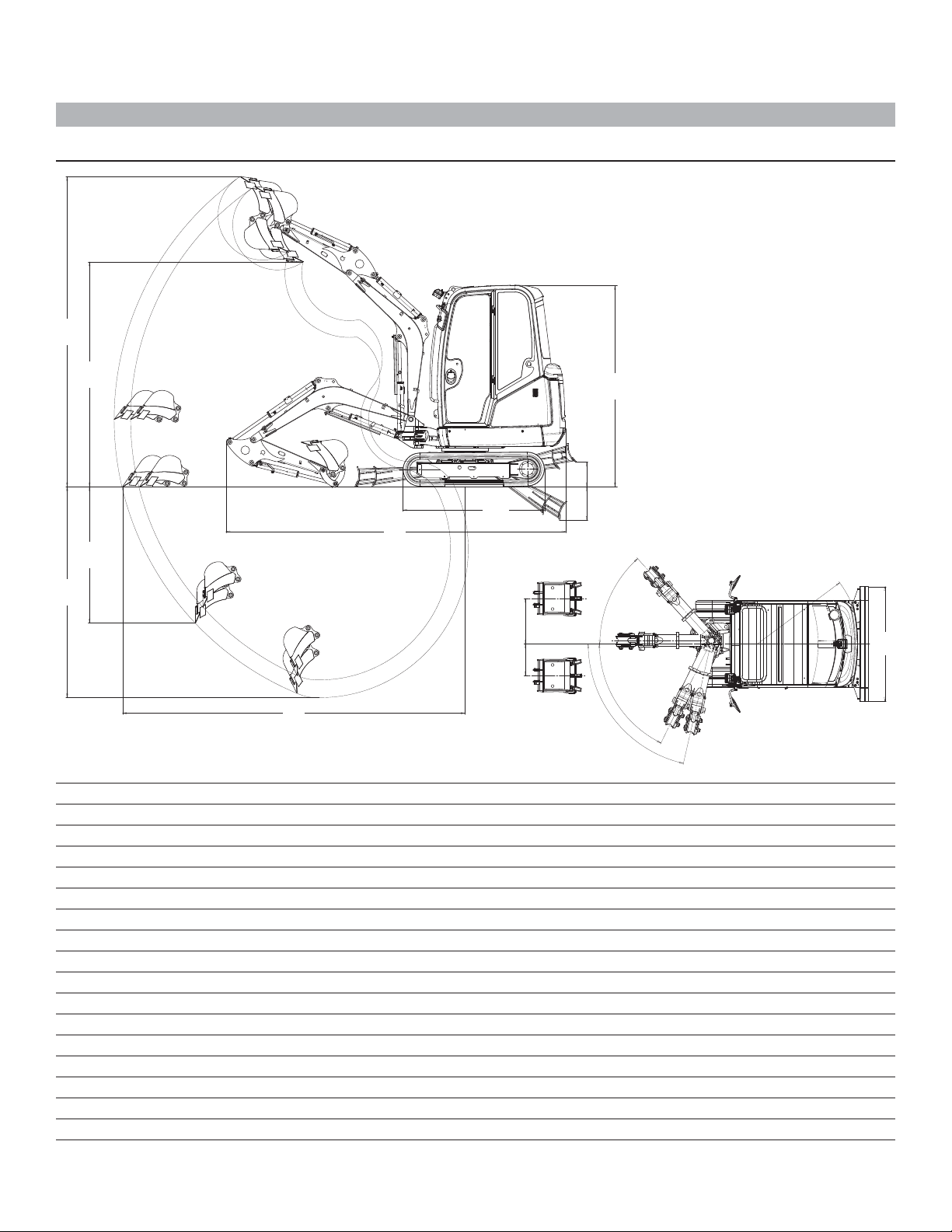

Dimensions

All dimensions are approximate.

6

7

5

4

Height

1

Width

2

Transport Length (arm lowered)

3

Maximum Digging Depth

4

Maximum Vertical Dig Depth

5

Maximum Dig Height

6

Maximum Dump Height

7

Maximum Reach at Ground Level

8

Tail Swing Radius

9

Maximum Boom Offset (RH)

10

Maximum Boom Offset (LH)

11

Maximum Dozer Lift Height

12

Maximum Dozer Dig Depth

13

Length of Undercarriage (Fixed)

14

Length of Undercarriage (Extending)

14

Boom Swing Angle (RH)

15

Boom Swing Angle (LH)

16

1

12

14

13

3

15

9

10

2

11

8

16

Standard Stick

2290 mm 7'5"

990 mm-1300 mm 3'3"-4'3"

3855 mm 12'8"

2200 mm 7'3"

1430 mm 4'8"

3485 mm 11'5"

2500 mm 8'3"

3700 mm 12'2"

1170 mm 3'10"

520 mm 1'8"

360 mm 1'2"

200 mm 8"

320 mm 1'0"

1445 mm 4'9"

1600 mm 5'3"

48°

77°/64°

2290 mm 7'5"

990 mm-1300 mm 3'3"-4'3"

3855 mm 12'8"

2400 mm 7'11"

1620 mm 5'4"

3595 mm 11'9"

2610 mm 8'7"

3895 mm 12'9"

1170 mm 3'10"

520 mm 1'8"

360 mm 1'2"

200 mm 8"

320 mm 1'0"

1445 mm 4'9"

1600 mm 5'3"

Long Stick

48°

77°/64°

11

301.7D Standard Equipment

Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

• 230 mm (9 in) rubber track • Canopy – ROPS and TOPS protection • Hydraulic oil cooler

• Hammer/two way auxiliary hydraulic lines • Retractable seat belt • Fixed undercarriage

• Auxiliary quick disconnect couplers • Suspension seat, vinyl covered • Automatic swing park brake

• Standard length dozer blade • Travel pedals • Dozer  oat

• Working light mounted to boom • Maintenance free battery

12

Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

301.7D Optional Equipment

• Cab, radio ready – ROPS and TOPS
protection

• Suspension seat, fabric covered

• Boom stick or dozer blade check valve

• Mirror pack

• Removable swing stop

• Additional hydraulic circuit diverted from
bucket cylinder

• Cab top guard to ISO 10262 (Level 1)

• Auto engine idle

• Joystick mounted proportional auxiliary
control with  ow control

• Long dozer blade

• Long stick

• Extending undercarriage

• Cab/canopy lights

• Second auxiliary lines

13
