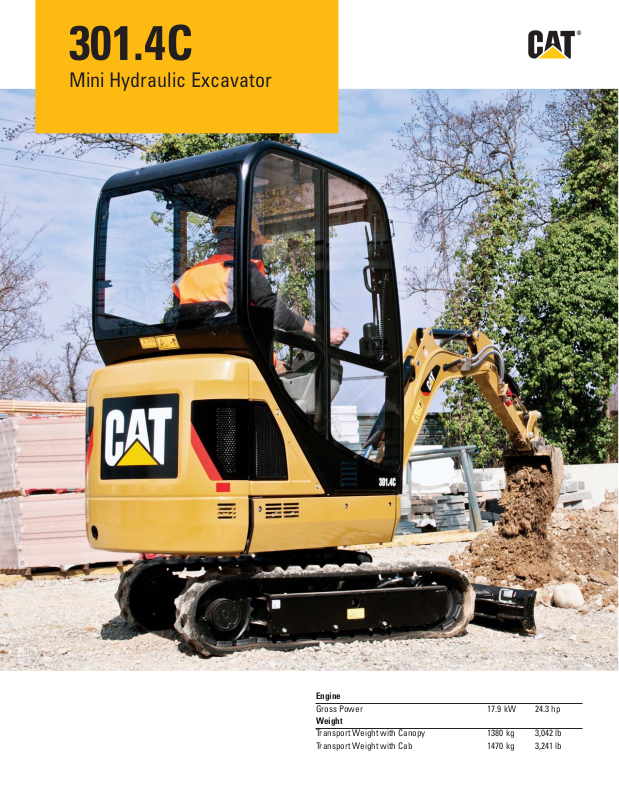

Page 1

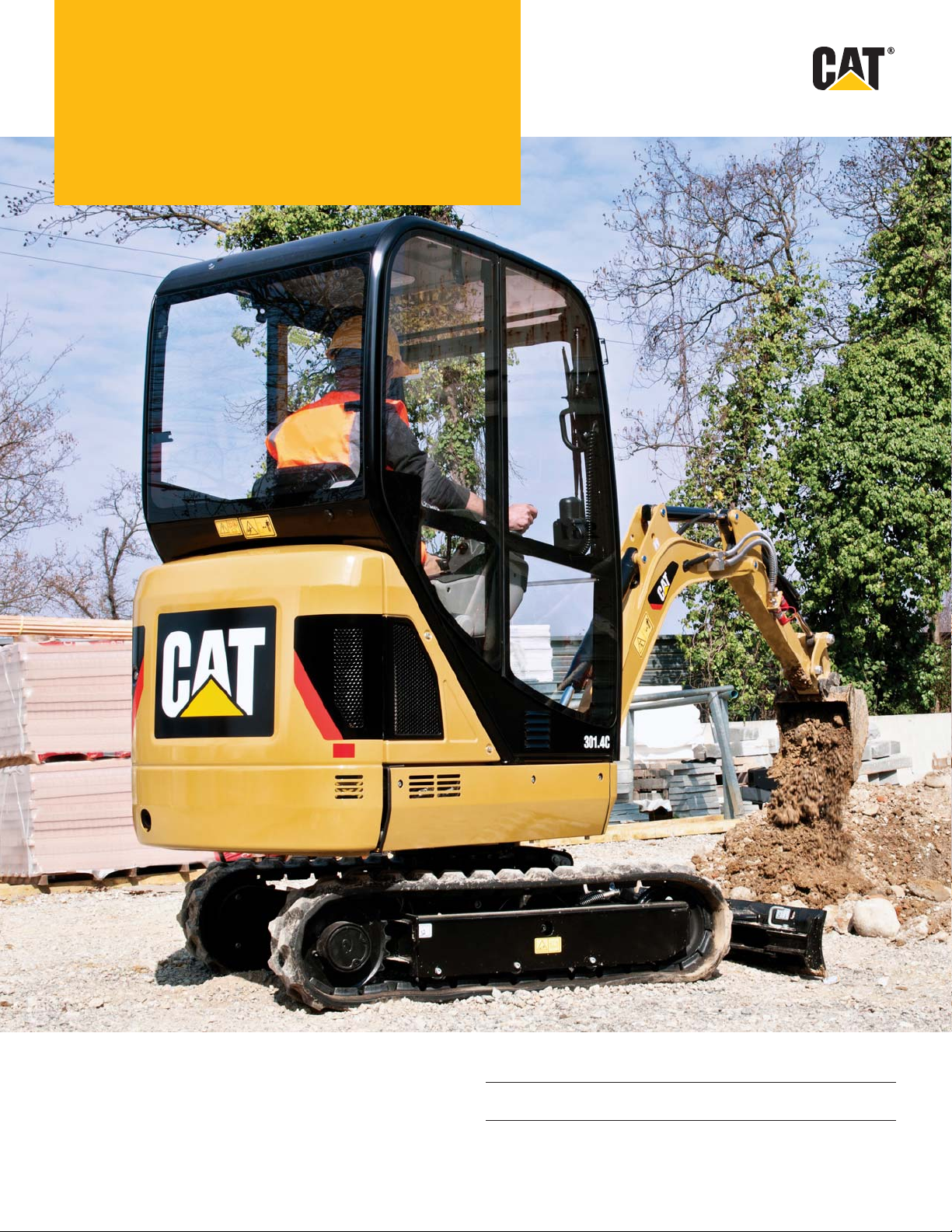

301.4C
Mini Hydraulic Excavator
Engine
Gross Power 17.9 kW 24.3 hp
Weight
Transport Weight with Canopy 1380 kg 3,042 lb
Transport Weight with Cab 1470 kg 3,241 lb
Page 2
Versatility
Easy to transport and greater site access

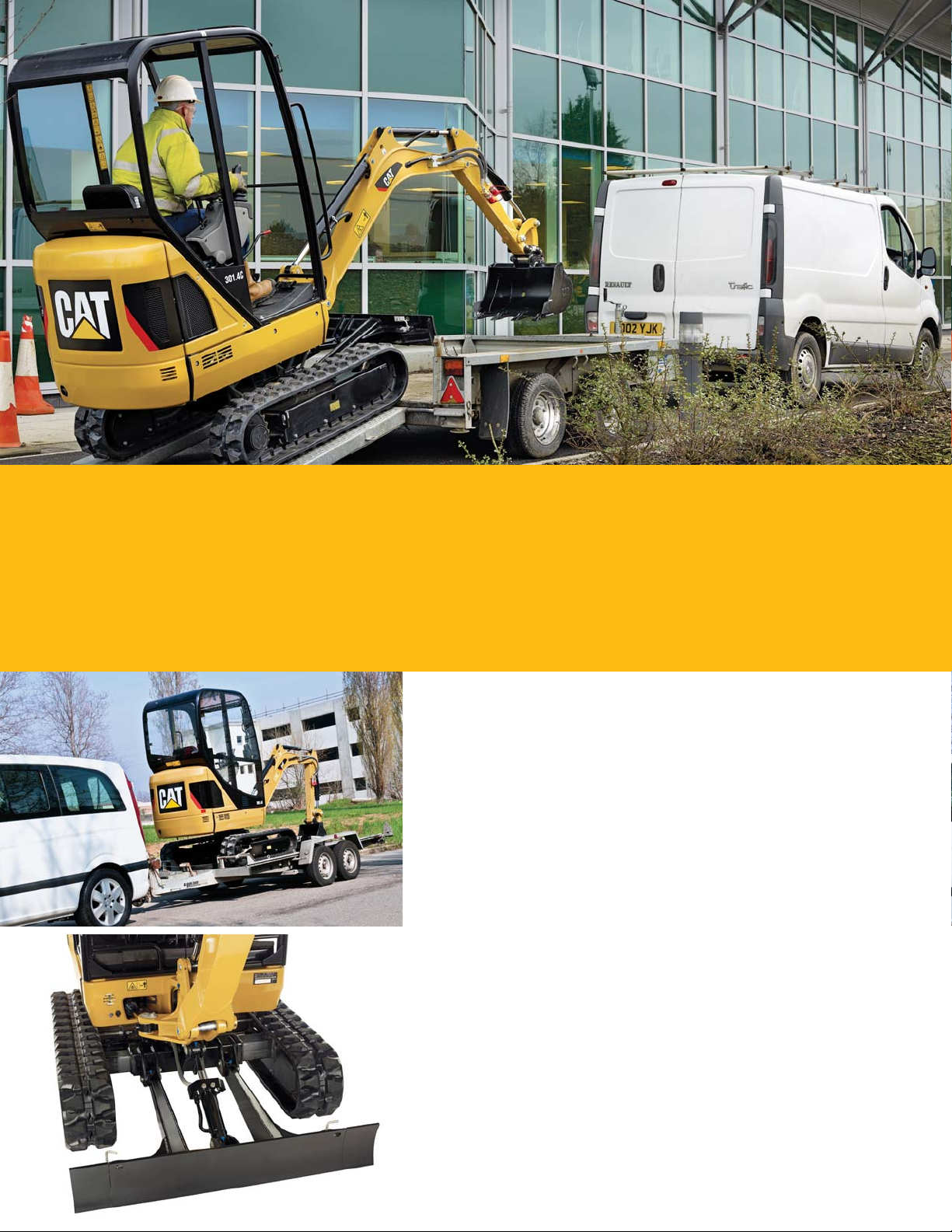

Easy Transportation
Compact in size and weighing just 1380 kg (3,042 lb) in
standard con guration with canopy the Cat® 301.4C is easy
to transport on a conventional trailer behind a pick up truck
ortransit van.
Two threaded bosses mounted in the roof allow tting
ofcrane lugs and simplify lifting of the machine.
Extending Undercarriage and Blade
An extending undercarriage and fold out dozer blade allow
the machine to be con gured for excellent working stability
and optimum performance.
Blade extensions simply rotate and lock out of the way using
retained pins eliminating the potential for lost parts.
2
Page 3

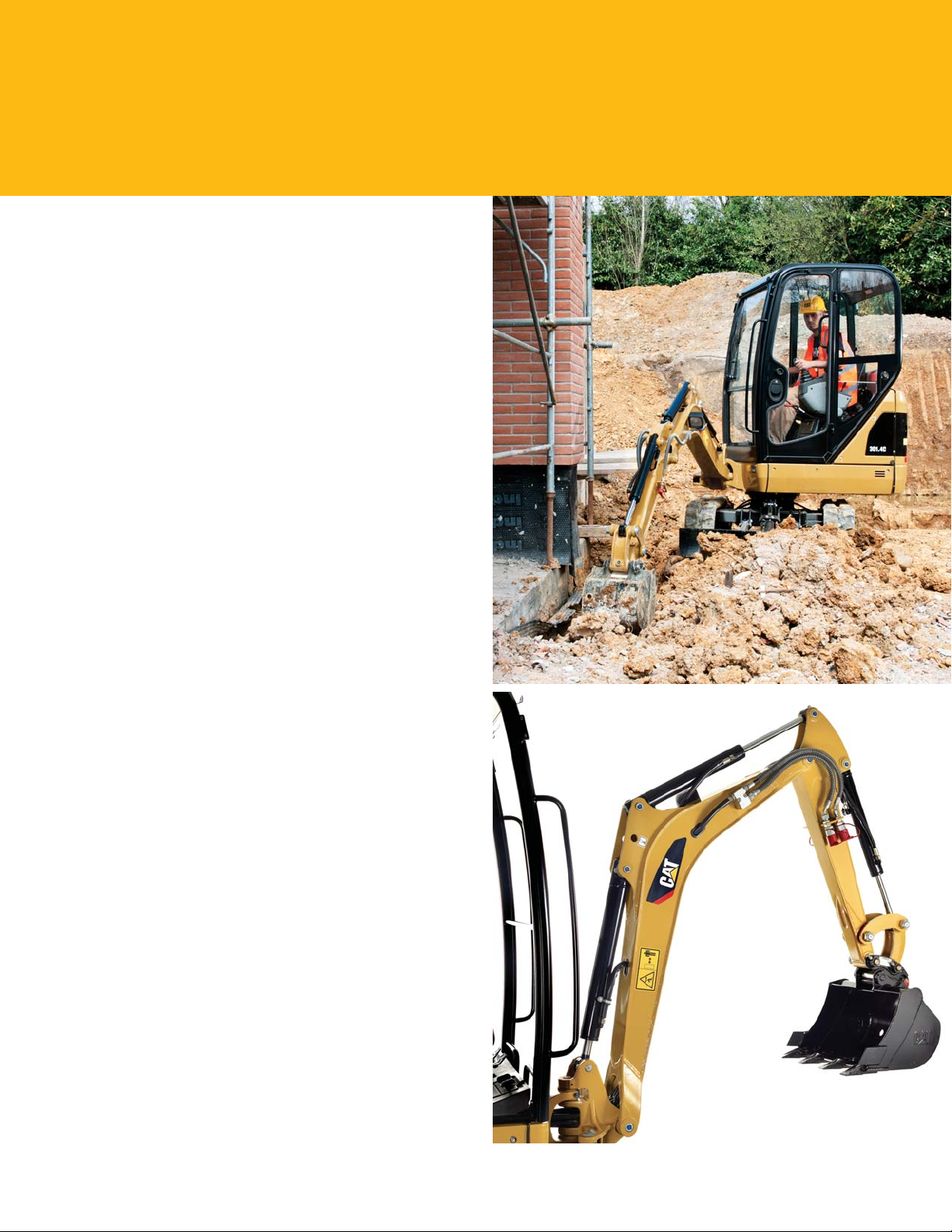

Performance and Durability
Powerful operation and greater uptime
Powerful Engine and Load Sensing Hydraulics
The 17.9 kW (24.3 hp) engine is matched with a load sensing
hydraulic system to provide excellent digging performance
and smooth control.
Low noise and vibration levels deliver comfortable operation.
High Bucket Breakout Force
The 301.4C delivers 16 kN (3,597 lbf) of bucket force, ideal
for dealing with heavy ground and tough applications.
Auxiliary Hydraulics as Standard Fit
Machine is ‘ready to work.’ Hammer and two way lines
complete with quick disconnect ttings are standard.
Connections are located close to the tool to reduce hose
lengths and any potential damage.
Hoses are protected by routing them through the boom.
Boom Cylinder Protection
The boom cylinder is mounted above the boom structure
toincrease the machines durability and reduce the potential
for downtime.
3
Page 4
Productive Comfort
Large operator environment; ergonomic control layout

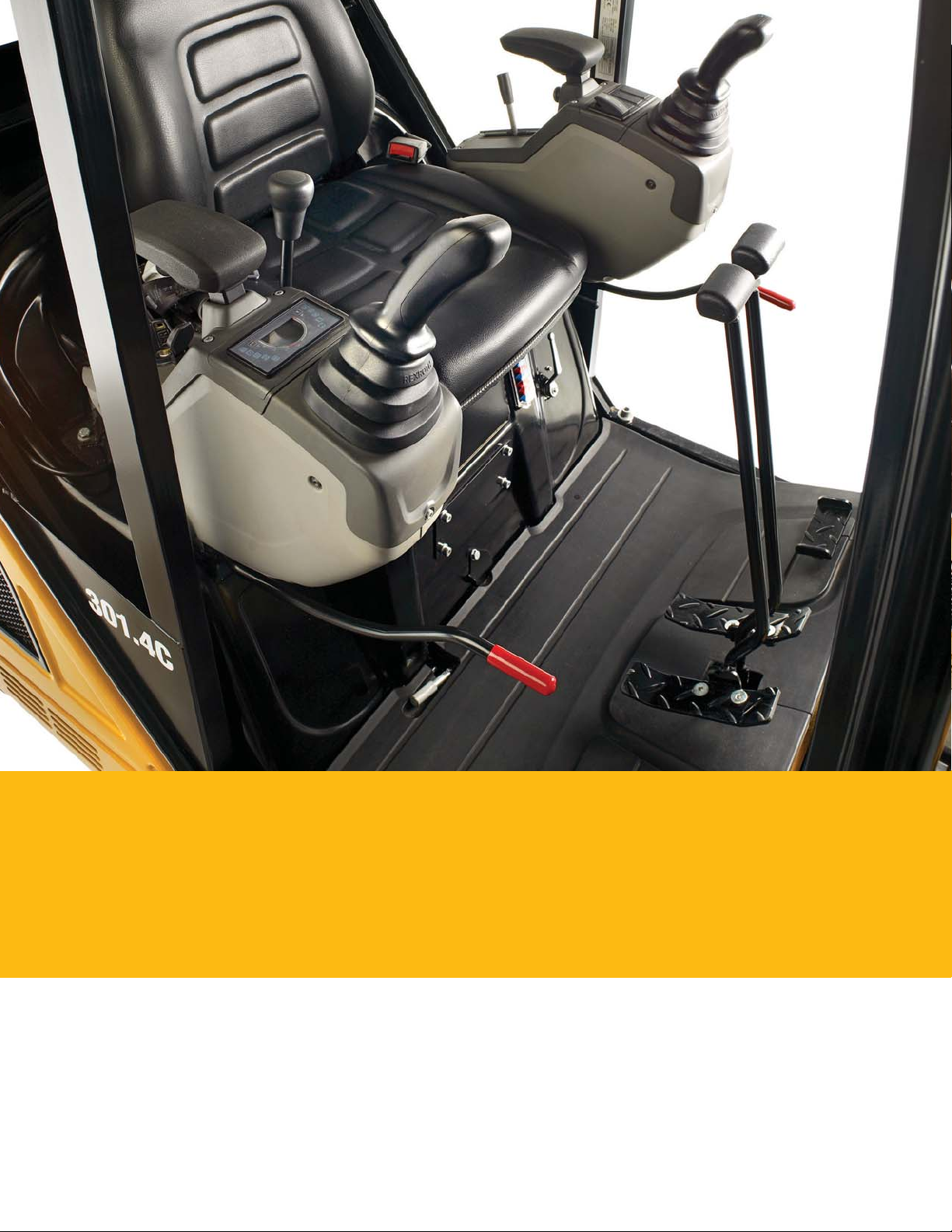

Operator Environment
The Cat 301.4C gives the operator a large comfortable space in which to work. The ergonomic control layout, travel pedals
andadjustable wrist rests are engineered to reduce operator fatigue and increase productivity.
The layout is designed for easy cleaning, minimizing downtime between jobs.
There is a choice of cab with heater or canopy available. The canopy offering two sided access for even greater on site versatility.
4
Page 5
Customer Support
Low operating costs with excellent services and options

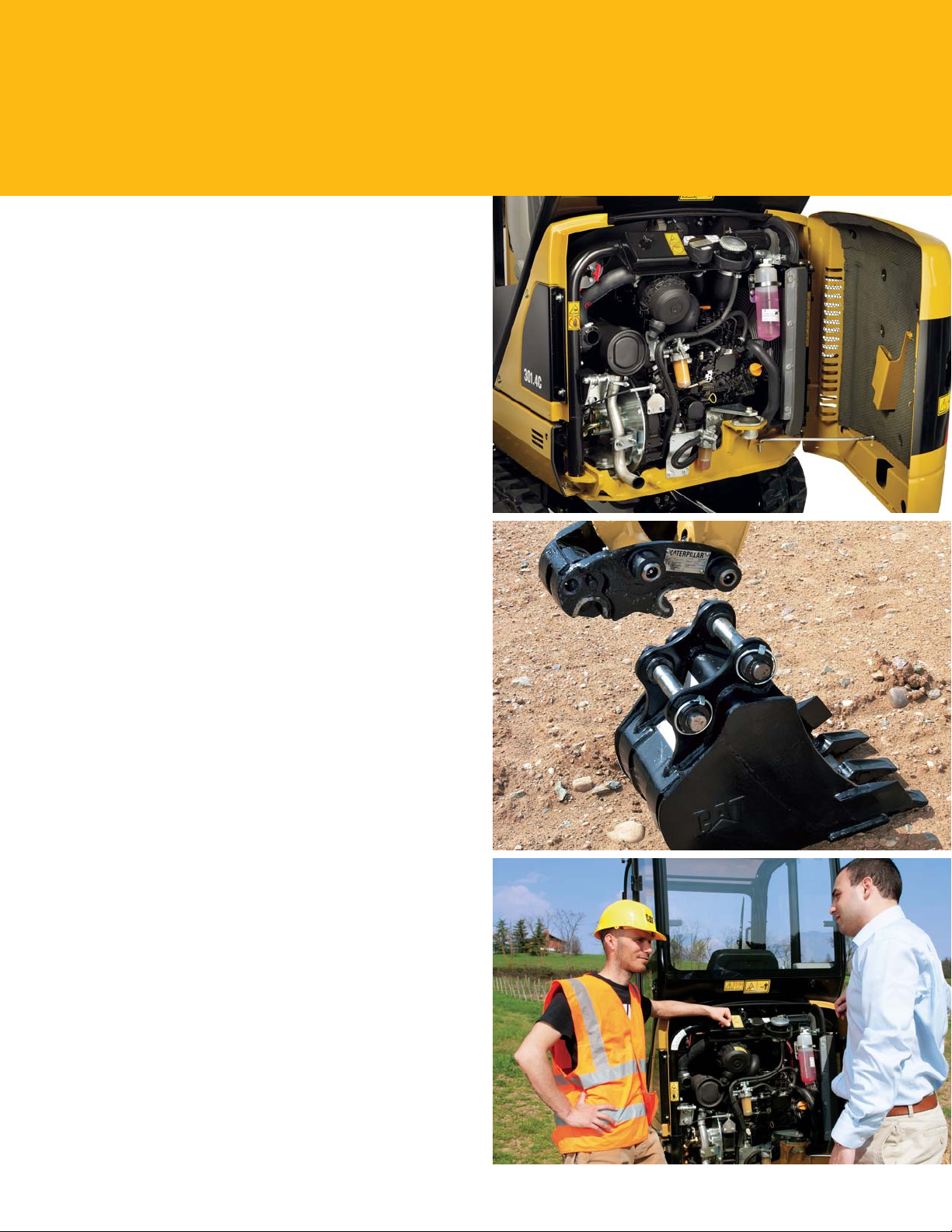

Excellent Service Access
Daily checks and regular service points including fuel and
hydraulic oil ll are easily reached via the large steel rear
door. The main hydraulic valve and lines are also easily
reached through a removable oor plate and side panels.
The machine has durable steel body panels all around,
offering good resistance to impact damage and helping
tomaintain the machine’s appearance andvalue.
Work Tools
A range of work tools is available to take advantage of the
machine’s versatility. All tools are matched to the machine
to optimize performance and deliver excellent value through
productivity and long life.
Customer Support
Product supported through the Cat dealer and Worldwide
parts network, aimed at minimizing downtime and
maximizing customer pro tability.
Offering includes:
• Finance options
• Warranty options
• Maintenance options
5
Page 6
Speci cations
Engine
Engine Model Yanmar 3TNV76
Rated Net Power
(ISO9249)
Gross Power 17.9 kW 24.3 hp
Displacement 1116 cm 68.1 in
13.2 kW 17.7 hp
Weight
Transport Weight
withCab
Transport Weight
withCanopy
Transport Weight with
Cab and Telescopic
Undercarriage
Transport Weight with
Canopy and Telescopic
Undercarriage
Note: Weights do not include worktools.
1470 kg 3,241 lb
1380 kg 3,042 lb
1558 kg 3,435 lb
1468 kg 3,236 lb
Travel System
Travel Speed 2.5 km/h 1.55 mph
Gradeability 30°/58%
Track Width 230 mm 9.06 in
Service Re ll Capacities
Fuel Tank Capacity 24 L 6.3 gal
Hydraulic Tank
Capacity
20 L 5.3 gal
Hydraulic System
Pump Flow
at2,200rpm
Operating Pressure
–Equipment
Operating Pressure
–Travel
Operating Pressure
–Swing
Max. Bucket Force 16 kN 3,597 lbf
Max. Stick Force 7.1 kN 1,596 lbf
35 L/min 9.2 gal/min
200 bar 2,901 psi
200 bar 2,901 psi
150 bar 2,176 psi
Blade
Width 980 mm 38.6 in
Height 232 mm 9.1 in
Dig Depth 264 mm 10.4 in
Lift Height 211 mm 8.3 in
Lift Capacity at Ground Level
2000 mm (78.7 in) 3000 mm (118.1 in) Maximum
Front Side Front Side Front Side
Lift Point Radius
Undercarriage Width
* The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87%
ofhydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart.
990 mm (39 in) 715* 1,576* 335 739 385* 849* 200 441 350* 772* 190 419
1300 mm (51.2 in) 715* 1,576* 495 1,091 385* 849* 300 661 350* 772* 275 606
kg lb kg lb kg lb kg lb kg lb kg lb
Standard Equipment
Standard equipment may vary. Consult your Cat dealer for details.
230 mm (9.06 in) rubber track
1-way and 2-way (combined function)
auxiliary hydraulic lines
Dozer blade
Canopy with FOPS ISO 10262 (Level 1),
Tip-Over Protection (TOPS) ISO 12117
Retractable seat belt
Suspension seat, vinyl covered
Travel pedals
Optional Equipment
Optional equipment may vary. Consult your Cat dealer for details.
Cab, radio ready with FOPS ISO 10262
(Level 1), Tip-Over Protection (TOPS)
ISO12117, heater/defroster, interior light
and windscreen wiper/washer
Suspension seat, fabric covered
Boom check valve
Mirror pack
6
Mechanical quick coupler
Front screen guard for canopy
Bio oil
Ecology drain for engine oil
Rotating beacon
Telescopic undercarriage and blade
extensions (900-1300 mm [35.4-51.2 in])
(standard in North America)
Maintenance free battery
Hydraulic oil cooler
Boom mounted light
Control pattern changer
(not available in Europe)
Custom color paint
Hydraulic quick coupler lines
Roof mounted cab worklights
Radio ready preparation
Toolkit
Travel alarm
Page 7

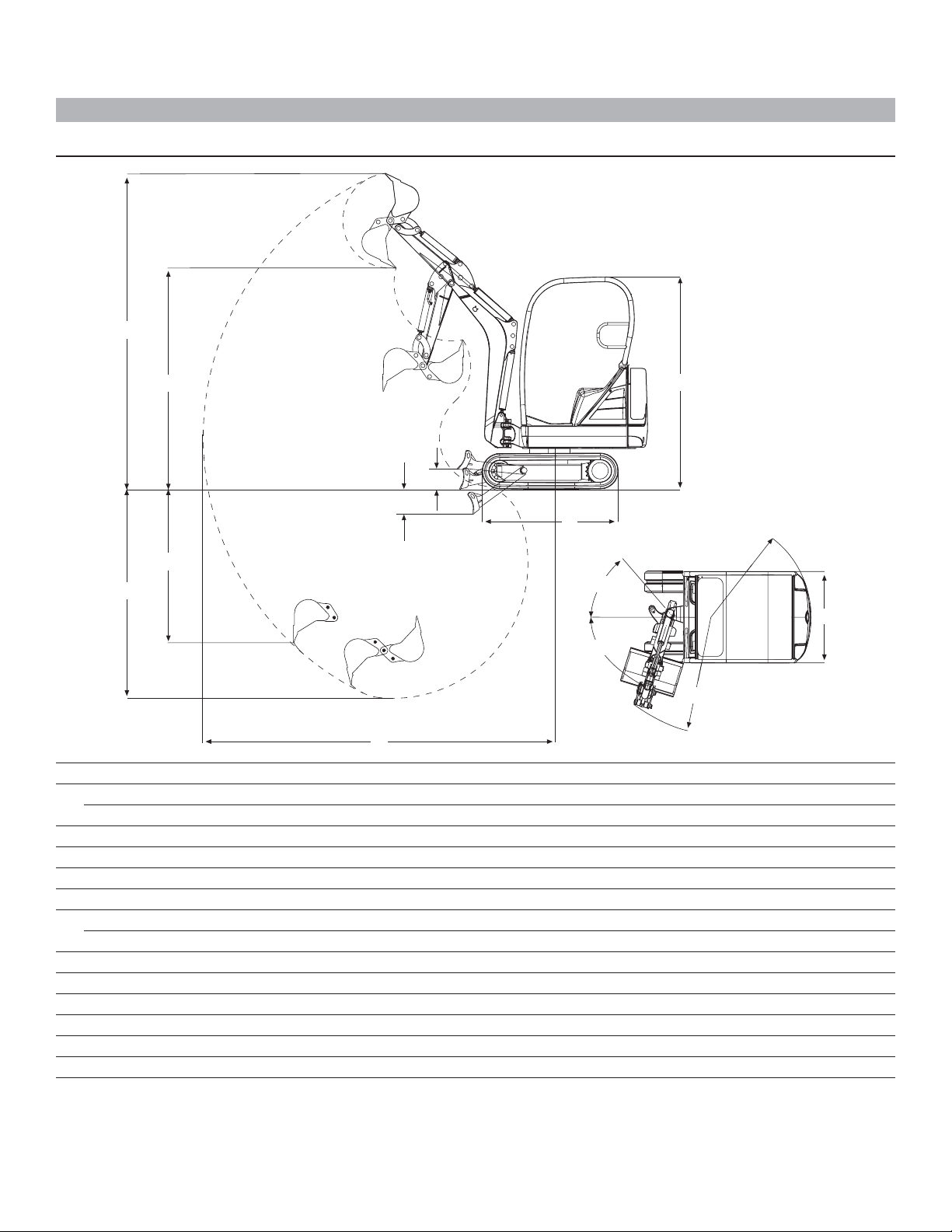

Dimensions
All dimensions are approximate
5
6
9
10
4
3
7
Height 2276 mm 7 ft 6 in
1
Width 990 mm 3 ft 3 in
2
11
12
13
1
8
14
Transport Length (boom down) 3645 mm 12 ft 0 in
Maximum Digging Depth 2240 mm 7 ft 4 in
3
Maximum Vertical Digging Depth 1640 mm 5 ft 5 in
4
Maximum Digging Height 3390 mm 11 ft 1 in
5
Maximum Dumping Height 2370 mm 7 ft 9 in
6
Maximum Digging Radius 3700 mm 12 ft 2 in
7
Maximum Reach on the Ground 3650 mm 12 ft 0 in
Tail Swing Radius 1075 mm 3 ft 6 in
8
Maximum Lift of Dozer Blade Above Ground 211 mm 8.3 in
9
Maximum Digging Depth of Dozer Blade Below Ground 264 mm 10.4 in
10
Track Length 1460 mm 4 ft 9 in
11
Maximum Swing Angle of Boom System to the Right 49°
12
Maximum Swing Angle of Boom System to the Left 73°
13
Minimum Boom Swing Radius 1490 mm 4 ft 11 in
14
2
7
Page 8
301.4C Mini Hydraulic Excavator
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com
© 2011 Caterpillar Inc.
All rights reserved
Materials and speci cations are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
AEHQ6308-01 (07-2011)
Replaces AEHQ6308
