CastleNet Technology CBW500 User Manual

8

e

y

8

0

0

2..

2

R

R

1

1

e

e

1

1

sii

s

g

g

d

d

Wiirr

W

e

nttii

e

n

For 1 Port and 4 Ports Model

a

a

e

y

ell

CBW500/501

e

s

e

User’s Manual

e

all

a

s

G

G

s

s

att

a

C

C

e

e

a

a

w

w

bll

b

i

m3

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to whi ch the receiver
is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example - use only shielded interface
cables when connecting to computer or peripheral devices) any changes or modifications
not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may

cause undesired operation.

IMPORTANT NOTE:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

Table of Contents

INTRODUCTION............................................................................................2

FEATURES ......................................................................................................2

PACKAGE CONTENTS.................................................................................3

HARDWARE CONNECTION ....................................................................... 3

LED INDICATORS ......................................................................................... 2

Mode ..................................................................................................................2

GETTING STARTED .....................................................................................3

CONFIGURATION MENU..............................................................................4

7.1 S

..................................................................................................................4

TATUS

7.1.1 Software ........................................................................................................4

7.1.2 Connection .................................................................................................... 5

7.1.3 Security .........................................................................................................6

7.1.4 Diagnostics ...................................................................................................7

7.2 B

....................................................................................................................8

ASIC

7.2.1 Setup..............................................................................................................8

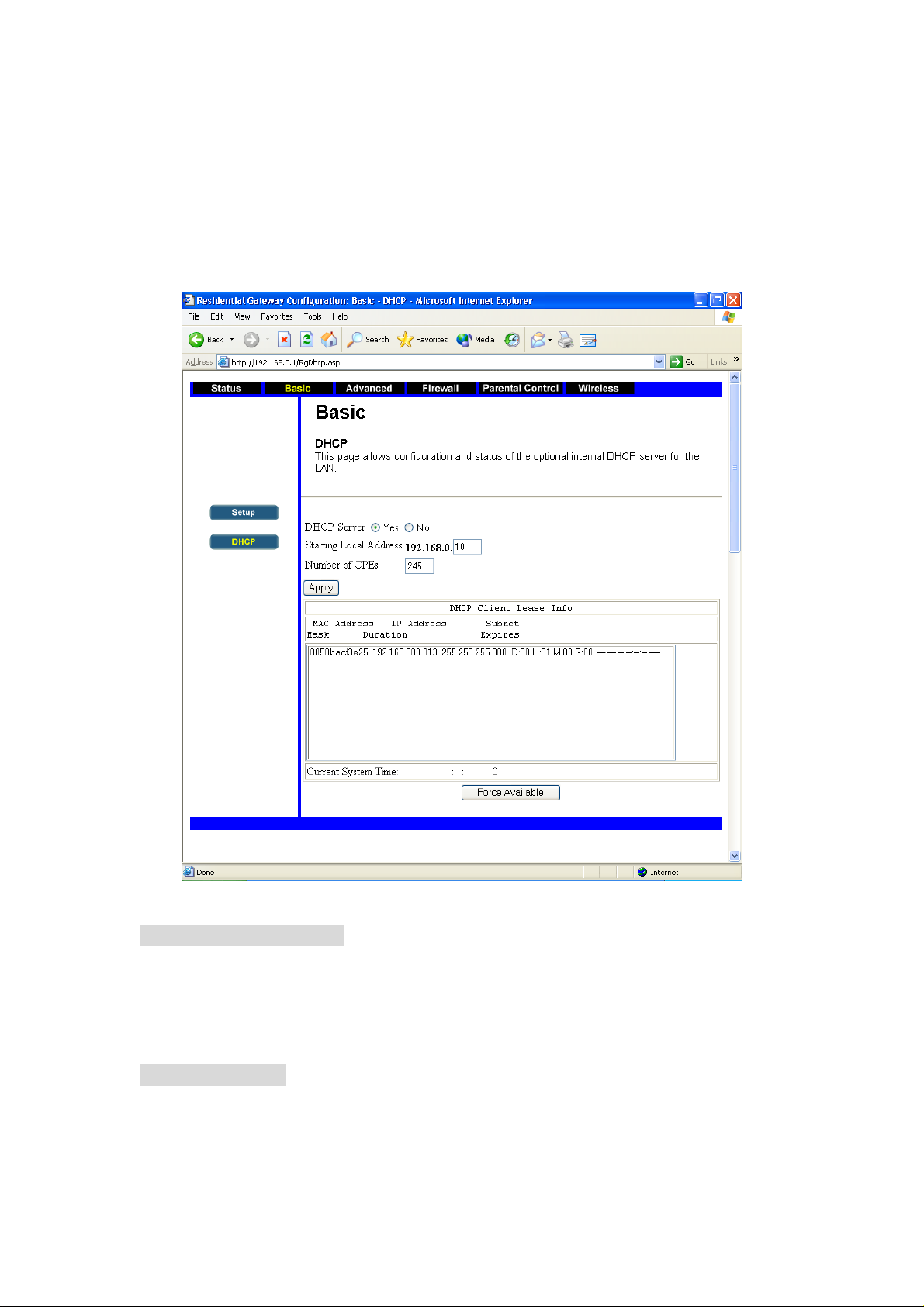

7.2.2 DHCP............................................................................................................9

7.3 A

DVANCED

.........................................................................................................10

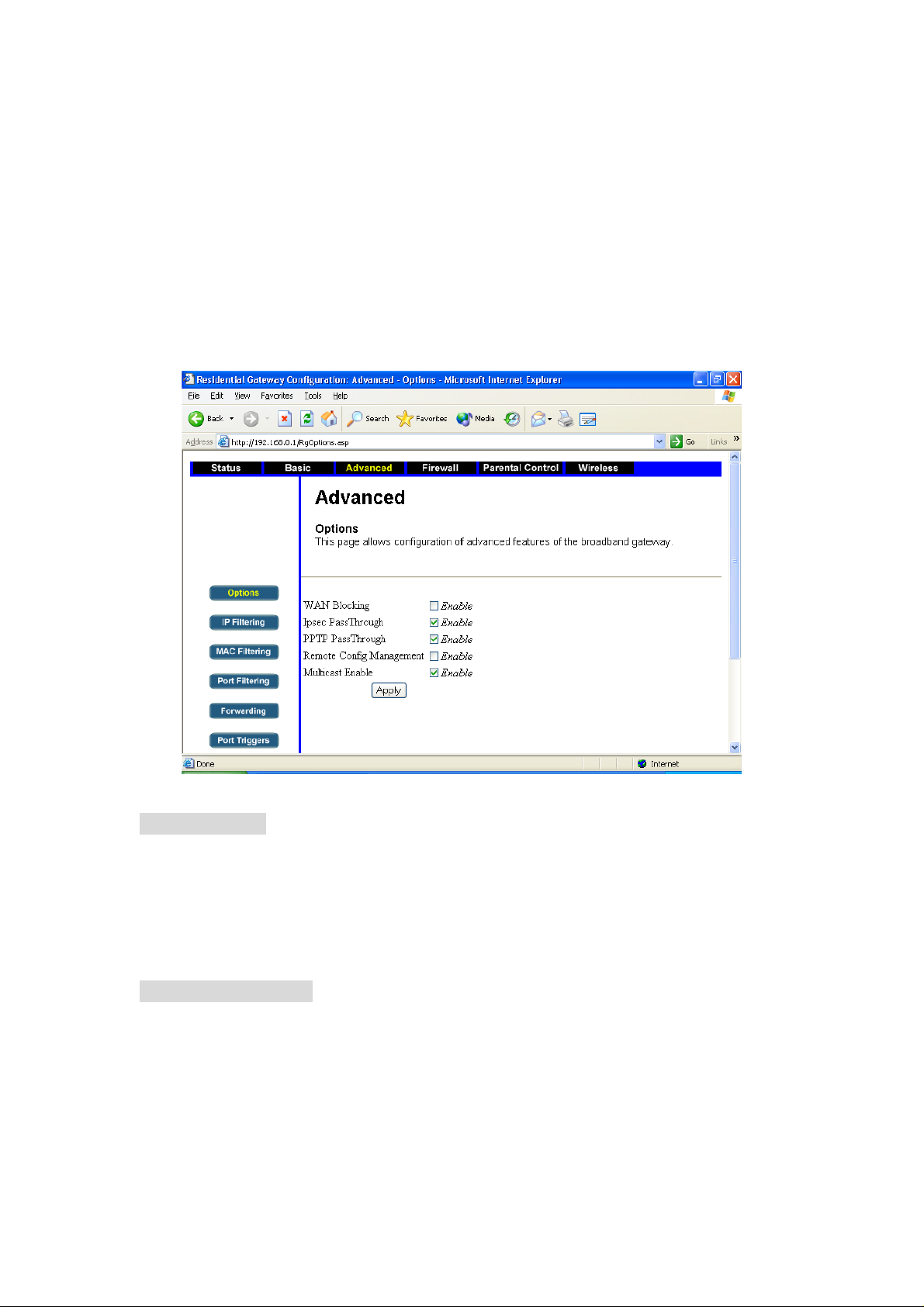

7.3.1 Options........................................................................................................10

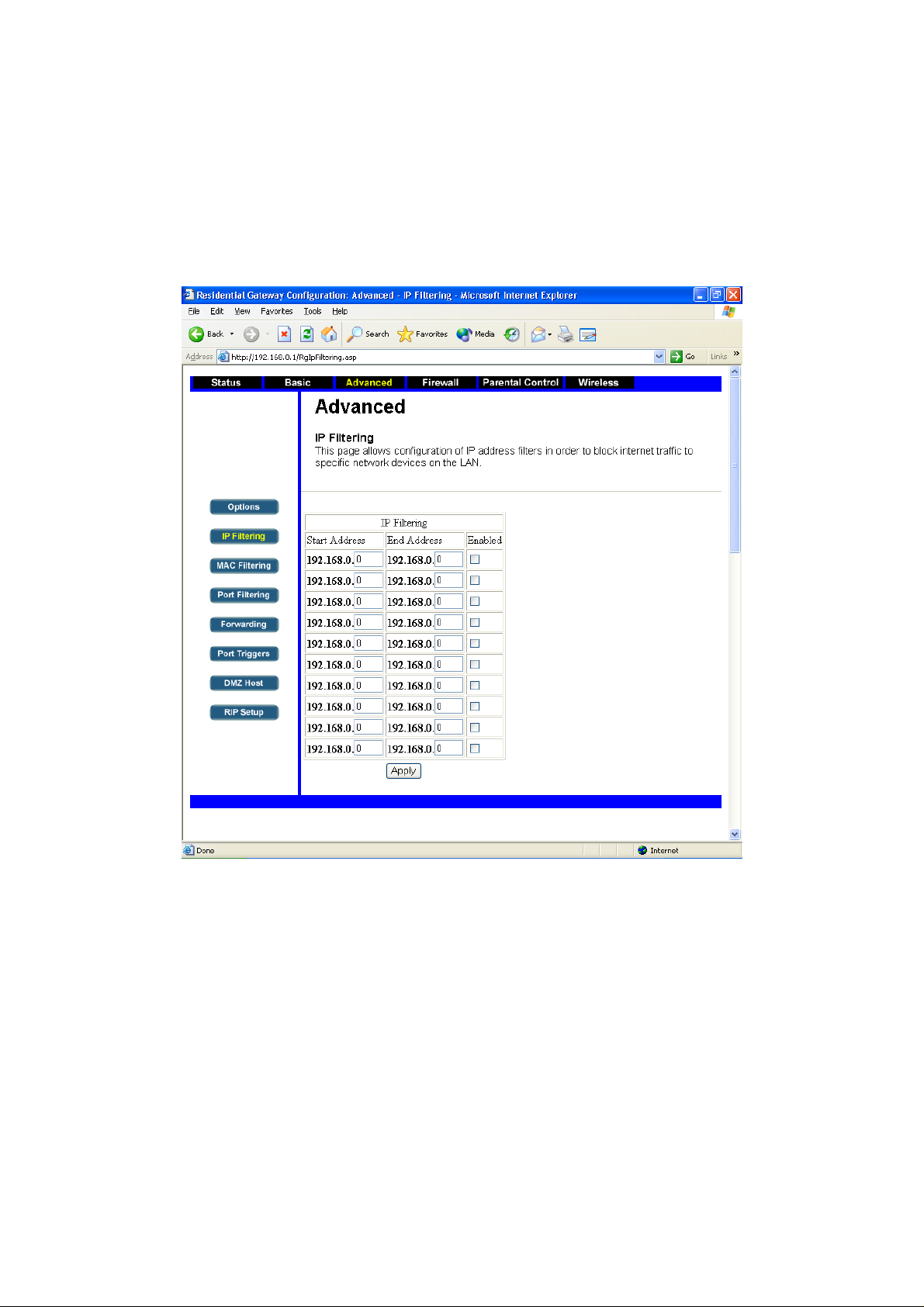

7.3.2 IP Filtering..................................................................................................12

i

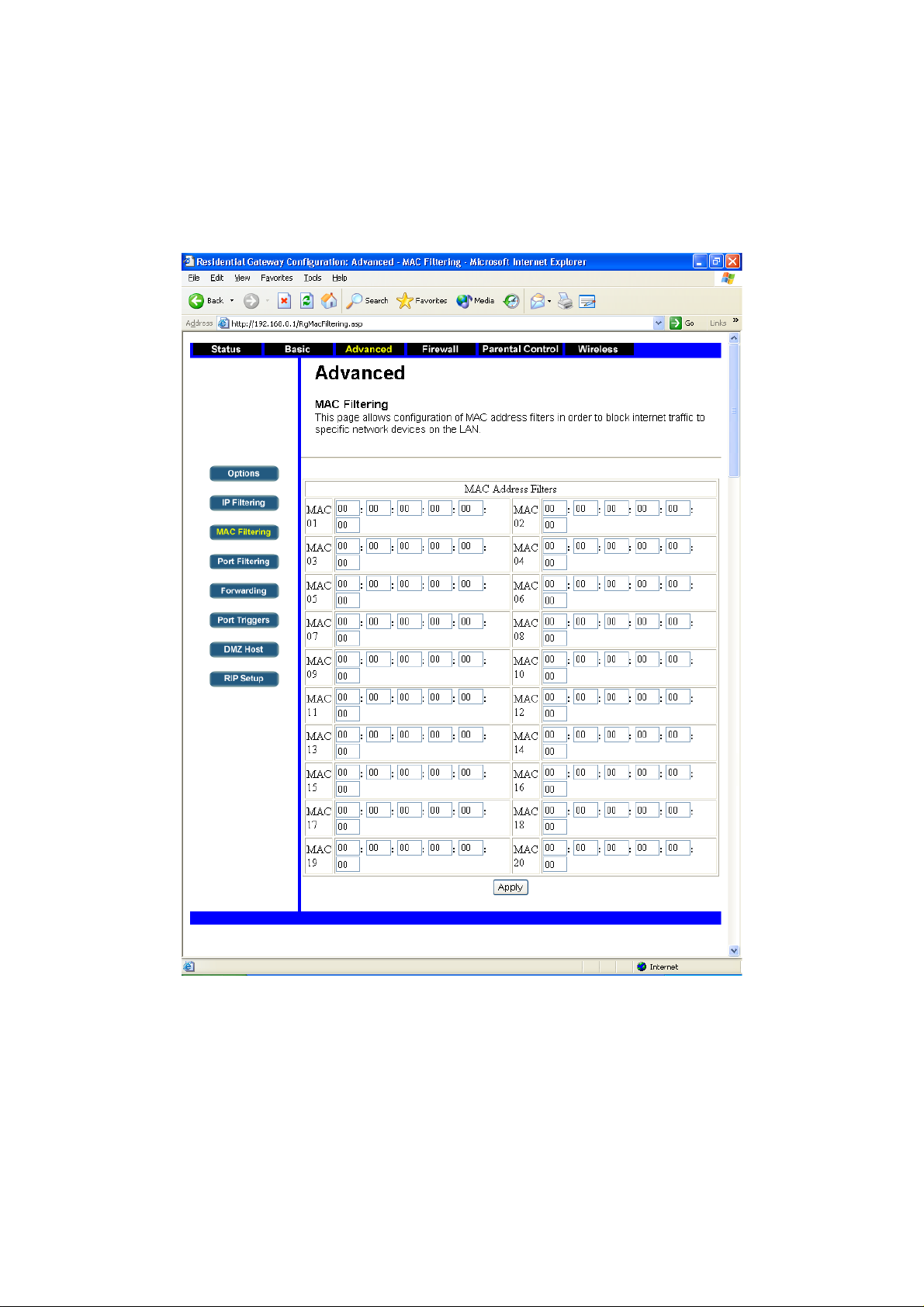

7.3.3 MAC Filtering.............................................................................................13

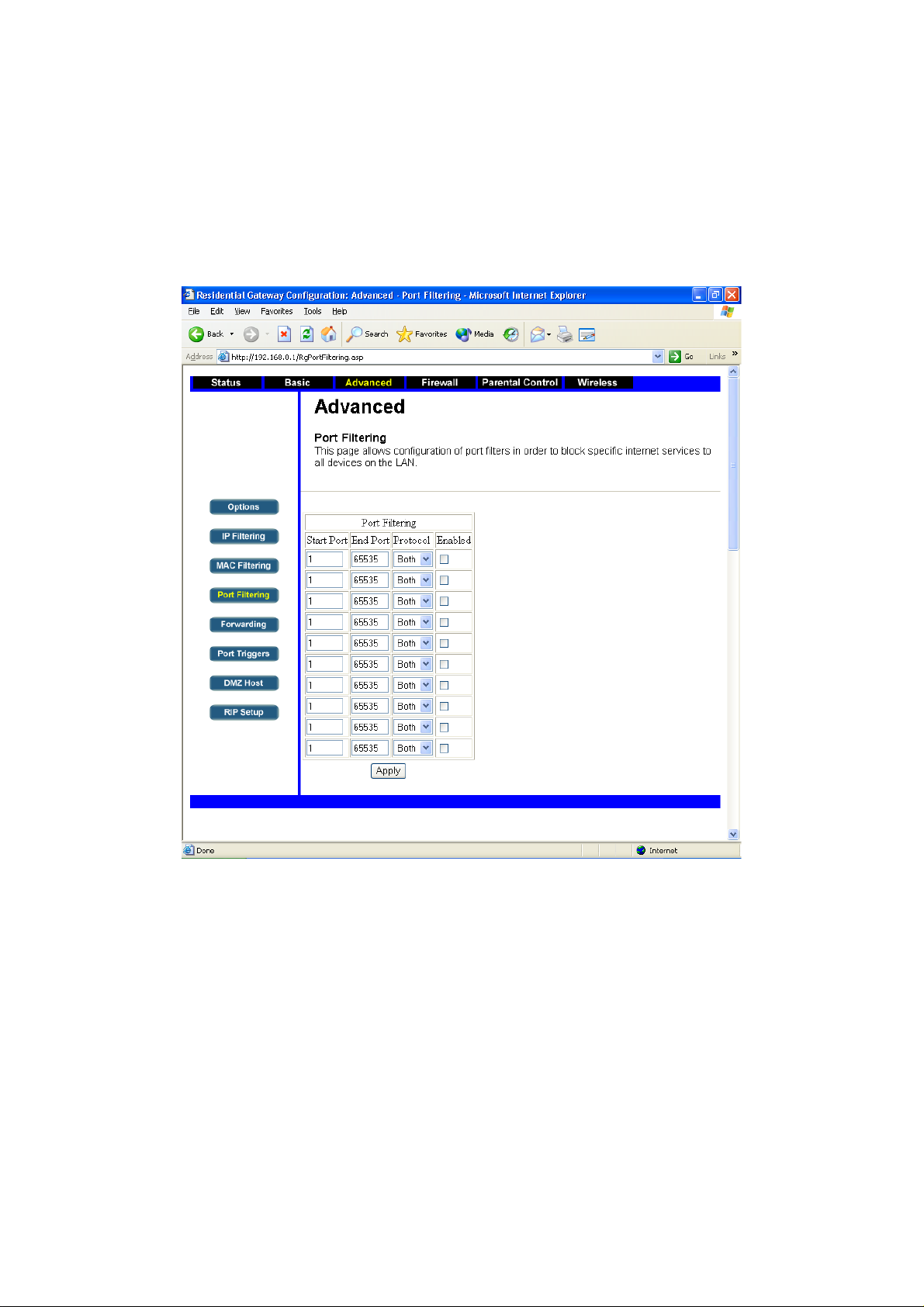

7.3.4 Port Filtering ..............................................................................................14

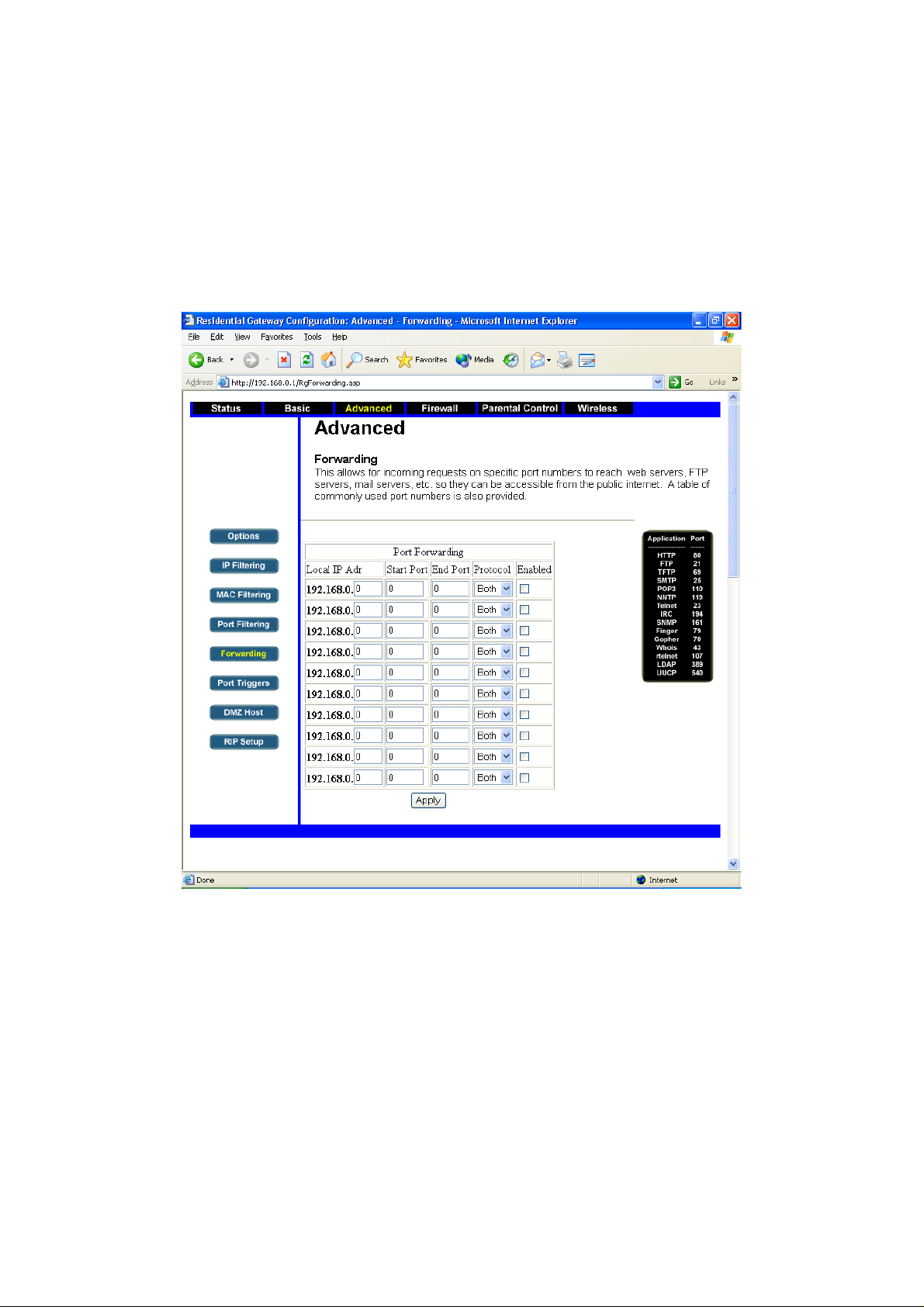

7.3.5 Forwarding .................................................................................................15

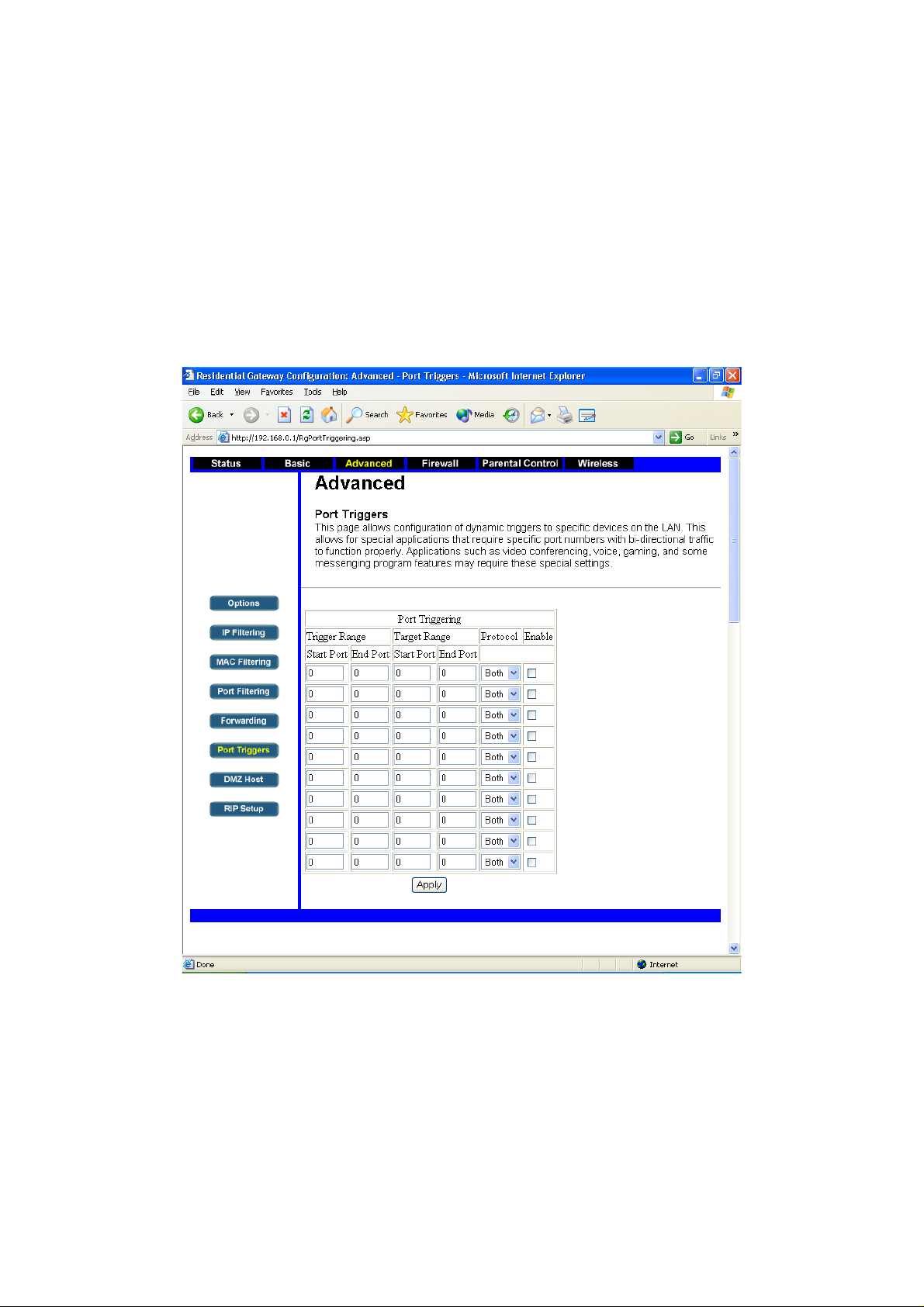

7.3.6 Port Triggers...............................................................................................16

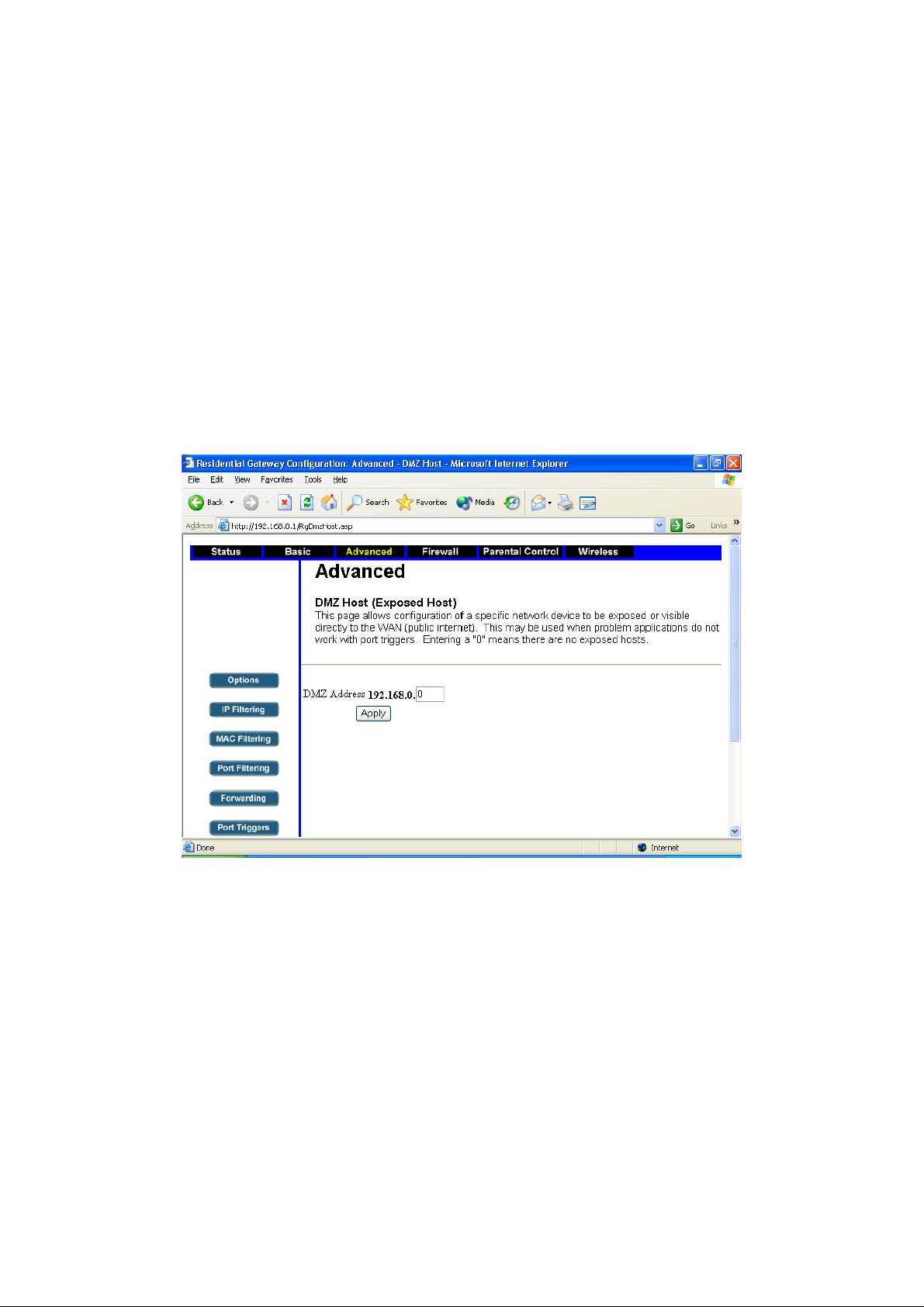

7.3.7 DMZ Host....................................................................................................17

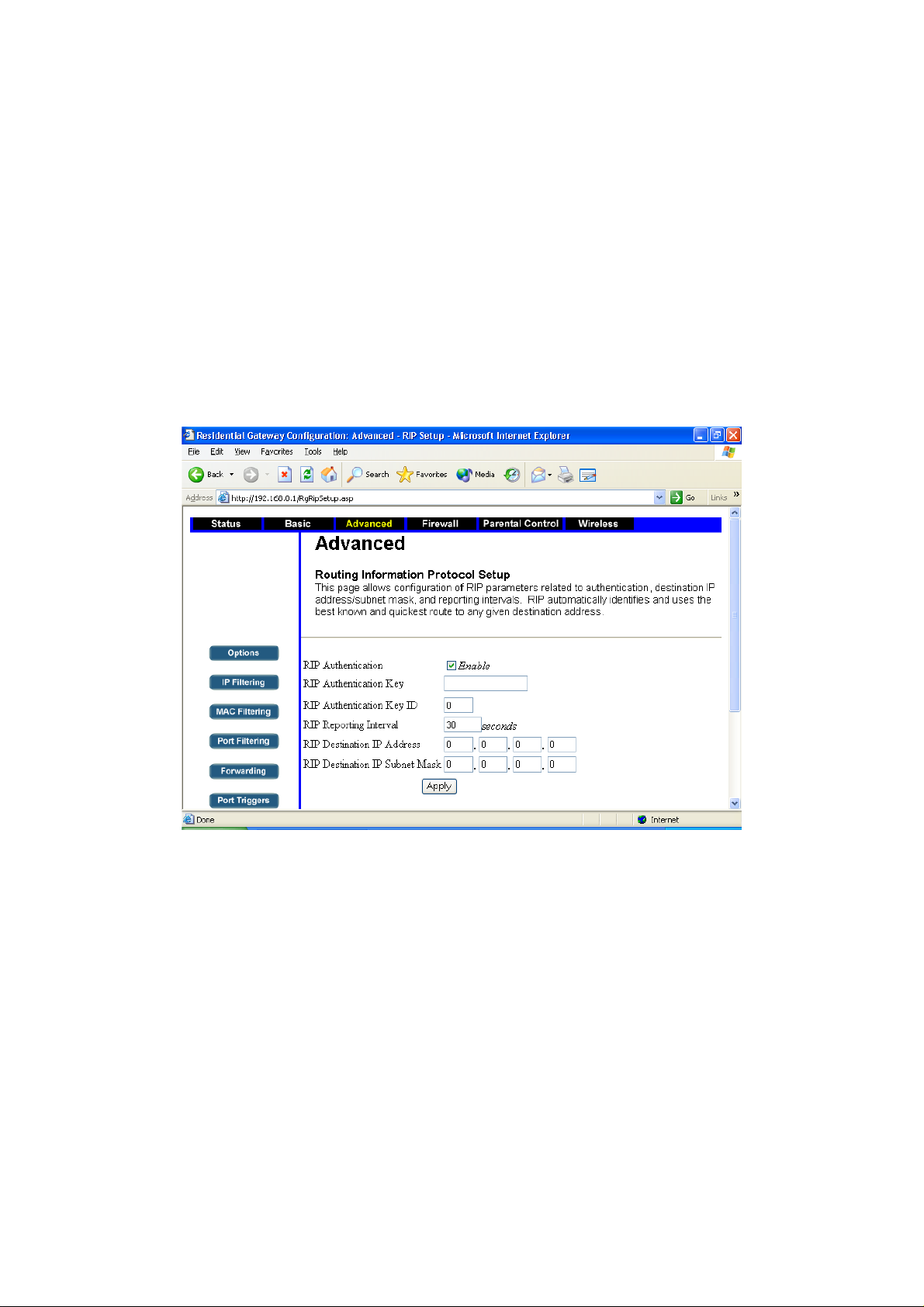

7.3.8 RIP Setup ....................................................................................................18

7.4 F

IREWALL

...........................................................................................................19

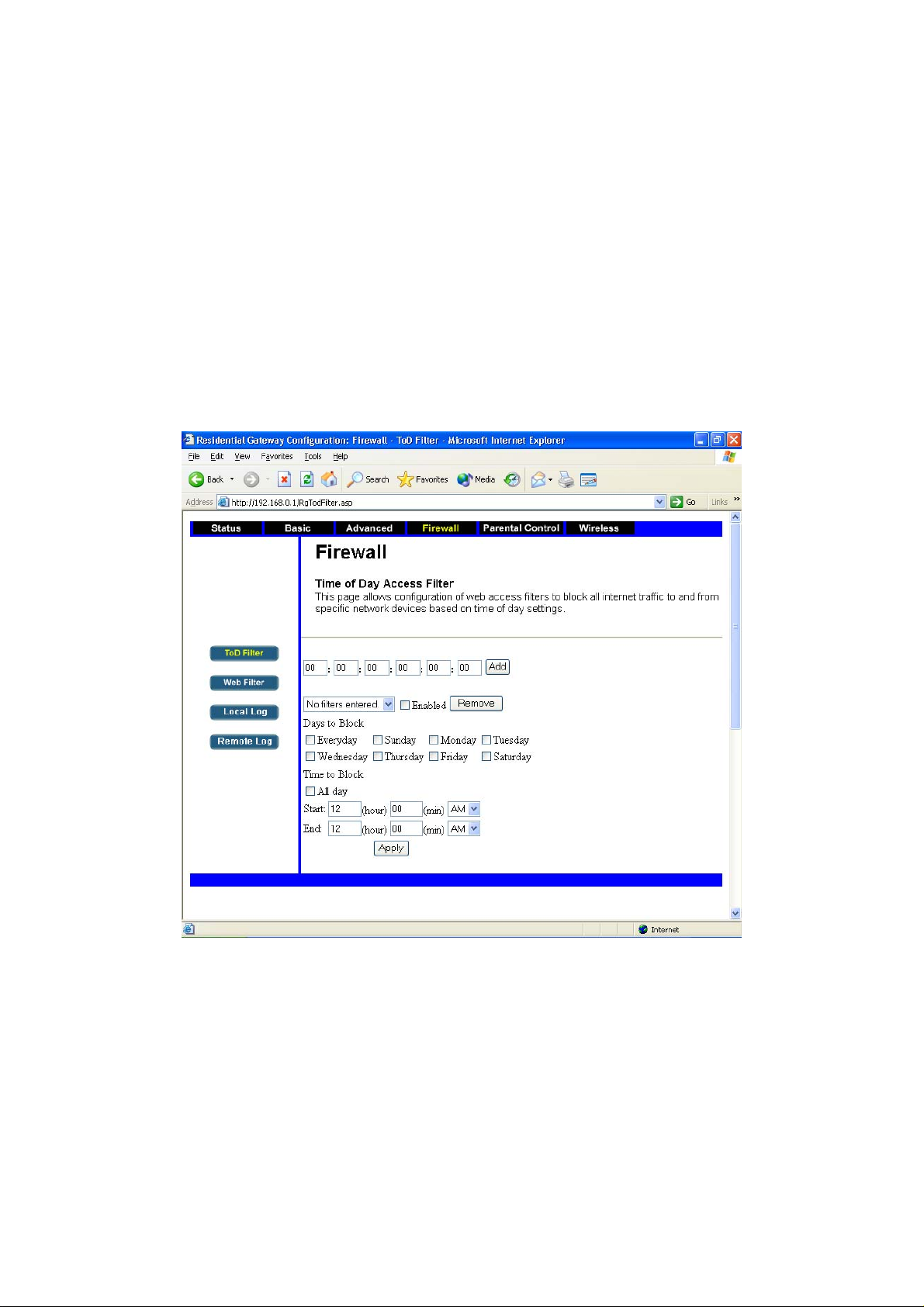

7.4.1 ToD Filter ...................................................................................................19

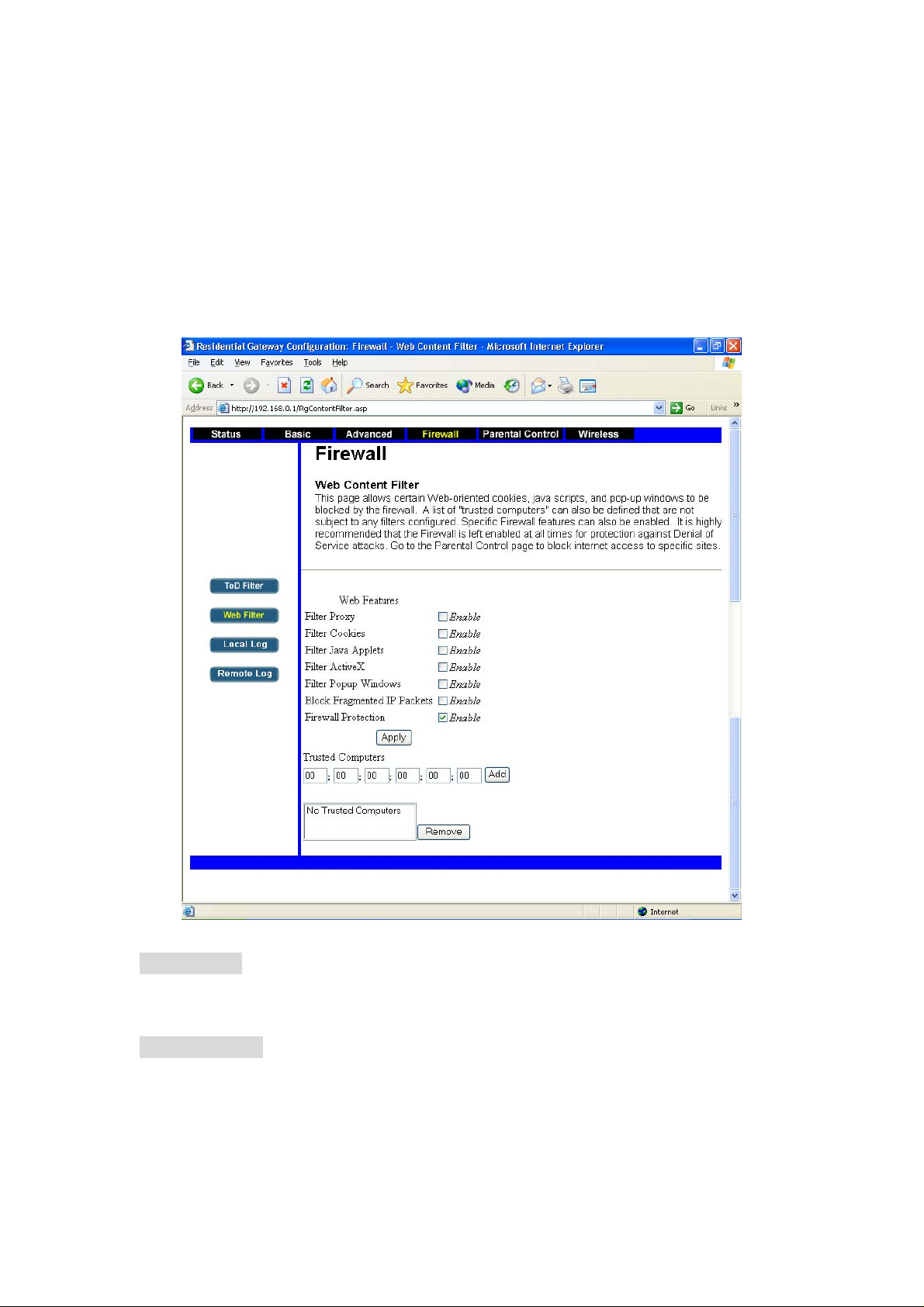

7.4.2 Web Filter ...................................................................................................20

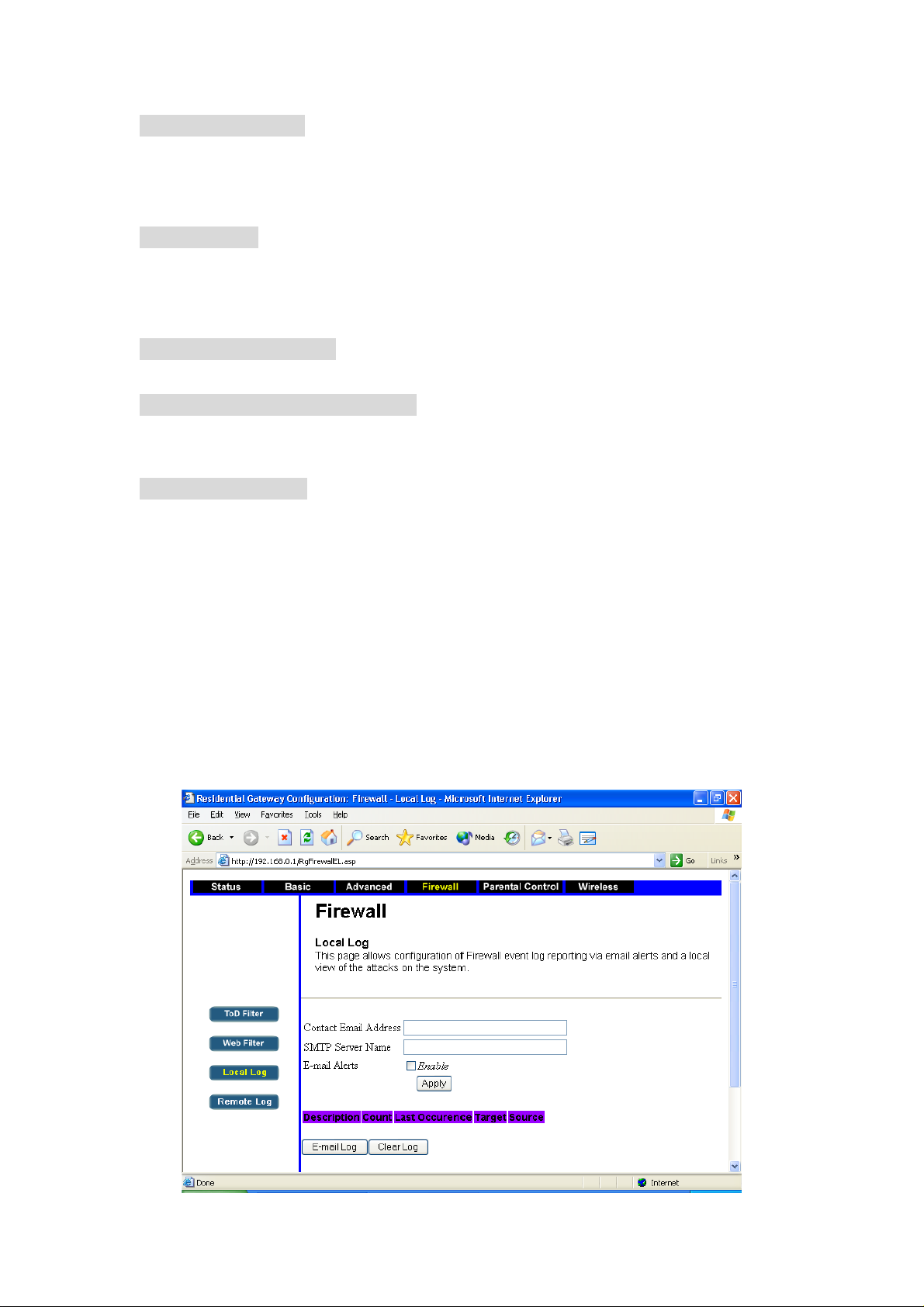

7.4.3 Local Log ....................................................................................................21

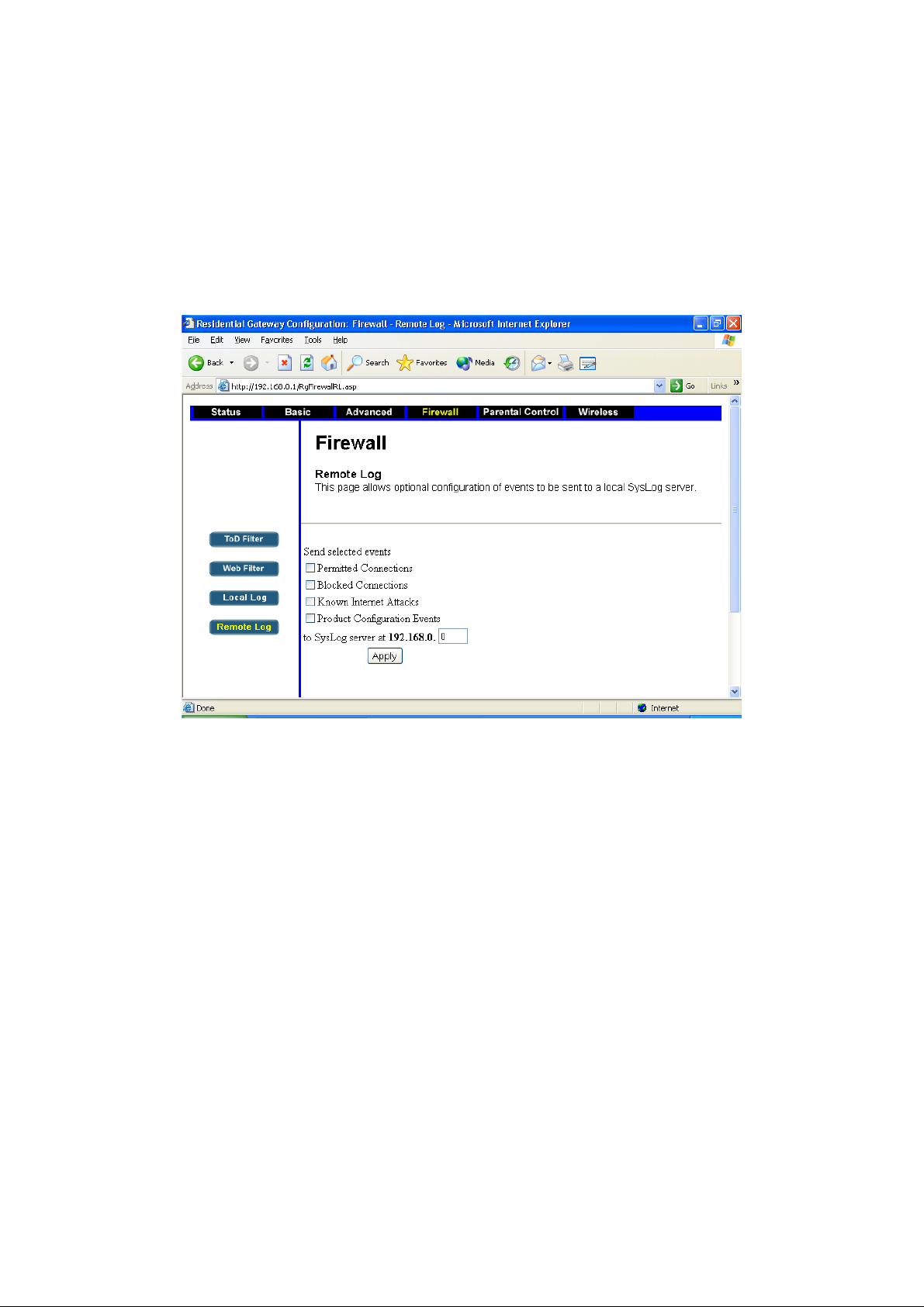

7.4.4 Remote Log .................................................................................................22

7.5 P

ARENTS CONTROL

.............................................................................................23

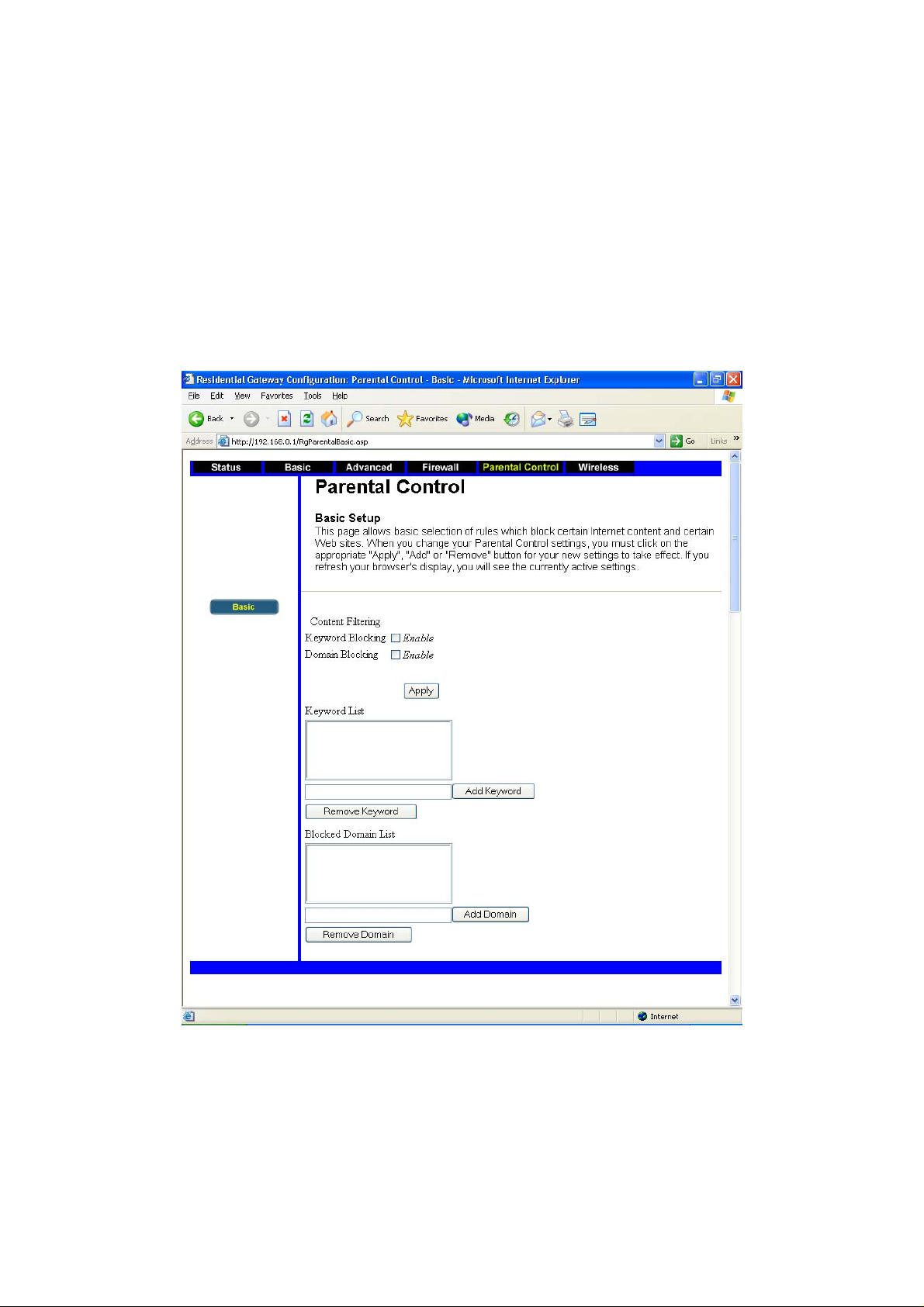

7.5.1 Basic............................................................................................................23

7.6 W

IRELESS

...........................................................................................................24

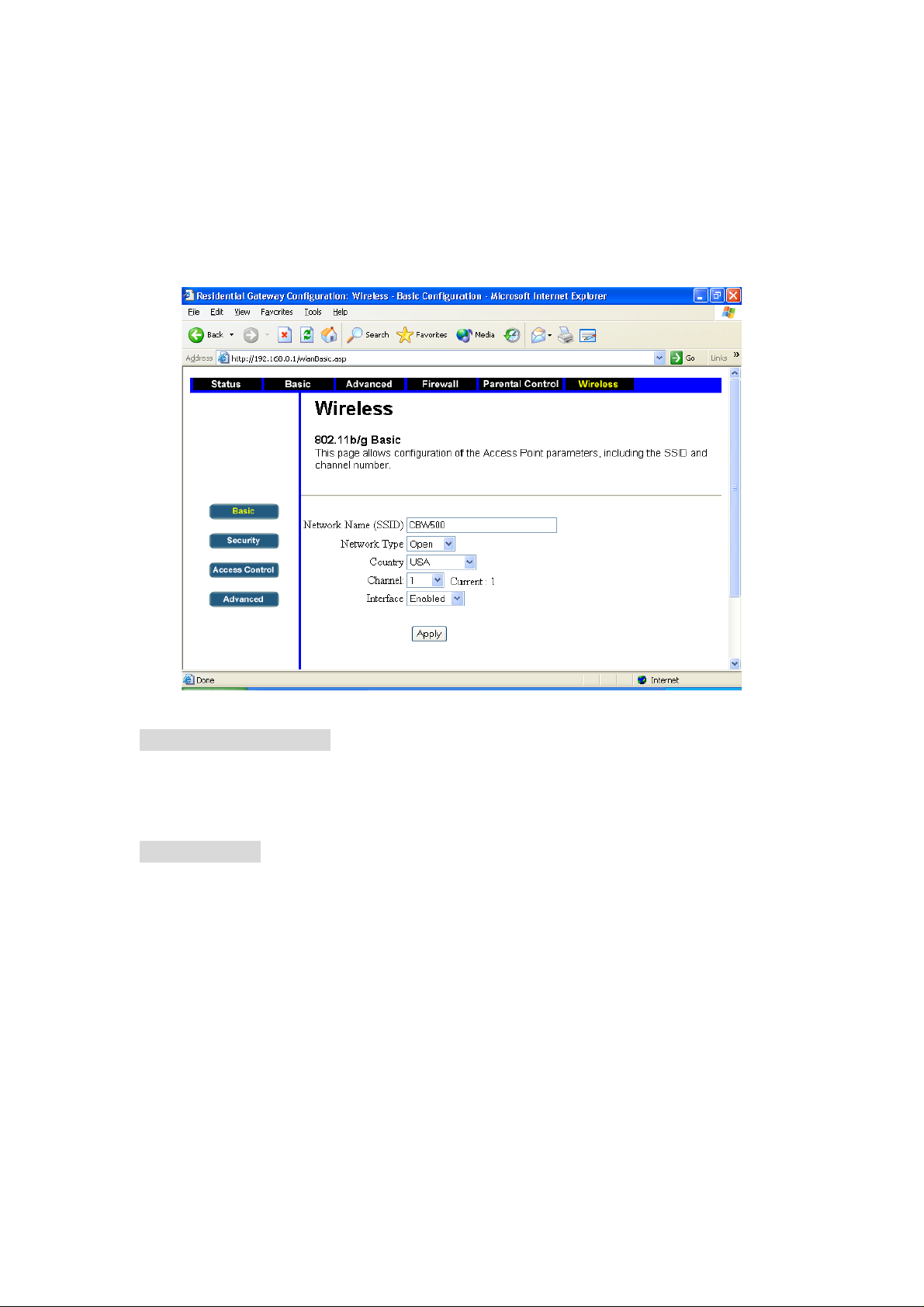

7.6.1 Basic............................................................................................................24

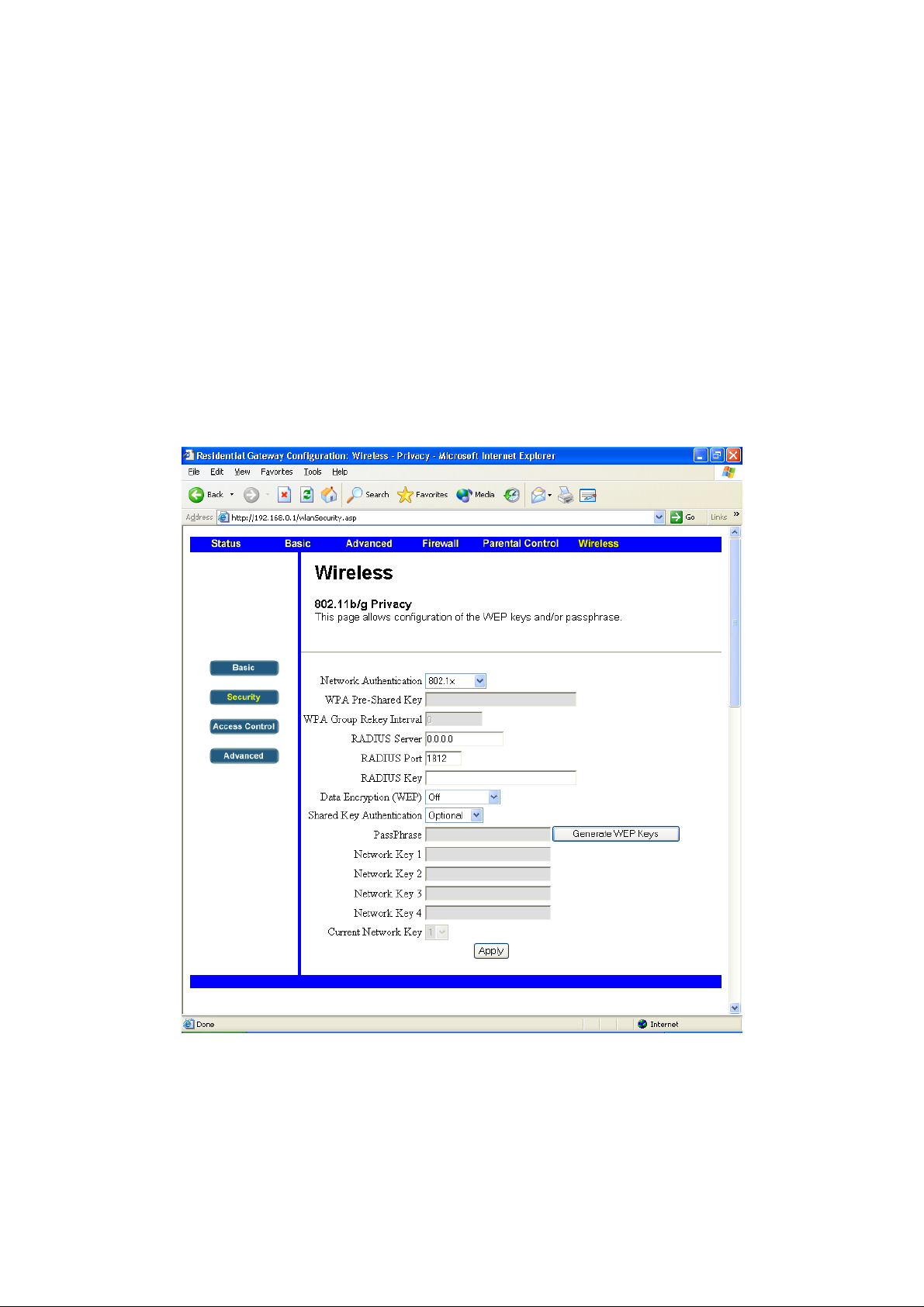

7.6.2 Security .......................................................................................................26

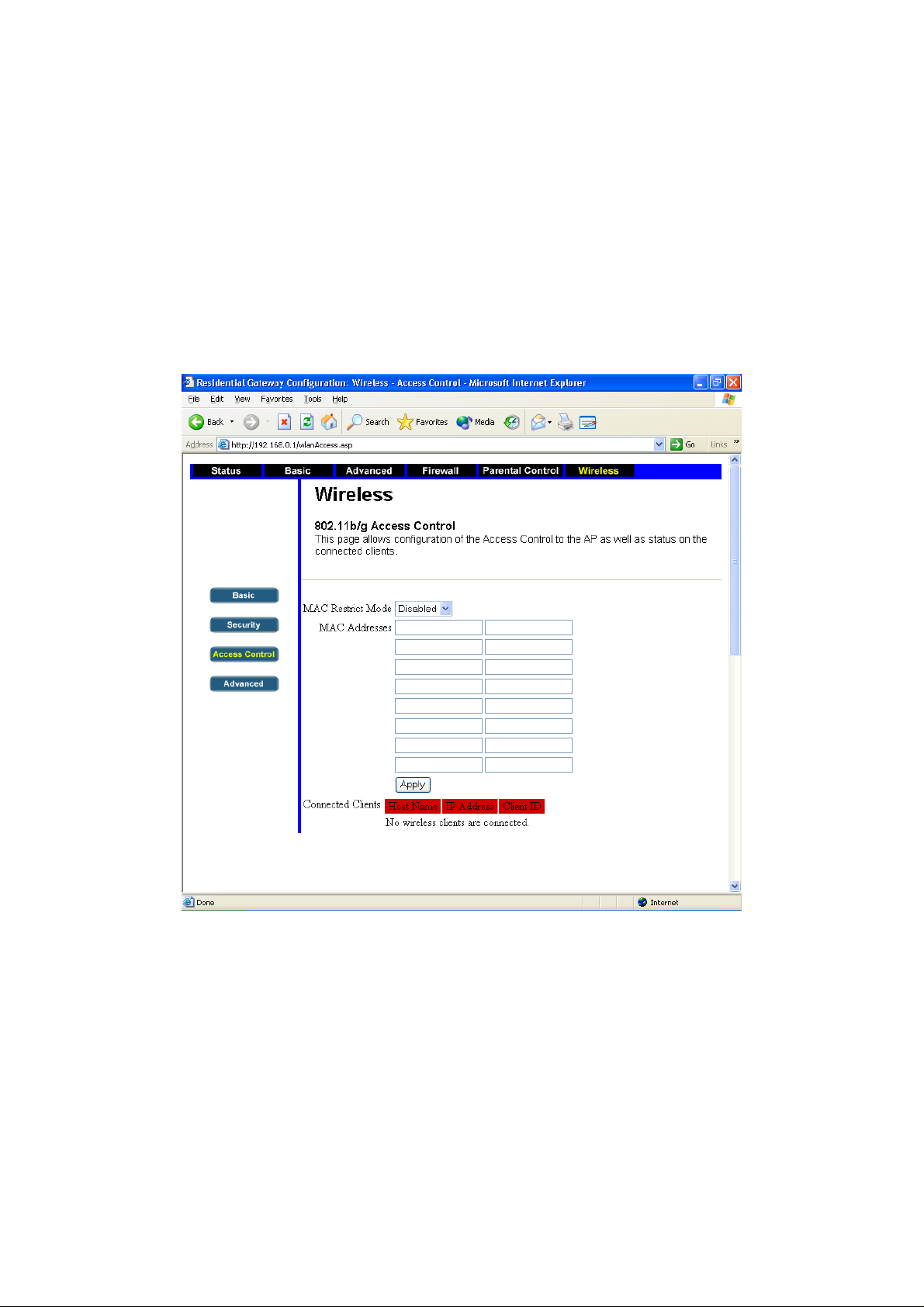

7.6.3 Access Control ............................................................................................29

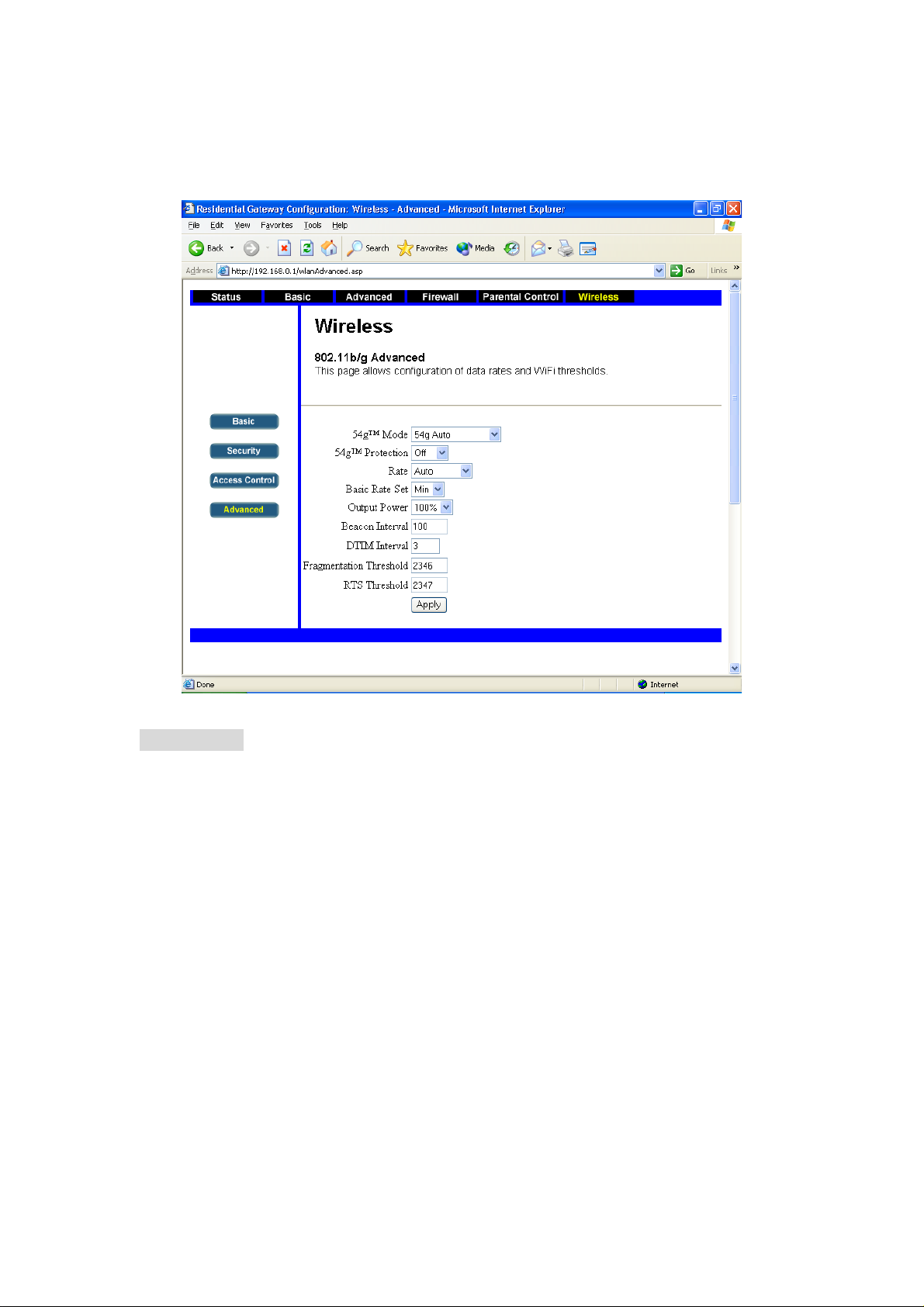

7.6.4 Advanced.....................................................................................................30

TROUBLESHOOTING .................................................................................. 33

Basic Connection .................................................................................................33

Browsing Configuration Utility ...........................................................................33

Connecting to the Internet ...................................................................................34

Wireless Network Connection .............................................................................. 34

TECHNICAL SPECIFICATION...................................................................36

ii

Introduction

The CBW500 Wireless Cable Residential Gateway is a broadband gateway

product combining Ethernet network and wireless together. With IEEE 802.11g

standard wireless integration, this device not only allows you to take an

advantage of wired-free data transmission, but also allows you to have 4 of

10/100 Mbps Ethernet connections with auto-sensing switch Ethernet ports.

This combination of router and switch product eliminates the needs to buy an

additional hub or switch to serve your network, so users on either WLAN

(wireless LAN) or wired LAN can share files, other networking resource, and

even for a single account of Internet access by having this device connect to a

Cable modem.

The CBW500 allows up to 253 total (128 wireless) users to share a single

Cable connection. A high-speed routing engine and 54Mbps (802.11g

standard) wireless throughput easily handle large data transmission, including

those from multimedia applications.

802.11g also backward-compatible with 802.11b WLAN equipment, preserving

existing network investments.

The CBW500 can work as DHCP server to assigns an IP Address to every PC

on the LAN automatically and/or work as DHCP client to get an IP address

dynamically assigned by ISP. CBW500 Cable Residential Gateway is easy to

setup and maintain. All functions can be configured via web browsers such as

Internet Explorer.

Features

Enhance upstream performance, up to 30Mbps 



DOCSIS 2.0 and CableHome 1.0 compliant



High speed wireless connection, up to 54Mbps



Ethernet (w/A-MDIX) or USB Interface for easy installation



QoS enhancement



MSO SNMP remote network management



Web Browser Management auto detect cable modem status



Field software upgradeable by MSO



Support up to 253 network clients



Provide MIBs DOCSIS1.0/1.1

2

Package Contents

1 x CBW500 Wireless Cable Residential Gateway with antennas 



1 x Quick Installation Guide



1 x CD-ROM containing USB driver* and User’s Manual



1 x 12V DC/1A Power Adapter



1 x Ethernet cable



1 x USB cable (optional)

*USB interface depends on your model type, you may not have USB driver

contained in the CD-ROM.

Hardware Connection

1-Port Model (CBW501)

Power: This port is for the 12V DC power supply connection.

Cable: Connect a DOCSIS 2.0/1.1/1.0 equivalent cable feed to the

F-connector on the back of the CBW500.

LAN: (1-Port Model) This LAN port is used to connect Ethernet device to the

LAN via Ethernet cable. You may use a HUB to extend the connections.

L1-L4: (4-Port Model) The four LAN ports are used to connect Ethernet

devices to the LAN via Ethernet cables.

Reset: Click RESET button to restart the system while press in and hold

RESET button for about three seconds to reset the CBW500 to the factory

default settings.

Antenna: These connection ports are reverse polarity.

3

4-Port Model (CBW500)

LED Indicators

LED Color Mode Status

Power Green On O.K.

Cable Green On Connected

WLAN Green On WLAN interface has data

transmitting

USB (optional) Green On Connected

Activity Green/Orange Blinking Data transmitting LAN

or

10/100Linked Green/Orange On Green as 10Mbps

LAN1~4

Orange as 100Mbps

2

Getting Started

Web Configuration

You can access the Configuration

Page by opening the web-browser

and typing in the IP Address of the

CBW500. The default IP Address of

the CBW500 is shown as right.

Leave the User name as blank and

the password as cable and then

press OK button. It is recommended

that you change the default

password for security purposes.

Please go to Status > Security to

change your password.

3

Configuration Menu

7.1 Status

7.1.1 Software

This page displays information of current system software.

4

7.1.2 Connection

This page displays information of status of cable modem’s HCF and IP

network connectivity.

5

7.1.3 Security

This page allows configuration of administration access privileges and the

ability to restore system’s factory defaults.

Administrator can change the logging password in this page. It is

recommended that you change the password once you have accessed the

CBW500 for the first time. The password can be up to 64 characters.

This page also provides an easy way to restore the factory defaults settings if

you want to clean all the existing settings or reset your settings.

6

7.1.4 Diagnostics

This page provides ping diagnostics function to help user solve IP connectivity

problems.

PING is a utility, which is used to determine whether a device is active at the

specified IP address. PING is normally used to test the physical connection

between two devices, to ensure that everything is working correctly.

Enter the settings of Ping target and then press Start Test to start the

diagnostic. The results will display in Results table and you need to refresh this

web page to update the diagnostic results.

7

7.2 Basic

7.2.1 Setup

This page allows configuration of the basic features of the broadband gateway

related to your ISP’s connection.

There are three options of obtaining a WAN IP address.

1. Obtain WAN IP Address by DHCP

2. Static WAN IP Address (for most leased line users)

3. Obtain WAN IP Address by PPPoE (for most dial-up users)

Select the item according to your situation and enter the information required

by your ISP. Press Apply to confirm the settings.

8
