Casio YA-W72M User Manual
CASIO Interactive Whiteboard
YA-W72M/YA-W82M
User’s Guide
z Be sure to read the “Safety Precautions” and “Operating Precautions” in the “Read this first!”
document that comes with the CASIO Interactive Whiteboard, and make sure you use this product
correctly.
z Keep this manual in a safe place for future reference.
z Visit the site below for the latest version of this manual.
http://world.casio.com/manual/projector/
E
1
Contents
Introduction ..................................................................................................... 6
What is an Interactive Whiteboard?........................................................................... 6
About this manual....................................................................................................... 8
Chapter 1: Getting Ready ............................................................................... 9
Preparing the Digital Pen ......................................................................................... 10
To load a battery into the digital pen................................................................... 10
Turning the Digital Pen On or Off ..................................................................................... 10
Replacing the Pen Nib ......................................................................................... 11
To replace the pen nib .................................................................................................... 11
Replacement Ballpoint Pen Refills and Stylus Refills ........................................................ 11
Establishing a Connection between the Digital Pen and Computer (Pairing)...... 12
To connect a Bluetooth adapter to your computer ..........................................................13
To pair the digital pen with your computer....................................................................... 14
Digital Pen Operation Indicator............................................................................ 16
Installing the Software.............................................................................................. 17
Minimum Computer System Requirements......................................................... 17
Minimum Computer System Precautions ........................................................................ 18
To install the software ..................................................................................................... 18
To start up the setup launcher......................................................................................... 19
To install the DSPD ......................................................................................................... 20
To install Interactive Whiteboard for CASIO ..................................................................... 20
To install Dot Pattern Printer for CASIO ........................................................................... 21
To install .NET Framework............................................................................................... 22
Checking for Proper Installation ....................................................................................... 22
Setting Up the Dot Screen, Projector, and Computer ............................................ 23
Dot Screen Part Names ....................................................................................... 23
Setting Up the Dot Screen for Projection ............................................................ 23
To set up the dot screen for projection............................................................................ 23
Projecting a Computer Screen Image onto the Dot Screen ................................ 25
Chapter 2: Using Interactive Whiteboard for CASIO.................................. 26
Interactive Whiteboard for CASIO Overview........................................................... 26
Interactive Whiteboard for CASIO Modes ........................................................... 26
Registering Your Product (Serial Key Input) ........................................................ 27
To input the serial key...................................................................................................... 27

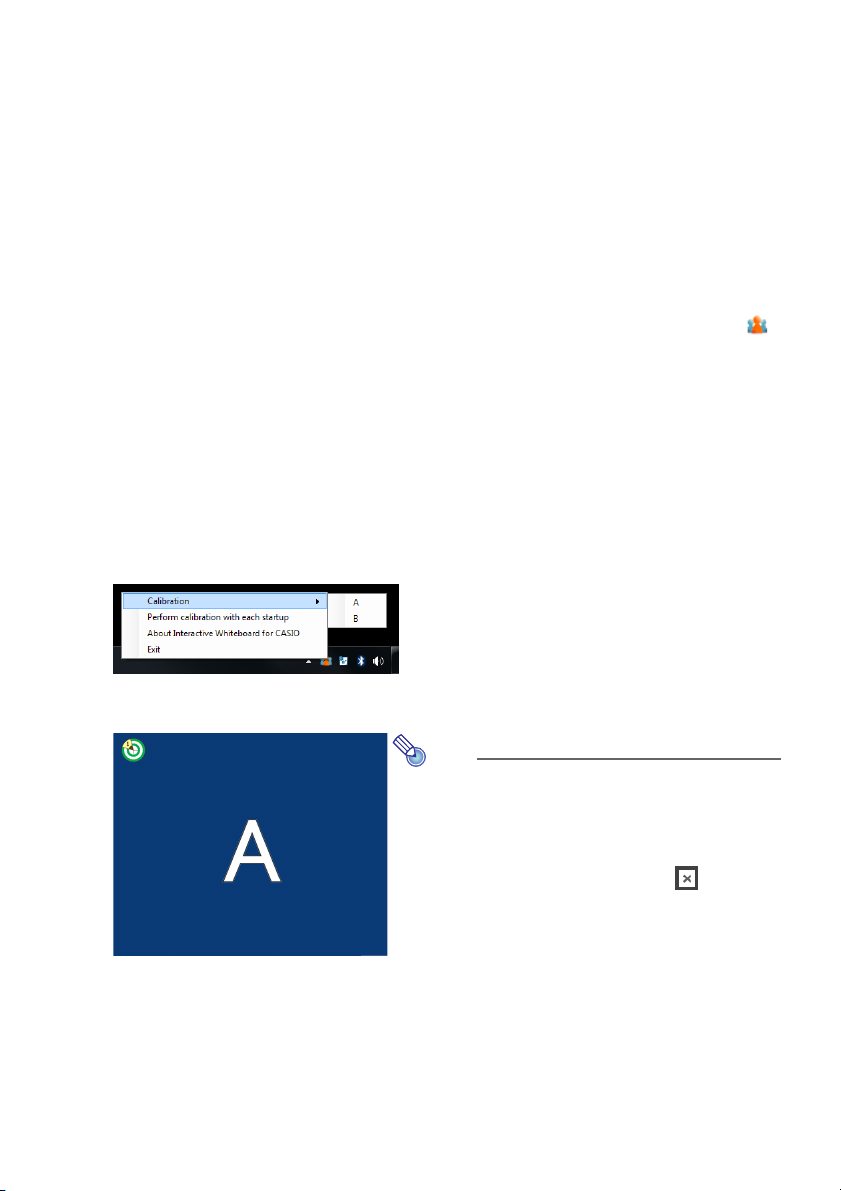

Calibration............................................................................................................ 27
To perform calibration ..................................................................................................... 28
To re-perform calibration ................................................................................................. 29
Performing Calibration after Each Startup........................................................................ 29
Basic Operations ................................................................................................. 30
To start up Interactive Whiteboard for CASIO .................................................................. 30
To exit Interactive Whiteboard for CASIO......................................................................... 30
Using the Main Toolbox................................................................................................... 31
To view version information ............................................................................................. 32
Mouse Control Mode Digital Pen Operations................................................................... 32
Using the PowerPoint Control Mode....................................................................... 33
PowerPoint Control Mode Operational Flow ....................................................... 33
2
Conducting a Slideshow in the PowerPoint Control Mode ................................. 34
To start a slideshow in the PowerPoint Control Mode ..................................................... 34
To end a slideshow in the PowerPoint Control Mode ...................................................... 35
Digital Pen Operations during a Slideshow (Power Point Control Mode) .......................... 35
Changing the Margin Settings ............................................................................. 38
To configure display settings ........................................................................................... 38
To configure paper settings............................................................................................. 39
To configure advanced paper settings............................................................................. 40
Using the Presentation Mode .................................................................................. 41
Presentation Mode Operational Flow .................................................................. 41
Conducting a Slideshow in the Presentation Mode ............................................ 42
To start a slideshow in the Presentation Mode ................................................................ 42
To select full-screen view or window view for a slideshow ............................................... 43
To end a slideshow in the Presentation Mode ................................................................. 43
Digital Pen Operations during a Slideshow (Presentation Mode) ...................................... 43
Changing Presentation Mode Configuration Settings ......................................... 47
To configure Presentation Mode configuration settings ................................................... 47
Changing Presentation Mode Startup Default Settings....................................... 48
To edit the Presentation Mode startup default setup file .................................................. 48
Using the Capture & Draw Mode ............................................................................. 51
Capture & Draw Mode Operational Flow............................................................. 51
Capturing and Drawing on the Currently Displayed Computer Screen Image.... 52
To capture and draw on the currently displayed computer screen image ........................ 52
To capture and draw on another image........................................................................... 54
To display previously captured images ............................................................................ 55
To exit the Capture & Draw Mode ................................................................................... 55
To open and edit a saved DST file ................................................................................... 56
Digital Pen Operations in the Capture & Draw Mode ....................................................... 56
Changing Capture & Draw Mode Startup Default Settings ................................. 58
To edit the Capture & Draw Mode startup default setup file ............................................. 58
Tool Operations in the Presentation Mode and Capture & Draw Mode ................ 61
Write/Draw Tool Operations ................................................................................ 61
To write on a page with a Pen or Marker Pen .................................................................. 61
To draw a circle, triangle or rectangle on a page (Presentation Mode) ............................. 61
To draw a straight line or arrow on a page (Presentation Mode) ...................................... 62
To paste an image file into a page (Presentation Mode)................................................... 63
To select a single object .................................................................................................. 63
To select multiple objects ................................................................................................ 64
To specify the type and thickness of an object line ..........................................................64
To specify the color of an object...................................................................................... 65
To move or to resize objects ........................................................................................... 65
To rotate objects (Presentation Mode)............................................................................. 66
To delete objects............................................................................................................. 66
Delete Menu Operations...................................................................................... 67
To delete all objects on the displayed page ..................................................................... 67
To delete all objects on all pages..................................................................................... 67
To delete the currently displayed page ............................................................................ 67
Save File Menu Operations.................................................................................. 68
To save the current slideshow as a PPG file (Presentation Mode) .................................... 68
To save all captured images as a DST file (Capture & Draw Mode) .................................. 68
To save the currently displayed page as an image file...................................................... 68
To batch save all of the pages as individual image files.................................................... 69
Saved File Naming Rules................................................................................................. 69
Converting a DST File to a PPG File........................................................................ 69
3
Chapter 3: Using Dot Pattern Printer for CASIO ........................................ 70
Dot Pattern Printer for CASIO Overview.................................................................. 70
What you can do with Dot Pattern Printer for CASIO.......................................... 70
Registering Your Product (Serial Key Input) ........................................................ 71
To input the serial key...................................................................................................... 71
Printing Documents with Special Dot Patterns and Creating PPG Files ............... 72
Dot Pattern Printer for CASIO Operating Precautions......................................... 72
Printing Documents with Special Dot Patterns
(for the PowerPoint Control Mode)................................................................... 72
To print a document with special dot patterns for
use in the PowerPoint Control Mode ........................................................................... 72
Printing Documents with Special Dot Patterns and Creating PPG Files
(for the Presentation Mode).............................................................................. 74
To print a documents with special dot patterns and generate a PPG file for
Presentation Mode use ............................................................................................... 74
Configuring Advanced Settings on the Dot Pattern Printer for
CASIO Dialog Box ............................................................................................ 76
Checking Your Dot Pattern Printer for CASIO Version ........................................ 77
Chapter 4: Troubleshooting ......................................................................... 78
Digital Pen and Dot Screen Troubleshooting.......................................................... 78
Interactive Whiteboard for CASIO Troubleshooting ............................................... 81
Probable Causes and Required Actions.............................................................. 81
Known Issues....................................................................................................... 82
Dot Pattern Printer for CASIO Troubleshooting...................................................... 83
Probable Causes and Required Actions.............................................................. 83
Known Issues....................................................................................................... 83
Chapter 5: Appendix ..................................................................................... 84
DSPD Management Functions................................................................................. 84
Caring for the Dot Screen ........................................................................................ 84
To clean the front of the dot screen..................................................................... 84
To clean the back of the dot screen.................................................................... 85
Stowing the Dot Screen ........................................................................................... 85
Uninstalling and Re-installing the Software ............................................................ 86
Uninstalling the Software ..................................................................................... 86
To uninstall Interactive Whiteboard for CASIO ................................................................. 86
To uninstall the DSPD ..................................................................................................... 86
To uninstall Dot Pattern Printer for CASIO ....................................................................... 87
Re-installing the Software.................................................................................... 87
Specifications ........................................................................................................... 88
Digital Pen Specifications .................................................................................... 88
Dot Screen Specifications ................................................................................... 88
4
z Anoto and the Anoto logotype are trademarks of Anoto Group AB (Sweden).
z Microsoft, Windows, Windows Vista, and PowerPoint are trademarks of Microsoft Corporation in the
United States and other countries.
z “Bluetooth” is the trademark of Bluetooth SIG, Inc.
z Intel is a trademark or registered trademark of Intel Corporation in the United States and other
countries.
z Other company and product names may be registered trademarks or trademarks of their respective
owners.
z The contents of this manual are subject to change without notice.
z Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual
for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER
CO., LTD.
z CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties
arising out of the use of this product or this manual.
z CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data
caused by malfunction or maintenance of this product, or due to any other reason.
z The screen shots shown in this manual are representative facsimiles produced for explanation
purposes, and may differ from the displays produced by the actual product.
5
Introduction
What is an Interactive Whiteboard?
An Interactive Whiteboard is a system that consists of the following components: dot screen,
documents that include special dot patterns*
(Interactive Whiteboard for CASIO, DSPD, Dot Pattern Printer for CASIO*
Interactive Whiteboard for CASIO, which runs on a computer, acts as the front end of the Interactive
Whiteboard system.
Interactive Whiteboard for CASIO is an education support tool that displays in real time*
text written on the dot screen with the digital pen. Since figures and text can be written with the digital
pen directly onto the computer screen (Interactive Whiteboard for CASIO screen) image being
projected onto the dot screen, students and presentation attendees are provided with easier to
understand information that has greater visual impact.
A digital pen can even be used to write on documents printed on paper prepared with special dot
patterns, with the handwritten text and figures immediately being shown on the dot screen. This
makes handwritten information immediately available to your audience on the screen, as soon as you
write it.
Dot screen
1
, digital pen, a computer with special software
2
) installed, and a projector.
3
figures and
Write directly onto
the dot screen.
Document printed on paper
with special dot patterns
Writing on a document is
also reflected on the
screen.
6
*1 Documents printed using Dot Pattern Printer for CASIO. If you use Dot Pattern Printer for CASIO to
print paper versions of the same contents (such as PowerPoint files) as the slides to be projected
on the dot screen during a presentation, you can control the presentation (page changes, writing
on pages, etc.) using digital pen operations on the printed pages.
A separate Anoto Qualified Printer or an Anoto Tested Printer is required to print documents with
special dot patterns. Using another type of printer to print documents with special dot patterns can
result in incorrect printing of dot patterns and abnormal colors.
Visit the website below for the latest information about Anoto Qualified Printers and Anoto Tested
Printers (as of February 2013).
http://www.anoto.com/lng/en/pageTag/page:products/mode/sublist/documentId/1001/#Print
*2 Interactive Whiteboard for CASIO, DSPD, and Dot Pattern Printer for CASIO are based on Anoto
digital pen and paper technology. Anoto digital pen and paper technology are protected by over
200 global patents, including those shown below, which are the property of Anoto AB.
US6663008, US7172131, US7248250, US7281668, JP3872498, JP3842283, CN1595440,
SE517445, RU2256225, AU773011
For details about Anoto digital pen and paper technology, visit the Anoto website
(http://www.anoto.com/).
*3 Certain communication environments, computer specifications, and other specifications may
cause a certain amount of time lag before contents appear on the screen. Input data can be
corrupted if digital pen communication is interfered with by another nearby digital device, wireless
device, etc.
7
About this manual
This manual is divided into five chapters. The table below describes the main topics covered in each
chapter.
Chapter Main Topics
Chapter 1:
Getting Ready
Chapter 2:
Using Interactive
Whiteboard for CASIO
Chapter 3:
Using Dot Pattern Printer
for CASIO
Chapter 4:
Troubleshooting
Chapter 5:
Appendix
Chapter 1 explains the three steps below, which you need to perform to get ready to
use Interactive Whiteboard.
1 Preparing the digital pen
2 Installing the software
3 Setting up the dot screen, projector and computer
Chapter 2 covers the Interactive Whiteboard for CASIO functions described below.
1 Presenting a slideshow using PowerPoint as-is (PowerPoint Control Mode). This
part explains how to change the page and write information onto pages by using
the digital pen to write onto the screen or onto a document page printed with
special dot patterns.
2 Presenting a slideshow using a special format (PPG file), which enables the use of
a powerful collection of tools for writing on each page (Presentation Mode). This
part explains how to change the page and write information onto pages by using
the digital pen to write onto the screen or onto a document page printed with
special dot patterns (including operation palette for students).
3 Writing directly onto a captured computer screenshot (Capture & Draw Mode). This
part explains how to use the digital pen to write directly onto a computer screen
shot being projected onto the dot screen.
Chapter 3 explains the operations below, which are performed using Dot Pattern
Printer for CASIO.
1 Printing a PowerPoint file as a document with special dot patterns, which can be
used to perform slideshow operations in the Interactive Whiteboard for CASIO
PowerPoint Control Mode.
2 Printing a printable file as a document with special dot patterns and output a PPG
file. The PPG file can be used to conduct a slideshow in the Interactive Whiteboard
for CASIO Presentation Mode, and the printed document can be used to perform
slideshow operations in the Presentation Mode.
Chapter 4 explains what you need to do when you run into problems while using
Interactive Whiteboard. The information in this chapter is divided into three sections:
“Digital Pen and Dot Screen”, “Interactive Whiteboard for CASIO”, and “Dot Pattern
Printer for CASIO”.
This chapter includes supplementary information about DSPD (digital pen driver
software), how to care for and store the dot screen, how to uninstall and reinstall the
software, and specifications.
8
Chapter 1: Getting Ready
This chapter explains what you need to do to get ready to use Interactive Whiteboard.
General steps for getting ready are described below.
(1) Preparing the digital pen (page 10)
An Anoto digital pen is an input device for performing mouse operations on the computer
whose screen image is being projected from a projector, and for writing or drawing on the dot
screen or on documents printed on paper with special dot patterns. Perform the procedures
under “Preparing the Digital Pen” (page 10) using the digital pen that comes with this system or
an optionally available DP-301 digital pen.
(2) Installing the software (page 18)
Download the required software from the CASIO website and install it on your computer.
(3) Setting up the dot screen, projector and computer (page 23)
Set up the dot screen, projector, and computer in appropriate locations and then project an
image of the computer screen onto the dot screen.
9
Preparing the Digital Pen
Perform procedures in this section using the digital pen that comes with this system or an optionally
available digital pen.
To load a battery into the digital pen
1.
Cover the nib end of the digital pen with the pen cap.
2.
Slide the lock lever downwards (away
from the pen nib) and then open the
battery cover.
3.
If there is a dead battery in the pen,
remove it.
4.
Making sure the positive (+) and
negative (–) ends of the battery are
facing in the proper directions,
carefully load the battery into the pen.
Lock lever
5.
Close the battery
compartment cover
and slide the lock lever
upwards (in the
direction of the pen
nib).
Turning the Digital Pen On or Off
Removing the digital pen cap will cause it to turn on, and replacing the cap will cause it to turn off. Be
sure to replace the cap when you are not using the digital pen. If you leave the cap off, digital pen
power will turn off automatically if you do not perform any operation with it for about seven and a half
minutes. To restore power, replace the cap and then remove it.
10
Replacing the Pen Nib
The digital pen comes with a stylus nib pre-installed. This means you do not need to replace the pen
nib before using it for the first time. Replace the nib in the cases described below.
z To install the ballpoint pen refill for writing onto paper documents printed on paper with special dot
patterns
z To replace a used up or damaged nib with a refill
To replace the pen nib
1.
Gently grasp the pen nib currently installed in the digital pen and carefully pull it
out.
z If you experience problems pulling out the nib, try using needle-nose pliers. Again, grasp
gently and pull carefully.
2.
Taking care not to damage the refill pen nib, insert it into the pen.
3.
Gently press the nib down on a piece of paper to ensure that
the nib is inserted as far as it will go.
Replacement Ballpoint Pen Refills and Stylus Refills
Use of the ballpoint pen refills below is supported.
z LAMY M21
z Cross 8518-4
Use of the stylus refills below is supported.
z PLUS 423-063
11
Establishing a Connection between the Digital Pen and Computer (Pairing)
To establish a connection between the digital pen and your computer, you need to register the digital
pen on your computer as a Bluetooth device. This operation is called “pairing”.
General steps for pairing are described below.
(1) Check your computer system environment.
Check to make sure that your computer system environment satisfies the required conditions
(“Minimum Computer System Requirements”, page 17).
(2) Connect a Bluetooth adapter to your computer.
Connect a commercially available Bluetooth adapter that supports the Bluetooth version 2.0
HID (Human Interface Device) profile to your computer. See “To connect a Bluetooth adapter to
your computer” (page 13).
(3) Pair the digital pen with your computer.
See “To pair the digital pen with your computer” (page 14).
Important!
z Microsoft stack (Microsoft Bluetooth Enumerator and Generic Bluetooth Radio) or TOSHIBA
stack Bluetooth drivers can be used to establish a connection between the digital pen and
your computer. If you are using a commercially available Bluetooth adapter connected to your
computer, do not install the driver that comes with the adapter on your computer. Doing so
can cause digital pen operational problems.
z If you want to use a Bluetooth adapter that is built in on your computer, check to see if the
Bluetooth driver is Microsoft stack, TOSHIBA stack, or something else.
– You can use the built-in Bluetooth adapter if its driver is Microsoft stack or TOSHIBA stack.
In this case, turn on the built-in Bluetooth adapter and then proceed with the procedure
under “To pair the digital pen with your computer” (page 14).
– You will not be able to use your computer’s built-in Bluetooth adapter if its driver is not
Microsoft stack or TOSHIBA stack. In this case, turn off the built-in Bluetooth adapter and
perform the procedure under “To connect a Bluetooth adapter to your computer” below.
12
To connect a Bluetooth adapter to your computer
1.
Obtain a commercially available Bluetooth adapter and connect it to your
computer.
z The first time you connect a Bluetooth adapter to your computer, the Windows standard driver
will be installed automatically.
2.
Click the Bluetooth icon that appears in your computer’s task tray.
z If the Bluetooth icon does not appear in the Windows XP task tray, perform the following
operation on your computer: [Start] 3 [Control Panel] 3 [Bluetooth Devices]. Next, proceed
with step 4, below.
3.
Windows XP, Windows 8: Select “Open Bluetooth Settings”.
Windows Vista, Windows 7: Select “Open Settings”.
z This will display the “Bluetooth Settings” dialog box.
4.
Click the “Hardware” tab and check the points described below.
z In the “Devices” list, click “Generic Bluetooth Radio”, and then confirm that “This device is
working properly.” appears in the “Device Properties” text box at the bottom of the dialog box.
z In the “Devices” list, click “Microsoft Bluetooth Enumerator”, and then confirm that “This
device is working properly.” appears in the “Device Properties” text box at the bottom of the
dialog box.
5.
After confirming the above points, click [OK] to close the dialog box.
B
13
To pair the digital pen with your computer
1.
Click the Bluetooth icon in your computer’s task tray.
z If the Bluetooth icon is not shown in the Windows XP task tray, perform the operation below
on your computer.
1 [Start] 3 [Control Panel] 3 [Bluetooth Devices]
2 On the “Bluetooth Devices” dialog box that appears, click the “Options” tab, and then
select the check box next to “Show the Bluetooth icon in the notification area”.
3 Click [OK] to close the dialog box.
2.
Click the Bluetooth icon and a menu will appear.
Windows XP: Select “Add a Bluetooth Device”.
z This will start up the “Add Bluetooth Device Wizard”.
Windows Vista, Windows 7: Select “Add a Device”.
z This will start up the “Add Device Wizard”.
Windows 8: Advance directly to step 4.
3.
Windows XP: Select the check box next to “My devices is set up and ready to be
found” and then click [Next].
Windows Vista, Windows 7: Advance to step 4.
4.
Remove the cap from one digital pen that you want to pair with the computer.
z Your computer will search for a Bluetooth device, and “ADP-301B” will appear on the dialog
box.
Windows XP
5.
Select “ADP-301B” and then click [Next].
B
Windows Vista, Windows 7
14
6.
Windows XP: Select “Use the passkey found in the documentation” and then
input single-byte characters for the passkey.
Windows Vista, Windows 7, Windows 8: Select “Enter the pairing code for the
device” and then input single-byte characters for the passkey.
Windows XP
Windows Vista, Windows 7
z The pass keys for digital pens are shown below.
Digital pen included with the YA-W72M or YA-W82M: 0000
Optional CASIO DP-301 digital pen: 0000
7.
Click [Next].
z Windows XP: After pairing is complete, “Completing the Add Bluetooth Device Wizard” is
displayed.
Windows Vista, Windows 7: After pairing is complete, “This device has been successfully
added to this computer” is displayed.
8.
Windows XP: Click [Finish] to close the dialog box.
Windows Vista, Windows 7: Click [Close] to close the dialog box.
Windows 8: Exit “PC Settings”.
B
15
Digital Pen Operation Indicator
The current operational status of the digital pen is indicated by an LED.
z The digital pen LED is unlit when the cap is closed (pen is turned off) and immediately after you
remove the cap (immediately after pen power is turned on).
z The table below describes the meaning of each pen LED status while the cap is removed.
When the LED is this: It means this:
Unlit Idle status
Alternating between on and off at three-second intervals Bluetooth pairing standby
Unlit Bluetooth connection standby
Lit three seconds Bluetooth connection successful
Unlit Bluetooth connection established
Flashing for eight seconds and then shutdown Battery very low warning
Unlit Power off
16
Installing the Software
The software described in the table below must be installed on a computer paired with the digital pen
in order to use Interactive Whiteboard.
Software Name Description
DSPD DSPD stands for “digital pen streaming product driver”. DSPD is driver software that
Interactive Whiteboard for
CASIO
Dot Pattern Printer for
CASIO
*1 Special file format that can be opened in the Presentation mode (page 41) of Interactive
Whiteboard for CASIO.
Minimum Computer System Requirements
The table below describes the minimum computer system requirements for running the software
described above.
Operating Systems:Microsoft Windows
CPU: Intel
Memory: At least 1GB as well as memory recommended for the operating system being
Display: 1024 × 768 (32-bit color) minimum
Hard Disk: At least 350MB of free space available
Digital Pen: CASIO DP-301 (Manufactured by Anoto AB)
Bluetooth: Bluetooth Version 2.0 Class 2
Bluetooth Stack: Microsoft Bluetooth stack, TOSHIBA Bluetooth stack
Application: PowerPoint
makes it possible to send data picked up by a digital pen to Interactive Whiteboard
for CASIO.
Interactive Whiteboard for CASIO is software that projects an image from the
computer where it is running onto a dot screen, where mouse operations can be
performed using a digital pen. It also makes it possible to perform PowerPoint
presentation page operations by tapping the projection screen with a digital pen, and
to write with the digital pen into files. In addition, the digital pen can be used to
perform pen operations and to write on special paper with dot patterns that was
printed using Dot Pattern Printer for CASIO.
Dot Pattern Printer for CASIO is a virtual printer driver that can be used to print
documents that embed special dot patterns into PowerPoint, Word, and other types
of documents so they can be used in an Interactive Whiteboard for CASIO
presentation, and saves them as PPG files*
®
8
Microsoft Windows
Microsoft Windows Vista
Microsoft Windows
®
Core 2 Duo 2.0GHz minimum
®
7 SP1
®
SP2
®
XP SP3 (32bit)
1
.
used.
Bluetooth adapter that supports HID (Human Interface Device) profile required.
®
2003/2007/2010
(Required when using the Interactive Whiteboard for CASIO PowerPoint Control
Mode.)
B
17
Minimum Computer System Precautions
z Configuring a computer system that meets the minimum requirements described above does not
necessarily guarantee that all hardware will operate normally.
z A system that does not satisfy the above minimum requirements or running other applications at the
same time as using the applications of this system can produce results that are different from those
described in this manual.
z Administrator rights are required to install software on your computer.
z Up to four digital pens can be used simultaneously at one time. However, only one pen can be used
in the PowerPoint Control Mode.
z Simultaneous use of other Bluetooth devices and/or use of more than four digital pens can produce
results that are different from those described in this manual.
To install the software
1.
Go to the CASIO website (http://www.casio-intl.com/support/download/).
2.
Download the zipped file of Interactive Whiteboard software.
3.
Double-click the downloaded zip file to open it.
4.
Using Windows Explorer, drag the “setup_en” folder from the zip file to your
computer’s local disk.
Important!
z Do not delete the “setup_en” folder, even after installation of all of the software is complete.
You will need it if you ever want to uninstall or re-install the software in the future.
18
To start up the setup launcher
1.
Exit all programs currently running on your computer.
2.
Open the Interactive Whiteboard software “setup_en” folder and then
double-click “CASIO_InteractiveWhiteboardsetup.exe”.
z Interactive Whiteboard for CASIO Setup Launcher will start up and display the dialog box
shown below.
[Install Interactive Whiteboard for
CASIO] becomes enabled after the
DSPD is installed.
Important!
z A Windows message dialog box may appear in place of the Setup Launcher when you
perform the above operation. What you need to do depends on your computer’s operating
system.
z Windows 8
If your computer does not have .NET Framework 3.5 installed, a Windows Features dialog box like
the one shown below may appear when you perform step 2, above.
If this happens, perform the steps below.
(1) Connect your computer to the Internet (if it is not already connected).
(2) If the “Program Compatibility Assistant” dialog box appears, click “Install using compatibility
settings”.
(3) On the Windows Features dialog box, click “Download and install this feature”.
(4) When the “The following feature was successfully installed:” message appears, click the [Close]
button.
B
19
z Windows XP
If the computer does not have .NET Framework 2.0 Service Pack 2 or higher installed, the following
error message will appear on its display at this time: “The application failed to initialize properly”. If
this happens, perform the procedure under “To install .NET Framework” (page 22) to start up the
setup launcher.
To install the DSPD
1.
Perform the procedure under “To start up the setup launcher” (page 19).
2.
On the Interactive Whiteboard for CASIO Setup Launcher window, click [Install
DSPD].
z After installation is complete, [Install DSPD] will change to [Uninstall DSPD].
3.
Click [Exit] to close the window, and then restart your computer.
To install Interactive Whiteboard for CASIO
1.
If the Interactive Whiteboard for CASIO Setup Launcher window is not currently
displayed, perform the procedure under “To start up the setup launcher” (page
19).
2.
On the Interactive Whiteboard for CASIO Setup Launcher window, click [Install
Interactive Whiteboard for CASIO].
z Carefully read the contents of the end user license agreement that appears.
3.
To agree to be bound by the terms of the license agreement and start
installation, click [I agree].
z Note that you will not be able to use Interactive Whiteboard for CASIO unless you agree to be
bound by the terms of the license agreement.
z Clicking [I agree] will start installation.
z After installation is complete, [Install Interactive Whiteboard for CASIO] will change to
[Uninstall Interactive Whiteboard for CASIO]. Also, the [Uninstall DSPD] option will become
disabled at this time.
4.
Click [Exit] to close the window, and then restart your computer.
B
20
To install Dot Pattern Printer for CASIO
1.
If the Interactive Whiteboard for CASIO Setup Launcher window is not currently
displayed, perform the procedure under “To start up the setup launcher” (page
19).
2.
On the Interactive Whiteboard for CASIO Setup Launcher window, click [Install
Dot Pattern Printer for CASIO].
z Carefully read the contents of the end user license agreement that appears.
3.
To agree to be bound by the terms of the license agreement and start
installation, click [I agree].
z Note that you will not be able to use Dot Pattern Printer for CASIO unless you agree to be
bound by the terms of the license agreement.
z Clicking [I agree] will start installation.
z After installation is complete, [Install Dot Pattern Printer for CASIO] will change to [Uninstall
Dot Pattern Printer for CASIO].
4.
Click [Exit] to close the window, and then restart your computer.
Note
z Depending on the operating system running on your computer, clicking [I agree] in step 3 of
the procedure above may cause the dialog box shown below to appear. In this case, click
[Continue Anyway].
z Depending on the operating system running on your computer, clicking [I agree] in step 3 of
the procedure above may cause the “Windows Security” dialog box shown below to appear. If
it does, click [Install this driver software anyway].
21
To install .NET Framework
Important!
z Perform the procedure below only if the error message “The application failed to initialize
properly” appears in step 2 of the procedure under “To start up the setup launcher” (page 19).
1.
In the “dotnet” folder located inside the “setup_en” folder, double-click
“dotnetfx20.exe”.
Note
z The next two steps are not required if you are running the Windows XP English version.
2.
From the Microsoft Download Center, download the .NET Framework 2.0 Service
Pack 2 Language Pack that matches the language of the Windows XP version
your computer is running.
3.
Install the Language Pack you downloaded.
Checking for Proper Installation
After installing all of the software, restart your computer and check the points below.
z Whenever you start up your computer, DSPD will start up automatically and become resident in
your task tray. If DSPD is installed correctly, the DSPD icon ( ) will be displayed in the task tray.
z If Interactive Whiteboard for CASIO is installed correctly, the Interactive Whiteboard for CASIO icon
will be displayed on your computer desktop.
z If Dot Pattern Printer for CASIO is installed correctly, “Dot Pattern Printer for CASIO” will be
displayed in the “Printers” list on the print dialog box that appears when you execute the [Print] item
in an application (usually on the [File] menu).
Note
z The first time you start up Interactive Whiteboard for CASIO and the first time you execute a
print operation with Dot Pattern Printer for CASIO, you will be prompted for input of the serial
key. The serial key is located in the Software License Certificate that comes with this system.
22
Setting Up the Dot Screen, Projector, and Computer
This section explains how to connect a computer that has the required software installed to a
projector, and how to project computer screen images onto the dot screen.
Dot Screen Part Names
End cap
End bar
Roll
End cap
Anti-slack wire
Screen
Setting Up the Dot Screen for Projection
Important!
z The dot screen that comes with CASIO Interactive Whiteboard is designed for magnetic
adhesion to a metal wall, blackboard, or other appropriate surface. Do not attempt to attach it
to a surface that is soiled with dust or other matter, or a surface that does not allow magnetic
adhesion.
z To keep the dot screen from falling if it detaches from the mounting surface due to impact, be
sure to use the provided safety hook to secure the dot screen to the surface. For details, see
steps 4 and 5 of the procedure under “To set up the dot screen for projection” below.
To set up the dot screen for projection
1.
Remove the dot screen from the screen case and then unhook the anti-slack
wires on either end from the end bar.
2.
Affix the magnetic end bar of the dot screen to a vertical
surface (metal wall, blackboard, etc.) and gradually unroll
the screen.
z While pressing the roll against the surface, slowly rotate it to unroll
the screen.
z Note that you will not be able to adjust the position of the screen
while it is unrolled. To reposition the screen, first roll it back up
onto the roll. Pulling the dot screen from a surface without rolling it
up or allowing it to fall from a surface can result in irreparable
creases in the dot screen.
23
End bar
3.
Completely unroll the screen and affix the magnetic roll to
the metal surface.
z Check to make sure that the dot screen will not separate from the
surface to which it is affixed when you release the roll.
z Note that when the screen is cold it may not flatten out completely,
which makes it very possible that it will become detached and fall
from the surface you attaching it to.
4.
Pull out the anti-slack wire of the top end cap and pass the safety hook wire
through the loop.
5.
Secure the safety hook to the surface.
z If you are affixing the dot screen to a blackboard that is mounted on a wall, insert the safety
hook into the space between the blackboard and the wall as shown in the illustration below.
z If you are affixing the dot screen to a surface where there is no space that you can use for the
safety hook, secure the safety hook to the wall using the screw that comes with the screen.
z Pull on the safety wire to confirm that the hook is secure.
24
Projecting a Computer Screen Image onto the Dot Screen
Note
z Do not perform the procedure below until you have completed all of the steps under:
“Preparing the Digital Pen” (page 10), “Installing the Software” (page 17), and “Setting Up the
Dot Screen, Projector, and Computer” (page 23).
z For detailed information about projector and computer operations, refer to the projector and
computer user documentation.
1.
Set up the projector in a location where it can project onto the dot screen.
2.
Use a cable to connect the projector’s image input terminal to the computer’s
video output terminal (RGB output, HDMI output, etc.)
3.
After checking to make sure that a Bluetooth adapter is connected to the
computer turn on the computer and projector.
z If you connect a Bluetooth adapter while your computer is running, you will need to perform
the steps below on your computer to restart DSPD.
1 In your computer’s task tray, right-click the DSPD icon ( ). On the menu that appears,
click “Exit”.
2 Windows XP, Vista, 7:
On your computer, perform the following sequence:
Click [Start] 3 [All Programs] 3 [dnp] 3 [dspd] 3 [dspd].
Windows 8:
On the Start screen, click the [dspd] tile.
4.
On the projector, adjust the zoom setting and adjust the location of the projector
so the image it is projecting fits within the dot screen area.
5.
On the projector, configure the required settings to specify video output from the
computer as the input source.
At this point you have completed all the steps required to prepare the Interactive Whiteboard for use.
In the next chapter, you will learn about the powerful features and functions provided by the
Interactive Whiteboard.
Important!
z Note that even if the projector is projecting an image of the computer screen onto the dot
screen, you will not be able to perform digital pen operations unless Interactive Whiteboard for
CASIO is running.
B
25
Chapter 2:
This chapter provides detailed explanations about how to use the features and functions of the
Interactive Whiteboard when conducting presentations. Operations are mainly performed using
Interactive Whiteboard for CASIO software running on a computer.
Using Interactive Whiteboard for CASIO
Interactive Whiteboard for CASIO Overview
This section provides an overview of what Interactive Whiteboard for CASIO (IWB for CASIO) allows
you to do, along with initial settings (product registration and calibration) you need to configure and
basic operational procedures.
Interactive Whiteboard for CASIO Modes
IWB for CASIO has four modes, each of which is described below.
Mouse Control Mode
This mode lets you use the digital pen in place of a mouse to perform operations directly on the image
being projected onto the dot screen.
PowerPoint Control Mode (Supports use of one digital pen.)
This mode is for conducting slideshow presentations of PowerPoint files using PowerPoint. IWB for
CASIO can be used to perform slideshow operations (page changes, writing on pages, etc.) with the
digital pen on the dot screen or on printed documents with special dot patterns.
Presentation Mode (Supports simultaneous use of up to four digital pens.)
This mode is for conducting presentations using special format (PPG) files generated from
PowerPoint, Word, PDF, and other types of files. This mode supports the operations described below.
z Slideshow operations (page changes, writing on pages, etc.) with the digital pen on the dot screen
or on printed documents with special dot patterns.
z As with PowerPoint file slideshow presentations, the Pen tool or Marker Pen tool can be used for
writing into the image. The following operations are also supported: shape, line, and arrow drawing;
image file pasting; relocation, zoom, and delete of objects inserted into a page; appending of a
blank page at the end of the slideshow, etc.
z Saving of content inserted during a slideshow to a PPG file. After re-opening a PPG file, inserted
content can be edited (relocated, zoomed, deleted) as desired.
z A choice of slideshow views: Full-screen view or window view.
Capture & Draw Mode (Supports simultaneous use of up to four digital pens.)
The Capture & Draw Mode lets you capture the computer screen image (being projected onto the dot
screen), and then write or draw figures into the captured image using the digital pen. Note that IWB for
CASIO toolboxes and windows are not included in the captured image. Captured images containing
inserted data can be stored as editable format (DST) files, or as non-editable image (png, jpg, or bmp)
files.
26
Registering Your Product (Serial Key Input)
The first time you start up IWB for CASIO, a serial key confirmation dialog box will appear. This dialog
box will keep on appearing with each startup until you input the serial key. The serial key is located in
the Software License Certificate that comes with this system. The serial key confirmation dialog box
will stop appearing once you input the serial key.
To input the serial key
1.
On your computer desktop, double-click the Interactive Whiteboard for CASIO
icon.
2.
When the serial key confirmation dialog box appears, click [Input Serial Key].
z This will display a dialog box for inputting the serial key.
3.
Type the Interactive Whiteboard for CASIO serial key, which is included on the
Software License Certificate, and then click [Register].
z This starts up Interactive Whiteboard for CASIO and displays the main toolbox in the upper
right corner of the screen. The Interactive Whiteboard for CASIO icon ( ) will be displayed in
the task tray.
Main toolbox
z Next, perform the procedure described in “Calibration” below.
z If you want to exit IWB for CASIO, click the close ( ) button in the lower right corner of the
main toolbox.
Calibration
Calibration is a process that teaches IWB for CASIO the projection position of the computer screen
image on the dot screen. After you complete the calibration process, you will need to perform it again
when there is a change in any one of the factors listed below.
z Dot screen setup position
z Projector setup position
z Projected image size setting
z Computer display settings (resolution or number of displays)
