User’s Guide - Tutorial
If this is the first time you are using TRACKFORMER,
please take a few moments to check the contents of
the separate “User’s Guide - Basic Operation
Reference” for important information about basic
operations before trying to use this manual.
EN
XWDJ1-E-2A
Contents
djay2 for iPad/iPhone (Tutorial) ..........................................................EN-1
Using Headphones for Scratch and Mix ........................................................................................................................... EN-1
Using Auto Cut Scratching................................................................................................................................................ EN-1
Using Automix................................................................................................................................................................... EN-1
Making the CROSSFADER Curve the Scratch Direction ................................................................................................. EN-2
Inverting the Left-Right Orientation of CROSSFADER Operation....................................................................................EN-2
Changing from Deck View to the Waveform View ............................................................................................................ EN-2
Loading a Song to a Deck and Entering the Standby State .............................................................................................EN-2
Making Fine Adjustments to the Song Volume Level ....................................................................................................... EN-2
Recording a DJ Performance ...........................................................................................................................................EN-2
Specifying the TRACKFORMER Left-Right Orientation ................................................................................................... EN-3
vjay for iPad/iPhone.............................................................................EN-4
Before Using vjay for iPad/iPhone ....................................................................................................................................EN-4
System Requirements ...................................................................................................................................................... EN-4
Using vjay for iPad/iPhone................................................................................................................................................ EN-4
Part Names and Functions ...............................................................................................................................................EN-5
Basic vjay Operations (Mix) .............................................................................................................................................. EN-7
Basic vjay Operations (Transition).................................................................................................................................... EN-8
Basic vjay Operations (Visual Effects).............................................................................................................................. EN-8
Basic vjay Operations (AUTO LOOP)............................................................................................................................... EN-8
Basic vjay Operations (SCRATCH) .................................................................................................................................. EN-8
Using vjay to Mix Your Own Video Clips .......................................................................................................................... EN-8
djay LE...................................................................................................EN-9
Before installing djay LE... ................................................................................................................................................ EN-9
System Requirements ...................................................................................................................................................... EN-9
Installation Procedure ....................................................................................................................................................... EN-9

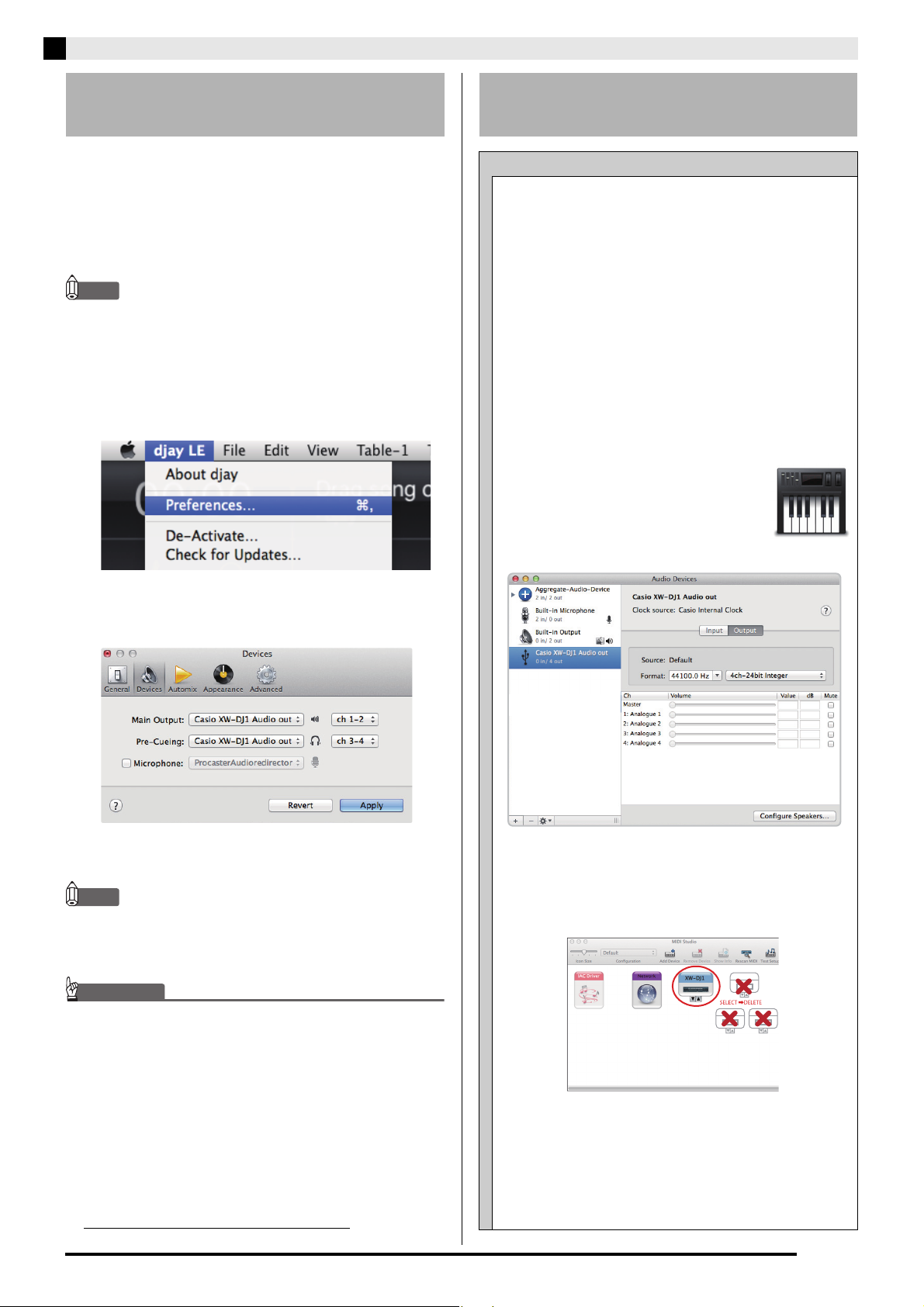

Configuring Audio Device Settings ................................................................................................................................. EN-10
Precautions when Connecting to a Computer ................................................................................................................EN-10
Deckadance2 for Windows................................................................EN-11
Before installing Deckadance2... ....................................................................................................................................EN-11
System Requirements .................................................................................................................................................... EN-11
Installation Procedure ..................................................................................................................................................... EN-11
Driver Software Control Panel Operations......................................................................................................................EN-12
Precautions when Connecting to a Computer ................................................................................................................EN-12
Installing Deckadance (DEMO) ...................................................................................................................................... EN-13
Using Deckadance (DEMO) ........................................................................................................................................... EN-13
Part Names and Functions .............................................................................................................................................EN-14
XW-DJ1 MIDI Implementation Chart ................................................EN-16
If this is the first time you are using TRACKFORMER, please take a few moments to check the contents of the separate “User's
Guide - Basic Operation Reference” for important information about basic operations before trying to use this manual.
Company, product, technology, and other names used herein are trademarks or service marks of others.
djay2 for iPad/iPhone (Tutorial)
This manual provides information about operations
and settings you need for more advanced DJ play.
For information about basic operations when using TRACKFORMER
with the djay2 for iPad/iPhone app, refer to the separate “User’s Guide
- Basic Operation Reference", which comes with TRACKFORMER.
The djay2 for iPad/iPhone app comes with a number
of functions pre-configured to allow you to enjoy using
it immediately. You can also configure your own DJ
operation settings for a setup that suits your particular
performance style.
NOTE
• You can use your iPad/iPhone to check whether
TRACKFORMER is being recognized by your iPad/
iPhone.
z On your iPad/iPhone screen, select Settings and
then select General.
z On the General screen, select About.
Using Auto Cut Scratching
The djay2 for iPad/iPhone app’s Auto Cut Scratching
function makes it possible for just about anyone to
perform scratching.
z While holding down the [SHIFT] button, perform a
JOG operation. This will automatically operate the
CROSSFADER to sync the tempo of the opposite
side track and perform scratching.
Using Automix
Use Automix when you want to produce a background
mix of music at a party or other setting where you do
not need a full DJ performance.
z If XW-DJ1 is shown on the list that appears, it means
that TRACKFORMER is being recognized correctly.
Using Headphones for Scratch and Mix
To perform scratch and mix operations using headphones
connected to TRACKFORMER, configure settings so
MASTER OUT audio is output to the headphones.
z Shifting the on-screen
CUE/MIX Slider from
CUE to MIX will cause
the MASTER OUT
audio to be output to
the headphones.
z Touching the [AUTOMIX] button and then [Start
Automix] starts auto playback of the songs in your
iTunes play list.
z You can also use the Automix List (Queue) to
arrange the songs you want into an auto play list.
z To add a song to the Automix List (Queue), touch
and hold the song’s name on the djay library screen.
On the menu that appears, select Add to Queue.
NOTE
• When playback nears the
end of a song, the
TRACKFORMER [PLAY/
PAUSE] button of the track
that corresponds to the song
will start to flash. If Automix
is enabled, playback will
automatically advance to the
next song. If Automix is
disabled (OFF), use
CROSSFADER to mix the next song.
EN-1
djay2 for iPad/iPhone (Tutorial)
Making the CROSSFADER Curve the Scratch Direction
The CROSSFADER curve is selectable. When
performing a scratch operation, a fast audio rise curve
is needed at either CROSSFADER extreme. For a mix
operation, a smoother mix curve is required.
NOTE
• To set a
CROSSFADER curve
for scratch, select ON
for Crossfader Cutting
Mode. To set a
CROSSFADER curve
for mix, select OFF.
Loading a Song to a Deck and Entering the Standby State
You can configure settings so a song first goes into a
standby state after it is loaded.
Making Fine Adjustments to the Song Volume Level
Normally, the djay2 for iPad/iPhone app
automatically adjusts the volume levels between two
songs by pre-analyzing their volume levels. This helps
to make smooth mixes easier.
Inverting the Left-Right Orientation of CROSSFADER Operation
You can use the Invert
Crossfader setting to invert
the orientation of the
TRACKFORMER
CROSSFADER operation and
the on-screen CROSSFADER
movement. Select a setting in
accordance with the type of
scratch operation you want
to perform.
Changing from Deck View to the Waveform View
Track data can be displayed as a waveform, which
enables a higher degree of DJ play precision. You can
configure CUE point, LOOP, and other settings while
checking them on the waveform for better accuracy.
z To change to the waveform view, touch the on-
screen Waveforms mark.
You can also disable Auto Gain and have data initially
played back at the volume level of the song that was
loaded to the deck. After that, you can use the onscreen GAIN slider to adjust the volume level.
Recording a DJ Performance
Use the recording function to record a DJ performance.
NOTE
• You can enable monitoring
of the left or right deck by
touching one of the
headphones marks on the
djay2 for iPad app screen.
z Recorded data can be played back as-is on the left or
right deck, or it can be exported as a music file using
iTunes.
EN-2
djay2 for iPad/iPhone (Tutorial)
Specifying the TRACKFORMER Left-Right Orientation
TRACKFORMER can be configured for right-handed or left-handed play, which positions functions to match the
unit’s orientation.
To orient TRACKFORMER as shown below (JOG to the
right), press the [RIGHT SCRATCH] button.
In this orientation, FADER-1 operates as the
CROSSFADER, while FADER-2 operates as
the FX PARAMETER slider.
Left-hand fader operation
Right-hand JOG operation
To orient TRACKFORMER as shown below (JOG to the
left), press the [LEFT SCRATCH] button.
In this orientation, FADER-1 operates as the
FX PARAMETER slider, while FADER-2
operates as the CROSSFADER.
Right-hand fader operation
Left-hand JOG operation
NOTE
• The FX PARAMETER slider assignments of the above
settings simultaneously control the two FX PARAMETER
controllers of the left and right decks of the djay2 for
iPad/iPhone app. Use the [FX] buttons of the decks to
turn application of effects on or off. Turn off FX if you do
not want effects applied to a deck.
EN-3
vjay for iPad/iPhone
Before Using vjay for iPad/ iPhone
You can purchase algoriddim’s vjay for iPad/iPhone
from the App Store. If you already have vjay for iPad/
iPhone, make sure it is the latest version and update if
necessary.
http://www.algoriddim.com/vjay
z Also be sure to check the latest information about
system requirements provided at the above website.
IMPORTANT!
• vjay for iPad/iPhone is a product of algoriddim
GmbH. Direct any questions and/or inquiries
concerning this software to algoriddim GmbH.
3.
On your iPad or iPhone, start up the vjay for
iPad/iPhone app.
vjay for iPad/iPhone will automatically recognize
TRACKFORMER and the title CASIO should appear on
the startup screen.
IMPORTANT!
• If the CASIO logo does not appear on the startup
screen of vjay for iPad/iPhone, make sure that
TRACKFORMER is turned on and that the Lightning/
Mini Din cable is connected correctly. Next, perform
this procedure again from step 1.
If there are other apps running on the iPad/iPhone,
exit them and then restart vjay for iPad/iPhone.
If the CASIO logo still does not appear on the startup
screen, try restarting your iPad/iPhone and then
perform this procedure again from step 1.
System Requirements
• iOS: iOS7, iOS8 (iPhone, iPad, or iPod touch)
iPhone, iPad, or iPod touch model with Lightning
connector.
Using vjay for iPad/iPhone
The vjay app comes pre-configured with functions that
let you immediately perform operations like the
following: syncing the tempos of and mixing two
image and audio sources, real-time scene switching
(transition effect), etc.
z For information about connecting an amplifier,
speakers, headphones, and other external
equipment, refer to “General Guide/Connection
Examples” in the “User’s Guide - Basic Operation
Reference".
1.
Use the Lightning/Mini
Din cable that comes
with TRACKFORMER
to connect it to an iPad
or iPhone.
4.
The operational flow for outputting audio with
vjay for iPad/iPhone is the same as that for
algoriddim’s djay2 for iPad/iPhone.
For more information, refer to “Using
TRACKFORMER/Flow for Outputting Audio” in the
“User’s Guide - Basic Operation Reference” that comes
with TRACKFORMER.
2.
On TRACKFORMER, press the P (Power)
button to turn on power.
After the LEDs finish their startup routine,
TRACKFORMER is ready for operation.
EN-4
vjay for iPad/iPhone
Part Names and Functions
No. Controller: Description:
1 P (Power) button Turns power on or off.
2 EFFECT area Controls the Visual Effect function.
3 AUTO LOOP area Controls the AUTO LOOP function.
SCRATCH direction buttons
4R
(SHIFT button)
4L
5R 5LCROSSFADER
(FX PARAMETER)
FILTER knob For images, adjusts the Visual Effect white balance. For audio, rotating to the right of
6
7 MASTER OUT LEVEL knob Adjusts the output level from MASTER OUT and speaker OUT.
8 HEADPHONE LEVEL knob Adjusts the headphone output level.
9 DECK select buttons Uses to select the deck to be manipulated by the JOB platter.
10 CUE POINT area Controls the CUE POINT function.
11 PLAY/PAUSE button Starts or pauses playback.
12 SET CUE button Sets a CUE POINT (START POINT).
13 CUE PLAY button Jumps to a preset CUE POINT (START POINT) and starts playback.
SYNC button Syncs with the speed (BPM) of the opposite side deck. Pressing this button during
14
JOG platter Enables image and audio scratch and backspin operations with all the feel of a 7-inch
15
Pressing the RIGHT SCRATCH button (4R) enables right-hand operation of the JOG
platter and left-hand operation of the CROSSFADER. Pressing the LEFT SCRATCH
button (4L) enables left-hand operation of the JOG platter and right-hand operation of
the CROSSFADER.
Operating the JOG platter fades in the image and audio of the deck assigned by the vjay
software. (Changes Visual Effect Parameter settings.)
center adjusts the high pass filter (treble only output), while rotating to the left adjusts
the low pass filter (bass only output).
playback syncs with BPM and timing.
record.
EN-5
vjay for iPad/iPhone
[SHIFT] + BUTTON No. Description:
[SHIFT] (4L or 4R) + FX [X] (2: EFFECT area) DRIFT (INSTANT FX): Audio effect
+ Visual Effect white balance: Image effect
[SHIFT] (4L or 4R) + FX (2: EFFECT area) SWAY (INSTANT FX): Audio effect
[SHIFT] (4L or 4R) + FX [W] (2: EFFECT area) CRUSH (INSTANT FX): Audio effect
[SHIFT] (4L or 4R) + LOOP [1/2] (3: LOOP area) BOUNCE LOOP [1/4]: Performs video clip LOOP playback for
the length set for the button.
[SHIFT] (4L or 4R) + [LOOP] (3: LOOP area) BOUNCE LOOP [1/2]
[SHIFT] (4L or 4R) + LOOP [x 2] (3: LOOP area) BOUNCE LOOP [1]
[SHIFT] (4L or 4R) + [CUE 1] (10: CUE POINT area) Deletes CUE 1 POINT (video clip point).
[SHIFT] (4L or 4R) + [CUE 2] (10: CUE POINT area) Deletes CUE 2 POINT (video clip point).
[SHIFT] (4L or 4R) + [CUE 3] (10: CUE POINT area) Deletes CUE 3 POINT (video clip point).
[SHIFT] (4L or 4R) + [PLAY/PAUSE] (11) Returns playback to the start of a video clip.
[SHIFT] (4L or 4R) + [SET CUE] (12) Rewinds the video clip.
[SHIFT] (4L or 4R) + [CUE PLAY] (13) Fast forwards the video clip.
[SHIFT] (4L or 4R) + [JOG PLATTER] (15) When performing a scratch operation, automatically syncs to
the tempo of the opposite side video clip.
NOTE
• CROSSFADER Operations
TRACKFORMER can be configured and positioned to allow CROSSFADER (5R/5L) operations by either righthanded or left-handed DJs.
RIGHT SCRATCH selected LEFT SCRATCH selected
EN-6
vjay for iPad/iPhone
Basic vjay Operations (Mix)
vjay for iPad/iPhone makes it possible for you to mix
the images and audio of video clips in real time. (The
vjay screen shown here is for the vjay for iPad app.)
1.
Select a video clip.
z Touch the iPad/iPhone screen to select the video
clip you want.
2.
Mix the video clips loaded to the left and right
decks.
z Move TRACKFORMER’s
CROSSFADER slider to the
left side. This will also cause
the on-screen CROSSFADER
(bottom center) to move to
the left.
z This loads the selected video clip to the right deck.
z Move TRACKFORMER’s
CROSSFADER slider to the
right side. This will also
cause the on-screen
CROSSFADER (bottom
center) to move to the right.
z This loads the selected video clip to the left deck.
z Move TRACKFORMER’s CROSSFADER slider to the
right side. This will mix the video clips in the center
master screen, while switching to the right video clip.
NOTE
• Under initial default vjay for iPad/iPhone settings,
there are video clips already loaded to the decks, so
you can try playing them back. You can also
configure settings so a video clip goes into a pause
state after it is loaded.
z vjay screen → [Settings] button → Settings → Turn off
Play Automatically.
NOTE
• When mixing two video clips, pressing the right
deck or left deck [SYNC] button will automatically
sync the tempos of the two clips.
z The center screen is the master screen, which shows
the mixed left and right deck video clips. Mixing
video clips simultaneously mixes and outputs the
left and right deck audio.
EN-7
vjay for iPad/iPhone
Basic vjay Operations (Transition)
You can select from among a variety of transition
effects when mixing video clips with a CROSSFADER
operation.
Basic vjay Operations (Visual Effects)
vjay for iPad/iPhone includes a large number of image
and audio effects that you can apply to mixes. Effects
provide you with versatility to create exciting
arrangements of a video clip source.
Basic vjay Operations (SCRATCH)
You can use TRACKFORMER’s JOG platter to scratch
the image and audio of a video clip.
z Rotating the JOG platter clockwise fast forwards the
music clip, while counter-clockwise rotation
rewinds the music clip.
Using vjay to Mix Your Own Video Clips
vjay for iPad/iPhone comes with function that let you
easily mix video clips and photographs you recorded
with your iPad/iPhone. You can create new video clips
and even add music to them.
z For detailed information about FX PARAMETER
operations, refer to “Specifying the TRACKFORMER
Left-Right Orientation” (page EN-3 of this manual).
Basic vjay Operations (AUTO LOOP)
LOOP is a function that lets you repeat play back a
section of a music clip. LOOP operations can be woven
together for virtually unlimited music clip mixing
creativity.
1.
Touch the media
library button.
2.
Touch the [Camera
Roll] menu button. In
the upper right corner
of the window that
appears, touch the
camera icon button.
3.
Use the screen that
appears to record a
movie.
z To re-shoot the movie,
touch [Retake].
4.
To import the video to the vjay screen, touch
[Use Video].
z For information about TRACKFORMER operations,
refer to “Using TRACKFORMER/Basic Operation/
About CUE POINT/About AUTO LOOP”, and
“About FX (Effects)” in the “User’s Guide - Basic
Operation Reference” that comes with the unit.
z To add music to the movie, touch the music note and
then select the music you want.
EN-8
djay LE
Before installing djay LE...
Go to the website at the URL below to download the
algoriddim djay LE app. If you already have djay LE,
make sure it is the latest version and update if
necessary.
http://www.algoriddim.com/djay-le
z Also be sure to check the latest information about
system requirements provided at the above website.
4.
Clicking [I agree] will cause the screen below
to appear. Use a USB cable (High Speed
compatible) to connect TRACKFORMER to
your computer and then press the
TRACKFORMER P (Power) button.
IMPORTANT!
• djay LE is a product of algoriddim GmbH. Direct any
questions and/or inquiries concerning this software
to algoriddim GmbH.
System Requirements
• MAC OS: OS.X (10.6.X, 10.7.X, 10.8.X, 10.9.X)
At least 1.0 GB of RAM, a USB 2.0 or higher port, enough
free space on the hard disk for music data
Installation Procedure
1.
Move djay LE file you downloaded into the
application folder on your computer.
2.
Double-click the djay LE app icon to start
installation.
5.
After TRACKFORMER starts up, click the
djay LE app on your computer to start it.
6.
Perform djay LE user registration (activation).
• If you want to perform user registration later, click
[Cancel].
z Input your name and email address.
z If you want to receive update information and other
news from algoriddim, select the check box.
z Click [Activate].
7.
Start up djay LE. When the screen shown
below appears, click [OK], which will cause
the TRACKFORMER audio device to be
recognized by your computer.
3.
When the djay LE Terms of Use screen
appears, carefully read the terms of use. If
you agree to the terms, click [I agree].
EN-9
djay LE
Configuring Audio Device Settings
To output djay LE playback audio from
TRACKFORMER, you need to configure audio device
settings with djay LE. The procedure you use to start
up or shut down TRACKFORMER and/or djay LE
startup can cause settings to change (see the note
below), so be sure to check settings after starting up
djay LE.
NOTE
• Recommended startup: Turn on TRACKFORMER →
Start up djay LE.
Recommended shutdown: Exit djay LE.
TRACKFORMER.
1.
On the displayed menu bar, select [djay LE]
and then [Preferences].
→ Turn off
Precautions when Connecting to a Computer
If your computer does not recognize TRACKFORMER...
• Check if your computer meets the djay LE
system requirements.
• Try connecting to a different USB port on your
computer.
• Make sure you are using a High Speed
compatible (USB 2.0) USB cable.
• Connect directly to a computer USB port,
without going through a USB hub.
• Shutdown or exit all Wi-Fi, Bluetooth, or other
applications, and anti-virus software.
• Try shutting down camera, and/or game
controller drivers running on your computer.
• You can check the
TRACKFORMER audio and
MIDI connection using the MAC
OS Audio MIDI Setup.
2.
Select [Device] and then configure audio
device output settings.
z Master Out: Casio XW-DJ1 Audio out : ch1-2
z Monitor Out: Casio XW-DJ1 Audio out: ch3-4
NOTE
• Note that the initial ch1-2 and ch3-4 settings
immediately after installation may be opposite of
those shown above.
IMPORTANT!
• djay LE is an app designed for use while hardware is
connected. Stand-alone operation on the MAC OS is
not supported.
(Finder - Applications - Utilities)
z Check the Audio Window to make sure that XW-
DJ1 is shown.
On the Window menu, select Show MIDI Window
to display the Audio Window.
djay LE does not support the TRACKFORMER’s
Automix or recording functions.
To enable support of all TRACKFORMER functions,
you need to purchase an upgrade to djay Pro. You
can purchase djay Pro by going to the website at the
URL below.
http://www.algoriddim.com/djay-mac
z Check the MIDI Window to make sure that XW-
DJ1 is shown.
z The MIDI Window will show icons of MIDI
devices that have been used in the past. Delete
the icons of MIDI devices that you no longer
need to use. You can delete an icon by selecting it
and then pressing your computer’s DELETE key.
EN-10
Deckadance2 for Windows
5.
Specify the location where you want to install
Before installing Deckadance2...
Before installing Deckadance 2, you first need to
perform the steps under “Installation Procedure”
below to install the special ASIO driver that is required
for audio output from your computer.
System Requirements
• Windows OS: Windows 7, 8, 8.1 (Intel Core Duo or
higher)
At least 2.0 GB of RAM, a USB 2.0 or higher port, enough
free space on the hard disk for music data
the driver. If you want to install in the initial
default location, simple click the [Install]
button. If you want to specify a different
location, click the [Browse] button.
6.
Clicking [Install] starts driver software
installation.
• Visit the CASIO site at the URL below to obtain the
latest version driver software.
http://world.casio.com/
Installation Procedure
1.
Use a USB cable (High Speed compatible) to
connect TRACKFORMER to your computer
and then press the TRACKFORMER P
(Power) button.
Keep TRACKFORMER connected to your computer
until installation is complete.
2.
Download CASIO_XWDJ1_Driver from the CASIO
website, and then double-click
its icon to start installation.
3.
Follow the instructions that
appear on your computer
screen to install the driver.
7.
When a message telling you installation is
complete appears, click the [Finish] button.
8.
On TRACKFORMER, press the P (Power)
button to re-start.
9.
On your computer, display Device Manager
by performing the following operations: Start
→ Control Panel → System and Security →
System → Device Manager.
• Installation is successful if you can see the two items
below on the Device Manager screen.
Casio Audio Devices
Casio XW-DJ1
4.
This software’s terms of use
define the conditions under
which CASIO grants you the
right to use this driver software.
To agree to the terms and
continue with installation, select [I Agree]. If
you do not agree to the terms of use, exit the
installation process.
NOTE
• The Windows Security dialog box may appear
during installation. If it does, click Install this driver
software anyway to proceed.
EN-11
Deckadance2 for Windows
Driver Software Control Panel Operations
After you install this driver software, you can use the
Casio Control Panel to adjust TRACKFORMER
settings.
• To display the Casio Control Panel: Windows Start
→ All programs → CASIO → XW-DJ1 → Casio
Control Panel
• You can also open the Casio Control Panel by
clicking the icon in the Windows taskbar.
The USB Streaming Mode and ASIO Buffer Size
settings on the Buffer Settings tab can be used to
control audio latency.
IMPORTANT!
• Before changing the USB Streaming Mode setting,
first exit all other applications running on your
computer.
• A message like the one shown below may appear
when you change the ASIO Buffer Size setting. This
message is a warning that your computer’s
operation speed is lower than the audio delay setting
you selected, which may cause distortion and
breaking of audio during playback.
In this case, select Safe or Extra Safe for USB
Streaming Mode, and set a larger value for ASIO
Buffer Size.
Precautions when Connecting to a Computer
USB Streaming Mode Setting
This setting adjusts audio latency.
Minimum Latency (Fast)
Low Latency
Standard
Relaxed
Reliable
Safe
Extra Safe (Slow)
ASIO Buffer Size
This setting adjusts the data buffer size.
64 sample (Small size: fast)
128 sample
256 sample
512 sample
1024 sample
2048 sample
4096 sample
8192 sample (Large size: slow)
If your computer does not recognize TRACKFORMER...
• Check if your computer meets the Deckadance2
system requirements.
• Try connecting to a different USB port on your
computer.
• Make sure you are using a High Speed
compatible (USB 2.0) USB cable.
• Connect directly to a computer USB port,
without going through a USB hub.
• Shutdown or exit all Wi-Fi, Bluetooth, or other
applications, and anti-virus software.
• Try shutting down camera, and/or game
controller drivers running on your computer.
• Clean up the MIDI driver registry. Cleaning the
MIDI driver registry requires a high level of
technical skill. Be sure to check relevant
information on the Microsoft Support Page
before attempting it.
• Uninstall the driver software from your
computer and then re-install it.
EN-12
Deckadance2 for Windows
Installing Deckadance (DEMO)
Go to the website at the URL below to download the
Image-Line Deckadance Trial Version.
If you already have Deckadance Trial Version, make
sure it is the latest version and update if necessary.
IMPORTANT!
• Deckadance is a product of Image-Line. Direct any
questions and/or inquiries concerning this software
to Image-Line.
z Start installation.
z Carefully read the terms of
use that appear. If you agree
to the terms, click [I Agree].
If you do not agree to the
terms, click [Cancel].
z Clear the Asio4All check box
and then click [Next].
Using Deckadance (DEMO)
1.
Audio setup
z In the upper left corner of the screen, click the preferences
icon.
[Audio Setup]
z Audio Device Type
→ ASIO
z Device
→
Casio ASIO Driver
[Output Routing]
z Internal Mixing
z Monitor -L → ..3
-R → ..4
z Master -L → ..1
-R → ..2
z Click [Next].
z Installation in progress...
z Select the Install only as a
standalone... option.
z Click [Install].
z Click [Finish].
2.
MIDI setup
z In the upper left corner of the screen, click the preferences
icon.
z
Select CASIO
→
XW-DJ1.
Turn MIDI
→
z
Input ON.
z
Turn MIDI
→
Output ON.
EN-13
Deckadance2 for Windows
Part Names and Functions
No. Controller: Description:
1 P (Power) button Turns power on or off.
2 EFFECT area Toggle the FX groups (FX1, FX2, FX3) of each deck between ON and OFF.
3 AUTO LOOP area Controls the LOOP operations (LOOP ON/OFF, LOOP length setting) of each deck.
SCRATCH direction buttons
4R
(SHIFT button)
4L
CROSSFADER
5R
(FX PARAMETER)
5L
FILTER knob Rotating to the right of center adjusts the high pass filter (treble only output), while
6
7 MASTER OUT LEVEL knob Adjusts the output level from MASTER OUT and speaker OUT.
8 HEADPHONE LEVEL knob Adjusts the headphone output level.
9 DECK select buttons Used to select the deck to be manipulated by the JOB platter.
10 CUE POINT area Controls the CUE POINT function.
11 PLAY/PAUSE button Starts or pauses song playback.
12 SET button (CUP button) Returns to the last set CUE point. Song is played back when the CUP button is released.
13 CUE button Returns to the last set CUE point. Song is played back when the CUE button is pressed.
SYNC button Syncs with the speed (BPM) of the opposite side deck. Pressing this button during
14
JOG platter Enables image and audio scratch and backspin operations with all the feel of a 7-inch
15
Pressing the RIGHT SCRATCH button (4R) enables right-hand operation of the JOG
platter and left-hand operation of the CROSSFADER. Pressing the LEFT SCRATCH
button (4L) enables left-hand operation of the JOG platter and right-hand operation of
the CROSSFADER.
Moving the JOG platter fades in the audio of the deck assigned by the DJ software.
When operating as an FX PARAMETER slider, adjust the effect parameters (FX1, FX2,
FX3) of the FX group.
rotating to the left adjusts the low pass filter (bass only output).
playback syncs with BPM and timing.
record.
EN-14
Deckadance2 for Windows
[SHIFT] + BUTTON No. Description:
[SHIFT] (4L or 4R) + FX [X] (2: EFFECT area) Selects the frequency band for effect application (LOW).
[SHIFT] (4L or 4R) + FX (2: EFFECT area) Selects the frequency band for effect application (MID).
[SHIFT] (4L or 4R) + FX [W] (2: EFFECT area) Selects the frequency band for effect application (HI).
[SHIFT] (4L or 4R) + LOOP [1/2] (3: LOOP area) grossbeat pad 1*
[SHIFT] (4L or 4R) + [LOOP] (3: LOOP area) grossbeat pad 2*
[SHIFT] (4L or 4R) + LOOP [x 2] (3: LOOP area) grossbeat pad 3*
[SHIFT] (4L or 4R) + [CUE 1] (10: CUE POINT area) Deletes CUE 1 POINT.
[SHIFT] (4L or 4R) + [CUE 2] (10: CUE POINT area) Deletes CUE 2 POINT.
[SHIFT] (4L or 4R) + [CUE 3] (10: CUE POINT area) Deletes CUE 3 POINT.
[SHIFT] (4L or 4R) + [PLAY/PAUSE] (11) Returns playback to the start of a track.
[SHIFT] (4L or 4R) + [SET CUE] (12) Moves one beat in the rewind direction.
[SHIFT] (4L or 4R) + [CUE PLAY] (13) Moves one beat in the fast forward direction.
[SHIFT] (4L or 4R) + [SHIFT] (14) Fixes the (musical) key of the song.
* grossbeat pad function
DECKADANCE comes with a number “sequence presets” built in, including gate, glitch, scratch, stutter, and more. Sequence presets can be
recalled while performing with grossbeat pads 1, 2, and 3.
EN-15
XW-DJ1 MIDI Implementation Chart
Marking + [SHIFT] button Group Name
CUE3 : DELETE CUE3 B ch(Right) Deck 0x09 0x91 0x27 D#2 OFF=00,ON=7F 0x09 0x91 0x27 D#2 OFF=00,ON=7F
CUE2 : DELETE CUE2 B ch(Right) Deck 0x09 0x91 0x28 E2 OFF=00,ON=7F 0x09 0x91 0x28 E2 OFF=00,ON=7F
CUE1 : DELETE CUE1 B ch(Right) Deck 0x09 0x91 0x29 F2 OFF=00,ON=7F 0x09 0x91 0x29 F2 OFF=00,ON=7F
PLAY/PAUSE : BACK TO START B ch(Right) Deck 0x09 0x91 0x2A F#2 OFF=00,ON=7F 0x09 0x91 0x2A F#2 OFF=00,ON=7F
SET : REW B ch(Right) Deck 0x09 0x91 0x2B G2 OFF=00,ON=7F 0x09 0x91 0x2B G2 OFF=00,ON=7F
CUE : FF B ch(Right) Deck 0x09 0x91 0x2C G#2 OFF=00,ON=7F 0x09 0x91 0x2C G#2 OFF=00,ON=7F
SYNC : MATCH KEY B ch(Right) Deck 0x09 0x91 0x2D A2 OFF=00,ON=7F 0x09 0x91 0x2D A2 OFF=00,ON=7F
FX [W] : FX1 B ch(Right) FX&LOOP 0x09 0x91 0x20 G#1 OFF=00,ON=7F 0x09 0x91 0x20 G#1 OFF=00,ON=7F
FX [FX] : FX2 B ch(Right) FX&LOOP 0x09 0x91 0x21 A1 OFF=00,ON=7F 0x09 0x91 0x21 A1 OFF=00,ON=7F
FX [X] : FX3 B ch(Right) FX&LOOP 0x09 0x91 0x22 Bb1 OFF=00,ON=7F 0x09 0x91 0x22 Bb1 OFF=00,ON=7F
LOOP [x1/2] : LOOP [1/4] B ch(Right) FX&LOOP 0x09 0x91 0x23 B1 OFF=00,ON=7F 0x09 0x91 0x23 B1 OFF=00,ON=7F
LOOP [ON/OFF] : LOOP [1/2] B ch(Right) FX&LOOP 0x09 0x91 0x24 C2 OFF=00,ON=7F 0x09 0x91 0x24 C2 OFF=00,ON=7F
LOOP [x2] : LOOP [1] B ch(Right) FX&LOOP 0x09 0x91 0x25 C#2 OFF=00,ON=7F 0x09 0x91 0x25 C#2 OFF=00,ON=7F
CUE3 : DELETE CUE3 A ch(Left) Deck 0x09 0x90 0x27 D#2 OFF=00,ON=7F 0x09 0x90 0x27 D#2 OFF=00,ON=7F
CUE2 : DELETE CUE2 A ch(Left) Deck 0x09 0x90 0x28 E2 OFF=00,ON=7F 0x09 0x90 0x28 E2 OFF=00,ON=7F
CUE1 : DELETE CUE1 A ch(Left) Deck 0x09 0x90 0x29 F2 OFF=00,ON=7F 0x09 0x90 0x29 F2 OFF=00,ON=7F
PLAY/PAUSE : BACK TO START A ch(Left) Deck 0x09 0x90 0x2A F#2 OFF=00,ON=7F 0x09 0x90 0x2A F#2 OFF=00,ON=7F
SET : REW A ch(Left) Deck 0x09 0x90 0x2B G2 OFF=00,ON=7F 0x09 0x90 0x2B G2 OFF=00,ON=7F
CUE : FF A ch(Left) Deck 0x09 0x90 0x2C G#2 OFF=00,ON=7F 0x09 0x90 0x2C G#2 OFF=00,ON=7F
SYNC : MATCH KEY A ch(Left) Deck 0x09 0x90 0x2D A2 OFF=00,ON=7F 0x09 0x90 0x2D A2 OFF=00,ON=7F
FX [W] : FX1 A ch(Left) FX&LOOP 0x09 0x90 0x20 G#1 OFF=00,ON=7F 0x09 0x90 0x20 G#1 OFF=00,ON=7F
FX [FX] : FX2 A ch(Left) FX&LOOP 0x09 0x90 0x21 A1 OFF=00,ON=7F 0x09 0x90 0x21 A1 OFF=00,ON=7F
FX [X] : FX3 A ch(Left) FX&LOOP 0x09 0x90 0x22 Bb1 OFF=00,ON=7F 0x09 0x90 0x22 Bb1 OFF=00,ON=7F
LOOP [x1/2] : LOOP [1/4] A ch(Left) FX&LOOP 0x09 0x90 0x23 B1 OFF=00,ON=7F 0x09 0x90 0x23 B1 OFF=00,ON=7F
LOOP [ON/OFF] : LOOP [1/2] A ch(Left) FX&LOOP 0x09 0x90 0x24 C2 OFF=00,ON=7F 0x09 0x90 0x24 C2 OFF=00,ON=7F
LOOP [x2] : LOOP [1] A ch(Left) FX&LOOP 0x09 0x90 0x25 C#2 OFF=00,ON=7F 0x09 0x90 0x25 C#2 OFF=00,ON=7F
RIGHT SCRATCH
LEFT SCRATCH
JOG PLATTER : [A] =ON or [B] =ON
* Clockwise : 41(slow rotate 1/300 round), 42(rotate 2/300 round), 43(3/300),,,(fast) / Counter Clockwise:3F(slow rotate 1/300 round), 3E(rotate 2/300 round), 3D(3/300),,,(fast)
JOG TOUCH : [A] =ON or [B] =ON [A] = ON 0x09 0x90 0x3B B3 [B] = ON 0x09 0x91 0x3B B3 OFF=00,ON=7F
FILTER (B ch) B ch(Right) Deck 0x0B 0xB1 0x13 CC19 00(min)...40(center)...7F(max)
FILETR (A ch) A ch(Left) Deck 0x0B 0xB0 0x13 CC19 00(min)...40(center)...7F(max)
CROSS FADER CROSS F. or FX PARAM.
FX PARAMETER CROSS F. or FX PARAM.
MASTER MASTER VOLUME 0x0B 0xB1 0x11 CC17 00(min)...40(center)...7F(max)
HEADPHONE
: [SHIFT] Button
[A] = ON 0x0B 0xB2 0x10 [B] = ON 0x0B 0xB2 0x11
[RIGHT SCRATCH]
= ON
[RIGHT SCRATCH]
= ON
HEADPHONE VOLUME
MIDI Message (XW-DJ1→Computer) MIDI Message [LED] (Computer→XW-DJ1)
MSB MIDI LSB MSB MIDI LSB
0x09 0x90 0x2E A#2 OFF=00,ON=7F 0x09 0x90 0x2E A#2 OFF=00,ON=7F
0x0B 0xB1 0x10 CC16
0x0B 0xB1 0x14 CC20
0x0B 0xB0 0x12 CC18 00(min)...40(center)...7F(max)
[LEFT SCRATCH]
= ON
[LEFT SCRATCH]
= ON
0x0B 0xB0 0x10 CC16
0x0B 0xB0 0x14 CC20
00 (min)...7F (max)
00 (min)...7F (max)
EN-16
MA1502-A
Loading...
