DATA PROJECTOR XJ-450

User’s Guide

Keep this manual in a safe place for future reference.

• Digital Light ProcessingTM, DLPTM, Digital Micromirror DeviceTM, and DMD

are trademarks of Texas Instruments Incorporated of the United States.

• Microsoft, Windows, Windows NT, Windows XP, and the Windows logo are registered trademarks or trademarks of Microsoft Corporation of the United States in the United States and other countries.

• Apple and Macintosh are registered trademarks of Apple Computer, Inc. of the United States.

• Other company and product names may be registered trademarks or trademarks of their respective owners.

この装置は、情報処理装置等電波障害自主規制協議会（VCCI）の基準に基づくクラス B の情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをしてください。

Safety Precautions

Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before trying to use it. After reading this User’s Guide, keep it in a safe place for future reference.

About safety symbols

Various symbols are used in this User’s Guide and on the product itself to ensure safe use, and to protect you and others against the risk of injury and against material damage. The meaning of each of the symbols is explained below.

Danger

Warning

Caution

Icon Examples

A triangle indicates a situation against which you need to exercise caution. The example shown here indicates you should take precaution against electric shock.

A circle with a line through it indicates information about an action that you should not perform. The specific action is indicated by the figure inside the circle. The example shown here means disassembly is prohibited.

A black circle indicates information about an action that you must perform. The specific action is indicated by the figure inside the circle. The example shown here indicates you must unplug the power cord from the power outlet.

This symbol indicates a condition that, if ignored or applied incorrectly, creates the risk of death or serious personal injury.

This symbol indicates a condition that, if ignored or applied incorrectly, could possibly create the risk of death or serious personal injury.

This symbol indicates a condition that, if ignored or applied incorrectly, could possibly create the risk of personal injury or material damage.

Safety Precautions

Precautions During Use

Warning

●Smoke, odor, heat, loud noise, and other abnormalities

Should you ever notice smoke, strange odor, or loud noise being emitted by the projector, or any other abnormality, immediately stop using the projector. Continued use creates the risk of fire and electric shock. Immediately perform the following steps.

1.Unplug the projector.

2.Contact your original dealer or

authorized CASIO service center.

●Malfunction

Immediately stop using the projector if the screen appears abnormal, if sound is not produced, or if any other abnormal operation occurs even though you are operating the projector correctly. Continued use creates the risk of fire and electric shock. Immediately perform the following steps.

1.Turn off the projector.

2.Unplug the projector.

3.Contact your original dealer or

authorized CASIO service center.

●Power cord

Misuse of the power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions.

• Make sure that you use a power source with the same voltage as that specified for the projector.

• Do not overload a power outlet with too many devices.

●Power cord

A damaged power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions.

• Never place heavy objects on the power cord and never expose it to heat.

• Make sure the power cord is not pinched between the wall and the rack or table where the projector is located, and never cover the power cord with a cushion or other object.

• Never try to modify the power cord, allow it to become damaged, or subject it to excessive bending.

• Do not twist the power cord or pull on it.

●Power cord

Never touch the power cord or plug while your hands are wet. Doing so creates the risk of electric shock.

Safety Precautions

●Water and foreign matter

Never allow water to get on the projector. Water creates the risk of fire and electric shock. Never place a vase or any other container of water on top of the projector. Water creates the risk of fire and electric shock. Water or other liquid, or foreign matter (metal, etc.) getting into the projector creates the risk of fire and electric shock. Should anything get inside the projector, immediately perform the following steps.

1.Turn off the projector.

2.Unplug the projector.

3.Contact your original dealer or

authorized CASIO service center.

●Disassembly and modification

Never try to take the projector apart or modify it in any way. The projector contains a large number of high-voltage components that create the risk of electric shock and burn injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO service center.

●Dropping and impact

Continued use of the projector after it has been damaged by dropping or other mistreatment creates the risk of fire and electric shock. Immediately perform the following steps.

1.Turn off the projector.

2.Unplug the projector.

3.Contact your original dealer or

authorized CASIO service center.

●Disposal by burning

Never try to dispose of the projector by burning it. Doing so can cause an explosion, which creates the risk of fire and personal injury.

●Looking into the lens or vents while lamp is on

Never look directly into the lens or vents while lamp is on. The strong light emitted by the projector creates the risk of eye damage.

●Blocking the vents

Never allow the intake vents (on the bottom or back of the projector) or the exhaust vents (on the side of the projector) to become blocked. Doing so causes internal heat build up, which creates the risk of fire and breakdown of the projector. Touching the projector while it is hot creates the risk of burn injury. Make sure that you always observe the following precautions.

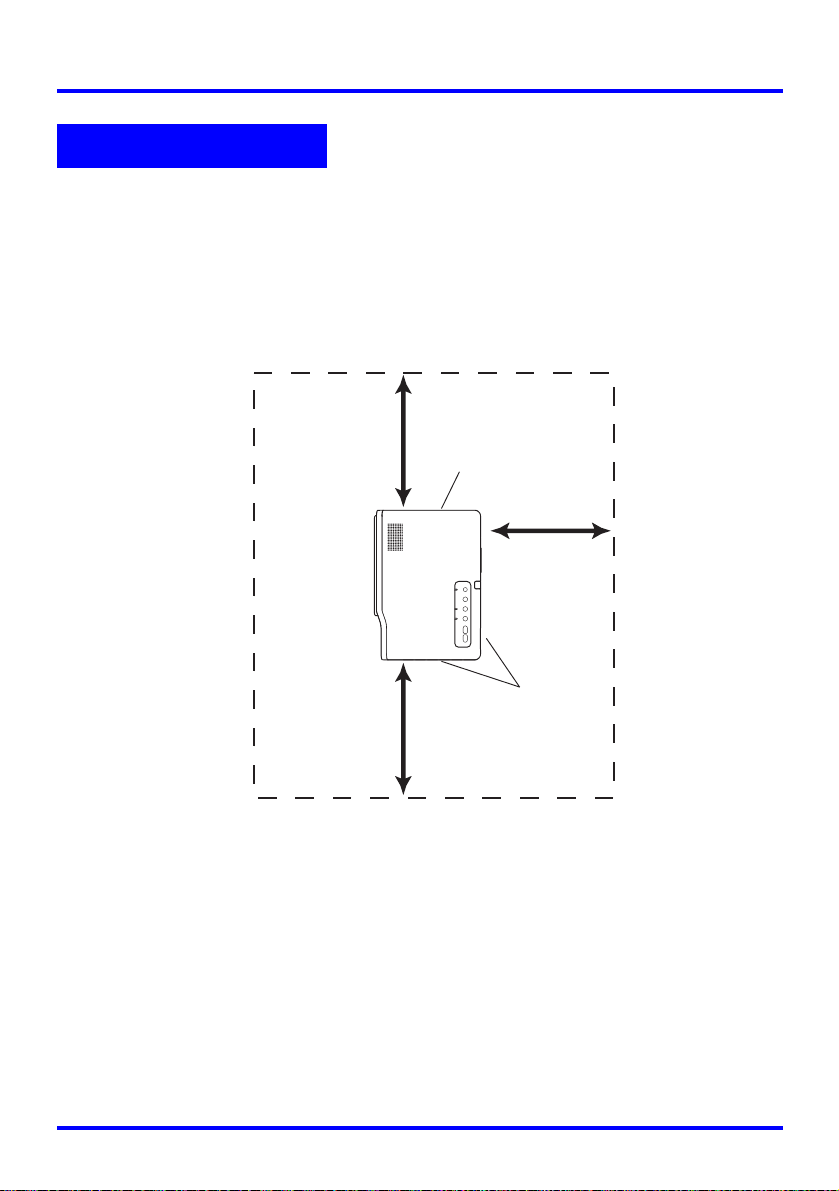

• Allow at least 30 cm (11.8 inches) between the projector and walls.

• Do not insert the projector into any space where air circulation is poor.

• Never cover the projector with a blanket or any similar item.

• Never use the projector on a carpet, blanket, towel, or other soft material.

• Never stand the projector up on either end during use.

Safety Precautions

●Projector cabinet

Never open the projector’s cabinet. Doing so creates the risk of electric shock.

●Cleaning

Before cleaning the projector, be sure to turn it off and unplug it from the power outlet. Failure to do so creates the risk of electric shock.

●Exhaust vents

The exhaust vents become very hot while the projector is running. Never touch them. Doing so creates the risk of burn injury. The areas near the exhaust vents also become quite hot. Never locate objects made of plastic or other heat-sensitive materials near or under the projector. Doing so creates the risk of deformation and discoloration of the object.

●Front cover

Be sure to open the front cover before turning on the projector. Never close the front cover while the projector is in use.

●Location

Never locate the projector in any of the following types of locations. Doing so creates the risk of fire and electric shock.

• Near an area subject to strong vibration

• An area subject to large amounts of moisture or dust

• In a kitchen or other area exposed to oil smoke

• Near a heater, on a heated carpet, or in an area exposed to direct sunlight

• An area subject to temperature extremes (Operating temperature range is 5°C to 35°C (41 to 95 °F)).

●Heavy objects

Never place heavy objects on the projector or climb on top of the projector. Doing so creates the risk of fire and electric shock.

●Water

Never locate the projector in a bathroom or anywhere else there is the chance that it will be splashed with water.

●Unstable location

Never place the projector on an unstable surface or on a high shelf. Doing so can cause it to fall, creating the risk of personal injury.

●Using the projector on a base with casters

Whenever using the projector on a base that has casters, make sure that you lock the casters when not moving the base.

●Lightening

During a lightening storm, do not touch the plug of the projector’s power cord.

●Remote controller

Never try to take the remote controller apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO Service Center. Never allow the remote controller to become wet. Water creates the risk of fire and electric shock.

Safety Precautions

Caution

●Power cord

Misuse of the power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions.

• Do not locate the power cord near a stove.

• When unplugging the power cord, always grasp the plug, and do not pull on the power cord.

●Power cord

Misuse of the power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions.

• Insert the plug into the power outlet as far as it will go.

• After using the projector, turn it off and allow it to cool down. Next, unplug it from the power outlet.

• Unplug the projector from the power outlet if you do not plan to use it for a long time.

• To avoid the built up of dust between the prongs of the plug, unplug it from the power outlet and clean between the prongs at least once a year.

• Before moving the projector, be sure to turn it off and unplug it from the power outlet first.

●Backup of important data

Be sure to keep separate written records of all data stored in projector memory. Memory data can be lost due to breakdown, maintenance, etc.

●Lens effect

Never have an aquarium or any other object that produces a lens effect in front of the projector while the lamp is on. Such an object creates the risk of fire.

●Lens

Never touch the lens with your hand.

Safety Precautions

Battery Precautions

Warning Caution

Misuse of batteries can cause them to leak and stain the area around them, or to explode, creating the risk of fire and personal injury. Make sure that you always observe the following precautions.

• Never try to take batteries apart and do not allow them to become shorted.

• Never expose batteries to heat or throw them into fire.

• Never mix old batteries and new ones.

• Never mix batteries of different types.

• Never try to charge batteries.

• Take care that batteries are oriented correctly when you load them.

Misuse of batteries can cause them to leak and stain the area around them, or to explode, creating the risk of fire and personal injury. Make sure that you always observe the following precautions.

• Use only the type of batteries that is specified for the remote controller.

●Dead batteries

Be sure to remove batteries from the remote controller as soon as they go dead.

• Remove batteries from the remote controller if you do not plan to use it for a long time.

●Disposing of batteries

Make sure that you dispose of used batteries in accordance with the rules and regulations in your local area.

Safety Precautions

Lamp Precautions

Warning Caution

●Lamp removal

Never remove the lamp from the projector immediately after using it. The lamp becomes very hot during use, creating the risk of burn injury. Turn off the projector. After the POWER/STANDBY indicator changes to steady (not flashing) amber, unplug the projector from the power outlet. Next, wait for at least 60 minutes before removing the lamp.

●Specified lamp type

Use only the lamp type that is specified for this projector. Use of any other type of lamp creates the risk of fire and breakdown.

●Lamp replacement

Before replacing the lamp, be sure to turn off the projector and unplug it from the power outlet. Failure to do so creates the risk of electric shock.

• Take care when replacing a broken lamp. A broken lamp can cause glass fragments to be scattered inside the lamp housing. Glass inside of the lamp housing may also be discharged from the projector’s vent exhaust ports. Gas inside of the lamp includes mercury, so be sure to ventilate the area whenever the lamp breaks. Should you accidentally inhale gas fumes or should gas fumes get into your eyes, immediately contact a physician.

●Broken lamp

Never attempt to replace a broken lamp on your own. The projector uses a mercury lamp with high internal pressure as its light source. Should the lamp break, be sure to contact your original dealer or authorized CASIO service center to request replacement. Attempting to replace a broken lamp on your own creates the risk of personal injury due to broken glass or dispersed mercury.

Operating Precautions

Lamp Handling Precautions

●

Continued use of a lamp that has passed its lamp life

Caution

● Never touch the glass of the lamp with your fingers. Doing so can damage the

lamp and shorten its life.

● The light source lamp is a consumable item. The average life of a lamp is

approximately 2000 hours. After 2000 hours, a message appears to alert you to the need of lamp replacement. However, note that the characteristics of a particular lamp or lamp operating conditions can cause the lamp to start to go dim or even fail before the message appears.

● Lamps are guaranteed for 90 days from the date of purchase or for 500 hours

operation, whichever comes first.

● A mercury lamp with high internal pressure is used as the light source. A lamp

that is weakened by impact, damage, or expiration of its lamp life may explode or fail to light if exposed to loud noise. Note that the performance of the lamp differs greatly from lamp to lamp, and due to conditions under which a lamp is used.

● The replacement message appears and the LAMP indicator flashes red after the

lamp life is reached. When this happens, replace the lamp using the instructions provided in this User’s Guide.

● If the lamp continues to be used after its lamp life is reached, after 100 hours

the projector will enter a cool down state and then go into standby. The projector will not turn on again until you replace the lamp.

increases the risk of the lamp rupturing. Replace the lamp with a new one as soon as possible after the replacement message appears.

Lamp Replacement Precautions

● When the lamp life is reached, the message “It is time to replace the lamp.

Use the procedure in the User’s Guide to replace the lamp as soon as possible.” appears on the display for about 10 seconds, and the LAMP indicator starts to flash red in one-second intervals. Replace the lamp as soon as possible after the message appears or the LAMP indicator flashes.

● Replace the lamp with a special YL-40 replacement lamp, which should be

available from your original dealer.

● Turn off the projector. After the POWER/STANDBY indicator changes to steady

(not flashing) amber, unplug the projector from the power outlet. Next, wait for at least 60 minutes before removing the lamp. Note that the lamp cartridge becomes very hot during normal use and during standby. Handling it when hot creates the risk of burn injury.

● The lamp contains mercury. Dispose of old lamps in accordance with the rules

and regulations of your local jurisdiction.

Operating Precautions

● When replacing the lamp, use the special screwdriver that comes with the YL-40

replacement lamp.

Other Precautions

This projector is made of precision components. Failure to observe the following precautions can result in inability to correctly save data and malfunction.

●Never use or store the projector in the following locations. Doing so creates the risk of malfunction of and damage to the projector.

• Locations subjected to electrostatic charge

• Locations subjected to temperature extremes

• Locations where there is extreme moisture

• Locations subjected to sudden temperature changes

• Locations where there is a lot of dust

• On a shaky, slanted, or otherwise unstable surface

• Locations where there is the danger of getting wet

●Avoid using the projector under the following conditions. Such conditions create the risk of malfunction of and damage to the projector.

• Avoid areas subject to temperature extremes (operating temperature range is 5°C to 35°C (41 to 95 °F)).

• Never place heavy objects on the projector or climb on top of the projector.

• Never insert or allow foreign objects to drop into the projector.

• Never place a vase or any other container of water on top of the projector.

Operating Precautions

●Never leave dead batteries inside the remote controller for a long time.

Batteries can leak, which leads to malfunction of and damage to the remote controller.

●Clean with a soft, dry cloth.

When very dirty, use a soft cloth that has been dampened in a weak solution of water and a mild neutral detergent. Wring all excess water from the cloth before wiping. Never use thinner, benzene, or any other volatile agent to clean the projector. Doing so can remove its markings and cause staining of the case.

●Missing Screen Dots

Though this projector is manufactured using the most advanced digital technology available today, some of the dots on the screen may be missing. This is normal, and does not indicate malfunction.

• The contents of this User’s Guide are subject to change without notice.

• Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD.

• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual.

• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data caused by malfunction or maintenance of this product, or any other reason.

• The sample screens shown in this manual are for illustrative purposes only, and appear differently from the screens actually produced by the product.

Safety Precautions..........................................................................3

About safety symbols ........................................................................................ 3

Icon Examples................................................................................................... 3

Precautions During Use .................................................................................... 4

Battery Precautions ........................................................................................... 8

Lamp Precautions ............................................................................................. 9

Operating Precautions .................................................................10

Features and Functions ...............................................................15

General Guide ...............................................................................16

Remote Controller.........................................................................24

General Guide ................................................................................................. 24

Loading Remote Controller Batteries .............................................................. 27

Using the Laser Pointer................................................................................... 28

Remote Controller Signal Range .................................................................... 29

Getting Ready................................................................................30

Setting Up the Projector .................................................................................. 30

Setup Precautions ........................................................................................... 33

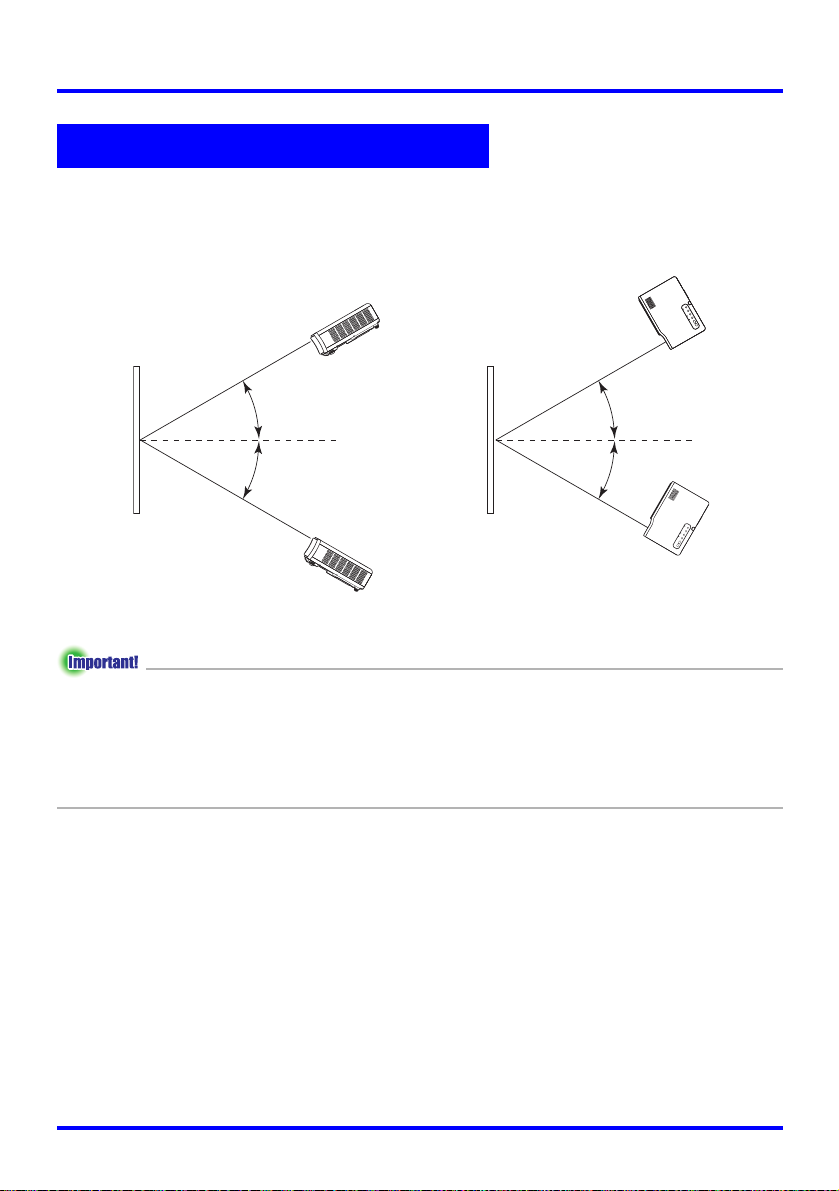

Projector Angle to the Screen ......................................................................... 34

Adjusting the Projector Elevation Angle .......................................................... 35

Rear Projection (From the Back of the Screen) .............................................. 37

Connecting a Computer to the Projector (Video and Audio) ........................... 37

Connecting a Computer to the Projector’s USB Port ...................................... 38

Connecting to a Standard Video Device ......................................................... 39

Connecting to a Component Video Output Device ......................................... 40

Turning On the Projector ................................................................................. 41

Turning Off the Projector ................................................................................. 44

Projection Operations ..................................................................46

Projecting onto a Screen................................................................................. 46

Keystone Correction (KEYSTONE)................................................................. 53

Adjusting the Volume Level (VOL +/–) ............................................................ 56

Enlarging the Projected Image (D-ZOOM +/–) ................................................ 57

Using Picture-in-Picture (P-IN-P) .................................................................... 59

Muting the Image and Audio (MUTE).............................................................. 61

Freezing the Projected Image (FREEZE) ....................................................... 62

Operating the Computer with the Remote Controller (Wireless Mouse) ......... 62

Contents

Using the Setup Menu ..................................................................64

Setup Menu Overview ..................................................................................... 64

Before Configuring Menu Settings .................................................................. 67

Setup Menu Screen Operations...................................................................... 68

Setup Menu Reference ................................................................................... 77

Image Adjustment ........................................................................................ 77

Volume Adjustment ...................................................................................... 82

Screen Settings............................................................................................ 83

Input Settings ............................................................................................... 89

Option Settings1........................................................................................... 92

Option Settings2......................................................................................... 106

Operational Info.......................................................................................... 109

Restore All Defaults ................................................................................... 110

User Maintenance .......................................................................111

Cleaning the Projector................................................................................... 111

Replacing the Lamp ...................................................................................... 111

Troubleshooting..........................................................................119

Indicators and Alert Tones ............................................................................ 119

Projector Troubleshooting ............................................................................. 122

Appendix......................................................................................124

Specifications ................................................................................................ 124

Computer System Requirements for USB Connection ................................. 125

Supported Signals ......................................................................................... 126

Features and Functions

The following are some of the major features and functions of this product.

■ 278 × 64 × 197 mm (10.9 × 2.5 × 7.8 inch), 2.4 kg (5.3 lbs) lightweight and compact data projector

Though it is compact and lightweight enough to go just about anywhere, the projector’s highluminosity (2800ANSI lumen) allows clear projection of images, even in a brightly lit room.

■ Auto Focus, auto vertical and horizontal keystone correction

The press of a key automatically focuses the image and performs vertical and horizontal keystone correction for a perfect projected image.

■ Power zoom and power focus

Zooming and focusing of the projected image can be performed using the remote controller.

■ Laser pointer built into the remote controller

The remote controller unit also doubles as a laser pointer. During a presentation, you can use the pointer to indicate items within the projected image.

■ Versatile projection range

The shortest projection distance is 0.8 meters (2.62 feet), which means that very little space is required for projection. 2X zoom makes it possible to produce a projected image of the size you want from a range of possible distances. To project onto a 60-inch screen, for example, you can set up the projector anywhere from 1.6 meters (5.25 feet) to 3.2 meters (10.5 feet) from the screen.

■ A selection of possible input sources

Possible input sources are a computer’s RGB signal, a video device’s VIDEO/S-VIDEO signal, and a component video signal (Y·Cb/Pb·Cr/Pr).

■ Versatile projection functions

A collection of powerful projection tools let you enlarge a specific part of the projected image with digital zoom, use picture-in-picture to insert a video input sub-window into a projected computer image, and much more.

■ Remote controller also performs computer mouse functions

You can use the remote controller that comes with the projector to perform mouse operations on the computer connected to the projector’s USB port, to perform page up and page down operations, and more. The remote controller helps to make presentations more effective.

General Guide

This section defines the names and explains the main functions of each part of the projector.

[Front/Top/Left side]

(4Cover open)

3 4 5 67

Speaker : Outputs audio input through the AUDIO terminal. ) [Back, Terminals] (page 19)

2 Key and Indicator Panel : This panel includes the [ ] (power) key and various

indicators.

) [Key and Indicator Panel] (page 21)

3 Exhaust vents : Exhaust air for cooling.

) Setup Precautions (page 33)

z Never allow the exhaust vents to become blocked, and make sure

there is at least 30 cm (11.8 inches) clearance around the

Warning

projector. Blocked vents can cause heat to build up, creating the risk of fire and malfunction.

z Never touch the areas around the exhaust vents. These areas can

become very hot, and create the risk of burn injury.

4 Front cover : Protects the projection lens. Slide the cover open to

extend the lens before turning on the projector.

5 Remote control signal receiver : Receives the remote control signal.

) Remote Controller Signal Range (page 29)

General Guide

6 Lens : Projects the image from the projector.

Warning

Never look into the lens while the projector is turned on.

7 Sensors : Measures the distance between the projector and screen.

z Finger smudges or dirt on the sensors can cause keystone

Caution

correction problems. Should the sensors ever become soiled, wipe them clean using a commercially available lens cloth or optical lens paper, like those for eyeglasses or camera lenses.

General Guide

[Bottom]

3345

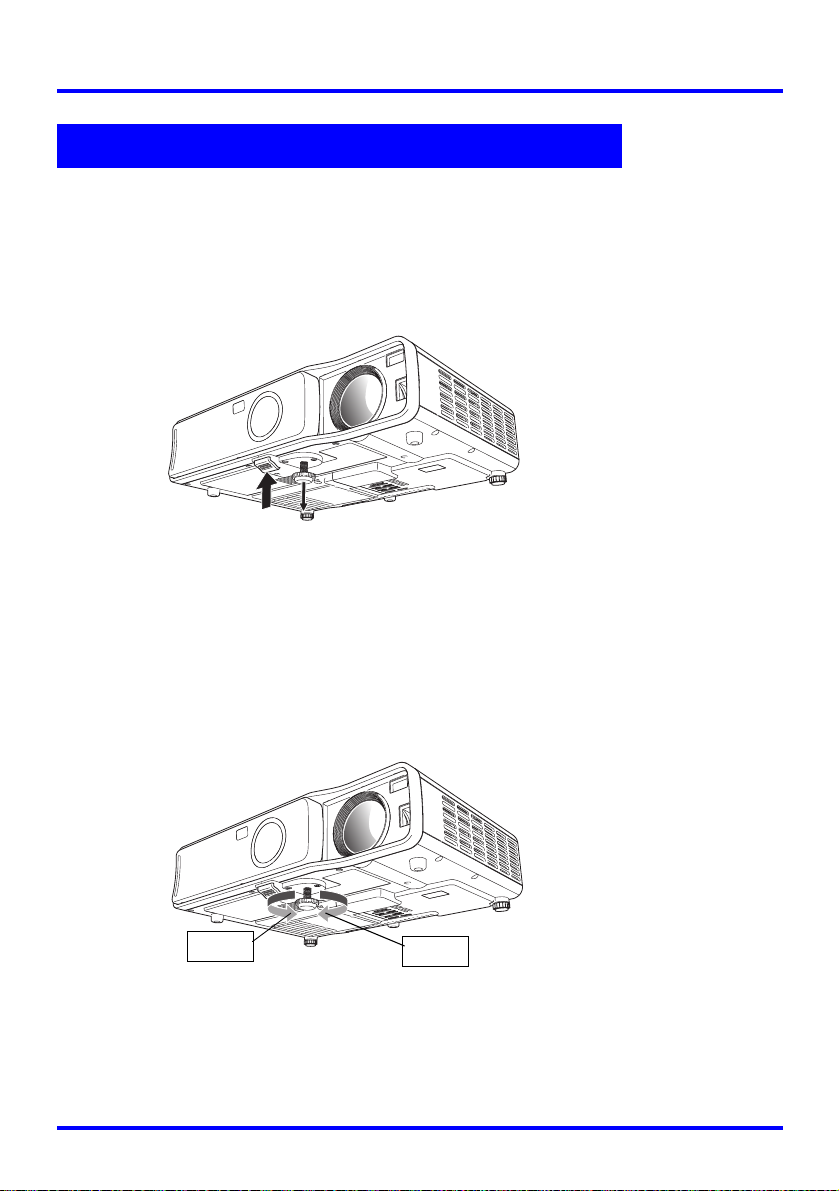

Elevation adjustment foot : Rotate to change the angle of the projector.

) To change the projector elevation angle (page 35)

2 Release button : Press to release the elevation adjustment foot.

3 Left, right adjustment feet (2) : Rotate for fine adjustment of the left and right angle of

) To change the projector elevation angle (page 35)

the projector.

4 Intake vents : Intake air for cooling.

) Setup Precautions (page 33)

Never allow the intake vents on the back or the bottom of the projector

Warning

to become blocked. Blocked vents can cause heat to build up, creating the risk of fire and malfunction.

5 Lamp cover : Open this cover to replace the lamp.

) To replace the lamp (page 114)

General Guide

142 3

[Back, Terminals]

5 6 7 8 9 bk

RGB input terminal : For connection to the video output terminal of a computer

or component video device using the bundled Mini D-Sub cable or the optional component video cable (YK-3).

) Connecting a Computer to the Projector (Video and Audio) (page 37) ) Connecting to a Component Video Output Device (page 40)

2 USB port : For connection to a USB port of a computer using the

bundled USB cable.

) Connecting a Computer to the Projector’s USB Port (page 38)

3 Remote control signal receiver : Receives the remote control signal.

) Remote Controller Signal Range (page 29)

4 Projection key panel cover : Protects a key panel for projection operations.

5 Intake vents : Intake air for cooling.

) Setup Precautions (page 33)

Never allow the intake vents on the back or the bottom of the projector

Warning

to become blocked. Blocked vents can cause heat to build up, creating the risk of fire and malfunction.

6 Anti-theft lock hole : An anti-theft chain can be passed through this hole. Visit

the Kensington Lock Website at http://www.kensington.com/ for more information.

7 VIDEO input terminal : For connection to the VIDEO output terminal of a video

device using the bundled video cable.

) Connecting to a Standard Video Device (page 39)

8 S-VIDEO input terminal : For connection to the S-VIDEO output terminal of a video

device using a commercially available S-video cable.

General Guide

9 AUDIO input terminal : For connection to the audio output terminal of a computer

or video device using a commercially available audio cable (∅.3.5mm stereo).

) Connecting a Computer to the Projector (Video and Audio) (page 37) ) Connecting to a Standard Video Device (page 39)

bk Power connector : For connection of the bundled AC power cord.

) Turning On the Projector(page 41)

General Guide

321

Using the Projection Key Panel

You can use the keys on the projection key panel to control the projector when the remote controller is not available for some reason.

Opening and Closing the Projection Key Panel Cover

Hook your finger here and lift to open.

[Key and Indicator Panel]

TEMP LAMP POWER/STANDBY

ZOOM AF/AK AUTO INPUT

TEMP indicator : Indicates the error status of the projector. ) Indicators and Alert Tones (page 119)

8765

2 LAMP indicator : Indicates the current lamp status.

) Indicators and Alert Tones (page 119) ) Replacing the Lamp (page 111)

3 POWER/STANDBY indicator : Indicates the current projector status.

) Turning On the Projector(page 41) ) Indicators and Alert Tones (page 119)

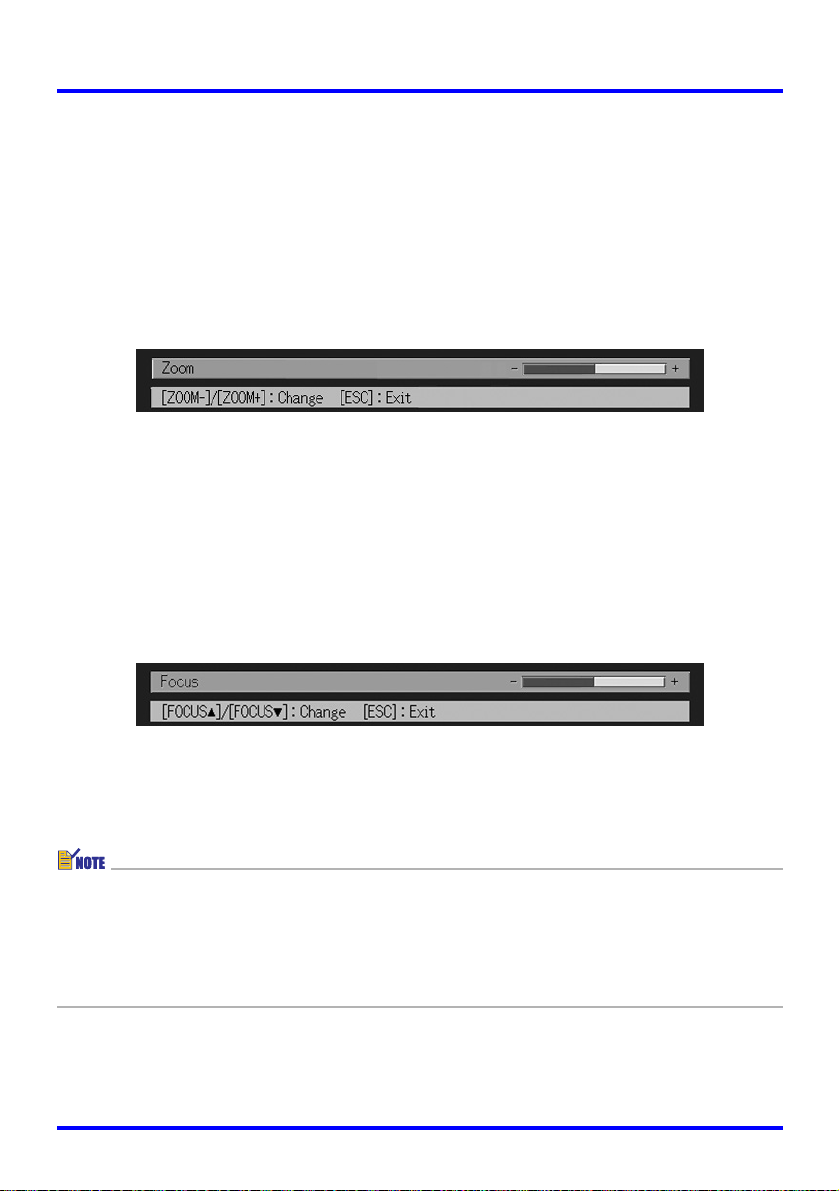

4 [ZOOM] keys : Press to change the size of the projected image.

) Zoom and Focus (page 50)

General Guide

1 32

5 [AF/AK] key : Press to perform Auto Focus and auto keystone correction.

) Auto Keystone Correction and Auto Focus (page 53)

6 [AUTO] key : Automatically adjusts the projected image in accordance

with RGB input.

) Auto Adjustment of an RGB Image (page 51)

7 [INPUT] key : Press to cycle through available projector input sources.

) Manually Selecting the Input Source (page 48)

8 [ ] (power) key : Turns projector power on and off.

) Turning On the Projector (page 41)

[Projection Key Panel]

[MENU] key : Press this key to display the projector setup menu on the

) Using the Setup Menu (page 64)

2 [KEYSTONE] key : Press this key to automatically correct the projected image

) Keystone Correction (KEYSTONE) (page 53)

KEYSTONE

ENTER

projected image.

and remove vertical and horizontal keystoning.

ESC

FOCUS

3 [ESC] key : Use this key to perform the operations described below.

z When a menu screen is displayed, to back-step to the previous screen ()page 68) z To perform a mouse right-click operation on the computer connected to the projector’s

USB port. ()page 62)

General Guide

4 Cursor keys : Use these keys to perform the operations described below.

z To move the highlighting (selection cursor) on the menu screen ()page 68) z To perform mouse operations on the computer connected to the projector’s USB por

()page 62)

*In this manual, cursor key operations are indicated as [S], [T], [X], [W].

5 [ENTER] key : Use this key to perform the operations described below.

z To execute the command currently highlighted on the menu screen ()page 68) z To perform a mouse left-click operation on the computer connected to the projector’s

USB port. ()page 62)

6 [FOCUS] keys : Press to adjust focus.

) Zoom and Focus (page 50)

z You can disable certain key operations, if you want. For details, see “Option Settings1 J

Key Lock” on page 94.

Remote Controller

This section defines the names and explains the main functions of each part of the remote controller.

General Guide

Warning

PAGE

AF/AK

PAGE

DOWN

5 6

7br

9 bk bl

ENTER

ZOOM

RGB

AUTO

MUTE

FOCUS

VIDEO

P-IN-P

FREEZE

ESC

KEYSTONE

D-ZOOM

S-VIDEO

VOLUME

bs bt

z Keep the remote controller out of the hands of young children, and

never allow a young child to operate the remote controller. The laser pointer built into the remote controller can cause eye damage and loss of sight if pointed directly into a person’s eyes.

z Never try to take the remote controller apart or modify it in any

way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO Service Center.

z Never allow the remote controller to become wet. Water creates

the risk of fire and electric shock.

Remote Controller

z The asterisks (*) in the following explanations indicate keys that have the same names

and functions as keys on the projector itself. Note that the operations of remote controller keys

z Some remote controller keys have the same names as projector keys. Unless stated

otherwise in this manual, the remote controller keys perform the same functions as their corresponding projector keys.

, and bt can be performed using the projector’s [INPUT] key.

8, bs

1 Remote controller signal/laser signal emitter

CLASS 1 LED PRODUCT

2 *[ ] (power) key : Turns projector power on and off.

) Turning On the Projector (page 41)

3 [PAGEUP] / [PAGEDOWN] keys: Press to perform page up and page down operations on

the computer connected to the projector’s USB port.

) Operating the Computer with the Remote Controller (Wireless Mouse) (page 62)

4 *[ENTER] key : Use this key to perform the operations described below.

z To execute the command currently highlighted on the menu screen ()page 68) z To perform a mouse left-click operation on the computer connected to the projector’s

USB port. ()page 62)

5 *[MENU] key : Press this key to display the projector setup menu on the

projected image.

) Using the Setup Menu (page 64)

6 *[FOCUS S/T] keys : Press to adjust focus.

) Zoom and Focus (page 50)

7 *[ZOOM +/–] keys : Press to change the size of the projected image.

) Zoom and Focus (page 50)

8 [RGB] key : Press to select the RGB input terminal as the input

source.

) Manually Selecting the Input Source (page 48)

9 *[AUTO] key : Automatically adjusts the projected image in accordance

with RGB input.

) Auto Adjustment of an RGB Image (page 51)

bk [P-IN-P] key : When projecting RGB (computer) input, press this key to

project video input in a sub-window.

) Using Picture-in-Picture (P-IN-P) (page 59)

bl [MUTE] key : Press to momentarily cut off the projected image and

audio output from the projector’s speaker.

) Muting the Image and Audio (MUTE) (page 61)

Remote Controller

bm [LASER] key : Hold down to emit a laser beam that you can use as a

pointer. The [AF/AK] key lights red while this key is depressed to indicate that the laser beam is being emitted.

) Using the Laser Pointer (page 28)

z Never look directly at the laser beam. Doing so creates the risk of

eye damage and loss of sight.

z Never point the laser beam at another person. Shining the laser

Warning

beam into the eyes of another creates the risk of eye damage and loss of sight.

z Keep the remote controller out of the reach of young children, and

never allow a young child to operate the remote controller.

bn *[AF/AK] key : Press to perform Auto Focus and auto keystone correction.

) Auto Keystone Correction and Auto Focus (page 53)

bo *Cursor keys : Use these keys to perform the operations described below.

z To move the highlighting (selection cursor) on the menu screen ()page 68) z To perform mouse operations on the computer connected to the projector’s USB por

()page 62)

* In this manual, cursor key operations are indicated as [S], [T], [X], [W].

bp *[ESC] key : Use this key to perform the operations described below.

z When a menu screen is displayed, to back-step to the previous screen ()page 68) z To perform a mouse right-click operation on the computer connected to the projector’s

USB port. ()page 62)

bq *[KEYSTONE] key : Press this key to automatically correct the projected image

and remove vertical and horizontal keystoning.

) Keystone Correction (KEYSTONE) (page 53)

br [D-ZOOM +] / [D-ZOOM –] keys: Press the [+] key to increase the size of the projected

image, and the [–] key to decrease it.

) Enlarging the Projected Image (D-ZOOM +/–) (page 57)

bs [VIDEO] key : Press to select the VIDEO input terminal as the input

source.

bt [S-VIDEO] key : Press to select the S-VIDEO input terminal as the input

source.

) Manually Selecting the Input Source (page 48)

ck [VOL +] / [VOL –] keys : Press the [+] key to increase volume, and the [–] key to

decrease volume.

) Adjusting the Volume Level (VOL +/–) (page 56)

cl [FREEZE] key : Freezes the projected image.

) Freezing the Projected Image (FREEZE) (page 62)

Remote Controller

Loading Remote Controller Batteries

Before you can use the remote controller for the first time, you need to load the two batteries that come with it.

z Be sure to use alkaline batteries only.

Replace remote controller batteries with a set of new ones whenever the remote controller does not work or if you need to move the remote controller very close to the projector before it will work.

Misuse of batteries can cause them to leak and stain of the area around them, or to explode, creating the risk of fire and personal injury. Make sure that you always observe the following precautions.

Caution

z Take care that batteries are oriented correctly when you load them. z Never mix old batteries and new ones. z Never mix batteries of different types. z Use only battery type that is specified for use with the remote

controller.

To load remote controller batteries

1.Remove the battery cover from the back of the remote controller.

z If there are old batteries inside the case, remove them.

Remote Controller

2.Load two new batteries into the case, making sure that their positive (+)

and negative (–) ends are facing correctly.

3.Replace the battery cover on the back of the remote controller.

Using the Laser Pointer

The remote controller includes a laser pointer that you can use during a presentation to indicate a specific item within an image. The laser is a 1mW/Class 2 Laser, which qualifies as a “Designated Specified Product” under Japan’s “Consumer Product Safety Law”. z Holding down the [LASER] key causes a red laser beam to be emitted from the front

edge of the remote controller. Use the laser beam to point to the object you want to indicate in the image.

z The [AF/AK] key lights red while this key is depressed to indicate that the laser beam is

being emitted.

z Never look directly at the laser beam. Doing so creates the risk of

eye damage and loss of sight.

z Never point the laser beam at another person. Shining the laser

Warning

beam into the eyes of another creates the risk of eye damage and loss of sight.

z Keep the remote controller out of the reach of young children, and

never allow a young child to operate the remote controller.

Remote Controller

Remote Controller Signal Range

When performing an operation on the remote controller, point it at the remote control signal port on the back or front of the projector. The following illustration shows the range of the remote controller signal.

40 degrees

AF/AK

max.

9 meters (29.53 feet) max.

9 meters (29.53

PAGE

ZOOM

ENTER

AUTO

MUTE

RGB

FOCUS

FREEZE

VIDEO

P-IN-P

PAGE

KEYSTONE

VOLUME

D-ZOOM

S-VIDEO

DOWN

ESC

Front Back

degrees max.

feet) max.

AF/AK

ESC

DOWN

S-VIDEO

D-ZOOM

VOLUME

KEYSTONE

PAGE

P-IN-P

VIDEO

FREEZE

FOCUS

RGB

MUTE

AUTO

ENTER

ZOOM

PAGE

degrees max.

9 meters (29.53 feet) max.

degrees max.

9 meters (29.53

feet) max.

Getting Ready

This section explains how to set up the projector to get it ready for use, and how to connect it to an input source (computer or video device). It also includes information about how to turn on the projector, how to select the display language the first time you turn it on, and precautions you need to keep in mind concerning the power supply.

Setting Up the Projector

Locate the projector on a desk, table, or stand that is firm and level. Make sure to allow sufficient space around the sides and back of the projector for proper ventilation. z The following illustrations show how the projector should be oriented for optimum

projection relative to the screen.

Viewed from Above

Screen

The center of the projector’s lens should be aligned with the horizontal center of the screen.

z You can place the projector on a surface that is angled up to 30 degrees up or down

during use. Angling the projector more than 30 degrees up or down can cause rupture or premature aging of the projector’s lamp, or malfunction of the projector.

z The above setup enables proper projection without any image correction. If the projector

is at an angle to the screen, a phenomenon called “keystoning” will occur, which causes the sides, and/or the top and bottom of the image to be different lengths. The projector comes with a keystone correction feature that automatically corrects the image. See “Keystone Correction (KEYSTONE)” on page 53 for information about keystone correction.

Viewed from the Side

Screen

Make sure the projector is at a right angle to the screen.

Getting Ready

z The allowable projection range is from 0.8 meter (2.62 feet) to 16 meters (52.49 feet),

which is the distance from the surface of the lens to the screen.

Screen Size 300

8.0 m to 16.0 m (26.25 feet to 52.49 feet)

Screen

Size 30

0.8 m to 1.6 m

Screen Size 60

1.6 m to 3.2 m (5.25 feet to 10.50 feet)

(2.62 feet to 5.25 feet)

16 m

(52.49 feet)

14 m

(45.93 feet)

12 m

(39.37 feet)

10 m

(32.81 feet)

Maximum: 16 meters (52.49 feet)

8 m

(26.25 feet)

6 m

(19.69 feet)

4 m

(13.12 feet)

Minimum: 0.8 meter (2.62 feet)

2 m

(6.56 feet)

Getting Ready

The following table shows the relationship between the distance and projected image size.

Projection Size Projection Distance

Screen Size Diagonal (cm)

30 76 0.8 1.6 2.62 5.25

40 102 1.1 2.1 3.61 6.89

60 152 1.6 3.2 5.25 10.50

80 203 2.1 4.3 6.89 14.11

100 254 2.7 5.3 8.86 17.39

120 305 3.2 6.4 10.50 21.00

150 381 4.0 8.0 13.12 26.25

200 508 5.3 10.7 17.39 35.10

250 635 6.7 13.3 21.98 43.64

300 762 8.0 16.0 26.25 52.49

z The minimum/maximum distances in the above table define the ranges within which

manual focus is possible. The ranges for Auto Focus and auto keystone correction are smaller.

z Note that the distances provided above are for reference only. Actual distances will be

within ±5% of those provided.

Minimum Distance

(m)

Maximum

Distance

(m)

Minimum Distance

(feet)

Maximum

Distance

(feet)

Getting Ready

Setup Precautions

Note that the condition of the environment where you use the projector greatly affects its performance. Make sure that the following are the conditions of projector setup whenever you use it. z Use a conveniently located power outlet that you can reach easily when you need to

unplug the projector.

z Do not place any objects within the area indicated by the dashed line in the illustration

below. Be especially careful that you never block intake and exhaust vents.

z Do not allow the intake vents on the bottom of the projector to become blocked.

30 cm

(11.8 inches)

Exhaust vents

Allow sufficient clearance and do not block intake vents.

Allow sufficient

clearance and do not

block vents.

Intake vents

z Do not locate any objects near the projector while it is in use. Keep all items at least

30 cm (11.8 inches) away from the exhaust vents.

z The vents become quite hot while the projector is in use. Never touch the vents with your

hands. Also, the areas near the exhaust vents also become quite hot. Never locate objects made of plastic or other heat-sensitive materials near or under the projector. Doing so creates the risk of deformation and discoloration of the object.

z Avoid placing the projector on a surface that is unstable or prone to vibration. Never

place the projector on top of a carpet, blanket, towel, or other soft material.

z Do not locate the projector where it will be exposed to direct sunlight. z Avoid locations where there are large amounts of dust and moisture. z Keep the projector away from speakers, TVs, radios, and other devices that generate

magnetism, as well as from heaters.

Getting Ready

Projector Angle to the Screen

The following shows the allowable angle that the projector can be positioned relative to the screen.

Vertical Horizontal

ScreenScreen

Up to about 30 degrees

z The angles shown in the above illustration are subject to the following conditions.

zProjection of an image from a computer (Resolution: 1024 × 768; Vertical Frequency:

60Hz)

zResize Image To Fit: On

z Actual correction ranges are affected by the type of signal being projected, zoom, the

“Resize Image To Fit” setting, the aspect ratio setting, and other factors.

Getting Ready

Adjusting the Projector Elevation Angle

You can change the elevation angle of the projector in a range of 0 to 8 degrees. You can also make fine adjustments to the left and right side elevation angle when necessary.

To change the projector elevation angle

1.Lift up the front of the projector and press the release button.

z This causes the elevation adjustment foot to drop from the bottom of the projector.

2.While holding down the release button, raise and lower the front of the

projector until the elevation adjustment foot is approximately the length you need.

3.Release the release button to lock the elevation adjustment foot in its

current position.

4.Rotate the elevation adjustment foot for fine adjustment of its length.

Longer

Shorter

Getting Ready

5.Use the left and right adjustment feet to further fine adjust the elevation

angle.

Rotate to adjust horizontal alignment.

z To retract the elevation adjustment foot, hold down the release button and slide the

elevation adjustment foot back into the projector. Never try to forcibly change the elevation adjustment foot position without pressing the release button.

Getting Ready

Rear Projection (From the Back of the Screen)

Distances and angles for rear projection are the same as those for front projection. In the case of rear projection, however, left/right orientation is opposite that of front projection, so you need to configure the setup menu accordingly. For details, see “Screen Settings J Projection Mode” on page 86.

Connecting a Computer to the Projector (Video and Audio)

You can use the projector to project an image of video output from a computer. You can also output audio from the computer through the projector’s speaker.

z Always turn off the projector and the computer before connecting them.

Projector

RGB input terminal

Bundled mini D-Sub cable

z You can use the bundled mini D-Sub cable to connect to a D-Sub 15-pin type monitor

terminal. For other types of monitor terminals (like the one on the old model Macintosh), you need to purchase an optional adapter. See the documentation that came with your computer for information about its terminal.

z The analog RGB video output display mode (resolution and frequency combination) of your

computer may not allow proper operation with the projector. See “Supported Signals” on page 126 for information about the computer display modes supported by this projector.

AUDIO input terminal

Computer

Audio cable (commercially available)

To line output terminal

To monitor terminal (analog RGB output terminal)

Getting Ready

Connecting a Computer to the Projector’s USB Port

After you connect a computer to the projector’s USB port, you can use the remote controller to perform computer mouse operations, and previous page and next page operations. The illustration shows how to connect to the USB port.

Projector

USB port

Computer

To USB por t

Bundled USB cable

z For details about computer requirements, see “Computer System Requirements for USB

Connection” on page 125.

z For details about operation over a USB connection, see “Operating the Computer with the

Remote Controller (Wireless Mouse)” on page 62.

Getting Ready

Connecting to a Standard Video Device

You can use the projector to project an image from a video deck, TV, video camera, or other video device. You can also output audio from the video device through the projector’s speaker.

z Always turn off the projector and the video device before connecting them.

VIDEO input terminal

S-VIDEO input terminal

AUDIO input terminal

Projector

Commercially available S-video cable Bundled video cable

To S-VIDEO output terminal To VIDEO output terminal

Commercially available audio cable

To AUDIO output terminal

Video device

z You can use the bundled video cable to connect to a pin jack (RCA) type VIDEO output

terminal. When connecting a video camera or other video device with a special video output terminal, use the special cable that comes with the video device. For details, see the documentation that comes with the video device.

z Note that the projector is equipped with separate circuits for the VIDEO input terminal and

S-VIDEO input terminal. Make sure you connect the video device to the correct terminal. The projector lets you switch the input source between RGB (or Component), VIDEO, and S-VIDEO whenever you want.

Getting Ready

Connecting to a Component Video Output Device

Some video devices are equipped with a component video output terminal. You can use an optionally available component video cable (YK-3) to connect the RGB input terminal of the projector to the component video output terminal of a video device.

z Always turn off the projector and the video device before connecting them.

Projector

RGB input terminal AUDIO input terminal

Commercia lly available audio cable

Optional component video cable (YK-3)

To AUDIO output terminal

To Component video output terminal

Video device

z Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to

match the colors of the plugs on the optional YK-3 component video cable with the colors of the terminals (Green: Y; Blue: Cb/Pb; Red: Cr/Pr).

z You can use the optional YK-3 component video cable to connect to pin jack (RCA) type

component video output terminals. The projector does not support connection to any other type of terminal.

z Note that connection only to an analog component video output terminal is supported.

Connection to a digital output terminal is not supported.

z In order to connect to a component video terminal, you must use the setup menu to

configure input settings. For details, see “Input Settings J RGB Input” on page 89.

Getting Ready

Turning On the Projector

Before performing any of the operations in this section, make sure you first set up the projector (page 30) and connect to an output device (pages 37 to 40).

AC Power Cord Precautions

z Make sure that you use a power source with the same voltage as that specified for the

projector.

z Do not share the outlet supplying power to the projector with other devices. If you are

using an extension cord, make sure that the ampere rating of the extension cord is compatible with the power consumption value of this projector.

z Never use the power cord while it is still bundled together. z Never place objects on top of the power cord and do not step on it. z Never pull on the power cord. When unplugging it, grasp the plug. z Use a conveniently located power outlet that you can reach easily when you need to

unplug the projector.

z If you need more information about the power supply, contact your original dealer or

authorized CASIO service center.

To turn on the projector

1.Use the bundled AC power cord to plug the projector into a power

outlet.

Power supply connector

Bundled AC power cord

The shape of the plug depends on your geographical area.

z Plugging into a power outlet causes the three indicators on the top of the projector to

light amber. After a short while, two of the indicators will go out and only the POWER/ STANDBY indicator will remain lit amber, which indicates the standby state.

z Note that the projector will not turn on if you press the [ ] (power) key while all three

indicators are lit amber. Wait until the projector is in the standby state before trying to turn it on.

Getting Ready

2.Turn on the computer or video device that is connected to the projector.

3.If the projector’s front cover is closed, open it.

4.Press the [ ] (power) key.

z This causes the POWER/STANDBY indicator to flash green, which indicates that the

projector is warming up. After a short while, the start up screen will be projected (warm up is still in progress).

z After warm up is complete, POWER/STANDBY indicator stops flashing and remains lit

green, and the projector starts projecting an image from the device connected to it. It normally takes about 60 seconds from the point that warm up starts until an image is projected from the connected device.

z A “Language” window will be projected the first time you turn on the projector. Use the

procedure under “Specifying the Display Message Language” on page 43 to configure the language settings.

Startup screen Input image projection

z You can configure the startup screen so it shows a custom logo you created yourself, or

so nothing appears at startup. For details, see “Option Settings1 J Custom Logo Settings” on page 99 and “Screen Settings J Startup Screen” on page 87.

z If the projector is configured for low-noise mode operation, the LAMP indicator lights

green when warm up starts. See “Option Settings1 J Low-noise Mode” on page 93 for information about the low noise mode.

z For details about projection operations, see “Projecting onto a Screen” on page 46.

Getting Ready

Specifying the Display Message Language

A “Language” window will be projected the first time you turn on the projector. Use the menu on this screen to specify the display language you want to use.

1.Use the cursor [S] and [T] keys to highlight the language you want to

use.

z Note that the choice of languages available on the “Language” window will depend on

whether your projector’s serial number starts with the letter A (such as: A791AA42...) or the letter B (such as: B791AA42...).

If the serial number starts with this letter:

A Model

You can select from among these languages:

English, French, German, Italian, Spanish, Swedish, Korean, Japanese,

English, Spanish, Chinese (Simplified), Chinese (Traditional), Japanese

B Model

Getting Ready

2.Press the [ENTER] key.

z This applies the selected language, closes the “Language” window, and displays the

projected image from the connected device.

z You can change the display language selection later, if you need to. For details, see

“Option Settings1 J Language” on page 105.

z For details about projection operations, see “Projecting onto a Screen” on page 46.

Turning Off the Projector

z When you turn off the projector, the lamp goes out and the projector goes into a cool

down state. Note that you will not be able to turn the projector back on again while it is cooling down.

z The projector may remain quite hot for a while after you turn it off. Avoid touching the

projector after you turn it off.

z Note that the projector may still be quite warm even after it completes its cool down

procedure. Before packing up the projector, it is recommended that you check to make sure that the fan is stopped and that the projector is no longer warm.

To turn off the projector

1.Press the [ ] (power) key.

z This causes a confirmation message like the one shown below to appear in the center

of the projection screen.

z If you do not turn off the projector the confirmation message will disappear

automatically after about 10 seconds. The confirmation message will also disappear if you press [ESC] key.

Getting Ready

2.To turn off the projector, press the [ ] (power) key again in response

to the confirmation message.

z This causes the projector lamp to go out and stops projection. z Also the POWER/STANDBY indicator starts to flash amber, which indicates that the

projector is cooling down. It takes about 120 seconds from the start of cool down until the projector turns off.

z The projector will not turn back on again while it is cooling down. z After cool down is finished, the POWER/STANDBY indicator on the top of the projector

will light amber, which indicates the standby state. You can now turn the projector back on, if you want.

3.After confirming that cool down is complete, unplug the AC power cord

from the power outlet.

z Note that the projector may still be quite warm even after it completes its cool down

procedure. Before packing up the projector, it is recommended that you check to make sure that the fan is stopped and that the projector is no longer warm.

z This causes the POWER/STANDBY indicator to go out.

4.After ensuring that the projector and the connected computer or video

device are turned off, disconnect the connecting cables from the projector and the connected device.

5.Close the front cover.

Auto Power Off

Auto Power Off automatically turns off the projector whenever there is no input signal from the currently selected input source, and no operation is performed on the projector for about 10 minutes. When Auto Power Off is triggered, the projector first enters a cool down state, the same as it does when you press the [ ] (power) key to turn it off. z The POWER/STANDBY indicator flashes amber to indicate that the projector is cooling

down. It takes about 120 seconds from the start of cool down until the projector turns off.

z The projector will not turn back on again while it is cooling down. z After cool down is finished, the POWER/STANDBY indicator on the top of the projector to

lights amber, which indicates the standby state. You can now turn the projector back on, if you want.

z You can turn off Auto Power Off, if you want. See “Option Settings1 J Auto Power Off”

on page 94.

Projection Operations

This section explains operations that are related to projection of an image.

Projecting onto a Screen

This section explains the basic steps for projecting an image.

Basic Flow

Set up the projector and point it at the screen.

) “Setting Up the Projector” (page 30)

Connect the computer or video device to the projector

Turn on the projector and the connected computer or video device.

Press the [

) “Turning On the Projector” (page 41)

Perform fine adjustment of the projection position and angle.

) “Adjusting the Projector Elevation Angle” (page 35)

Preparing the Projector

Select the input source.

) “Manually Selecting the Input Source” (page 48)

Adjust the projected image size and focus the image.

) “Zoom and Focus” (page 50)

Start projection (presentation, video, etc.)

• Perform the required operation on the input source computer or video equipment.

Starting

• Use the projector’s various functions to adjust the projected image as required.

Projection

] (power) key to turn on the projector.

()page 37 to 40)

Projection Operations

Auto Input Source Selection

When you turn on the projector, it checks the status of each input source (whether or not the input source is sending a signal) in the sequence shown below. It automatically selects the first input source it finds that is sending an input signal, and projects the applicable image.

RGB terminal input

(RGB/Component)

If the RGB input terminal is connected to a computer and the S-VIDEO input terminal is connected to a video deck and signals are being supplied by both, for example, the projector automatically selects RGB input when it is turned on. The currently selected input source name is shown in the upper right corner of the projection screen.

z If the projector does not find any input signal, the message “No signal input” appears in

place of the input source name.

z Whether the displayed input source name shows [RGB] or [Component] depends on the

current “Input Settings J RGB Input” (page 89) setting that is configured on the projector’s setup menu.

If the input source name shows this: It means this input is selected:

RGB RGB Component Component video

For information about configuring setup menu settings, see “Using the Setup Menu” on page 64. For information about component video, see “Connecting to a Component Video Output Device” on page 40.

z Note that the projector does not select the input source automatically when “Off” is

selected for the “Option Settings1 J Auto Input Detect” (page 92) setting on the setup menu.

VIDEO terminal input

(VIDEO)

Input source name

RGB

S-VIDEO terminal input

(S-VIDEO)

Projection Operations

Manually Selecting the Input Source

The procedure you should use to select the input source depends on whether you are using projector keys or remote controller keys.

[Projector]

[INPUT] key

KEYSTONE

ESC

FOCUS

ENTER

[Remote Controller]

[S-VIDEO] key

[VIDEO] key

[RGB] key

PAGE

ENTER

FOCUS

ZOOM

VIDEO

RGB

AUTO

P-IN-P

MUTE

FREEZE

To select the input source using projector keys

On the projector, press the [INPUT] key to cycle through input sources in the sequence shown below.

(RGB/Component)

(VIDEO)

(S-VIDEO)

PAGE

DOWN

ESC

KEYSTONE

D-ZOOM

S-VIDEO

VOLUME

AF/AK

Projection Operations

To select the input source using remote controller keys

On the remote controller, press the [RGB], [VIDEO], or [S-VIDEO] key to select the input source you want.

z The currently selected input source name is shown in the upper right corner of the

projection screen.

z If the currently selected input source is not sending an input signal, the message “No

signal input” appears in place of the input source name.

z Whether the displayed input source name shows [RGB] or [Component] depends on the

current “Input Settings J RGB Input” (page 89) setting that is configured on the projector’s setup menu.

If the input source name shows this: It means this input is selected:

RGB RGB Component Component video

Projection Operations

Zoom and Focus

Use the [ZOOM] keys to adjust the image size, and the [FOCUS] keys to focus the image.

To adjust image size

1.Hold down the [ZOOM +] key to increase the size of the image or the

[ZOOM –] key to decrease it.

z This causes the zoom indicator, which indicates the current zoom setting, to appear on

the image.

2.Release the [ZOOM] key when the image is the size you want.

z The zoom indicator will disappear from the image automatically if you do not perform

any further key operation for a certain amount of time.

To focus the image

1.Hold down [FOCUS S] or [FOCUS T] to adjust the focus.

z This causes the focus indicator, which indicates the current focus setting, to appear on

the image.

2.When the focus is the way you want, release the [FOCUS] key.

z The focus indicator will disappear from the image automatically if you do not perform

any further key operation for a certain amount of time.

z You can also focus automatically by pressing the [AF/AK] key. For more information, see

“Auto Keystone Correction and Auto Focus” (page 53).

z The focus and zoom indicators may not appear under certain conditions (when the

startup logo is displayed, when the image and audio are muted, during password input, etc.) Though the indicators do not appear, focus and zoom adjustment can still be performed by pressing the applicable keys.

Projection Operations

Auto Adjustment of an RGB Image

When the input source is RGB (computer), the projector automatically adjusts vertical and horizontal positioning, frequency, and phase whenever it detects an RGB signal (following input source selection, power up, etc.) You can also execute an automatic adjustment operation by pressing the [AUTO] key.

z You can turn off auto adjustment (page 93) when you want to disable auto adjustment

and maintain manual settings.

z The projected image may become distorted while an auto adjustment operation is in

progress.

z The [AUTO] key is disabled whenever S-VIDEO, VIDEO, or Component is selected as the

input source.

z If an image is unclear following the auto adjustment operation, you can use the menu to

adjust items manually. For details, see “Image Adjustment” on page 77.

Projection Operations

Full-screen Display of an RGB Image

The projector outputs images using XGA (1024 pixels × 768 pixels) video resolution. When the input signal from the computer connected to the projector is not an XGA signal, “Resize Image To Fit” automatically enlarges or reduces the image so it matches the projector’s video resolution and fills the entire screen. The following shows how different input signals from a computer are adjusted during projection.

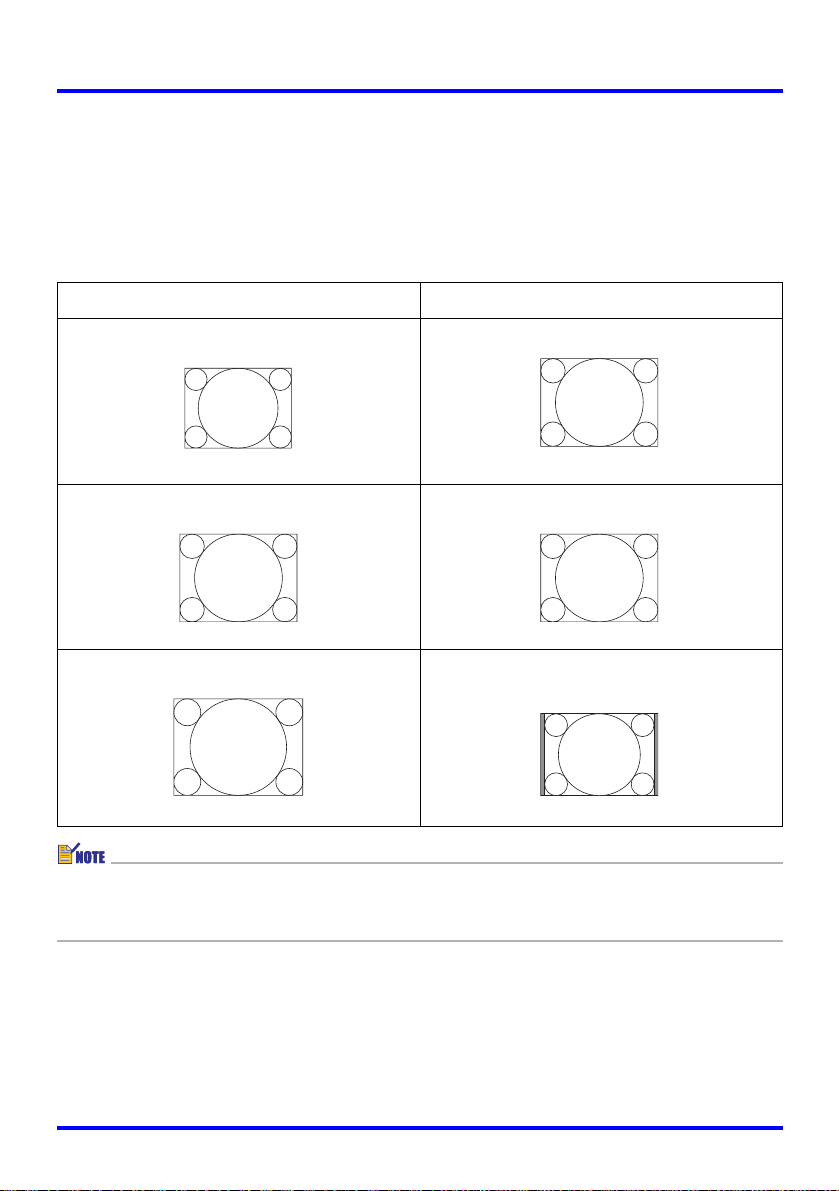

Input Signal Example Projected Image

800 × 600

1024 × 768

1280 × 1024

z Resizing of an input image by “Resize Image To Fit” can call coarsening of the image or

can cause part of the image to be cut off. If this happens, try turning off “Resize Image To F i t”. See “Screen Settings J Resize Image to Fit” on page 85 for more information.

Projection Operations

Keystone Correction (KEYSTONE)

When the projector is at an angle to the screen it is projecting on, the projected image may have different length left and right edges, or top and bottom edges. This phenomenon is called, “keystoning”. This projector comes with functions for automatic as well as manual keystone correction, which provides a regularly shaped projected image.

z Keystone correction (auto or manual) can cause dustortion of the projected image. If this

happens try moving the screen and/or projector so they are oriented close to the configuration shown under “Setting Up the Projector” on page 30.

z Depending on the angle between the screen and projector, keystone correction can cause

the corrected image to be smaller than the original (uncorrected) image, or it can cause deterioration of the image. If keystone correction causes problems with your image, relocate the screen and/or projector so the line between them is as straight as possible.

Auto Keystone Correction and Auto Focus

Under the initial default configuration of the projector, the AF/AK mode is configured so both auto keystone correction and Auto Focus are performed when you press the [AF/AK] key. You can also configure settings of the Continuous AF/AK Mode.

■ AF/AK

Auto keystone correction and Auto Focus are enabled when [AF/AK] is selected for “Option Settings2 J AF/AK Mode” (page 106) on the setup menu. Note that this is the initial default setting. With this setting, auto keystone correction and Auto Focus are performed automatically whenever the [AF/AK] key is pressed.

■ Continuous AF/AK

Continuous auto keystone correction and Auto Focus are enabled when [Continuous AF/ AK] is selected for “Option Settings2 J AF/AK Mode” (page 106) on the setup menu. This function comes in handy when it is necessary to project to a surface that is far away from the projector or at a sharp angle from the projector. When Continuous AF/AK is enabled, pressing the [AF/AK] key once enters a pre-focus mode, which displays an alignment chart and starts continuous Auto Focus. Pressing the [AF/AK] key again performs auto keystone correction. Note also that the projector automatically enters the Continuous AF/AK mode whenever projector power is turned on while [Continuous AF/AK] is selected for “Option Settings2 J Power On AF/AK Mode” (page 107) on the setup menu.

Projection Operations

Performing Auto Keystone Correction and Auto Focus while AF/AK is Enabled

Perform the following steps while [AF/AK] is selected for “Option Settings2 J AF/AK Mode” (page 106) on the setup menu.

1.Press the [AF/AK] key.

z This automatically focuses the image and performs auto keystone correction.

Performing Auto Keystone Correction and Auto Focus while Continuous AF/AK is Enabled

Perform the following steps while [Continuous AF/AK] is selected for “Option Settings2 J AF/ AK Mode” (page 106) on the setup menu.

1.Press the [AF/AK] key.

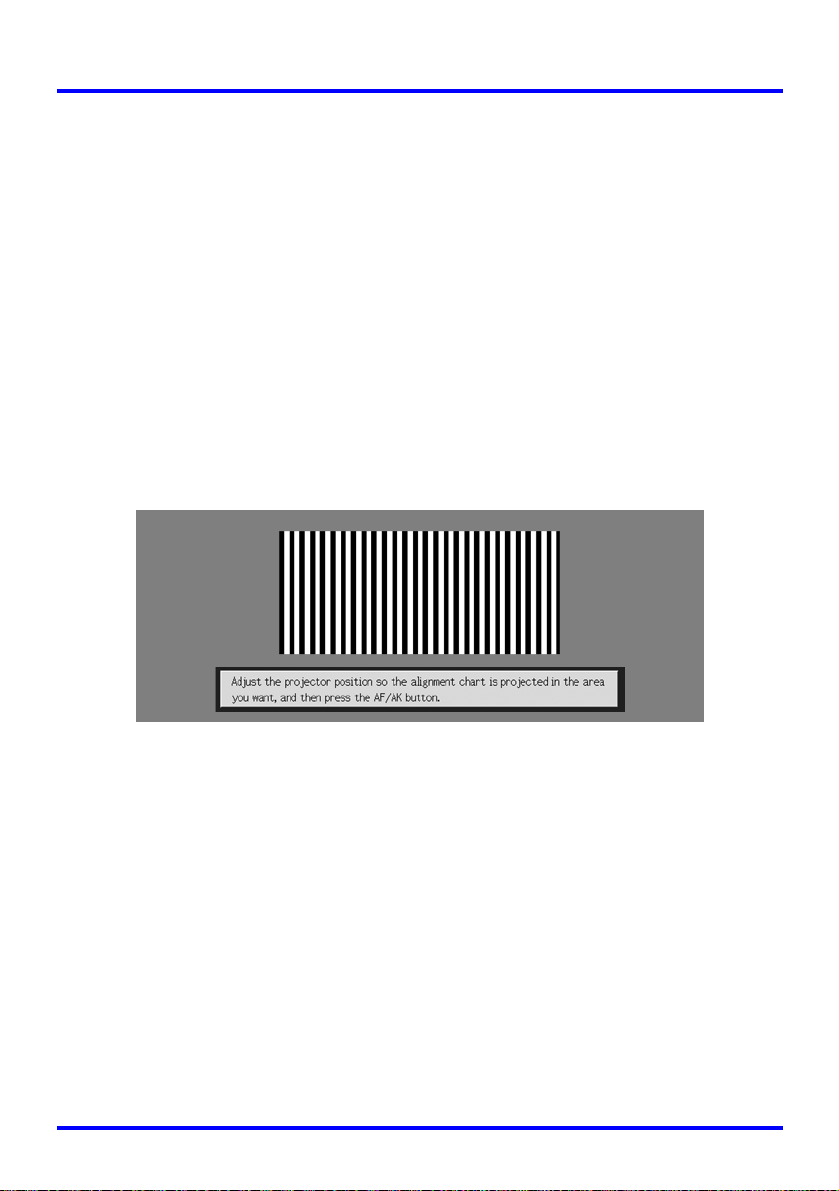

z This enters the pre-focus mode, which projects an alignment chart like the one shown

below.

z The size of the alignment chart depends on screen and projector setup conditions.

2.Adjust the angle and position of the projector as required so the

projected chart fits within the screen area.

3.Press the [AF/AK] key again.

z This performs auto keystone correction.

Projection Operations

Auto Adjustment at Power On

While [Continuous AF/AK] is selected for “Option Settings2 J Power On AF/AK Mode” (page

107) on the setup menu, turning on the projector automatically enters the pre-focus mode and

projects the positioning chart. Perform the procedure starting from step 2 under “Performing Auto Keystone Correction and Auto Focus while Continuous AF/AK is Enabled” above.

z When [AF] is selected for “Option Settings2 J AF/AK Mode” on the setup menu, only

Auto Focus is performed when the [AF/AK] key is pressed.

z If the message “Outside of Auto Focus range. Relocate the projector to change the

distance from the screen, and then press the AF/AK button.” appears, try moving the screen and/or projector so the distance between them is within the auto focus range (approximately 0.8 to 4 meters). Note that the actual auto focus range will depend on screen and projector setup conditions, and other factors. When the distance is outside the auto focus range, use manual focus.

z Note that certain screen and projector conditions, and other environmental factor may

make it impossible to perform auto keystone correction and Auto Focus correctly. In this case, adjust settings manually.

z Proper Auto keystone correction and Auto Focus are not possible if the projector is not

on a level surface. Make sure you set up the projector correctly, in accordance with the information under “Getting Ready” (page 30).

Manual Keystone Correction

Manual keystone correction can be used to correct for both vertical and horizontal keystoning.

To use manual keystone correction

1.Press the [KEYSTONE] key.

z This causes the keystone correction screen to appear on the projected image.

2.Use the [S] and [T] keys to select either “Vertical Keystone Correction”

or “Horizontal Keystone Correction”.

Projection Operations

3.Use the [W] and [X] keys to correct for keystoning.

z Each press of [W] or [X] shifts the indicator on the currently selected bar left or right.

z Repeat steps 2 and 3 to perform keystone correction for the other direction, if you

want.

4.After the settings are the way you want, press the [ESC] key or the

[KEYSTONE] key.

z This causes the keystone correction screen to disappear.

z The allowable ranges for manual keystone correction are –30 to +30 degrees vertically,

and –30 to +30 degrees horizontally.

Adjusting the Volume Level (VOL +/–)

You can use the remote controller keys to adjust the volume level of the audio that is output from the projector’s speaker.

To adjust the volume level

1.On the remote controller, press the [VOL +] or [VOL –] key.

z This causes the [Volume] screen to appear on the projected image.

2.Press the [VOL +] key or the [X] key to increase the volume, or the

[VOL –] or [W] key to lower the volume.

3.After the setting is the way you want, press the [ESC] key.

z This causes the [Volume] screen to disappear.

Projection Operations

Enlarging the Projected Image (D-ZOOM +/–)

You can use the remote controller’s zoom keys to enlarge a specific part of the projected image up to four times its original size.

To enlarge part of the projected image

1.On the remote controller, press the [D-ZOOM +] or [D-ZOOM –] key.

z This causes a cross cursor to appear on the projected image.

2.Use the remote controller’s cursor keys to move the cross cursor to the

part of the image that you want in the center of the enlarged image.

Projection Operations

3.On the remote controller, press the [D-ZOOM +] key to enlarge the

image.

z You can press the [D-ZOOM +] key again to further enlarge the image, up to 4 times. z You can back step through the image enlargements by pressing the [D-ZOOM –] key. z

You can shift the zoomed image up, down, left, or right by pressing the applicable remote controller cursor key

4.To exit image enlargement and return the image to its original size,

press the remote controller’s [ESC] key.

Projection Operations

Using Picture-in-Picture (P-IN-P)

While RGB is selected as the input source, you can display a sub-window that simultaneously displays the image being input through the VIDEO or S-VIDEO terminal. This function is called “picture-in-picture” or “P-IN-P”.

RGB input


VIDEO (or S-VIDEO) input image

z The initial default setting for the sub-window input source is VIDEO. Use the setup menu

when you want to change the sub-window input source to S-VIDEO. For details, see “Input Settings J P-in-P Input” on page 90.

z Note that P-IN-P can be used only when RGB is selected as the input source. It is not

available while any other input source is selected.

z If Component is selected for “Input Settings J RGB Input” on the setup menu, you need

to change the setting to RGB in order to use picture-in-picture. Note that the initial default setting for “Input Settings J RGB Input” is RGB.

Projection Operations

To display the sub-window

1.On the remote controller, press the [RGB] key to select RGB as the

input source.

z You can also select the input source using the projector’s [INPUT] key.

2.On the remote controller, press the [P-IN-P] key to display the sub-

window.

z This causes the sub-window, containing the image input through the VIDEO or S-VIDEO

terminal, to appear on the projected image. The sub-window will be located at the position that was used the last time a sub-window was displayed. The initial default location is the lower right corner.

z You can leave the sub-window where it is, or move it to another location within the

projected image. See “To change the location of the sub-window” for more information.

z You can also select one of three sizes for the sub-window. See “To change the size of

the sub-window” for more information.

3.To close the sub-window, press the remote controller’s [P-IN-P] key or

the [ESC] key.

To change the location of the sub-window

While a sub-window is displayed, use the remote controller’s cursor keys to move it to one of the nine locations shown below.

Projection Operations

To change the size of the sub-window

While a sub-window is displayed, use the [D-ZOOM +] and [D-ZOOM –] keys to select one of the three available sub-window sizes (small, medium, large).

[D-ZOOM +] key

Large

Medium

Small

[D-ZOOM –] key

z When RGB is selected as the input source, certain signal types (1600 × 1200 UXGA

signal, for example) do not support selection of the large sub-window size.

Muting the Image and Audio (MUTE)

The mute function causes the projected image to go to black screen, and stop output of the audio from the speaker.

To mute the image and audio

1.On the remote controller, press the [MUTE] key.

z This causes the projected image to go to a black screen, and stops output from the

speaker.

2.To restore the image and audio, press the [MUTE] key again or press

the [ESC] key.

z You can select a black screen, blue screen, or a logo screen for the mute function. For

details, see “Screen Settings J Mute Screen” on page 88.

Projection Operations

Freezing the Projected Image (FREEZE)

The freeze function stores the current projected image in projector memory, and projects it as a still image.

To freeze the projected image

1.On the remote controller, press the [FREEZE] key.

z This freezes the image that was being projected when you pressed the [FREEZE] key.

2.To unfreeze the image, press the [FREEZE] key again or press the

[ESC] key.

Operating the Computer with the Remote Controller (Wireless Mouse)

You can use the remote controller as a wireless mouse to perform mouse operations on the computer that is connected to the projector. Wireless mouse capabilities really come in handy when you need to open a presentation software file for projection during a meeting or presentation.

z To use the remote controller as a wireless mouse, the computer must be connected to

the projector by the USB cable that comes with the projector. For details, see “Connecting a Computer to the Projector’s USB Port” on page 38.

z Note that wireless mouse capabilities are available only when RGB is selected as the

input source and there is RGB input from the computer to the projector.

To operate the computer with the remote controller

1.Use the mini D-Sub cable and USB cable that come with the projector

to connect the computer to the projector. After that, turn on the projector and the computer.

z See the following for more information. ) Connecting a Computer to the Projector (Video and Audio) (page 37) ) Connecting a Computer to the Projector’s USB Port (page 38)

2.On the remote controller, press the [RGB] key to select RGB as the

input source.

z You can also select the input source using the projector’s [INPUT] key.

Projection Operations

3.Use the remote controller to perform mouse operations as described

below.

To do this: Use this remote controller key:

Move the pointer on the computer screen up, down, left, or right

Scroll up one page [PAGE UP] Scroll down one page [PAGE DOWN] Perform a left-click operation [ENTER] Perform a right-click operation [ESC]

z Note that wireless mouse operations are not possible while a manual keystone correction

(page 55), volume adjustment (page 56), image enlargement (page 57), or P-IN-P (page 59) operation is in progress, or while the menu is displayed (page 64). Wireless mouse capabilities will be restored as soon as the operation that disabled them is complete.

z Note that wireless mouse operation is not supported when the input signal from the

computer is larger than XGA, and “Resize Image To Fit” (page 85) is turned off. Wireless mouse operation will be supported for an input signal that is larger than XGA if “Resize Image To Fit” is turned on.

z Note that drag-and-drop is not supported by wireless mouse operations.

Cursor key

Using the Setup Menu

This section explains how to configure setup menu settings, and provides details about each of the settings.

Setup Menu Overview

Pressing the [MENU] key while an image is being projected displays the setup menu on the projected image. The setup menu can be used to configure a variety of different projector settings. See the “Setup Menu Setting List” on page 65 for details about the settings that are available.

Using the Setup Menu Setting List

z The settings that can be configured and the settings that appear on the item depend on

the input source that is currently selected. Under “Input Source” in the following list, there is a column for each of the input sources listed below. A “” in a column means that the menu item to the left is displayed for that input source, while “” indicates that the menu item is not displayed.

Column name: Input source:

RRGB

C Component

SS-VIDEO

VVIDEO

No Signal No signal being input

z The “Sub-menu Item Type” column shows the type of the applicable sub-menu item. Refer

to the pages noted below for more information about each item type. Value Setting: Specifies a numeric value () page 70). Selection: Allows selection from multiple options () page 71). Setting Screen: Numeric value specification or option selection on a separate setting screen

Execution: Initializes a setting () page 74). Information: Displays information only () page 73).

z The “See page” column shows where you should go for more information.

() page 71).

Using the Setup Menu

Setup Menu Setting List

Main menu Sub-menu

Brightness Value Setting page 77

Contrast Value Setting page 77

Sharpness Value Setting page 77

Saturation Value Setting page 77

Tint Value Setting *2 *2 page 77


Adjustment

Vol ume

Adjustment

Screen

Settings

Input

Settings

*1 This setting is for the currently selected input source. *2 This setting can be configured only for an NTSC or NTSC4.43 signal. *3 This setting can be selected only when the aspect ratio of the input signal is 4:3. *4 This setting can be configured only when the input source is RGB/Component. *5 This setting can be configured only when the input source is VIDEO. *6 This setting can be configured only when the input source is S-VIDEO.

Gamma Mode Setting Screen page 78 Color Balance Setting Screen page 78

Vertical Position Value Setting page 80

Horizontal Position Value Setting page 80

Frequency Value Setting page 81

Phase Value Setting page 81

Noise Filter Selection page 81

Restore Menu Defaults Execution page 82

Vol u m e Value Set t ing *1 page 82

Restore Menu Defaults Execution page 82

Vertical Keystone

Correction

Horizontal Keystone

Correction

Aspect Ratio Selection *3 page 84

Resize Image To Fit Selection page 85

Projection Mode Selection page 86

Ceiling Mount Selection page 86

Startup Screen Selection page 87

No Signal Screen Selection page 87

Mute Screen Selection page 88

Restore Menu Defaults Execution page 88

RGB Input Selection *4 page 89

Video Signal Setting Screen *5 page 89

S-Video Signal Setting Screen *6 page 89

P-in-P Input Selection *7 page 90

Signal Name Indicator Selection page 91

Special Signal Setting Screen *7 page 91

Restore Menu Defaults Execution page 92

Sub-menu Item Type

Value Setting page 83

R C S V No Signal

Input source

See page

Using the Setup Menu

Setup Menu Setting List

Main menu Sub-menu

Auto Input Detect Selection page 92

Auto Adjust Selection *8 page 93

Low-noise Mode Selection page 93

Auto Power Off Selection page 94

Option

Settings1

Option

Settings2

Operational

Info

Restore All

Defaults

*7 This is a special sub-menu item that is different from other types. For details, see “Option

Settings1 J Power On Password” on page 95.

*8 This setting can be configured only when the input source is RGB. *9 This is a special sub-menu item that is different from other types. For details, see “Option

Settings1 J Custom Logo Settings” on page 99.

Key Lock Selection page 94

Power On Password Special*7 page 95

Custom Logo Settings Special*9 page 99

Language Setting Screen page 105

Alert Tones Selection page 105

Restore Menu Defaults Execution page 106

AF/AK Mode Selection page 106

Power On AF/AK

Mode

Zoom Memory Selection page 108

Restore Menu Default Execution page 108

Lamp Time Information page 109

Reset Lamp Time Execution page 109

Input Signal Information page 109

Signal Name Information page 109

Index Information page 109

Resolution Information page 109

Horizontal Frequency Information page 109

Vertical Frequency Information page 109

Scan System Information page 109

Restore All Defaults Execution page 110

Sub-menu Item Type

Selection page 107

R C S V No Signal

Input source

See page

Using the Setup Menu

Before Configuring Menu Settings

Always remember that the settings you configure on the setup menu are applied for the input source (RGB, Component, S-VIDEO, VIDEO) that was selected when you displayed the setup menu. Note the following important points. z The items that appear on the setup menu depend on the currently selected input source

and other factors. Some items apply to a certain specific input source, while some apply to multiple input sources.

z Even for menu items that are common to multiple input sources, the setting range or

selectable options may differ according to the input source.

z With certain exceptions, there are basically two types of settings that can be configured

for multiple input sources. One type lets you configure different settings for each individual input source. The other type applies a single setting to all input sources. The volume level setting, for example, lets you configure a different setting for each input source, while the keystone correction setting lets you configure a single common setting for all input sources.

z For details about how settings are saved, and other details, see “Setup Menu Reference”

on page 77.

Using the Setup Menu

Setup Menu Screen Operations

This section explains projector operations you need to perform while configuring setup menu settings. It also provides details about each sub-menu item type.

Basic Setup Menu Operations

The following is the general flow of the steps you need to perform when configuring setup menu operations.

1.Select the input source whose settings you want to configure.

2.Press the [MENU] key.

z This causes the setup menu screen to appear in the center of the projected image. z The setup menu has a main menu on the left side. On the right side is a sub-menu of

settings that can be configured for the currently selected main menu item.

Main menu Sub-menu

z The items that appear in the sub-menu depend on the currently selected input source,

and whether or not a signal is being input from the input source. For details, see “Setup Menu Overview” on page 64.

Using the Setup Menu

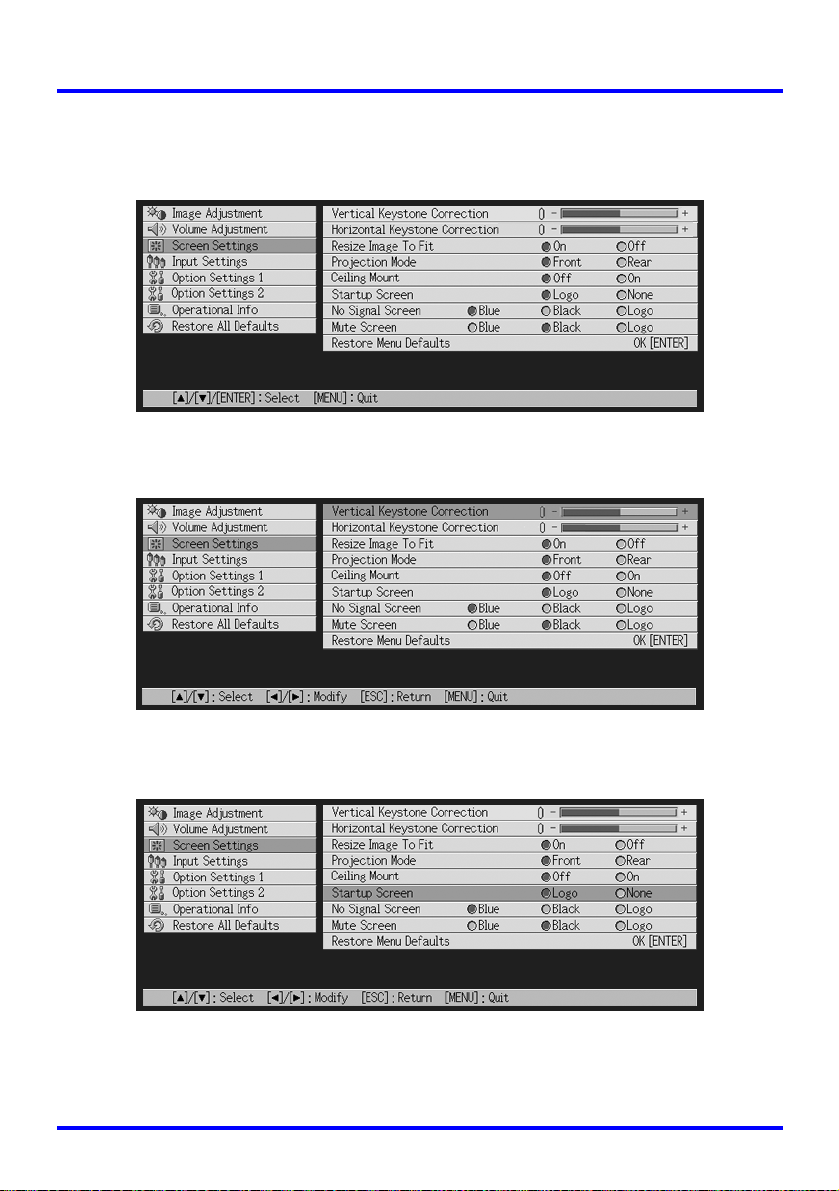

3.Use the [S] and [T] keys to select the main menu whose sub-menu

contains the settings you want to configure.

z The settings for the selected main menu item appear in the sub-menu.

4.Press the [ENTER] key.

z This selects the top item in the sub-menu.

5.Use the [S] and [T] keys to select the sub-menu item whose setting

you want to change.

Using the Setup Menu

6.Change the setting or select an option to configure the currently

selected sub-menu item.

z The operation you need to perform depends on the sub-menu item type. See “Setup

Menu Overview” on page 64 for more information.

z For information about how to configure settings for each sub-menu item, see “Sub-menu

Operations” on page 70.

z After configuring the settings of one sub-menu item, you can repeat steps 5 and 6 to

select another item on the same sub-menu and configure its setting.

z If you want to configure the settings of another main menu item, press the [ESC] key

to exit the current sub-menu. Next, repeat steps 3 through 6 to select another main menu item and change the settings of its sub-menu.

7.Press the [MENU] key to exit the setup menu.

z This causes the setup menu to disappear from the projected image.

Sub-menu Operations

This section explains steps you need to perform in order to configure settings for each submenu item type (value, selection, setting screen, execution, information).

Value Setting Type Sub-menu Item

This type of sub-menu item consists of a value and a bar graph.

Examples: Image Adjustment J Brightness; Screen Settings J Vertical Keystone

Operation: Press the [W] key to make the value smaller, or the [X] key to make it

Correction

larger. A value can be selected within the range that the indicator is able to move within the selected bar. Depending on conditions, the indicator may not move all the way to either end of the bar.

Using the Setup Menu

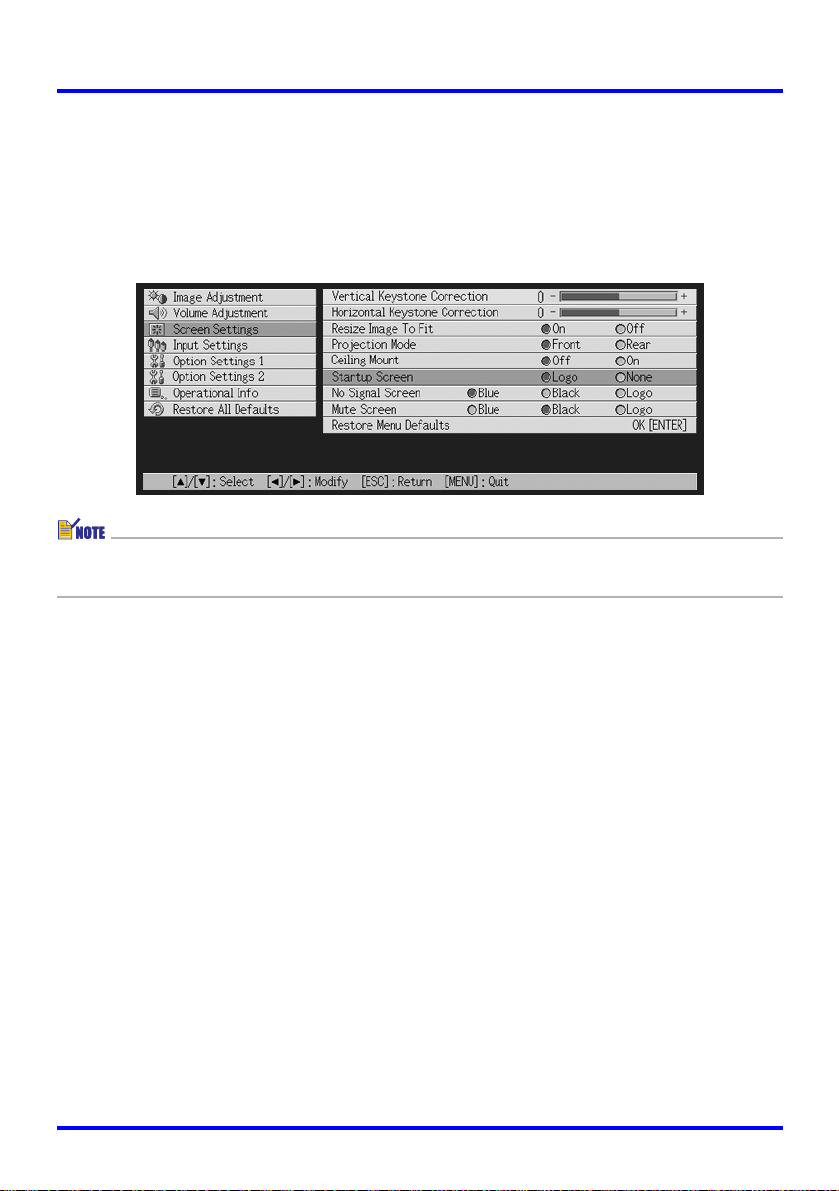

Selection Type Sub-menu Item

This type of sub-menu item provides a number of options from which you can choose.

Example : Screen Settings J Startup Screen Operation: The currently selected option is indicated by a black button next to it. Use

z For details about the options that are available for each selection type sub-menu item,

see “Setup Menu Reference” on page 77.

the [W] and [X] keys to move between the selections, which causes the buttons next to them to become either black (selected) or white (deselected).

Setting Screen Type Sub-menu Item

This type of sub-menu item displays a separate screen that you use to configure its settings.

Examples: Image Adjustment J Gamma Mode; Option Settings1 J Language, etc. Operation: The following example shows how to configure settings for Input Settings J

Video Signal, S-Video Signal

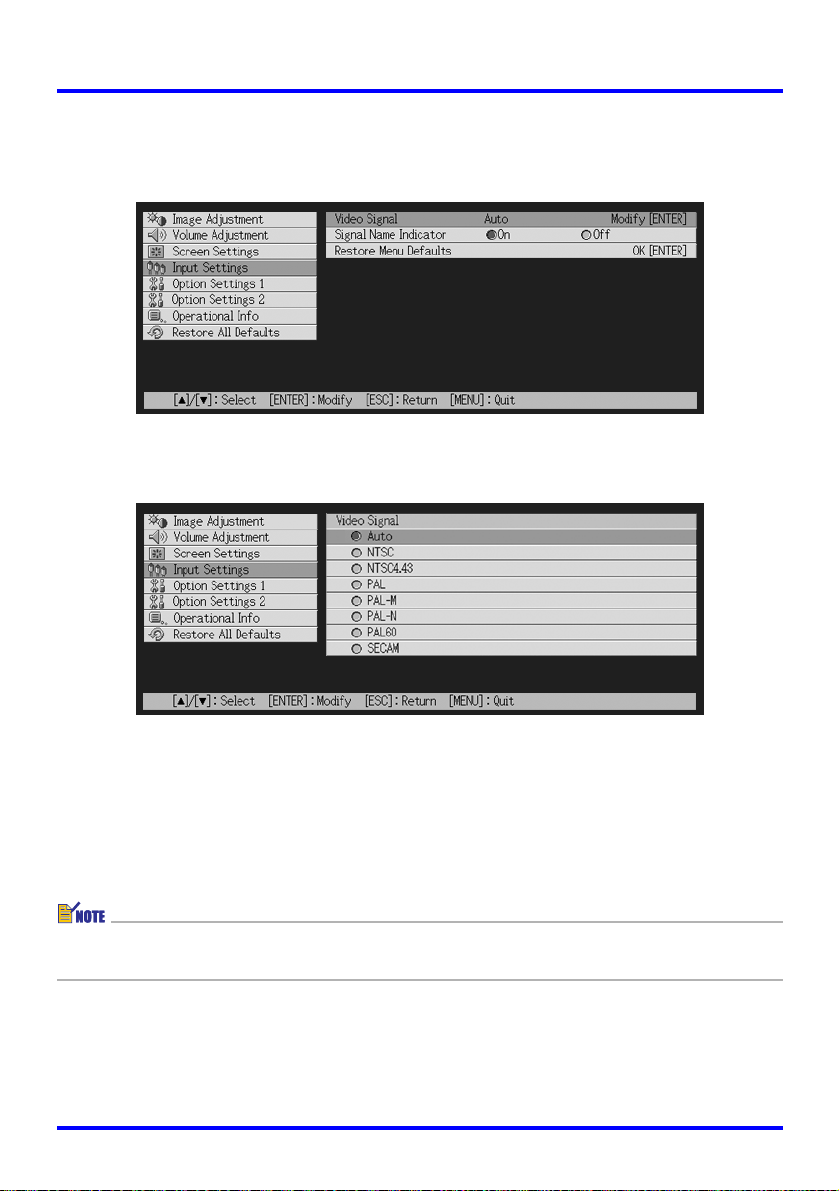

1.Press the [VIDEO] key to select the VIDEO input terminal as the input

source.

Using the Setup Menu

2.Perform steps 2 through 4 under “Basic Setup Menu Operations” on

page 68. On the “Input Settings” main menu, select the “Video Signal” sub-menu item.

3.Press the [ENTER] key.

z This displays the video signal selection screen shown below.

4.Use the [S] and [T] keys to highlight the item you want to select, and

then press the [ENTER] key.

5.After you are finished configuring the settings, press the [ESC] key to

close the setting screen and return to the sub-menu screen.

z After you are finished, press the [MENU] key to exit the setup menu.

z Note that the available settings and configuration procedures depend on the setting

screen. See “Setup Menu Reference” on page 77 for details about each sub-menu item.

Using the Setup Menu

Execution Type Sub-menu Item

This type of sub-menu item returns a setting to its initial default value.

Examples: Image Adjustment J Restore Menu Defaults; Operational Info J Reset

) Initializing Settings (page 74) ) Resetting the Lamp Time (page 117)

Lamp Time

Information Type Sub-menu Item

This type of sub-menu item provides status and setup information.

Example: Operational Info J Lamp Time; Operational Info J Input Signal

Refer to the following for details about the type of information that is available using the information type sub-menu items.

) Operational Info (page 109) ) Operational Info J Input Signal (page 109) ) Operational Info J Signal Name (page 109) ) Operational Info J Index (page 109) ) Operational Info J Resolution (page 109) ) Operational Info J Horizontal Frequency (page 109) ) Operational Info J Vertical Frequency (page 109) ) Operational Info J Scan System (page 109)

Using the Setup Menu

Initializing Settings

The setup menu lets you initialize the settings of a particular main menu item, or for all setup menu items.

To initialize the settings of a particular main menu item

Example: To initialize the settings of the “Image Adjustment” main menu item.

z Performing the following procedure returns all of the sub-menu items under the currently

selected main menu item to their initial default settings.

z Initializing the settings of the “Image Adjustment” main menu item returns the “Vertic al

Position”, “Horizontal Position”, “Frequency”, and “Phase” settings of the current signal type only (XGA/60Hz, UXGA/60Hz, etc.) to their initial defaults.

1.Select the input source whose settings you want to initialize.

2.Perform steps 2 through 4 under “Basic Setup Menu Operations” on

page 68. Select the “Image Adjustment” main menu, and then select the “Restore Menu Defaults” sub-menu item.

Using the Setup Menu

3.Press the [ENTER] key.

z This displays a confirmation message asking if you want to initialize settings.

4.Use the [S] and [T] keys to select [Yes].

5.Press the [ENTER] key to initialize the menu’s settings, or the [ESC]

key to exit the initialize operation without doing anything.

z Pressing the [ENTER] key returns all of the sub-menu items on the currently selected

main menu to their initial default settings.

To initialize all menu settings

z Performing the following procedure initializes all sub-menu items for all menus, except for

the language (Option Settings1 J Language) and the lamp time (Operational Info J Lamp Time).

z Note that initialization does not delete the custom logo.

1.Perform steps 1 through 4 under “Basic Setup Menu Operations” on

page 68. Select the “Restore All Defaults” main menu, and then select the “Restore All Defaults” sub-menu item.

Using the Setup Menu

2.Press the [ENTER] key.

z This displays a confirmation message asking if you want to initialize all settings.

3.Use the [S] and [T] keys to select [Yes].

4.Press the [ENTER] key to initialize all menu settings, or the [ESC] key

to exit the initialize operation without doing anything.

z Pressing the [ENTER] key initializes all menu items except for “Language” and “Lamp

Time”.

Using the Setup Menu

Setup Menu Reference

This section provides detailed explanations about the contents for all of the setup menu items.

z The titles in this section use the format: Main Menu Item J Sub-menu Item.

Image Adjustment

■ Image Adjustment J Brightness

This sub-menu adjusts the brightness of the projected image. A larger value produces a brighter image.

z This setting is not possible when there is no input signal. z A different setting can be configured and is stored for each input source.

■ Image Adjustment J Contrast

This sub-menu adjusts the contrast of the projected image. A larger value produces a stronger contrast.

z This setting is not possible when there is no input signal. z A different setting can be configured and is stored for each input source.

■ Image Adjustment J Sharpness

This sub-menu adjusts the sharpness of the projected image. A larger value makes the image sharper, while a smaller value makes it softer.

z This setting is not possible when there is no input signal. z A different setting can be configured and is stored for each input source.

■ Image Adjustment J Saturation

This sub-menu adjusts the color saturation of the projected image. A larger value increase color saturation. z This setting is not possible when the input source is RGB/Component and when there is

no input signal.

z A different setting can be configured and is stored for each input source.

■ Image Adjustment J Tint

This sub-menu adjusts the tint of the projected image. A larger value makes the overall image more reddish, while a smaller value makes the overall image more bluish. z This setting is not possible when the input source is RGB/Component and when there is

no input signal.

z A different setting can be configured and is stored for each input source.

Using the Setup Menu

■ Image Adjustment J Gamma Mode

This sub-menu lets you select the gamma mode for the projected image.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB Standard, (Presentation), Theater, Graphics/Blackboard

Component Standard, Presentation, (Theater), Graphics/Blackboard

S-VIDEO

VIDEO

No Signal None

Setting Explanations

Standard: Standard gamma mode

Presentation: Emphasis on clarity to make text easy to read

Theater: Emphasis on reproduction of moderate color tones and dark image areas

Graphics: Emphasis on color gradations and contrast

Blackboard: Optimizes color correction for projection onto a blackboard.

Setting Storage

A different setting is stored for each input source.

■ Image Adjustment J Color Balance

This sub-menu lets you adjust the color balance of the projected image. There are two methods you can use to adjust color balance, selecting a preset color temperature value or adjusting the red, green, or blue components of each color. z Note that you can adjust the color balance either by selecting a color temperature value

or by adjusting color components. You cannot do both.

z Color balance settings cannot be configured when there is no input signal. z A different setting can be configured and is stored for each input source.

Adjusting Color Balance by Selecting a Color Temperature Value

You can use the procedure below to adjust color balance by selecting one of three color temperatures (low, normal, high). Changing the color temperature of an image alters its whiteness. A lower color temperature makes whites redder, while a higher color temperature makes them bluer.

1.On the “Image Adjustment” main menu, select the “Color Balance” sub-

menu item, and then press the [ENTER] key.

z This displays the color balance setting screen.

Using the Setup Menu

2.Use the [S] and [T] keys to select “Color Temperature”, and then

press the [ENTER] key.

z This causes a z marker to appear at the beginning of the “Color Temperature” line,

which indicates that color temperature value selection is enabled.

Use the [W] and [X] keys to select the color temperature setting you want.

4.After the setting is the way you want, press the [MENU] key.

Adjusting Color Balance by Adjusting Color Components

Instead of specifying a color temperature to adjust color balance, you can also individually adjust the relative intensity of the red, green, and blue components.

1.On the “Image Adjustment” main menu, select the “Color Balance” sub-

menu item, and then press the [ENTER] key.

z This displays the color balance setting screen.

2.Use the [S] and [T] keys to select “Color”, and then press the

[ENTER] key.

z This causes a z marker to appear at the beginning of the “Color” line, which indicates

that color adjustment is enabled.

3.Use the [S] and [T] keys to select the color you want to adjust, and

then use the [W] and [X] keys to adjust it.

Using the Setup Menu

4.After all the settings are the way you want, press the [MENU] key.

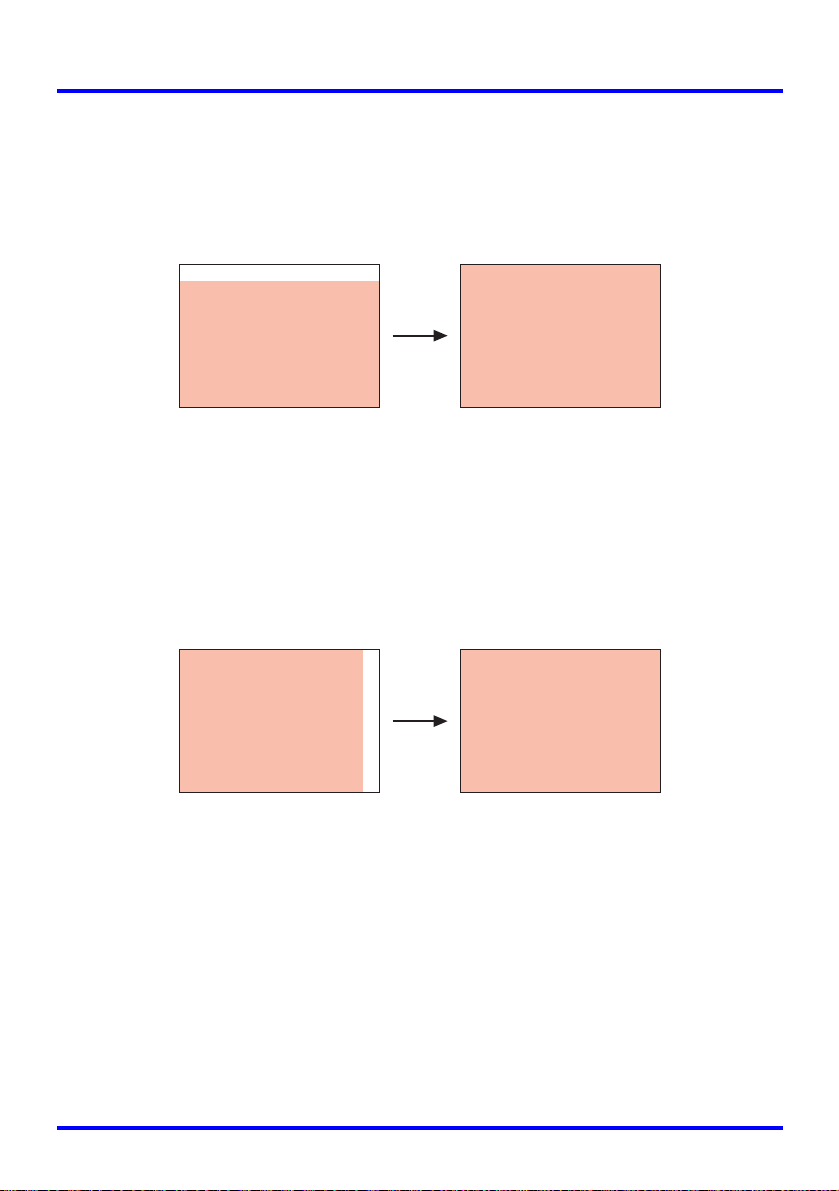

■ Image Adjustment J Vertical Position

This sub-menu lets you adjust the vertical position of the input source image within the projection area.

z This setting is not possible when there is no input signal. z “Image Adjustment” main menu item settings are saved for the current signal type only

(XGA/60Hz, UXGA/60Hz, etc.), and not for the input signal source. Note, however, that the number of signal type settings that can be saved is limited. Exceeding the limit causes the oldest setting to be deleted automatically.

■ Image Adjustment J Horizontal Position

This sub-menu lets you adjust the horizontal position of the input source image within the projection area.

z This setting is not possible when there is no input signal. z See “Image Adjustment J Ver ti c a l Positi o n ” for details about how settings are saved.

Using the Setup Menu

■ Image Adjustment J Frequency

This sub-menu lets you manually control the frequency of the image. Normally, the projector is able to adjust the frequency automatically. If there are vertical bands in the projected image, however, it means that automatic adjustment is not possible for some reason. When this happens use this setting to adjust the image frequency.

z This setting is possible only when RGB is selected as the input source. z Settings are saved for each signal type (XGA/60Hz, UXGA/60Hz, etc.). Note, however, that

the number of signal type settings that can be saved is limited. Exceeding the limit causes the oldest setting to be deleted automatically.

z If, for some reason, your manual frequency settings cause the image input from the

computer to disappear from the projection, you can press the [AUTO] key to perform an auto adjust operation (page 51), which should cause the image to reappear.

■ Image Adjustment J Phase

This sub-menu lets you manually control the phase of the image. Normally, the projector is able to adjust the phase automatically. If there are color errors or flickering in the projected image, however, it means that automatic adjustment is not possible for some reason. When this happens use this setting to adjust the image phase.

z This setting is possible only when RGB is selected as the input source. z See “Image Adjustment J Frequency” for details about how settings are saved.

■ Image Adjustment J Noise Filter

This sub-menu provides a choice of noise filter levels to remove digital noise from the projected image when RGB is selected as the input source. Note that the noise filter may not be able to remove certain types of digital noise. z This setting is possible only when RGB is selected as the input source. The setting is

saved for the RGB input source only.

z Turning off the projector automatically returns this sub-menu to its initial default setting

(Normal).

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB Low, (Normal), High

Component None

S-VIDEO

VIDEO

No Signal

Using the Setup Menu

■ Image Adjustment J Restore Menu Defaults

This sub-menu returns all of the sub-menu items on the Image Adjustment main menu to their initial default settings. z You can perform initialization even when there is no input signal. In this case, the

initialization is performed for the currently selected input source.

z “Image Adjustment” main menu “Vertical Position”, “Horizontal Position”, “Frequency”, and

“Phase” settings are initialized for the current signal type (XGA/60Hz, UXGA/60Hz, etc.)

only.

z For details about the initialization procedure, see “To initialize the settings of a particular

main menu item” on page 74.

Volume Adjustment

■ Volume Adjustment J Volu m e

This sub-menu can be used to adjust the volume level of the projector’s speaker. This setting is also linked to volume settings made with the remote controller’s [VOL +] and [VOL –] keys. z Changing this setting when there is no input signal changes the volume setting of the

currently selected signal source.

z A different setting is stored for each input source.

■ Volume Adjustment J Restore Menu Defaults

This sub-menu returns Volume to its initial default setting. z You can perform initialization even when there is no input signal. In this case, the

initialization is performed for the currently selected input source.

z Initialization is performed separately for each input source. z For details about the initialization procedure, see “To initialize the settings of a particular

main menu item” on page 74.

Using the Setup Menu

Screen Settings

■ Screen Settings J Vertical Keystone Correction

This sub-menu lets you correct for vertical keystoning of the projected image.

z Vertical keystone correction can be performed regardless of the currently selected input

source.

z A single setting is stored, which is applied to all input sources.

■ Screen Settings J Horizontal Keystone Correction

This sub-menu lets you correct for horizontal keystoning of the projected image.

z Horizontal keystone correction can be performed regardless of the currently selected input

source.

z A single setting is stored, which is applied to all input sources.

Using the Setup Menu

■ Screen Settings J Aspect Ratio

This sub-menu lets you select the aspect ratio (ratio between the vertical and horizontal dimensions) of the projected image.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB None

Component (4:3), 16:9

S-VIDEO

VIDEO

No Signal None

Setting Explanations

4:3: Sets the aspect ratio of the projected image to 4:3 (same as a standard TV

screen). This setting is normally used when S-VIDEO or VIDEO is selected as the input source.

16:9: Sets the aspect ratio of the projected image to 16:9 (same as a movie screen

or high-definition TV screen). Using this setting when the input source image is a 16:9 image that has been squeezed to a 4:3 image causes the image to be projected with its normal 16:9 aspect ratio.

Setting Storage

A different setting is stored for each input source.

z When a component signal with an aspect ratio of 16:9 is sent from the input source, the

aspect ratio of the projected image is automatically switched to 16:9. In this case, this setting cannot be changed.

z Using this projector to reduce, enlarge, or otherwise alter an image for business purposes

or public display may infringe upon the rights of the individual who holds the copyright of the image.

Using the Setup Menu

■ Screen Settings J Resize Image to Fit

When RGB is selected as the input source and the video resolution of the connected computer is anything other than XGA (1024 × 768 pixels), “Resize Image To Fit” automatically enlarges or reduces the input image so it matches the video resolution of the projector and fills the entire screen.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (On), Off

Component None

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: When the input signal from the computer connected to the projector is not an

XGA signal, the image is automatically enlarged or reduced so it matches the projector’s video resolution and fills the entire screen.

Off: Turns off resizing of the image input from the computer. If the image input from

the computer is smaller than XGA, the size of the projected image will also be smaller. When the image input from the computer is larger than XGA, only the center part of the image that corresponds to XGA size is projected.

z Resizing of an input image by “Resize Image To Fit” can call coarsening of the image or

can cause part of the image to be cut off. If this happens, try turning off “Resize Image To F i t”. Note, however, that turning off “Resize Image To Fit” can cause the projected image to become smaller, or it can cause only the center part of the image to be projected.

Setting Storage

This setting is possible only when RGB is selected as the input source. The setting is saved for the RGB input source only.

Using the Setup Menu

■ Screen Settings J Projection Mode

Use this sub-menu to specify whether projection will be from the front of the screen or the back of the screen.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (Front), Rear

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

Front: For projection from the front of the screen.

Rear: For projection from the back of the screen. This setting flips the front projected

image horizontally.

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Screen Settings J Ceiling Mount

Use this sub-menu to configure the projector for use in an installation in which it is positioned upside down.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB On, (Off)

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: Flips the projected image horizontally and vertically.

Off: Projects a normal image.

Setting Storage

A single setting is stored, which is applied to all input sources.

Using the Setup Menu

■ Screen Settings J Startup Screen

Use this sub-menu to specify whether or not a startup screen should be projected whenever the projector is turned on.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (Logo), None

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

Logo: Projects the logo screen as the startup screen.

A built-in logo screen is the initial default startup screen. You can also create a custom logo, if you want. For details, see “Option Settings1 J Custom Logo Settings” on page 99.

None: No startup screen is projected.

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Screen Settings J No Signal Screen

This sub-menu lets you specify what should be projected when there is no input signal to the projector.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (Blue), Black, Logo

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

Blue: Displays a blue screen when there is no input signal.

Black: Displays a black screen when there is no input signal.

Logo: Displays a logo screen when there is no input signal.

A built-in logo screen is the initial default startup screen. You can also create a custom logo, if you want. For details, see “Option Settings1 J Custom Logo Settings” on page 99.

Using the Setup Menu

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Screen Settings J Mute Screen

This sub-menu lets you specify what should be projected during mute (page 61).

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB Blue, (Black), Logo

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

Blue: Displays a blue screen during mute.

Black: Displays a black screen during mute.

Logo: Displays a logo screen during mute.

A built-in logo screen is the initial default startup screen. You can also create a custom logo, if you want. For details, see “Option Settings1 J Custom Logo Settings” on page 99.

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Screen Settings J Restore Menu Defaults

This sub-menu returns all of the sub-menu items on the Screen settings main menu to their initial default settings. z You can perform initialization even when there is no input signal. In this case, the

initialization is performed for the currently selected input source.

z Basically, initialization initializes the settings of the current input source. Note, however, that

the following settings are always initialized, regardless of the currently selected input source.

Vertical keystone correction Horizontal keystone correction Projection Mode Ceiling Mount Startup screen No signal screen Mute screen

z For details about the initialization procedure, see “To initialize the settings of a particular

main menu item” on page 74.

Using the Setup Menu

Input Settings

■ Input Settings J RGB Input

This sub-menu lets you specify the type of input signal in accordance with the device connected to the projector’s RGB terminal.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (RGB), Component

Component

S-VIDEO None

VIDEO

No Signal (RGB), Component

Setting Explanations

RGB: Select this setting when a computer is connected to the projector’s RGB

Component: Select this setting when the projector’s RGB input terminal is connected

* Only when the currently selected input source is RGB or

Component.

input terminal. For details about connection, see “Connecting a Computer to the Projector (Video and Audio)” on page 37.

the component video output terminal of a video device using an optionally available YK-3 component video cable. For details about connection, see “Connecting to a Component Video Output Device” on page 40.

Setting Storage

This setting is saved for the RGB input terminal only.

■ Input Settings J Video Signal, S-Video Signal

This sub-menu specifies the input signal for the projector’s VIDEO and S-VIDEO input terminals.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB None

Component

S-VIDEO (Auto), NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

VIDEO

No Signal (Auto), NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

* Only when the currently selected input source is VIDEO or

S-VIDEO.

Using the Setup Menu

Setting Explanations

Auto: Select this setting to have the projector switch the video signal system

Other settings: Each setting selects the applicable video system. Use these settings

automatically in accordance with the input signal from the video device that is connected to the VIDEO or S-VIDEO input terminal. This is the setting you should normally use.

when you want to specify only one specific video signal for the VIDEO and S-VIDEO input terminal.

Setting Storage

This setting is saved for the VIDEO and S-VIDEO input terminal only.

■ Input Settings J P-in-P Input

This sub-menu lets you select the input source for the image that appears in the P-in-P subwindow (page 59).

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (VIDEO), S-VIDEO

Component None

S-VIDEO

VIDEO

No Signal (VIDEO), S-VIDEO

* Only when the currently selected input source is RGB.

Setting Explanations

VIDEO: Select VIDEO as the input source of the sub-window.

S-VIDEO: Select S-VIDEO as the input source of the sub-window.

Setting Storage

This setting is saved for the RGB input terminal only.

Using the Setup Menu

■ Input Settings J Signal Name Indicator

This sub-menu lets you specify whether or not the name of the currently selected input source should be displayed in the projected image.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (On), Off

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: Turns on display of the name of the currently selected input source in the

projected image.

Off: Turns off display of the input source name.

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Input Settings J Special Signal

When a computer is connected to the RGB input terminal, the projector automatically detects the type of RGB signal being sent from the computer and projects the image. Some signals, however, cannot be detected properly by the projector. When auto detection is not possible for some reason, try using this setting for a computer signal with a resolution of SXGA (1280 ×

1024) or SXGA+ (1400 × 1050).

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB 1280 × 1024, (1400 × 1050)

Component None

S-VIDEO

VIDEO No Signal * Only when the currently selected input source is RGB.

Setting Explanations

1280 × 1024:Specifies an SXGA (1280 × 1024) resolution RGB signal.

1400 × 1050:Specifies an SXGA+ (1400 × 1050) resolution RGB signal.

Setting Storage

This setting is saved for the RGB input terminal only.

Using the Setup Menu

■ Input Settings J Restore Menu Defaults

This sub-menu returns all of the sub-menu items on the Input Settings main menu to their initial default settings. z You can perform initialization even when there is no input signal. In this case, the

initialization is performed for the currently selected input source.

z Basically, initialization initializes the settings of the current input source. Note, however, that

the signal name indicator setting is always initialized, regardless of the currently selected input source.

z For details about the initialization procedure, see “To initialize the settings of a particular

main menu item” on page 74.

Option Settings1

■ Option Settings1 J Auto Input Detect

This sub-menu lets you specify whether auto detect of the input source should be performed whenever the projector is turned on (page 47).

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (On), Off

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: Turns on auto detection of the input source whenever the projector is turned on.

Off: Turns off auto detection of the input source whenever the projector is turned on.

Setting Storage

A single setting is stored, which is applied to all input sources.

Using the Setup Menu

■ Option Settings1 J Auto Adjust

This sub-menu lets you specify whether or not auto adjustment should be performed (page

51) when RGB is selected as the input source.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (On), Off

Component None

S-VIDEO

VIDEO

No Signal (On), Off

* Only when the currently selected input source is RGB.

Setting Explanations

On:

Tu r ns o n au t o source.

Off: Turns off auto adjustment.

adjustment

, which is performed when RGB is selected as the input

Setting Storage

This setting is saved for the RGB input terminal only.

■ Option Settings1 J Low-noise Mode

The low-noise mode reduces the luminosity of the projection lamp and the speed of the cooling fan, allowing quieter projector operation.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB On, (Off)

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On (low-noise mode): This mode reduces luminosity and fan motor speed for quieter

operation than the normal mode.

Off (normal mode): This mode projects at normal luminosity.

Setting Storage

A single setting is stored, which is applied to all input sources.

Using the Setup Menu

■ Option Settings1 J Auto Power Off

This sub-menu lets you turn Auto Power Off (page 45) on or off.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB (On), Off

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: Turns on Auto Power Off.

Off: Turns off Auto Power Off.

Setting Storage

A single setting is stored, which is applied to all input sources.

■ Option Settings1 J Key Lock

This sub-menu lets you turn key lock on and off.

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB On, (Off)

Component

S-VIDEO

VIDEO

No Signal

Setting Explanations

On: Turns on key lock and disables projector keys.

Off: Turns off key lock and enables projector keys.

Setting Storage

A single setting is stored, which is applied to all input sources.

Using the Setup Menu

z Besides the menu operation explained above, the following operations can also be used

to turn off key lock.

zWhile the projector is on: Hold down the projector’s [ESC] key for about five seconds. zWhile the projector is off: Simultaneously hold down the projector’s [ESC] and [ ]

z You can use the above projector operations to turn off key lock if the remote controller

batteries unexpectedly go dead, etc.

(power) keys for about five seconds. This turns on the projector and also turns off key lock.

■ Option Settings1 J Power On Password

This sub-menu lets you turn the power on password on and off. While the password is turned on, projector operation is impossible unless the correct password is entered.

Initial Factory Default Password

The following is the 8-key operation you should perform to input the initial factory default password. [AF/AK], [PAGUP], [PAGEDOWN], [S], [T], [W], [X], [MENU]

z Note that the projector’s password is not really a “word”, but rather a series of remote

controller key operations.

z If you need to keep projector operation secure, be sure to change the initial factory

default password to a different one as soon as possible.

z The password can be input using the remote controller only. Optimum security is ensured

by turning on the password and keeping the remote controller with you.

z If you forget your password, contact your original dealer or authorized CASIO Service

Center. There, your projector will be initialized to its initial factory default settings. In addition to the password, all other projector settings (except for the lamp time) will be returned to their initial factory defaults.

Using the Setup Menu

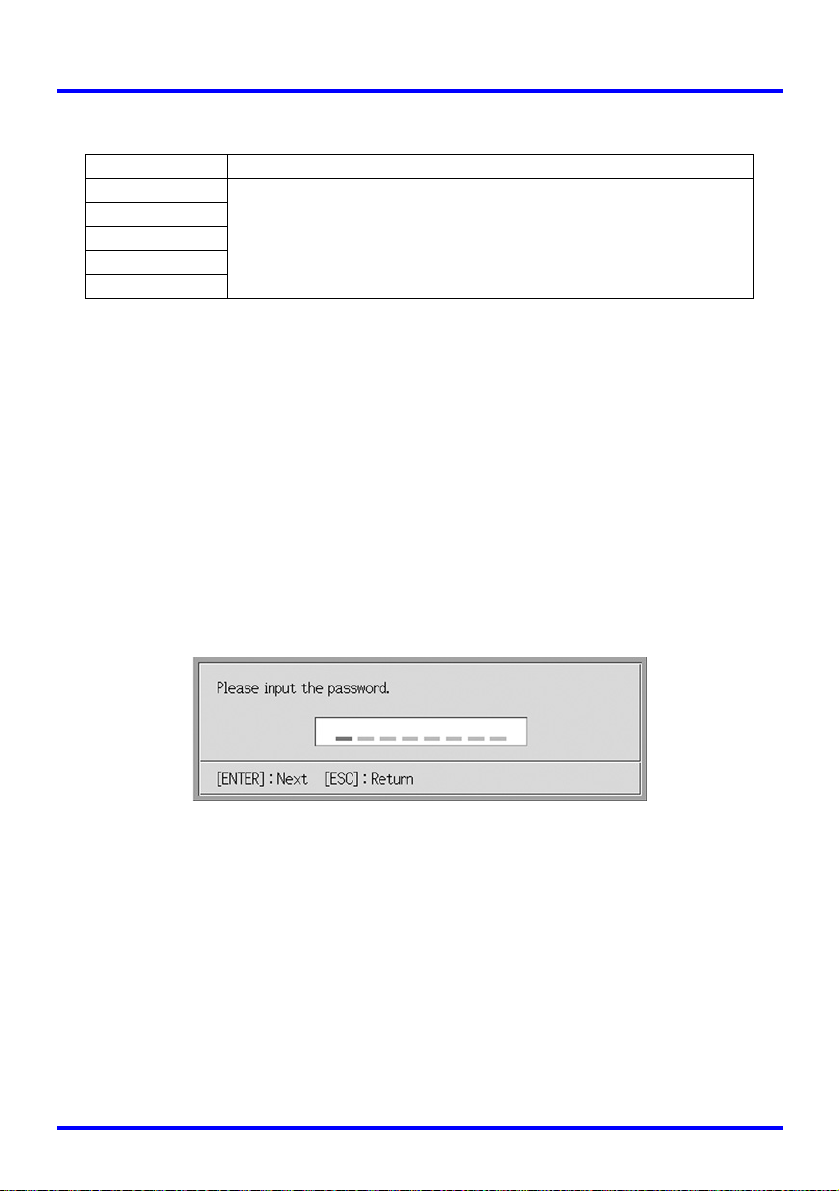

Input Source Specific Menu Items

Input Source Available Items (Parentheses indicate defaults.)

RGB On, (Off)

Component

S-VIDEO

VIDEO

No Signal

Setting Explanation

On: Turns on the power on password, which requires input of a password to turn on

the projector.

Off: Turns off the password, which allows the projector to be operated without

inputting a password.

Setting Storage

A single setting is stored, which is applied to all input sources.

Using the Password Input Dialog Box

The password input dialog box will appear when any one of the following occurs. The text inside the dialog box depends on the type of operation you are performing.

z When you turn on the projector while the password is turned on z When you turn the password on or off z When you change the password

When this dialog box is shown, perform a remote controller key operation for each of the password input positions. The following explains how to input numbers. z When the password input dialog box first appears, all of its input positions are blank,

and the cursor is flashing at the first (leftmost) input position.

z The cursor is used to select an input position for input. z You can perform any one of the 20 remote controller key operations shown below

when inputting a password. [AF/AK], [PAGEUP], [PAGEDOWN], [MENU], [KEYSTONE], [D-ZOOM +], [D-ZOOM –], [RGB], [VIDEO], [S-VIDEO], [AUTO], [P-IN-P], [MUTE], [FREEZE], [VOL +], [VOL –], [S], [T], [W], [X]

z Each time you perform a remote controller key operation, “” appears at the current

input position, and the cursor moves to the next input position to the right.

z A password can be from one to eight key operations long. z After performing all of the key operations you want, press the [ENTER] key.

Using the Setup Menu

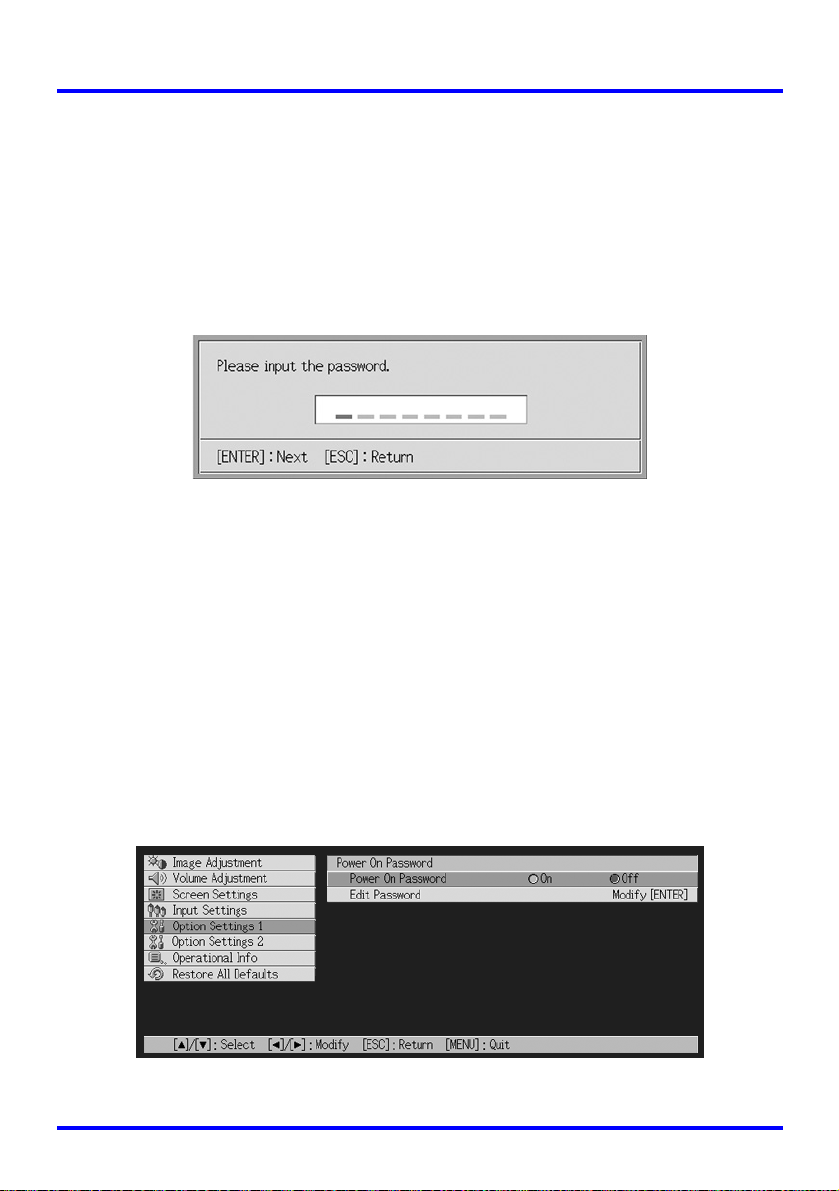

To display the power on password setting screen

1.Perform steps 1 through 4 under “Basic Setup Menu Operations” on

page 68. Select the “Option Settings1” main menu, and then select the “Power On Password” sub-menu item.

2.Press the [ENTER] key.

z This displays a password input dialog box like the one shown below.

3.Input the current password.

z For information about how to input the password, see “Using the Password Input

Dialog Box”.

4.Press the [ENTER] key.

z If the password you input does not match the currently registered password, the

message “The password you input is wrong”. appears. Press the [ESC] key to return to step 1.

z If the password you input matches the registered password, pressing [ENTER] above

displays the power on password setting screen.

To turn the power on password on and off

1.Display the power on password setting screen.

z See “To display the power on password setting screen” on page 97.

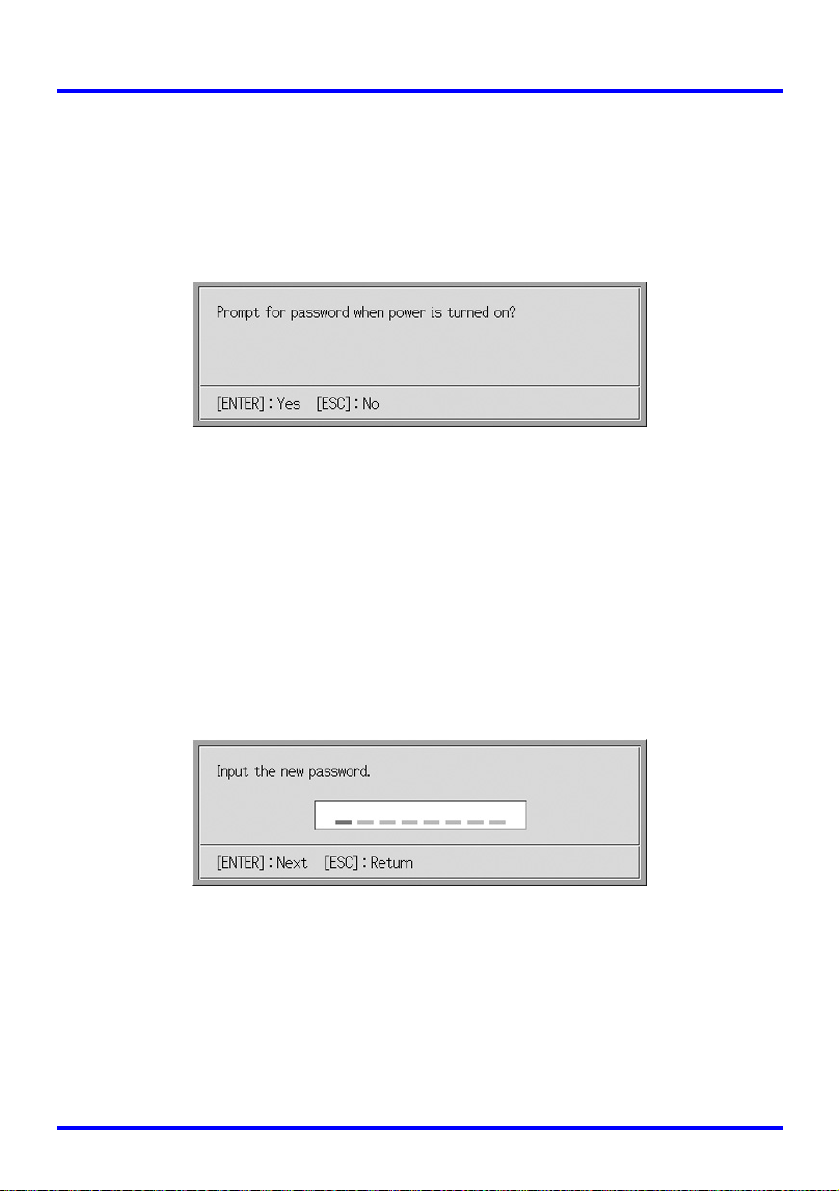

Using the Setup Menu

2.Use the [S] and [T] keys to select “Power On Password”, if you

want.

3.Use the [W] and [X] keys to turn the power on password on or off.

z Changing the power on password setting causes the message like the one shown

below to appear.

z Press the [ENTER] key to change the setting. If you do not want to change the

setting, press the [ESC] key.

To change the power on password

1.Display the power on password setting screen.

z See “To display the power on password setting screen” on page 97.

2.Use the [S] and [T] keys to select “Change Password”.

3.Press the [ENTER] key.

z This displays the new password input dialog.

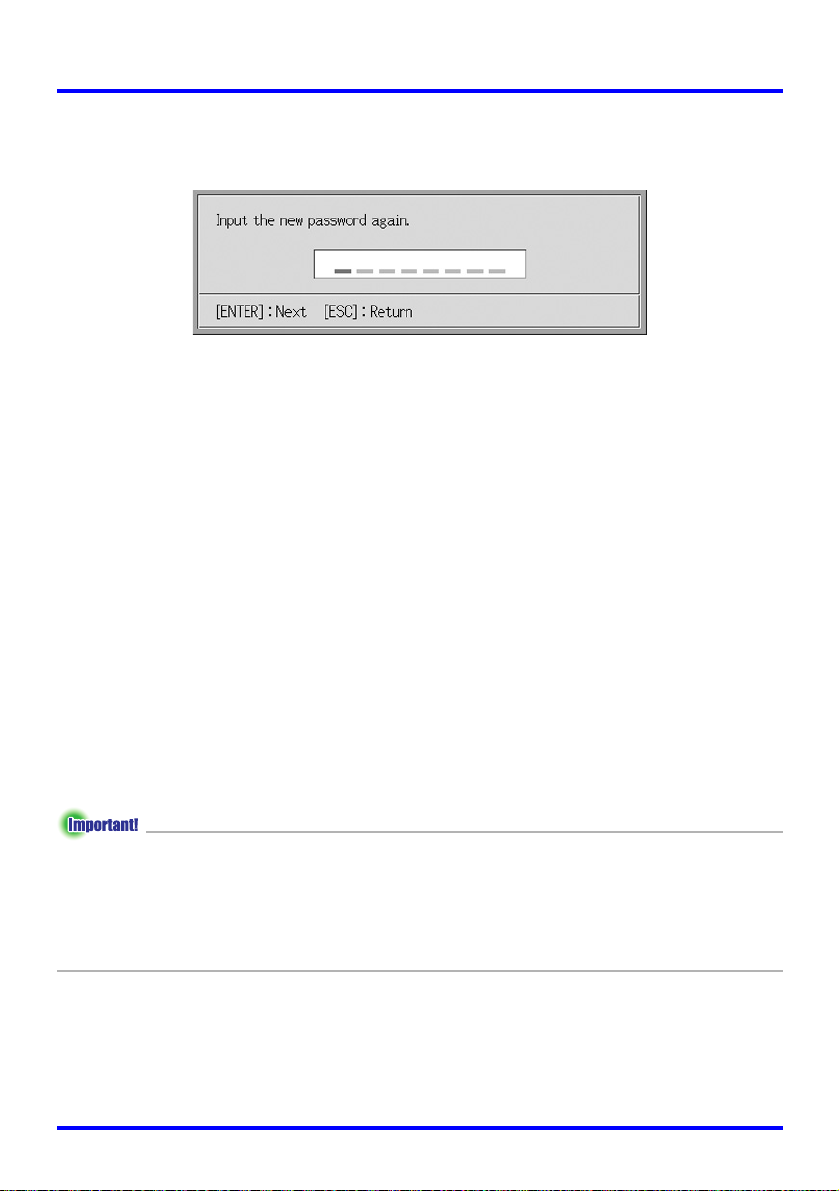

Using the Setup Menu

4.Input the new password, and then press the [ENTER] key.

z This displays a dialog box for re-inputting the password for confirmation.

5.Re-input the same password you input in step 4, and then press

[ENTER].

z If the two passwords you input were identical, the message “Your new password has

been registered.” appears. Press the [ESC] key.

z If the password you input here is different from the one you input in step 4 the

message “The two passwords you input are different.” appears. Press the [ESC] key to return to step 1.

■ Option Settings1 J Custom Logo Settings

With this sub-menu, you can cut part of the projected screen and use it to create an original logo, which you can display for the startup screen, the no signal screen, and the mute screen. An original logo that you create is called a “custom logo”. The custom logo settings let you create a custom logo, view your custom logo, and perform other operations.

z Custom logo settings cannot be configured when there is no input signal. z A single custom logo is stored, which is applied to all input sources.

Capturing a Custom Logo Image

You can create a custom logo by capturing part of an image that is currently being projected by the projector.

z The display size and position of a custom logo created by capturing an image depend on

the configuration of the following settings when you capture the image: Logo Vertical, Logo Horizontal, Custom Logo Zoom, Background Color, and Resolution. Make sure that you configure these settings the way you want before performing the image capture operation. For details of these operations, see “Configuring Custom Logo Capture Settings” on page

102.

Using the Setup Menu

To capture a custom logo

1.Project the still image that you want to use as the custom logo.

2.Perform steps 1 through 4 under “Basic Setup Menu Operations” on

page 68. Select the “Option Settings1” main menu, and then select the “Custom Logo Settings” sub-menu item.

3.Press the [ENTER] key.

z This displays the custom logo settings screen.

4.Use the [S] and [T] keys to select “Start Capture”, and then press

the [ENTER] key.

z This causes a cross cursor to appear in the projected image.

Cross cursor

5.Use the cursor keys to move the cross cursor to the location where

you want the upper left corner of the selection boundary to be.

6.Press the [ENTER] key.

z This fixes the current cross cursor location as the upper left corner of the selection

boundary.

100

Casio XJ-450 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

About safety symbols

Icon Examples

Precautions During Use

Battery Precautions

Lamp Precautions

Operating Precautions

Contents

Features and Functions

General Guide

Remote Controller

General Guide

Loading Remote Controller Batteries

Using the Laser Pointer

Remote Controller Signal Range

Getting Ready

Setting Up the Projector

Setup Precautions

Projector Angle to the Screen

Adjusting the Projector Elevation Angle

Rear Projection (From the Back of the Screen)

Connecting a Computer to the Projector (Video and Audio)

Connecting a Computer to the Projector’s USB Port

Connecting to a Standard Video Device

Connecting to a Component Video Output Device

Turning On the Projector

Turning Off the Projector

Projection Operations

Projecting onto a Screen

Keystone Correction (KEYSTONE)

Adjusting the Volume Level (VOL +/–)

Enlarging the Projected Image (D-ZOOM +/–)

Using Picture-in-Picture (P-IN-P)

Muting the Image and Audio (MUTE)

Freezing the Projected Image (FREEZE)

Operating the Computer with the Remote Controller (Wireless Mouse)

Using the Setup Menu

Setup Menu Overview

Before Configuring Menu Settings

Setup Menu Screen Operations

Setup Menu Reference

Image Adjustment

Volume Adjustment

Screen Settings

Input Settings

Option Settings1
