SERVICE MANUAL
& PARTS LIST
REF. NO. S/M-937
FEB. 2006
MODULE NO.
QW-2993
RFT-100
Ver.1 : Mar. 2006
R
(WITHOUT PRICE)
CONTENTS
Page
1. SPECIFICATIONS: MODULE QW-2993 .................................................... 1
2. OPERATION CHART: MODULE QW-2993 ............................................... 2
3. DRAWINGS: MODULE QW-2993

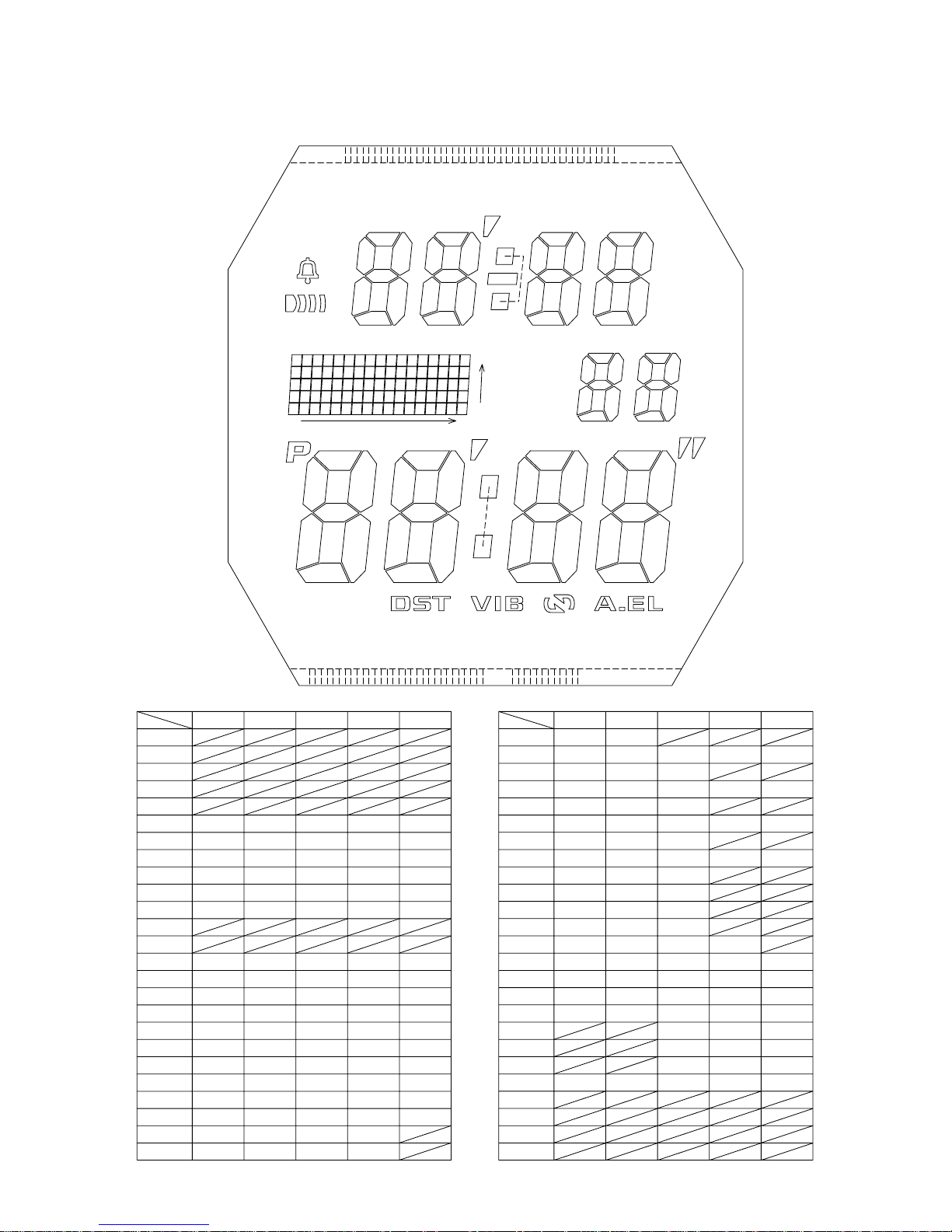

3-1. LCD DIAGRAM ............................................................................................. 6
3-2. CHECKING TERMINALS AND COMPONENTS .......................................... 7
4. EXPLODED VIEW: MODULE QW-2993 .................................................... 8
5. PARTS LIST: MODULE QW-2993 ............................................................. 9
6. PRECAUTIONS FOR REPAIR: MODULE QW-2993
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE .....................................10
6-2. ACCURACY CHECKING ............................................................................. 10
1. SPECIFICATIONS: MODULE QW-2993
Item Detail
Battery CR2025
Battery life Approx. 5 years
Current consumption 1.57 µA maximum
Alarm system Piezo plate on Cover/Back
Accuracy ±15 sec./month
Accuracy setting system Trimmer capacitor
Accuracy checking See page 10
Functions
• Electro-luminescent backlight
Auto-light switch, afterglow
• Vibration alert
Selectable for stopwatch target alarm, timer alarm, daily alarm, hourly
time signal; beeper disabled when vibration alert is selected.
• World time
29 time zones (48 cities), city code display, daylight saving on/off
• Stopwatch: Add time timer for injury timeouts, etc.
Measuring unit: 1 second (upper and lower display)
Measuring capacities: Upper display: 59'59"; Lower display :99'59"
Measuring modes: Elapsed time, event timer
• Preset timer
Measuring unit: 1 second
Preset start timers: 10, 12, 15, 20, 25, 30, 35, 40, 45 minutes
Timer modes: Elapsed time, event time
*Measurement of elapsed time for up to 60 minutes after the countdown
reaches zero
Other: Auto-repeat
• Interval timer
Number of timers: Up to 9
Measuring unit: 1 second
Input range: 59'55. (1-minute increments and 5-second increments)
Other: Auto-repeat
• Daily alarm
• Hourly time signal
• Auto-calendar (to year 2099)
• 12/24-hour format
• Regular timekeeping: Hr, min, sec, pm, month, date, day
— 1 —
2. OPERATION CHART: MODULE QW-2993
About This Manual
• Button operations are indicated using the letters shown
in the illustration.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
(Light)
General Guide
• Press C to change from mode to mode.
• In any mode, press L to illuminate the display.
Timekeeping Mode Stopwatch Mode Preset Timer Mode Alarm ModeWorld Time ModeInterval Timer Mode
Press .
Timekeeping
Month
–
Day of week
PM indicator
Day
Hour : Minutes
To set the time and date
Seconds City Code
3. When the setting you want to change is flashing, use D and B to change it as
described below.
Screen
To do this:
50
Reset the seconds to
OFF
Toggle between Daylight Saving Time (
and Standard Time (
Change the city code
P
10:58
Change the hour or minutes
Change the year
6-30
Change the month or day
• See “Daylight Saving Time (DST)” for details about the DST setting.
4. Press A to exit the setting screen.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode time between DST and Standard Time
DST indicator
Use the Timekeeping Mode to set and view the current
time and date.
Seconds
Read This Before You Set the Time and Date !
The times displayed in the Timekeeping Mode and World
Time Mode are linked. Because of this, make sure you
select a city code for your Home City (the city where you
normally use the watch) before you set the time and date.
• For full information on city codes, see the “City Code
Table”.
1.In the Timekeeping Mode, hold down A until the
seconds start to flash, which indicates the setting
screen.
2.Press C to move the flashing in the sequence shown
below to select other settings.
DST
Month
00
OFF
)
1.In the Timekeeping Mode, hold down A until the
seconds start to flash, which indicates the setting
screen.
2.Press C to display the DST setting screen.
3.Press D to toggle between Daylight Saving Time
ON
(
displayed) and Standard Time (
4.Press A to exit the setting screen.
• The DST indicator is on the display while Daylight
Saving Time is turned on.
Year MinutesDay
Do this:
Press D.
ON
)
Press D.
Use D (east) and B (west).
Use D (+) and B (–).
OFF
Hour
displayed).
To toggle between 12-hour and 24-hour timekeeping
In the Timekeeping Mode, press D to toggle between 12-hour timekeeping and
24-hour timekeeping.
• With the 12-hour format, the P (PM) indicator appears for times in the range of noon
to 11:59 p.m. and no indicator appears to the left of the hour digits for times in the
range of midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
• The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is
applied in all other modes.
• The P indicator is not displayed with the Timekeeping Mode time on the Preset
Timer Mode, Interval Timer Mode, World Time Mode, and Alarm Mode screens.
Stopwatch
Initial Stopwatch Mode
Screen
Timekeeping Mode time
Minutes Seconds
•
Press B to pause and
restart elapsed time
measurement.
To measure times with the stopwatch
Elapsed Time
Start
*1 Elapsed time measurement in the lower display continues.
Using the Watch for Official Timing of a Sport Event
After you set a game or event time, the watch will perform an alert operation (beeper
or vibration) when the time in the lower display reaches that time.
If the event is interrupted for some reason, you can press B to pause and restart
timing in the upper display. The lower display shows the total elapsed time since the
start of the timing operation. You can calculate the total amount of time that play was
interrupted (lost time or injury time) by subtracting the upper display time from the
lower display time.
Stop*
The stopwatch lets you measure elapsed time. The upper
display and lower display can be used for official timing of
an event or game.
• You can configure the watch for beeper alert or vibration
alert. For details about vibration alert, see “Vibration
Alert”.
• The measurement range of the upper display is
59 minutes 59 seconds.
• The measurement range of the lower display is
99 minutes 59 seconds.
• The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
• The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
• All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C .
Elapsed Time Screen
1
Re-start
•
This time measurement (1/100
second) cannot be paused.
Minutes Seconds
•
This time measurement cannot be
paused.
It shows the total elapsed time
since the timing operation started.
Hold down
1
Stop*
Clear
— 2 —
To set the event time
To start timing at the beginning of an event
When the current time in the lower display reaches the event start time, press B to
start timing.
• This will display elapsed time measurement in the upper and lower displays.
To pause timing
1. Press B . This stops elapsed time measurement in the upper display.
• Elapsed time measurement in the lower display continues.
2. To restart elapsed time measurement in the upper display, press B again.
When the preset event time is reached
• The watch performs an alert operation when the elapsed time measurement in the
lower display (total elapsed time since timing started) reaches the preset event time.
• Elapsed time measurement continues to be performed even after the preset event
time is reached.
To reset elapsed time measurement to zero
1. Press B . This stops elapsed time measurement in the upper display.
• Elapsed time measurement in the lower display continues.
2. Hold down D until the initial Stopwatch Mode screen appears.
1.In the Stopwatch Mode, hold down A until the current
event time setting starts to flash in the lower display.
This is the setting screen.
• If the current event time is not displayed, use the
procedure under “To reset elapsed time measurement
to zero” to display it.
2.While a setting is flashing, use D (+) and B (–) to
change it.
• You can set the event time in the range of 1 minute to
60 minutes, in 1-minute units.
xx
• “
” indicates there is no event time set.
3.Press A to exit the setting screen.

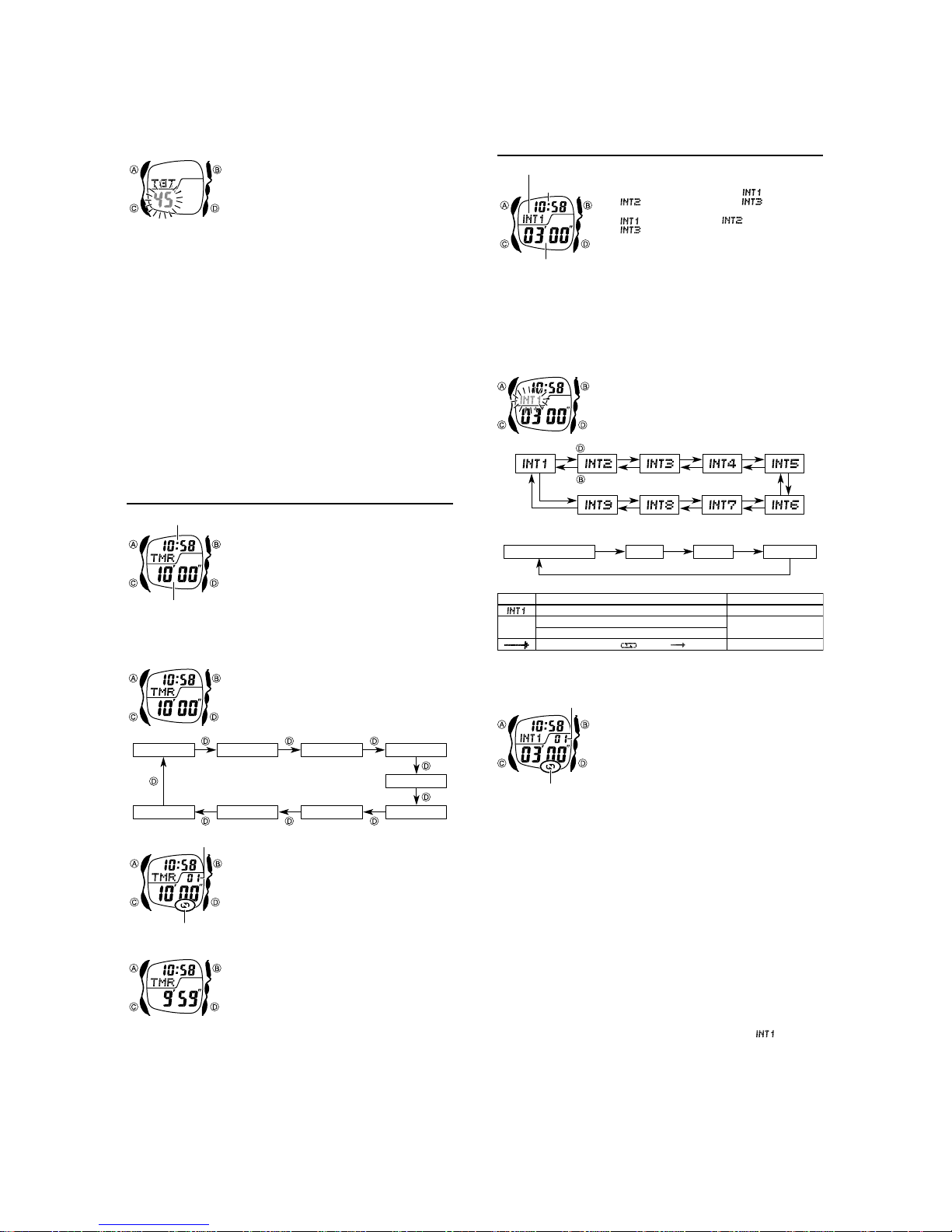

Preset Timer
Timekeeping Mode time
Preset timer time
To perform a preset timer operation
10 minutes 12 minutes 15 minutes 20 minutes
The watch includes a number of different preset times
that you can select for the countdown start time.
The currently selected alert operation (beeper or
vibration) is performed when the countdown reaches zero.
• The following are the preset start times, all in minutes:
10, 12, 15, 20, 25, 30, 35, 40, 45.
• You can also select auto-repeat, which automatically
restarts the preset start time you selected, whenever
zero is reached.
• You can configure the watch for beeper alert or vibration
alert. For details about vibration alert, see “Vibration
Alert”.
• All of the operations in this section are performed in the
Preset Timer Mode, which you enter by pressing C .
1.In the Preset Timer Mode, use D to scroll through the
preset times until the one you want to use is displayed.
Interval Timer
Interval timer number
• An alert operation (about one second) is performed when any interval timer (except
• You can turn on an auto-repeat feature that restarts the timer sequence from the
• All of the operations in this section are performed in the Interval Timer Mode, which
Timekeeping
Mode time
Start time
(Minutes Seconds)
for the last one in the series) reaches zero. When the last interval timer in the series
reaches zero, an alert operation is performed for about five seconds.
beginning when the end of the last timer is reached.
you enter by pressing C.
To configure interval timer settings
Press .
Press .
3. Press C to move the flashing in the sequence shown below to select other
settings.
4. While a setting is flashing, use D and B to change it as described below.
Screen
To do this:
Change the interval timer number
Change the minutes (
03'00''
Change the seconds (00 Toggle auto-repeat on ( ) and off ( )
• Any timer whose start time is
operation.
• There is no auto-repeat for individual interval timers. In the Interval Timer Mode,
auto-repeat repeats the entire set of timers.
Number of repeats
With the interval timer, you can set up to nine start times,
which are counted down in sequence one after the other.
The interval timer can be used for interval training (for
example, three minutes running with
with
, five minutes running with ) or for timing
an multi-period event (for example, 45 minutes of play
with
, 15 minutes rest with , 45 minutes play
with
).
• You can configure the watch for beeper alert or vibration
alert. For details about vibration alert, see “Vibration
Alert”.
• The watch performs an alert operation (beeper or
vibration) when any timer reaches zero.
1.In the Interval Timer Mode, hold down A until the
interval timer number starts to flash. This is the setting
screen.
2.Use D (+) and B (–) to scroll through the interval
timer numbers until the one you want to set is
displayed.
, 1 minute rest
MinutesInterval timer numbers Seconds Auto-repeat
Do this:
00 -59
)
55
, 5-second units)
00'00''
will not be used during the interval timer
5.Set the times of all of the timers that you want.
6.Press A to exit the setting screen.
• When auto-repeat is turned on, the number of repeats
will appear above the timer time.
• Frequent use of auto-repeat and the alert operation
(beeper or vibration) can run down the battery.
Use D (+) and B (–).
Use D (+) and B (–).
Press D .
Number of repeats
Auto-repeat on indicator
• When the end of the countdown is reached, an alert operation (beeper or vibration)
is performed for 10 seconds or until you stop it by pressing any button.
• When the end of the countdown is reached while auto-repeat is turned off, the watch
will go into an elapsed time operation and display how much time has elapsed since
the end of the countdown was reached. The elapsed time operation will stop
automatically when it reaches 60 minutes. At that time the countdown timer start
time selection screen will appear.
• When the end of the countdown is reached while auto-repeat is turned on, a new
countdown starts from the selected preset start time. The number of repeats is
displayed above the timer time. The number of repeats display changes to “
when the count reaches 100.
• To stop a countdown operation completely, first pause it (by pressing B ), and then
press D . This will display the initial Preset Timer Mode screen.
• To turn on auto-repeat, hold down A while a start
time selection screen is displayed. The number of
repeats will appear above the timer time.
• Frequent use of auto-repeat and the alert operation
(beeper or vibration) can run down the battery.
2.Press B to start the countdown timer.
• Press B while a countdown operation is in progress
to pause it. Press B again to resume the countdown.
25 minutes
30 minutes45 minutes 40 minutes 35 minutes
xx
”
Auto-repeat on indicator
To perform an interval timer operation
In the Interval Timer Mode, press B to start the countdown of the lowest numbered
interval timer that has a start time setting that is not zero.
• To pause the interval timer that is currently counting down, press B . Press B
again to restart.
• During an interval timer operation, any interval timer whose start time is zero
00'00''
(
) is skipped.
• The first interval timer of the series is the lowest numbered one with a start time that
is not zero. The final interval timer of the series is the highest numbered one with a
start time that is not zero.
• While auto-repeat is turned off, the watch performs an alert operation (beeper or
vibration) when each interval timer reaches zero. An alert operation is performed for
about five seconds when the final interval timer reaches zero.
• While auto-repeat is turned on, the watch beeps (or vibrates) once when each
interval timer reaches zero. A five-second alert operation is performed when the final
interval timer reaches zero, unless the start time of the final interval timer is 10
seconds or less. In such a case, the alert operation for the final interval timer is only
one second long.
• Timing restarts from the first timer when the final interval timer reaches zero. The
number of repeats is displayed above the timer time. The number of repeats display
changes to “
• An ongoing interval timer operation continues to be performed even if you exit the
Interval Timer Mode.
• To stop an interval timer operation, first press B to pause the countdown of the
current timer, and then press D . This will display Interval Timer 1 (
xx
” when the count reaches 100.
— 3 —
).
World Time
Timekeeping Mode time
City code
Current time in the zone
of the selected city code
To toggle a city code time between Standard Time and Daylight Saving Time
DST indicator
World Time shows the current time in 48 cities (29 time
zones) around the world.
• When you enter the World Time Mode, the data you
were viewing when you last exited the mode appears
first.
• All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C .
To view the time for another city code
In the World Time Mode, press D to scroll eastward
through city codes or B to scroll westward.
• For full information about city codes, see the “City Code
Table”.
• If the current time for a city is wrong, check your
Timekeeping Mode time and Home city code settings
and make the necessary changes.
1.In the World Time Mode, use D and B to display the
city code (time zone) whose Standard Time/Daylight
Saving Time setting you want to change.
2.Hold down A for about one second to toggle between
Daylight Saving Time (DST displayed) and Standard
Time (DST not displayed).
• The DST indicator is on the display whenever you
display a city code for which Daylight Saving Time is
turned on.
• Note that the DST/Standard Time setting affects only
the currently displayed city code. Other city codes are
not affected.
About the Auto Light Switch
While the auto light switch is enabled, illumination turns on whenever you position
your wrist as described below in any mode.
Moving the watch to a position that is parallel to the ground and then tilting it
towards you at more than 40 degrees causes illumination to turn on.
• Wear the watch on the outside of your wrist.
Parallel to ground More than 40
Warning!
• Always make sure you are in a safe place whenever you are reading the watch
using the auto light switch. Be especially careful when running or engaged in
any other activity that can result in accident or injury. Also take care that
sudden illumination by the auto light switch does not startle or distract others
around you.
• When you are wearing the watch, make sure that its auto light switch is turned
off before riding on a bicycle or operating a motorcycle or any other motor
vehicle. Sudden and unintended operation of the auto light switch can create
a distraction, which can result in a traffic accident and serious personal injury.
To turn the auto light switch on and off
In the Timekeeping Mode, hold down B for about three seconds to toggle the auto
light switch on (A.EL displayed) or off (A.EL not displayed).
• The auto light switch indicator is on the display in all modes while the auto light
switch is turned on.
• In order to protect against running down the battery, the auto light switch turns off
automatically approximately six hours after you turn it on.
°
Alarm
Hourly time signal
on indicator
Alarm on indicator
2. Press C to move the flashing between the hour and minute settings.
3. While a setting is flashing, use D (+) and B (–) to change it.
4. After you set the alarm time, press A to exit the setting screen.
• With the 12-hour format, set the time correctly as a.m. or p.m. (P indicator).
To stop the alarm tone after it starts to sound
Press any button.
To switch the Daily Alarm and Hourly Time Signal on and off
Press D while in the Alarm Mode to change the status of the Daily Alarm and Hourly
Time Signal in the following sequence.
To test the alert operation
In the Alarm Mode, hold down D to perform the currently selected alert operation
(beeper or vibration).
Timekeeping
Mode time
Alarm time
(Hour : Minutes)
When the Daily Alarm is turned on, the currently selected
alert operation (beeper or vibration) is performed at the
preset time each day. When the Hourly Time Signal is
turned on, the watch performs an alert operation every
hour on the hour.
• You can configure the watch for beeper alert or vibration
alert. For details about vibration alert, see “Vibration
Alert”.
• All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C .
To set the alarm time
1.Hold down A while in the Alarm Mode until the hour
setting of the alarm time starts to flash, which indicates
the setting screen.
• This operation turns on the alarm automatically.
Both offBoth on
Daily Alarm
only
Hourly Time
Signal only
Illumination
This watch has an EL (electro-luminescent) panel that
causes the entire display to glow for easy reading in the
dark. The watch’s auto light switch turns on illumination
automatically when you angle the watch towards your
face for reading.
• The auto light switch must be turned on (indicated by
the auto light switch indicator) for it to operate.
• See “Illumination Precautions” for more important
information.
Auto light switch indicator
To illuminate the display manually
In any mode, press L to turn on illumination for about one second.
• The above operation turns on illumination regardless of the current auto light switch
setting.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Vibration Alert
When Vibration Alert is turned on, the watch vibrates instead of sounding a beeper.
This lets you use the watch without disturbing others with beeping sounds.
• Vibration Alert can be used to replace alarm sounds.
• For information about selecting the alert type, see “To switch between vibration alert
and beeper alert” below.
• Watches with a metal band may produce a noise when a vibration operation is
performed. This is due to vibration of the metal band, and does not indicate
malfunction of the watch.
To switch between vibration alert and beeper alert
Vibration alert indicator
Scrolling
The B and D buttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls at high speed. This is true except when the interval timer number is
flashing on the Interval Timer Mode screen.
Auto Return Features
• If you leave the watch in the Alarm Mode for two or three minutes without performing
any operation, it changes to the Timekeeping Mode automatically.
• If you leave a screen with flashing digits on the display for two or three minutes
without performing any operation, the watch exits the setting screen automatically.
Timekeeping
• Resetting the seconds to
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
00
reset to
• The year can be set in the range of 2000 to 2099.
• The watch’s built-in full automatic calendar makes allowances for different month
World Time
• The seconds count of the World Time is synchronized with the seconds count of the
• All World Time Mode times are calculated from the current Home City time in the
• The UTC differential is a value that indicates the time difference between a
• The letters “UTC” is the abbreviation for “Universal Time Coordinated”, which is the
without changing the minutes.
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s battery replaced.
Timekeeping Mode.
Timekeeping Mode using UTC time differential values.
reference point in Greenwich, England and the time zone where a city is located.
world-wide scientific standard of timekeeping. It is based upon carefully maintained
atomic (cesium) clocks that keep time accurately to within microseconds. Leap
seconds are added or subtracted as necessary to keep UTC in sync with the Earth’s
rotation.
In any mode, press V to toggle the alert operation
between vibration (VIB displayed) and beeper (VIB not
displayed).
00
while the current count is in the range of 30 to 59
— 4 —
Illumination Precautions
• The electro-luminescent panel that provides illumination loses power after very long
use.
• Illumination may be hard to see when viewed under direct sunlight.
• The watch may emit an audible sound whenever the display is illuminated. This is
due to vibration of the EL panel used for illumination, and does not indicate
malfunction.
• Illumination turns off automatically whenever an alert operation (beeper or vibration)
is performed.
•
Frequent use of illumination runs down the battery.
Auto light switch precautions
• Avoid wearing the watch on the inside of your wrist. Doing so causes the auto light
switch to operate when it is not needed, which shortens battery life. If you want to
wear the watch on the inside of your wrist, turn off the auto light switch feature.
• Static electricity or magnetic force can interfere with proper operation of the auto
light switch. If illumination does not turn on, try moving the watch back to the starting
position (parallel with the ground) and then tilt it back towards you again. If this does
not work, drop your arm all the way down so it hangs at your side, and then bring it
back up again.
• Under certain conditions, illumination may not turn on until about one second after
you turn the face of the watch towards you. This does not necessarily indicate
malfunction of the auto light switch.
• You may notice a very faint clicking sound coming from the watch when it is shaken
back and forth. This sound is caused by mechanical operation of the auto light
switch, and does not indicate a problem with the watch.
• Illumination may not turn on if the face of the watch is
more than 15 degrees above or below parallel. Make
sure that the back of your hand is parallel to the ground.
• Illumination turns off in about one second, even if you
keep the watch pointed towards your face.
City Code Table
City
City
Code Differential
Pago Pago
PPG
Honolulu
HNL
Anchorage
ANC
Vancouver
YVR
San Francisco
SFO
Los Angeles
LAX
Denver
DEN
Mexico City
MEX
Chicago
CHI
Miami
MIA
New York
NYC
Caracas
CCS
St. Johns
YYT
RIO
Rio De Janeiro
RAI
Praia
LIS
Lisbon
London
LON
Barcelona
BCN
Paris
PAR
Milan
MIL
Rome
ROM
Berlin
BER
Athens
ATH
Johannesburg
JNB
Istanbul
IST
Cairo
CAI
Jerusalem
JRS
Moscow
MOW
Jeddah
JED
Tehran
THR
DXB
Dubai
Kabul
KBL
Karachi
KHI
Male
MLE
DEL
Delhi
DAC
Dhaka
RGN
Yangon
Bangkok
BKK
Singapore
SIN
Hong Kong
HKG
Beijing
BJS
Seoul
SEL
Tokyo
TYO
Adelaide
ADL
Guam
GUM
Sydney
SYD
Noumea
NOU
Wellington
WLG
*Based on data as of June 2005.
UTC
–11.0
–10.0
–09.0
–08.0
–07.0
–06.0
–05.0
–04.0
–03.5
–03.0
–01.0
+00.0
+01.0
+02.0
+03.0
+03.5
+04.0
+04.5
+05.0
+05.5
+06.0
+06.5
+07.0
+08.0
+09.0
+09.5
+10.0
+11.0
+12.0
Other major cities in same time zone
Papeete
Nome
Las Vegas, Seattle/Tacoma, Dawson City
El Paso, Edmonton
Winnipeg, Houston, Dallas/Fort Worth, New Orleans
Montreal, Detroit, Boston, Panama City, Havana, Lima,
Bogota
La Paz, Santiago, Port Of Spain
Sao Paulo, Buenos Aires, Brasilia, Montevideo
Dublin, Casablanca, Dakar, Abidjan
Amsterdam, Algiers, Hamburg, Frankfurt, Vienna,
Stockholm, Madrid
Helsinki, Beirut, Damascus, Cape Town
Kuwait, Riyadh, Aden, Addis Ababa, Nairobi
Shiraz
Abu Dhabi, Muscat
Mumbai, Kolkata
Colombo
Jakarta, Phnom Penh, Hanoi, Vientiane
Kuala Lumpur, Taipei, Manila, Perth, Ulaanbaatar
Pyongyang
Darwin
Melbourne, Rabaul
Port Vila
Christchurch, Nadi, Nauru Island
— 5 —
3. DRAWINGS: MODULE QW-2993
3-1. LCD DIAGRAM
L26
L27
L28
L32
L33
L36
L35
L34
L31
L30
L29
L37
min1
L40
L39
L38
L44
L41
L42
L43
L48
L47
L46
L45
alm
pm
sig
a6
f6
b6
g6
e6
c6
d6
b1
c1
f2
d2
a-light
a0a1
f0
b0
g0
e0
c0
d0
a2
b2
g2
c2
sec0
sec1
f1
g1
e1
d1
e2
L 8
d4
dst
L22
a8
b8
f8
g8
e8
d8d9
min0
a4
b4
g4
c4
L19
L20
L21
c8
x16
L18
col0
L17
hyp
col1
y4
y0
mute/vib1
L16
a7
g7
e7
d7
a3
f3 b3
g3
e3
d3
auto-rep
L10
L11
L12
L13
b7f7
c7
c3
L 9
a9
b9
f9
g9
e9
c9
x0
a5
f5
g5
e5
d5
LC4
LC3
LC5
f4
b5
e4
c5
L24
L25
LC2
L23
LC1
COM.
SEG.
L 3
L 4
L 5
L 6
L 7
L 8
L 9
L10
L11
L12
L13
x15y3 x15y2 x15y1 x15y0x15y4
x14y3 x14y2 x14y1 x14y0x14y4
x13y3 x13y2 x13y1 x13y0x13y4
x12y3 x12y2 x12y1 x12y0x12y4
x11y3 x11y2 x11y1 x11y0x11y4
x10y3 x10y2 x10y1 x10y0x10y4
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L25
L26
x1y4
x2y4
x3y4
x5y4
x6y4
x7y4
x8y4
x9y4
x1y3
x2y3
x3y3
x4y3x4y4
x5y3
x6y3
x7y3
x8y3
x9y3
e9 almf9 sig
x1y2
x2y2
x3y2
x4y2
x5y2
x6y2
x7y2
x8y2
x9y2
L27 g9a9 d9 pm
LC4LC3LC2LC1 LC5
x0y1x0y3 x0y2
x1y1
x2y1
x3y1
x0y0x0y4
x1y0
x2y0
x3y0
x4y1 x4y0
x5y1
x6y1
x7y1
x5y0
x6y0
x7y0
x8y1 x8y0
x9y1
x9y0
SEG.
L28
L29
L30
L31
L32
L33
L34
L35
L36
L37
L38
L39
L40
L41
L42
L43
L44
L45
L46
L47
L48
L49
L50
L51
L52
COM.
LC4LC3LC2LC1 LC5
c9b9
f8 e8 f5 e5
g8
d8a8
col1 hypmin1
g7 d7a7
d1g1a1
g0 d0a0
c0 sec1b0
e0 sec0f0
c2b2c1b1
e4f4
x16y3 x16y2 x16y1 x16y0x16y4
auto-rep
d5g5a5c8b8
dstc5b5e7f7
c3b3d6g6a6
d2g2a2e1f1
a-lighte2f2c6b6
d3g3a3e6f6
e3f3col0c7b7
c4b4min0
d4g4a4
mute/vib1
— 6 —
3-2. CHECKING TERMINALS AND COMPONENTS
GND
SDO
KC1KI9
GND N3
GND N1
GND
GND
GND
GND
SCK
VCC
GND
10. PCB ASS'Y
(10217728)
N4GND
N2GND
KI2
KI1
Short pad for N trimming
KI4
Short pad for switching modules
KI7-GND: Open (No Soldering)
KI8-GND: Open (No Soldering)
GND
GND
VC2
K17
K18
VDD3
VDD1 GND
LD1
CLF2L+CLF1
CLF2
CLF1
L–
GND
VOUT
KI6
VC1
GNDVCH
GND
KI5
VDD2
KI3
VOUT
CUSHION 506
(72119631)
KI6
KI5
VOSC GND
KI3
L–
VC1
GND
VCH
KI5
VOSC
AC
VDD2
GND
VDD2
VDD2
L+
KI2
GND L
GND
GND L
M–
VDD2LBD
L
KI2
CUSHION 6
(72110064)
VDD2
VDD2
M–
M– MTr
MTr
LD2
KC2
MTr
LD2
KC2
GND
VCC
LD3KC3
VDD2
GND
KI1
VCC
VCC
KI9
SENSOR/TILT
KC1 KI9
KC1
SDO
SCK
GND
(71055275)
CAPACITOR/TRIMMER
(10097666)
XT
KI4
XTB
XT
OSCILLATOR/CRYSTAL
(71101263)
— 7 —
4. EXPLODED VIEW: MODULE QW-2993
5 (10109740)
14 (72300980)
10 (10217728)
PCB ass'y
8 (10217727)
14 (72300980)
7 (10109739)
13 (72300868)
Battery/Lithium
(CR2025)
12 (72330952)
2 (72360286)
6 (10174365)
— 8 —
5. PARTS LIST: MODULE QW-2993
-
y
Note: 1. Prices and specifications are subject to change without prior notice.
2. Spare parts are classified as follows according to their importance in after-sales service.
A Rank ---------------------------------------- Very Important
B Rank ---------------------------------------- Important
C Rank ---------------------------------------
3. Batteries in Bulk pack on the tray will be supplied from our Overseas Spare Parts Section under charge basis.
Batteries in Blister pack will be supplied from our Sales Department.
4. As for order/supply of spare parts, refer to the separate publication "GUIDE BOOK for spare parts supply".
Item Code No. Parts Name Specification Applicable Q R
76409630 MODULE/WITHOUT MOVEMENT QW-2993YC-01TK RFT-100-1V/2V/4BV/4V/9V 1 A
1 10097666 CAPACITOR/TRIMMER CTZ2E-25C-W2-P QW-2993YC-01TK 1 B
2 72360286 CONTACT/BATTERY(-) 1650 Q357954C-1 QW-2993YC-01TK 1 C
3 72110064 CUSHION 6 Q4914A-1 QW-2993YC-01TK 1 C
4 72119631 CUSHION 506 Q49364-1 QW-2993YC-01TK 2 C
5 10109740 EL YEL-2630-A-01 QW-2993YC-01TK 1 A
6 10174365 HOLDER/BATTERY Q255555-1V03 QW-2993YC-01TK 1 C
7 10109739 INTERCONNECTOR Q470865-1 QW-2993YC-01TK 2 C
8 10217727 LCD K2993-01THP QW-2993YC-01TK 1 A
9 71101263 OSCILLATOR/CRYSTAL DT-26S07 QW-2993YC-01TK 1 B
10 10217728 PCB ASS'Y RJQ529632*099V01 QW-2993YC-01TK 1 A
11 71055275 SENSOR/TILT TS-2418-P QW-2993YC-01TK 1 B
12 72330952 SHEET/INSULATION 1028 Q434476-1 QW-2993YC-01TK 1 C
13 72300868 SPRING/COIL 1477 Q454339-1 QW-2993YC-01TK 1 B
14 72300980 SPRING/COIL 1514 Q456768-1 QW-2993YC-01TK 2 B
Less important
RFT-100WC-1V
For the prices and minimum order/suppl
quantities of the above parts, refer to the Parts Price List P.P.L.-627.
Notes: Q - Used quantity
R - Rank
— 9 —
6. PRECAUTIONS FOR REPAIR: MODULE QW-2993
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE
1. Perform AC (ALL CLEAR) when inserting a new battery, or else the memories and/ or counters may give
erratic displays.
Touch the AC contact and the main plate with the metallic tweezers.
The contact should be made for about two seconds.
2. On removing of the module from the case, please insert the precision screw driver between the module
and the case pointed by arrows.
Metallic tweezers
6-2. ACCURACY CHECKING
Check the accuracy of the module with the quartz timer after switching the module to “ACCURACY
CHECKING MODE”.
The operations are shown below:
A) SWITCHING TO “ACCURACY CHECKING MODE”
While pressing the D button, press A and C buttons at the normal timekeeping mode.
Then all the segments are displayed and the LCD drive signals are changed to the static drive signal
of “32 Hz” so that you can check the accuracy with the quartz timer.
B) CANCELLATION OF THE “ACCURACY CHECKING MODE”
Press any button, except for D button.
Then the display is returned to its original state.
NOTE: The “ACCURACY CHECKING MODE” will
automatically return to the regular mode
in 1 ~ 2 hour(s) without any operation.
QW-2993
— 10 —
Ver. 1 : Mar. 2006
Addition of the operation chart (page 2 to 5)
Correction of page 10
CASIO COMPUTER CO.,LTD.
Overseas Service Division
Shibuya-ku, Tokyo 151-8543, Japan
6-2, Hon-machi 1-Chome
Loading...
