Please keep all information for future reference.
Guarde toda información para tener como referencia futura.
ES
PX110ES1C
Safety Precautions
Before trying to use the piano, be sure to
read the separate “Safety Precautions”.
Precauciones de seguridad
Antes de intentar usar el piano, asegúrese
de leer las “Precauciones de seguridad”
separadas.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS.
When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord.
For that purpose, locate the apparatus in a way that secures easy access to the power cord.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Important!
Please note the following important information before using this product.
• Before using the AD-12 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully
check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor
that is seriously damaged.
• The product is not intended for children under 3 years.
• Use only CASIO AD-12 adaptor.
• The AC adaptor is not a toy.
• Be sure to disconnect the AC adaptor before cleaning the product.
This mark applies in EU countries only.
CASIO Europe GmbH
Bornbarch 10, 22848 Norderstedt, Germany
404A-E-002A
Contents
General Guide .......................... E-2
Attachment of the Score Stand .................. E-2
About the FUNCTION button...................... E-3
Numeric Input Keys and +/– Keys .............. E-4
Playing Back All the Music Library Tunes .. E-4
Power Supply ...........................E-4
Using the AC Adaptor ................................. E-4
Insert the score stand into the slot at the top of the
digital piano as shown in the illustration.
98
JKL
0
E-2
NOTE
• Each chapter of this manual starts with an illustration
of the piano’s console, which shows the buttons and
other controllers you need to operate.
FUNCTION
METRONOME
404A-E-004A
General Guide
1
PEDAL connector
2
DAMPER PEDAL jack
3
SOFT/SOSTENUTO PEDAL jack
4
POWER button
5
DC 12V jack
6
MIDI OUT/IN terminals
7
PHONES jacks
8
SONG/RHYTHM SELECT buttons
9
TEMPO buttons
0
TONE buttons
A
VOLUME knob
B
FUNCTION button
C
METRONOME button
D
INTRO/ENDING button
E
SYNCHRO/FILL-IN button
F
START/STOP, DEMO button
G
MUSIC LIBRARY, RHYTHM button
H
LEFT/TRACK 1 RIGHT/TRACK 2 button
I
SONG MEMORY button
J
TRANSPOSE buttons
K
TUNE buttons
L
BRILLIANCE buttons
M
SPLIT button
N
REVERB, REVERB TYPE button
O
CHORUS, CHORUS TYPE button
NOTE
• Key, button, and other names are indicated in the text of this manual using bold type.
About the FUNCTION button
The FUNCTION button makes it possible to perform a variety of useful functions. Note the following general
information about using the FUNCTION button.
● An indicator lamp above the FUNCTION button flashes while it is depressed. The lamp goes out when you
release the FUNCTION button.
FlashingUnlit
● The FUNCTION button is always used in combination with another button or keyboard key. You hold down
the FUNCTION button as you press another button or keyboard key.
• The indicator lamp above the button flashes for a few seconds at high speed to let you know that the setting is complete.
Example: “Adjusting the Brilliance of a Tone” on page E-6
● For details about all the keyboard key functions you can perform with the FUNCTION button, see “Setting
Control Key Chart” on page E-26.
404A-E-005A
E-3
General Guide
Numeric Input Keys and +/–
Keys
● For a moment after you hold down the FUNCTION
button and then press another button to activate a
function, you can use certain keyboard keys to input
numbers or to increase (+) and decrease (–) setting
values.
● Since the keyboard keys operate as switches at this
time, notes do not sound when you press keyboard
keys.
See “To adjust the tempo” on page E-10 for an actual
example.
Playing Back All the Music
Library Tunes
The following procedure plays back the Music Library
tunes in sequence.
While holding down the FUNCTION
1
button, press the DEMO button at the same
time.
• This starts sequential playback of the Music
Library tunes.
• You can play along with the Music Library tunes
on the keyboard, if you want. Tone assigned to
the keyboard is the one that is preset for the
Music Library tune that is playing.
Press the DEMO button again to stop Music
2
Library tune play.
Power Supply
You can power this digital piano by plugging it into a
standard household power outlet.
Be sure you turn off power and unplug the power cord
from the electrical outlet whenever the digital piano
is not in use.
Using the AC Adaptor
Make sure that you use only the AC adaptor specified
for this digital piano.
Specified AC Adaptor: AD-12
[Left Side Panel]
DC 12V jack
AC adaptor AD-12
Note the following important precautions to avoid
damage to the power cord.
● During Use
• Never pull on the cord with excessive force.
• Never repeatedly pull on the cord.
• Never twist the cord at the base of the plug or
connector.
• The power cord should not be stretched tight
while it is in use.
● During Movement
• Before moving the digital piano, be sure to
unplug the AC adaptor from the power outlet.
● During Storage
• Loop and bundle the power cord, but never wind
it around the AC adaptor.
IMPORTANT!
• Make sure that the product is turned off before connecting
or disconnecting the AC adaptor.
• Using the AC adaptor for a long time can cause it to
become warm to touch. This is normal and does not
indicate malfunction.
E-4
AC outlet
404A-E-006A
Connections
IMPORTANT!
• Whenever connecting external equipment, first set the
VOLUME knob of the digital piano and the volume
controller of the external equipment to relatively low
volume settings. You can later adjust volume to the level
you want after connections are complete.
• Be sure also to refer to the documentation that comes with
the external equipment for its proper connection
procedures.
Connecting Headphones
Connect commercially available headphones to the
digital piano’s PHONES jacks. This cuts off the builtin speakers, which means you can practice even late
at night without disturbing others. To protect your
hearing, make sure that you do not set the volume
level too high when using headphones.
[Left Side Panel]
PHONES jacks
Connecting to a PEDAL Jack
Depending on the type of operation you want the
pedal (SP-3) to perform, connect the pedal’s cable to
the digital piano’s PEDAL DAMPER jack or PEDAL
SOFT/SOSTENUTO jack. If you want to use both
jacks at the same time, you need to purchase another
optionally available pedal.
See “Using the Piano’s Pedals” on page E-8 for
information about using a pedal.
[Back Panel]
PEDAL jacks
Headphones
SP-3
PEDAL connector
You can connect the optionally available Pedal Unit
(SP-30) to the PEDAL connector. You can then use the
pedals for expression that is similar to that available
on an acoustic piano.
[Bottom]
PEDAL connector
Accessories and Options
Use only the accessories and options specified for this
digital piano. Use of non-authorized items creates the
danger of fire, electric shock, and personal injury.
404A-E-007A
E-5
Playing with Different Tones
Holding down the FUNCTION button,
Selecting and Playing a Tone
The piano comes with 11 built-in tones.
Press the POWER button.
1
1
press the BRILLIANCE buttons to adjust the
brilliance of a tone to the level that you
want.
POWER button
Use the VOLUME knob to adjust the
2
volume level.
Press the TONE button of the tone you want
3
to select.
• This causes the indicator lamp above the TONE
button to light.
Now try playing something on the
4
keyboard.
NOTE
• Hold down the FUNCTION button and press the
ACOUSTIC BASS button to select the RIDE ACO
BASS tone.
• Changing the tone selection causes DSP* to switch
automatically to the default setting for the newly
selected tone. This causes any notes that are
sounding at the time of the change to be interrupted
momentarily. The DSP* will be set to the default
setting for the newly selected tone when the note
resumes. (*See page E-8)
[] : produces a more mellow sound
[
] : produces a brighter sound
• To return the brilliance setting to its initial
default, hold down the FUNCTION button and
press both of the BRILLIANCE buttons at the
same time.
Layering Two Tones
Use the following procedure to layer to two tones, so
they sound at the same time.
Of the two TONE buttons you press to layer two tones,
the one on the left is the main tone, while the one on
the right is the layered tone.
Simultaneously press the TONE buttons of
1
the two tones that you want to layer.
Example: Press GRAND PIANO 2 button and
STRINGS button at the same time.
E-6
Adjusting the Brilliance of a Tone
You can adjust the clarity and sharpness of a tone to
suit your music and personal preferences.
FUNCTION
METRONOMEVOLUME
GRAND PIANO 2
STRINGS
• The tones are now layered.
BRILLIANCE
TONE
SPLIT
REVERB
CHORUSTEMPO
404A-E-008B
Playing with Different Tones
After you are finished using the layered
2
tones, press the one of the TONE buttons
again to unlayer them.
Adjusting the Volume Balance between
Two Layered Tones
While holding down the FUNCTION
1
button, use the keyboard keys shown below
to adjust the volume of the layered tones.
왗
왘
▲
▲
▲
▲
▲
▲
▲
C1
C2
C3
C4
C5
C6
Initial default (Center)
£
Volume of the main toneVolume of the layered tone
▲
C7
C8
¥
Specifying the Keyboard Tone Split Point
While holding down the SPLIT button,
1
press the keyboard key where you want the
left limit of the high range (right) tone to
be.
Left limit of the high range
Flash
NOTE
• The split point setting also controls the point where
the keyboard splits between the accompaniment
keyboard (pages E-12, 13) and the melody
keyboard. Moving the split point also affects the
sizes of the accompaniment keyboard and the
melody keyboard.
Low range
High range
• To return the volume setting to its initial default,
hold down the FUNCTION button and press
both of the keys at the same time.
Assigning Different Tones to the Left
and Right Sides of the Keyboard
You can assign different tones to keys on the left side
and the right side of the keyboard.
Low RangeHigh Range
STRINGSGRAND PIANO 2
Press the TONE button of the tone you want
1
to select for the high (right) range.
Example: GRAND PIANO 2
Press the SPLIT button.
2
• This causes the SPLIT indicator lamp to light.
Press the TONE button of the tone you want
3
to select for the low (left) range.
• The keyboard is now split between the two
Example: STRINGS
Split Point
tones.
Using Tone Effects
Reverb: Makes your notes resonate
Chorus: Adds more breadth to your notes
Turning Effects On and Off
Each press of the REVERB or CHORUS
1
button toggles the setting as shown below.
• You can determine the status of the effects by
checking the REVERB and CHORUS indicator
lamps.
Lit
On
Unlit
Off
4
404A-E-009A
After you are finished using the split
keyboard, press the SPLIT button again to
unsplit it.
• This causes the SPLIT indicator lamp to go out.
E-7
Playing with Different Tones
Changing the Effect Type
There are four reverb and four chorus types.
Turn on the effect you want to change.
1
While holding down the FUNCTION
2
button, press the REVERB or CHORUS
button to cycle through the effect type
settings as shown below.
[Reverb]
NOTE
• Under initial default settings, DSP is on for the main
tone, and layer and split are turned off. DSP can be
applied to only one part as shown below.
Room 1Room 2Hall 1Hall 2
[Chorus]
Chorus 1Chorus 2Chorus 3Chorus 4
About DSP
DSP makes it possible to digitally produce complex
acoustic effects.
The DSP is assigned to each tone whenever you turn
on digital piano power.
Main
Tone
Initial Defaults
Layer Tone DSP On
Split Tone DSP On
• You can turn chorus on or off for each main tone,
layer tone, and split tone part.
• You cannot turn reverb on or off for each main tone,
layer tone, and split tone part.
On
Off
Off
Layer
Tone
Off
On
Off
Split
Tone
Off
Off
On
Using the Piano’s Pedals
The digital piano is equipped with two pedal jacks, one
for a damper pedal and one for a soft/sostenuto pedal.
E-8
Turning DSP On and Off
While holding down the FUNCTION
1
button, press one of the keyboard keys
shown below to turn DSP on or off.
▲
▲
▲
C
1
C
2
▲
C
3
C
4
SP-3
Pedal functions
• Damper Pedal
Pressing the damper pedal while playing will cause
the notes you play to reverberate for a very long
time. When GRAND PIANO 1 or 2 is selected as
On
the tone, using this pedal causes note to reverberate
just like the pedal on an acoustic grand piano.
• Soft Pedal
Off
Pressing this pedal while playing weakens notes
played on the keyboard after the pedal was pressed,
and makes them sound softer.
▲
▲
▲
C
5
C
6
▲
C
7
C
8
• Sostenuto Pedal
Only the notes of the keys that are depressed when
this pedal is pressed are sustained until the pedal
is released.
404A-E-010B
Playing with Different Tones
Selecting the Pedal Function
A pedal connected to the piano’s PEDAL jack can
operate as either a soft pedal or a sostenuto pedal.
When you turn on the digital piano, the pedal is
initially configured for soft pedal operation. You can
perform the following operation to select either soft
or sostenuto for the pedal operation.
While holding down the FUNCTION
1
button, use the keyboard keys shown below
to select either soft or sostenuto.
Sostenuto
Soft
▲
▲
▲
▲
▲
▲
▲
C1
C2
C3
C4
C5
C6
▲
C7
C8
Adjusting the Effect Applied when the
Damper Pedal is Pressed Half Way
(With optional SP-30 only)
You can specify to what extent the damper effect
should be applied when you press the damper pedal
half way. A setting in the range of 0 (no effect) to 42
(same effect as full press) can be specified.
While holding down the FUNCTION
1
button, press one of the keyboard keys
shown below to specify the setting you
want.
▲
Using the Built-in Metronome
You can use the metronome to sound a count that helps
keep you in proper time.
NOTE
• If you want to use layer/split in combination with
the metronome, first press the RHYTHM button so
the rhythm lamp (under the button) is lit.
Press the METRONOME button.
1
• This starts the metronome.
While holding down the FUNCTION
2
button, use the keyboard keys shown below
to specify how many beats there are per
measure.
• The first value of the beat can be set to a value
of 2 through 6. The bell (indicating the first beat
of a measure) does not sound while a value of 0
is specified. All beats are indicated by a click
sound. This setting lets you practice with a
steady beat, without worrying about how many
beats there are in each measure.
While holding down the FUNCTION
3
button, use the TEMPO [
buttons to change the tempo (speed) of the
metronome.
] and []
C1
404A-E-011B
▲
▲
▲
▲
▲
▲
▲
C2
C3
C4
C5
왔 : Decreases the effect
왖 : Increases the effect
• To return the volume setting to its initial default,
hold down the FUNCTION button and press
both of the keys at the same time.
▲
C6
C7
Decreases the
▲
C8
4
tempo value
• You can also use keyboard keys to change the
tempo setting (see page E-10).
Press the METRONOME button again to
Increases the
tempo value
stop the metronome.
E-9

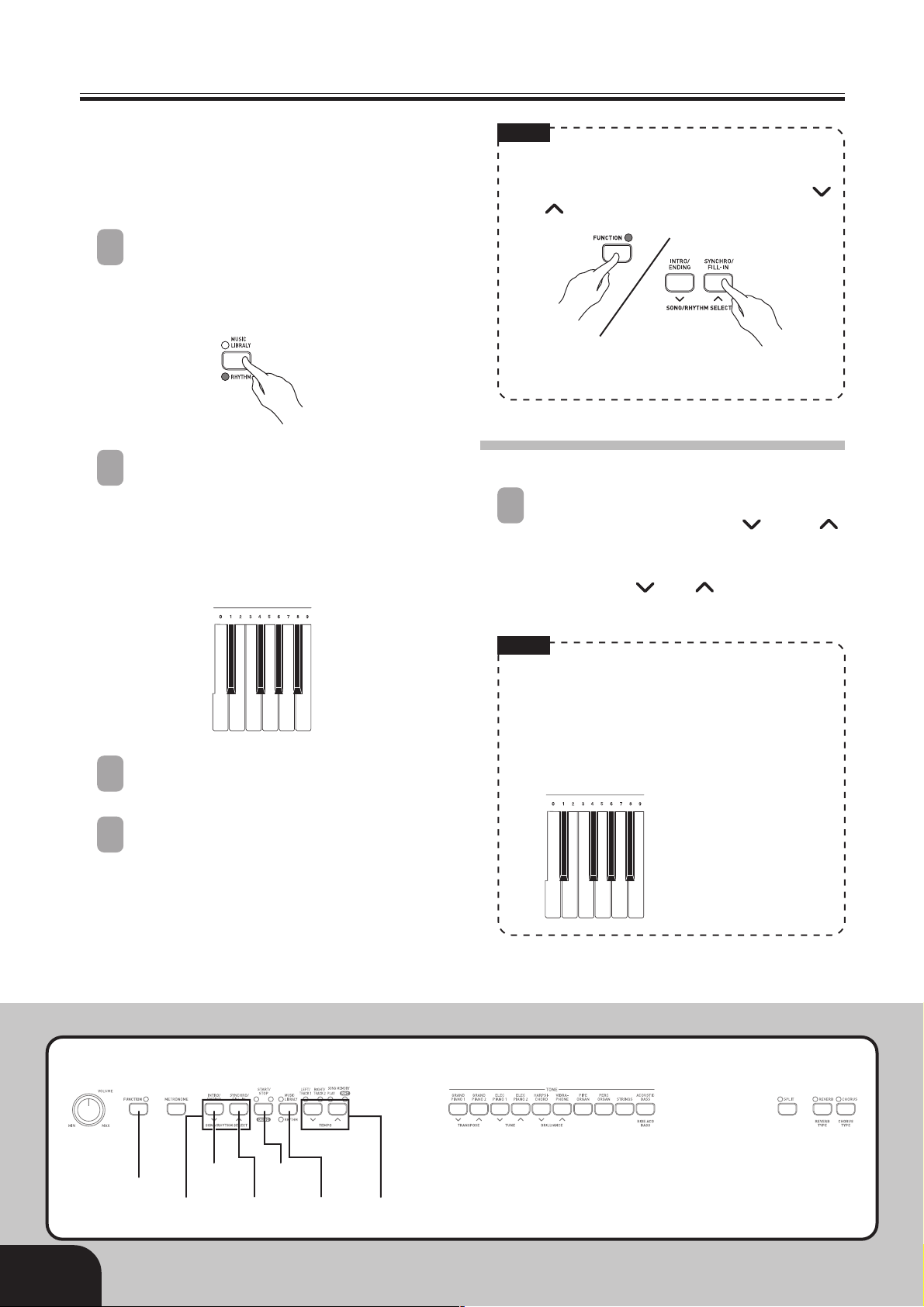

Playing Rhythms
You can select from among 20 built-in rhythms.
Rhythms 0 through 9 include percussion instrument
sounds, but rhythms 10 through 19 do not. See the
next page for information about how to use rhythms
10 through 19.
Press the RHYTHM button so the RHYTHM
1
indicator lamp (below the button) is lit.
• Each press of the button toggles between the
upper indicator lamp and lower indicator lamp.
While holding down the FUNCTION
2
button, use the keyboard keys shown below
to input a rhythm number.
• If you want your accompaniment rhythm to
include percussion instrument sounds, select a
rhythm in the range of 0 through 9.
NOTE
• You can also cycle through the available rhythms
in step 2 by holding down the FUNCTION button
and pressing the SONG/RHYTHM SELECT [
or [
] button.
• Pressing the two SONG/RHYTHM SELECT
buttons at the same time selects rhythm 0.
To adjust the tempo
While holding down the FUNCTION
1
button, use the TEMPO [
buttons to change the tempo (speed).
• To return to its standard tempo setting, press
the TEMPO [
time.
] and [] buttons at the same
] and []
]
Press the START/STOP button.
3
• This starts the rhythm.
Press the START/STOP button again to stop
4
the rhythm.
NOTE
• You can also use keyboard keys to change the tempo
setting.
(1) While holding down the FUNCTION button,
press the TEMPO button.
(2) While keeping the FUNCTION button
depressed, use the keyboard keys shown below
to input a number.
* Tempo Range: 30 to 255
E-10
FUNCTION
SONG/RHYTHM
SELECT
INTRO/
ENDING
START/
STOP
SYNCHRO/
FILL-IN
RHYTHM
TEMPO
404A-E-012A
Using Auto Accompaniment
With auto accompaniment, the keyboard
automatically plays rhythm, bass, and chord parts in
accordance with chords you select using simplified
keyboard fingerings, or chords you play. Auto
accompaniment makes it feel like you have your own
private backup group with you all the time.
NOTE
• Rhythms 10 through 19 consist of chord
accompaniments only without any drum or rhythm
sounds. These rhythms do not sound unless CASIO
CHORD, FINGERED, or FULL RANGE CHORD
is selected as the accompaniment mode. With such
rhythms, make sure that CASIO CHORD,
FINGERED, or FULL RANGE CHORD is selected
before you try playing chords.
To play with auto accompaniment
PREPARATION
• Select the rhythm you want to use and adjust the tempo.
Select one of the three chord modes
1
(MODE).
Playing Rhythms
Press the SYNCHRO/FILL-IN button.
2
• This configures the piano so rhythm and chord
accompaniment will start automatically when
you press any keys within the accompaniment
keyboard range.
Press the INTRO/ENDING button.
3
• This configures the piano so accompaniment
starts with an intro pattern.
Use a CASIO CHORD fingering to play the
4
first chord within the accompaniment
keyboard range.
• This will cause the intro pattern for the selected
rhythm to play, followed by the auto
accompaniment rhythm and chord pattern.
Use CASIO CHORD fingerings to play
5
other chords.
• See “How to Play Chords” on page E-12 for
information about how to finger chords with
the various chord modes.
• You can insert a fill-in pattern while an auto
accompaniment is playing by pressing the
SYNCHRO/FILL-IN button. A fill-in helps to
change the mood of the auto accompaniment
pattern.
To stop auto accompaniment play, press the
6
INTRO/ENDING button.
• This will play an ending pattern for the selected
rhythm before stopping auto accompaniment
play.
404A-E-013A
NORMAL
CASIO CHORD
• Here we will select the CASIO CHORD mode.
• See page E-12 for information about how to use
the chord modes.
FULL RANGE CHORD
FINGERED
NOTE
• You can start or stop auto accompaniment play
without an intro or ending pattern by pressing the
START/STOP button in steps 3 and 6.
• You can adjust the volume of auto accompaniment.
For more information see “Adjusting
Accompaniment and Built-in Tune Volume” on
page E-20.
E-11
Playing Rhythms
How to Play Chords
The way you finger chords depends on the current
chord mode.
■ Normal
In this mode there is no auto accompaniment, so you
can play all of piano’s keys for standard-fingering
chords or melody notes.
■ CASIO CHORD
This method of chord play makes it possible for
anyone to easily play chords, regardless of previous
musical knowledge and experience. The following
describes the CASIO CHORD “Accompaniment
keyboard” and “Melody keyboard”, and tells you how
to play CASIO CHORDs.
CASIO CHORD Accompaniment Keyboard and
Melody Keyboard
Accompaniment
keyboard
Melody keyboard
Chord Types
CASIO CHORD accompaniment lets you play four
types of chords with minimal fingering.
Chord Types
Major chords
Press one accompaniment key.
Note that the chord produced
when you press an
accompaniment keyboard key
does not change octave,
regardless of which key you use
to play it.
Minor chords (m)
To play a minor chord, keep the
major chord key depressed and
press any other accompaniment
keyboard key located to the right
of the major chord key.
Seventh chords (7)
To play a seventh chord, keep the
major chord key depressed and
press any other two
accompaniment keyboard keys
located to the right of the major
chord key.
Example
C Major (C)
##
CCDE F
EFGAABBCCDE FE
#
C minor (Cm)
##
CCDE F
EFGAABBCCDE FE
#
C seventh (C7)
##
CCDE F
EFGAABBCCDE FE
#
IMPORTANT!
• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.
• The split point (page E-7) is the point that separates the
Auto Accompaniment area and the melody area of the
keyboard. You can change the location of the split point,
which also changes the sizes of the keyboard areas.
Minor seventh chords (m7)
To play a minor seventh chord,
keep the major chord key
depressed and press any other
C minor seventh
(Cm7)
##
CCDE F
EFGAABBCCDE FE
#
three accompaniment keyboard
keys located to the right of the
major chord key.
NOTE
• It makes no difference whether you press black or
white keys to the right of a major chord key when
playing minor and seventh chords.
■ FINGERED
In this mode, you specify chords by playing them as you
would on a piano, inside the accompaniment keyboard
range. To specify a C-chord, you would play C-E-G
.
FINGERED Accompaniment Keyboard and Melody
Keyboard
E-12
Accompaniment
keyboard
Melody keyboard
404A-E-014A
Playing Rhythms
IMPORTANT!
• The accompaniment keyboard can be used for playing
chords only. No sound will be produced if you try playing
single melody notes on the accompaniment keyboard.
• The split point (page E-7) is the point that separates the
Auto Accompaniment area and the melody area of the
keyboard. You can change the location of the split point,
which also changes the sizes of the keyboard areas.
CCm
1
Caug *
2
Cm7 *
5 *1
C7
Cmadd9CmM7 *
Csus4
Cmaj7 *
C7sus4
2
2
Cdim
2
C7 *
5
Cm7
Cadd9
Cdim7 *
1
NOTE
• See the “Fingered Chord Chart” on page A-2 for
details on playing chords with other roots.
*1: Inverted fingerings cannot be used. The lowest
note is the root.
*2: The same chord can be played without pressing
the 5th G.
NOTE
• Except for the chords specified in note*1 above,
inverted fingerings (i.e. playing E-G-C or G-C-E
instead of C-E-G) will produce the same chords as
the standard fingering.
• Except for the exception specified in note*
all of the keys that make up a chord must be
pressed. Failure to press even a single key will not
play the desired FINGERED chord.
2
above,
■ FULL RANGE CHORD
This accompaniment method makes it possible to play
a total of 38 chord variations: the 15 available with
FINGERED plus 23 additional variations. The
keyboard interprets any input of three or more keys
that matches a FULL RANGE CHORD pattern to be a
chord. Any multi-key input that is not a FULL RANGE
CHORD pattern is interpreted as melody play. Because
of this, there is no need for a separate accompaniment
keyboard, and the entire keyboard from end-to-end
can be used for both melody and chords.
FULL RANGE CHORD Accompaniment Keyboard
and Melody Keyboard
Accompaniment keyboard/Melody keyboard
Chords Recognized by This Piano
The following table identifies patterns that are
recognized as chords by FULL RANGE CHORD.
Pattern Type
FINGERED
Standard
Fingerings
Example: To play the chord C major and .
E
Number of Chord Variations
The 15 chord patterns shown under
“FINGERED” on page E-12.
23 standard chord fingerings. The
following are examples of the 23
chords available with C as the bass
note.
C6• Cm6• C69
DCECFCGC A
D
••••• •
C
BCDmCDmCFmCGmCAmCBm
••••••
DdimCA
7
•••• •
Fm7CGm7C A
CF7C
B
C
C
C
add9
C
C
E
1
EG C
G C
2
1 ..... Chord C
2 ..... Chord C
C
E
NOTE
• If there are more than six semitones between the
lowest note and the next note to the right, the lowest
note is interpreted as a bass note.
404A-E-015A
E-13
Learning to Play the Music Library Tunes
Playing a Music Library Tune
Your piano comes with 60 Music Library tunes built
in. See the Song List on page A-1 of this manual for
more information.
Press the MUSIC LIBRARY button so the
1
MUSIC LIBRARY indicator lamp (above the
button) is lit.
• Each press of the button toggles between the
upper indicator lamp and lower indicator lamp.
While holding down the FUNCTION
2
button, press the keyboard keys shown
below to input a tune number.
NOTE
• You can also cycle through the available tunes in
step 2 by holding down the FUNCTION button and
pressing the SONG/RHYTHM SELECT [
[
] button.
• Pressing the two SONG/RHYTHM SELECT
buttons at the same time selects tune 0.
• You cannot use layer or split while playing a builtin tune.
] or
Turning the Count On and Off
Use the following procedure to turn the count that
sounds at the beginning of a song on and off.
While holding down the FUNCTION
1
button, press one of the keyboard keys
shown below to turn the count tone on or
off.
Press the START/STOP button.
3
• This starts the playback of the tune.
Press the START/STOP button again to stop
4
tune playback.
On
Off
▲
C1▲C2
▲
▲
▲
▲
▲
C3
C4
C5
C6
▲
C7
C8
E-14
START/
STOP
FUNCTION SONG/RHYTHM
SELECT
MUSIC
LIBRARY
LEFT/TRACK1
RIGHT/TRACK2
404A-E-016A
Practicing a Music Library Tune
You can turn off the left hand part or right hand part
of a Music Library tune and play along on the piano.
PREPARATION
• Select the tune you want to practice and adjust the tempo
(See “To adjust the tempo” on page E-10).
• The maximum tempo setting for each tune is double the
initial default tempo of the tune.
• A number of tunes have tempo changes part way through
in order to produce specific musical effects.
Use the LEFT/TRACK 1 RIGHT/TRACK 2
1
button to turn parts on or off.
• The indicator lamps above the button show the
current on/off status of the parts.
Press the START/STOP button.
2
• This starts playback of the tune, without the
part you selected in step 1.
Learning to Play the Music Library Tunes
Play the missing part on the piano’s
3
keyboard.
Press the START/STOP button again to stop
4
song playback.
404A-E-017A
E-15
Recording to and Playing Back from Song Memory
You can store the notes you play in Song Memory for
later playback.
NOTE
• You cannot use layer or split with Song Memory
record operation.
• The metronome beat setting changes to 0
automatically while you are using Song Memory.
This setting is fixed and cannot be changed.
Tracks
The song memory of this piano records and plays back
notes much like a standard tape recorder. There are
two tracks, each of which can be recorded separately.
Besides notes, each track can be assigned its own tone
number. During playback you can adjust the tempo
to change the speed of playback.
StartEnd
Track 1
Track 2
Auto Accompaniment
(rhythm, bass, chords), melody
Melody
Data recorded in track
Recorded Data Storage
This digital piano has a lithium battery to supply
power to retain memory contents even while power
is off.* The life of the lithium battery is five years after
the date of manufacture of the digital piano. Be sure
to contact your CASIO service provider about having
the lithium battery replaced every five years.
* Never turn off piano power while a record
operation is in progress.
IMPORTANT!
• If the data recorded in a single track uses up all the
available Song Memory capacity, you will not be able to
record anything in the other track.
• Recording new data to a track automatically deletes any
data previously stored in that track.
• Turning off power while a record operation is in progress
deletes anything recorded up to that point.
• CASIO COMPUTER CO., LTD. shall not be held
responsible for any losses by you or any third party due
to loss of data caused by malfunction or repair of this
digital piano, or by battery replacement.
Song Memory Capacity
• You can store a total of up to about 10,000 notes
(Track 1 + Track 2) in Song Memory.
• Recording stops automatically if the number of
notes in Song Memory exceeds the maximum while
you are recording. This is indicated by the REC
indicator lamp turning off.
Other Song Memory Data
The following data is included when recording to Song
Memory: keyboard play, selected tone, tempo setting
(Track 1 only), pedal operations, reverb and chorus
settings, DSP on/off setting, brilliance setting,
accompaniment volume setting, selected rhythm
(Track 1 only), chord mode (Track 1 only), and intro/
fill-in/ending control (Track 1 only).
SONG MEMORY Button Operation
Each press of the SONG MEMORY button cycles
through the functions shown below.
Playback
Standby
LitFlashUnlit
Record
Standby
Normal
E-16
INTRO/
ENDING
SYNCHRO/
FILL-IN
START/
STOP
SONG MEMORY
LEFT/TRACK1
RIGHT/TRACK2
404A-E-018B
Recording to and Playing Back from Song Memory
Recording Your Keyboard Play
You can record to either track with or without playback
of the other track.
To record to one track without playing
back the other
When recording a different tune to Track 2 after
recording to Track 1, make sure you carefully read the
notes under steps 1 and 2 before actually performing
the steps.
Press the SONG MEMORY button so the
1
PLAY indicator lamp is lit.
• Select the tone and effects you want to use in
your recording, and configure the tempo and
beat settings.
NOTE
• If you are recording a different tune to Track 2 after
recording to Track 1, press the LEFT/TRACK 1
RIGHT/TRACK 2 button to turn off the L/T1
indicator lamp.
UnlitLit
NOTE
• If you want to record to Track 2, press the LEFT/
TRACK 1 RIGHT/TRACK 2 button here. This will
cause the RIGHT/TRACK 2 indicator lamp to flash,
which indicates that the piano is standing by for
recording to Track 2.
• If you want to use the metronome during
recording, press the METRONOME button to
start it.
• If you want to use a rhythm and/or auto
accompaniment during recording (to Track 1
only), select the rhythm and chord mode.
Start playing something on the keyboard.
3
• This will automatically start recording.
• Actually, there are a variety of different ways
to start the record operation. See “Starting the
Record Operation” below for more information.
When you are finished, press the START/
4
STOP button to stop recording.
• If you are using a rhythm, you can stop
recording with an ending pattern by pressing
the INTRO/ENDING button.
• Stopping recording causes the REC indicator
lamp to go out, and indicator lamp above the
button of the track to which you recorded to
light.
• To play back the track you just recorded, press
the START/STOP button again.
After you are finished recording or playing
5
back, press the SONG MEMORY button so
the PLAY lamp or REC lamp turns off.
2
404A-E-019C
Press the SONG MEMORY button so the
REC indicator lamp is flashing.
• At this time the LEFT/TRACK 1 indicator lamp
should also be flashing. This indicates that the
piano is standing by for recording to Track 1.
Starting the Record Operation
You can use any of the following methods to start a
record operation in step 2 of the above procedure.
■ When recording to Track 1 with rhythm or auto
accompaniment
• Press the START/STOP button to start recording.
• Press the SYNCHRO/FILL-IN button to put the
piano into synchro start standby. Recording will
start when you finger a chord in the
accompaniment range of the keyboard.
• Press the INTRO/ENDING button to put the
piano into synchro start standby. Recording will
start and an intro pattern will play when you
finger a chord in the accompaniment range of the
keyboard.
E-17
Recording to and Playing Back from Song Memory
■ When recording to Track 1 without rhythm or
auto accompaniment
• Recording will start as soon as you play anything
on the keyboard.
■ When recording to Track 2
• Press the START/STOP button or play something
on the keyboard to start recording.
To record to a track while playing
back from the other
After you finish recording, you can play back Track 1
and Track 2 at the same time.
Example: To record to Track 2 while playing back the
contents of Track 1
Press the SONG MEMORY button so the
1
PLAY indicator lamp is lit.
Playing Back from Song Memory
Press the SONG MEMORY button so the
1
PLAY indicator lamp is lit.
Use the LEFT/TRACK 1 RIGHT/TRACK 2
2
button to select the track you want to play
back.
● The indicator lamps above the button show the
currently selected track.
• To play back Track 1, the LEFT/TRACK 1
indicator lamp should be lit.
• To play back Track 2, the RIGHT/TRACK 2
indicator lamp should be lit.
• To play back Track 1 and Track 2, both the
indicator lamps should be lit.
• Select the tone and effects you want to use while
recording.
Press the LEFT/TRACK 1 RIGHT/TRACK
2
2 button so LEFT/TRACK 1 indicator is lit.
Press the SONG MEMORY button again.
3
• This causes the LEFT/TRACK 1 indicator lamp
to flash. Press the LEFT/TRACK 1 RIGHT/
TRACK 2 button, so it causes the RIGHT/
TRACK 2 indicator lamp to flash, which
indicates that the piano is standing by for
recording to Track 2.
Press the START/STOP button or play
4
something on the keyboard to start
simultaneous playback from Track 1 and
recording to Track 2.
Press the START/STOP button.
3
• This starts playback of the track you selected.
• You can change the tempo setting as a track is
playing.
• As a track is playing, you can turn the
metronome on or off using the METRONOME
button.
• You cannot change the tone setting during
playback.
• Press the START/STOP button again to stop
playback.
E-18
When you are finished, press the START/
5
STOP button again to stop recording.
404A-E-020C
Recording to and Playing Back from Song Memory
Deleting Song Memory Data
IMPORTANT!
• The procedure below deletes all of the data from the
selected track. Note that the delete operation cannot be
undone. Check to make sure you really do not need the
data in Song Memory before you perform the following
steps.
Press the SONG MEMORY button so the
1
REC indicator lamp is flashing.
Use the LEFT/TRACK 1 RIGHT/TRACK 2
2
button to select the track you want to
delete.
• The indicator lamps above the button show the
currently selected track.
• To delete Track 1, the LEFT/TRACK 1 indicator
lamp should be flashing.
• To delete Track 2, the RIGHT/TRACK 2
indicator lamp should be flashing.
Hold down the SONG MEMORY button
3
until the REC indicator lamp stops flashing
and remains lit.
Press the LEFT/TRACK 1 RIGHT/TRACK
4
2 button.
• This deletes the selected track and enters the
standby state.
404A-E-021A
E-19
Other Settings
Adjusting Accompaniment and
Built-in Tune Volume
Perform the following operation to change the volume
level of the rhythm and chord accompaniment or builtin tune.
While holding down the FUNCTION
1
button, use the keyboard keys shown below
to raise (왖) or lower (왔) the accompaniment
or tune volume.
▲
▲
▲
▲
▲
▲
▲
▲
▲
C
1
C
2
C
3
C
4
C
5
C
6
왖 : Raises the accompaniment or tune volume
왔 : Lowers the accompaniment or tune volume
▲
C
7
C
8
Changing the Keyboard Touch
This setting changes the relative touch of the keyboard
keys.
While holding down the FUNCTION
1
button, press one of the keyboard keys
shown below.
WeakStrong
Off
Normal
▲
▲
▲
▲
▲
▲
C1
C2
C3
C4
C5
Off
Weak (Strong sound is produced even when
relatively light pressure is applied.)
Normal
Strong (Normal sound is produced even when
relatively strong pressure is applied.)
▲
C6
C7▲C8
E-20
FUNCTIONTRANSPOSE TUNE
404A-E-022A
Other Settings
Changing the Piano Key
Use this setting to raise or lower the overall key of the
keyboard in semitone steps.
Holding down the FUNCTION button,
1
press the TRANSPOSE buttons to raise or
lower the overall key of the keyboard.
[] : Raise
[
] : Lower
NOTE
• To return the piano key to C, hold down the
FUNCTION button and press the TRANSPOSE
[] and [] buttons at the same time.
• After using Transpose to raise the keyboard to a
high key, notes played at the highest range of the
keyboard may not sound properly for certain tones.
Using Digital Piano Setup
Memory
When setup memory is turned on, the digital piano
will remember its setup* whenever you turn it off. If
you turn off setup memory, settings will be cleared
when you turn off the digital piano.
Turning power off in the Music Library Mode
The next time you turn on the digital piano, the
following settings will be configured in accordance
with setup memory.
Tune selection, keyboard touch, pedal type, damper
pedal setting, metronome beat, layered tone volume
balance, split point, send channel
Turning off the digital piano while in the rhythm
mode
The next time you turn on the digital piano and enter
the rhythm mode, non-local control setting (see
“Using MIDI” below) will be configured in
accordance with setup memory.
While holding down the FUNCTION
1
button, press one of the keyboard buttons
shown below to turn setup memory on or
off.
Changing the Pitch of the Piano
to Match Another Instrument
Use this setting to raise or lower the overall pitch of
the piano. The setting range is plus or minus 50 cents
(100 cents = 1 semitone) from the standard pitch of
A4 = 440.0Hz.
Holding down the FUNCTION button,
1
press the TUNE buttons to raise or lower
the overall pitch of the piano.
[] : Raise
[
] : Lower
* Each press of the button changes the current setting by
approximately 1 cents (1/100 semitone).
On
Off
▲
▲
▲
▲
▲
▲
▲
C
1
C
2
C
3
C
4
C
5
C
6
▲
C
7
C
8
Using MIDI
What is MIDI?
The letters MIDI stand for Musical Instrument Digital
Interface, which is the name of a worldwide standard
for digital signals and connectors that makes it
possible to exchange musical data between musical
instruments and computers (machines) produced by
different manufacturers.
NOTE
• For detailed information about MIDI Implementation,
visit the
CASIO website at: http://world.casio.com/.
NOTE
• Holding down the FUNCTION button and pressing
the TUNE buttons [
returns tuning to the standard A
MIDI musical instrument
MIDI sequencer
Other MIDI device
Sender
OUTReceiver
MIDI Settings
1
Send Channel
Use this setting to specify one of the MIDI channels
(1 through 16) as the Send Channel for sending
MIDI messages to an external device.
2
Accomp/Song MIDI Out
Use this setting to specify whether or not MIDI
messages for the piano’s auto accompaniment and
song memory playback should be sent.
While holding down the FUNCTION
1
button, press one the keyboard keys shown
below to configure the setting you want.
▲
▲
C
1
1
Send Channel
– :Decreases value
+: Increases value
2
Accomp/Song MIDI Out
Off
On
3
MIDI IN Chord Judge
Off
On
4
Local Control
Off
On
▲
C
2
C
3
1
▲
▲
C
4
C
5
3
+
–
▲
C
6
On
Off
On
Off
▲
▲
C
7
C
8
42
On
Off
3
MIDI IN Chord Judge
Specifies whether chord judge should be performed
on accompaniment range MIDI Note On messages
received from an external device.
4
Local Control
This setting controls whether or not power is cut off
internally from the piano’s keyboard and sound
source. Turning off Local Control cuts off power to
the keyboard and source, which means that the piano
does not produce any sound when played. This
comes in handy when you want to turn off the piano’s
keyboard and use its auto accompaniment feature to
accompany an external sequencer or other device
.
E-22
404A-E-024A
Troubleshooting
Symptom
No sound produced when
keyboard keys are pressed.
Keyboard out of tune.
No sound produced by demo tune
play.
Possible Cause
1. VOLUME knob set to MIN.
2. Headphones connected to the
digital piano.
3. Local Control turned off.
4. Check the current
accompaniment mode setting.
Normally, the accompaniment
keyboard will not produce any
note while CASIO CHORD or
FINGERED is selected as the
accompaniment mode.
1. The piano key is set to a value
other than C.
2. Incorrect pitch setting of the
piano.
1. VOLUME knob set to MIN.
2. Headphones connected to the
digital piano.
Action
1. Move the VOLUME knob more
towards MAX.
2. Disconnect the headphones
from the digital piano.
3. Turn on Local control.
4. Change the accompaniment
mode to NORMAL.
1. Change the piano key setting to
C, or turn the digital piano
power off and then back on
again.
2. Correct the pitch setting, or turn
the digital piano power off and
then back on again.
1. Move the VOLUME knob more
towards MAX.
2. Disconnect the headphones
from the digital piano.
Reference
Page E-6
Page E-5
Page E-22
Page E-12
Page E-21
Page E-21
Page E-6
Page E-5
Memory contents deleted.
No sound produced by connected
external MIDI sound source when
the digital piano keys are pressed.
A tone’s quality and volume
sounds slightly different
depending where it is played on
the keyboard.
Lithium battery is dead.
1. The digital piano Send Channel
does not match the Send
Channel of the MIDI sound
source.
2. Volume or expression setting of
the external sound source is set
to 0.
This is an unavoidable result of the digital sampling process,* and does not indicate
malfunction.
* Multiple digital samples are taken for the low range, middle range, and high range of
the original musical instrument. Because of this, there may be a very slight difference
in tonal quality and volume between sample ranges.
Contact your CASIO Service
Provider for replacement of the
lithium battery.
1. Change the Send Channel
settings so they are identical.
2. Change the volume or
expression setting of the
external sound source to an
appropriate value.
Page E-25
Page E-22
See the
documentation
that comes with
the external
sound source.
404A-E-025B
E-23
Specifications
Model:PX-110
Keyboard:
Polyphony:
Tones:11; with layer, split
Digital Effects:Reverb (4 types), Chorus (4 types), DSP, Brilliance
Metronome:• Time Signatures: 0, 2, 3, 4, 5, 6
Auto Accompaniment:• Number of Rhythms: 20
Music Library:• Number of Tunes: 60
Song Memory:• Operations: Real-time recording, playback
Output Impedance: 170Ω
Output Voltage: 5.5V (RMS) MAX
E-24
• Design and specifications are subject to change without notice.
404A-E-026B
Operational Precautions
Locating the Unit
Avoid the following locations.
• Areas exposed to direct sunlight and high humidity
• Areas subjected to very low temperatures
• Near a radio, TV, video deck, or tuner (unit can
cause interference with audio or video signals)
Care of the Unit
• Never use benzene, alcohol, thinner or other such
chemicals to clean the exterior of the unit.
• To clean the keyboard, use a soft cloth dampened
with a weak solution of a mild neutral detergent
and water. Wring out all excess moisture from the
cloth before wiping.
Lithium Battery
You may notice lines in the finish of the case of
this product. These lines are the result of the
molding process used to shape the plastic of the
case. They are not cracks or breaks in the plastic,
and are no cause for concern.
NOTE
• Unauthorized reproduction of this manual in its
entirety or in part is expressly forbidden. All rights
reserved.
• CASIO COMPUTER CO., LTD. shall not be held
liable for any damages or losses or any claims by
third parties arising from use of this product or this
manual.
• The contents of this manual are subject to change
without notice.
This unit is equipped with a lithium battery to provide
power needed to retain memory contents while unit
power is turned off. Should the lithium battery go
dead, all memory contents will be lost whenever you
turn unit power off. The normal life of the lithium
battery is five years from the time that the battery was
installed. Be sure to periodically contact your retailer
or authorized service provider to have the lithium
battery replaced. Note that you will be charged
separately for lithium battery replacement.
• Note that CASIO COMPUTER CO., LTD. shall not
be held liable for any damages or losses or any
claims by third parties arising from corruption or
loss of data caused by malfunction or repair of the
unit, or from battery replacement.
404A-E-027A
E-25
Setting Control Key Chart
C
1
C
2
C
3
C
4
C
5
C
6
C
7
C
8
Off
Normal
Weak
Soft
Sostenuto
Damper Pedal Setting
Accompaniment/
Built-in Tune Volume
Count Tone
Keyboard Touch
Pedal Function
Off
On
Strong
Normal
FINGERE
D
CASIO CHORD
0
2
3
4
5
6
0
+
–
1
2
3
4
5
6
7
8
9
Chord Mode
Metronome Beat
+/–,
Number Input Keys
+
–
On
Off
On
Off
On
Off
O
n
Off
On
Off
Accomp/Song MIDI Out
S
e
nd
C
hannel
Layered tone
volume balance
D
S
P
The notes of the keys sound when pressed, even if the FUNCTION button is depressed.
C
4
– C
6
MIDI IN Ch
ord Judge
L
o
cal
C
o
ntrol
Setup
Memory
FULL-RANGE CHORD
E-26
While the FUNCTION button is depressed, the keyboard keys can be used to perform a variety of different setting functions.
* A value next to a note name indicates the relative position of the note on the keyboard as shown below.
404A-E-028A
Appendix/Apéndice
Tone List/Lista de sonidos
Tone Name/
Nombre de
sonidos
GRAND PIANO 1
GRAND PIANO 2
ELEC PIANO 1
ELEC PIANO 2
HARPSICHORD
VIBRAPHONE
PIPE ORGAN
PERC ORGAN
STRINGS
ACOUSTIC BASS
RIDE ACO BASS
Maximum
Polyphony/
Polifonía
máxima
16
32
32
16
32
32
32
16
32
32
16
Program
Change/
Cambio de
programa
0
1
4
5
6
11
19
17
49
32
32
Bank Select
MSB/
MSB de
selección de
banco
Rhythm List/Lista de ritmos
No./NºRhythm Name/Nombre de ritmo
00PIANO BALLAD 1
01PIANO BALLAD 2
02PIANO BALLAD 3
03EP BALLAD 1
04EP BALLAD 2
05BLUES BALLAD
06MELLOW JAZZ
07JAZZ COMBO
08RAGTIME
09BOOGIE-WOOGIE
10ARPEGGIO 1
11ARPEGGIO 2
12ARPEGGIO 3
13PIANO BALLAD 4
146/8 MARCH
15MARCH
162 BEAT
17WALTZ 1
18WALTZ 2
19WALTZ 3
NOTE
• Rhythms 10 through 19 consist of chord accompaniments
only, without any drums or other percussion instruments.
These rhythms do not sound unless CASIO CHORD,
FINGERED, or FULL RANGE CHORD is selected as the
accompaniment mode. With such rhythms, make sure
that CASIO CHORD, FINGERED, or FULL RANGE
CHORD is selected before you try playing chords.
NOTA
• Los ritmos 10 al 19 consisten solamente de
acompañamientos de acordes, sin ninguna batería ni otros
instrumentos de percusión. Estos ritmos no suenan a
menos que se seleccionen CASIO CHORD, FINGERED o
FULL RANGE CHORD como el modo de
acompañamiento. Con tales ritmos, asegúrese de que se
selecciona CASIO CHORD, FINGERED o FULL RANGE
CHORD, antes de tratar de ejecutar los acordes.
