Page 1
EV-510B (KX-619B)
(For NTSC)
FEB. 1997
UHF
VHF
13
30
1
40
2
50
3
62
4681012
CH
CH
(without price)
< TUNNING >
EV-510B
R
Page 2
CONTENTS
SPECIFICATIONS ......................................................................................... 1
BLOCK DIAGRAM ........................................................................................ 2
PRINTED CIRCUIT BOARDS ....................................................................... 3
EXPLODED VIEW ......................................................................................... 5
PARTS LIST .................................................................................................. 6
SCHEMATIC DIAGRAMS ............................................................................. 9
WAVEFORMS.............................................................................................. 11
Page 3
SPECIFICATIONS
Item Specification
1. Reception channels
2. Power voltage DC 6.0 V
3. Power consumption Approx. 2.3 W
4. Current consumption Approx. 383 mA
5. Power supply Car adaptor : CA-K65
6. Connection terminals External power jack : 6.0 V DC IN
7. Screen size 2.5 inches
VHF: 2 ~ 13 ch UHF: 21 ~ 69 ch
Batteries : 3 AA size batteries
AC adaptor : AD-K65
Earphone jack : 3.5ø mini
External antenna jack : 3.5ø mini
Audio / Video jack : 3.5ø
8. No. of Picture element 61,380 (220 × 279) dots
9. Dimensions 75 (W) × 26.7 (D) × 120.8 (H) mm
10. Weight 195 g excepting batteries
AC adaptor : AD-K65, 64
11. Options Car adaptor : CA-K65
RF connector : CF-13
Antenna matching device : AS-35S
— 1 —
Page 4
Antenna

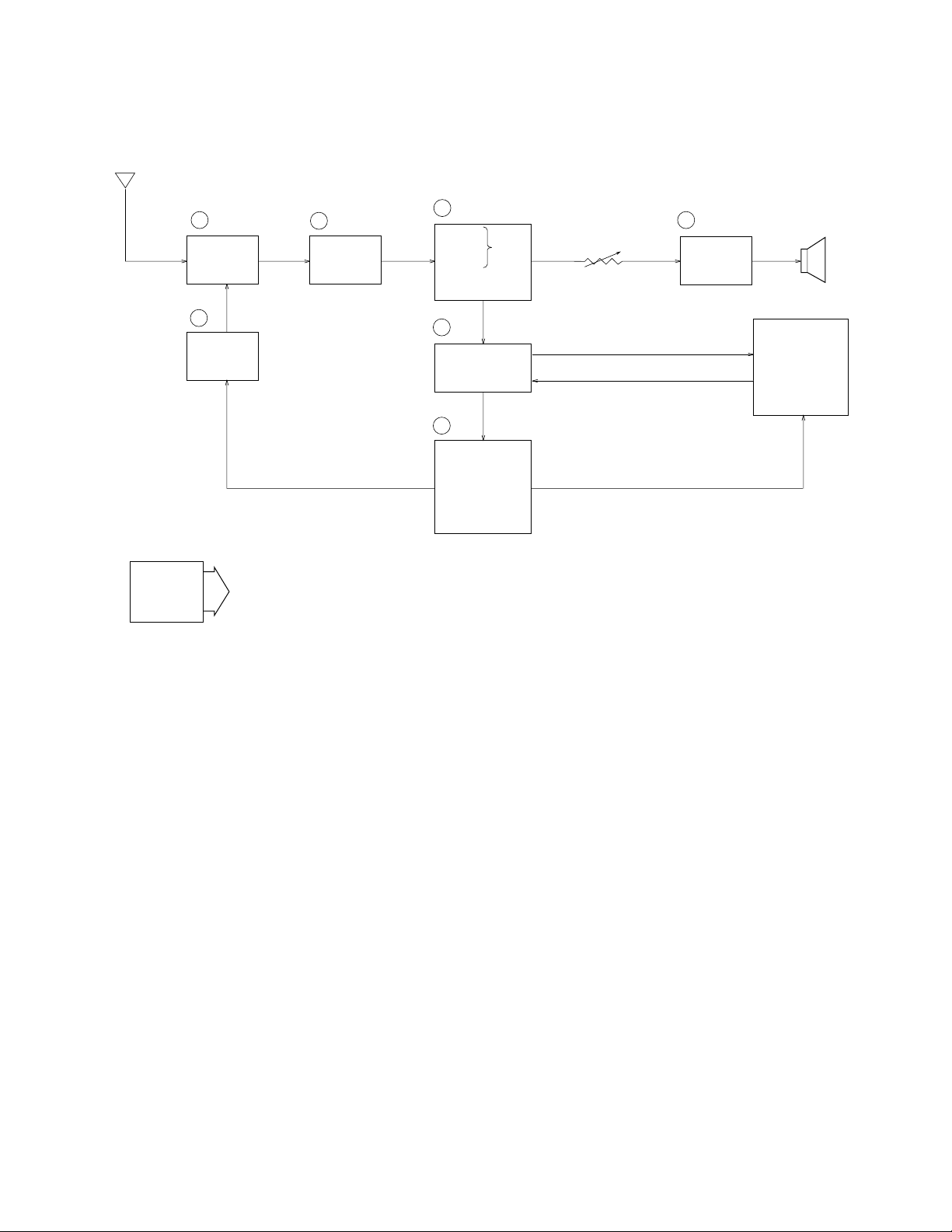

BLOCK DIAGRAM
Power
Supply
1 TU200 2 Q200
IF Amp.Tuner
7
IC270
Tuning
Voltage
Generator
VCC2 (4.5 ± 0.02 V)
VCC7 (25.9 ~ 31.3 V)
VCC6 (10.8 ~ 12.0 V)
VEE1 (–8.5 ~ –7.5 V)
VEE2 (–19.8 ~ –17.2 V)
3 IC200
Video
Sound Det.
FM
AFT Circuit
AGC Circuit
5
6
IC300
Chroma
Circuit
IC700
Display
Control
Auto-Tuning
Control
Det
4 IC600 Speaker
VR600
Audio
Amp.
Volume
Control
LCD
1 — Color tuner: TU200 TEPU5-02
Selects a desired radio wave and changes it to the video IF signal.
2 — Video IF amp.: Q200 2SC4238
Amplifies the video IF signal output from tuner TU200 by 10 times (20 dB).
3 — Video det./Sound det./FM det./AFT/AGC: IC200 M51348FP
Eliminates the carrier wave in the video IF signal, and picks up the video signal and the sound IF signal.
Also, the sound signal is picked up from the sound IF signal by FM detection.
4 — Audio amp.: IC600 NJM2070M
Sound amplification.
5 — Chroma circuit: IC300 IR3P90Y
Generates the tricolor (red, green, and blue) from the video signal.
6 — Display control/Auto-tuning control: IC700 MSM6770CGS
Controls the display.
7 — Tuning voltage generator: IC270 BA10358F
Generates the tuning voltage with the tuning pulse output from 6.
— 2 —
Page 5

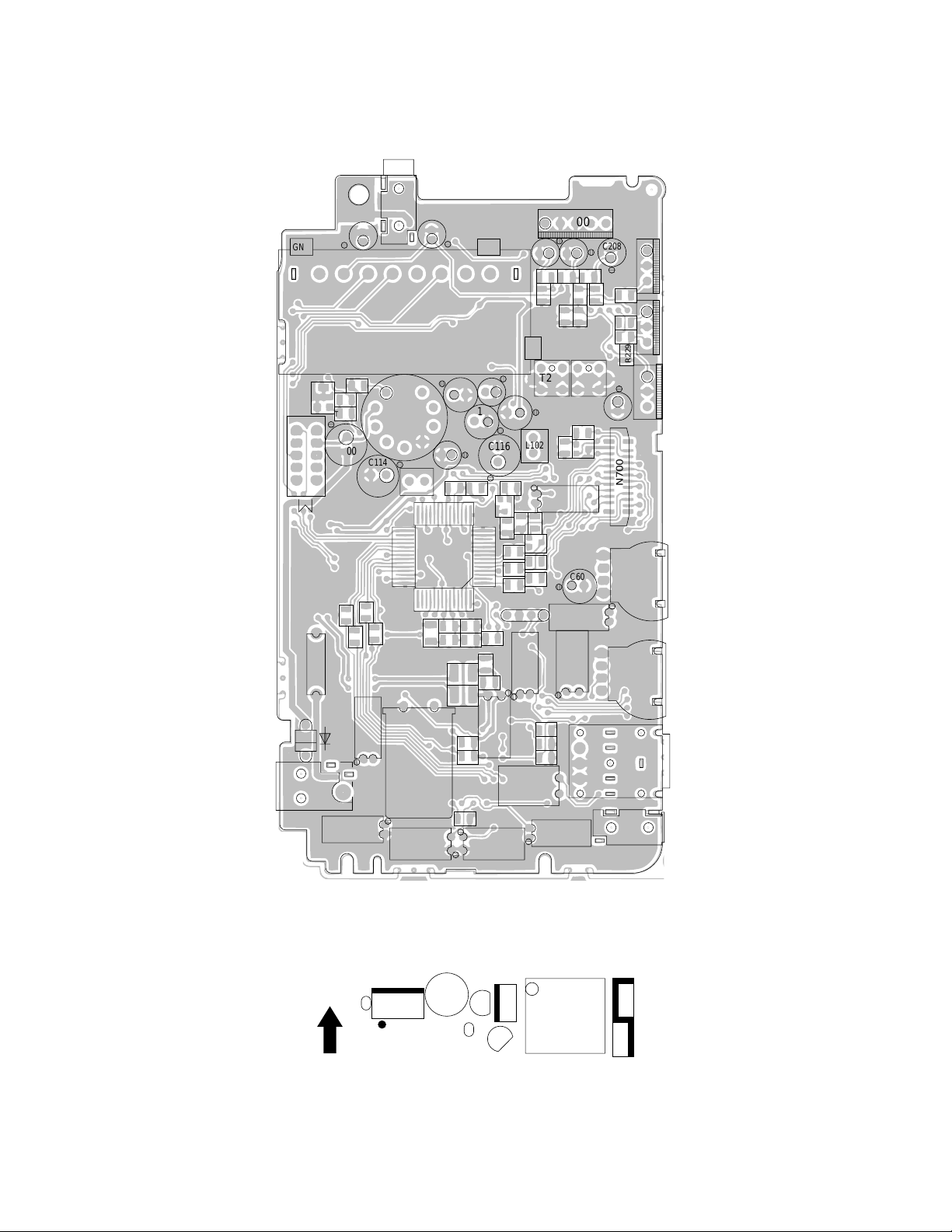

TOP VIEWS
PRINTED CIRCUIT BOARDS
Linear
GND
VR100
SW100
615B-L
FU100
R105
TM100
C100
C225
C145
C353
C352
C114
R736
JK200
TU200
T100
R737
C202
L101
IC700
GND
C120
C112
C118
C746 R780 R715
R750 R761
R751 C781
L301
L310
C752
C374
C725
C110
C116
Q760
C375
C220
R716
R707
R705
R701
HP900
C311
C205
R212 R209 R222
C245
GND
T201 T200
L102
C710
R711
R710
Q710
R706
R703
C603
F200
C207
C259
R758
Q750
R759
C606
C600
R223
R236
C208
R227
R224
R230
C257
C210
VR600
VR304
F201F202
R229
F203
CN700
BL
D180
JK100
615BL
C305
C306
R720
CN702
H300
C315
L950
R325
R312
C356
R950
C300
Q951
C312
Q950
C215
C925
C376
C380
C381
C301
T950
JK250
JK600
CN950
C927
— 3 —
Page 6

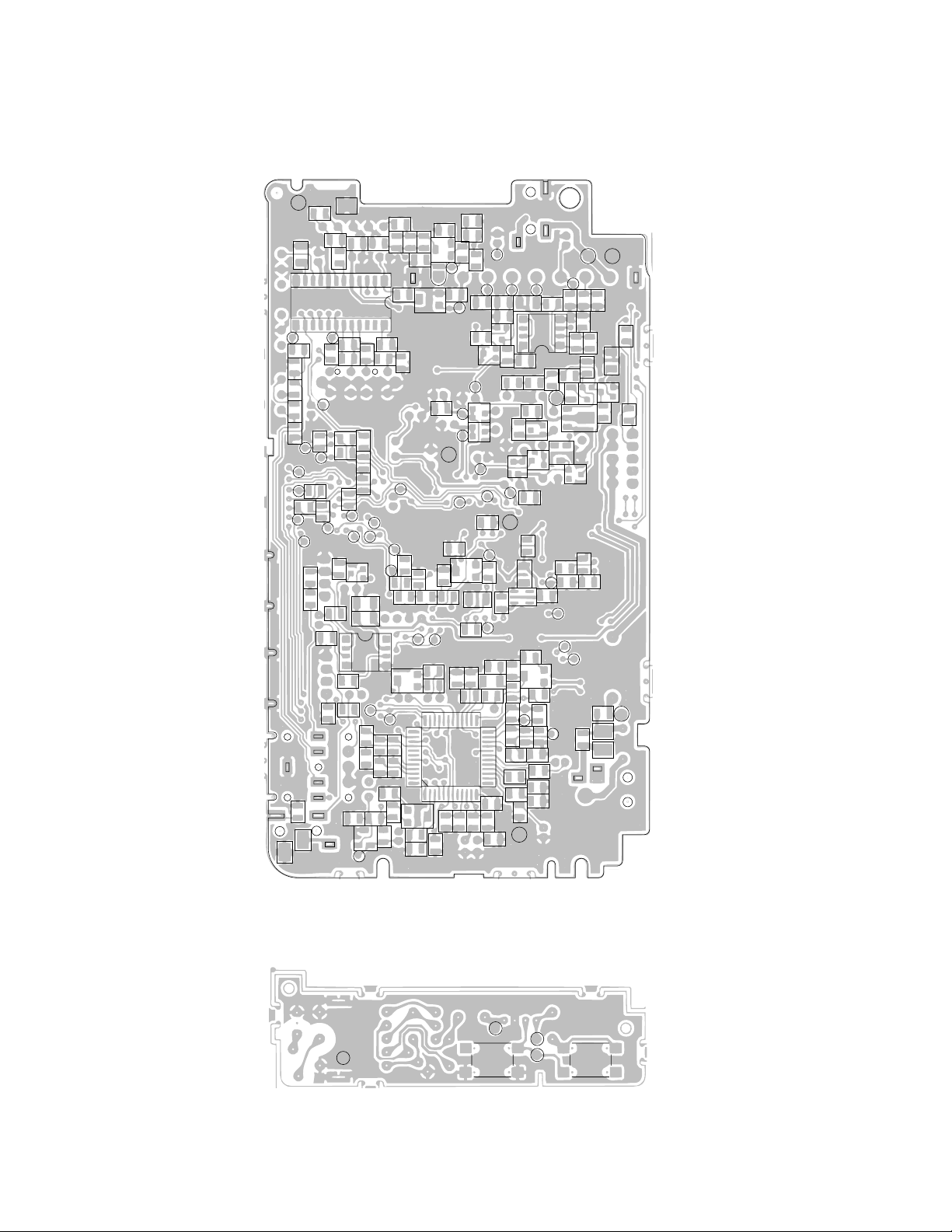

BOTTOM VIEWS
Linear
CP224
CP235
CP790
CP706
CP791
R225
R226C250L202R247
R793
CP321
CP320
R645
HP601
C242
C249
CP240
CP794
R770
HP600
R208
IC200
CP245
C791
R787
CP795
R600C630
R615
R610
GND
C243
R239
C261
R246
C790
R771
CP701
C631
R611
R353
R352
CP703
CP280
C246 C236
C263
C264
R228
C796
C795
C792
CP707
CP705
CP704
Q600
R606
R607
IC600
CP322
R331R330
R280R281
Q204
C240
L200
C239
R201
R211 C233
VR200
R241
C262
CP792
CP756
C788
R704
C787
R757
L756 R756
CP726CP717
VR303
CP323
R335R334
R333R332
R300
VR300
R301
C350
R282
C351
R204
R150
R351
R350
R205
Q200
CP221
HP200
CP211
CP115
CP114
CP101
CP718
C750
C786
IC300
R302
C354
VR740
R203
R202
CP206
C237
R207
CP210CP209CP208
C232 C231
R276
Q270
R277
Q272
R275
CP110
D150
D152
CP111
D154
CP113
CP724
CP780
C751
CP793
R749
C773
C774
CP750
R760
R322
C310
C373
R324
C371C372
R313 C363
C362
L300
R305
C355
R304
R303
C357
CP303
C200
C271
R160
C146
C150
IC701
R320
R323 C370
R315 C365
IC270
C140R115
CP100
D158
D156
L740
CP741
C770
C772
VR301
R321
CP312
C364
R311
C361
C360
R310
R270
R108
Q200
R739
CP310
CP311
R316
CP301
R314
CP204CP200
CP207
C234
R210
R272
R271
C137
Q110
R110
Q111
D100
C771
R740 R741
CP330
C181
C270
R113
Q101
C185
HP110
HP100
C230
R107
R175
C105
R170
CP185
BL
CP990
CP900
SW701
— 4 —
CP903
CP902
SW700
Page 7

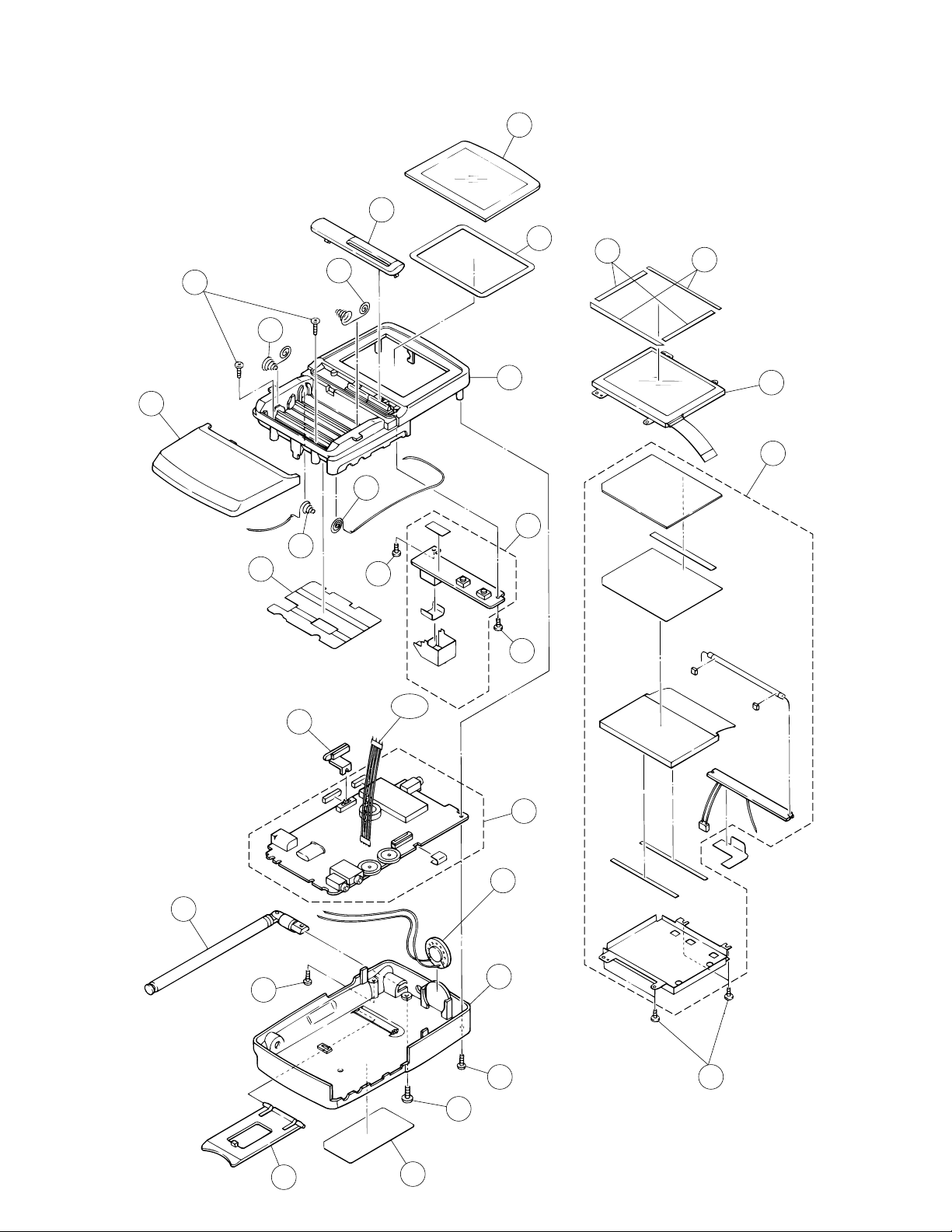

EXPLODED VIEW
1
3
2
23
5
9
10
6
4
8
11
7
24
24
20
19
21
22
14
23
12
13-1
25
15
16
23
13
24
18
17
— 5 —
Page 8
PARTS LIST
LINEAR PCB
Item Code No. Parts Name Specification Applicable Q R
Diodes
D100 2390 1183 Chip diode MA142WK-(TX) Common
D110 2315 0158 Chip zener diode MA3051-L(TX) Common
D150 2390 1183 Chip diode MA142WK-(TX) Common
D152 2390 1183 Chip diode MA142WK-(TX) Common
D154 2390 1183 Chip diode MA142WK-(TX) Common
D156 2390 1183 Chip diode MA142WK-(TX) Common
D158 2390 1470 Chip diode MA143A-(TX) Common
D180 2390 1190 Chip diode ERA15-01Y Common
Fuse
FU100 3632 0469 Fuse PI-251001(F10) Common
ICs
IC200 2114 1827 Linear IC M51348FP-T1 Common
IC270 2116 0119 OP AMP BA10358F-T1 Common
IC300 2114 3633 Linear IC IR3P90Y-1 Common
IC600 2114 2464 Linear IC NJM2070M-T1 Common
IC700 2015 0147 LSI MSM6770CGS-2K-6004 Common
IC701 2114 3458 IC S-81230SG-QB-T1 Common
Jacks
JK100 3501 8281 Jack HEC0811-010010 Common
JK200 3501 5439 Jack HSJ1456-01-210 Common
JK250 3501 3773 Jack HSJ6063-01-410 Common
JK600 3501 5439 Jack HSJ1456-01-210 Common
Transistors
Q101 2253 0133 Chip transistor 2SD1819A-R(TX) Common
Q110 2253 0133 Chip transistor 2SD1819A-R(TX) Common
Q111 2253 0308 Chip transistor 2SD1119-R(TX) Common
Q200 2252 0707 Chip transistor 2SC4238-(TX) Common
Q204 2210 8026 Chip transistor 2SB709A-R(TX) Common
Q270 2259 1435 Digital transistor DTC144EUWT106 Common
Q600 2259 1645 Digital transistor DTA144EUWT106 Common
Q750 2251 0189 Chip transistor 2SB1218A-R(TX) Common
Q760 2251 0189 Chip transistor 2SB1218A-R(TX) Common
Switch
SW100 3412 0938 Slide switch ESD-11V231 Common
Converter
T100 3065 0518 DC-DC converter LC12U-35 Common
Tuner
TU200 1013 5511 Tuner TEPU5-02 Common
Variable resistors
VR304 2765 1708 Volume XV081PV1NB10K3017 Common
VR600 2765 1708 Volume XV081PV1NB10K3017 Common
C
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
B
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
B
1
B
1
B
1
C
1
C
1
C
1
C
1
C
1
C
1
C
1
B
1
1C
C
1
C
1
Notes: Q – Quantity used per unit
R – Rank
— 6 —
Page 9
BL PCB
Item Code No. Parts Name Specification Applicable Q R
Transistors
Q950 2253 0287 Chip transistor 2SD965-R Common
Q951 2253 0287 Chip transistor 2SD965-R Common
Switches
SW700 3412 1029 Switch SKHHAL Common
SW701 3412 1029 Switch SKHHAL Common
Transformer
T950 3012 1239 Inverter trans NT-06 Common
B
2
B
2
C
2
C
2
B
1
Notes: Q – Quantity used per unit
R – Rank
— 7 —
Page 10
COMPONENT
Item Code No. Parts Name Specification Applicable Q R
1 6611 8830 Display plate BYM-K619 K440980-7 For U.S.A., Canada
1 6611 8740 Display plate BIM-K619 K440980-1 Others
2 6609 9080 Adhesive tape A-K615 K440178-1 Common
3 6609 9040 Upper cover B-K615 K240130-1 Common
4 6609 9031 Upper case B-K615 K140049A-1 Common
5 6020 7658 Battery spring B1 G513 P408A-1 Common
6 6020 7666 Battery spring B2 G513 P409A-1 Common
7 6609 9070 Battery spring A-K615 K440159-1 Common
8 6609 9060 Battery spring B-K615 K440243-1 Common
9 6609 9000 Battery cover B-K615 K240129-1 Common
10 6609 9050 Battery blind plate A-K615 K440179-1 Common
11 6611 4975 BL PCB unit K440948*1 Common
12 6609 9220 Switch knob A-K615 K340117-1 Common
13 6611 8714 Linear PCB ass'y K340740*1 Common
13-1 6609 9090 Flat cable A-K615 K340176-1 Common
14 3851 1470 Rod antenna VR70100GA Common
15 3831 0987 Speaker 2083G Common
16 6609 8970 Lower case B-K615 K140050-1 Common
17 6611 8850 Rating plate BIM-K619 K440981-1 Common
18 6608 8420 Stand A-K331 K310518-1 Common
19 6611 5150 Cushion A-K615 K440931-1 Common
20 6611 5160 Cushion B-K615 K440931-2 Common
21 2725 1326 Display unit COD25T2015PB Common
22 6611 4978 BL unit K340703*1 Common
23 5112 0868 Screw BT3 1.7X5 Bk Common
24 5860 0420 Screw BT3 1.7X4 Ni Common
25 6609 1290 Screw A-K610 K412031-1 Common
1014 7996 Earphone UO0021#01-0 Common
1014 7989 Soft case SC-615 Common
C
1
C
1
X
1
X
1
X
1
X
1
X
1
X
1
X
1
X
1
X
1
C
1
X
1
B
1
C
1
B
1
C
1
X
1
X
1
C
1
X
2
X
2
B
1
A
1
C
4
C
6
C
1
X
1
X
1
Notes: Q – Quantity used per unit
R – Rank
— 8 —
Page 11

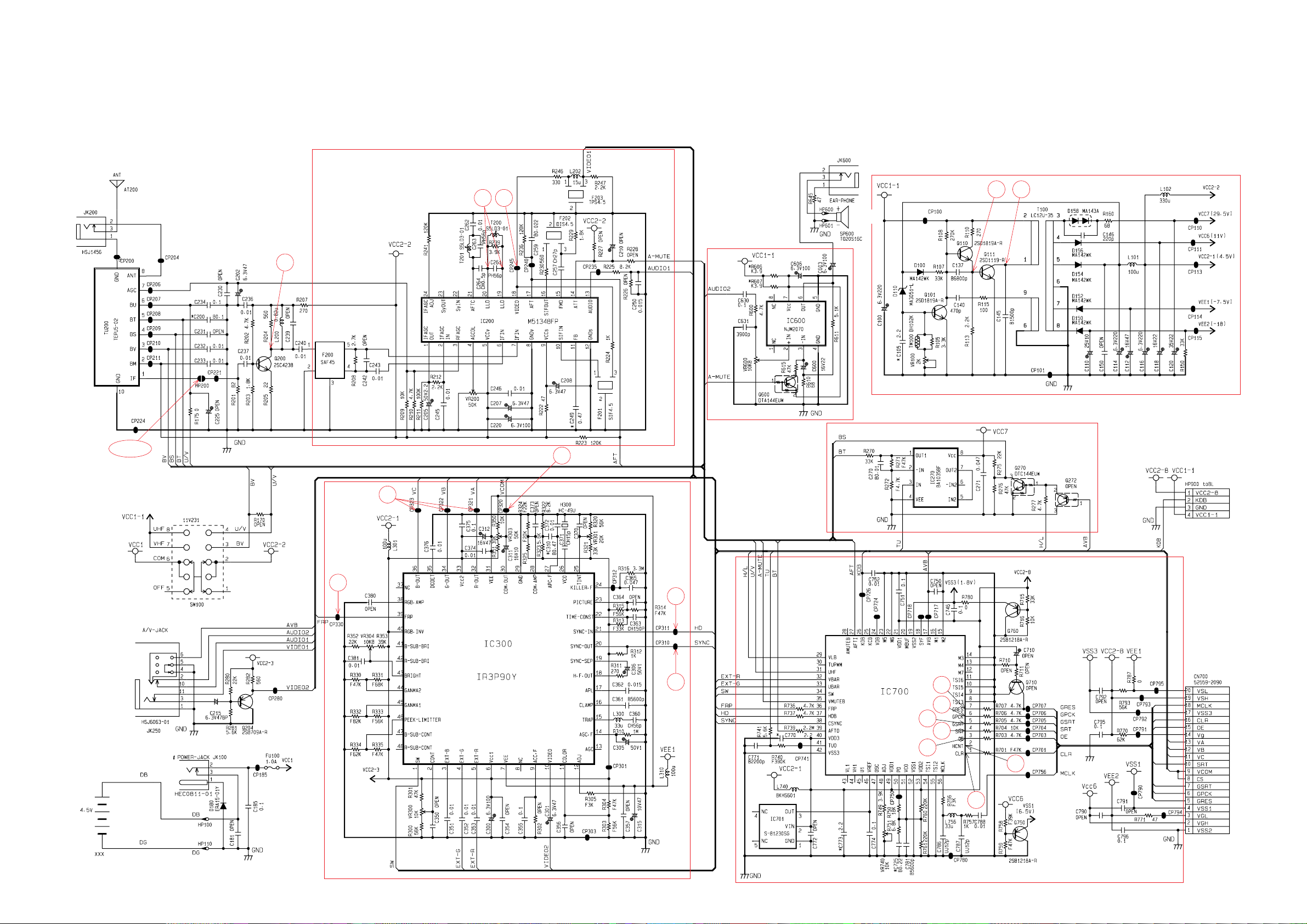

SCHEMATIC DIAGRAMS
LINEAR
External
Antenna
Jack
Tuner
Antenna
IF Pad
Earphone Jack
3 4
Speaker
1
Tuning Voltage Generator Circuit
Audio Amplifier Circuit
IF Detection Circuit
17
8 9
Power Supply Circuit
Audio/Video
Jack
Power Switch
DC In
5
7
6
2
MSM6770CGS
16
15
14
13
12
11
10
Display Controller
To Back
Light
Circuit
To LCD
Chroma Circuit
— 9 —
Page 12

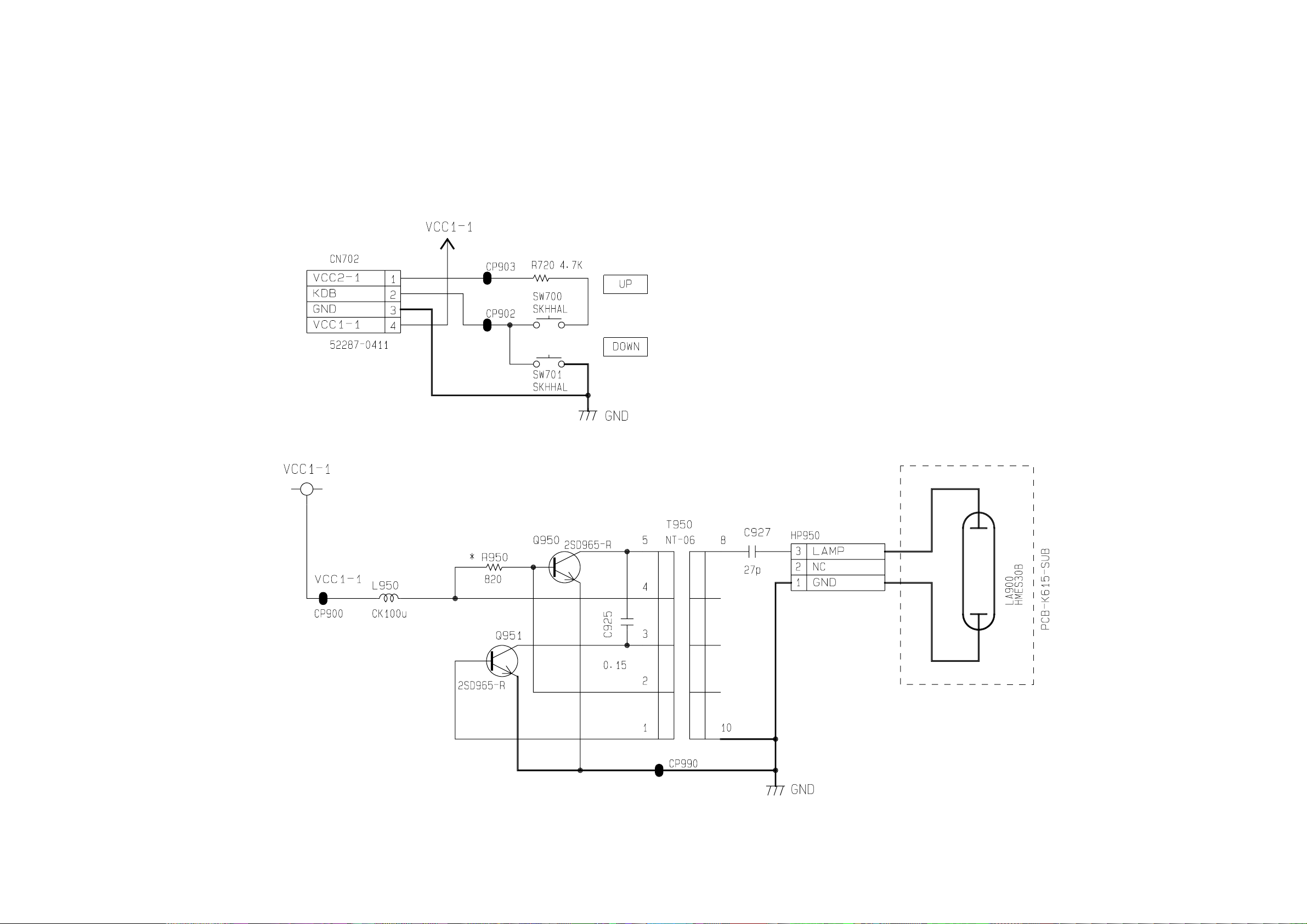

BL
— 10 —
Page 13
120 mV

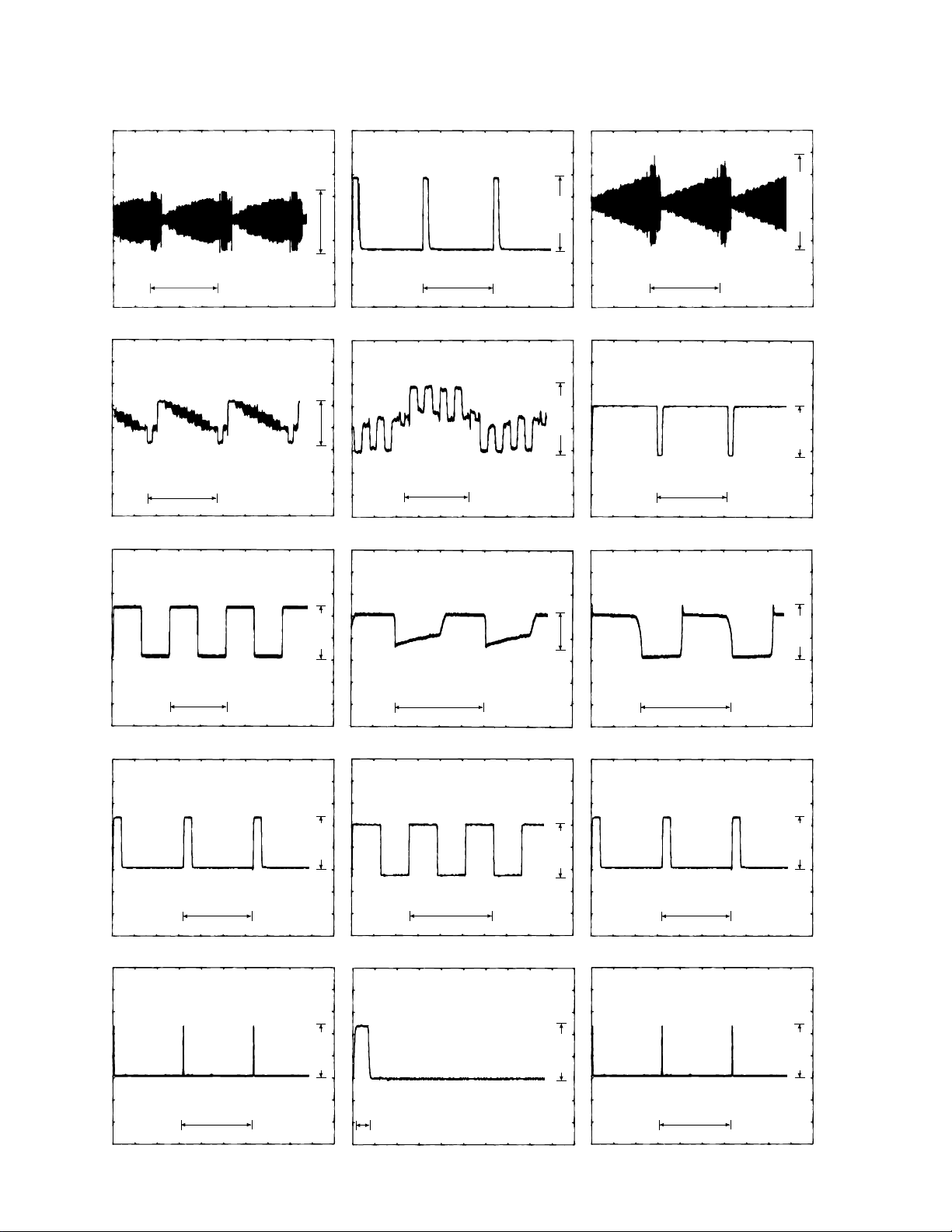

WAVEFORMS
63.5 µs
1 Q200 collector
63.5 µs
4 IC200 pin 18
2 IC300 pin 20
1.0 V
5 IC300 pins 32, 34, 36
4.4 V
63.5 µs
63.5 µs
4.0 V
3 IC200 pins 19, 20
4.5 V
6 IC300 pin 21
1.5 V
80.0 mV
63.5 µs
4.4 V
63.5 µs
10 V
7 IC300 pin 39

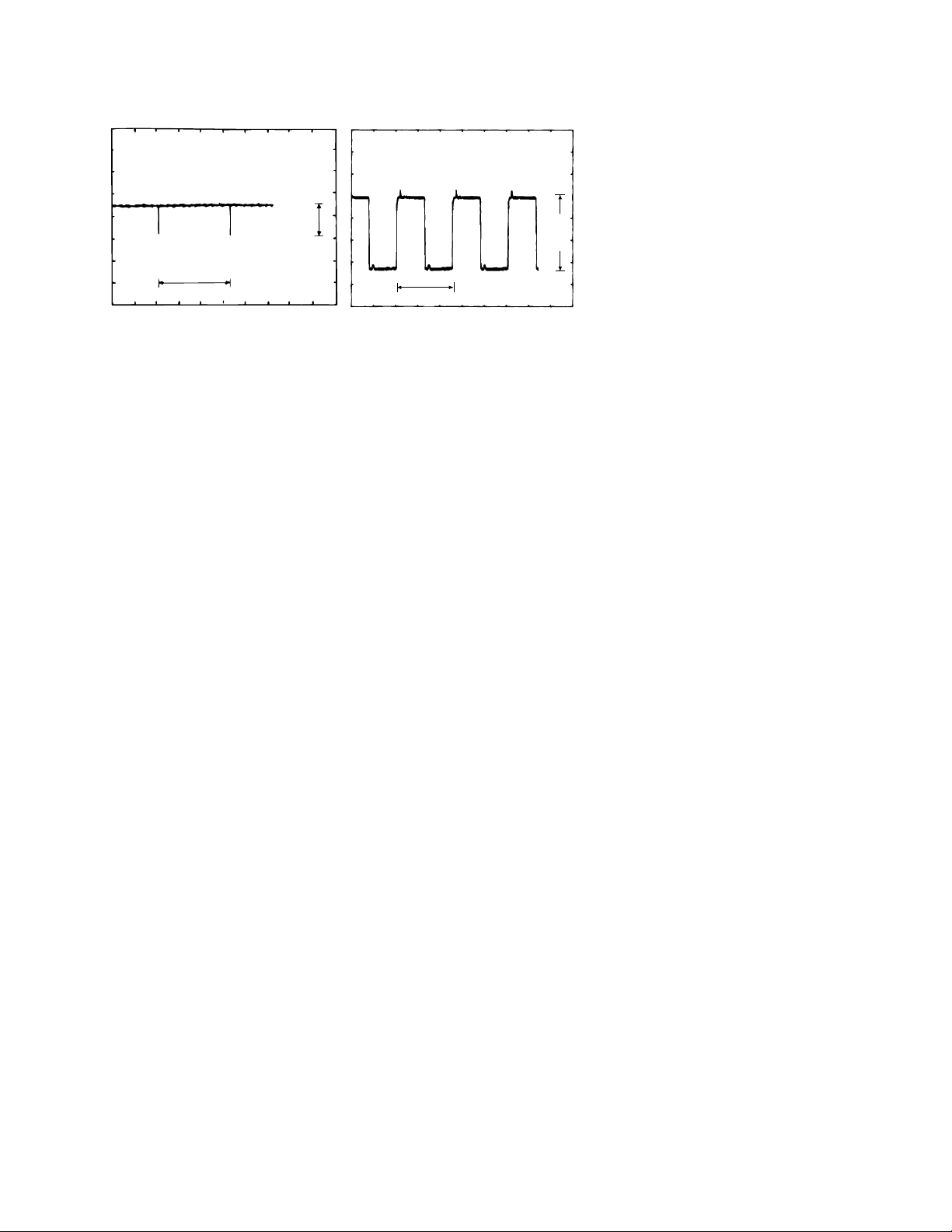

0 IC700 pin 1
C IC700 pin 4
125 µs
63.5 µs
63.5 µs
8 Q111 base
2.8 V
A IC700 pin 2
2.8 V
3 µs
D IC700 pin 5
12 µs
125 µs
9 Q111 collector
2.8 V
B IC700 pin 3
4.5 V
E IC700 pin 6
12 µs
2.8 V
63.5 µs
4.5 V
63.5 µs
— 11 —
Page 14
4.5 V
5 V
F IC700 pin 7
63.5 µs
125 µs
G IC300 pin 30
— 12 —
Page 15
MA0300271A
8-11-10, Nishi-Shinjuku
Shinjuku-ku, Tokyo 160, Japan
Telephone: 03-3347-4926
Loading...
