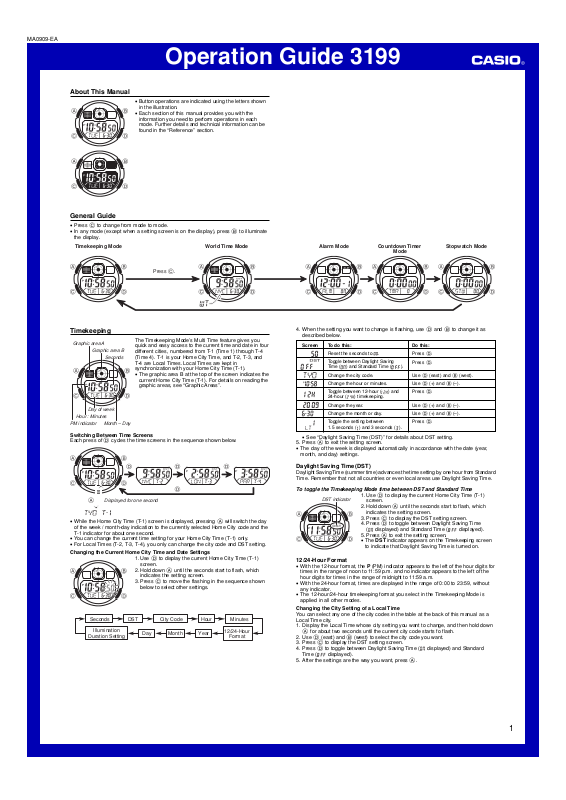

MA0909-EA
Operation Guide 3199
About This Manual
• Button operations are indicated using the letters shown
in the illustration.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
General Guide
• Press C to change from mode to mode.
• In any mode (except when a setting screen is on the display), press B to illuminate
the display.
Timekeeping Mode World Time Mode Alarm Mode Countdown Timer
Press .
Timekeeping
Graphic area A
Graphic area B
Seconds
Day of week
Hour : Minutes
PM indicator
Switching Between Time Screens
Each press of D cycles the time screens in the sequence shown below.
• While the Home City Time (T-1) screen is displayed, pressing A will switch the day
of the week / month-day indication to the currently selected Home City code and the
T-1 indicator for about one second.
• You can change the current time setting for your Home City Time (T-1) only.
• For Local Times (T-2, T-3, T-4), you only can change the city code and DST setting.
Changing the Current Home City Time and Date Settings
Month – Day
Displayed for one second
Seconds City Code
Illumination
Duration Setting
The Timekeeping Mode’s Multi Time feature gives you
quick and easy access to the current time and date in four
different cities, numbered from T-1 (Time 1) through T-4
(Time 4). T-1 is your Home City Time, and T-2, T-3, and
T-4 are Local Times. Local Times are kept in
synchronization with your Home City Time (T-1).
• The graphic area B at the top of the screen indicates the
current Home City Time (T-1). For details on reading the
graphic areas, see “Graphic Areas”.
1. Use D to display the current Home City Time (T-1)
screen.
2. Hold down A until the seconds start to flash, which
indicates the setting screen.
3. Press C to move the flashing in the sequence shown
below to select other settings.
DST
Day Month
Hour
Year
Minutes
12/24-Hour
Format
4. When the setting you want to change is flashing, use D and B to change it as
described below.
Screen
To do this:
Reset the seconds to .
Toggle between Daylight Saving
Time ( ) and Standard Time ( ).
Change the city code.
Change the hour or minutes.
Toggle between 12-hour ( ) and
24-hour ( ) timekeeping.
Change the year.
Change the month or day.
Toggle the setting between
1.5 seconds ( ) and 3 seconds ( ).
• See “Daylight Saving Time (DST)” for details about DST setting
5. Press A to exit the setting screen.
• The day of the week is displayed automatically in accordance with the date (year,
month, and day) settings.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from Standard
Time. Remember that not all countries or even local areas use Daylight Saving Time.
To toggle the Timekeeping Mode time between DST and Standard Time
DST indicator
12/24-Hour Format
• With the 12-hour format, the P (PM) indicator appears to the left of the hour digits for
times in the range of noon to 11:59 p.m. and no indicator appears to the left of the
hour digits for times in the range of midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
• The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is
applied in all other modes.
Changing the City Setting of a Local Time
You can select any one of the city codes in the table at the back of this manual as a
Local Time city.
1. Display the Local Time whose city setting you want to change, and then hold down
A for about two seconds until the current city code starts fo flash.
2. Use D (east) and B (west) to select the city code you want.
3. Press C to display the DST setting screen.
4. Press D to toggle between Daylight Saving Time (
Time (
5. After the settings are the way you want, press A.
displayed).
1. Use D to display the current Home City Time (T-1)
2. Hold down A until the seconds start to flash, which
3. Press C to display the DST setting screen.
4. Press D to toggle between Daylight Saving Time
5. Press A to exit the setting screen.
• The DST indicator appears on the Timekeeping screen
Mode
screen.
indicates the setting screen.
(
displayed) and Standard Time ( displayed).
to indicate that Daylight Saving Time is turned on.
Stopwatch Mode
Do this:
Press D.
Press D.
Use D (east) and B (west).
Use D (+) and B (–).
Press D.
Use D (+) and B (–).
Use D (+) and B (–).
Press D.
.
displayed) and Standard
1
Operation Guide 3199
Changing Your Home City Time
Use the following procedure to change your current Home City Time to any one of the
three Local Times.
1. In the Timekeeping Mode, press D to display the Local Time which you want to
make your Home City Time.
2. Press A and B at the same time.
• This makes the Local Time you selected in step 1 your new Home City Time.
Illumination
An LED (light-emitting diode) illuminate the display for easy reading in the dark.
Illumination Precautions
• The illumination provided by the light may be hard to see when viewed under direct
sunlight.
• Illumination automatically turns off whenever an alarm sounds.
• Frequent use of illumination runs down the battery.
To turn on illumination
In any mode (except when a setting screen is on the display), press B to turn on
illumination.
• You can use the procedure above to select either 1.5 seconds or 3 seconds as the
illumination duration. When you press B, the illumination will remain on for about
1.5 seconds or 3 seconds, depending on the current illumination duration setting.
World Time
City code
Current time and date in
the zone of the selected
city code
To toggle a city code time between Standard Time and Daylight Saving Time
DST indicator
To change your Home Time city to the current World Time city
1. In the World Time Mode, use D to display the city you want to make your new
Home Time city.
2. Press A and B at the same time.
• This makes the World Time city you selected in step 1 your new Home Time city.
World Time shows the current time in 48 cities (31 time
zones) around the world.
• All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
To view the time for another city code
In the World Time Mode, press D to scroll eastwardly
through city codes.
• For full information about city codes, see the “City Code
Table”.
• If the current time for a city is wrong, check your
Timekeeping Mode time and time zone settings and
make the necessary changes.
1. In the World Time Mode, use D (east) to display the
city code (time zone) whose Standard Time/Daylight
Saving Time setting you want to change.
2. Hold down A for about one second to toggle Daylight
Saving Time (DST displayed) and Standard Time (DST
not displayed).
• The DST indicator is on the display whenever you
display a city code for which Daylight Saving Time is
turned on.
• Note that the DST/Standard Time setting affects only the
currently displayed city code. Other city codes are not
affected.
• Note that you cannot switch between Standard Time
and Daylight Saving Time while UTC is selected as the
city code.
4. While a setting is flashing, use D and B to change it as described below.
Screen
To do this:
Change the hour
and minutes.
Toggle between
/
One-time Alarm
and Daily Alarm.
5. Press A to exit the setting screen.
Alarm Operation
The alarm tone sounds at the preset time for 10 seconds, regardless of the mode the
watch is in.
• Alarm and Hourly Time Signal operations are performed in accordance with the
Timekeeping Mode time.
• To stop the alarm tone after it starts to sound, press any button.
To test the alarm
In the Alarm Mode, hold down D to sound the alarm.
To turn an alarm on and off
1. In the Alarm Mode, use D to select an alarm.
2. Press A to cycle through the alarm settings as shown below.
Alarm Off
• In all modes, the alarm on indicator is shown for the alarm that is currently turned
on.
• The alarm on indicator flashes while the alarm is sounding.
To turn the Hourly Time Signal on and off
Hourly time signal
on indicator
Do this:
Use D (+) and B (–).
• With the 12-hour format, set the time correctly as a.m.
or p.m. (P indicator).
Press D.
One-time Alarm on:
Daily Alarm on:
One-Time Alarm
On
1. In the Alarm Mode, use D to select the Hourly Time
Signal.
2. Press A to toggle it on and off.
• The Hourly Time Signal on indicator is shown on the
display in all modes while this function is turned on.
Daily Alarm On
Countdown Timer
Seconds
The countdown timer can be set within a range of one
second to 24 hours. An alarm sounds when the
countdown reaches zero.
• All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C.
Alarms
Alarm on indicator
Alarm number
Alarm time
(Hour : Minutes)
To set an alarm time
2. After you select an alarm, hold down A until the hour setting of the alarm time
starts to flash, which indicates the setting screen.
• This operation turns on the One-time Alarm automatically.
3. Press C to move the flashing in the sequence shown below to select other settings.
Your watch has a total of five alarms, each of which you
can configure as a daily alarm or one-time alarm.
• Daily Alarm: Sounds at the preset time each day.
• One-time Alarm: Sounds once at the preset time and
then is disabled automatically.
You can also turn on an Hourly Time Signal that causes
the watch to beep twice every hour on the hour.
• All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C.
• Alarms operate in coordination with the current Home
City Time.
1. In the Alarm Mode, use D to scroll through the alarm
screens until the alarm number you want to set is
displayed.
Hour Minutes
One-time Alarm/Daily Alarm Selection
Hours
Minutes
1/10 second
To configure the countdown timer
3. When the setting you want to change is flashing, use D (+) and B (–) to change
the flashing item.
• To specify a countdown start time of 24 hours, set
4. Press A to exit the setting screen.
To use the countdown timer
1. While the countdown start time is on the display in the
Countdown Timer Mode, hold down A until the current
countdown start time starts to flash, which indicates the
setting screen.
2. Press C to move the flashing in the sequence shown
below to select other settings.
Hours Minutes
Seconds
.
Press D while in the Countdown Timer Mode to start the
countdown timer.
• When the end of the countdown is reached, the alarm
sounds for ten seconds or until you stop it by pressing
any button. The countdown time is reset to its starting
value automatically when the alarm sounds.
• Press D while a countdown operation is in progress to
pause it. Press D again to resume the countdown.
• To stop a countdown operation completely, first pause it
(by pressing D), and then press A. This returns the
countdown time to its starting value.
2
Operation Guide 3199
Stopwatch
Seconds
Hours
Minutes
1/100 second
To measure times with the stopwatch
Elapsed Time
Start
Split Time
Start
Two Finishes
Start
The stopwatch lets you measure elapsed time, split times,
and two finishes.
• A display range of the stopwatch is 23 hours,
59 minutes, 59.99 seconds.
• A stopwatch continues to run, restarting from zero after
it reaches its limit, until you stop it.
• A stopwatch measurement operation continues even if
you exit the Stopwatch Mode.
• Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
• All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C.
Stop Re-start Stop Clear
Split
(SPL displayed)
Split Stop Split release Clear
First runner finishes.
Display time of first
runner.
Split release Stop Clear
Second runner
finishes.
Display time of
second runner.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Graphic Areas
There are two graphic areas named A and B.
Hour hand
Second hand Minute hand
Graphic area A
• Graphic area A: In the Timekeeping Mode and World Time Mode, segments indicate
• Graphic area B: In all modes, segments indicate the current Home City Time (T-1)
Button Operation Tone
To turn the button operation tone on and off
In any mode (except when a setting screen is on the display), hold down C to toggle
the button operation tone on (the mute indicator not displayed) and off (the mute
indicator displayed).
• Holding down C to turn the button operation tone on or off also causes the watch’s
current mode to change.
• The mute indicator is displayed in all modes when the button operation tone is
turned off.
Auto Return Features
• If you leave the watch in the Alarm Mode for two or three minutes without performing
any operation, it automatically changes to the Timekeeping Mode.
• If you leave a screen with flashing digits on the display for two or three minutes
without performing any operation, the watch automatically exits the setting screen.
Scrolling
The B and D buttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls at high speed.
Initial Screens
When you enter the World Time or Alarm Mode, the data you were viewing when you
last exited the mode appears first.
Timekeeping
••
• Resetting the seconds to
••
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to
• The year can be set in the range of 2000 to 2099.
• The watch’s built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s battery replaced.
the current time (in units of 10 seconds). In the Countdown Timer
Mode and Stopwatch Mode, segments indicate the ongoing timer
measurement (in units of 1/10 second).
hour, minute, and second.
Mute indicator
00
without changing the minutes.
The button operation tone sounds any time you press one
of the watch’s buttons. You can turn the button operation
tone on or off as desired.
• Even if you turn off the button operation tone, the
alarms, the Hourly Time Signal, and the countdown
alarm all operate normally.
00
while the current count is in the range of 30 to 59
Graphic area B
World Time
• The seconds count of the World Time is synchronized with the seconds count of the
Timekeeping Mode.
• All World Time Mode times are calculated from the current Home City Time in the
Timekeeping Mode using UTC time offset values.
• The UTC offset is a value that indicates the time difference between a reference
point in Greenwich, England and the time zone where a city is located.
• The letters “UTC” is the abbreviation for “Coordinated Universal Time”, which is the
world-wide scientific standard of timekeeping. It is based upon carefully maintained
atomic (cesium) clocks that keep time accurately to within microseconds. Leap
seconds are added or subtracted as necessary to keep UTC in sync with the Earth’s
rotation.
Auto Display
Auto Display continually changes the contents of the digital display.
To turn off Auto Display
Press any button to turn off Auto Display. This returns to the Timekeeping Mode.
To turn on Auto Display
In the Timekeeping Mode, hold down D for about three seconds until the watch
beeps.
Note
• Auto Display cannot be performed while a setting screen is on the display.
Specifications
Accuracy at normal temperature: ±30 seconds a month
Timekeeping: Hour, minutes, seconds, p.m. (P), month, day, day of the week
Time format: 12-hour and 24-hour
Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2099
Other: Multi Time (one Home City Time and three Local Times); Daylight Saving
Time (summer time)/Standard Time
World Time: 48 cities (31 time zones) and Coordinated Universal Time
Other: Standard Time/Daylight Saving Time (summer time); Home Time City/
World Time City swapping
Alarms: 5 alarms (One-time or Daily), Hourly Time Signal
Countdown Timer
Measuring unit: 1/10 second
Input range: 1 second to 24 hours (1-second increments, 1-minute increments and
Stopwatch
Measuring unit: 1/100 second
Measuring capacity: 23:59' 59.99''
Measuring modes: Elapsed time, split time, two finishes
Illumination: LED (light-emitting diode); Selectable illumination duration
Other: Button operation tone on/off; Auto Display function
Battery: One lithium battery (Type: CR2025)
Approximately 10 years on type CR2025; 10 seconds of alarm operation,
1.5 seconds of illumination per day
1-hour increments)
City Code Table
City
PPG
HNL
ANC
YVR
LAX
YEA
DEN
MEX
CHI
NYC
SCL
YHZ
YYT
RIO
Fernando de Noronha
FEN
RAI
UTC
LIS
LON
PAR
BER
STO
ATH
CAI
JRS
City
Pago Pago
Honolulu
Anchorage
Vancouver
Los Angeles
Edmonton
Denver
Mexico City
Chicago
New York
Santiago
Halifax
St. Johns
Rio De Janeiro
Praia
Lisbon
London
Madrid
Paris
Rome
Berlin
Stockholm
Athens
Cairo
Jerusalem
Code
MAD
ROM
• Based on data as of December 2008.
• The rules governing global times (UTC offset and GMT differential) and summer
time are determined by each individual country.
UTC offset/
GMT Differential
–11
–10
–9
–8
–7
–6
–5
–4
–3.5
–3
–2
–1
0
+1
+2
City
Code
MOW
JED
THR
DXB
KBL
KHI
DEL
KTM
DAC
RGN
BKK
SIN
HKG
BJS
TPE
SEL
TYO
ADL
GUM
SYD
NOU
WLG
City
Moscow
Jeddah
Tehran
Dubai
Kabul
Karachi
Delhi
Kathmandu
Dhaka
Yangon
Bangkok
Singapore
Hong Kong
Beijing
Taiepei
Seoul
Tokyo
Adelaide
Guam
Sydney
Noumea
Wellington
UTC offset/
GMT Differential
+3
+3.5
+4
+4.5
+5
+5.5
+5.75
+6
+6.5
+7
+8
+9
+9.5
+10
+11
+12
3
Loading...
