Casio A178WA-1A, 2519 User Manual

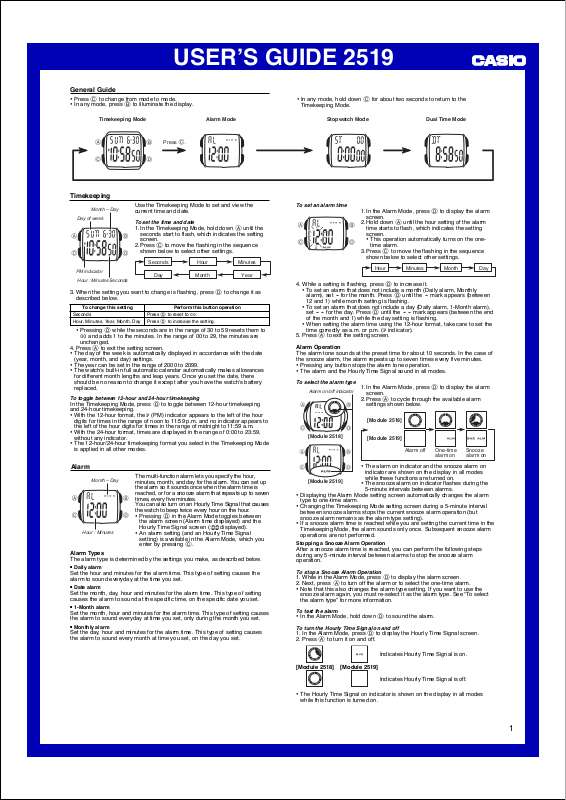

USER’S GUIDE 2519
[Module 2518]
[Module 2519]
Alarm on/off indicator
General Guide
• Press C to change from mode to mode.
• In any mode, press B to illuminate the display.
Timekeeping Mode
Press .
• In any mode, hold down C for about two seconds to return to the
Timekeeping Mode.
Alarm Mode Stopwatch Mode Dual Time Mode
Timekeeping
Month – Day
Day of week
PM indicator
Hour : Minutes Seconds
3. When the setting you want to change is flashing, press D to change it as
described below.
To change this setting
Seconds
Hour, Minutes, Year, Month, Day
• Pressing D while the seconds are in the range of 30 to 59 resets them to
00 and adds 1 to the minutes. In the range of 00 to 29, the minutes are
unchanged.
4. Press A to exit the setting screen.
• The day of the week is automatically displayed in accordance with the date
(year, month, and day) settings.
• The year can be set in the range of 2000 to 2099.
• The watch’s built-in full automatic calendar automatically makes allowances
for different month lengths and leap years. Once you set the date, there
should be no reason to change it except after you have the watch’s battery
replaced.
To toggle between 12-hour and 24-hour timekeeping
In the Timekeeping Mode, press D to toggle between 12-hour timekeeping
and 24-hour timekeeping.
• With the 12-hour format, the P (PM) indicator appears to the left of the hour
digits for times in the range of noon to 11:59 p.m. and no indicator appears to
the left of the hour digits for times in the range of midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59,
without any indicator.
• The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode
is applied in all other modes.
Use the Timekeeping Mode to set and view the
current time and date.
To set the time and date
1.In the Timekeeping Mode, hold down A until the
seconds start to flash, which indicates the setting
screen.
2.Press C to move the flashing in the sequence
shown below to select other settings.
Seconds Hour
Day Month
Perform this button operation
Press D to reset to 00.
Press D to increase the setting.
Minutes
Year
Alarm
Month – Day
Hour : Minutes
Alarm Types
The alarm type is determined by the settings you make, as described below.
••
• Daily alarm
••
Set the hour and minutes for the alarm time. This type of setting causes the
alarm to sound everyday at the time you set.
••
• Date alarm
••
Set the month, day, hour and minutes for the alarm time. This type of setting
causes the alarm to sound at the specific time, on the specific date you set.
••
• 1-Month alarm
••
Set the month, hour and minutes for the alarm time. This type of setting causes
the alarm to sound everyday at time you set, only during the month you set.
••
• Monthly alarm
••
Set the day, hour and minutes for the alarm time. This type of setting causes
the alarm to sound every month at time you set, on the day you set.
The multi-function alarm lets you specify the hour,
minutes, month, and day for the alarm. You can set up
the alarm so it sounds once when the alarm time is
reached, or for a snooze alarm that repeats up to seven
times, every five minutes.
You can also turn on an Hourly Time Signal that causes
the watch to beep twice every hour on the hour.
• Pressing D in the Alarm Mode toggles between
the alarm screen (Alarm time displayed) and the
Hourly Time Signal screen (
• An alarm setting (and an Hourly Time Signal
setting) is available in the Alarm Mode, which you
enter by pressing C.
:00
displayed).
To set an alarm time
4. While a setting is flashing, press D to increase it.
• To set an alarm that does not include a month (Daily alarm, Monthly
alarm), set x for the month. Press D until the x mark appears (between
12 and 1) while month setting is flashing.
• To set an alarm that does not include a day (Daily alarm, 1-Month alarm),
set xx for the day. Press D until the xx mark appears (between the end
of the month and 1) while the day setting is flashing.
• When setting the alarm time using the 12-hour format, take care to set the
time correctly as a.m. or p.m. (P indicator).
5. Press A to exit the setting screen.
Alarm Operation
The alarm tone sounds at the preset time for about 10 seconds. In the case of
the snooze alarm, the alarm repeats up to seven times every five minutes.
• Pressing any button stops the alarm tone operation.
• The alarm and the Hourly Time Signal sound in all modes.
To select the alarm type
• Displaying the Alarm Mode setting screen automatically changes the alarm
type to one-time alarm.
• Changing the Timekeeping Mode setting screen during a 5-minute interval
between snooze alarms stops the current snooze alarm operation (but
snooze alarm remains as the alarm type setting).
• If a snooze alarm time is reached while you are setting the current time in the
Timekeeping Mode, the alarm sounds only once. Subsequent snooze alarm
operations are not performed.
Stopping a Snooze Alarm Operation
After a snooze alarm time is reached, you can perform the following steps
during any 5-minute interval between alarms to stop the snooze alarm
operation.
To stop a Snooze Alarm Operation
1. While in the Alarm Mode, press D to display the alarm screen.
2. Next, press A to turn off the alarm or to select the one-time alarm.
• Note that this also changes the alarm type setting. If you want to use the
snooze alarm again, you must re-select it as the alarm type. See “To select
the alarm type” for more information.
To test the alarm
• In the Alarm Mode, hold down D to sound the alarm.
To turn the Hourly Time Signal on and off
1. In the Alarm Mode, press D to display the Hourly Time Signal screen.
2. Press A to turn it on and off.
1.In the Alarm Mode, press D to display the alarm
screen.
2.Hold down A until the hour setting of the alarm
time starts to flash, which indicates the setting
screen.
• This operation automatically turns on the onetime alarm.
3.Press C to move the flashing in the sequence
shown below to select other settings.
Hour Minutes
1.In the Alarm Mode, press D to display the alarm
screen.
2.Press A to cycle through the available alarm
settings shown below.
[Module 2518]
[Module 2519]
Alarm off
• The alarm on indicator and the snooze alarm on
indicator are shown on the display in all modes
while these functions are turned on.
• The snooze alarm on indicator flashes during the
5-minute intervals between alarms.
Month Day
One-time
alarm on
Snooze
alarm on
Indicates Hourly Time Signal is on.
[Module 2518] [Module 2519]
Indicates Hourly Time Signal is off.
• The Hourly Time Signal on indicator is shown on the display in all modes
while this function is turned on.
1
USER’S GUIDE 2519
Stopwatch
1/100 second
Hours
Minutes
To measure times with the stopwatch
Elapsed time
Start Stop Re-start Stop Clear
Split time
Start
Two Finishes
Start
The stopwatch lets you measure elapsed time, split
times, and two finishes.
• The display range of the stopwatch is 23 hours,
59 minutes, 59.99 seconds.
• The stopwatch continues to run, restarting from
zero after it reaches its limit, until you stop it.
• The stopwatch measurement operation continues
even if you exit the Stopwatch Mode.
• Exiting the Stopwatch Mode while a split time is
Seconds
frozen on the display clears the split time and
returns to elapsed time measurement.
• All of the operations in this section are performed in
the Stopwatch Mode, which you enter by pressing
C.
Split
(SPL displayed)
Split Stop Split release Clear
First runner
finishes.
Display time of
first runner.
Split release Stop Clear
Second runner
finishes.
Display time of
second runner.
Dual Time
The Dual Time Mode lets you keep track of time in a different time zone.
• In the Dual Time Mode, the seconds count is synchronized with the seconds
count of the Timekeeping Mode.
To set the Dual Time
Hour : Minutes Seconds
1.Press C to enter the Dual Time Mode.
2.In the Dual Time Mode, hold down A until the
hour setting starts to flash, which indicates the
setting screen.
3.Press C to change the selection in the following
sequence.
Hour Minutes
4.Press D to increase the setting.
5.Press A to exit the setting screen.
Reference
This section contains more detailed and technical information about watch
operation. It also contains important precautions and notes about the various
features and functions of this watch.
Auto return features
• If you leave a screen with flashing digits for two or three minutes without
performing any operation, the watch automatically saves any settings you
have made up to that point and exits the setting screen.
Data and Setting Scrolling
The D button is used to scroll through setting screen data on the display.
Holding down this button during a scroll operation scrolls through the data at
high speed.
Backlight Precautions
The backlight uses an LED (light-emitting diode) and a light guide panel that
cause the entire display to glow for easy reading in the dark.
In any mode, press B to illuminate the display for about one second.
• The illumination provided by the backlight may be hard to see when viewed
under direct sunlight.
• The backlight automatically stops illuminating whenever an alarm sounds.
• Frequent use of the backlight shortens the battery life.
2
