Casio 5159 User Manual

MA1012-EA

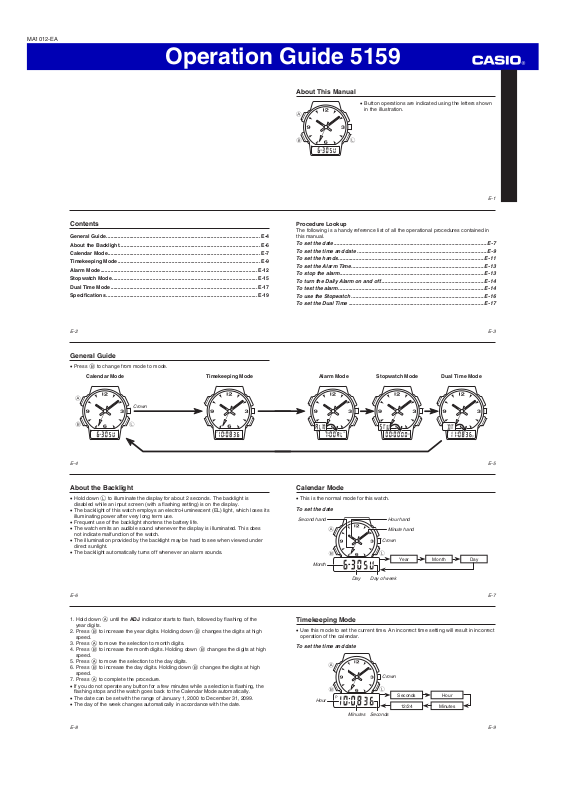

Operation Guide 5159

About This Manual

Button operations are indicated using the letters shown x in the illustration.

E-1

Contents

General Guide .......................................................................................................... E-4

About the Backlight .................................................................................................E-6

Calendar Mode .........................................................................................................E-7

Timekeeping Mode ..................................................................................................E-9

Alarm Mode ............................................................................................................ E-12

Stopwatch Mode .................................................................................................... E-15

Dual Time Mode ..................................................................................................... E-17

Speciﬁ cations ........................................................................................................ E-19

E-2

General Guide

Press x B to change from mode to mode.

Calendar Mode Timekeeping Mode

Crown

E-4

About the Backlight

Hold down x L to illuminate the display for about 2 seconds. The backlight is disabled while an input screen (with a ﬂ ashing setting) is on the display. The backlight of this watch employs an electro-luminescent (EL) light, which loses its x illuminating power after very long term use. Frequent use of the backlight shortens the battery life. x The watch emits an audible sound whenever the display is illuminated. This does x not indicate malfunction of the watch. The illumination provided by the backlight may be hard to see when viewed under x direct sunlight. The backlight automatically turns off whenever an alarm sounds. x

Procedure Lookup

The following is a handy reference list of all the operational procedures contained in this manual.

To set the date .........................................................................................................E-7

To set the time and date .........................................................................................E-9

To set the hands .................................................................................................... E-11

To set the Alarm Time ........................................................................................... E-13

To stop the alarm ................................................................................................... E-13

To turn the Daily Alarm on and off ....................................................................... E-14

To test the alarm .................................................................................................... E-14

To use the Stopwatch ...........................................................................................E-16

To set the Dual Time .............................................................................................E-17

Alarm Mode Stopwatch Mode Dual Time Mode

Calendar Mode

This is the normal mode for this watch. x

To set the date

Day of weekDay

Hour hand

Minute hand

Crown

Year Month

Day

Second hand

Month

E-3

E-5

E-6

Hold down 1. A until the ADJ indicator starts to ﬂ ash, followed by ﬂ ashing of the year digits. Press 2. B to increase the year digits. Holding down B changes the digits at high speed. Press 3. A to move the selection to month digits. Press 4. B to increase the month digits. Holding down B changes the digits at high speed. Press 5. A to move the selection to the day digits. Press 6. B to increase the day digits. Holding down B changes the digits at high speed. Press 7. A to complete the procedure.

If you do not operate any button for a few minutes while a selection is ﬂ ashing, the x ﬂ ashing stops and the watch goes back to the Calendar Mode automatically. The date can be set with the range of January 1, 2000 to December 31, 2099. x The day of the week changes automatically in accordance with the date. x

E-8

Timekeeping Mode

Use this mode to set the current time. An incorrect time setting will result in incorrect x operation of the calendar.

To set the time and date

Hour

Minutes

E-7

Crown

Seconds Hour

12/24 Minutes

Seconds

E-9

Operation Guide 5159

Hold down 1. A until the ADJ indicator starts to ﬂ ash, followed by ﬂ ashing of the seconds digits. Press 2. B to reset the seconds to 00. If you press B while the seconds count is in the range of 30 to 59, the seconds are reset to 00 and 1 is added to the minutes. If the seconds count is in the range of 00 to 29, the minutes count is unchanged. Press 3. A to move the selection to the hour digits. Press 4. B to increase the hour digits. Holding down B changes the hour digits at high speed. Press 5. A to move the selection to the minutes digits. Press 6. B to increase the minutes digits. Holding down B changes the minutes digits at high speed. Press 7. A to move the selection to 12/24. Press 8. B to toggle the timekeeping format between 12-hour and 24-hour. Press 9. A to complete the procedure.

If you do not operate any button for a few minutes while a selection is ﬂ ashing, the x ﬂ ashing stops and the watch goes back to the Timekeeping Mode automatically.

E-10

Alarm Mode

Hour

Mode indicatorMinutes

When the Daily Alarm is turned on, an alarm sounds for 20 seconds at the preset time each day.

E-12

To turn the Daily Alarm on and off

Press A while in the Alarm Mode to turn the Daily Alarm on and off.

Hour Minutes

Press A.

To set the hands

When the second hand is at 12 o’clock position, stop it by pulling the crown out.1. Set the hands by turning the crown.2. Press the crown in on a time signal.3.

To set the Alarm Time

Hold down 1. A until the ADJ indicator starts to ﬂ ash, followed by ﬂ ashing of the hour digits of the alarm.

The alarm turns on at this time. x

Press 2. B to increase the hour digits. Holding down B changes the digits at high speed. Press 3. A to move the selection to the minutes digits. Press 4. B to increase the minutes digits. Holding down B changes the digits at high speed. Press 5. A to complete the procedure.

If you do not operate any button for a few minutes while a selection is ﬂ ashing, the x ﬂ ashing stops and the watch goes back to the Alarm Mode automatically.

To stop the alarm

Press any button to stop the alarm after it starts to sound. x

Stopwatch Mode

E-11

E-13

To test the alarm

Hold down B to sound the alarm.

E-14

To use the Stopwatch

Press 1. A to start the stopwatch. Press 2. A to stop the time measurement.

You can press x A as many times as you want to resume and stop timing.

After you are ﬁ nished using the stopwatch, hold down 3. A to clear the stopwatch time to all zeros.

E-16

If you do not operate any button for a few minutes while a selection is ﬂ ashing, the x ﬂ ashing stops and the watch goes back to the Dual Time Mode automatically. The format (12-hour and 24-hour) of the Dual Time Mode matches the format you x select for normal timekeeping. In the Dual Time Mode, the seconds count is synchronized with the seconds count x of the Timekeeping Mode.

E-18

After the ﬁ rst hour

Minutes

1/100 secondsSeconds

The Stopwatch Mode lets you measure elapsed time. The range of the stopwatch is 23 hours, 59 minutes 59 seconds. The measuring unit for the ﬁ rst hour of elapsed time measurement is 1/100-second. After that the unit is one second. You can use the EL backlight at any time while the stopwatch is operating by pressing L.

Hour

SecondsMinutes

E-15

Dual Time Mode

Hour

To set the Dual Time

Hold down 1. A until the ADJ indicator starts to ﬂ ash, followed by ﬂ ashing of the hour digits.

Hour Minutes

SecondsMinutes

E-17

Speciﬁ cations

Accuracy at normal temperature: ±30 seconds a month Timekeeping Mode: Month, day, day of week, 3-hands(hour, minutes, seconds)

Time system: Switchable between 12-hour and 24-hour formats Calendar system: Auto-calendar pre-programmed from the year 2000 to 2099

Alarm Mode: Daily alarm Stopwatch Mode

Measuring capacity: 23 hour 59 minutes 59 seconds Measuring unit: 1/100 of a second (for the ﬁ rst 59 minutes 59.99 seconds) Measuring unit: 1 second (after the ﬁ rst hour) Measuring modes: Elapsed time

Dual Time Mode Other: EL backlight Battery: One lithium battery (Type: CR2016) Battery life: Approximately 3 years under the following conditions

• 20 seconds alarm operation per day

• 2 seconds backlight operation per day

E-19
