MO1503-EA

Operation Guide 3439

ENGLISH

Congratulations upon your selection of this CASIO watch.

Applications

The built-in sensors of this watch measure direction, barometric pressure, temperature and altitude. Measured values are then shown on the display. Such features make this watch useful when hiking, mountain climbing, or when engaging in other such outdoor activities.

• The measurement functions built into this watch are not intended for taking measurements that

require professional or industrial precision. Values produced by this watch should be considered as reasonable representations only.

•

When engaging in mountain climbing or other activities in which losing your way can create a dangerous or life-threatening situation, always use a second compass to conﬁ rm direction readings.

• Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss

suffered by you or any third party arising through the use of this product or its malfunction.

Warning !

E-1

Important!

• The watch’s Altimeter Mode calculates and displays relative altitude based on barometric pressure

readings produced by its pressure sensor. This means that readings taken at different times at the same location may produce different altitude values due to changes in barometric pressure. Also note that the value displayed by the watch may be different from the actual elevation and/or sea level elevation indicated for the area where you are located.

• When using the altimeter of this watch for mountain climbing or other activities, it is highly

recommended that you check a map, local altitude indications, or some other source for your current correct altitude and regularly calibrate the altimeter with the latest information. For more information, see “To specify a reference altitude value” (page E-47).

• Whenever you use the digital compass of this watch for serious trekking, mountain climbing, or other

activities, be sure always to take along another compass to conﬁ rm readings. If the readings produced by the digital compass of this watch are different from those of the other compass, perform bidirectional calibration of the digital compass to ensure more accurate readings.

• Direction readings and digital compass calibration will not be possible if the watch is in the vicinity of a

permanent magnet (magnetic accessory, etc.), metal objects, high-voltage wires, aerial wires, or electrical household appliances (TV, computer, cellphone, etc.)

E-2

Things to check before using the watch

1. Check the Home City and the daylight saving time (DST) setting.

Use the procedure under “To conﬁ gure Home City and summer time settings” (page E-14) to conﬁ gure your Home City and daylight saving time settings.

Important!

• World Time Mode and Sunrise/Sunset Mode data depend on correct Home City, time, and date settings

in the Timekeeping Mode. Make sure you conﬁ gure these settings correctly.

2. Set the current time.

See “Conﬁ guring Current Time and Date Settings” (page E-16).

The watch is now ready for use.

E-4

About This Manual

• Depending on the model of your watch, digital display text appears

either as dark ﬁ gures on a light background, or light ﬁ gures on a dark background. All examples in this manual are shown using dark ﬁ gures on a light background.

• Button operations are indicated using the letters shown in the

illustration.

• Note that the product illustrations in this manual are intended for

reference only, and so the actual product may appear somewhat different than depicted by an illustration.

Contents

About This Manual …………………………………………………………………………………………… E-3

Things to check before using the watch ………………………………………………………………… E-4

Mode Reference Guide ……………………………………………………………………………………… E-9

Timekeeping ………………………………………………………………………………………………… E-13

Conﬁ guring Home City Settings ………………………………………………………………………… E-14

To conﬁ gure Home City and summer time settings ……………………………………………… E-14

Conﬁ guring Current Time and Date Settings ………………………………………………………… E-16

To change the current time and date settings …………………………………………………… E-16

Taking Direction Readings ……………………………………………………………………………… E-19

To take a direction reading ………………………………………………………………………… E-19 To perform bidirectional calibration ………………………………………………………………… E-23 To perform magnetic declination correction ……………………………………………………… E-24 To store a direction angle reading in Bearing Memory ………………………………………… E-25

Specifying Temperature, Barometric Pressure, and Altitude Display Units …………………… E-29

To specify temperature, barometric pressure, and altitude display units ……………………… E-29

Taking Barometric Pressure and Temperature Readings ………………………………………… E-31

To take barometric pressure and temperature readings ………………………………………… E-31 To enable or disable the barometric pressure change alert …………………………………… E-37 To calibrate the pressure sensor and the temperature sensor ………………………………… E-38

E-3

E-5

Using the Altimeter Mode ………………………………………………………………………………… E-40

To select the altitude screen format ……………………………………………………………… E-42 To select the altitude auto reading interval ……………………………………………………… E-43 To take altitude readings …………………………………………………………………………… E-45 To specify a reference altitude value ……………………………………………………………… E-47 To specify the altitude differential start point ……………………………………………………… E-48 To use the altitude differential value ……………………………………………………………… E-49 To save a reading manually ………………………………………………………………………… E-50 To start trek log value updating …………………………………………………………………… E-53 To stop trek log value updating …………………………………………………………………… E-53

Viewing Altitude Records ………………………………………………………………………………… E-58

To view altitude records …………………………………………………………………………… E-58 To delete all manually saved data ………………………………………………………………… E-62 To delete data in a speciﬁ c memory area ………………………………………………………… E-62

Looking up Sunrise and Sunset Times ………………………………………………………………… E-64

To enter the Sunrise/Sunset Mode ………………………………………………………………… E-64 To view the sunrise/sunset time for a particular date …………………………………………… E-65 To look up the sunrise and sunset times for a speciﬁ c location ………………………………… E-66

Using the Stopwatch ……………………………………………………………………………………… E-68

To enter the Stopwatch Mode ……………………………………………………………………… E-68 To perform an elapsed time operation …………………………………………………………… E-68 To pause at a split time ……………………………………………………………………………… E-68 To measure two ﬁ nishes …………………………………………………………………………… E-69

E-6

Using the Countdown Timer ……………………………………………………………………………… E-70

To enter the Countdown Timer Mode ……………………………………………………………… E-70 To specify the countdown start time ……………………………………………………………… E-70 To perform a countdown timer operation ………………………………………………………… E-71 To stop the alarm …………………………………………………………………………………… E-71

Using the Alarm …………………………………………………………………………………………… E-72

To enter the Alarm Mode …………………………………………………………………………… E-72 To set an alarm time ………………………………………………………………………………… E-73 To turn an alarm and the Hourly Time Signal on and off………………………………………… E-74 To stop the alarm …………………………………………………………………………………… E-75

Checking the Current Time in a Different Time Zone ………………………………………………… E-76

To enter the World Time Mode …………………………………………………………………… E-76 To view the time in another time zone …………………………………………………………… E-76 To specify standard time or daylight saving time (DST) for a city ……………………………… E-77

Illumination ………………………………………………………………………………………………… E-78

To turn on illumination manually …………………………………………………………………… E-78 To change the illumination duration ……………………………………………………………… E-78 To turn the auto light switch on and off …………………………………………………………… E-80

Button Operation Tone …………………………………………………………………………………… E-82

To turn the button operation tone on and off ……………………………………………………… E-82

E-7

Operation Guide 3439

Low Battery Indication …………………………………………………………………………………… E-83

Troubleshooting …………………………………………………………………………………………… E-84

Speciﬁ cations ……………………………………………………………………………………………… E-89

E-8

Selecting a Mode

• The illustration below shows which buttons you need to press to navigate between modes.

• To return to the Timekeeping Mode from any other mode, hold down D for about two seconds.

Timekeeping Mode

Stopwatch Mode

Data Recall

Mode

Sunrise/Sunset

Mode

Mode Reference Guide

Your watch has 10 “modes”. The mode you should select depends on what you want to do.

To do this: Enter this mode: See:

• View the current date in the Home City

• Conﬁ gure Home City and daylight saving time (DST) settings

• Conﬁ gure time and date settings

Determine your current bearing or the direction from your current location to a destination

• View the barometric pressure and temperature at your current location

• View a graph of barometric pressure readings

• View the altitude at your current location

• Determine the altitude differential between two locations (reference

point and current location)

• Record an altitude reading with the reading time and date

View the sunrise and sunset times for a speciﬁ c date Sunrise/Sunset Mode E-64

Recall records created in the Altimeter Mode Data Recall Mode E-58

Use the stopwatch to measure elapsed time Stopwatch Mode E-68

Use the countdown timer Countdown Timer Mode E-70

Set an alarm time Alarm Mode E-72

View the current time in one of 48 cities (31 time zones) around the globe World Time Mode E-76

• You can use buttons A,B, and C to enter a sensor mode directly from the Timekeeping Mode or

from another sensor mode. To enter a sensor mode from the Sunrise/Sunset, Data Recall, Alarm, Stopwatch, Countdown Timer or World Time, ﬁ rst enter the Timekeeping Mode and then press the applicable button.

Sensor Modes

Barometer/

Digital Compass Mode

Barometer/

Thermometer Mode

Timekeeping Mode E-13

Digital Compass Mode E-19

Barometer/Thermometer Mode

Altimeter Mode E-40

Altimeter Mode

E-31

E-9

World Time

Countdown

Countdown Timer Mode

Timer Mode

E-10

General Functions (All Modes)

The functions and operations described in this section can be used in all of the modes.

Direct Timekeeping Mode Access

• To enter the Timekeeping Mode from any other mode, hold down D for about two seconds.

Auto Return Features

• The watch will automatically return to the Timekeeping Mode if you do not perform any button operation

for a particular amount of time in each mode.

Mode Name Approximate Elapsed Time

Sunrise/Sunset, Data Recall, Alarm, Digital Compass 3 minutes

Altimeter 1 hour minimum

Barometer/Thermometer 1 hour

Setting screen (digital setting ﬂ ashing) 3 minutes

• If you leave a screen with ﬂ ashing digits on the display for two or three minutes without performing any

operation, the watch exits the setting screen automatically.

Initial Screens

When you enter the Data Recall, Alarm, World Time, or Digital Compass Mode, the data you were viewing when you last exited the mode appears ﬁ rst.

Scrolling

TheA and C buttons are used on the setting screen to scroll through data on the display. In most cases, holding down these buttons during a scroll operation scrolls through the data at high speed.

E-12

Alarm Mode

World Time

Mode

12 hours maximum

Conﬁ guring Home City Settings

There are two Home City settings: actually selecting the Home City and selecting either standard time or daylight saving time (DST).

To conﬁ gure Home City and summer time settings

City code

PM indicator

indicator

Hour :

Hour : Minutes

Minutes

DST indicator

1. In the Timekeeping Mode, hold down E for at least two seconds.

SET Hold

First, the upper display. After that, the currently selected city code and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

• The watch will exi t the setting m ode automatic ally if you do not

perform a ny operation fo r about two o r three minutes.

• For detail s about city c odes, see the “ City Code Table” at t he back

of this manual.

2. Use A (East) and C (West) to scroll through the available city codes.

• Keep scrolling u ntil the city c ode you want to sele ct as your Home

City is displayed.

will ﬂ ash on the display, and

CITY

will be displayed in

3. Press D to display the DST setting screen.

PressA to toggle the DST setting between Daylight Saving Time (ON) and standard time (

• Note that you c annot switch be tween stan dard time and dayl ight

saving time (D ST) while U TC is selected a s your Home Cit y.

OFF

Timekeeping

Use the Timekeeping Mode (

• Each press of E in the Timekeeping Mode will change screen contents as shown below.

Day of the Week/Date Screen Month/Day Screen Barometric Pressure

Day of week

Hour :

Minutes

indicator

5. After all of the settings are the way you want, press E twice to exit the setting screen.

• Daylight Savi ng Time is turn ed on when the DST indi cator is on the di splay.

Note

• After you sp ecify a cit y code, the watch will u se UTC* off sets in the World T ime Mode to cal culate

the current ti me for other tim e zones based o n the current tim e in your Home Ci ty.

* Coordinated Universal Time, the world-wide scientiﬁ c standard of timekeeping.

The reference point for UTC is Greenwich, England.

TIME

) to set and view the current time and date.

Day

Seconds

Month Day

Graph Screen

Barometric pressure graph

E-11

E-13

E-14

Seconds

E-15

Operation Guide 3439

Conﬁ guring Current Time and Date Settings

You can use the procedure below to adjust the Timekeeping Mode time and date settings if they are off.

To change the current time and date settings

City code

PM indicator

indicator

Hour :

Hour : Minutes

Minutes

E-16

Note

• For inform ation about s electing a Ho me City and c onﬁ guring the D ST setting , see “Conﬁ gu ring

Home Cit y Setting s” (page E-14).

• While the 12- hour format i s selected for ti mekeeping, a P (P M) indicator will a ppear for time s from

noon to 11:59 p.m. No indi cator appear s for times from m idnight to 11:59 a.m. With 24 -hour format, time is displaye d from 0:00 to 2 3:59, witho ut any P (PM) indicator.

• The watch’s built- in full automat ic calendar ma kes allowances fo r different mo nth lengths an d leap

years. Once y ou set the date, the re should be no reas on to change it exce pt after you have the watch’s battery re placed.

• The day of the we ek changes auto matically as t he date and/or ye ar changes. Ma ke sure that your

date and year settings are correct.

• Refer to the page s shown below f or more inform ation on Tim ekeeping Mod e settings.

- Button operation tone on/off: “To turn the button operation tone on and off” (page E-82)

- Illumination duration setting: “To change the illumination duration” (page E-78)

- Changing the temperature, barometric pressure, and altitude display units (for a city code other

TYO

than

): “To specify temperature, barometric pressure, and altitude display units” (page E-29)

1. In the Timekeeping Mode, hold down E for at least two seconds.

SET Hold

First, the upper display. After that, the currently selected city code and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

will ﬂ ash on the display, and

CITY

will be displayed in

2. Press D to move the ﬂ ashing in the sequence shown below to select the other settings.

City Code DST

Thermometer/Barometer/ Altitude display unit

• The follow ing steps explai n how to conﬁ gure ti mekeeping se ttings onl y.

3. When the timekeeping setting you want to change is ﬂ ashing, use A and/or C to change it as described below.

Screen To do this: Do this:

4. After all of the settings are the way you want, press E twice to exit the setting screen.

12/24-Hour Format

Illumination Duration

Change the city code Use A (East) and C (West).

Toggle between Daylight Saving Time (ON) and Standard Time (

Toggle between 12-hour ( timekeeping.

Reset the seconds to (If the current seconds count is between 30 and 59, one is added to the minute count).

Change the hour or minutes

Change the year, month, or day

Seconds Hour Minutes Year

Button Operation Tone

OFF

12H

) and 24-hour (

24H

)

PressA.

UseA (+) and C (–).

Day Month

E-17

Taking Direction Readings

You can use the Digital Compass Mode to determine the direction of north, and to check your bearing to a destination.

• For information about what you can do to improve digital compass reading accuracy, see “Calibrating

the Bearing Sensor” (page E-22) and “Digital Compass Precautions” (page E-27).

To take a direction reading

1. Make sure the watch is in the Timekeeping Mode or any one of the sensor modes.

• The senso r modes are: Digit al Compass M ode, Baromete r/Therm ometer Mode, a nd Altimeter

Mode.

2. Place the watch on a ﬂ at surface. If you are wearing the watch, make sure that your wrist is horizontal (in relation to the horizon).

3. Point the 12 o’clock position of the watch in the direction whose reading you want to take.

4. Press C to start.

• COMP will appear in th e upper display to ind icate that a digita l compass ope ration is in prog ress.

• About one s econd afte r you press C, pointers (thre e graphic segme nts for nort h, one graphic

segment ea ch for south, ea st, and west) will ap pear on the disp lay to indicate nor th, south, e ast, and west. Dire ction will als o be indicated by litera l direction indi cators and by a direct ion angle.

E-18

Objective Bearing Indication

Bearing to objective: Northwest

N: North E: East W: West S: South

Note

• If the four po inters (north, s outh, east, we st) and the directi on indicating l etters do not a ppear

on the display w hen you press C, it could mea n that the watch is disp laying bearing m emory informati on. If this happ ens, press E to delete the cur rent bearing me mory conte nts. For more informati on, see “Usi ng Bearing Me mory” (pa ge E-25).

• To return to the Time keeping Mod e, press D.

Pressing D will return to th e Timekeepi ng Mode even is a readi ng operation i s in progress.

E-20

Calibrating the Bearing Sensor

You should calibrate the bearing sensor whenever you feel that the direction readings being produced by the watch are off. You can use any one of two different bearing sensor calibration methods: bidirectional calibration or magnetic declination correction.

Bidirectional Calibration

•

Bidirectional calibration calibrates the bearing sensor in relation to magnetic north. Use bidirectional calibration when you want to take readings within an area exposed to magnetic force. This type of calibration should be used if the watch becomes magnetized for any reason.

Important!

• To ensure correct direction readings by this watch, be sure to perform bidirectional calibration before

using it. The watch may produce incorrect direction readings if you do not perform bidirectional calibration.

Magnetic Declination Correction

•

With magnetic declination correction, you input a magnetic declination angle (difference between magnetic north and true north), which allows the watch to indicate true north. You can perform this procedure when the magnetic declination angle is indicated on the map you are using. Note that you can input the declination angle in whole degree units only, so you may need to round off the value speciﬁ ed on the map. If your map indicates the declination angle as 7.4°, you should input 7°. In the case of 7.6° input 8°, for 7.5° you can input 7° or 8°.

Precautions about bidirectional calibration

• You can use any two opposing directions for bidirectional calibration. You must, however, make sure

that they are 180 degrees opposite each other. Remember that if you perform the procedure incorrectly, you will get wrong bearing sensor readings.

• Do not move the watch while calibration of either direction is in progress.

E-22

North

Bearing angle to objective

Meaning

315°

0°

E-19

Important!

• If the digital display contents start to ﬂ ash after you perform a reading operation, it means that abnormal

magnetism has been detected. Move away from any potential source of strong magnetism and try taking a reading again. If the problem occurs when you try again, continue to keep away from the source of strong magnetism, perform bidirectional calibration, and then try taking a reading again. For more information, refer to “To perform bidirectional calibration” (page E-23) and “Location” (page E-27).

Digital Compass Readings

• When you press Cto start digital compass reading operation,

display to indicate that a digital compass operation is in progress.

• After the ﬁ rst reading is obtained, the watch will continue to take digital compass readings automatically

each second for up to 60 seconds. After that, the reading operation will stop automatically.

• The direction indicator and angle value will show

complete.

• The auto light switch is disabled during the 60 seconds that digital compass readings are being taken.

• The margin of error for the angle value and the direction indicator is ±11 degrees while the watch is

horizontal (in relation to the horizon). If the indicated direction is northwest (NW) and 315 degrees, for example, the actual direction can be anywhere from 304 to 326 degrees.

• Note that taking a direction reading while the watch is not horizontal (in relation to the horizon) can

result in large direction reading error.

•

You can calibrate the bearing sensor if you suspect the direction reading is incorrect.

• Any ongoing direction reading operation is paused temporarily while the watch is performing an alert

operation (daily alarm, Hourly Time Signal, countdown timer alarm) or while illumination is turned on (by pressingL). The direction reading operation resumes for its remaining duration after the operation that caused it to pause is ﬁ nished.

• See “Digital Compass Precautions” (page E-27) for important information about taking direction readings.

• You should perform bidirectional calibration in an environment that is the same as that where you plan

to be taking direction readings. If you plan to take direction readings in an open ﬁ eld, for example, calibrate in an open ﬁ eld.

To perform bidirectional calibration

1. In the Digital Compass Mode, hold down E for at least two seconds. First, scroll across the upper display. Keep E depressed until

CALIBRATION

• At this time, t he north poi nter ﬂ ashes at the 12 o’cloc k position

and the displ ay will show -1- to in dicate that the watch is re ady to calibrate the ﬁ rst direction.

2. Place the watch on a level surface facing any direction you want, and pressC to calibrate the ﬁ rst direction.

• - - - is shown on t he display while ca libration is be ing perform ed.

When calib ration is succe ssful, Tu rn 1 80 ° will appe ar on the display and th ree graphic segm ents ( After abo ut one second , CALIBRATION - 2- will scroll acros s the upper display.

• If ERR-1 appears on the display, press C again to restar t the

direction re ading operatio n.

- - -

SET Hold

will ﬂ ash on the display. After that,

starts scrolling.

COMP

will initially appear on the

to indicate that digital compass readings are

CALIBRATION

) will ﬂ ash at 6 o’clock .

E-21

will

3. Rotate the watch 180 degrees.

4. Press C again to calibrate the second direction.

• - - - is shown on t he display while ca libration is be ing perform ed.

When calib ration is succe ssful, the dis play will show OK and th en change to the D igital Com pass Mode scre en.

E-23

Operation Guide 3439

To perform magnetic declination correction

Magnetic declination angle

Magnetic declination angle direction value (E, W, or OFF)

direction value (E, W, or OFF)

Magnetic declination

Magnetic declination angle value

angle value

E-24

• You can press C at any time whil e the Bearing M emory sc reen is displayed, to s tart a new

60- second dire ction reading op eration. Do ing so will display t he direction a ngle for the direc tion that the 12 o’clock po sition of the watch i s pointed. The di rection angle o f the current readin g will disappear f rom the display af ter the 60 -second direction rea ding operatio n is complete.

• During the ﬁ rst 60 seco nds after you di splay the Beari ng Memor y screen or durin g a 60- second

direction re ading operatio n you triggered by p ressing C while the Be aring Memo ry screen is o n the display, the direc tion stored in me mory is indi cated by a Bearing M emory po inter.

• Pressing E while the Be aring Memo ry screen is dis played will clear t he reading current ly in

Bearing M emory and s tart a new 6 0-sec ond direction re ading operati on.

Setting a map and ﬁ nding your current location

Having an idea of your current location is important when mountain climbing or hiking. To do this, you need to “set the map”, which means to align the map so the directions indicated on it are aligned with the actual directions of your location. Basically what you are doing is aligning north on the map with north as indicated by the watch.

• Note that map reading skills and experience are required to determine your current location and

destination on a map.

1. In the Digital Compass Mode, hold down E for at least two seconds.

SET Hold

First, scroll across the upper display. Keep E depressed until

CALIBRATION

2. Press D.

• DEC 0° will appear on the di splay and then th e current magnet ic

declinatio n angle sett ing will ﬂ ash on the d isplay.

3. Use A (East) and C (West) to change the settings.

•

The follow ing explains mag netic declina tion angle dire ction settings.

OFF

E W

• You can select a valu e within the rang e of W 90° to E 9 0° with

these set tings.

• You can turn off (OFF) m agnetic declin ation correc tion by pressin g

• The illustra tion, for examp le, shows the valu e you should inp ut

and the direct ion settin g you should sel ect when the ma p shows a magnetic de clination of 1° West .

4. When the setting is the way you want, press E to exit the setting screen.

will ﬂ ash on the display. After that,

starts scrolling.

: No magnetic declination correction performed. The magnetic

declination angle with this setting is 0°.

: When magnetic north is to the east (east declination)

: When magnetic north is to the west (west declination)

and C at the same ti me.

CALIBRATION

will

Using Bearing Memory

Bearing

Bearing memory

memory direction

direction angle value

angle value

Direction

Direction angle of

angle of current

current reading

reading

2. During the 60 seconds that digital compass readings are being taken, press

Digital Compass Precautions Magnetic North and True North

Location

• Taking a direction reading when you are near a source of strong magnetism can cause large errors in

• Accurate readings are also impossible indoors, especially inside ferroconcrete structures. This is

• Accurate direction readings are impossible while in a train, boat, air plane, etc.

12 o’clock position

North pointer

Pointer to bearing

Pointer to bearing in bearing memory

in bearing memory

Bearing Memory

Screen

reading in Bearing Memory.

• The Beari ng Memor y direction ang le ﬂ ashes for abo ut one secon d as it is stored in Be aring

Memor y. After that, the B earing Mem ory screen (wh ich shows the be aring memor y direction angle and pointer) wil l appear, and a new 60 -second direction re ading operati on will start .

True north

Magnetic north

Earth

readings. Because of this, you should avoid taking direction readings while in the vicinity of the following types of objects: permanent magnets (magnetic necklaces, etc.), concentrations of metal (metal doors, lockers, etc.), high tension wires, aerial wires, household appliances (TVs, personal computers, washing machines, freezers, etc.)

because the metal framework of such structures picks up magnetism from appliances, etc.

Bearing Memory lets you temporarily store and display a direction reading so you can use it as a reference as you take subsequent digital compass readings. The Bearing Memory screen displays the direction angle for the stored reading, along with a pointer that indicates the stored reading. When you take digital compass readings while the Bearing Memory screen is displayed, the direction angle of the current digital compass reading (as read from the 12 o’clock position of the watch) and the stored Bearing Memory direction reading will both be shown.

To store a direction angle reading in Bearing Memory

1. Press C to start a digital compass reading operation (page E-19).

• This will ta ke an initial readi ng and then take rea dings every

second for 6 0 seconds.

• If a bearing me mory direc tion angle valu e is already displaye d, it

means that t here is a reading alre ady stored in Bea ring Memor y. If this happens, press E to clear the Be aring Memo ry reading and exit the bearing memory screen before performing the above step.

to store the current

The northerly direction can be expressed either as magnetic north or true north, which are different from each other. Also, it is important to keep in mind that magnetic north moves over time.

• Magnetic north is the north that is indicated by the needle of a compass.

• True north, which is the location of the North Pole of the Earth’s axis, is the

north that is normally indicated on maps.

• The difference between magnetic north and true north is called the

“declination”. The closer you get to the North Pole, the greater the declination angle.

E-25

E-26

Storage

• The precision of the bearing sensor may deteriorate if the watch becomes magnetized. Because of

this, you should store the watch away from magnets or any other sources of strong magnetism, including: permanent magnets (magnetic necklaces, etc.), concentrations of metal (metal doors, lockers, etc.), and household appliances (TVs, personal computers, washing machines, freezers, etc.)

• Whenever you suspect that the watch may have become magnetized, perform the procedure under “To

perform bidirectional calibration” (page E-23).

E-28

3. Perform the operations below to specify the display units you want.

To specify this unit: Press this key: To toggle between these settings:

Altitude

Barometric Pressure

Temperature

(meters) and ft (feet)

hPa

(hectopascals) and

°C

(Celsius) and °F (Fahrenheit)

inHg

(inches of mercury)

4. After all of the settings are the way you want, press E twice to exit the setting screen.

E-27

Specifying Temperature, Barometric Pressure, and Altitude Display Units

Use the procedure below to specify the temperature, barometric pressure, and altitude display units to be used in the Barometer/Thermometer Mode and the Altimeter Mode.

Important!

TYO

• When

To specify temperature, barometric pressure, and altitude display units

(Tokyo) is selected as the Home City, the altitude unit is set automatically to meters (m), the barometric pressure unit to hectopascals ( settings cannot be changed.

hPa

), and the temperature unit to Celsius (°C). These

1. In the Timekeeping Mode, hold down E for at least two seconds.

SET Hold

First, the upper display. After that, the currently selected city code and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

2. Press D as many times as necessary until display.

• See the seq uence in step 2 of th e procedure und er “To change the

current time a nd date settin gs” (page E-16) for informati on about how to scroll thro ugh setting sc reens.

will ﬂ ash on the display, and

CITY

UNIT

will be displayed in

appears on the

E-29

Taking Barometric Pressure and Temperature Readings

This watch uses a pressure sensor to measure air pressure (barometric pressure) and a temperature sensor to measure temperature.

To take barometric pressure and temperature readings

Barometric

Barometric pressure graph

pressure graph

Barometric

Barometric pressure

pressure

Temperature

While in the Timekeeping Mode or in any of the sensor modes, press to take barometric pressure and temperature readings.

• BARO will appea r on the display, indicat ing that barome tric

pressure and te mperature readin g are in progress. T he results will appear o n the display af ter about one se cond.

• After you pre ss B, the watch will ta ke readings every ﬁ ve s econds

for the ﬁ rst thre e minutes, and t hen every two m inutes after t hat.

Note

• Press D to return to the T imekeeping M ode.

Pressure

Pressure differential

differential pointer

pointer

• The watch will ret urn to the Timeke eping Mode au tomatically if y ou

do not perf orm any operati on for about 1 ho ur after enter ing the Barometer/Thermometer Mode.

E-30

E-31

Operation Guide 3439

Barometric pressure

Barometric pressure change indicator

change indicator

Temperature

Barometric

Barometric pressure

pressure

Display Units

You can select either hectopascals (hPa) or inchesHg (inHg) as the display unit for the measured barometric pressure, and Celsius (°C) or Fahrenheit (°F) as the display unit for the measured temperature value. See “To specify temperature, barometric pressure, and altitude display units” (page E-29).

E-32

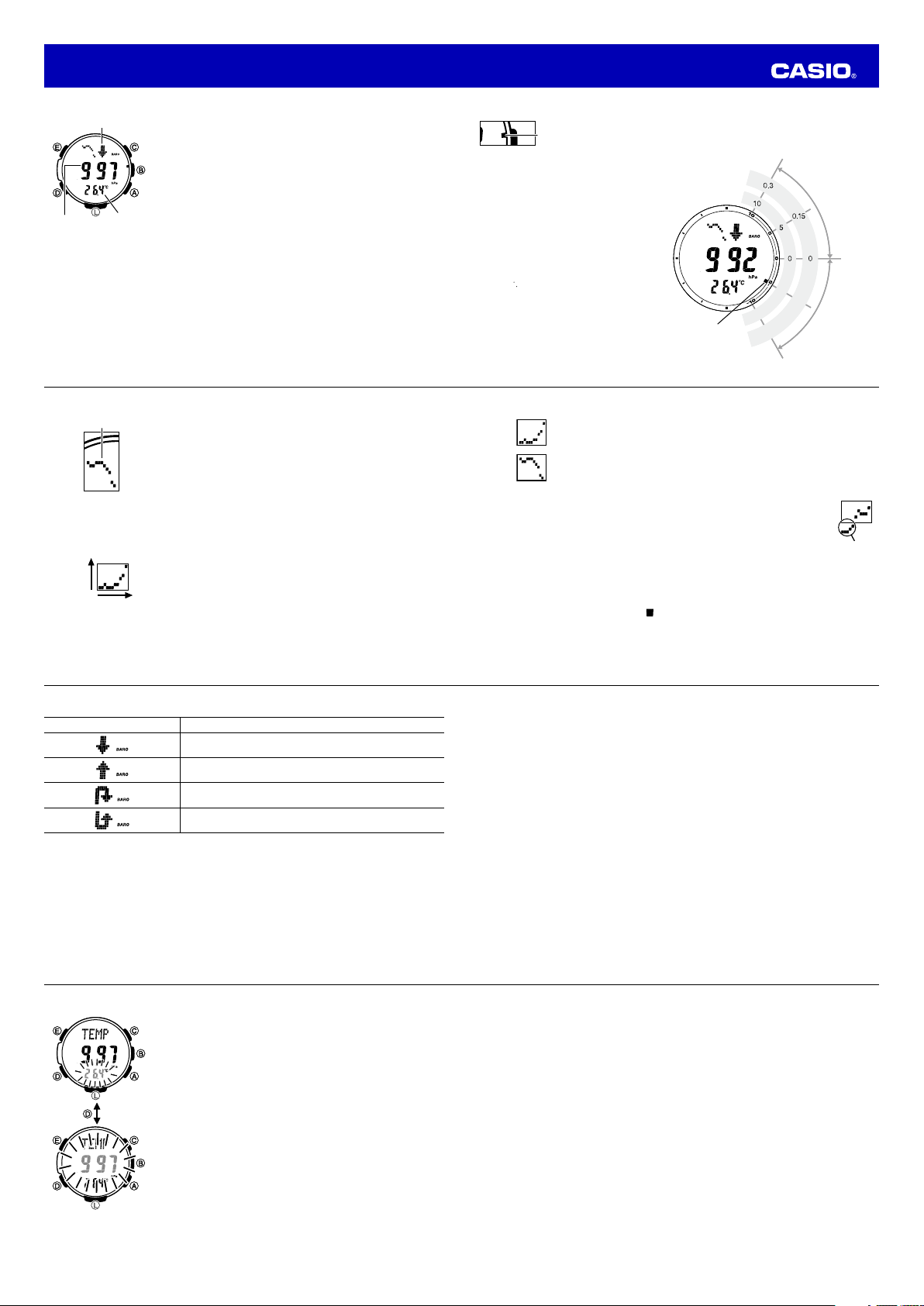

Temperature

Barometric Pressure Graph

Barometric pressure graphBarometric pressure graph

Reading the Barometric Pressure Graph

The barometric pressure graph shows a chronological history of pressure readings.

• When display of the barometric change indicator is disabled, the graph shows the results of up to 21

barometric pressure readings (42 hours).

• When display of the barometric change indicator is enabled, the graph shows the results of up to 11

barometric pressure readings (22 hours).

Barometric

Barometric pressure

pressure

Time

E-34

Barometric Pressure

• Barometric pressure is displayed in units of 1 hPa (or 0.05 inHg).

•

The displayed barometric pressure value changes to barometric pressure falls outside the range of 260 hPa to 1,100 hPa (7.65 inHg to 32.45 inHg). The barometric pressure value will reappear as soon as the measured barometric pressure is within the allowable range.

Temperature

• Temperature is displayed in units of 0.1°C (or 0.2°F).

• The displayed temperature value changes to

measured temperature falls outside the range of –10.0°C to 60.0°C (14.0°F to 140.0°F). The temperature value will reappear as soon as the measured temperature is within the allowable range.

Barometric pressure indicates changes in the atmosphere. By monitoring these changes you can predict the weather with reasonable accuracy. This watch takes barometric pressure reading automatically every two hours. Readings are used to produce barometric pressure graph and barometric pressure differential pointer readings.

• The vertical axis of the graph represents barometric pressure, with each

dot standing for the relative difference between its reading and that of the dots next to it. Each dot represents 1 hPa.

• The horizontal axis of the graph represents time, with each dot standing for

two hours. The rightmost dot represents the most recent reading.

- - -

°C (or °F) if a

if a measured

Barometric Pressure Differential Pointer

Barometric

Barometric pressure

pressure differential

differential pointer

pointer

Reading Barometric Pressure Differential Pointer

Pressure differential is indicated in the range of ±10 hPa, in 1-hPa units.

• The nearby screen shot, for example, shows

what the pointer would indicate when the calculated pressure differential is approximately – 5 hPa (approximately – 0.15 inHg).

• Barometric pressure is calculated and

displayed using hPa as the standard. The barometric pressure differential also can be read in inHg units as shown in the illustration

0.03 inHg).

(1 hPa

This pointer indicates the relative difference between the most recent barometric pressure reading indicated on the barometric pressure graph (page E-34), and the current barometric pressure value displayed in the Barometer/Thermometer Mode (page E-32).

Current pressure

greater than most

−0.3

greater than most

−5

−0.15

recent measured

pressure

recent measured

pressure

Current pressure

less than most

E-33

inHg values

hPa values

Barometric pressure

Barometric pressure differential pointer

differential pointer

−10

The following shows how to interpret the data that appears on the barometric pressure graph.

Rising barometric pressure indicates that upcoming weather will improve.

Falling barometric pressure indicates that upcoming weather will deteriorate.

Note

• If there are sudden changes in weather or temperature, the graph line of past reading

may run off the top or bottom of the display. The entire graph will become visible once barometric conditions stabilize.

• The following conditions cause the barometric pressure reading to be skipped, with

the corresponding point on the barometric pressure graph being left blank. – Barometric reading that is out of range (260 hPa to 1,100 hPa or 7.65 inHg to 32.45

inHg)

– Sensor malfunction

Barometric Pressure Change Indications

Your watch analyzes past barometric pressure readings and uses a barometric pressure change indicator to inform you about changes in pressure. If it determines there has been a signiﬁ cant change in pressure, it will beep and all of the graphic segments ( pressure change alert. This means you could start taking barometric pressure readings after reaching a lodge or camp area, and then check the watch the next morning for changes in pressure, and plan you day’s activities accordingly. Note that you can enable or disable display of the barometric pressure change indicator as desired.

) around the periphery of the face will ﬂ ash as a barometric

Not visible on

Not visible on the display.

the display.

E-35

Reading the Barometric Pressure Change Indicator

Indicator Meaning

Sudden fall in pressure.

Sudden rise in pressure.

Sustained rise in pressure, changing to a fall.

Sustained fall in pressure, changing to a rise.

• The barometric pressure change indicator is not displayed if there has been no noteworthy change in

barometric pressure.

Important!

• To ensure proper results, take barometric readings under conditions where the altitude remains

constant.

• A change in altitude causes a change in barometric pressure. This means that correct barometric

pressure readings are not possible while you are changing altitudes. To avoid possible confusion, it is probably best to disable the barometric pressure change indicator while you are on the move during your climb.

E-36

To calibrate the pressure sensor and the temperature sensor

1. Take a reading with another measurement device to determine the exact current barometric pressure or temperature.

2. With the watch in the Timekeeping Mode or in any of the sensor modes, press B to enter the Barometer/Thermometer Mode.

3. Hold down E for at least two seconds. display and then depressed until

• The current te mperature cali bration sett ing will ﬂ ash in the l ower

display at this ti me.

4. Press D to move the ﬂ ashing between the temperature value and barometric pressure value, to select the one you want to calibrate.

5. Use A (+) and C (–) to change the ﬂ ashing temperature or altitude value. The values can be change in the units shown below.

Temperature 0.1°C (0.2°F) Barometric Pressure 1 hPa (0.05 inHg)

• To return the currentl y ﬂ ashing value to it s initial factor y default

setting, press A and C at the same ti me. OFF will appear at the ﬂ ashing lo cation for ab out one seco nd, followed by th e initial default value.

TEMP

will appear in the upper display. Keep

TEMP

appears.

SET Hold

will ﬂ ash on the

6. Press E to return to the Barometer/Thermometer Mode screen.

To enable or disable the barometric pressure change alert

In the Barometer/Thermometer Mode, hold down B for at least two seconds. Keep B depressed until the current setting (

• If barometric pressure change indicator display is currently enabled,

upper display.

Pressure Sensor and Temperature Sensor Calibration

The pressure sensor and temperature sensor built into the watch are calibrated at the factory and normally require no further adjustment. If you notice serious errors in the pressure readings and temperature readings produced by the watch, you can calibrate the sensor to correct the errors.

Important!

• Incorrectly calibrating the barometric pressure sensor can result in incorrect readings. Before

performing the calibration procedure, compare the readings produced by the watch with those of another reliable and accurate barometer.

• Incorrectly calibrating the temperature sensor can result in incorrect readings.

Carefully read the following before doing anything. –

Compare the readings produced by the watch with those of another reliable and accurate thermometer.

– If adjustment is required, remove the watch from your wrist and wait for 20 or 30 minutes to give the

temperature of the watch time to stabilize.

Barometer and Thermometer Precautions

• The pressure sensor built into this watch measures changes in air pressure, which you can then apply

to your own weather predictions. It is not intended for use as a precision instrument in ofﬁ cial weather prediction or reporting applications.

• Sudden temperature changes can affect pressure sensor readings. Because of this, there may be

some error in the readings produced by the watch.

• Temperature reading are affected by your body temperature, direct sunlight, and moisture. To achieve

a more accurate temperature reading, remove the watch from your wrist, place it in a well ventilated location out of direct sunlight, and wipe all moisture from the case. It takes approximately 20 to 30 minutes for the case of the watch to reach the surrounding temperature.

INFO Hold ON

BARO

will not appear if display is currently disabled.

INFO Hold OFF

) starts to ﬂ ash on the display.

BARO

will also appear in the

E-37

E-38

E-39

Operation Guide 3439

Using the Altimeter Mode

The watch takes altitude readings and displays results based on air pressure measurements taken by a built-in pressure sensor. It also saves various types of altitude records and data.

• The displayed altitude reading is a relative altitude that is calculated based on measurement of

changes in barometric pressure by the watch’s pressure sensor. This means that barometric pressure changes can cause readings taken at different times at the same location to be different. Also note that the value displayed by the watch may be different from the actual elevation and/or sea level elevation indicated for the area where you are located.

• When using the altimeter of this watch for mountain climbing or other activities, it is highly

recommended that you check a map, local altitude indications, or some other source for your current correct altitude and regularly calibrate the altimeter with the latest information.

Important!

• See “To specify a reference altitude value” (page E-47) and “Altimeter Precautions” (page E-57) for

information about how to minimize differences between readings produced by the watch and values provided by local altitude (elevation) indications.

E-40

To select the altitude screen format

1. In the Altimeter Mode, hold down E for at least two seconds.

• SET Hold will ﬂ as h on the display an d then ALTI will appear in the upper display. Keep

depressed until ALTI appears.

• The current a ltitude value w ill appear at this t ime.

2. Press D twice.

• DISP will appear, and then t he current scree n setting will a ppear in the upp er display.

3. Use A to toggle the setting between the two screens.

4. Press E to exit the setting screen.

E-42

Screen 1 Screen 2

Getting Ready

Before actually taking an altitude reading you need to select an altitude screen format and select an altitude reading interval.

Selecting the Altitude Screen Format

You can select either of two screen formats for the Altimeter Mode.

• Altitude tendency graph contents are updated each time you take an altitude reading.

• To take readings of the difference between the altitude at your current location and the altitude at a

reference point, select Screen 2. See “Using an Altitude Differential Value” (page E-48) for more information.

Selecting the Altitude Auto Reading Interval

You can select either of the following two altitude auto reading interval.

0’05

: Readings at one-second intervals for the ﬁ rst three minutes, and then every ﬁ ve seconds for

approximately the next hour

2’00

: Readings at one-second intervals for the ﬁ rst three minutes, and then every two minutes for

approximately the next 12 hours

Note

• If you do not per form any button operati on while in the A ltimeter Mod e, the watch will retur n to the

Timekeep ing Mode auto matically af ter 12 hours (altitude a uto reading inter val: 2’00) or after on e hour (altitude a uto reading inter val: 0’05).

• If trek log ope ration is in prog ress with 0’05 selec ted as the altitu de auto measure ment method ,

exiting the A ltimeter Mod e to another mo de will automat ically cause t he auto reading inte rval to change to 2’00.

To select the altitude auto reading interval

Screen 1

Altitude tendency graph

Altitude

Current time

1. In the Altimeter Mode, hold down E for at least two seconds.

Hold

will ﬂ ash on the display and then

display. Keep E depressed until

• The current a ltitude readin g value will appea r at this time.

2. Press D to display the current altitude auto reading interval setting.

• This will cause INTERVAL to scroll acros s the top display. The

current altit ude auto reading in terval setti ng (0’05 or 2’00) will be ﬂ ashing in the c enter display.

3. Press A to toggle the altitude auto measurement interval setting

0’05

between

4. Press E to exit the setting screen.

and

2’00

Screen 2

Relative altitude

Current time

ALTI

will appear in the upper

ALTI

appears.

Altitude

SET

E-41

E-43

Taking Altitude Readings

Use the procedure below to take basic altitude readings.

• See “Using Reference Altitude Values” (page E-46) for information about how to make altimeter

readings more accurate.

• See “How does the altimeter work?” (page E-55) for information about how the watch measures altitude.

E-44

• The altitude tendency graph shows changes in altitude over the past 20 readings while readings are

being taken.

50 meters (10 meters for each block )

20 readings ago

Using Reference Altitude Values

To minimize the chance of reading error, you should update the reference altitude value before setting off on a trek or any other activity where you plan to take altitude readings. While mountain climbing, it is highly recommended that you check a map, local altitude indications, or some other source for your current correct altitude and regularly update the reference altitude value with the latest information.

• Reading error can be caused by changes in barometric pressure, and by temperature changes due to

change in barometric pressure and/or elevation.

• Though altitude readings can be taken without setting a reference altitude, doing so may produce

readings that are very different from altitudes indicated by other altitude markers and indications.

• Before performing the procedure below, look up the altitude of your current location on a map, the

Internet, etc.

Current reading

To take altitude readings

Screen 1 Selected

Altitude tendency graph

Current time

Screen 2 Selected

Relative altitude

Current time

To specify a reference altitude value

1. Make sure the watch is in the Timekeeping Mode or any one of the sensor modes.

• The senso r modes are: Digit al Compass M ode, Baromete r/

2. Press A to start auto altimeter readings.

• The current a ltitude value is d isplayed in units of 1 m eter (5 feet).

• For inform ation about t he measureme nt interval, se e page E-4 3.

Note

Altitude

• After you are ﬁ nished, press D to return to the Timekeeping Mode and

stop recording of auto save values (page E-51).

• The watch will return to the Timekeeping Mode automatically if you do

not perform any operation (page E-12).

• The measurement range for altitude is –700 to 10,000 meters (–2,300

to 32,800 feet).

• The displayed altitude value changes to

falls outside the measurement range. An altitude value will reappear as soon as the altitude reading is within the allowable range.

• Normally, displayed altitude values are based on the watch’s preset

conversion values. You also can specify a reference altitude value, if you want. See “Using Reference Altitude Values” (page E-46).

Altitude

• You can change the unit for displayed altitude values to either meters

(m) or feet (ft). See “To specify temperature, barometric pressure, and altitude display units” (page E-29).

1. In the Altimeter Mode, hold down E for at least two seconds.

Hold

display. Keep E depressed until

• The current a ltitude readin g value will appea r at this time.

2. Use A (+) or C (–) to change the current reference altitude value in 1-meter (5-foot) increments.

• Change the refe rence altitud e value to an accurate alt itude reading

• You can set the referen ce altitude valu e within the rang e of –10,000

• Pressing A and C at the same ti me returns to OFF (no referenc e

3. Press E to exit the setting screen.

Thermo meter Mode, and A ltimeter Mo de.

- - - -

if an altitude reading

will ﬂ ash on the display and then

that you get fro m a map or other s ource.

to 10,000 meters (–32,800 to 32,800 feet).

altitude val ue), so the watch perfor ms air pressure to al titude conversions based on preset data only.

ALTI

will appear in the upper

ALTI

appears.

E-45

SET

E-46

E-47

Operation Guide 3439

Advanced Altimeter Mode Operations

Use the information in this section to obtain more accurate altimeter readings, especially while mountain climbing or trekking.

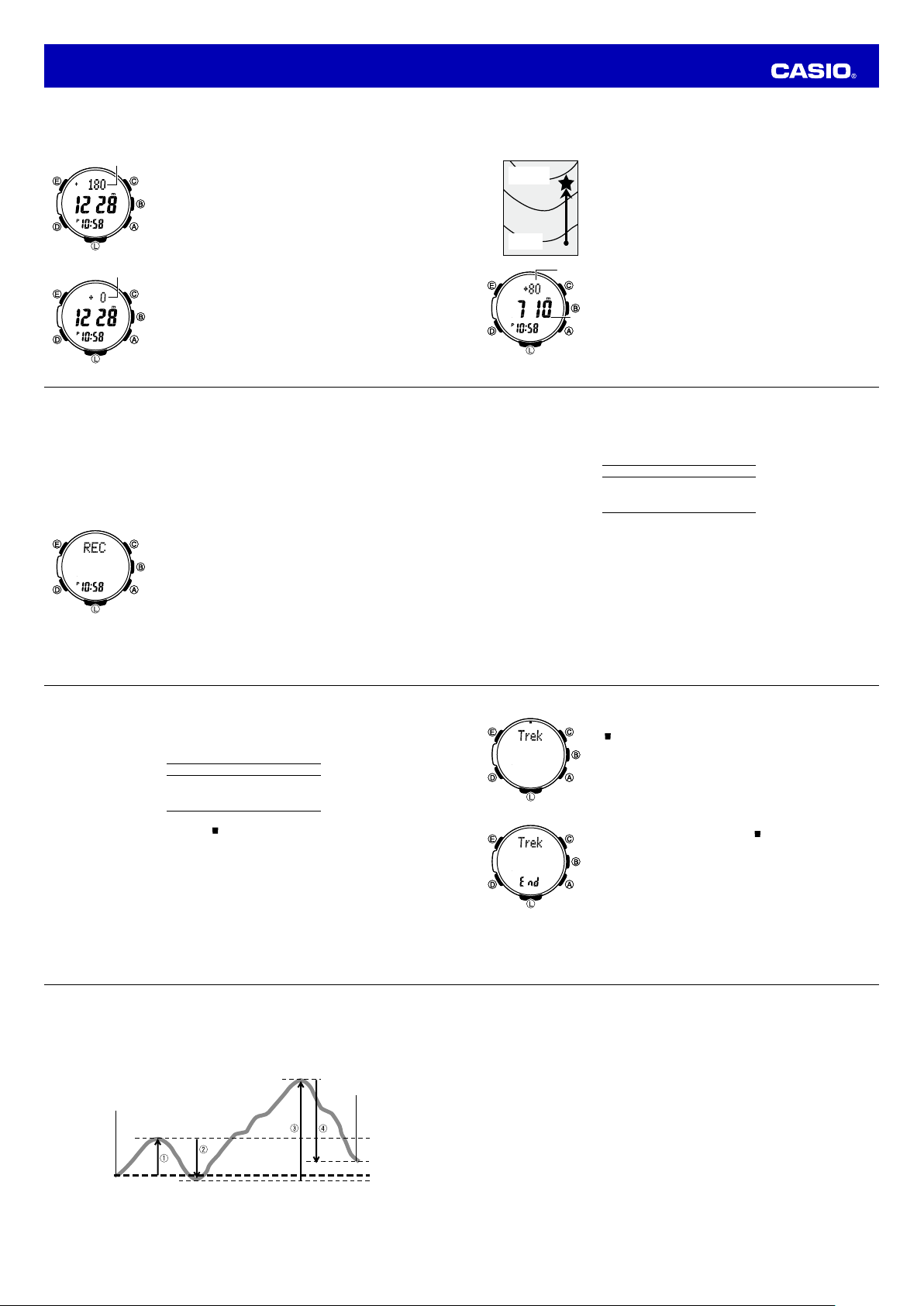

Using an Altitude Differential Value

Altitude differentialAltitude differential

To specify the altitude differential start point

Altitude differentialAltitude differential

E-48

Types of Altitude Data

Your watch can record three types of altitude data in its memory: manually saved data, auto save values, and trek log values.

• Use the Data Recall Mode to view data stored in memory. See “Viewing Altitude Records” (page E-58)

for details.

Manually Saved Records

Any time you perform the procedure below in the Altimeter Mode, the watch will create and store a record with the currently displayed altitude reading, along with the date and time the reading was taken. There is enough memory to store up to 30 manually saved records, which are numbered from

REC 30

To save a reading manually

E-50

The Altimeter Mode screen has an altitude differential value that shows the change in altitude from a reference point you specify. The altitude differential value is updated each time the watch takes an altitude reading.

• The range of the altitude differential value is –3,000 meters (–9,995

feet) to 3,000 meters (9,995 feet).

- - - -

is displayed in place of the altitude differential value whenever

•

the measured value is outside the allowable range.

• See “Using the Altitude Differential Value While Mountain Climbing or

Hiking” (page E-49) for some real-life examples of how to use this feature.

1. In the Altimeter Mode, select Screen 2 as the Altimeter Mode display

(page E-42).

2. Press E.

• The watch will ta ke an altitude re ading and register t he result as

the altitude differential value start point. The altitude differential value will be res et to zero at this time.

REC 1

through

1. In the Altimeter Mode, check to make sure that an altitude reading is on the display.

• If an altitud e reading is not disp layed, press A to take one. Se e “To

take altitud e readings” (page E- 45) for details.

2. Hold down A. First,

REC

and the current time will appear in the lower display. Release

as soon as

• This will save t he currently disp layed altitude re ading in a manuall y

saved record, al ong with the ti me and date of the rea ding.

• The watch will retu rn to the Altime ter Mode screen a utomatically

after the save operation is complete.

• Holding do wn A for too long wi ll advance to trek lo g update

start/stop (page E-53).

REC Hold

will ﬂ ash on the display. After that,

REC

and the current time appear.

Using the Altitude Differential Value While Mountain Climbing or Hiking

After you specify the altitude differential start point while mountain climbing or hiking, you can easily measure the change in the altitude between that point and other points along the way.

To use the altitude differential value

Destination

Destination altitude

altitude

Current

Current location

location

• There is eno ugh memor y to store up to 30 ma nually saved rec ords. If there are al ready 30

manually s aved records in mem ory, the above ope ration will cau se the oldest re cord to be deleted automatic ally to make room fo r the new one.

Auto Save Values

Auto save values are one type of data stored in the memory of your watch.

• These values are checked and updated automatically by the watch as altitude auto measurements are

taken.

• Auto save is performed only while the watch is in the Altimeter Mode.

• Cumulative ascent and cumulative descent values are updated whenever there is a difference of at

least ±15 meters (±49 feet) from one reading to the next.

1. Use the contour lines on your map to determine the difference in altitude between your current location and your destination.

• Knowing th e difference i n altitude hel ps you determine y our

current loc ation and how mu ch further y ou need to go to reach your destination.

2. In the Altimeter Mode, press E to specify your current location as the altitude differential start point.

• The watch will ta ke an altitude re ading and register t he result as

the altitude differential value start point. The altitude differential value will be res et to zero at this time.

3. While comparing the altitude difference you determined on the map

Altitude

Altitude differential

differential

and the watch’s altitude differential value, advance towards your destination.

• If the map sho ws that the dif ference in alti tude betwee n your

location a nd your destin ation is +80 m eters for exampl e, you know

Altitude

you will be nea ring your desti nation when t he displayed altit ude different ial value shows +8 0 meters.

Auto Save Values

High Altitude (

Low Altitude (

Total Ascent (

Total Descent (

MAX MIN ASC

DSC

)

E-49

E-51

Trek Log Values

While trek log updating is enabled, altitude values (high altitude/low altitude, cumulative ascent/descent) for a particular trek are automatically checked and updated at regular intervals, even if you exit the Altimeter Mode. Values include the date and time each is updated. Up to 14 records of trek log values can be maintained in memory, and each record is assigned a number from Mt.1 through Mt.14 in the sequence they are stored.

• For up to 12 hours after trek log value updating is enabled, the values are updated automatically even

if you exit the Altimeter Mode. A segment ( to show the time elapsed since trek log value updating was enabled. Each graphic segment represents 12 minutes, and one revolution around the display represents 12 hours.

• You can select the altitude reading interval you want. For more information, see “To select the altitude

auto reading interval” (page E-43).

Note

• Even if you exit the Altimeter Mode while trekking, updating of the trek log high altitude, low altitude,

and cumulative ascent and descent values continues.

• Your watch has enough memory for 14 trek log records, which means you can maintain values for up to

14 treks.

E-52

How High and Low Altitude Values are Updated

With each auto save or trek log reading, the watch compares the current reading against the altitude) and meters (±49 feet) greater than less than

MIN

(low altitude) values. It will replace the

MIN

Trek Log Values in Each Record

High Altitude (

Low Altitude (

Total Ascent (

Total Descent (

) in the graphic around the periphery of the display ﬂ ashes

MAX

MIN

, or the

value if the current reading is at least 15 meters (±49 feet)

MAX

)

MIN

)

ASC

)

DSC

)

MAX

value if the current reading is at least 15

MAX

(high

How Cumulative Ascent and Cumulative Descent Values Are Updated

620 m

Session start point

20 m

The total ascent and total descent values produced by an Altimeter Mode reading operation session during the example climb illustrated above are calculated as follows. Total Ascent: Total Descent:

E-54

(300 m) + e (620 m) = 920 m

(320 m) + r (500 m) = 820 m

Session end point

320 m

120 m

0 m

To start trek log value updating

To stop trek log value updating

• Entering the Altimeter Mode starts a new altitude auto reading session, but it does not reset the current

ASC

DSC

and for a new Altimeter Mode auto reading session are the values that currently are in memory. Each time you complete an altitude auto reading session by exiting the Altimeter Mode, the total ascent value of the current session (920 meters in the above example) is added to the session’s starting Also, the total descent value of the current auto reading session (–820 meters in the above example) is added to the session’s starting

• Logging of trek log data continues even if you exit the Altimeter Mode.

Note

• The high altitude, low altitude, total ascent, and total descent values are retained in memory when you

exit the Altimeter Mode. To clear values, perform the procedure under “To delete data in a speciﬁ c memory area” (page E-62).

How does the altimeter work?

Generally, air pressure decrease as altitude increases. This watch bases its altitude reading on International Standard Atmosphere (ISA) values stipulated by the International Civil Aviation Organization (ICAO). These values deﬁ ne relationships between altitude and air pressure.

• Note that the following conditions will prevent you from obtaining accurate readings:

When air pressure changes because of changes in the weather Extreme temperature changes When the watch itself is subjected to strong impact

values or change them in any way. This means that the starting

In the Altimeter Mode, hold down A for at least ﬁ ve seconds. First,

Hold

will ﬂ ash on the display. After that,

(

) indicating elapsed reading time will appear at 12 o’clock. Release

Hold

when

disappears.

• This indicates that updating of trek log values (high altitude/low

altitude, cumulative ascent/descent) is being performed.

In the Altimeter Mode, hold down A for at least ﬁ ve seconds. First,

Hold End

and the elapsed time pointer (

disappear. Release A when

• This indicates that updating of trek log values (high altitude/low

altitude, cumulative ascent/descent) has been stopped.

Note

• To start a new trek log record while there are already 14 trek log

records in memory, you will need to delete existing records. For more information, see “To delete data in a speciﬁ c memory area” (page E-62).

DSC

value.

Hold

will disappear and a pointer

) will ﬂ ash. After that,

disappears.

ASC

and

DSC

ASC

Trek

Hold

values

value.

will

E-53

E-55

Operation Guide 3439

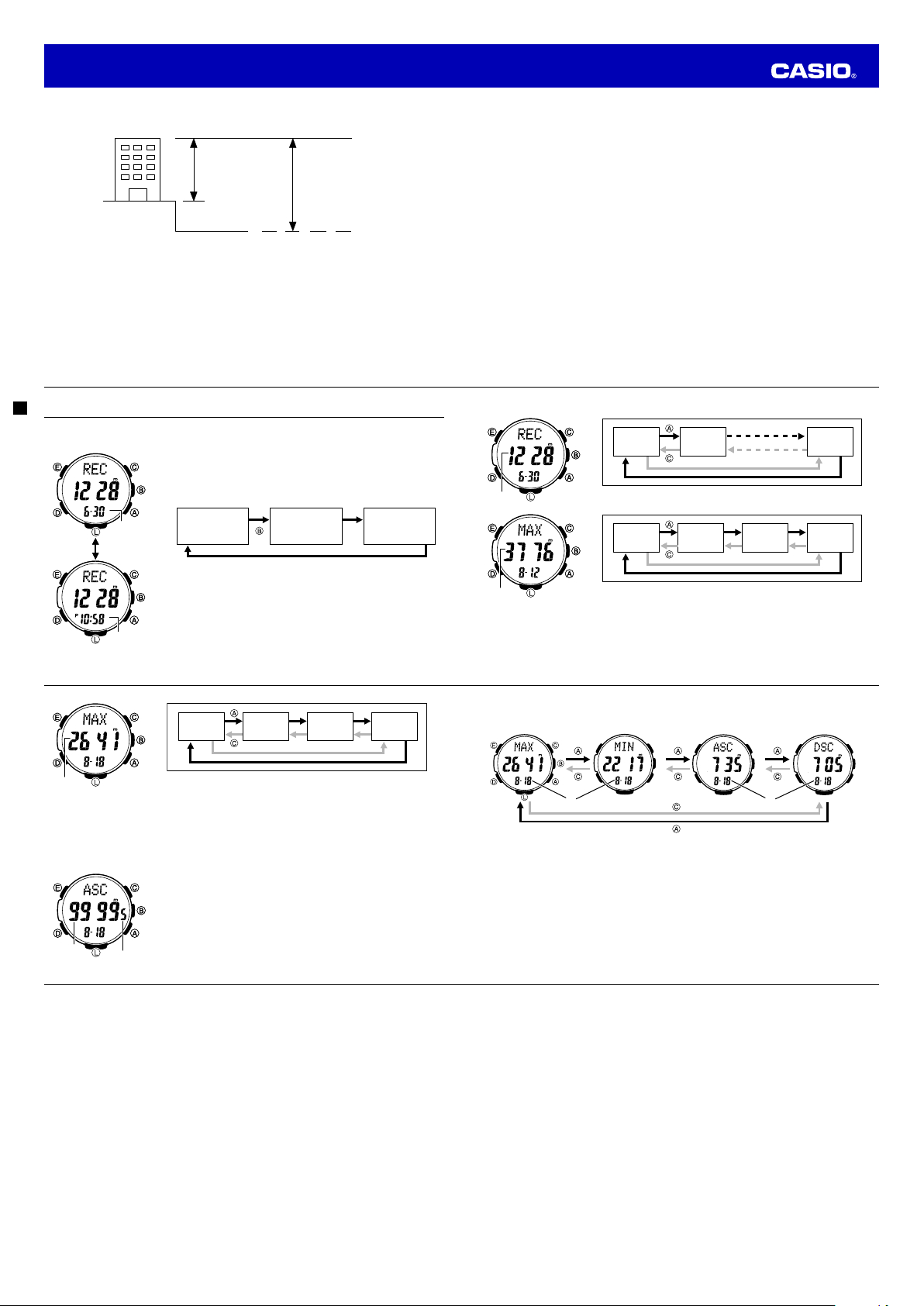

There are two standard methods of expressing altitude: absolute altitude, which expresses an absolute height above sea level, and relative altitude, which expresses the difference between the altitudes of two different places. This watch expresses altitudes as relative altitude.

Height of building 130 m (relative altitude)

Regular calibration of the watch in accordance with values provided by local altitude (elevation) indications is recommended before taking readings in order to maximize reading accuracy (page E-55).

E-56

Rooftop at an altitude of 230 m above sea level (absolute altitude)

Sea Level

Viewing Altitude Records

You can use the Data Recall Mode to view manually saved record data, auto save values, and trek log values.

To view altitude records

Reading date

Reading date (month, day)

1 second

(month, day)

1. Use D to select the Data Recall Mode (

• About one s econd afte r REC appears on the dis play, the display

will change to s how the ﬁ rst reco rd of the memor y area you were viewing wh en you last exited t he Data Recall M ode.

2. Use B to select the memory area you want.

REC -01-

(Manually Saved

Record Area)

• After you se lect the Trek Log Value Are a screen, use th e

button to se lect the trek who se values you want to v iew. Treks are numbered from 1 (Mt.1) through 14 (Mt.14).

Total

(Auto Save

Value Area)

REC

) as shown on page E-10.

Mt.1

(Trek Log

Value Area)

Altimeter Precautions

• This watch estimates altitude based on air pressure. This means that altitude readings for the same

location may vary if air pressure changes.

• Do not rely upon this watch for altitude reading or perform button operations while sky diving, hang

gliding, or paragliding, while riding a gyrocopter, glider, or any other aircraft, or while engaging in any other activity where there is the chance of sudden altitude changes.

• Do not use this watch for measuring altitude in applications that demand professional or industrial level

precision.

• Remember that the air inside of a commercial aircraft is pressurized. Because of this, the readings

produced by this watch will not match the altitude readings announced or indicated by the ﬂ ight crew.

The Effect of Temperature on Altitude Readings

For the more accurate altitude readings, leaving the watch on your wrist is recommended in order to maintain the watch at a constant temperature.

• When taking altitude readings, keep the watch at as stable a temperature as possible. Changes in

temperature can affect altitude readings.

E-57

3. Use A and C to scroll through the screens for an area and display the one you want.

AltitudeAltitude

REC

-01-

REC

-02-

Manually saved records

REC

-30-

MAX MIN ASC DSC

AltitudeAltitude

Auto saved values

Reading time

Reading time (Hour : minute)

(Hour : minute)

Manually Saved

Record Area Screen

E-58

MAX MIN ASC DSC

AltitudeAltitude

• Manually s aved records (REC01 to REC30), auto save MAX and MIN values, and trek log values

all include th e date (month and day) and ti me (hour and mi nute) that the data was rec orded.

• Records of t he ASC and DSC include altitude values along with the date (month, day) and year

that data reco rding starte d.

• For detail s about auto save val ues, see “Auto Save Values ” (page E-51). For details a bout trek log

values, see “ Trek Log Values” (page E- 52).

• ---- will be displayed if MAX/MIN data has be en deleted or if there is no corresponding MAX/MIN

data due to error, etc. In such cases, total ascent (ASC) and total descent (DSC) values will show zero.

10,000s

10,000s digit

digit

E-60

To delete all manually saved data

Memory contents cannot be deleted while trek log values are being recorded.

1. Use D to enter the Data Recall Mode.

2. Use B to display the Manually Saved Record Area (page E-58).

3. Hold down E for at least three seconds. First, will disappear. Release E when

• This will cause - - - - to appear in the lower di splay.

• This indica tes that all manua lly saved data is cle ared.

To delete data in a speciﬁ c memory area

Memory contents cannot be deleted while trek log values are being recorded.

1. Use D to enter the Data Recall Mode.

2. Use B to display the memory area (Manually Saved Record Area, Auto Save Value Area, or Trek Log Value Area) that contains the data you want to delete.

3. What you should do next depends on which memory area you displayed in step 2, above.

• If you displayed t he Manually S aved Record Area , use A and C to display the nu mber of the

record (REC-01- throu gh REC-30-) you want to delete.

• If you displayed t he Auto Save Value Area , all of its values w ill be deleted, so yo u do not need to

select anything.

• If you displayed t he Trek Log Value Area, use B to display the tre k (mountain) numbe r of the

record (Mt.1 through Mt.14) you want to d elete.

Important!

• A delete operat ion cannot be u ndone! Make su re you do not need d ata before you del ete it.

1s digit

• When the tot al ascent (ASC) or tota l descent (DSC) exceeds

99,99 9 meters (or 327,997 feet), the applicabl e value will resta rt from zero. Note th at the watch can disp lay up to ﬁ ve digits only. When using fe et as the altitu de display units , altitude value s are displayed only u p to the rightmos t ﬁ ve digits.

• When the tot al ascent (ASC) or tota l descent (DSC) value

becomes ﬁ ve d igits long, the r ightmost (ones) digi t is shown in the lower right of t he display. The nearby i llustration sh ows the display when the valu e of ASC is 999 95 meters.

Hold

Trek Log Values (Mt.1 to Mt.14)

Clear Hold ALL

disappears.

will ﬂ ash in the display. After that,

Hold

E-59

Trek Log Values (Mt.1 to Mt.14)

High Altitude Value Low Altitude Value

*1 *2

*1: Month and day the displayed value was recorded. *2: Month and day cumulation started.

• Holding down A or C scrolls at high speed.

• On the high altitude value (

between the date (month and day) and time at one-second intervals.

• On the cumulative ascent and cumulative descent screens, the lower display area alternates between

the month and day, and the year at one-second intervals.

4. Hold down E for at least two seconds. First,

disappear. Release E when

• If you are delet ing a Manually S aved Record Are a record, holdi ng down E too long (afte r Hold

disappear s) will cause all manu ally saved records to b e deleted.

• Deleting a record in either the M anually Saved Record Area or Trek Log Value Area will cause all

records foll owing it to be shif ted upwards and ren umbered acco rdingly. If the record y ou delete is the last one c urrently in the m emory area w here you deleted i t, - - - - will be displayed i n the display in plac e of the record num ber.

• After you de lete Auto Save Values, t he MAX (high altitud e) and MIN (low altitude) values will show

- - - -, while the ASC (cumu lative ascent) an d DSC (cumulative descent) val ues will show zero.

MAX

) and low altitude value (

Hold

disappears.

Cumulative Ascent

Value

MIN

) screens, the lower display area alternates

Clear Hold

will ﬂ ash in the display. After that,

Cumulative Descent

Value

Hold

E-61

will

E-62

E-63

Operation Guide 3439

Looking up Sunrise and Sunset Times

You can use the Sunrise/Sunset Mode to look up the sunrise and sunset times for a particular date (year, month, day) and location.

To enter the Sunrise/Sunset Mode

Current date

Sunset time

E-64

Sunrise time

To look up the sunrise and sunset times for a speciﬁ c location

Important!

• You do not need to per form this proc edure to look up t he sunrise and su nset times in yo ur currently

selected Home City.

• If you select a d ifferent cit y code to look u p the sunrise an d sunset times t here, return to the cit y

code of your H ome City (yo ur current loc ation) when you are ﬁ nished. Oth erwise, the t ime shown in the Time keeping Mode w ill not be corre ct.

• For inform ation about t he Home Cit y setting, s ee “Conﬁ gur ing Home Cit y Setting s” (page E-14).

1. In the Timekeeping Mode, hold down E for at least two seconds. First, display, and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

2. Use A (East) and C (West) to select the city code whose sunrise and sunset times you want to view.

• For detail s about city c odes, see the “ City Code Table” at t he back of this ma nual.

• If this display s hows the infor mation you ne ed, you can exit th is procedure at th is point by pressi ng

CITY

twice. If yo u want to specif y a latitude and lo ngitude for a mo re exact reading, adva nce to step 3,

below.

While in the Timekeeping Mode, press D to enter the Sunrise/Sunset Mode.

• This will display the sunrise and sunset times for the current date

based the currently speciﬁ ed city code, latitude, and longitude.

• Before trying to use the Sunrise/Sunset Mode, you need to conﬁ gure

settings for the city code, longitude, and latitude for the location whose sunrise and sunset times you want to view.

• The factory default conﬁ guration of the location is: City Code:

(Tokyo); Latitude: North 35.7 degrees; Longitude: East 139.7 degrees.

SET Hold

will be displayed in the upper display. After that, the currently selected city code and

will ﬂ ash on the

TYO

To view the sunrise/sunset time for a particular date

Date

Sunset time

Latitude

Press D.

Sunrise time

1. Enter the Sunrise/Sunset Mode.

• This will displ ay the sunrise an d sunset times fo r the current

date at t he location s peciﬁ ed by the ci ty code, latit ude, and longitude.

2. While the sunrise/sunset time are on the display, use A (+) and C (–) to scroll through the dates.

• Pressing on e of the above but tons causes t he month and day to

appear in the u pper display area , and the year to app ear in the lower display a rea.

• When you rel ease the but ton, the sunris e time of the sel ected day

will be shown i n the middle disp lay, while the sunset ti me will be shown in the l ower display.

• You can select any date b etween Jan uary 1, 200 0 and Dece mber

31, 209 9.

Note

•

If you think th at the sunrise a nd/or sunset t imes are not cor rect for some reaso n, check the watch’s cit y code, longi tude and latitu de settings.

• The sunris e and sunset tim es displayed by this watc h are times at

sea level. Sun rise and sunset t imes are diff erent at altitud es other than sea level.

3. Press E to display the longitude/latitude setting screen, with the latitude setting ﬂ ashing.

4. Use D to move the ﬂ ashing between the latitude and the longitude setting.

5. Use A (+) and C (–) to change the ﬂ ashing setting.

• You can con figure the long itude and latit ude setting w ithin

following ranges.

Latitude Range: 65.0°S (South 65.0 degrees) to 0°N to 65.0°N

(North 65.0 degrees)

Longitude Range: 179.9°W (West 179.9 degrees) to 0°E to 180.0°E

(East 180.0 degrees)

• Latitu de and longitud e values are round ed off to the neare st

degree.

6. Press E to return to the Timekeeping Mode.

7. In the Timekeeping Mode, press D.

• Displ ay the locatio n whose sunris e and sunset tim es you want to

view.

E-65

E-66

Using the Stopwatch

The stopwatch measures elapsed time, split times, and two ﬁ nishes.

Minutes

E-68

Current time

Hours

Seconds

1/10 second

To enter the Stopwatch Mode

UseD to select the Stopwatch Mode (

STW

) as shown on page E-10.

To perform an elapsed time operation

Start Stop (Restart) (Stop) Reset

A A

To pause at a split time

Start Split

SPLIT

( in the upper part of the display.)

C A

Split release Stop Reset

appears

Using the Countdown Timer

The countdown timer can be conﬁ gured to start at a preset time, and sound an alarm when the end of the countdown is reached.

To enter the Countdown Timer Mode

UseD to select the Countdown Timer Mode (

• About one second after

time hours.

Countdown time

Countdown time (Hour, minutes, seconds)

(Hour, minutes, seconds)

Current time

4. Use A (+) and C (–) to change the ﬂ ashing item.

• To set the starti ng value of the cou ntdown time to 24 ho urs, set 0H 00’00.

TMR

appears on the display, the display will change to show the countdown

5. Press E to exit the setting screen.

E-70

TMR

) as shown on page E-10.

To specify the countdown start time

1. Enter the Countdown Timer Mode.

• If a countdow n is in progress (ind icated by the sec onds countin g

down), press A to stop it and th en press C to reset to the cur rent countdown start time.

• If a countdow n is paused, press C to reset to the cur rent

countdown start time.

2. Hold down E for at least two seconds.

• SET Hold will ﬂ as h on the display an d then the curren t start time

setting wi ll start to ﬂ ash . Keep E depressed u ntil the star t time setting st arts to ﬂ ash.

3. Press D to move the ﬂ ashing between the hour and minute settings.

Longitude

To measure two ﬁ nishes

Start Split

Note

• The Stopwatch Mode can indicate elapsed time up to 999 hours, 59 minutes, 59.9 seconds.

• Once started, stopwatch timing continues until you press A to stop it, even if you exit the Stopwatch

Mode to another mode and even if timing reaches the stopwatch limit deﬁ ned above. A paused timing operation will remain paused until you press A to restart it or C to reset.

• Exiting the Stopwatch Mode while a split time is frozen on the display clears the split time and returns

to elapsed time measurement.

SPLIT

• While

one-second intervals.

First runner ﬁ nishes.

SPLIT

(

appears in the upper part of the display.) Displays time of ﬁ rst runner.

is shown in the upper display, it alternates with the hour digits of the split time at

A C

Stop

Second runner ﬁ nishes.

Split release

Displays time of second runner.

Reset

To perform a countdown timer operation

Start Stop (Restart) (Stop) Reset

• Before starting a countdown timer operation, check to make sure that a countdown operation is not in

progress (indicated by the seconds counting down). If it is, press A to stop it and then C to reset to the countdown start time.

• An alarm sounds for ten seconds when the end of the countdown is reached. This alarm will sound in

all modes. The countdown time is reset to its starting value automatically after the alarm stops sounding.

To stop the alarm

Press any button.

A A

E-67

E-69

E-71

Operation Guide 3439

Using the Alarm

You can set ﬁ ve independent daily alarms. When an alarm is turned on, an alarm will sound for about 10 seconds each day when the time in the Timekeeping Mode reaches the preset alarm time. This is true even if the watch is not in the Timekeeping Mode. One of the daily alarms is a snooze alarm. The snooze alarm will sound every ﬁ ve minutes up to seven times or until it is turned off. You can also turn on an Hourly Time Signal, which will cause the watch to beep twice every hour on the hour.

To enter the Alarm Mode

Alarm name

Alarm name (AL- or SIG)

(AL- or SIG)

Current time

Alarm time

Alarm time (Hour : Minutes)

(Hour : Minutes)

E-72

To turn an alarm and the Hourly Time Signal on and off

1. In the Alarm Mode, use A and C to select an alarm or the Hourly Time Signal.

2. When the alarm or the Hourly Time Signal you want is selected, press B to turn it on and off.

•

The alarm o n indicator (whe n any alarm is on), sno oze alarm indica tor (when the sno oze alarm is on), and the Hou rly Time Sign al on indicator (wh en the Hourl y Time Signal i s on) are shown on the d isplay in all modes.

Use

to select the Alarm Mode (

• About one second after

change to show an alarm name ( indicator. The alarm name indicates an alarm screen. when the Hourly Time Signal screen is on the display.

• When you enter the Alarm Mode, the data you were viewing when you

last exited the mode appears ﬁ rst.

Snooze alarm indicator

ALM

) as shown on page E-10.

appears on the display, the display will

AL-1

AL-4

SNZ

, or

) or the

SIG

is shown

To set an alarm time

Alarm ON/OFF indicatorAlarm ON/OFF indicator

1. In the Alarm Mode, use A and C to scroll through the alarm screens until the one whose time you want to set is displayed.

AL-1 AL-2 AL-3

SIG* SNZ

2. Hold do wn E until SET Hold appe ars on the d isplay an d then the c urrent se tting s start t o ﬂ ash.

• This is the setting screen.

3. Press D to move the ﬂ ashing between the hour and minute settings.

4. While a setting is ﬂ ashing, use A (+) and C (–) to change it.

• When set ting the alarm ti me using the 12- hour format, t ake care to set the ti me correctly a s a.m. (no

indicator) or p. m. (P indicator).

5. Press E to exit the setting screen.

• Setting a n alarm time ca uses that alar m to turn on autom atically.

To stop the alarm

Press any button.

Note

• The snooze alarm sounds up to seven times at intervals of about ﬁ ve minutes.

• After the snooze alarm ﬁ rst sounds,

seven times or until it is canceled.

• The snooze alarm will be canceled when any of the following occurs while the

on the display.

- If you turn off the snooze alarm

- If you display the snooze alarm setting screen

- If you display the Timekeeping Mode setting screen

- If your Home City and World Time City are the same city, and you use the World Time Mode to

change the summer time setting of your Home City

* There is no ti me setting fo r the hourly ti me signal.

SNZ

will ﬂ ash on the display until the snooze alarm sounds all

AL-4

SNZ

indicator is ﬂ ashing

E-73

Alarm on indicator

Hourly time signal on indicator

E-74

Checking the Current Time in a Different Time Zone

You can use the World Time Mode to view the current time in one of 31 time zones (48 cities) around the globe. The city that is currently selected in the World Time Mode is called the “World Time City”.

Currently selected

Currently selected Word Time City

Word Time City

Current timekeeping

Current timekeeping Mode time

Mode time

Current time in the currently

Current time in the currently selected World Time City

selected World Time City

E-76

To enter the World Time Mode

UseD to select the World Time Mode (WT) as shown on page E-10.

•

One second after WT appears on the display, the city code of the currently selected World Time City will scroll once in the upper display. After that, the World Time City’s city code will be displayed in the upper display.

To view the time in another time zone

In the World Time Mode, use A (East) and C (West) to scroll through city codes.

Illumination

The display of the watch is illuminated for easy reading in the dark. The watch’s auto light switch turns on illumination automatically when you angle the watch towards your face.

• The auto light switch must be turned on (page E-80) for it to operate.

To turn on illumination manually

To change the illumination duration

1. In the Timekeeping Mode, hold down E for at least two seconds. First, display, and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

CITY

PressL in any mode to illuminate the display.

• You can use the procedure below to select either 1.5 seconds or three

seconds as the illumination duration. When you press L, the display will remain illuminated for about 1.5 seconds or three seconds, depending on the current illumination duration setting.

• The above operation turns on illumination regardless of the current

auto light switch setting.

• Illumination is disabled while conﬁ guring sensor measurement mode

settings, and during bearing sensor calibration.

SET Hold

will be displayed in the upper display. After that, the currently selected city code and

will ﬂ ash on the

To specify standard time or daylight saving time (DST) for a city

DST indicatorDST indicator

2. Use D to cycle through the setting screens until

• The current i llumination d uration sett ing (1 or 3) will be ﬂ ashing in t he middle display.

• See the sequ ence in step 2 of the p rocedure unde r “To change the curre nt time and date

settings” ( page E-16) for information a bout how to scroll t hrough setti ng screens.

3. Press A to toggle the illumination duration between three seconds (3 displayed) and 1.5 seconds ( displayed).

4. After all of the settings are the way you want, press E twice to exit the setting screen.

About the Auto Light Switch

Turning on the auto light switch causes illumination to turn on, whenever you position your wrist as described below in any mode.

Moving the watch to a position that is parallel to the ground and then tilting it towards you more than 40 degrees causes illumination to turn on.

Warning!

Always make sure you are in a safe place whenever you are reading the display of the watch

•

using the auto light switch. Be especially careful when running or engaged in any other activity that can result in accident or injury. Also take care that sudden illumination by the auto light switch does not startle or distract others around you.

When you are wearing the watch, make sure that its auto light switch is turned off before riding

•

on a bicycle or operating a motorcycle or any other motor vehicle. Sudden and unintended operation of the auto light switch can create a distraction, which can result in a trafﬁ c accident and serious personal injury.

1. In the World Time Mode, use A (East) and C (West) to scroll through the available city codes.

• Keep scrollin g until the city c ode whose S tandard Time /Daylight

Saving Tim e setting you wan t to change is displaye d.

2. Hold down E for at least two seconds.

• Keep E depressed u ntil the current s etting (DS T Hold ON or DST

Hold OFF) starts to ﬂ as h on the display.

• DST Hold ON means that summer time is enabled, and that the

current time i s advanced acco rdingly. DST Hold OFF means that summer ti me is disabled, a nd that the curre nt time shows st andard time.

• This toggle s the city cod e you selected in s tep 1 between D aylight

Saving Time (DST indic ator displayed) and st andard time (DST indicator not d isplayed).

• Using the Worl d Time Mode to ch ange the DST s etting of the

city code t hat is selected a s your Home Cit y also will change the Timekee ping Mode tim e DST setti ng.

• Note that you can not switch bet ween standa rd time/dayligh t

saving time (D ST) while UTC is sel ected as the Worl d Time City.

• Note that the st andard time/d aylight saving ti me (DST) se tting

affects on ly the currentl y selected time zo ne. Other ti me zones are not affected.

LIGHT

appears in the upper display.

More than

More than 40°

40°

Wear the watch on the

Wear the watch on the outside of your wrist

outside of your wrist

E-75

E-77

E-78

E-79

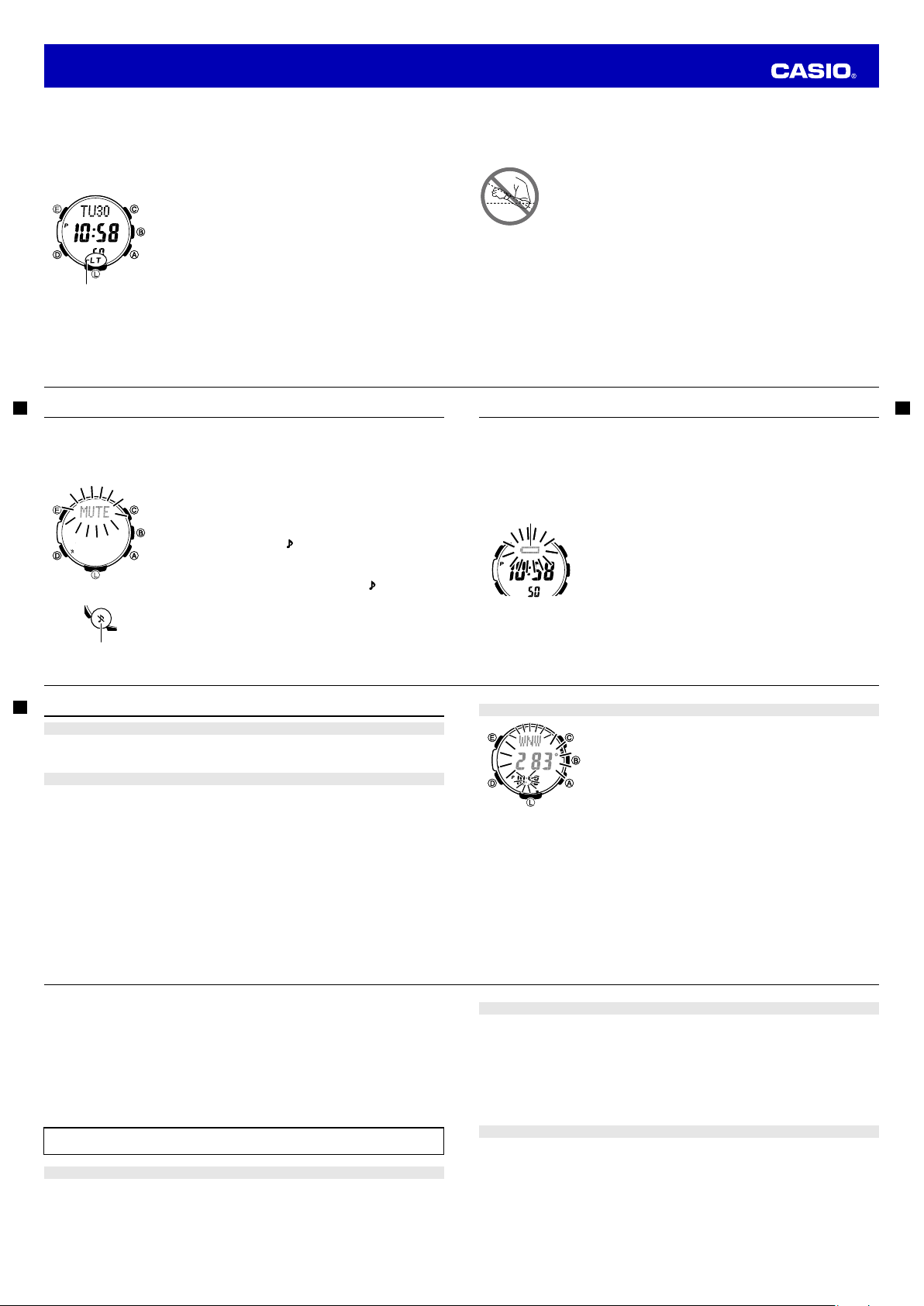

Operation Guide 3439

Note

• The auto light switch is always disabled, regardless of its on/off setting, when any one of the following

conditions exists.

While an alarm is sounding While a bearing sensor calibration operation is being performed in the Digital Compass Mode While a sunrise or sunset time is being calculated While in a sensor mode, an auto light switch operation is performed after a sensor reading

To turn the auto light switch on and off

Auto light switch on

Auto light switch on indicator

indicator

E-80

In the Timekeeping Mode, hold down L for at least three seconds to toggle the auto light switch on (LT displayed) and off (LT not displayed).

• The auto light switch on indicator (LT) is on the display in all modes

while the auto light switch is turned on.

• The auto light switch remains enabled for about six hours. After that

disables automatically.

Button Operation Tone

The button operation tone sounds any time you press one of the watch’s buttons. You can turn the button operation tone on or off as desired.

• Even if you turn off the button operation tone, the alarm, Hourly Time Signal, barometric pressure

change alert, and Countdown Timer Mode alarm all operate normally.

To turn the button operation tone on and off

Mute indicatorMute indicator

E-82

1. In the Timekeeping Mode, hold down E for at least two seconds.

SET Hold

First, the upper display. After that, the currently selected city code and city name will scroll across the upper display. Keep E depressed until the scrolling starts.

2. Use D to cycle through settings on the display until the current button operation tone (

• See the seq uence in step 2 of th e procedure und er “To change the

current time a nd date settin gs” (page E-16) for informati on about how to scroll thro ugh setting sc reens.

PressA to toggle the button operation tone on (

4. After all of the settings are the way you want, press E twice to exit the setting screen.

Note

• The mute indi cator is displayed in a ll modes when t he button

operation tone is turned off.

will ﬂ ash on the display, and

MUTE

key

) is displayed.

CITY

will be displayed in

key

) and off (

MUTE

Illumination Precautions

• Illumination may be hard to see when viewed under direct sunlight.

• Illumination turns off automatically whenever an alarm sounds.

• Frequent use of illumination runs down the battery.

Auto light switch precautions

• Illumination may not turn on if the face of the watch is more than 15 degrees above

or below parallel. Make sure that the back of your hand is parallel to the ground.

• Illumination turns off after the preset illumination duration (page E-78), even if you

keep the watch pointed towards your face.

• Static electricity or magnetic force can interfere with proper operation of the auto

light switch. If illumination does not turn on, try moving the watch back to the starting position (parallel with the ground) and then tilt it back towards your face again. If this does not work, drop your arm all the way down so it hangs at your side, and then bring it back up again.

• You may notice a very faint clicking sound coming from the watch when it is shaken

back and forth. This sound is caused by mechanical operation of the auto light switch, and does not indicate a problem with the watch.

Low Battery Indication

A low battery indicator appears on the display when battery power is low. Have the battery replaced as soon as possible.

Note

• For inform ation about b attery life gu idelines and su pported bat tery type s, see the produ ct

speciﬁ cations.

S ee “Speci ﬁ cations” (page E -89).

The functions below are disabled while the low battery indicator is ﬂ ashing.

Low battery indicatorLow battery indicator

Note

• Sequenti ally or repeatedl y performi ng sensor, light, ala rm, and other p ower intensive o perations

over a shor t period can cau se a sudden drop i n battery po wer, which will make the l ow battery indicator ﬂ ash . Even though the lo w battery ind icator may disapp ear and watch funct ions may become re -enable d, battery rep lacement is rec ommended .

• All functi ons, except for th e low batter y indicator and t imekeeping

• Updating of th e barometric pre ssure change ind icator

• Updating of tre k log values

• Auto Light

E-81

E-83

Troubleshooting

Time Setting

The current time setting is off by hours.

■

Your Home City setting may be wrong (page E-14). Check your Home City setting and correct it, if necessary.

Altitude Readings

Altitude readings produce different results at the same location.

■

Readings produced by the watch are different from the elevation and/or sea level altitude

■

indications in my area. (Negative sea level altitude values are produced in a location where the indicated elevation is a positive value.)

I can’t get correct altitude readings.

■

Relative altitude is calculated based on changes in barometric pressure measurement by its pressure sensor. This means that barometric pressure changes can cause readings taken at different times at the same location to be different. Also note that the value displayed by the watch may be different from the actual elevation and/or sea level elevation indicated for the area where you are located. When using the altimeter of this watch for mountain climbing or other activities, it is highly recommended that you check a map, local altitude indications, or some other source for your current correct altitude and regularly calibrate the altimeter with the latest information. For more information, see “To specify a reference altitude value” (page E-47).

E-84

The direction information indicated by the watch is different from that indicated by a backup

■

compass.

• Move away from and potential source of strong magnetism, perform bidirectional calibration, and then

try taking a reading again. For more information, refer to “To perform bidirectional calibration” (page E-23) and “Location” (page E-27).

Direction readings produce different results at the same location.

■

• Move away from any potential source of strong magnetism and try taking a reading again. See

“Location” (page E-27).

I am having problems taking direction readings indoors.

■

• Move away from any potential source of strong magnetism and try taking a reading again. See

“Location” (page E-27).

Whenever you have a sensor malfunction, take the watch to your original dealer or nearest authorized CASIO distributor as soon as possible.

Barometric Pressure Readings

The barometric pressure differential pointer does not appear on the display when I enter the

■

Barometer/Thermometer Mode.

• The reading value is outside of the allowable measurement range. See page E-32.

Calibrate the pressure sensor (page E-38).

• There may be a problem with the sensor. If

Barometric Pressure, Temperature, and Altitude Readings” for more information.

E-86

ERR

(error) is on the digital display, refer to “Direction,

Taking Direction Readings

ERR appears on the digital display during sensor reading operations.

■

There is something wrong with the sensor. This could be due to nearby strong magnetic force. Move location where magnetism is not present and try again. If, after multiple retries, contact your original retailer or CASIO service center. See “Location” (page E-27).

ERR appears following bidirectional calibration.

■

If the screen displays hyphens ( something wrong with the sensor.

• Wait for about one second for the

sensor again.

ERR

• If

continues to appear even after multiple attempts to calibrate, contact your original retailer or

CASIO service center.

Direction, Barometric Pressure, Temperature, and Altitude Readings

ERR appears on the digital display during sensor reading operations.

■

This indicates that there is a problem with the sensor, making sensor readings impossible.

• If the error is indicated while a reading operation in progress, restart the operation. If

again, it could mean there is something wrong with the sensor.

ERR

• If

appears frequently, it could mean that the sensor is faulty. Contact your original retailer or

CASIO service center

I can’t change the temperature, barometric pressure, and altitude display units.

■

TYO

When

(Tokyo) is selected as the Home City, the altitude unit is set automatically to meters (m), the barometric pressure unit to hectopascals (hPa), and the temperature unit to Celsius (°C). These settings cannot be changed.

World Time Mode

The time for my World Time City is off in the World Time Mode.

■

This could be due to incorrect switching between standard time and daylight saving time. See “To specify standard time or daylight saving time (DST) for a city” (page E-77) for more information.

Abnormal magnetism detection is indicated.

■

• Move away from any potential source of strong magnetism and try

taking a reading again.

• If abnormal magnetism is detected again when you retry, it could mean

that the watch itself has become magnetized. If this happens, continue to keep away from the source of strong magnetism, perform bidirectional calibration, and then try taking a reading again. For more information, refer to “To perform bidirectional calibration” (page E-23) and “Location” (page E-27).

ERR

keeps appearing,

- - -

) followed by the

ERR

(error) indicator, it could mean there is

indicator to disappear from the display, and then calibrate the

ERR

appears

E-85

E-87

Operation Guide 3439

Battery

The low battery indicator is ﬂ ashing on the digital display.

■

Low battery indicatorLow battery indicator

The watch’s battery power is low. Have the battery replaced as soon as possible.

See “Low Battery Indication” (page E-83).

E-88

Altimeter:

Measurement range: –700 to 10,000 m (or –2,300 to 32,800 ft.) without reference altitude Display range: –10,000 to 10,000 m (or –32,800 to 32,800 ft.)

Negative values can be caused by readings produced based on a reference altitude or due to

atmospheric conditions.

Display unit: 1 m (or 5 ft.) Current Altitude Data: Every second for the ﬁ rst 3 minutes, followed by every 5 seconds for

approximately 1 hour ( approximately 12 hours (

Altitude Memory Data:

Manually saved records: 30 (altitude, date, time) Auto saved values: One set of high altitude and its reading date and time, low altitude and its

reading date and time, total ascent and its save start date, total descent and its save start date

Trek log data: High altitude, low altitude, cumulative ascent, cumulative descent for up to 14 treks

Other: Reference altitude setting; Altitude differential; Altitude auto measurement interval (

2’00

Bearing Sensor Precision:

Pressure Sensor Precision:

)

Direction: Within ±10°

Values are guaranteed for a temperature range of 10°C to 40°C (50°F to 104°F).

North pointer: Within ±2 digital segments

Measurement accuracy: Within ±3hPa (0.1 inHg) (Altimeter accuracy: Within ± 75m (246 ft.))

• Values are guaranteed for a temperature range of –10°C to 40°C (14°F to 104°F).

• Precision is lessened by strong impact to either the watch or the sensor, and by temperature

extremes.

0’05

); every second for the ﬁ rst 3 minutes, followed by every 2 minutes for

2’00

)

0’05

Speciﬁ cations

Accuracy at normal temperature: Timekeeping:

Digital Compass:

Barometer:

Thermometer:

Temperature Sensor Precision:

Sunrise/sunset:

Stopwatch:

Countdown Timer:

Alarms: World Time:

Illumination:

Other:

Hour, minutes, seconds, p.m. (P), year, month, day, day of the week Time format: 12-hour and 24-hour Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2099 Other: Three display formats (day of the week/day screen, month/day screen, barometric pressure

graph screen); Home City code (can be assigned one of 48 city codes); Standard Time / Daylight Saving Time (summer time) Year display on setting screen only.

60 seconds continuous reading; 16 directions; Angle value 0° to 359°; Four direction

pointers; Calibration (bidirectional); Magnetic declination correction; Bearing Memory

Measurement and display range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg) Display unit: 1 hPa (or 0.05 inHg) Reading timing: Daily from midnight, at two hour intervals (12 times per day); Every ﬁ ve seconds in

the Barometer/Thermometer Mode

Other: Calibration; Manual reading (button operation); Barometric pressure graph; Barometric

pressure differential pointer; Barometric pressure change indicator

Measurement and display range: –10.0 to 60.0°C (or 14.0 to 140.0°F) Display unit: 0.1°C (or 0.2°F) Reading timing: Every ﬁ ve seconds in the Barometer/Thermometer Mode Other: Calibration; Manual reading (button operation)

±2°C (±3.6°F) in range of –10°C to 60°C (14.0°F to 140.0°F)

Sunrise/sunset time display; selectable date

Measuring unit: 1/10 second Measuring capacity: 999:59' 59.9" Measuring accuracy: ±0.0006% Measuring modes: Elapsed time, split time, two ﬁ nishes

Measuring unit: 1 second Countdown range: 24 hours Setting unit: 1 minute

5 Daily alarms (with one snooze alarm); Hourly time signal

48 cities (31 time zones)

Other: Daylight Saving Time/Standard Time

LED light; Selectable illumination duration (approximately 1.5 seconds or 3 seconds); Auto

Light Switch

Low-temperature resistance (–10°C/14°F); Button operation tone on/off; Low battery alert

±15 seconds a month

E-89

E-90

Battery:

One lithium battery (Type: CR1616) Approximate Battery life : 2 years Conditions

• Light: 1.5 seconds/day

• Beeper: 10 seconds/day

• Direction readings: 20 times/month

• Climbs: Once (approximately 1 hour of altitude readings)/month

• Barometric pressure change indicator readings: Approximately 24 hours/month

• Barometric pressure graph: Readings every 2 hours

Frequent use of illumination runs down the battery. Particular care is required when using the auto light switch (page E-81).

E-92

City Code Table

City

Code

PPG Pago Pago –11

HNL Honolulu –10

ANC Anchorage –9

YVR Vancouver

LAX Los Angeles

YEA Edmonton

DEN Denver

MEX Mexico City

CHI Chicago

NYC New York –5

SCL Santiago

YHZ Halifax

YYT St. Johns –3.5

RIO Rio De Janeiro –3

FEN

RAI Praia –1

L-2

City

Fernando de

Noronha

UTC Offset/

GMT Differential

–8

–7

–6

–4

–2

City

Code

UTC

LON London

MAD Madrid

PAR Paris

ROM Rome

BER Berlin

STO Stockholm

ATH Athens

JRS Jerusalem

MOW Moscow

JED Jeddah

THR Tehran +3.5

DXB Dubai +4

KBL Kabul +4.5

KHI Karachi +5

City

UTC Offset/

GMT Differential

E-91

L-1

City

Code

DEL Delhi +5.5

KTM Kathmandu +5.75

0LIS Lisbon

+2CAI Cairo

DAC Dhaka +6

RGN Yangon +6.5

BKK Bangkok +7

SIN Singapore

HKG Hong Kong

BJS Beijing

TPE Taipei

SEL Seoul

TYO Tokyo

ADL Adelaide +9.5

GUM Guam

SYD Sydney

NOU Noumea +11

WLG Wellington +12

City

UTC Offset/

GMT Differential

+10

* As of June 2014, the ofﬁ cial UTC offset for

Moscow, Russia (MOW) was changed from +3 to +4, but this watch still uses an offset of +3 (the old offset) for MOW. Because of this, you should leave the summer time setting turned on (which advances the time by one hour) for the MOW time.

• The rules governing global times (GMT

differential and UTC offset) and summer time are determined by each individual country.

L-3

Casio 3439 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
