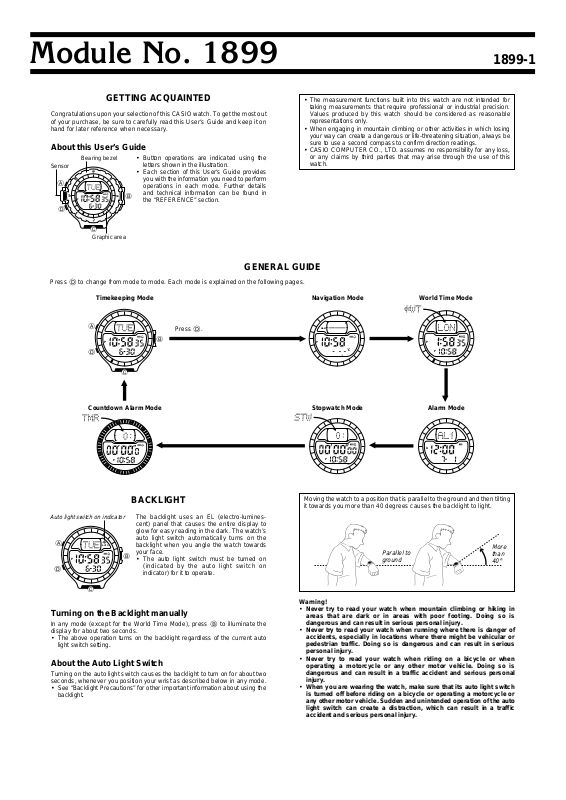

Module No. 1899 |
1899-1 |
|
|
GETTING ACQUAINTED
Congratulations upon your selection of this CASIO watch. To get the most out of your purchase, be sure to carefully read this User’s Guide and keep it on hand for later reference when necessary.
About this User’s Guide
|
|
Bearing bezel |
|
∙ Button operations are indicated using the |
||
Sensor |
|
|
|
|
∙ |
letters shown in the illustration. |
|
|
|
N |
|
Each section of this User’s Guide provides |
|
|
|
NW |
|
|
|
|
A |
W |
|
|
|
|
you with the information you need to perform |
|
|
|
|
|
operations in each mode. Further details |
|
|
|
|
|
|
|
|
S |
|
|
|
E |
B |
and technical information can be found in |
W |
|
|
|
N |
|
the “REFERENCE” section. |
|
P |
|
|
|
|
|
D |
S |
|
E |
|
|
|
|
|
|
|
|
||
|
|
E |
S |
|
|
|
|
|
C |
|
|
|
|
|
|
Graphic area |
|
∙The measurement functions built into this watch are not intended for taking measurements that require professional or industrial precision. Values produced by this watch should be considered as reasonable representations only.
∙When engaging in mountain climbing or other activities in which losing your way can create a dangerous or life-threatening situation, always be sure to use a second compass to confirm direction readings.
∙CASIO COMPUTER CO., LTD. assumes no responsibility for any loss, or any claims by third parties that may arise through the use of this watch.
GENERAL GUIDE
Press D to change from mode to mode. Each mode is explained on the following pages.
Timekeeping Mode |
|
|
Navigation Mode |
A |
Press D. |
|
NAVI |
B |
|
▼ |
P |
P |
|
|
|
D |
|
|
C |
C |
|
|
|
▲ |
|
|
|
Countdown Alarm Mode |
|
|
Stopwatch Mode |
▼
World Time Mode
P
P
▼
Alarm Mode
▼ |
▼ |
A
P P
BACKLIGHT
Auto light switch on indicator
A AUTO
B
P
D
C
The backlight uses an EL (electro-lumines- cent) panel that causes the entire display to glow for easy reading in the dark. The watch’s auto light switch automatically turns on the backlight when you angle the watch towards your face.
∙The auto light switch must be turned on (indicated by the auto light switch on indicator) for it to operate.
Turning on the Backlight manually
In any mode (except for the World Time Mode), press B to illuminate the display for about two seconds.
∙The above operation turns on the backlight regardless of the current auto light switch setting.
About the Auto Light Switch
Turning on the auto light switch causes the backlight to turn on for about two seconds, whenever you position your wrist as described below in any mode.
∙See “Backlight Precautions” for other important information about using the backlight.
Moving the watch to a position that is parallel to the ground and then tilting it towards you more than 40 degrees causes the backlight to light.
Parallel to |
More |
than |
|
ground |
40° |
|
Warning!
∙Never try to read your watch when mountain climbing or hiking in areas that are dark or in areas with poor footing. Doing so is dangerous and can result in serious personal injury.
∙Never try to read your watch when running where there is danger of accidents, especially in locations where there might be vehicular or pedestrian traffic. Doing so is dangerous and can result in serious personal injury.
∙Never try to read your watch when riding on a bicycle or when operating a motorcycle or any other motor vehicle. Doing so is dangerous and can result in a traffic accident and serious personal injury.
∙When you are wearing the watch, make sure that its auto light switch is turned off before riding on a bicycle or operating a motorcycle or any other motor vehicle. Sudden and unintended operation of the auto light switch can create a distraction, which can result in a traffic accident and serious personal injury.
1899-2
To turn the auto light switch on and off
In the Timekeeping Mode, hold down Bfor two seconds to turn the auto light switch on (Auto light switch on indicator displayed) and off (Auto light switch on indicator not displayed).
∙In order to protect against running down the batteries, the auto light switch is automatically turned off approximately six hours after you turn it on. Repeat the above procedure to turn the auto light switch back on if you want.
∙The auto light switch on indicator is on the display in all modes while the auto light switch is turned on.
TIMEKEEPING MODE
Use the Timekeeping Mode to set the current time and date, to take direction and temperature readings, to select the temperature unit of measurement, and to calibrate the temperature sensor.
Calibrating the Seconds Count
Hour : Minutes
Seconds Day of week
A
B
P
D
C
Month – Day
PM indicator
Use the following procedure to calibrate the seconds count on a time signal from a radio, TV, or other source.
1.In the Timekeeping Mode, hold down A until the seconds digits start to flash on the display.
2.Press C to set the seconds count to 00
when the time signal you are calibrating to sounds.
∙Pressing C while the seconds count is in the range of 30 to 59 resets the seconds to 00 and adds 1 to the minutes. If the seconds count is in the range of 00 to 29,
the minutes count is unchanged.
3.Press A to return to the current time display.
Setting the Current Time
|
1. |
In the Timekeeping Mode, hold down A |
|
|
|
until the seconds digits start to flash on the |
|
A |
|
display. |
|
B |
∙ The seconds digits are flashing because |
||
|
they are selected. |
||
P |
2. |
Press D to move the flashing in the |
|
D |
|||
|
sequence shown below to select other |
digits and settings.
C
|
|
Seconds |
|
|
|
Hour |
|
|
|
Minutes |
|
|
12/24-Hour |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Format |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Day |
|
|
|
|
|
Month |
|
|
|
|
|
Year |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3.While hour, minutes, year, month, or day is selected (flashing), press Cto increase the setting or B to decrease it.
∙ When the 12/24-hour setting is selected, use C to toggle between 12-hour (12H) and 24-hour (24H) timekeeping.
4.After the time and date are set the way you want them, press A to return to the current time screen.
Notes
∙The year can be set in the range of 1995 to 2039.
∙The day of the week is automatically displayed in accordance with the month and day setting.
∙The watch’s built-in full automatic calendar automatically make allowances for different month lengths and leap years. Once you set the date, there should be no reason to change it except after the replacement of the watch’s batteries.
Taking a Direction and Temperature Reading
Magnetic north pointer
Direction value
A
P
D C
1.In the Timekeeping Mode, place the watch on a flat surface or (if you are wearing the watch), make sure that your wrist is horizontal (in relation to the horizon).
2.Press C to start a reading operation.
∙ After about one second, the current temperature, the direction pointers and
Bdirection value appear on the display.
∙You can repeat steps 1 through 2 as many times as you like.
C
|
NW |
|
|
3. |
Next, you can adjust the rotary direction |
|
W W |
|
|
|
N |
bezel so that the “N” or “L” mark is aligned |
|
|
|
|
N |
|
||
|
|
|
|
|
|
with the magnetic north pointer. This aligns |
W |
|
|
|
|
N |
all of the markings on the bezel with their |
S |
|
|
|
|
E |
applicable directions. |
P |
|
|
|
|
∙ |
|
|
|
|
C |
|
After you are finished taking direction |
|
S |
|
|
|
E |
E |
readings, press D to return to the current |
S |
|
|
|
|
||
|
E |
S |
|
|
|
time and date screen. |
∙ The watch automatically returns to the current time and date screen if you do not perform any operation for about 60 minutes.
Notes
∙To take a temperature reading only, simply press C in the Timekeeping Mode. This also performs a direction reading, but the pointers and direction value will not be accurate if the watch is not oriented correctly.
∙The direction value shows the direction that the 12 o’clock position of the watch is pointing as an angle value. See “Direction Values” for details.
∙After you take a direction and temperature reading in the Timekeeping Mode, temperature readings continue to be performed every two minutes.
∙See “Temperature and Direction Reading Precautions” and “Digital Compass Precautions” for other important information about taking direction and temperature readings.
Calibrating the Temperature Reading
The temperature sensor of this watch is calibrated at the factory before shipment and further adjustment is normally not required. If you notice significant error in the temperature readings produced by this watch, you can adjust it to correct the error.
Important!
Incorrectly calibrating the temperature reading of this watch can result in incorrect readings. Carefully read the following before doing anything.
∙Compare the readings produced by the watch with those of another reliable, accurate thermometer.
∙If adjustment is required, remove the watch from your wrist and wait for 20 or 30 minutes to give the temperature of the watch time to stabilize.
To calibrate the temperature reading
1.In the Timekeeping Mode, press C to perform a direction and temperature
A |
reading. |
|
2. Hold down A until the temperature value |
Bstarts to flash on the display.
|
P |
Press of C to |
increase |
the displayed |
|
3. |
|||
D |
C |
temperature by |
0.1°C. |
Pressing B |
|
decreases it.
C |
∙ To return the temperature reading to its |
||
initial factory default calibration, press |
B |
||
|
and C at the same time.
∙ You can change the displayed temperature value by ±9.9°C. The overall temperature reading adjustment range is –10.0°C to 60.0°C.
4. After calibrating the temperature, press A to return to the measurement result screen.
∙ To return to the current time and date screen, press D.
Temperature
1899-3
NAVIGATION MODE
The Navigation Mode provides you with storage for up to five sets of direction and temperature data. Each set of data includes direction, temperature, and the time the readings were taken.
Taking Navigation Mode readings
Mode indicator
ANAVI
MEMO
B D
C
C
Area number
1.In the Navigation Mode, use A to select the memory area where you want to store the data. Each time you press A, the selected memory area changes in the following sequence.
Initial |
|
|
Area 1 |
|
|
Area 2 |
|
Screen |
|
|
|
|
|
||
|
|
|
|
|
|
|
Area 5 Area 4
Area 3
∙Each memory area is identified by a number from 1 through 5. The Initial Screen shows the current time without a memory number.
∙Navigation Mode data is not stored in memory if you perform the following steps while the Initial Screen is on the display.
|
|
|
|
Direction value |
2. |
Place the watch on a flat surface or (if you |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
are wearing the watch), make sure that |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
your wrist is horizontal (in relation to the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
horizon). |
|
|
A |
|
|
NAVI |
|
|
|
|
|
|
|
|
3. |
Press C to take a reading. |
|
|
|
|
|
|
|
|
|
MEMO |
∙ |
After about one second, the current |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
B |
||
|
|
|
|
|
P |
|
|
|
|
|
|
|
|
temperature, direction pointers, and a |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
D |
|
|
|
|
|
|
C |
∙ |
direction value appear on the display. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
You can repeat steps 1 through 3 as many |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
times as you like. |
|
|
|
|
|
|
C |
|
|
|
|
|
|
|||
|
|
Current time |
|
|
|
|
|
|
|
||||||
|
|
|
|||||||||||||
|
|
|
|
|
|
Temperature |
|
||||||||
|
|
|
|
Magnetic |
|
north pointer |
|
|
|||||||
|
|
|
|
|
|
|
|
|
S |
|
|
|
S |
|
|
E |
S |
|
S |
W |
||
|
|
NAVI |
|
E |
|
MEMO |
W |
|
|
||
E |
P |
|
|
|
|
|
|
|
|
C |
|
E |
W |
N |
|
|
N |
|
|
|
|
N |
|
|
|
N |
|
4.Next, you can adjust the rotary direction bezel so that the “N” or “L” mark is aligned with the magnetic north pointer. This correctly aligns all of the markings on the
bezel.
∙See “Temperature and Direction Reading Precautions” and “Digital Compass Precautions” for other important information about taking direction and temperature readings.
Recalling Navigation Mode Data
While in the Navigation Mode, use A to scroll through the data in the following sequence.
A |
NAVI |
|
|
|
|
MEMO |
|
|
|
|
B |
Initial |
Area 1 |
Area 2 |
|
Screen |
|||
D |
P |
|
|
|
C |
|
|
|
|
|
|
Area 5 |
Area 4 |
Area 3 |
|
C |
|
|
|
Deleting All Navigation Mode Data
While in the Navigation Mode, hold down A and C for about two seconds, until the direction value changes to ---. This indicates all Navigation Mode memory data is deleted.
∙ You cannot delete individual memory area contents.
WORLD TIME MODE
GMT differential |
|
|
Mode |
|
indicator |
P |
|
GMT |
City Code |
|
|
N W |
|
A |
W |
N |
|
|
|
|
|
|
W |
N |
B |
|
S |
E |
|
|
P |
|
|
D |
|
P |
|
S |
E |
|
|
|
|
||
|
|
E S |
|
|
|
C |
|
The World Time Mode shows you the current time and average temperatures in 27 cities (29 time zones) around the world.
∙For full information on city codes, see the “CITY CODE TABLE”.
∙The time settings of the Timekeeping Mode and the World Time Mode are independent from each other, so you must make separate settings for each.
∙Whenever you change the time setting for any city in the World Time Mode, the settings of all other cities are changed accordingly.
Timekeeping Mode time
Time in indicated city
Selecting a World Time City and Viewing Its Time and Temperature Information
[Average Temperature Display]
A
B D
C
C
Average Temperature
Month
1.In the World Time Mode, press C to scroll forward through the city codes (time zones) and B to scroll back.
∙When you display the screen of a city, its time and GMT differential appear first. Next, the GMT differential display changes to the current Timekeeping Mode time.
2.Press A to display the average temperature in the displayed city for the currently selected month.
3.Press Cto scroll forward through the months and B to scroll back.
∙No average temperature data is shown when GMT or --- is indicated as the city.
∙Press A to return to the current time screen for the selected city.
Setting the World Time
DST indicator
A
DST
B
P
D GMT
1.In the World Time Mode, use B and C to scroll through the city codes and find the one you want.
2.Hold down A until the DST On/Off setting
starts to flash on the display.
∙The DST On/Off setting is flashing because it is selected.
3.Press D to move the flashing in the sequence shown below to select other settings.
C
DST on/off |
|
|
Hour |
|
|
Minutes |
|
|
|||||
|
|
|
|
|
|
|
∙While DST setting is selected (flashing), press Cto toggle Daylight Saving Time on (DST) and off (OFF).
∙While hour or minutes is selected (flashing), press C to increase the setting or B to decrease it.
4. After you set the time, press A to return to the World Time screen.
Daylight Saving Time (DST)
Daylight Saving Time automatically advances the time setting by one hour from Standard Time. You can make individual Daylight Saving Time settings for each city code (time zone). Remember that not all countries or even local areas use Daylight Saving Time.
To switch between Standard Time and Daylight Saving Time
1.In the World Time Mode, use B and C to display the city code (time zone) whose standard time/daylight saving time setting you want to change.
2.Hold down A until the DST On/Off setting starts to flash on the display.
3.Press C to toggle between Daylight Saving Time (DST) and Standard Time (OFF).
4.After you are finished making the setting you want, press A to return to
the World Time screen.
∙The DST indicator is on the display whenever you display a city code for which daylight saving time is turned on.
