ATTACHMENT F.
- USER’S MANUAL
INDUSTRIAL SCALE
---------------------Model: CFF SERIES
Page 2
----------------------
OWNER'S MANUAL
Federal Communications Commission Requirements
Page 3
Warning : Changes or modifications not expressly approved by
the party responsible for compliance with the FCC’S rules
could void the user's authority to operate the equipment.
THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
Page 4
Page 5
CONTENTS
1. Introduction - - - - - - - - - - - - - - - - PAGE 5
2. Features - - - - - - - - - - - - - - - - - - PAGE 5
3. Technical Specification - - - - - - - - - - PAGE 6 1) Dimension
2) Specification
4. Composition - - - - - - - - - - PAGE 7
5.Installation
PAGE 8
- - - - - - - - - - -
Page 6
1.INTRODUCTION
We greatly appreciate your purchase of the CFF SERIES weighing
SCALE. These goods perform excellently and exhibit splendid properties
through strike tests as well as devoting ourselves under severe
quality management. Also, it is manufactured for the user's
convenience and safety
Before using CFF SERIES, it is recommended that you read this manual
carefully so you may use this device to its full potential.
CAUTIONS
Do not press the keys with excessive force, the keys are to be
pressed with a soft touch.
Do not use ignitable material for cleaning.
Keep the CFF SERIES away from the rain.
Avoid sudden temperature change.
Do not install CFF SERIES in a place with high voltage and
excessive electrical noises.
Keep it in dry place.
Do not use under direct rays or in a dusty place.
Do not use in an area with excessive electrical noises and
vibration.
Place a platform on a flat and stable surface.
2. FEATURE
- Easy to install because of radio frequency method
- Easy to put up ,or put out the fork scale because
there isn't interference through the wire cable
- Vesatile and heavy duty
- Possible to recharge in forklift without outside power source
Page 7
3. TECHNICAL SPECIFICATION

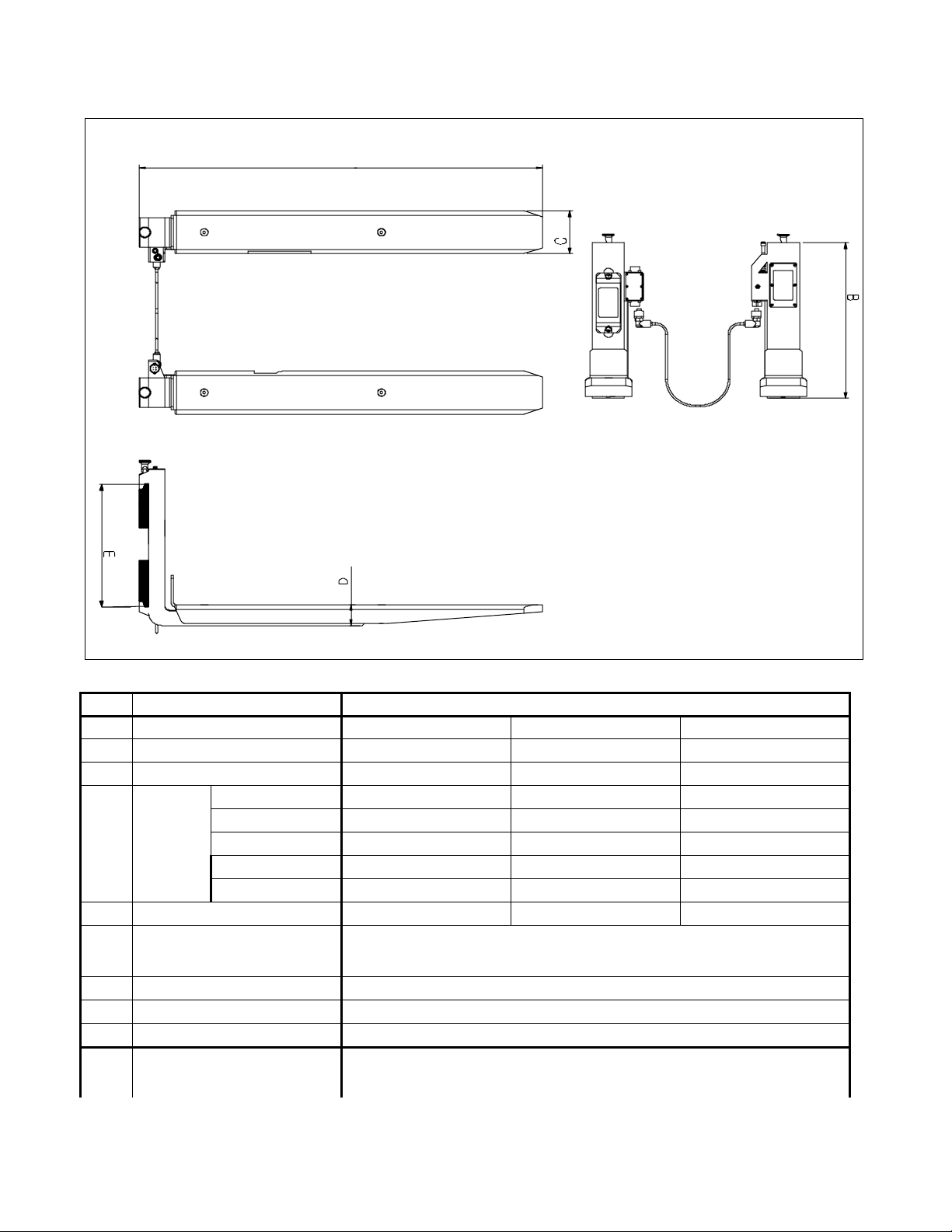

1) Dimension
A
2) Specification
No. ITEM SPEC
1 MODEL CFF-2 CFF-3 CFF-5
2 MAX 2000 kg,4000 3000 kg, 5000 5000 kg,10000
3 DIVISION 1 kg, 2 lb 2 kg, 2 lb 2 kg,5 lb
A(mm) 1200 1200 1280
DIMEN
4
5 LOAD CELL BSA-2T BSA-3T BSA-5T
6 POWER
7 INDICATOR(TW-200) 5DIGIT LCD (IP65)
8 OPTION PRINTER
9 ACCURACY 0.1%
10 RF BAND
SION
B(mm) 530 652 840
C(mm) 146 196 196
D(mm) 70 70 92
E(mm) 407 508 635
SCALE : 1.2v 2200mAh 6EA,
INDICATOR : DC12V (CAR BATTERY)
KOREA : 424MHZ, EC : 433 MHZ, USA : 915MHZ
JAPAN : 426 MHZ
Page 8
4. COMPOSITION
- FORK SCALE 1 SET(MAIN FORK , SUB FORK)
- IN D I C A T O R : T W - 2 0 0
- CHARGER
- JUNCTION CABLE(Between main fork and sub fork)
- CHARGING CABLE(Between charger and sub fork)
(easy to c harge thro ugh fo rk lift inte rnal battery)

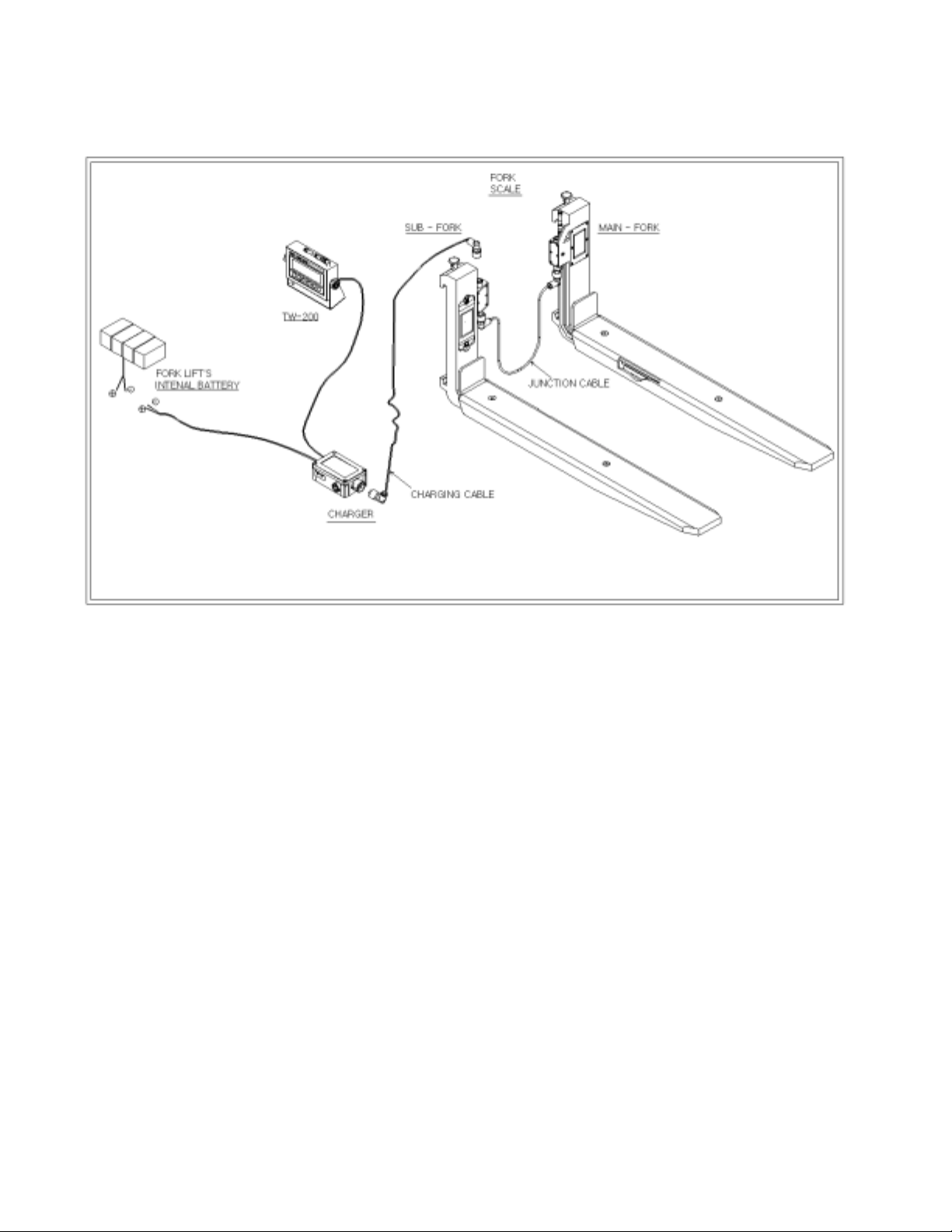

5. INSTALLATION
Page 9
Install the TW-200(INDICATOR)
where is the pro per area
Open the RECHARGEABLE
BOX COVER , fix the charger with
screws,
connect the power source line to
fork lift battery, connect the power
subline from T W-200
to the R E C H A RE A B L E te rminal
Page 10
Before using, Put up the fork scale, connect main fork to sub fork with
junction cable
Turn on the power switch on the main fork block
•
When
the red lamp(power lamp)in the main
fork
LAMP
flickered, cha nge the battery, or recharge
the
rechargeable battery.
•
For charging the battery, first time connect the charging line from charger
to sub fork. it takes around 6 hour to charge. charging lamp is changed to
Page 11
blue, disconnect the charging line
!
Method of change channel
(1)
(2)
Open the case of main fork
Perform a channel as shown in the below figure.
Channel JP1 DIP
1
4
8
12
16
20
28
32
