Carvin BRX-10, BRX-12, BRX-18 Brochure

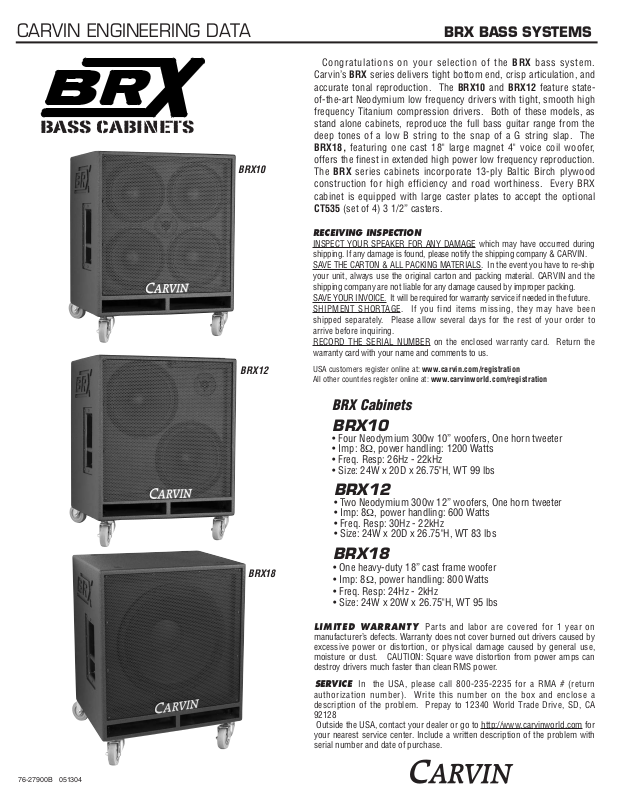

CARVIN ENGINEERING DATA BRX BASS SYSTEMS
76-27900B 051304
BRX18
BRX Cabinets
BRX10
• Four Neodymium 300w 10” woofers, One horn tweeter
• Imp: 8Ω, power handling: 1200 Watts
• Freq. Resp: 26Hz - 22kHz
• Size: 24W x 20D x 26.75"H, WT 99 lbs
BRX10
BRX12
BASS CABINETS
BRX18
• One heavy-duty 18” cast frame woofer
• Imp: 8Ω, power handling: 800 Watts
• Freq. Resp: 24Hz - 2kHz
• Size: 24W x 20W x 26.75"H, WT 95 lbs
BRX12
• Two Neodymium 300w 12” woofers, One horn tweeter
• Imp: 8Ω, power handling: 600 Watts
• Freq. Resp: 30Hz - 22kHz
• Size: 24W x 20D x 26.75"H, WT 83 lbs
Congratulations on your selection of the BRX bass system.
Carvin’s BRX series delivers tight bottom end, crisp articulation, and
accurate tonal reproduction. The BRX10 and BRX12 feature stateof-the-art Neodymium low frequency drivers with tight, smooth high
frequency Titanium compression drivers. Both of these models, as
stand alone cabinets, reproduce the full bass guitar range from the
deep tones of a low B string to the snap of a G string slap. The
BRX18, featuring one cast 18" large magnet 4" voice coil woofer,
offers the finest in extended high power low frequency reproduction.
The BRX series cabinets incorporate 13-ply Baltic Birch plywood
construction for high efficiency and road worthiness. Every BRX
cabinet is equipped with large caster plates to accept the optional
CT535 (set of 4) 3 1/2” casters.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MA
TERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. CARVIN and the
shipping company are not liable for any damage caused by improper packing.
SA
VE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHOR
TAGE. If you find items missing, they may have been
shipped separately. Please allow several days for the rest of your order to
arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card. Return the
warranty card with your name and comments to us.
USA customers register online at: www.carvin.com/registration
All other countries register online at: www.carvinworld.com/registration
LIMITED WARRANTY
Parts and labor are covered for 1 year on
manufacturer’s defects. Warranty does not cover burned out drivers caused by
excessive power or distortion, or physical damage caused by general use,
moisture or dust. CAUTION: Square wave distortion from power amps can
destroy drivers much faster than clean RMS power.
In the USA, please call 800-235-2235 for a RMA # (return
authorization number). Write this number on the box and enclose a
description of the problem. Prepay to 12340 World Trade Drive, SD, CA
92128
Outside the USA, contact your dealer or go to http://www
.carvinworld.com for
your nearest service center. Include a written description of the problem with
serial number and date of purchase.
c
SERVICE
BRX18
BRX12
BRX18
BRX10
TYPICAL SETUP
BRX enclosures feature four input/output jacks (two 1/4" and two
Speakon) wired in parallel. Connect the BRX INPUT to any audio
amplifier capable of 8 ohm operation. Connect additional BRX
enclosures from the EXT.SYSTEM jack to the INPUT of the additional
enclosure (be sure the amplifier is capable of 4 ohm operation).
The BRX10 and the BRX12 feature a HIGH FREQUENCY ATTENUATION
(dB) switch for accurately adjusting the high frequency level. This is a
positive lock switch preset at six levels of attenuation. A good starting
point for this switch would be in the -6dB position, or straight up 12
o'clock. As you turn the switch CCW the attenuation doubles to -12dB,
then to -24dB, and finally OFF turns the high frequency driver off.
Switching CW the attenuation halves to -3dB and then 0dB which turns
the high frequency driver full on.
Carvin suggests the B-series and R-series bass heads to
power the BRX cabinents.
BRX SYSTEMS
BRX10
BRX12
BRX510
BRX512
BRX1018
BRX1218
B500
500w mono block bass Head
B1500
1900w mono block bass Head
R1000
bass Head
R600 bass Head
