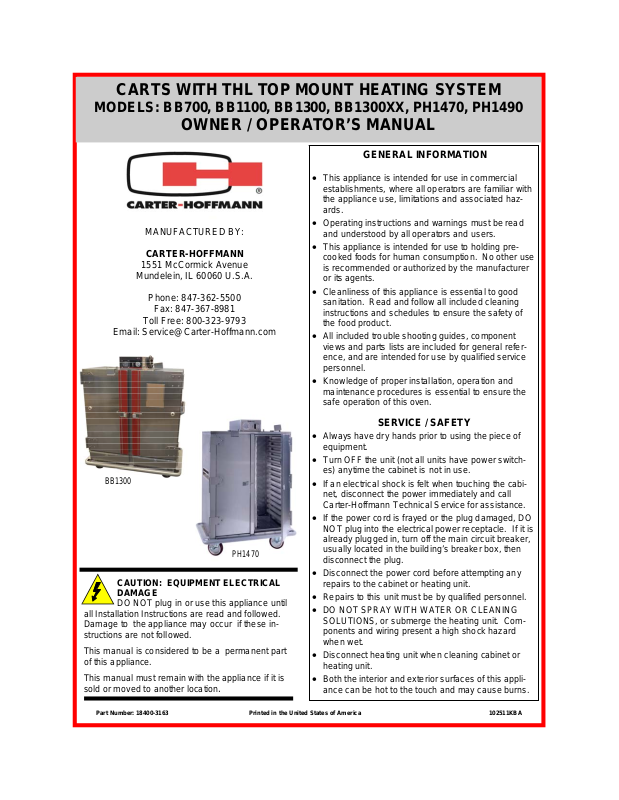

Carter-Hoffmann PH1490 User Manual

CARTS WITH THL TOP MOUNT HEATING SYSTEM

MODELS: BB700, BB1100, BB1300, BB1300XX, PH1470, PH1490

OWNER / OPERATOR’S MANUAL

GENERAL INFORMATION

 This appliance is intended for use in commercial

establishments, where all operators are familiar with
the appliance use, limitations and associated haz­ards.

MANUFACTURED BY:

CARTER-HOFFMANN

1551 McCormick Avenue

Mundelein, IL 60060 U.S.A.

Phone: [phone]

Fax: [phone]

Toll Free: 800-323-9793

Email: [e-mail]

BB1300

PH1470

CAUTION: EQUIPMENT ELECTRICAL
DAMAGE

DO NOT plug in or use this appliance until
all Installation Instructions are read and followed.
Damage to the appliance may occur if these in­structions are not followed.

This manual is considered to be a permanent part
of this appliance.

This manual must remain with the appliance if it is
sold or moved to another location

.

 Operating instructions and warnings must be read

and understood by all operators and users.

 This appliance is intended for use to holding pre-

cooked foods for human consumption. No other use
is recommended or authorized by the manufacturer
or its agents.

 Cleanliness of this appliance is essential to good

sanitation. Read and follow all included cleaning
instructions and schedules to ensure the safety of
the food product.

 All included trouble shooting guides, component

views and parts lists are included for general refer­ence, and are intended for use by qualified service
personnel.

 Knowledge of proper installation, operation and

maintenance procedures is essential to ensure the
safe operation of this oven.

SERVICE / SAFETY



Always have dry hands prior to using the piece of
equipment.

 Turn OFF the unit (not all units have power switch-

es) anytime the cabinet is not in use.

 If an electrical shock is felt when touching the cabi-

net, disconnect the power immediately and call
Carter-Hoffmann Technical Service for assistance.

 If the power cord is frayed or the plug damaged, DO

NOT plug into the electrical power receptacle. If it is
already plugged in, turn off the main circuit breaker,
usually located in the building’s breaker box, then
disconnect the plug.

 Disconnect the power cord before attempting any

repairs to the cabinet or heating unit.

 Repairs to this unit must be by qualified personnel.
 DO NOT SPRAY WITH WATER OR CLEANING

SOLUTIONS, or submerge the heating unit. Com­ponents and wiring present a high shock hazard
when wet.

 Disconnect heating unit when cleaning cabinet or

heating unit.

 Both the interior and exterior surfaces of this appli-

ance can be hot to the touch and may cause burns.

Part Number: 18400-3163 Printed in the United States of America 102511KBA

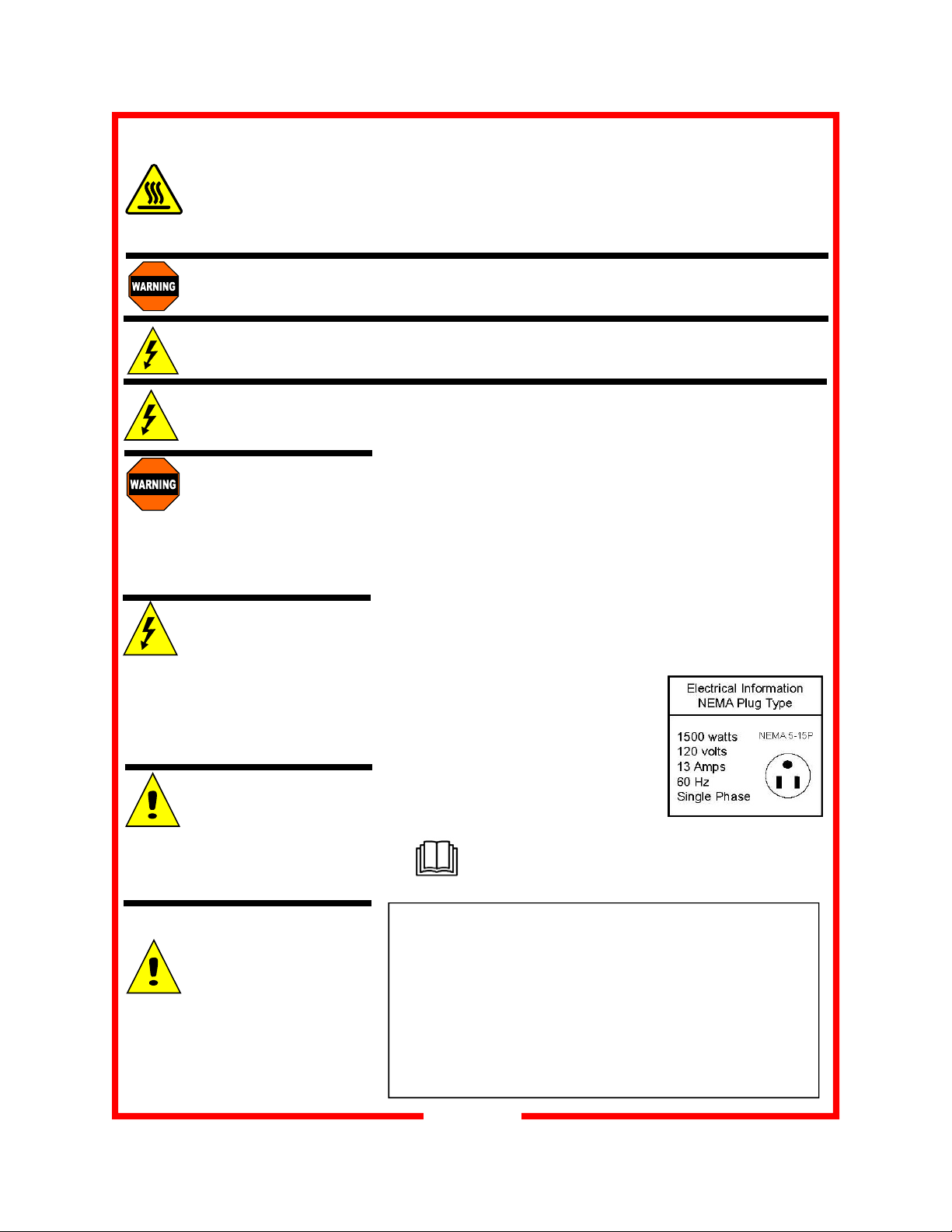

UNPACKING AND INSTALLATION

CAUTION: Electric Shock Hazard

All servicing requiring access to non-insulated components must be performed by qualified service

personnel. Do not open any access panels which require the use of tools. Failure to heed this warn­ing can result in electrical shock. Disconnect this appliance from electrical power before performing
any maintenance or servicing.

WARNING: Injury Hazard

All installation procedures must be performed by qualified personnel with full knowledge of all applica­ble electrical codes. Failure could result in property damage and personal injury.

WARNING Electric Shock Hazard

Appliance must be plugged into a properly grounded receptacle to prevent possible shock hazard.
Electrical shock will cause death or serious Injury.

CAUTION: Burn Hazard

Interior surfaces of the appliance may be HOT to the touch, and can cause serious burns.

WARNING:

Risk of personal injury

Installation procedures must
be performed by a qualified technician
with full knowledge of all applicable
electrical codes. Failure can result in
personal injury and property damage.

CAUTION:

Electrical Shock Hazard

The ground prong of the power cord is
part of a system designed to protect
you from electric shock in the event of
internal damage. DO NOT cut off the
large round ground prong or twist a
blade to fit an existing receptacle.

IMPORTANT:

Power cord is 10' long.

If necessary, contact a li-

censed electrician to install
an appropriate 15 amp electrical cir­cuit with NEMA 5-15R receptacle. DO
NOT use an extension cord.

IMPORTANT:

Damage to unit due to being
connected to the wrong volt­age or phase is NOT cov-
ered by warranty.

Unpack the cart and heating unit. Ensure that all packing materials
and protective plastic has been removed from the unit. Inspect all
components for completeness and condition.

NOTE: DO NOT discard the carton or other packing materials until
you have inspected the appliance for hidden damage and tested it
for proper operation. Refer to SHIPPING DAMAGE CLAIM PROCE-
DURE on PAGE 7 of this manual.

Appliance should be thoroughly cleaned before use. See CLEANING
INSTRUCTIONS, page 3.

Plug the heating unit into a properly grounded NEMA 5-15R electri­cal receptacle. DO NOT MODIFY CORD

PLUG.

For first time operation of the cabinet, do
not load product into the cabinet. Allow the
heat to remove any residual oils which may
adhere to inside metal surfaces. A slight
emission of smoke is common during the
first few hours of operation.

Before using, familiarize yourself with the
heater controls. Read entire manual before
operating this cart.

GROUNDING INSTRUCTIONS

This appliance is equipped with a cord having a grounding wire
with a grounding plug which must be plugged into an outlet that is
properly installed and grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electrical current.

WARNING-Improper use of the grounding can result in a risk
of electric shock. Consult a qualified electrician or service agent if

the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded.

2

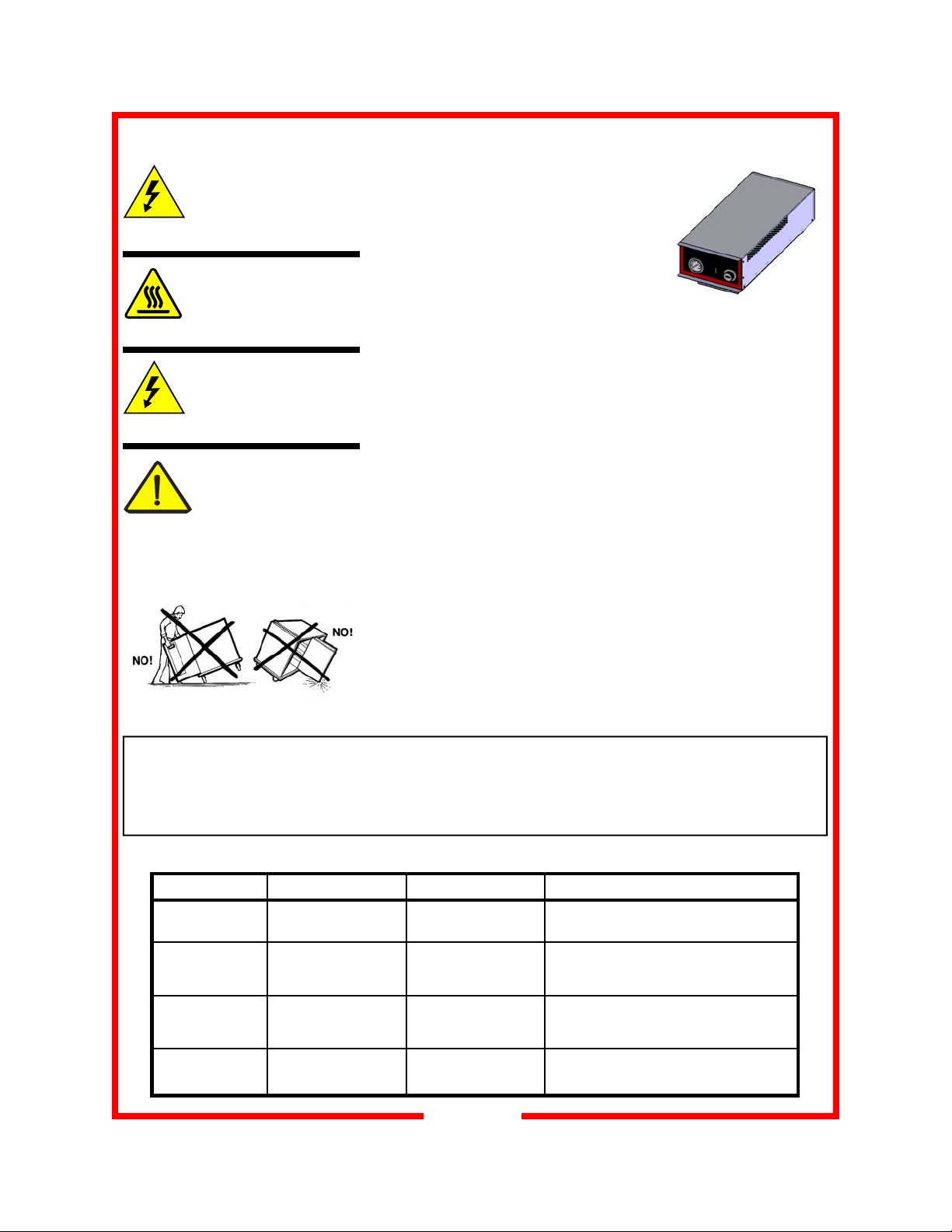

CLEANING

WARNING: ELECTRIC
SHOCK HAZARD

Unplug the unit from
electric power before

performing cleaning or maintenance.

WARNING:
BURN HAZARD

Allow the unit to cool
before performing any

cleaning or maintenance procedures.

WARNING: ELECTRIC
SHOCK HAZARD

DO NOT spray or splash
water on the heater, con-

trol panel, timer or wiring.

CAUTION: CART
DAMAGE

Do not tip cart onto the

doors to drain excess
water. Permanent damage to the
doors and hinges will result. Use a
clean dry cloth to mop any excess
water inside cabinet after cleaning.

Turn the main power switch OFF, unplug and
allow the unit to cool before cleaning. Remove
the THL heating unit; simply lift up and off the
top of the cabinet. DO NOT spray or splash
water on the heater, control panel, timer or
wiring.

1. Racks or shelves are easily removed with­out tools for cleaning, Simply lift up and pull
out. The tray racks may be hand washed or

THL Heating System

run through an automatic washer.

2. To clean stainless steel surfaces use only cleansers, detergents, de­greasers, or sanitizers that are certified to be "chloride-free" and
"phosphate-free," and cleansers, degreasers, or sanitizers only in the
recommended concentrations. DO NOT exceed recommended con­centrations or mixing ratios. After cleaning and sanitizing, rinse all
exposed surfaces thoroughly with large amounts of clean, clear water.
Wipe off any standing liquid or residue from all surfaces, corners and
rear edges.

3. Vinyl trim should be washed with a chlorine-free detergent and water.
Rinse thoroughly with clear water and allow to dry. Never use abra­sive cleaners, waxes, car polish, or substances containing strong aro­matic solvents or alcohol. Use of direct steam / hot water cleaning
at temperatures above 190°F may result in “bubbling” or loosening of
vinyl adhesive.

4. After all parts are dry, reinstall them and then replace the heating unit.

IMPORTANT: Cleansers, detergents, degreasers, sanitizers or bleaching agents that contain chlorides or
phosphates will cause permanent damage to stainless steel products. This damage appears as pits,

eruptions, voids, small holes, cracks, severe discolorations or dulling of the metal finish. Water with a high
chlorine content can also damage stainless steel. If unsure of your water quality, we recommend you ha ve it
tested. THIS DAMAGE IS PERMANENT, COSTLY TO REPAIR, AND IS NOT COVERED BY WARRANTY.

RECOMMENDED "TIPS" FOR CLEANING STAINLESS STEEL

PURPOSE FREQUENCY CLEANING AGENT METHOD OF APPLICATION

Routine
cleaning

Smears
and
fingerprints

Stubborn spots
and
stains

Hard
water spots

Daily Soap, ammonia,

detergent and water

As needed Stainless steel cleaner,

similar products

Daily or as needed Any chloride-free or

phosphate-free
cleanser

Daily or as needed Vinegar Swab with cloth.

Swab with cloth.
Rinse with clear water, wipe dry.

Rub with cloth as directed on package.
Rub in direction of grain of stainless steel.
Do not use on vinyl trim or control panel.

Apply with damp sponge or cloth.
Rub in direction of grain. Rinse thoroughly.
Do not use on vinyl trim or control panel.

Rinse with clear water, wipe dry.

3

CAUTION: SAFE
FOOD HOLDING
PRACTICES REC­OMMENDED

Cooking food to a safe tempera­ture, holding at a temperature of at
least 140°F is critical in the preven­tion of foodborne illness. Hold only
cooked, hot food at 140°F or high­er. This cabinet is not intended to
cook or reheat food. Food must be
at appropriate temperature before
being placed into cabinet.

WARNING:
FOR EQUAHEAT
BANQUET CARTS

EquaHeat Banquet
carts are equipped with canned fuel
drawers at the base of the door(s).
If you are using canned fuel (i.e.
Sterno™), do not operate the heat­ing system at the same time. Tem­peratures will get too high for prop­er food holding.

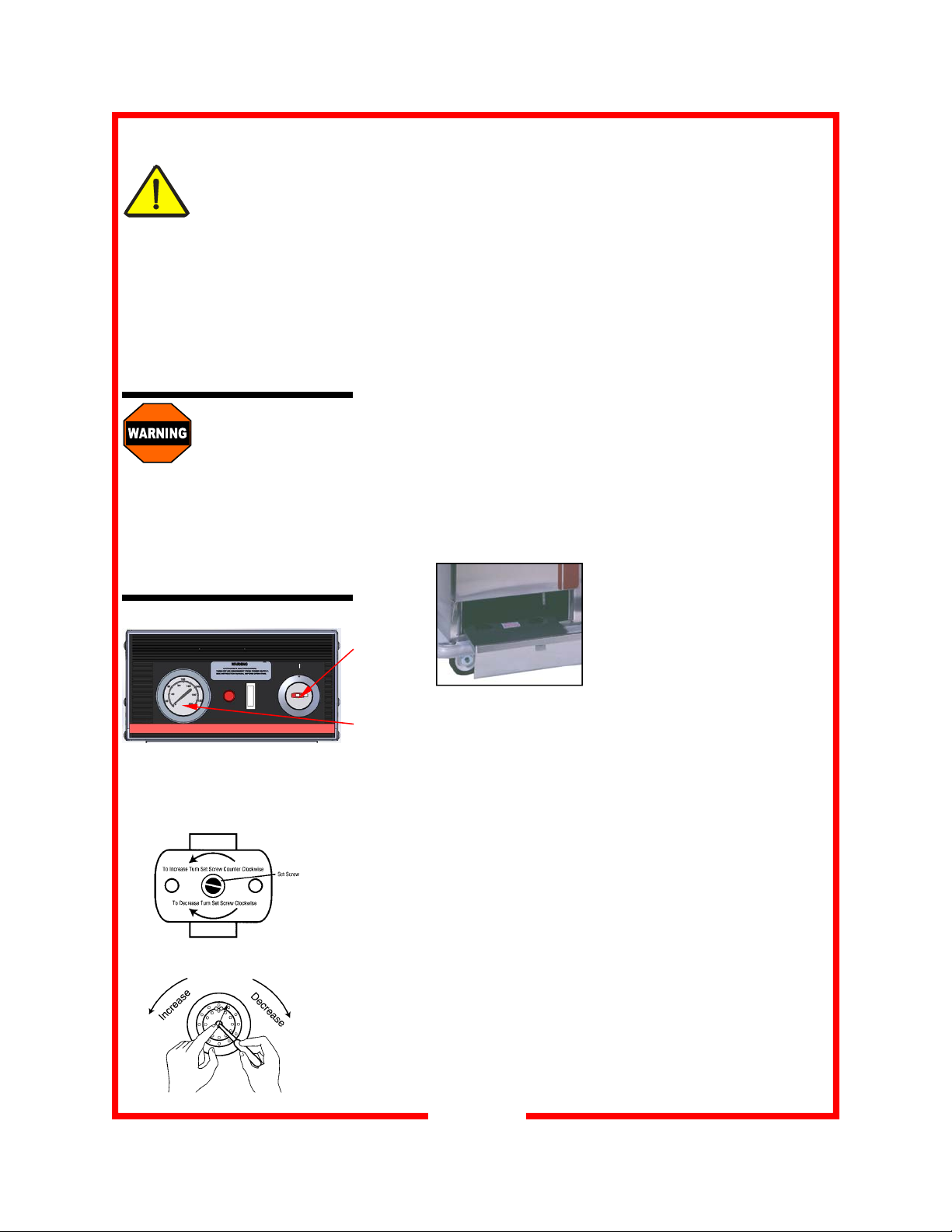

DAILY OPERATION

1. Plug the heater into a proven power source. The white indicator lamp
and the fan will operate continuously whenever the heater is plugged
in.

2. Turn the thermostat to number 4 or 5 on the knob. Be sure the cabi­net door(s) are fully closed during the pre-heat time.

3. Food serving temperature will vary with the mass, type and quantity
of food being held. Set the thermostat for the desired holding setting.
Turn clockwise to increase the temperature and counter-clockwise to
decrease the temperature.

4. During loading, the cabinet temperature will drop. Close the do or and
wait 10-15 minutes for the cabinet to recover air temperature before
disconnecting from the power source.

5. Be sure to remove the plug from the outlet and wind the cord on the
cord bracket or push handle before moving the cart. Move the cart to
the service area as quickly as possible.

6. Upon reaching the service area, unwind the power cord a nd recon­nect the heater as quickly as possible. Wait 10-15 minutes (check the
thermometer to see if the temperature is are the desired level). If not
adjust the thermostat as required.

7. When removing product from the cart, start at the bottom and work to
the top position. This keeps food hotter and eliminates spillage on to
lower items.

NOTE: BB series EquaHeat Banquet
carts have drawers for canned fuel at
the base of the cabinet. Cut-outs
indicate where canned fuel should be

Thermostat knob

Thermometer dial

inserted into the drawers. Do not
operate the electric heating system
at the same time you are using
canned fuel or exceed the capacity
of canned fuel (2 per door). Using
more than the recommended quanti­ty will result in temperatures that are
too high for proper holding.

THERMOSTAT CALIBRATION

THERMOMETER CALIBRATION

CALIBRATIONS

If additional heat range is required in the heating unit, remove thermostat
knob, insert small straight blade screwdriver into opening and turn limit con­trol set screw counter-clockwise one full turn. Replace thermostat knob and
turn clockwise to reach new maximum temperature. Repeat this until desired
temperature is reached. Each 1/4 turn of the calibration set screw will raise
the element heating capacity by approximately 25°F to 35°F (4°C to 7°C).

If a reduction of heat is desired, turn limit control set screw clockwise one full
turn. Hold the door open and allow the unit to cool until inside temperature is
below the temperature desired. Close the door and allow unit to rise to new
maximum temperature. Repeat until desired temperature is reached.

Place an oven thermometer in the center of the cabinet. Turn heater on; turn
thermostat to maximum setting and wait approximately 45 minutes. Open the
door and check inside thermometer temperature. If recalibration is required,
pry the plastic cover off the dial body and with a small flat blade screwdriver,
insert into the pointer as shown. Carefully turn the pointer with your finger to
the correct setting. Be careful not to bend the pointer. It is very fragile.

4

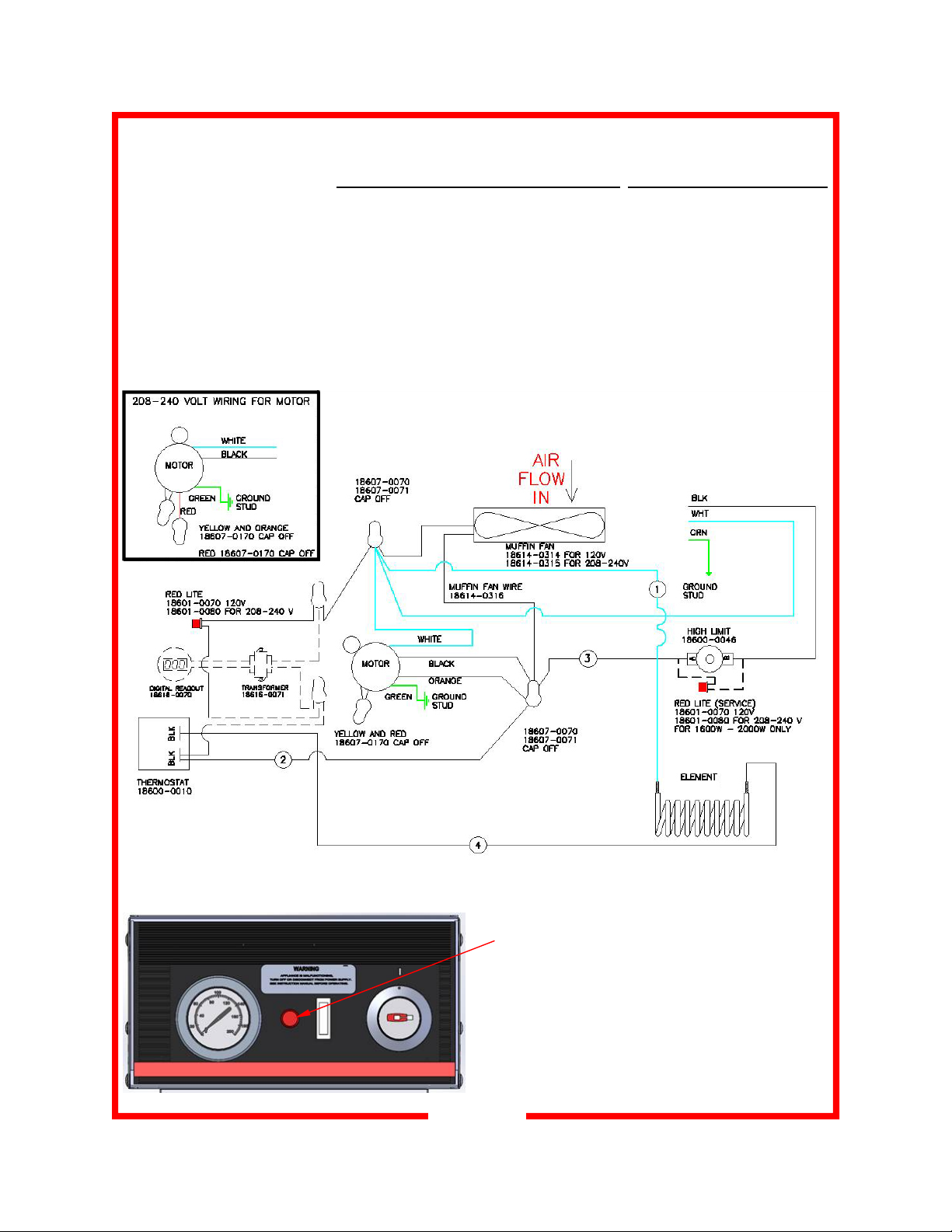

WIRING DIAGRAMS & PARTS LISTS

1500w, 120v, 13A
Standard Electric

Alternate Electrical Configurations

1400w, 120v, 11.6A (
2000w, 120v, 16.7A
1500w, 220v, 6.8A
1500w, 230v, 6.5A
1500w, 230v, 6.5A (50Hz)
2000w, 240v, 8.3A

Plug type specified by destination country

Canadian Standard)

Part Number Description

16502-9297 THU/L inlet cover
16503-9969 Control panel
16503-9970 Housing cover
16503-9971 Heater base
16503-9972 Heat duct
16505-1032 Heater bottom
18614-0306 Low profile blower housing
18612-0096 Heat element 120v/1500w
16502-9825 Element plate
18614-0324 Motor
18600-0010 Thermostat

(units built between 03/10 - 11/11)

Part Number Description

18616-0015 Dial thermometer
18608-0010 Thermostat knob
18601-0070 Clear light
18312-0151 Overlay
18614-0321 Blower wheel
16501-7442 Bulb hold-down
16501-7443 Bulb mounting bracket
18614-0304 Flanged air inlet
18617-0100 Heyco #2073
18614-0314 Muffin fan 115v
18600-0046 Hi-limit

MALFUNCTION LIGHT

If the malfunction light goes on,
appliance is malfunctioning. Turn
off or disconnect appliance from
power supply and have serviced
by a qualified technician.

5

GENERAL MAINTENANCE INSTRUCTIONS

CASTERS

Some casters are equipped with Zerk grease fittings so that they may be easily lubricated with a grease gun.
Recommended lubrication is at least once every six months. Lubrication will be required more frequently if carts
are cleaned with a hot water or steam cleaning system. Casters with special bearings are recomme nded for fre­quent cart wash or steam cleaning situations.

LATCHES

Check frequently to insure that all door latches are secure. Latches may become “sticky” due to residue build -up
from daily use and cleaning. Lubricate latches regularly with W D-40, silic one spra y, grap hi te or other com mercial
lubricants for stainless steel products. Do not use oil.

PERIMETER BUMPERS

Vinyl which has been dislodged from the channel due t o severe bumping or scraping can be pried back into
place with a common screwdriver.

TROUBLESHOOTING SUGGESTIONS

PROBLEM PROBABLE CAUSE POSSIBLE REMEDY

No power to unit,
No light on display
Motor not running

Unit does not hold temperature Damaged door gasket Replace gasket

Unit does not heat Cabinet temp above setpoint

Not plugged in or circuit breaker off or
tripped

Main switch damaged Check main power switch, replace if

Damaged power cord Replace cord
Hi-limit safety tripped Allow unit to cool, hi-limit will reset auto-

Damaged door latch Replace defective latch
Temp probe damaged Replace probe
Door gap, out of alignment Adjust door hinging and strike

(setpoint too low)
Damaged wiring Repair wiring
Damaged relay Replace relay

Plug into receptacle. Reset circuit
breaker, check facility circuit breaker

damaged

matically, or replace

Turn thermostat setpoint up
Check thermometer calibration

Damaged controller Replace controller
Damaged heating element Perform ohm reading, Replace element

Unit overheats Setpoint too high Change setpoint

Thermostat damaged Replace thermostat
Defective hi-limit control Replace hi-limit
Blower fan jammed Find source of fan binding

Blower motor not running Damaged fan motor Replace motor

Blower fan jammed Find source of fan binding

Relay is “chattering”
Red malfunction light is illuminated

Check proper wiring to switch Repair wiring or replace switch
Appliance malfunction Call service technician

6

SERVICE EXPECTATIONS

SERVICE PHILOSOPHY

For almost sixty years, Carter-Hoffmann has enjoyed a reputation for manufacturing rugged, dependable
foodservice equipment that permits foodservice professionals serve more food products to more
people, and thus, to grow their business.

Our goal is not only to provide the best food service equipment for the price, but also to back it up with after-sale
service that is responsive fast, efficient and professional. To ensure a clear understanding of our goals, expecta­tions, and responsibilities, we have prepared this brief document.

Carter-Hoffmann products are innovative and efficient. They are easy to use, easy to clean and easy
to maintain. Although the products are quite reliable they are also designed for easy repair. W e believe that a
malfunction to a Carter-Hoffmann product should cause as little inconvenience to the customer as possible. Our
aim is to provide “same day”/first time fix” repair service on all of our products. We are dedicated to making eve­ry aspect of our customer service the standard by which others are judged.

END-USER RESPONSIBILITIES

While we all strive to serve our mutual customers as well as possible that does not mean that
the end-user (including his employees) does not share some responsibilities.

1. All shipping damage must be noted on the freight bill when the shipment is received. Any freight
damages must be collected from the Freight Company, NOT Carter-Hoffmann.

2. The end-user should be advised befor ehand to carefully unpack and inspect all products when they are
received BEFORE SIGNING THE SHIPPER'S RECEIPT OF DELIVERY.

3. The end-user must provide a safe, dry, level surface for the equipment to be placed upon.

4. The end-user must provide the proper electrical supply. All in-wall electrical modifications are to
be completed by a licensed electrician. All building modifications are the responsibility of the end-user.

5. The end-user must operate, clean and maintain the equipment in accordance with the
procedures described in the Operation Manual.

6. Carter-Hoffmann is NOT responsible for any loss of the customer’s income, loss of food product, extra labor
charges, or any other incidental or consequential costs as a result of the malfunction of our product.

7. The end-user shall allo w for on-premises repair of the eq uipment to be completed at a mutually
convenient place and time.

WARRANTY SERVICE

1. Warranty service is to be initiated by authorized Carter-Hoffmann personnel only.

2. The service provider is NOT authorized to change or extend an y of the terms or conditions of our warranty.

3. Initial freight damage is NOT covered by the product warranty.

CONFIDENTIALITY

1. The end user and all his employees and sub-agents shall protect and keep confidential Carter-Hoffmann’s
proprietary designs, information, and knowledge.

2. All literature and informational materials provided by Carter-Hoffmann are to be considered confidential; they
remain Carter-Hoffmann’s property; and are not to be reproduced without our prior written consent.

SHIPPING DAMAGE CLAIM PROCEDURE

NOTE: For your protection, please note that equipment in this shipment was carefully inspected and packaged

by skilled personnel before leaving the factory. Upon acceptance of this shipm ent, the transportation compan y
assumes full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on t he freight bill or ex­press receipt, and that the note of loss or damage is signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage.

3. CONCEALED LOSS OR DAMAGE: if damage is unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This
should be done within ten (10) days from the date the delivery was made to you. Be sure to retain the
container for inspection.

4. Carter-Hoffmann cannot assume liabilit y for damage or loss incurred in transit. We will, however, at your
request, supply you with the necessary documents to support your claim.

7

CARTER-HOFFMANN WARRANTY

Carter-Hoffmann warrants to the initial purchaser
option, repair or replace, during the warranty period set forth below, any part of such products made nec essary
due to a
itself during the warranty period under

This warranty applies only to original equipment owned and possessed by the initial purchaser and the warranty
period begins on the date of original shipment from the Carter-Hoffmann fact ory and extends as fol lo ws: to com­ponent parts and labor for one year; to refrigeration compressor unit for one year (limited to replacement of the
unit only-not to include the labor for removal, repair or replacement)
be performed, unless otherwise authorized in writing by Carter-Hoffmann, at its factory. All parts or components to be re­paired or replaced under this warranty are to be shipped prepaid to Carter-Hoffmann, with reimbursement credit for such part
or component to be given if found by Carter-Hoffmann to be defective.

Carter-Hoffmann neither makes nor assumes and does not authorize a ny other person to make or assume an y
obligation or liability in connection with its products ot her than that covered in this warranty. This warranty ap­plies only within the continental United States and Canada. In Alaska and Hawaii, this warranty applies onl y to
and is limited to the supply of replacement parts.

defect in material or workmanship which is present

normal use and service.

of its standa rd Carter Line Products that Carter-Hoffmann will, at its

when the product leaves its factory and which

. Repair or replacement under this warranty will

manifests

WARRANTY EXCLUSIONS AND LIMITATIONS

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS HERE­BY SPECIFICALLY DISCLAIMED BY CARTER-HOFFMANN. There are no warranties, express or implied,
which extend beyond the description on the face thereof.

This warranty does not cover and Carter-Hoffmann shall not under any circumstances be liab le for any inci­dental, consequential or other damages (such as injury to persons or prop erty, loss of time, inconvenience, los s
of use, loss of business or profits, or other matters not specifically covered) arisin g in c onn ection with the use of,
inability to use, or failure of these products.

Note: Due to our continuous process of product improvement and innovation, all listed specifications subj ect to
change.

Carter-Hoffmann

1551 McCormick Ave.

Mundelein, Illinois, 60060 USA

Phone: [phone] Toll free: 800-323-9793 Fax: [phone]

Sales and Marketing E-mail: [e-mail]

Service E-mail: [e-mail]
Company Website: www.carter-hoffmann.com

8
