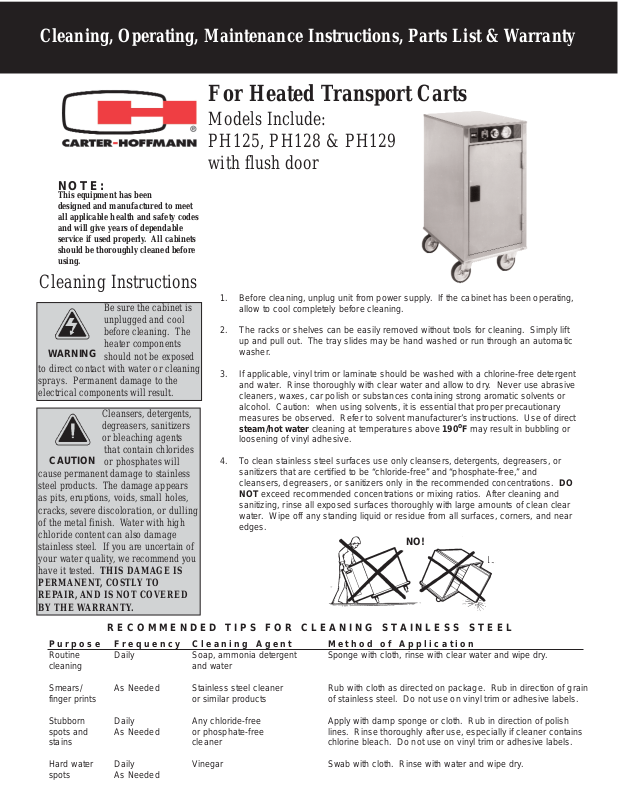

Carter-Hoffmann PH129 User Manual

Page 1
NOTE:
This equipment has been designed and manufactured to meet all applicable health and safety codes and will give years of dependable service if used properly. All cabinets should be thoroughly cleaned before using.
Models Include: PH125, PH128 & PH129 with flush door
Cleaning, Operating, Maintenance Instructions, Parts List & Warranty
Cleansers, detergents, degreasers, sanitizers or bleaching agents
that contain chlorides
or phosphates will cause permanent damage to stainless steel products. The damage appears as pits, eruptions, voids, small holes, cracks, severe discoloration, or dulling of the metal finish. Water with high chloride content can also damage stainless steel. If you are uncertain of your water quality, we recommend you have it tested. THIS DAMAGE IS
PERMANENT, COSTLYTO REPAIR, AND IS NOT COVERED BY THE WARRANTY.
CAUTION
Be sure the cabinet is
unplugged and cool
before cleaning. The
heater components
should not be exposed to direct contact with water or cleaning sprays. Permanent damage to the electrical components will result.
WARNING
1. Before cleaning, unplug unit from power supply. If the cabinet has been operating, allow to cool completely before cleaning.
2. The racks or shelves can be easily removed without tools for cleaning. Simply lift up and pull out. The tray slides may be hand washed or run through an automatic washer.
3. If applicable, vinyl trim or laminate should be washed with a chlorine-free detergent and water. Rinse thoroughly with clear water and allow to dry. Never use abrasive cleaners, waxes, car polish or substances containing strong aromatic solvents or alcohol. Caution: when using solvents, it is essential that proper precautionary measures be observed. Refer to solvent manufacturer’s instructions. Use of direct
steam/hot water cleaning at temperatures above 190
o
F may result in bubbling or
loosening of vinyl adhesive.
4. To clean stainless steel surfaces use only cleansers, detergents, degreasers, or sanitizers that are certified to be “chloride-free” and “phosphate-free,” and cleansers, degreasers, or sanitizers only in the recommended concentrations. DO NOT exceed recommended concentrations or mixing ratios. After cleaning and sanitizing, rinse all exposed surfaces thoroughly with large amounts of clean clear water. Wipe off any standing liquid or residue from all surfaces, corners, and near edges.
Cleaning Instructions
Purpose Frequency Cleaning Agent Method of Application
Routine Daily Soap, ammonia detergent Sponge with cloth, rinse with clear water and wipe dry. cleaning and water
Smears/ As Needed Stainless steel cleaner Rub with cloth as directed on package. Rub in direction of grain finger prints or similar products of stainless steel. Do not use on vinyl trim or adhesive labels.
Stubborn Daily Any chloride-free Apply with damp sponge or cloth. Rub in direction of polish spots and As Needed or phosphate-free lines. Rinse thoroughly after use, especially if cleaner contains stains cleaner chlorine bleach. Do not use on vinyl trim or adhesive labels.
Hard water Daily Vinegar Swab with cloth. Rinse with water and wipe dry. spots As Needed
RECOMMENDED TIPS FOR CLEANING STAINLESS STEEL
NO!
Page 2
Installation
Do not locate this unit under an over­head ventilation
system or close to
other cooking equipment. Fumes and grease particles generated by other equipment can be drawn by the cooling fans into the control com­partment of the heater. These deposits should be avoided in order to assure top performance and longer life.
NOTE:
This unit is designed for HOLDING hot foods. To insure best results, be sure your food containers and covers are at or above the desired holding temperature and the cabinet is completely pre-heated. Recommended safe holding temperatures for heated cabinets are 140
o
F or above.
Do not plug into ungrounded receptacle. Check to ensure that heater plug is in safe operating condition.
1. Remove the cabinet from its shipping carton and make sure that all packing materials are removed from the cabinet. Check to ensure that all separate components are present and removed from the cabinet:
-Heat Ducts
-Tray Slides
2. Read this equipment manual completely before operating cabinet.
3. Locate cabinet on a dry, level surface. Set caster brakes to prevent accidental movement of cabinet.
4. Clean cabinet thoroughly before operation (see instructions on page 1).
5. Connect the cabinet power cord to a correctly-wired and protected power source.
1. Familiarize yourself with the heater controls.
A On/Off Switch with Indicator Light B Thermostat C Dial Thermometer
2. Plug cabinet into a proper power source.
3. Turn power switch on. The fan motor will operate continuously. The indicator light will cycle with the heat element.
4. To pre-heat the cabinet, turn the thermosat to “7” and heat for 20-25 minutes. Be sure the cabinet door is securely closed.
5. Food serving temperature will vary with the mass, type and quantity of food served. Set the thermostat for the desired hold setting. Clockwise to increase the temperature and counter-clockwise to decrease the temperature.
6. During loading, the cabinet temperature will drop. Try not to move the cabinet right away; wait 10-15 minutes until the cabinet recovers air temperature.
7. Be sure to remove the plug from the outlet before moving the cabinet. Move the cabinet to the service area as quickly as possible.
8. Upon reaching the service area, reconnect the unit to proper power source as quickly as possible. Wait 5-10 minutes (check the thermometer to see if the temperature is at the desired level). If not, adjust the thermostat as required.
9. When removing items, start at the bottom and work to the top position. This keeps food hotter and eliminates spillage on lower items.
2
CAUTION
WARNING
Operating Procedures
A
B
C
FOOD HOLDING DANGER ZONE
140oF
40oF
Never move cabinet unless the door is securely closed.
Serious damage to
hinges and door may result if bumped into tables, walls, or other equipment when doors are open.
CAUTION
Page 3
3
DO NOT perform these procedures while the cabinet is turned on or heated.
Turn off the power and wait until it has cooled to room temperature before starting.
WARNING
CASTERS
Caster bearings are equipped with Zerk grease fittings so that they may be easily lubricated with a grease gun. Lubricate bearings at least once every six months. Lubrication will be required more often if the cabinet is cleaned with a hot water or steam cleaning system. (Casters with special Delrin
TM
bearings are recommended for frequent cabinet cleaning with steam cleaning systems or high pressure hose.)
LATCHES
Check frequently to insure that door latch is secure. Latch may become “sticky” due to residue build-up from daily use and cleaning. Lubricate latches regularly with WD40, silicone spray, graphite or other commercial lubricants for stainless steel products. Do not use oil.
Calibrations
Cabinet Maintenance

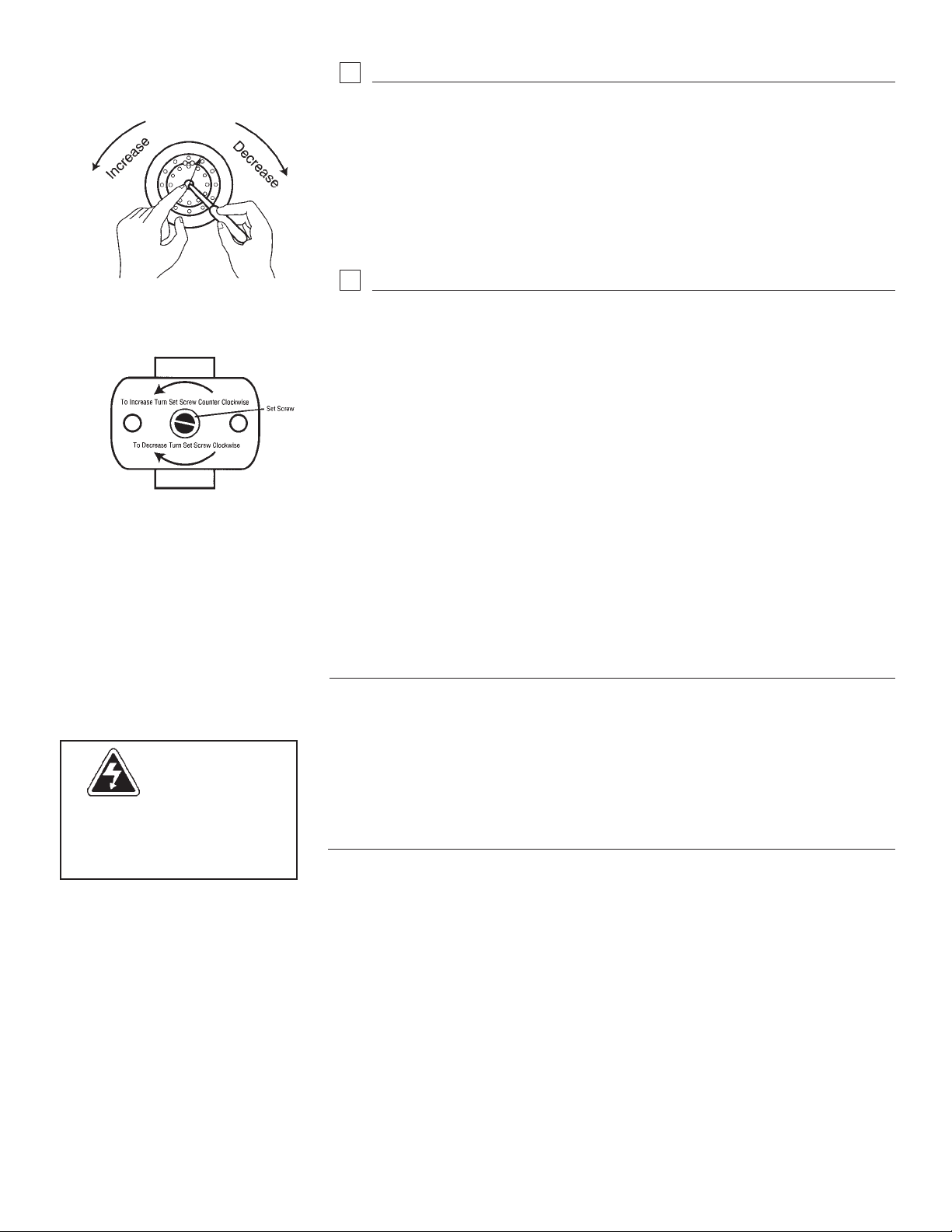

THERMOMETER CALIBRATION
Place an oven thermometer in the center of the cabinet. Turn heater on; turn thermostat to maximum setting and wait approximately 45 minutes. Open the door and check inside thermometer temperature. If recalibration is required, pry the plastic cover off the dial body and with a small flat blade screwdriver, insert into the pointer as shown. Carefully turn the pointer with your finger to the correct setting. Be careful not to bend the pointer. It is very fragile.
THERMOSTAT CALIBRATION
If additional heat range is required in the heating unit, unplug unit, remove black thermostat knob, insert small straight blade screwdriver into opening and turn limit control set screw counter clockwise one full turn. Replace thermostat knob and turn clockwise to reach new maximum temperature. Repeat this until desired temperature is reached. Each 1/4 turn of the calibration set screw will raise the heating element capacity by approximately 25-35
o
F.
If a reduction in heat is desired, turn limit control set screw clockwise one full turn. Hold the door open, allowing unit to cool until inside temperature is below the temperature desired. Close the door and allow unit to rise to a new maximum temperature. Repeat this until desired temperature is reached.
A
B
Page 4

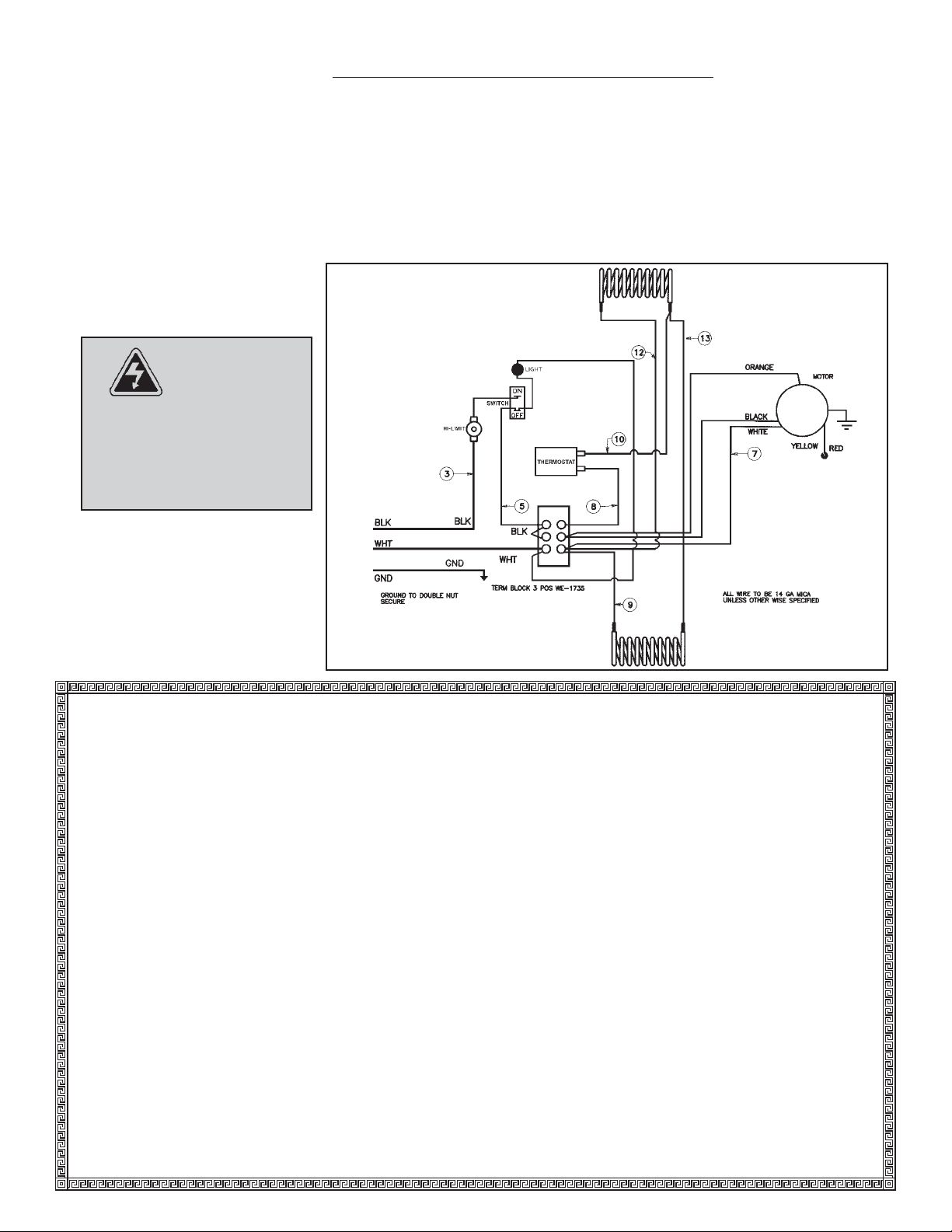

Replacement Parts & Wiring Diagram
Contact factory with your model and serial number for replacement parts.
Use only (OEM) original equipment manufacturer replacement parts.
Using unauthorized parts may cause serious injury. Replacement parts should be installed by a qualified service technician.
Part Number Description 18600-0016 Hi Limit 255 Degrees
18602-0083 Toggle Switch 30A/120V 18605-0016 Power Cord with Plug 18612-0098 Heat Element 2000 Watt/240V 18607-0003 Terminal Block 3 Position 18614-0360 Fan Motor 18603-5015 Fan Blade (for motor 18614-0360) 18600-0016 Thermostat 255 degrees Fahrenheit 18616-0014 Dial Thermometer 18601-1170 Red Indicator Light 18608-0010 Thermostat Knob
Carter-Hoffmann Corporation Warranty:
Warranty Exclusions and Limitations:
Specifications subject to change through product improvement and innovation.
CARTER-HOFFMANN
A Division of Carrier Commercial Refrigeration, Inc.
1551 McCormick Avenue, Mundelein, Illinois 60060 04/06
Printed in U.S.A. Tel. 1-800-323-9793 Fax No. (847)367-8981 18400-3110
Carter-Hoffmann, a Division of Carrier Commercial Refrigeration, Inc. (“CARTER-HOFFMANN”) warrants to the initial purchaser of its standard Carter Line Products that CARTER-HOFFMANN will, at its option, repair or replace, during the warranty period set forth below, any part of such products made necessary due to a defect in material or workmanship which is present when the product leaves its factory and which manifests itself during the warranty period under normal use and service.
This warranty applies only to original equipment owned and possessed by the initial purchaser and the waranty period begins on the date of original shipment from the CARTER-HOFFMANN factory and extends as follows: to component parts and labort for 12 months; to refrigeration compressor unit for one year (limited to replacement only - not to include labor for removal, repair or replacement).
Repair or replacements under this warranty will be performed, unless otherwise authorized in writing by CARTER-HOFFMANN, at its factory. All parts or components to be repaired or replaced under this warranty are to be shipped prepaid to CARTER-HOFFMANN, with reimbursement credit for such part or component to be given if found by CARTER-HOFFMANN to be defective.
CARTER-HOFFMANN neither makes nor assumes and does not authorize any other person to make or assume any obligation or lia­bility in connection with its products other than that covered in this warranty. This warranty applies only within the continental United States and Canada. In Alaska and Hawaii, this warranty applies only to and is limited to the supply of replacement parts.
Any implied warranty of merchantability or fitness for a particular purpose is hereby specifically disclaimed by Carter-Hoffmann Corporation. There are no warranties, expressed or implied, which extend beyond the description on the face hereof.
This warranty does not cover and CARTER-HOFFMANN shall not under any circumstances be liable for any incidental, consequential or other damages (such as injury to persons or property, loss of time, inconvenience, loss of business or profits, or other matters not specifically covered) arising in connection with the use of, inability to use, or failure of these products.
WARNING
120V, 1330 watts, 8.3 amps, 50/60HZ, 1PH
