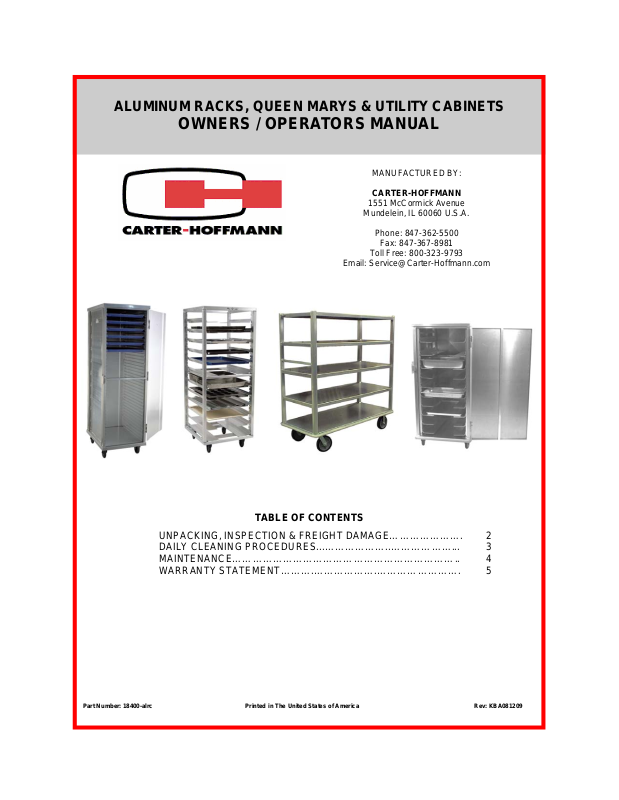

Carter-Hoffmann O8631V User Manual

ALUMINUM RACKS, QUEEN MARYS & UTILITY CABINETS

OWNERS / OPERATORS MANUAL

MANUFACTURED BY:

CARTER-HOFFMANN

1551 McCormick Avenue

Mundelein, IL 60060 U.S.A.

Phone: [phone]

Fax: [phone]

Toll Free: 800-323-9793

Email: [e-mail]

TABLE OF CONTENTS

UNPACKING, INSPECTION & FREIGHT DAMAGE…………………. 2
DAILY CLEANING PROCEDURES...………………..………………... 3
MAINTENANCE………………………………………………………….. 4
WARRANTY STATEMENT……….……………….……………………. 5

Part Number: 18400-alrc Printed in The United States of America Rev: KBA081209

UNPACKING AND INSPECTION

This appliance
should be
thoroughly

cleaned prior to use.
See the CLEANING

INSTRUCTIONS in
this manual.

NOTE: DO NOT discard
the carton or other
packing materials until
you have inspected the
appliance for hidden
damage and checked it
for proper operation.

1. Remove the cabinet from shipping carton, ensuring that all pack­ing materials and protective plastic has been removed from the
unit.

2. Inspect all components for completeness and condition.

3. If any freight damage is present, a freight claim must be filed im­mediately with the shipping company.

4. Freight damage is not covered under warranty.

5. Check to insure all components are included: cabinet, instruction
packet and additional accessories.

6. Read operation instructions completely.

7. Appliance should be thoroughly cleaned before use. See
CLEANING INSTRUCTIONS in this manual.

Refer to SHIPPING

DAMAGE CLAIM
PROCEDURE on

bottom of this page.

FREIGHT DAMAGE PROCEDURE

NOTE: For your protection, please note that equipment in this shipment was carefully inspected

and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment,
the transportation company assumes full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight
bill or express receipt, and that the note of loss or damage is signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY

: Regardless of the extent of damage. Contact

your dealer immediately.

3. CONCEALED DAMAGE: If damage is unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and then file a “CONCEALED DAMAGE” claim
with them. This should be done within fifteen (15) days from the date the delivery was made to
you. Be sure to retain the container for inspection.

Carter-Hoffmann cannot assume liability for damage or loss incurred in transit, freight damage is
not covered under warranty. We will, however, at your request, supply you with the necessary
documents to support your claim.

2

DAILY CLEANING PROCEDURES

CAUTION:

Beware of sharp
edges with sheet

metal during cleaning process.

1. Thoroughly clean rack or cabinet prior to initial use.

2. To clean cabinet regularly, use the following procedure:
A. Pressure (steam) cleaning is recommended for all cabinets

to remove soil and grease deposits. Mild cleaning additives may
be added, depending on the nature of the soil or grease. A solution
of two tablespoons of baking soda per quart of warm water is suffi­cient for most cleaning jobs. Mild soap or detergent may be used
for heavily soiled interiors. DO NOT use strong detergents, ammo­nia solutions or abrasive cleaners. Do not use steel wool pads—
ferrous deposits will cause rusting

B. After pressure cleaning, rinse thoroughly with clear water.
C. The unit may be further sanitized by wiping with a solution

of 1 to 2 tablespoons of 5.25% sodium hypochlorite (household
strength laundry bleach) per quart of water.

D. Wipe dry with a clean soft cloth.

CAUTION:

Do not use strong detergents, alkalis, ammonia solutions or

abrasive cleaners. Use only cleaning agents approved for alu­minum and only in the recommended manufacturer’s concentration. Do
not use steel wool pads—ferrous deposits will cause rusting.

Use of cleaning agents that are not recommended for aluminum may
cause permanent damage to the cabinet. THIS DAMAGE IS PERMA-

NENT, COSTLY TO REPAIR AND IS NOT COVERED BY THE
WARRANTY.

3

MAINTENANCE

CAUTION:

Do not move cabinet

unless door is se­curely closed. Serious dam­age to hinges and door may
result if bumped into tables,
walls, or other equipment when
the doors are open.

CASTERS

Some cabinets may have caster bearings that are equipped with
Zerk grease fittings so that they may be easily lubricated with a
grease gun. Lubricate bearings at least once every six months.

HINGE MAINTENANCE

Make sure all joints remain sealed and door latches do not stick. If
necessary, use WD-40 to keep door latches from sticking. Do not
use oil.

BUMPER MAINTENANCE
Queen Mary transport carts have a wrap-around bumper with grey

vinyl insert. If vinyl insert starts to come out of the bumper frame,
simply pry it back into place with a flat-head screwdriver.

4

WARRANTY

Carter-Hoffmann Warranty:

Carter-Hoffmann (“CARTER-HOFFMANN”) warrants to the initial purchaser of its standard Carter
Line Products that CARTER-HOFFMANN will, at its option, repair or replace, during the warranty
period set forth below, any part of such products made necessary due to a defect in material or work­manship which is present when the product leaves its factory and which manifests itself d ur ing th e war­ranty period under normal use and service.

This warranty applies only to original equipment owned and possessed by the initial purchaser and the
warranty period begins on the date of original shipment from the CARTER-HOFFMANN factory and
extends as follows: to component parts and labor for 12 months; to refrigeration compressor unit for
one year (limited to replacement only - not to include labor for removal, repair or replacement).

Repair or replacements under this warranty will be performed, unless otherwise authorized in writing
by CARTER-HOFFMANN, at its factory. All parts or components to be repaired or replaced under this
warranty are to be shipped prepaid to CARTER-HOFFMANN, with reimbursement credit for such part
or component to be given if found by CARTER-HOFFMANN to be defective.

CARTER-HOFFMANN neither makes nor assumes and does not authorize any other person to make or
assume any obligation or liability in connection with its pro ducts other than that covered in this war­ranty. This warranty applies only within the continental United States and Canada. In Alaska and Ha­waii, this warranty applies only to and is limited to the supply of replacement parts.

Warranty Exclusions and Limitations:

Any implied warranty of merchantability or fitness for a particular purpose is hereby specifically dis-

claimed by CARTER-HOFFMANN. There are no warranties, expressed or implied, which extend be-

yond the description on the face hereof. This warranty does not cover and CARTER-HOFFMANN shall

not under any circumstances be liable for any incidental, consequential or other damages (such as in-

jury to persons or property, loss of time, inconvenience, loss of business or profits, or other matters not

specifically covered) arising in connection with the use of, inability to use, or failure of these products.

Specifications subject to change through product improvement and innovation.

Carter-Hoffmann

1551 McCormick Ave.

Mundelein, Illinois, 60060 USA

Phone: [phone] Toll free: 800-323-9793 Fax: [phone]

Sales and Marketing E-mail: [e-mail]

Service E-mail: [e-mail]
Company Website: www.carter-hoffmann.com

5
